WARNING: Maximum TOTAL weight limit, including
user and weights: 300 lbs.
This Product is Distributed Exclusively by
2040 N Alliance Ave, Springeld, MO 65803
Customer Care
1 (800) 375-7520
www.staminaproducts.com
Product May Vary Slightly From Pictured.
STAMINA PRODUCTS
MADE IN CHINA
© 2024 Stamina Products, Inc.
2024, 02
When calling for parts or
service, please specify
the following numbers
:
Model#: 20-1500
S/N: _____________
Exercise can present
a health risk. Consult
a physician before
beginning any exercise
program with this
equipment. If you feel
faint or dizzy, immediately
discontinue use.
Serious bodily injury can
occur if this equipment is
not assembled and used
in accordance with the
owner’s manual.
Follow all safety
instructions in this
owner’s manual.
!
WARNING
Owner's
Manual
TABLE OF CONTENTS
2
Safety Instructions ...................................... 2
Before You Begin ........................................ 4
Equipment Warning, Caution & Notice Labels
... 5
Hardware Identication Chart .................... 6
Assembly Instructions ................................ 7
Maintenance ................................................ 9
Storage ......................................................... 9
Conditioning Guidelines ........................... 10
Warm-Up and Cool-Down ......................... 11
Product Parts Drawing .............................. 12
Parts List .................................................... 13
Warranty ..................................................... 14
Fax/Mail Ordering Form ............................ 15
SAFETY INSTRUCTIONS
!
WARNING
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35, have never exercised before,
are pregnant, or suer from any health problem. This product is for home use
only. Do not use in institutional or commercial applications. Failure to follow all
warnings and instructions could result in serious injury or death.
To reduce the risk of serious injury, read the following Safety Instructions
before using the Stamina Foldable Flat Weight Bench.
!
WARNING
!
WARNING
The Stamina Foldable Flat Weight Bench should only be used after a thorough review of the
Owner’s Manual by all exercisers and saved for future reference.
Make sure that the product is properly assembled and tightened before use.
We recommend that two people be available for assembly of this product.
Keep children and pets away from the Stamina Foldable Flat Weight Bench at all times. This
product is for adult use only.
It is recommended that you place this product on an equipment mat.
Set up and operate the Stamina Foldable Flat Weight Bench on a solid level surface. Do not
position the product on loose or uneven surfaces.
Make sure that adequate space of 6 feet wide x 8 feet long is available for access to and around
the product.
KeepngersclearofallpinchpointswhenfoldingandunfoldingtheStaminaFoldableFlatWeight
Bench.
Before using, always inspect the product for worn parts that should be replaced or loose parts that
should be tightened.
Always exercise with a partner. When you are performing bench press exercises, your partner
should stand behind you to catch the barbell if you cannot complete repetition.
Alwayschoosetheworkoutwhichbesttsyourphysicalstrengthandexibilitylevel.Knowyour
limits and train within them.
Do not wear loose clothing while using the Stamina Foldable Flat Weight Bench.
Always wear proper footwear such as running, walking, or cross training shoes.
Be careful to maintain your balance while assembling, mounting, using and dismounting the
Stamina Foldable Flat Weight Bench. Loss of balance may result in a fall or serious bodily injury.
The Stamina Foldable Flat Weight Bench should not be used by persons weighing over 300
pounds.
The Stamina Foldable Flat Weight Bench should be used by only one person at a time.
The Stamina Foldable Flat Weight Bench is for consumer use only. It is not for use in public or
semipublic facilities.
NEED HELP?
CONTACT US FIRST
1 (800) 375-7520
customer.care@staminaproducts.com
Hi! From all of us here at Stamina Products, thank you for your purchase. We
know that you have big fitness goals in mind and we are here to help you along.
Call us, email us, or send us a message on Facebook. Be sure to contact us if you
have any questions on your new product. We look forward to hearing from you!
With your body in mind,
Stamina Customer Care
To enact your extended warranty and to help us better
serve you, please go online and register your new product.
register.staminaproducts.com
ONLINE
customer.care@staminaproducts.com
www.staminaproducts.com
TELEPHONE
1 (800) 375-7520
FAX
(417) 889-8064
MAIL
Stamina Products, Inc.
ATTN: Customer Care
2040 N Alliance Ave
Springfield, MO 65803
facebook.com/StaminaProducts
facebook.com/AeroPilates
CUSTOMER CARE HOURS:
Monday-Thursday, 7:30 AM-5:00 PM, Central Time
Friday, 8:00 AM-3:00 PM, Central Time
It is quick and easy to register online, but if you’re a little old school or just need a
reason to raise that little flag on your mailbox, fill out the info on the last page of this
manual and mail it in.
Cushion
BEFORE YOU BEGIN
4
THE FOLLOWING TOOLS ARE INCLUDED FOR ASSEMBLY : Wrench (2 pieces)
Support Frame
Support Frame
Stabilizer
With Rings
Caution Label
Endcap
Endcap
Serial Decal
Thank you for choosing the Stamina Foldable
Flat Weight Bench. We take great pride in this
quality product and hope it will provide many hours
of quality exercise to make you feel better, look
better, and enjoy life to its fullest.
It's a proven fact that a regular exercise program
can improve your physical and mental health.
Too often, our busy lifestyles limit our time and
opportunity to exercise. The Stamina Foldable Flat
Weight Bench provides a convenient and simple
method to begin your journey of getting your body
in shape and achieving a happier and healthier
lifestyle.
Before reading further, please review the
drawing below and familiarize yourself with the
parts that are labeled. Locate the serial decal on
the product and write the serial number on the
cover of the manual in the space provided. See the
next page for an image of the serial decal. Model
number and serial number are required when
calling for assistance.
Read this manual carefully before using the
Stamina Foldable Flat Weight Bench.
Providing you with a quality product is Stamina's
top priority. However, sometimes there could be a
missing or incorrectly sized part. If you have any
questions or problems with the parts included with
your Stamina Foldable Flat Weight Bench, please
do not return the product. Contact us FIRST!
If a part is missing or defective, please contact
Customer Care for assistance. Call us toll free
at 1-800-375-7520 (in the U.S.) or live chat on
staminaproducts.com.OurCustomerCareStais
available to assist you from 7:30 A.M. to 5:00 P.M.
(Central Time) Monday through Thursday and 8:00
A.M. to 3:00 P.M. (Central Time) on Friday.
Be sure to have the name and model number of
the product available when you contact us.
Endcap
Stabilizer
Warning Label
NOTE: Assembly will be more convenient if you have a set of standard and metric wrenches, plus
standard and Phillips screwdrivers.
5
This chart is provided to help identify the warning, caution, and notice labels on the Stamina Foldable
Flat Weight Bench. Please take a moment to familiarize yourself with all of the warning, caution, and
notice labels.

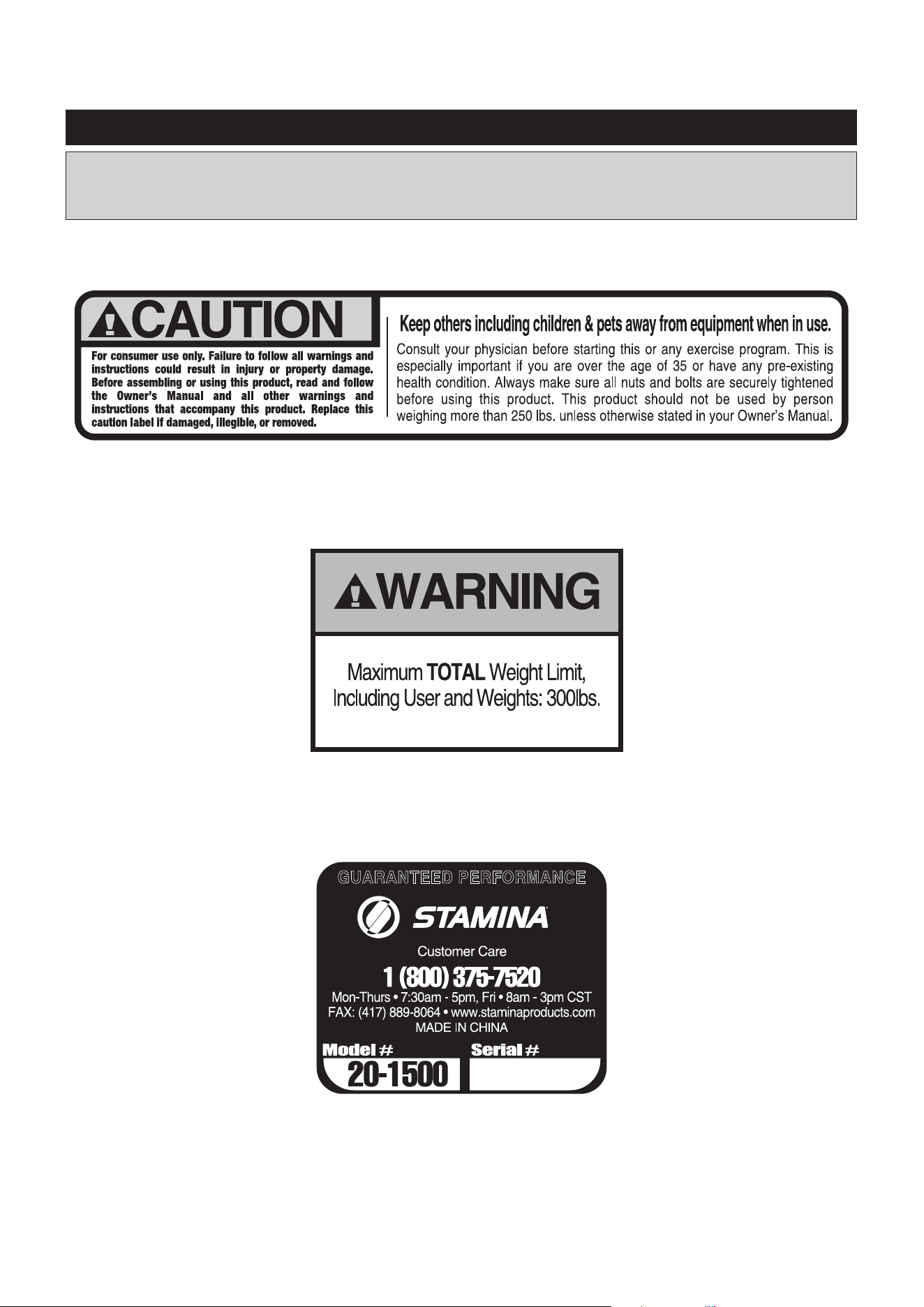

EQUIPMENT WARNING, CAUTION & NOTICE LABELS
SERIAL DECAL(15)
CAUTION LABEL(14)
WARNING LABEL(16)
To best serve you, our Customer Care Representatives will
need your serial number. For quick access, write in your
serial number on the cover of the manual.
Part Number and Description Qty
7 Carriage Bolt (M10 x 1.5 x 65mm) 4
6
8 Bolt, Hex Head (M10 x 1.5 x 68mm) 2
11 Nylock Nut (M10 x 1.5) 6
10 Washer (M8) 3
9 Bolt, Hex Head (M8 x 1.25 x 40mm) 3
length
length
mm.
in.
INCHES
This chart is provided to help identify the hardware used in the assembly process. Place the washers or
the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to
check the length of the bolts and screws.
NOTICE: The length of all bolts and screws, except those with flat
heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.
After unpacking the unit, open the hardware bag and make sure that you have all the following items.
Some hardware may be already attached to the part.
MILLIMETERS
0 10 20 30 40 50 60 70 80 90
100
110
120
130 140
150
0 1/2
1 1/2
2 1/2
3 1/2
4 1/2
5 1/2
6
6 8
10
12
3/16"
1/4"
5/16" 3/8" 1/2"
HARDWARE IDENTIFICATION CHART
4
3
6
8
11
3
6
8
11
ASSEMBLY INSTRUCTIONS
7
STEP 1
Attach the SUPPORT FRAME(3) to the TOP BEAM(4) with HEX BOLT(M10x1.5x68mm)(8) and NYLOCK
NUT(M10x1.5)(11). Lock the SUPPORT FRAME(3) in unfold position with the LOCKING PIN(6). Do the
same to attach the SUPPORT FRAME(3) to the TOP BEAM(4) on other end.
Placeallpartsfromtheboxinaclearedareaandpositionthemontheoorinfrontofyou.Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Customer Care section and order the part
needed, e-mail us at customer[email protected], or call us toll free at 1-800-375-7520
(intheU.S.).OurCustomerCareStaisavailabletoassistyoufrom7:30A.M.to5:00P.M.(Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
Some product parts are t tested at the factory to ensure proper t and alignment. Marks in
the paint may be noticeable, but are not an indication of damage.
ASSEMBLY INSTRUCTIONS
STEP 2
Attach the STABILIZER WITH RINGS(1) to one of the SUPPORT FRAMES(3) with CARRIAGE BOLTS
(M10x1.5x65mm)(7) and NYLOCK NUTS(M10x1.5)(11). Attach the STABILIZER(2) to the other SUPPORT
FRAME(3) with CARRIAGE BOLTS(M10x1.5x65mm)(7) and NYLOCK NUTS(M10x1.5)(11).
STEP 3
Attach the CUSHION(5) to the TOP BEAM(4) with HEX BOLTS(M8x1.25x40mm)(9) and WASHERS(M8)
(10).
8
9
10
9
10
11
11
9
10
3
11
11
3
1
7
4
5
2
7
The safety and integrity designed into the Stamina Foldable Flat Weight Bench can only be maintained
when the Stamina Foldable Flat Weight Bench is regularly examined for damage and wear. Special
attention should be given to the following:
STORAGE
MAINTENANCE
9
a. Place the Stamina Foldable Flat Weight Bench upside down as shown in illustration A. Remove the
LOCKING PINS(6) from the SUPPORT FRAMES(3), then fold the SUPPORT FRAMES(3).
b. The Stamina Foldable Flat Weight Bench should appear as shown in illustration B after folding. Store
the LOCKING PIN(6) in the hole in the SUPPORT FRAMES(3).
3
3
6
6
4
6
6
3
3
A.
B.
To store the Stamina Foldable Flat Weight Bench, simply keep it in a clean dry place.
Use two people to lift from the STABILIZERS(1, 2) to move the Stamina Foldable Flat Weight Bench.
Follow the process below to fold the Stamina Foldable Flat Weight Bench as illustrated for easy
storage.
Verify that the CAUTION LABEL(14) is in place and easy to read. Call Stamina Products immediately
at 1-800-375-7520 for a replacement CAUTION LABEL(14) if it is missing or damaged.
It is the sole responsibility of the user/owner to ensure that regular maintenance is performed.
Verify that all nuts and bolts are present and properly tightened. Replace missing nuts and bolts.
Securely tighten loose nuts and bolts.
Worn or damaged components must be replaced immediately or the Stamina Foldable Flat Weight
Bench removed from service until repair is made.
Only Stamina Products supplied components should be used to maintain/repair the Stamina Foldable
Flat Weight Bench.
KeepyourStaminaFoldableFlatWeightBenchcleanbywipingitowithanabsorbentclothafter
use.
How you begin your exercise program depends on your physical condition. If you have been inactive for
several years or are severely overweight, start slowly and increase your workout time gradually. Increase
your workout intensity gradually by monitoring your heart rate while you exercise.
Initially you may only be able to exercise within your target zone for a few minutes; however, your aerobic
capacity will improve over the next six to eight weeks. It is important to pace yourself while you exercise
so you don't tire too quickly.
Measure your heart rate periodically during your workout by stopping the
exercise but continuing to move your legs or walk around. Place two or
threengersonyourwristandtakeasixsecondheartbeatcount.Multiply
theresultsbytentondyourheartrate.Forexample,ifyoursixsecond
heartbeat count is 14, your heart rate is 140 beats per minute. A six second
count is used because your heart rate will drop rapidly when you stop
exercising. Adjust the intensity of your exercise until your heart rate is at the
proper level.
wrist pulse
Remember to follow these essentials:
Have your doctor review your training and diet programs.
Begin your training program slowly with realistic goals that have been set by you and your physician.
Warm up before you exercise and cool down after you work out.
Take your pulse periodically during your workout and strive to stay within a range of 60% (lower
intensity) to 90% (higher intensity) of your maximum heart rate zone. Start at the lower intensity, and
builduptohigherintensityasyoubecomemoreaerobicallyt.
If you feel dizzy or lightheaded you should slow down or stop exercising.
To determine if you are working out at the correct intensity, use a heart rate monitor or use the table
below. For effective aerobic exercise, your heart rate should be maintained at a level between 60%
and 90% of your maximum heart rate. If just starting an exercise program, work out at the low end of
your target heart rate zone. As your aerobic capacity improves, gradually increase the intensity of your
workout by increasing your heart rate.
CONDITIONING GUIDELINES
Target Heart Rate Zone Estimated by Age*
* For cardiorespiratory training benefits, the American College of Sports Medicine recommends
working out within a heart rate range of 55% to 90% of maximum heart rate. To predict the
maximum heart rate, the following formula was used: 220 - Age = predicted maximum heart rate
20 years
25 years
30 years
35 years
40 years
45 years
50 years
55 years
60 years
65 years
70 years
Average Maximum
Heart Rate 100%
Age
110-180 beats per minute
107-175 beats per minute
105-171 beats per minute
102-166 beats per minute
99-162 beats per minute
97-157 beats per minute
94-153 beats per minute
91-148 beats per minute
88-144 beats per minute
85-139 beats per minute
83-135 beats per minute
200 beats per minute
195 beats per minute
190 beats per minute
185 beats per minute
180 beats per minute
175 beats per minute
170 beats per minute
165 beats per minute
160 beats per minute
155 beats per minute
150 beats per minute
Target Heart Rate Zone
(55%-90% of Maximum Heart Rate)
10
11
WARM-UP and COOL-DOWN
Warm-Up
The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Warm up for two to ve minutes before strength training or aerobic exercising. Perform activities that
raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging,
jumping jacks, jump rope, and running in place.
Cool-Down
The purpose of cooling down is to return the body to its normal, or near normal, resting
state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows
blood to return to the heart. Your cool down should be completed after each strength training session.
2
3
3
4
5
6
6
8
8
9
10
11
11
11
11
12
12
13
13
7
9
10
9
10
12
12
7
11
11
16
14
1
15
PRODUCT PARTS DRAWING
12
FRONT
BACK
PART# PART NAME QTY
PARTS LIST
13
1 Stabilizer With Rings 1
2 Stabilizer 1
3 Support Frame 2
4 Top Beam 1
5 Cushion 1
6 Locking Pin 2
7 Carriage Bolt (M10 x 1.5 x 65mm) 4
8 Bolt, Hex Head (M10 x 1.5 x 68mm) 2
9 Bolt, Hex Head (M8 x 1.25 x 40mm) 3
10 Washer (M8) 3
11 Nylock Nut (M10 x 1.5) 6
12 Endcap (50 x 50mm) 4
13 Rectangle Plug (30mm x 50mm) 2
14 Caution Label 1
15 Serial Decal 1
16 Warning Label 1
17 Wrench 2
18 Manual 1
LIMITED WARRANTY
WARRANTY
MODEL 20-1500
14
Stamina Products, Inc. (“Stamina”) warrants to the original purchaser that this product will be free from
defects in materials and workmanship that arise under normal use, service, proper assembly and proper
operation in accordance with product warnings/instructions for a period of 90 days on the parts and one
year on the frame from the date of the original purchase from an authorized retailer. THIS WARRANTY
SHALL NOT APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO COMMERCIAL USE,
ABUSE, MISUSE, ALTERATION OF ANY KIND OR TO ANY DEFECT OR CHANGE CAUSED BY
IMPROPER ASSEMBLY, REPAIR, REPLACEMENT, SUBSTITUTION OR USE WITH PARTS NOT
PROVIDED BY STAMINA. Commercial use includes use of product in athletic clubs, health clubs, spas,
gyms, and all other public or semipublic facilities whether or not the product’s use is in furtherance of a
protmakingenterprise,andallotherusewhichisnotforpersonalpurposes.
To implement this limited warranty, send a written notice stating your name, date, and place of purchase
and a brief description of the defect along with your receipt to Stamina Products, Inc. 2040 N Alliance
Ave,Springeld,Missouri,USA,MO65803,oremailusatcustomer[email protected],orcall
us at 1-800-375-7520. If the defect is covered under this limited warranty, you will be requested to return
the product or part to us for free repair or replacement at our option.
NO ACTION FOR BREACH OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER THE DATE THE ALLEGED BREACH WAS OR SHOULD HAVE
BEEN DISCOVERED. NO ACTION FOR BREACH OF ANY IMPLIED WARRANTY (INCLUDING
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER DELIVERY OF THE PRODUCT TO THE PURCHASER. These warranties
are not transferable. IF ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE WITH THIS LIMITED
WARRANTY OR ANY IMPLIED WARRANTY, THE REMEDY OF REPAIR OR REPLACEMENT IS THE
EXCLUSIVE REMEDY. If any claim is made under this limited warranty or any implied warranty, Stamina
reserves the right to require the product to be returned for inspection, at the purchaser’s expense, to
Stamina’s premises in Springfield, Missouri. Return of the enclosed warranty registration card is not
required for warranty coverage, but is merely a way of establishing the date and place of purchase.
Stamina SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL, SPECIAL
OR INCIDENTAL DAMAGES DUE TO BREACH OF THE ABOVE WARRANTY OR ANY IMPLIED
WARRANTY.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY. NO ORAL OR WRITTEN
INFORMATION GIVEN BY STAMINA, ITS AGENTS OR EMPLOYEES, SHALL CREATE A WARRANTY
OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY.Thiswarrantygivesyouspeciclegal
rights, and you may also have other legal rights which vary from state to state. ANY OTHER RIGHT
WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY.
Thelawsinsomestatesaectthedisclaimerorlimitationofimpliedwarrantiesandconsequentialand
incidental damages. If any such law is found applicable, the foregoing disclaimers and limitations of and
onimpliedwarrantiesandconsequentialandincidentaldamagesshallbedeemedtobemodiedtothe
extent necessary to comply with applicable law.
Model Number: ...................................................................................... Serial Number: .............................................................................................
Product Name: ..................................................................................................................................................................................................................................
Place Purchased: ..............................................................................................................................................................................................................................
Date of Purchase: .................................................................................. Purchase Price: ............................................................................................
First Name: ............................................................................................ Last Name: ...................................................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
Email Address: ....................................................................................... Phone #: ( ) ......................................................................................
WouldyouliketoreceiveemailinformationorspecialoersfromStaminaProducts?*____Yes____No
*If yes, be sure your email address is included above.
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
If there are missing or damaged parts, you can go to parts.staminaproducts.com and order those parts. If you have questions,
please contact customer care. Do not return the product. To order parts by mail, fill out the sheet below and fax it to
417-889-8064. The part will be mailed to your address.
Mr./Ms: ..............................................................................................................................................................................................................................................
Address: ........................................ ............................................................................................. Apt. #:..........................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
IMPORTANT : We require your phone number to process the order!
Phone #: ( ) ................................................................................ Work Phone #: ( ) .............................................................................
Date of Purchase: ..................................................................................
Model #: ............................................................................................................................................................................................................................................
Purchased From: ..............................................................................................................................................................................................................................
IMPORTANT: Before lling out the portion below, make sure you have the correct information.
Refer to the parts list to make sure you're ordering the right parts!
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
Detach and Mail or Fax the Form Above
TO CONTACT CUSTOMER CARE
For your convenience, Stamina’s customer care representatives can be reached by email at customer.care@staminaproducts.
com or by phone at 1-800-375-7520 (in the U.S.). Our customer care representatives are available Monday through Thursday
from 7:30 a.m. until 5:00 p.m., and Friday 8:00 a.m. until 3 p.m. Central Time.
TO REGISTER YOUR PRODUCT
WouldyouliketorecieveemailinformationorspecialoersfromStaminaProducts?Registeratcontact.staminaproducts.com
TELEPHONE
CUSTOMER CARE
Tel: 1 (800) 375-7520
FAX
CUSTOMER CARE
Fax: (417) 889-8064
MAIL
STAMINA PRODUCTS, INC.
ATTN: Customer Care
2040 N Alliance Ave, Springeld, MO 65803
ONLINE
CUSTOMER CARE
customer[email protected]
www.staminaproducts.com
To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model
number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your
product) ready.
Ifyoudon’thaveinternetaccess,youcancallcustomercareat1-800-375-7520,orlloutandmailtheproductregistrationform
belowtoStaminaProducts,Inc.;2040NAllianceAve,Springeld,MO65803.
PRODUCT REGISTRATION FORM
TO ORDER PARTS
Detach and Mail or Fax the Form Below
PARTS ORDER FORM
PART # DESCRIPTION QUANTITY
1 Rear Unit Assembly 1
EXAMPLE:
