User Manual
Household use only
ZM1512
For optimal performance, please read the user guide carefully before using your
new appliance. We also recommend keeping the instructions for future reference
to easily recall its functions.
CONTENTS
01
SAFETY PRECAUTIONS IN USE 2
CHAPTER 1:
PARTS AND FUNCTIONS 4
CHAPTER 2:
DIRECTIONS FOR USE 6
CHAPTER 3:
MAINTENANCE 9
CHAPTER 4:
SAFETY INDEXES 10
CHAPTER 5:
CHAPTER 1:
SAFETY PRECAUTIONS IN USE
1. The input voltage of the appliance is 120V/60Hz. Please confirm it before using
the appliance.
2. Do disconnect the power supply before dismantling, assembling or adjusting any
part of the appliance.
3. The appliance has Y connection. If its power cord is damaged, please contact our
customer service department for replacement (Email: [email protected])
to avoid dangers. Do not dismantle and repair it by yourself.
4. Before use, please check if the power cord, the plug, the juice strainer, the spiral
pusher and any other part is damaged. If any of the said part is damaged, stop
using the applianceand contact our customer service department promptly. Do not
dismantle and repair it by yourself, otherwise dangers may happen.
5. If it is necessary to repair the appliance during use, please contact our customer
service department. Do not dismantle it by yourself, otherwise dangers may
happen.
6. It is necessary before connecting the power supply to ensure that the juicing body,
the spiral pusher, the juicing body cap and all other dis-mountable parts are
properly installed.
7. Never put hands or sharp objects into the feed port or contact the spiral pusher
when the appliance is running, otherwise injuries may be caused or the appliance
may be damaged; never replace the spiral pusher with any other objects or have
eyes get close to the feed port, otherwise accidents may happen.
8. Cut food ingredients into small blocks with sizes fitting the feed port of the juicing
body. Do not begin to process any vegetables or fruits with cores, hard seeds or
thick skin or shells until they are removed.
9. When feeding a food ingredient, do not make the pushing force too large but have
it just enough to cut the food ingredient.
10. Dyeing of the juice strainer, the juicing body cap, the spiral pusher and other
accessories after juicing some vegetables or fruits is normal and will neither affect
food eating nor do harm to health.
11. Do not dismantle the dis-mountable parts of the appliance immediately after use
but afterboth the motor and the spiral pusher have stopped and the power supply
is disconnected.
12. Do not sterilize any accessories of the appliance with hot water that is higher
than 80℃ or a microwave oven, otherwise they may be heated, deformed and
damaged. The materials of all parts in contact with food ingredients should
comply with food hygiene certificationand be clean, hygienic and reliable.
13. Do not put the main body into water or another liquid or flush it with water or
another liquid, otherwise it may be damaged.
02
14. Do not clean the appliance with steel wool, abrasive cleaning agents or corrosive
liquids(such as gasoline or acetone).
15. The appliance is applicable to use by individuals or families only.
16. The appliance is not to be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have beengiven supervision or instruction. children being supervised
not to play with the appliance.
17. Accessories, other than those supplied with the appliance, include instructions for
their safe use.
18. Use a wet cloth to clean surfaces in contact with food before unplug the plug.
19. Switch off the appliance and disconnect from supply before changing accessories
or approaching parts that move in use.
20. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agentor similarly qualified persons in order to avoid a hazard.
21. Warning: potential danger may be against misuse
22. Always disconnect the appliance from the supply if it is left unattended and before
assembling, disassembling or cleaning.
03
CHAPTER 1:
SAFETY PRECAUTIONS IN USE
04
CHAPTER 2:
PARTS AND FUNCTIONS
7
8
9
10
11
12
13
1
2
3
4
5
6

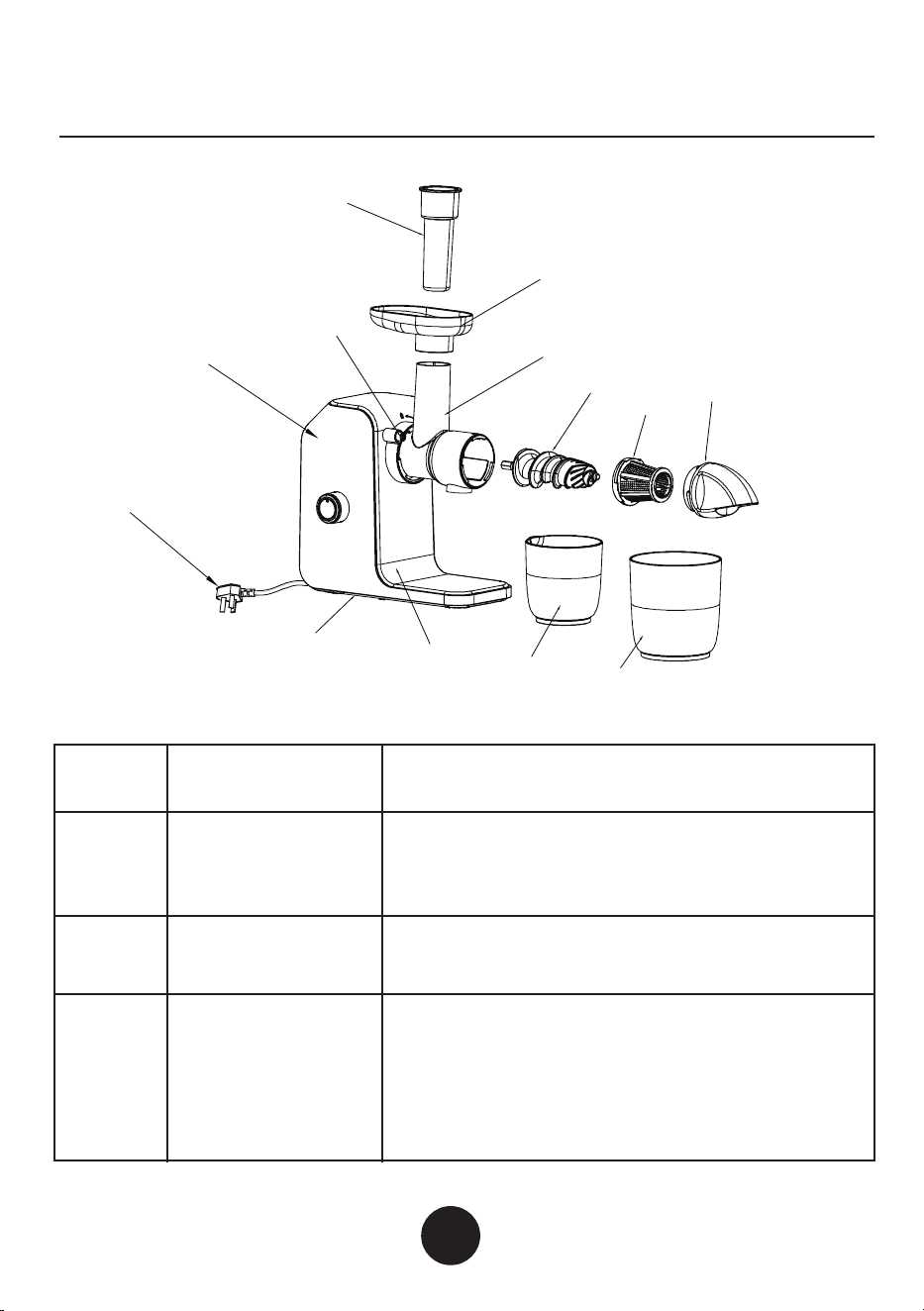

No.
1 Pusher
It is used for squeezing the fed food ingredients
gently for their full contact with the spiral
pusher and higher juice extraction efficiency.
2 Tray
It is mainly used for storing the extracted food
ingredients.
3
Juicing
body
It is a main part for juicing. Food ingredients
are first fed via the feed port at the top of the
juicing body and then discharged in forms of
juice and pulp via the juice outlet and the pulp
outlet respectively
Part name
Function
05
CHAPTER 2:
PARTS AND FUNCTIONS
4 Auger
As a main part for juicing, it is used for
conveying food ingredients and grinding them
by breaking in with the juice strainer or the
squeezer.
5 Filter
By means of breaking in with the spiral pusher,
it is used for grinding and filtering the
extracted food ingredients to get juice.
6 End Cup
IDrainage of fruit pomace.
7
Pulp
Container
It is used for loading residue.
8
Juicer
Container
It is used to pick up juice.
9
Front
Cover
As a main part and the power source of the
appliance.
10 Base
As a main part and the power source of the
appliance.
11
Power
Cord
It is used for connecting the power supply to
provide power
12 Main Body
As a main part and the power source of the
appliance.
06
Before using the appliance for the first time, clean its parts in
contact with food ingredients thoroughly (please refer to “Chapter
4: Maintenance”).
Please install and use the appliance following the steps below.
CHAPTER 3:
DIRECTIONS FOR USE

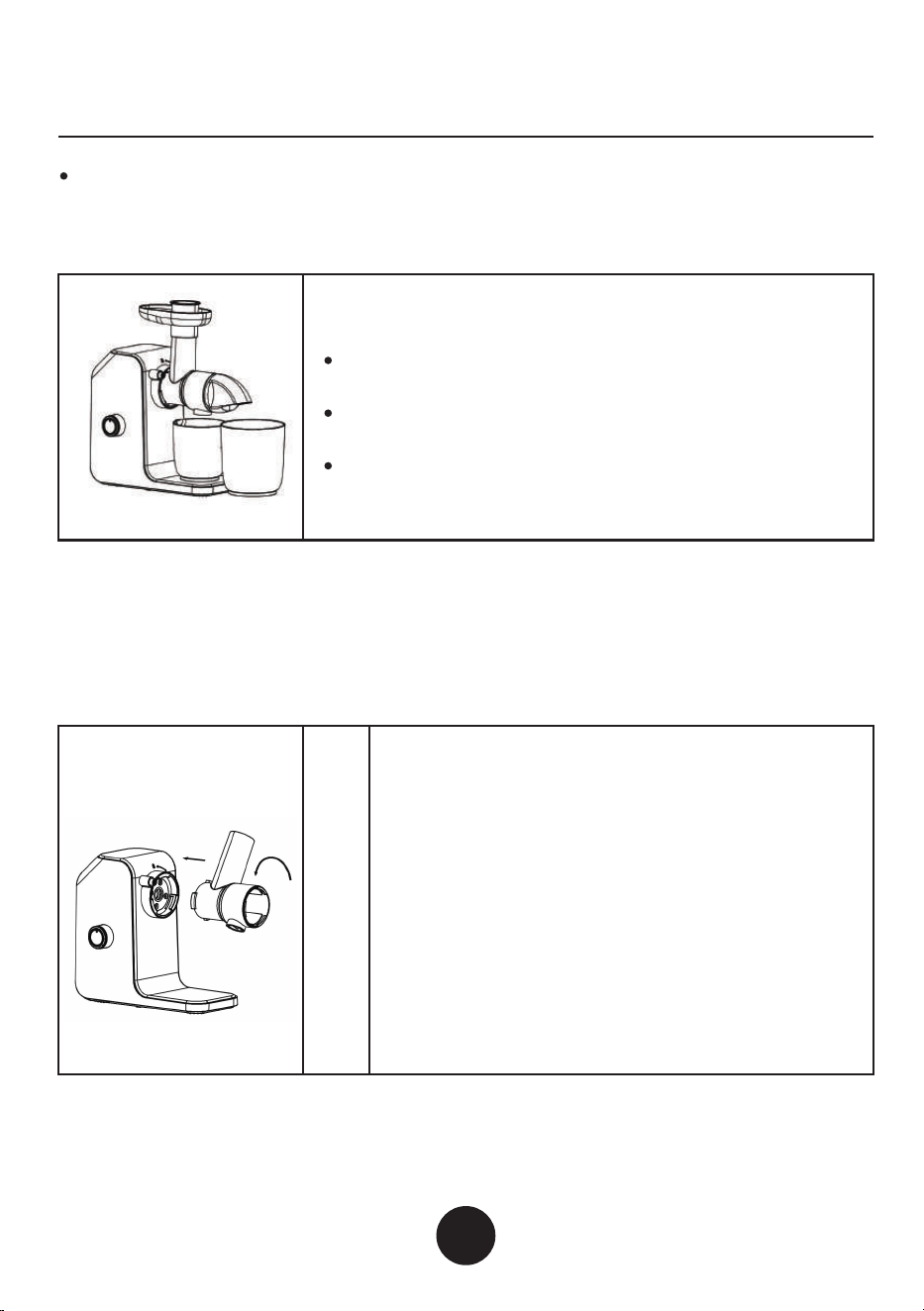

I. Use of the appliance
Button operation instructions:
On button: Function Start
“0” button: Close and stop
“R” button: It is used when pulp discharge is blocked
or the motor is locked
1. Have the triangular aligning sign “▼” on the
juicing body aligned with the aligning
“unlocking triangular sign” on the main body
and then put the juicing body into the main
body (the three clips on the juicing body will
realize alignment).
2. Then turn the juicing body anticlockwise.
When there is a click, it suggests that the
connection is finished.
1
Connect the juicing body and the main
body:
07
CHAPTER 3:
DIRECTIONS FOR USE

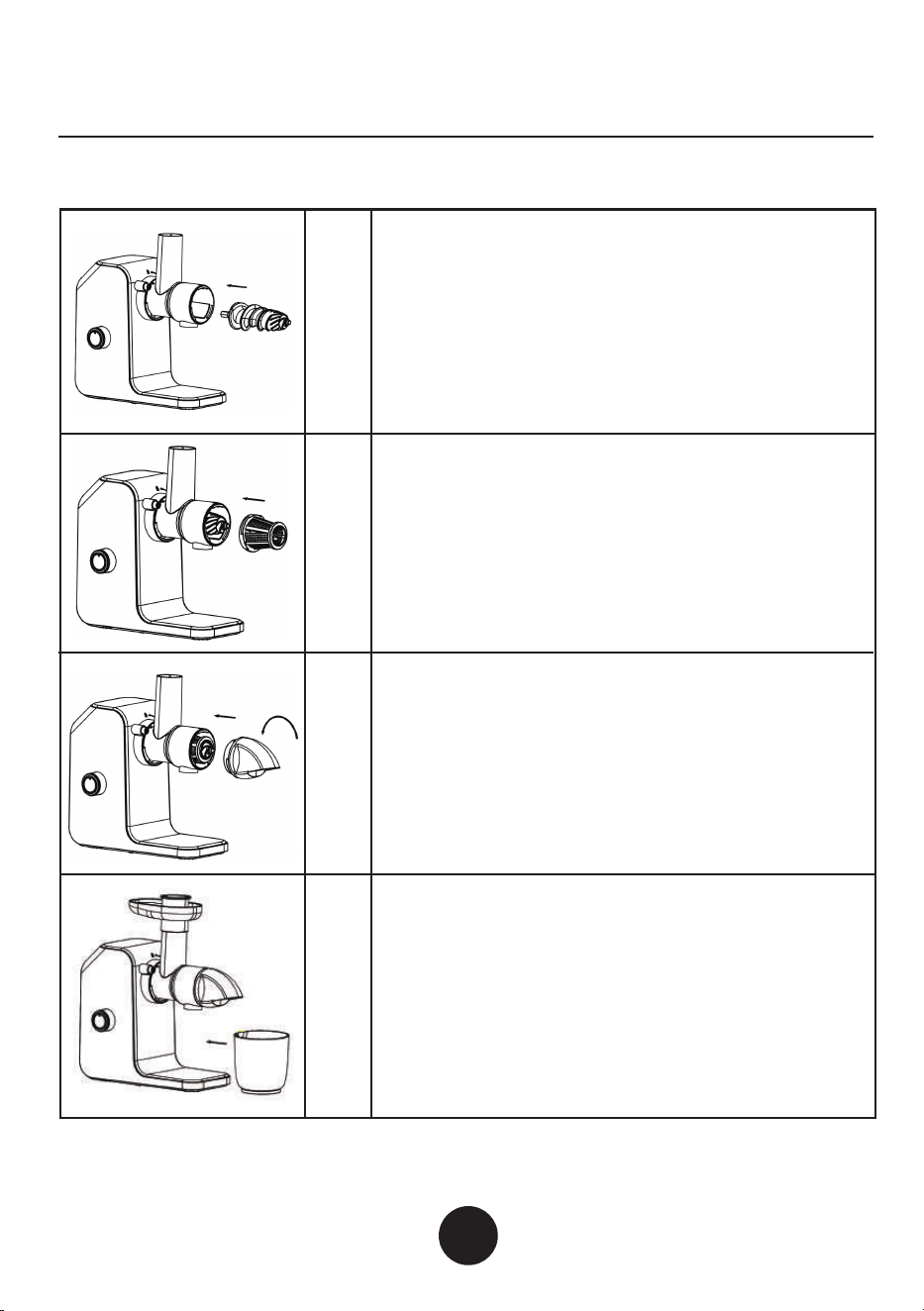

Have the hexagonal shaft of the spiral pusher
aligned with the hole on the main body and
push it horizontally until it reaches the bottom
(when alignment fails, just turn the spiral
pusher slightly).
2
Fit the larger-hole end of the juicer strainer
into the tail of the spiral pusher and push it
while the three clips of the juicer strainer align
with the three clamping slots in the juicing
body. (The juicestrainer is used with the juicing
button in the rear only. This function is used for
juicing.)
3
Align the triangle alignment mark on the juice
extractor with the unlock triangle mark on the
juice extractor, and then put the end cup into the
juice extractor.
4
Put the juice cup in the corresponding groove
on the main body and have its opening aligned
with the bottom of the juice outlet of the juicing
body.
5
08
CHAPTER 3:
DIRECTIONS FOR USE

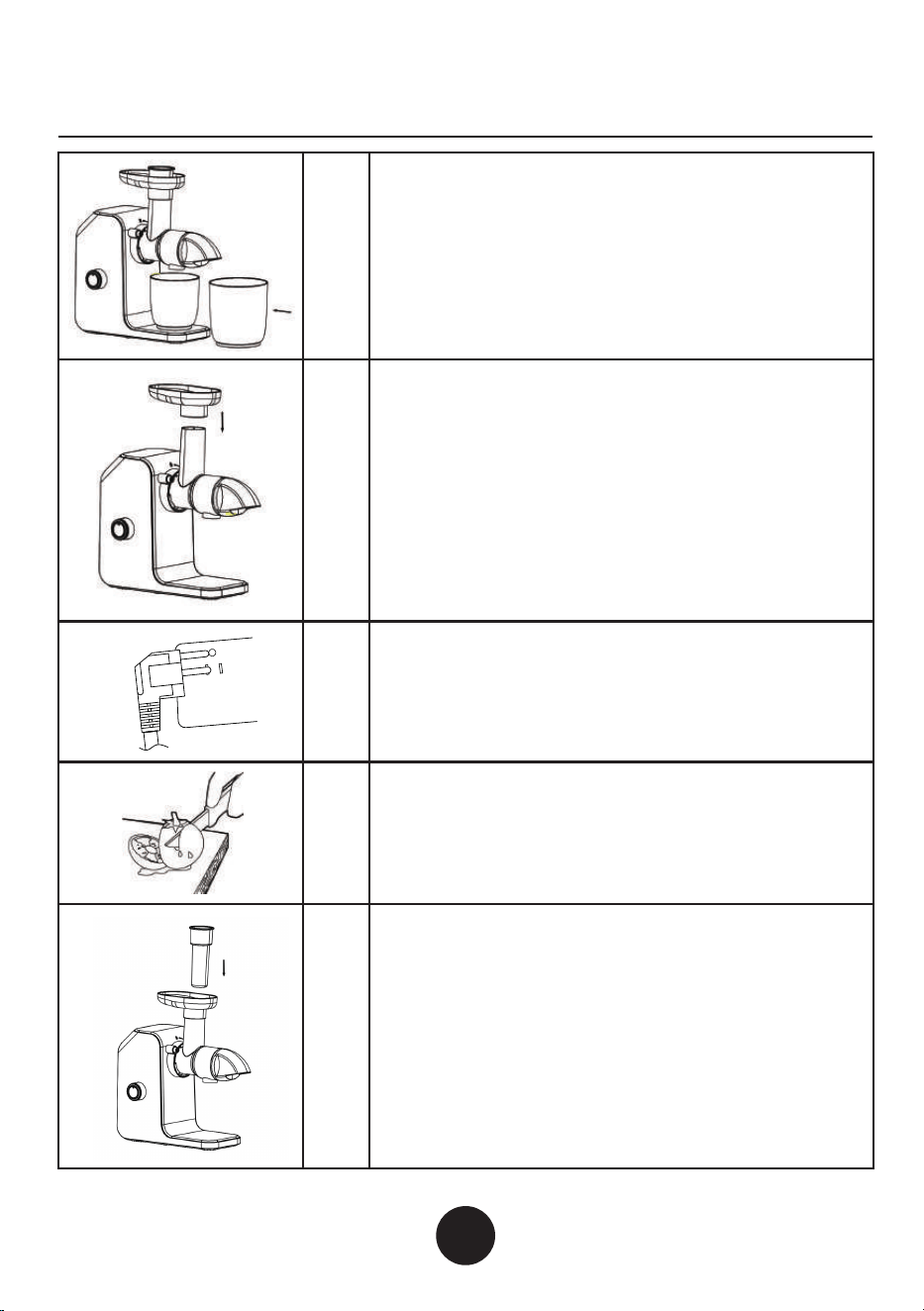

Put the pulp cup below the pulp outlet of the
juicing body and have it close to the juice cup.
6
Install the tray on the upper end of the feed
port of the juicing body. The tray can make
feeding of food ingredients more convenient,
particularly when small-particle food
ingredients like grapes and strawberries are
processed.
7
Connect the power supply for use of the
appliance (make sure the switch is on the OFF
position before the power supply is connected).
8
Wash vegetables and fruits, cut them into
blocks fitting the size of the feed port and put
them on thetray.
9
Put food ingredients into the feed port on the
juicing body cap and then push the food
ingredients with help of the pushing rod.
10
09
CHAPTER 4:
MAINTENANCE
1. Before cleaning the appliance, do switch off the switch and disconnect the power
supply.
2. After use, clean the appliance promptly.
3. Do not wash the main body with water but wipe the stains on it with a piece of
wrung rag or cotton cloth.
4. Before storing the appliance, make sure it is clean and dry.
5. Clean the appliance after dismantling it following the steps below.

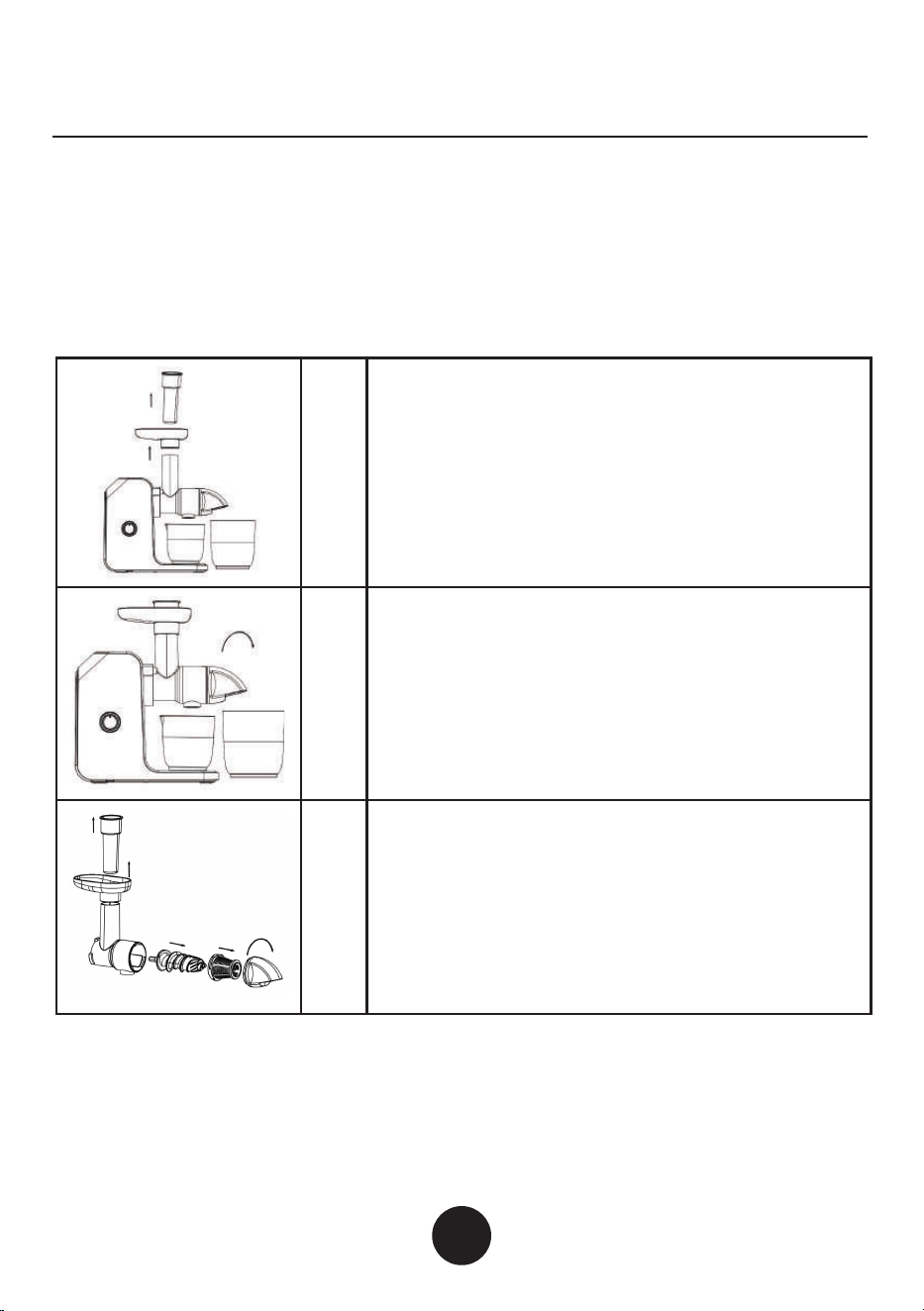

Take down the pushing rod and the tray.
1
Press the button on the side of the juicing body
and turn the juicing body clockwise at the same
time to take out the juicing body. The juicing
body cannot be dismantled if the button is not
pressed.
2
After taking down the juicing body, take
down the juicing button, the juicing body
cap, the juice strainer (or the squeezer) and
the spiral pusher in order. The dismountable
parts may be flushed with clean water.
3
Notes:
10
CHAPTER 5:
MAINTENANCE
What given about are the analysis and elimination methods of
ordinary faults. For other faults, please contact our customer service
department or have the appliancedirectly repaired by a service center
designated by us. Do not dismantle and repair it by yourself.
120V~
Rated voltage
150WRated power
60HzRated frequency
≤10 min
≤10 min
Continuous operating time
Time interval
