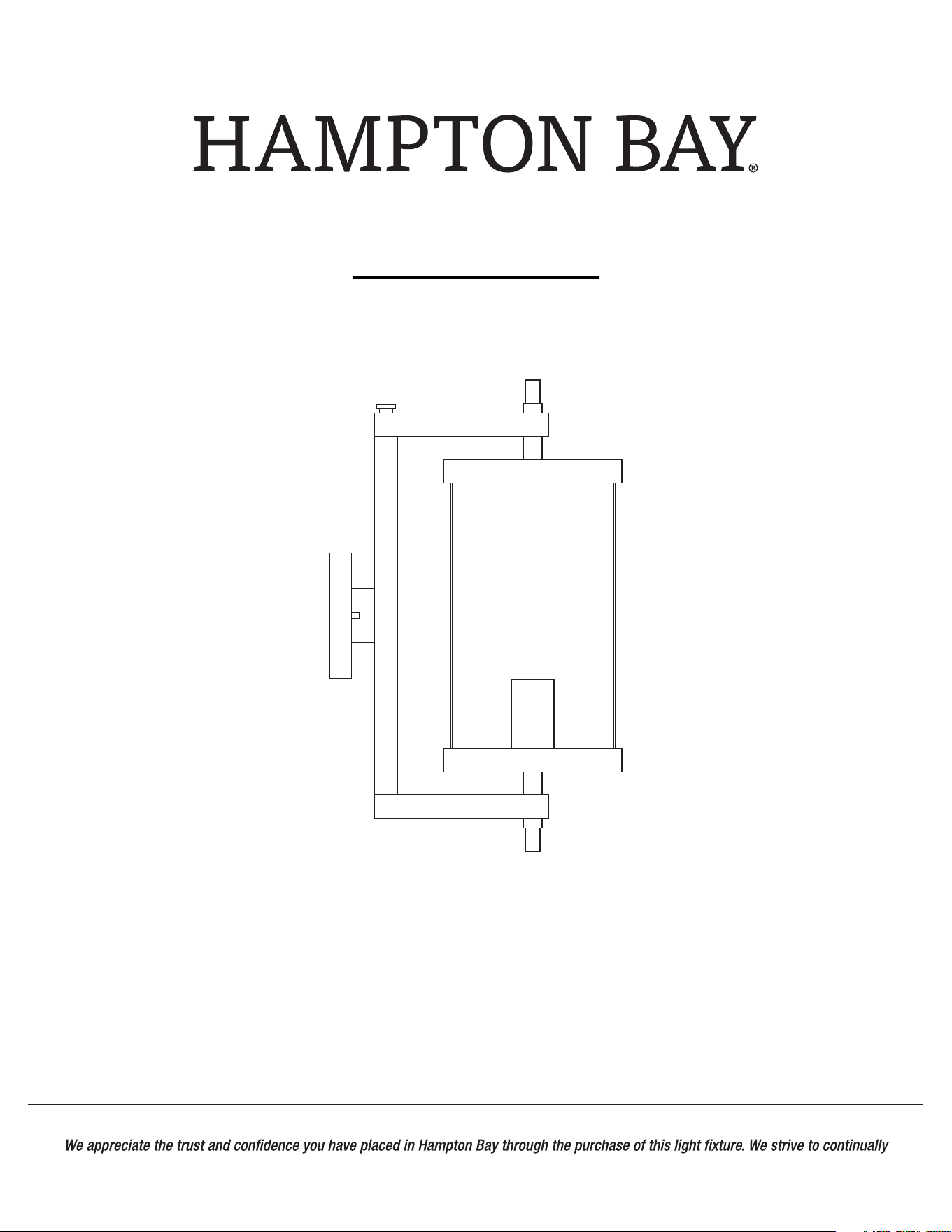

USE AND CARE GUIDE
LISBON OUTDOOR WALL LANTERN
Item # 1009734537
Model # BAL-814
THANK YOU
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement
needs. Thank you for choosing Hampton Bay!
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
CAUTION: Inspect the wire insulation for any cuts,
abrasions, or exposed copper that may have resulted
during shipping. If there is a defect in the wire, do not
attempt installation. Please call our Customer Service
Team at 1-855-HD-HAMPTON.
The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a period of three (3) years from
date of purchase. This warranty applies only to the original consumer purchaser and only to products used in normal use and service. If
this product is found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the
product at the manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications,
alterations, neglect, or mishandling. This warranty shall not apply to any product that is found to have been improperly installed, set-
up, or used in any way not in accordance with the instructions supplied with the product. This warranty shall not apply to a failure of the
product as a result of an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure not relating to faulty material
or workmanship. This warranty shall not apply to the finish on any portion of the product, such as surface and/or weathering, as this is
considered normal wear and tear. The manufacturer does not warrant and specially disclaims any warranty, whether express or implied,
of fitness for a particular purpose, other than the warranty contained herein. The manufacturer specifically disclaims any liability and
shall not be liable for any consequential or incidental loss or damage, including but not limited to any labor / expense costs involved in the
replacement or repair of said product.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.
Table of Contents
Safety Information
Warranty
Table of Contents ................................................................................2
Safety Information ..............................................................................2
Warranty .............................................................................................2
Pre-Installation ...................................................................................3
Planning Installation ................................................................. 3
Tools Required ......................................................................... 3
Consult a qualified electrician if you have any electrical
questions.
Hardware ................................................................................. 3
Package Contents ..................................................................... 4
Installation ..........................................................................................5
Operation ............................................................................................6
Care and Cleaning ..............................................................................6
Troubleshooting ..................................................................................6
WARNING: Before starting installation of this fixture
or removal of a previous fixture, disconnect the power
by turning off the circuit breaker or by removing the
fuse at the fuse box.
2 Please contact 1-855-HD-HAMPTON for further assistance.
HAMPTONBAY.COM

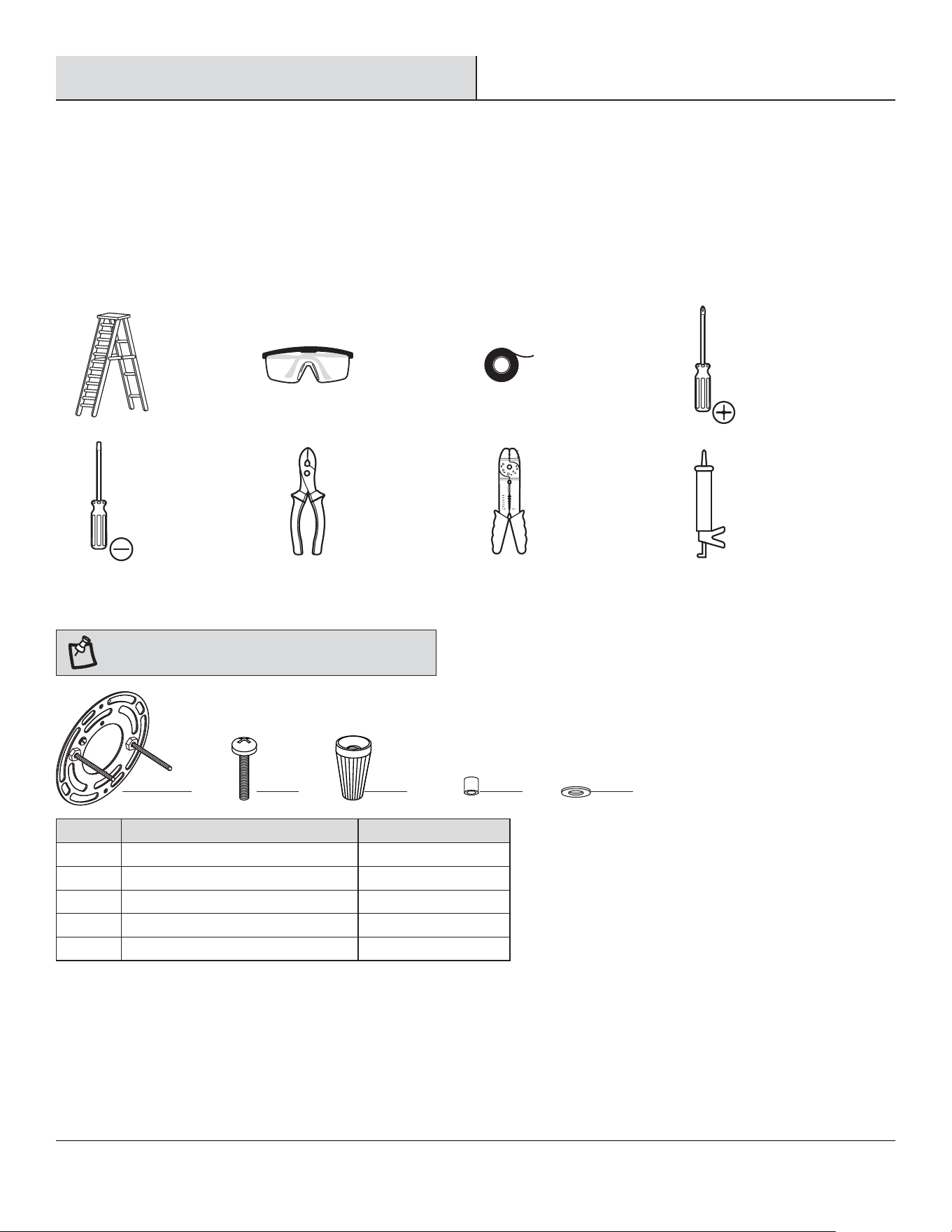

Pre-Installation
PLANNING INSTALLATION
TOOLS REQUIRED
Ladder
Safety
goggles
Electrical
tape
Phillips
screwdriver
Flat blade
screwdriver
Pliers
Wire
strippers
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
□ Read all instructions before installation.
□ To avoid damaging this product, assemble it on a soft, non-abrasive surface, such as carpet or cardboard.
□ Keep your receipt and these instructions for proof of purchase.
Silicone
sealant
3 Please contact 1-855-HD-HAMPTON for further assistance.
HAMPTONBAY.COM
AA BB
CC DD EE
Part Description Quantity
AA Mounting unit 1
BB Mounting screw 2
CC Wire nut 3
DD Cap nut 2
EE Washer 2
Pre-Installation (continued)
PACKAGE CONTENTS
Pre-Installation (continued)
A
Part Description Quantity
A
1
4 Please contact 1-855-HD-HAMPTON for further assistance.
HAMPTONBAY.COM

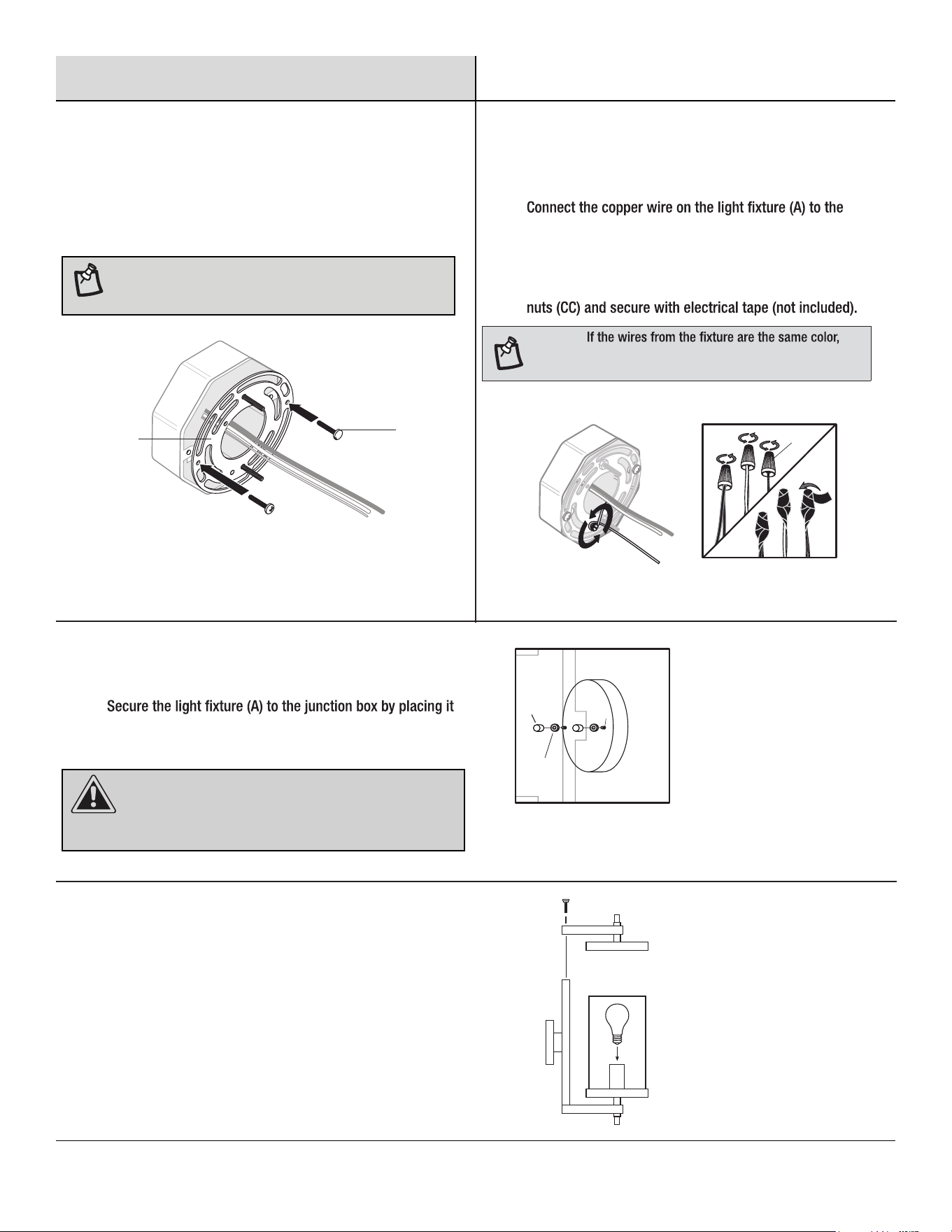

Installation
3
Securing the light fixture
4
Installing the light bulbs
Remove the preinstalled finial to remove the upper arm of
the light fixture (A) and install one 60-watt max.
medium-base incandescent bulb (not included).
Reinstall the upper arm of the light fixture (A) with the
previously removed finial.
5 Please contact 1-855-HD-HAMPTON for further assistance.
HAMPTONBAY.COM
A
A
CAUTION: To avoid any waterproofing problems, please
make sure the light fixture fits the mounting surface
perfectly during installation and use silicone sealant around
the canopy for better sealing after installation.
1
Attaching the mounting unit to the
junction box
□ Attach mounting unit (AA) to the junction box (not included)
with mounting screws (BB).
BB
AA
2
Making the electrical connections
□
mounting unit (AA) by securing it with the preinstalled
ground screw.
□ Connect the black to black (power), the white to white
(neutral) and copper wire to ground wire with the wire
NOTE:
attach the side with markings or letters to the black
(positive) wire and the other to the white (neutral) wire.
CC
AA
A
NOTE: The pre-installed support screwson the
mounting unit (AA) should protrude outaway
from the junction box.
DD
EE
AA
□
over the pre-installed screws on the mounting unit (AA)
and securing it with the washers (EE) and cap nuts (DD).
6
Please contact 1-855-HD-HAMPTON for further assistance.
HAMPTONBAY.COM
1
Turning the light on
Turn the light switch on to activate the fixture.
Operation
Care and Cleaning
Clean the lamp with a soft, dry cloth.
Do not use any cleaners with chemicals, solvents, or harsh abrasives.
Troubleshooting
Problem Possible Cause Solution
Replace the light bulb. The bulb is burned out. The bulb will not light.
The power is off. Ensure the power supply is On.
Check the wiring. There is a faulty wire connection.
Ensure the circuit breaker is in the On position. The circuit breaker is off.
Check the wire connections. The fuse blows or circuit
breaker trips when the
light is turned on.
There are crossed wires or the
power wire is grounding out.
Contact a qualified electrician or call the Customer Service Team at
1-855-HD-HAMPTON.
Retain this manual for future use.
