OPERATOR'S MANUAL
MODEL #201352
3 IN. (7.6 CM) CHIPPER SHREDDER
Champion Power Equipment, Inc.
or visit championpowerequipment.com
READ AND SAVE THIS MANUAL. This manual contains important safety precautions which should be read and understood before operating the product. Failure to
do so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
4422-M-OP REV 20250106
EN
ACTIVATE YOUR WARRANTY
by registering your product:
championpowerequipment.com
SERIAL NO.
2
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
TABLE OF CONTENTS
TABLE OF CONTENTS
Introduction
................................................... 3
Safety Definitions .......................................... 3
Important Safety Instructions ....................... 4
Fuel Safety .........................................................5
Training .............................................................6
Preparation .........................................................7
Operation ...........................................................7
Maintenance, Transport and Storage ..............................8

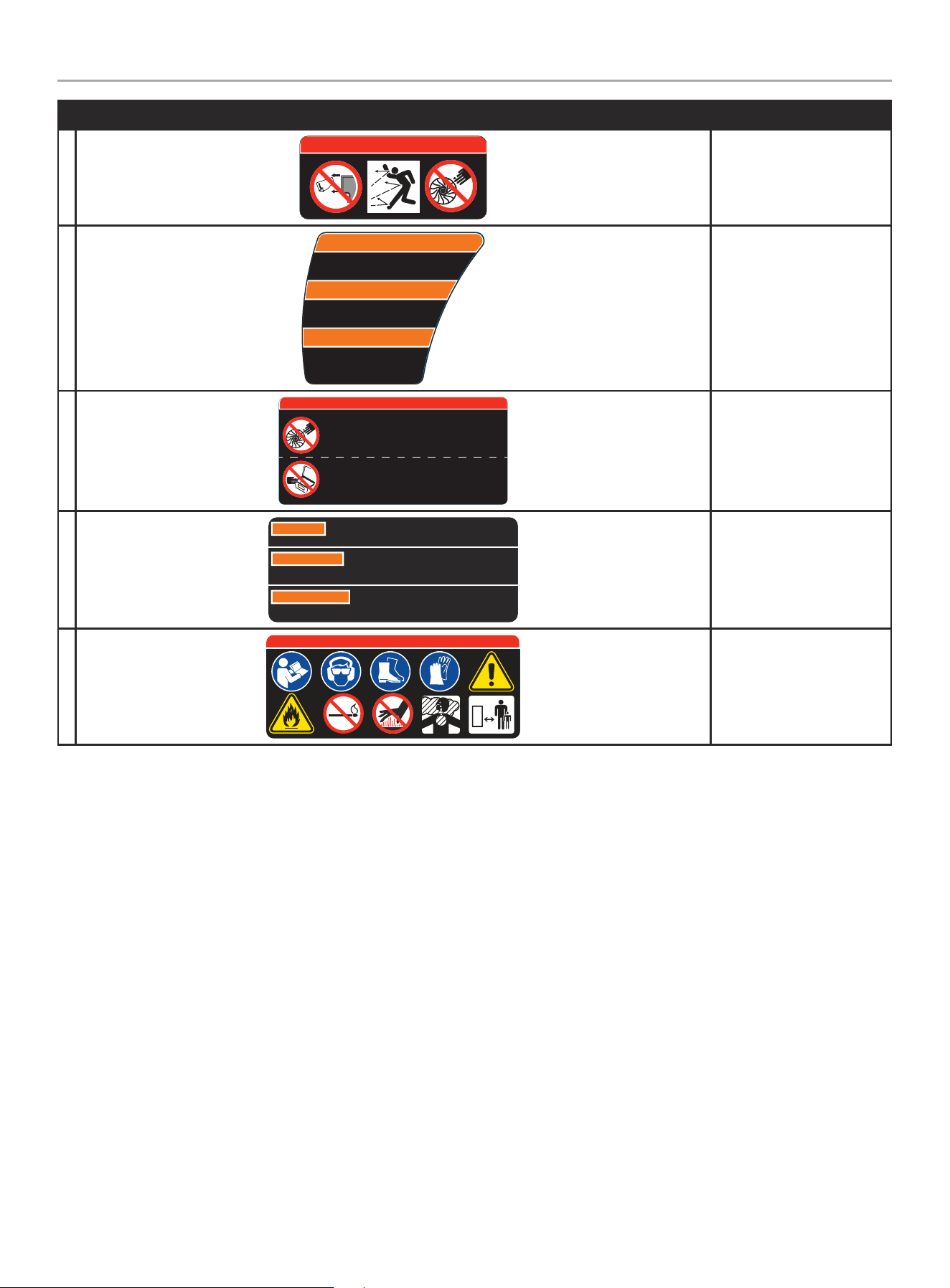

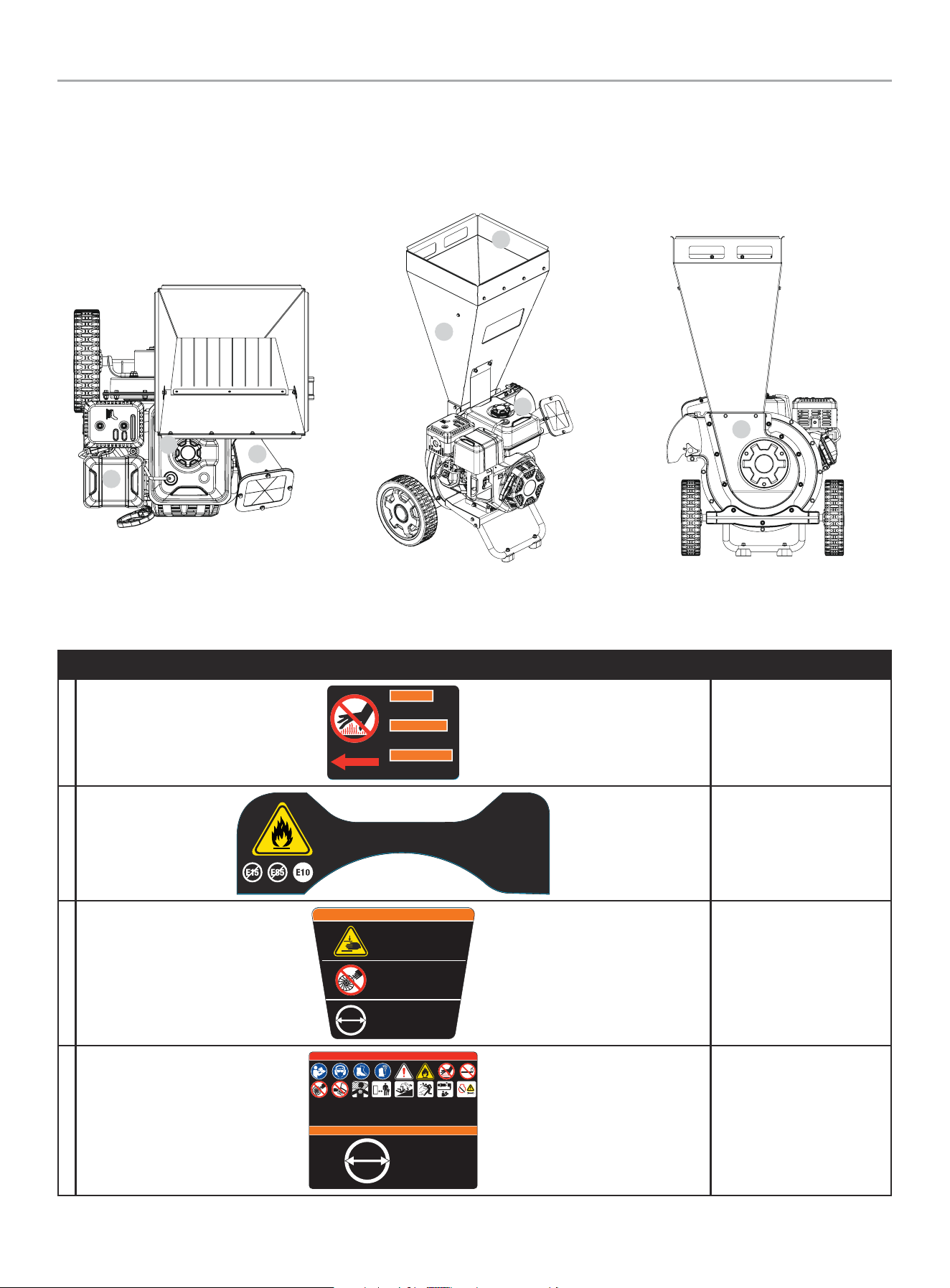

Safety and Dataplate Labels .......................................9

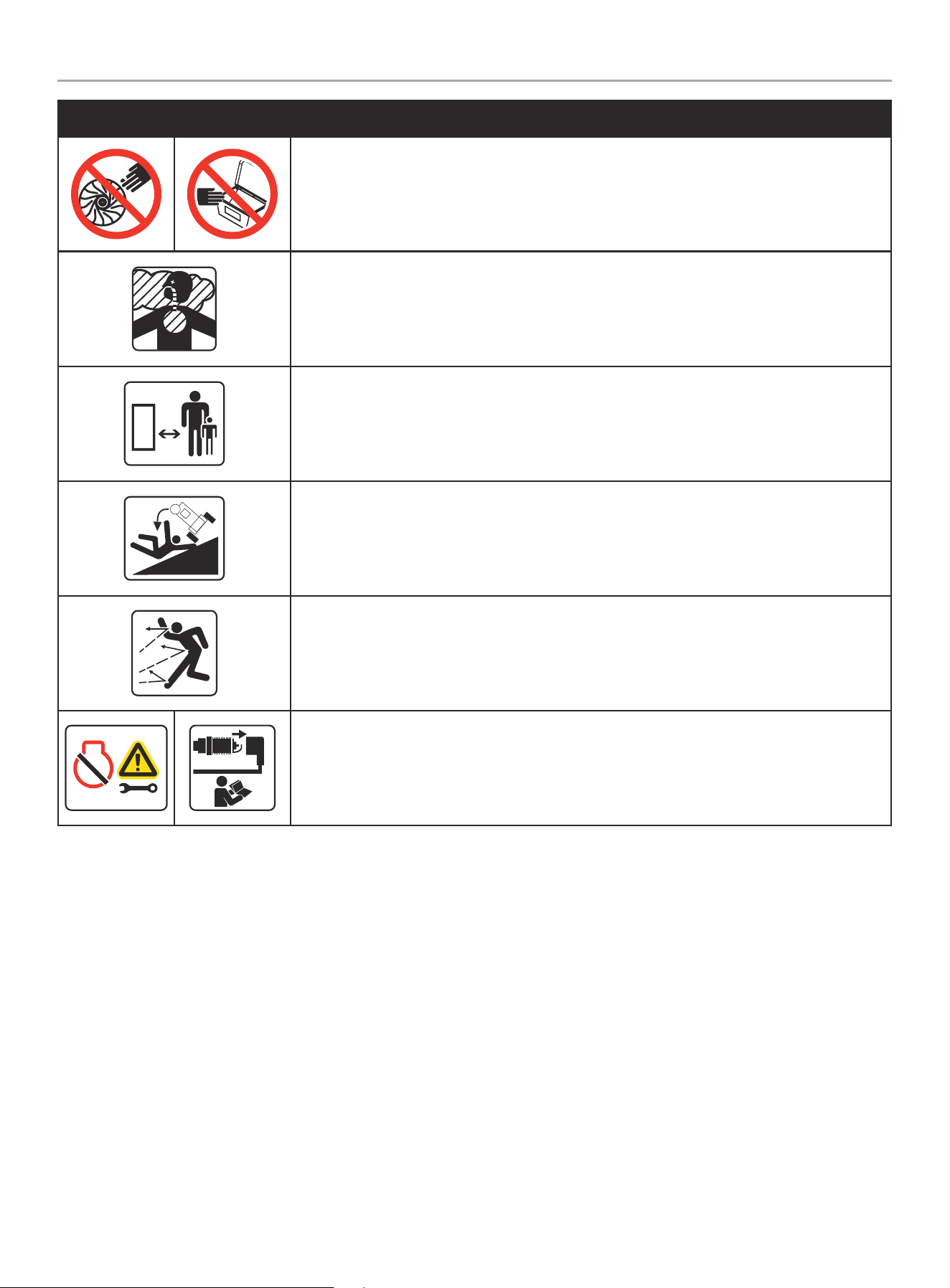

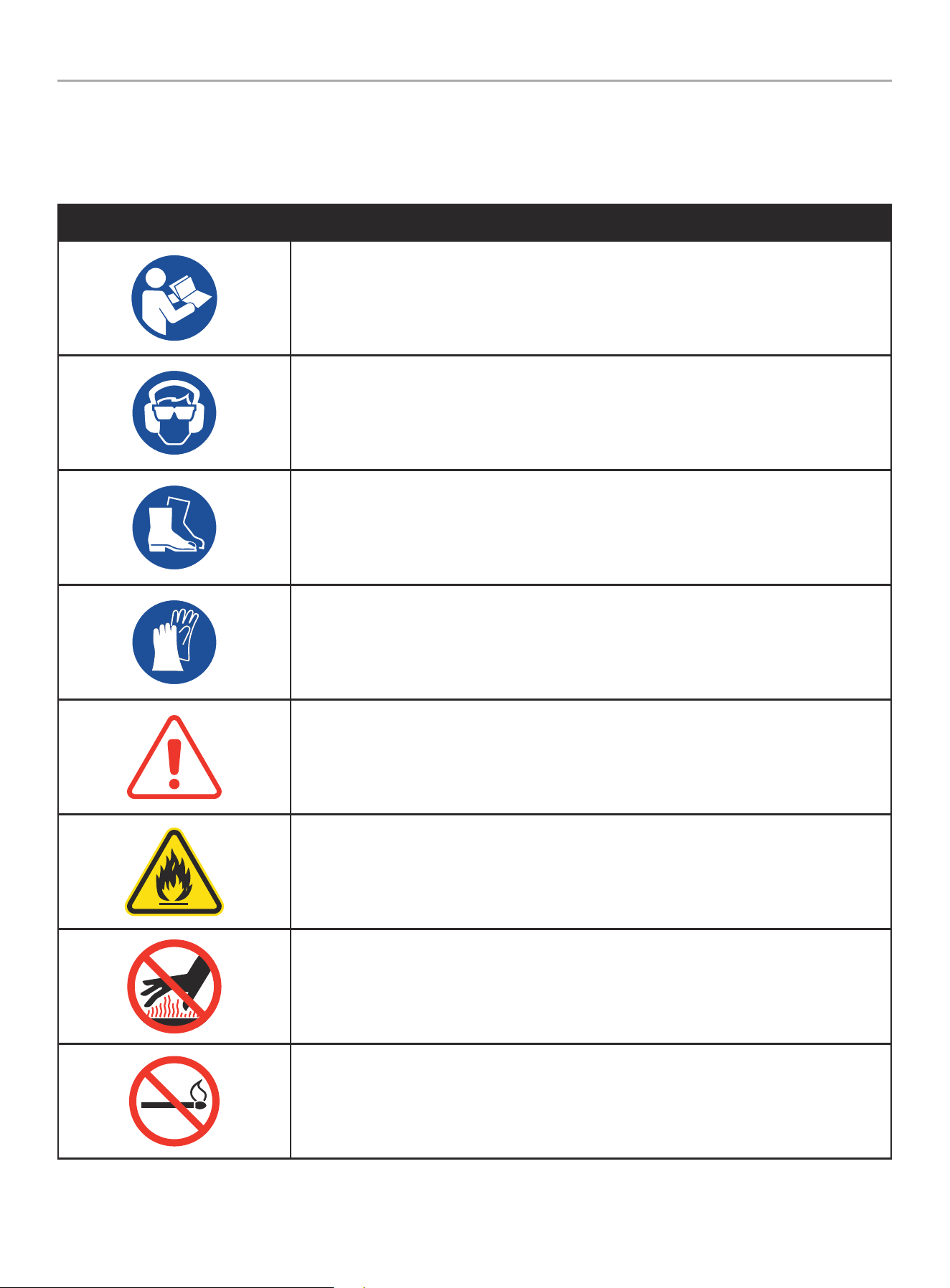

Safety Symbols ................................................... 11

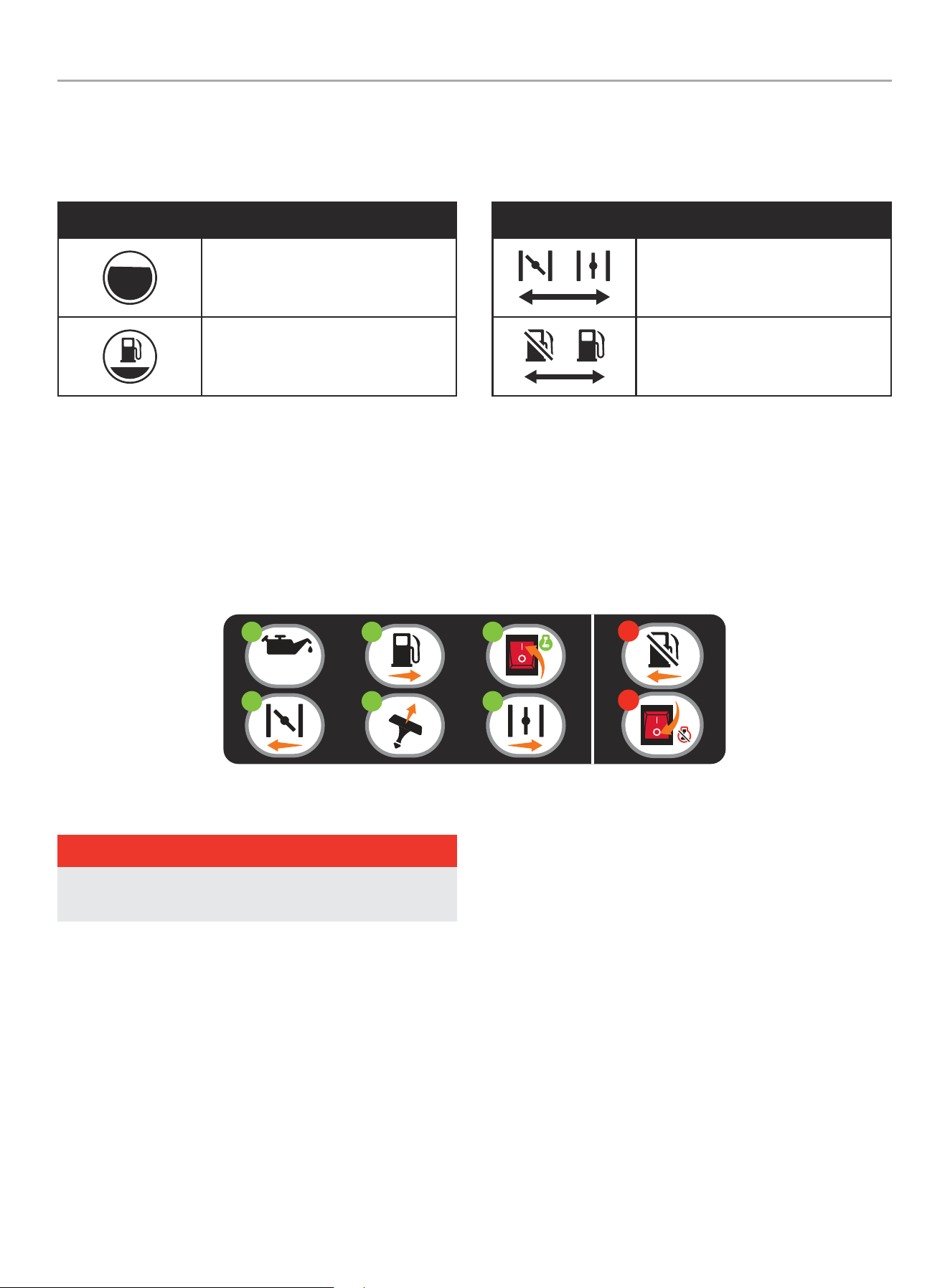

Operation Symbols ............................................... 13
Quickstart Label Symbols........................................ 13

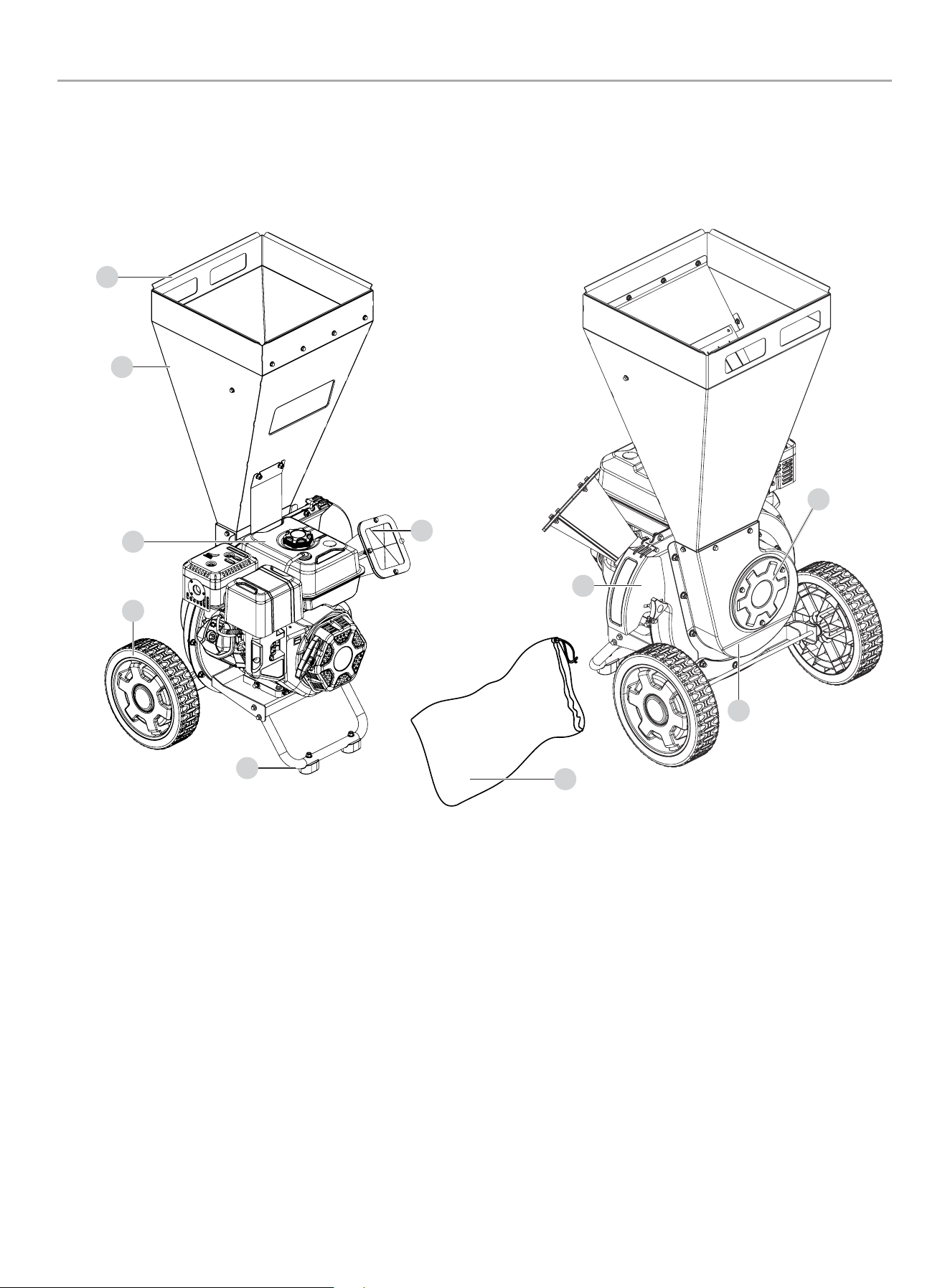

Controls and Features ................................. 14
Chipper-shredder ................................................. 14

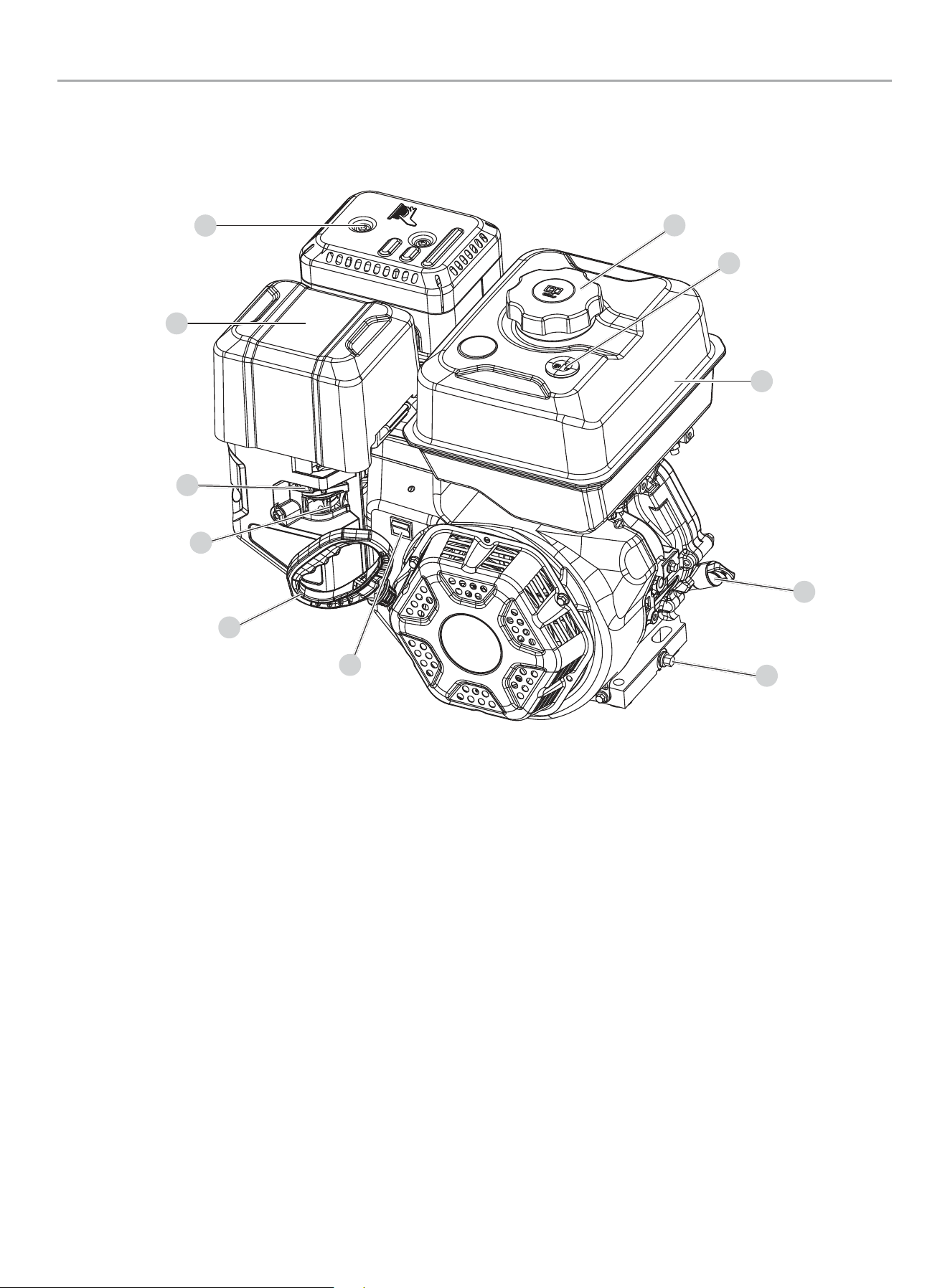

Engine ............................................................ 15
Parts Included .................................................... 16
Assembly ..................................................... 17
Unpacking ........................................................ 17

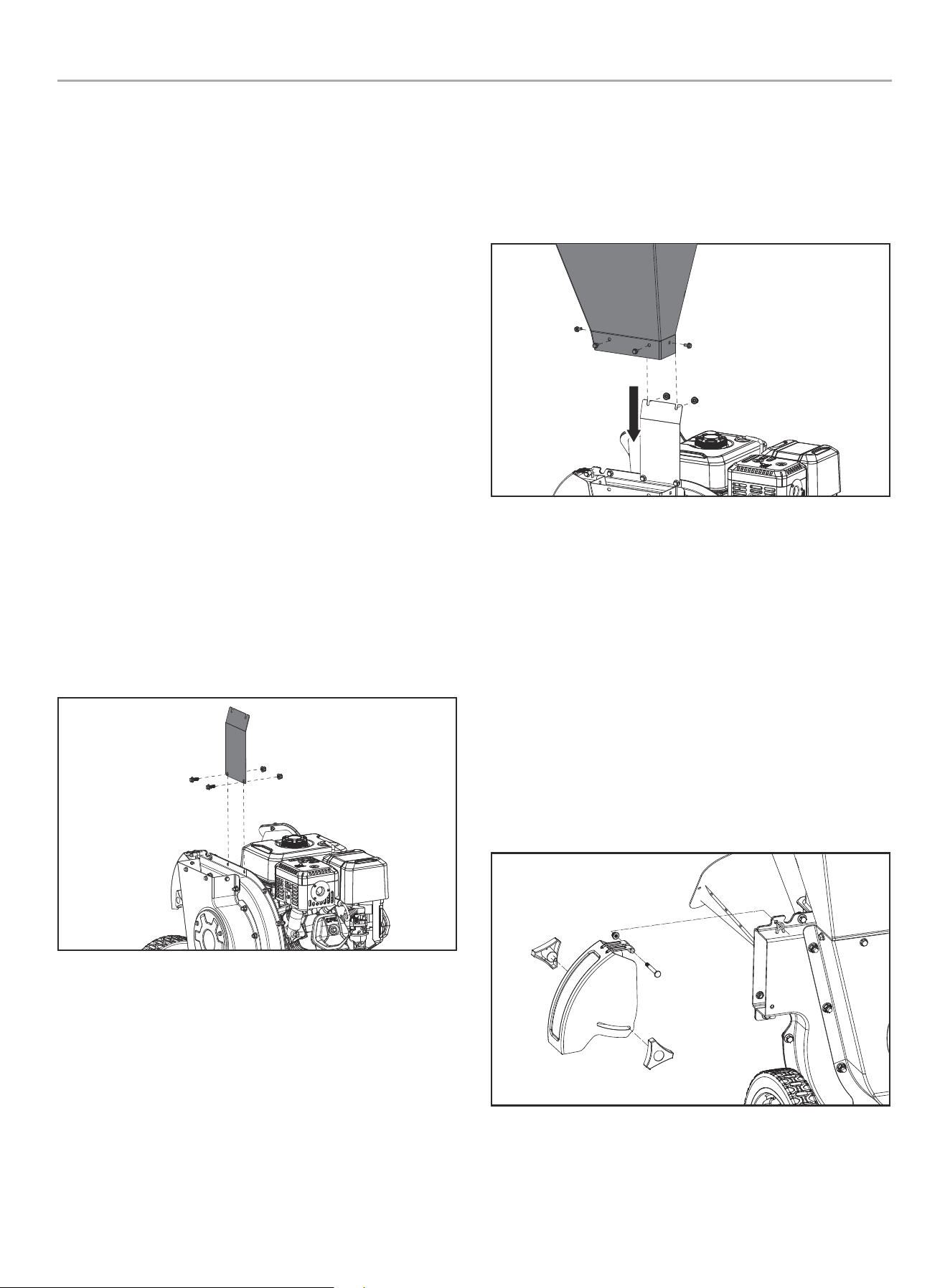

1) Install the Shredder Hopper Support Bracket ................ 17
2) Install the Shredder Hopper ................................... 17
3) Install the Discharge Chute Deflector ........................ 17
Collection Bag .................................................... 18

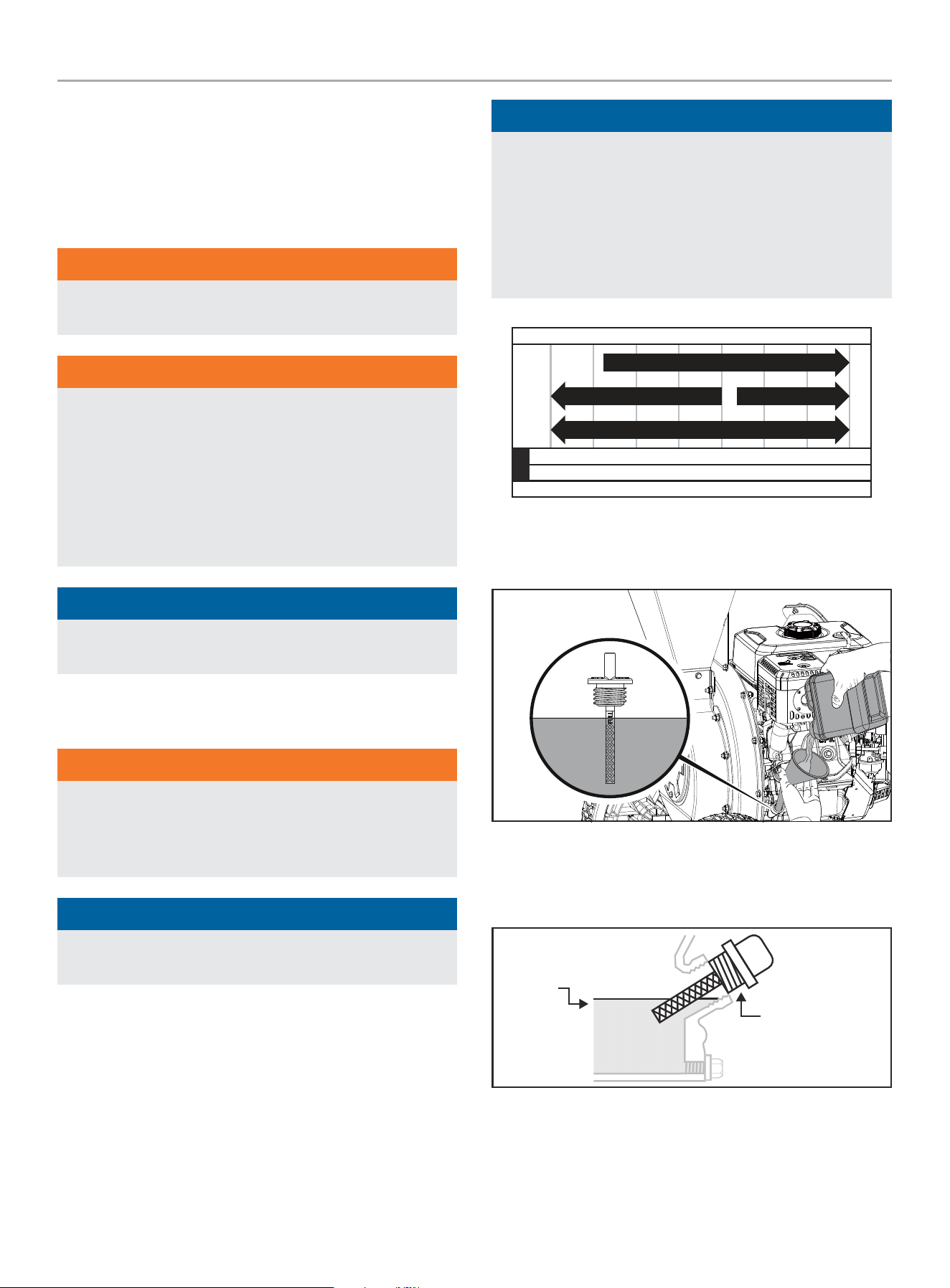

Add Engine Oil .................................................... 18
Add Fuel .......................................................... 19
Operation ..................................................... 20
Chipper-Shredder Location ...................................... 20
Work Area ........................................................ 20
Before Each Use Inspect the Chipper-Shredder................. 21

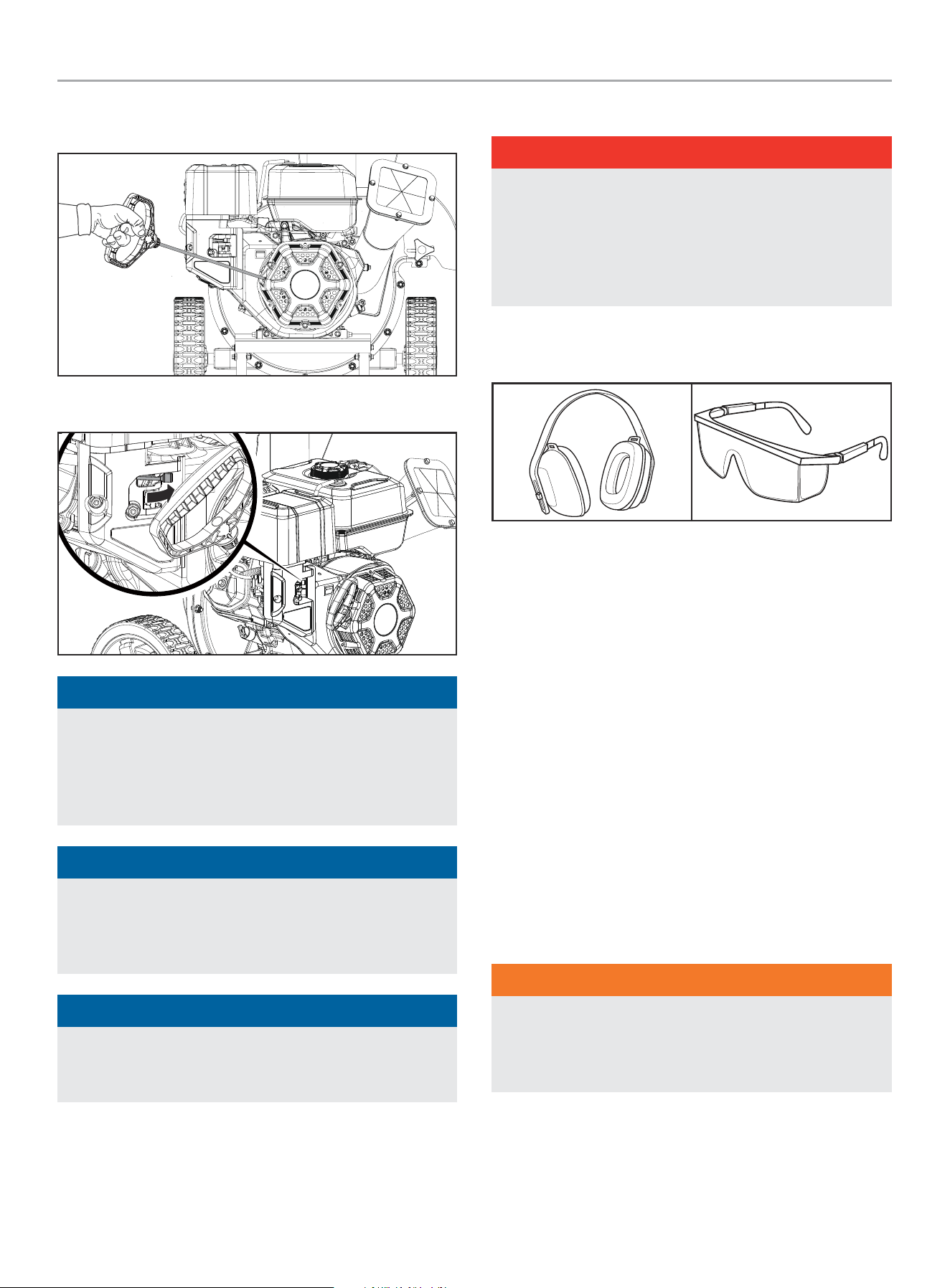

Starting the Engine ............................................... 21
Chipper-Shredder Operation ..................................... 22
Chipping and Shredding Tips .................................... 23
Clearing the Shredder Hopper ................................... 23
Stopping the Engine .............................................. 24
Operation at High Altitude ....................................... 24
Maintenance ................................................ 25
Changing the Engine Oil ......................................... 25
Cleaning and Adjusting the Spark Plug(s) ....................... 25
Clean the Air Filter ............................................... 26
Chipper-Shredder Maintenance ................................. 26
Cleaning the Chipper-shredder .................................. 26

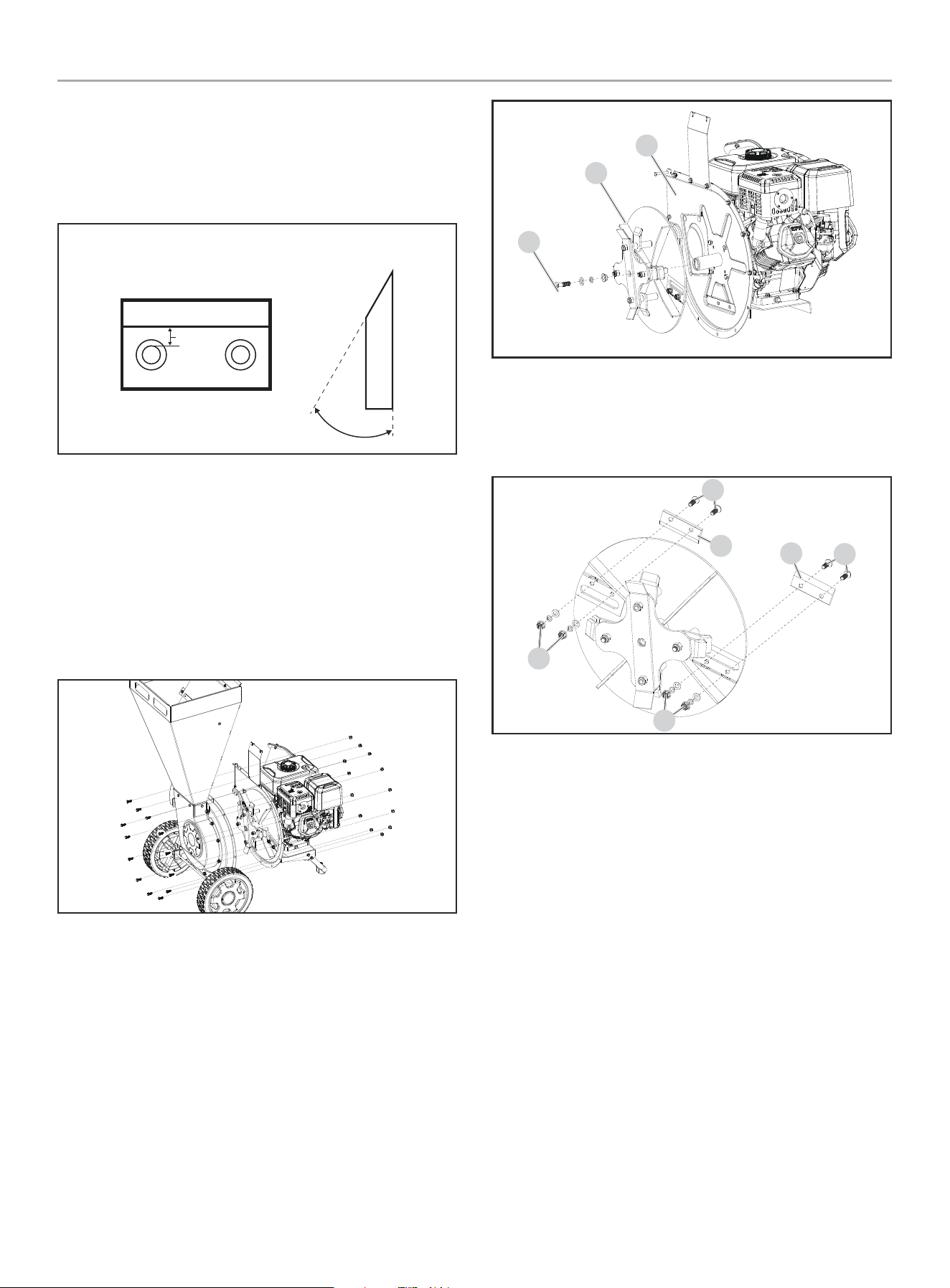

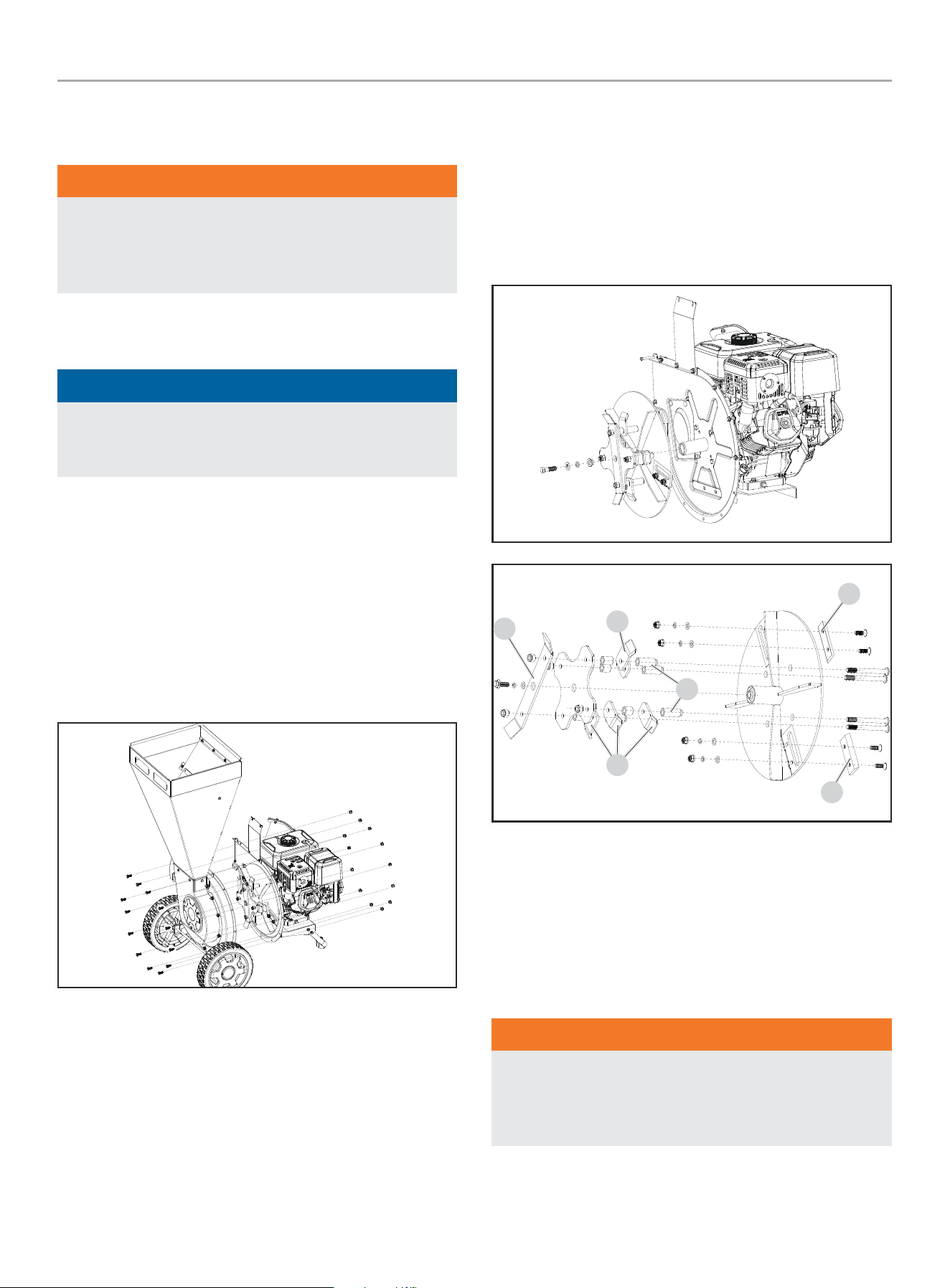

Inspect Chipping Blades ......................................... 26
Repair ............................................................. 27
Maintenance Schedule ........................................... 29
Storage ........................................................ 29
Chipper-shredder Storage ....................................... 29
Engine Stored for Less than 30 Days ........................... 29
Engines Stored for Over 30 Days ................................ 29
Specifications .............................................. 30
Chipper-shredder Specifications ................................ 30
Engine Specifications ............................................ 30
Fuel Specifications ............................................... 30
Engine Oil Specifications ......................................... 30
Spark Plug Specifications ........................................ 30
Valve Specifications .............................................. 30
Important Message About Temperature......................... 30
Troubleshooting ........................................... 31
FOR PARTS BREAKDOWN
Search by model number at
championpowerequipment.com
3
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
INTRODUCTION
INTRODUCTION
Congratulations on your purchase of a Champion Power Equipment
(CPE) product. CPE designs, builds, and supports all of our
products to strict specifications and guidelines. With proper
product knowledge, safe use, and regular maintenance, this
product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
Since CPE highly values how our products are designed,
manufactured, operated and are serviced, and also highly value
your safety and the safety of others, we would like you to take the
time to review this product manual and other product materials
thoroughly and be fully aware and knowledgeable of the assembly,
operation, dangers and maintenance of the product before use.
Fully familiarize yourself, and make sure others who plan on
operating the product fully familiarize themselves too, with the
proper safety and operation procedures before each use. Please
always exercise common sense and always err on the side
of caution when operating the product to ensure no accident,
property damage, or injury occurs. We want you to continue to use
and be satisfied with your CPE product for years to come.
When contacting CPE about parts and/or service, you will need to
supply the complete model and serial numbers of your product.
Transcribe the information found on your product’s nameplate
label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
201352
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger.
The instructions or warnings they give are not substitutes for
proper accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damaged).
4
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
DANGER
Engine exhaust contains carbon monoxide, a colorless,
odorless, poison gas. Breathing carbon monoxide will cause
nausea, dizziness, fainting or death. If you start to feel dizzy or
weak, get to fresh air immediately.
Operate product outdoors only in a well ventilated area.
DO NOT operate the product inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment.
DO NOT allow exhaust fumes to enter a confined area through
windows, doors, vents or other openings.

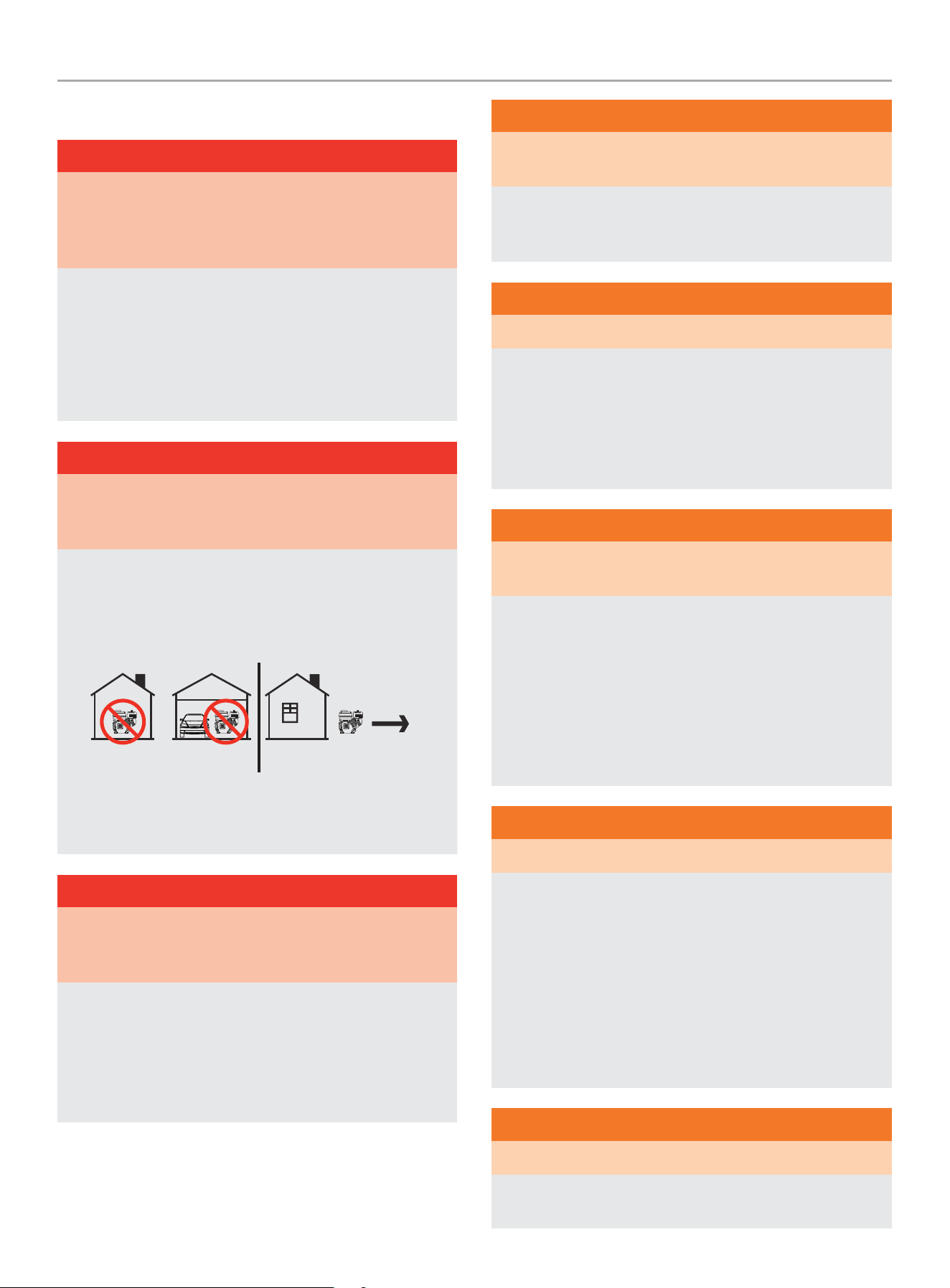

DANGER
Using an engine indoors CAN KILL YOU IN MINUTES. Engine
exhaust contains carbon monoxide. This is a poison you cannot
see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions.
DANGER
Rotating parts can entangle hands, feet, hair, clothing and/or
accessories. Traumatic amputation or severe laceration can
result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
WARNING
Operation of this equipment may create sparks that can start
fires around dry vegetation.
A spark arrestor may be required. The operator should contact
local fire agencies for laws or regulations relating to fire
prevention requirements.
WARNING
Sparks can result in fire or electrical shock.
When servicing the engine:
Disconnect the spark plug wire and place it where it cannot
contact the plug.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
WARNING
Bystander Hazard
Always keep bystanders, children and pets away a minimum
distance of 75 ft. (22.9 m) from work area when chipper
shredder is in use.
Always be alert. Accidents, injury or damage could occur due
to ricochet and ejection of discharge debris from the chipper
shredder while operating.
Be aware. Only a qualified adult with complete working
knowledge of the product features and safety rules should
operate the chipper-shredder and be in the work area.
WARNING
Ejection Hazard
Pieces of debris may be ejected from the chipper-shredder
while operating. Be alert.
5
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Operator Work Zone Area
Keep work zone clear of debris while working to ensure safe
footing.
WARNING
Protective Safety Gear and Clothing
Always wear close fitting clothing and ANSI Z87.1 approved
eye protection worn at all times when operating the
chipper-shredder.
Wear boots or sturdy shoes that will improve footing around
slippery surfaces.
WARNING
Rapid retraction of the starter cord will pull hand and arm
towards the engine faster than you can let go. Unintentional
startup can result in entanglement, traumatic amputation or
laceration. Broken bones, fractures, bruises or sprains could
also result.
When starting engine, pull the starter cord slowly until
resistance is felt, then pull firmly and rapidly to avoid kickback.
WARNING
Improper use or treatment of the chipper-shredder can
damage it, shorten its life and void your warranty.
Always use the chipper-shredder only for intended uses.
Operate only on level surfaces.
DO NOT expose chipper-shredder to excessive moisture or dirt.
DO NOT allow any material to block the cooling slots.
DO NOT use the engine if:
– Equipment sparks, smokes or emits flames
– Equipment vibrates excessively
– Equipment makes unusual sounds
– Equipment is damaged
WARNING
Although the chipper shredder contains a spark arrester,
maintain a minimum distance of 5 ft. (1.5 m) from dry
vegetation to prevent fires.
Fuel Safety
DANGER
GASOLINE AND GASOLINE VAPORS ARE HIGHLY
FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors:
– Gasoline vapors are highly flammable and explosive.
– Gasoline vapors can cause a fire or explosion if ignited.
– Gasoline is a liquid fuel and the resulting gasoline vapors
can ignite and cause a fire or explosion.
– Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
– Gasoline has a distinctive odor, this will help detect
potential leaks quickly.
– In any petroleum gas fire, flames should not be
extinguished unless by doing so the fuel supply valve can
be turned OFF. This is because if a fire is extinguished and
a supply of fuel is not turned OFF, then an explosion hazard
could be created.
– Gasoline vapors expand and contract with ambient
temperatures. Never fill the gasoline tank past the red FULL
indicator on the fuel filter, as gasoline vapors needs room to
expand if temperatures rise.
6
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
IMPORTANT SAFETY INSTRUCTIONS
WARNING
When adding or removing gasoline:
Do not light or smoke cigarettes.
Always stop the engine and allow to cool for a minimum of two
minutes before refueling.
Always loosen gasoline cap slowly to release vapor pressure
and to keep fuel from escaping around the gasoline cap.
Always replace and tighten the gasoline cap securely after
fueling.
Never remove the gasoline cap or add gasoline while the
engine is running or when the engine is hot.
Only fill or drain gasoline outdoors in a well-ventilated area.
Do not pump gasoline directly into the chipper shredder at the
gas station.
Always store gasoline in an EPA/CARB compliant container or
to transfer the gasoline to the chipper shredder.
Do not overfill the gasoline tank.
Always keep gasoline away from sparks, open flames, pilot
lights, heat and other sources of ignition.
WARNING
When starting the chipper shredder:
Do not attempt to start a damaged chipper shredder.
Always check that the gasoline cap, air filter, spark plug, fuel
lines and exhaust system are properly in place.
Always allow spilled gasoline to evaporate fully before
attempting to start the engine.
Always be certain that the chipper shredder is resting firmly on
level ground.
WARNING
When operating the chipper shredder:
Do not move or tip the chipper shredder during operation.
WARNING
When transporting or servicing the chipper shredder:
Always check that the fuel valve is in the OFF position and the
gasoline tank is empty.
Disconnect the spark plug wire.
WARNING
When storing the chipper shredder:
Store away from sparks, open flames, pilot lights, heat and
other sources of ignition.
Do not store chipper shredder or gasoline near furnaces, water
heaters, or any other appliances that produce heat or have
automatic ignitions.
DANGER
Never place a gasoline container, gasoline tank, LPG cylinder
or any combustible material in the path of the exhaust stream
during operation of the engine.
WARNING
Never use a gasoline container, gasoline tank, or any other fuel
item that is broken, cut, torn or damaged.
Training
1. Read the Operator’s Manual completely before attempting to
use this chipper-shredder.
2. Do not allow anyone to operate your chipper-shredder
who has not read the Operator’s Manual or has not been
instructed on the safe use of the chipper-shredder.
3. Never allow children or untrained adults to operate this
machine.
4. Many accidents occur when more than one (1) person
operates the chipper-shredder. If a helper is assisting, never
actuate controls until helper is clear of the area.
5. Never allow anyone to ride on the machine.
6. Never transport cargo on the chipper-shredder.
7. Projectiles can exit the chipper-shredder at high velocities.
To prevent injury, use the following instructions:
– Never operate the unit on asphalt or concrete.
– Never operate the unit close to any buildings or walls.
– Do not allow children, pets, bystanders, and assistants to
be within 75 ft. (22.9 m) of the unit during operation.
– Do not lean directly over any chute, entry or exit, during
operation.
– Keep the operator zone and adjacent area clear for safe,
secure footing.
7
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Although the chipper shredder contains a spark arrester,
maintain a minimum distance of 5 ft. (1.5 m) from dry
vegetation to prevent fires.
– Chipper-shredders should be used only for chipping
branches 3 in. (7.6 cm) or less in diameters or shredding
vegetation with small diameter branches. Do not use for
other purposes.
– Always make sure the spark plug wire is disconnected
from the engine when not in use, and before cleaning or
maintenance.
Preparation
1. Be thoroughly familiar with all controls and with proper use of
the equipment.
2. Make sure the spark plug wire is disconnected until
operation.
3. Safety Gear:
– Always wear safety shoes or heavy boots when operating
the machine.
– Always wear safety glasses or goggles when operating the
machine.
– Never wear jewelry or loose-fitting clothing that might
become entangled in moving or rotating parts of the
machine.
– Always wear hearing protection.
– Tie back long hair or anything that will dangle and may get
entangled.
4. Inspection:
– Make sure the spark plug wire has been fully removed and
the unit is grounded.
– Make sure the chutes, chambers, and intakes/exits are all
clean and free of any debris.
– Make sure the work area is clean and has no obstacles or
distractions.
– Make sure all connections and parts are secure and
undamaged.
– Make sure collection bag is fully connected and secured
when attached.
– Make sure material to be chipped is less than 3 in. (7.6 cm)
in diameter. Branches to be chipped can be pruned down.
– Make sure material to be chipped or shredded is not damp
or wet.
5. Check to make sure the chipper-shredder is on a level
surface that is not asphalt, concrete or harden ground. Block
the wheels and ensure support leg is secure to prevent
unintended movement of the chipper-shredder during
operation.
– Always operate the chipper shredder from the
manufacturer’s indicated operator zone.
6. Fuel:
– Use an approved fuel container.
– Never add fuel to a running or hot engine.
– Fill fuel tank outdoors with extreme care. Never fill fuel tank
indoors.
– Replace gasoline cap securely and clean up any spilled fuel.
Operation
1. Before starting this chipper-shredder, review all safety rules.
Failure to follow these rules may result in serious injury to the
operator or bystanders.
2. Be sure to confirm all hose connections and hose clamps are
tight before each use. It is possible for connections to vibrate
loose over time.
3. Never leave the machine unattended with the power source
operating.
4. Never operate the machine when under the influence of
alcohol, drugs or medication.
5. The machine owner should instruct all operators in safe
chipper-shredder operation.
6. Always operate the chipper-shredder with all safety
equipment in place and all controls properly adjusted for safe
operation.
7. Always operate the chipper-shredder at manufacturer’s
recommended speed.
8. Always keep hands and feet clear of moving parts.
9. When loading the chipper-shredder, never place your hands
inside or on the sides of the chutes, chambers, or intake.
Never place your hands or any part of your body between the
material and any part of the chipper-shredder.
– Never attempt to chip more than one (1) branch at a time,
this may cause the chute, chamber or intake to become
clogged.
– Never attempt to use your hand, foot or any body part to
unclog the chipper-shredder.
8
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
IMPORTANT SAFETY INSTRUCTIONS
– Only attempt to unclog with a small diameter stick that can
get chipped.
– If a major clog occurs; turn the fuel valve off and let the
unit run until dry, turn off the engine, let the unit cool down,
unplug the spark plug wire and take apart the unit to see
where the clog has occurred. Remove clog before further
operation.
10. Only chip branches 3 in. (7.6 cm) or less in diameter.
11. Only shred bushes, shrubbery, leaves, etc. with branches
½ in. (1.3 cm) or less in diameter.
12. Only shred dry or slightly damp material. Never attempt to
shred material that is wet, as this may cause clogging to
occur.
13. Use only your hand to operate the chipper-shredder controls.
14. Do not refuel the engine until it has cooled for several
minutes.
Maintenance, Transport and Storage
1. Always shut off the power source and disconnect the spark
plug wire and ground the engine while repairing or adjusting
the unit.
2. Clean debris, shrubbery and chaff from the engine cylinder,
cylinder head fins, blower house rotation screen, and muffler
areas. If the engine is equipped with a spark arrestor muffler,
clean and inspect it regularly (follow manufacturer’s service
instructions). Replace, if damaged.
3. Never store the unit (with fuel) in an enclosed poorly
ventilated structure. Fuel vapors can travel to an ignition
source (such as a furnace, water heater, etc.) and cause an
explosion. Fuel vapor is also toxic to humans and animals.
4. Clear debris from movable parts, but only when the engine is
off, the fuel valve is in the “OFF” position, and the spark plug
wire is disconnected.
5. Check to be sure all nuts and bolts are tight to assure the
equipment is in safe working condition.
6. Always use the shredder hopper handle and built-in wheels
to move the chipper shredder. Never lift the unit using the
fuel tank for support. If the unit must be lifted , always use at
least two people, and always grip the unit securely using the
front leg and shredder hopper handle.
7. Always follow the engine instructions for storage preparations
before storing the unit for both short and long term periods.
8. Always ensure that the fuel tank is empty before transporting
the unit in a vehicle.
9. Always transport the unit in the upright position on the
wheels and support leg.
9
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
IMPORTANT SAFETY INSTRUCTIONS
Top BackSide
Safety and Dataplate Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
LABEL DESCRIPTION
A
1966-L-SF-B
DO NOT TOUCH!
Hot surface.
WARNING
¡NO TOCAR!
Superficie caliente.
ADVERTENCIA
AVERTISSEMENT
NE TOUCHEZ PAS!
Surface chaude.
Hot Surface
B
2018-L-OP-B
ESSENCE SANS PLOM SEULEMENT.
Indice d’octane minimal de
87. Maximum 10 % d'éthanol.
La clasificación mínimo de 87
octano. Máximo de etanol de 10%.
GASOLINA SIN PLOMO SOLAMENTE.UNLEADED FUEL ONLY.
Minimum octane rating of 87.
Maximum 10% ethanol.
Fuel
C
2065-L-SF-A
WARNING ADVERTENCIA AVERTISSEMENT
• Impact hazard. Avoid hand injury.
• Peligro de impacto. Evite lesiones de la mano.
• Risque d'impact. Éviter les blessures à la main.
• Objects placed into chipper chute will
feed rapidly.
• Los objetos colocados en la tolva de la
astilladora se alimentarán rápidamente
• Objets placés dans la goulotte de la
déchiqueteuse alimenteront rapidement.
• Material maximum diameter
• Diametro máximo de material
• Diamètre du matériau
76,2 mm
3 inch
Warning Icon -
chipper chute
D
PELIGRO DANGER DANGER
WARNING ADVERTENCIA AVERTISSEMENT
• Material maximum diameter
• Diametro máximo de material
• Diamètre du matériau
1,3 cm
0.5 inch
DO NOT lean over o r look into hopper
while machine is running.
DO NOT leave mach ine unattended
while running.
NO se incline sobre o vea adentro del
conducto mi entras la maquina est á
en marcha.
NO deje la maquina sin atender
mientras esté en marcha.
Ne pas se pencher sur ou regarder
dans la goulot te pendant que la
machine fonctionne.
Ne laissez pa s la machine sans
surveillance en courant.
2068-L-SF-A
Danger Icon -
shredder hopper outside
A
B
C
D
G
E
F
10
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
IMPORTANT SAFETY INSTRUCTIONS
LABEL DESCRIPTION
E
DANGER PELIGRO DANGER
2067-L-SF-A
Danger icon - discharge
F
2066-L-SF-A
WARNING
CLEAN-OUT ACCESS PANEL - Do not operate
without panel in place.
PANEL DE ACCESO DE LIMPIEZA -
No opere sin el panel en su lugar.
NETTOYER PANNEAU D'ACCÈS - ne pas
utiliser sans panneau en place.
ADVERTENCIA
AVERTISSEMENT
Warning - Clean-out access
G
DANGER PELIGRO DANGER
Amputation Hazard.
No hands and
fingers below
this line.
No ponga las manos o
los dedos debajo de
esta linea.
Pas de mains ni de
doigts dessous de
cette ligne.
Peligro de amputación. Danger d'amputation.
2064-L-SF-A
Shredder hopper inside
WARNING
Operation of this equipment may create sparks that can start fires around
dry vegetation. A spark arrestor may be required. The operator should
contact local fire agencies for laws or regulations relating to fire prevention requirements.
ADVERTENCIA
Operación de este equipo puede crear chispas que pueden
iniciar incendios en vegetación seca. Un parachispas puede ser
requerido. El operador debería contactar las agencias locales de incendios para leyes o
regulaciones relacionadas con requisitos de prevención de incendios.
AVERTISSEMENT
Le fonctionnement de cet équipement peut créer des
étincelles qui peuvent déclencher des incendies autour de la
végétation sèche. Un pare-étincelles peut être nécessaire. L'utilisateur doit communiquer avec
le service d'incendie local pour les lois et les règlements relatifs à la prévention des incendies.
1047-L-SF-C
Combustion
(not shown in diagram)
1253-L-SF-A
DANGER PELIGRO DANGER
Safety icons
(not shown in diagram)
11
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
IMPORTANT SAFETY INSTRUCTIONS
Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s
manual before using this product.
Eye and Ear Protection. Always wear safety goggles or safety glasses with side shields, and as
necessary a full face-shield as well as full ear protection when operating this product.
Footwear. Always wear safety shoes or heavy boots when operating the machine.
Gloves. Always wear nonslip, heavy-duty protective gloves when operating this product.
Danger Alert. Indicates a hazardous situation which, if not avoided, will result in death or serious
injury.
Risk of Fire. Fuel and its vapors are extremely flammable and explosive. Fire can cause severe
burns or death. Do not add fuel while the product is operating or still hot.
Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface
Open Flame alert. Fuel and its vapors are extremely flammable and explosive. Keep fuel away
from smoking, open flames, sparks, pilot lights, heat, and other ignition sources.
12
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
IMPORTANT SAFETY INSTRUCTIONS
SYMBOL MEANING
Amputation Hazard. Contact with rotating blades will cause serious injury. Keep hands out of
openings while machine is running.
Toxic Fumes. The engine exhaust from this product contains chemicals known to the state of
California to cause cancer and birth defects and other reproductive harm.
Risk of Asphyxiation. This engine emits carbon monoxide, an odorless, colorless poison gas.
Breathing carbon monoxide can cause nausea, fainting or death. Use only in a well ventilated
area.
Clearance. Keep all objects including others at least 10 feet (3m) from this machine.
Only one person should operate the chipper-shredder and load the logs
Never operate on an incline. Make sure the chipper-shredder is on a level surface. Block tires
and ensure support leg is secure to prevent unintended movement of the chipper-shredder during
operation.
Thrown Objects. This machine may pick up and throw objects which can cause personal injury.
Serious Personal Injury or Property Damage. Before inspecting, cleaning or servicing the
machine, shut of the engine, wait for all moving parts to come to a complete stop, disconnect the
spark plug wire and move it away from the spark plug.
13
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
IMPORTANT SAFETY INSTRUCTIONS
Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Gasoline Tank: Full
Gasoline Tank: Empty
Quickstart Label Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
Starting the Engine
DANGER
Move chipper-shredder outside and far away from
windows, doors and intake ventilation covers.
1. Check oil level.
Recommended oil is 5W-30.
2. Move the fuel valve to the “OPEN” position.
3. Press the engine switch to the “ON” position.
4. Move the choke lever to the “CHOKE” position.
5. Pull the starter cord.
6. Move the choke lever to the “RUN” position.
SYMBOL MEANING
Choke Lever
CHOKE: left position
RUN: right Position
Fuel Lever
CLOSED: left position
OPEN: right Position
4419-L-OP-A
1
5W-30
2
1
2
3
4 65
Stopping the Engine
1. Move the fuel valve to the “CLOSED” position.
2. Move the engine switch to the “OFF” position.
14
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
CONTROLS AND FEATURES
CONTROLS AND FEATURES
Read this operator’s manual before operating your chipper-shredder. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.
Chipper-shredder
1. Handle
2. Shredder Hopper – place shreddable material (leaves,
sticks, and yard debris) up to 0.5 in. (1.3 cm) maximum
diameter in this chute.
3. Engine – 338 cc, OHV, 4-stroke, air cooled.
4. Wheels – 12 in. (30.5 cm) never flat.
5. Support Leg with Vibration Mount – used to help stabilize
the unit.
6. Chipper Chute – place sticks and branches up to 3 in.
(7.6 cm) maximum diameter in this chute.
7. Chute Deflector – chipped or shredded material will exit
from this.
8. Flail Housing – housing for chipper shredder blades.
9. Clean-out Port – remove this panel to clear any jams you
may encounter.
10. Collection Bag – 2 Bushels (70 L) - Attach to the chute
deflector (7) to collect chipped and shredded material.
6
7
4
8
1
2
5
3
9
10
15
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
CONTROLS AND FEATURES
Engine
1. Muffler
2. Air Filter – Protects the engine by filtering dust and debris
from the intake air.
3. Choke – Used to start the engine.
4. Fuel Valve – Used to turn fuel supply on and off to engine.
5. Recoil Starter – Used to manually start the engine.
6. Engine ON/OFF Switch – Used to START and STOP the
engine.
7. Oil Drain Bolt – Used to drain the oil from the engine.
8. Oil Fill Cap/Dipstick – Used to check and fill oil level.
9. Gasoline Tank – 1.45 gal. (5.5 L)
10. Gasoline Gauge
11. Fuel Cap – Remove to add fuel.
1
2
9
11
3
4
5
6
7
8
10
16
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
CONTROLS AND FEATURES
Parts Included
Part Part Qty. Hardware Needed
Hardware
Qty.
Tool Needed
Hopper Support
Bracket
1
Flange Bolt M8 × 20 2 1× 12 mm wrench or socket
Lock Nut M8, Flange 2 1× 12 mm wrench or socket
Lock Nut M6, Flange 2 1× 10 mm wrench or socket
Shredder Hopper 1 Flange Bolt M6 × 12 4 1× 10 mm wrench or socket
Discharge Deflector 1
Lock Nut, M6 1 1× 10 mm wrench or socket
Flange Bolt, M6 x 55 1 1× 10 mm wrench or socket
Knob, M6 2
Collection Bag 1 n/a
Oil Funnel 1 n/a
Engine Oil
37.2 fl. oz (1100 ml)
1 n/a
17
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
ASSEMBLY
ASSEMBLY
Your chipper-shredder requires some assembly. This unit ships
from our factory without oil. It must be properly serviced with fuel
and oil before operation.
If you have any questions regarding the assembly of your chipper-
shredder, call our Technical Support Team at 1-877-338-0999.
Please have your serial number and model number available.
Unpacking
1. Set the shipping crate on a solid, flat surface.
2. Carefully cut the shipping bands and remove lid of shipping
crate.
3. Locate all hardware before beginning assembly.
1) Install the Shredder Hopper Support
Bracket
1. With the angled part of the bracket pointing towards the
engine, align the holes of the bracket with the holes on the
top of the flail housing.
2. Insert two M8 × 20 flange bolts through the holes on the flail
housing and shredder hopper support bracket from the flail
housing side.
3. Thread two M8 lock nuts onto the flange bolts and tighten
securely using 12mm and 13mm sockets or wrenches.
2) Install the Shredder Hopper
1. Insert the shredder hopper into the top of the flail housing
with the handle slot cutouts facing the rear of the unit
(towards the wheels). Slide the threaded studs on the angled
part of the shredder hopper into the slots on the shredder
hopper support bracket that was installed in step 3 while also
ensuring that the slots on the bottom of the shredder hopper
slide over the locator pins that are inside the flail housing.
Ensure that the four holes on the shredder hopper are aligned
with the 4 holes on the flail housing (1 on either side and 2 on
the rear).
2. Thread two M6 lock nuts onto the threaded studs to secure
the shredder hopper to the shredder hopper support bracket
and tighten securely using a 10mm socket or wrench.
3. Insert four M6 × 12mm flange bolts through the four holes
of the flail housing and into the weld nuts in the shredder
hopper. Tighten securely with a 10mm socket or wrench.
3) Install the Discharge Chute Deflector
1. Align the hinge on the top of the chute deflector with the tab
on top of the discharge chute so the tab is aligned in the slot
in the middle of the hinge.
2. Insert the M6 × 55mm flange bolt through the hinge and tabs
with holes on the top of the discharge chute.
3. Thread the M6 lock nut onto the threaded stud to secure the
chute deflector to the discharge chute.
4. From both sides, insert a knob bolt through the slotted hole
on the chute deflector and into the threaded hole on the
discharge chute. Select your desired position for the chute
deflector and then hand tighten the knob bolts to secure the
chute deflector in place.
18
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
ASSEMBLY
Collection Bag
The collection bag can be attached and removed from the chute
deflector using the adjustable drawstring. It is recommended to
be attached before operation and removed before completely full,
after operation, or before storage. The collection bag will collect
up to 2 bushels (70 L) of material.
WARNING
Before operation, ensure the adjustable drawstring is tight
around the chute deflector and secure.
WARNING
When the collection bag appears to be almost full, it is
recommended to empty it. This will help to keep the bag from
becoming dislodged from the deflector chute and will also
prevent the bag from bursting. Do not allow the collection
bag to become dislodged from the deflector chute during
operation. If this occurs, stop operation at once and reconnect
the collection bag. Always empty the collection bag when the
engine is off and the spark plug has been disconnected.
NOTICE
Always inspect the collection bag prior to use. Do not use a
frayed, worn, or damaged collection bag.
Add Engine Oil
WARNING
DO NOT attempt to crank or start the engine before it has been
properly filled with the recommended type and amount of oil.
Damage to the engine as a result of failing to follow these
instructions will void your warranty.
NOTICE
The engine rotor has a sealed, pre-lubricated ball bearing that
requires no additional lubrication for the life of the bearing.
NOTICE
The recommended oil type for typical use is 5W-30
automotive oil. However, using the listed conventional oils
shown in the “Recommended Engine Oil Type” chart may be
used for typical use including the first 5 hours of the break-in
run time period of the engine.
If running engine in extreme temperatures, refer to the
“Recommended Engine Oil Type” chart.
-20 0 20 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C
-17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30

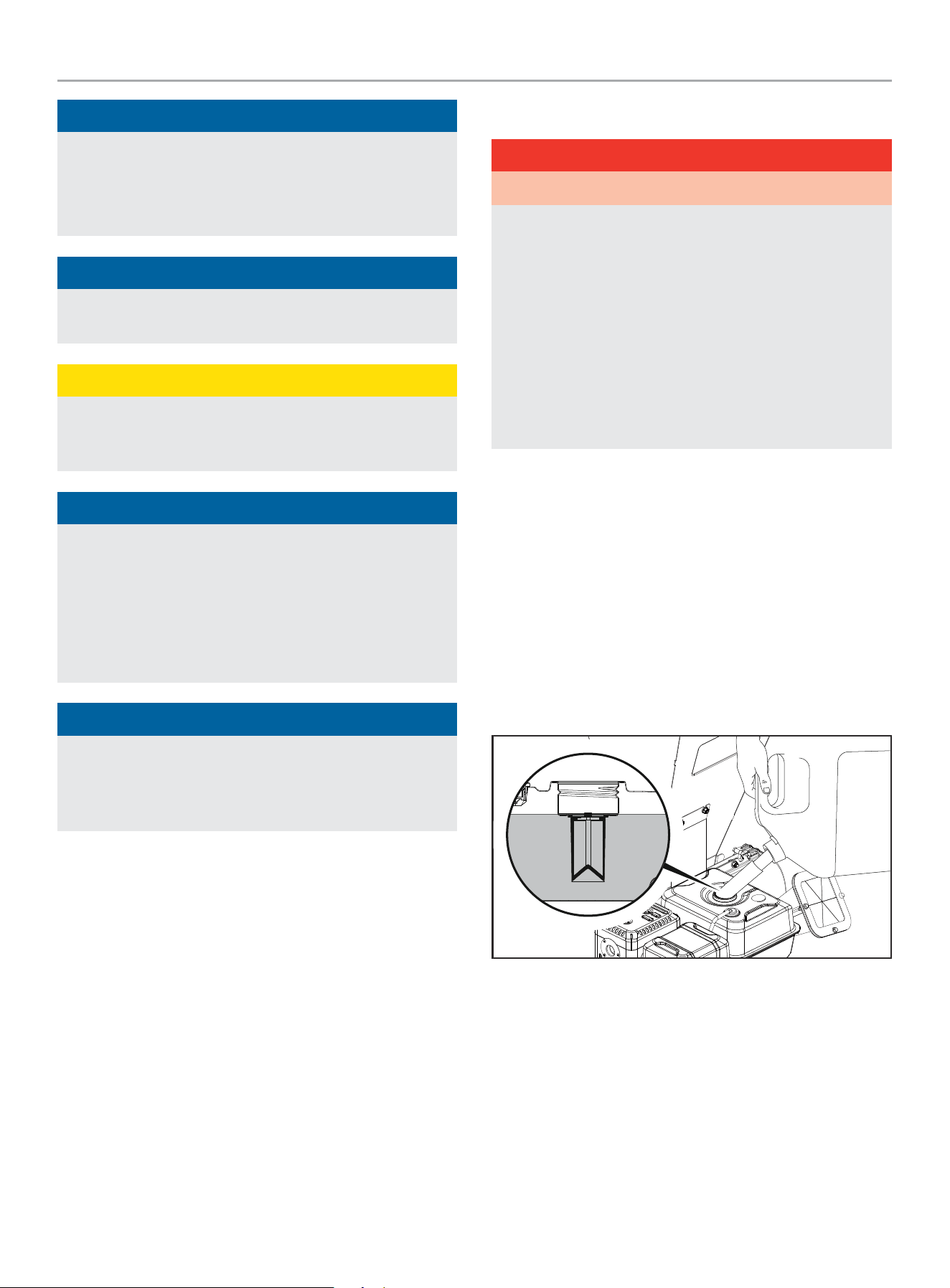

1. Place the chipper-shredder on a flat, level surface.
2. Remove oil fill cap/dipstick to add oil.
3. Using a funnel, add up to 37.2 fl. oz (1100 ml) of oil (included)
and replace oil fill cap/dipstick. DO NOT OVERFILL.
4. Check engine oil level before every use and add as needed.
MAX
OIL DIP STICK
19
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
ASSEMBLY
NOTICE
Once oil has been added, a visual check should show oil about
1-2 threads from running out of the fill hole.
If using the dipstick to check oil level, DO NOT screw in the
dipstick while checking.
NOTICE
Check oil often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
CAUTION
The engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.
NOTICE
We consider the first 5 hours of run time to be the break-
in period for the engine. During the break in period we
recommend using standard automotive non-synthetic blended
oils. After the break in period synthetic lubricant can be used
but is not required. Avoid bogging or lugging the engine down
and avoid prolonged running at constant RPM. After the 5 hour
break-in period, change the oil.
NOTICE
Synthetic oil may be used after the 5 hour initial break-
in period. Using synthetic oil does not decrease the
recommended oil change interval. Full synthetic 5W-30 oil will
aid in starting in cold ambient < 41º F (5º C).
Add Fuel
DANGER
Gasoline vapors are highly flammable and extremely explosive.
DO NOT light or smoke cigarettes. Fire or explosion can cause
severe burns or death.
Only fill or drain fuel outdoors in a well-ventilated area. DO
NOT pump gasoline directly into the engine. Use an approved
container to transfer the fuel to the engine.
Never use a gasoline container, gasoline tank, or any other fuel
item that is broken, cut, torn or damaged.
DO NOT overfill the gasoline tank. Always keep fuel away from
sparks, open flames, pilot lights, heat and other sources of
ignition.
Use clean, fresh, regular unleaded gasoline with a minimum
octane rating of 87 and an ethanol content of 10% or less by
volume. ybc
DO NOT mix oil with gasoline.
1. Remove the gasoline cap.
2. Slowly add gasoline to the tank. DO NOT OVERFILL.
A minimum of ¼ in. (6.4 mm) of space left in the tank is
required for gasoline expansion, although more than ¼ in.
(6.4 mm) is recommended. If overfilled, gasoline can be
forced out of the fuel tank as a result of expansion and can
affect the stable running condition of the chipper-shredder.
3. Screw on the gasoline cap and wipe away any spilled fuel.
20
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
OPERATION
CAUTION
Use regular unleaded gasoline with a minimum octane rating
of 87 and an ethanol content of less than 10% by volume.
DO NOT light cigarettes or smoke when filling the tank.
DO NOT mix oil and gasoline.
DO NOT overfill the fuel tank. Always fill the fuel tank to
approximately ¼ in. (6.4 mm) below the top of the tank to
allow for gasoline expansion.
DO NOT pump gasoline directly into the chipper-shredder at
the pump. Use an approved container to transfer the gasoline
to the chipper-shredder.
DO NOT fill fuel tank indoors.
DO NOT fill tank when the engine is running or hot.
WARNING
Pouring gasoline too fast through the fuel screen may result in
blow back of gasoline at the operator while filling.
NOTICE
The engine works well with 10% or less ethanol blended
gasoline. When using ethanol-gasoline blends there are some
issues worth noting:
– Ethanol-gasoline blends can absorb more water than
gasoline alone.
– These ethanol blends can eventually separate, leaving
water or a watery goo in the tank, fuel valve and
carburetor. The compromised gasoline can be drawn
into the carburetor and cause damage to the engine
and/or create potential hazards.
– If a fuel stabilizer is used, confirm that it is formulated
to work with ethanol-gasoline blends.
– Any damages or hazards caused by using ethanol
blended gasoline higher than 10% by volume,
improperly stored gasoline, and/or improperly
formulated stabilizers, are not covered by
manufacturer’s warranty.
It is advisable to always shut off the gasoline supply and
run the engine to starvation after each use. See storage
instructions for extended non-use.
OPERATION
Chipper-Shredder Location
Never operate the chipper-shredder indoors or inside any confined
spaces, enclosures or buildings; including garages, basements,
and sheds. The chipper-shredder must have at least 5 ft. (1.5 m)
of clearance on all sides from combustible materials at all times.
The chipper-shredder must also have 3 ft. (91.4 cm) or more of
clearance on all sides of the at all times to allow for adequate
cooling, maintenance and servicing. Chipper-shredders should
never be started or operated in the bed of a truck (regular, flat or
otherwise), under staircases/stairwells, next to walls or buildings,
or in any other location that will not allow for adequate cooling
of the unit and/or the muffler, or adequate safety to the operator,
assistants, or bystanders. Place the chipper-shredder in a well-
ventilated area. DO NOT place the chipper-shredder near vents
or intakes where exhaust fumes could be drawn into occupied
or confined spaces. Carefully consider wind and air currents
when positioning the unit. Allow the unit to properly cool before
transport or storage. The chipper-shredder needs to be on a dry
level surface with good footing. (Even while not in operation) DO
NOT work on mud, ice, tall grass, brush or snow. DO NOT work on
asphalt, brick, rock, concrete or other harden surfaces. DO NOT
position the unit next to or facing any buildings, walls or fences,
that could cause any projectiles to ricochet back at the operator or
bystanders.
WARNING
During operation the muffler and exhaust fumes produced will
become hot. If adequate cooling and breathing space are not
supplied, or if the chipper-shredder is blocked or contained,
temperatures can become extremely heated and may lead to
fire.
Work Area
Before each use, always inspect the chipper shredder for damaged
or loose parts and always operate the chipper-shredder outdoors
in a large, open area on solid ground that will allow for good
footing and ventilation. To prevent injury, always keep a clear area
around the chipper-shredder at all times. Always ensure no pets,
children or bystanders are in the immediate or surrounding areas
at any time. Debris and projectiles can be launched within a
75 ft. (22.9 m) in diameter in all directions surrounding the
chipper-shredder. Assistants must also be out of the immediate
and surrounding areas while chipping or shredding is being

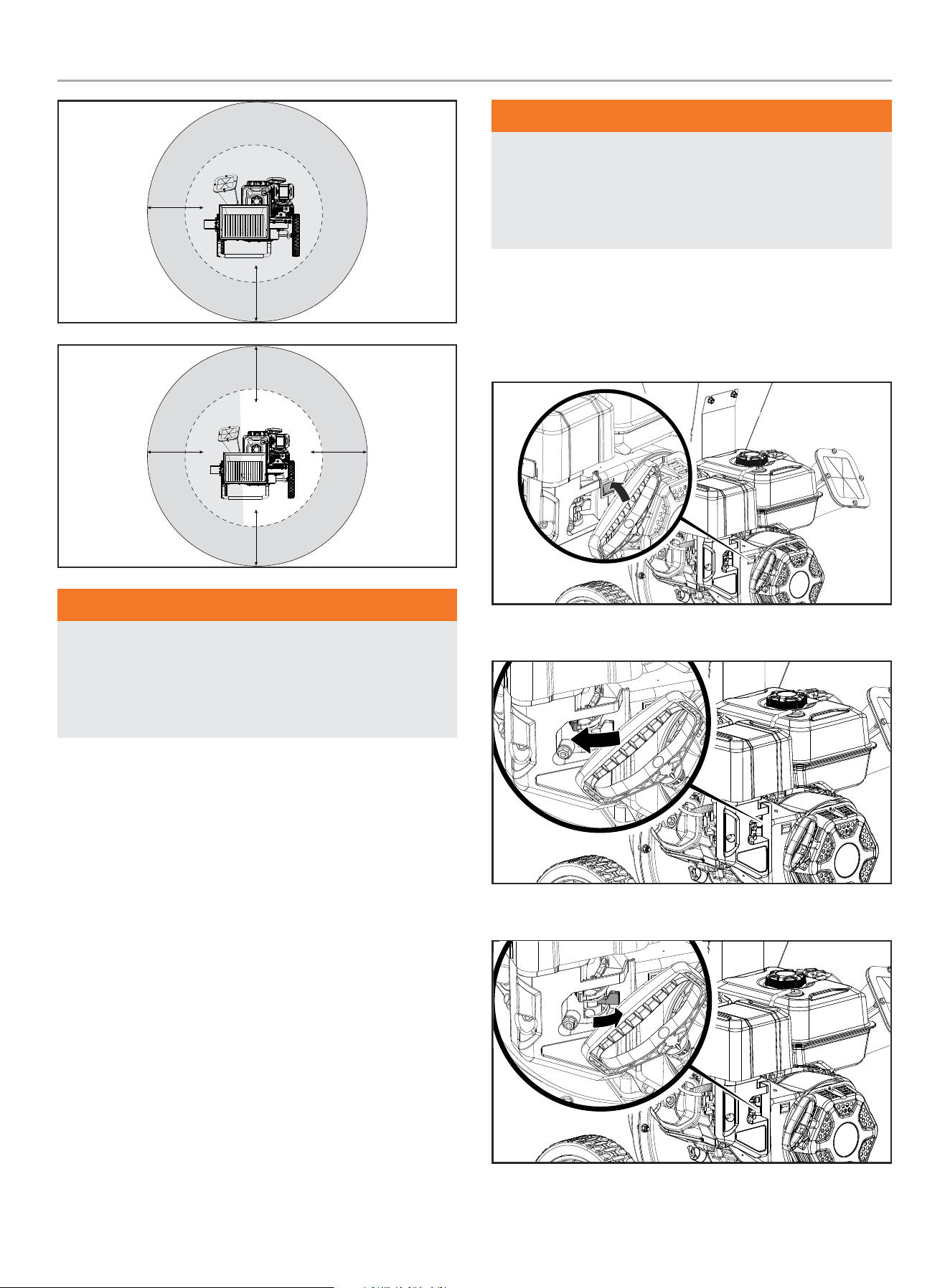

performed. The operator must be in the “Safe Zone” at all times
when the spark plug wire is connected and/or the engine is on.
21
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
OPERATION
S
U
R
R
O
U
N
D
I
N
G
A
R
E
A
Up to
75 ft.
(22.9 m)
Up to
75 ft.
(22.9 m)
Up to 75
ft.
SAFE ZONE
Up to
75 ft.
(22.9 m)
Up to
75 ft.
(22.9 m)
Up to 75
ft.
Up to 75
ft.
WARNING
Do not lean over or reach across the shredder chute when
engine is running. Never stand directly in front of the chipper
chute or deflector chute. Debris and projectiles may be
discharged through these areas and may cause damage or
injury.
Before Each Use Inspect the Chipper-
Shredder
1. Always make sure the spark plug wire has been disconnected
and engine has been grounded.
2. Always visually inspect all attachments and chutes for loose
fittings, cracks, fraying or other damage.
3. DO NOT operate the chipper-shredder if there is any
indication of damage to parts or the unit.
4. DO NOT operate the chipper-shredder if there are any clogged
chutes. Remove all debris before operation.
5. Always inspect the engine and make sure the oil level and
fuel level are correct before operating.
6. Always clean and inspect the spark arrestor regularly (follow
spark arrestor maintenance schedule).
7. Always inspect the collection bag for any fraying, holes or
damage. Never use a damaged collection bag.
8. Always inspect the work area for any distractions or factors
that may prevent operator safety or proper operation.
WARNING
DO NOT operate a damaged chipper-shredder, or one with
damaged or loose parts. Operating a damaged unit or one with
loose parts may cause damage to the product or injury to the
user. Make sure all parts are in good condition and secure
before operation.

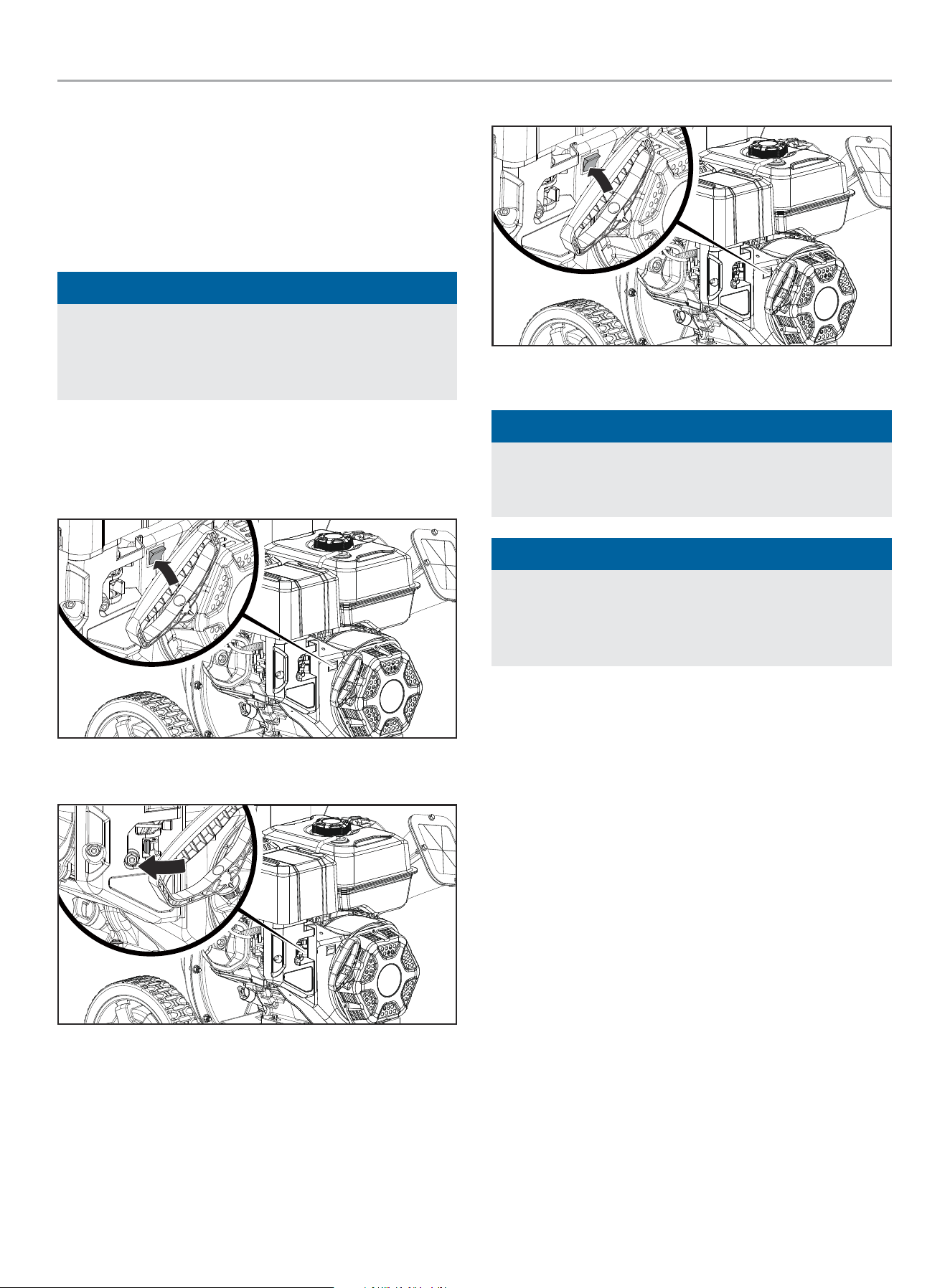

Starting the Engine
1. Make certain the chipper-shredder is on a flat, level surface.
2. Push the engine switch to the “ON” position.
3. Move the choke lever to the “CHOKE” position.
4. Move the fuel valve to the “ON” position.
22
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
OPERATION
5. Pull the starter cord slowly until resistance is felt and then
pull rapidly.
6. As engine warms up, move the choke lever to “RUN.”
NOTICE
Keep choke lever in “CHOKE” position for only 1 pull of the
recoil starter. After first pull, move choke lever to the “RUN”
position for up to the next 3 pulls of the recoil starter. Too
much choke leads to spark plug fouling/engine flooding due to
the lack of incoming air. This will cause the engine not to start.
NOTICE
If the engine starts but does not run make certain that the
chipper-shredder is on a flat, level surface. The engine is
equipped with a low oil sensor that will prevent the engine
from running when the oil level falls below a critical threshold.
NOTICE
Pulling the recoil cord will spin the impeller and this will make
noises. These noises are normal and should be made as the
cord is pulled and the impeller spins.
Chipper-Shredder Operation
DANGER
This machine has rotating blades and parts capable of
amputating body parts. This machine can also throw objects
at high velocity and long distances. Exercise extreme caution
when operating the chipper-shredder. NEVER insert body parts
or foreign object into any chute at any time. Never look directly
into any chute, as projectiles can backfire.
1. ALWAYS wear ear and eye protection, protective shoes and
clothing.
2. Block tires to prevent unintended movement of the chipper-
shredder during operation.
3. Tie back long hair. Do not wear loose fitting clothing or
jewelry.
4. Make sure surrounding and immediate and safe zones are
clear of distractions and debris.
5. Do not attempt to chip or shred material that is larger than
specified. This may damage the unit or cause injury.
6. Make sure the materials that are going to be chipped or
shredded are free of any rocks, trash, metals and other
foreign objects.
7. Make sure wood to be chipped has been “trimmed” down
and do not have any excessive branches.
8. Make sure wood to be chipped or leaves/brush to be
shredded are not “wet” as this may clog the chutes.
9. Keep all chutes, deflectors and guards assembled and in
place at all times.
WARNING
If the impeller or blades strike a foreign object, stop engine
immediately. Do not continue use until chutes and unit have
been thoroughly inspected. Do not attempt to unclog any jam
or chute while engine is on or spark plug wire is connected.
23
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
OPERATION
WARNING
ALWAYS use the chipper-shredder for its intended uses only.
The chipper-shredder should only be used to chip branches 3
in. (7.6 cm) or less in diameter, or to shred leaves and brush.
DO NOT chip anything that is larger than 3 in. (7.6 cm) in
diameter.
NEVER modify, alter or change the chipper-shredder design in
anyway. Unauthorized modifications will void the warranty and
may result in damage or injury.
DO NOT modify or change the engine and operating speeds.
Making these unauthorized changes is a Federal violation,
will void your warranty and will create safety performance
conditions.
ONLY operate the chipper-shredder in daylight.
NEVER operate, or let anyone else operate, the chipper-
shredder while under the influence of alcohol, drugs, or
medication.
NEVER leave the chipper-shredder unattended while the
engine is running. Avoid contact with the muffler, as it can
cause serious burns.
NOTICE
Always be aware of who and what is in the immediate and
surrounding areas of the chipper-shredder. Operators should
always work in the SAFE ZONE only.
Chipping and Shredding Tips
Chipping
1. Make sure wood is less than 3 in. (7.6 cm) in diameter.
2. Make sure wood is dry.
3. Make sure all smaller branches have been pruned for the
wood.
4. Make sure pieces are long enough to be fed through the
chute.
5. Large pieces can be rotated and alternately inserted and
retracted as they are fed.
6. Always maintain control with two hands of what is being fed,
to prevent “whipping” around.
7. Standing in the safe zone will prevent any damage or injury if
a piece is kicked back out of the chipper chute.
WARNING
Never insert pieces larger than 3 in. (7.6 cm) in diameter as
this may cause damage or injury.
Small pieces may be fed carefully using a larger piece. Never
insert smaller pieces using your hands.
If larger pieces will not chip, get pushed backed by the chipper,
or can not be controlled, remove at once.
Never feed more than one branch or piece of wood into the
chipper chute at a time.
Shredding
1. Inserting smaller loads at a time will prevent overloading of
the shredder hopper.
2. Make sure material is dry.
3. Make sure material is free of trash, metal, rocks, and foreign
objects.
4. Air flow will draw loads into the shredder hopper, pushing or
shoving the loads is not necessary.
5. Branches larger than ½ in. (1.3 cm) in diameter are not
recommended, as they can damage the blades.
6. Vines are not recommended as they can clog or damage the
blades.
WARNING
Never insert any item into the shredder hopper to “assist” in
the feeding of any load.
Never insert wet material into the shredder hopper. If material
is “damp” then alternate with dry loads to prevent clogging.
NOTICE
After all material has been processed it is recommended that
the unit run for short period of time to clear out any left over
material that may still be in the chutes or flail housing.
Clearing the Shredder Hopper
If the shredder hopper gets slightly clogged, then firmly grasp the
handle and gently rock the unit back and forth to try and dislodge
or shift the material that may be causing the clog. This may help
to loosen and draw the material into the flail housing and impeller.
If slightly rocking the unit fails then perform the following:
1. Stop the engine.
2. Turn the fuel valve to the “OFF” position.
3. Disconnect the spark plug wire.
24
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
OPERATION
4. Using your hands, remove the material that is still atop the
shredding chute. DO NOT stick your hands in the shredder
hopper, only remove the material on top.
5. Using a branch, or other piece of wood less than ½ in.
(1.3 cm) in diameter try and dislodge the material.
6. Once cleared, remove the branch, reconnect the spark plug
wire, turn the fuel valve “ON,” and restart the engine.
NOTICE
If the clog appears to be serious, then shut the engine off,
disconnect the spark plug wire, and allow the unit to cool
before draining the fuel and opening the access panel to the
impeller housing to remove the clogged material.
Stopping the Engine
In an emergency, turn the engine switch to the “OFF”
position.
Under Normal Operation
1. Move the fuel valve to the “OFF” position.
2. Let the engine run until fuel starvation has stopped the
engine. This usually takes a few minutes.
3. Push the engine switch to the “OFF” position.
Important: Always ensure that the fuel valve is in the “OFF”
position when the engine is not in use.
NOTICE
If the engine will not be used for a period of two (2) weeks or
longer, please see the Storage section for proper engine and
fuel storage.
NOTICE
As the engine shuts off and the blades wind down, some
noises in the flail housing can be made, these are normal, but
any weird noises may be damage and if these occur the unit
should be inspected.
Operation at High Altitude
The density of air at high altitude is lower than at sea level. Engine
power is reduced as the air mass and air-fuel ratio decrease.
Engine power and chipper-shredder output will be reduced
approximately 3½% for every 1000 ft. of elevation above sea
level. This is a natural trend and cannot be changed by adjusting
the engine. At high altitudes increased exhaust emissions can
also result due to the increased enrichment of the air fuel ratio.
Other high altitude issues can include hard starting, increased fuel
consumption and spark plug fouling.
To alleviate high altitude issues other than the natural power
loss, CPE can provide a high altitude carburetor main jet. The
alternative main jet and installation instructions can be obtained
by contacting our Technical Support Team. Installation instructions
are also available in the Technical Bulletin area of the CPE website.
The part number and recommended minimum altitude for the
application of the high altitude carburetor main jet is listed in the
table below.
In order to select the correct high altitude main jet it is necessary
to identify the carburetor model. For this purpose, a code is
stamped on the side of the carburetor. Select the correct high
altitude jet part number corresponding to the carburetor code
found on your particular carburetor.
25

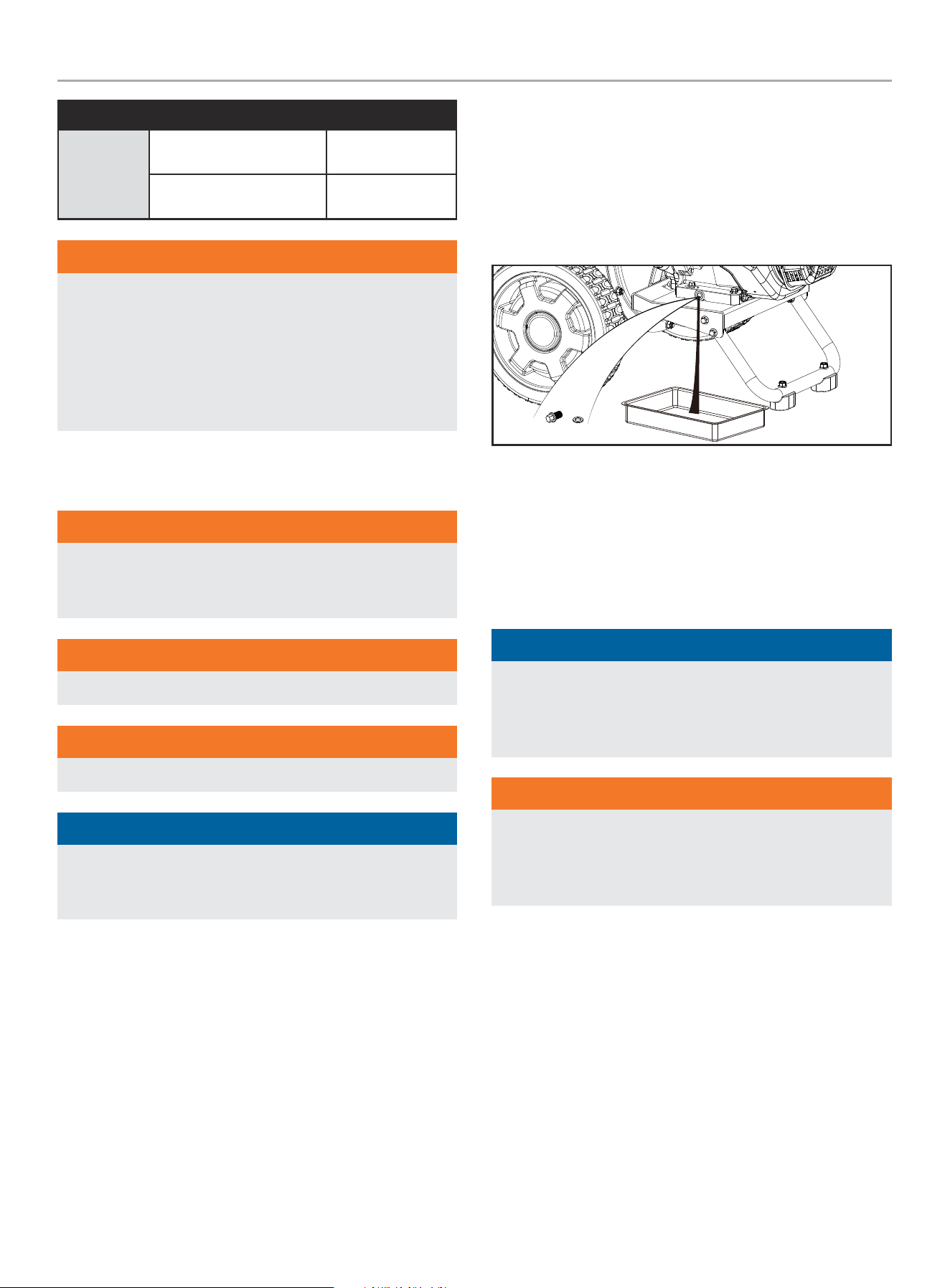

201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
MAINTENANCE
Carb. Code High Alt. Jet Part Number Min. Altitude
16100-
000047
16161-000039
3000-6000 ft.
(914.4-1828.8 m)
16161-000038
6000-8000 ft.
(1828.8-2438.4 m)
WARNING
Operation using the alternative main jet at elevations lower
than the recommended minimum altitude can damage the
engine. For operation at lower elevations, the originally
supplied standard main jet must be used. Operating the
engine with the wrong engine configuration at a given altitude
may increase its emissions and decrease fuel efficiency and
performance.
MAINTENANCE
WARNING
Always disconnect the spark plug wire during times of
inactivity, cleaning and maintenance. This will prevent any
accidental start up that may cause damage or injury.
WARNING
Never operate a damaged or defective chipper-shredder.
WARNING
Improper maintenance will void your warranty.
NOTICE
For Emission control devices and systems, read and
understand your responsibilities for service as stated in the
Emission Control Warranty Statement of this manual.
The owner/operator is responsible for all periodic maintenance.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the chipper shredder.
For service or parts assistance, contact our
Technical Support Team at 1-877-338-0999.
To prevent accidental starting, remove and ground spark plug wire
before performing any service.
Changing the Engine Oil
Change oil when the engine is warm. Refer to the oil specification
to select the proper grade for your operating environment.
1. Remove the oil drain plug with a 10 mm socket and
extension. (Not included)
2. Allow the oil to drain completely.
3. Replace the drain plug.
4. Remove oil fill cap/dipstick to add oil.
5. Add up to 37.2 fl. oz (1100 ml) of oil and replace oil fill cap/
dipstick. DO NOT OVERFILL.
6. Dispose of used oil at an approved waste management
facility.
NOTICE
Once oil has been added, a visual check should show oil
about 1-2 threads from running out of the fill hole. If using the
dipstick to check oil level, DO NOT screw in the dipstick while
checking.
WARNING
Used oil is a hazardous waste product and must be disposed
of properly. Do not discard with household waste. Check
with your local authorities, service center, or dealer for safe
disposal/recycling facilities.
Cleaning and Adjusting the Spark Plug(s)
1. Remove the spark plug cable from the spark plug.
2. Use a spark plug socket tool (not included), or a
13/16 in. (21 mm) socket (not included) to remove the plug.
3. Inspect the electrode on the plug. It must be clean and not
worn to produce the spark required for ignition.
4. Make certain the spark plug gap is
0.028-0.031 in. (0.7-0.8 mm).
26

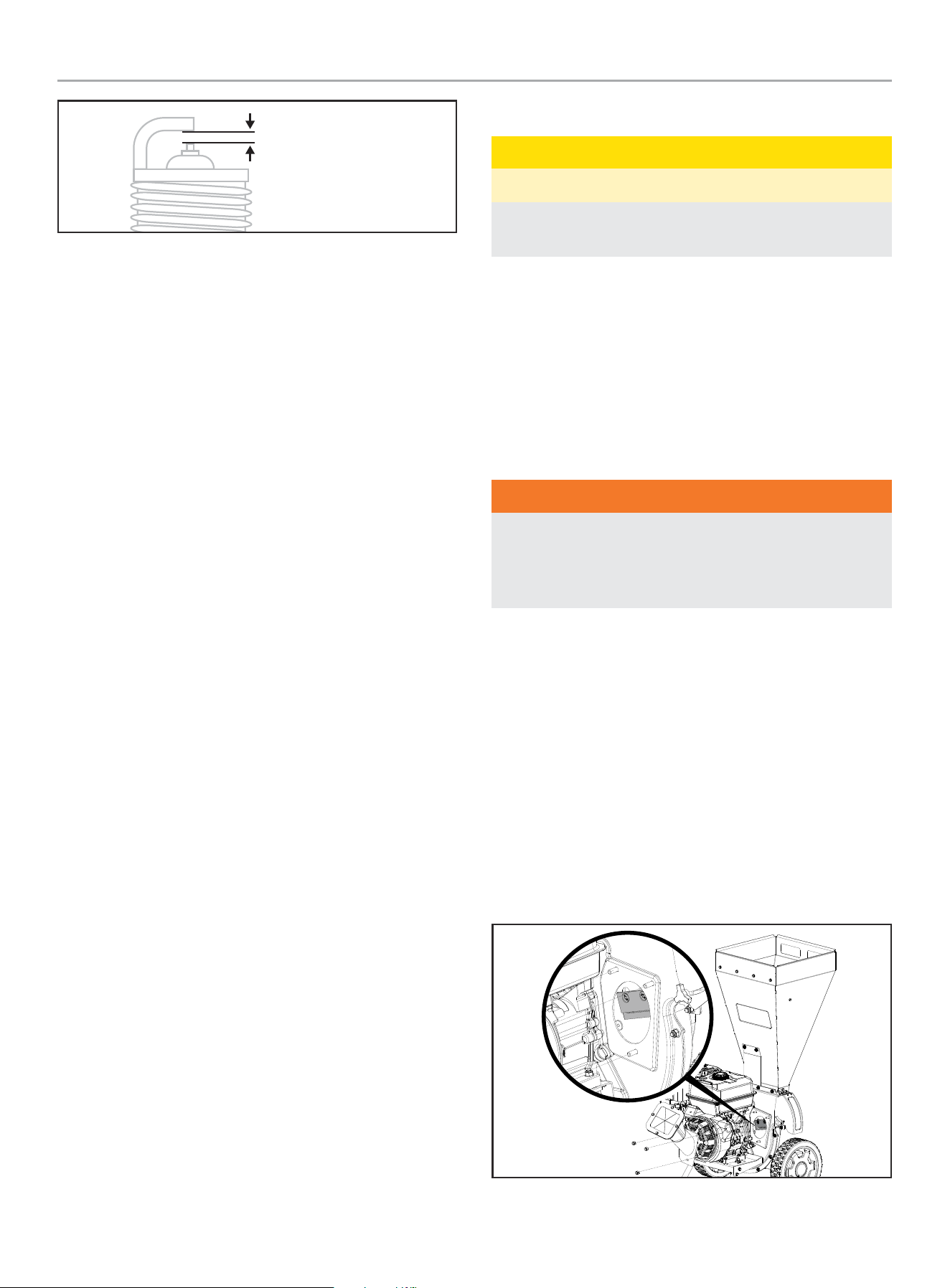

201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
MAINTENANCE
SPARK PLUG GAP
5. Refer to the spark plug types in Specifications when replacing
the plug.
6. Firmly re-install the plug.
7. Attach the spark plug cable to the spark plug.
Clean the Air Filter
1. Remove the plastic outer casing.
2. Remove the foam element.
3. Wash in liquid detergent and water. Squeeze thoroughly dry in
a clean cloth.
4. Saturate in clean engine oil.
5. Squeeze in a clean, absorbent cloth to remove all excess oil.
6. Place the filter in the assembly.
7. Reattach the air filter cover.
Chipper-Shredder Maintenance
Make certain that the chipper-shredder is kept clean and stored
properly. Only operate the unit on a flat, level surface in a clean,
dry operating environment. DO NOT expose the unit to extreme
conditions, excessive dirt, moisture or corrosive vapors.
Inspect all engine air vents and cooling slots to ensure that they
are clean and unobstructed.
Inspect all chutes and housing and make sure they are free of dirt,
and debris.
Check and tighten all bolts and nuts. It is possible for connections
to vibrate loose over time.
Cleaning the Chipper-shredder
CAUTION
DO NOT spray engine with water.
Water can contaminate the fuel system and can enter the
engine through the cooling slots and damage the engine.
Keep exterior surfaces of the engine free from dirt and debris to
maintain proper engine cooling and performance.
Use a soft bristle brush or an air compressor nozzle (25 PSI) to
clear dirt and debris away from the engine surfaces.
To prevent rust and corrosion on metal parts and after cleaning,
use a rust & corrosion inhibitor for preventative maintenance.
Inspect Chipping Blades
WARNING
To avoid serious injury, perform maintenance on the unit only
when the engine is stopped. Always disconnect the spark plug
wire and fasten it away from the plug before beginning the
maintenance, to prevent accidental starting of the engine.
Service Interval: See Maintenance Schedule table
The chipping blades of this unit can be sharpened to provide a
new cutting surface as required. When inspecting the knives be
careful to avoid touching the sharpened edges. To inspect the
chipping knives:
1. Disconnect the spark plug wire and secure it away from the
spark plug.
2. Using a 15mm socket, remove the M10 lock nuts securing
the chipper chute to the front of the chipper and remove the
chipper chute to access the knives.
3. Using the recoil starter, slowly pull the starter rope to rotate
the rotor into position so the blades can be seen.
To sharpen or replace the chipper knives, see the Repair section.
27
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
MAINTENANCE
Repair
Shredder Blade and Flail Blade Inspection and Replacement
WARNING
To avoid serious injury, perform maintenance on the unit only
when the engine is stopped. Always disconnect the spark plug
wire and fasten it away from the plug before beginning the
maintenance, to prevent accidental starting of the engine.
The cutting edges of the shredding hammers may eventually wear
out requiring replacement.
NOTICE
The hammer and blade assembly is precision balanced to
ensure smooth operation. Any modification to this assembly
could result in damage to the unit and will void the warranty.
To Access the Shredder Blades and Flail Blades:
1. Turn the engine off and wait for all moving parts to stop.
2. Disconnect the spark plug wire and secure it away from the
spark plug.
3. Detach the outer flail housing and shredder hopper from
the inner flail housing using a 12mm and 13mm socket and
wrench to disassemble thirteen M8 lock nuts and M8 × 20
bolts that fasten the assemblies together. Carefully separate
the parts.
4. Note the assembly sequence of the hardware used to secure
the shredder blades and flail blades. Using a 5/8 in. socket,
remove the center bolt. Using a 16mm socket remove the
four bolts to disassemble the shredder blade and flail blade
assembly.
The hardware on this assembly was tightened and torqued during
production and may require the use of an impact wrench to
remove.
A
B
C
D
D
B
5. Inspect the shredder blade (A), flail blades (B), spacers (C),
chipper blades (D) and hardware (nuts, bolts and washers). If
any of the parts show signs of wear and/or damage, replace
them.
6. Reassemble the hammers, blade, spacers, washers, nuts and
bolts. Torque the nuts and bolts to 30-35 ft. lbs.
Chipping Blade Sharpening and Replacement
WARNING
To avoid injury, perform maintenance on the unit only when the
engine is stopped. Always disconnect the spark plug wire and
fasten it away from the plug before beginning maintenance to
prevent accidental starting of the engine.
28
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
MAINTENANCE
The chipping knives should be sharpened or replaced when tree
limbs require extra force to feed into the chipper chute.
The chipping knives may be sharpened at a 30-degree angle
until the distance between the edge of the blade bevel and the
mounting hole is less than 1/16” (1.6mm).
1/16"
MIN.
30°
Top View Side View
CHIPPER KNIFE CUTTING EDGE
To inspect, sharpen, or replace the chipping knives:
1. Turn the engine off and wait for all moving parts to stop.
2. Disconnect the spark plug wire and secure it away from the
spark plug.
3. Detach the outer flail housing and shredder hopper from the
inner flail housing using two 12mm socket and wrench to
disassemble thirteen M8 lock nuts and M8 × 20 bolts that
fasten the assemblies together. Carefully separate the parts.
4. To remove the impeller assembly from the inner flail housing,
use a 5/8 in. socket to remove the bolt in the center of the
assembly (A). Pull the impeller assembly (B) outward and
remove from the inner flail housing (C).
The hardware on this assembly was tightened and torqued during
production and may require the use of an impact wrench to
remove.
A
B
C
5. Using a 3/16 in. hex wrench and a 12mm wrench, loosen
the four (two on each blade) M8 × 25 countersink hex head
screws (A) and M8 lock nuts (B) and remove the chipper
blades (C).
B
A
C
C
A
B
6. Inspect, sharpen, or replace the chipper blades.
7. Reinstall the chipper blades (C) and, using a 3/16 in. hex
wrench and 12mm wrench, tighten the M8 × 25 countersink
hex head screws (A) and M8 lock nuts (B) to 18-20 ft. lbs. of
torque. We recommend the use of high strength thread lock
on screws.
29
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
STORAGE
Maintenance Schedule
Follow the service intervals indicated in the following maintenance
schedule.
Service your chipper-shredder more frequently when operating in
adverse conditions.
Contact our Technical Support Team at 1-877-338-0999 to locate
the nearest CPE certified service dealer for your chipper-shredder
or engine maintenance needs.
EVERY 8 HOURS OR PRIOR TO EACH USE
Check engine oil level
Clean around air intake and muffler
Check air filter
Check for loose or damaged parts
Inspect all chute guards
FIRST 5 HOURS
Change oil (break in period)
EVERY 25 HOURS OR PER 1 MONTH
Chang engine oil
Clean air filter
Inspect all blades, sharpen if needed
EVERY 50 HOURS OR PER 6 MONTHS
Clean and adjust spark plug
Check cooling fan
EVERY 100 HOURS OR PER 1 YEAR
Check/adjust valve clearance*
Clean fuel tank and filter*
EVERY 200 HOURS OR PER 2 YEARS
Check/replace fuel line
Change spark plug
EVERY 250 HOURS
Clean combustion chamber
* To be performed by knowledgeable, experienced owners or CPE certified service
centers.
STORAGE
Refer to the Maintenance sections for proper cleaning instructions.
Always disconnect the spark plug wire in times of inactivity,
maintenance, and storage. This will help to prevent any unintended
engine start ups.
WARNING
Never store the chipper-shredder indoors next to appliances
where there is a source of heat, open flame, spark or pilot light
because they can ignite gasoline vapors.
DO NOT store a chipper-shredder near fertilizer or any
corrosive material. Even with an empty gas tank, gasoline
vapors could ignite.
Chipper-shredder Storage
1. The chipper-shredder needs to cool for at a minimum of 5
minutes before storing.
2. Clean the chipper-shredder before storage according to the
Maintenance section.
3. Store the unit in a clean, dry place out of direct sunlight.
Engine Stored for Less than 30 Days
1. Add a properly formulated fuel stabilizer to the tank.
2. Run the engine for a minimum of 3 minutes with treated fuel
to cycle through the fuel system and carburetor.
3. Turn the fuel valve to the “OFF” position.
4. Let the engine run until fuel starvation has stopped the
engine.
5. Let the engine completely cool before cleaning and storage.
6. Clean the engine according to the Maintenance section.
Engines Stored for Over 30 Days
1. Add a properly formulated fuel stabilizer to the tank.
2. Run the engine for a minimum of 3 minutes with treated fuel
to cycle through the fuel system and carburetor.
3. Turn the fuel valve to the “OFF” position.
4. Let the engine run until fuel starvation has stopped the
engine.
5. Let the engine completely cool before cleaning and storage.
6. Clean the engine according to the Maintenance section.
7. Change the oil.
8. Remove the spark plug and pour about ½ ounce (14.8 mL) of
oil into the cylinder. Crank the engine slowly to distribute the
oil and lubricate the cylinder.
30
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
SPECIFICATIONS
SPECIFICATIONS
Chipper-shredder Specifications
Max Diameter Chipper Material
......................3 in. (7.6 cm)
Max Diameter Shredder Material .................. 1/2 in. (1.3 cm)
Overall Dimensions
Net Weight
...................................... 174.6 lbs. (79.2 kg)
Height ........................................... 49.9 in. (126.8 cm)
Width .............................................26.6 in. (67.5 cm)
Length ............................................27.7 in. (70.4 cm)
Engine Specifications
Model .........................................................R338P
Displacement ................................................ 338 cc
Type ................................................... 4-Stroke OHV
Start Type .................................................... Recoil
Fuel Specifications
Use regular unleaded gasoline with a minimum octane rating of 87
and an ethanol content of less than 10% by volume. DO NOT USE
E15 or E85. DO NOT OVERFILL.
Gasoline Capacity
..................................1.45 gal. (5.5 L)
Engine Oil Specifications
DO NOT OVERFILL.
Type
................................................ See chart below
Capacity ....................................... 37.2 fl. oz (1100 ml)
-20 0 20 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C
-17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30
NOTICE
Weather will affect engine oil and engine performance. Change
the type of engine oil used based on weather conditions to suit
the engine needs.
Spark Plug Specifications
OEM Type
..................................................... F6RTC
Replacement Type ...................... NGK BPR6ES or equivalent
Gap ..................................0.028-0.031 in. (0.7-0.8 mm)
Valve Specifications
Intake Clearance ................ 0.002-0.0039 in. (0.05-0.1 mm)
Exhaust Clearance .............. 0.002-0.0039 in. (0.05-0.1 mm)
NOTICE
A technical bulletin regarding valve adjustment procedures is
available at www.championpowerequipment.com.
Important Message About Temperature
Your product is designed and rated for continuous operation at
ambient temperatures up to 104°F (40°C). When your product is
needed it may be operated at temperatures ranging from
5°F (-15°C) to 122°F (50°C) for short periods of time. If exposed
to temperatures outside this range during storage, it should be
brought back within this range before operation. In any event, the
product must always be operated outdoors, in a well-ventilated
area and away from doors, windows and vents.
31
201352 - 3 IN. (7.6 CM) CHIPPER SHREDDER
TROUBLESHOOTING
TROUBLESHOOTING
Problem Cause Solution
Engine will not start.
No fuel. Add fuel.
Faulty spark plug. Replace spark plug.
Unit loaded during start up. Remove load from unit.
Engine will not start;
Engine starts but runs roughly.
Low oil level.
Fill crankcase to the proper level.
Place chipper-shredder on a flat, level surface.
Choke in the wrong position. Adjust choke.
Spark plug wire loose. Attach wire to spark plug.
Engine shuts down during operation.
Out of fuel. Fill fuel tank.
Low oil level.
Fill crankcase to the proper level. Place chipper-
shredder on a flat, level surface.
Engine cannot supply enough power or
overheating.
Insufficient ventilation.
Check for air restriction. Move to a well
ventilated area.
No materials are discharged
Flail housing clogged
Stop engine immediately, disconnect spark plug,
take apart flail housing to clear clog
Deflector chute clogged
Stop engine immediately, disconnect spark plug,
take apart deflector chute to clear clog
Collection bag is full
Stop engine, disconnect spark plug, empty
collection bag
Discharge rate slows or discharge
material changes
Chipper blades, shredder blade and flail
blades are dull
Stop engine, disconnect spark plug, take apart
flail housing and check all blades. Sharpen if
needed
Excessive vibration or unusual noise
while engine is running or material is
being processed
Foreign object(s) in chutes or flail housing
Stop engine immediately, disconnect spark plug,
inspect all chutes and take apart flail housing to
inspect for foreign object (s)
Impeller overloaded with material
Allow impeller to run current material load
through before adding more
Material is too dry or thick for blades Remove material immediately
For further technical support:
Technical Support Team
Toll Free 1-877-338-0999
support@championpowerequipment.com
WARRANTY*
CHAMPION POWER EQUIPMENT
2 YEAR LIMITED WARRANTY
Warranty Qualifications
To register your product for warranty and FREE lifetime call center
technical support please visit:
https://www.championpowerequipment.com/register
To complete registration you will need to include a copy of the
purchase receipt as proof of original purchase. Proof of purchase
is required for warranty service. Please register within ten (10)
days from date of purchase.
Repair/Replacement Warranty
CPE warrants to the original purchaser that the mechanical and
electrical components will be free of defects in material and
workmanship for a period of two years (parts and labor) from
the original date of purchase and 90 days (parts and labor) for
commercial and industrial use. Transportation charges on product
submitted for repair or replacement under this warranty are the
sole responsibility of the purchaser. This warranty only applies to
the original purchaser and is not transferable.
Do Not Return The Unit To The Place Of
Purchase
Contact CPE’s Technical Service and CPE will troubleshoot any
issue via phone or e-mail. If the problem is not corrected by
this method, CPE will, at its option, authorize evaluation, repair
or replacement of the defective part or component at a CPE
Service Center. CPE will provide you with a case number for
warranty service. Please keep it for future reference. Repairs or
replacements without prior authorization, or at an unauthorized
repair facility, will not be covered by this warranty.
Warranty Exclusions
This warranty does not cover the following repairs and equipment:
Normal Wear
Products with mechanical and electrical components need
periodic parts and service to perform well. This warranty does not
cover repair when normal use has exhausted the life of a part or
the equipment as a whole.
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if the product is
deemed to have been misused, neglected, involved in an accident,
abused, loaded beyond the product’s limits, modified, installed
improperly or connected incorrectly to any electrical component.
Normal maintenance is not covered by this warranty and is not
required to be performed at a facility or by a person authorized by
CPE.
Other Exclusions
This warranty excludes:
– Cosmetic defects such as paint, decals, etc.
– Wear items such as filter elements, o-rings, etc.
– Failures due to acts of God and other force majeure events
beyond the manufacturer’s control.
– Problems caused by parts that are not original Champion
Power Equipment parts.
When applicable, this warranty does not apply to products used
for prime power in place of a utility.
Limits of Implied Warranty and
Consequential Damage
Champion Power Equipment disclaims any obligation to cover
any loss of time, use of this product, freight, or any incidental
or consequential claim by anyone from using this product.
THIS WARRANTY AND THE ATTACHED U.S. EPA and/or CARB
EMISSION CONTROL SYSTEM WARRANTIES (WHEN APPLICABLE)
ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty
of the original unit. The length of the warranty governing the
exchanged unit will remain calculated by reference to the purchase
date of the original unit.
This warranty gives you certain legal rights which may change
from state to state or province to province. Your state or province
may also have other rights you may be entitled to that are not
listed within this warranty.
Contact Information
Address
Champion Power Equipment, Inc.
6370 S Pioneer Way, Unit 101
Las Vegas, NV 89113 USA
www.championpowerequipment.com
Customer Service
Toll Free: 1-877-338-0999
info@championpowerequipment.com
Fax no.: 1-562-236-9429
Technical Service
Toll Free: 1-877-338-0999
tech@championpowerequipment.com
EMERGENCY 24 HOUR SUPPORT: 1-562-204-1188
*Except as otherwise stipulated in any of the following enclosed Emission Control System Warranties (when applicable) for the Emission Control System: U.S. Environment Protection Agency
(EPA) and/or California Air Resources Board (CARB).
CHAMPION POWER EQUIPMENT, INC. (CPE)
AND THE UNITED STATES ENVIRONMENTAL PROTECTION AGENCY (U.S. EPA)
EMISSION CONTROL SYSTEM WARRANTY
Your Champion Power Equipment (CPE) engine complies with U.S. EPA emissions regulations.
YOUR WARRANTY RIGHTS AND OBLIGATIONS:
The US EPA and CPE are pleased to explain the Federal Emission Control Systems Warranty on your 2025 small off-road engine and engine
powered equipment. New engines and equipment must be designed, built and equipped, at the time of sale, to meet U.S. EPA regulations
for small off-road engines. CPE warrants the emission control system on your small off-road engine and equipment for the period of time
listed below, provided there has been no abuse, neglect, unapproved modification, or improper maintenance of your equipment.
Your emission control system may include parts such as the carburetor, fuel-injection system, the ignition system, catalytic converter and
fuel lines. Also included may be hoses, belts, connectors and other emission related assemblies. Where a warrantable condition exits, CPE
will repair your small off-road engine at no cost to you including diagnosis, parts and labor.
MANUFACTURER’S EMISSION CONTROL SYSTEM WARRANTY COVERAGE:
This emission control system is warranted for two years, subject to provisions set forth below. If, during the warranty period, an emission
related part on your engine is defective in materials or workmanship, the part will be repaired or replaced by CPE.
OWNER’S WARRANTY RESPONSIBILITIES:
As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your Owner’s Manual.
CPE recommends that you retain all your receipts covering maintenance on your small off-road engine, but CPE cannot deny warranty
solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
As the small off-road engine owner, you should however be aware that CPE may deny you warranty coverage if your small, off-road engine
or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
You are responsible for presenting your small off-road engine to an Authorized CPE service outlet or alternate service outlet as described
in (3)(f.) below, CPE dealer or CPE, Las Vegas, NV. as soon as a problem exists. The warranty repairs should be completed in a reasonable
amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact:
Champion Power Equipment, Inc.
Customer Service
6370 S Pioneer Way, Unit 101
Las Vegas, NV 89113
1-877-338-0999
tech@championpowerequipment.com
EMISSION CONTROL SYSTEM WARRANTY
The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage.
1. APPLICABILITY: This warranty shall apply to 1997 and later model year small off-road engines. The ECS Warranty Period shall begin
on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months
thereafter.
2. GENERAL EMISSIONS WARRANTY COVERAGE
CPE warrants to the original, end-use purchaser of the new engine or equipment and to each subsequent purchaser that the ECS
when installed is:
2a. Designed, built and equipped so as to conform to U.S. EPA emissions standards for spark-ignited engines at or below 19 kilowatts.
2b. Free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material respects
to the part as described in the engine manufacturer’s application for certification for a period of two years.
3. THE WARRANTY ON EMISSION-RELATED PARTS WILL BE INTERPRETED AS FOLLOWS:
3a. Any warranted part that is not scheduled for replacement as required maintenance in the Operator’s Manual shall be warranted for
the ECS Warranty Period. If any such part fails during the ECS Warranty Period, it shall be repaired or replaced by CPE according
to Subsection “d” below. Any such part repaired or replaced under the ECS Warranty shall be warranted for any remainder of the
ECS Warranty Period.
3b. Any warranted, emissions-related part which is scheduled only for regular inspection as specified in the Operator’s Manual
shall be warranted for the ECS Warranty Period. A statement in such written instructions to the effect of “repair or replace as
necessary”, shall not reduce the ECS Warranty Period. Any such part repaired or replaced under the ECS Warranty shall be
warranted for the remainder of the ECS Warranty Period.
3c. Any warranted, emissions-related part which is scheduled for replacement as required maintenance in the Operator’s Manual shall
be warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first
scheduled replacement, the part shall be repaired or replaced by CPE according to Subsection “d” below. Any such emissions-
related part repaired or replaced under the ECS Warranty, shall be warranted for the remainder of the ECS Warranty Period prior to
the first scheduled replacement point for such emissions-related part.
3d. Repair or replacement of any warranted, emissions-related part under this ECS Warranty shall be performed at no charge to the
owner at a CPE Authorized Service Outlet.
3e. The owner shall not be charged for diagnostic labor which leads to the determination that a part covered by the ECS Warranty is in
fact defective, provided that such diagnostic work is performed at a CPE Authorized Service Outlet.
3f. CPE shall pay for covered emissions warranty repairs at non-authorized service outlets under the following circumstances:
i. The service is required in a population center with a population over 100,000 according to U.S. Census 2000 without a CPE
Authorized Service Outlet AND
ii. The service is required more than 100 miles from a CPE Authorized Service Outlet. The 100 mile limitation does not apply in the
following states: Alaska, Arizona, Colorado, Hawaii, Idaho, Montana, Nebraska, Nevada, New Mexico, Oregon, Texas, Utah and
Wyoming.
3g. CPE shall be liable for damages to other original engine components or approved modifications proximately caused by a failure
under warranty of an emission-related part covered by the ECS Warranty.
3h. Throughout the ECS Warranty Period, CPE shall maintain a supply of warranted emission-related parts sufficient to meet the
expected demand for such emission-related parts.
3i. Any CPE Authorized and approved emission-related replacement part may be used in the performance of any ECS Warranty
maintenance or repair and will be provided without charge to the owner. Such use shall not reduce CPE’s warranty obligation.
3j. Unapproved add-on or modified parts may not be used to modify or repair a CPE engine. Such use voids this ECS Warranty and
shall be sufficient grounds for disallowing an ECS Warranty claim. CPE shall not be liable hereunder for failures of any warranted
parts of a CPE engine caused by the use of such an unapproved add-on or modified part.
EMISSION-RELATED PARTS INCLUDE THE FOLLOWING: (using those portions of the list
applicable to the engine)
Systems covered by this
warranty
Parts Description
Fuel Metering System Fuel regulator, Carburetor and internal parts
Air Induction System Air cleaner, Intake manifold
Ignition System Spark plug and parts, Magneto ignition system
Exhaust System Exhaust manifold, catalytic converter
Miscellaneous Parts Tubing, Fittings, Seals, Gaskets, and Clamps associated with these listed systems.
Evaporative Emissions Fuel Tank, Fuel Cap, Fuel Lines (for liquid fuel and fuel vapors), Fuel Line Fittings, Clamps, Pressure
Relief Valves, Control Valves, Control Solenoids, Electronic Controls, Vacuum Control Diaphragms,
Control Cables, Control Linkages, Purge Valves, Gaskets, Liquid/Vapor Separator, Carbon Canister,
Canister Mounting Brackets, Carburetor Purge Port Connector
TO OBTAIN WARRANTY SERVICE:
You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original
purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to
sell and service that CPE product during his normal business hours. Alternate service locations defined in Section (3)(f.) above must be
approved by CPE prior to service. Claims for repair or adjustment found to be caused solely by defects in material or workmanship will not
be denied because the engine was not properly maintained and used.
If you have any questions regarding your warranty rights and responsibilities, or to obtain warranty service, please write or call
Customer Service at Champion Power Equipment, Inc.
Champion Power Equipment, Inc.
6370 S Pioneer Way, Unit 101
Las Vegas, NV 89113
1-877-338-0999
Attn.: Customer Service
tech@championpowerequipment.com
