INSTRUCTION MANUAL
Ceramic Hob
MODEL: YL-CF8505
220-240V~,50-60Hz
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Contents
1. Safety Warnings
..................................................................................
1
2.Product Overview.
...............................................................................
6
3.How to choose right cookware........................................................7
4. Use Instruction.................................................................................... 8
5. Cooking Guidelines…...................................................................... 15
6.Care and Cleaning....................................................................17
7. Technical Specification
...................................................................
21
8. Installation instruction...................................................................... 22
9. Warranty….......................................................................................... 26
1
Safety Warnings
Your safety is important to us. Please read this
information before using your cooktop.
Installation
Electrical Shock Hazard
• Disconnect the appliance from the mains electricity supply before
carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and
mandatory.
• Alterations to the domestic wiring system must only be made by a
qualified electrician.
• Failure to follow this advice may result in electrical shock or
death.
Cut Hazard
• Take care - panel edges are sharp.
• Failure to use caution could result in injury or cuts.
Important safety instructions
• Read these instructions carefully before installing or using this
appliance.
• No combustible material or products should be placed on this
appliance at any time.
• Please make this information available to the person responsible
for installing the appliance as it could reduce your installation
costs.
• In order to avoid a hazard, this appliance must be installed
according to these instructions for installation.
2
• This appliance is to be properly installed and earthed only by a
suitably qualified person.
• This appliance should be connected to a circuit which
incorporates an isolating switch providing full disconnection
from the power supply.
• Failure to install the appliance correctly could invalidate any
warranty or liability claims.
Operation and maintenance Electrical
Shock Hazard
• Do not cook on a broken or cracked cooktop. If the cooktop
surface should break or crack, switch the appliance off
immediately at the mains power supply (wall switch) and
contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or
maintenance.
• Failure to follow this advice may result in electrical shock or
death.
Health Hazard
• This appliance complies with electromagnetic safety standards.
Hot Surface Hazard
• During use, accessible parts of this appliance will become hot
enough to cause burns.
• Do not let your body, clothing or any item other than suitable
cookware contact the Induction glass until the surface is cool.
• Metallic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.
• Keep children away.
•Handles of saucepans may be hot to touch. Check saucepan
handles do not overhang other cooking zones that are on. Keep
handles out of reach of children.
•Failure to follow this advice could result in burns and scalds.
3
Cut Hazard
• The razor-sharp blade of a cooktop scraper is exposed when
the safety cover is retracted. Use with extreme care and always
store safely and out of reach of children.
• Failure to use caution could result in injury or cuts.
Important safety instructions
• Never leave the appliance unattended when in use. Boilover
causes smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the cooktop
as described in this manual (i.e. by using the touch controls).
• Do not allow children to play with the appliance or sit, stand,
or climb on it.
• Do not store items of interest to children in cabinets above
the appliance. Children climbing on the cooktop could be
seriously injured.
• Do not leave children alone or unattended in the area where
the appliance is in use.
• Children or persons with a disability which limits their ability
to use the appliance should have a responsible and competent
person to instruct them in its use. The instructor should be
satisfied that they can use the appliance without danger to
themselves or their surroundings.
• Do not repair or replace any part of the appliance unless
specifically recommended in the manual. All other servicing
should be done by a qualified technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
•Do not use pans with jagged edges or drag pans across the
Induction glass surface as this can scratch the glass.
4
• Do not use scourers or any other harsh abrasive cleaning
agents to clean your cooktop, as these can scratch the
Induction glass.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
• This appliance is intended to be used in household and similar
applications such as: -staff kitchen areas in shops, offices and
other working environments;-farm houses; -by clients in hotels,
motels and other residential type environments ; -bed and
breakfast type environments.
•WARNING: The appliance and its accessible parts become hot
during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless
continuously supervised.
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
•Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
•WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire. NEVER try to extinguish a fire
with water, but switch off the appliance and then cover flame
e.g. with a lid or a fire blanket.
•WARNING: Danger of fire: do not store items on the cooking
surfaces.
•WARNING: If the surface is cracked, switch off the appliance to
avoid the possibility of electric shock, for hob surfaces of glass-
ceramic or similar material which protect live parts
•A steam cleaner is not to be used.
5
•The appliance is not intended to be operated by means of an
external timer or separate remote-control system.
Congratulations on the purchase of your new Ceramic Hob.
We recommend that you spend some time to read this
Instruction / Installation Manual in order to fully understand how
to install correctly and operate it.
For installation, please read the installation section.
Read all the safety instructions carefully before use and keep this
Instruction / Installation Manual for future reference.
6

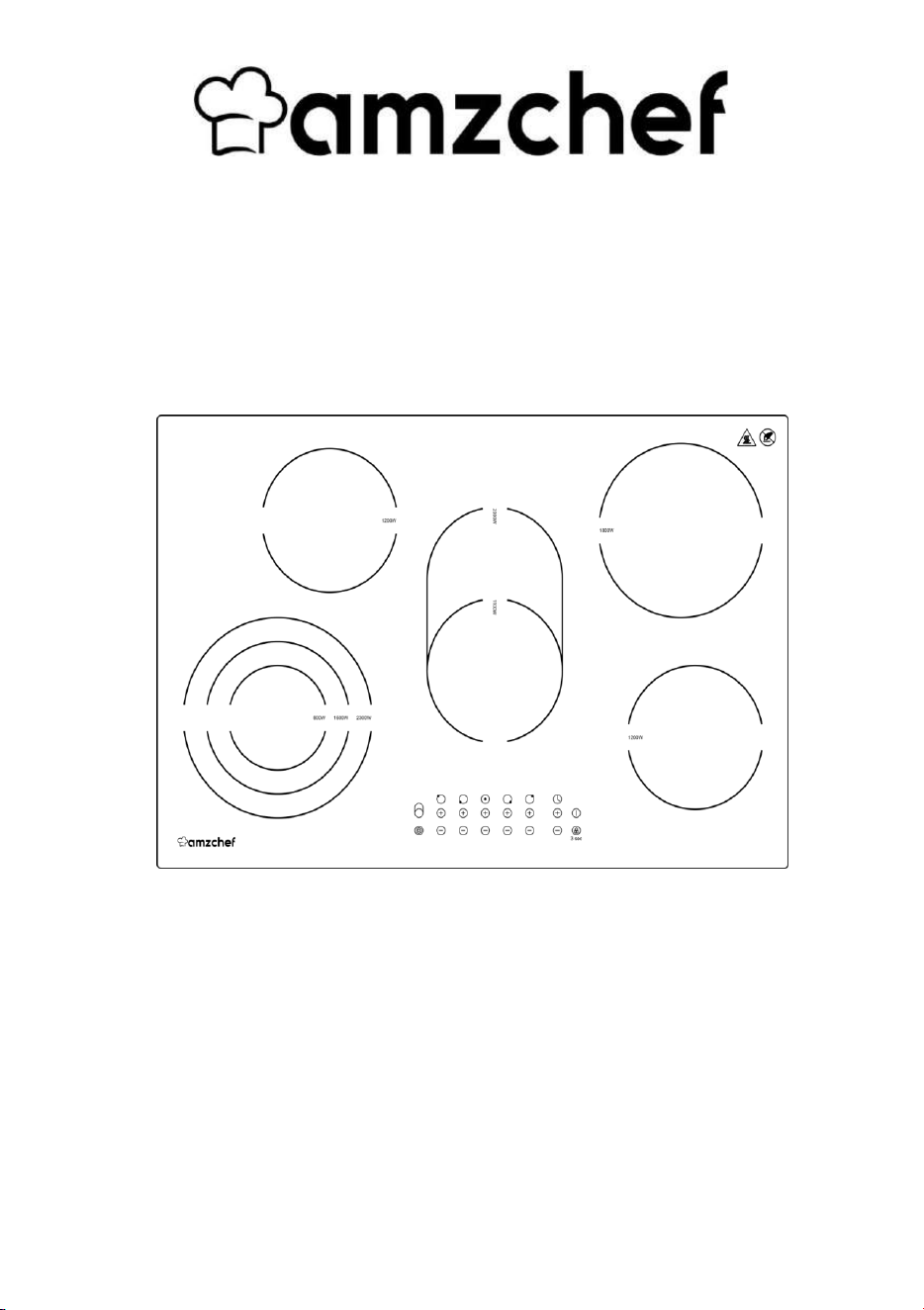

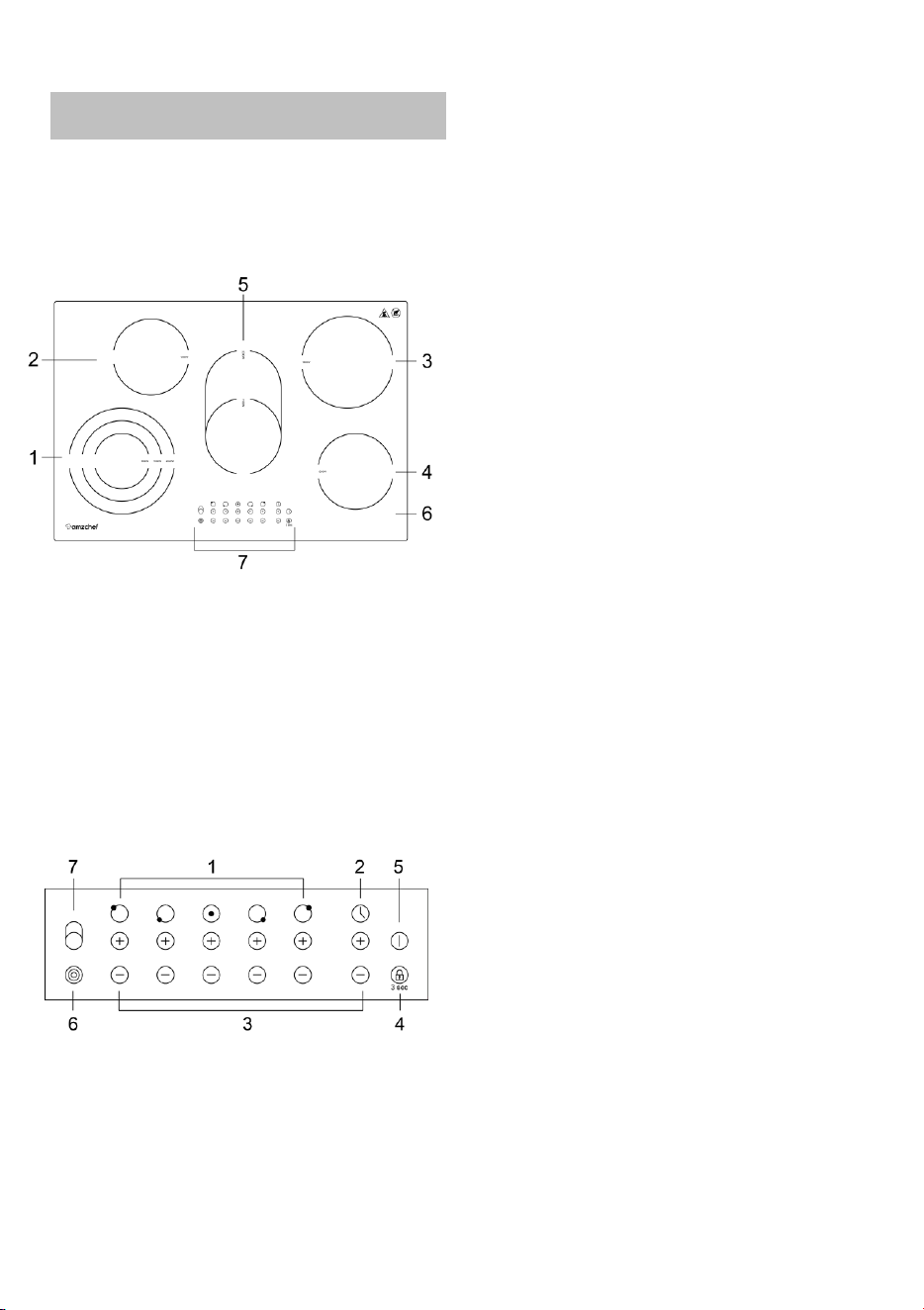

Product Overview
Top View
Control Panel
1. max. 2300/1600/800 W zone
2. max. 1200 W zone
3. max. 1800 W zone
4. max. 1200 W zone
5. max. 2000/1100 W zone
6. Glass plate
7. Control panel
1. Heating zone selection indicator
2. Timer indicator
3. Power/Timer regulating controls
4. keylock control
5. ON/OFF control
6. Dual/Triple zone control
7. Oval zone control
7
Product Information
The microcomputer ceramic cooker hob can meet different kinds of
cuisine demands because of resistance wire heating, micro-
computerized control and multi-power selection, really the optimal
choice for modern families.
The ceramic cooker hob centers on customers and adopts
personalized design. The hob has safe and reliable performances,
making your life comfortable and enabling to fully enjoy the
pleasure from life.
Before using your New Ceramic Hob
•Read this guide, taking special note of the ‘Safety Warnings’ section.
•Remove any protective film that may still be on your ceramic hob.

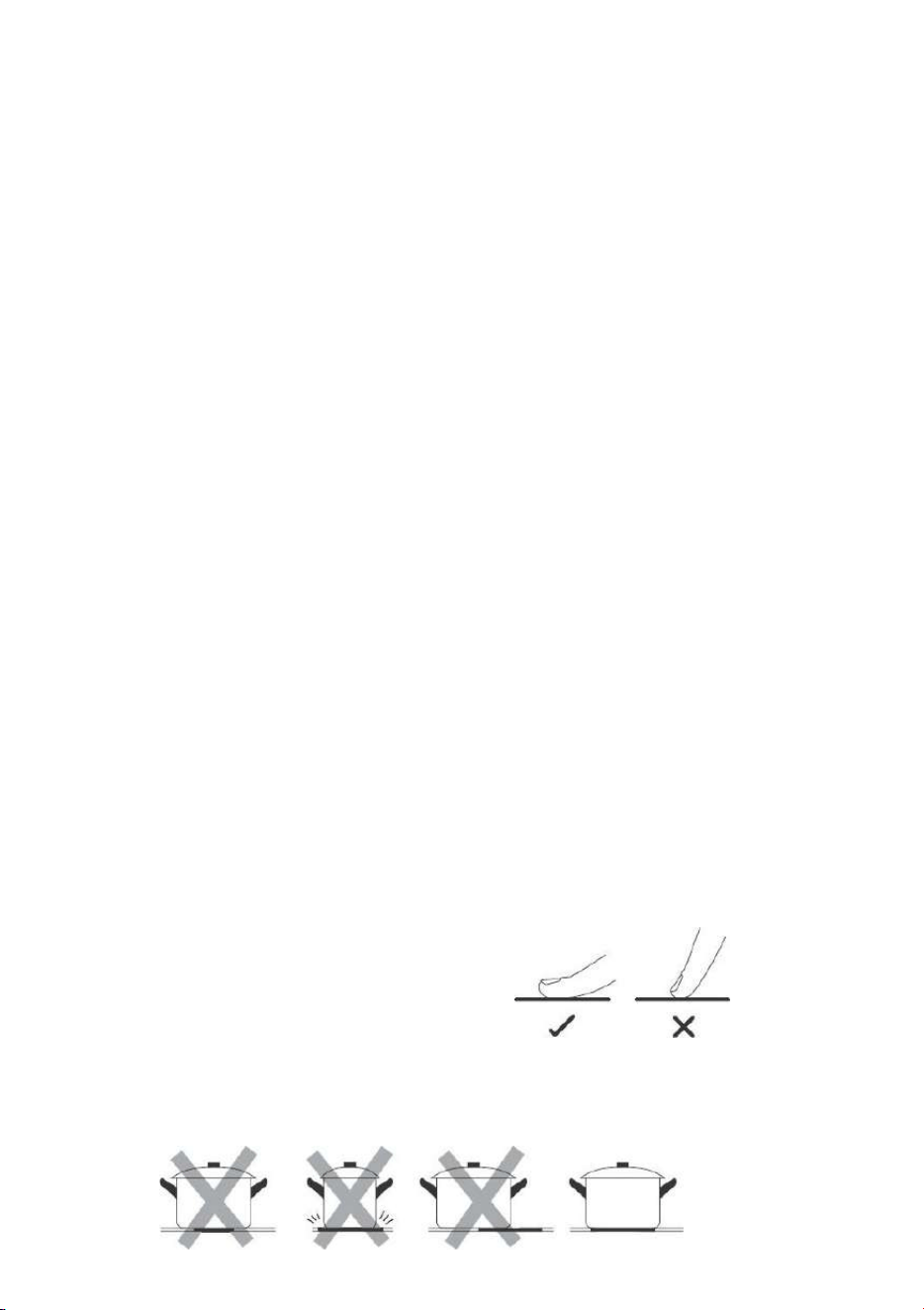

Using the Touch Controls
•The controls respond to touch, so you don’t need to apply any pressure.
•Use the ball of your finger, not its tip.
•You will hear a beep each time a touch is registered.
•Make sure the controls are always clean, dry, and that there is no
object (e.g. a utensil or a cloth) covering them. Even a thin film of
water may make the controls difficult to operate.

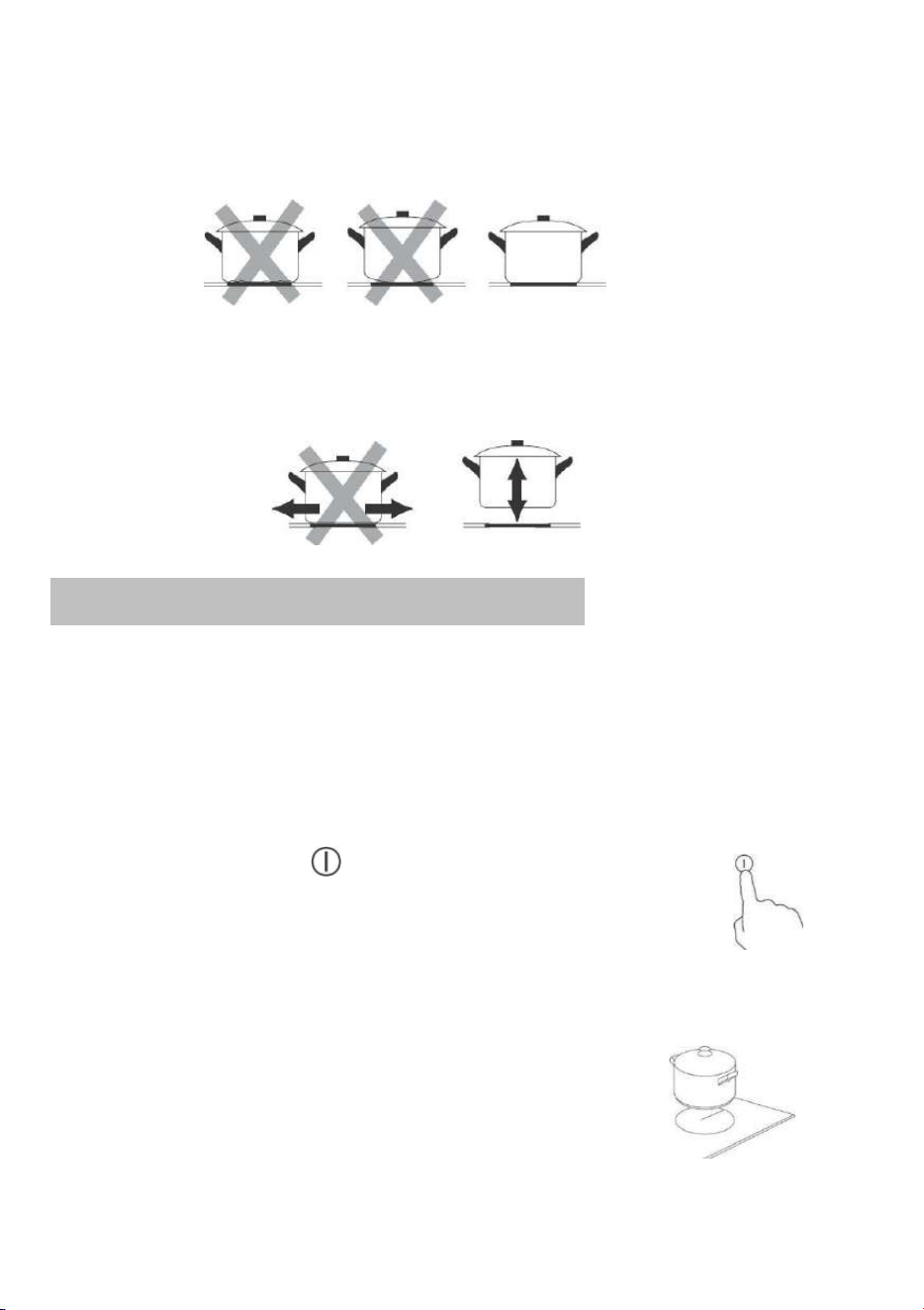

Choosing the right Cookware
Do not use cookware with jagged edges or a curved base.
8
Make sure that the base of your pan is smooth, sits flat against the
glass, and is the same size as the cooking zone. Always centre
your pan on the cooking zone.
Always lift pans off the ceramic hob – do not slide, or they may scratch
the glass.
Using your Ceramic Hob
To Start Cooking
After power on, the buzzer beeps once, all the indicators light up for
1 second then go out, indicating that the ceramic hob has entered
the state of standby mode.
1. Touch the ON/ OFF control
，
all the indicators show
“-” or “- -“, indicating that the ceramic hob has entered
the state of standby mode.
2. Place a suitable pan on the cooking zone that you wish to use.
Make sure the bottom of the pan and the surface
of the cooking zone are clean and dry.
9

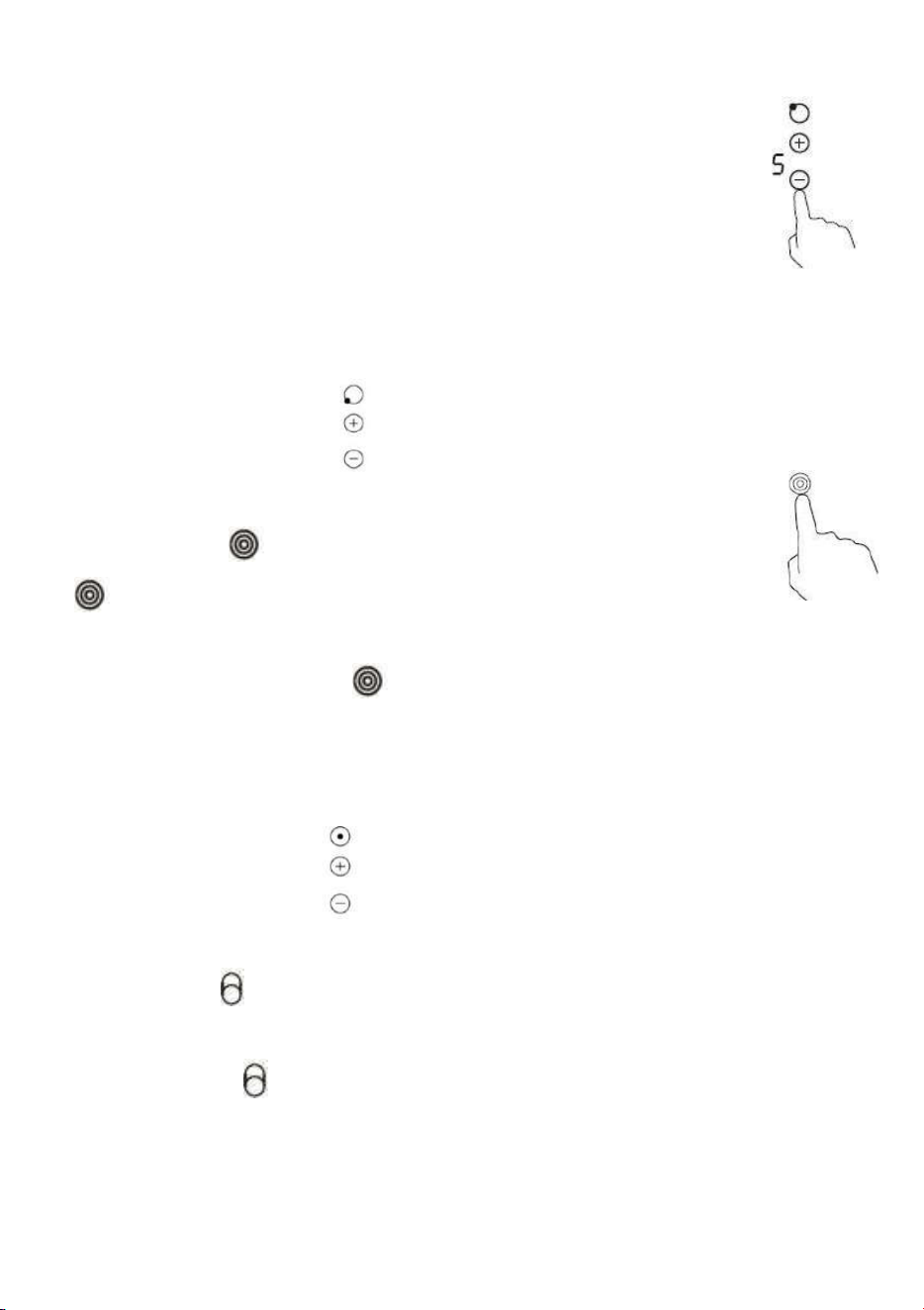

3. Select a heat setting by touching the “-” or “+” control of
the cook zone.
If you don’t choose a heat setting within 1 minute, the
ceramic hob will automatically switch off. You will need to
start again at step 1.
You can modify the heat setting at any time during cooking.
4.Activate Double or Triple Zone
① Select heat setting by touching the “-” or “+” , the
indicator next to flashes.
② Touch the once to activate double zone. Touch the
twice to activate triple zone.
③ To cancel the double or triple zone, touching the “-” or “+” and the
indicator flashes, touch to cancel.
5.Activate Oval Zone
①Select heat setting by touching the “-” or “+” ,the indicator next
to flashes.
②Touch the once to activate oval zone.
③To cancel the oval zone, touching the “-” or “+” and the indicator
flashes, touch to cancel.

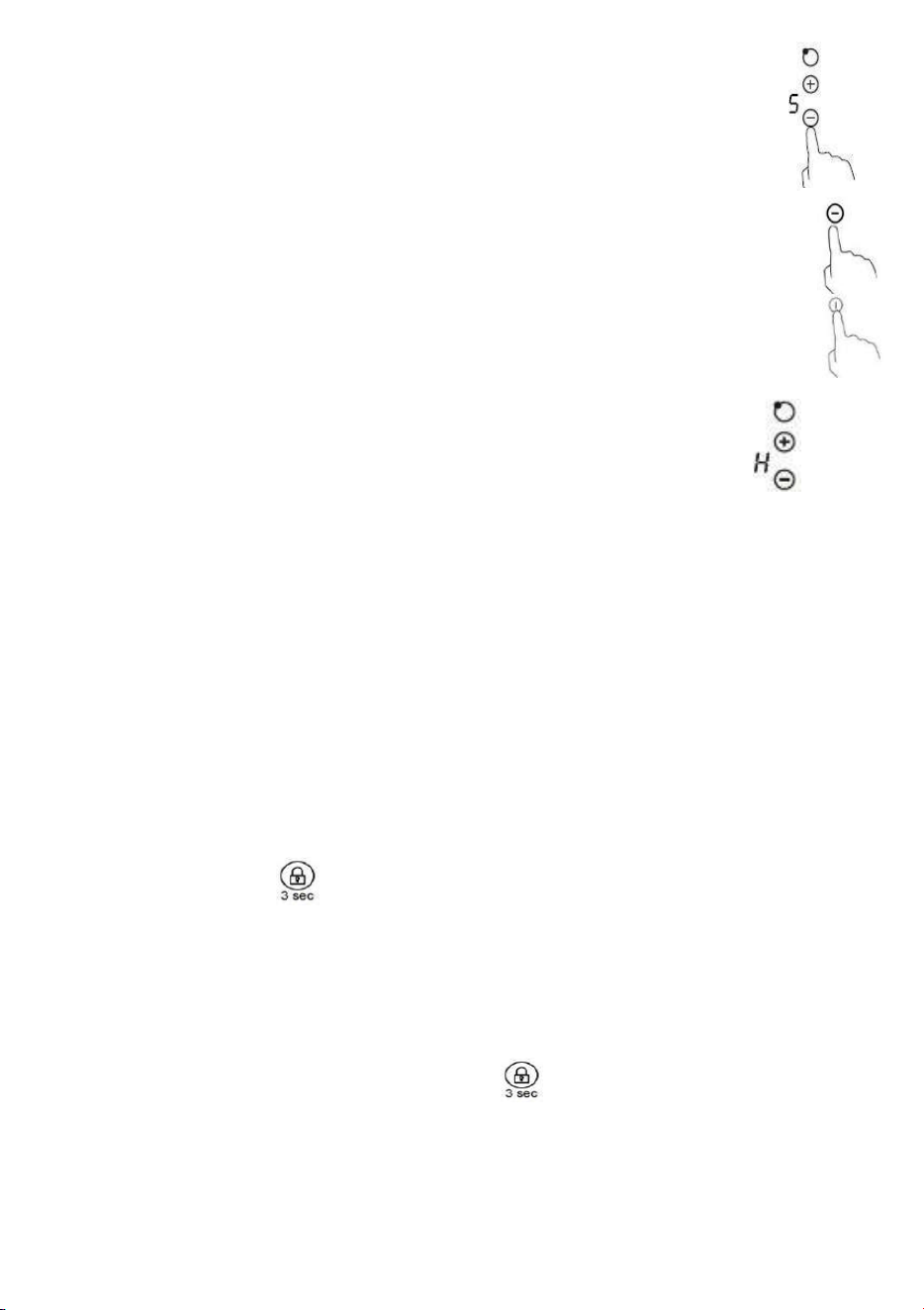

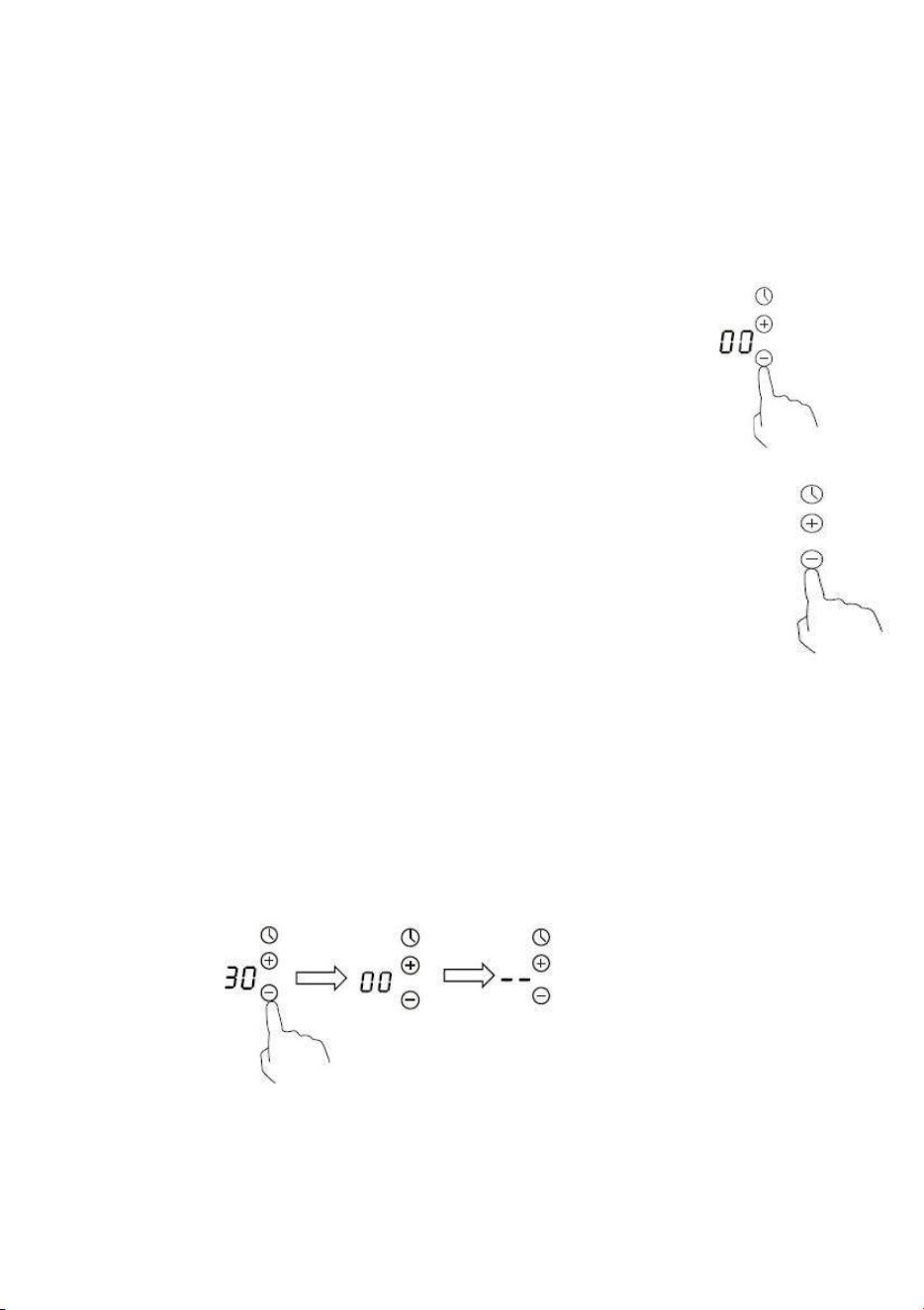

When you have finished cooking
1.Touching the “-” or “+” control that you wish to switch off.
10
2.Turn the cooking zone off by touching the “-”and
scrolling down to “0”.
3.Turn the whole cooktop off by touching the “ON/OFF”
control.
4.Beware of hot surfaces “H” will show which cooking zone
is hot to touch.
It will disappear when the surface has cooled down
to a safe temperature. It can also be used as an energy
saving function if you want to heat further pans, use the
hotplate that is still hot.
Locking the Controls
•You can lock the controls to prevent unintended use (for
example children accidentally turning the cooking zones on).
•When the controls are locked, all the controls except the ON/OFF
control are disabled.
To lock the controls
Touch the keylock control for 3 second. The timer
indicator will show “Lo”.
To unlock the controls
1.Make sure the ceramic hob is turned on.
2.Touch and hold the keylock control for 3 second.
3.You can now start using your ceramic hob.
11
When the hob is in the lock mode, all the controls are
disable except the ON/OFF , you can always turn the
ceramic hob off with the ON/OFF control in an emergency,
but you shall unlock the hob first in the next operation.
Over-Temperature Protection
A temperature sensor equipped can monitor the temperature inside
the ceramic hob. When an excessive temperature is monitored, the
ceramic hob will stop operation automatically.
Residual Heat Warning
When the hob has been operating for some time, there
will be some residual heat. The letter “ H ”appears to
warn you to keep away from it.
Auto Shutdown Protection
Auto shut down is a safety protection function for your hob. It shut
down automatically if ever you forget to turn off your cooking. The
default shutdown times are shown in the table below:
Power level
1
2
3
4
5
6
7
8
9
Default working timer (hour)
8
8
8
4
4
4
2
2
2
Using the Timer
You can use the timer in two different ways:
You can use it as a minute minder. In this case, the timer will not turn
any cooking zone off when the set time is up.
You can set it to turn one cooking zone off or more than one after the set
time is up.
You can set the timer for up to 99 minutes.
12

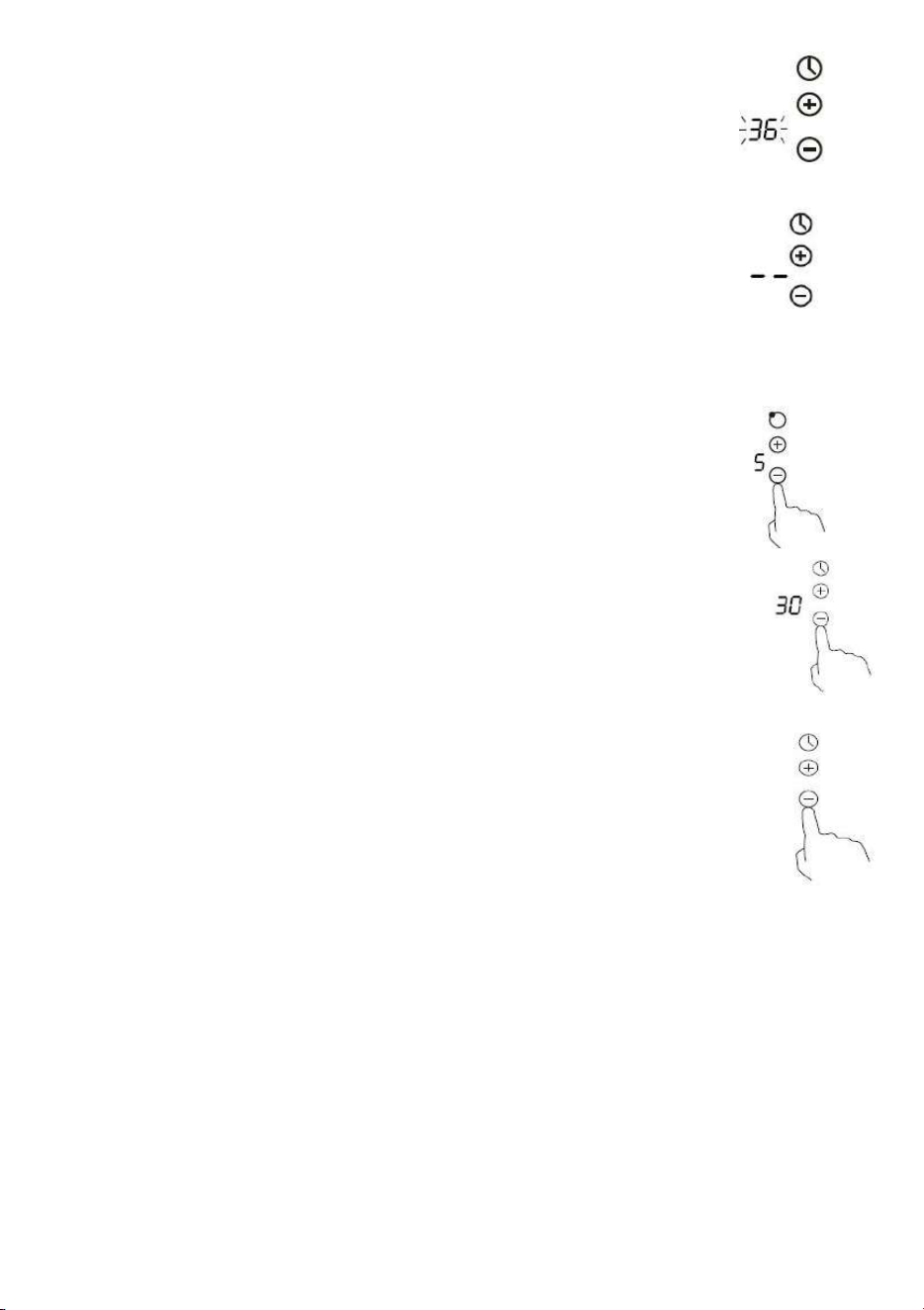

Using the Timer as a Minute Minder
If you are not selecting any cooking zone
1. Make sure the cooktop is turned on.
Note: you can use the minute minder even if you’re not selecting any
cooking zones.
2. Touch the “-“ or “+” controls of the timer , the
minder indicator will start flashing and “00” will
show in the timer display.
3. Adjust the timer setting by touch the “-” or “+”
controls. The minute minder indicator will start flashing
and will show in the timer display.
Hint: Touch the “-” or “+” control of the timer once to
decrease or increase by 1 minute.
Touch and hold the “-” or “+” control of the timer to
decrease or increase by 10 minutes. If the setting time exceeds 99
minutes, the timer will automatically return to 0 minute.
4. To cancel the timer, touch the “-” or “+” controls of the timer,
and scrolling down to “0”, the timer is canceled, the “00” will show
in the minute display, then and then “--”.
13
5. When the time is set, it will begin to count down
immediately. The display will show the remaining time
and the timer indicator will flash for 5 seconds.
6. Buzzer will beep for 30 seconds and the timer
indicator shows “- -” when the set time finished.

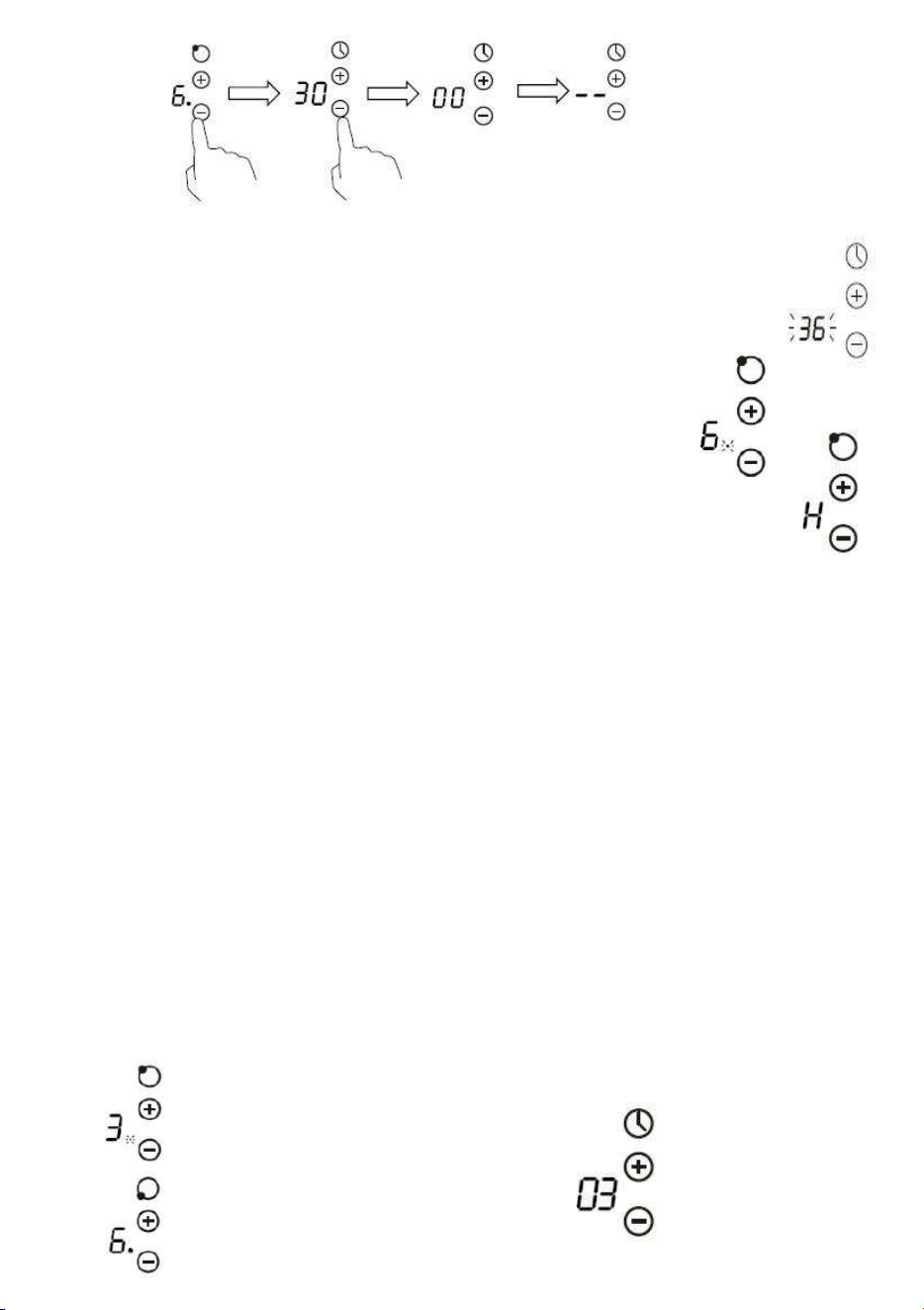

Setting the timer to turn one cooking zone off
1. Touch the “-“ or ”+” control of the heating zone that
you want to set the timer for.
2. Touch the “-“ or ”+” control of the timer, the minder
indicator start flashing and “30” will show in the timer
display.
3. Set the time by touching the control of the timer.
Hint: Touch the “-” or “+” control of the timer once will
decrease or increase by 1 minute.
Touch and hold the “-” or “+” control of the timer
will decrease or increase by 10 minutes.
If the setting time exceeds 99 minutes, the timer will automatically
return to 0 minute.
4. Touching the “-” or “+” of heating zone, then touch the “-” or
“+” controls of the timer, and scrolling down to “0”, the timer is
canceled, “00” will show in the minute display, then and then “--”.
14
5. When the time is set, it will begin to count down
immediately. The display will show the remaining time
and the timer indicator flash for 5 seconds.
NOTE: The red dot next to power level indicator will
illuminate indicating that zone is selected.
6. When cooking timer expires, the corresponding
cooking zone will be automatically switch off and show “H”.
Setting the timer to turn more than one cooking zone off
1.If more than one heating zone use this function, the timer
indicator will show the shortest time. The Setup steps please refer
to the “Setting the timer to turn one cooking zone off”.
(e.g. zone 1# setting time of 3 minutes, zone 2# setting time of
6 minutes, the timer indicator shows “3”.)
NOTE: The flashing red dot next to power level indicator means
the timer indicator is showing time of the heating zone.
If you want to check the set time of other heating zone, touch
the heating zone selection control. The timer will indicate its set
time.
(set to 3 minutes)
(set to 6 minutes)
15
2.When cooking timer expires, the corresponding cooking zone
will be switch off automatically and show “H” .
NOTE: If you want to change the time after the timer is set, you
have to start from step.
Cooking Guidelines
Cooking Tips
•When food comes to the boil, reduce the powersetting.
•Using a lid will reduce cooking times and save energy by retaining the
heat.
•minimize the amount of liquid or fat to reduce cooking times.
•Start cooking on a high setting and reduce the setting when the food
has heated through.
Simmering, cooking rice
•Simmering occurs below boiling point, at around 85˚C, when
bubbles are just rising occasionally to the surface of the cooking
liquid. It is the key to delicious soups and tender stews because
the flavours develop without overcooking the food. You should
also cook egg-based and flourthickened sauces below boiling point.
•Some tasks, including cooking rice by the absorption method, may
require a setting higher than the lowest setting to ensure the food
is cooked properly in the time recommended.
16
Searing steak
To cook juicy flavoursome steaks:
1. Stand the meat at room temperature for about 20 minutes before
cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of
oil into the hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time
will depend on the thickness of the steak and how cooked you
want it. Times may vary from about 2 – 8 minutes per side. Press
the steak to gauge how cooked it is – the firmer it feels the more
‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes to
allow it to relax and become tender before serving.
For stir-frying
1. Choose an ceramic compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying
should be quick. If cooking large quantities, cook the food in
several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the
cooking zone to a lower setting, return the meat to the pan and
add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.
Heat Settings
17
Heat setting
Suitability
1 - 2
• delicate warming for small amounts of food
• melting chocolate, butter, and foods that burn
quickly
• gentle simmering
•
slow warming
3 - 4
•
reheating
• rapid simmering
•
cooking rice
5 - 6
• pancakes
7 - 8
•
sauteing
•
cooking pasta
9
• stir-frying
• searing
•
bringing soup to the boil
• boiling water
Care and Cleaning
What?
How?
Important!
Everyday
soiling on glass
(fingerprints,
marks, stains
left by food or
non-sugary
spillovers on
the glass)
1.Switch the power
to the cooktop
off.
2.Apply a cooktop
cleaner while the
glass is still warm
(but not hot!)
3.Rinse and wipe dry
with a clean cloth
• When the power to the
cooktop is switched
off, there will be no
‘hot surface’ indication
but the cooking zone
may still be hot! Take
extreme care.
• Heavy-duty scourers,
some nylon scourers
18
or paper towel.
4.Switch the power
to the cooktop
back on.
and harsh/abrasive
cleaning agents may
scratch the glass.
Always read the label
to check if your
cleaner or scourer is
suitable.
•
Never leave cleaning
residue on the
cooktop: the glass
may become stained.
19
Boilovers,
melts, and hot
sugary spills on
the glass
Remove these
immediately with a
fish slice, palette
knife or razor blade
scraper suitable for
ceramic glass
cooktops, but beware
of hot cooking zone
surfaces:
1.Switch the power
to the cooktop
off at the wall.
2.Hold the blade or
utensil at a 30°
angle and scrape
the soiling or spill
to a cool area of
the cooktop.
3.Clean the soiling or
spill up with a dish
cloth or paper
towel.
4.Follow steps 2 to 4
for ‘Everyday
soiling on glass’
above.
• Remove stains left by
melts and sugary food
or spillovers as
soon
as possible. If left to
cool on the
glass, they may be
difficult to remove or
even permanently
damage the glass
surface.
• Cut hazard: when
the safety cover
is retracted, the
blade in a scraper
is razor-sharp.
Use with extreme
care and always
store safely and
out of reach of children.
Spillovers
on the touch
controls
1.Switch the power
to the cooktop
off.
2.Soak up the spill
3.Wipe the touch
control area with
a clean damp
• The cooktop may beep
and turn itself off, and
the touch controls may
not function while there
is liquid on them. Make
sure you wipe the
touch control area dry
20
sponge or cloth.
4.Wipe the area
completely dry
with a paper towel.
5.Switch the power
to the cooktop
back on.
before turning the
cooktop back on.
Troubleshooting
Problem
Possible causes
What to do
The cooktop
cannot Be
turned on.
No power.
Make sure the cooktop is
connected to the power
supply and that it is
switched on.
Check whether there is a
power outage in your
home or area. If you’ve
checked everything and
the problem persists, call
a qualified
technician.
21
The touch
controls are
unresponsive.
The controls are
locked.
Unlock the controls. See
section
‘Using your ceramic
cooktop’ for
instructions.
The touch
controls are
difficult to
operate.
There may be a slight
film of water over the
controls or you may
be using the tip of
your finger when
touching the
controls.
Make sure the touch
control area is dry and
use the ball of your finger
when touching the
controls.
The glass is
being
scratched.
Rough-edged
cookware.
Unsuitable, abrasive
scourer or
cleaning products
being used.
Use cookware with flat
and smooth bases. See
‘Choosing the right
cookware’.
See ‘Care and cleaning’.
Some pans
make
crackling or
clicking
noises.
This may be caused
by the construction of
your cookware
(layers of different
metals vibrating
differently).
This is normal for
cookware and does not
indicate a fault.
Technical Specification
Cooking Hob
YL-CF8505
Cooking Zones
5 Zones
Supply Voltage
220-240V~,50-60Hz
Installed Electric Power
7777-9255W
Product Size L×W×H(mm)
770X520X52
22

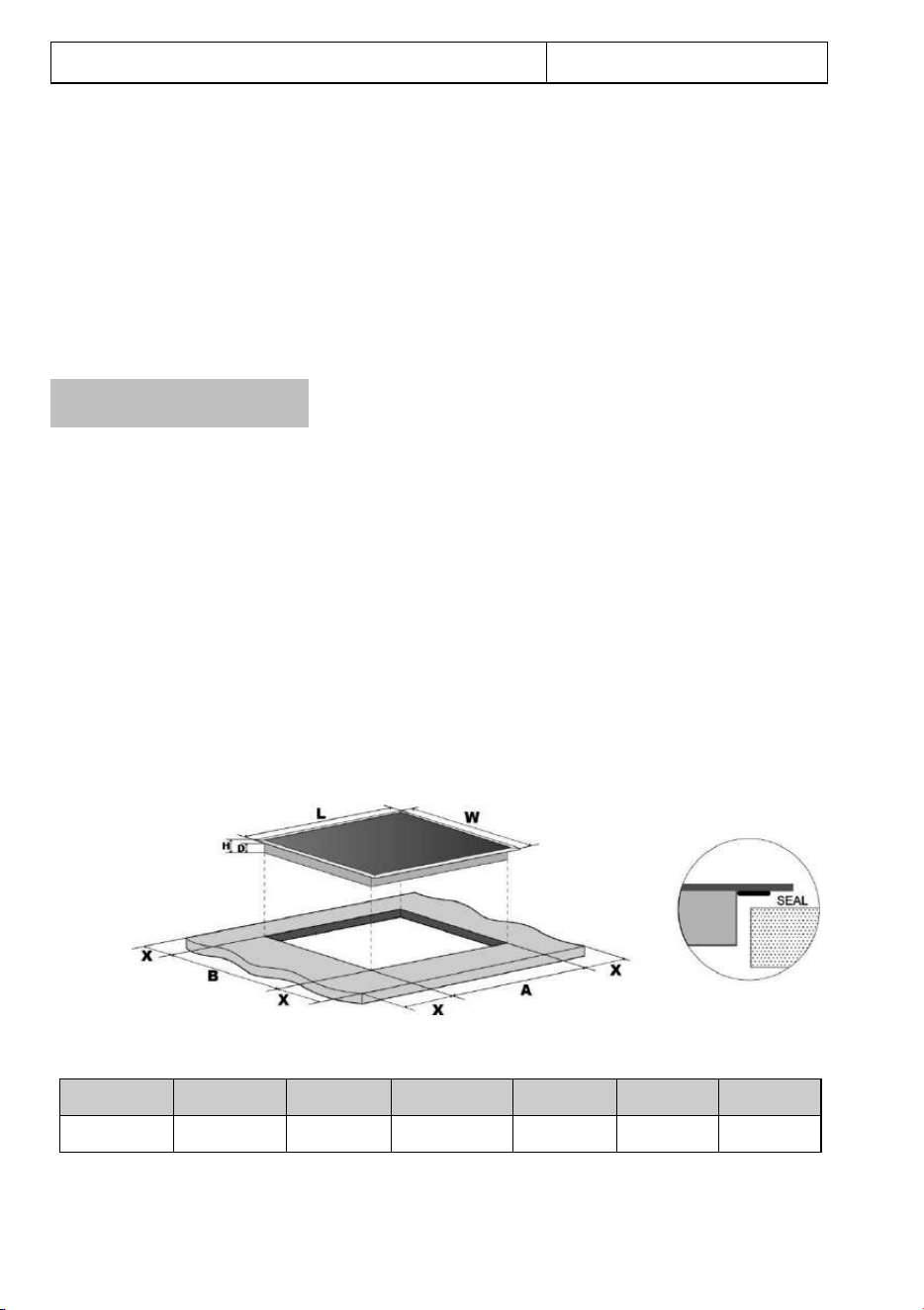

Building-in Dimensions A×B (mm)
740X490
Weight and Dimensions are approximate. Because we continually
strive to improve our products we may change specifications and
designs without prior notice.

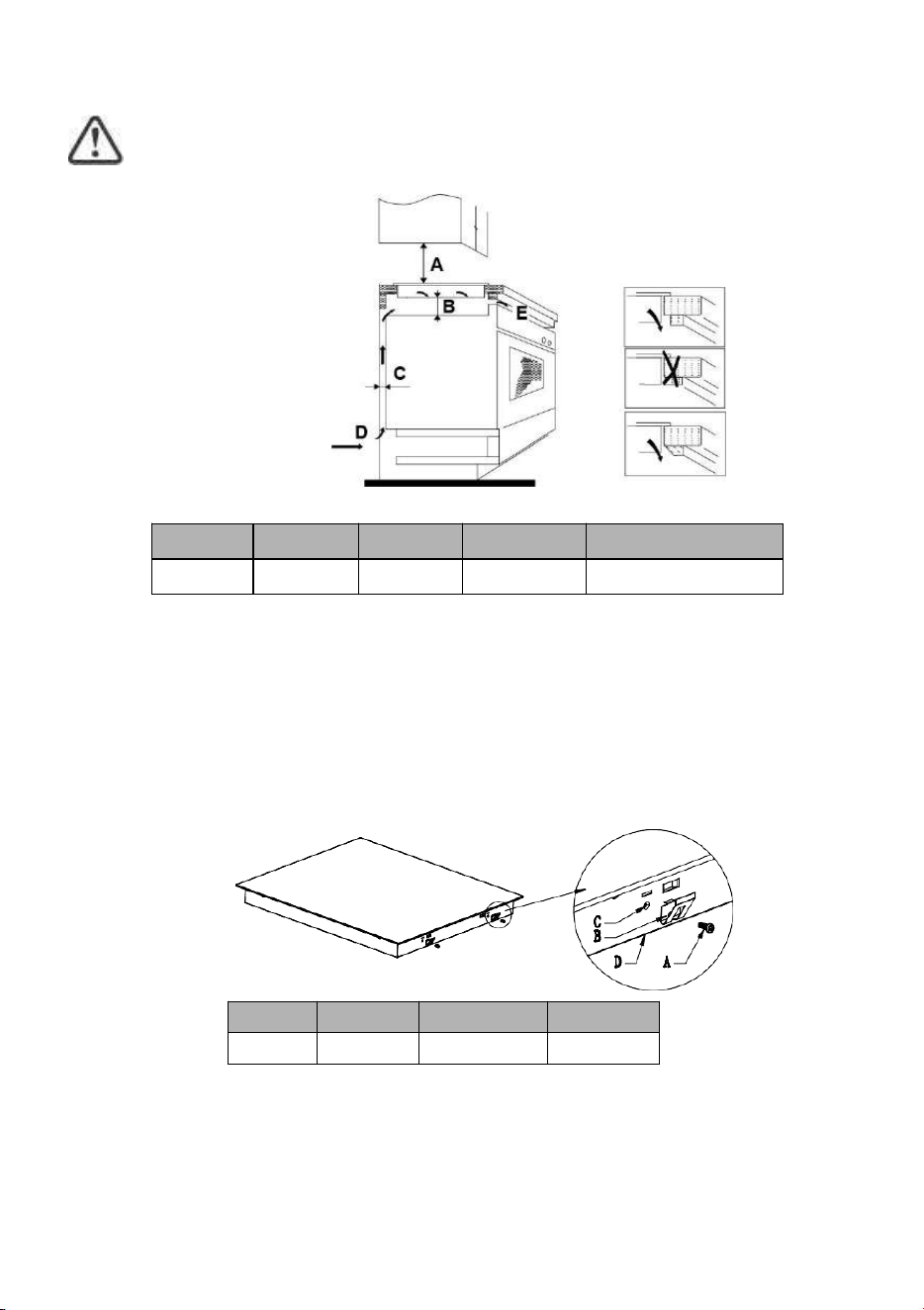

Installation
Selection of installation equipment
Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm
space shall be preserved around the hole.
Be sure the thickness of the work surface is at least 30mm.
Please select heat-resistant work surface material to avoid larger
deformation caused by
the heat radiation from the hotplate. As shown below:
L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
770
520
52
48
740
490
50mini
Under any circumstances, make sure the ceramic cooker hob is
23
well ventilated and the air inlet and outlet are not blocked. Ensure
the ceramic cooker hob is in good work state. As shown below
Note: The safety distance between the hotplate and the
cupboard above the hotplate should be at least 760mm.
Before locating the fixing brackets
The unit should be placed on a stable, smooth surface (use the
packaging). Do not apply force onto the controls protruding from
the hob.

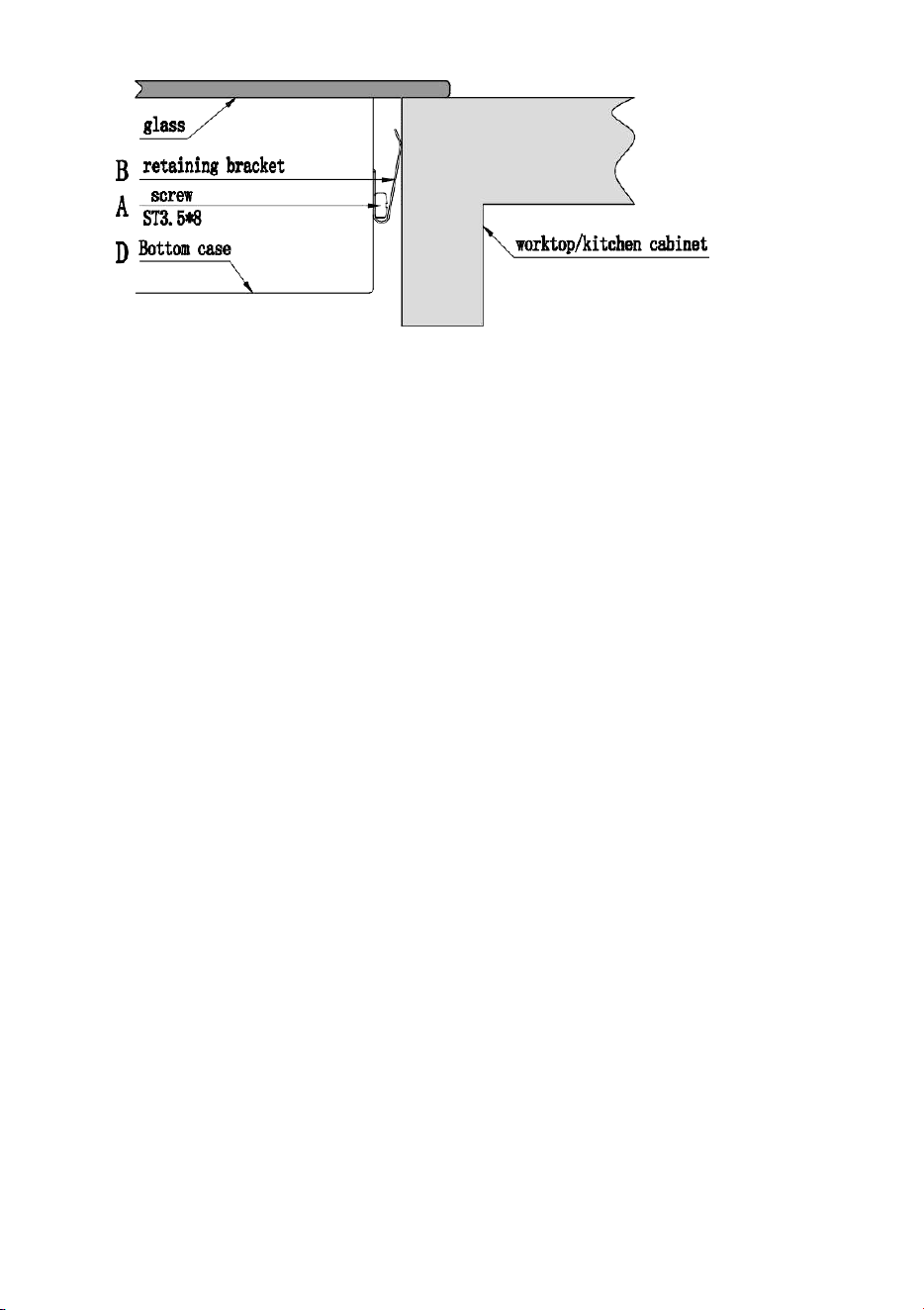

Fix the hob on the work surface by screw four brackets on the
bottom of hob (see picture) after installation.
A(mm)
B(mm)
C(mm)
D
E
760
50 mini
30 mini
Air intake
Air exit 10 mm
A
B
C
D
screw
bracket
Screw hole
base
24
Cautions
1.The ceramic cooker hob must be installed by qualified personnel or
technicians. We have professionals at your service. Please never
conduct the operation by yourself.
2.The ceramic cooker hob shall not be mounted to cooling
equipment, dishwashers and rotary dryers.
3.The ceramic cooker hob shall be installed such that better heat
radiation can be ensured to enhance its reliability.
4.The wall and induced heating zone above the work surface shall
withstand heat.
5.To avoid any damage, the sandwich layer and adhesive must be
resistant to heat.
6.A steam cleaner is not to be used.
7.This ceramic can be connected only to a supply with system
impedance no more than 0.427 ohm. In case necessary,
please consult your supply authority for system impedance
information.
25

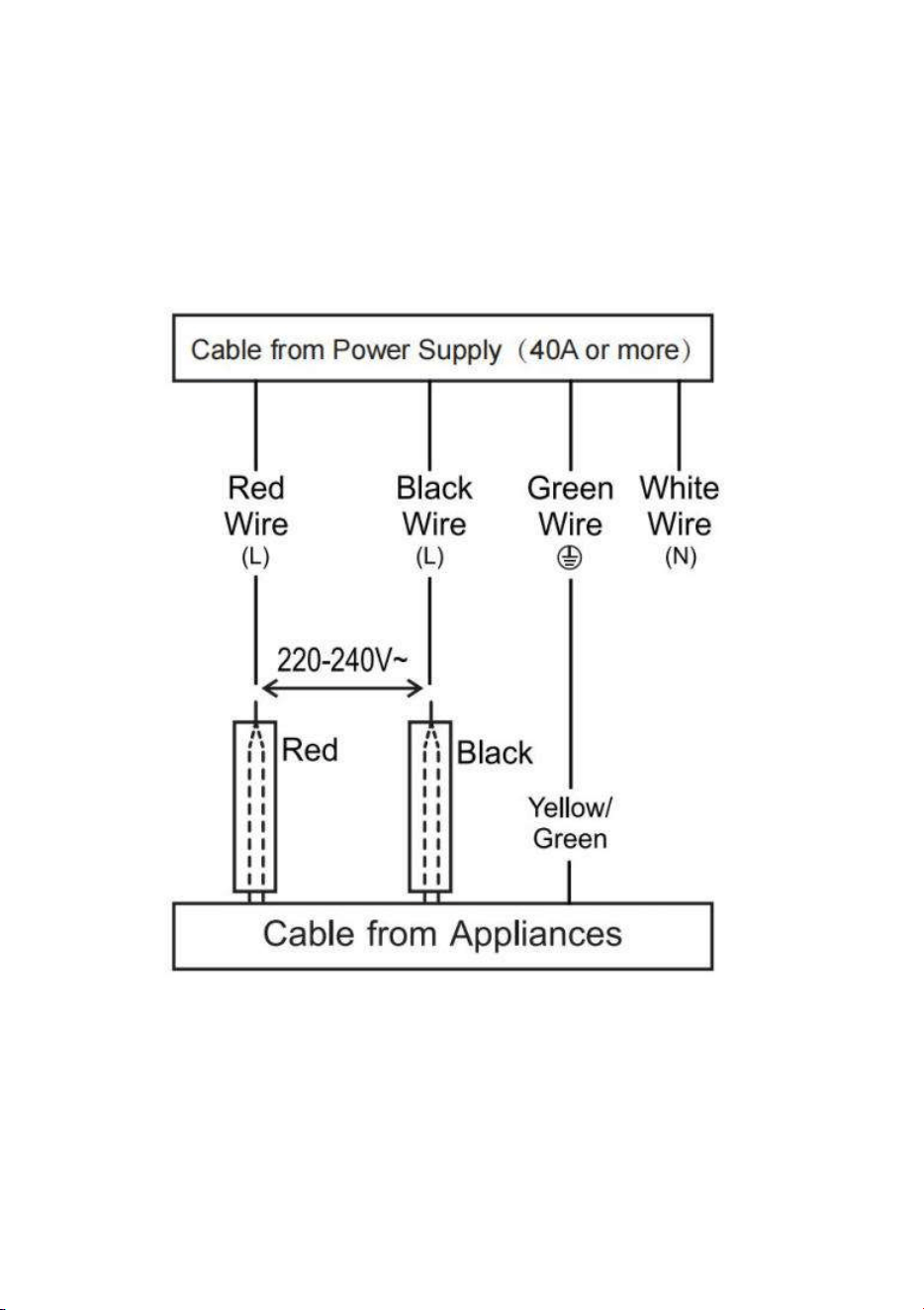

Connecting the hob to the mains power supply
The power supply should be connected in compliance with the
relevant standard, or a single-pole circuit breaker. The method
of connection is shown below.
26
1.If the cable is damaged or needs replacing, this
should be done by an after-sales technician using the
proper tools, so as to avoid any accidents.
2.If the appliance is being connected directly to the mains
supply, an omnipolar circuit breaker must be installed with a
minimum gap of 3mm between the contacts.
3.The installer must ensure that the correct electrical connection
has been made and that it complies with safety regulations.
4.The cable must not be bent or compressed.
5.The cable must be checked regularly and only replaced by a properly
qualified person.
WARRANTY
Thank you for choosing AMZCHEF product. We sincerely hope that
you are satisfied with it.
The manufacturer's warranty covers the product for a period of 12
months from the date of purchase against manufacturing faults.
All warranties are automatically kept track of in our system, so
there is no need to register your product.
Agent/Distributor is welcome to contact us.
Email:info@iamzchef.com.
Any help or questions during use, please contact us via website
www.iamzchef.com, send email to info@iamzchef.com for quick
service, we will service you within 24 hours.
We suggest to provide a warranty card, a photo or a video if
there’s broken spare part or not working machine so that we can
be much more clear about your problems and offer you the best
solution.
27
Please fill in the table and email it within 10 days from the date of
purchase.
