36", 48", 52"
Hydrostatic Walk-Behind
Commercial Rotary Mowers
Standard
Professional Turf Equipment
ILLUSTRATED PARTS LIST
2
This Page Left Intentionally Blank
3
TABLE OF CONTENTS
36" Deck Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 4 and 5
36" Spindle Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
36" Fabricated Cover Assembly . . . . . . . . . . . . . . . . . . . . . . 7
36" Chute Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
48" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
48" Deck Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 10 and 11
48" Fabricated Cover Assembly . . . . . . . . . . . . . . . . . . . . . 12
48" Chute Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
52" Deck Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 14 and 15
52" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
52" Cover Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
52" Chute Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

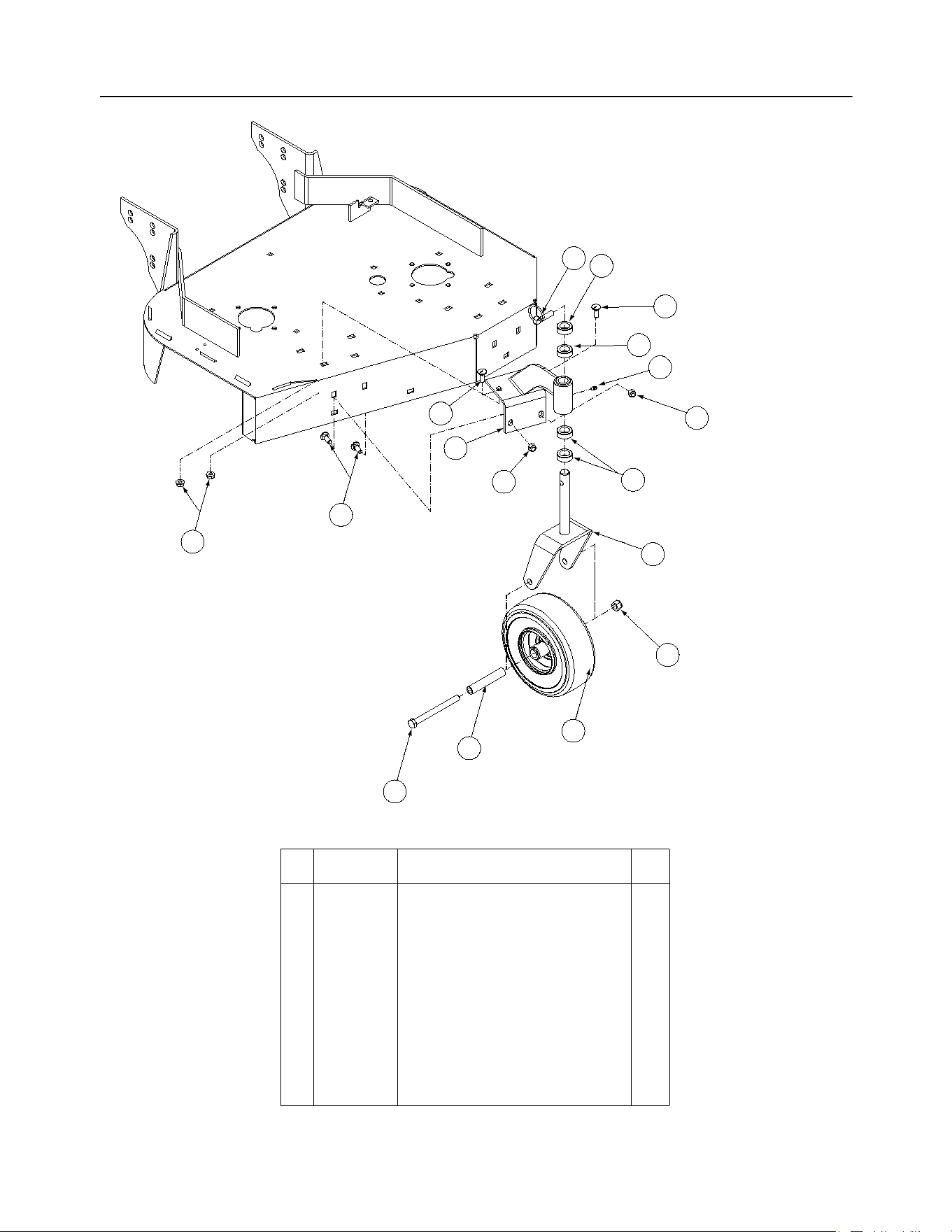

Caster Wheel Fabricated Deck. . . . . . . . . . . . . . . . . . . . . . 19

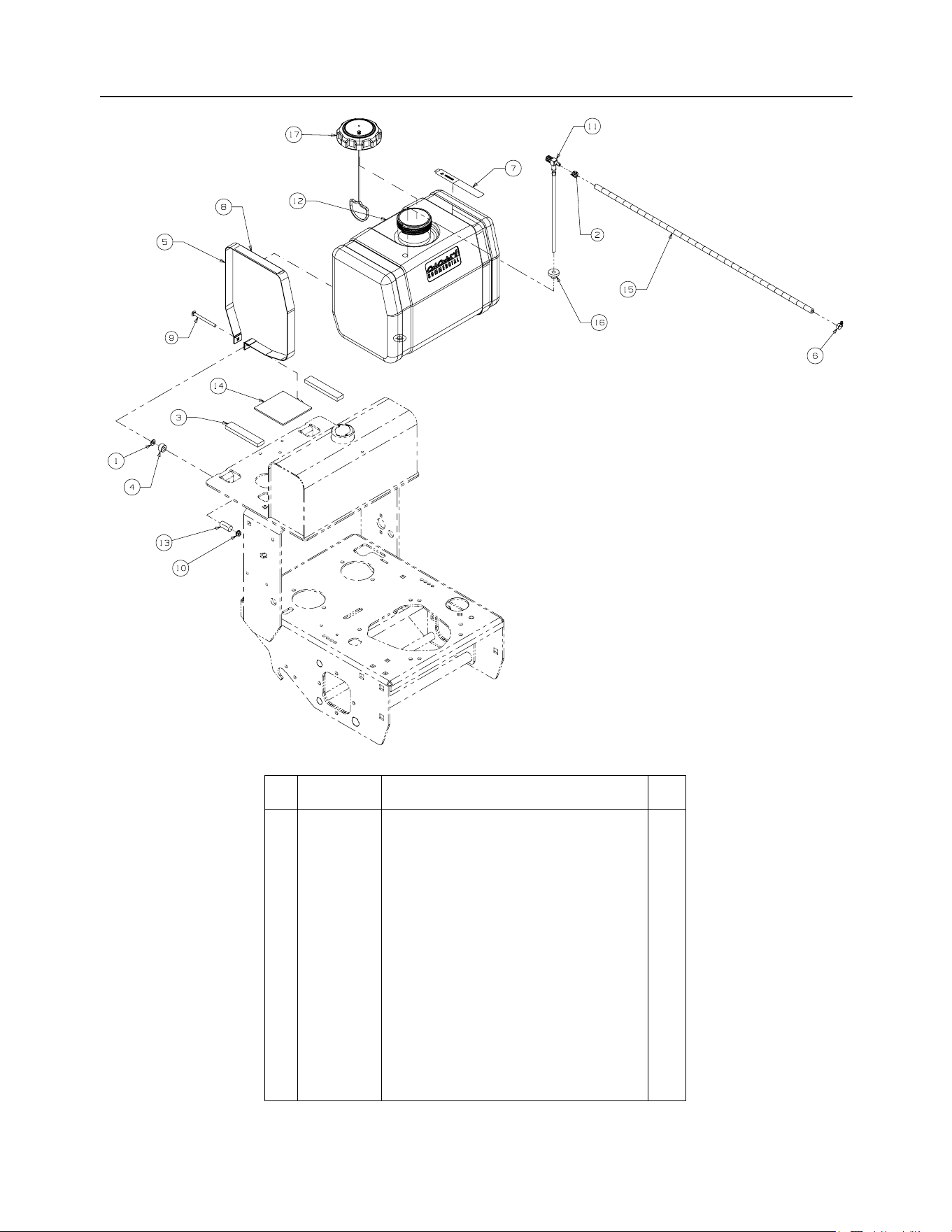

Standard Tank Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 20

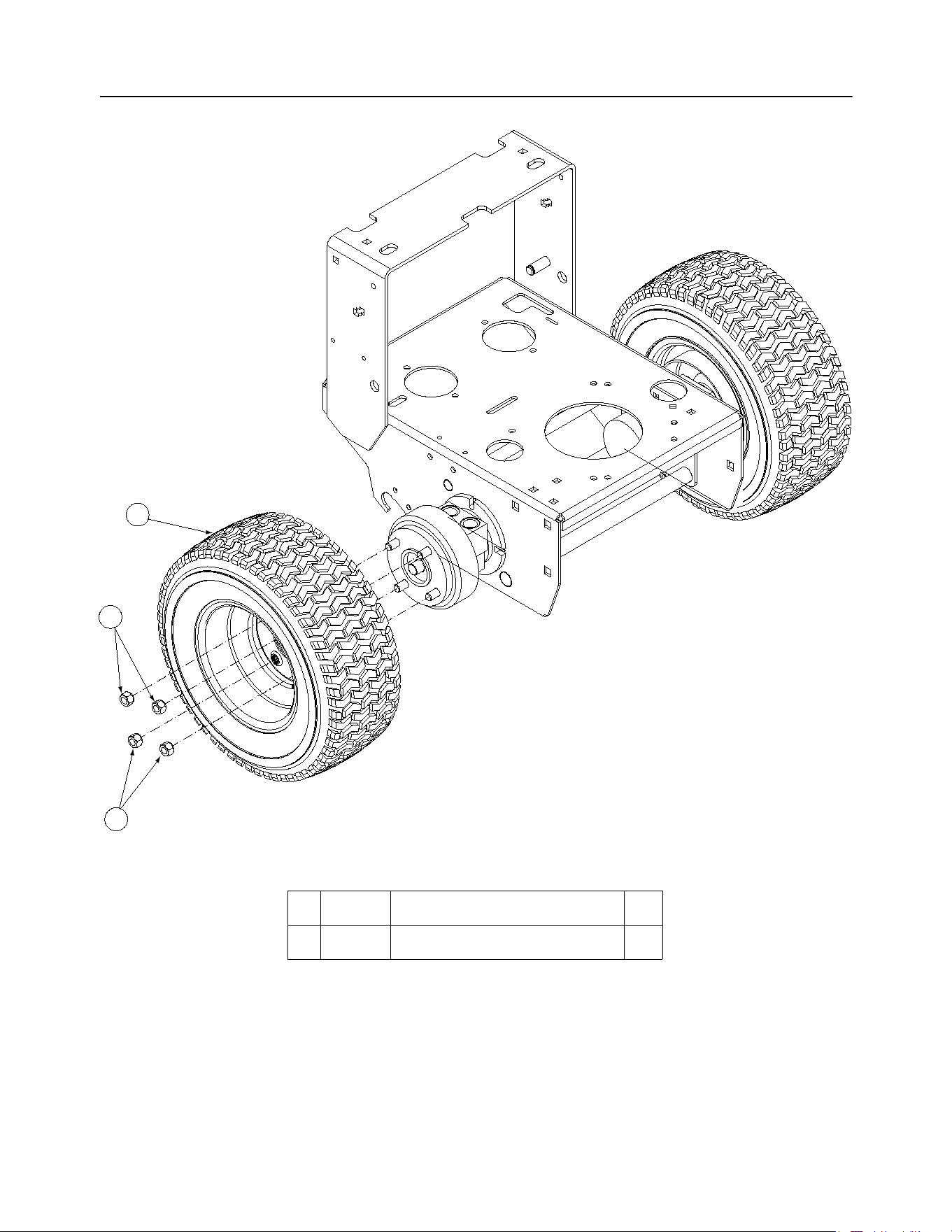

Wheel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Hydro Pump Assembly . . . . . . . . . . . . . . . . . . . . . . 22 and 23

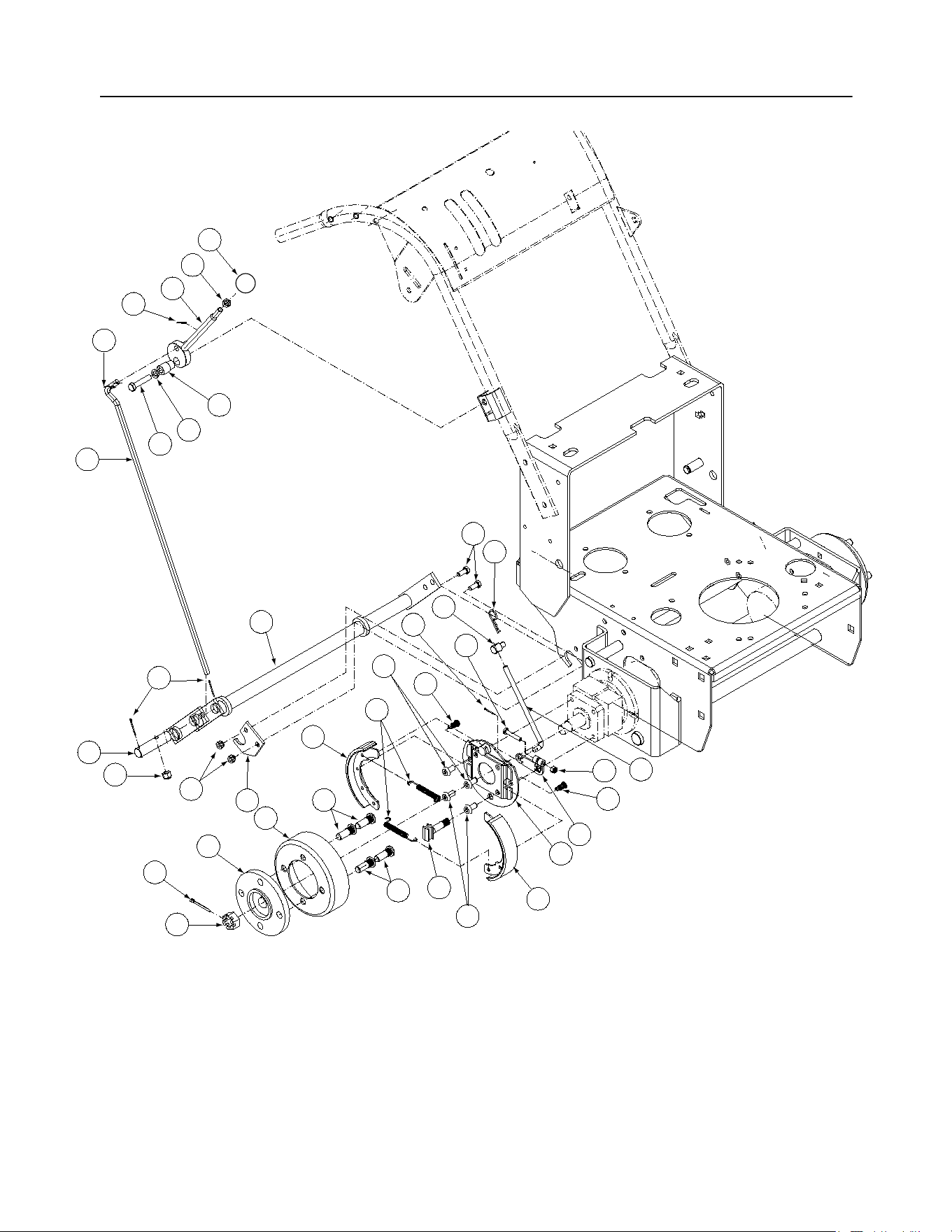

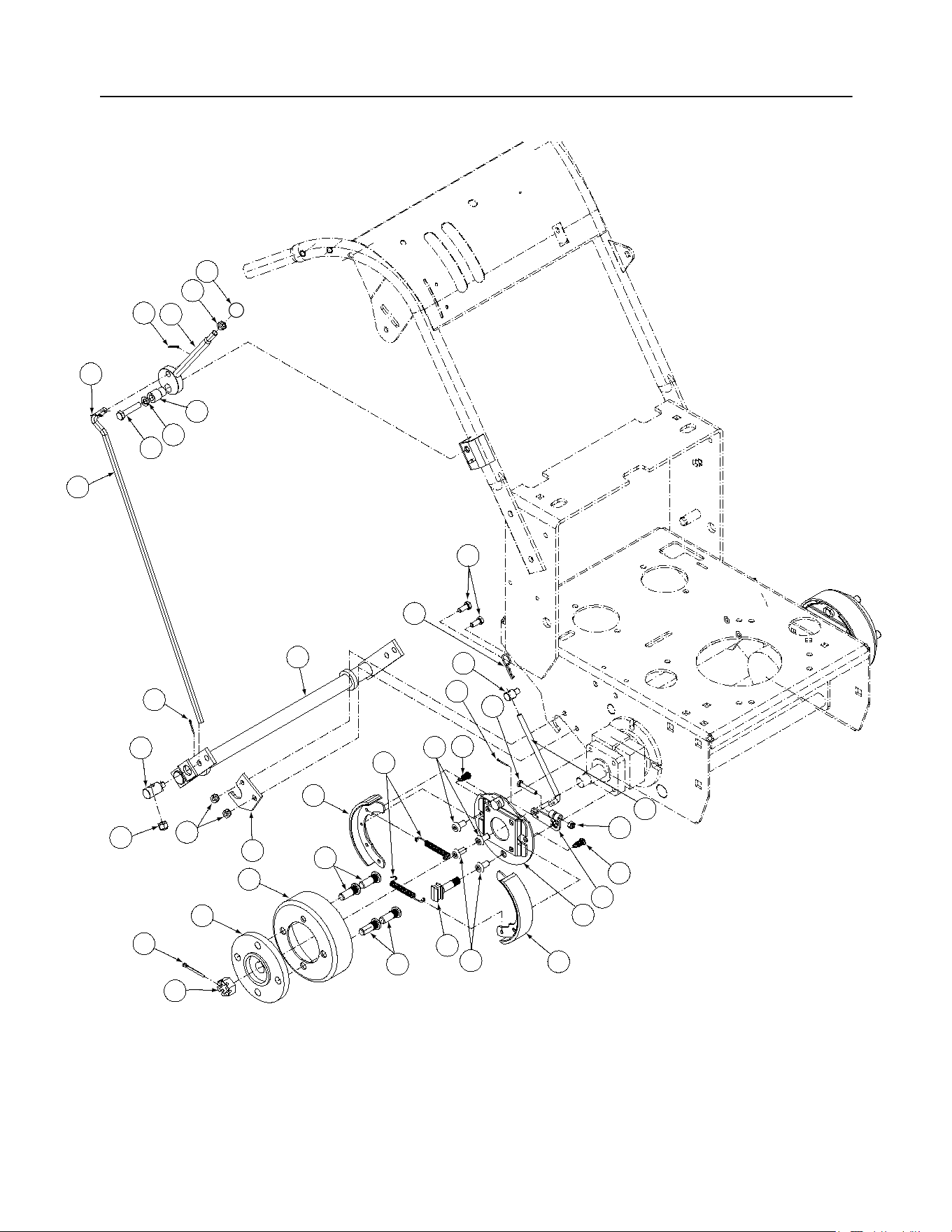

Hydro Brake Assembly . . . . . . . . . . . . . . . . . . . . . . 24 and 25
Hydro Brake Assembly WT. . . . . . . . . . . . . . . . . . . 26 and 27

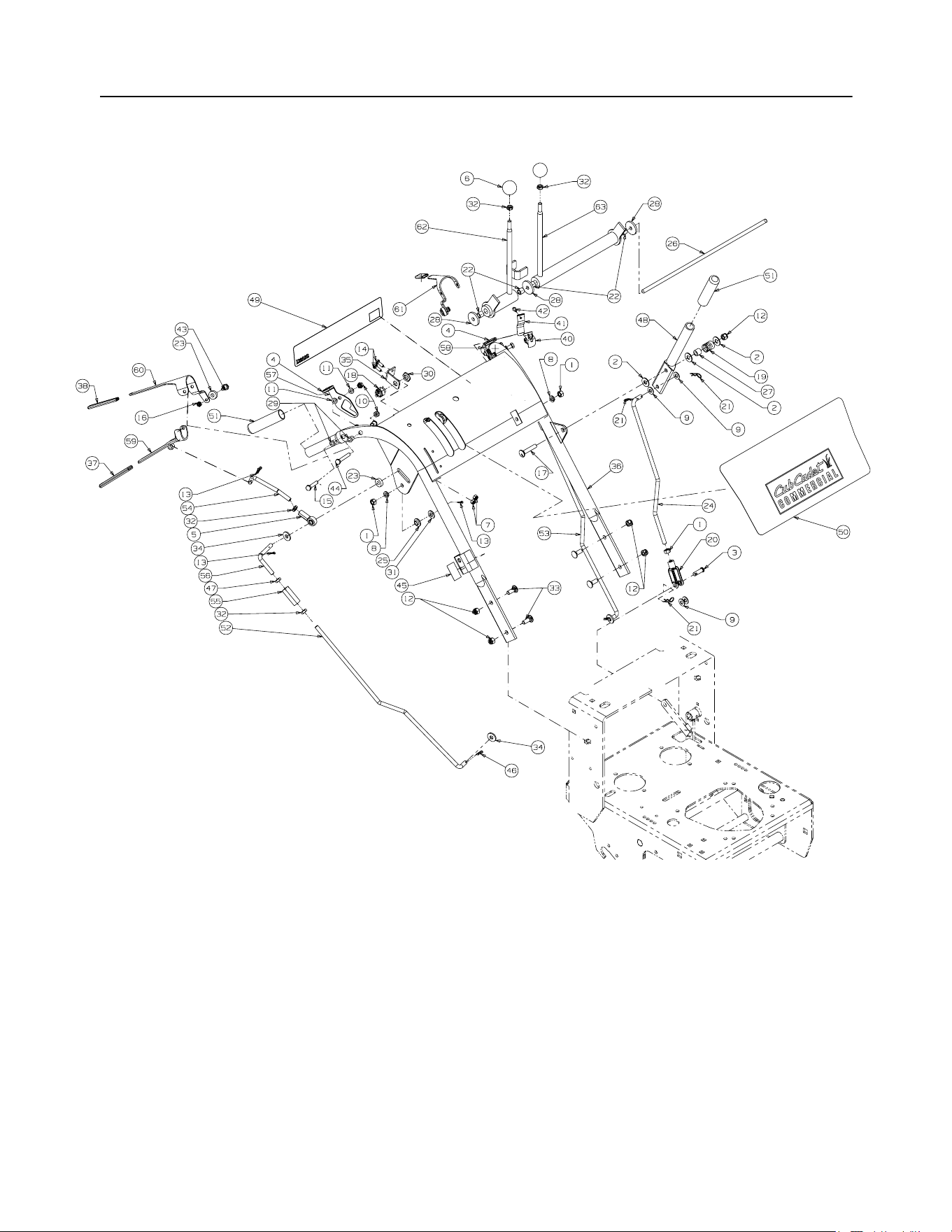

Standard Handle Assembly . . . . . . . . . . . . . . . . . . 28 and 29

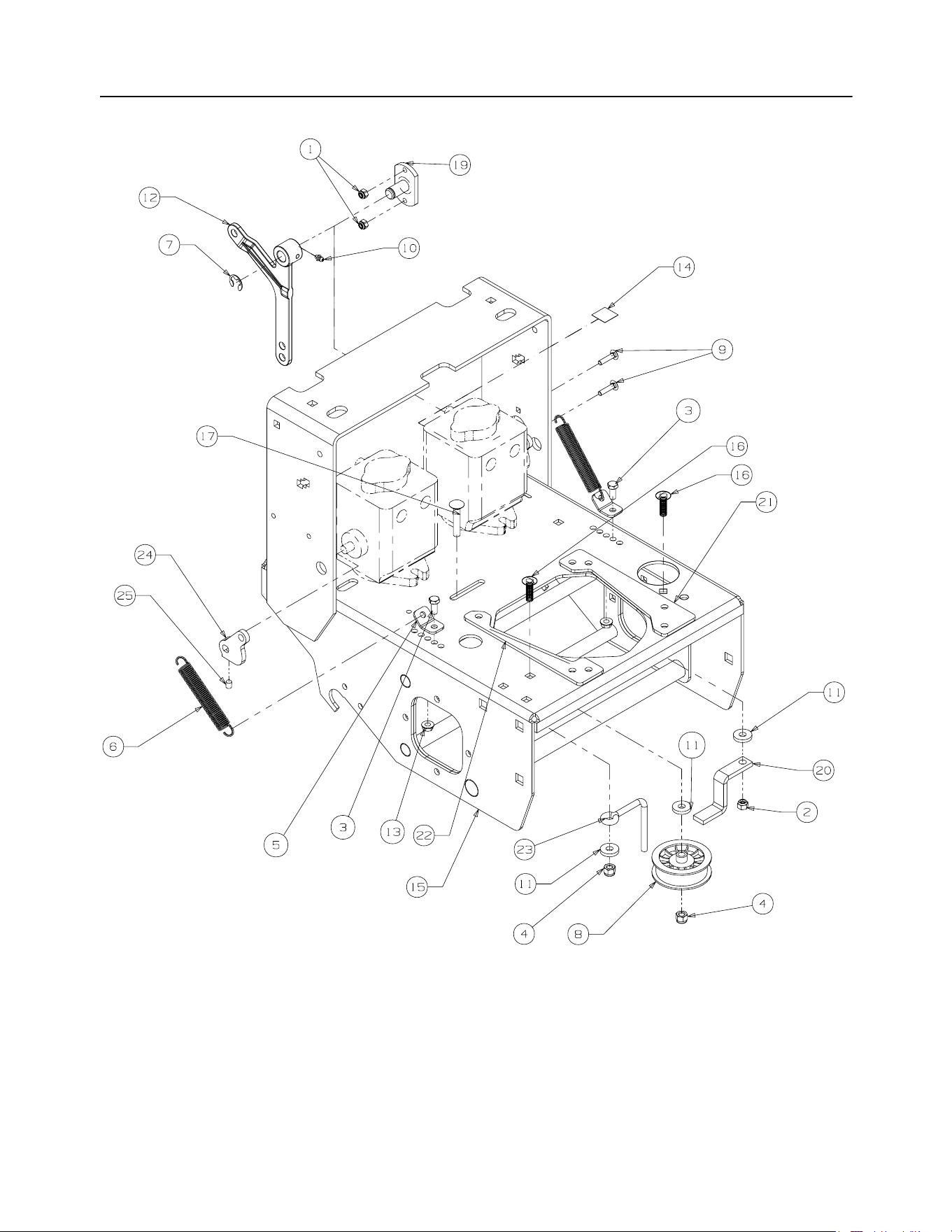

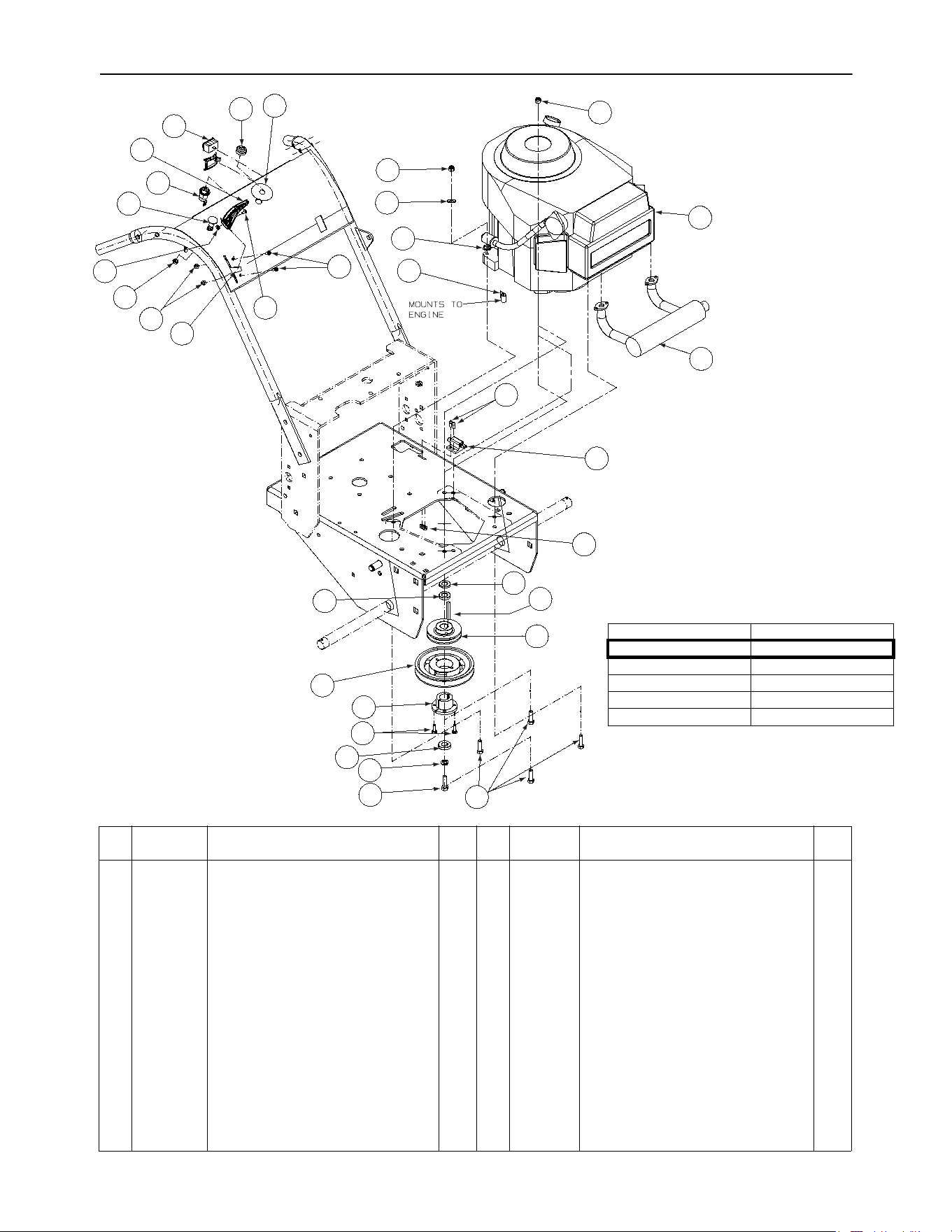

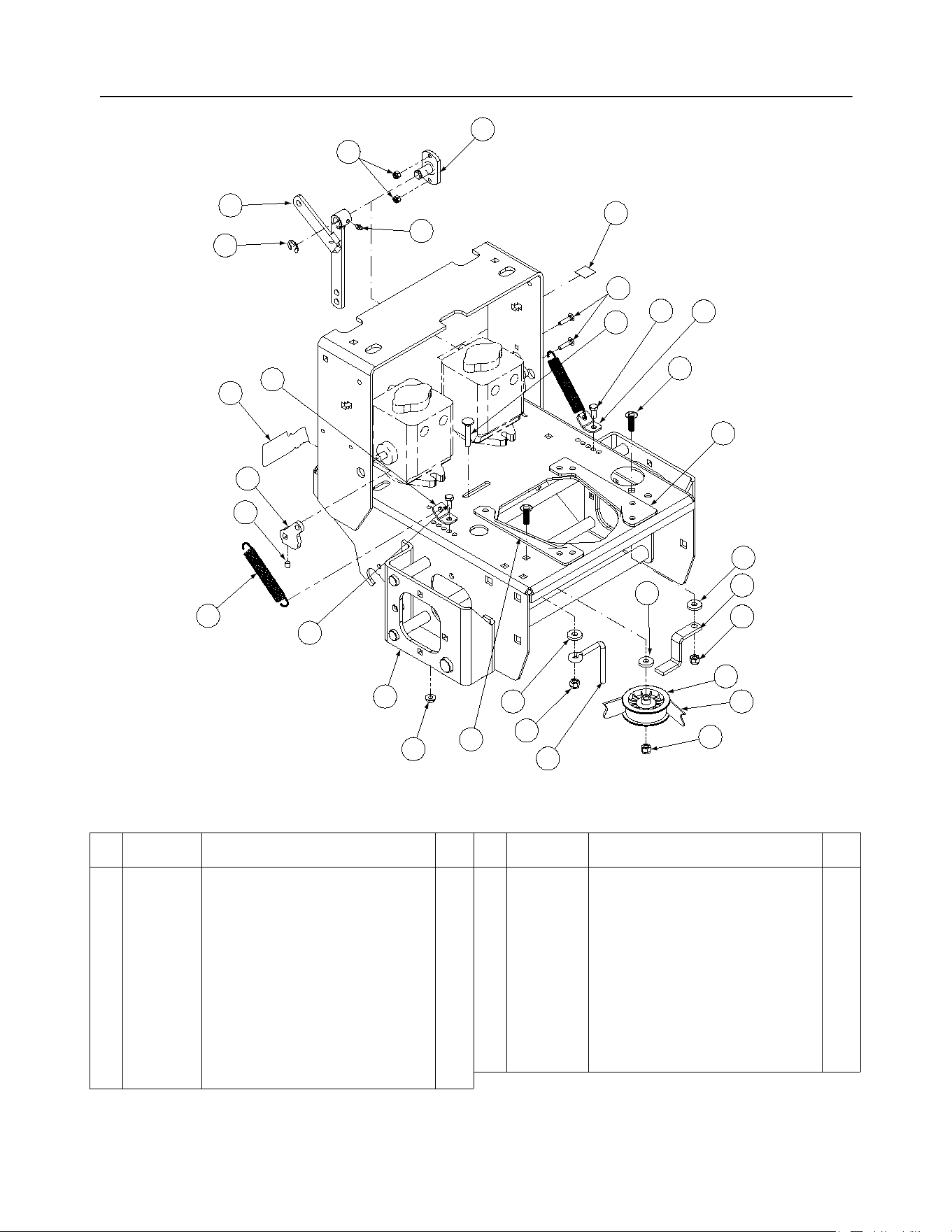

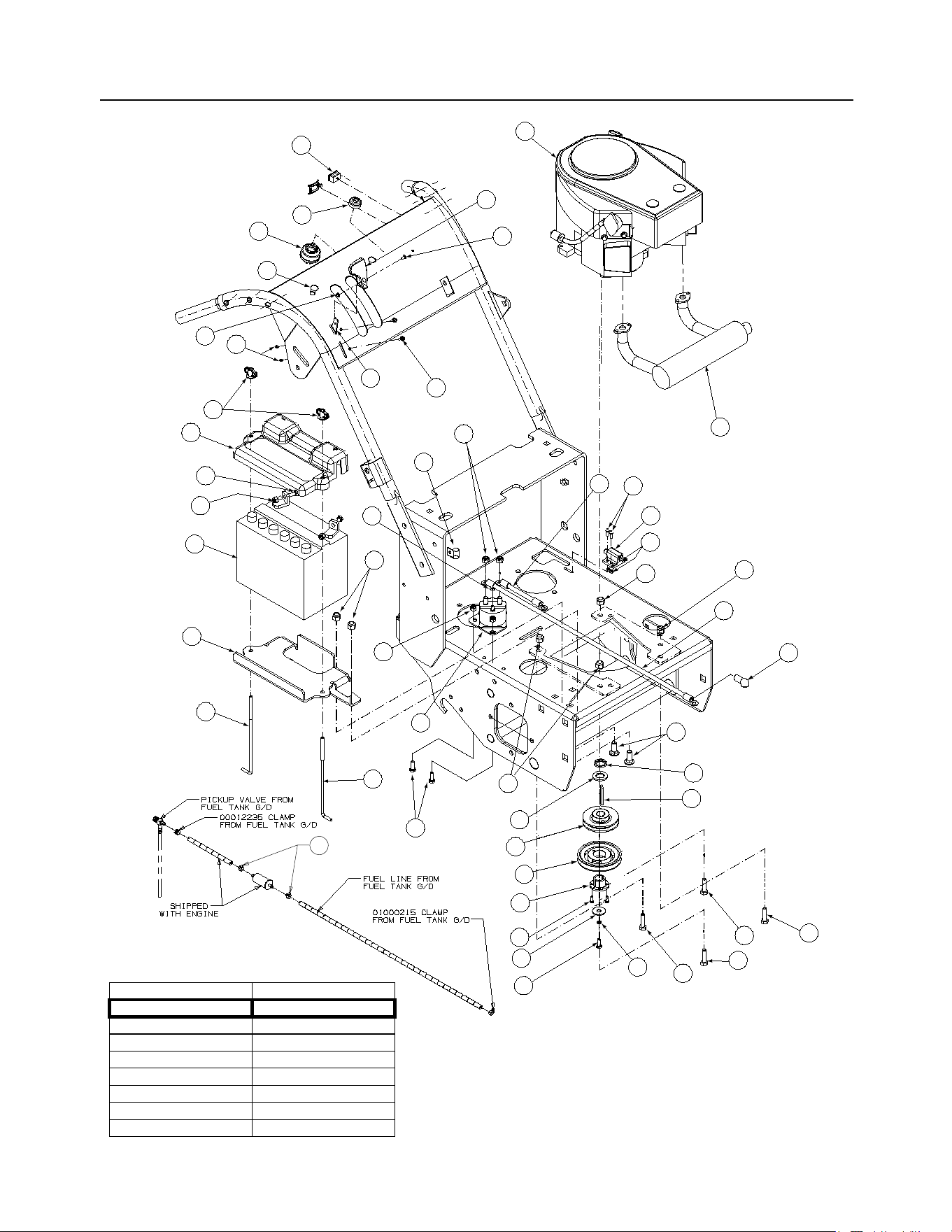

Engine Deck Assembly Hydro . . . . . . . . . . . . . . . . 30 and 31

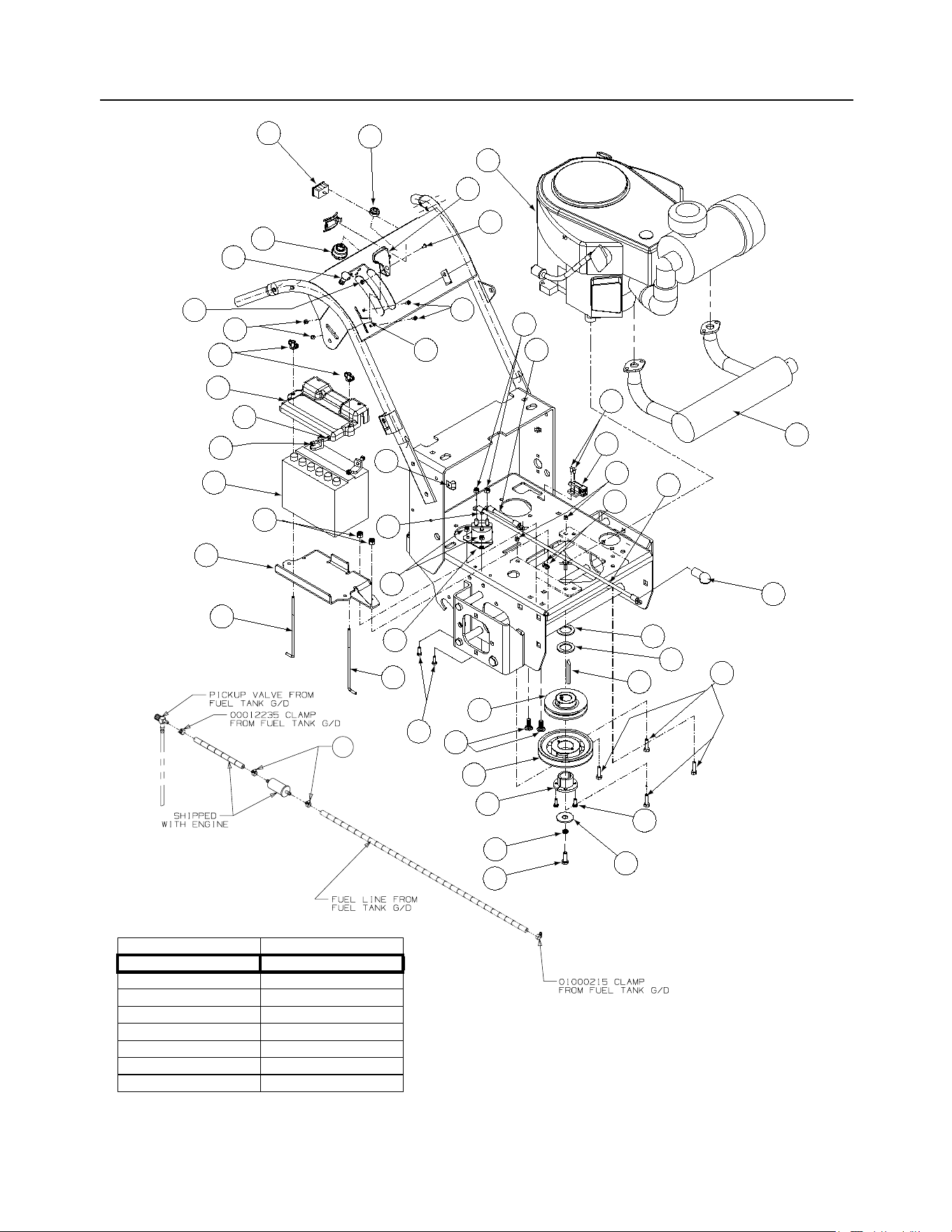

Engine Deck Assembly Hydro WT . . . . . . . . . . . . . . . . . . . 32
15HP Kawasaki Kai Engine Assembly . . . . . . . . . . . . . . . . 33
17HP Kawasaki Kai Engine Assembly . . . . . . . . . . 34 and 35
19HP Kawasaki Kai Engine Assembly . . . . . . . . . . 36 and 37

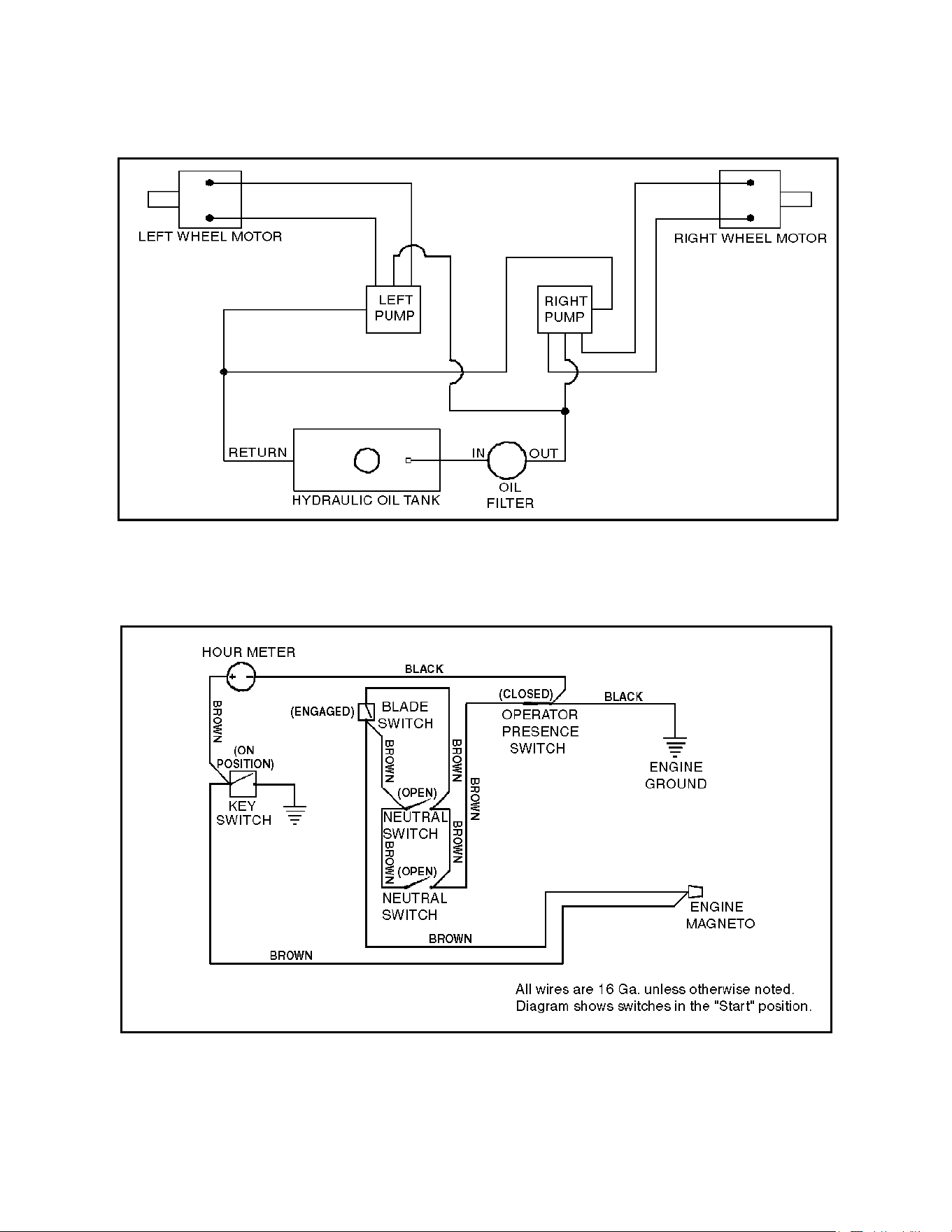

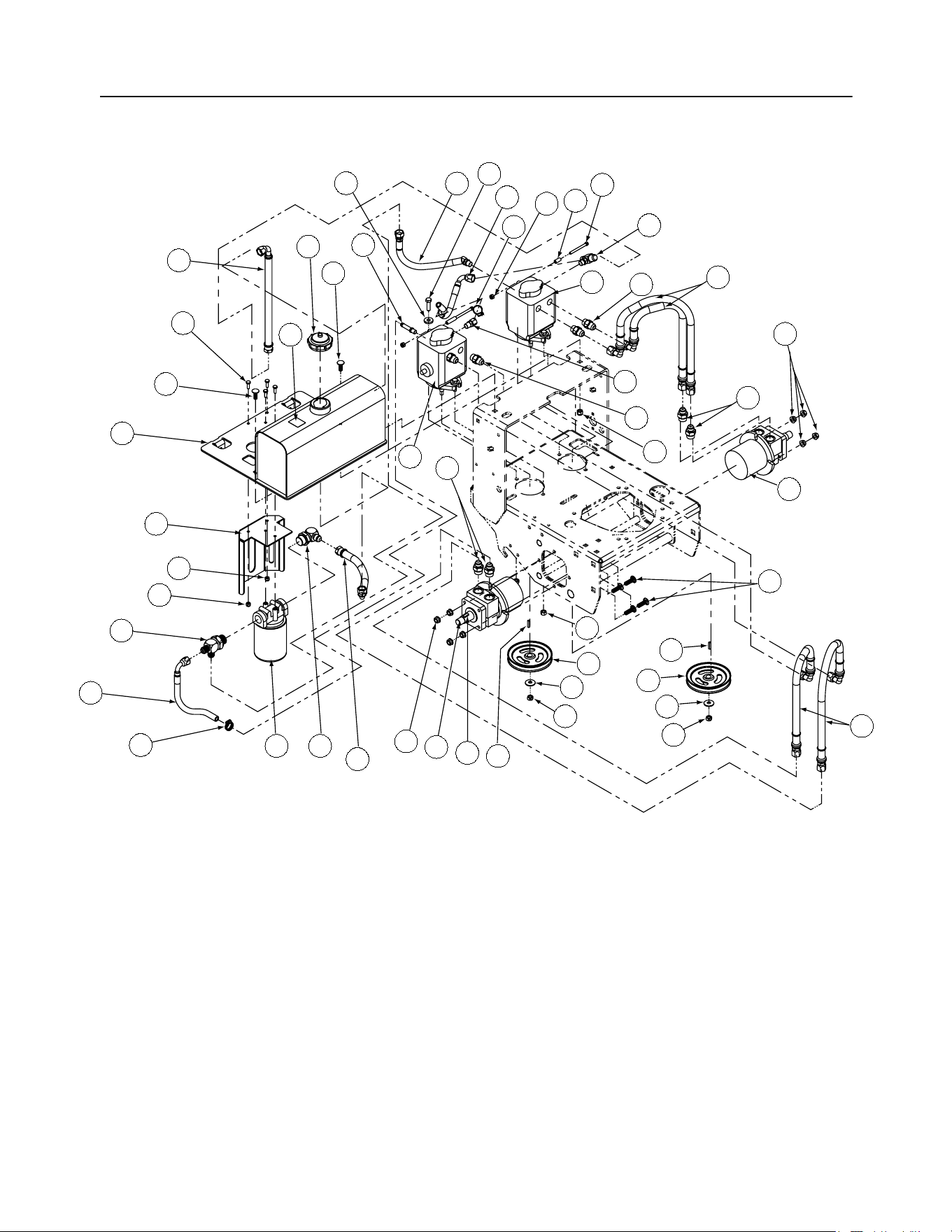

Hydraulic and Electrical Diagram . . . . . . . . . . . . . . . . . . . . 38
Safety and Instructional Decals . . . . . . . . . . . . . . . 39 and 40
4

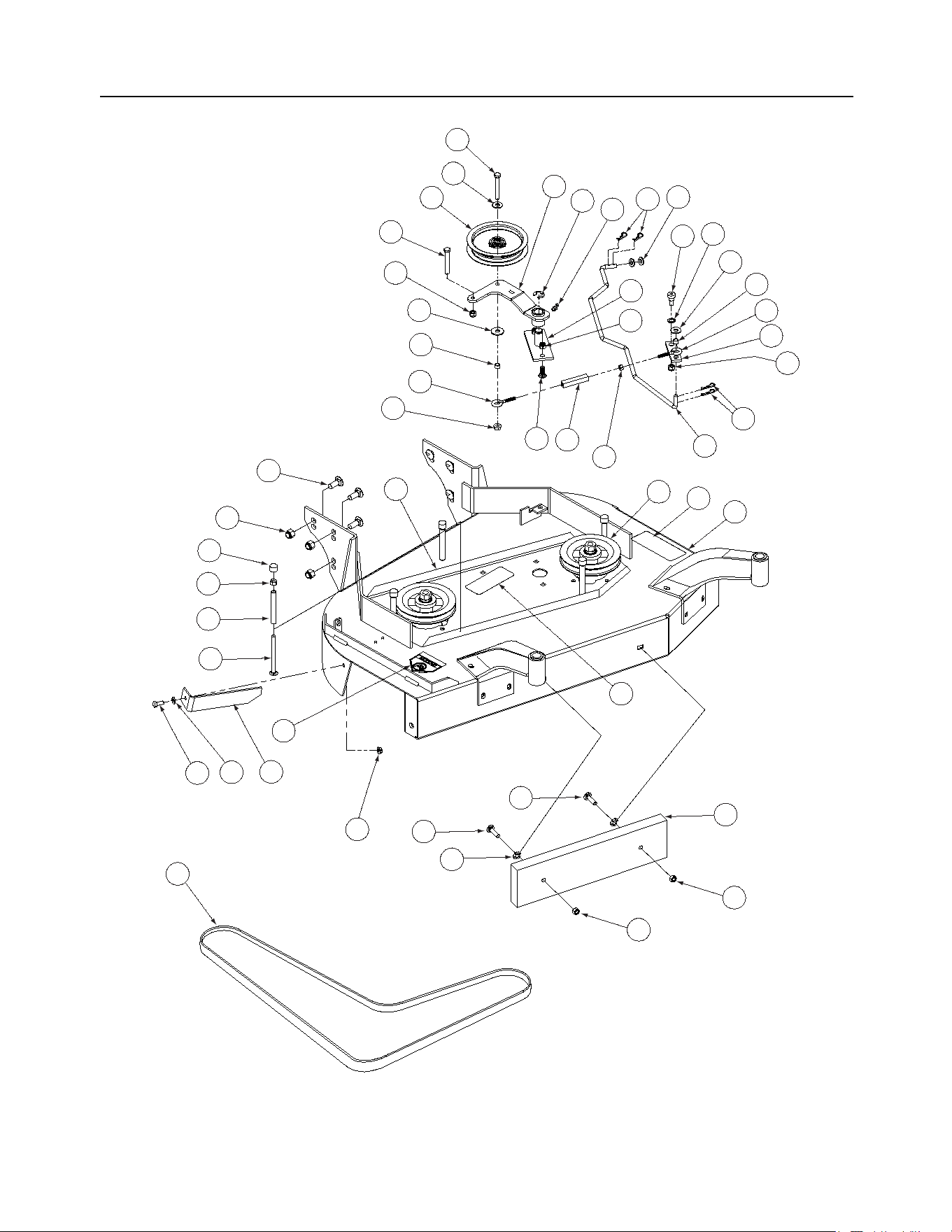

36" Deck Assembly - Figure 1
GD: 01007723-P15
3
30
17
34
29
3
31
28
25
4
10
6
26
20
19
21
31
23
13
35
11
24
14
33
16
4
32
9
8
27
7
24
5
15
2
18
2
12
4
1
37
36
22
38
3
15
37
37
37
39
40
5
36" Deck Assembly - Parts List for Figure 1
Ref.
No.
Part No. Description Qty.
1 01000872 Washer, 1.25 x .411 x .100 1
2 01001371
Hex Cap Screw, 3/8-16 x 2.75
2
3 00012158 Flat Washer, 3/8 Zinc 4
4 00012173 Lock Nut, Nylon Insert, 3/8-16 7
5 00012402
Shim Washer
1
6 01010119 Nut, Flange Lock, 1/2-13 6
7 00013433
Hex Nut, 5/16-18
1
8 00014439
Shoulder Bolt
1
9 00014459 Eye Bolt, Right Hand 1
10 00018468 Cap, Black Vinyl 5
11 00021958 Grease Fitting, 45°, 1/4-28 1
12 00019271 Eye Bolt, Left Hand 1
13 00019554 Tur nbu ckl e 1
14 00021895 Idler Arm 1
741-04333 Bearing 2
15 00021956 Hair Pin, 3/8"-1/2" 4
16 00021961
E-Ring, Retainer
1
17 01007499 Pulley Deck 2
18 00021977 Idler Deck Take-up 1
19 00030633 Decal Rotating Blade 1
20 01005061 Deck Stiffener 1
21 00030635 Decal, Warning Shield Missing 1
22 02000320 Chute Baffle 1
23 00050441 Belt Drive 1
24 00062715 Tur n bu ck l e , S l e eve 2
25 01000160 Spacer, Belt Guide 5
26
01000517 Carriage Bolt, 1/2-13 x 1-1/4
6
27 01002010 Carriage Bolt, 3/8-16 x 1.25 2
28 01000644 Carriage Bolt, 3/8-16 x 4.5 5
29 01000826 Deck 36" 1
30 02002426 Bar Weight 1
31 01002011 Carriage Bolt, 3/8-16 x 1-1/2 2
32 01003153 Clutch Link 1
33 01002103 Rod Clutch Link 1
34 01002166 Decal, Danger Hands and Feet 1
35 00063043 Idler Base 1
36 00013406 Hex Cap Screw, 5/16-18 x .75 1
37 712-04065 Hex Nut Flange Lock, 3/8-16 5
38 01000635 Nut, Hex Flange Lock, 5/16-18 1
39 00012169 Flat Washer, 5/16 1
40 01008225 Push Retainer 2
6

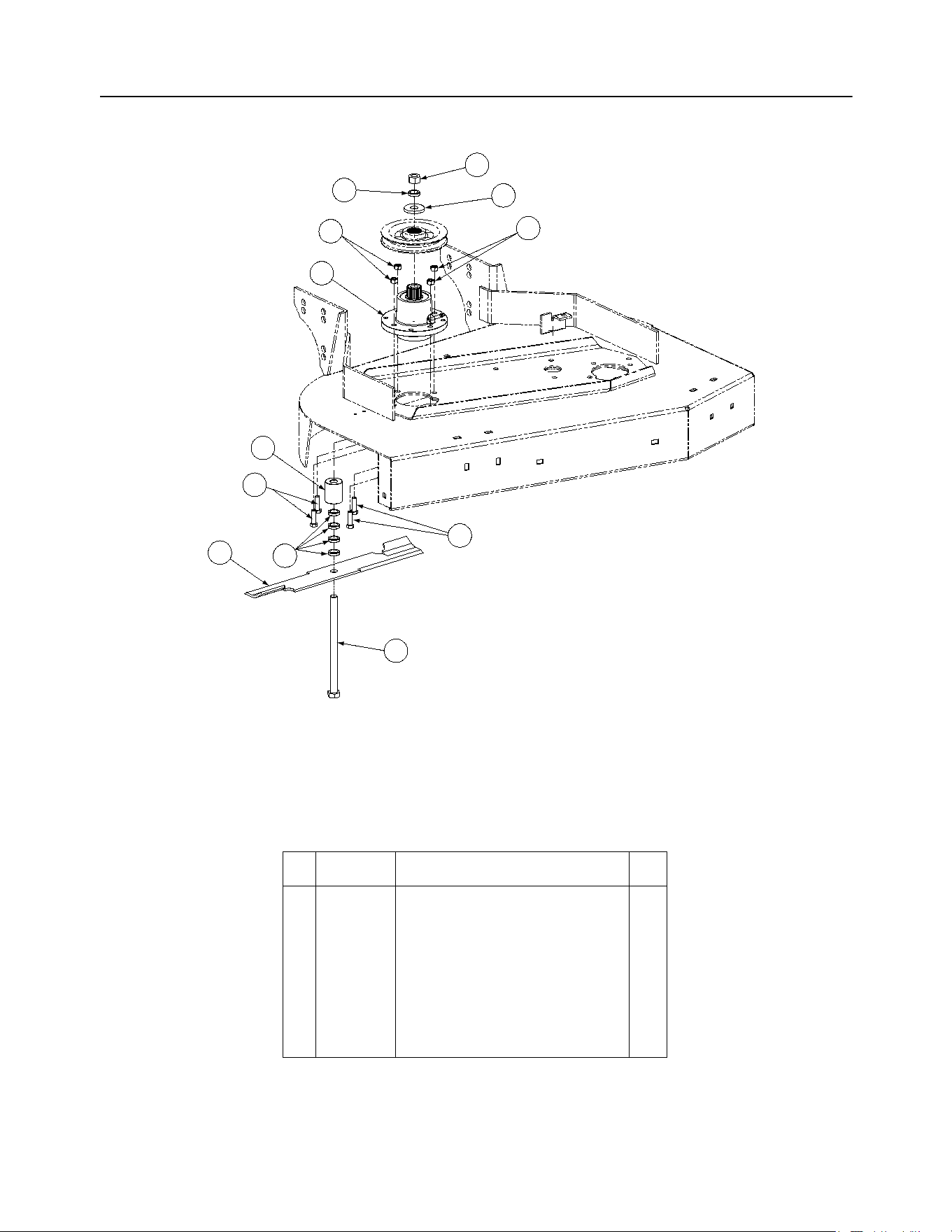

36" Spindle Assembly - Figure 2 and Parts List
1
1
6
7
3
4
2
5
8
9
7
8
GD: 01007704-P05
Ref.
No.
Part No. Description Qty.
1 00010980 Hex Cap Screw, 3/8-16 x 1-1/2 8
2 00011807
Hex Nut, 5/8-11
2
3 01007591 Hex Cap Screw, 5/8-11 x 9 2
4 01007577 Blade Spacer, .630 x 1.500 x 1.850 2
5 01007595 Flat Washer, .656 ID x 1.313 OD 2
6 00050125 18" Rotary Blade 2
7 00021924 Blade Spacer, 5/8 ID, 1/4 Thick 10
8 712-04065 Hex Nut Flange Lock, 3/8-16 8
9 01007491 Spindle Assembly 2
01007642 Grease Fitting, 1/4-28 x 1.609 2
7

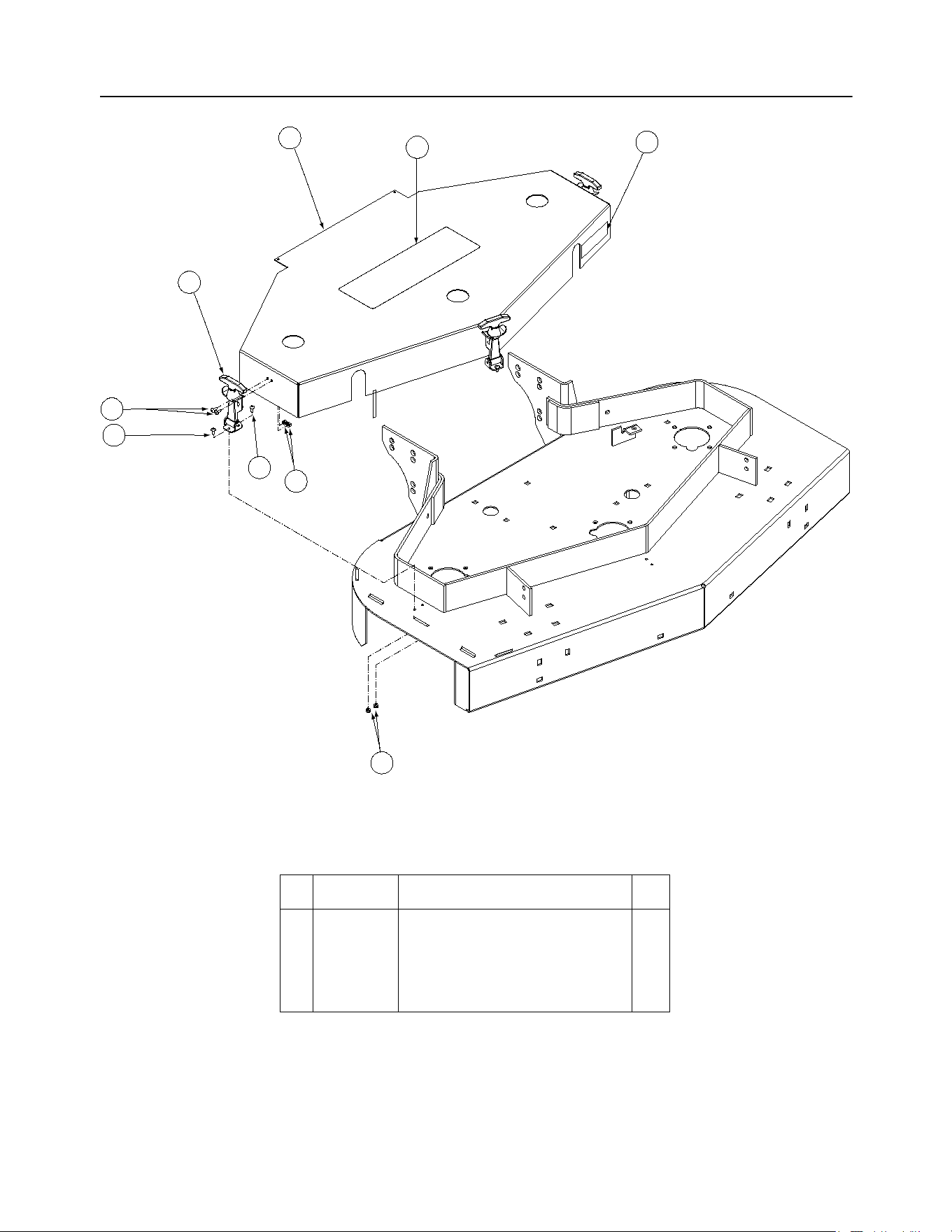

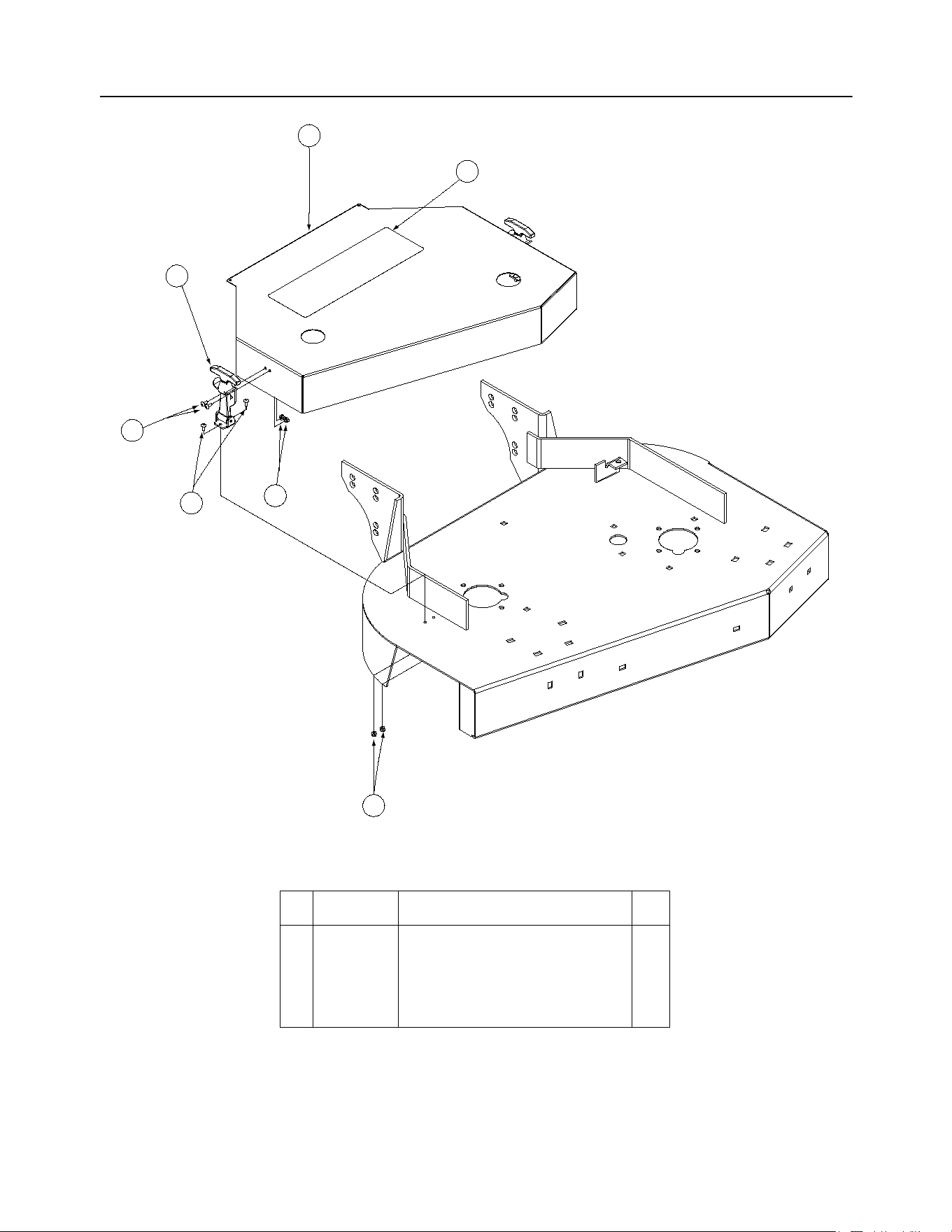

36" Fabricated Cover Assembly - Figure 3 and Parts List
4
5
1
3
2
2
1
GD: 01006691-P03
Ref.
No.
Part No. Description Qty.
1 00006194 Lock Nut, Nylon Insert #10-24 8
2 00008745 Machine Screw, 10-24 x 1/2 8
3 00021951
Rubber Hood Latch
2
4 01001066 Deck Cover, 36 1
5 777D09751
Label Commercial Mower
1
6 01006675
Label, H1536
1
8

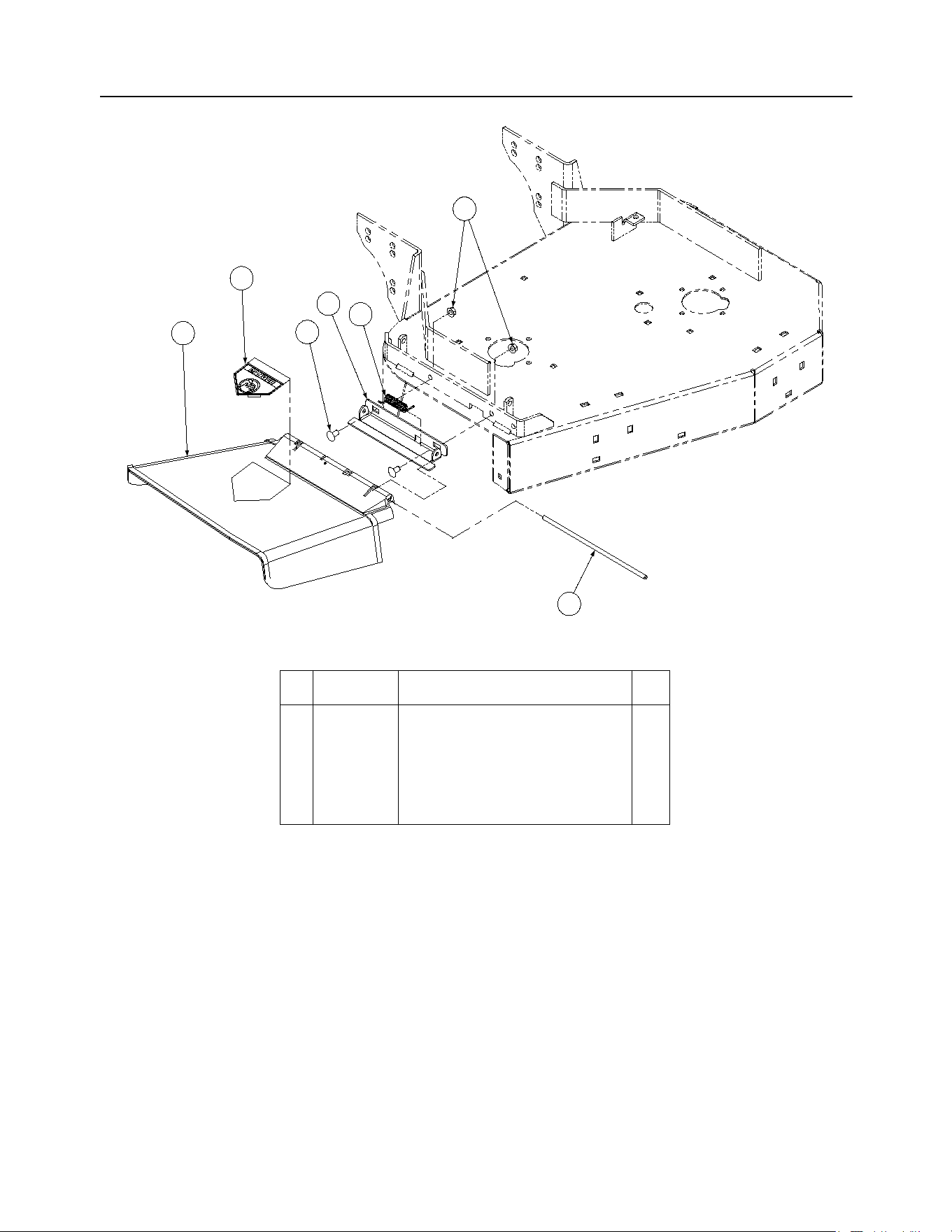

36" Chute Assembly - Figure 4 and Parts List
5
6
3
2
7
4
1
GD: 01005995-P04
Ref.
No.
Part No. Description Qty.
1 712-04065 Hex Nut Flange Lock, 3/8-16 2
2 01000643 Carriage Bolt, 3/8-16 x 1.00 LG. 2
3 01002166
Decal, Danger Hands and Feet
1
4 01003253 Torsion Spring 1
5 01003254
Chute Deflector Rod
1
6 01006693 Deflector Chute 2
7 01009884 Deflector Chute Bracket 1
9

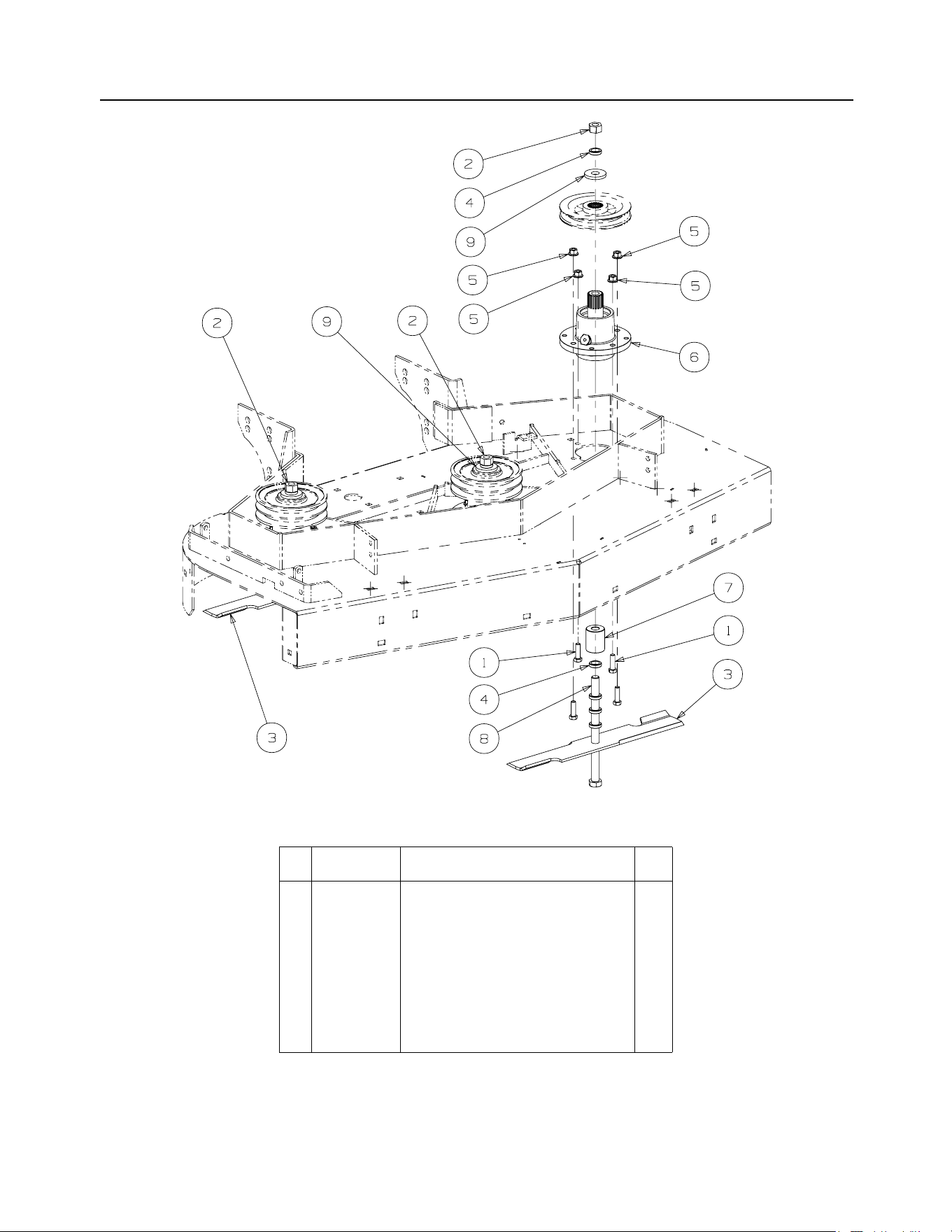

48" Spindle Assembly - Figure 5 and Parts List
GD: 02003924-P02
Ref.
No.
Part No. Description Qty.
1 00010980 Hex Cap Screw, 3/8-16 x 1-1/2 12
2 00011807
Hex Nut, 5/8-11
3
3 00021871 16 1/2" Rotary Blade 3
4 00021924 Blade Spacer, 5/8 ID, 1/4 Thick 15
5 712-04065 Hex Nut Flange Lock, 3/8-16 12
6 01007491 Spindle Assembly 3
01007642 Grease Fitting, 1/4-28 x 1.609 3
7 01007591 Hex Cap Screw, 5/8-11 x 9 3
8 01007577 Blade Spacer, .630 x 1.500 x 1.850 3
9 01007595 Flat Washer, .656 ID x 1.313 OD 3
10
48" Deck Assembly - Figure 6
24
16
41
5
7
6
3
5
13
21
23
5
32
18
6
44
22
33
38
6
25
27
43
34
29
21
14
15
46
40
6
44
36
9
28
1
26
30
30
35
40
40
40
40
40
2
39
40
4
5
10
11
42
8
45
32
12
20
31
19
25
40
17
50
5
20
40
30
30
30
GD: 01007717-P11
11
48" Deck Assembly - Parts List for Figure 6
Ref.
No.
Part No. Description Qty.
1 00006131 Hex Nut, 3/8-16 2
2 00006144 Hex Cap Screw, 3/8-16, 1 4
3 00024172 Sleeve Tensioner 1
4 01000872 Washer, 1.25 x .411 x .100 1
5 00012158 Flat Washer, 3/8 Zinc 6
6 00012173
Lock Nut, Nylon Insert, 3/8-16
9
7 00012226 Grease Fitting, 1/4-28, 90° 1
8 00012402
Shim Washer
1
9 01010119
Nut, Flange Lock, 1/2-13
6
10 00013433 Hex Nut, 5/16-18 1
11 00014439 Shoulder Bolt 1
12 00014459 Eye Bolt, Right Hand 1
13 00018468 Vinyl Cap 6
14 00021958 Grease Fitting, 45°, 1/4-28 1
15 00019271 Eye Bolt, Left Hand 1
16 00019554 Tu r n bu ck l e 1
17 00021893
Idler Arm "B"
1
741-04333
Bearing
2
18 00021895 Idler Arm "A" 1
741-04333 Bearing 2
19 00021947 Drive Belt 1
20 00021956 Hair Pin, 3/8"-1/2" 4
21 00021961 E-Ring 2
22 01007499 Deck Pulley 1
23 00021975 Idler Pulley 1
24 00021977 Idler Deck Take-up 1
25 01007528 Double Pulley 2
26 00030335 Rod Belt Tensioner 1
27 00030633 Decal Rotating Blade 1
28
01000150 Spindle Backing Plate
3
29 00030635 Decal Warning Shield Missing 1
30 01002010 Carriage Screw, 3/8-16 x 1-1/4 12
31 00050480 Drive Belt 1
32 00062715 Sleve Turnbuckle 2
33 01000160 Spacer Belt Guide 6
34 01000233 Deck Weldment Mower 1
35 01000235 Bumper 48" 1
36 01000517 Carriage Bolt, 1/2-13 x 1-1/4 6
37 01001371 Hex Cap Screw, 3/8-16, 2.75 2
38 01000644 Carriage Bolt, 3/8-16 x 4-1/2 6
39 01001097 Caster Support Assembly 2
40 712-04065 Hex Nut Flange Lock, 3/8-16 17
41 01001366 Hex Cap Screw, 3/8-16, 2.25 1
42 01002103 Rod Clutch Link 1
43 01002166 Decal, Danger Hands and Feet 1
44 00063043 Idler Base 2
45 01003153 Clutch Link 1
12
48" Cover Assembly
2
4
5
4
5
5
3
1
6
GD: 01006690-P04
- Figure 7 and Parts List
Ref.
No.
Part No. Description Qty.
1 777D09751 Label Commercial Mower 1
2 01000236 Deck Cover 48" 1
3 00021951 Rubber Latch Hood 3
4 00008745
Machine Screw, 10-24 x 1/2
12
5 00006194 Lock Nut, Nylon Insert, #10-24 12
6 02003934 Label, H1748 1
13

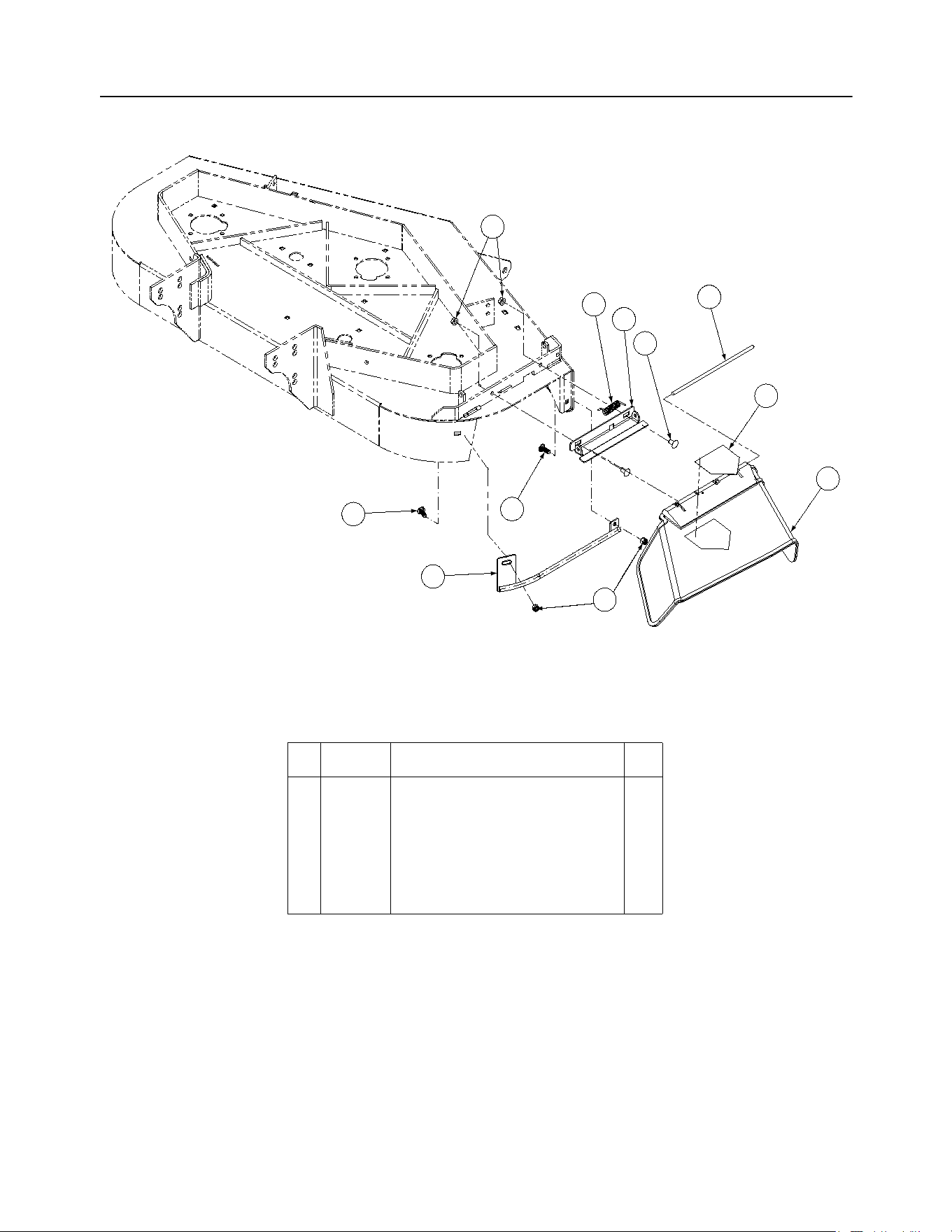

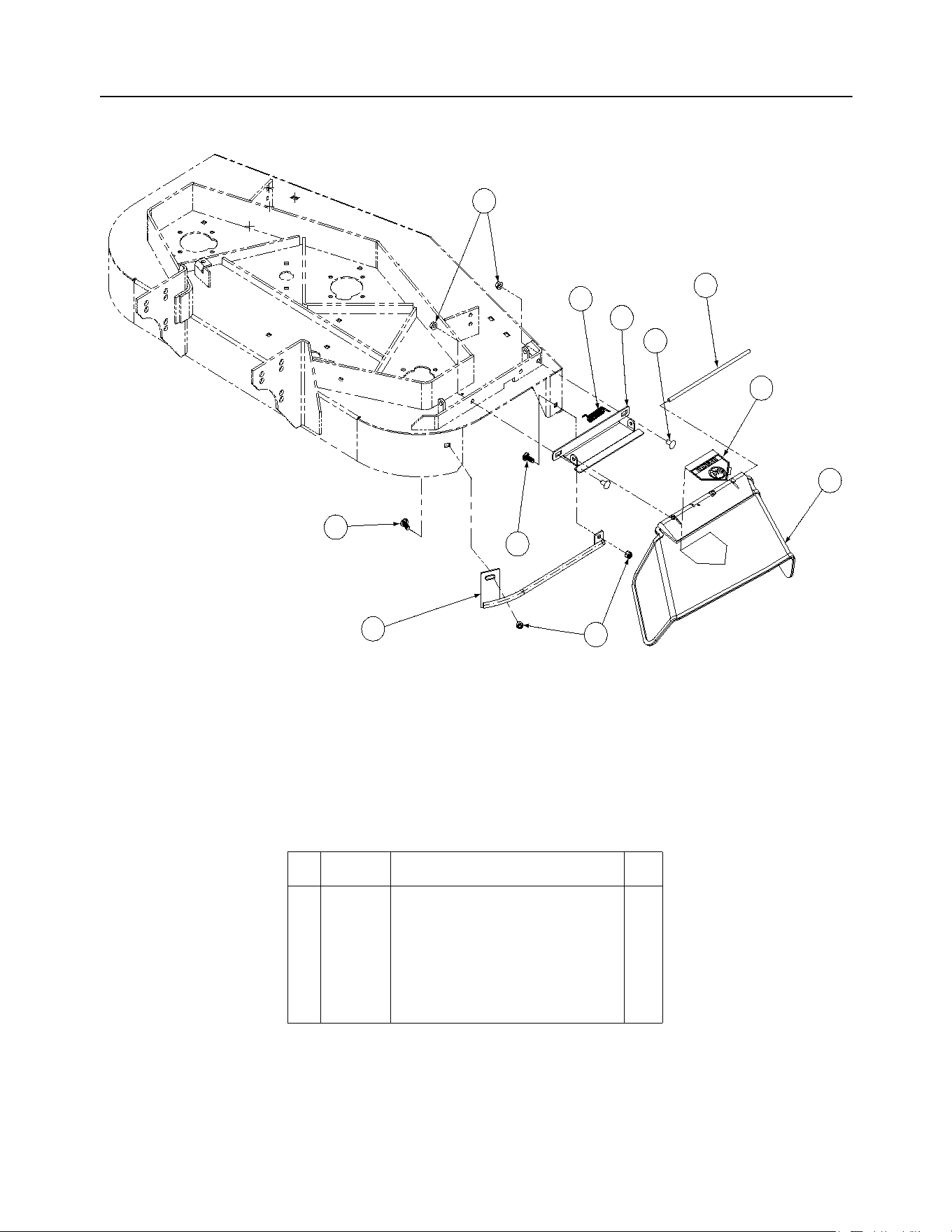

48" Chute Assembly
GD: 01006127-P03
2
1
6
1
2
5
4
8
2
3
7
- Figure 8 and Parts List
Ref.
No. Part No. Description Qty.
1 00022560 Hex Nut Flange Lock, 3/8-16 4
2 01000372 Carriage Bolt, 3/8-16 x .75 LG. 4
3 01002166 Decal, Danger Hands & Feet 1
4 01003253 Torsion Spring, 0.4 ID x 2.16 LG 1
5 01003254
Chute Deflector Rod
1
6 01004212 Stiffner Assembly, 48 1
7 01006693 Deflector Chute 1
8 01009875 Deflector Chute Bracket 1
14

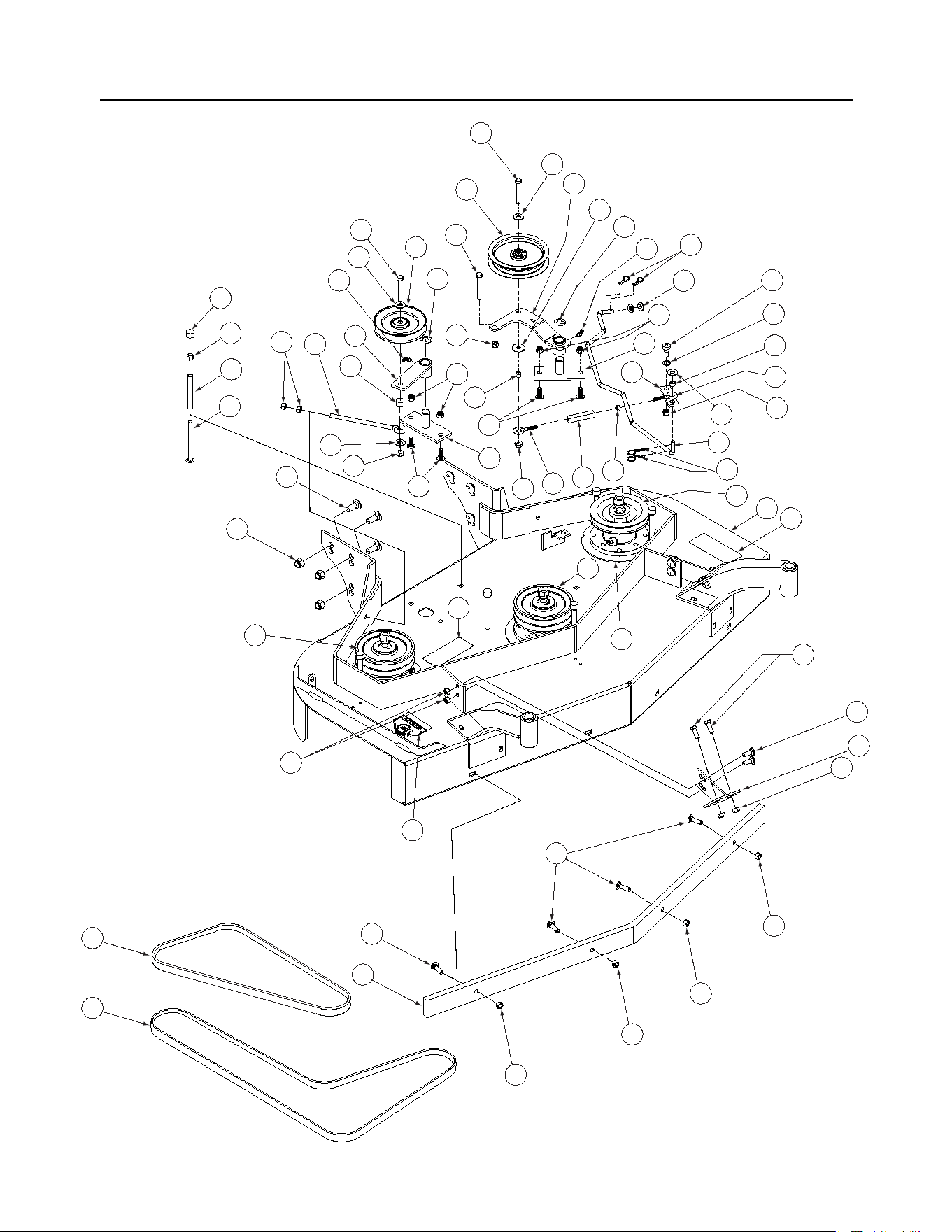

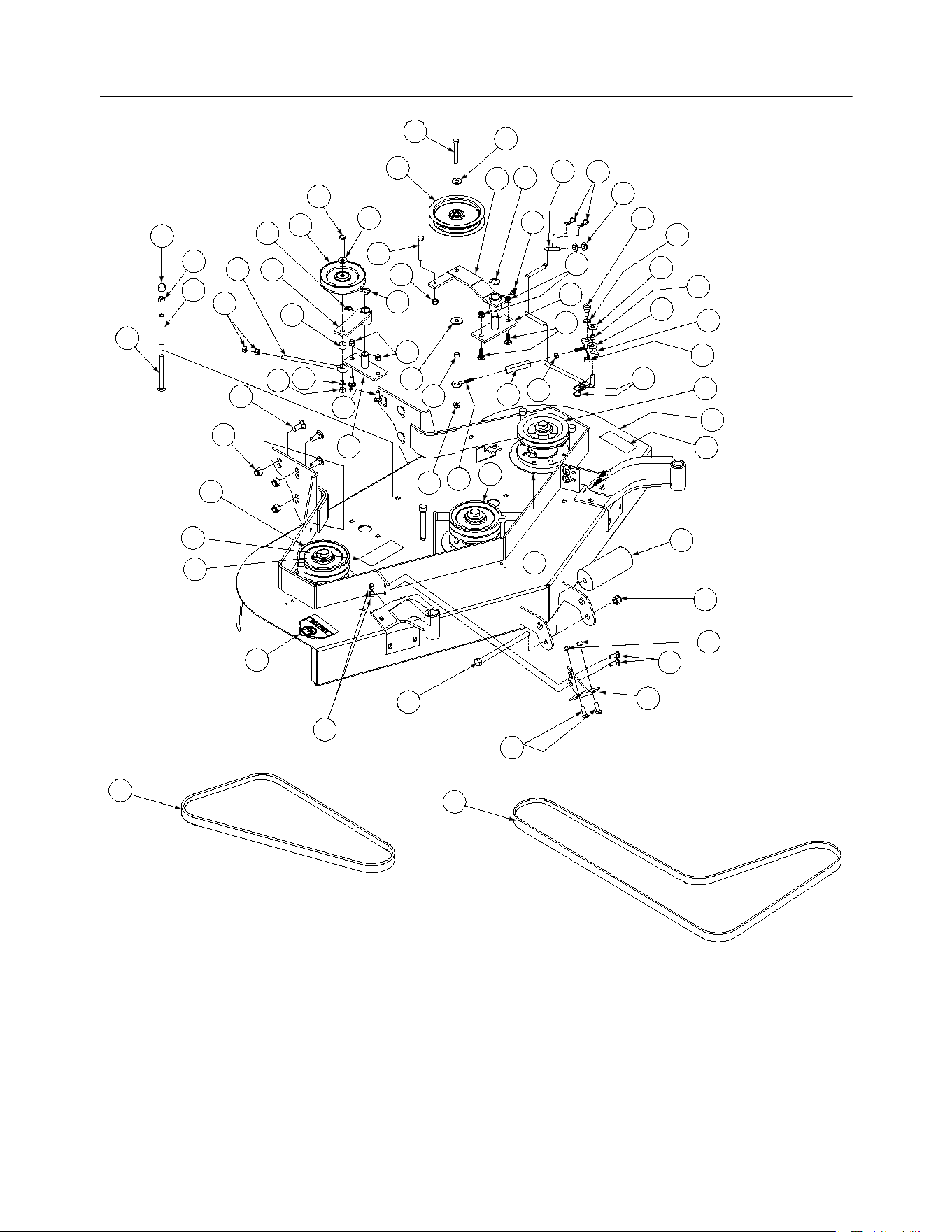

52" Deck Assembly - Figure 9
48
13
5
9
46
31
14
43
45
22
41
38
23
44
2
33
11
6
32
26
12
18
21
16
42
5
4
24
1
27
39
42
10
30
40
28
42
37
8
19
15
7
36
5
38
45
7
48
22
42
7
20
38
25
17
34
35
29
26
49
5
32
42
47
3
5
20
GD: 01007720-P15
15
52" Deck Assembly - Parts List for Figure 9
Ref.
No.
Part No. Description Qty.
1 00006131 Hex Nut, 3/8-16 2
2 00006144 Hex Cap Screw, 3/8-16, 1 4
3 00013432 Flat Washer, 5/8 3
4 01001366 Hex Cap Screw, 3/8-16, 2-1/4 1
5 00012158 Flat Washer, 3/8 Zinc 6
6 02002299
Nut, 1/2-20, Lock
1
7 00012173
Lock Nut, Nylon Insert, 3/8-16
8
8 00012226 Grease Fitting, 1/4-28, 90° 1
9 00012402
Shim Washer
1
10 01010119
Nut, Flange Lock, 1/2-13
6
11 01006961 Hex Cap Screw, 1/2-20, 7.50 1
12 00013433 Hex Nut, 5/16-18 1
13 00014439 Shoulder Bolt 1
14 00014459 Eye Bolt, Right Hand 1
15 00018468 Vinyl Cap 6
16 00021958 Grease Fitting, 1/4-28, 45° 1
17 00019271 Eye Bolt, Left Hand 1
18 00019554 Tu r nbu c k le 1
19 00021893
Idler Arm "B"
1
741-04333
Bearing
2
20 00021895 Idler Arm "A" 1
741-04333 Bearing 2
21 00021956 Hair Pin, 3/8-1/2 4
22 00021961 E-Ring 2
23 01007499 Deck Pulley 1
24 00021975 Idler Pulley 1
25 00021977 Idler Deck Take-up 1
26 01007528 Double Pulley 2
27 00030335 Rod Belt Tensioner 1
28 00030633 Decal Rotating Blade 1
29
01000150 Spindle Backing Plate
3
30 00030635 Decal Warning Shield Missing 1
31 00034224 Lock Nut, Metal, 3/8-16 1
32 00062715 Sleve Turnbuckle 2
33 01000385 Front Roller 1
34 00068079 Drive Belt 1
35 00068093 Drive Belt 1
36 01000160 Spacer Belt Guide 6
37 01000517 Carriage Bolt, 1/2-13 x 1-1/4 6
38 01002010 Carriage Bolt, 3/8-16 x 1-1/4 8
39 01000644 Carriage Bolt, 3/8-16 x 4-1/2 6
40 01000850 Mower Deck Weldment, 52" 1
41 01001095 Caster Support Assembly 2
42 712-04065 Nut, Hex Flange Lock, 3/8-16 13
43 01002104 Rod Clutch Link 1
44 01002166 Decal, Danger Hands and Feet 1
45 00063043 Idler Base 2
46 01003153 Clutch Link 1
47 01000872 Washer, 1.25 x .411 x .100 1
48 01001371 Hex Cap Screw, 3/8-16, 2.75 2
49 00024172 Sleeve Tensioner 1
16

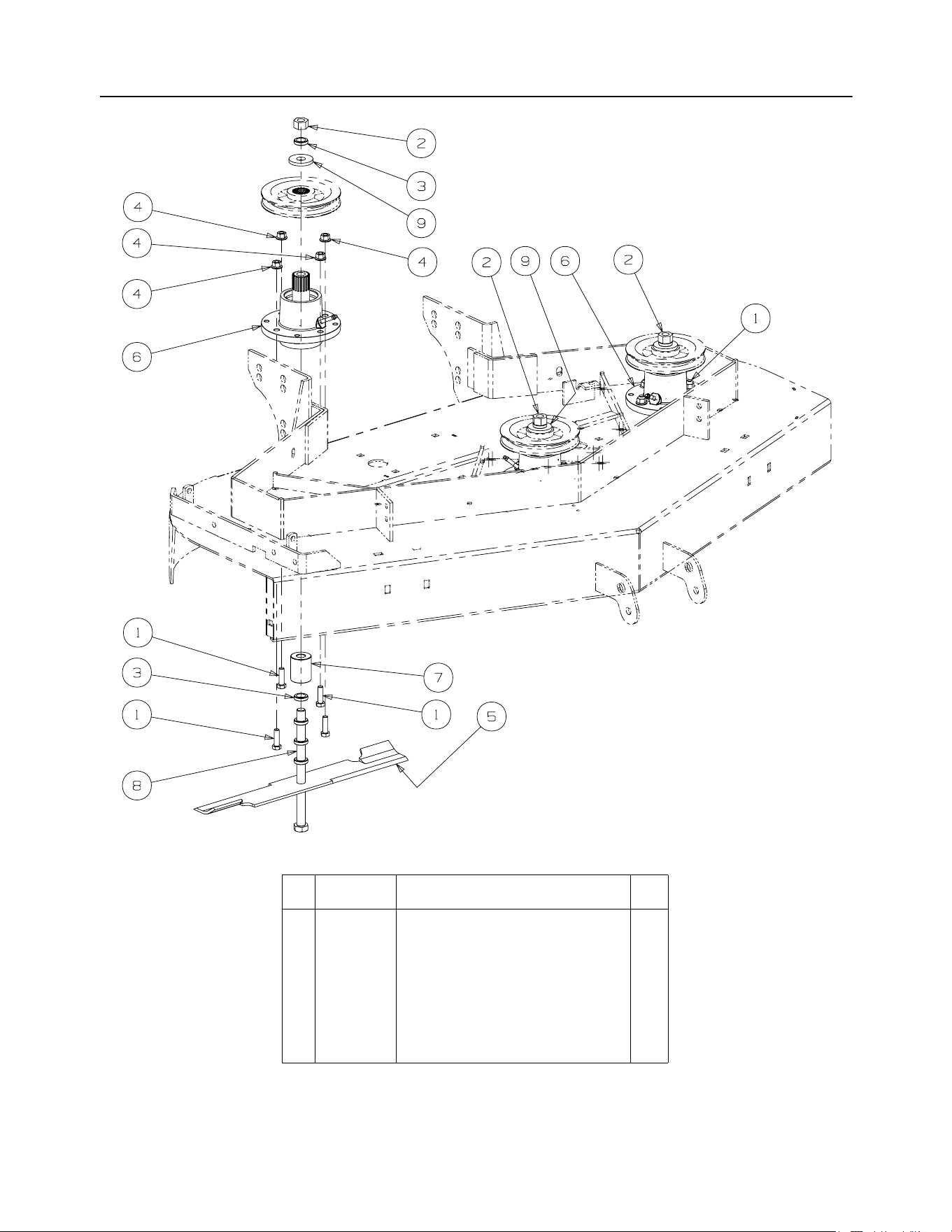

52" Spindle Assembly
GD: 02003901-P02
- Figure 10 and Parts List
Ref.
No.
Part No. Description Qty.
1 00010980 Hex Cap Screw, 3/8-16 x 1-1/2 12
2 00011807
Hex Nut, 5/8-11
3
3 00021924 Blade Spacer, 5/8 ID, 1/4 Thick 15
4 712-04065 Flange Lock Nut, 3/8-16 12
5 00050125 18" Rotary Blade 3
6 01007491 Spindle Assembly 3
7 01007577 Blade Spacer, .630 x 1.500 x 1.850 3
8 01007591 Hex Cap Screw, 5/8-11 x 9 3
9 01007595 Flat Washer, .656 ID x 1.75 OD 3
17
52" Deck Cover - Figure 11 and Parts List
GD: 02003979-P01
Ref.
No.
Part No. Description Qty.
1 00006194 Lock Nut, Nylon Insert, #10-24 12
2 00008745 Machine Screw, 10-24 x 1/2 12
3 00021951 Rubber Hood Latch 3
4 01001092 Cover Assembly, Belt, 52" 1
5 02003935 Label, H1952 1
6 777D09751
Label, Commercial Mower
1
18
52" Chute Assembly - Figure 12 and Parts List
2
6
1
7
4
1
5
2
3
2
8
GD: 01004218-P05
Ref.
No.
Part No. Description Qty.
1 00022560 Nut, Hex Flange Lock, 3/8-16 4
2 01000372
Carriage Bolt, 3/8-16 x .75
4
3 01002166 Decal, Danger, Hands & Feet 1
4 01003253 Torsion Spring, 0.4 ID x 2.16 1
5 01003254 Chute Deflector Rod 1
6 01004209 Stiffner Assembly, 52" 1
7 01006693 Chute Deflector 1
8 01009884 Chute Deflector Bracket 1
19
Caster Wheel Fabricated Deck
GD: 01005984-P09
3
12
6
10
4
2
9
11
9
7
9
3
5
3
8
12
12
- Figure 13 and Parts List
Ref.
No.
Part No. Description Qty.
1 01002014 Lubricant Grease by Ounce 2
2 01001051 Caster Yoke Assembly, Weldment 2
3 712-04065 Nut, Hex Flange Lock, 3/8-16 8
4 00012428
Lock Nut, Nylon Insert, 1/2-13
2
5 00012675 Hex Cap Screw, 1/2-13, 5.50 2
6 00014528 Spacer Wheel 2
7 01000746 Klik Pin, 1.75 2
8 01006718 Caster Bracket Weldment 2
00064164 Caster Bushing 4
9 00021925 Spacer, Caster 8
10 02000192 Wheel Assembly, 9.0 x 3.50-4 2
11 00060078 Grease Fitting, 1/4-28 x 3/16 2
12 01000643 Carriage Bolt, 3/8-16 x 1 8
20
Standard Tank Assembly
GD: 01006171-P12
- Figure 14 and Parts List
Ref.
No.
Part No. Description Qty.
1 00012169 Flat Washer, SAE 5/16 2
2 00012235 Uni–Clamp 1
3 00021407
Stop Pad, Rubber
2
4 00021941
Spacer
2
5 01001023
Fuel Tank Strap
2
6 01000215 Hose Clamp, 1/4-5/8, SS 1
7 01001036
Mower Warning Label, Turn off Engine
1
8 01001038 Mower Instruction Label, Fuel Valve 1
9 01002509 Carriage Bolt, 1/4-20 x 3.00 2
10 01002766
Lock Nut, 1/4-20, Hex Flange Lock
2
11 01007425 Shutoff Valve 1
12 01008857 Fuel Tank 1
13 01009333 Compression Spring, .625 OD x .390 ID 2
14 02000672 Rubber Strip 1
15 -- Fuel Hose, 18" 1
16 02002253 Grommet Fuel Tank 1
17 751-3124D Fuel Cap, 3.5, Tethered 1
21
Wheel Assembly
2
1
1
GD: 01001318-P02
- Figure 15 and Parts List
Ref.
No.
Part No. Description Qty.
1 00012187 Lug Nut, 1/2-20 8
2 00024075 Wheel Assembly, 16 x 6.50-8 2
22
Hydro Pump Assembly
37
26
34
28
9
20
19
1
15
16
21
29
33
24
2
2
9
13
14
37
22
12
25
22
32
11
32
17
5
14
5
12
38
6
31
3
30
6
27
18
11
8 4
35
36
28
7
21
13
10
23
GD: 01006640-P03
- Figure 16
23
Hydro Pump Assembly
- Parts List for Figure 16
Ref.
No.
Part No. Description Qty.
1 00011444 Cap Screw, Standard, 3/8-16 x 1-1/4 4
2 00012152 Lock Nut Nylon Insert, 1/4-20 2
3 00012173 Lock Nut, 3/8-16 2
4 00012269 Elbow 90° 1/2 x 3/4 1
5 00012288
Fitting, Aeroquip
4
6 00012426 Fitting, Aeroquip 4
7 00013131 Cap Screw, 1/4-20 x 3/4 8
8 00017665 Filter Head 3/4 includes: 1
01004166 Filter 1
9 00017892 Worm Gear Clamp, 5/16-7/8 2
10 00031672 Cap Screw, Socket Head, 1/4-20 x 1-1/2 Zinc 2
11 00020628 Key, 3/16" x 7/8" 2
12 00021609 Reverse Pressure Hydraulic Hose Assembly 4
13 00022560 Flange Lock Hex Nut, 3/8-16 8
14 00024060 Hydraulic Motor, Wheel 2
15 00030261 Cap, Hydraulic Oil Tank 1
16 00031994 Oil Label, 20W-50 1
17 00034224 Lock Nut, 3/8-16 4
18 01008607 Spacer, Pump Release 2
19 00083192 Washer, Idler 4
20 01000446 Hex Lock Nut, 1/4-20 2
21 01000643 Carriage Bolt, 3/8-16 x 1.0 2
22 01000942 Bell Washer, .396 x 1.140 x .095 2
23 00008792 Woodruff Key, 3/16 x 3/4 2
24 01001087 Filter Guard Weldment 1
25 01000370 Carriage Bolt, 3/8-16 x 1.25 8
26 01006461 Left Pump Inlet Hose 1
27 01006462 Push On Fitting 45 1
28 01006463 Right Pump Inlet Hose 2
29 01006464 Push On Straight Fitting
1
30 01006478 Right Hand, Hydro Pump, BDP 10A 308 1
31 01006479 Left Hand, Hydro Pump, BDP 10A 413 1
32 01006799 Hydro Pump Pulley, 5.00 Dia 2
33 01006820 Fuel Tank Mounting Bracket and Integrated
Hydraulic Tank
1
34 01006902 Left Hand, 14.25 Return Hose Assembly 1
35 01006941 9.5" Supply Hose Assembly 1
36 01006959 Tee Fitting, 3/4 x 1/2 x 1/2 1
37 01007309 Hex Nut, 3/8-24 2
38 01007805 Tee Fitting 1
Note: Lubricant, 737-3120
24
Hydro Brake Assembly
19
30
21
10
10
23
2
6
24
16
28
10
25
9
8
29
26
27
11
1
4
13
4
12
7
31
13
22
15
5
17
14
7
15
10
18
3
20
GD: 01006182-P02
- Figure 17
25
Hydro Brake Assembly
- Parts List for Figure 17
Ref.
No.
Part No. Description Qty.
1 00003067 Nut, Castle, 3/4-16 2
2 00008495 Capscrew, 3/8-16 x 1-3/4" Zinc 1
3 00011446 Cap Screw, 1/4-20 x 1.50, Grade 5 2
4 00012081
Bolt, Wheel, 1/2-20 x 1-3/8
8
5 00012152
Lock Nut, Nylon Insert, 1/4-20 Grade A
2
6 00012157 Lock Washer, 3/8 Zinc 1
7 00012161
Capscrew, Socket Button Hd., 3/8-16 x 3/4 Zinc
8
8 00012165 Nut, 5/16-18, Nylock 4
9 00012173 Nut, Nylon Insert, 3/8-16 Grade A 1
10 00012204 Cotter Pin, 3/32 x 3/4, Zinc 5
11 00012380 Cotter Pin, 5/32 x 1-1/2 Zinc 2
12 00012522 Brake Cam, Actuating 2
13 00012553 Brake Shoe w/Lining, 6 x 1-1/4 4
14 00012554 Brake Spring, Tension 4
15 00012555 Brake Spring, Anti-Vibration 4
16 00013406 Cap Screw, 5/16-18 x 3/4, Grade 5 4
17 00021930 Brake Rod 2
18 00021943
Swivel Joint
2
19 00021952 Red Knob, Shift w/Insert 1
20 00021956 Hair Pin 3/8"-1/2" 2
21 00063173 Lever Assembly, Brake 1
22 00063679
Brake Clamp, Control Assembly Hydro
2
23 00063727 Rod, Long Brake, Hydro WB 1
24 00063612 Pivot Spacer, Hydro WB 1
25 00063766 Brake Pull Joint 1
26 01001382 Brake Drum 2
27 01001384 Hub, Wheel Motor 2
28 01001386 Brake Pivot Shaft Assembly 1
29 01002292 Pivot Mount, Brake
2
30 01002511 Nut, 3/8-16, Jam, Grade 2 1
31 01003017 Brake Backing Plate 2
26
Hydro Brake Assembly WT
31
10
10
25
2
6
26
29
16
17
22
9
30
20
23
8
13
21
14
7
15
10
19
3
11
1
28
27
4
4
12
13
7
32
24
15
5
18
GD: 01006557-P01
- Figure 18
27
Hydro Brake Assembly WT
- Parts List for Figure 18
Ref.
No.
Part No. Description Qty.
1 01002626 Nut, Castle, 3/4-16 2
2 00008495 Capscrew, 3/8-16 x 1" Grade 5 Zinc 1
3 00011446 Cap Screw, 1/4-20 x 1.50, Grade 5 2
4 00012081
Bolt, Wheel, 1/2-20 x 1-3/8
8
5 00012152
Lock Nut, Nylon Insert, 1/4-20 Grade A
2
6 00012157 Lock Washer, 3/8 Zinc 1
7 00012161
Capscrew, Socket Button Hd., 3/8-16 x 3/4 Zinc
8
8 00012165 Nut, 5/16-18, Nylock 4
9 00012173 Nut, Nylon Insert, 3/8-16 Grade A 1
10 00012204 Cotter Pin, 3/32 x 3/4, Zinc 4
11 00012380 Cotter Pin, 5/32 x 1-1/2 Zinc 2
12 00012522 Brake Cam, Actuating 2
13 00012553 Brake Shoe w/Lining, 6 x 1-1/4 4
14 00012554 Brake Spring, Tension 4
15 00012555 Brake Spring, Anti-Vibration 4
16 00 013406 Cap Screw, 5/16-18 x 3/4, Grade 5 4
17 00014149 Cotter Pin, 3/32 x 1, Zinc 2
18 00021930
Brake Rod
2
19 00021943 Swivel Joint 2
20 00021952 Knob, Red, Shift w/Insert 1
21 00021956 Hair Pin, 3/8"-1/2" 2
22 00035477 Joint, Brake Pull 1
23 00063173 Lever Assembly, Brake 1
24 00063679
Brake Clamp, Control Assembly, Hydro
2
25 00063727 Rod, Long Brake, Hydro WB 1
26 00063612 Pivot Spacer, Hydro WB 1
27 01001382 Brake Drum 2
28 01001384 Hub, Wheel Motor 2
29 01001388 Brake Pivot Shaft Assembly
1
30 01002292 Pivot Mount, Brake 2
31 01002511 Nut, 3/8-16, Jam, Grade 2 1
32 01003017
Brake Backing Plate
2
28
Standard Handle Assembly
GD: 01007991-P09
- Figure 19
29
Standard Handle Assembly
- Parts List for Figure 19
Ref.
No.
Part No. Description Qty.
Ref.
No.
Part No. Description Qty.
1 00006131 Hex Nut, 3/8 - 16 3 33 01000643
Carriage Bolt, 3/8 -16 x 2
4
2 00006168 Flat Washer, SS, 3/8 3 34 01000723
Flat Washer .406 ID x 1.00 OD
4
3 00009678 Clevis Pin, 3/8 x 1 1/8 1 35 01001377
Mounting Switch, Neutral, Safety
2
4 00011211
Grip, 1.25, Black Neutral Lock
2 36 01001704
Hydro, Handle Assembly
1
5 01000451 End Rod, 3/8, Female 2 37 01001714
Control Sleeve, Drive Black
2
6 00012118
Knob, 1-3/8 x 1-19/64, 3/8-24
2 38 01001715
Operators Control Sleeve, Yellow
2
7 00012152 Lock Nut, Nylon Insert, 1/4-20 4 39 01001716
Harness Adapter Assembly
1
8 00012157 Lock Washer, 3/8 Zinc 2 40 01001717
Snap Mounting Switch
2
9 00012158 Flat Washer, 3/8, SAE 4 41 01001863
Retension Spring
2
10 00012165 Nut, 5/16-18 4 42 01001864
Screw, TT, 10-24, .5
2
11 00012169 Flat Washer, SAE 5/16 4 43 01001919
Shoulder Screw, .38 x .412, 1/4-28
2
12 00012173 Lock Nut, Nylon Insert, 3/8-16 5 44 01001972
HHCS, 5/16-18, 2.00
2
13 00012562 Cotter Pin, 5/32 x 1-1/2 Zinc 8 45 01002171
Parking Brake Decal
1
14 00013131 HHCS, 1/4-20, .75 4 46 01002771
Cotter Pin Internal, .072 x 1.12
2
15 00013198 HHCS, Standard, 5/16-18 x 2 2 47 01002986
Left Hand Threaded Jam Nut, 3/8-24
2
16 00014081 Lock Nut, Nylon Insert, 1/4 - 28 2 48 01003209
Clutch Lever Blade
1
17 00014270
Carriage Bolt, 3/8 -16 x 2
1 49 01006132
Lable Handle
1
18 00015903 Switch Operator’s Presence 2 50 01006669
Panel Label
1
19 00021797 Spring, .850 1 51 01007530
Black Handle Thin Grip
3
20 00021955 Yoke, 3/8 - 16, Female 1 52 01007731
Large Right Control Rod
1
21 00021956 Hair Pin, 3/8 - 1/2 3 53 01007732
Large Left Control Rod
1
22 00024172
Bushing, 9/16 OD x 3/8 ID x 1/2
4 54 01007733
Short Control Rod
2
23
00071691 Hydro, Spacer Control Rod
4 55 01007734
Tu r n bu ck l e
2
24 00071879 Blade Clutch, Hydro Rod Base 1 56 01007735
Upper Control Rod
2
25 00072892 Hydro Bush Control Rod 2 57 01010156 Latch, RH, Neutral Hydro 1
26 00073092
Hydro Rod, Speed Control
1 58 01010157 Latch, LH, Neutral Hydro 1
27 00076730
Sleeve Spring, 32/36/48
1 59 02002358
Control Lever Assembly
2
28 00077495
Friction Washer
3 60 02002360
Operator Presence Control Handle, RH
1
29
00087108
Nylon Bushing
8 61 02002362
Operator Presence Control Handle, LH
1
30
00090995
Hex Nut, Dead Man Switch
2 62 02003722 Control Assembly, Speed Hydro, RH 1
31
01000393
Washer, .469 ID x .875 OD x .105
2 63 02003723 Control Assembly, Speed Hydro, LH 1
32
01000450
Hex Jam Nut, 3/8-24
6
30
Standard Engine Deck Assembly Hydro
Note: Add lubricant at ref. 10
GD: 01007990-P08
- Figure 20
31
Standard Engine Deck Assembly Hydro - Parts List for Figure 20
Ref.
No.
Part No. Description Qty.
1 00012152 Nut, L, Nylon Insert, 1/4-20 Grade A 2
2 00012165 Nut, 5/16-18, Nylock 1
3 00013406 Hex Cap Screw, 5/16-18 x .75 2
4 00012173 Nut, L, Nylon Insert, 3/8-16 Grade A 2
5 02004194 Mounting Bracket, Spring 2
6 00020816
Spring, Music Wire, LE-093G-9, Plated
2
7 00021962 E-Ring, 5/8" #5113-62 1
8 02004558 Pulley, Flat Idler W/Adaptor 1
9 00031602 Carriage Bolt, 1/4-20 x 1.00 2
10 00060078 Grease Fitting, 1/4-28 x 3/16 STR 1
11 00083192 Washer, Idler 3
12 01007579 Belt, Hydro Pump, 36" 1
01007333 Belt, Hydro Pump, 48" 1
13 01000635 Lock Nut, 5/16-18, Hex Flange Lock 2
14
01001035 Label, Mower, Warn, Open Belt Drive
1
15 01001086 Engine Base Assembly, Hydro 1
16 01002010 Carriage Bolt, 3/8-16 x 1.25 Grade 5 2
17 01002011 Carriage Bolt, 3/8-16 x 2 Grade 5 1
18 00021906 Bellcrank Pivot Weldment 1
19 01003146 Belt Guide, Engine, 36/42/48 1
20 01004392 Spacer, Engine, Left Hand 1
21 01004395 Spacer, Engine, Right Hand 1
22 01005114 Belt Guide, 3.375 1
23 01007568 Pump Lever 2
24 01008004 Set Screw, 5/16-24 x 1.25 2
25 01009455 Bellcrank Clutch, Casting 1
Note: Lubricant Grease by the Pound
32
Engine Deck Assembly Hydro WT
7
22
12
13
18
5
6
19
1
15
9
9
17
4
8
4
16
10
23
24
3
20
21
14
11
2
2
1
4
9
25
GD: 01007989-P10
- Figure 21 and Parts List
Ref.
No.
Part No. Description Qty.
Ref.
No.
Part No. Description Qty.
1 00013406 Hex Cap Screw, 5/16-18 x .75 2 14 00012152 Nut, L, Nylon Insert, 1/4-20 Grade A 2
2 02004194 Mounting Bracket, Spring 2 15 01002117 Engine Base Assembly 1
3 01007333 Belt, Hydro Pump 1 16 01009455 Bellcrank Clutch 1
4 00012173 Nut, L, Nylon Insert, 3/8-16 Grade A 3 17 01003146 Belt Guide, Engine, 36/42/48 1
5 01002011 Carriage Bolt, 3/8-16 x 2 Grade 5 1 18 01004392 Spacer, Engine, LH 1
6 00020816
Spring, Music Wire, LE-093G-9, Plated
2 19 01004395 Spacer, Engine, RH 1
7 00021962 E-Ring, 5/8" #5113-62 1 20 00031602 Carriage Bolt, 1/4-20 x 1.00 2
8 02004558 Pulley, Flat Idler W/Adaptor 1 21 00021906 Bellcrank Pivot Weldment 1
9 00083192 Washer, Idler 3 22 00060078 Grease Fitting, 1/4-28 x 3/16 1
10 00090006 Decal, “Made In America” 1 23 01007568 Hydro Pump Lever 2
11 01000635 Lock Nut, 5/16-18, Hex Flange Lock 2 24 01008004 Set Screw, 5/16-24 x .50 2
12
01001035 Label, Mower, Warn, Open Belt Drive
1 25 01005114 Belt Guide, 3.375 1
13 01002010 Carriage Bolt, 3/8-16 x 1.25 Grade 5 2 Note: Lubricant Grease by the Pound
33
15HP Kawasaki Kai Engine Assembly - Figure 22 and Parts List
10
9
11
14
23
3
21
3
17
7
9
20
13
25
26
27
24
15
5
8
18
1
19
29
28
22
4
16
6
32
31
32
33
Description Part Number
Engine 01009795
Air Filter KM-11013-7031
Pre-Cleaner KM-11013-7025
Oil Filter KM-49065-2078
Spark Plug KM-92070-7003
GD: 01009898-P06
Ref.
No.
Part No. Description Qty.
Ref.
No.
Part No. Description Qty.
1 00010943 Single Ignition ON/OFF Switch 1 17 00030906 Machine Screw, 10-32 x 5/8 2
2 01001811
Harness Hourmeter (not shown)
1 18 00032097 Nut, w/Cap, 5/8-32, Ignition 1
3 00012165 Nut, 5/16-18 Nylock 4 19 01009792 Muffler 1
4 00060056 Nut, 8-32, w/ star washer 1 20 01003273 Throttle Control, w/Detent, 47.25 1
5 00013131
Hex Cap Screw, 1/4-20, .75
2 21 01009795 Engine, 15HP Kawasaki Kai 1
6 01005389 Hour Meter includes: 1 22 01002006 Decal, Pull Start Overlay 1
02004259 Clip 1 23 00073094
Engine Pulley Spacer, 12.5 Vanguard
1
7 00013669 Screw, Hex Washer, 10-32 x 1/2 2 24 00072586 Flat Washer 1
8 00006129 Cap Screw, 5/16-18 x 1-3/4 4 25 00013675 Clutch Washer 1
9 00014608 Lock Nut, Nylon Insert, 10-32 4 26 00012195 Lock Washer, 7/16 1
10 00018324 Delta Switch 1 27 01002884 Capscrew, 7/16-20 x 1-1/4 1
11 01007533 Key Stock, 1/4 x 1/4 x 2-3/4 1 28 01004004 Throttle Control Knob 1
12 00062980
Harness Wire (not shown)
1 29 02003479 Choke Cable 1
13 00021970 Deck Pulley 1 30 00012166 Hex Nut, 5/16-18 1
14 01007339 Traction Drive Pulley 1 31 00012169 Flat Washer, 5/16 Zinc 1
15 00021973 Bushing Type D 1 32 00060807 Support Clamp 1
16 01000721 Machine Screw, 8-32 1 33 01000450 Jam Nut, 3/8-24 1
34
17HP Kawasaki Kai Engine Assembly
2
40
14
24
28
29
1
37
8
13
38
9
9
9
9
6
30
4
41
10
23
25
6
27
4
35
34
4
8
14
3
33
4
16
15
43
39
42
14
44
26
19
18
7
3
8
17
12
31
11
45
27
Description Part Number
Engine 01009355
Air Filter KM-11013-7031
Pre Cleaner KM-11013-7025
Oil Filter KM-49065-2078
Spark Plug KM-92070-7003
Muffler 01008867
Muffler Gasket KM-11060-7021
Fuel Filter KM-49019-7001
GD: 01009901-P04
- Figure 23
35
17HP Kawasaki Engine Assembly WT
- Parts List for Figure 23
Ref.
No.
Part No. Description Qty.
1 00012032 Battery 12V 1
2 00012120 Ignition Switch 1
3 00012152 Lock Nut Nylon Insert, 1/4-20 4
4 00012165 Nylock Nut, 5/16-18 6
5 00012173 Nylock Nut, 3/8-16 2
6 00012195 Lock Washer, 7/16 1
7 00012242 Delta Switch 1
8 00013131 Hex Cap Screw, 1/4-20, .75 6
9 00013198 Hex Cap Screw, 5/16-18 x 2 4
10 00013258
Rubber Boot, 1" OD
1
11 00060056
Nut, 8-32, w/ star washer
1
12 00013669
Screw, Hex Washer w/slot, 10-32x1/2
2
13 00013675 Clutch Washer 1
14 00014608 Lock Nut, Nylon Insert, #10-32 5
15 00021970 Deck Pulley 1
16 00021973 Bushing 1
17 01000721 Machine Screw, 8-32 1
18 00023822
Washer
1
19 01007339 Cast Pulley, 1" Bore 1
20 01007333 Hydro Pump Belt 1
21 00024233 Black Battery Cable, 17" Long 1
22 00030574 Harness Wire (not shown) 1
23 00030906
Machine Screw, 10 -32 x 5/8
2
24 00032097 Nut w/cap 5/8-32 1
25 00060807
Support Clamp 3/8 OD
1
26 00073094
Engine Pulley Spacer, 12.5
1
27 01000202 Battery Holdown Rod 2
28 01000203 Wing Nut, 1/4-20 w/Bell Washer 2
29
01000204 Battery Cover
1
30 01000643 Carriage Bolt, 3/8-16 x 1 2
31 01004004 Throttle Control Knob 1
32 01001811 Harness Hourmeter 1
33 01002228 Magnetic Solenoid Switch 1
34 01002252 24" Red Battery Cable 1
35 01002253 5" Red Battery Cable 1
36 01002433 Harness Adapter Kawasaki 1
37 01002637 Battery Bracket 1
38 01002884 Capscrew, 7/16-20 x 1-1/4 1
39 01008867 Muffler 1
40 02003479 Cable Choke 1
41 01003273 Control Throttle w/Detent 1
42 01005389 Hour Meter includes: 1
02004259 Clip 1
43 01009355 17 HP Kawasaki Kai Engine 1
44 01007533 Bevel Key, 1/4 x 1/4 x 2.75 1
45 01000215 Hose Clamp, 1/4-5/8, SS 2
36
19HP Kawasaki Engine Assembly
35
41
20
2
24
1
21
14
42
10
8
13
19
26
33
5
3
22
37
39
34
6
9
15
29
8
14
23
12
36
38
7
14
30
4
31
4
40
16
1
8
43
11
25
27
45
22
Description Part Number
Engine 01009356
Air Filter KM-11013-7031
Pre Cleaner KM-11013-7025
Oil Filter KM-49065-2078
Spark Plug KM-92070-7003
Muffler 01008867
Muffler Gasket KM-11060-7021
Fuel Filter KM-49019-7001
GD: 01009899-P05
- Figure 24
37
19HP Kawasaki Engine Assembly
- Parts List for Figure 24
Ref.
No.
Part No. Description Qty.
1 00012032 Battery, 12V 1
2 00012120 Ignition Switch 1
3 00012152 Lock Nut Nylon Insert, 1/4-20 4
4 00012165
Nut, 5/16-18, Nylock
6
5 00012173
Lock Nut, Nylon Insert, 3/8-16
2
6 00012195
Lock Washer, 7/16
1
7 00012242
Delta Switch
1
8 00013131 Hex Cap Screw, 1/4-20, .75 6
9 00013198
Hex Cap Screw, 5/16 -18 x 2
4
10 00013258
Rubber Boot
1
11 00060056
Nut, 8-32, w/ star washer
1
12 00013669
Screw, Hex Washer w/Slot, 10-32 x 1/2
2
13 00013675 Plated Clutch Washer 1
14 00014608 Lock Nut, Nylon Insert, 10-32 5
15 00021970
Deck Pulley
1
16 00073094 Engine Pulley Spacer 1
17 00024233 Black Battery Cable 17" Long 1
18 00030574 Harness Wire (not shown) 1
19 00030906
Machine Screw, 10-32 x 5/8
2
20 00032097 Nut, w/Cap, 5/8-32 Ignition 1
21 00060807 Support Clamp, 3/8 OD 1
22 01000202 Battery Hold Down Rod 2
23 01000203 Wing Nut, 1/4-20 w/Bell Wash 2
24 01000204 Large Battery Cover 1
25 01000721 Machine Screw, 8-32 1
26 01000643 Carriage Bolt, 3/8-16 x 1 2
27 01004004 Throttle Control Knob 1
28 01001811 Hourmeter Harness, (not shown) 1
29 01002228 Magnetic Solenoid Switch 1
30 01002252 Red Battery Cable 24" 1
31 01002253 Red Battery Cable 5" 1
32 01002433 Kawasaki Harness Adapter (not shown) 1
33 01002637 Battery Bracket 1
34 01002884 Capscrew, 7/16-20 x 1-1/4" 1
35 01009356 19 Hp Twin Kawasaki Kai Engine 1
36 01003273 Control Throttle w/detent 1
37 01007339 Cast Pulley, 1.125 Bore, 1
38 01008867 Muffler 1
39 00021973 Bushing, 1-1/8 1
40 00023822 Special Washer 1
41 01005389 Hour Meter includes: 1
02004259 Clip 1
42 01007533
Key Stick, 1/4 x 1/4 x 2.75
1
43 02003479
Choke Cable
1
44 01007333
Hydro Pump Belt
1
45 01000215 Hose Clamp, 1/4-5/8, SS 2
38
Hydraulic Diagram - Figure 25
15HPElectrical Diagram - Figure 26
39
Safety and Instructional Decals
40
Safety and Instructional Decals
41
Notes
42
Notes
43
Notes
Cub Cadet Commercial
P.O. Box 368023
Cleveland, OH 44136
Form No. 01009272 Rev. 08-0 2/18/2008
