G1332, G1336, G1548,
Walk-Behind Commercial
Rotary Mowers
Professional Turf Equipment
ILLUSTRATED PARTS LIST
2
This Page Left Blank Intentionally
3
TABLE OF CONTENTS
32" Fabricated Cutter Deck and Parts List . . . . . . . . . 4 and 5
32" Fabricated Cover Assembly . . . . . . . . . . . . . . . . . . . . . . 6
32"/36" Chute Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
32" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
36" Fabricated Cover Assembly . . . . . . . . . . . . . . . . . . . . . . 9
36" Deck Assembly and Parts List . . . . . . . . . . . . . 10 and 11
36" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
48" Cover Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
48" Deck Assembly and Parts List . . . . . . . . . . . . . 14 and 15
48" Chute Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
48" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

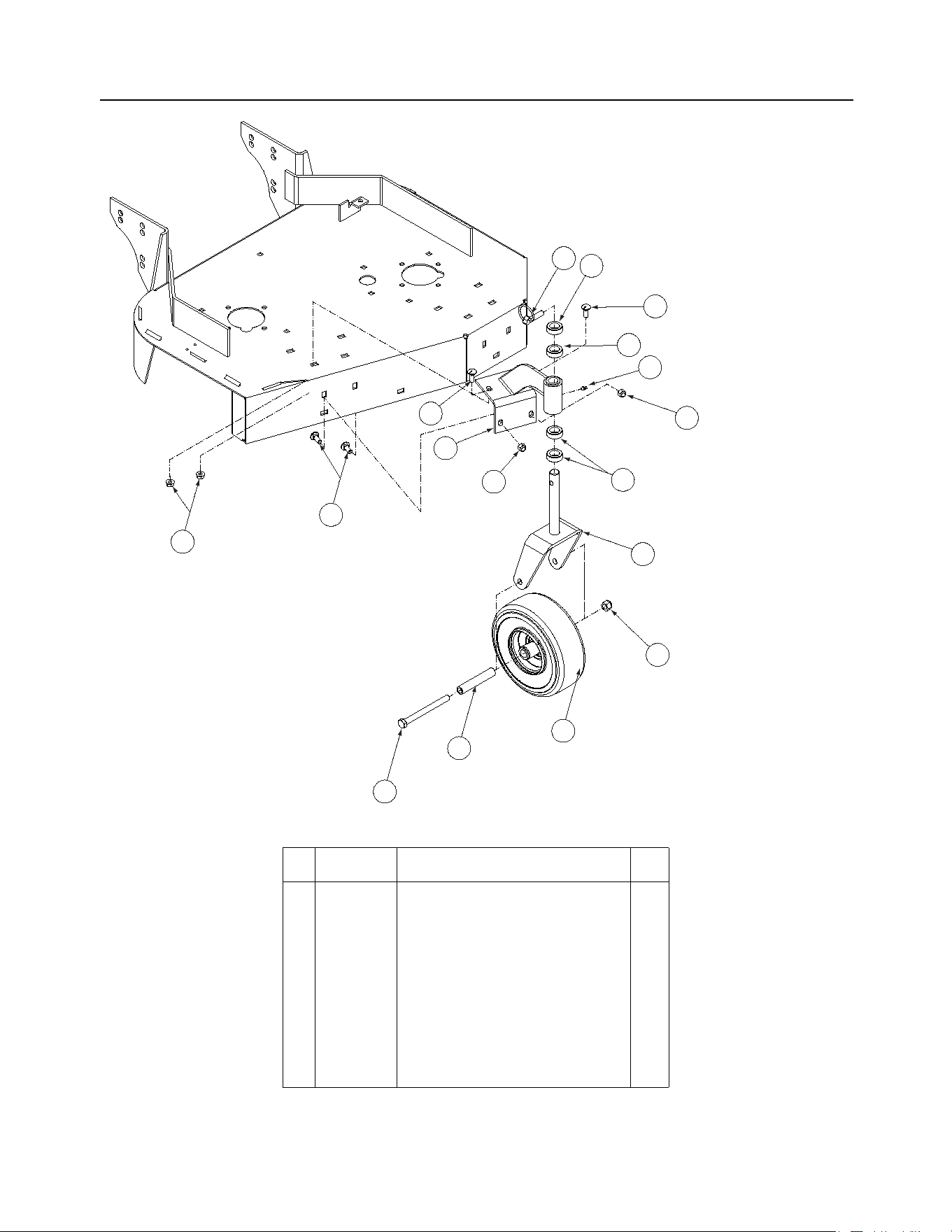

Caster Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

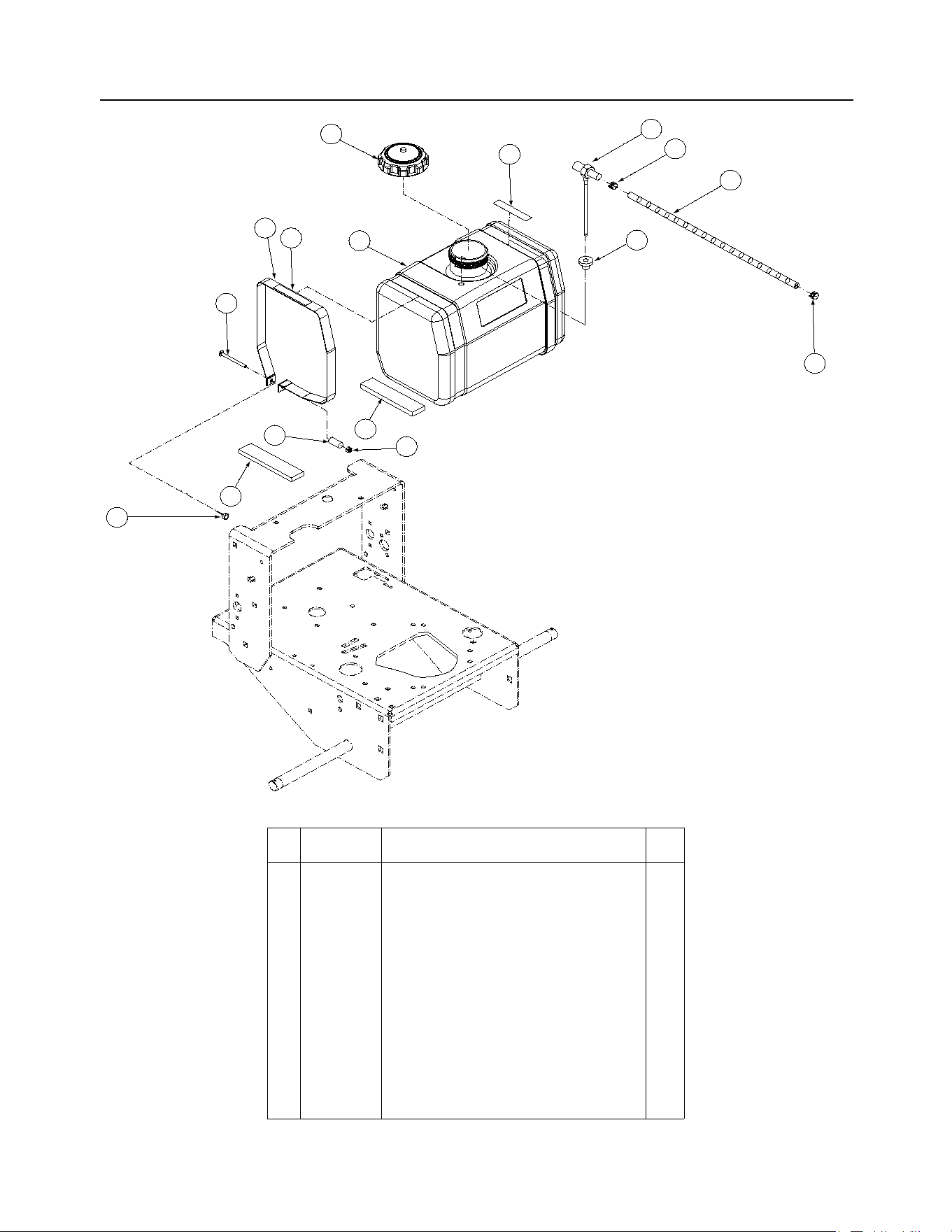

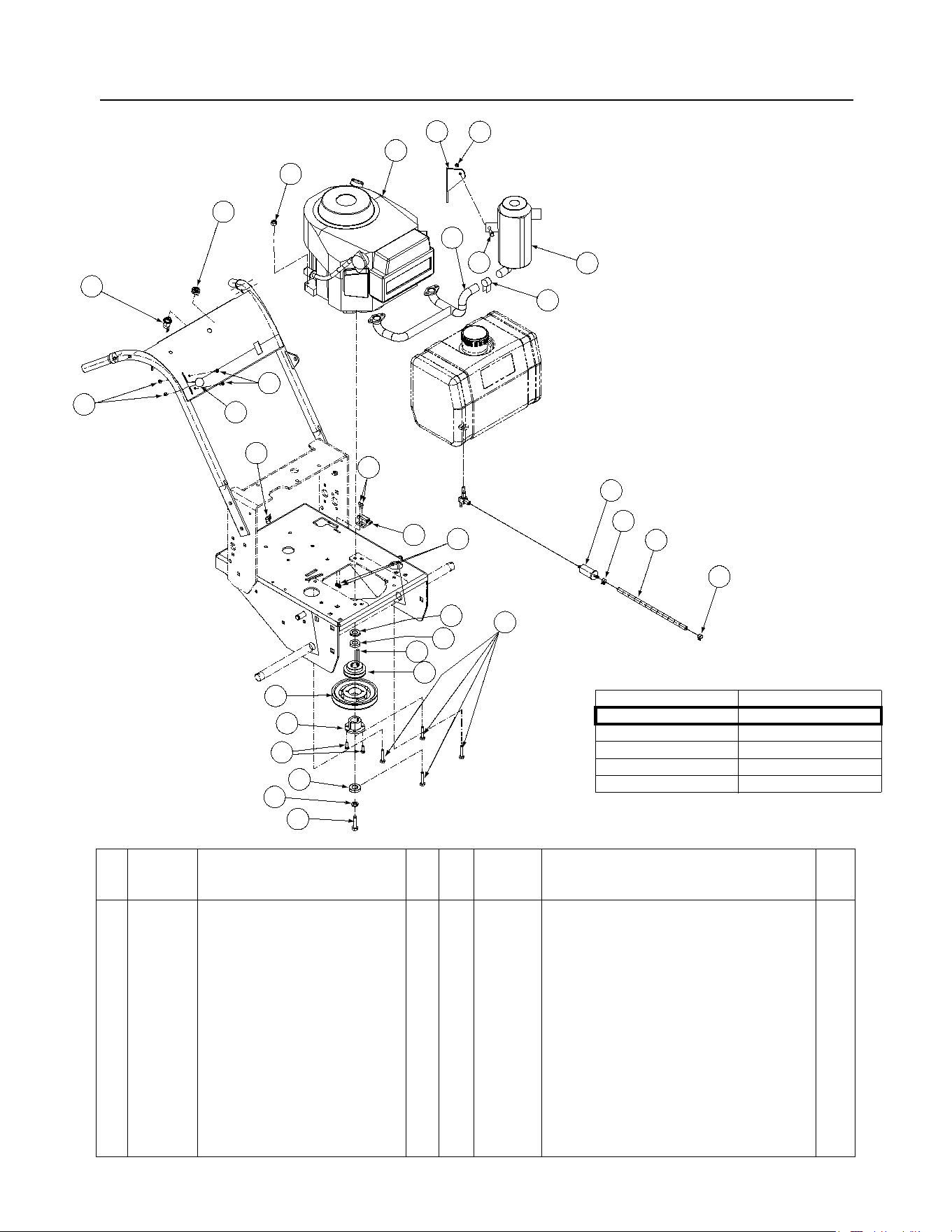

Tank Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

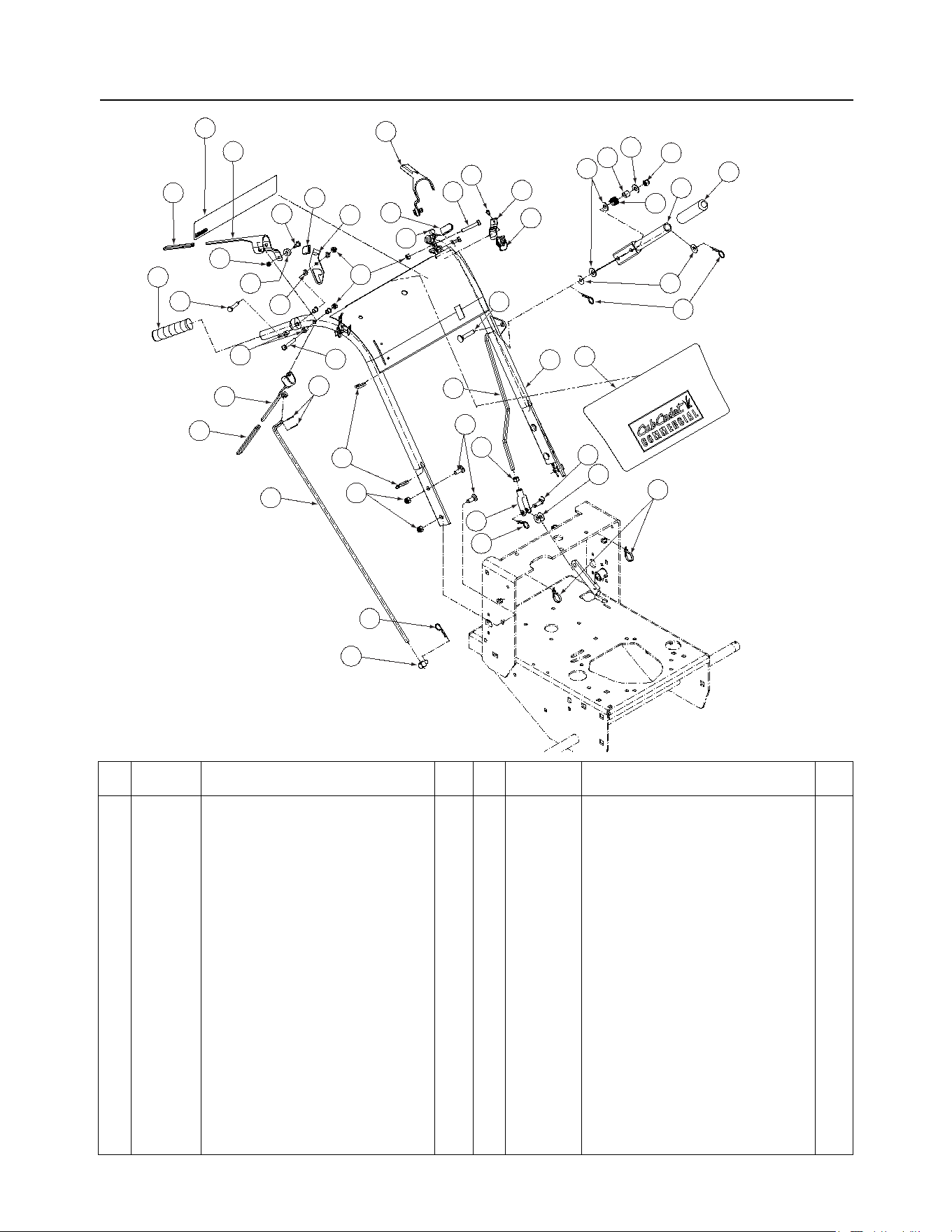

Handle Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Deck Assembly Standard Track . . . . . . . . . . . . . . . . . . . . . 21
Deck Assembly Narrow Track . . . . . . . . . . . . . . . . . . . . . . . 22

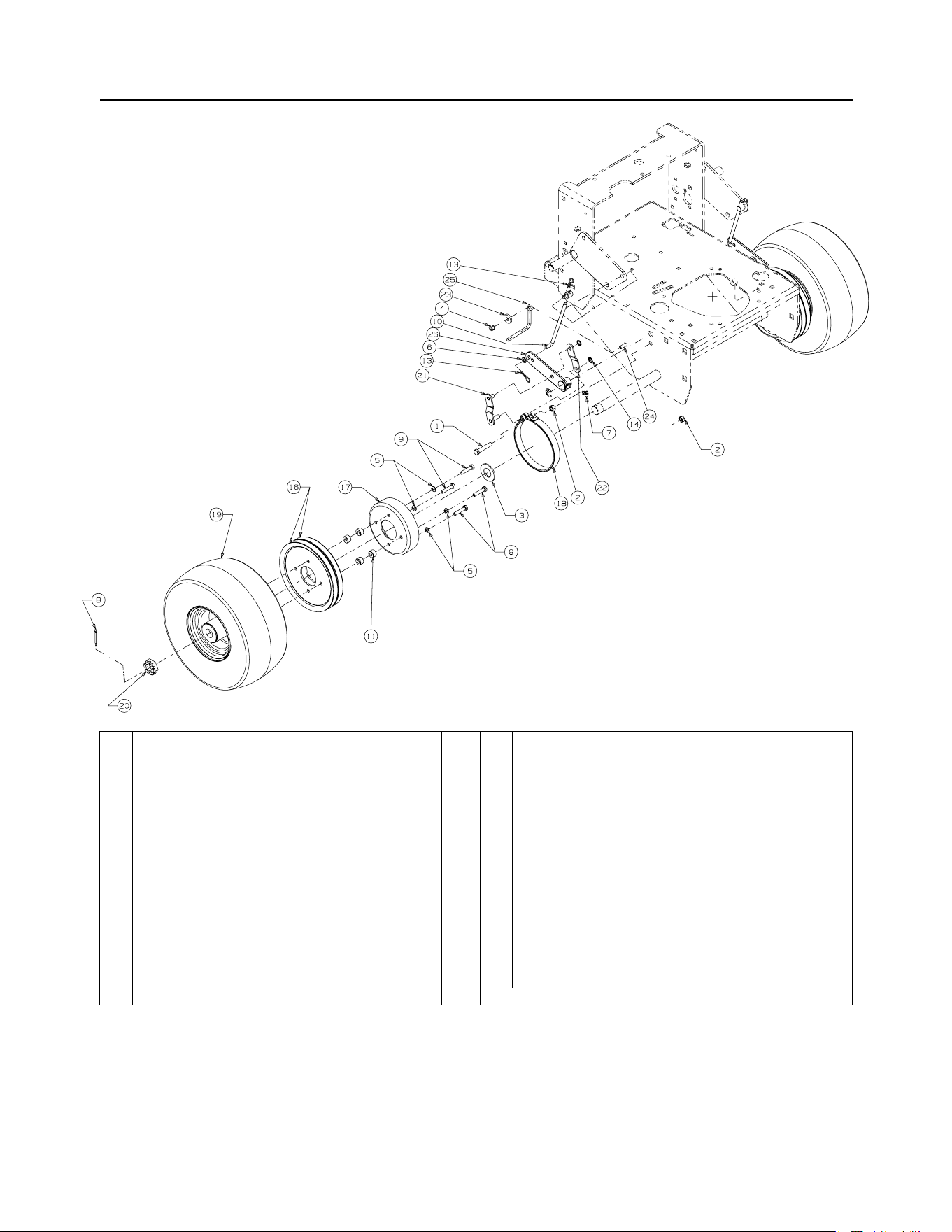

Brake Assembly Standard Track. . . . . . . . . . . . . . . . . . . . . 23
Brake Assembly Narrow Track . . . . . . . . . . . . . . . . . . . . . . 24
Vari-Touch Drive Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 25

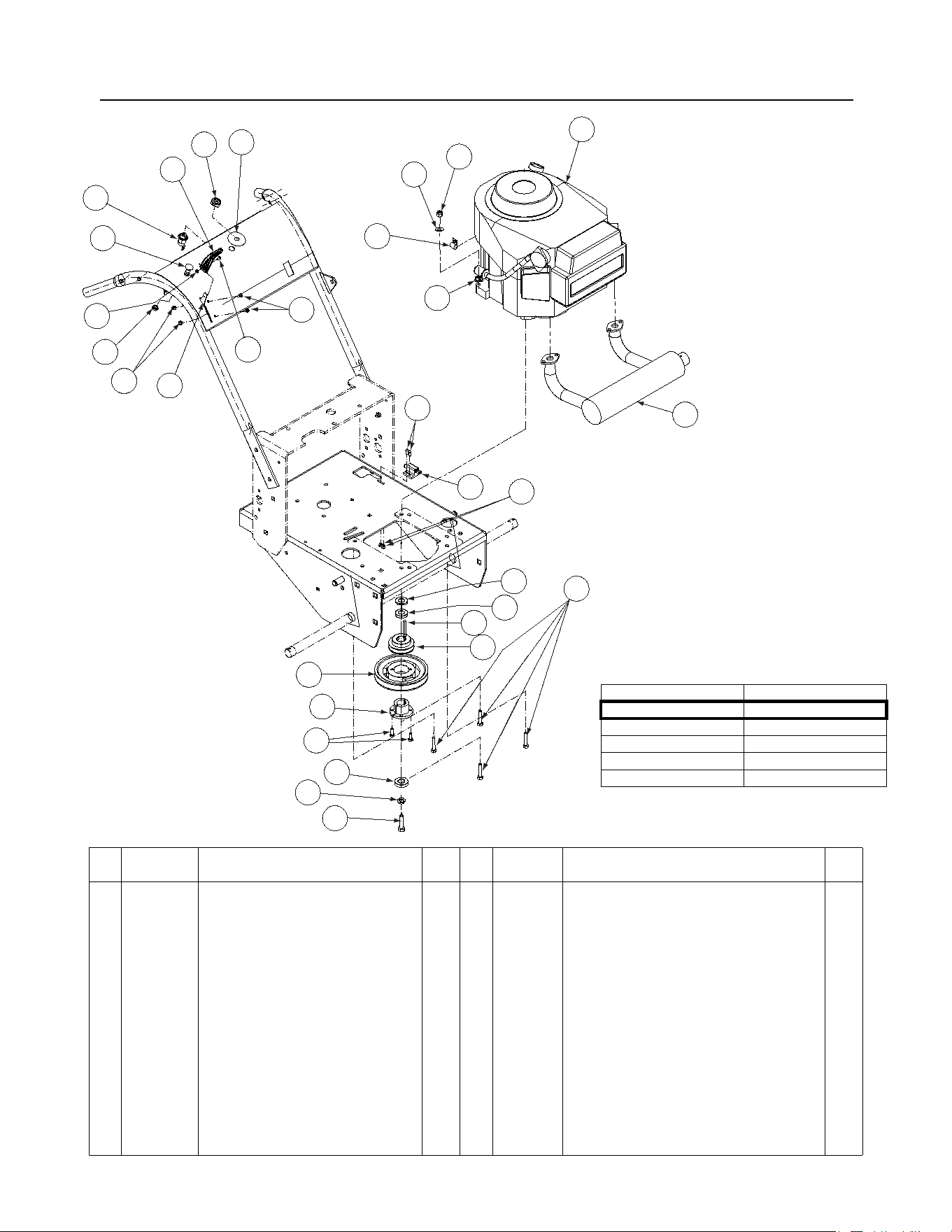

13HP Kawasaki Engine Assembly . . . . . . . . . . . . . . . . . . . 26
13HP Kawasaki Kai Engine Assembly . . . . . . . . . . . . . . . . 27
15HP Kawasaki Engine Assembly . . . . . . . . . . . . . . . . . . . 28
15HP Kawasaki Kai Engine Assembly . . . . . . . . . . . . . . . . 29

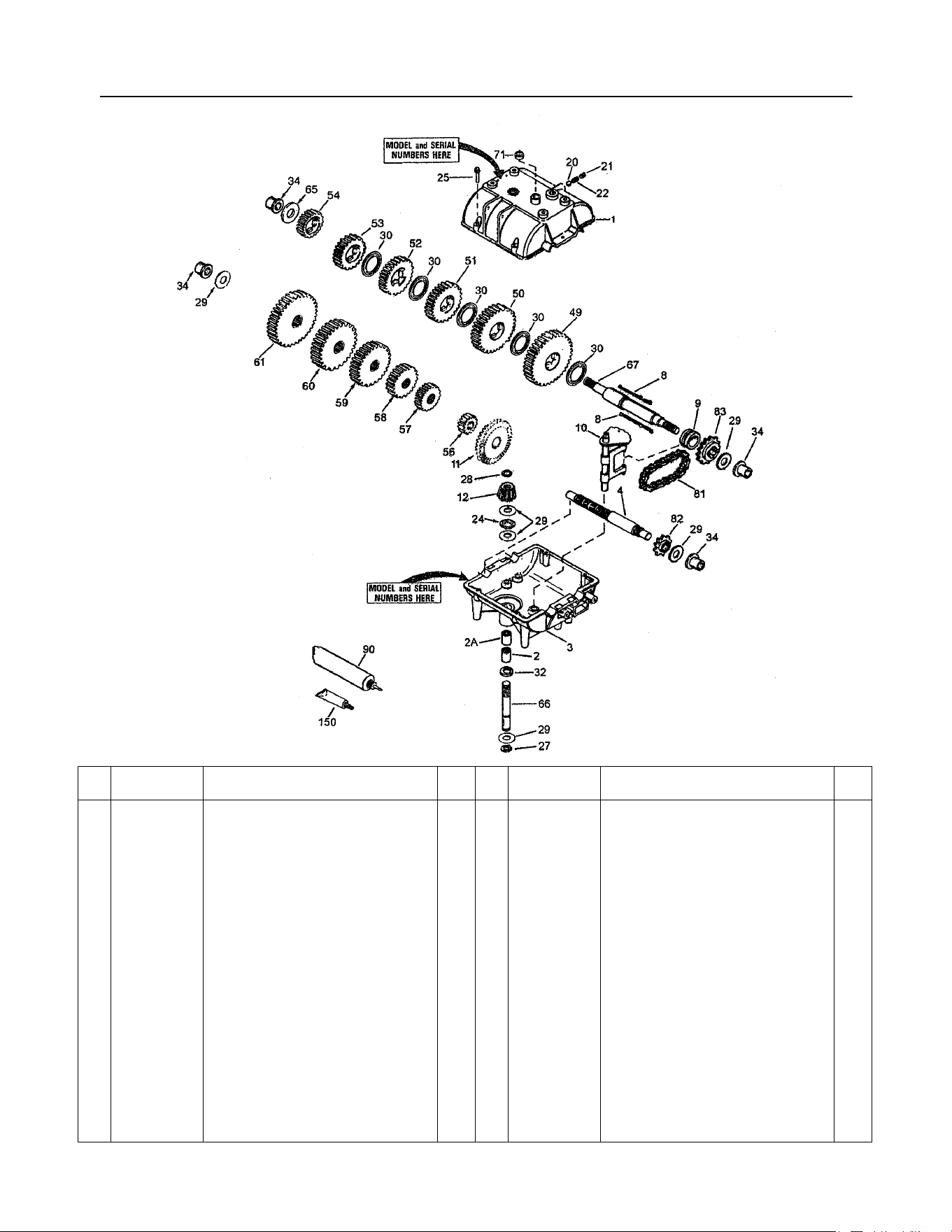

Transmission. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
4

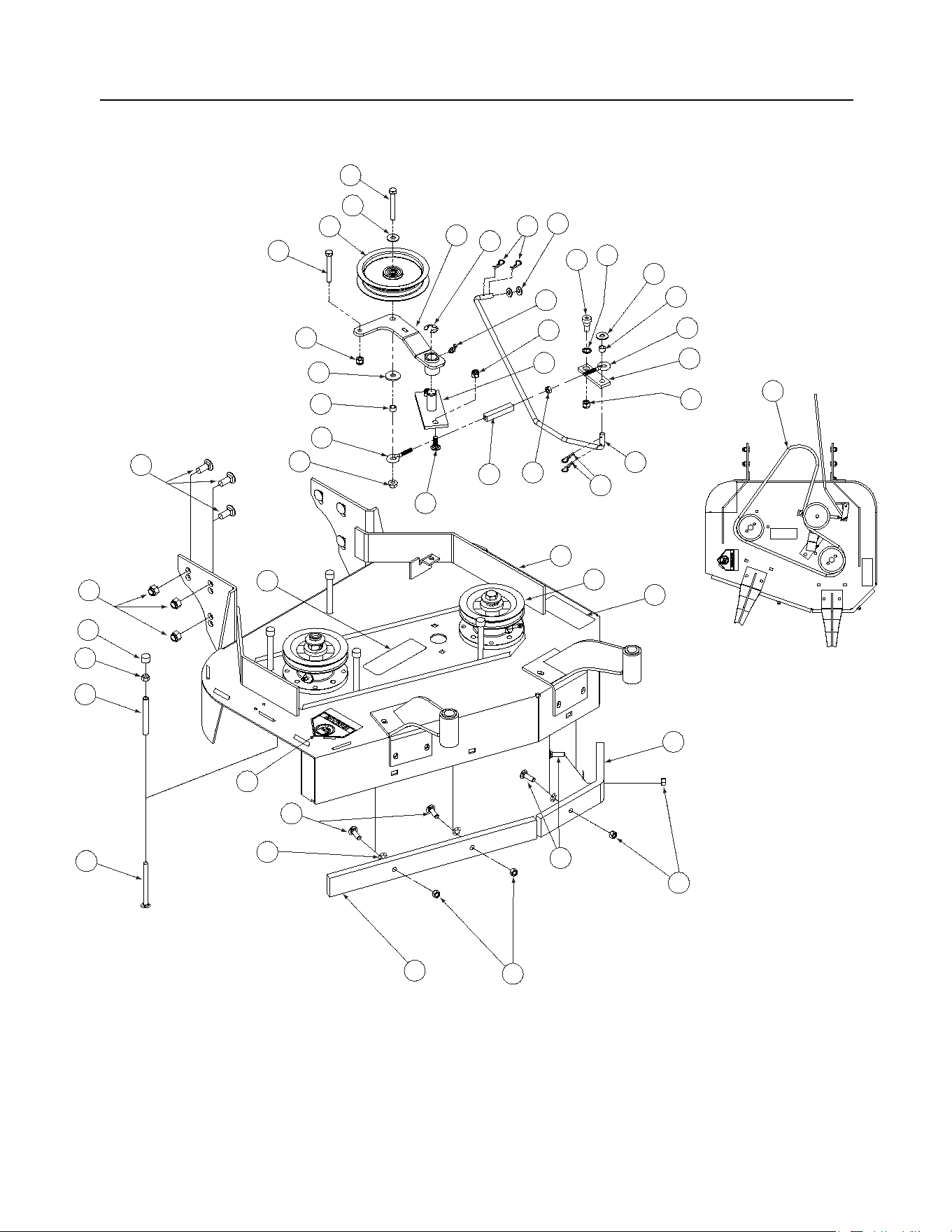

32" Fabricated Cutter Deck - Figure 1
32
18
20
35
28
7
11
22
5
27
23
30
33
31
31
21
29
21
21
34
12
25
15
14
17
5
24
10
9
26
8
25
6
16
3
4
19
4
3
13
5
2
21
4
16
31
36
GD: 01007721-P10
5
32" Fabricated Cutter Deck - Parts List for Figure 1
Ref.
No.
Part No. Description Qty.
1 01005046 Deck Stiffener 1
2 01000872 Washer, 1.25 x .411 x .100 1
3 01001371
Hex Cap Screw, 3/8-16 x 2.75
2
4 00012158 Flat Washer, 3/8 Zinc 4
5 00012173 Lock Nut, Nylon Insert, 3/8-16 7
6 00012402
Shim Washer
1
7 01010119 FlangeLock Nut, 1/2-13 6
8 00013433
Hex Nut, 5/16-18
1
9 00014439
Shoulder Bolt
1
10 00014459 Eye Bolt, Right Hand 1
11 00018468 Cap, Black Vinyl 5
12 00021958 Grease Fitting, 1/4-28 x 3/16 1
13 00019271 Eye Bolt, Left Hand 1
14 00021884 Blade Clutch, Rod 1
15 00021895 Idler Arm 1
741-04333 Bearing 2
16 00021956 Hair Pin, 3/8"-1/2" 4
17 00021961
E-Ring, Retainer
1
18 01007499 Deck Pulley 2
19 00021977 Idler Deck Take-up 1
20 00030633 Decal Rotating Blade 1
21 712-04065 Hex Nut Flange Lock, 3/8-16 7
22 00030635 Decal, Warning Shield Missing 1
23 00030779 Belt Drive 1
24 01003153 Pivot Arm 1
25 00062715 Tur nbu ckl e , S le eve 2
26 00092370 Tur nb u ck l e 1
27 01000160 Spacer, Belt Guide 5
28
01000517 Carriage Bolt, 1/2-13 x 1-1/4
6
29 01003048 Bumper, Deck 32" 1
30 01000644 Carriage Bolt, 3/8-16 x 4.5 5
31 01002010 Carriage Screw, 3/8-16 x 1.25 6
32 01002049 Deck 32" 1
33 01002166 Decal, Danger, Hands and Feet 1
34 00063043 Idler Base 1
35 01003047 Bumper, Deck 32" 1
36 01008225 Push Retainer 4
6

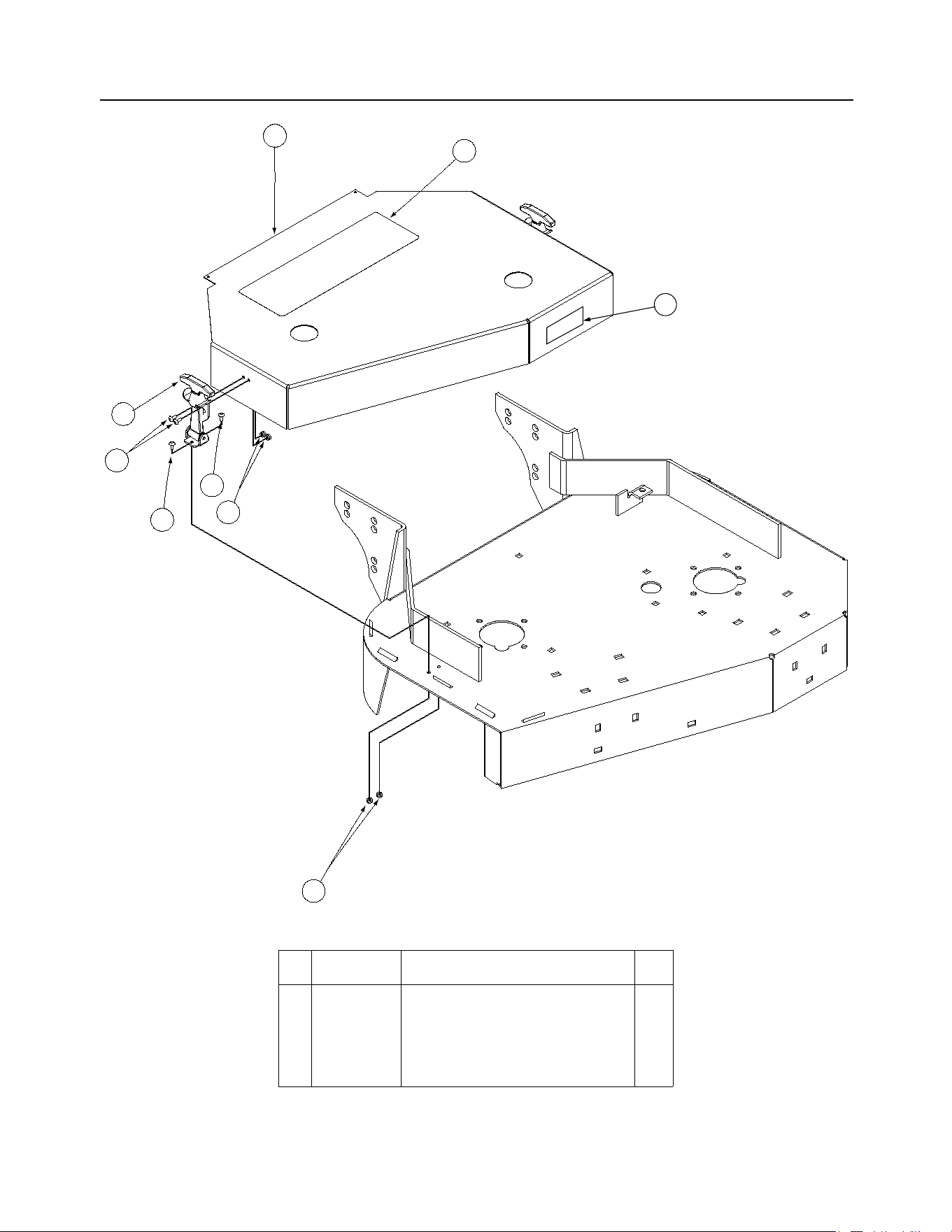

32" Fabricated Cover Assembly - Figure 2 and Parts List
2
1
5
5
4
4
4
3
6
GD: 01005988-P06
Ref.
No.
Part No. Description Qty.
1 01002141 Deck Cover, 32" 1
2 777D09751 Label Commercial Mower 1
3 00021951
Rubber Hood Latch
2
4 00008745 Machine Screw, 10-24 x 1/2 8
5 00006194 Lock Nut, Nylon Insert, 10-24 8
6 02003977 Label, G1332 1
7

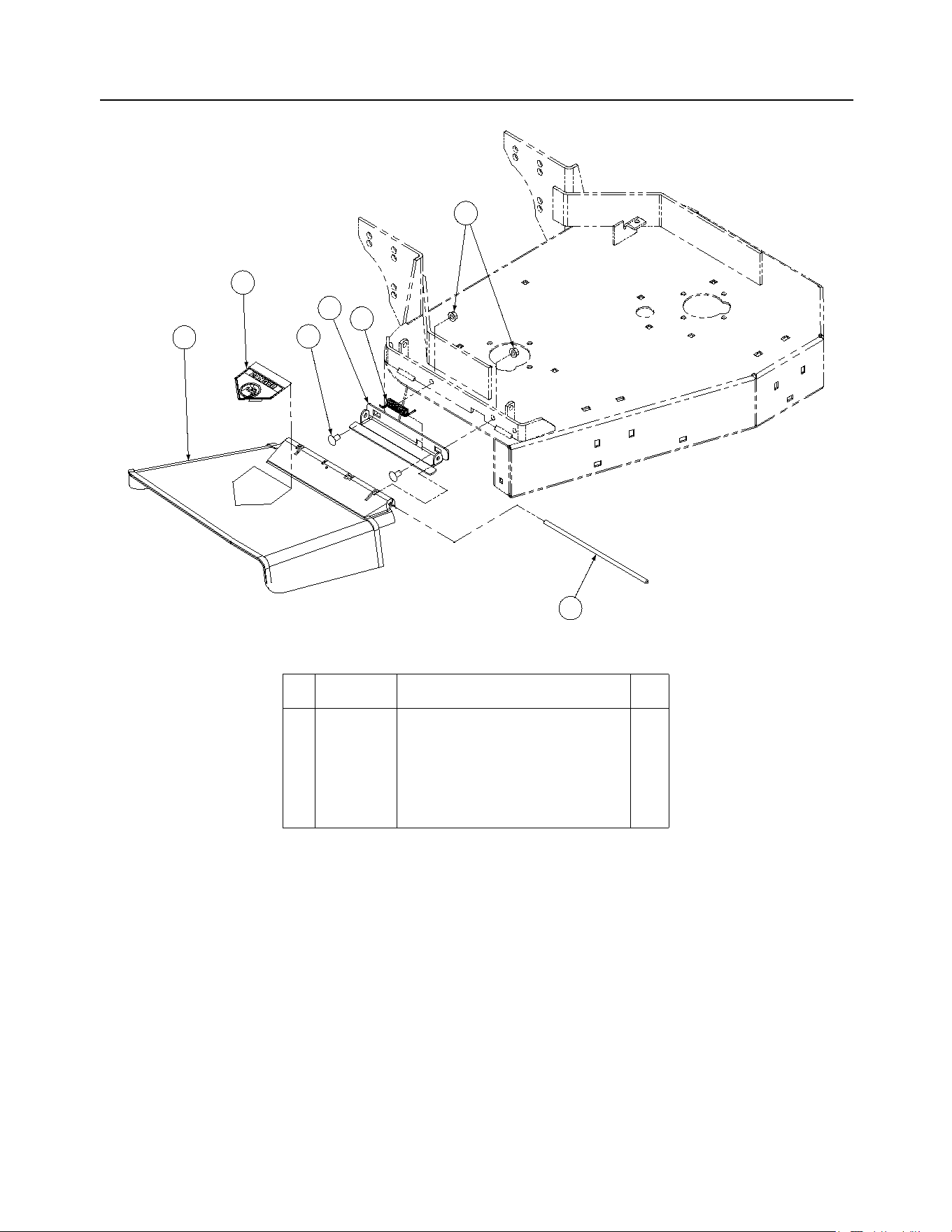

32"/36" Chute Assembly - Figure 3 and Parts List
5
6
3
2
7
4
1
GD: 01005995-P04
Ref.
No.
Part No. Description Qty.
1 712-04065 Hex Nut Flange Lock, 3/8-16 2
2 01000643 Carriage Bolt, 3/8-16 x 1.00 LG. 2
3 01002166 Decal, Danger Hands & Feet 1
4 01003253 Torsion Spring, 0.4 ID x 2.16 LG 1
5 01003254
Chute Deflector Rod
1
6 01006693 Deflector Chute 1
7 01009884 Deflector Chute Bracket 1
8

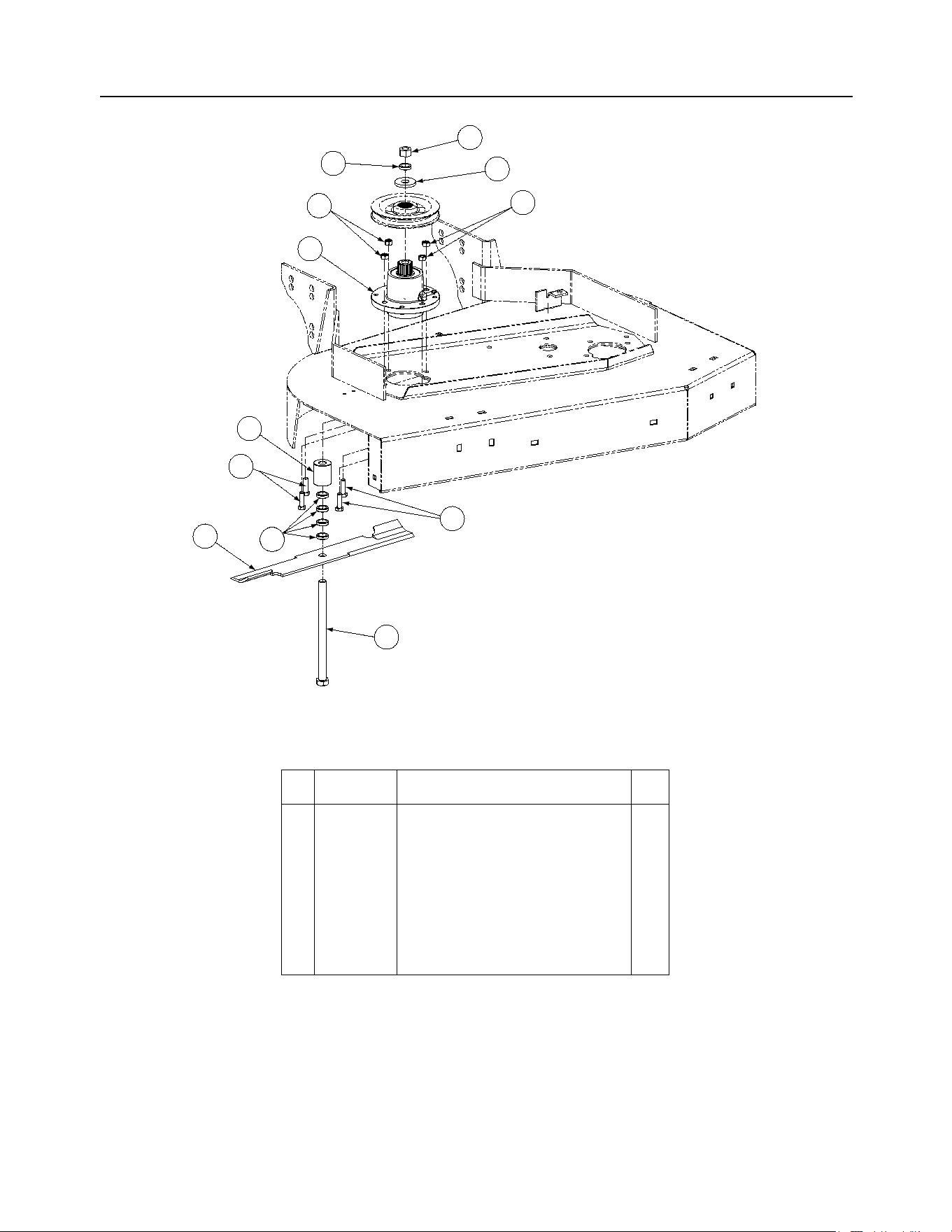

32" Spindle Assembly - Figure 4 and Parts List
1
1
6
7
3
4
2
5
8
9
7
8
GD: 01007705-P05
Ref.
No.
Part No. Description Qty.
1 00010980 Hex Cap Screw, 3/8-16 x 1-1/2 8
2 00011807
Hex Nut, 5/8-11
2
3 01007591 Hex Cap Screw, 5/8-11 x 9 2
4 01007577 Blade Spacer, .630 x 1.500 x 1.850 2
5 01007595 Flat Washer, .656 ID x 1.313 OD 2
6 00021871 16 1/2" Rotary Blade 2
7 00021924 Blade Spacer, 5/8 ID, 1/4 Thick 10
8 712-04065 Hex Nut Flange Lock, 3/8-16 8
9 01007491 Spindle Assembly 2
01007642 Grease Fitting, 1/4-28 x 1.609 2
9

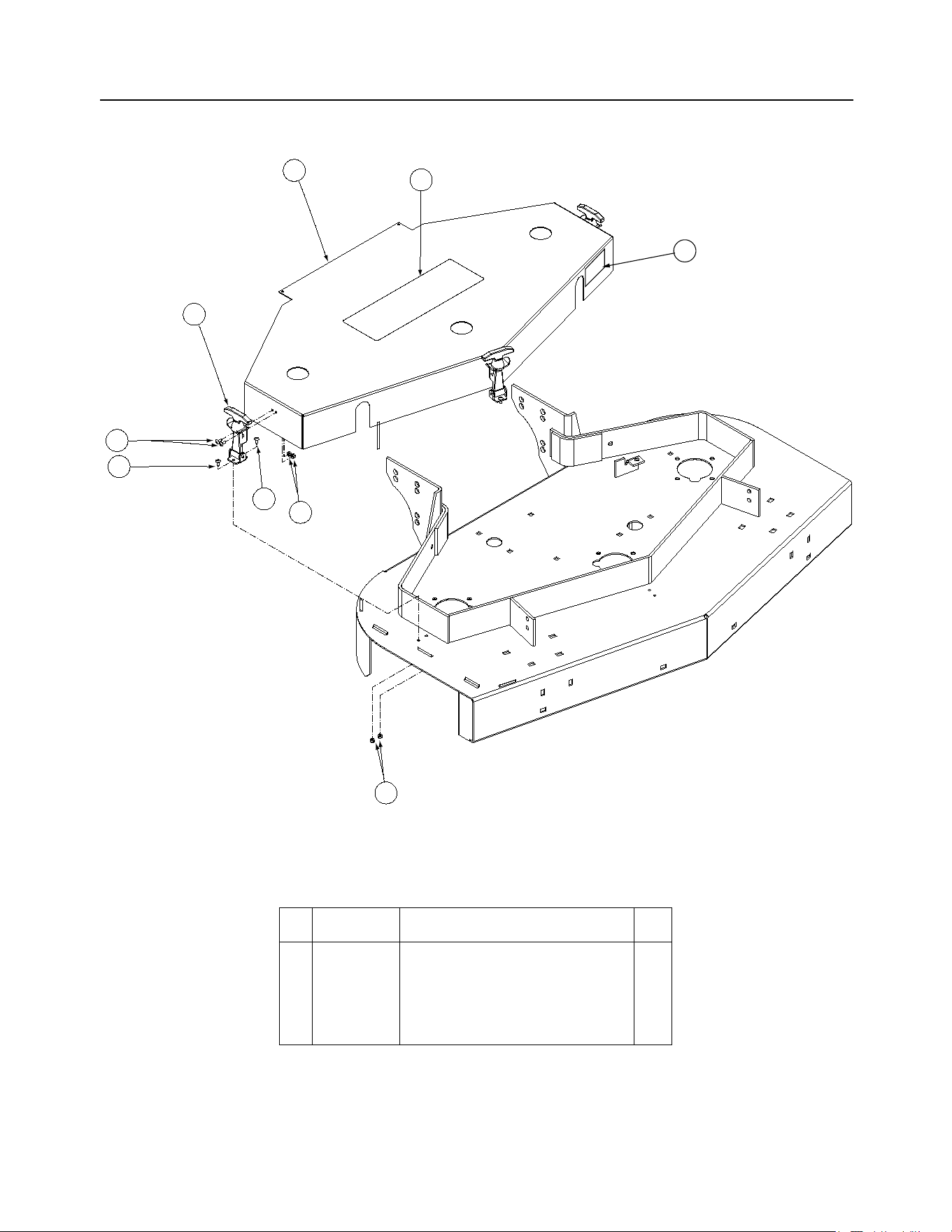

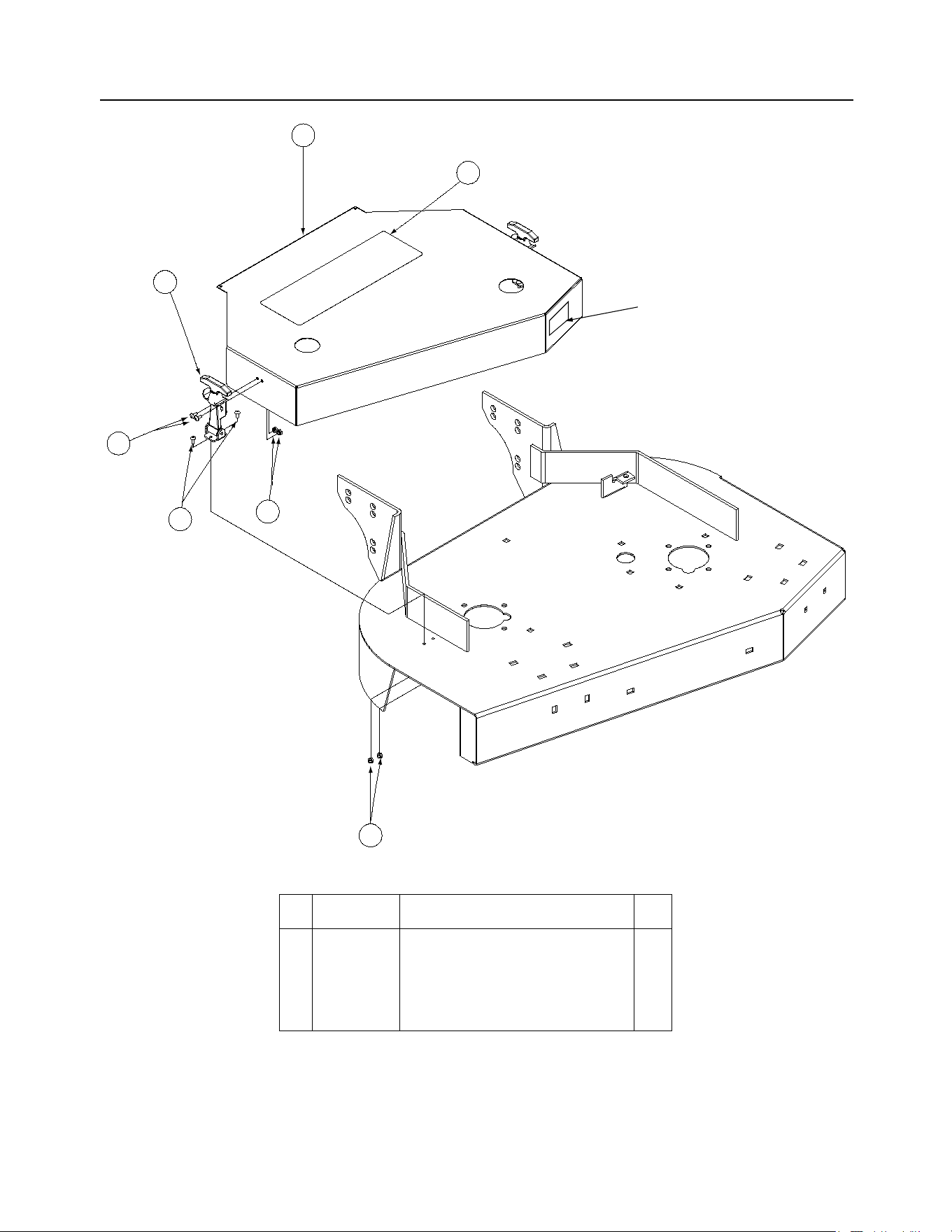

36" Fabricated Cover Assembly - Figure 5 and Parts List
4
5
1
3
2
2
1
6
GD: 01006108-P06
Ref.
No.
Part No. Description Qty.
1 00006194 Lock Nut, Nylon Insert 8
2 00008745 Machine Screw, 10-24 x 1/2 8
3 00021951
Rubber Hood Latch
2
4 01001066 Deck Cover, 36 1
5 777D09751
Label Commercial Mower
1
6 01009914
Label
1
10

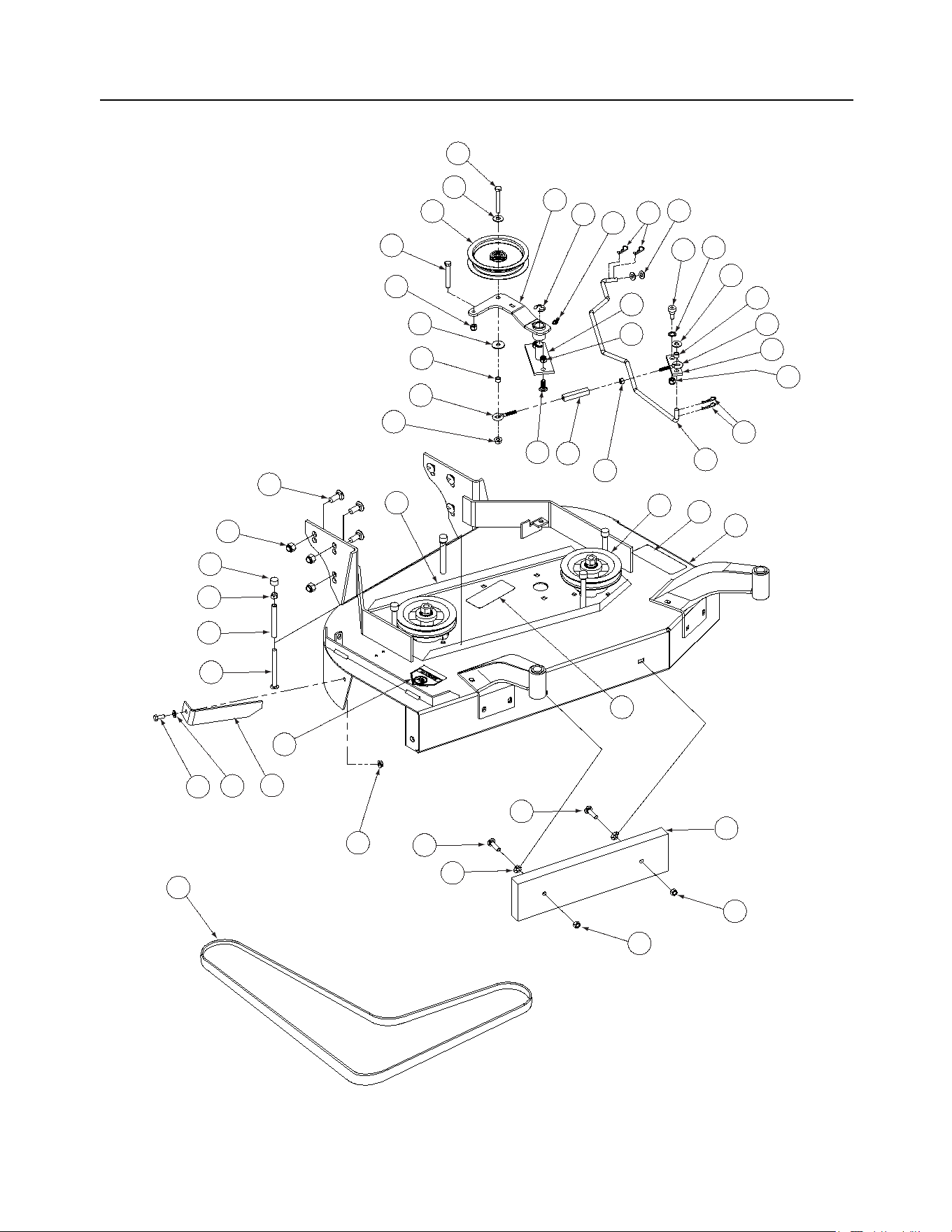

36" Deck Assembly - Figure 6
3
30
17
34
29
3
31
28
25
4
10
6
26
20
19
21
31
23
13
35
11
24
14
33
16
4
32
9
8
27
7
24
5
15
2
18
2
12
4
1
37
36
22
38
3
15
37
37
37
39
40
GD: 01007723-P15
11
36" Deck Assembly - Parts List for Figure 6
Ref.
No.
Part No. Description Qty.
1 01000872 Washer, 1.25 x .411 x .100 1
2 01001371
Hex Cap Screw, 3/8-16 x 2.75
2
3 00012158 Flat Washer, 3/8 Zinc 4
4 00012173 Lock Nut, Nylon Insert, 3/8-16 7
5 00012402
Shim Washer
1
6 01010119 Nut, Flange Lock, 1/2-13 6
7 00013433
Hex Nut, 5/16-18
1
8 00014439
Shoulder Bolt
1
9 00014459 Eye Bolt, Right Hand 1
10 00018468 Cap, Black Vinyl 5
11 00021958 Grease Fitting, 45°, 1/4-28 1
12 00019271 Eye Bolt, Left Hand 1
13 00019554 Tur n bu ckl e 1
14 00021895 Idler Arm 1
741-04333 Bearing 2
15 00021956 Hair Pin, 3/8"-1/2" 4
16 00021961
E-Ring, Retainer
1
17 01007499 Pulley Deck 2
18 00021977 Idler Deck Take-up 1
19 00030633 Decal Rotating Blade 1
20 01005061 Deck Stiffener 1
21 00030635 Decal, Warning Shield Missing 1
22 02000320 Chute Baffle 1
23 00050441 Belt Drive 1
24 00062715 Tur n bu ck l e, S l e eve 2
25 01000160 Spacer, Belt Guide 5
26
01000517 Carriage Bolt, 1/2-13 x 1-1/4
6
27 01002010 Carriage Bolt, 3/8-16 x 1.25 2
28 01000644 Carriage Bolt, 3/8-16 x 4.5 5
29 01000826 Deck 36" 1
30 02002426 Bar Weight 1
31 01002011 Carriage Bolt, 3/8-16 x 1-1/2 2
32 01003153 Clutch Link 1
33 01002103 Rod Clutch Link 1
34 01002166 Decal, Danger Hands and Feet 1
35 00063043 Idler Base 1
36 00013406 Hex Cap Screw, 5/16-18 x .75 1
37 712-04065 Hex Nut Flange Lock, 3/8-16 5
38 01000635 Nut, Hex Flange Lock, 5/16-18 1
39 00012169 Flat Washer, 5/16 1
40 01008225 Push Retainer 2
12
36" Spindle Assembly - Figure 7 and Parts List
1
1
6
7
3
4
2
5
8
9
7
8
GD: 01007704-P05
Ref.
No.
Part No. Description Qty.
1 00010980 Hex Cap Screw, 3/8-16 x 1-1/2 8
2 00011807
Hex Nut, 5/8-11
2
3 01007591 Hex Cap Screw, 5/8-11 x 9 2
4 01007577 Blade Spacer, .630 x 1.500 x 1.850 2
5 01007595 Flat Washer, .656 ID x 1.313 OD 2
6 00050125 18" Rotary Blade 2
7 00021924 Blade Spacer, 5/8 ID, 1/4 Thick 10
8 712-04065 Hex Nut Flange Lock, 3/8-16 8
9 01007491 Spindle Assembly 2
01007642 Grease Fitting, 1/4-28 x 1.609 2
13
48" Cover Assembly
2
4
5
4
5
5
3
1
6
GD: 01006119-P05
- Figure 8 and Parts List
Ref.
No.
Part No. Description Qty.
1 777D09751 Label Commercial Mower 1
2 01000236 Deck Cover 48" 1
3 00021951 Rubber Latch Hood 3
4 00008745
Machine Screw, 10-24 x 1/2
12
5 00006194 Lock Nut, Nylon Insert, #10-24 12
6 01006672 Label, G1548 1
14

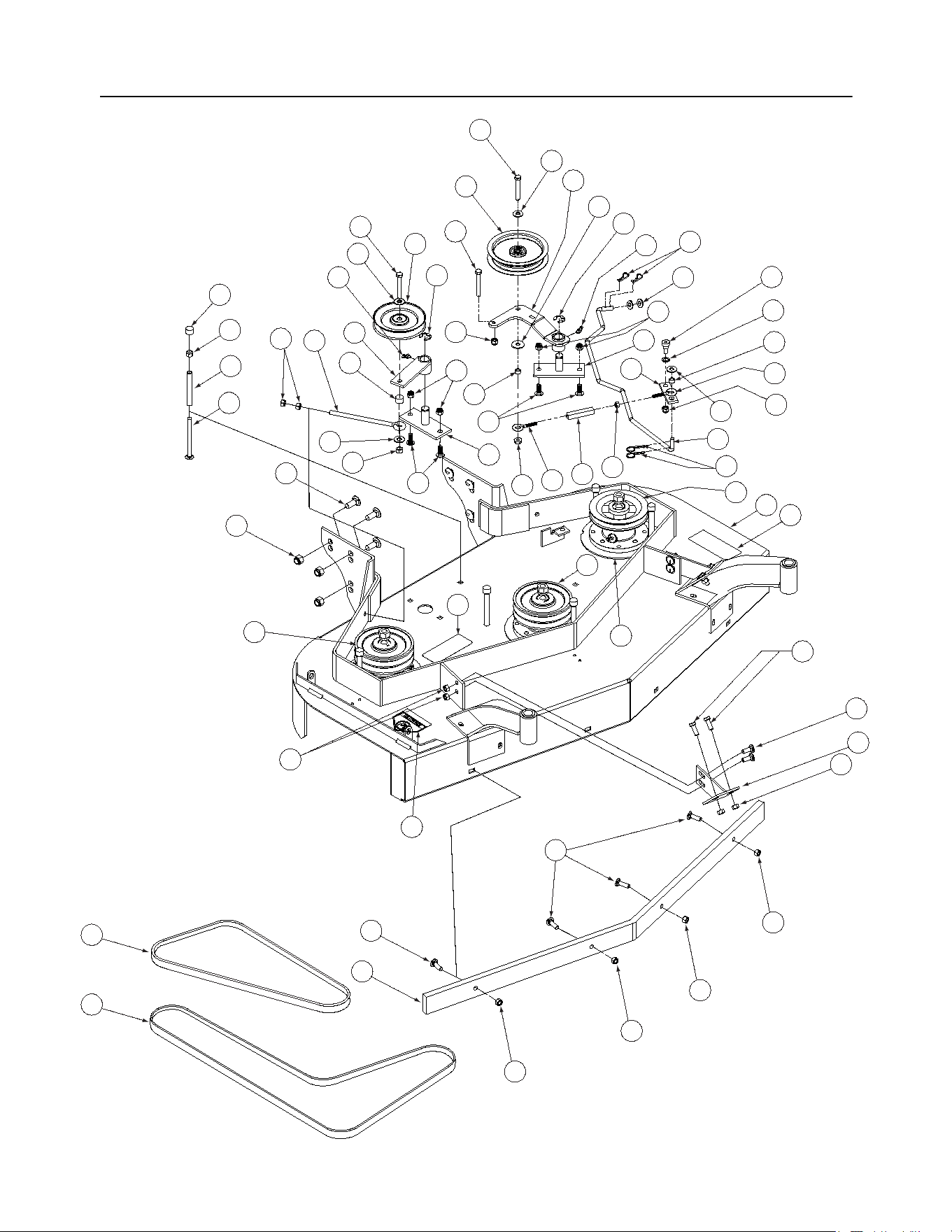

48" Deck Assembly - Figure 9
24
16
41
5
7
6
3
5
13
21
23
5
32
18
6
44
22
33
38
6
25
27
43
34
29
21
14
15
46
40
6
44
36
9
28
1
26
30
30
35
40
40
40
40
40
2
39
40
4
5
10
11
42
8
45
32
12
20
31
19
25
40
17
50
5
20
40
30
30
30
GD: 01007717-P13
15
48" Deck Assembly - Parts List for Figure 9
Ref.
No.
Part No. Description Qty.
1 00006131 Hex Nut, 3/8-16 2
2 710-0514 Hex Cap Screw, 3/8-16, 1 4
3 00024172 Sleeve Tensioner 1
4 01000872 Washer, 1.25 x .411 x .100 1
5 00012158 Flat Washer, 3/8 Zinc 6
6 00012173
Lock Nut, Nylon Insert, 3/8-16
9
7 00012226 Grease Fitting, 1/4-28, 90° 1
8 00012402
Shim Washer
1
9 01010119
Nut, Flange Lock, 1/2-13
6
10 00013433 Hex Nut, 5/16-18 1
11 00014439 Shoulder Bolt 1
12 00014459 Eye Bolt, Right Hand 1
13 00018468 Vinyl Cap 6
14 00021958 Grease Fitting, 45°, 1/4-28 1
15 00019271 Eye Bolt, Left Hand 1
16 00019554 Tu r n bu ckl e 1
17 00021893
Idler Arm "B"
1
741-04333
Bearing
2
18 00021895 Idler Arm "A" 1
00021990 Bearing 2
19 00021947 Drive Belt 1
20 00021956 Hair Pin, 3/8"-1/2" 4
21 00021961 E-Ring 2
22 01007499 Deck Pulley 1
23 00021975 Idler Pulley 1
24 00021977 Idler Deck Take-up 1
25 01007528 Double Pulley 2
26 00030335 Rod Belt Tensioner 1
27 00030633 Decal Rotating Blade 1
28
01000150 Spindle Backing Plate
3
29 00030635 Decal Warning Shield Missing 1
30 710-3168 Carriage Screw, 3/8-16 x 1.00 12
31 00050480 Drive Belt 1
32 00062715 Sleve Turnbuckle 2
33 01000160 Spacer Belt Guide 6
34 01000233 Deck Weldment Mower 1
35 01000235 Bumper 48" 1
36 01000517 Carriage Bolt, 1/2-13 x 1-1/4 6
37 01001371 Hex Cap Screw, 3/8-16, 2.75 2
38 01000644 Carriage Bolt, 3/8-16 x 4-1/2 6
39 01001097 Caster Support Assembly 2
40 712-04065 Hex Nut Flange Lock, 3/8-16 17
41 01001366 Hex Cap Screw, 3/8-16, 2.25 1
42 01002103 Rod Clutch Link 1
43 01002166 Decal, Danger Hands and Feet 1
44 00063043 Idler Base 2
45 01003153 Clutch Link 1
16

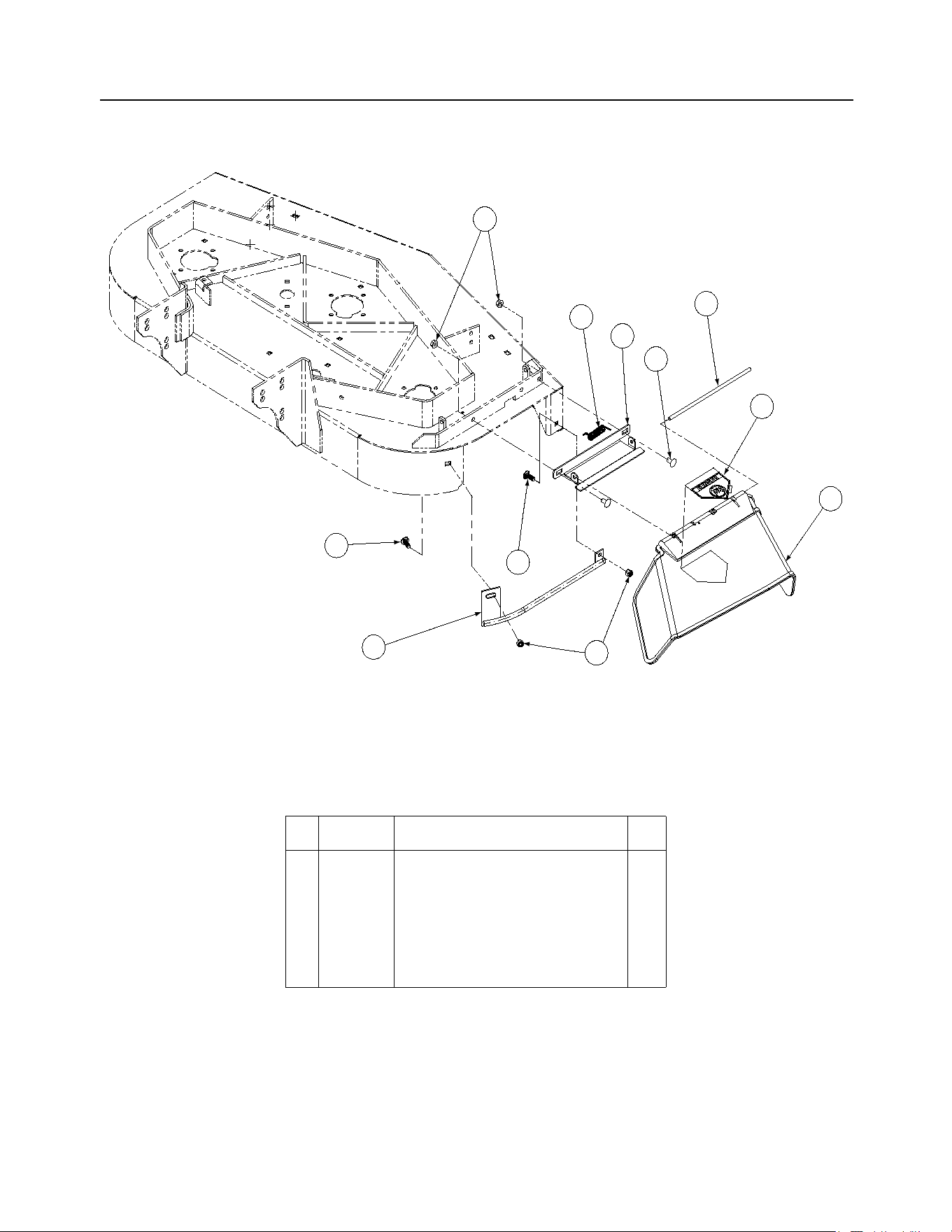

48" Chute Assembly
2
1
6
1
2
5
4
8
2
3
7
GD: 01006127-P04
- Figure 10 and Parts List
Ref.
No.
Part No. Description Qty.
1 712-04065 Hex Nut Flange Lock, 3/8-16 4
2 01000643 Carriage Bolt, 3/8-16 x 1.00 LG. 4
3 01002166 Decal, Danger Hands & Feet 1
4 01003253 Torsion Spring, 0.4 ID x 2.16 LG 1
5 01003254
Chute Deflector Rod
1
6 01004212 Stiffner Assembly, 48 1
7 01006693 Deflector Chute 1
8 01009875 Deflector Chute Bracket 1
17

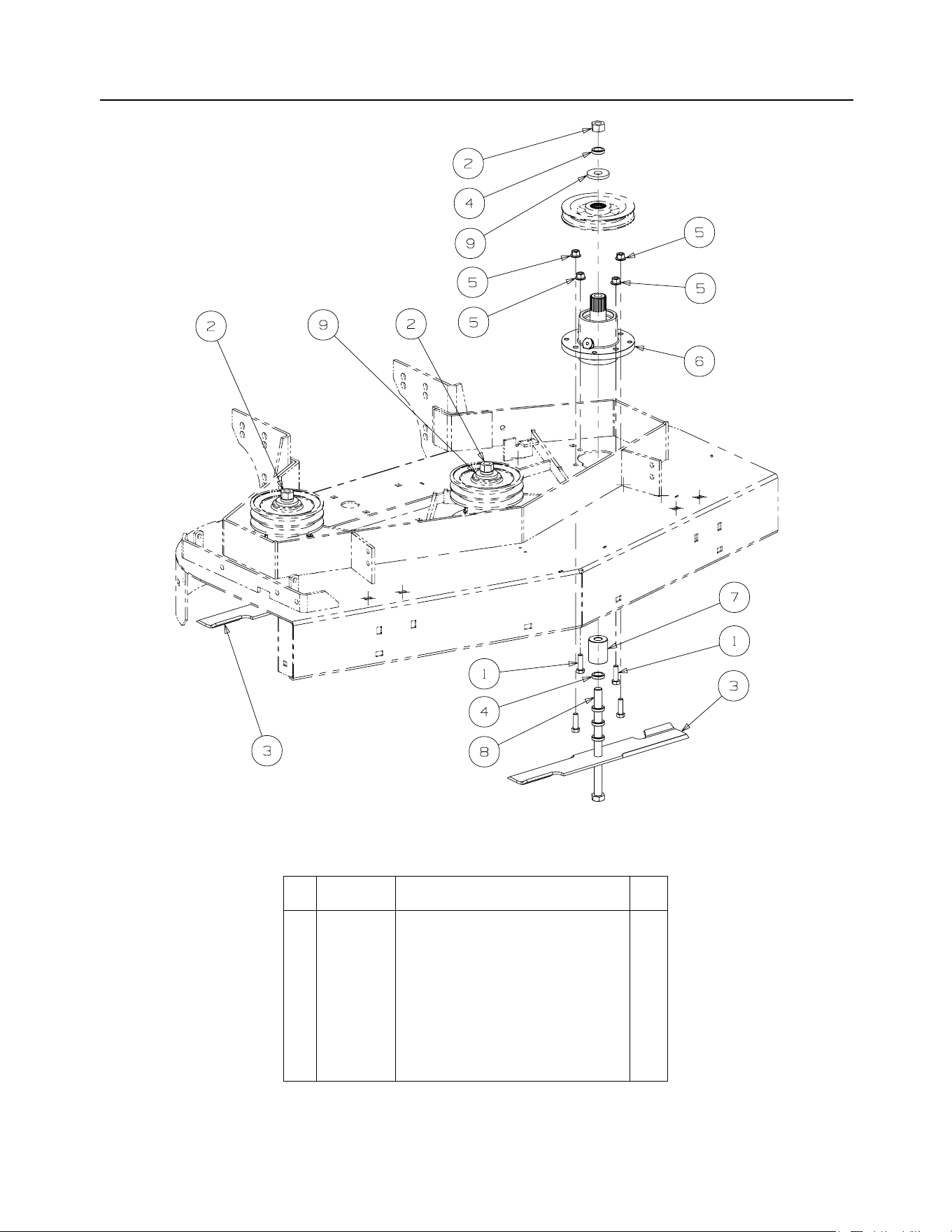

48" Spindle Assembly - Figure 11 and Parts List
GD: 02003924-P02
Ref.
No.
Part No. Description Qty.
1 00010980 Hex Cap Screw, 3/8-16 x 1-1/2 12
2 00011807
Hex Nut, 5/8-11
3
3 00021871 16 1/2" Rotary Blade 3
4 00021924 Blade Spacer, 5/8 ID, 1/4 Thick 15
5 712-04065 Hex Nut Flange Lock, 3/8-16 12
6 01007491 Spindle Assembly 3
01007642 Grease Fitting, 1/4-28 x 1.609 3
7 01007577 Blade Spacer, .630 x 1.500 x 1.850 3
8 01007591 Hex Cap Screw, 5/8-11 x 9 3
9 01007595 Flat Washer, .656 ID x 1.313 OD 3
18
Caster Assembly - Figure 12 and Parts List
3
12
6
10
4
2
9
11
9
7
9
3
5
3
8
1
1
GD: 01005984-P09
Ref.
No.
Part No. Description Qty.
1 01000643 Carriage Bolt, 3/8-16 x 1 8
2 01001051 Caster Yoke Assembly, Weldment 2
3 712-04065 Nut, Hex Flange Lock, 3/8-16 8
4 00012428
Lock Nut, Nylon Insert, 1/2-13
2
5 00012675 Hex Cap Screw, 1/2-13, 5.50 2
6 00014528 Spacer Wheel 2
7 01000746 Klik Pin, 1.75 2
8 01006718 Caster Bracket Weldment 2
00064164 Caster Bushing 4
9 00021925 Spacer, Caster 8
10 02000192 Wheel Assembly, 9.0 x 3.50-4 2
11 00060078 Grease Fitting, 1/4-28 x 3/16 2
19
Tank Assembly - Figure 13 and Parts List
11
14
12
7
6
1
3
4
8
5
5
10
9
2
13
15
GD: 01006075-P14
Ref.
No. Part No. Description Qty.
1 01002766
Lock Nut, 1/4-20, Hex Flange Lock
2
2 00012235 Uni-Clamp 1
3 01000215 Hose Clamp, 1/4-5/8, SS 1
4 00012186
Nut, 1/4-20
2
5 00021407 Rubber Stop Pad 2
6 01008857 Fuel Tank 1
7 751-3124D Fuel Cap, 3.5 Tethered 1
8 01001023 Fuel Tank Strap 2
9 02002253 Grommet Fuel Tank 1
10 01007425 Shut Off Fuel Tank 1
11 01001036
Label, Mower Warning Turn Off Engine
1
12 01001038 Label, Mower Instruction, Fuel Valve 1
13 -- Hose 1/4" Dia. 1
14 01002509 Carriage Bolt, 1/4-20 x 3.00 2
15 01009333 Compression Spring, .625 OD x .390 ID 2
20
Handle Assembly - Figure 14 and Parts List
40
30
27
4
12
35
22
36
11
38
42
29
17
23
25
10
5
3
20
18
20
19
1
39
7
16
9
10
4
34
28
24
2
2
11
15
6
26
33
32
8
14
37
21
20
5
13
21
41
GD: 01005998-P09
Ref.
No.
Part No. Description Qty.
Ref.
No.
Part No. Description Qty.
1 00006131 Hex Nut, 3/8-16 1 22 00071691 Control Rod, Hydro Spacer 2
2 00006168 Flat Washer, 3/8 Zinc 3 23
00071879 Blade Clutch Rod
1
3 00009678
Clevis Pin, 3/8 x 1-1/8 Zinc
1 24 00076730 Spring Sleeve 1
4 00011211 Grip, Neutral Latch, 1.25" 2 25 01002010 Carriage Bolt, 3/8-16 x 1.25 4
5 00012158 Flat Washer, 3/8 Zinc 4 26 01001556 Handle Assembly 1
6 00012165
Nylock Nut, 5/16-18
4 27 02002360 Operator Presence Control RH 1
7 00012169
Flat Washer, 5/16 Zinc
4 28 02002362 Operator Presence Control LH 1
8 00012173 Lock Nut, Nylon Insert, 3/8-16 1 29 01001714 Control Sleeve, Black 2
9 00012204
Cotter Pin, 3/32 x 3/4, Zinc
4 30 01001715 Operator Control Sleeve, Yellow 2
10 00012470 Cable Tie, 3/16 x .05 x 7.4 4 31 01001716
Harness Assembly Adapter (not show)
1
11 00013198 Hex Cap Screw, 5/16-18 x 2 2 32 01001717 Switch Mounting Snap 2
12 00014081 Lock Nut, Nylon Insert 2 33 01001863 Operator Presence Return Spring 2
13 00014270 Carriage Bolt, 3/8-16 x 2 1 34 01001864 Hex Index Washer Screw, 0.500 2
14 00021797 Spring, .850 OD x 1 1 35 01001919 Shoulder Screw, .38 x .412, 1/4-28 2
15 01010157
Neutral Latch, Left Hand
1 36 01001972 Hex Cap Screw, 5/16-18, 2.00 2
16 01010156 Neutral Latch, Right Hand 1 37 01003209 Blade Clutch Lever 1
17 00021927 Steering Control Rod 2 38 02002358 Lever Assembly Control 2
18 00021943 Joint Swivel 2 39 01006668 Label Commercial Mower Panel 1
19 00021955 Yoke, 3/8-16 Female 1 40 01006132 Label Commercial Mower Instruction 1
20 00021956 Hair Pin 3/8-1/2 5 41 00087108 Nylon Bushing 8
21 01007530 Handle Grip, Black, 1" 3 42 712-04065 Nut, Hex Flange Lock, 3/8-16 4
21

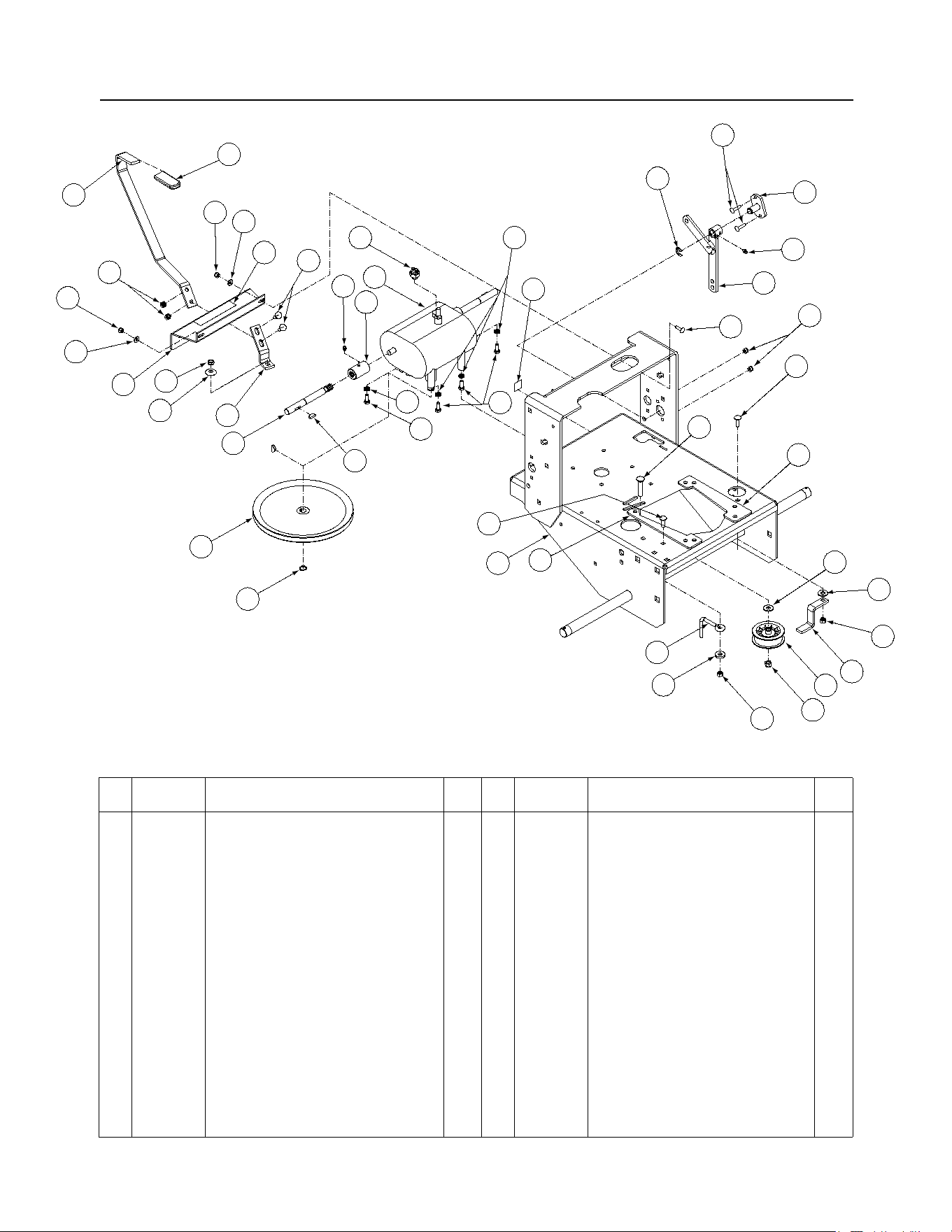

Deck Assembly Standard Track - Figure 15 and Parts List
20
32
1
5
4
22
17
6
4
29
12
5
15
24
28
13
23
10
37
23
11
33
22
34
21
14
30
4
31
7
9
9
7
25
16
37
26
3
2
8
8
30
19
35
8
23
18
27
GD: 01006110-P09
Ref.
No.
Part No. Description Qty.
Ref.
No.
Part No. Description Qty.
1 01000641 Carriage Bolt, 5/16-18 x 1 2 20 00030884 Grip, .250 x 1 x 3-1/2, Yellow 1
2 00008792 Woodruff Key, 3/16 x 3/4 3 21 00031602 Carriage Bolt, 1/4-20 x 1.00 2
3 00011454
Jam Nut, Insert Lock, 3/8-24
1 22 00060078 Grease Fitting, 1/4-28 x 3/16 3
4 00012152 Lock Nut, Nylon Insert, 1/4-20 4 23 00083192 Idler Washer 3
5 00012154 Flat Washer, 1/4 Zinc 2 24 01004395 Engine Spacer, RH 1
6 00012165
Nut, 5/16-18 Nylock
2 25 01000073 Transmission Pulley 1
7 00012168
Lock Washer, 5/16 Zinc
4 26 01000092 Shift Plate 1
8 00012173 Lock Nut, Nylon Insert, 3/8-16 3 27 01000093 Shift Arm 1
9 00013406
Hex Cap Screw, 5/16-18 x 3/4
4 28 01000121 Engine Deck Assembly 1
10 01002011 Carriage Bolt, 3/8-16 x2 1 29 01000152 Transmission, 5 Speed 1
11 00017584 Carriage Bolt, 1/4-20 x .750 2 30 01002010 Carriage Bolt, 3/8 -16 x 1.25 2
12 00018329 Switch, WB Transmission 1 31 01001035 Label, Warning, Open Belt Drive 1
13 01005114 Drive Belt Guide 1 32 01001037 Label, Mower Instruction 1
14 00021962 E-Ring, 5/8 1 33 01009455 Clutch, Bellecrank Casting 1
15 00021964
External Retainer Ring
1 34 00021906 Bellecrank Pivot, Weldment 1
16 00030352 Jackshaft w/ Heavy Spline 2 35 01003146 Engine Belt Guide 1
17 00030353 Coupling w/Heavy Spline 2 36 01003825 Shift Handle 1
18 00030355 Bell Washer, .39 ID x 1.13 OD x .062 1 37 01004392 Engine Spacer, LH 1
19 02004558 Flat Idler Pulley w/Adapter 1
22

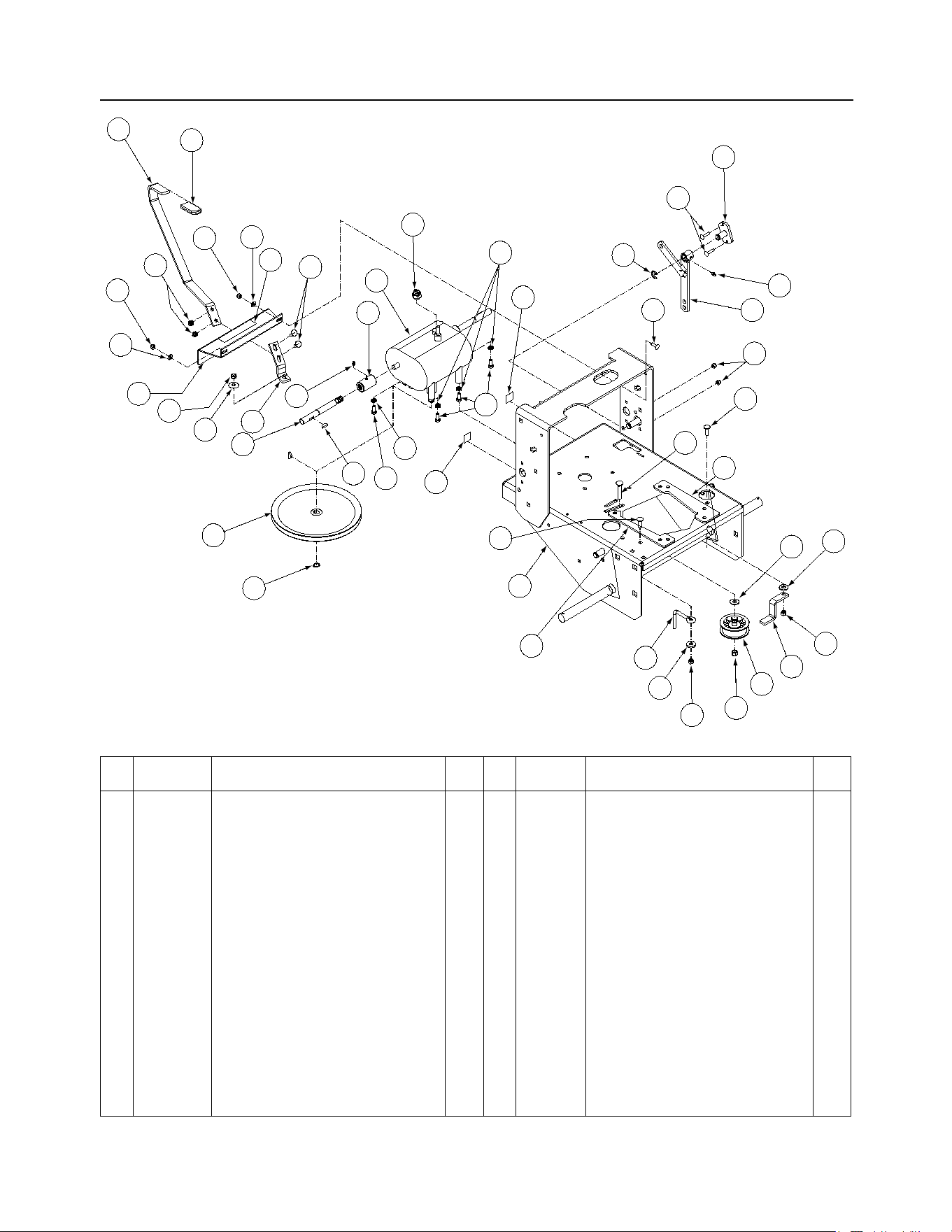

Deck Assembly Narrow Track - Figure 16 and Parts List
36
4
32
4
28
12
7
34
4
37
10
29
33
14
11
21
31
5
26
6
20
17
5
1
3
18
16
22
25
9
15
2
7
27
24
9
13
30
23
8
8
19
35
8
23
38
23
22
29
GD: 01005971-P07
Ref.
No.
Part No. Description Qty.
Ref.
No.
Part No. Description Qty.
1 01000641 Carriage Bolt, 5/16-18 x 1 2 20 00030884 Grip, .250 x 1 x 3-1/2, Yellow 1
2 00008792 Woodruff Key, 3/16 x 3/4 3 21 00031602 Carriage Bolt, 1/4-20 x 1.00 2
3 00011454
Jam Nut, Insert Lock, 3/8-24
1 22
00060078
Grease Fitting, 1/4-28 x 3/16 3
4 00012152 Lock Nut, Nylon Insert, 1/4-20 4 23 00083192 Idler Washer 3
5 00012154 Flat Washer, 1/4 Zinc 2 24
00090006 Decal "Made In America
1
6 00012165
Nut, 5/16-18 Nylock
2 25 01000073 Transmission Pulley 1
7 00012168
Lock Washer, 5/16 Zinc
4 26 01000092 Shift Plate 1
8 00012173 Lock Nut, Nylon Insert, 3/8-16 3 27 01000093 Shift Arm 1
9 00013406
Hex Cap Screw, 5/16-18 x 3/4
4 28 01000152 Transmission, 5 Speed 1
10 01002011 Carriage Bolt, 3/8-16 x2 1 29 01002010 Carriage Screw, 3/8-16 x 1.25 2
11 00017584 Carriage Bolt, 1/4-20 x .750 2 30 01000856 Engine Deck Assembly 1
12 00018329 Switch, WB Transmission 1 31 01001035 Label, Warning, Open Belt Drive 1
13 01005114 Drive Belt Guide 1 32 01001037 Label, Mower Instruction 1
14 00021962 E-Ring, 5/8 1 33 01009455 Clutch, Bellecrank Weldment 1
15 00021964
External Retainer Ring
1 34 01002675 Bellecrank Pivot, Weldment 1
16 00030352 Jackshaft w/ Heavy Spline 2 35 01003146 Engine Belt Guide 1
17 00030353 Coupling w/Heavy Spline 2 36 01003825 Shift Handle 1
18 00030355 Bell Washer, .39 ID x 1.13 OD x .062 1 37 01004392 Engine Spacer, LH 1
19 02004558 Flat Idler Pulley w/Adapter 1 38 01004395 Engine Spacer, RH 1
23

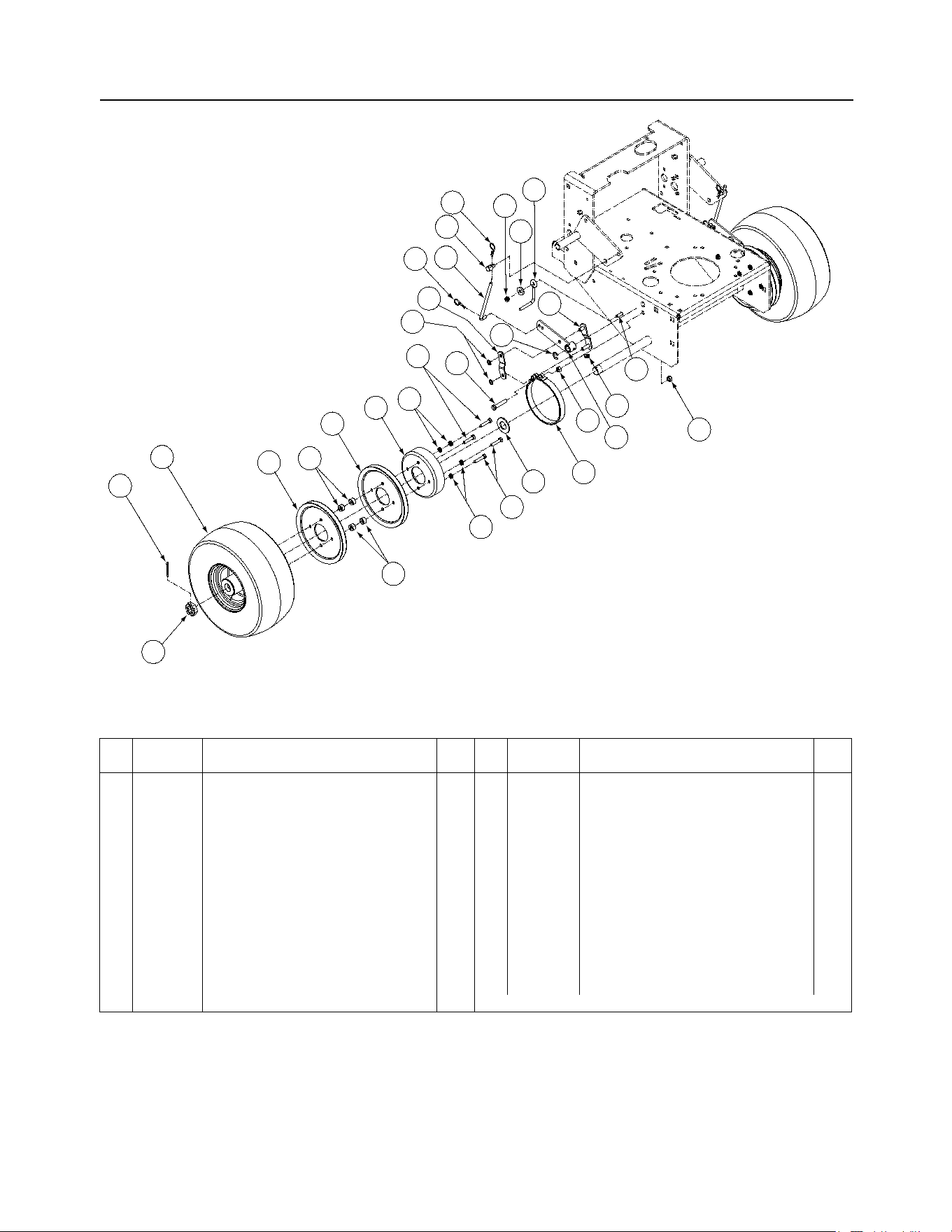

Brake Assembly Standard Track - Figure 17 and Parts List
GD: 01002905-P07
Ref.
No.
Part No. Description Qty.
Ref.
No.
Part No. Description Qty.
1 00002528 Hex Cap Screw, 3/8-16, 2.00 2 15 00021962 E-Ring, 5/8 2
2 00006131 Hex Nut, 3/8-16 4 16 00021979 Drive Pulley, V 4
3 02000588
Flat Washer, 1.00 x 2.00 x .075
2 17 00021980 Drum Brake 2
4 00012165 Nut, Nylock, 5/16-18 2 18 00021981 Band Brake 2
5 00012168 Lock Washer, 5/16 Zinc 8 19 00021983 Wheel Assembly, 13 x 6.50-6 2
6 00012169 Flat Washer, 5/16 2 20 00021984 Hex Jam Nut, 1-14 2
7 00012226
Grease Fitting, 1/4-28, 90°
2 21 00021933 Brake Link 2
8 00012380
Cotter Pin, 5/32 x 1-1/2 Zinc
2 22 00067444 Brake, Bracket Link 2
9 00012382 Hex Cap Screw, 5/16-18 x 1-1/2 8 23 00083192 Idler Washer 2
10 00021930
Brake Rod
2 24
01000641 Carriage Bolt, 5/16-18 x 1
2
11 00021941 Drive Wheel Pulley Spacer 8 25 01005114 Drive Belt Guide 2
12 00021943 Swivel Joint 2 26 01009216 Brake Lever Weldment 2
13 00021956 Hair Pin, 3/8-1/2 4
14 00021960
Retainer, Push ON, 3/8
4 Note: Lubricant grease by ounce
24
Brake Assembly Narrow Track - Figure 18 and Parts List
7
20
17
17
18
5
8
1
15
11
16
14
9
13
14
4
10
23
12
12
5
8
3
19
2
2
24
6
22
26
21
GD: 01001213-P06
Ref.
No.
Part No. Description Qty.
Ref.
No.
Part No. Description Qty.
1 00002528 Hex Cap Screw, 3/8-16, 2.00 2 15 00021960
Retainer, Push ON, 3/8
4
2 00006131 Hex Nut, 3/8-16 4 16 00021962 E-Ring, 5/8 2
3 02000588
Flat Washer, 1.00 x 2.25 x .075
2 17 00021979 Drive Pulley, V 4
4 00012165 Nut, Nylock, 5/16-18 2 18 00021980 Drum Brake 2
5 00012168 Lock Washer, 5/16 Zinc 8 19 00021981 Band Brake 2
6 00012226
Grease Fitting, 1/4-28, 90°
2 20 00021984 Hex Jam Nut, 1-14 2
7 00012380
Cotter Pin, 5/32 x 1-1/2 Zinc
2 21 00030757 Wheel Assembly, 13 x 5.00-6 2
8 00012382 Hex Cap Screw, 5/16-18 x 1-1/2 8 22 00021933 Brake Link 2
9 00021930
Brake Rod
2 23 00083192 Idler Washer 2
10 01005114 Drive Belt Guide 2 24
01000641 Carriage Bolt, 5/16-18 x 1
2
11 00067444 Brake, Bracket Link 2 25 -- -- --
12 00021941 Drive Wheel Pulley Spacer 8 26 01009216 Brake Lever Weldment 2
13 00021943 Swivel Joint 2
14 00021956 Hair Pin, 3/8-1/2 4 Note: Lubricant grease by ounce
25

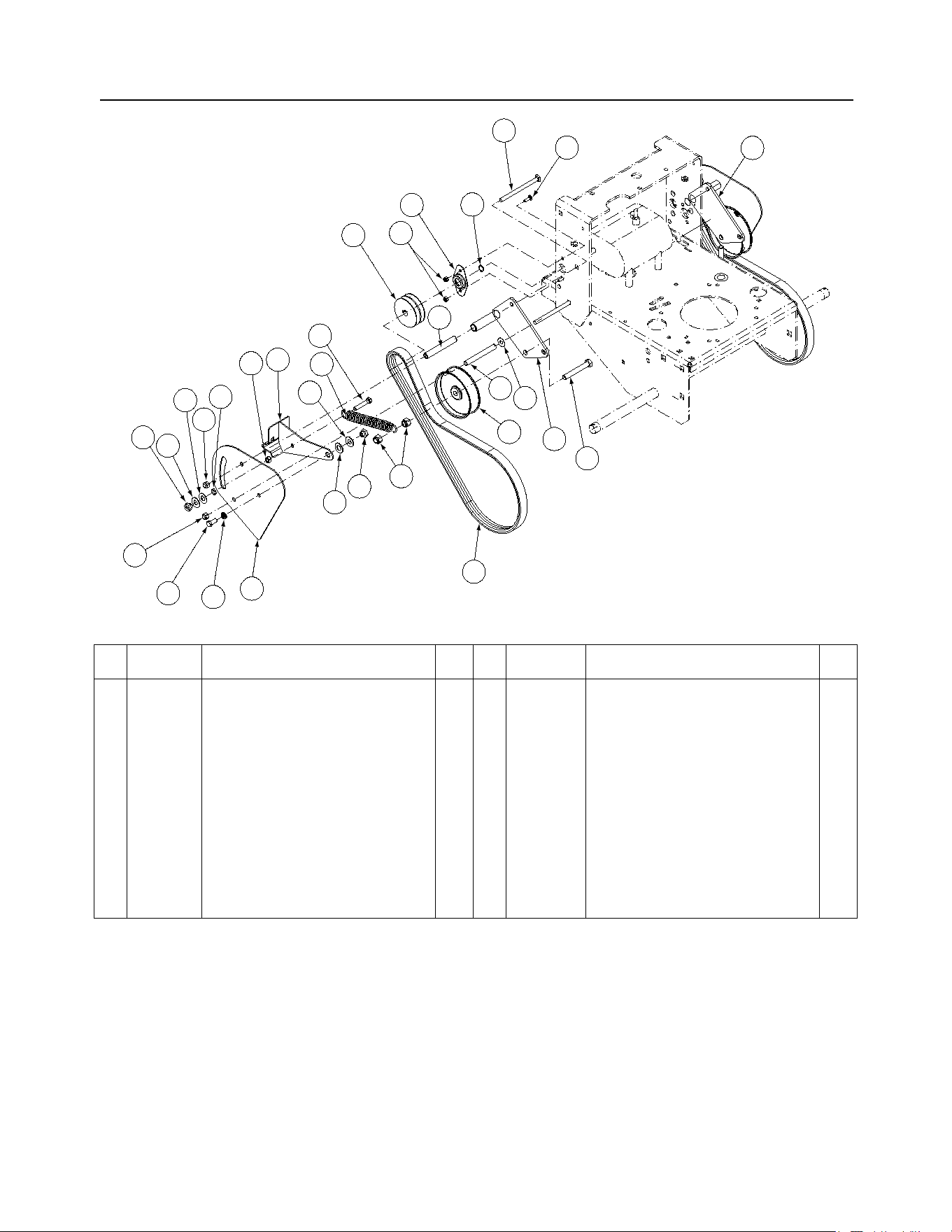

Vari-Touch Drive Assembly - Figure 19
13
23
18
16
19
26
14
1
25
21
12
23
9
6
21
12
13
7
22
3
5
15
8
24
27
10
17
20
2
4
11
GD: 01006007-P05
and Parts List
Ref.
No.
Part No. Description Qty.
Ref.
No.
Part No. Description Qty.
1 01000368 Hex Cap Screw, 3/8-16, .88 2 15 00021976
Flat Idler Drive
2
2 01001011 Left Idler Bracket 1 16 00021969 Jackshaft Pulley 2
3 01001009
Right Idler Bracket
1 17 00021964 External Retain Ring 2
4 01000642 Carriage Bolt, 3/8-16 x 5.50 4 18 00002528 Hex Cap Screw, 3/8-16, 2.00 2
5 01000226 Hex Cap Screw, 1/2-13, 3.50 2 19 02000487 Bearing Housing 2
6 01000199
Extension Spring
2 20 00017584 Carriage Bolt, 1/4-20 x .750 4
7 01000151
Belt, V
2 21 01000873 Flat Washer, .536 ID x .930 OD x .05 4
8 01000130 Spacer Tube 2 22 00012428 Lock Nut, Nylon Insert, 1/2-13 4
9 01000117
Roller Tube
2 23 712-04065 Lock Nut, Nylon Insert, 3/8-16 4
10 01000110 Spring Position Adjuster 2 24
00083192 Flat Washer
2
11 01000105 Belt Guard 2 25 00012157 Lock Washer, 3/8 Zinc 2
12 01000101 Slide Washer 4 26 00012152 Lock Nut, Nylon Insert, 1/4-20 4
13 01000100 Shoulder Nut 4 27 00006131 Hex Nut, 3/8-16 2
14 00036665 Idler Sleeve 2
26

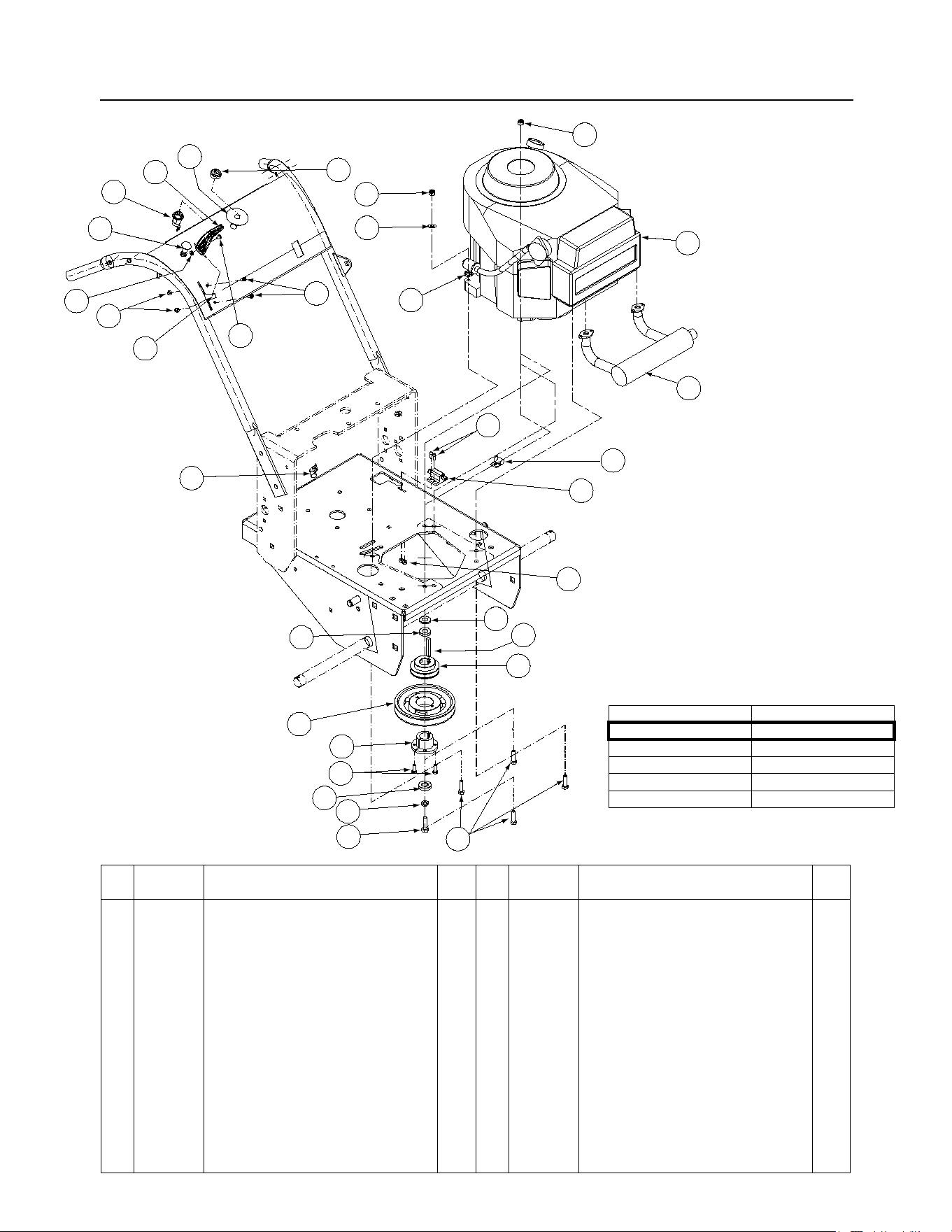

13HP Kawasaki Engine Assembly - Figure 20 and Parts List
24
4
4
5
8
19
7
11
1
9
10
17
20
15
14
16
27
26
28
6
12
23
29
9
21
2
6
30
3
25
22
18
Description Part Number
Engine 01007290
Air Filter KM-11013-7017
Pre Cleaner KM-11013-7016
Oil Filter KM-49065-2078
Spark Plug KM-92070-7003
GD: 01008738-P01
Ref
.
No.
Part No. Description Qty.
Ref.
No.
Part No. Description Qty.
1 00010943 Single Ignition ON/OFF Switch 1 16 00021973 Bushing 1
2 00012165
Lock Nut, Nylon Insert, 5/16-18
4 17 00030906 Machine Screw, 10-32 x 5/8 2
3 00013406 Hex Cap Screw, 5/16-18 x 3/4 1 18 01000983 Muffler Clamp Assembly 1
4 00012235
Clamp
2 19 00032097 Nut w/cap, 5/8-32 Ignition 1
5 00012292
Kohler Fuel Filter
1 20 01007290 13 Hp Kawasaki Engine 1
6 00022547
Lock Nut, 5/16-18
1 21 00060807 Support Clamp, 3/8 OD 1
7 00013669 Screw, Hex Washer, 10-32 x 1/2 2 22 01002919 Muffler 1
8 00013198 HHCS, 5/16-18 x 2 4 23 00072586
Flat Washer
1
9 00014608 Lock Nut, Nylon Insert, 10-32 4 24 01001208 12" Fuel Hose 1
10 00018324 Delta Switch 1 25 00082639 Kawasaki Manifold 1
11 00019550 Control Throttle w/Detent, 39.2 1 26 00012195 Lock Washer, 7/16 1
12 01007533 Key Stick, 1/4 x 1/4 x 2-3/4 1 27 00013675 Clutch Washer 1
13 00021521
Harness Wire (not shown)
1 28 01002885 Hex Cap Screw, M10 x 1.5, 30mm, GR10.9 1
14 00021970 Deck Pulley 1 29 00073094 Spacer, Engine Pulley 1
15 00021972 Traction Pulley 1 30 01000192 Muffler Bracket 1
Note: Engine Oil 10w40
27

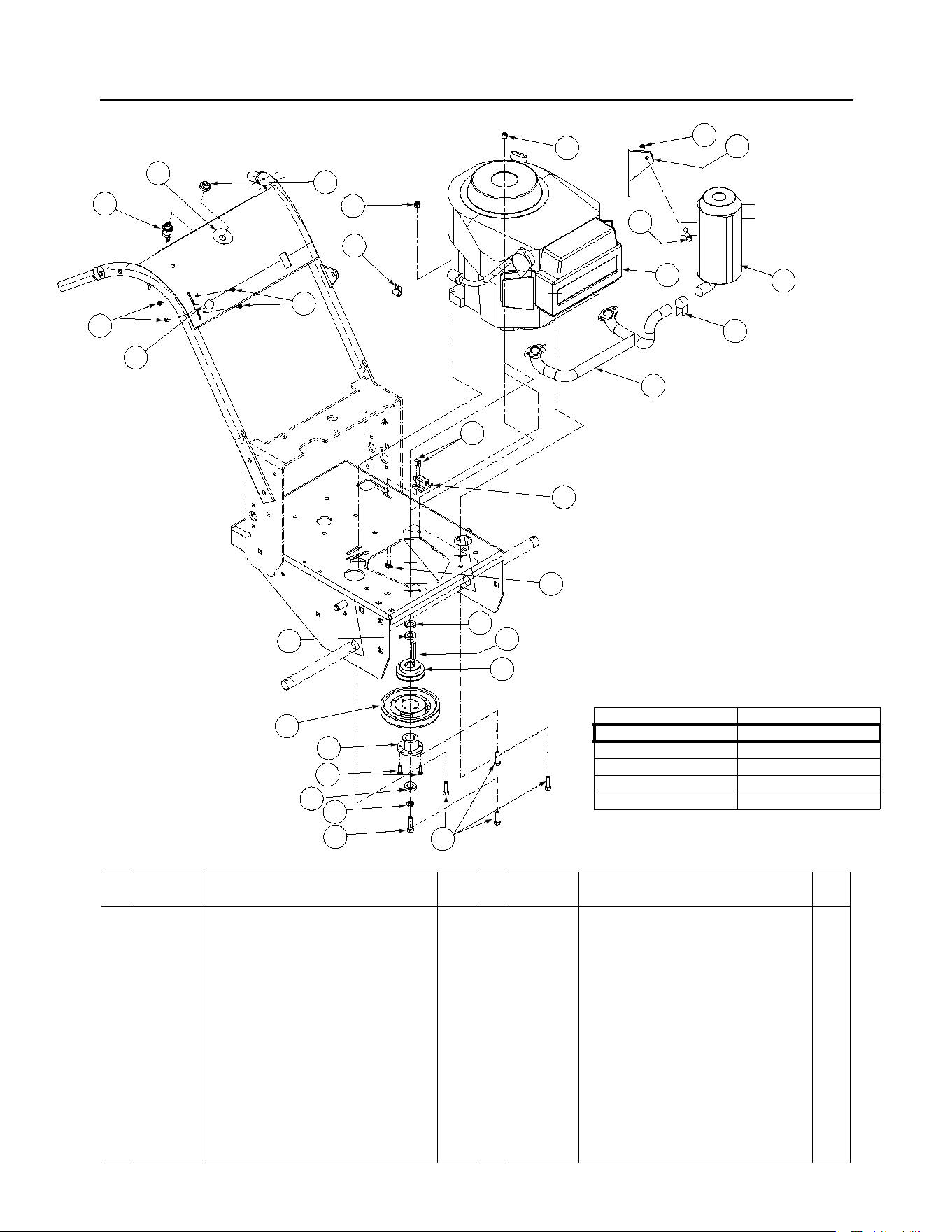

13HP Kawasaki Kai Engine Assembly - Figure 21 and Parts List
8
19
7
1
9
10
17
15
14
16
27
26
28
6
12
23
29
9
21
18
24
25
4
22
11
20
2
30
3
31
32
Description Part Number
Engine 01009794
Air Filter KM-11013-7031
Pre Cleaner KM-11013-7025
Oil Filter KM-49065-2078
Spark Plug KM-92070-7003
GD: 01009888-P06
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 01010141 Ignition ON/OFF Switch 1 17 00030906 Machine Screw, 10-32 x 5/8 2
2 00012165
Lock Nut, Nylon Insert, 5/16-18
4 18 01002006 Decal, Pull Start Overlay 1
3 00012169
Flat Washer, 5/16 Zinc
1 19 00032097 Nut w/cap, 5/8-32 Ignition 1
4 00060056
Nut, 8-32, w/ Star Washer
1 20 01009794 13 Hp Kawasaki Kai Engine 1
5 01000194
Belt (not shown)
1 21 00060807 Support Clamp, 3/8 OD 1
6 00013131
Hex Cap Screw, 1/4-20 x 3/4
2 22 01003273 Throttle Control Cable 1
7 00013669 Screw, Hex Washer, 10-32 x 1/2 2 23 00072586
Flat Washer
1
8 00006129 HHCS, 5/16-18 x 1-3/4 4 24 01004004 Throttle Control Knob 1
9 00014608 Lock Nut, Nylon Insert, 10-32 4 25 02003479 Choke Cable 1
10 00018324 Delta Switch 1 26 00012195 Lock Washer, 7/16 1
11 01000721 Machine Screw, 8-32 x 3.8 1 27 00013675 Clutch Washer 1
12 01007533 Key Stick, 1/4 x 1/4 x 2-3/4 1 28 01002885 HHCS, M10 x 1.5, 30mm, GR10.9 1
13 02000048
Harness Wire (not shown)
1 29 00073094 Spacer, Engine Pulley 1
14 00021970 Deck Pulley 1 30 01009792 Muffler 1
15 00021972 Traction Pulley 1 31 00012166 Hex Nut, 5/16-18 1
16 00021973 Bushing 1 32 01000450 Jam Nut, 3/8-24 1
Note: Engine Oil 10w40
28
15HP Kawasaki Engine Assembly - Figure 22
23
16
6
20
10
9
11
14
24
3
22
3
17
7
9
21
13
26
27
28
25
15
5
8
18
1
2
4
29
30
Description Part Number
Engine 01007291
Air Filter KM-11013-7017
Pre-Cleaner KM-11013-7016
Oil Filter KM-49065-2078
Spark Plug KM-92070-7003
GD: 01008740-P02
Ref.
No.
Part No. Description Qty.
Ref.
No.
Part No. Description Qty.
1 00010943 Single Ignition ON/OFF Switch 1 16 00022547 Hex Nut, Control Lock, 5/16-18 1
2 01000983
Muffler Clamp Assembly
1 17 00030906 Machine Screw, 10-32 x 5/8 2
3 00012165 Nut, 5/16-18 Nylock 4 18 00032097 Nut, w/Cap, 5/8-32, Ignition 1
4 01002919 Muffler 1 19 01000194 Belt Transmission Drive (not shown) 1
5 00013131
Hex Cap Screw, 1/4-20, .75
2 20 00082639 Kawasaki Manifold 1
6 00013406 Hex Cap Screw, 5/16-18 x 3/4 1 21 01004051 Throttle Control, w/Detent, 47.25 1
7 00013669 Screw, Hex Washer, 10-32 x 1/2 2 22 01007291 Engine, 15HP Kawasaki 1
8 00013198 Cap Screw, 5/16-18 x 2 4 23 01000192 Kawasaki Bracket Muffler 1
9 00014608 Lock Nut, Nylon Insert, 10-32 4 24 00073094
Engine Pulley Spacer, 12.5 Vanguard
1
10 00018324 Delta Switch 1 25 00072586 Flat Washer 1
11 01007533 Key Stock, 1/4 x 1/4 x 2-3/4 1 26 00013675 Clutch Washer 1
12 00021521
Harness Wire (not shown)
1 27 00012195 Lock Washer, 7/16 1
13 00021970 Deck Pulley 1 28 01002884 Capscrew, 7/16-20 x 1-1/4 1
14 00021972 Traction Drive Pulley 1 29 00060807 Support Clamp, 3/8 OD 1
15 00021973 Bushing Type D 1 30 01002006 Decal, Pull Start Overlay 1
29
15HP Kawasaki Kai Engine Assembly - Figure 23
10
9
11
14
24
3
22
3
17
7
9
21
13
26
27
28
25
15
5
8
18
1
20
2
6
30
29
23
4
16
32
31
Description Part Number
Engine 01009795
Air Filter KM-11013-7031
Pre-Cleaner KM-11013-7025
Oil Filter KM-49065-2078
Spark Plug KM-92070-7003
GD: 01009889-P04
Ref.
No.
Part No. Description Qty.
Ref.
No.
Part No. Description Qty.
1 01010141 Ignition ON/OFF Switch 1 17 00030906 Machine Screw, 10-32 x 5/8 2
2 00031081
Support Clamp
1 18 00032097 Nut, w/Cap, 5/8-32, Ignition 1
3 00012165 Nut, 5/16-18 Nylock 4 19 01000194 Belt Transmission Drive (not shown) 1
4 00060056 Nut, 8-32, w/ star washer 1 20 01009792 Muffler 1
5 00013131
Hex Cap Screw, 1/4-20, .75
2 21 01003273 Throttle Control, w/Detent, 47.25 1
6 00060807 Support Clamp 1 22 01009795 Engine, 15HP Kawasaki Kai 1
7 00013669 Screw, Hex Washer, 10-32 x 1/2 2 23 01002006 Decal, Pull Start Overlay 1
8 00013198 Cap Screw, 5/16-18 x 2 4 24 00073094
Engine Pulley Spacer, 12.5 Vanguard
1
9 00014608 Lock Nut, Nylon Insert, 10-32 4 25 00072586 Flat Washer 1
10 00018324 Delta Switch 1 26 00013675 Clutch Washer 1
11 01007533 Key Stock, 1/4 x 1/4 x 2-3/4 1 27 00012195 Lock Washer, 7/16 1
12 02000048
Harness Wire (not shown)
1 28 01002885 Capscrew, M10 x 1.5 1
13 00021970 Deck Pulley 1 29 01004004 Throttle Control Knob 1
14 00021972 Traction Drive Pulley 1 30 02003479 Choke Cable 1
15 00021973 Bushing Type D 1 31 00012166 Hex Nut, 5/16-18 1
16 01000721 Machine Screw, 8-32 1 32 00012169 Flat Washer, 5/16 1
30
Transmission Assembly - Figure 24 and Parts List
Ref.
No.
Part No. Description Qty.
Ref.
No.
Part No. Description Qty.
1 TC-772083A Transmission Cover 1 49 TC-778125
Spur Gear (35 teeth)
1
2 TC-780086A Needle Bearing 1 50 TC-778239A Spur Gear (32 teeth-steel) 1
2A TC-780142
Needle Bearing
1 51 TC-778124A Spur Gear (30 teeth) 1
3 TC-770061A Transmission Case 1 52 TC-778250 Spur Gear (27 teeth) 1
4 TC-776134 Countershaft 1 53 TC-778122A Spur Gear (22 teeth) 1
8 TC-792089A
Shift Key
4 56 TC-778136 Spur Gear (15 teeth) 1
9 TC-784266
Shift Collar
1 57 TC-778240 Spur Gear (18 teeth-steel) 1
11 TC-778154 Bevel Gear (42 teeth) 1 58 TC-778126A Spur Gear (20 teeth) 1
12 TC-778176
Input Bevel Pinion (14 teeth-steel)
1 59 TC-778249 Spur Gear (23 teeth) 1
20 TC-792077A Steel Ball, 5/16" dia. 1 60 TC-
778128A
Spur Gear (28 teeth) 1
21 TC-792078 Set Screw, 3/8-16 x 3/8" 1 65 TC-780139 Thrust Washer 1
22 TC-792079 Spring 1 66 TC-776135 Input Shaft (3-11/16" long) 1
24 TC-780071 Thrust Bearing 1 67 TC-776402 Shifter & Brake Shaft 1
25 TC-792073A Screw, 1.4-20 x 1-1/4" 6 71 TC-788069 Square Cut Ring 1
27 TC-792035 Retaining Ring 1 81 TC-786081 Roller Chain (No. 41 chain, 24 links) 1
28 TC-788040 Retaining Ring 1 82 TC-786082 Sprocket (9 teeth) 1
29 TC-780072 Washer 6 83 TC-786083 Sprocket (18 teeth) 1
30 TC-780108 Washer 4 90 TC-788067B Grease (32 oz. bottle Bentonite) 1
32 TC-792001 “O” Ring 2 150 TC-510334 Gasket Eliminator (Loctite #515) 1
34 TC-780105A Flange Bushing 4
31
Notes
Cub Cadet Commercial
P.O. Box 368023
Cleveland, OH 44136
Form No. 01009271 Rev. 08-2 3/26/2008
