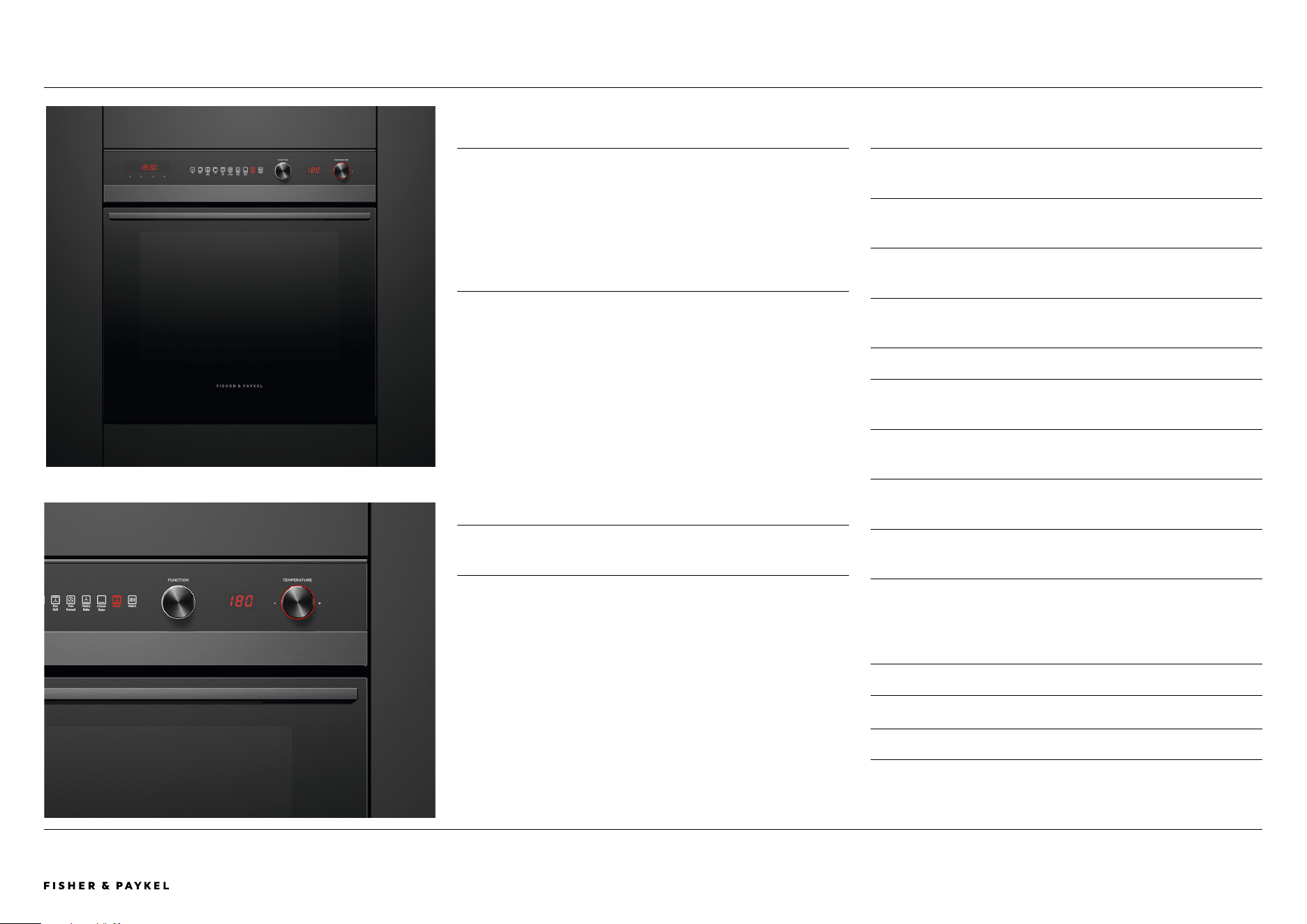

OVERVIEW
This 60cm built-in oven features sleek Contemporary styling, a
generous 85L capacity, and nine versatile cooking functions to
support a range of everyday dishes. With user-friendly controls,
rapid pre-heat, and even heat distribution, it’s designed for
reliable performance and seamless integration into any modern
kitchen.
PRODUCTS
oB60SC9DEB1
60cm Series 5 Contemporary Oven
FEATURES
1 Contemporary black finish to complement modern kitchen
designs
2 Features nine cooking functions: Bake, Fan Bake, Grill, Fan
Grill, Fan Forced, Pastry Bake, Classic Bake, Roast, Warm
3 85L total capacity with 72L usable space for multi-shelf
cooking
4 Touch clock provides clear timekeeping and bake duration
visibility
5 Six shelf positions provide flexibility for different dish sizes
6 Rapid pre-heat function reduces waiting time before
cooking
7 Chrome shelf runners allow smooth movement of trays and
shelves
8 Even heat distribution with fan-supported cooking modes
for reliable results
9 Designed to match Fisher & Paykel’s Contemporary
appliance range
ACCESSORIES
1 Roasting Dish
2 Flat Wire Shelf
3 Grill Rack
SPECIFICATION GUIDE | 60CM SERIES 5 CONTEMPORARY OVEN
OB60SC9DEB1
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 590004857A PLANNING GUIDE 60CM SERIES 5 CoNTEMPoRARY ovEN vERSIoN A - MAY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

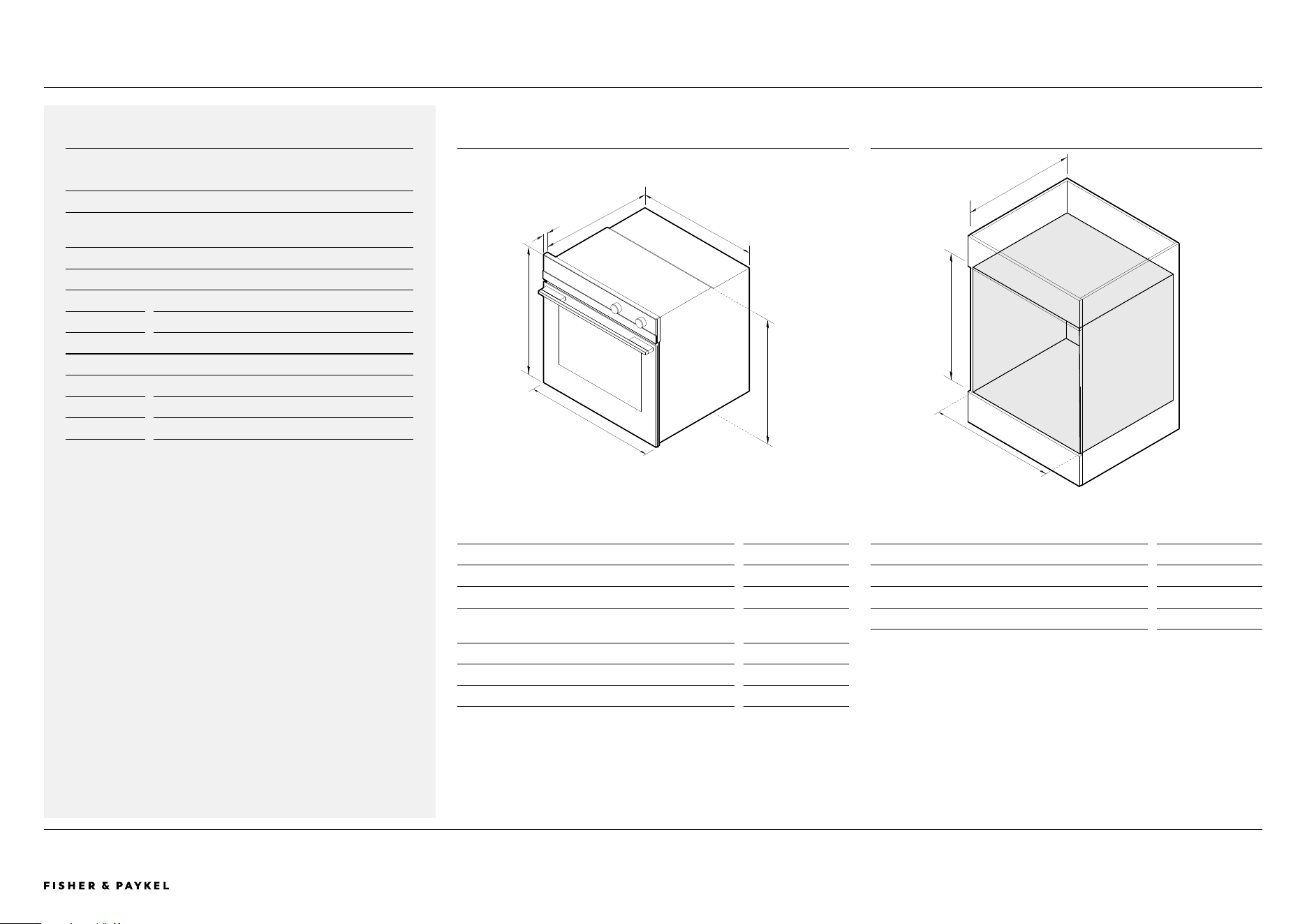

CAVITY DIMENSIONS
Cavity Dimensions mm
A Minimum cavity height 580
B Minimum cavity width 560
C Minimum cavity depth 550
ISOMETRIC VIEWISOMETRIC VIEW
SPECIFICATION GUIDE | 60CM SERIES 5 CONTEMPORARY OVEN
PRODUCT DIMENSIONS
Product Dimensions mm
A Overall height of product 598
B Overall width of product 597
C Depth of control panel (excl. handle, trim and
dials)
20
D Depth of chassis 545
E Height of chassis 575
F Width of chassis 556
b
E
F
a
D
C
a
b
c
SPECIFICATIONS
Model Number
OB60SC9DEB1 Series 5, Contemporary Wall Oven
Weight
Packaged 43 kg
Unpackaged 33 kg
Electrical
Supply 220 - 240 V, 50-60Hz
Service 16A
Connection Hardwired
OB60SC9DEB1
<< CONTENTS
PAGE 6© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE 60CM SERIES 5 CoNTEMPoRARY ovEN vERSIoN A - MAY 202590004857A

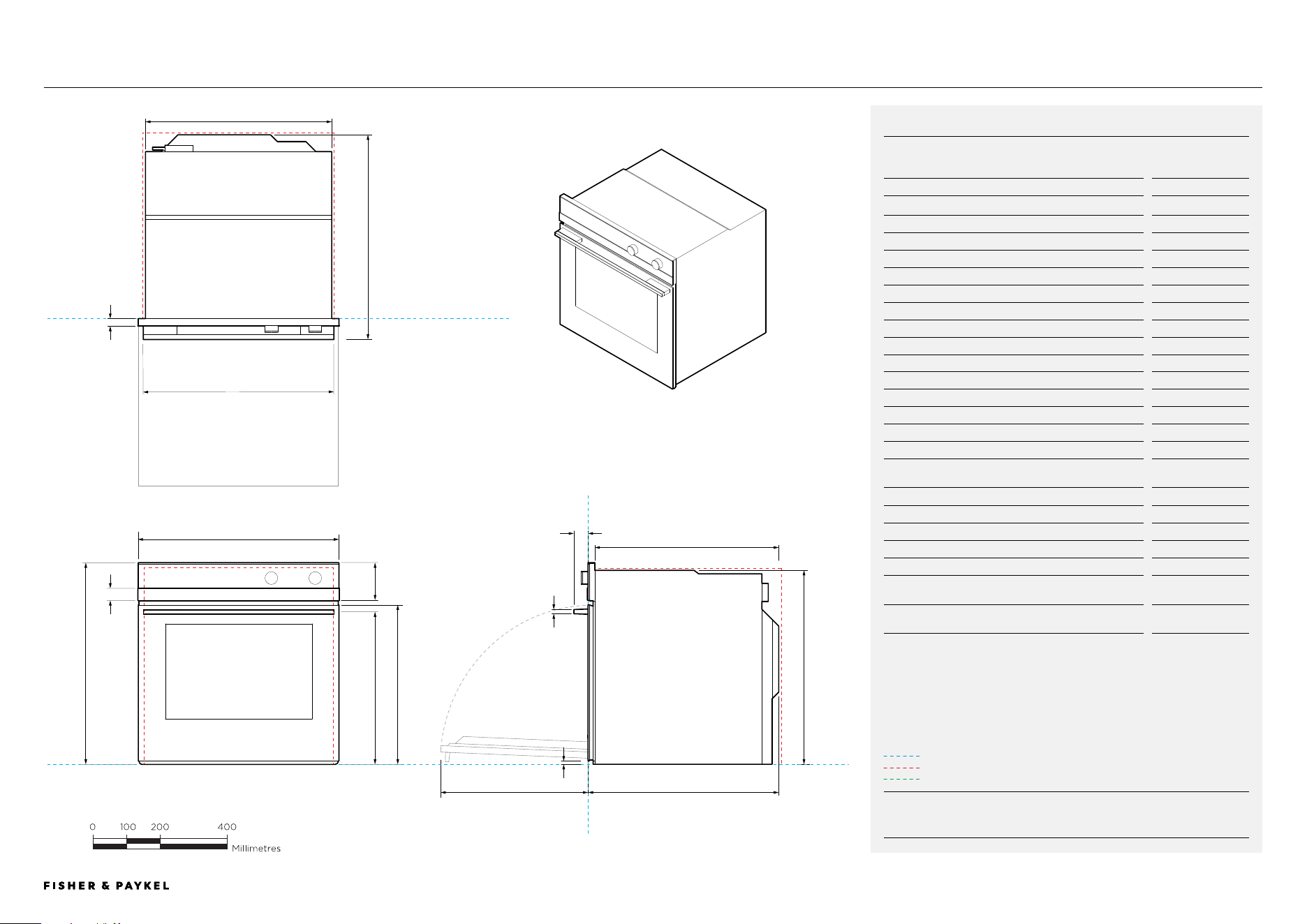

DATA SHEET
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 790004857A PLANNING GUIDE 60CM SERIES 5 CoNTEMPoRARY ovEN vERSIoN A - MAY 2025
INDICATES CABINETRY / PRODUCT DATUM
INDICATES CABINETRY CLEARANCES
INDICATES CUTOUT
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please
read the installation manual for detailed information on installing the product. For full
installation instructions & specifications visit fisherpaykel.com
Model no:
OB60SC9DEB1
60cm Series 5 Contemporary Oven, Black - OB60SC9DEB1
Product Dimensions mm
A Overall height of product 598
B Overall width of product 597
C Depth of control panel (excl. handle, trim and dials) 20
D Overall depth of product 565
E Height of chassis 575
F Width of chassis 556
G Depth of chassis 545
H Height of control panel 112
I Height of trim on control panel 38
J Height from bottom datum to top of oven door 473
K Height from bottom datum to centerline of handle 453
L Height from bottom datum to bottom of door 10
M Width of handle 565
N Depth of handle 42
O Thickness of handle 16
P Depth of door when open (measured from front of
door)
466
Minimum Clearances mm
Minimum inside height of cavity 580
Minimum inside width of cavity 560
Minimum inside depth of cavity* 550
Minimum clearance above oven control panel to upper
cabinetry front panel or appliance
2
Minimum clearance between bottom of oven chassis to
lower cabinetry front panel or appliance
2
Note: For full installation and clearance details please refer to our installation
manual.
*Measured from front of control panel.
DP
L
N
O
E
H
G
I
A
D
F
JK
B
M
