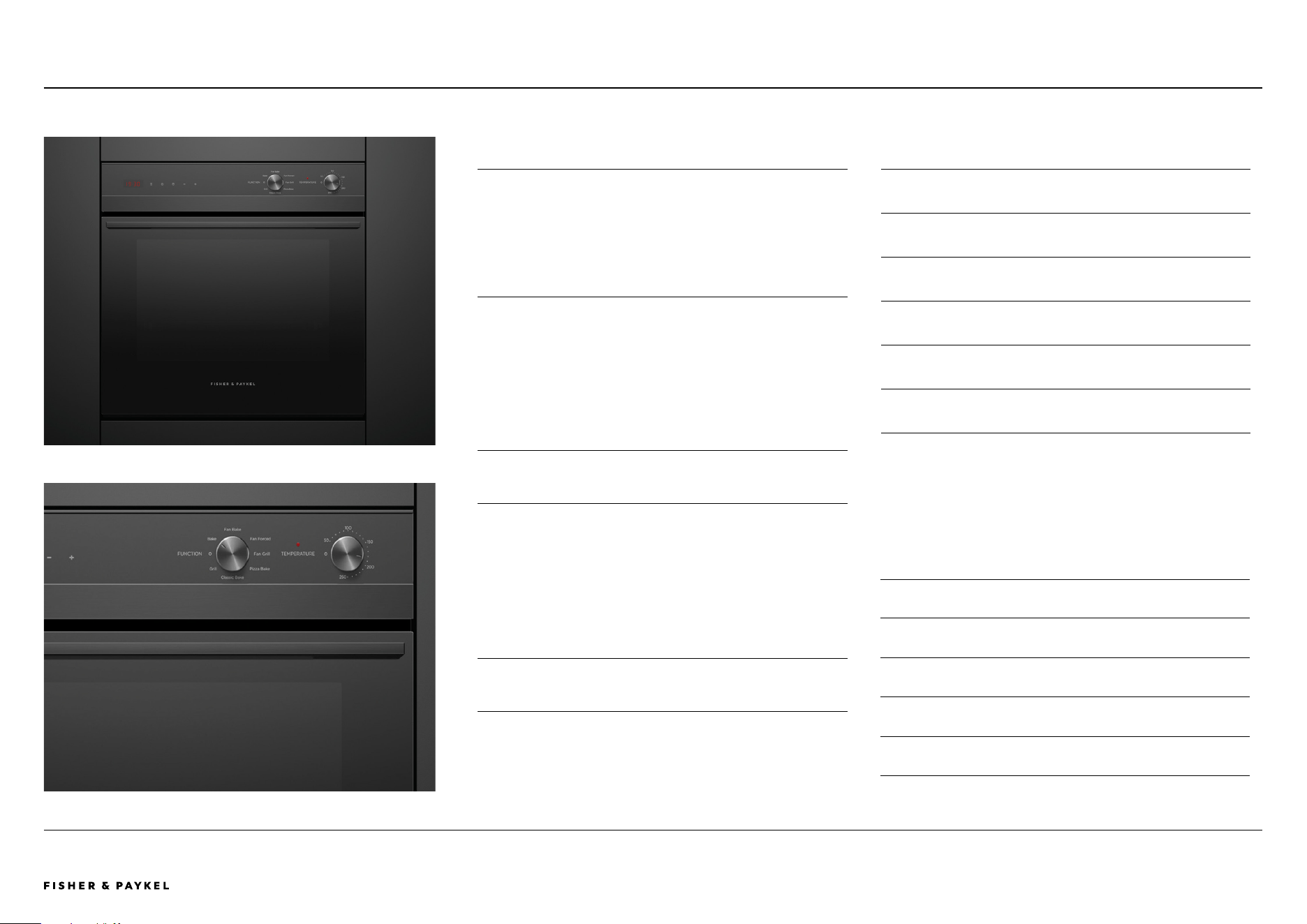

SPECIFICATION GUIDE | OVEN, 60CM
OB60SC7CEB1
Oven - Black
OVERVIEW
This Series 5 Contemporary style oven features a spacious
85L capacity in a black glass finish. It includes seven
functions, such as Bake or Grill, with AeroTech™ technology
for even heat distribution. Designed for versatile cooking
with six shelf positions.
PRODUCTS
OB60SC7CEB1
60cm Series 5 Contemporary Oven 7 Function
FEATURES
1
Black Glass finish to match our Contemporary style
appliances
2 Generous 85L capacity
3 Seven oven functions including Classic Bake, Fan Forced
and Grill
4 AeroTech™ technology for even heat circulation
5 The CoolTouch door with triple glazing and a cooling
system ensures it’s safe to touch from the outside
6 Designed for multi shelf cooking with 6 shelf positions
SERIES & STYLE
Series 5
Contemporary
ACCESSORIES
1
Telescopic Clip-On Runners
2 Step Down Wire Shelf
3 Wire Shelf
4 Smokeless Grill Tray
5 Roasting Dish
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 5PLANNING GUIDE COOKING - VERSION A - OCTOBER 202490003676A

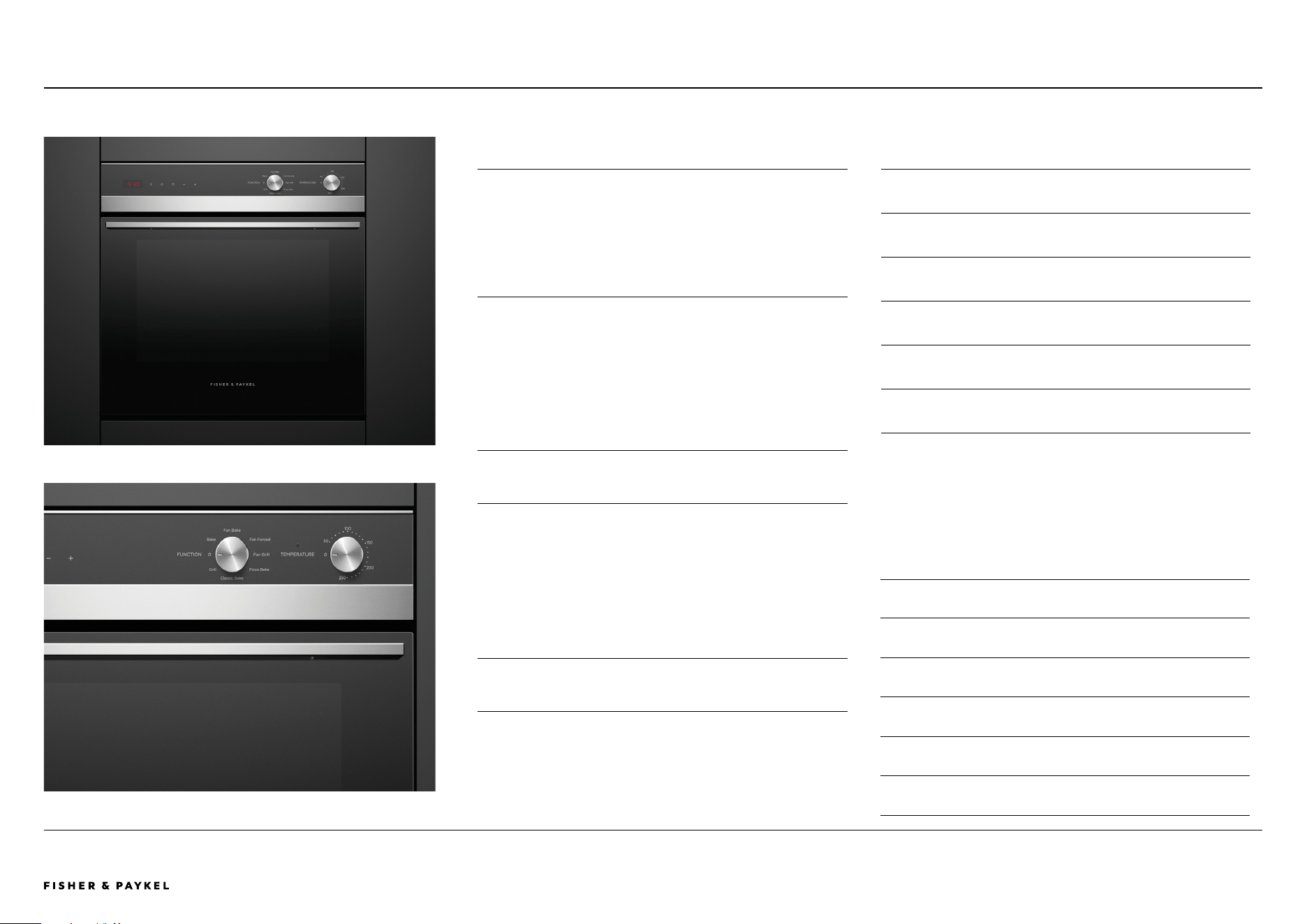

SPECIFICATION GUIDE | OVEN, 60CM
OB60SC7CEX3
Oven - Stainless Steel
SPECIFICATION GUIDE | OVEN, 60CM
OVERVIEW
This Series 5 Contemporary style oven features a spacious
85L capacity in a stainless steel finish. It includes seven
functions, such as Bake or Grill, with AeroTech™ technology
for even heat distribution. Designed for versatile cooking
with six shelf positions.
PRODUCTS
OB60SC7CEX3
60cm Series 5 Contemporary Oven 7 Function
FEATURES
1
Stainless Steel finish to match our Contemporary style
appliances
2 Generous 85L capacity
3 Seven oven functions including Classic Bake, Fan Forced
and Grill
4 AeroTech™ technology for even heat circulation
5 The CoolTouch door with triple glazing and a cooling
system ensures it’s safe to touch from the outside
6 Designed for multi shelf cooking with 6 shelf positions
SERIES & STYLE
Series 5
Contemporary
ACCESSORIES
1
Telescopic Clip-On Runners
2 Step Down Wire Shelf
3 Wire Shelf
4 Flat Brushed Baking Tray
5 Roasting Dish
6 Catalytic Panels
<< CONTENTS<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 6PLANNING GUIDE COOKING - VERSION A - OCTOBER 202490003676A
SPECIFICATION GUIDE | OVEN, 60CM
OB60SC7CEX4
Oven - Stainless Steel
SPECIFICATION GUIDE | OVEN, 60CM
OVERVIEW
This Series 5 Contemporary style oven features a spacious
85L capacity in a stainless steel finish. It includes seven
functions, such as Bake or Grill, with AeroTech™ technology
for even heat distribution. Designed for versatile cooking
with six shelf positions.
PRODUCTS
OB60SC7CEX4
60cm Series 5 Contemporary Oven 7 Function
FEATURES
1
Stainless Steel finish to match our Contemporary style
appliances
2 Generous 85L capacity
3 Seven oven functions including Classic Bake, Fan Forced
and Grill
4 AeroTech™ technology for even heat circulation
5 The CoolTouch door with triple glazing and a cooling
system ensures it’s safe to touch from the outside
6 Designed for multi shelf cooking with 6 shelf positions
SERIES & STYLE
Series 5
Contemporary
ACCESSORIES
1
Step Down Wire Shelf
2 Wire Shelf
3 Flat Brushed Baking Tray
4 Roasting Dish
<< CONTENTS<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 7PLANNING GUIDE COOKING - VERSION A - OCTOBER 202490003676A

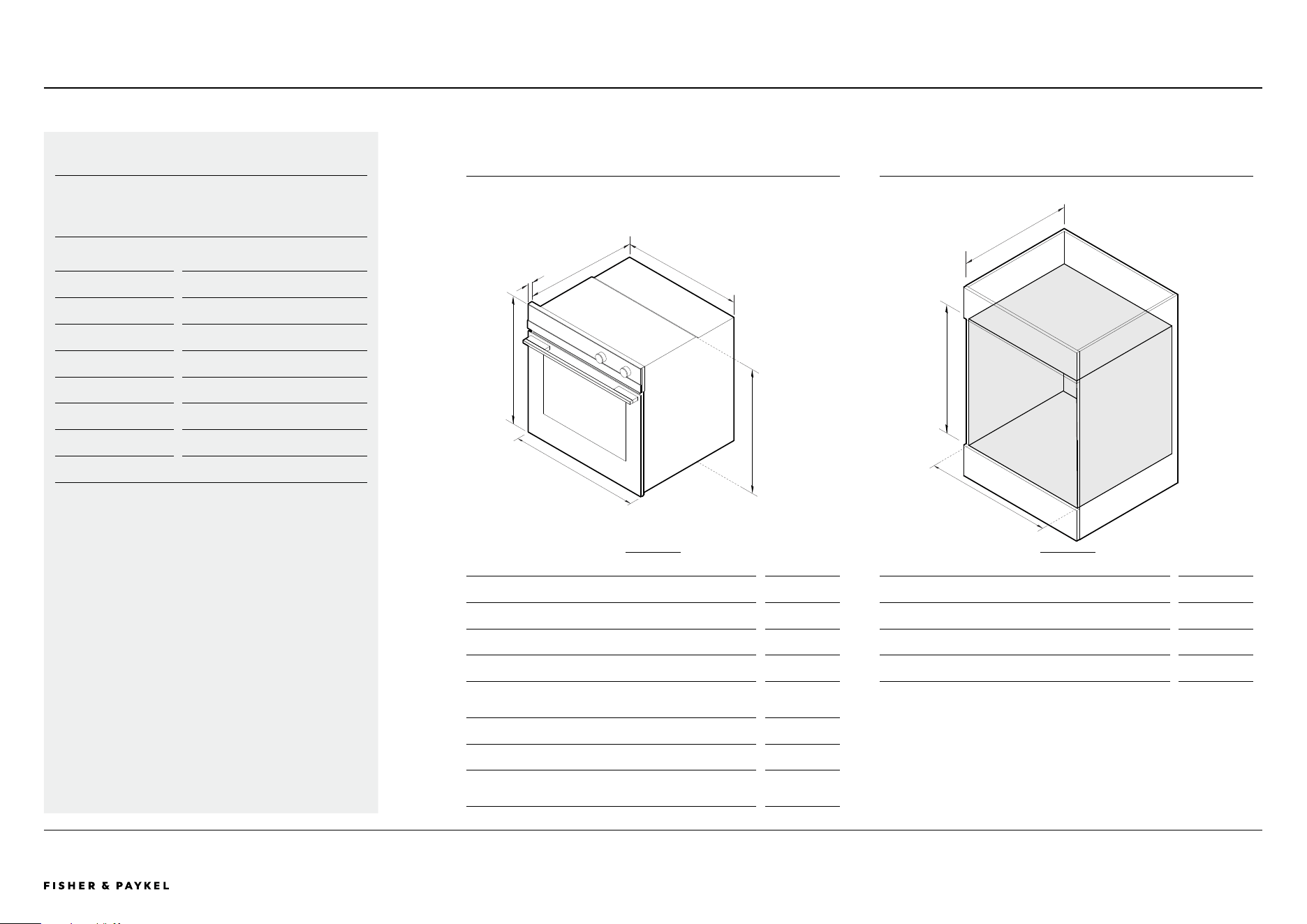

CAVITY DIMENSIONS: STANDARD INSTALLATION
mm
A Minimum inside height of cavity 580
B Minimum inside width of cavity 560
C Minimum inside depth of cavity 550
PRODUCT DIMENSIONS
mm
A Overall height 598
B Overall width 597
C Depth of chassis 545
D Thickness of oven control panel
(excl. handle, trim and dials)
20
E Height of chassis 575
F Width of chassis 556
Depth of oven door when fully open
(measured from front of control panel)
466
OB60SC7CEB1, OB60SC7CEX3, OB60SC7CEX4
SPECIFICATION GUIDE | OVEN, 60CM
SPECIFICATIONS
Model No.
OB60SC7CEB1, OB60SC7CEX3,
OB60SC7CEX4
Dimensions H 598mm W 597mm D 565mm
Total Oven Capacity 85L
Weight
Packaged 45kg
Unpackaged 32kg
Electrical
Supply 220-240 V, 60 Hz
Service 15 A
A
B
C
C
A
B
d
ISO VIEWISO VIEW
f
e
<< CONTENTS
© FISHER & PAYKEL LIMITED 2024 PAGE 8PLANNING GUIDE COOKING - VERSION A - OCTOBER 202490003676A
DATA SHEET
Data Sheet
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
INDICATES PRODUCT DATUM -------------------------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
© FISHER & PAYKEL LIMITED 2024 PAGE 9PLANNING GUIDE COOKING - VERSION A - OCTOBER 202490003676A
Model no:
Oven, 60cm - OB60SC7CEB1, OB60SC7CEX3, OB60SC7CEX4
Product Dimensions
mm
A Overall height of product
598
B Overall width of product 597
C Depth of control panel
(excludes handle, front trim and dial)
20
D Depth of chassis and control panel
(excludes handle, front trim and dial)
562
E Height of chassis 575
F Width of chassis
556
G Depth of chassis
545
H Height of control panel
112
I Height of trim on control panel
38
J Height from bottom datum to top of oven door 473
K Height from bottom datum to centerline of handle
453
L Height from bottom datum to bottom of door
10
M Width of handle
565
N Depth of handle
42
O Thickness of handle
16
P Depth of door when open (measured from front of door)
466
Minimum Clearances - Flush Installation
mm
Minimum inside height of cavity
580
Minimum inside width of cavity
560
Minimum inside depth of cavity*
550
Minimum clearance above oven control panel to upper cabinetry front
panel or appliance
2
Minimum clearance between bottom of oven chassis to lower
cabinetry front panel or appliance
2
*Measured from front of control panel.
Note: For full installation and clearance details please refer to our installation manual.

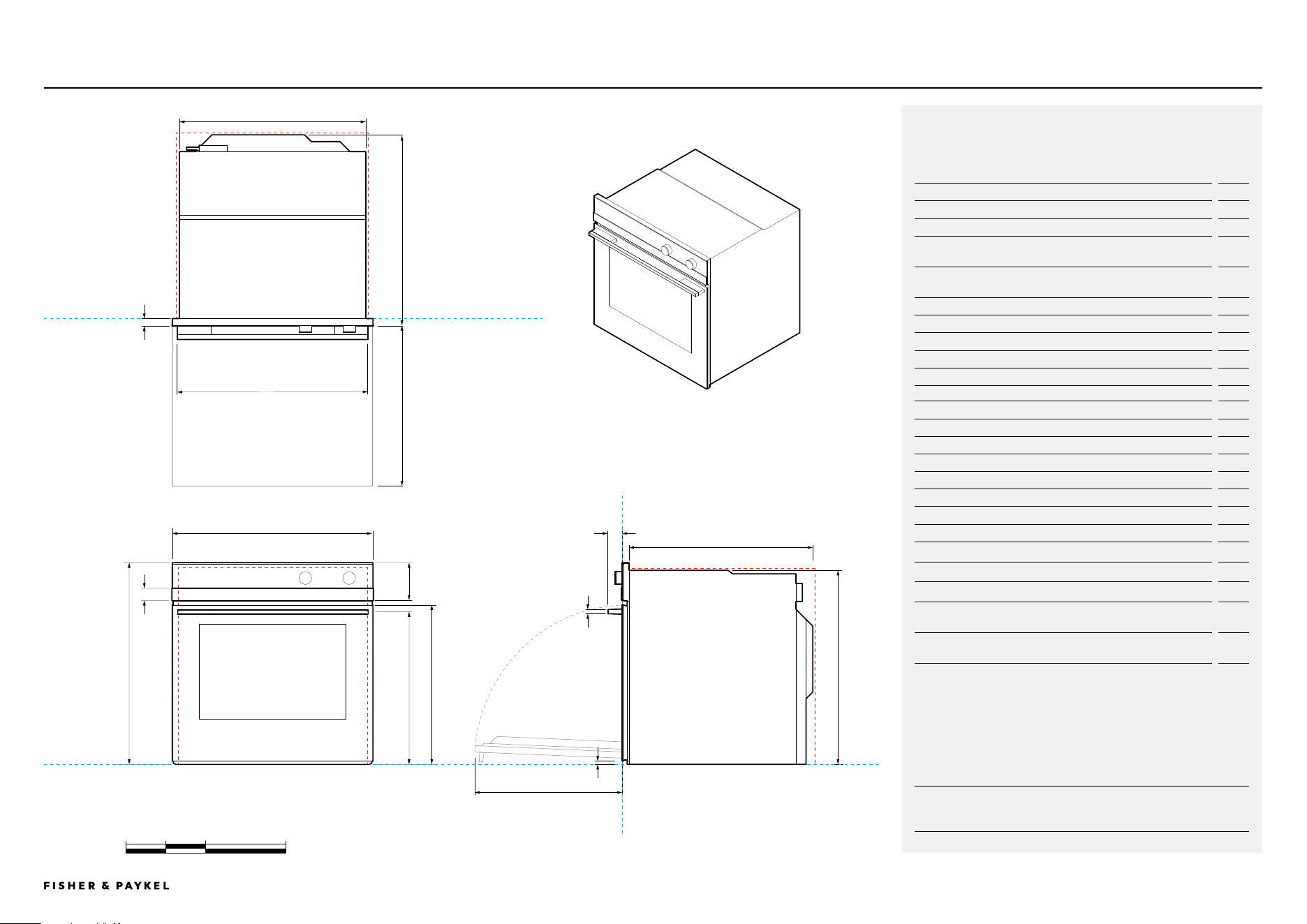

OB60SC7CEB1, OB60SC7CEX3, OB60SC7CEX4DATA SHEET | OVEN, 60CM
