JUMPINGJACK
JXPT36K
36" CONCRETE POWER TROWEL
P
arts Manual
A WARNING: Read and understand all instructions, warnings, and cautions before using this
product. Failure to follow the instructions, warnings, and cautions may result in serious personal
injury and/or property damage.
Page 22 of 33
Parts Diagram

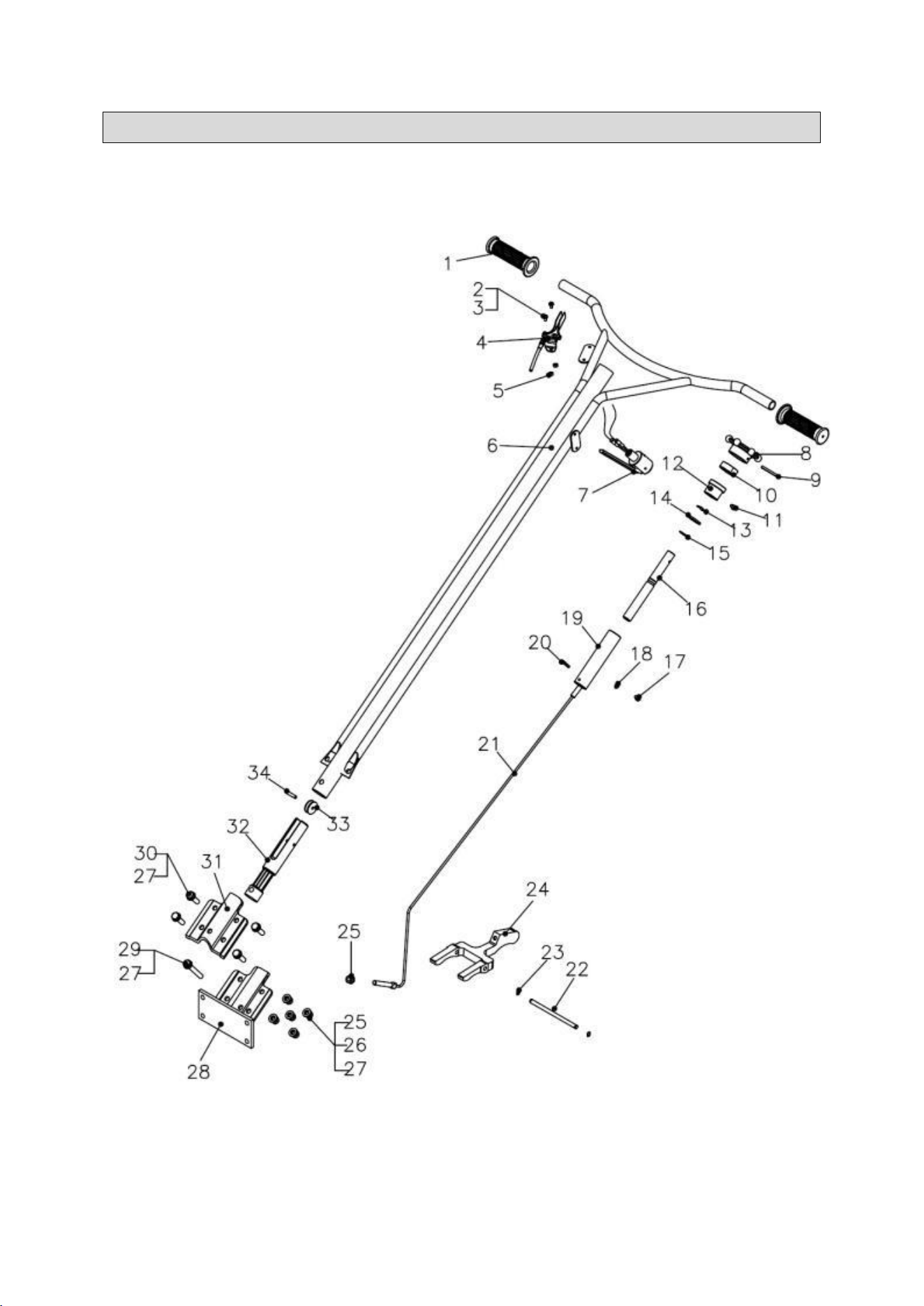

Handle
Page 23 of 33
REF
Parts No.
Description
Q’TY
Dimension
1
RG-003
Plastic Cover
2
2
QSC-M4*8
Screw
2
M4x8
3
QWS-PM4
Plate Washer
2
M4
4
TSA-01
Throttle Assy.
1
5
QNT-NM4
Nylock Nut
2
M4
6
W436F-001
Handle WA
1
7
PAS-02
Stop Switch(release bar Type)
1
8
436F-01-001
Adjust Knob
1
9
QSP-5X50
Spring Pin
1
5x50
10
QBR-51104
Bearing
1
11
QBL-M6X10
Bolt
1
M6x10
12
436F-01-004
Aluminium Guide
1
13
QWS-WM19
Wave Washer
1
M19
14
QWS-PM19
Plate Washer
1
M19
15
QSR-S18
Snap Ring
1
S18
16
436F-01-002
Adjust Screw Pipe
1
17
QBL-M6X8
Bolt
1
M6x8
18
QWS-PM6
Spring Washer
1
M6
19
436F-01-003
Screw Guide
1
20
QSP-5X30
Spring Pin
1
5x30
21
436F-01-007 WT
Steel Wire
1
22
436F-02-004
Yoke Arm Pin
1
23
QSR-S10
Snap Ring
2
S10
24
436F-02-003B
Yoke Arm
1
25
QNT-NM10
Nylock Nut
10
M10
26
QWS-SM10
Spring Washer
14
M10
27
QWS-PM10
Plate Washer
18
M10
28
436F-02-001
Handle Support Base
1
29
QBL-M10X70
Bolt
1
M10x70
30
QBL-M10X35
Bolt
4
M10x35
31
436F-02-002
Upper Bracket
1
32
436F-01-005
Alumium yoke
1
33
436A-01-010
Wheel
1
34
QSP-3X30
Spring Pin
1
3x30
Page 24 of 33

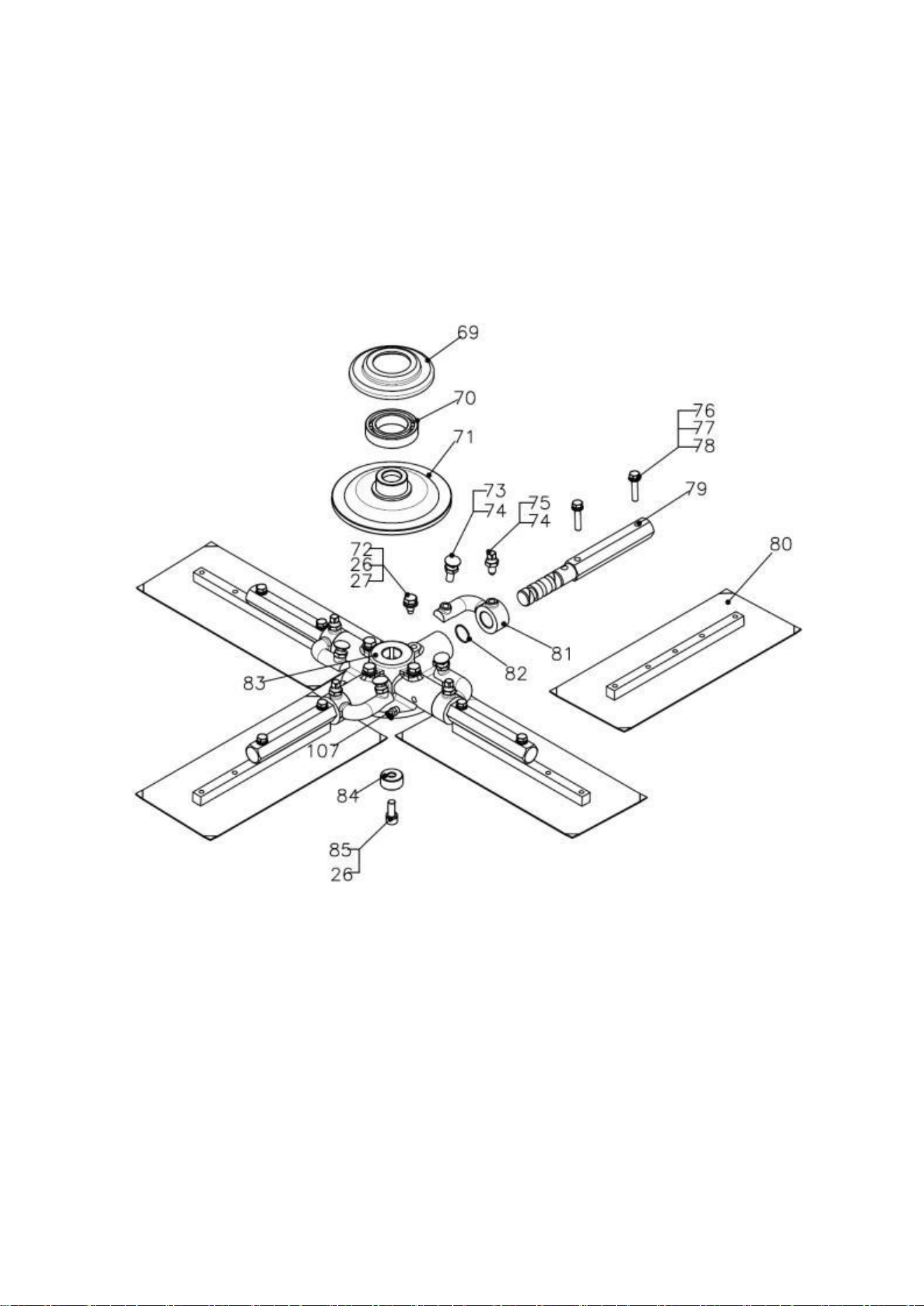

Blade
Page 25 of 33
REF
Parts No.
Description
Q’TY
Dimension
26
QWS-SM10
Spring Washer
5
M10
27
QWS-PM10
Plate Washer
4
M10
69
436F-02-005B
Press Plate Cap
1
70
QBR-6009
Bearing
1
6009
71
436F-02-006B
Press Plate Cap
1
72
QBL-M10X20
Bolt
4
M10x20
73
QBL-BBM10X35
Round Head Bolt
4
M10x35
74
QNT-TM10
Thin Nut
8
M10
75
QBL-SHM10X30
Square Head Bolt
4
76
QBL-7/16X11/2
Bolt
8
7/16*3/2L
77
QWS-SM8
Spring Washer
8
M8
78
QWS-PM8
Plate Washer
8
M8
79
436F-02-009B
Blade Arm
4
80
436F-02-014
Blade Assembly
4
81
436F-02-008
Tilt Arm
4
82
QOR-S22
O-ring
4
22x1.5t
83
436F-02-007B
Spider
1
84
436F-02-010
Spider Bushing
1
85
QBL-LM10X30
Socket Bolt
1
M10x30
Page 26 of 33

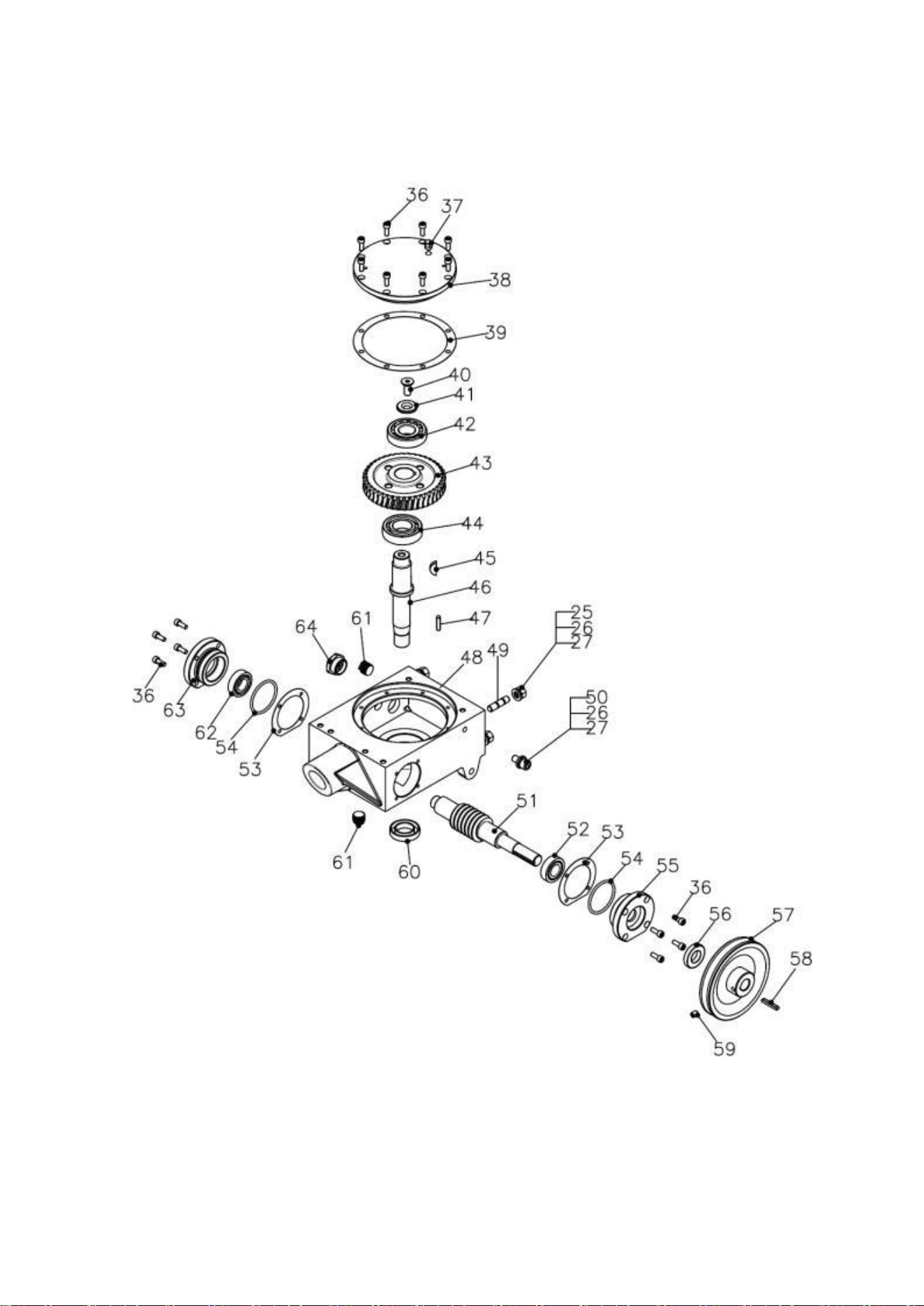

Gear Box
Page 27 of 33
REF
Parts No.
Description
Q’TY
Dimension
436F-03
Gear Box Assembly
1
25
QNT-NM10
Nylock Nut
4
M10
26
QWS-SM10
Spring Washer
5
M10
27
QWS-PM10
Plate Washer
5
M10
36
QBL-M6X16
Bolt
16
M6x16L
37
QRV-M8
Release Valve
1
38
436F-03-004
Big Cover
1
39
436F-03-005
Gasket of Big Cover
1
40
QBL-FHM10x25
Flat Socket Head Bolt
1
M10x25
41
QWS-SSM10
Washer
1
M10
42
QBR-30305
Bearing
1
30305
43
436F-03-008
Worm Gear
1
44
QBR-6206
Bearing
1
6206
45
QKY-W6X10X25
Wood Key
1
6x10x25
46
436F-02-012
Main Shaft
1
47
QKY-6X25
Key
1
6x25
48
436F-03-001
Shell
1
49
QBL-STM10x40
Stud Bolt
4
M10x40
50
QBL-M10X16
Bolt
1
M10x16
51
436F-03-007
Worm Shaft
1
52
QBR-32004
Bearing
1
32004
53
436F-03-006
Gasket of Side Cover
2
54
QOR-P55
O-Ring
2
55x3.5t
55
436F-03-003
Output Side Cover
1
56
QOS-20X40X8
Oil Seal
1
20x40x8t
57
436F-04-005
Pulley
1
58
QKY-5X35
Key
1
5x35
59
QBL-M8X10
Bolt
1
M8x10
60
QOS-27X47X10
Oil Seal
1
27x47x10t
61
436A-03-008WT
Oil Drain
2
62
QBR-6004
Bearing
1
6004
63
436F-03-002
Side Cover
1
64
QOCW-M27x1.5
Oil Check Windows
1
M27x1.5
Page 28 of 33

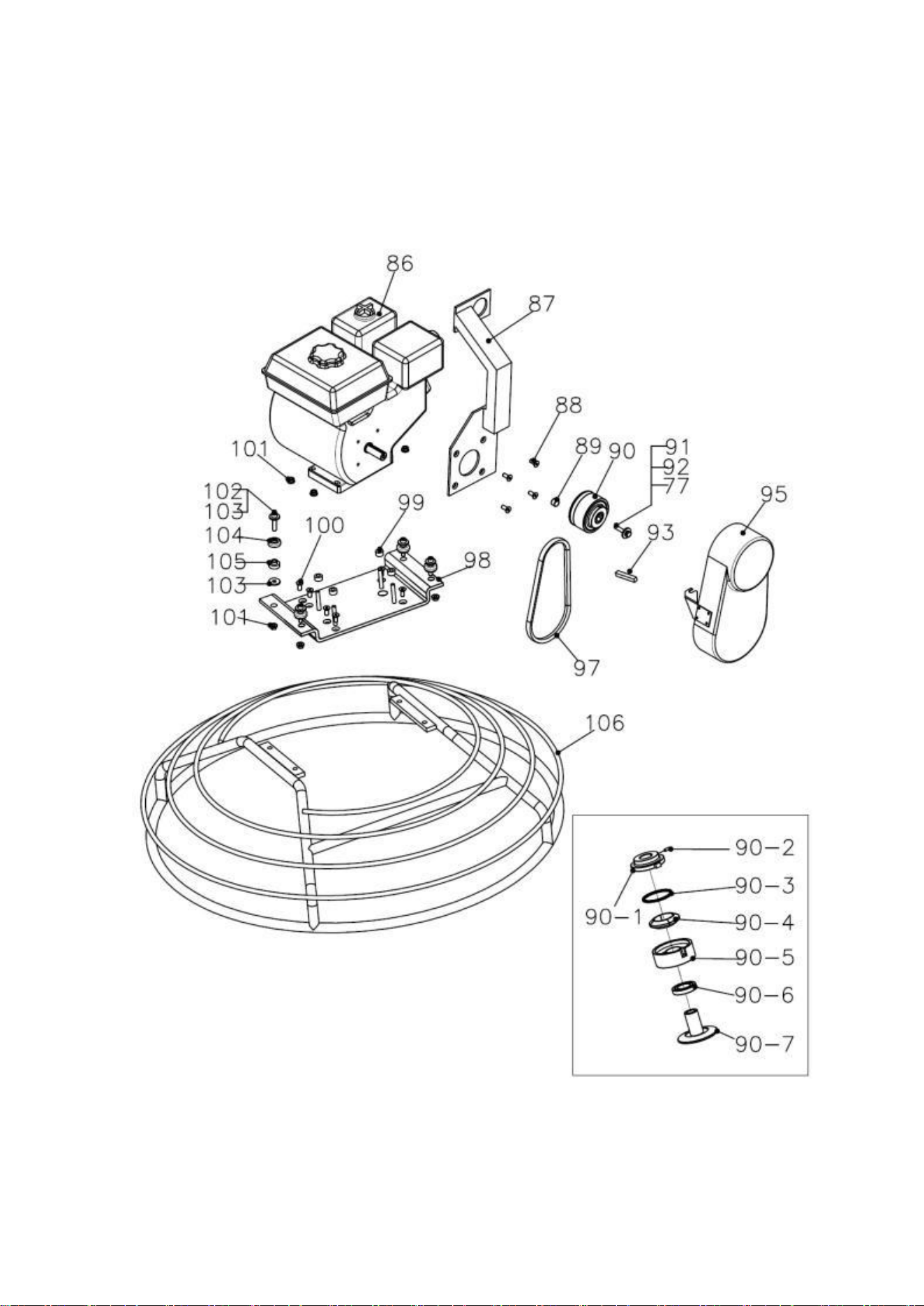

Safety Ring
Page 29 of 33
REF
Parts No.
Description
Q’TY
Dimension
77
QWS-SM8
Spring Washer
M8
86
GX160
Engine GX-160
1
87
W436F-005
Hook Lift
1
(Option)
88
QBL-SHM8X20
Socket Head Cap Bolt
4
(Option)
89
436F-04-013
Clutch Busing
1
90
CA-01
Clutch
1
90-1
CA-01-004
Face Plate
1
90-2
QBL-AM8x16
Set Screw
2
M8x16
90-3
CA-01-005
Clutch Spring
1
90-4
CA-01-003
Shoe Weight
1
90-5
CA-01-002
Clutch Drum
1
90-6
QBR-6006
Bearing
1
6006
90-7
CA-01-001
Clutch Shaft
1
91
QBL-M8X35
Bolt
1
92
QWS-SPM8
Special Plate Washer
1
93
QKY-5x5x50
Key
1
95
436F-04-006
Belt Cover
1
97
QBT-A26
V-Belt
1
A26
98
W436F-002
Engine Mount Plate
99
436F-04-107
Engine Mount Bushing
100
QBL-FHM8X20
Flat Head Cap Bolt
4
101
QNT-M8
Nut
8
M8
102
QBL-LM8X40
Socket Head Bolt
4
M8X40
103
QWS-PM8
Plate Washer
8
M8
104
436F-04-004
Cup
4
105
436F-04-003
Rubber
4
106
W436F-004B
Safety Ring
1
