BG-COMMANDER-ULTRAX
4K HDMI 4-Channel Portable Production Switcher/Joystick
Controller Combo with Touchscreen, PIP/Chroma Key, and USB-C
Streaming
User Manual
BZBGEAR BG-COMMANDER-ULTRAX PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-COMMANDER-ULTRAX PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 7
Operation Controls and Functions 8
Connection Diagram 9
Troubleshooting 10
Tech Support 11
Limited Product Warranty Terms 11
Mission Statement 12
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-COMMANDER-ULTRAX PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-COMMANDER-ULTRAX PRODUCT MANUAL
Introduction
The BG-COMMANDER-ULTRAX is a powerful all-in-one production switcher and
joystick controller designed for professional yet portable multi-camera workflows.
Equipped with four HDMI 4K inputs and dual HDMI outputs, it delivers smooth
1080p60 program output while supporting advanced features such as
Picture-in-Picture (PIP), chroma key, logo overlay, and multiple transition effects. Its
7-inch LCD touchscreen and intuitive joystick provide precise camera control, while
the integrated T-bar and knob controls allow operators to execute seamless live
productions with ease.
Built for modern streaming and recording needs, the BG-COMMANDER-ULTRAX
supports direct program recording to USB drives or SD cards, as well as USB-C
virtual camera output for effortless integration with popular live streaming and
conferencing platforms. Also equipped with professional audio mixing inputs, tally
light support, and PTZ camera control via IP or serial protocols.
Features
● 4K HDMI Input, Full HD Output: Supports four HDMI 4K@30 inputs with two HDMI
1080p60 outputs (Program + Monitor).
● Touchscreen Interface: 7-inch LCD display (1024×600) for real-time monitoring,
settings, and control.
● Integrated Joystick Control: 4D joystick for smooth PTZ camera operation with
ONVIF 2.8 and VISCA over IP support.
● Professional Switching Tools: T-bar and step-less knob for seamless transitions.
● Built-In Video Effects: Picture-in-Picture (PIP), Chroma Key, logo overlay, and
transition effects (CUT/AUTO/FTB).
● Dual Recording Options: Record directly to USB storage devices or SD cards
without needing a computer.
● USB-C Virtual Camera Output: Stream switched video/audio directly to
conferencing and streaming software.
● Professional Audio Integration: 3x audio inputs and a 3.5mm headphone jack for
monitoring and mixing.
● Expanded Control Capabilities: Supports Tally light interface for live production
status feedback.
● Compact & Portable Design: Lightweight build ideal for e-commerce, online
classes, worship services, and live events.
● Flexible Connectivity: LAN port for IP control, multiple video formats supported,
and DC 12V power input.
● Durable Performance: Low power consumption (<15W) with wide operating
temperature range (-10°C to 50°C).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-COMMANDER-ULTRAX PRODUCT MANUAL
Packing List
● 1x BG-COMMANDER-ULTRAX
● 1x DC 12V Power Adapter
● 1x Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-COMMANDER-ULTRAX PRODUCT MANUAL
Specifications
Technical Specifications
Operating system
Linux
LCD display size
7-inch LCD screen
Display resolution
1024×600
Decoding ability
Input: 4K@30Hz (3840×2160) / 1080p@60Hz (1920×1080);
Output: 1080p@60Hz (1920×1080), compatible with 1080p@30Hz /
720p@60Hz / 480p / 576p
Control protocol
ONVIF 2.8, VISCA Over IP
Interface
4× Video input (HDMI IN);
2× Video output (HDMI OUT (PGM/MON));
1× Video Output (USB-C (Webcam));
3× Audio Input (AUDIO IN);
1× Headphone Jack (3.5mm);
2× Control Ports (Tally & LAN);
2× Data Storage (USB-A 2.0 & SD Card);
1× Power Port (DC12V IN)
System setting
Supports video settings;
audio settings;
recording settings;
device control;
system maintenance
Operating
components
4D control joystick, step-less knob, sliding T-bar
Hardware Specifications
Power supply
Standard 5.5/2.1 power connector, DC 12V 2A ±10%
Power consumption
< 15W
Working
temperature
14°F - 122°F / -10°C - 50°C
Working humidity
20%–80% Non-condensing
Storage
temperature
-40°F - 140°F / -40°C - 60°C
Storage humidity
0%–90% Non-condensing
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-COMMANDER-ULTRAX PRODUCT MANUAL
Operation Controls and Functions

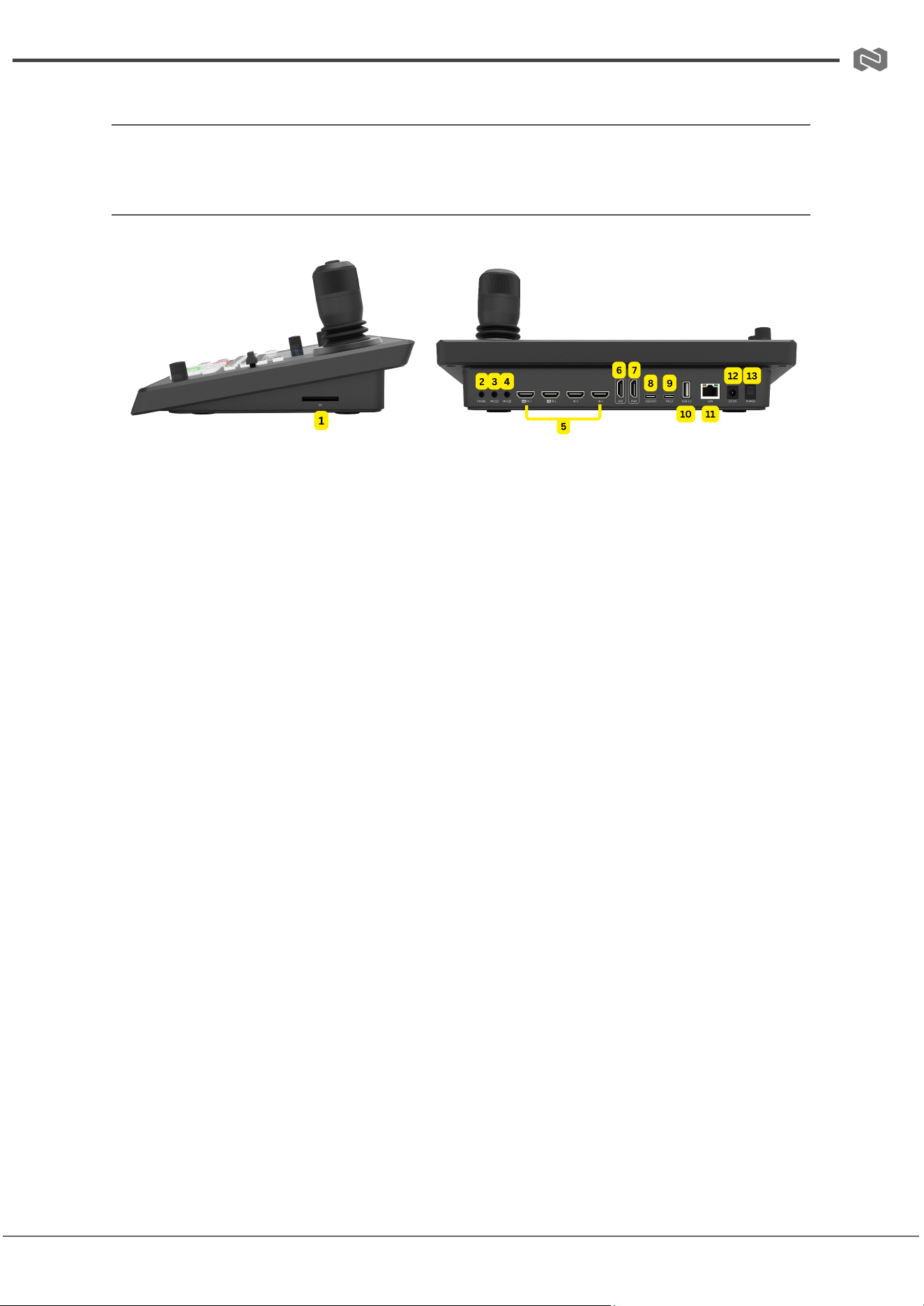

Front and Rear Panel
1. SD Card Slot – For direct recording to SD media.
2. Headphone Jack (3.5mm) – For real-time audio monitoring.
3. MIC Input 1 (3.5mm) – Microphone/line input channel 1.
4. MIC Input 2 (3.5mm) – Microphone/line input channel 2.
5. HDMI IN 1-4 (4K) – HDMI video input, supports up to 4K@30Hz.
6. HDMI AUX OUT – Assignable auxiliary HDMI output for monitoring.
7. HDMI PGM OUT – Program HDMI output at up to 1080p60.
8. USB OUT (USB-C) – Virtual webcam output for direct streaming to a PC.
9. TALLY Port – For connecting tally lights during live productions.
10. USB 2.0 Port (Type-A) – For external USB storage devices.
11. LAN Port (RJ45) – Network connection for PTZ/IP camera control and ONVIF/VISCA
over IP.
12. DC 12V Power Input – Power supply connection.
13. Power On/Off Switch - Manually power on/off
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-COMMANDER-ULTRAX PRODUCT MANUAL

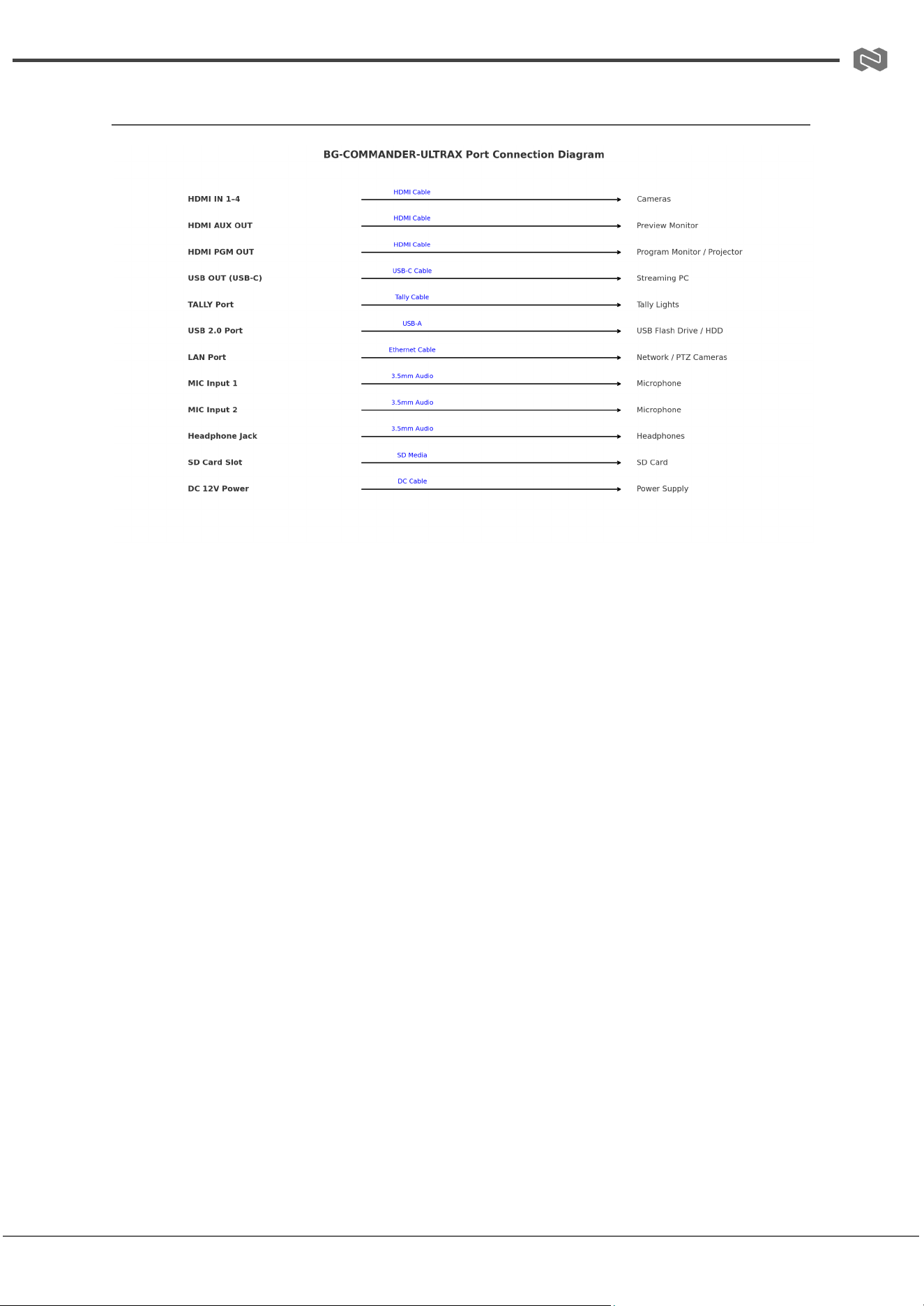

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-COMMANDER-ULTRAX PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-COMMANDER-ULTRAX PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-COMMANDER-ULTRAX PRODUCT MANUAL
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
