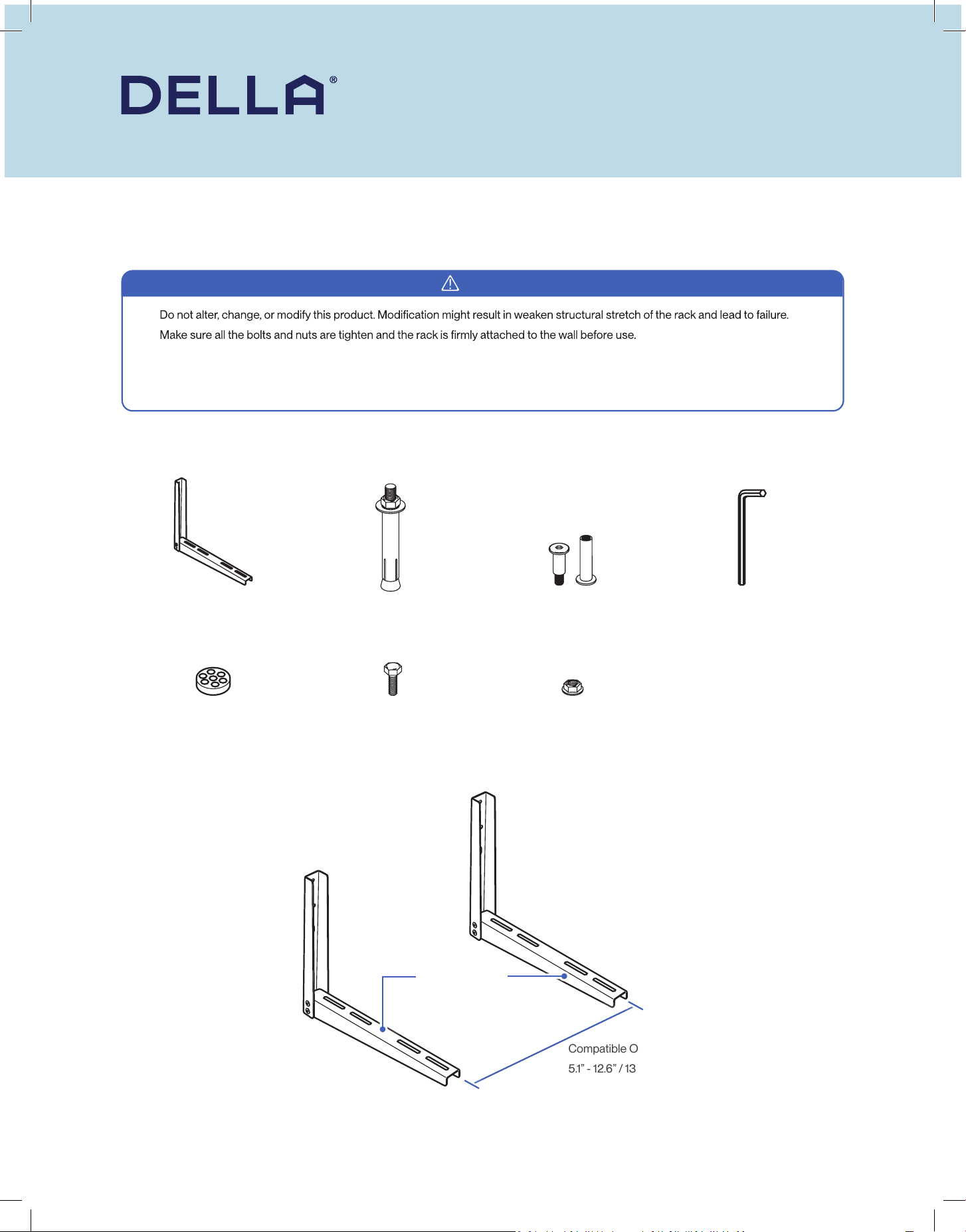

Wall Mounting Bracket
For 9k - 12k
Instruction Manual
Warning
•
•
• Be caution of sharp edges of the rack.
• This rack is only designed to be used for mounting mini split AC outdoor unit. Do not use it for other purposes.
• Do not climb on the rack.
Warning and Safety
Installation Preview
Package Content
• Read this guide before installation. Failure to follow the safety instructions may result in property damage or serious injury.
• Please Keep this manual.
Mounting Rack
2x
Dampening Pad
4x
M8 x 30 Bolt
4x
Pivot Bolt Set
2x
M8 Nut
4x
Hex Key
2x
Weight Capacity:
352.7 lb / 160 kg
Compatible Outdoor Unit Width:
5.1” - 12.6” / 130mm - 320mm
v.20250312048-B-352
M8 x 83 Mounting Bolt
6x

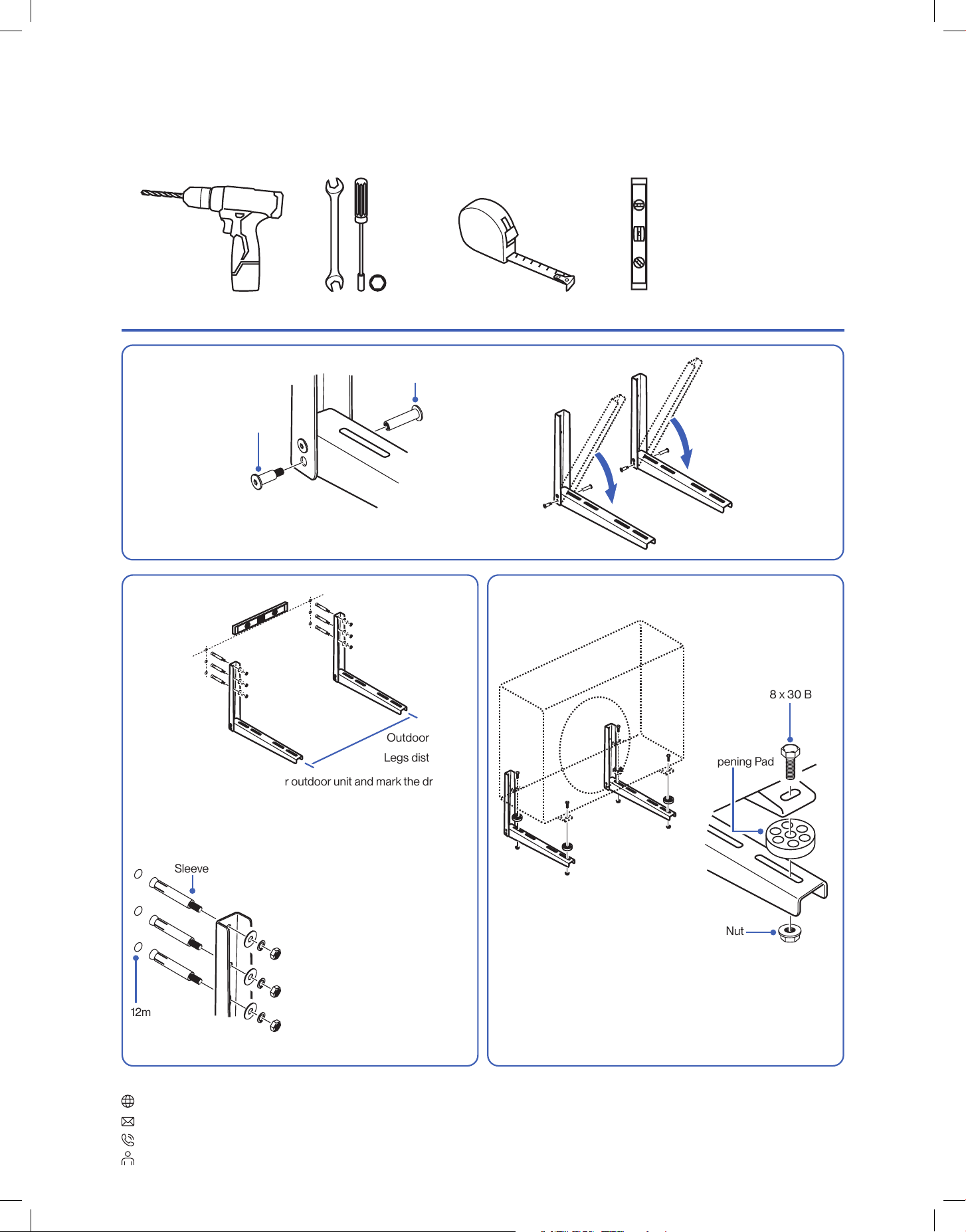

Tools Needed (Not included)
Electric Drill Measuring TapeHex Nut Driver / Wrench
• Unfold the rack and lock the arm in place
with the provided pivot bolt set.
• The provided sleeve
anchor can be used on
both concrete wall or
wood stud.
• Alternatively, you can
use heavy duty coach
screws (not included) to
mount the bracket on
the wall.
• Measure the width of your outdoor unit and mark the drilling
position on your wall. Make sure the wall can hold the weight
of your rack and AC.
• Ax the rack on the wall. Make sure the rack is leveled.
• Place the dampening pad on the rack then mount the mini
split outdoor unit onto the rack.
• Tighten all the fasteners, bolts, and nuts.
Installation Instruction
© Della All rights reserved.
The design and specications are subject to change without prior
notice for product improvement. Any updates to the manual will be
uploaded to the della website.
www.dellahome.com
support@dellahome.com
800–863–4143
6:00 a.m. – 4:00 p.m. PST Monday – Friday
Pivot Bolt
12mm / 1/2”
hole
Pivot Bolt Sleeve
Dampening Pad
M8 x 30 Bolt
M8 Nut
01
02 03
Sleeve Anchor
Outdoor Unit
Legs distance
Spirit Level
