Wall Mounting Bracket
For 6k - 36k
Instruction Manual
Warning
•
•
• Be caution of sharp edges of the rack.
• This rack is only designed to be used for mounting mini split AC outdoor unit. Do not use it for other purposes.
• Do not climb on the rack.
Warning and Safety
Installation Preview

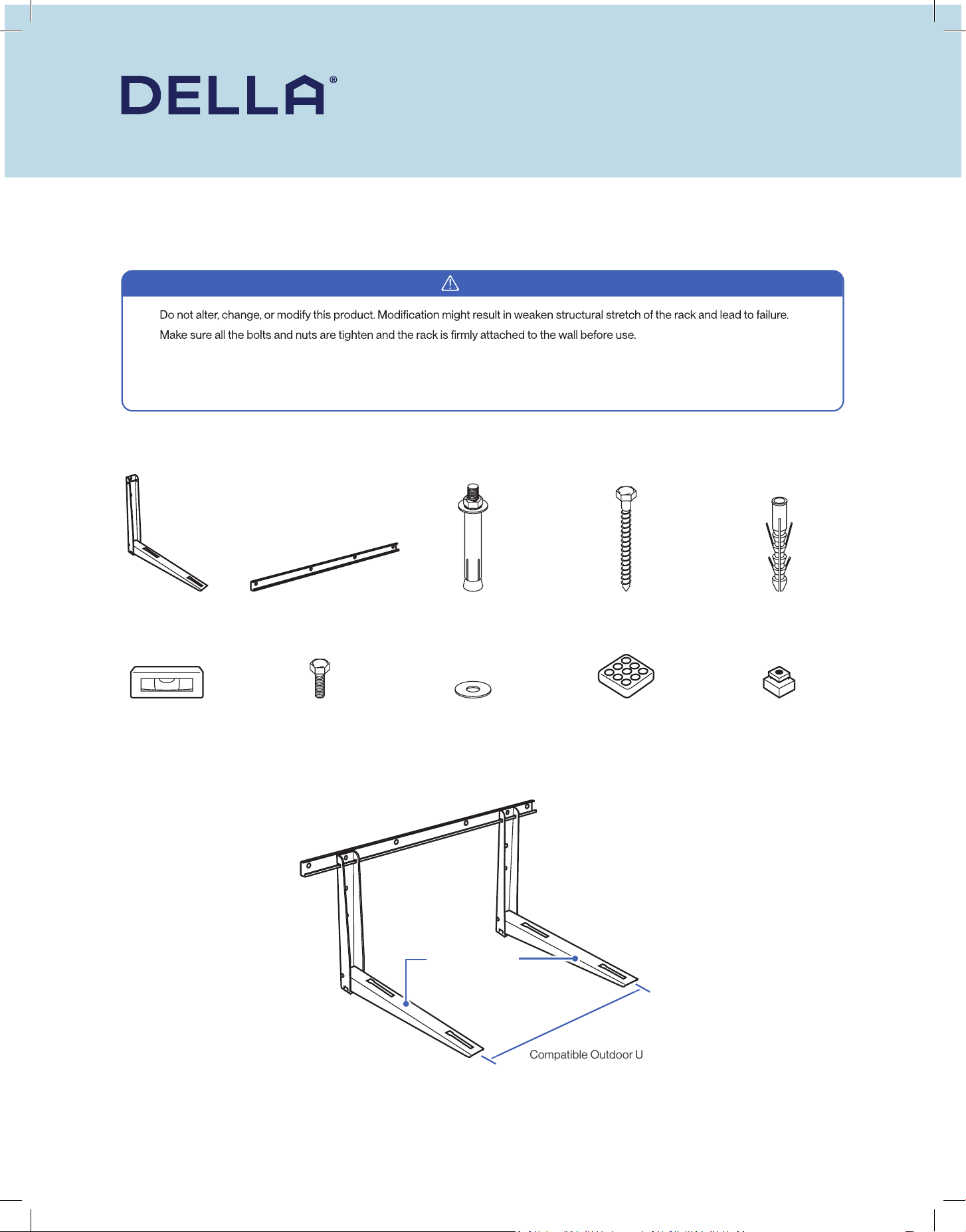

Package Content
• Read this guide before installation. Failure to follow the safety instructions may result in property damage or serious injury.
• Please Keep this manual.
Mounting Arm
2x
M8 x 30 Bolt
4x
Mounting Bracket
1x
Washer
4x
Dampening Pad Mounting Nut
4x 4x
Expansion Wall Anchor
Spirit Level
6x
1x
Compatible Outdoor Unit Width:
10.2” - 15.7” / 260mm - 400mm
v.20250321048-B-485
M8 x 80 BoltM8 x 83 Mounting Bolt
6x 6x
Weight Capacity:
485 lb / 220 kg
Tools Needed (Not included)
Electric Drill Measuring TapeHex Nut Driver / Wrench

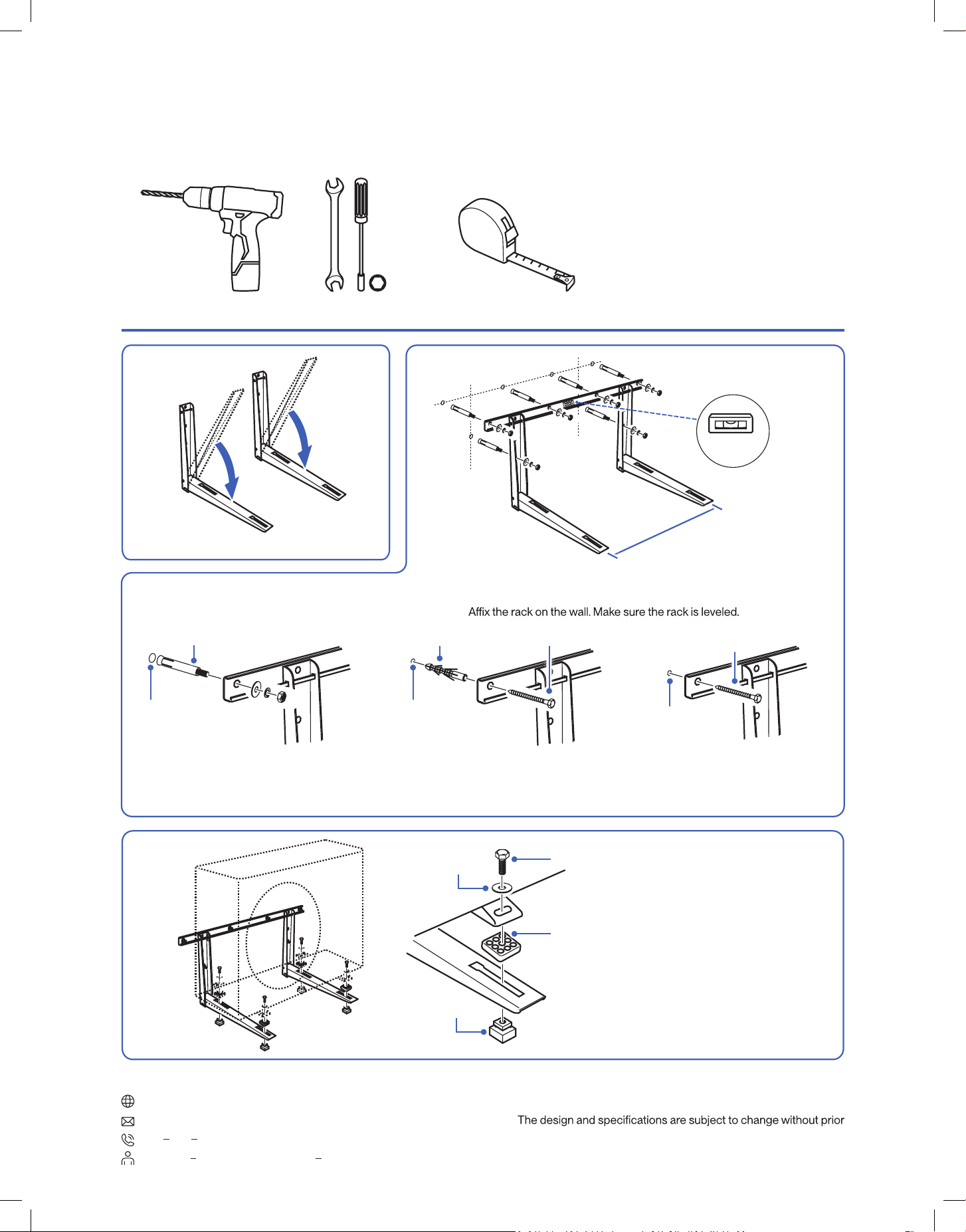

• Unfold the mounting arms.
• Measure the width of your outdoor unit and mark the drilling position on
your wall. Make sure the wall can hold the weight of your rack and AC.
•
• Mounting the rack on concrete wall.
- Sleeve anchor or expansion wall anchor must be used when mounting the rack on
concrete or brick wall.
• Mounting the rack on wood stud.
• Place the dampening pad on the rack then
mount the mini split outdoor unit onto the rack.
• Tighten all the fasteners, bolts, and nuts.
Installation Instruction
© Della All rights reserved.
notice for product improvement. Any updates to the manual will be
uploaded to the della website.
www.dellahome.com
support@dellahome.com
800
863 4143
6:00 a.m. 4:00 p.m. PST Monday Friday
M8 x 30 Bolt
Dampening Pad
Mounting Nut
Washer
01
03
02
Outdoor Unit
Legs distance
12mm / 1/2”
pilot hole
Sleeve Anchor
6mm / 1/4”
pilot hole
6mm / 1/4”
pilot hole
M8 x 80 Bolt
M8 x 80 Bolt
Expansion Wall Anchor
Spirit Level
