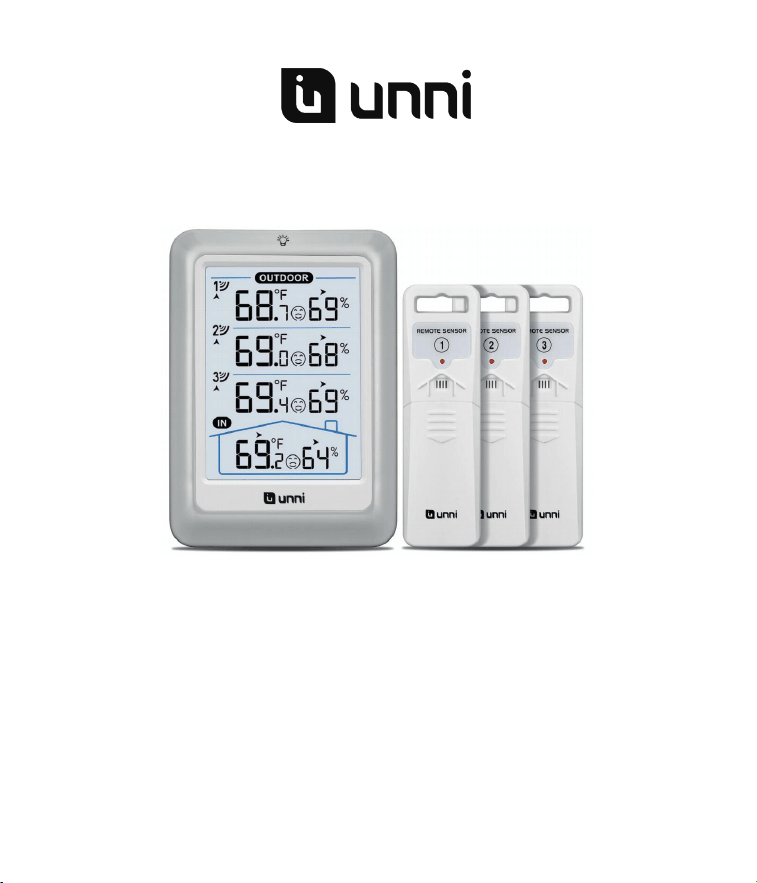

Digital Wireless Thermometer
OPERATING INSTRUCTION
Base unit: UN0582
Wireless sensor: UN02
If you want to know about our features or support solutions, please let us know! We
really hope that owning an Unni Technology product is not only a practical
experience, but also a pleasure.
Package included
..................................................................................................................... 3
Technical data
.......................................................................................................................... 3
Base unit
............................................................................................................................... 3
Wireless sensor
.................................................................................................................... 3
USB cable
............................................................................................................................. 4
Product functions
......................................................................................................................4
Wireless thermometer
..........................................................................................................4
Wireless sensor
.................................................................................................................... 4
Overview of weather station
................................................................................................5
Operating elements and parts of the weather station and wireless sensor
....................
..
..
6
How to set up
.......................................................................................................................... 8
Insert batteries
.................................................................................................................... 8
Pairing the outdoor sensor with the station
........................................................................8
Setting The Remote Temperature and Humidity Alerts........................................................9
Deactivate/Activate Alerts ....................................................................................................10
Other functions
....................................................................................................................... 10
Switch temperature unit
.....................................................................................................10
Backlight (HI-LOW-OFF)
................................................................................................... 11
Low battery indicator
..........................................................................................................11
Daily MAX/MIN data
...........................................................................................................11
Comfort indicator................................................................................................................. 11
Trend
................................................................................................................................... 12
Ice alarm..................
............................................................................................................ 12
How to add extra sensors ........................................................................................................12
Where the sensor should be placed
.....................................................................................13
Where the station should be placed
.....................................................................................14
Resetting
................................................................................................................................. 14
Care and maintenance
.......................................................................................................... 14
Safety
...................................................................................................................................... 15
Danger from electricity (when using the usb cable)
............................................................15
Unpacking and checking
....................................................................................................... 16
FCC statement
........................................................................................................................16
Disclaimers
............................................................................................................................. 17
Trouble shooting
.....................................................................................................................17
Warranty and support .......................................................................
....................................... 18
Catalogue
Package included
• Wireless Thermometer x 1
• Wireless sensor x 3
• USB cable for base unit
• Operating instructions
Technical data
Base unit
Model: UN0582
Power consumption: 5.0V
500 mA
Power supply: 3 x LR06 (AAA) / 1.5 V (not included)
Temperature measuring range: 14.2°F ~ 122°F
Temperature measuring accuracy: 32～104°F: +/-1.8°F, other +/-3.6°F
Resolution: 0.1°F
Humidity measuring range: 20 % to 95 % relative humidity
Humidity measuring accuracy: +/- 5 % with a measuring range of 40% to 80%, +/-8%
with measuring range of 20% to 39% and 81% to 95%
Resolution: 1 %
Temperature and humidity data detection and sending period: every 30 seconds
Wireless sensor
Model: UN02
Batteries: 6 x LR6 (AA) 1.5 V (not included)
Temperature measuring range: - 40°F to 158°F
Temperature measuring accuracy: 32～104°F: +/-1.8°F, other +/-3.6°F
Protection type: IPX4: Protection against splash water from all directions
Transmission frequency: 433 MHz
Range: max. 328 ft (100 meters) (in open area)
Temperature and humidity data detection and sending period:
CH1: every 31 seconds; CH2: every 32 seconds; CH3: every 33 seconds
3
4
USB cable
Power consumption: 5.0V 500mA
Power cable: Length: 5.9 Ft
Note: With the continuous development and improvement of our products, the
design and technology may be changed.
Product functions
Wireless thermometer
• LCD display
• Indoor temperature display in °C/°F
• Indoor and outdoor humidity display
• Outdoor temperature display in °C/°F with up to three wireless sensors at different
measurement sites
• Minimum/maximum display for temperature and humidity
• Humidity and temperature trend display
• Outdoor temperature and humidity alerts
• Low battery indicator
• Battery or mains operation
Wireless sensor
• Temperature display in °F
• Humidity display in
%
• Range of up to 328 ft (100 meters) (in open area)
• Low battery indicator
• Wall mounting bracket
• Loop for hanging
5
Overview of weather station
1.Current channel of outdoor sensor
2.Outdoor temperature
3.Outdoor temperature trend
4.Outdoor temperature alert
5.Temperature unit
6.Comfort indicator
7.Outdoor humidity trend
8.Low battery indicator for outdoor
9.Outdoor humidity display in %
10.Outdoor Humidity alert
11.Indoor temperature trend
12.Indoor temperature
13.Comfort indicator
14.Indoor humidity display in %
15.Outdoor temperature trend
16.Low battery indicator for indoor
6
01
Operating buttons
Button ALERT1
* Turn on/off alerts for CH1
* Long press activate alert settings mode for CH1
* Save changes to
to
settings
Button ALERT2
* Turn on/off alerts for CH2
* Long press to activate alert settings mode for CH2
* Save changes to settings
Button ALERT3
* Turn on/off alerts for CH3
* Long press to activate alert settings mode for CH3
* Save changes to settings
Button CH
* Display weather data from various wireless sensors (channel
1.2.3)
* Long press to recon
nect wireless sensor connection
Operating elements and parts of the weather station and wireless sensor
7
1
Red pilot light (Light up for 1 second only when t r a nsmitting data)
2
TX button: press to transmit wireless signal to main unit
3

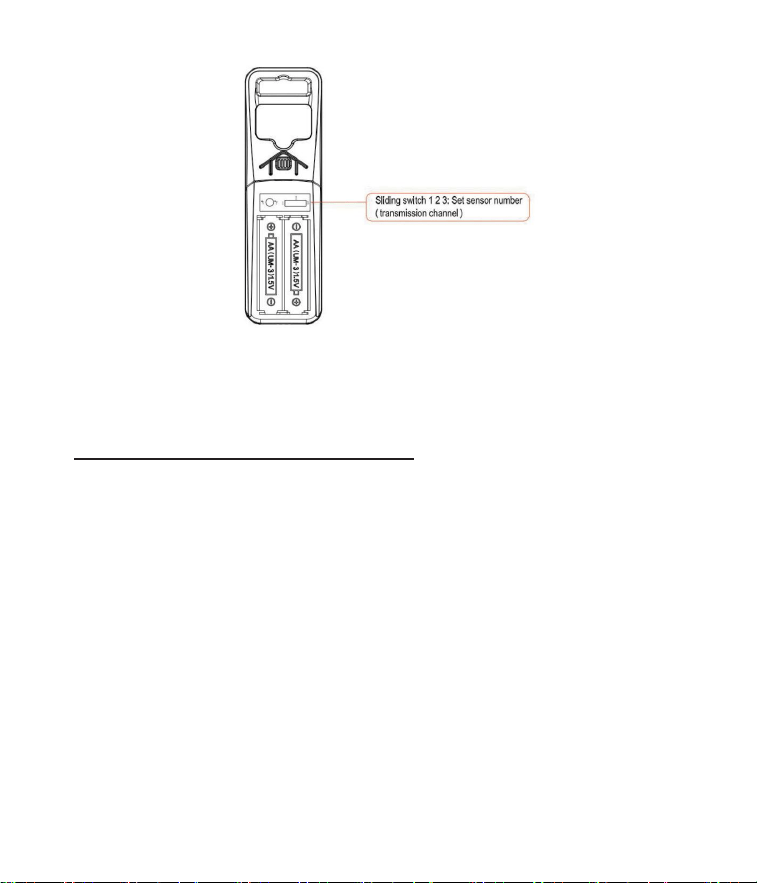

Sliding switch 1 2 3: Set sensor number (transmission channel )
4
Battery compartment
5
Loop for hanging
Note:
If you are going to use the wireless sensor included in the package, there is no need
to change the transmission channel inside the outdoor sensor.
Button
▲/MEM
* Set values (increase)
* Display stored MAX and MIN temperature and humidity values
* Long press Clear and re-record
Button
▼/°C°F
* Set values (decrease)
* Fahrenheit/Celsius
* Illumination backlight
02 Battery compartment
03 Adapter port
04 Loop for hanging
05 Foldable stand
Button (LIGHT/SNOOZE)
8
We have preset 3 transmission channels for you and made corresponding
identification.
Changing the transmission channel is only necessary when you are going to add
additional wireless outdoor sensor. See “ How to add extra sensors “.
How to set up
Insert batteries
1. Insert 2x AA batteries into your wireless sensor. Pay attention to the correct
polarity. While the sensor is transmitting, the red LED indicator will flash.
2.
Open the battery compartment of the weather st a tion and i nsert 3xAAA batteries in the
correct polarity. Close the battery compartment.
(Note: The screen will turn off after 10s a nd you will need to touch the
button t o
activate it.)
3.Plug into the USB cord, which will keep the backlight on and adjust 3 kinds of
brightness(high-low-off).
Pairing the outdoor sensor with the station
Once the wireless thermometer is turned on (plug in or insert batteries), it will start
receiving the pairing RF signals from the outdoor sensor with the same channel for 3
minutes. You can press the CH button on the base unit to match the correct outdoor
sensor.
Generally, the outd oor sensor will connec
t with the base unit automatically. If it failed,
please follow below steps to set:
• Make sure you set different channels for the sensor(1-3)
• Press the CH button once to adjust to the corresponding channel, and then long
press the CH button on the base unit to search signal from the outdoor sensor.
• The sensor receiving icon will flash when searching for the signal.
• After the sensor is connected, the icon will become stable.
• Your weather station will search for the signal ea
ch 3 minutes every hour
automatically until it is connected.
9
Setting The Remote Temperature and Humidity Alerts
1. Hold and press the ALERT1 button for 3 seconds to enter alert setting mode.
2. First, HI temperature starts flashing, use the ▲ and ▼ buttons to set the alert
values, then press the ALERT1 button to store the changed setting.
3. Then, LO temperature starts flashing, use the ▲ and ▼ buttons to set the alert
values, then press the ALERT1 button to store the changed setting.
4. And then, Hi humidity starts flashing, use the ▲ and ▼ buttons to set the alert
values, then press the ALERT1 button to store the changed setting.
5. Finally, LO humidity starts flashing, use the ▲ and ▼ buttons to set the alert
values, then press the ALERT1 button to store the changed setting.
Similarly, you can follow these steps to set ALE RT2 and ALERT3.
Note: The default value of HI temperature is 158°F, LO temperature is -40°F；Hi
humidity is 95%, LO humidity is 20%.
10
Deactivate/Activate Alerts
The alert is off by default and needs to be activated manually.
• Press and release the ALERT1 button to deactivate or activate the alert for CH1
• Press and release the ALERT2 button to deactivate or activate the alert for CH2
• Press and release the ALERT3 button to deactivate or activate the alert for CH3
• The alert icon will show when it is activated.
Other functions
Switch temperature unit
Press the ▼ button to switch the temperature unit: °C or °F.
Temperature: °F Temperature: °C
11
Backlight (HI-LOW-OFF)
• When the base unit is powered by USB cable, the backlight is adjustable: HI-LOW-
OFF.
• You can press the
(LIGHT/SNOOZE) button to adjust backlight.
Note: When the station is operated by batteries only, the backlight will turn off after
10s and by pressing the
(LIGHT/SNOOZE) button to activate it again.
Low battery indicator
• When there is a low battery symbol near Outdoor Temperature, you should
replace batteries of the wireless sensor.
• When there is a low battery symbol near Indoor Temperature, you should
replace batteries of the weather station.
Daily MAX/MIN data
All MAX / MIN temperature/humidity records will reset automatically every 24h.
From normal display, press and release the ▲ button to view:
• press x 1: MAX-- in
door and outdoor temperature/ humidity records.
• press x 2: MIN-- indoor and outdoor temperature/ humidity records.
• press x 3: back to normal display.
Note: Press and hold the ▲ button to delete the highest and lowest temperature and
humidity values since starts.
Comfort indicator
It depends on the humidity and indicates the comfort degree a person would feel.
12
Trend
For the temperature and humidity values measured by the base unit and wireless
sensor, the trend is displayed by an arrow:
Trend rising constant falling
Temperature
Humidity
Ice alarm
If the wireless sensor measures a temperature between 33.8 °F and 30.2°F, there is
a risk of frost and a snowflake symbol will flash. If the temperature falls below
30.2°F for an extended period of time, the snowflake symbol will be constantly
displayed.
Note: Even if the temperature ala
rm is not displayed, when the temperature is
around freezing point, there is generally always a risk of frost and/or black ice. The
outdoor sensor can only measure the local temperature in the place where it is
installed.
How to add extra sensors
The thermometer comes with 3 wireless sensors. If one sensor is lost or broken, you
can buy it from the Amazon store and pair it with the main unit.
Note:
1. You need to set different channels for the sensor (1-3). You can set it through pull
the stick on near the batteries.
13
2. Under the corresponding channel displayed on the base unit, press and hold the
CH button until the signal icon starts to flash to receive the signal from the newly
added sensor for 3 minutes.
Where the sensor should be placed
1. Sensor can be hung/placed.
2. Better place it under the porch and eaves.
3. The maximum range of the sensor can reach 328ft in an open area.
4. Make sure that the sensor is vertical so that moisture can be drained correctly.
Note：
• Shielding building materials such as reinforced concrete reduce or prevent the
radio reception between the base station and wireless sensor.
• Devices such as televisions, cordless phones, computers and fluorescent tubes
can also interfere wit
h the wireless reception.
• Do not place the base unit and wireless sensors directly on the floor. This restricts
the range.
• In low temperatures in winter the battery performance of the wireless sensors can
be significantly reduced. This reduces the transmitter range.
14
• Pull out the stand and place on a flat surface.
• Or use the hanging holes on the back to mount on a wall.
• Choose a location 6 feet or more away from electronics such as cordless phones,
gaming systems, televisions, microwaves, routers, etc.
• Place within range of the outdoor sensors (328 ft, 100m open air).
• Obstacles such as walls, windows, stucco, concrete, and large metal objects can
reduce the range.
Resetting
If the base station appears to display incorrect values, you should reset the weather
station to the factory settings.
a. Shut off the main weather station (take out batteries or unplug the power cord).
b. Take the batteries out of the outdoor sensor.
c. Power on the main weather station (put batteries in or plug the power cord).
d. Put batteries back in the outdoor sensor.
e. Put them together within a couple feet for about 20 minutes for a strong
connection.
Care and maintenance
• Do not mix old and new batteries.
• Do not mix Alkaline, Standard, Lithium, or Rechargeable Batteries.
• Always purchase the correct size and grade of battery most suitable for intended
use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed with correct polarity (+ and -).
• Remove batteries from equipment when it is not used for an extended period of
tim
e.
• Promptly remove expired batteries.
Where the station should be placed
15
Safety
Read the following advice carefully and store these operating instructions in case
you want to reread something later. If you give the item to someone else, give them
these operating instructions as well.
• This device may be used by children over 8 years of age and over, as well as by
persons with reduced physical, sensory or mental abilities, or lack of experience and
/ or knowledge if they are supervised or instructed regarding the safe use of the
equipment and have understoo
d the resulting hazards.
• Keep the device away from children under the age of 8.
• Cleaning and user maintenance may not be carried out by children unless they are
supervised.
• Children must be supervised to make sure that they do not play with the device.
• The device must not be immersed in water or other liquids. Electric shock hazard!
Do not use the device in areas where it may be wet, such as a sink.
Danger from electricity (when using the usb cable)
• Connect the device to a properly installed power socket with a voltage that
corresponds to the Technical Data.
• Ensure that the socket is easily accessible, so that you can quickly remove the
switching adapter if necessary.
• Do not use the wireless station if the switching adapter or power cable is damaged.
• Do not cover the switching adapter with curtains, newspapers, etc. and ensure that
it is sufficiently ventilated. The switching adapter can become hot.
• Uncoil the s
witching cable fully before connecting. Be careful not to damage the
cable with sharp edges or hot objects.
• Remove the switching adapter from the socket:
- before cleaning the wireless station,
- when a fault occurs during operation,
- during thunderstorms,
• Do not modify the items or the power cable. Only allow repairs to be carried out by
a specialist workshop as improperly repaired devices endanger the user.
16
Unpacking and checking
1. Remove the device from the packaging, remove all protective films and keep the
packaging materials out of the reach of children.
2. Dispose of the materials separately according to type.
3. Check that all the items that should be included in the delivery are present and
whether the station displays any damage.
FCC statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference that may
cause undesired operation
WARNING: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has bee
n tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interferenc
e will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
17
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
Disclaimers
Manufacturer reserves the right to change specifications of the product.
Manufacturer and supplier are not responsible for malfunction where interference
occurs.
Trouble shooting
Problem
Possible Solution
Outdoor temperature
is showing dashes
Dashes is generally an indication of wireless
interference.
Add sensor or replace
sensor batteries
a. Turn off the main weather station (take out batteries or
unplug the power cord)
b. Take the batteries out of the outdoor sensor
c. Turn on the main weather station (put batteries in or
plug the power cord)
d. Put batteries back in the outdoor sensor
e. Let the units sit within a couple feet of each other for
about 20 minutes to gain a strong connection.
Display screen is not
working
Check whether the positive and negative poles of the
battery are correct; Check whether the usb cord is tightly
inserted.
18
Accuracy of temperature
and humidity
1. When unpacking for the first time, the weather station
and sensor are sealed for a long time, and it takes 1-2
hours to balance with the current ambient temperature.
2. Keep away from heat
3. When comparing with other thermometers, it should
be
placed in the same position and allowed to stand for 1
hour. This is very important.
Inaccurate temperature
or humidity readings
To ensure accurate temperature/humidity measurement,
place device out of direct sunlight and away from any
heat sources or vents.
Warranty and support
Unni Technology, Ltd. provides a 1-year limited time warranty (from date of purchase)
on this product relating to manufacturing defects in materials & workmanship.
Before returning a product, please contact our friendly customer support with
questions: [email protected]
