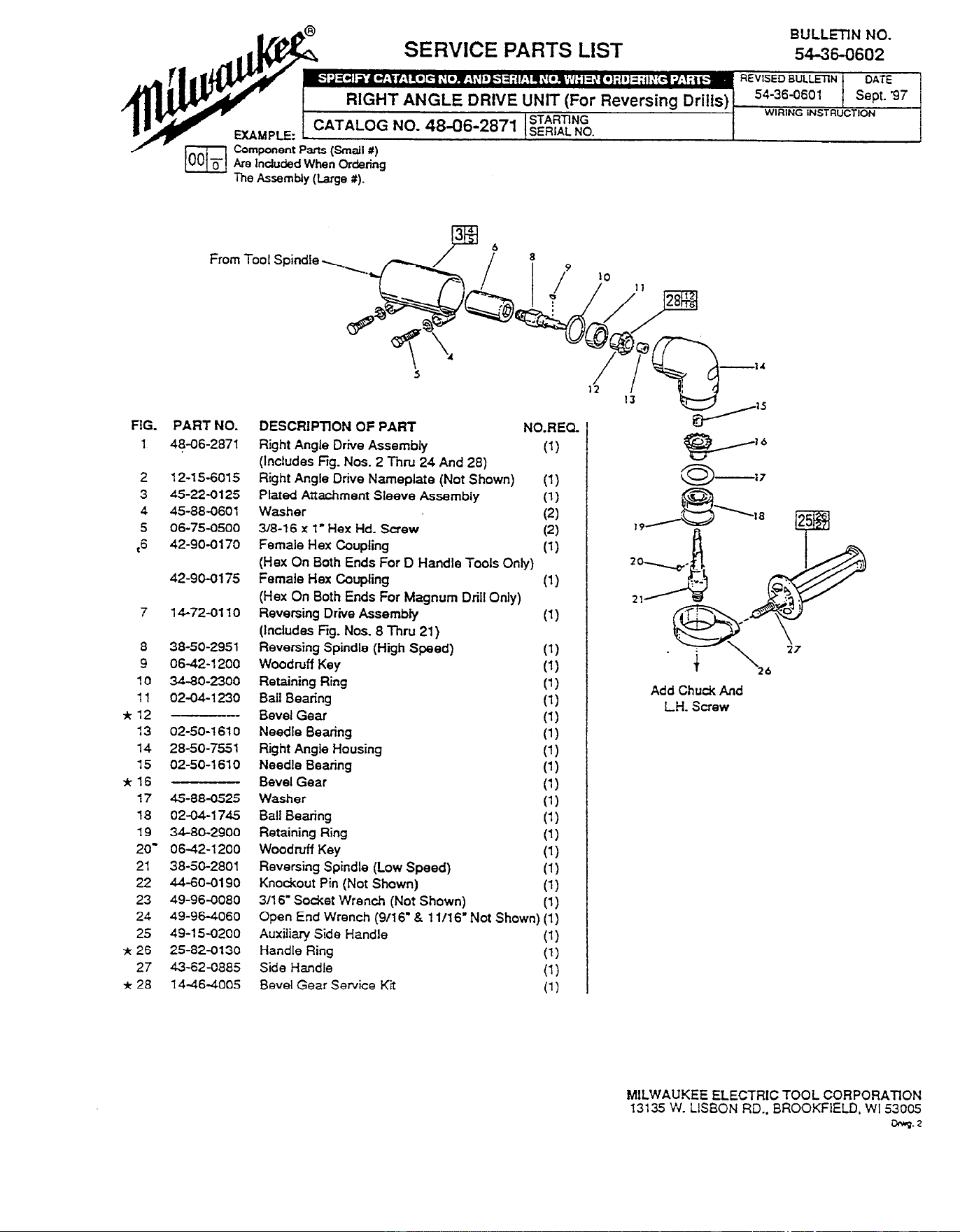

SERVICE PARTS LIST
BULLETIN NO.
54-36-0602
RIGHT ANGLE DRIVE UNIT (For Rever
CATALOG NO. 48-06-2871 :;;:A-\:.
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
From
Tool Spindle
FIG. PART NO.
7 48-06-2871
2 12-l S-601 5
3 45-22-0125
4 45-88-0601
5 06-75-0500
,6 42-90-0170
42-90-0175
7 14-72-0110
a 38-50-2951
9 06-42-l 200
10 34-80-2300
11 02-04-1230
*12 v--
13 02-50-1610
14 28-50-7551
15 02-50-1610
*16
17 45-88-0525
ia 02-04-1745
19 34-80-2900
20' 06-42-1200
21 38-50-2801
22 44-6O-ol90
23 49-96-0080
24 49-96-4060
25 49-15-0200
*26 25-82-0130
27 43-62-0885
*28 14-46-4005
DESCRIPTION OF PART
NO.REQ
Right Angle Drive Assembly
(1)
(Includes Fig. Nos. 2 Thru 24 And 28)
Flight Angle Drive Nameplate (Not Shown)
(1)
Plated Attachment Sleeve Assembly
(1)
Washer
(2)
3/8-l 6 x 1’ Hex Hd. Screw
(2)
Female Hex Coupling
(1)
(Hex On Both Ends For D Handle Tools Only)
Female Hex Coupling
(1)
(Hex On Both Ends For Magnum Drill Only)
Reversing Drive Assembly
(1)
(Includes Fig. Nos. 8 Thru 21)
Reversing Spindle (High Speed)
(1)
Woodruff Key
(1)
Retaining Ring
(1)
Bait Bearing
(1)
Bevel Gear
(1)
Needle Bearing
(1)
Right Angle Housing
(1)
Needle Bearing
(1)
Bevel Gear
(1)
Washer
(1)
Ball Bearing
(1)
Retaining Ring
(1)
Woodruff Key
(1)
Reversing Spindle (Low Speed)
(1)
Knodtout Pin (Not Shown)
(1)
3/l 6’ Socket Wrench (Not Shown)
(1)
Open End Wrench (9/l 6’ 8 1 l/l 6’ Not Shown) (1)
Auxiliary Side Handle
(1)
Handle Ring
(1)
Side Handle
(1)
Bevel Gear Service Kit
(1)
+ ‘26
Add Chuck And
LH. Screw
MILWAUKEE ELECTRIC TOOL CORPORAllON
13135 W. LISBON RD.. BROOKFIELD. WI 53005
avo.2
