Insert strain relief
as shown with the
flat side of the strain
relief positioned
against the inside
wall of the charger
housing.
48-59-0186
AUTOMOTIVE CHARGER
Aug. 2002

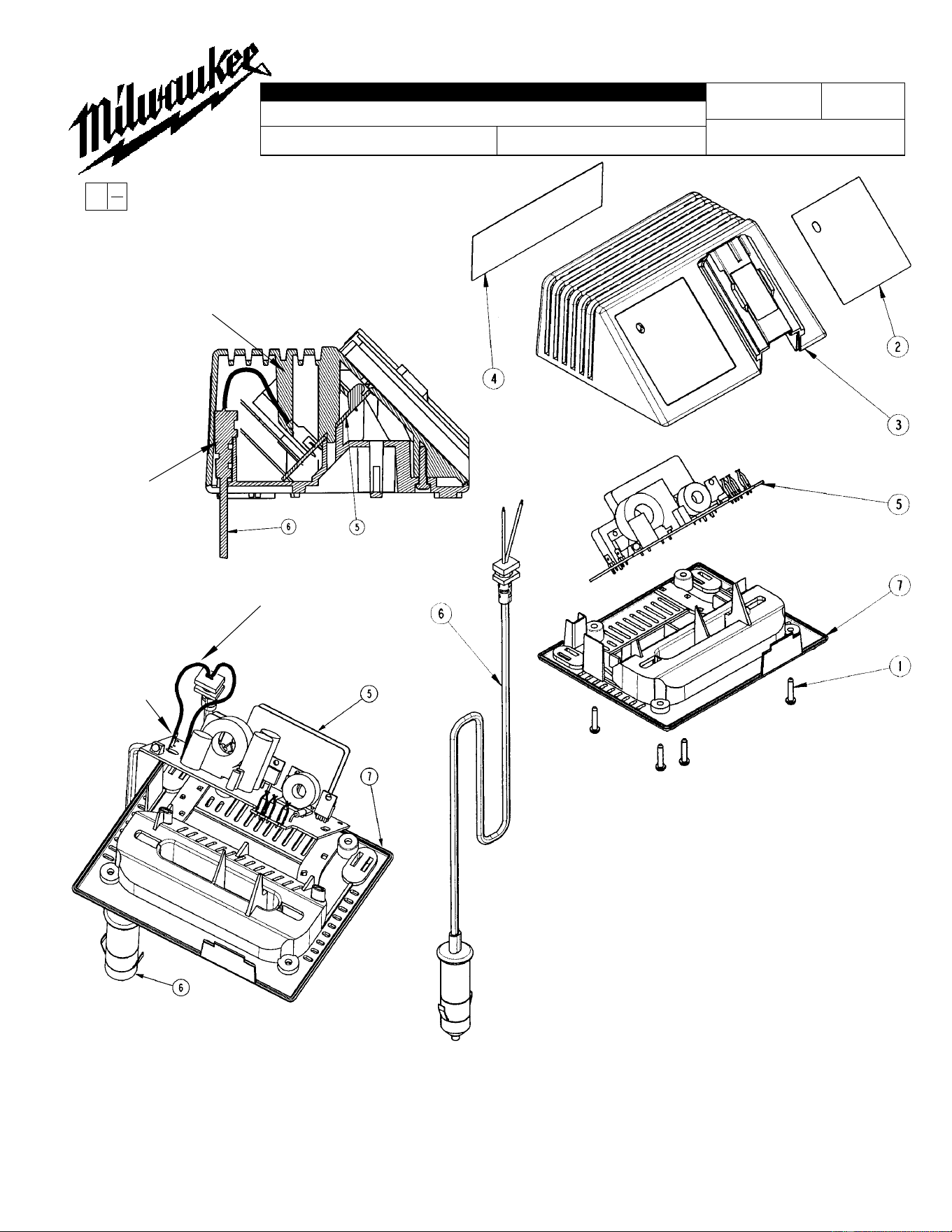

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 6-32 x 11/16" Pan Hd. Slt. PT T-10 (4)
2 --------------- Logo Label (1)
3 --------------- Top Housing (1)
4 --------------- Nameplate (1)
5 --------------- Circuit Board Assembly (1)
6 22-64-0335 Cordset (1)
7 --------------- Bottom Housing (1)
FIG. NOTES
3,5 Fully seat circuit board assembly into top housing,
aligning the bosses.
3,5 Circuit board battery clips are to be fully inserted into
battery port of top housing.
5,6 Cord set terminals are to be fully seated on mating
terminals of printed circuit board assembly and
perpendicular to printed circuit board surface.
3,6 Cord set to be free from conductor twists and cord
crossover prior to installation of strain relief into top housing.
54-04-0355
Rib of top housing is to separate
the terminals of circuit board
assembly and the cord set wires.
®
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00
A13A
White striped lead.
Connect to J1.
(Outside terminal)
J1
