Read this manual before you use this Nailer. Follow all safety warnings and instructions. If you
are uncertain about the operation of the Nailer, call us directly at 1-800-323-1653 for assistance or
contact the closest Powernail Dealer for help. Please retain this information for future reference.
WARNING
REV 2024.04.25
Operation and Maintenance Manual
MODEL 101R SURFACE NAILER
POWERNAIL
®
CO.
1020 Williams Road, Genoa City, WI 53128 US
Phone: 1-800-323-1653
Website: www.powernail.com
ITEM # PART NO. DESCRIPTION QTY REQ’D
1 08-45-00-010 SPRING CLIP 1
2 08-45-00-020 FEEDER CHANNEL 1
5 08-45-00-050 ROLLER PIN ASSEMBLY 1
13 08-45-00-130 FOOT SCREW 4
13N 08-45-00-13N LOCKNUT 4
15 08-10100150 FOOT 1
16 08-45-00-160 SCREW & WASHER SET FOR SPRING CONT. (2 EA) 1
17 08-45-00-170 SPRING CONTAINER 1
18 08-45-00-180 FEEDER SPRING 1
19 08-10100200 SPRING CONTAINER LOCK WASHER 2
20 08-10100200 GATE 1
23 08-45-00-230 DOWEL PIN 2
37R 07-4500704 PLUNGER (RATCHET) 1
38
08-10100380
DRIVING BLADE 1
41
08-4500410
PLUNGER SPRING PIN 1
45
08-4500450
PLUNGER SPRING 1
58
08-4500580
BLADE RETAINER 1
59R
08-45R0059
RATCHET ASSEMBLY 1
60
08-4500710
RATCHET ACCESS PLATE 1
61
09-44529754
RATCHET ACCESS PLATE SCREW 2

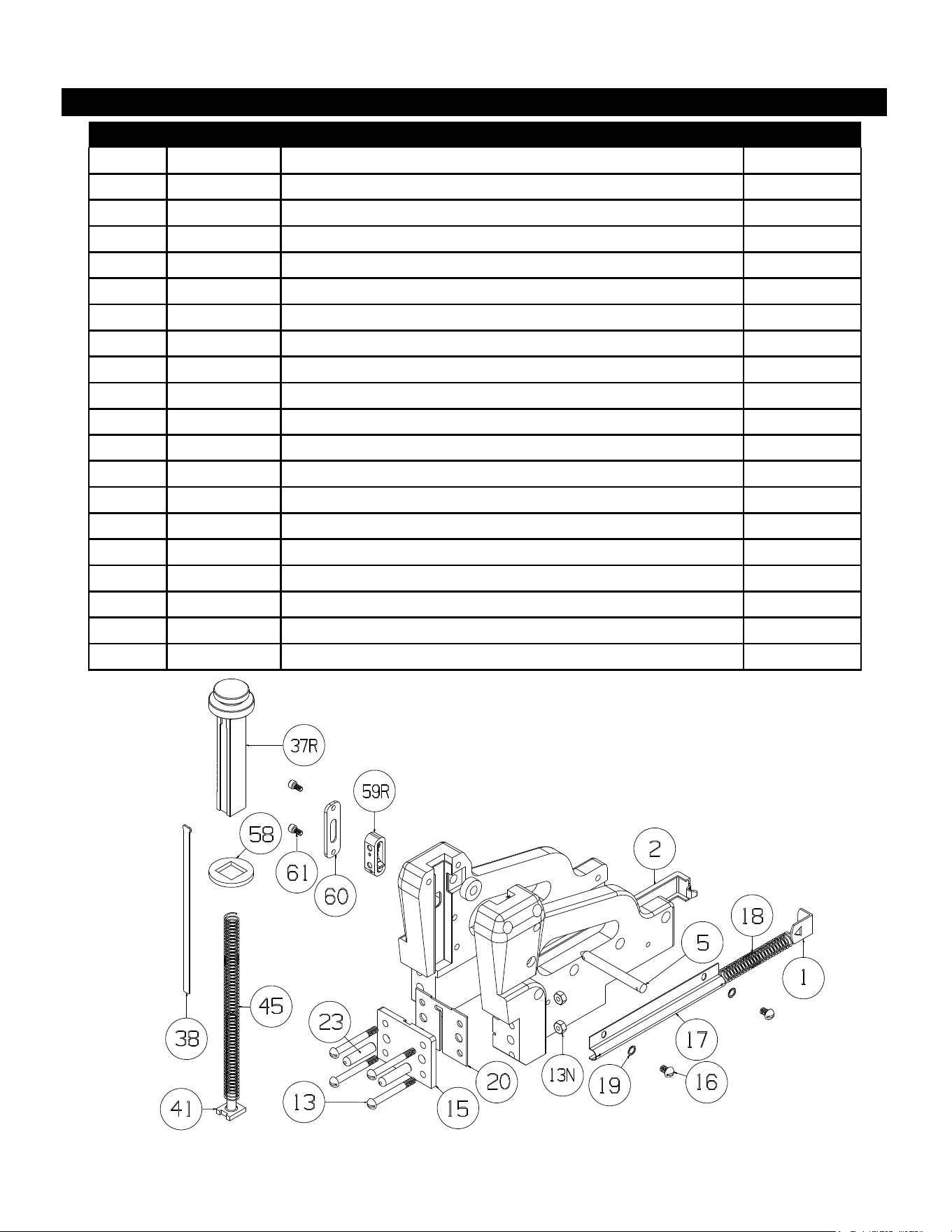

MODEL 101R EXPLODED VIEW
2
3

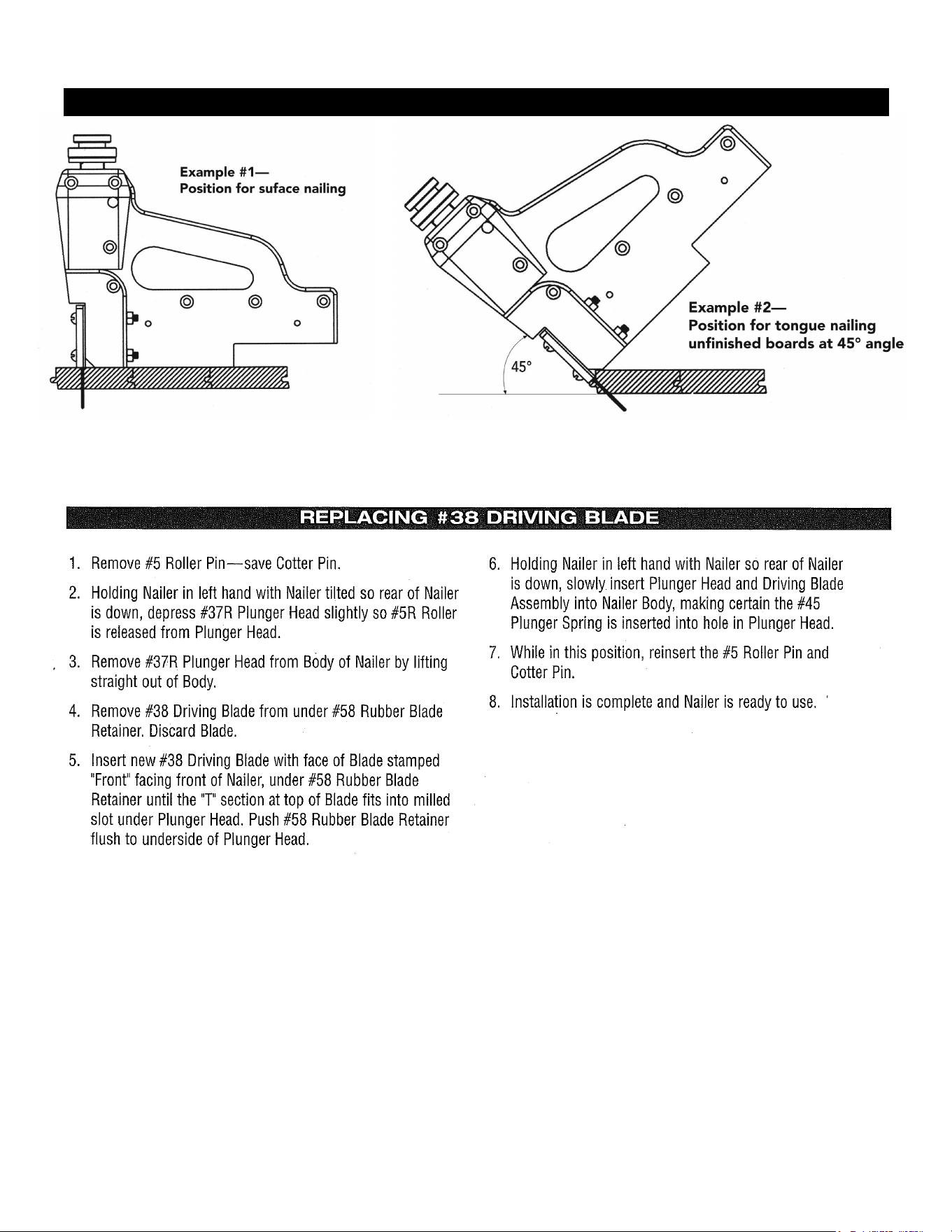

MODEL 101R NAILING EXAMPLES
4

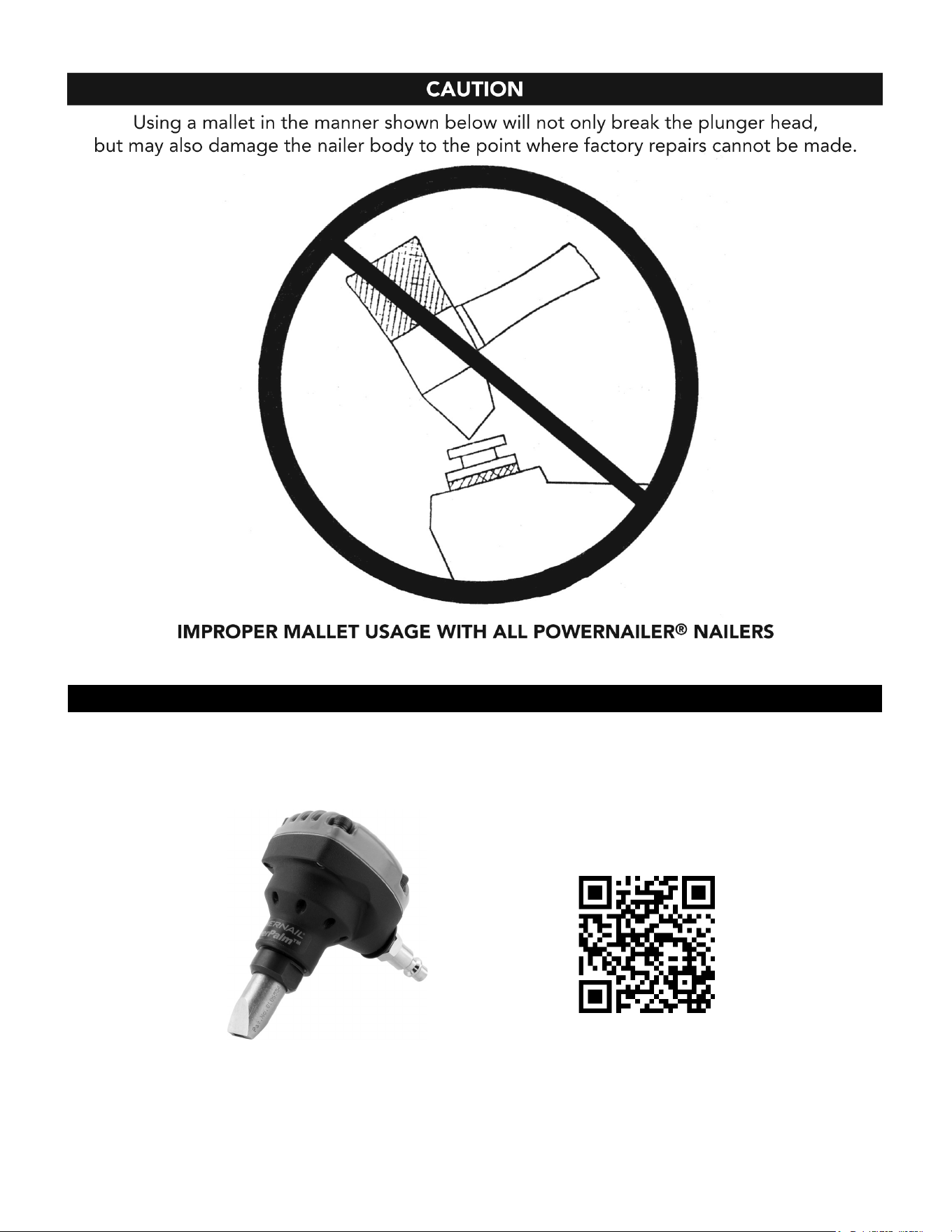

Register your warranty on the web and you will automatically be
entered to win a FREE!!! PowerPalm™.
Register at https://www.powernail.com/warranty-registration/
Scan this code with your phone to be
taken to our warranty registration form
POWERNAIL WARRANTY REGISTRATION
