7-INCH ROTARY
POLISHER & WAXER KIT
Instruction Manual
IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
TECHSUPPOR[email protected]1-847-429-9263 (M-F 8AM-5PM CST)
For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM
MODEL 20877, 20877BT
CONTENTS
WELCOME 3
Introduction ......................................................................................................3
Specifications ....................................................................................................3
SAFETY 4
General Safety Rules .........................................................................................4
Polisher & Waxer Safety Warnings ...................................................................6
Electrical Information ........................................................................................7
Battery & Charger Safety Warnings ..................................................................8
BEFORE OPERATING 10
Unpacking & Packing List ...............................................................................10
Know Your Polisher ........................................................................................11
Assembly & Adjustment ..................................................................................12
OPERATION & MAINTENANCE 15
Operation ........................................................................................................15
Maintenance ....................................................................................................17
Exploded View & Parts List .............................................................................18
Warranty Statement ........................................................................................20
2
To purchase accessories and replacement parts for your tool, visit WENPRODUCTS.COM
WEN plans to continue to add more items to our 20V line. For an up-to-date list of the 20V cordless tools compat-
ible with the included battery and charger, visit wenproducts.com.
20V 2.0Ah Max Battery (Model 20202)
20V 4.0Ah Max Battery (Model 20204)
20V 5.0Ah Max Battery (Model 20205)
20V 8.0Ah Max Battery (Model 20208)
20V 2A Charger (Model 20200C)
20V 5A Quick Charger (Model 20201Q)
SPECIFICATIONS
INTRODUCTION
Thanks for purchasing the WEN 20V Polisher & Waxer. We know you are excited to put your tool to work, but first,
please take a moment to read through the manual. Safe operation of this tool requires that you read and understand
this operator’s manual and all the labels affixed to the tool. This manual provides information regarding potential
safety concerns, as well as helpful assembly and operating instructions for your tool.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact our customer service at 1-847-429-9263.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
Indicates danger, warning, or caution. The safety symbols and the explanations with them deserve your
careful attention and understanding. Always follow the safety precautions to reduce the risk of fire, electric shock
or personal injury. However, please note that these instructions and warnings are not substitutes for proper ac-
cident prevention measures.
3
Model Number 20877, 20877BT
Included Battery 4.0Ah Battery (Model 20204)*
Included Charger 20V, 2.3A DC (Model 20223C)*
Rotation Speed 600 - 2500 RPM
Speed Settings 6
Pad Diameter 7 Inches
Spindle 5/8"-11
Product Weight 4.2 lbs (Bare Tool)
Product Dimensions 14.2 in. x 8.3 in. x 8.3 in. (Bare Tool)
Battery Models All WEN 20V MAX Batteries**
Charger Models All WEN 20V MAX Chargers
**NOTE: Some tools may not be compatible with WEN 20V MAX 1.5Ah Batteries, model 49120B. Contact
WEN customer service at 1-847-429-9263, M-F with questions.
*NOTE: Battery and charger only included with model 20877. Model 20877BT does not include a battery
or charger.
WEN plans to continue to add more items to our 20V line. For an up-to-date list of the 20V cordless tools compat-
ible with the included battery and charger, visit wenproducts.com.
GENERAL SAFETY RULES
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ig-
nite the dust or fumes.
3. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never mod-
ify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfac-
es such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
3. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of elec-
tric shock.
4. Do not abuse the cord. Never use the cord for car-
rying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
5. When operating a power tool outdoors, use an ex-
tension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is un-
avoidable, use a ground fault circuit interrupter (GFCI)
protected supply. Use of a GFCI reduces the risk of elec-
tric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inatten-
tion while operating power tools may result in serious
personal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as a respira-
tory mask, non-skid safety shoes and hearing protection
used for appropriate conditions will reduce the risk of
personal injury.
3. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
5. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jew-
elry. Keep your hair and clothing away from moving
parts. Loose clothes, jewelry or long hair can be caught
in moving parts.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
4
GENERAL SAFETY RULES
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained us-
ers.
5. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s opera-
tion. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking into ac-
count the working conditions and the work to be per-
formed. Use of the power tool for operations different
from those intended could result in a hazardous situa-
tion.
8. Use clamps to secure your workpiece to a stable
surface. Holding a workpiece by hand or using your
body to support it may lead to loss of control.
9. KEEP GUARDS IN PLACE and in working order.
SERVICE
1. Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is main-
tained.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities may contain
chemicals, including lead, known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies depending on
how often you do this type of work. To reduce your ex-
posure to these chemicals, work in a well-ventilated area
with approved safety equipment such as dust masks
specially designed to filter out microscopic particles.
5
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
POLISHER & WAXER SAFETY WARNINGS
POLISHER & WAXER SAFETY
1. This polisher is for personal use only. Using this pol-
isher for professional purposes will reduce the unit’s
lifespan and may cause the unit to overheat.
2. Only use the polisher for it’s intended use.
3. Only use accessories that have been specifically de-
signed or recommended by the manufacturer.
4. Only use accessories that have a rated speed equal to
the maximum speed of the polisher.
5. Do not use accessories that do not match the specifi-
cations of the polisher.
6. Do not use damaged accessories. Before beginning
operation, make sure that all accessories are in full
working order.
7. Make sure that the power cord is clear of the spinning
accessory.
8. Never set the polisher down before the tool has come
to a complete stop.
9. Regularly clean the air vents of dust and debris.
10. Never operate the polisher near flammable materials.
11. Do not use accessories that require liquid coolants.
Using water or other liquid coolants may result in risk of
electric shock.
VIBRATION SAFETY
This tool vibrates during use. Repeated or long-term ex-
posure to vibration may cause temporary or permanent
physical injury, particularly to the hands, arms and shoul-
ders. To reduce the risk of any vibration-related injury:
1. First be examined by a doctor and then have regular
medical check-ups to ensure medical problems are not
being caused or worsened from use. Pregnant women or
people who have impaired blood circulation to the hand,
past hand injuries, nervous system disorders, diabetes,
or Raynaud’s Disease should not use this tool. If you
feel any symptoms related to vibration (such as tingling,
numbness, and white or blue fingers), seek medical ad-
vice as soon as possible.
2. Do not smoke during use. Nicotine reduces the blood
supply to the hands and fingers, increasing the risk of
vibration-related injury.
3. Wear suitable gloves to reduce the vibration effects
on the user.
4. Use tools with the lowest vibration when there is a
choice.
5. Take vibration-free breaks during each day of work.
6. Grip tool as lightly as possible (while still keeping safe
control of it). Let the tool do the work.
7. To reduce vibration, maintain the tool as explained in
this manual. If any abnormal vibration occurs, stop use
immediately.
WARNING! Do not operate the power tool until you have read and understood the following instructions and
the warning labels.
6
ELECTRICAL INFORMATION (CHARGER)
AMPERAGE
REQUIRED GAUGE FOR EXTENSION CORDS
25 ft. 50 ft. 100 ft. 150 ft.
2.3A 18 gauge 16 gauge 16 gauge 14 gauge
IMPORTANT: Servicing a double-insulated product requires extreme care and knowledge of the system, and
should be done only by qualified service personnel using identical replacement parts. Always use original factory
replacement parts when servicing.
1. Polarized Plugs. To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider
than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician to install a proper outlet. Do not modify the machine
plug or the extension cord in any way.
2. Ground fault circuit interrupter protection (GFCI) should be provided on the circuit or outlet used for this power
tool to reduce the risk of electric shock.
3. Service and repair. To avoid danger, electrical appliances must only be repaired by a qualified service technician
using original replacement parts.
GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS
When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. The table below shows
the correct size to be used according to cord length and ampere rating. When in doubt, use a heavier cord. The
smaller the gauge number, the heavier the cord.
DOUBLE-INSULATED CHARGER
The charger’s electrical system is double-insulated where two systems of insulation are provided. This
eliminates the need for the usual three-wire grounded power cord. Double-insulated tools do not need
to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are
isolated from the internal metal components with protecting insulation.
1. Examine extension cord before use. Make sure your extension cord is properly wired and in good condition.
Always replace a damaged extension cord or have it repaired by a qualified person before using it.
2. Do not abuse extension cord. Do not pull on cord to disconnect from receptacle; always disconnect by pulling on
plug. Disconnect the extension cord from the receptacle before disconnecting the product from the extension cord.
Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
3. Use a separate electrical circuit for your tool. This circuit must not be less than a 12-gauge wire and should be
protected with a 15A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in
the OFF position and the electric current is rated the same as the current stamped on the motor nameplate. Running
at a lower voltage will damage the motor.
7
• Avoid dangerous environments – Do not charge the
battery pack in rain, snow or in damp or wet locations.
Do not use the battery pack or charger in the presence
of explosive atmospheres (gaseous fumes, dust or flam-
mable materials) because sparks may be generated when
inserting or removing the battery pack, which could lead
to a fire.
• Charge in a well-ventilated area – Do not block the
charger vents. Keep them clear to allow for proper ven-
tilation. Do not allow smoking or open flames near a
charging battery pack. Vented gases may explode.
NOTE: The safe temperature range for the battery charg-
ing is 41°F to 104°F. Do not charge the battery outside in
freezing weather; charge it at room temperature.
• Maintain charger cord – When unplugging the char-
ger, pull the plug, not the cord, from the receptacle to
reduce the risk of damage to the electrical plug and cord.
Never carry the charger by its cord or yank it by the cord
to disconnect it from the receptacle. Keep the cord away
from heat, oil and sharp edges. Make sure the cord will
not be stepped on, tripped over or subjected to dam-
age or stress when the charger is in use. Do not use the
charger with a damaged cord or plug. Replace a dam-
aged charger immediately.
• Do not use an extension cord unless it is absolutely
necessary – Using the wrong, damaged or improperly
wired extension cord poses a risk of fire and electric
shock. If an extension cord must be used, plug the char-
ger into a properly wired 16 gauge or larger extension
cord with the female plug matching the male plug on the
charger. Make sure that the extension cord is in good
electrical condition.
• Charger is rated for 120 volt AC only – The charger
must be plugged into an appropriate receptacle.
• Use only recommended attachments – Use of an at-
tachment not recommended or sold by WEN Products
may result in risk of fire, electric shock or personal in-
jury.
• Unplug charger when not in use – Make sure to re-
move battery packs from unplugged chargers.
• Do not burn or incinerate battery packs – Battery
packs may explode, causing personal injury or dam-
age. Toxic fumes and materials are created when battery
packs are burned.
• Do not crush, drop or damage battery packs – Do not
use the battery pack or charger if they have sustained a
sharp blow, been dropped, run over or have been dam-
aged in any way (i.e. pierced with a nail, hit with a ham-
mer, stepped on, etc.).
• Do not disassemble – Incorrect reassembly may pose
a serious risk of electric shock, fire or exposure to toxic
battery chemicals. If the battery or charger are damaged,
call WEN customer service at 1-847-429-9263 for as-
sistance.
• Battery chemicals cause serious burns – Never let a
damaged battery pack contact the skin, eyes or mouth.
If a damaged battery pack leaks battery chemicals, use
rubber or neoprene gloves to safely dispose of it. If skin
is exposed to battery fluids, wash the affected area with
soap and water and rinse with vinegar. If eyes are ex-
posed to battery chemicals, immediately flush with wa-
ter for 20 minutes and seek medical attention. Remove
and dispose of contaminated clothing.
• Store your battery pack and charger in a cool, dry
place – Do not store the battery pack or charger where
temperatures may exceed 104 °F, such as in direct sun-
light or inside a vehicle or metal building during the
summer.
• Do not short circuit – A battery pack will short circuit if
a metal object makes a connection between the positive
and negative contacts on the battery pack. Do not place
a battery pack near anything that may cause a short cir-
cuit, such as paper clips, coins, keys, screws, nails and
other metallic objects. A short-circuited battery pack
poses a risk of fire and severe personal injury.
BATTERY & CHARGER SAFETY WARNINGS
Despite all of the safety precautions, caution must always be taken when handling batteries. The following
points must be obeyed at all times to ensure safe use. Safe use can only be guaranteed if undamaged cells are
used. Incorrect handling of the battery pack can cause cell damage.
WARNING! To reduce the risk of electric shock,
always unplug the charger before performing any
cleaning or maintenance. Do not allow water to
flow into the charger. Use a Ground Fault Circuit
Interrupter (GFCI) to reduce shock hazards.
8
BATTERY & CHARGER SAFETY WARNINGS
ABOUT THE BATTERY
1. The battery pack has to be charged completely before you use the tool for the first time.
2. For optimum battery performance, avoid low discharge cycles by charging the battery pack frequently.
3. Lithium-ion batteries are subject to a natural aging process. The battery pack must be replaced at the latest when
its capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery pack are no longer capable
of meeting the high power requirements needed for the proper operation of your tool, and therefore pose a safety
risk.
4. Do not throw battery packs into an open fire as this poses a risk of explosion. Do not ignite the battery pack or
expose it to fire.
5. Do not exhaustively discharge batteries. Exhaustive discharge will damage the battery cells. The most common
cause of exhaustive discharge is lengthy storage or non-use of partially discharged batteries. Stop working as soon
as the performance of the battery falls noticeably or the electronic protection system triggers. Place the battery pack
in storage only after it has been fully charged.
6. Protect batteries and the tool from overloads. Overloads will quickly result in overheating and cell damage inside
the battery housing even if this overheating is not apparent externally.
7. Avoid damage and shocks. Immediately replace batteries that have been dropped from a height of more than
one meter or those that have been exposed to violent shocks, even if the housing of the battery pack appears to be
undamaged. The battery cells inside the battery may have suffered serious damage. In such instances, please read
the waste disposal information for proper battery disposal.
8. If the battery pack suffers overloading and overheating, the integrated protective cutoff will switch off the equip-
ment for safety reasons.
9. Use only original battery packs. The use of other batteries poses a fire risk and may result in injuries or an explo-
sion.
ABOUT THE CHARGER
Protect battery charger and cord from damage. Keep the charger and its cord away from heat, oil and sharp edges.
Electrical plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with ground-
ed appliances. Unmodified plugs and matching outlets will reduce the risk of electric shock.
Keep the battery charger, battery pack(s), and the cordless tool out of the reach of children.
Do not use the supplied battery charger to charge other cordless tools.
During periods of heavy use, the battery pack will become warm. Allow the battery pack to cool to room temperature
before inserting it into the charger to recharge.
Do not overcharge batteries. Do not exceed the maximum charging times. These charging times only apply to dis-
charged batteries. Frequent insertion of a charged or partially charged battery pack will result in overcharging and
cell damage. Do not leave battery in the charger for days on end.
Never use or charge a battery if you suspect that it has been more than 12 months since last time they were charged.
There is a high probability that the battery pack has already suffered dangerous damage (exhaustive discharge).
Do not use batteries that have been exposed to heat during the charging process, as the battery cells may have suf-
fered dangerous damage.
Do not use batteries that have suffered curvature or deformation during the charging process or those that exhibit
other atypical symptoms (gassing, hissing, cracking, etc.)
9
UNPACKING & PACKING LIST
UNPACKING
Carefully remove the polisher from the packaging and place it on a sturdy, flat surface. Make sure to take out all
contents and accessories. Do not discard the packaging until everything is removed. Check the packing list below
to make sure you have all of the parts and accessories. If any part is missing or broken, please contact customer
service at 1-847-429-9263 (M-F 8-5 CST), or email [email protected].
PACKING LIST
*Only included with model number 20877.
Description Quantity
Polisher 1
7-Inch Wool Polishing Bonnet 1
7-Inch 80-Grit Sanding Disc 1
D-Handle and Mounting Hardware 1
8mm Hex Wrench 1
*20V 4.0Ah Battery 1
*20V Charger 1
10
KNOW YOUR POLISHER
TOOL PURPOSE
Easily remove scratches, oxidation, and swirl marks, as well as apply wax or sealant with your WEN 20V Polisher &
Waxer. Refer to the following diagrams to become familiarized with all the parts and controls of your polisher. The
components will be referred to later in the manual for assembly and operation instructions.
*Only included with model number 20877.
11

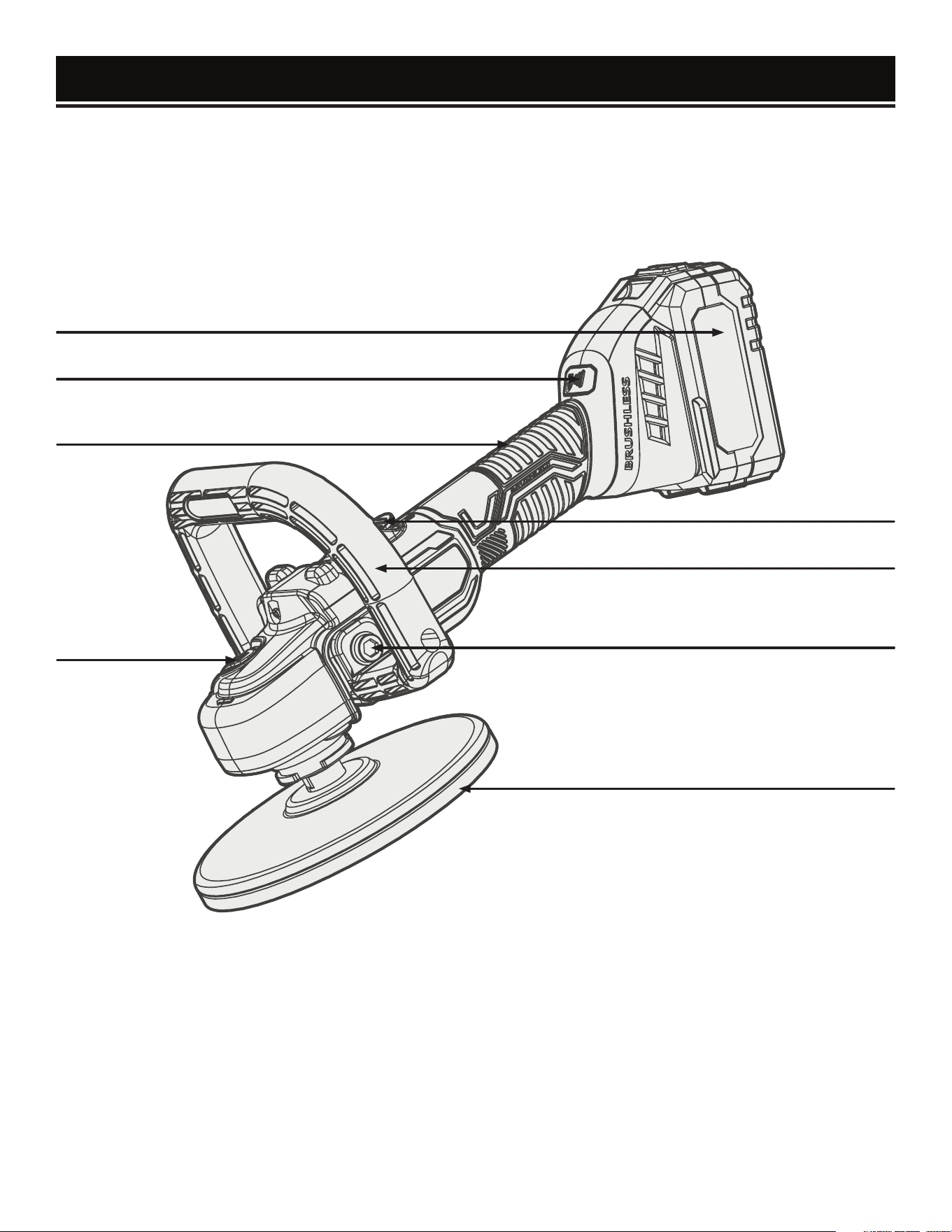

Backing Pad
*20V 4.0Ah Battery
Variable Speed Button
Back Handle
D-Handle Mounting Hole
Power Switch
D-Handle
Spindle Lock
WARNING! To avoid injury from accidental startups, be sure that the tool is switched OFF and the battery is
removed from the tool before inspecting the unit, making adjustments, or changing accessories.
ASSEMBLY & ADJUSTMENTS
CHARGING THE BATTERY PACK
The 20V battery pack for this tool is supplied in a low charge condition to prevent possible problems, and must be
charged completely before you use the tool for the first time.
1. Connect charger to a 120V, 60Hz AC outlet. The green lights on the charger will illuminate, indicating that the
charger is powered.
2. Slide the battery all the way into the charger port until it clicks. The red light on the corresponding charger port
will illuminate, indicating that the battery is charging.
Charging Indication:
• Solid Green: Ready to Charge
• Solid Red: Charging
• Solid Green: Charged
3. When the battery is charged, the red light will turn off and the green light will turn on. Remove the battery from
the charger and unplug the charger from the power supply.
NOTE: Battery will not reach full charge the first time it is charged. Allow several cycles for the battery to fully
charge. The battery pack may become warm while charging; this is normal. If the battery is hot after continuous use
in the tool, allow it to cool to room temperature before charging. This will prolong the life of your battery.
The battery pack is equipped with four LED battery life indication lights. Press and hold the power button on the
front or rear of the battery to check the battery’s charge status.
Battery Life Indication:
• Four Lights: The battery is fully charged.
• Three Lights: The battery is 75% charged.
• Two Lights: The battery is 50% charged.
• One Light: The battery is almost out of power and needs to be charged.
INSERTING AND REMOVING THE BATTERY
1. To install the battery, slide the battery pack into the battery port. Make sure the release latch on the rear side of
the battery pack snaps into place and the battery is secure before beginning operation.
2. To remove the battery pack, press the battery release latch on the front of the battery and pull the battery pack out.
POLISHING BONNET INSTALLATION
1. Make sure that the polisher is OFF and the battery is removed from the tool before installing the bonnet.
2. Inspect the base pad and clean off any dirt and debris.
3. Align the bonnet over the base pad. Stretch the outer elastic ring to attach the bonnet securely. Make sure that the
rim of the bonnet is flush with the rim of the polisher.
If you have trouble fitting the bonnet onto the polisher, check this video out for the best method of application:
http://bit.ly/attachabonnet
12
INSTALLING / REMOVING THE BACKING PAD
Replace the backing pad if it becomes damaged or worn. NEVER re-
place the backing pad with a smaller or larger backing pad.
1. Make sure that the tool is OFF and the battery is removed before
making any adjustments.

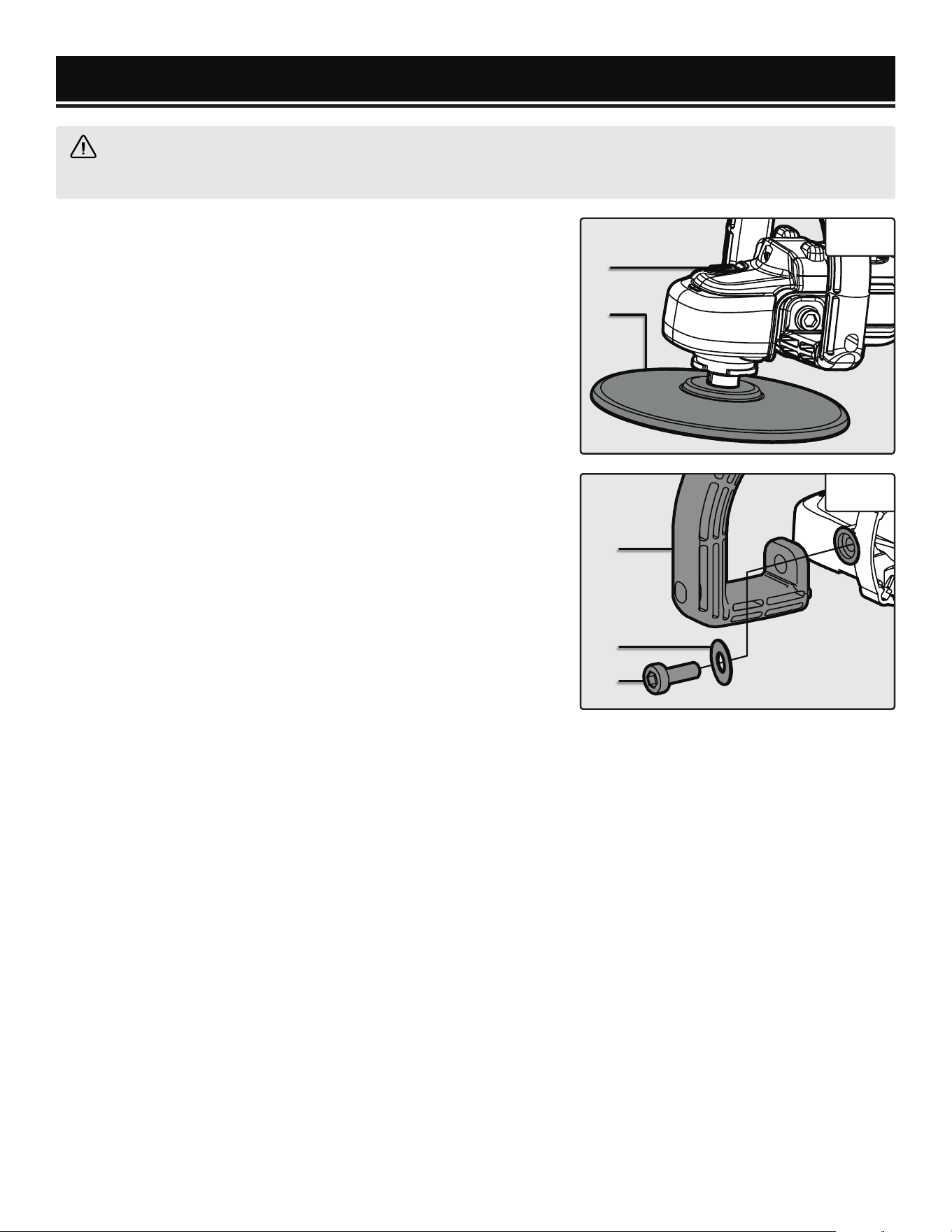

2. Loosen the worn or damaged backing pad by pressing the spindle
lock button (Fig. 1 - 1) while simultaneously turning the backing pad
(Fig. 1 - 2) clockwise. Remove the backing pad from the spindle.
3. Place the new backing pad onto the spindle. Secure the backing
pad into place by pressing the spindle lock button while simultane-
ously turning the backing pad counterclockwise.
NOTE: DO NOT overtighten the backing pad.
Replacement backing pads (part 20877-001) are available for pur-
chase at wenproducts.com.
INSTALLING / REMOVING THE D-HANDLE
The included D-handle (Fig. 2 - 1) can be installed on either side of
the polisher depending on your preference.
1. Install the D-handle onto the polisher using the two included wash-
ers (Fig. 2 - 2) and hex bolts (Fig. 2 - 3). Tighten the hex bolts with the
included 8mm hex wrench. Make sure that the D-handle is securely
installed before beginning operation.
NOTE: The D-handle mounting hardware comes pre-installed on the
handle.
ASSEMBLY & ADJUSTMENTS
13
WARNING! To avoid injury from accidental startups, be sure that the tool is switched OFF and the battery is
removed from the tool before inspecting the unit, making adjustments, or changing accessories.
Fig. 1
1
Fig. 2
2
1
2
3
14
INSTALLING / REMOVING SANDING DISCS
1. Make sure that the tool is OFF and the battery is removed before
making any adjustments.
2. Place the tool upside down so that the backing pad is facing up-
ward.

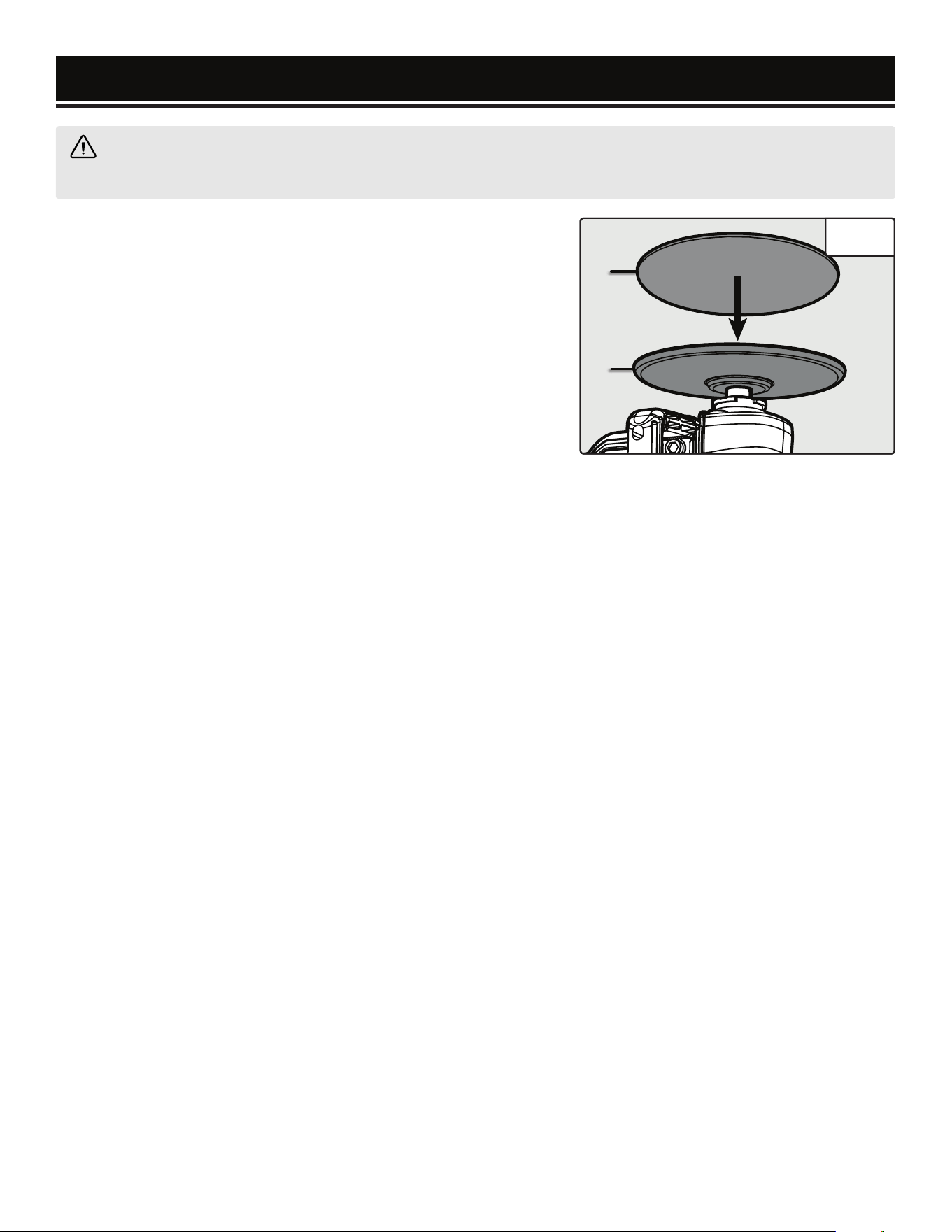

3. Press the sanding disc (Fig. 3 - 1) onto the hook & loop surface
of the backing pad (Fig. 3 - 2). Make sure that the sanding disc is
properly aligned and secure before beginning operation.
NOTE: DO NOT use sanding discs that are larger or smaller than the
backing pad. ONLY use 7-inch sanding discs.
INSTALLING / REMOVING THE POLISHING BONNET
1. Make sure that the tool is OFF and the battery is removed before
making any adjustments.
2. Place the tool upside down so that the backing pad is facing up-
ward.
3. Cover the backing pad with the included wool polishing bonnet.
4. Tighten and tie the bonnet laces to secure the bonnet onto the
backing pad. Tuck the laces into the backing pad before beginning
operation.
ASSEMBLY & ADJUSTMENTS
WARNING! To avoid injury from accidental startups, be sure that the tool is switched OFF and the battery is
removed from the tool before inspecting the unit, making adjustments, or changing accessories.
Fig. 3
1
2
OPERATION
15

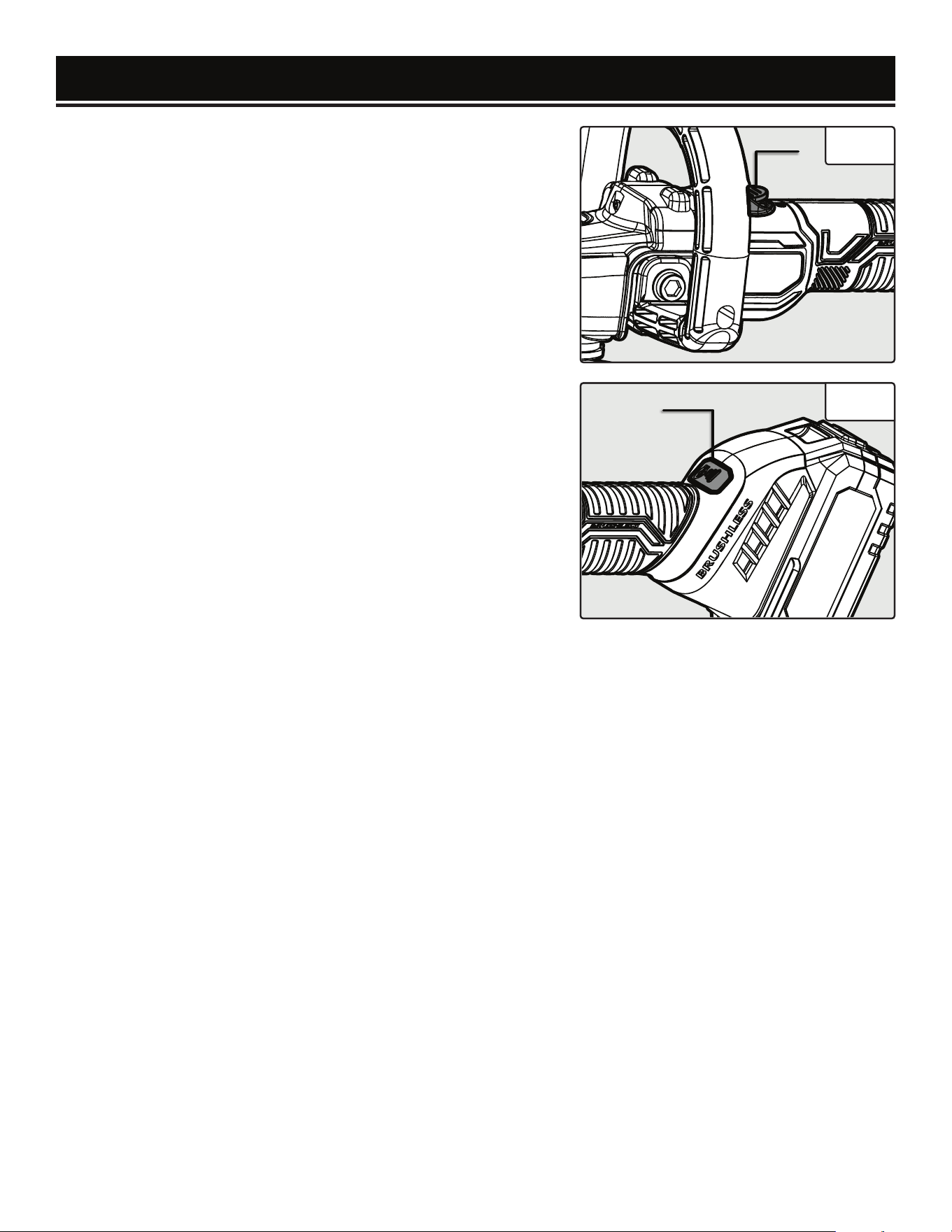

POWERING THE POLISHER ON & OFF
1. Connect the battery to the battery terminal on the polisher.
2. To turn the polisher ON, press the power switch (Fig. 4 - 1) FOR-
WARD.
3. For continuous power, press the bottom of the power switch, push
it forward, and lower the front of switch into the locking position.
4. To turn the polisher OFF, press the power switch BACKWARD.
ADJUSTING THE SPEED ON THE POLISHER
Your polisher has a variable speed of 600 - 2500 RPM with six differ-
ent speed settings.
1. To toggle through the different speed settings, press the variable
speed button (Fig. 5 - 1). Each press of the button will increase the
speed from 1 to 6.
2. Once you have reached speed 6, press the button once more and
the speed will be reset to setting 1. Continue cycling through the set-
tings until reaching the desired speed.
A FEW TIPS ON SANDING
Always use a test workpiece to judge the strength of your sanding
disc. Choosing a sanding disc depends upon the amount of material
that needs to be removed and the finish desired.
There are multiple sanding grits from coarse to ultra-fine. For the
best possible finish, work your way up from a coarse to fine grit.
Make sure that the area to be sanded is dry and free of hazardous
materials. Wet surfaces can affect the life of the sanding disc, and
hazardous materials can damage the tool and lead to personal injury.
Vacuum or wipe the workpiece surface between grit changes to re-
move any dust and unnecessary abrasives.
On flat surfaces, use long overlapping strokes. Use a circular motion
on curved or angled sections. Always hold the tool firmly with one
hand on the back handle and the other hand on the D-handle.
Fig. 4
1
Fig. 5
1
OPERATION
A FEW TIPS ON WAXING AND POLISHING A CAR
Before applying any wax or compounding solution, make sure to wash the vehicle with soap and water. Remove all
dirt and bug residue from the surface and then dry completely with a clean microfiber towel. Use polishing clay after
cleaning if you want to give the extra 10 percent. Mask off areas such as handles, mirrors, bumpers, molding and
decals to combat possible damage from the polisher. Attach a clean polishing bonnet to your WEN Polisher.
For all car care products, apply a thin layer of compounding solution (probably a few drops depending on the
product) to a clean polishing bonnet and place the bonnet onto the surface of the car. Smear the solution around a
little on the pad using the surface of the car to prevent splattering. Then, while the pad is pressed against the car’s
surface, turn on the polisher. Apply all solutions to a two by two foot area before moving on to the next two by two
foot area of the car. It is recommended to not compound and wax in direct sunlight; use a shaded area or a garage
if possible.
NOTE: Always read and follow the instructions on your bottles of wax, polishing compound, etc. for best results.
Apply compounding solutions first. Compounds fight oxidation and scratches in the clear coat of the car. Keep in
mind that any scratches that can be felt with your fingernails are probably past repair by a compound, as they go
deeper than the top clear coat. Using moderate pressure, spread the compound over the surface of the car. While
the compound is still wet, remove with a clean, dry microfiber towel.
Next, repeat using a polishing solution to get the car really shining. After that, repeat with a car wax for surface pro-
tection and additional gloss. If done correctly, water droplets will form tiny beads on the surface of the car’s finish.
Feel free to try out different things and figure out a personal style that works best for you and your vehicle.
16
MAINTENANCE
ROUTINE INSPECTION
Before each use, inspect the general condition of the tool.
If any of these following conditions exist, do not use until
parts are replaced or the sharpener is properly repaired.
Check for:
• Loose hardware or improper mounting
• Misalignment or binding of moving parts
• Damaged battery or battery terminal
• Cracked or broken parts
• Any other condition that may affect its safe operation
CLEANING & STORAGE
1. After every use, wipe the tool with a soft cloth. Do not
let water enter the tool.
2. Keep the ventilation openings free from dust and de-
bris to prevent the motor from overheating.
3. Most plastics are susceptible to damage from various
types of commercial solvents. Do not use any solvents
or cleaning products that could damage the plastic parts.
Some of these include but are not limited to: gasoline,
carbon tetrachloride, chlorinated cleaning solvents, am-
monia and household detergents that contain ammonia.
4. Store the tool in a clean and dry place away from the
reach of children.
WARNING! To avoid accidents, turn the tool OFF and remove the battery from the battery terminal before
cleaning, adjusting, or performing any maintenance or lubrication work.
WARNING! Any attempt to repair or replace electrical parts on this tool may be hazardous. Servicing of the
tool must be performed by a qualified technician. When servicing, use only identical WEN replacement parts.
Use of other parts may be hazardous or induce product failure.
STORING THE BATTERY AND CHARGER
• Make sure the battery is fully charged before storage in
order to maximize the life of the battery.
• Do not store the battery pack on the tool. Remove the
battery from the tool before storage.
• After charging, the battery pack may be stored in the
charger, as long as the charger is not plugged in.
• Store the charger at normal room temperature. Do not
store it in excessive heat. Do not use the charger in di-
rect sunlight or in damp conditions. Do not charge out-
side. Recharge at room temperature.
• Keep the charger clean and clear of debris. Do not al-
low foreign material to get into the recessed cavity or
onto the contacts. Wipe the charger clean with a dry
cloth. Do not use solvents or water, and do not place the
charger in wet conditions.
• Always unplug the charger when charging is complete.
Never leave your charger plugged in if it is not charging
a battery.
PRODUCT DISPOSAL
Used power tools should not be disposed of together
with household waste. This product contains electronic
components that should be recycled. Please take this
product to your local recycling facility for responsible
disposal and to minimize its environmental impact.
17
EXPLODED VIEW & PARTS LIST
NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of
normal use are not covered under the warranty.
18
EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
1 20877-001 Backing Pad 1
2 20877-002 Output Shaft 1
3 20875-012 Screw M4x14 4
4 20877-003 Gear Box Cover 1
5 20875-014 Washer 1
6 20875-015 Bearing, 6201RS 1
7 20875-016 32mm Collar 1
8 20877-004 Adjustment Sleeve 1
9 20877-005 Primary Gear 1
10 20877-006 Semicircular Key 1
11 20877-007 Washer 1
12 20877-008 Snap Ring 1
13 20875-031
607-2RS Sealed Ball
Bearing
2
14 20877-009
Self-Tapping Screw
ST4x28
4
15 20877-010 Spindle Lock 1
16 20877-011 Spring 1
17 20877-012 Pin 1
18 20877-013 Gear Box 1
19 20877-014 Lock Nut 1
20 20875-008
6001-RS Sealed Ball
Bearing
1
21 20877-015 Seal Ring 1
No. Part No. Description Qty.
22 20877-016 Snap Ring 1
23 20877-017 Rotor 1
24 20877-018 Stator 1
25 20875-036 Switch 1
26 20875-033 Power Switch 1
27 20875-034 Switch Control Lever 1
28 20875-035 Rubber Bushing 1
29 20875-037 Control Panel 1
30 20877-019 PCB 1
31 20875-039 Socket 1
32 20877-020 Right Housing 1
33 20877-021 Left Housing 1
34 20877-022 Speed Label 1
35 20875-042
Self-Tapping Screw,
ST4x18
5
37 20877-023 Screw M4x10 3
38 20877-024 Protective Cover 1
39 20877-025 Side Handle 1
40 20877-026 Flat Washer 2
41 20877-027 Screw M10x25 2
42 20877-028 8mm Hex Wrench 1
43 20877-029 Polishing Bonnet 1
44 20877-030 Sandpaper 1
NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of
normal use are not covered under the warranty.
19
WARRANTY STATEMENT
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to qualit
y.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GRE
AT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN
consumer
power tools will be free from defects in material or workmanship during personal use for a period of two (2) years
used
for professional or commercial use. Purchaser has 30 days from the date of purchase to report missing or
damaged parts.
SELLER’S
SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per-
mitted
by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which a
re
defective
in material or workmanship and which have not been subjected to misuse, alteration, careless handling,
misrepair
, abuse, neglect, normal wear and tear,
improper maintenance, or other conditions adversely affecting the
Product
or the component of the Product, whether by accident or intentionally, by persons other than Seller. To
make
a claim under this Limited Warranty, you must make sure to keep a copy of your proof of purchase that
clearly
-
dor
of Great Lakes Technologies, LLC. Purchasing through third party vendors, including but not limited to garage
sales,
pawn shops, resale shops, or any other secondhand merchant, voids the warranty included with this
product.
Contact [email protected] or 1-847-429-9263 with the following information to make arrangements:
your
shipping address, phone number, serial number, required part numbers, and proof of purchase. Damaged
or
defective parts and products may need to be sent to WEN before the replacements can be shipped out.
-
turning
a product for warranty service, the shipping charges must be prepaid by the purchaser. The product
must
be
shipped in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The
product
must be fully insured with a copy of the proof of purchase enclosed. There must also be a description of
the
will be returned and shipped back to the pur
chaser at no charge for addresses within the contiguous United States.
THIS
LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,
INCLUDING
BELTS, BRUSHES, BLADES, BATTERIES, ETC. ANY IMPLIED WARRANTIES SHALL BE LIMITED IN
DUR
ATION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME CANADIAN
PROVINCES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMI-
TAT
ION MAY NOT APPLY TO YOU.
IN
NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING
BUT
NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT.
SOME ST
ATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU.
THIS
LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH
VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY
TO COUNT
RY.
THIS
LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANA-
DA
AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER
COUNTRIES,
CONT
ACT THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER
WA
RRANTY SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL
SHIPPING
CHARGES MAY APPLY.
V. 2025.01.03
20
