04673
EN
Original Instructions
Version 1 – 09/24
24W HYBRID
AC/DC WORK LIGHT
A
1
2
6
5
4
7
3
9
8
10
– 2 –
B
E
H
C
F
I
D
G
J
M
×1 ×2
×3 ×4
25% 50%
100%
K L
USB
– 3 –
N O P
Q R S
Health and Safety
Information
EN
Important: Read all the Health and Safety instructions
before operating or maintaining this product and retain
for later use. Failure to read these instructions may result
in injury or damage to the user or the product.
• DO NOT shine the light directly into eyes.
• DO NOT allow children to use the light.
• DO NOT use the light near water sources or expose to
rain.
• DO NOT operate near any heat sources such as
radiators, stoves or other equipment that produces
heat.
WARNING! To reduce the risk of burns or re:
− Only use the AC adaptor supplied or an approved
compatible battery pack to operate this light.
− DO NOT attempt to open, disassemble, modify or
service the light.
− DO NOT crush, puncture, short external contacts
or dispose of in re or water.
− DO NOT use this product if the light, adaptor or
battery pack are damaged in any way.
Connection to the Power Supply
This light/adaptor is Class II
†
(double insulated) and is
designed for connection to a power supply matching that
detailed on the rating label and compatible with the plug
tted.
†
Double Insulated ( ): This product is double insulated
and does not require an earth connection to protect
against electric shock from accessible conductive parts
in the event of failure of the basic insulation.
AC Adaptor
• For indoor use only. DO NOT expose to rain.
• Before plugging in, check the adaptor casing, cord
and plug are in good condition. If damaged in any way
have it checked by a qualied person before next use.
• Set up the adaptor and cord in a safe place where it
cannot be knocked, tripped over or stepped on.
• If the adaptor or cord are damaged replace only with
one recommended by Draper Tools.
Battery Pack & Charger
• Before using the battery pack, read all instructions
and cautionary markings on the battery charger,
battery and product using the battery.
• Recharge only with the charger specied by the
battery pack manufacturer.
• Only use chargers and battery packs that are
recommended by Draper for use with this light.
– 4 –
• For indoor use only. DO NOT expose to rain.
• Disconnect the charger from the power supply before
removing or tting the battery.
• DO NOT leave battery in a discharged state, recharge
battery immediately.
Product Overview
EN
1
LED SMD Light
2
Stand adjuster
3
USB output 5V/1A
4
ON/OFF/Brightness button
5
1 × 07069 Battery adaptor
6
Foldable stand
7
Hanging hook
8
4 × Base magnets
9
AC adaptor input port
10
Input AC adaptor (100 – 240V)
Optional Accessories (not supplied)
07069 – 1 × DeWalt/Milwaukee battery adaptor
07070 – 1 × Makita battery adaptor
07071 – 1 × Bosch battery adaptor
07072 – 1 × Black & Decker /Stanley battery adaptor
07075 - 1 × Input AC adaptor
Please visit drapertools.com for our full range of
accessories and consumables.
Set Up and Operation
EN

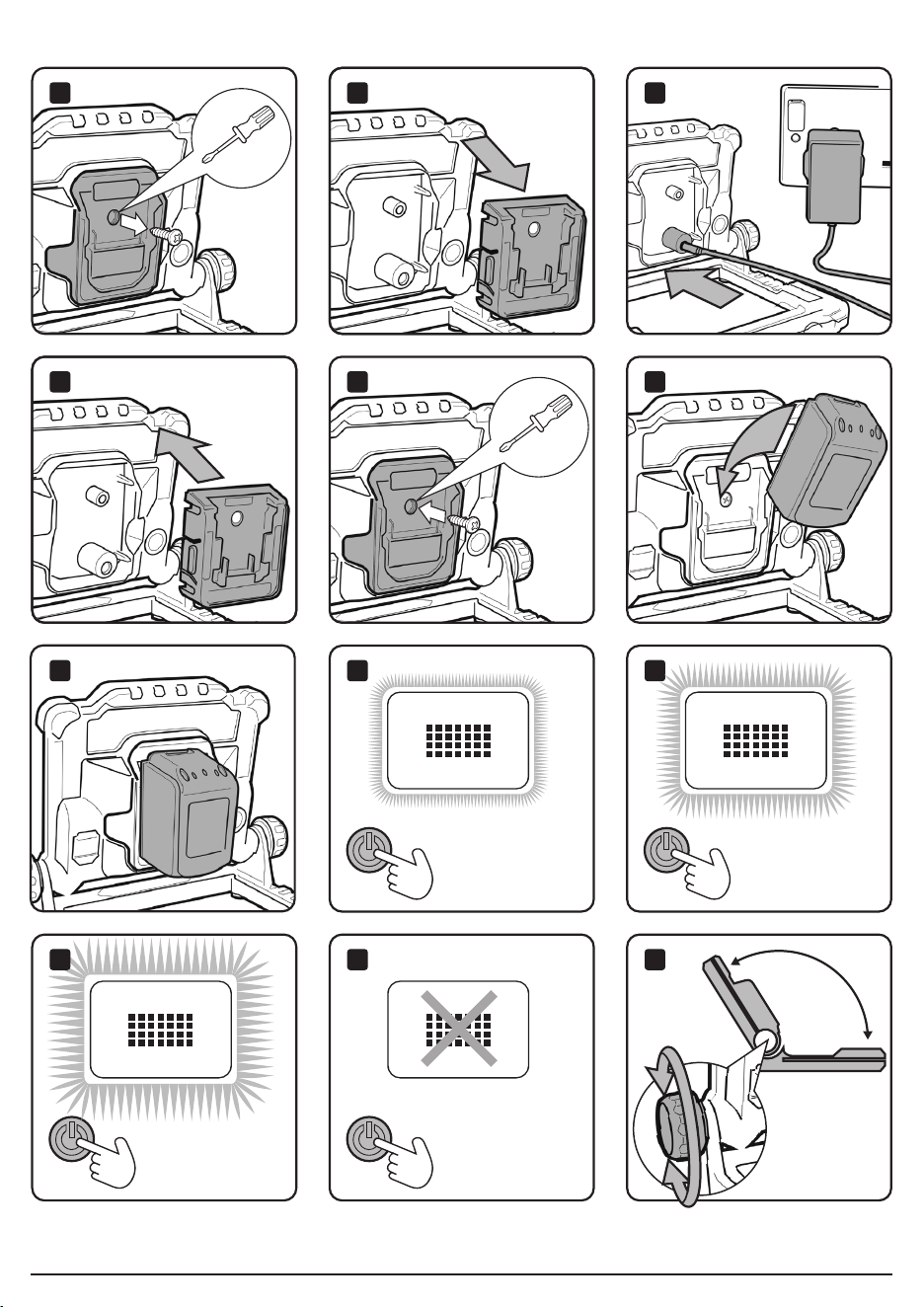

Using AC Mains Power
B
–
D
• Always unplug from the power supply after use.
Using DC 18V/2.0Ah Power Tool
Battery Pack (not supplied)
E
–
H
1. Fit the battery adaptor and slide on a compatible
18V/2.0Ah Li-ion battery pack (as marked on the
adaptor).
− Ensure the battery pack is fully charged before
tting to the light. If it requires charging, remove
from the light and follow the instructions supplied
with the battery pack and compatible charger.
− Battery life will depend on battery condition and
type used.
2. Always switch the light o after use.
Operating the Light
I
–
L
Adjusting the Stand
M
USB Power Outlet
N
–
O
Maintenance and Storage
P
–
R
Remove the battery pack from the light when not in use
and when storing for prolong periods.
Warranty
S
Warranty period is 12 months from date of purchase.
Visit drapertools.com/warranty/ for more information.
At the end of its working life, dispose of the product
responsibly and in line with local regulations. Recycle
where possible.
Contact Details
Draper Tools
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
SO53 1YF
UK
Delta International
Delta International BV
Oude Graaf 8
002 NL
Weert
Netherlands
Website: drapertools.com
Email: [email protected]
Product Helpline: +44 (0) 23 8049 4344
Telephone Sales Desk: +44 (0) 23 8049 4333
General Enquiries: +44 (0) 23 8026 6355
Please contact the Draper Tools Product Helpline for
repair and servicing enquiries.
© Published by Draper Tools Limited
