INSTRUCTIONS FOR USE
OF AN UPRIGHT FRIDGE
FREEZER
We thank you for the trust you have shown by purchasing our appliance which is
designed to simplify your life. This instruction manual is supplied to make the use of
this product easier. The instructions should allow you to learn about your new appliance
as quickly as possible.
We wish you find a lot of pleasure in its use.
Link to the EU EPREL database
The QR code on the energy label supplied with the appliance provides a web link to
the registration of this appliance in the EU EPREL database. Keep the energy label for
reference together with the user manual and all other documents provided with this
appliance. It is possible to find information related to the performance of the product
in the EU EPREL database using the link https://eprel.ec.europa.eu and the model name
and product number that you can find on the rating plate of the appliance. For more
detailed information about the energy label, visit www.theenergylabel.eu.
The appliance is intended solely for household use.
The refrigerator is intended for storing fresh food at temperatures above 0°C.
The freezer is intended for freezing fresh food and for long-term storage of frozen food
(up to one year, depending on the type of food).
The following symbols are used throughout the manual and they have the following meanings:
INFORMATION!
Information, advice, tip, or recommendation
WARNING!
Warning – general danger
ELECTRIC SHOCK!
Warning – danger of electric shock
DANGER OF FIRE!
Warning – danger of fire
Contents
4Important notes and precautions ..........................................................................................
4Before using the appliance for the first time .............................................................................
4Important safety instructions ....................................................................................................
7Important information on the use of appliance .........................................................................
9Environment protection ............................................................................................................
10Advice for saving power with refrigeration appliances .......................................................
11Installation and connection ....................................................................................................
11Selecting the room ....................................................................................................................

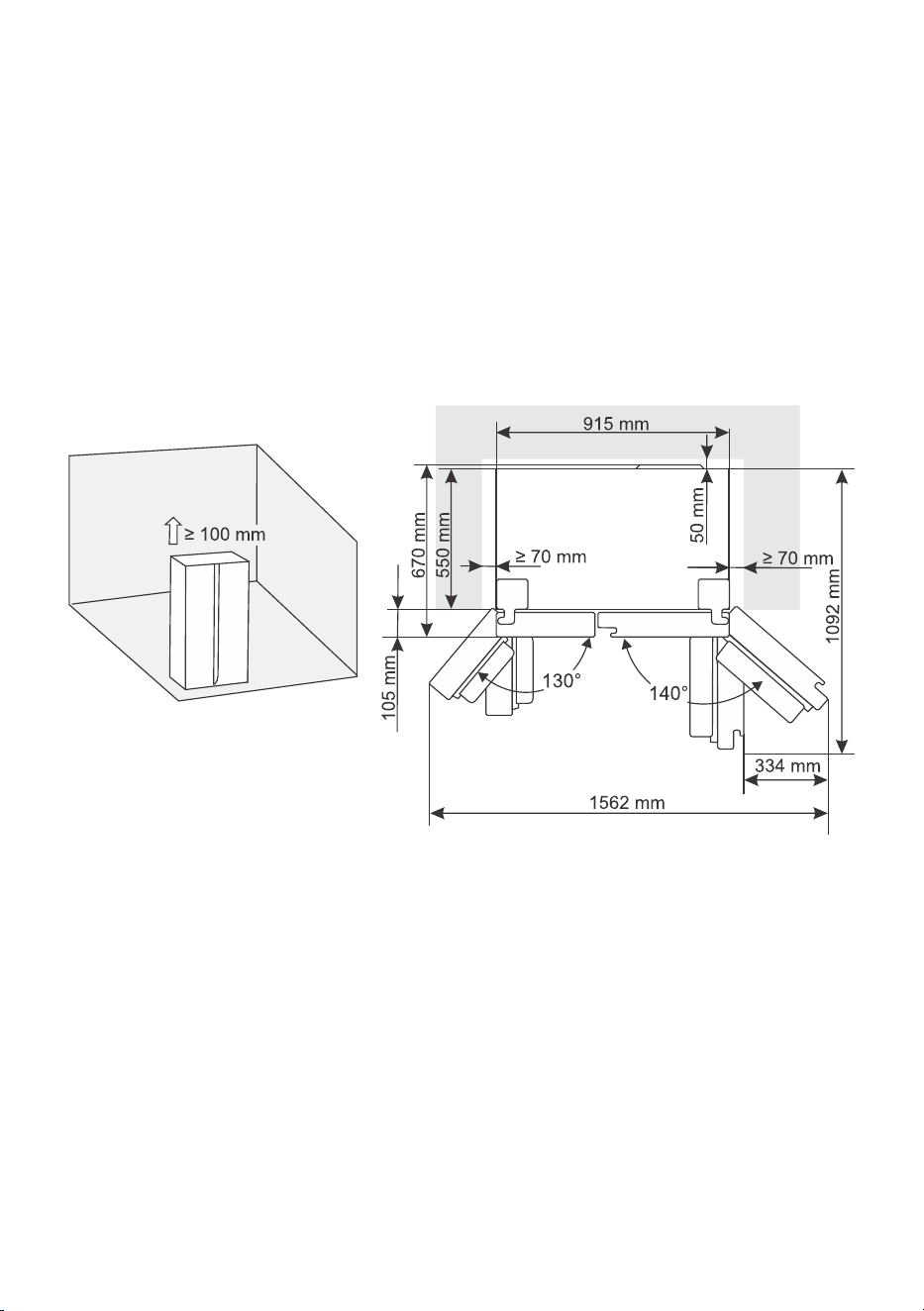

12Appliance placement ................................................................................................................
14Connecting the appliance .........................................................................................................
15Description of the appliance ..................................................................................................

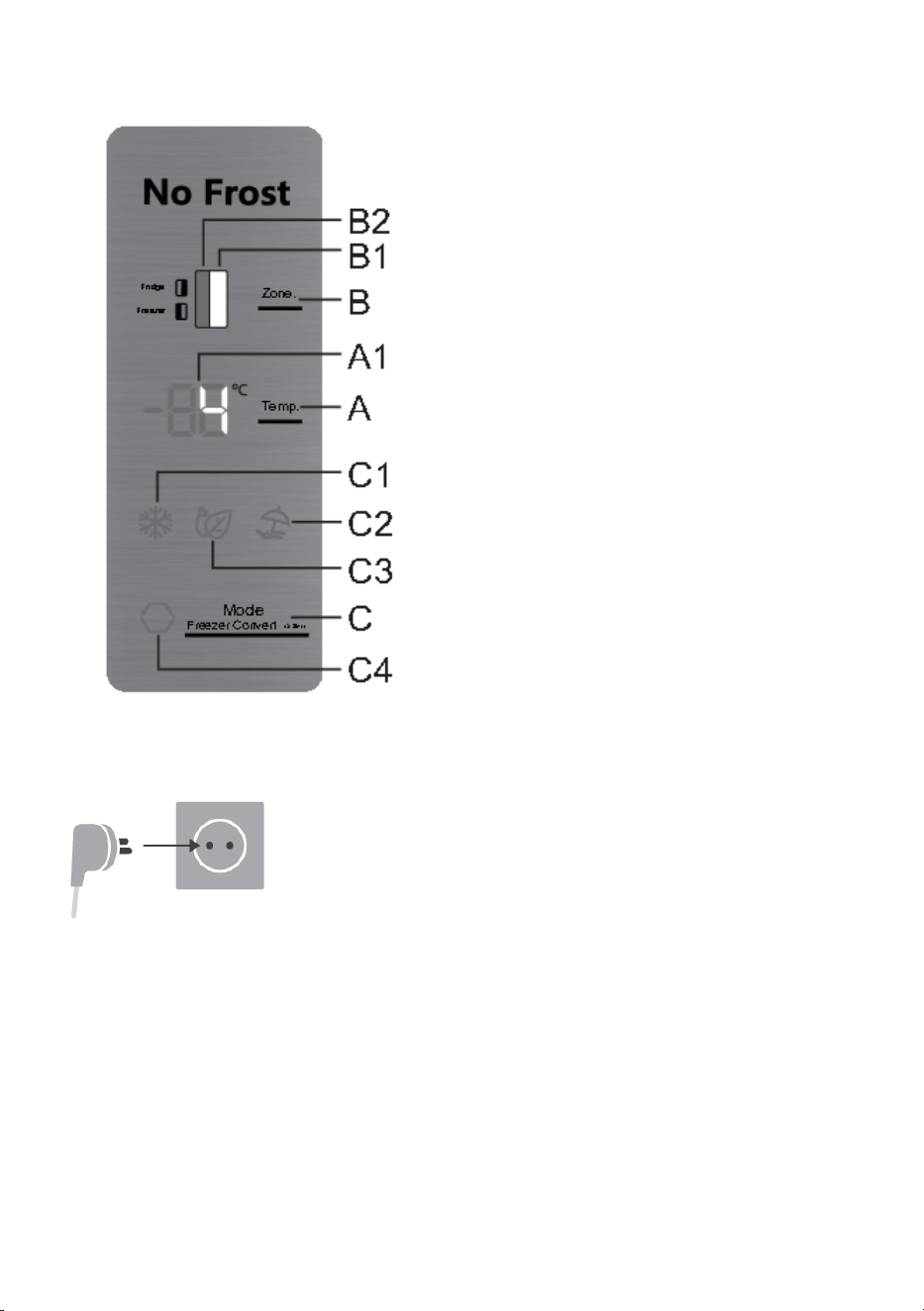

16Operating the appliance .........................................................................................................
16Switching the appliance on/off .................................................................................................
17Adjusting the temperature in the appliance ..............................................................................
18Control unit/display standby mode ...........................................................................................
19Intensive freezing (freezer compartment) ..................................................................................
20Eco function(Recommended setting ) .......................................................................................
21Convert function .......................................................................................................................
22Holiday mode (prolonged absence) ..........................................................................................
23High temperature alarm ............................................................................................................
24Open door alarm .......................................................................................................................
25Power outage/power supply failure alarm ................................................................................
26Appliance interior equipment ................................................................................................
26Shelves .....................................................................................................................................
26Fruit and vegetables drawer (CrispZone) * ..............................................................................
26Door racks ................................................................................................................................
26Air distribution system (MultiFlow) * .........................................................................................
27Water dispenser * .....................................................................................................................
29Storing food in the refrigerator ..............................................................................................
29Important warnings regarding food storage .............................................................................
29Avoid contamination of food .....................................................................................................
30Freezing and storing frozen food ..........................................................................................
30Freezing procedure ...................................................................................................................
30Important warnings on freezing ................................................................................................
30Storing industrially frozen food .................................................................................................
30Frozen food storage time ..........................................................................................................
31Thawing frozen food .................................................................................................................
32Defrosting the appliance ........................................................................................................
32Automatic refrigerator defrosting ..............................................................................................
32Defrosting a NoFrost freezer .....................................................................................................
33Cleaning the appliance ...........................................................................................................
34Troubleshooting ......................................................................................................................
37Information about appliance noise .......................................................................................
3
Important notes and precautions
Before using the appliance for the first time
Before connecting the appliance to the power mains, please read carefully the instructions for use
which describe the appliance and its correct and safe use. The instructions apply to several appliance
types/models; thus, settings or equipment may be described herein which is not available in your
appliance. We recommend saving this instruction manual for future reference and attach it to the
appliance if it is sold in the future.
The instruction manual includes the No Frost version/model of the freezer which is fitted with a fan
and in which the defrosting process is automatic (only with some models).
Check for any damage or irregularities on your appliance. If you find your appliance is damaged, notify
the retailer from which you have purchased the appliance.
Before connecting the appliance to the power mains, let the appliance rest in a vertical position for a
minimum of 2 hours. This will reduce the possibility of operation faults due to the effect of transport
on the cooling system.
Important safety instructions
DANGER OF FIRE!
WARNING! Risk of fire/flammable materials.
The appliance must be connected to the power mains and
grounded in compliance with the effective standards and
regulations.
WARNING! Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
Before cleaning the appliance, unplug it from the power mains
(unplug the power cord from the wall outlet).
4
ELECTRIC SHOCK!
WARNING! If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
ELECTRIC SHOCK!
WARNING! When positioning the appliance, ensure the
supply cord is not trapped or damaged.
ELECTRIC SHOCK!
If LED lighting does not work, call a service technician. Do
not attempt a repair of the LED lighting yourself, as there is
danger of contact with high voltage!
WARNING!
WARNING! Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of
the type recommended by the manufacturer.
WARNING!
WARNING! Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING!
WARNING! To avoid any hazard resulting from poor stability
of the appliance, make sure it is installed as instructed.
Freeze burn hazard
To avoid freeze burn, never put frozen food in your mouth and
do not touch frozen food.
5
Safety of children and vulnerable persons
The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
Remove the packaging intended to protect the appliance or
particular parts during transport and keep it outside the reach
of children. It presents danger of injury or suffocation.
When removing a used appliance, disconnect the power cord,
remove the door, and leave the shelves in the appliance. This
will prevent children from locking themselves in the appliance.
For European markets only
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
6
Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances.
Warning regarding the refrigerant
The appliance contains a small amount of an environmentally
friendly yet flammable gas R600a. Make sure that no parts of
the cooling system are damaged. A gas leak is not hazardous
to the environment, but it could cause eye injury or fire.
In case of a gas leak, ventilate the room thoroughly, disconnect
the appliance from the power mains, and call a service
technician.
Important information on the use of appliance
WARNING! This appliance is intended to be used in household
and similar applications such as:
•
staff kitchen areas in shops, offices and other working
environments;
•
farm houses and by clients in hotels, motels and other
residential type environments;
•
bed and breakfast type environments;
•
catering and similar non-retail applications.
7
WARNING!
WARNING! Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
The appliance may not be used outdoors and it may not be
exposed to rain.
Do not store explosive substances such as aerosol cans with
a flammable propellant in this appliance.
If the appliance will be out of use for an extended period of
time, switch it off using the relevant button, and unplug it from
the power mains. Empty the appliance, defrost it, clean it, and
leave the door ajar.
In case of an error or power supply failure, do not open the
freezer compartment unless the freezer has not operated for
over 16 hours. After this period, use the frozen food or provide
sufficient cooling (e.g. a replacement appliance).
Technical information on the appliance
Rating plate can be found in the appliance interior. It indicates
data on voltage, gross and net volume, type and amount of
refrigerant, and information on the climate classes.
If the language on the rating plate is not the language of your
choice or the language of your country, replace it with the one
supplied.
WARNING!
WARNING! Do not damage the refrigerant circuit. This will
also prevent pollution.
8
Environment protection
Packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed
without any hazard to the environment.
Removing an obsolete appliance
To protect the environment, take the obsolete appliance to an authorized home appliance collection
centre.
Before doing so, do the following:
• disconnect the appliance from the power mains;
• do not allow children to play with the appliance.
The symbol on the product or its packaging indicates that the product should not be treated
as normal household waste. The product should be taken to an authorized collection centre for waste
electric and electronic equipment processing. Correct disposal of the product will help prevent any
negative effects on the environment and health of people which could occur in case of incorrect
product removal. For detailed information on removal and processing of the product, please contact
the relevant municipal body in charge of waste management, your waste disposal service, or the store
where you bought the product.
9
Advice for saving power with refrigeration
appliances
• Install the appliance as specified in the instruction manual.
• Do not open the door more often than necessary.
• Occasionally make sure air circulation underneath the appliance is unobstructed.
• If the gasket is damaged or does not provide a perfect seal for any reason, have it replaced as
soon as possible.
• Store the food in tightly sealed containers or appropriate packaging.
• Before placing the food in the refrigerator, allow it to cool down to room temperature.
• Defrost frozen food in the refrigerator compartment.
• To make use of the entire freezer compartment interior volume, remove some of the drawers as
described in the instruction manual.
• Defrost your conventional freezer when an approximately 3–5 millimetre layer of frost or ice has
built up on the refrigerated surfaces.
• Make sure the layout of shelves in the compartment is uniform and that the food is placed so that
the air can freely circulate in the appliance interior (observe the recommended placement of food
as described in the instructions).
• In appliances with a fan, do not block the fan slots or vents.
• If you do not need the fan or the ionizer, switch them off to reduce power consumption.
10
Installation and connection
Selecting the room
• Install the appliance in a dry and well ventilated room. The appliance will operate correctly if the
environment temperature is in the interval specified in the table. The appliance class is indicated
on the rating plate / label with the basic information on the appliance.
Relative humidityAmbient temperature range °CClassDescription
≤75%
+10 to +32SN
Extended
temperate
+16 to +32NTemperate
+16 to +38STSubtropical
+16 to +43TTropical
INFORMATION!
This appliance is not intended to be used as a build-in appliance.
INFORMATION!
Do not place an appliance in a room where temperature can drop to below 5 °C as this may
cause abnormal appliance operation or failure!
• After the installation, the appliance mains plug should be accessible!
• Do not place the appliance near appliances or devices radiating heat, such as a cooker, a stove,
a radiator, water heater etc., and do not expose it to direct sunlight. The appliance should stand
at least 3 cm away from an electric or gas cooker or at least 30 cm away from an oil or solid fuel
stove. If the distance between such source of heat and the appliance is smaller, use an insulating
panel.
11
Appliance placement
Appliance installation should be carried out by at least two persons to avoid any personal injury or
damage to the appliance.
• The appliance is intended for free-standing installation. To reach the rated/minimum power
consumption, always provide 50 mm of clearance between the wall and the back of the appliance,
and 100 mm above the appliance. Also allow adequate air circulation on either side of the appliance
and above it.
• The appliance can also be placed adjacent to or between kitchen cabinets or cupboards, or
adjacent to a wall. In case of such placement, the appliance will operate flawlessly; however,
power consumption could increase. Observe the minimum clearance above and behind the
appliance, as indicated in the figure.
• Take into account the space or clearance required to open the appliance door, in order to allow
the drawers and shelves to be pulled out or removed (see installation diagram).
12
Appliance setup
• To ensure that the appliance will stand
horizontally and that sufficient air circulation
is provided behind the appliance, the feet
at the bottom of the appliance may need
to be adjusted. The height of the feet can
be adjusted with your fingers or using an
appropriate wrench.
• Allow the door to close automatically. Then
turn the adjustable feet so that the upper
part of the appliance is tilted backwards by
about 10 mm or by 0.5°.
• When you want to move the appliance,
raise the feet again so that the appliance
can move freely on rotating rollers. After
moving the appliance to the desired
position, re-align it.
WARNING!
Attention! Use the rotating rollers only
to move the appliance forward and
backward, as they do not function as
wheels. If you push the appliance to
one side or the other, it can damage
the floor and the rollers.
Adjusting the appliance door
If you find that the door of the appliance is not completely aligned (that the door of the freezer
compartment and the refrigerator compartment are not at the same level), you can use the supplied
tool to adjust the height of the door.
If the freezer door is higher than the refrigerator door. First, use the supplied tool to turn the screw on
the lower hinge counterclockwise to raise the door. Then fix the nut with a screwdriver.
13
Connecting the appliance
• Connect the appliance to the power mains using the power cord.
The wall outlet should be fitted with a ground contact (safety socket).
Nominal voltage and frequency are indicated on the rating plate/label
with basic information on the appliance.
• The appliance must be connected to the power mains and grounded
in compliance with the effective standards and regulations. The
appliance will withstand short-term deviations from the nominal
voltage, but not more than +/- 6%.
14
Description of the appliance
Appliance interior equipment may change according to the appliance model.
This product contains a light source of energy efficiency class G.
1. LED light in the freezer compartment
2. Freezer door shelf
3. Freezer air circulation duct cover
4. Ice maker *
5. Freezer shelf
6. Top freezer drawer
7. Bottom freezer drawer
8. Left adjustable foot at the bottom of the
appliance
9. LED light in the refrigeration compartment
10. Refrigerator door shelf
11. Refrigerator air circulation duct cover
12. Refrigerator shelf
13. Top refrigerator drawer
14. Bottom refrigerator drawer
15. Right adjustable foot at the bottom of the
appliance
* Only in some models
NOTE!
Due to occasional changes to our products, it is possible that your refrigerator will differ slightly
from the refrigerator described in these instructions for use, but its functions and methods of
use remain the same.
15
Operating the appliance
Temperature setting keyA
DisplayA1
Refrigerator/freezer compartment switch
key
B
Refrigerator compartment displayB1
Freezer compartment displayB2
Key to set additional functionsC
Intensive freezing (fast freeze) function
indicator
C1
Long absence function indicator (holiday
mode)
C2
Eco function indicatorC3
Function indicator convertC4
Switching the appliance on/off
Power on: To switch on the appliance, plug the power cord into the
power mains outlet.
Power off: To switch off the appliance, unplug the power cord from the
power mains outlet.
16
Adjusting the temperature in the appliance
INFORMATION!
• Appliance temperature is preset at the factory to the recommended setting, i.e. 4°C for the
refrigerator compartment and -18°C for the freezer compartment.
• After the appliance is switched on, it may take several hours for the set temperature to be
reached. Do not place any food into the refrigerator before the temperature drops to the
selected setting.
With this model, you can switch between setting the temperature of the
refrigeration and freezer part. You can do this by pressing the B key to
illuminate the symbol for the part of the appliance whose temperature
you want to set: B1 for the refrigeration part and B2 for the freezer part.
Temperature in the refrigerator compartment can be set when the B1
symbol is lit. Set the temperature by briefly pressing the A key.
• Every time you press the A key, the temperature will be increased
by 1 °C. The setting you choose will be stored as the most recent
temperature set for the refrigerator compartment.
• Refrigerator compartment temperature can be set in the range from
+1 °C to +9 °C.
• Recommended temperature setting is 4°C.
Temperature in the freezer compartment can be set when the B2 symbol
is lit. Set the temperature by briefly pressing the A key.
• Every time you press the A key, the temperature will be increased
by 1 °C. The setting you choose will be stored as the most recent
temperature set for the freezer compartment.
• Freezer compartment temperature can be set in the range from -16°C
to -24°C.
• Recommended temperature setting is -18°C.
17
INFORMATION!
10 seconds after the most recent key is pressed, the freezer compartment display automatically
switches back to refrigerator compartment display. B1 will light up and the temperature set for
the refrigerator compartment is displayed on the A1 display unit.
Control unit/display standby mode
INFORMATION!
30 second after you have pressed the most recent key, the control unit switches to standby
mode. All indicators on the control unit will be switched off. There are exceptions when some
indicators remain lit although the control unit is in standby mode. Such exceptions include the
following:
• If intensive freezing (freezer boost) is activated, then the indicator C1 will remain lit. All other
indicators are off.
• If the Eco function is acticated, the indicator C3 will still be displayed in standby mode. All other
indicators are off.
• If the holiday mode function is acticated, the indicator C2 will still be displayed in standby mode.
All other indicators are off.
• If the convert function is acticated, the indicator C4 will still be displayed in standby mode. All
other indicators are off.
• If the manual freezer compartment defrosting function is activated, then Cd will still be displayed
on the display unit, even when the control unit is in the standby mode. All other indicators are off.
• If one of the alarms is activated or if one of the faults is displayed, the display will show a specific
message.
Exit standby mode: briefly press any key or open the door of the cooling compartment.
18
Intensive freezing (freezer compartment) ( )
• Use this setting after switching on the appliance for the first time, before cleaning, or before
inserting a large amount of food.
Power on: switch on the intensive freezing mode by pressing the key C
as many times as it takes for the display to show C1. The display shows
FF.
Power off: switch off the intensive freezing mode by pressing the C key
again until the symbol C1 goes out.
If the function is not deactivated manually, it will be deactivated
automatically after approximately two days. The setting returns to the
most recent value.
INFORMATION!
• When the intensive freezing (fast freeze) function is activated, the appliance will operate with
maximum power. During this time, operation may be temporarily somewhat louder.
INFORMATION!
• When the intensive freezing (super freeze) function is activated, temperature may be lower
both in the refrigerator and the freezer compartment.
19
Eco function ( ) (Recommended setting )
Power on: the Eco function is turned on by pressing the C key as many
times as it takes for the display to show C3.
Power off: the Eco function can be switched off by pressing the C key
again until the symbol C3 goes out.
The Eco function will also be deactivated when you change the refrigerator or freezer compartment
temperature setting, or when you activate any of the other extra functions.
20
Convert function ( )
The entire freezer compartment can be converted into a ZeroZone compartment. The temperature
in this compartment is at or slightly below 0°C. Therefore, do not store food that is sensitive to low
temperature in this compartment as such food may freeze. Before switching to ZeroZone function,
empty the freezer compartment to prevent the frozen food from defrosting and perishing.
• Switching on the function Convert: with a long (5 second) press
of the key C. You will hear a beep, and the display C4 will light up.
• When this function is activated, the temperature in the freezer
compartment will be set to 0°C, while the refrigerator compartment
temperature will be set to 4°C. "0°C" will flash on the A1 display until
the temperature in the freezer compartment reaches the appropriate
temperature. When this temperature is reached, the "0°C" indicator
will be constantly lit.
• Setting the temperature in the ZeroZone compartment: use the A key to set the temperature
between -2°C and +3°C.
• The temperatures are approximate and they depend on the temperature settings in the refrigerator
compartment, environment temperature, frequency of door opening, and amount of food inserted.
Setting a higher temperature in the ZeroZone compartment will also increase the temperature in
the refrigerator compartment, and vice versa. Adjust the setting to the operating conditions.
• When the freezer is working in the ZeroZone mode, the temperatures in the refrigerator
compartment can only be set in the range from 4 °C to +8 °C. We recommend such use only when
environment temperature is between +16 °C and + 32 °C. At higher or lower temperatures, it is
not possible to guarantee adequate temperature in the appliance.
• When the Convert function is activated, any other extra functions will be deactivated.
• Switching off the function Convert: by pressing the key again for a long time C. You will hear a
beep and the display C4 will turn off.
21
Holiday mode (prolonged absence)
Use this function when you are away for a long period of time, for example when you are going on
holiday or taking a long business trip.
Power on: turn on the function by pressing the C key as many times as
it takes for the display to show C2.
• When this function is activated, the refrigerator compartment temperature will be set to 15°C and
the freezer compartment temperature will be set to -18°C.
WARNING!
Before activating this function, empty the refrigerator compartment, as any perishables left in
this compartment may spoil.
Power off: turn off the function by pressing the C key again until the symbol C2 goes out.
22
High temperature alarm
If the temperature inside the appliance is too high, the acoustic alarm
will be activated (intermittent tone), and the set temperature of the
compartment where the temperature is too high will flash on the display
unit.
• Every time you switch on the appliance, a 24-hour delay in alarm
operation is activated. If the appliance fails to reach a sufficiently low
temperature after this period, the alarm will be activated.
Switching off the alarm:
• Acknowledge and turn off the acoustic alarm by pressing any key. Current temperature in the
compartment where the temperature is too high will start to flash on the display unit. If you do not
acknowledge and switch off the acoustic alarm, then it will be activated every hour for approximately
15 minutes.
• When the temperature drops to below the alarm value, then the temperature display will stop
flashing and it will be lit continuously. Refrigerator compartment temperature will be displayed.
23
Open door alarm
If the refrigerator or freezer compartment door is open for too long, an acoustic alarm (repetitive beep)
will be activated and B1 or B2 icon on user interface will start to blink, depending on which door is
open. If you do not acknowledge and switch off the acoustic alarm, then alarm will be activated every
30 seconds.
To switch off the alarm: to switch off the alarm, close the appliance door.
INFORMATION!
If you switch off the alarm by pressing any key, the alarm will be reactivated in 4 minutes if the
door is still open.
INFORMATION!
If you leave the door open for more than 10 minutes, the alarm will no longer be sounded.
Appliance operation will switch to safe mode in order to provide sufficient cooling and prevent
food spoilage despite the open door.
24
Power outage/power supply failure alarm
If the temperature in the appliance reaches the alarm level during a power
failure, then the high temperature alarm will be activated once power
supply is restored. The alarm will sound and the display will flash PF.
Deactivate the alarm by pressing any of the keys. The display shows the
maximum measured temperature of the freezer compartment.
The next time you press the key, A the highest measured temperature
of the refrigerator compartment will be displayed.
If you press the key C once more, the power supply failure alarm will be
finally deactivated, and the set temperature for the selected compartment
will appear on the display unit.
If the high temperature alarm is activated at the same time, it will operate as described in the chapter
High temperature alarm, after you have deactivated the power supply failure alarm.
25
Appliance interior equipment
( * Equipment depends on the model)
Shelves
Empty shelves can be rearranged as you see fit across the guides in the appliance interior without
having to remove them from the appliance. To move or remove a shelf from the appliance, pull it
towards you, lift it up at the front and then move or pull it out of the appliance. Store quickly perishable
food at the back of the shelf where the temperature is the lowest.
Fruit and vegetables drawer (CrispZone) *
The drawers at the bottom of the refrigerator are meant for storing fruits and vegetables. They provide
humidity and prevent the food from drying out.
• Pulling out the bin:
- Pull out the bin as far as it will go. Then, lift the front part and
pull it out completely.
Door racks
The inside of the door of the refrigerator and freezer compartment is
equipped with shelves designed for storing small packages.
You may lay out the racks as desired by lifting them slightly from the
grooves that hold them in place and moving them to the desired spot,
making sure to fit them in the grooves there.
The lower shelf on the door of the refrigerator compartment is designed
for storing bottles.
Maximum load on each door shelf is 5 kg.
Air distribution system (MultiFlow) *
• Advanced MultiFlow system evenly distributes the air and equalizes the temperature throughout
the refrigerator. This system also allows placing any type of food on any shelf in the fridge, as
there are not temperature differences between them.
26
Water dispenser *
(Only in some models)
The water dispenser installed in the door of the refrigeration compartment is designed for storing
drinking water. With a water dispenser, you can easily get chilled water without having to open the
door of the refrigeration compartment.
Before using the appliance for the first time
Before using the water dispenser for the first time, it must be cleaned according to the instructions
below:
Head
1. Hold the water dispenser on both sides and
pull it upwards with a slight shake.
2. Unscrew the head and clean it, while also
cleaning the inside of the water dispenser.
Installation
1. Insert the dispenser head into the opening.
2. Place the container in the guides on the refrigerator door.
3. Press both sides of the water container downwards.
4. When you hear a click, it means that the container is placed in its intended slot.
Warning!
1. Be careful not to press on the head.
2. When installing the water container, make sure to insert the head into the opening first.
27
Filling with water
Before filling the container with drinking water, make sure that the water container is firmly placed in
the intended position.
Attention!
Pour up to 3 liters of water into the container (as recommended), but make sure that the water does
not exceed the maximum level, otherwise it may spill over the edge when the lid is closed.
Open the lid and pour in the water. After pouring in the water, do not
forget to close the lid completely again.
Water dispensing
1. Make sure that the water container lid is installed.
2. Close the refrigerator door and check the water dispenser.
Pouring water into a glass
Place a suitable glass under the cold water dispenser.
WARNING!
Do not press the dispenser lever if there is no glass under the tap, otherwise water may flow
from the dispenser.
Cleaning
1. Carefully remove the water container from the refrigerator door. Gently clean the container, lid
and head with water.
2. After cleaning the dispenser, allow it to dry or dry it with a dryer.
3. If you frequently use the cold water dispenser, a lot of water can accumulate in the drip tray of
the dispenser tap, which can also get on the floor and make it wet. Regularly wipe the container
with a dry cloth so as not to accumulate too much water in the tray.
28
Storing food in the refrigerator
Important warnings regarding food storage
INFORMATION!
Correct use of the appliance, appropriate packaging, maintaining the right temperature, and
observing the food hygiene standards have a decisive impact on the quality of food storage.
Observe the expiry dates for the food, indicated on the packaging.
Food stored in the refrigerator should be kept in closed containers or in appropriate packaging
to prevent it from emitting or receiving odours and humidity.
Do not store inflammable, volatile, and explosive substances in the refrigerator.
Bottles with high alcohol content should be tightly sealed and stored in an upright position.
Some organic solutions, essential oils in lemon and orange peel, butter acid, etc. may damage
the plastic surfaces in case of a prolonged contact, causing damage and premature ageing of
these materials.
Unpleasant odour warns of lacking cleanliness of the appliance or perished contents (see chapter
Cleaning the Appliance).
If you are leaving home for a longer period of time, remove perishables from the refrigerator.
Avoid contamination of food
To avoid contamination of food, please respect the following instructions:
• Opening the door for long periods can cause a significant increase of the temperature in the
compartments of the appliance.
• Regularly clean surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with
or drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave
the door open to prevent mould developing within the appliance.
29
Freezing and storing frozen food
Freezing procedure
INFORMATION!
Maximum amount of fresh food that may be inserted at once is specified on the appliance rating
plate. If the amount of food to be frozen exceeds the indicated amount, the quality of freezing
will be inferior; in addition, the quality of the food already frozen will deteriorate.
• Activate the super freeze function 24 hours before freezing fresh food:
- press the C key as many times as it takes for the display to show C1
• Then you can put fresh food in the freezer area.
Make sure the fresh food is not in contact with the food that is already frozen.
• When freezing smaller amounts of food (1-2 kilograms), activating the super freeze function is not
required.
Important warnings on freezing
INFORMATION!
Only use the freezer to freeze food appropriate for freezing. Always use quality and fresh food.
Select the most suitable packaging for the food and use the packaging correctly.
Make sure the packaging is air and water tight so that the food does not dry out and loose its
vitamins.
Indicate the type of food, amount, and date of freezing on the packaging.
It is important that the food freezes quickly. Therefore, smaller packages are recommended.
Refrigerate the food before freezing.
Storing industrially frozen food
• When storing and using frozen food, observe the manufacturer's instructions. Temperature and
expiry date are indicated on the packaging.
• Only choose food with undamaged packaging, stored in freezers at temperatures of –18 °C or
lower.
• Do not purchase food covered in frost as this indicates it has been partly thawed several times
and that it is of inferior quality.
• Protect the food from thawing during transport. In case of an increase in temperature, storage
time will be shorter and quality will deteriorate.
Frozen food storage time
Recommended storage time in the freezer
Storage lifeType of food
from 10 to 12 monthsFruit, beef
from 8 to 10 monthsVegetables, veal, poultry
from 6 to 8 monthsVenison
30
Table continued from last page
Storage lifeType of food
from 4 to 6 monthsPork
4 monthsFinely chopped or minced meat
3 monthsBread, pastas, cooked dishes, whitefish
2 monthsOffal
1 monthSmoked sausage, bluefish
Thawing frozen food
• Thawing is an important step in storing food preserved by freezing. Food must be thawed in the
correct way.
• Suitable methods of thawing food are:
- in the refrigerator;
- in cold water;
- in a microwave or conventional oven with a suitable thaw program.
• Some frozen products can be prepared without needing to thaw them first. The manufacturer will
state this on the packaging.
• The food needs to be packed in small portions. In this way the food thaws faster.
• Use partially or completely thawed food as quickly as possible. The bacteria in thawed food are
reactivated and the food will spoil rapidly. This applies in particular to fruit, vegetables and
ready-made food.
• Do not refreeze partially or completely thawed food.
31
Defrosting the appliance
Automatic refrigerator defrosting
Refrigerator does not need defrosting because the ice on the back interior wall is thawed automatically.
Any accumulated ice will melt when the compressor unit is inactive. Drops will flow through an opening
in the refrigerator rear wall into a tray fitted above the compressor, from where they will evaporate.
Make sure the opening in the back wall in the refrigerator interior is never blocked by food or any other
object.
If an excessive layer of ice is formed on the rear wall of refrigerator interior (3–5 mm), switch off the
appliance and defrost the appliance manually.
Defrosting a NoFrost freezer
• The NoFrost freezer will defrost automatically. Any frost layer that may build up occasionally will
disappear automatically.
32
Cleaning the appliance
WARNING!
Before cleaning, unplug the appliance from the mains - unplug the appliance and remove the
connection cable from the socket.
• Use a soft cloth to clean all surfaces. Cleaners that contain abrasive substances, acids, or solvents
are not suitable for cleaning as they may damage the surface.
Clean the appliance exterior with water or a mild solution of suds.
Lacquer-coated and aluminium surfaces may be cleaned with lukewarm water to which you have
added a mild detergent. Use of cleaners with low alcohol content is allowed (e.g. window cleaners).
Do not use cleaners containing alcohol for cleaning plastic materials.
Appliance interior can be cleaned with lukewarm water to which you can add some vinegar.
• Do not wash the parts of appliance interior equipment in a dishwasher as they may be damaged.
• Frost or ice build-up, 3–5 mm thick, will increase power consumption. Therefore, it should be
regularly removed (does not apply to NO FROST freezers). Do not use any sharp objects, solvents,
or sprays.
• After cleaning, switch the appliance back on and insert the food.
33
Troubleshooting
Cause or remedy:Problem:
Appliance is connected to
the power mains but it does
not work.
• Make sure there is voltage in the power outlet and that the
appliance is switched on.
Cooling system operates
continuously for a long
period of time:
• Too high environment temperature.
• Door opened too frequently or too long.
• Door not closed correctly (possible impurities on the seal,
misaligned door, damaged seal etc.).
• Too much fresh food inserted at once.
• The sensor in the refrigerator is blocked by fresh food. Allow air
to circulate around the sensor (only some models have it).
Excessive build-up of ice on
the back wall of refrigerator
interior can be a result of the
following:
• door opened too frequently or too long.
• Warm food placed in the refrigerator.
• Food or containers in contact with the back interior wall of the
refrigerator.
• Poor door sealing.
• If the seal is dirty or damaged, clean or replace it.
Build-up of ice or frost in the
freezer interior:
• The door has been opened for too long or too frequently.
• The door is not properly closed.
• The door has a poor seal (the gasket is dirty, the door is not
properly aligned, the gasket is damaged etc.).
• Manually defrost the appliance.
Condensate (dew) on the
shelf above the drawers:
• This is transient phenomenon which cannot be entirely avoided
in periods of high environment temperature and humidity. It
subsides when temperature and humidity are normalized. We
recommend cleaning the drawers more frequently and wiping the
droplets occasionally.
• Open the humidity control slider.
• Put food in bags or other packaging with a good seal.
Droplets on the refrigerator
compartment back wall.
• This is normal. The refrigerator compartment is defrosted
automatically, which results in droplets of water that flows through
an opening in the refrigerator compartment back wall into a tray
above the compressor unit, from which it evaporates.
Water is dripping/leaking
from the refrigerator:
• Clogged water discharge opening or water dripping past the
water gutter.
• Clean the blocked opening, e.g. using a kunststof straw.
• If a thick layer of ice builds up, defrost the appliance manually
(see Defrosting the Appliance).
34
Table continued from last page
Cause or remedy:Problem:
Door is difficult to open:
• If you are trying to open the freezer door after just having closed
it, this could be difficult to do. As you open the door, some cool
air escapes from the appliance and it is replaced by warm air
from the environment. When this air is cooled, negative pressure
is generated which results in problems as you try to open the
door. After a few minutes, the condition is normalized and the
door can be easily opened again.
Appliance sides are warm:
• This is normal. There are pipes and tubes installed in the appliance
sides, which tend to heat up during appliance operation.
LED lighting does not work:
• If LED lighting does not work, call a service technician.
• Do not attempt a repair of the LED lighting yourself, as there is
danger of contact with high voltage!
HI will appear on the display
unit:
• Door opened too frequently or too long.
• Door not closed correctly (possible impurities on the seal,
misaligned door, damaged seal etc.).
• An extended power failure.
• Too much fresh food inserted at once.
PF will appear on the display
unit:
• An extended power failure.
E0 or E8 appears on the
display unit:
• Sensor keys are not responding. Call a service centre for repair.
• Until the appliance is repaired by a service technician, the
appliance will operate in safe mode. The appliance will
automatically preserve the most suitable temperature for each
compartment.
E1 or E2 appears on the
display unit:
• Temperature sensor error or fault. Call a service centre for repair.
Until the appliance is repaired by a service technician, the
appliance will operate in safe mode. The appliance will
automatically preserve the most suitable temperature for each
compartment.
E3 or E4 appears on the
display unit:
• Compartment fan failure. Call a service centre for repair. The
appliance cannot operate normally. Transfer the food to a cool
place and switch off the appliance.
E6 will appear on the display
unit:
• Evaporator sensor is defective. Call a service center to fix the
problem. The appliance will operate in safe mode until it is
repaired by a service technician. The appliance will automatically
maintain the most suitable temperature for each compartment.
35
Table continued from last page
Cause or remedy:Problem:
E7 will appear on the display
unit:
• Ambient temperature sensor is malfunctioning. Call a service
center to fix the problem. The appliance will operate in safe mode
until it is repaired by a service technician. The appliance will
automatically maintain the most suitable temperature for each
compartment.
• Door was open for too long. Close the door.
• If the door is not open, or if E9 is still displayed 10 minutes after
you have closed the door, then there is a door sensor failure. Call
a service centre to arrange a repair. The appliance will operate
in safe mode until it is repaired. The appliance will automatically
preserve the most suitable temperature for each compartment.
E9 appears on the display
unit:
If the above tips do not resolve your problem, call the nearest authorized service centre and state the
type, model, and serial number indicated on the appliance rating plate or label located in the appliance
interior.
36
Information about appliance noise
Cooling in refrigerator freezers is made possible by a cooling system that also includes a compressor
(and a fan with some appliances), which generates some noise. The level of noise depends on
installation, proper use, and age of the appliance.
• After connecting the appliance to the power mains, compressor operation, or the sound of flowing
liquid, may be somewhat louder. This is not a sign of malfunction and it will not affect the useful
life of the appliance. In time, appliance operation and this noise will become quieter.
• Sometimes, unusual or loud noises may appear during appliance operation; these are mostly the
result of improper installation:
- The appliance must stand level and stable on a solid base.
- The appliance may not be in contact with a wall or adjacent furniture.
- Make sure the interior equipment sits firmly in its place and that the noise is not caused by
rattling cans, bottles or other containers placed next to each other.
• Due to the higher workload on the cooling system when the door is opened more frequently or
for a longer time, when a large amount of fresh food is introduced or when intensive freezing or
cooling functions are activated, the appliance can temporarily generate more noise.
37
902971-a1
