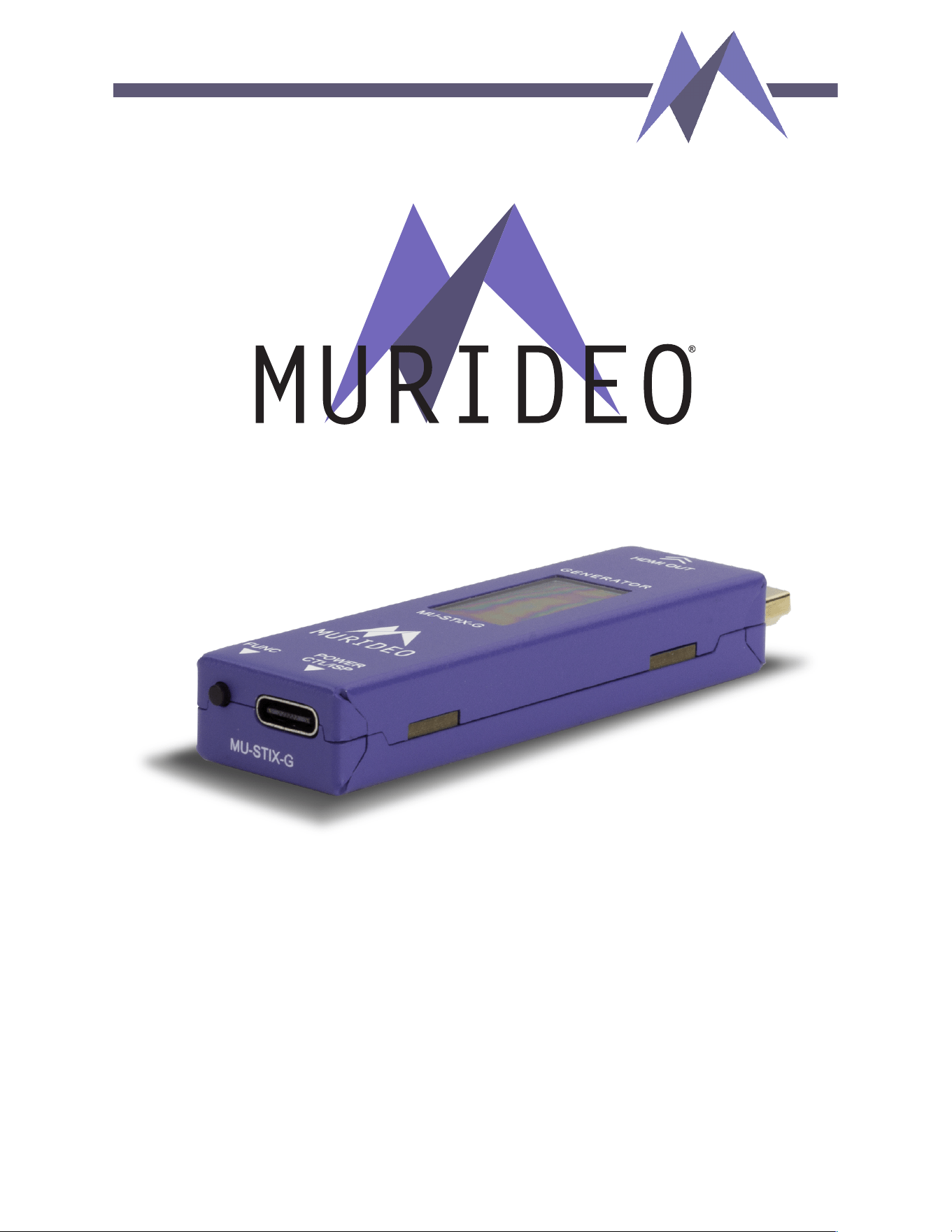

User Manual
MU-STIX-G
STIX Test Ecosystem Signal Generator
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
Table of Contents
Introduction ............................................................................................................ 3
Features ................................................................................................................. 3
In The Box ............................................................................................................... 3
Specifications ......................................................................................................... 4
Front Overview ........................................................................................................ 5
Preparing For Use .................................................................................................... 5
Home Screen .......................................................................................................... 6
Main Menu .............................................................................................................. 7
Navigating the Menu ................................................................................................ 8
Timing .................................................................................................................... 8
Color Depth (CD) ..................................................................................................... 9
Color Space (CSC) ................................................................................................... 9
HDCP .................................................................................................................... 10
Pattern .................................................................................................................. 11
Machine Config ...................................................................................................... 12
Return ................................................................................................................... 13
Screen Saver .......................................................................................................... 13
Firmware and Control ............................................................................................. 14
Control .................................................................................................................. 21
Command-List ....................................................................................................... 22
Warranty ................................................................................................................ 23
Obtaining the Warranty Service ............................................................................... 24
Disclaimer of Warranty ........................................................................................... 25
Support ................................................................................................................. 26
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
Introduction
Murideo’s MU-STIX-G is a revolutionary, ultra-compact HDMI 2.1 test pattern generator.
Ideal for commercial and residential integrators, this cost-eDective and user-friendly tool
simplifies the verification of HDMI signal chains and display capabilities.
The STIX-G supports cutting-edge HDMI 2.1 (FRL) signals up to 48 Gbps and legacy HDMI
(TMDS) signals, making it versatile for a wide range of displays and signal paths. It can
generate video test patterns at resolution timings from 720p/60 Hz up to 8K /30 Hz,
including 4K/120 Hz. With 13 built-in test patterns and six preset timing options, the STIX-G
is equipped to meet the demands of any HDMI testing environment, ensuring seamless
video signal distribution across the chain.
Designed for convenience, the STIX-G features a low power draw and can be powered
directly via a USB-A port on an AV receiver, a display, or a USB Type-C port on a mobile
device. Compact, reliable, and powerful, the MU-STIX-G is a must-have tool for HDMI
signal and display verification.
Features
• Cost-eDective HDMI 2.1b, 8K 48 Gbps (FRL) compliant generator
• Generates 720p, 1080p, 4K and 8K signal timings at 8-, 10-, and 12-bit color depths,
in RGB, 4:2:2, and 4:4:4 color spaces
• Configurable HDCP with options for versions 1.4 and 2.3 (1.4 is TDMS only) or OD.
• 13 built-in test patterns and six preset timing options, including pseudo-random
binary sequence, a diagnostic tool to identify transmission-related issues such as
bit errors, signal attenuation, or timing problems.
• A low power draw allows the device to be powered over USB-A (from an AVR or
display) or via USB Type-C from a mobile device
• OLED color screen with an intuitive navigation menu
In The Box
• MU-STIX-G
• 5-ft. USB Type-C to USB Type-A Cable
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
Specifications
Video
HDMI Version
2.1
HDCP Version
1.4 and 2.3
HDCP On/OD
Yes
Resolution
Timings
4K & 8K/30 Hz
720p, 1080p, 4K/60Hz
4K/120 Hz
Video
Encoding
RGB (Limited), YCbCr
Video
Sampling
Models
RGB 4:4:4, YUV 4:4:4, YUV 4:2:2
Color Bit
Depth
8-, 10-, 12-bit
Patterns
Black, Checkbox, Stripes, Red, Green, Blue, White, White Ramp, Red
Ramp, Green Ramp, Blue Ramp, PRBS, Color Bars
Audio
Audio Output
Not Supported
Ports
HDMI
Male Type-A
Firmware/Co
ntrol
USB Type-C
Environmental
Operating
Temperature
23° to 125° F (-5° to 51° C)
Storage
Temperature
-4° to 140° F (-20° to 60° C)
Humidity
Range
5% to 90% RH (No condensation)
Power
Power
5 VDC, 270 mA
Power
Consumption
1.35 W Max
Dimensions
Dimensions
(Height,
Depth, Width)
mm: 12 x 21 x 81.1
in: .47 x .82 x 3.2
Weight
27 g / 1 oz
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
Front Overview
1 – HDMI IN
2 – OLED Screen
3 – Function Button
4 - USB-C: Power, Control (CTL)
In-system Programming (ISP)
Preparing For Use
The Murideo STIX-G is powered through the USB Type-C input using any standard USB
power supply.
• Connect the STIX-G to a power supply using the supplied USB cable. Any USB
Type-C to Type-C or Type-C to Type-A cable may be connected to the STIX-G.
• Insert the STIX-G into an HDMI input of the sink device to be tested.
o Murideo does not recommend using female HDMI extension cables or
couplers when testing HDMI 2.1 FRL Signals.
o Sink devices include AVRs, Displays, HDMI Matrixes, or any HDMI device
with an HDMI input.
• Signal parameters of the STIX-G are configured manually.
o The STIX-G does not automatically adjust its configuration to match the
preferred timing specified in the Sink device's EDID.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112

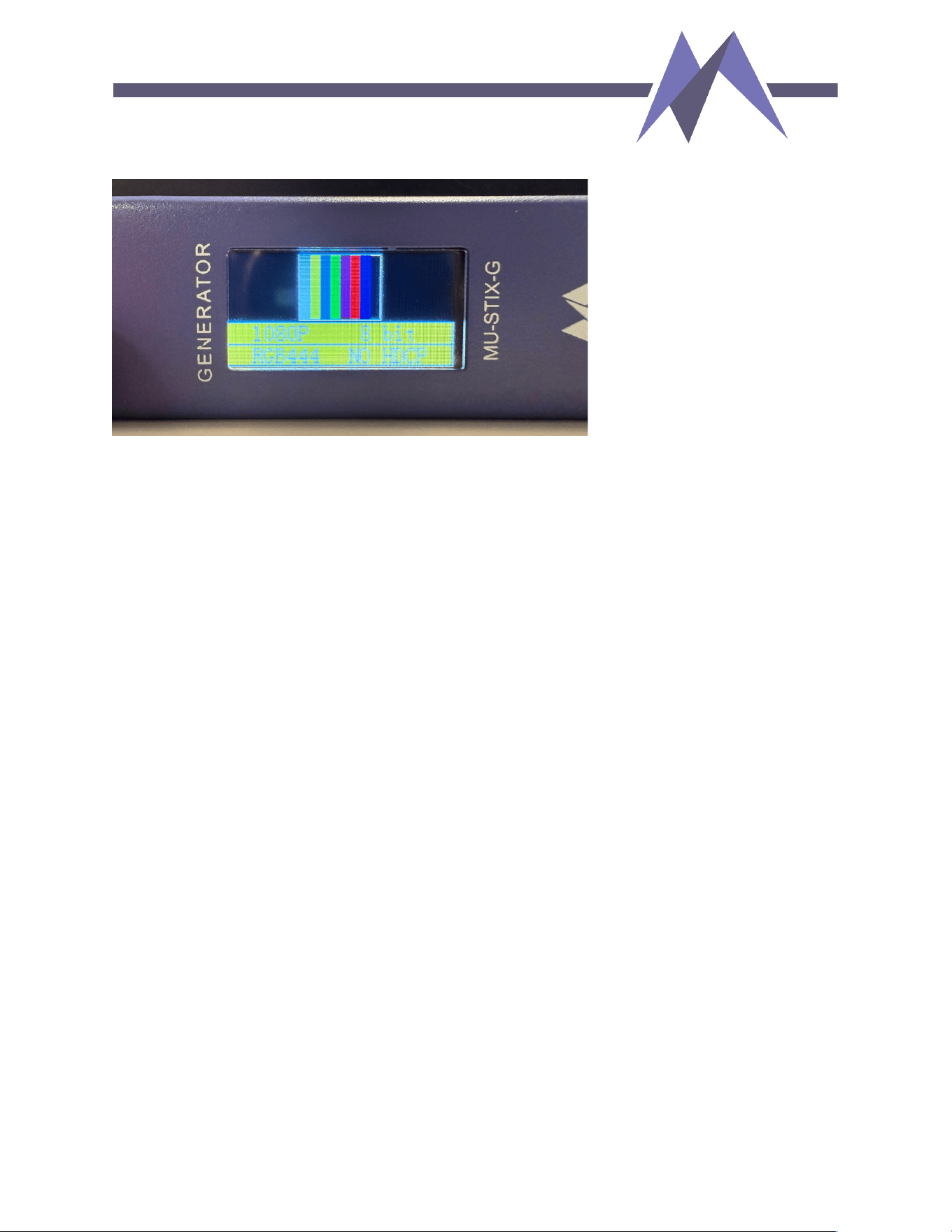

Home Screen
By default, the STIX-G will power up to the Home Screen shown below:
The user can set the following five parameters:
1. Test Pattern
2. Resolution and Timing
3. Bit Depth
4. Color space
5. HDCP Version
By default, these values are:
1. Color Bars
2. 1080p/60 Hz
3. 8 bit
4. RGB 4:4:4
5. No HDCP
To adjust these parameters, short press the function button (FUNC).
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112

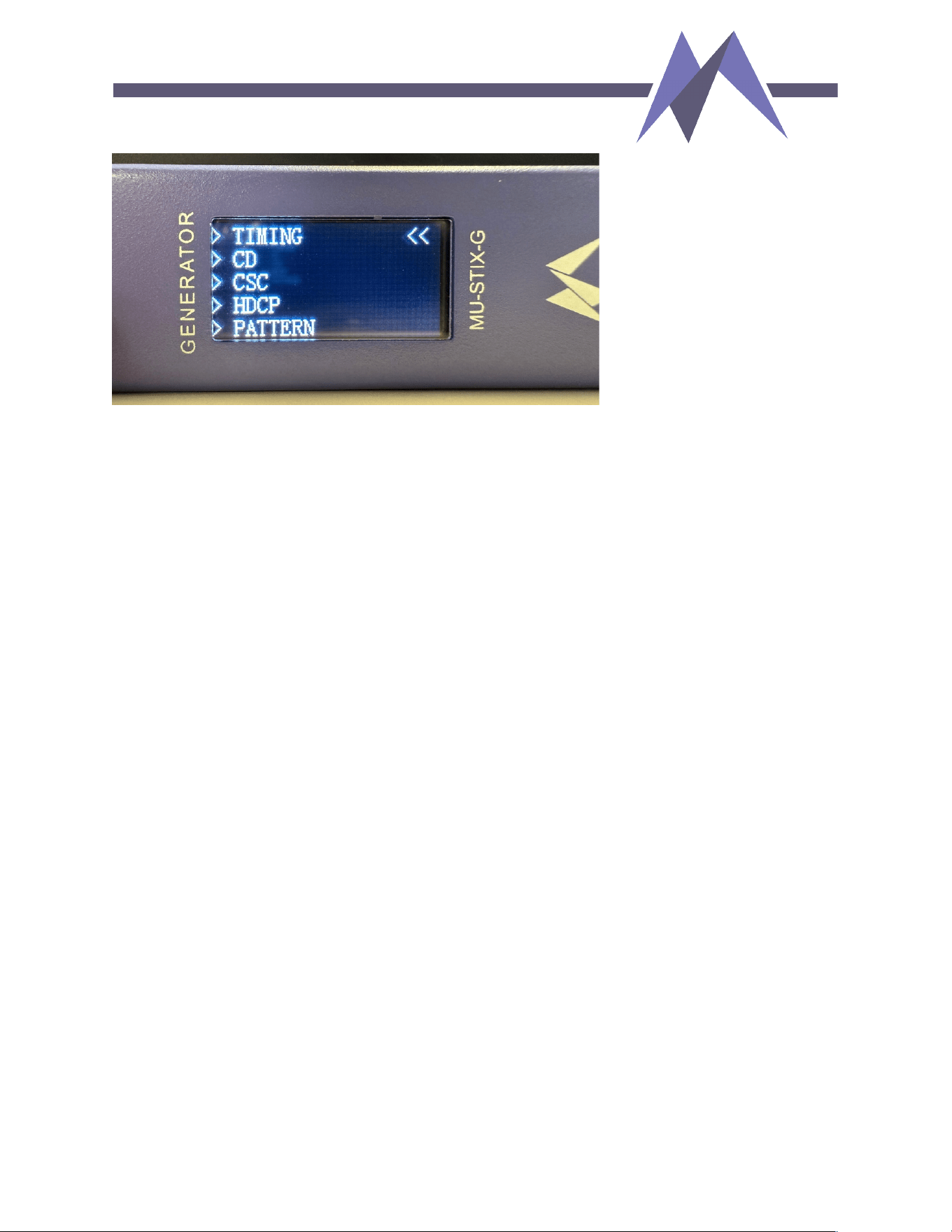

Main Menu
The main menu allows the user to select from seven options:
1. TIMING
a. Resolution and Timing
2. CD
a. Color Depth / Bit Depth
3. CSC
a. Color space
4. HDCP
a. HDCP Version
5. PATTERN
a. Test Patterns
6. MACHINE CONFIG
a. Resetting and Firmware Version
7. RETURN
a. Return to Home Screen
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
Navigating the Menu
1. To navigate the menu, short-press the function button to scroll through the available
options.
Menu position is denoted by the Cursor (<<)
2. To select a menu option, press and hold the function button for 3 seconds.
3. Once a menu option is selected, the selected options sub-menu will open.
4. After 10 seconds of inactivity of the function button, the STIX-G will return to the
home screen.
a. If the STIX-G returns to the home screen due to inactivity, the last menu will
be stored and recalled when the function button is pressed.
b. Example: The Timing menu is active but did not return to the main menu and
has timed out to the Home Screen. After a short press of the function button,
the Timing menu will be replaced by the main menu.

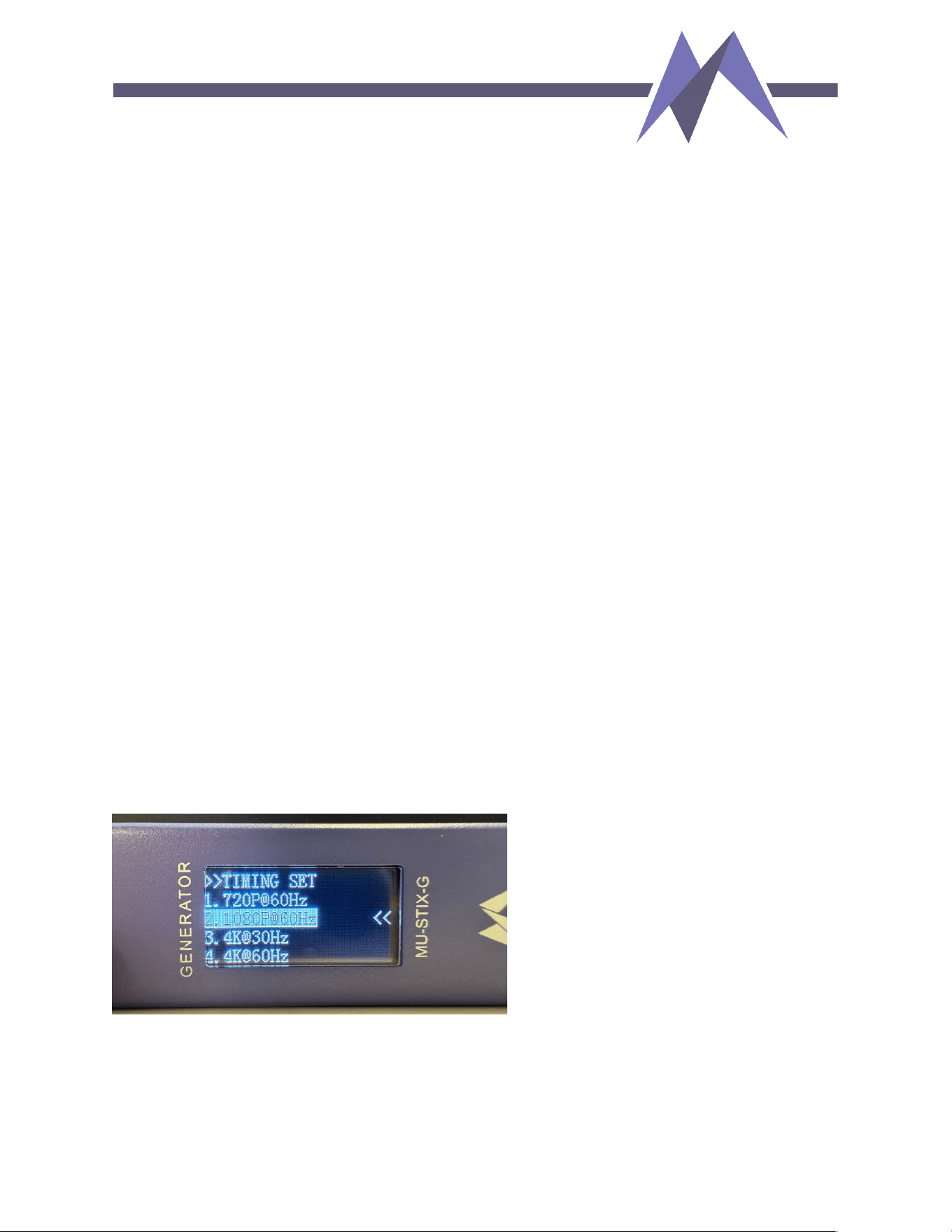

Timing
Timing consists of two elements: Resolution and Frame Rate. The STIX-G has six
combinations to choose from:
1. 720p/60
2. 1080p/60
3. 4K/30
4. 4K/60
5. 4K/120
6. 8K/30
After selecting the menu option, the active selection will become highlighted.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
Color Depth (CD)
Color Depth, sometimes called Bit Depth or Bits Per Component, adjusts the Depth of the
defined Timing Resolution and Chroma.
The STIX-G has three selectable Color Depths:
1. 8-bit
2. 10-bit
3. 12-bit
After selecting the menu option, the active selection will become highlighted.
Color Space (CSC)
Color space refers to the encoding method of the video signal. The STIX-G can output
Limited color space (16-235) in RGB and YCbCr (short-formed to YUV) formats.
There are three available color spaces:
1. RGB 4:4:4
2. YUV 4:4:4
3. YUV 4:2:2
a. Limited to 8-bit Color Depth selection; transmitted at 12-bit Color Depth.
After selecting the menu option, the active selection will become highlighted.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
HDCP
HDCP (High-Bandwidth Digital Content Protection) is a form of digital rights management
within the HDMI video transmission. The STIX-G can be operated with or without HDCP
enabled.
Available selections include:
1. No HDCP
a. Compatible with all signals.
2. HDCP 1.4
a. Compatible with TMDS signals below 18 Gbps.
b. Incompatible with FRL Signals.
3. HDCP 2.3
a. Compatible with TMDS signals below 18 Gbps.
b. Required for all FRL Signals if HDCP encrypted.
After selecting the menu option, the active selection will become highlighted.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
Pattern
In addition to testing HDMI sink devices, the STIX-G contains 13 patterns, including solid
colors, ramps, and more. These patterns allow the STIX-G to be used for basic color
checking and white balancing of displays.
Patterns Include:
1. Black
2. CHK_BOX (Checker Box)
3. STRIP (Stripes)
4. Red
5. Green
6. Blue
7. White
8. RAMP (White Ramp)
9. R_RAMP (Red Ramp)
10. G_RAMP (Green Ramp)
11. B_RAMP (Blue Ramp)
12. PRBS (Pseudorandom Binary Sequence)
13. C-BARS (Color Bars)
[Refer to references here: Test Pattern Saves]
After selecting the menu option, the active selection will become highlighted.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
Machine Config
Machine Config contains the options for resetting the device to its default state or checking
the unit's current firmware. There are two options inside this menu option:
1. MACHINE RESET
a. Resets the STIX-G back to its default state.
b. By Default, these values are:
1. Timing
a. 1080p/60\
2. CD
a. 8 bit
3. CSC
a. RGB 4:4:4
4. HDCP
a. No HDCP
5. PATTERN
a. Color Bars
2. MACHINE VERSION
[Insert Machine Rev Picture]
a. Version
i. The Main Build Version
b. Revision
i. The Firmware Revision of the Main Build
c. After selecting MACHINE VERSION, press and hold the function button for
three seconds to return to the main menu.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
Return
Machine Config contains the options for resetting the device to its default state or checking
the unit’s current firmware. There are two options inside this menu option:
3. MACHINE RESET
a. Resets the STIX-G back to its default state.
b. By Default, these values are:
6. Timing
a. 1080p60
7. CD
a. 8 bit
8. CSC
a. RGB444
9. HDCP
a. No HDCP
10. PATTERN
a. Color Bars
4. MACHINE VERSION
[Insert Machine Rev Picture]
a. Version
i. The Main Build Version
b. Revision
i. The Firmware Revision of the Main Build
c. After selecting MACHINE VERSION, press and hold the function button for 3
seconds to return to the main menu.
Screen Saver
The blank (black) screen saver will appear after five minutes of inactivity; the STIX-G is still
operational during this state. Users may open the Home Screen anytime by pressing the
function button. Additionally, upon receiving serial data, the Home Screen will open.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112

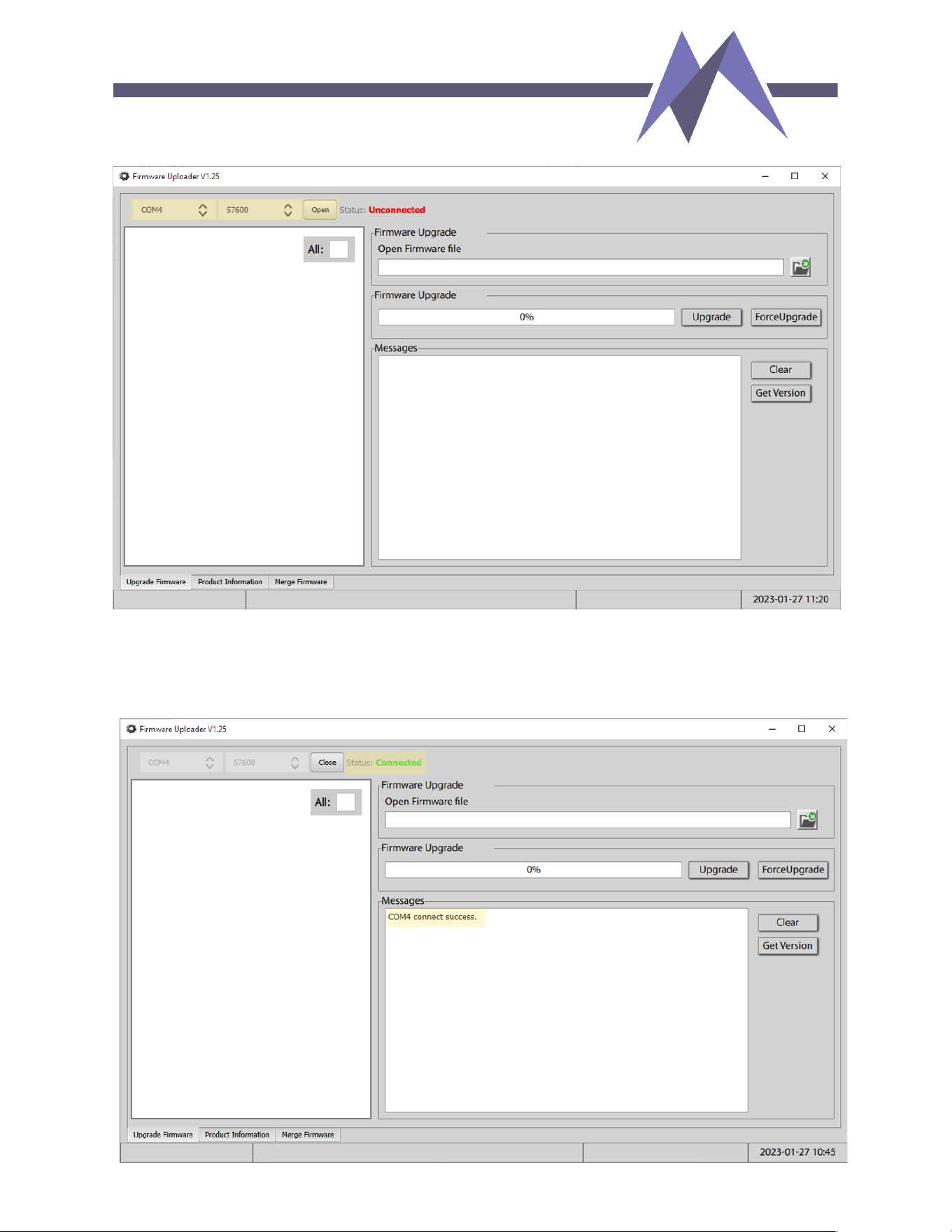

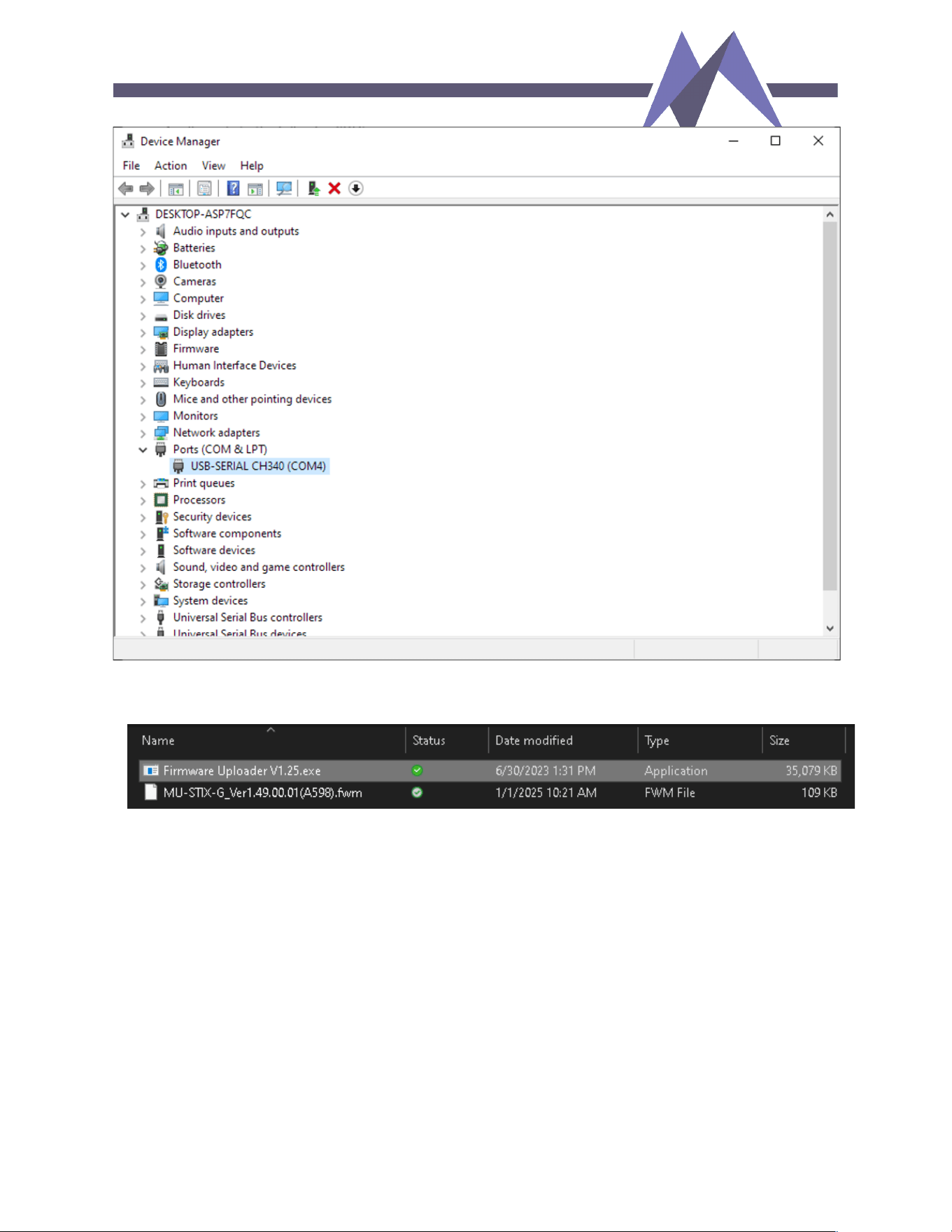

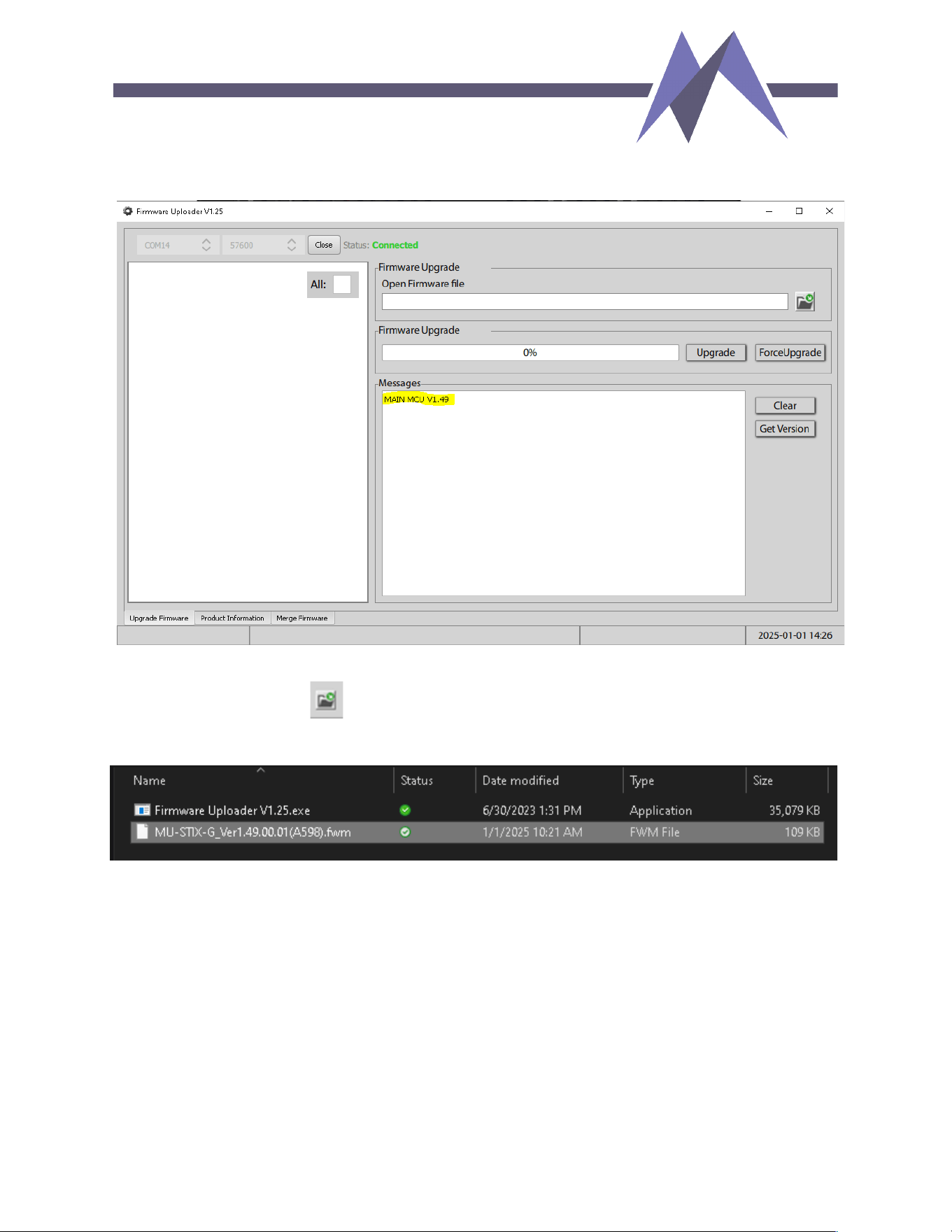

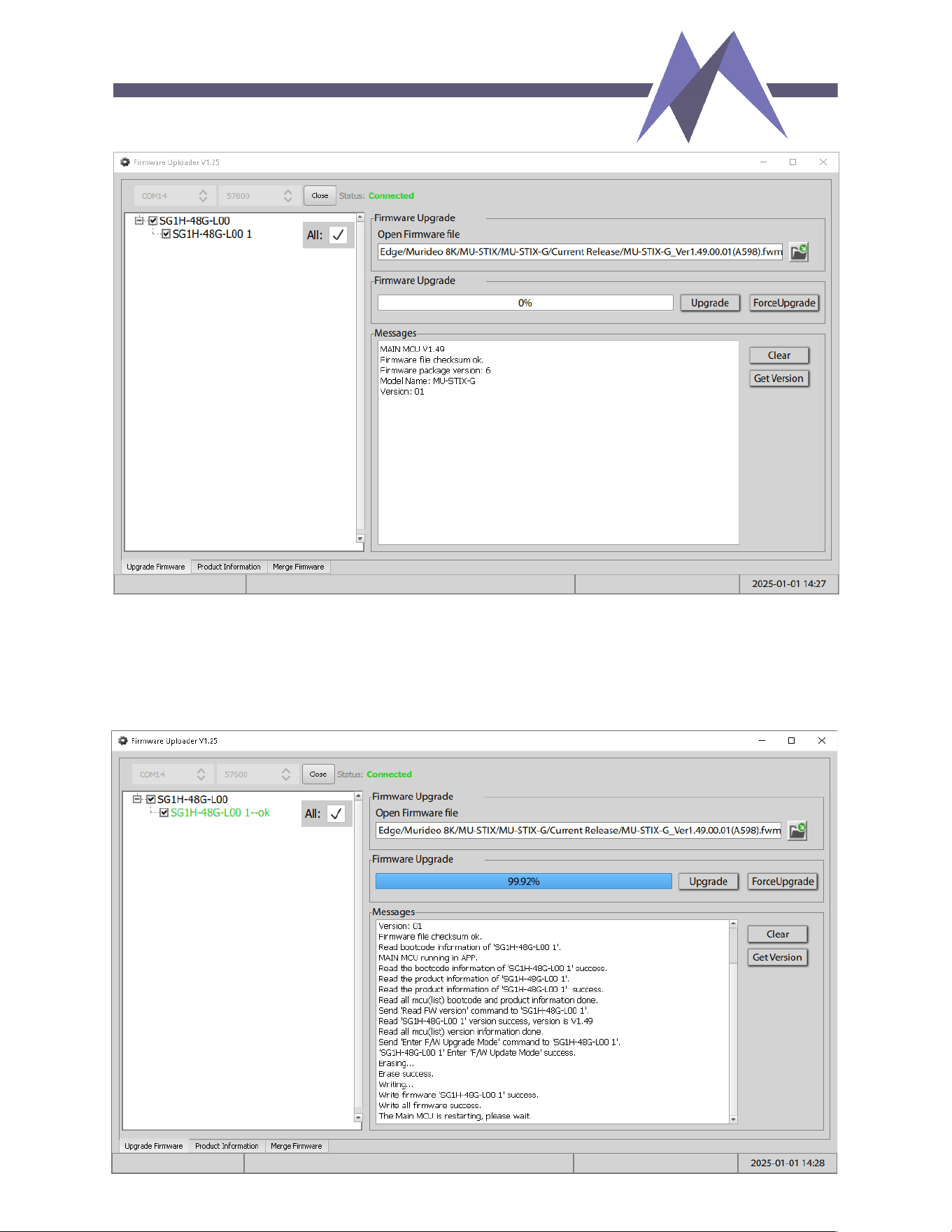

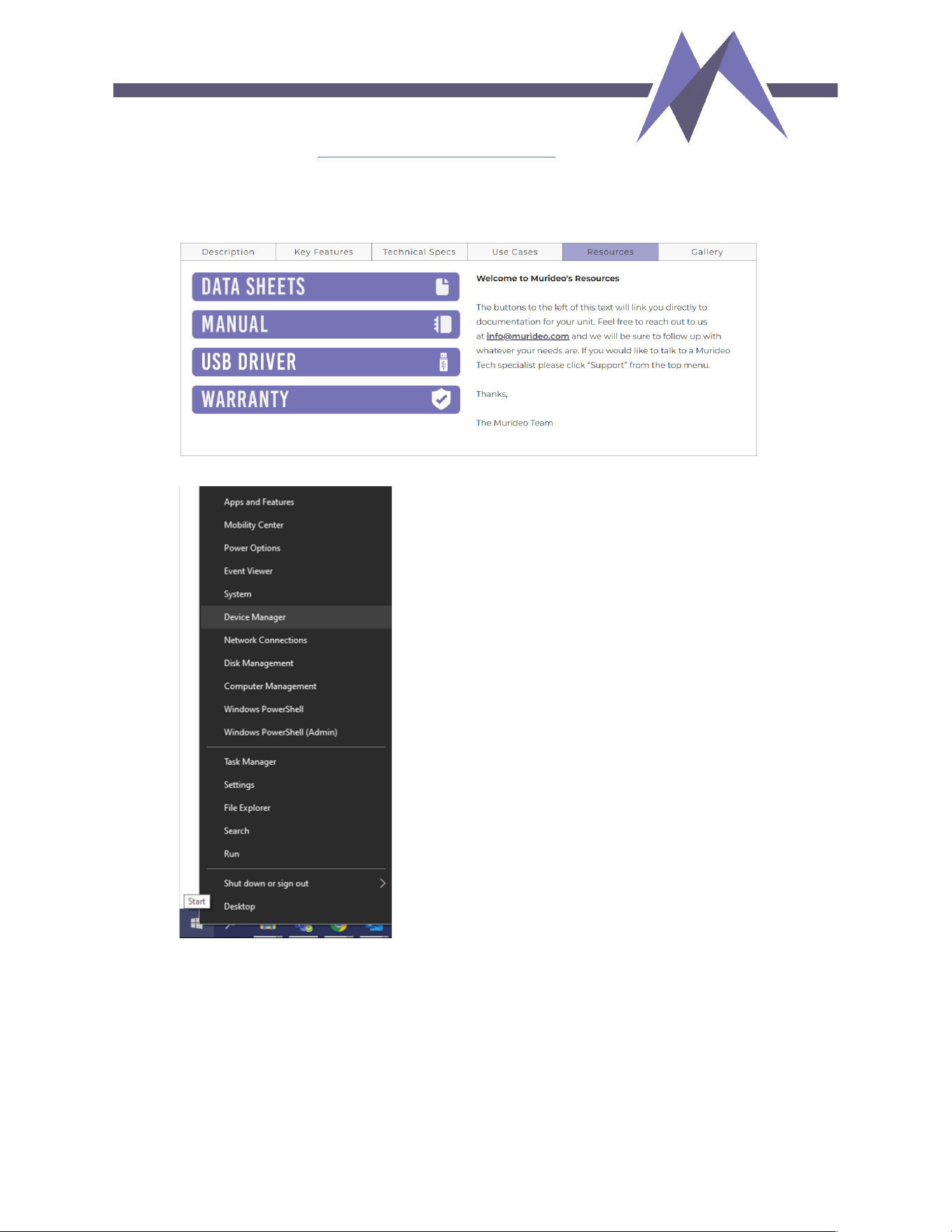

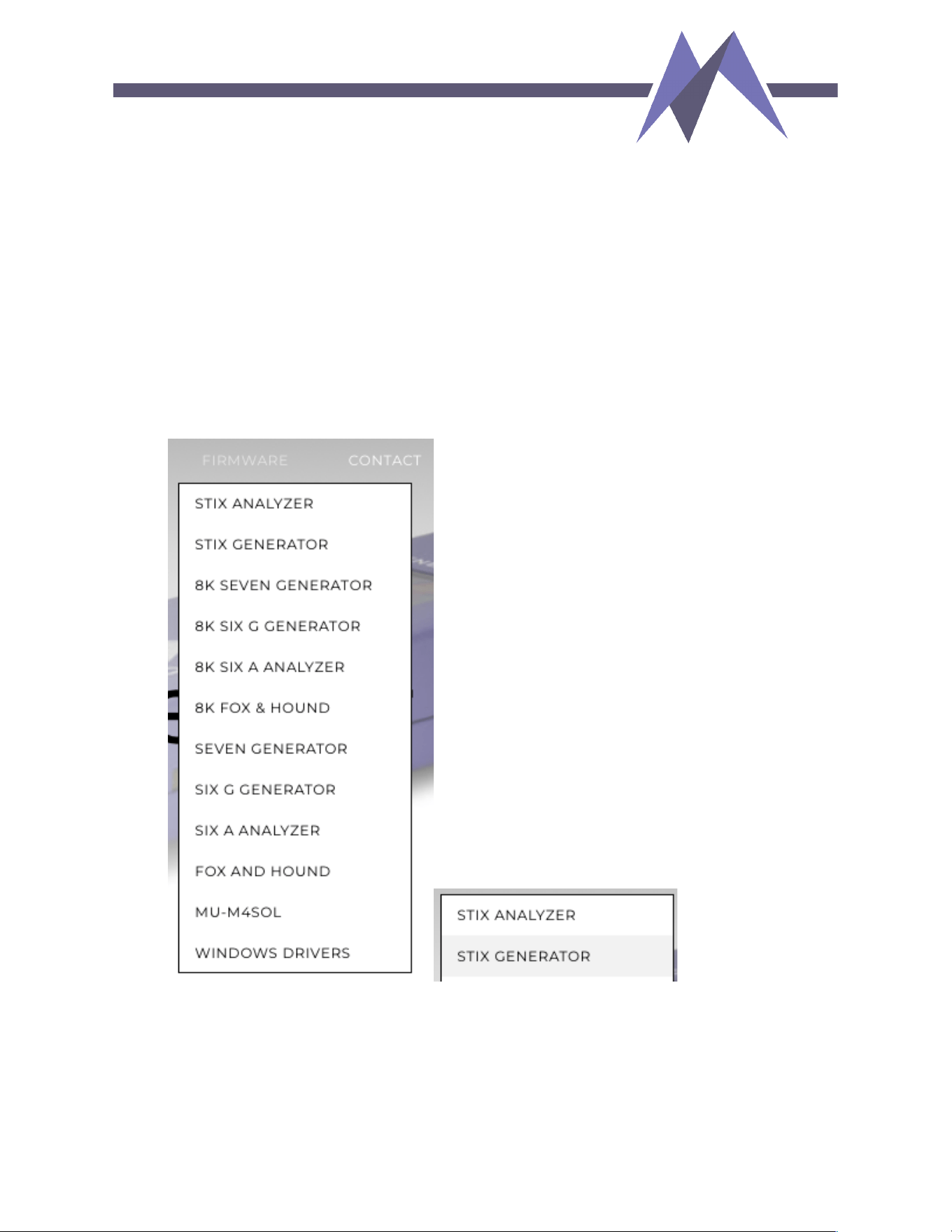

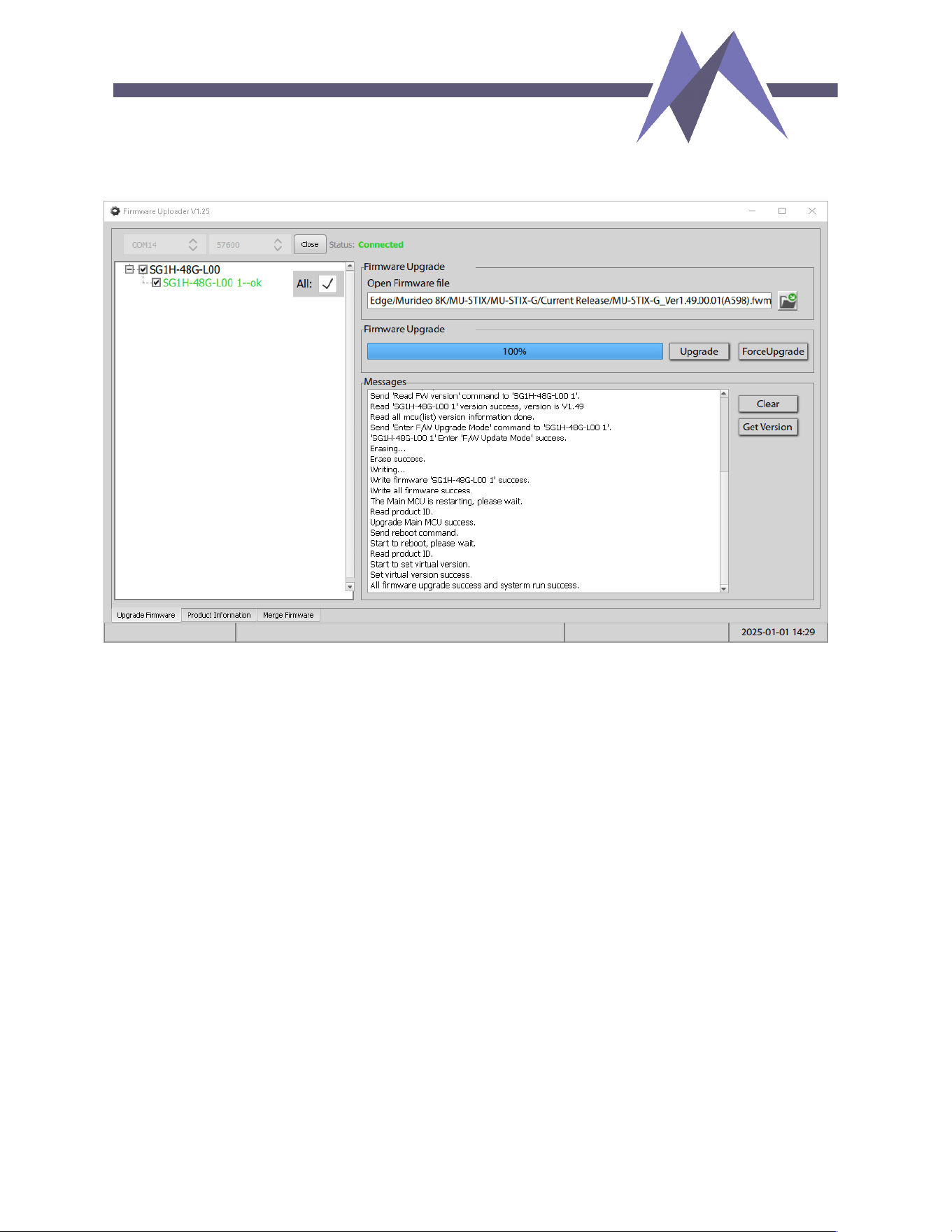

Firmware and Control
Updating the firmware
Requirements:
- Windows PC
- USB-A or USB-C to USB-C data cable for a direct serial connection
- Firmware FWM file and Uploader
- CH340 USB Serial Driver (available on murideo.com)
Follow the steps below to update the firmware on the STIX-G:
1. Find the firmware file under the firmware dropdown on murideo.com
2. Use a USB-C cable to connect a PC directly to the STIX-G's USB-C CTL/USP ports.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
3. Download and install the CH340 USB Serial Driver.
a) Navigate to www.murideo/mu-stix-g.html
b) Click on the Resources tab.
c) Click the USB DRIVER link.
d) Download the CH340 driver to your PC.
4. Right-click on the Windows Start button and select Device Manager.
Then select the Ports (COM & LPT) drop-down menu and locate the port labeled
USB-SERIAL CH340 (COMX) to confirm that the STIX-G is connected to the PC.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
5. Open the Firmware Uploader program
Select the correct COM, Baud: 57600, and select the Open button to open the port.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
The Status will now show as Connected in green text with COMX connect success
under Messages.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
6. Select the Get Version button to see the current firmware version on the STIX-G (note:
screenshot below is only an example and may not display the exact version).
7. Select the file button to load the firmware file. Make sure to select the correct
firmware file for the device you are currently updating.
The firmware file will be loaded into the Open Firmware file field with the following
information under Messages:
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
8. Select the Upgrade button to start the firmware update. The loading bar will pause at
99% for a few seconds before automatically rebooting the unit. Do not use the Force
Upgrade button. If the Uploader is not updating firmware for any reason, please contact
Murideo Support to assist in troubleshooting your STIX-G.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
9. Once the loading bar reaches 100%, use the Get Version button again to ensure the
new firmware version is correct (note: screenshot below is only an example and may
not display the exact version).
10. Select the button to close the port, then select the X at the top-right to exit the
Uploader. The STIX-G is now up to date on its firmware and is safe to disconnect from
your PC and power.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
Control
The STIX-G can be controlled through serial communication from a USB port with serial
capabilities (COM) using the internal USB to UART adaptor. Before connecting the device,
ensure the CH340 Driver has been installed.
STIX-A Serial Port Properties
Baud Rate
57600
Data Bits
8
Stop Bits
1
Parity
None
Flow Control
None
The STIX-G features an ASCII API; the carriage return control character should follow
commands sent to the unit. In the following example, we will use <cr>:
USER SENT:
SET OUT1 STREAM OFF<cr>
ECHO RECEIVED:
OUT1 STREAM OFF<cr>
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
Command-List
Azz
All Commands start with Prefix System Address zz, {zz=[01-
99](zz=00,broadcast address)}
H
Help
STA
Show Global System Status
SET RST
Reset to Factory Defaults
SET RBT
System Reboot
SET ADDR xx
Set System Address to xx{xx=[01~99]}
SET OUT x STREAM
ON/OFF
SET Outputx STREAM ON/OFF{x=0~1}
SET OUTx SGMTy
Set Output Signal Generator Timing {x=0-1,y=1-6}
SET OUTx CDy
Set Output x Video Color Depth y {x=0-1, y=[1-3](1=8
Bit,2=10Bit,3=12Bit)}
SET OUTx CSCy
Set Output x Video Color Space y {x=0-1, y=1-3}
SET OUTx HDCPy
Set Output x Video HDCP Format {x=0-1, y=1-3}
SET OUTx VPFy
Set Output x Video Pattern Format {x=0-1, y=1-13}
GET ADDR
Get System Address
GET TMDS CHECK
Check TMDS Voltage Level Is Functioning Properly
GET OUTx STREAM
Get Outputx Stream ON/OFF Status {x=0~1}
GET OUTx SGMT
Get Output x Video Timing Format Status
GET OUTx CD
Get Output x Video Color Depth Format Status
GET OUTx CSC
Get Output x Video Color Space Format Status
GET OUTx HDCP
Get Output x Video HDCP Format Status
GET OUTx VPF
Get Output x Video Pattern Format Status
GET OUTx EDID DATA
Get Output x EDID DATA
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
Warranty
AVPro Global Holdings (DBA MURIDEO) oers a 2-year international limited warranty
for its Murideo products. Any product first sold to you is guaranteed to be free from
defects in both components and workmanship under regular use. The warranty
period commences on the date the item ships.
Attention:
Your invoice with the date of purchase, model number, and serial number of the
product is proof of the date of purchase. The International Limited Warranty is
applicable and shall be honored in every country where MURIDEO or its Authorized
Service Providers oer warranty service subject to the terms and conditions provided
in this International Limited Warranty Statement. Products included in this warranty:
•
Murideo SEVEN Series Generators
•
Murideo SIX Series Generators
•
Murideo SIX Series Analyzers
•
Murideo Fox & Hound Series
•
Murideo HDMI Test Monitor Series
•
Murideo GAX Series
•
Murideo STIX Series
During the warranty period, the defective hardware of MURIDEO products will be
either repaired or replaced with new or like-new products at MURIDEO'S discretion.
This International Limited Warranty covers the costs of service parts and labor
required to restore your product to fully functional condition. MURIDEO will, at its
discretion, repair or replace any defective products or parts covered by this
International Limited warranty with refurbished parts of the product that are
equivalent to new or like new products in both functionality and performance. A
product or part repaired or replaced under this International Limited Warranty shall
be covered for the remainder of the original warranty period applying to the product
or part or for 90 days, whichever expires last. All exchanged parts and products
under this International Limited Warranty will become Murideo’s property.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
Obtaining the Warranty Service
Warranty service or Returned Merchandise Authorization (RMA) under this
International Limited Warranty will be honored only if claims are made within the
warranty period. The process will be the same for notifications to MURIDEO or
products outside the warranty period, but charges may apply. Contact details may be
obtained on the MURIDEO website: https://www.murideo.com/
Customers are requested to perform the following actions before claiming MURIDEO
product as defective:
Owner must notify MURIDEO, during the warranty period, in writing of the alleged
defect and allow MURIDEO a reasonable opportunity to inspect the allegedly
defective product;
No Product may be returned without MURIDEO’s consent. The MURIDEO RMA#
must accompany all returns, and all returns must be delivered to MURIDEO
within the warranty period;
Owner may, then at its own expense, return the allegedly defective Product, freight
pre-paid and in the original packaging, accompanied by a brief statement
explaining the alleged defect to MURIDEO;
If MURIDEO determines that any returned Product is not defective, or if MURIDEO
determines that the warranty does not cover the defect, MURIDEO will return
the Product to the Owner at the Owner’s expense, freight collect, and Owner
agrees to pay MURIDEO reasonable cost of handling and testing;
Upon determining that a returned product is defective, the Owner must present the
invoice showing the original purchase transaction to receive warranty service. If
shipping the product, the Owner will need to package it carefully and send it,
transportation prepaid by a traceable, insured method, to the MURIDEO
Service Center. Package the product using adequate padding material to
prevent damage in transit. The original container is ideal for this purpose.
Include the RMA #, your name, return shipping address, email address, and
telephone number where you may be reached during business hours inside the
shipping package with the unit. Any replacement unit will be warranted under
these Terms and Conditions for the remainder of the original warranty period
or ninety (90) days, whichever is longer.
For important tips on operating and troubleshooting the product, refer to the user
manual, which can be downloaded from our website, http://www.murideo.com/.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
Disclaimer of Warranty
THIS WARRANTY IS EXPRESSED INSTEAD OF ALL OTHER WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, THE
IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND OF ALL OTHER
OBLIGATIONS OR LIABILITIES ON MURIDEO’S PART, AND IT NEITHER ASSUMES NOR
AUTHORIZES ANY OTHER PARTY TO ASSUME FOR MURIDEO ANY OTHER LIABILITIES.
THE FOREGOING
CONSTITUTES THE BUYER’S SOLE AND EXCLUSIVE REMEDY FOR THE FURNISHING
OF DEFECTIVE OR NONCONFORMING PRODUCTS AND MURIDEO WILL NOT, IN ANY
EVENT, BE LIABLE FOR COST OF SUBSTITUTE OR REPLACEMENT, COST OF
FACILITIES OR SERVICE, DOWNTIME COSTS, LOSS OF PROFITS, REVENUES OR
GOODWILL, RELIANCE DAMAGES, LOSS OF DATA, LOSS OF USE OF OR DAMAGE TO
ANY ASSOCIATED EQUIPMENT,
OR ANY OTHER INDIRECT, INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES
BECAUSE OF THE FACT THAT SUCH PRODUCTS WILL HAVE BEEN DETERMINED TO
BE DEFECTIVE OR NONCONFORMING. THE RIGHTS AND OBLIGATIONS OF THE
PARTIES UNDER THIS AGREEMENT SHALL NOT BE GOVERNED BY THE PROVISIONS
OF THE 1980 U.S. CONVENTION ON CONTRACTS FOR THE INTERNATIONAL SALE OF
GOODS OR THE UNITED NATIONS CONVENTION ON THE LIMITATION PERIOD IN THE
INTERNATIONAL SALE OF GOODS, AS AMENDED (COLLECTIVELY, THE
“CONVENTIONS”); RATHER, THE RIGHTS AND OBLIGATIONS OF THE PARTIES SHALL
BE GOVERNED BY THE LAWS OF THE STATE of SOUTH DAKOTA, INCLUDING ITS
PROVISIONS OF THE UNIFORM COMMERCIAL CODE, AS APPLICABLE. FOR THE
AVOIDANCE OF DOUBT, THE CONVENTIONS ARE HEREBY EXCLUDED.
This Limited Warranty gives you specific legal rights. You may also have other rights
that vary from state to state or country to country. You must consult applicable state or
country laws to determine your rights thoroughly. Some jurisdictions do not allow the
exclusion or limitation of special, incidental, or consequential damages or limitations
on how long a warranty lasts, so the above exclusion and limitations may not apply to
everyone.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
Support
For service and support, contact your local dealer.
To find your dealer or to contact MURIDEO support,
go to:
https://support.murideo.com/
+1-605-330-8491
for worldwide technical
support
Legal Notices
MURIDEO® Logos are trademarks or registered trademarks of AVPro Global
Holdings, Inc. in the United States or other countries. ISF® and the ISF logo are
trademarks or registered trademarks used under license from Imaging Science
Foundation, LLC. in the United States or other countries. All other trademarks and
registered trademarks are the property of their respective owners in the United States
or other countries. The absence of a trademark symbol does not constitute a waiver
of Silicon Image’s trademarks or other intellectual property rights about a product
name, logo, or slogan.
Limitation of Liability
MURIDEO reserves the right to refuse warranty service of products under disputable
conditions. MURIDEO also holds the right to declare the final decision on whether
products are within warranty conditions. The following actions and damages will
result in voiding the limited warranty:
•
Damage caused by acts of nature, such as fire, flood, wind, earthquake,
lightning, etc.
•
Damage or incompatibility caused by failure to perform a proper installation
or to provide an appropriate operational environment for the product,
including but not limited to unstable wired/wireless network connection and
phone lines, insucient grounding, external electro-magnetic fields, direct
sunlight, high humidity, and vibration.
•
Damage caused by impact with other objects, dropping, falls, spilled liquids, or
submersion in liquids.
•
Damage caused by unauthorized repair or disassembling of the product.
•
Damage caused by abuse, misuse, mishandling, or misapplication.
•
Damage caused by third-party peripherals (including but not limited to visible
damages on the motherboard or other electronic parts of the product, such as
burn spots after electric discharge, melting, fusing, splitting, etc.)
•
Any unauthorized software or modification of built-in software not approved
by MURIDEO.
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
•
The product's serial number (or serial number stickers of its parts) has been
modified, removed, blurred, or damaged.
• Defects caused by transportation, handling, or customer abuse.
Thank you for choosing Murideo!
Please contact us with any questions; we are
happily at your service!
2222 E 52nd Street North, Sioux Falls, SD 57104
support: 877.886.5112
©COPYRIGHT AVPRO GLOBAL HOLDINGS 2023 - 2222 E 52ND STREET N SIOUX FALLS, SD 57104 ~ 1.877.866.5112
support@avproedge.com
