User Manual
2Tumble Dryer
2 ENGLISH
CUSTOMER CARE AND SERVICE
Get usage advice, brochures, troubleshooter, service information, buy
accessories & spare parts, online product registration :
www.electrolux.com
Welcome to Electrolux! Thank you for choosing our appliance.
We recommend the use of original spare parts. When contacting Service, ensure
that you have the following data available. The information can be found on the
rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information.
General information and tips.
Environmental information.
Subject to change without notice.
CONTENT
1. SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5. CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6. PROGRAMME TABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
7. OPTIONS AND SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8. WI-FI CONNECTIVITY SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
9. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
10. HINTS AND TIPS CARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
11. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
12. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
13. TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
14. ENVIRONMENT CONCERNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
ENGLISH 3
1. SAFETY INFORMATION
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory,
or mental capabilities, or lack of experience and
knowledge unless they have been given supervision
or instruction concerning the use of the appliance by
a person responsible for their safety. Children should
be supervised to ensure that they do not play with the
appliance.
• Do not let children play with the appliance.
WARNING!
Risk of suffocation, injury or permanent disability.
1.1 Children and vulnerable people safety
Before the installation and use of the appliance,
carefully read the supplied instructions.
The manufacturer is not responsible if an incorrect
installation and use causes injuries and damage.
Always keep the instructions with the appliance for
future reference.
Read the instructions.
WARNING: Flammable materials/Risk of fire.
The appliance contains flammable gas, propane
(R290), a gas with a high level of environmental
compatibility. Keep fire and ignition sources away from
the appliance.
Be careful not to cause damage to the refrigerant circuit
containing propane.
4 ENGLISH
• Do not change the specification of this appliance.
• The appliance can be installed as free-standing or
below a kitchen counter with correct space (refer to
the Installation chapter).
• Do not install the appliance behind a lockable door,
a sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from
being fully open.
• The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
• Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
• Ensure good air ventilation in the room where the
appliance is installed to avoid the back flow of
unwanted gases into the room from appliances
burning gas or other fuels, including open fires.
• If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorized
Service Centre or similarly qualified persons to avoid
an electrical hazard.
1.2 General Safety
• Keep all packaging away from children and dispose
of it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance
when the door is open.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
ENGLISH 5
• Do not exceed the maximum load (refer to the
"Programme chart" chapter in User manual).
• Do not use the appliance if items have been soiled
with industrial chemicals.
• Wipe away lint or packaging debris that has
accumulated around the appliance.
• Do not run the appliance without a filter. Clean the lint
filter before or after each use.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
• Items containing foam rubber (also known as latex
foam), similarly textured rubber, or materials e.g.
shower caps, waterproof textiles, rubber-backed
articles, and clothes or pillows fitted with foam rubber
pads should not be dried in the machine on a heat
setting. Foam rubber materials can produce fire by
spontaneous combustion when heated.
• Fabric softeners, or similar products, should only
be used as specified by the product manufacturer’s
instructions.
• Oil-affected items can ignite spontaneously,
especially when exposed to heat sources such as in
a tumble dryer. The items become warm, causing an
oxidation reaction in the oil. Oxidation creates heat.
If the heat cannot escape, the items can become hot
enough to catch fire. Piling, stacking or storing oil-
affected items can prevent heat from escaping and
create a fire hazard.
6 ENGLISH
• If it is unavoidable that fabrics that contain vegetable
or cooking oil or have been contaminated by hair
care products be placed in a tumble dryer they should
first be washed in hot water with extra detergent. This
will reduce, but not eliminate, the hazard.
• Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
• Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
• Pre-treatment sprays and stain remover can damage
plastic components on your machine. If you use pre-
treatment sprays or stain removers, apply them to the
clothing well away from your machine.
The appliance is intended to be used in household and
similar applications such as:
• farm houses;
• by clients in hotels, motels, bed & breakfast and other
residential type environments;
• areas for communal use in blocks of flats or in
launderettes.
1.3 CONDITIONS OF USE
WARNING!
• The appliance must not be supplied through an
external switching device, such as a timer, or
connected to a circuit that is regularly switched on
and off by a utility.
• Do not damage the refrigerant circuit.
• Never stop a tumble dryer before the end of the
drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
ENGLISH 7
2.1 Installation
WARNING!
• Do not install the appliance in an
environment with no air exchange.
• In the appliance enclosure or in the
built-in structure, keep ventilation
opening clear of obstruction.
WARNING!
Risk of fire and electric shock.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature can be lower
than 5°C or higher than 35°C.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical
when it is being moved.
• The rear surface of the appliance must
be put against a wall.
• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.
2.2 Electrical connection
• Connect the mains plug to the
mains socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• The appliance must be earthed.
2.3 Use
WARNING!
Risk of injury electric shock, fire, burns
or damage to the appliance.
2. SAFETY INSTRUCTIONS
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance is for household
(indoors) use only.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• If laundry has been washed with a
stain remover, carry out an additional
rinse cycle before starting a drying
cycle.
• Dry only fabrics that are suitable
to dry in the appliance. Follow the
cleaning instruction on the item label.
• Do not drink or prepare food with the
condensed water/distilled water. It can
cause health problems to people and
pets.
• Do not sit or step on the open door of
the appliance.
• Do not dry dripping wet clothes in the
appliance.
• Fill steam generators only with
liquids specified by the manufacturer.
(Available for model EDH***R9**)
8 ENGLISH
2.5 Compressor
2.6 Disposal
WARNING!
Risk of damage to the appliance.
WARNING!
Risk of injury or suffocation.
• The compressor and its system in the
tumble dryer is filled with a special
agent which is free from fluoro-chloro-
hydrocarbons. This system must stay
tight. Damage of the system can cause
a leakage.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose
of it.
• The appliance contains flammable
gas (R290). Contact your municipal
authority for information on how
to discard the appliance correctly.
Remove the door latch to prevent
accidental access by children or pets
and getting trapped inside the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
2.7 Care and cleaning
2.4 Internal lighting (Available for
model EDH***R7**, EDH***R9**)
WARNING!
Risk of injury or damage to the
appliance.
WARNING!
Risk of injury.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents.
Do not use abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• Be careful when you clean the
appliance to prevent damage to the
cooling system.
• Visible LED radiation, do not look
directly into the beam.
• The LED lamp is dedicated to drum
lighting. This lamp cannot be reused
for other lighting purposes.
• To replace the internal lighting,
contact the Authorized Service Centre.
• For more detailed information about
recycling this product, Please contact
your local city office, your household
waste disposal service, or the shop
where you purchased the product.
ENGLISH 9
A B
C
D
E
G
H
F

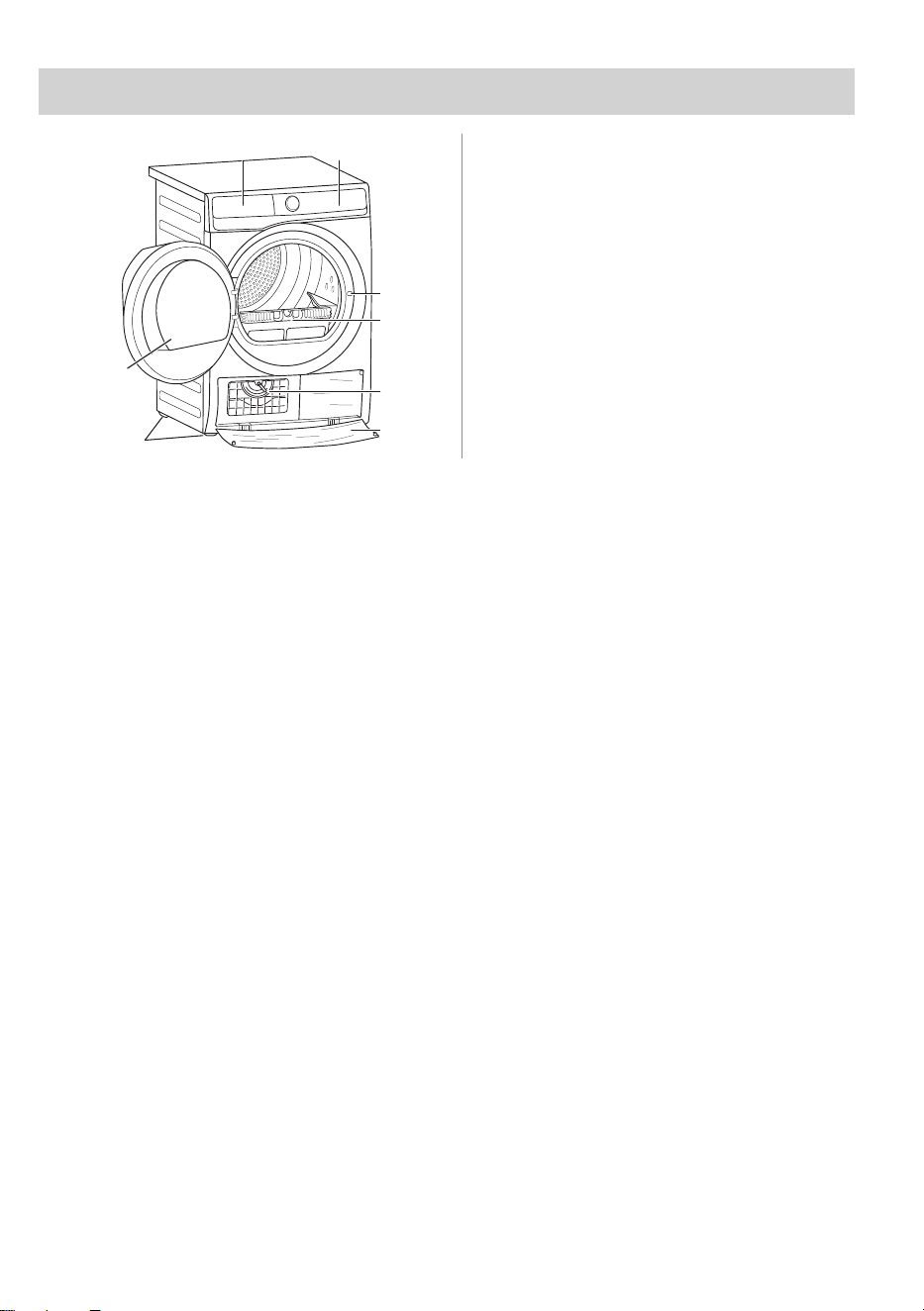

3. PRODUCT DESCRIPTION
A
Water Container
B
Control Panel
C
Door Lock
D
Filter
E
Heat Exchanger lid
F
Heat Exchanger cover
G
Adjustable Feet
H
Appliance Door
10 ENGLISH

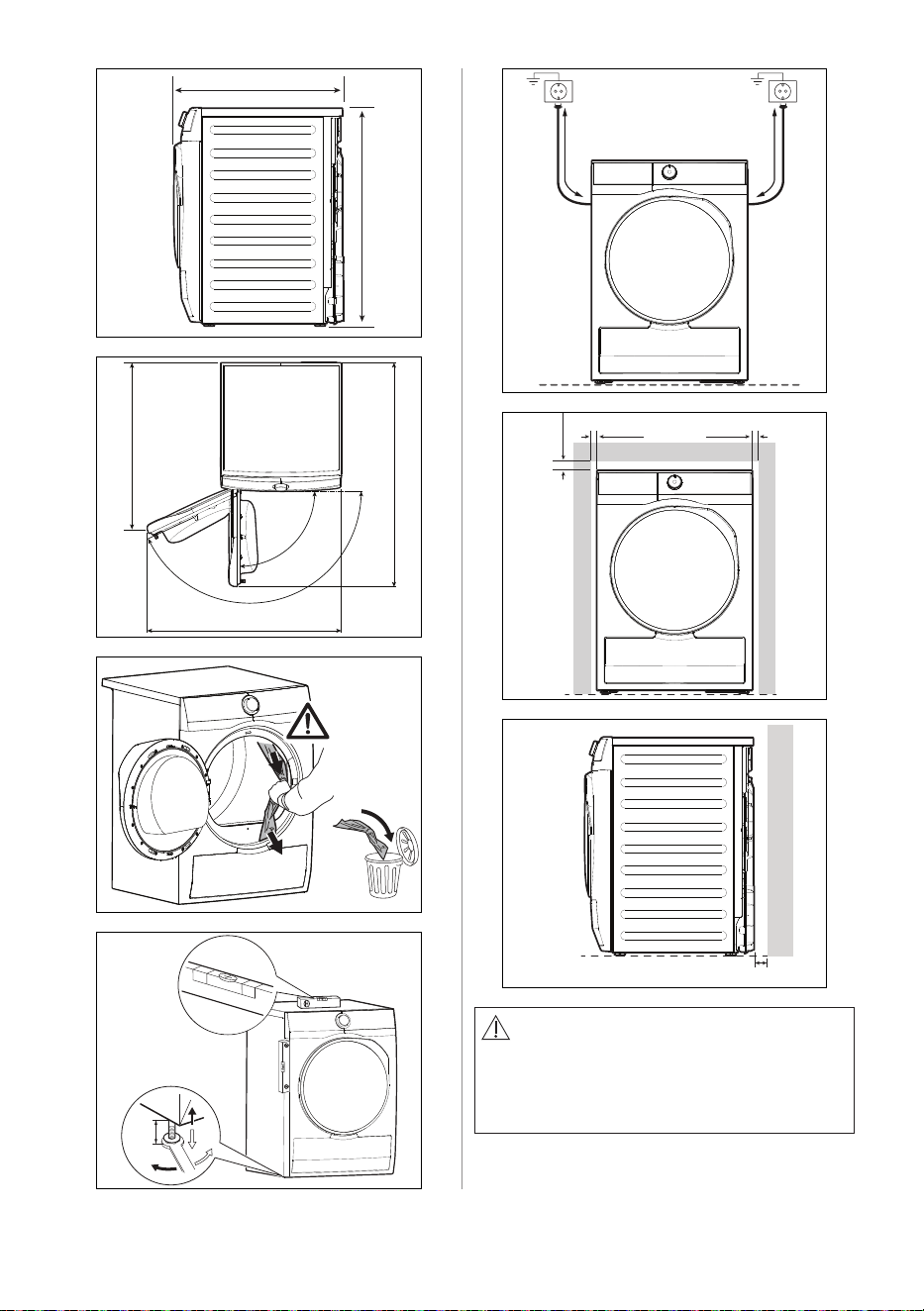

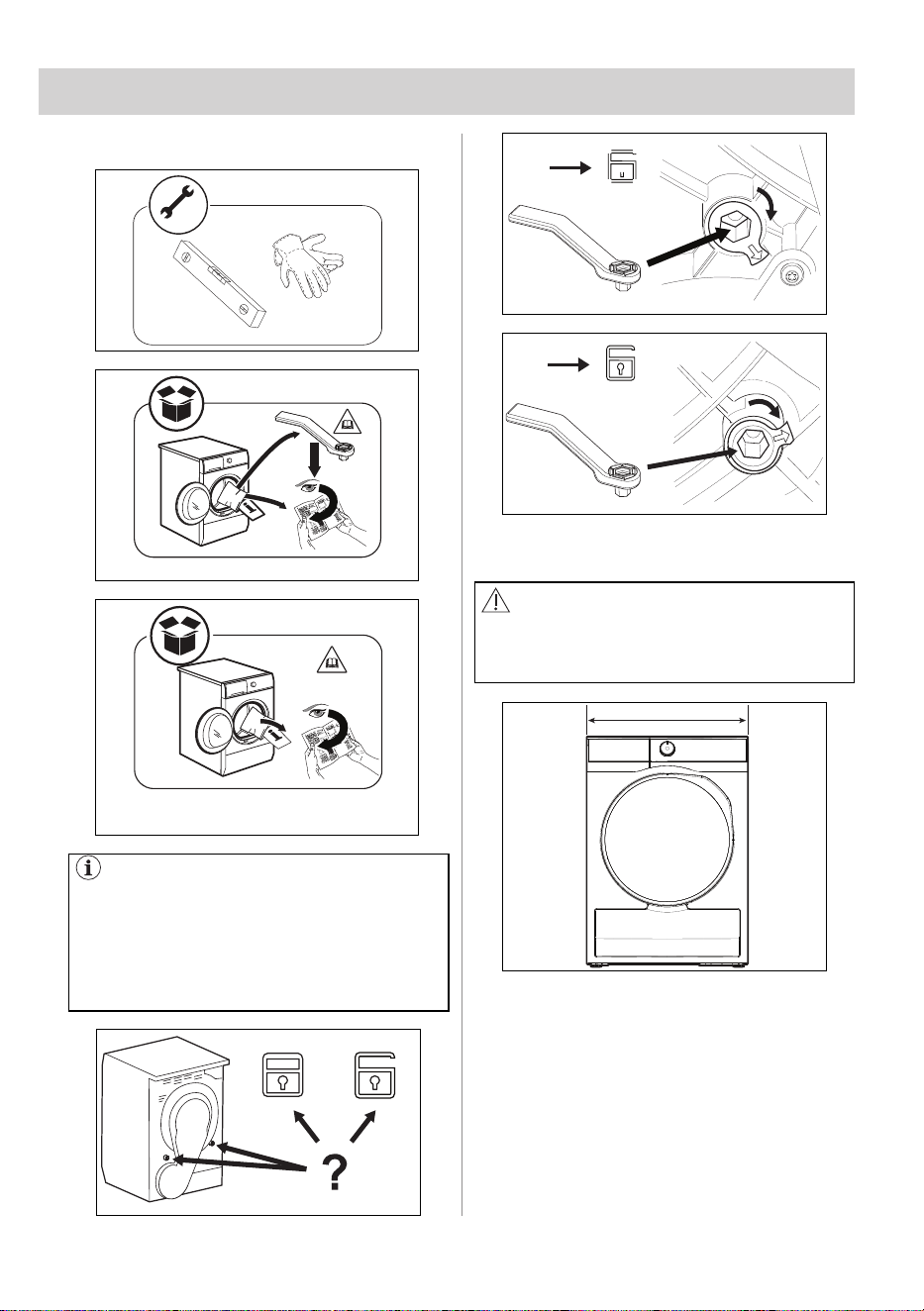

4. INSTALLATION
Unpacking
Installation
A
B
For model EDH***J5**, Use the
DRUM UNLOCKED KEY to unlock Rear
Drum locks, before using the appliance.
For other models, the rear drum locks
are removed automatically when the
dryer is activated for the first time.
Possible to hear some noise.
B
A
WARNING!
Before proceeding with installation,
read the safety information, and
dimension preferred.
596 mm
*Available for model EDH***J5**
*Available for model EDH***P5**,
EDH***R7**, EDH***R9**
ENGLISH 11
662 mm
850 mm
958 mm
1107 mm
824 mm
155°
90°
15 mm
810 mm 1250 mm
10 mm 10 mm
wall
30 mm
WARNING!
The tumble dryer cannot be placed on
top of a washing machine.
For more information, please contact
authorized dealer.
12 ENGLISH

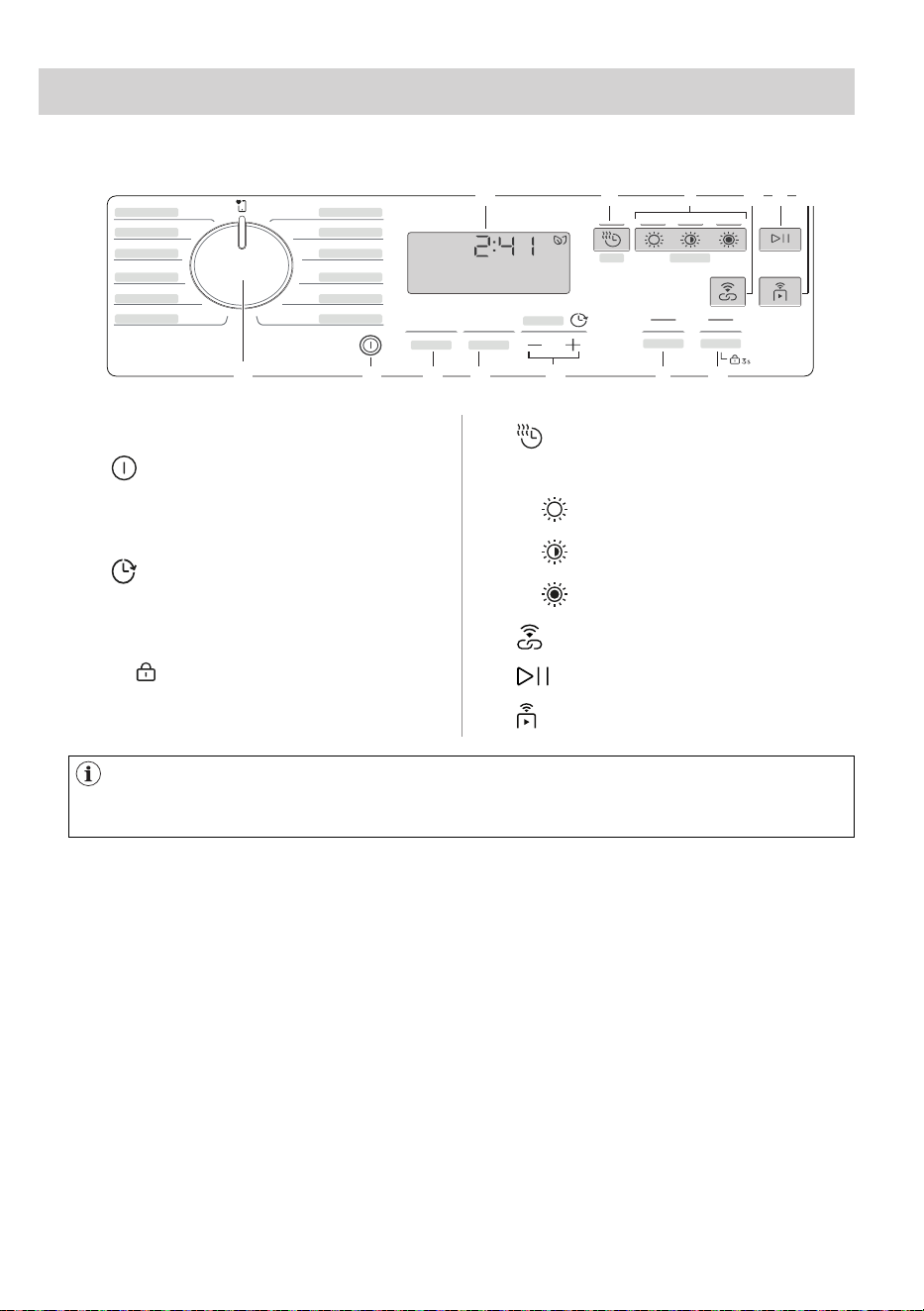

5.1 Control Panel Description
A
Programme knob
B
On/Off button
C
Extra Anticrease touch key
D
End Alert touch key
E
Finish In Adjustment touch key
F
Reverse Plus touch key
G
Extra Silent
• (Lock Option)
H
Display
5. CONTROL PANEL
A B C
H K L MI J
D E F G
Press the touch buttons with your finger in the area with the symbol or name of
the option. Do not wear gloves when you operate the control panel. Make sure that
the control panel is always clean and dry.
I
Time Dry touch key
J
Dryness Level touch key
• Iron Dry
• Cupboard Dry
• Extra Dry
K
SyncDry touch key
L
Start/Pause touch key
M
Remote Start touch key
ENGLISH 13

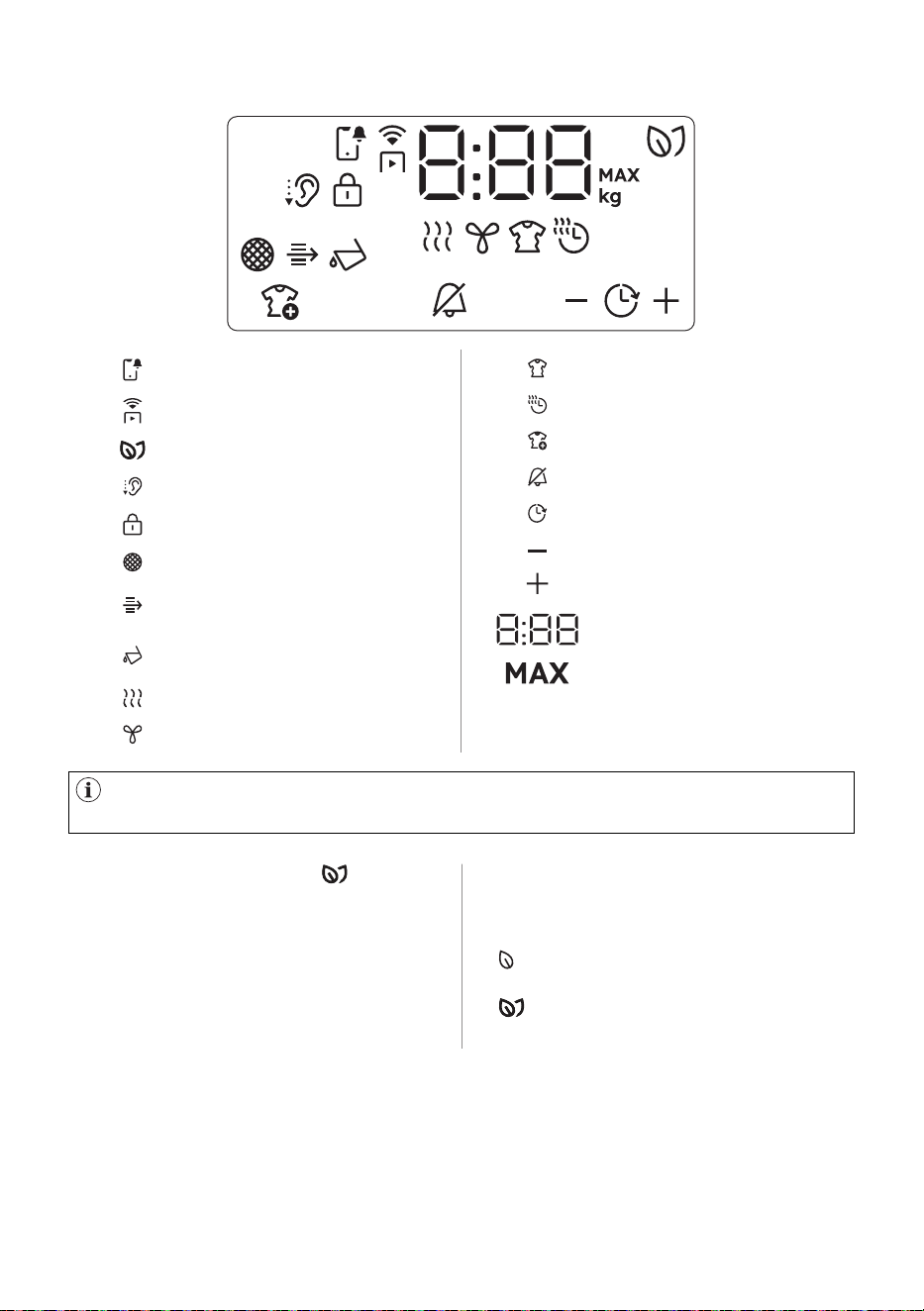

5.2 Display
Notifications icon
Remote Start icon
SmartLeaf icon
Extra Silent icon
Child lock icon
Indicator : Clean filter
Indicator : Check heat
exchanger
Indicator : Drain the water
container
Indicator : Drying phase
Indicator : Cooling phase
The icon, function or phase names that appeared in this manual may differ from
your product.
Indicator : Anticrease phase
Time Dry icon
Extra Anticrease icon
End alert icon
Finish In icon
Decrease finish in time
Increase finish in time
Programme duration
Maximum load icon
5.3 SmartLeaf feedback
SmartLeaf guides the consumer toward
a more energy-efficient clothes drying,
based on energy consumption weighted
on programme’s rated capacity.
There are three different level of
SmartLeaf indicated by the leaf icon
(green colour) :
1. No leaf lit on the display indicates
an average consumption level or no
indication possible (for Time based
cycles).
2. one leaf indicates a good energy
consumption level.
3. two leaves indicate the best
consumption level.
14 ENGLISH
Programme Load
1)
Properties / Fabric type
Cottons Max
White and colored cotton fabrics program. The default setting
is for ready-to-store dryness level.
Eco Cottons
2)
Max
Cotton fabrics programme designed for maximum energy
saving.
Delicates 2 kg
Recommended for generic delicate fabrics such as viscose,
rayon, acrylic and their blends.
Wool
1 kg
Gently dries machine and hand-washable woollens. Tumbling
is minimized as the fast drum speed motion makes the garment
lie flat on the inside of the drum walls replicating flat drying.
Approved by Woolmark.
Silk
0.5 kg
Preserves the shape of delicate machine and hand-washable
silk clothes, minimizing creases by using gentle warm air and
soft movements.
Easy Iron 2 kg
Limits creases on small loads of cotton, synthetic and mixed-
fabric garments for easy ironing. Features two drying levels:
Iron leaves garments slightly damp for ironing or hanging;
Cupboard fully dries items.
Refresh 1 kg
Short low temperature cycle that helps in removing odours
from a small amount of garments. Indicated also for dry
clothes that were in storage for long time.
Hygiene 5 kg
Dries and sanitizes your garments and other items maintaining
the temperature above 60°C over time, removing 99.99% of
bacteria and viruses.
3)
Note: This cycle should only be used for wet items. Not suitable
for delicate items.
Bedding+ 4.5 kg Up to three bed linen sets, one of which can be double size.
Duvet 3 kg
Ensures proper drying of inner parts through single or double
duvets, pillows, and padded blankets.
Synthetics 4 kg
Blended garments containing mostly synthetic fibres like
polyester, polyamide, etc.
MixedDry 5 kg
Designed for routine drying of what you wash without sorting.
Dries evenly clothes made of cotton, cotton-synthetic blends
and synthetic.
Depends on a memorized programme.
6. PROGRAMME TABLE
1) Maximum capacity depends on model of dryer.
2) The program "Eco cottons" (capacity, option .e.g at full load and with Cupboard
Dry dryness level) is the programme for energy label tested according to AS/NZS
2442.1 and labelled according to AS/NZS 2442.2
3) Tested for Candida albicans, MS2 Bacteriophage and Escherichia coli in external
test performed by Swissatest Testmaterialien AG in 2021 (Test Report No. 20212038).
6.1 Programme Chart
ENGLISH 15
Programme
1)
Dryness Level
Extra
Anticrease
Extra
Silent
Reverse
Plus
Time Dry
Finish In
Cottons
Eco Cottons
Delicates
Wool
Silk
Easy Iron
Refresh
Hygiene
Bedding+
Duvet
Synthetics
MixedDry
Depends on a memorized programme
6.2 Programme Options Compatibility
1) Together with the programme you can set 1 or more options. To activate or
deactivate them, press the related touch button.
Woolmark Apparel Care - Blue
The wool drying cycle of this machine has
been tested and approved by The Woolmark
Company. The cycle is suitable to dry wool
garments which are labelled "hand wash"
provided that the garments are washed in a
Woolmark endorsed hand washing cycle and
dried according to the instructions issued by
the manufacturer. M2140.
16 ENGLISH
7. OPTIONS AND SETTINGS
Extra Silent
The appliance operates with low noise
without effect on the drying quality. The
appliance operates slowly with longer
cycle time.
In order to use the SyncDry function,
the Electrolux tumble dryer and
washing machine must be paired with
our app.
A quick touch to activates the Remote
Start function that allows you to start,
pause and stop the appliance remotely.
Activating the Remote Start the machine
goes in a stand-by status.
To exit this state, tap again the button
and turn it off.
Remote Start
SyncDry
This feature lets your tumble dryer to
automatically set the most appropriate
programme that matches the last
washing program recently executed.
All you need to do is start the drying
programme once your tumble dryer is
loaded. No other programme settings or
options are required on the tumble dryer.
Once the washing programme has come
to an end, the washing machine transfers
the programme data via the home router
Wi-Fi to the Electrolux Cloud, as well as
to your tumble dryer.
To activate the function:
1. Once the wash cycle has come to an
end, place the clean laundry in the
tumble dryer.
2. Press the " SyncDry" touch key.
3. All display symbols will stay lighted
off except Wi-Fi icon that run an
animation for a few seconds as the
appliance is retrieving data from the
cloud.
4. Display will update itself automatically
with the suggested programme.
After 10 seconds, if data retrieving
is unsuccessful, the button LED is
switched off and the machine gives an
acoustic error signal. Then previously
selected programme is restored.
5. Press the " Start/Pause" touch key
to begin drying process.
TIME DRYING RECOMMENDATION
10 mins.
action of cool air only (no
heater).
20 - 40 mins.
additional drying to improve
dryness after previous drying
cycle.
>40 mins.
full drying of the small laundry
loads up to 4 kg, well spun
(>1200 rpm).
This function helps to increase dryness of
the laundry. There are 3 options:
• Extra Dry
• Cupboard Dry
• Iron Dry
You can set the programme duration,
from a minimum of 10 minutes to a
maximum of 2 hours.
The required duration is related to the
quantity of laundry in the appliance.
Press the " Start/Pause" touch key to
start, pause the appliance or interrupt a
running programme.
Dryness Level
Start/Pause
Time Dry
We recommend that you set a short
duration for small quantities of laundry
or for only one item.
7.1 Options
ENGLISH 17
End Alert
You can activate the "End Alert"
option with all programmes.
The buzzer sounds at the:
• cycle end
• start and end of the anticrease phase
The buzzer function is by default always
on. You can use this function to activate
or deactivate the sound.
Extends the anticrease phase by 60
minutes at the end of the drying cycle.
This function reduces creases.
The laundry can be removed during the
anticrease phase.
Extra Anticrease
Option suitable for Wool programme to
adjust final dryness level.
Time Dry on Wool programme
Increase drum reversing frequency to
reduce items twisting and entanglement.
To increase uniformity of drying result
and help reduce creases. Recommended
for large or long items (e.g. sheets,
trousers, long dresses)
Reverse Plus
Before you start the programme, this
option makes it possible to define the
end of the drying programme from
minimum of 1 hour to maximum of 24
hours.
Finish In
On/Off button
Press and hold briefly this button for a
few seconds to activate or deactivate
the appliance. A dedicated jingle sound
while switching the appliance on or off,
lights and display switches on.
7.2 Settings
You can do your configuration of
programme and options and memorize in
our app.
Favourite
To change the default degree of
remaining moisture:
1. Press the " on/off" button to activate
the appliance.
2. Use the programme knob to set any
programme.
3. Press and hold " Time Dry" and
" Iron Dry" touch key for a few
second.
Adjustment of remaining laundry
moisture
Every time you enter in the
"Adjustment of remaining laundry
moisture" mode, previously set degree
of remaining moisture will change into
next value ( e.g. previously set will
change into ).
This function prevents children playing
with the appliance while a programme is
operating. The touch buttons are locked.
Only the " on/off" button is unlocked.
Activating the child lock function:
1. Press the " on/off" button to activate
the appliance
2. Press and hold touch button "Extra
Silent" for 3 seconds, the icon " " will
flash on the display.
Child lock function
To deactivate function Press and
hold the same
touch key
few seconds,
The Child lock icon
" "
will turn off
on the display. This function remains
enabled even after the appliance is
switched off.
18 ENGLISH
If the display returns to the normal
mode (the time of the selected
programme from step 2. Will be
displayed), while setting the degree of
remaining moisture, press and hold
" Time Dry"
and " Iron Dry"
touch key once again to enter to the
"Adjustment of remaining laundry
moisture" mode (previously set degree
of remaining moisture will change into
next value).
5. Press and hold " Time Dry" and
" Iron Dry" touch key at the same
time.
One of these indicators comes on:
• The maximum dryness
• The more dry laundry
• The standard dry laundry
4. Press " Iron Dry" touch key again to
change level " ", " " and " "
By default, the water container indicator
is on. It comes on when the programme
is completed or when it is necessary to
empty the water container.
Water container indicator
If a draining kit is installed
(additional accessory), the appliance
automatically drains the water from
the water container. In this case we
recommend that you deactivate the
indicator of the water container.
Deactivating the water container
indicator:
1. Press the " on/off" button to activate
the appliance.
2. Press and hold touch buttons
" Iron Dry" and " Cupboard Dry"
at the same time.
The display shows one of these 2
configurations:
• The display shows " ". After 3s the
display returns to normal mode.
• The display shows " " and icon
" " is on. After 3s the display returns
to normal mode.
ENGLISH 19
The software in this product
contains components that are based
on free and open source software.
Electrolux gratefully acknowledges
the contributions of the open software
and robotics communities to the
development project. To access the
source code of these free and open
source software components whose
license conditions require publishing,
and to see their full copyright
information and applicable license
terms, please visit:
http://electrolux.
opensoftwarerepository.com (folder
NIUS)"
This chapter describes how to connect the
smart appliance to the Wi-Fi network and to
link it to a mobile devices.
By this functionality you can receive
notifications, monitor and control your
tumble dryer from your mobile devices.
To connect the appliance to enjoy the full
range of features and services you need:
• Wireless network at home with internet
connection enabled.
• Mobile device connected to wireless
network.
1. Go to the App Store/Play Store,
download and install our app on your
smart device.
• * Minimum requirements: iPhone6/iOS
9.3/Android 5.1 and above. You will need
to install our app, create an account,
and accept the Terms and Conditions
and Electrolux’s Privacy Policy in the
app to use the connected features of
the laundry appliance. Internet and Wi-
Fi connections are required to use the
full features of the app and the laundry
appliance. Minimum requirements, apps,
and services are subject to change
without notice.
8.1 Download, installing, and
configuring our app
8. WI-FI CONNECTIVITY SETUP
Frequency/
Protocol
Wi-Fi: 2.4 /802.11 bgn
Max power Wi-Fi: 2.4 GHz: <20 dBm
Encryption WPA, WPA2, WEP
2. reate an account. You can only create
one account per product. This account
can be shared across multiple
devices.
3. Setting up your machine. Make sure
your machine is plugged in and
operating normally, stand near it with
your smart device.
Tap on "Appliances" at the bottom of
the home screen.
Tap on "Add Appliance" and follow
the prompts on screen.
4. Turning on your machine's Wi-Fi.
Initially, your machine creates its own
Wi-Fi network to assist in setting up.
After setup this network disappears
and your machine will connect to your
home Wi-Fi network.
Press and hold " Remote Start" touch
key for 5 seconds.
And the icon " " starts flashing and
wireless module begins starting up. It
may takes a moment seconds before it
is ready. When the wireless module is
ready, the text " " (Access Point) is on
to inform you, that the access point will
be open for about 5 minute.
* Setup will take several minutes
depending on your network speed.
5. Connect your machine: iOS Tap the
home button to exit the app.
Go to "Settings" on your phone and
select "Wi-Fi".
Select your machine’s Wi-Fi network.
It is the one that begins with "IOT" (it
may take a few moments to appear).
Tap the home button to exit your
phone settings and then return to our
app.
20 ENGLISH
For iOS devices, you will then be
prompted go to "SETTINGS" on your
phone and select your Home Wi-Fi,
then return to our app.
Every time you switch the machine
on, the machine takes 45 seconds to
connect to the network automatically.
When the " " indicator stops blinking
the connection is ready.
Please proceed to the next screen to
register the machine.
8.3 Over-the-air update
When the app is installed and the
wireless connection is complete, you can
start and stop a programme remotely by
activate remote start.
The application may propose an update
for downloading new features.
The update is accepted via app only. If
a programme is running, the app notifies
that the update will start at the end of
the programme.
During the update, the appliance shows
" "in the display.
The appliance will be usable again
at the end of the update, without any
notification about a successful update.
If an error occurs, the appliance shows
" " in the display: just press any
buttons or turn the knob to return to
normal use.
Congratulations!
Now you’re all set up. You can start
exploring our app.
To remove the wireless credentials, Press
and hold " Remote Start" touch key for
10 seconds until the second acoustic
signal show " " appears on the display.
The Remote Control activates
automatically when you press the
" Start/Pause"
button to start the
programme, but it is also possible to
start a programme.
Activate Remote Start
1. Press the " Remote Start" touch key
and the icon " " appears on the
display. Now it is possible to start the
programme remotely.
Deactivate Remote Start
1. Press the " Remote Start" touch key.
The " " icon is off
8.2 Remote Start
Wait for confirmation of connection
which may take up to a minute before
proceeding to the next step.
Android
devices, select your machine’s Wi-Fi
network from the drop-down box.
6. Connect your machine to your home
Wi-Fi. You’ll need to select your Wi-Fi
network name and input your.
If the connectivity is configured,
" " (Access Point) symbol is off
and the icon " " will stop blinking
and lit steadily to confirm that
the configuration was successful
Connection success!
7. Product registration; Simply add your
machine’s name and the purchase
date
ENGLISH 21

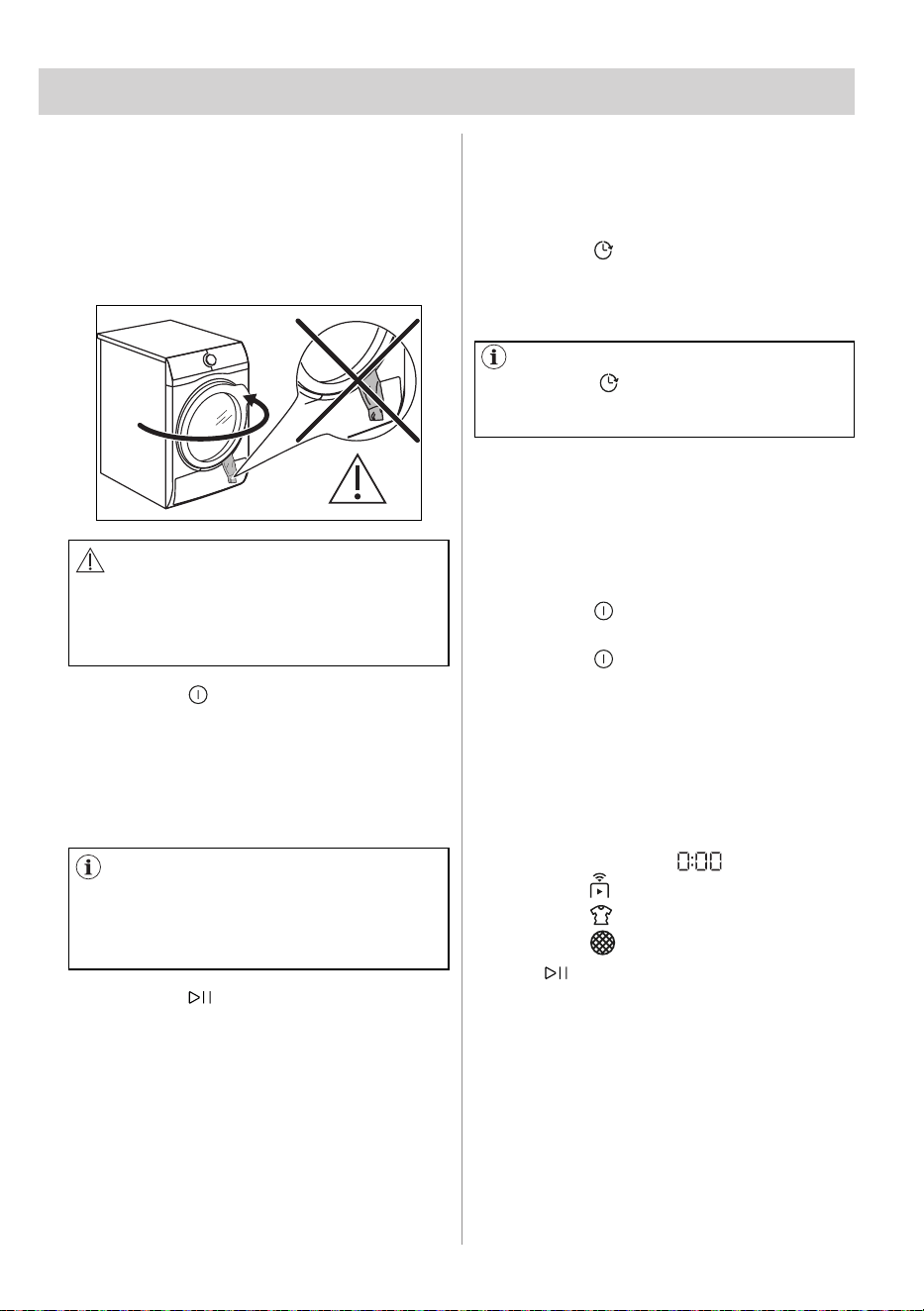

9.1 Start a programme without Finish
In
Before you use the appliance to dry
items:
1. Prepare the laundry and load the
appliance.
CAUTION!
Make sure that when you close the
door, the laundry does not get caught
between the appliance door and the
rubber seal.
2. Press the " on/off" button to activate
the appliance.
3. Set the correct programme and
options for the type of load.
The display shows the programme
duration.
Real drying time will depend
on type of the load (quantity and
composition), the room temperature
and the humidity of your laundry after
spin drying phase.
4. Press the " Start/Pause" touch key.
The programme starts.
9.2 Starting the programme with
Finish In
1. Set the correct programme and
options for the type of load.
2. Press the " Finish In (-) and (+)"
touch key.
- : Decrease finish in time.
+ : Increase finish in time.
9.3 Change a programme
9.4 At the end of the programme
3. During Finish In phase on the display
will show 3h, 2h or 1h.
After cycle start on the display will
show time to end of programme.
1. Press the " on/off" button to
deactivate appliance
2. Press the " on/off" button to activate
the appliance.
3. Set the programme.
When the programme is completed:
• An intermittent acoustic signal
operates.
• The display shows " ".
• The icon " " is on.(Wi-Fi model)
• The icon " " is on.
• The icon " " is on.
• The " Start/Pause" touch key is on.
The appliance continues to operate with
the anticrease phase for approximately
30 minutes or more if "Extra Anticrease"
option was set (see chapter Option
-"Extra Anticrease").
The anticrease phase reduces creasing.
You can remove the laundry before
the anticrease phase is completed. We
recommend, for better results, that you
remove the laundry when the phase is
almost completed.
You can delay the start of a
programme
" Finish In (-) and (+)"
(Minimum is 1hr (depend on cycle) and
maximum is 24hr.)
9. DAILY USE
22 ENGLISH
9.5 Stand-by function
To reduce energy consumption, this
function automatically deactivates the
appliance:
• After 5 minutes if you do not start the
programme.
• After 5 minutes from the end of the
programme.
Always clean the filter and empty
the water container when a programme
is completed.
10.1 Preparing the laundry
To assure proper drying process:
• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a programme.
• Remove all items from pockets.
• Turn items with the internal layer made
of cotton inside out. Cotton layer must
be faced outwards.
Very often the clothes after washing
cycle are kneaded and tangled
altogether. Drying kneaded and
tangled clothes is inefficient.
To assure proper air flow and even
drying it is recommended to shake and
load one by one the clothes to the
tumble dryer.
• Always set the programme suitable for
the type of laundry.
• Do not put light and dark colours
together.
• Use suitable programme for cottons,
jersey and knitwear to reduce
shrinkage.
• Do not exceed the maximum load
stated in the programme chapter or
shown on the display.
• Dry only the laundry that is suitable for
tumble drying. Refer to the fabric label
on the items.
• Do not dry large and small items
together. Small items can be trapped
inside the large items and remain wet.
• Shake the large clothes, fabrics before
placing in the tumble dryer. It is to
avoid moist places inside the fabric
after the drying cycle.
Fabric label Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.
10. HINTS AND TIPS CARE
1. Press the " on/off" button to
deactivate the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
Possible causes of unsatisfactory drying
results:
• Inadequate default dryness level
settings. See chapter "Dryness level"
• Room temperature is too low or too
high. Optimal room temperature is
between 18°-25°C.
ENGLISH 23

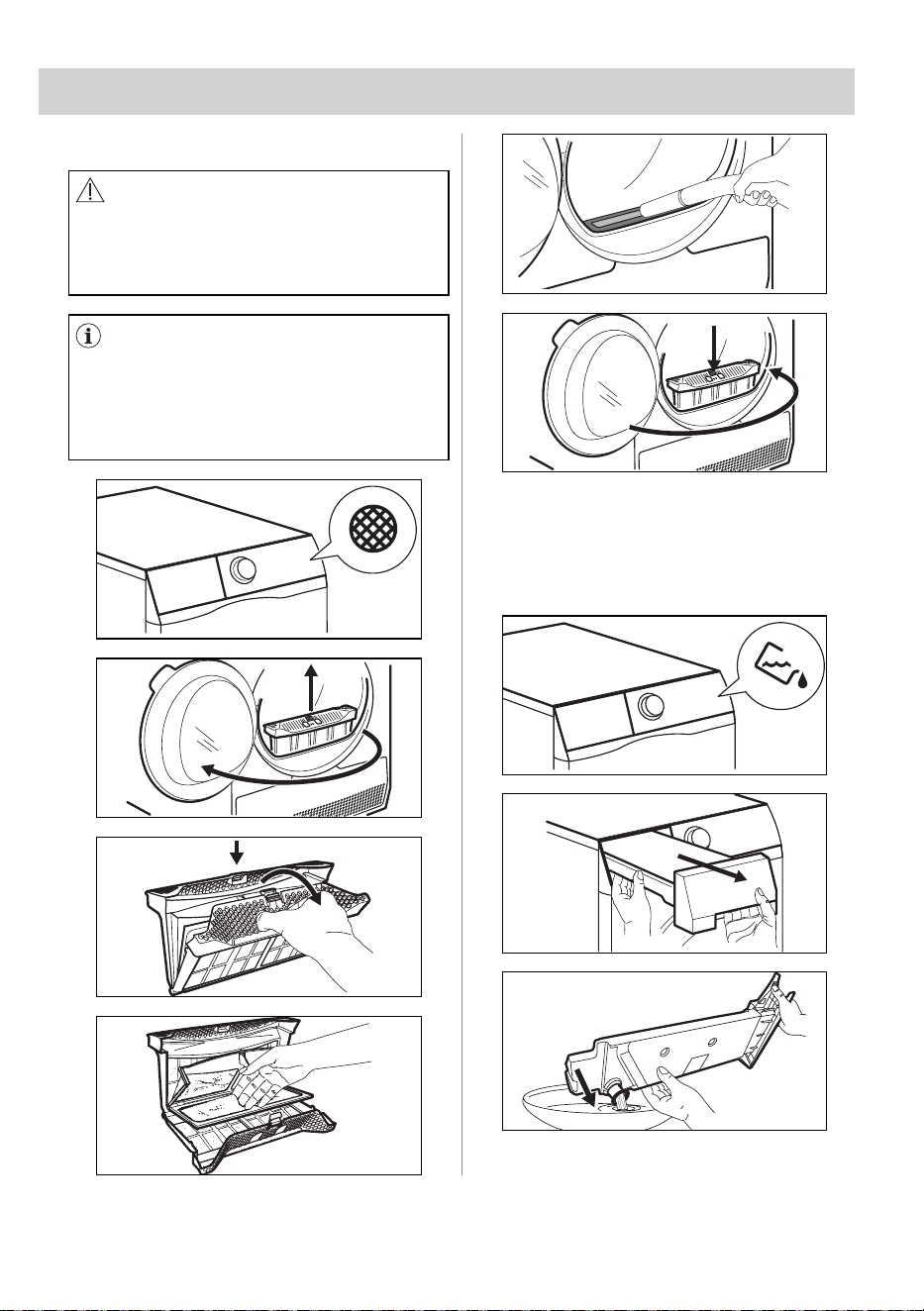

11.1 Cleaning the filter
WARNING!
Avoid the use of water to clean the
filter. Instead throw away lint in the
dustbin (avoid dispersion of plastic
fibre in ambient water).
To achieve the best drying
performances, clean the filter regularly.
Clogged filters lead to longer cycles
and increase in energy consumption.
Use your hand to clean the filter, and if
necessary a vacuum cleaner.
1
2
1
2
2
1
If necessary remove fluff from the filter
socket and gasket. You can use a
vacuum cleaner.

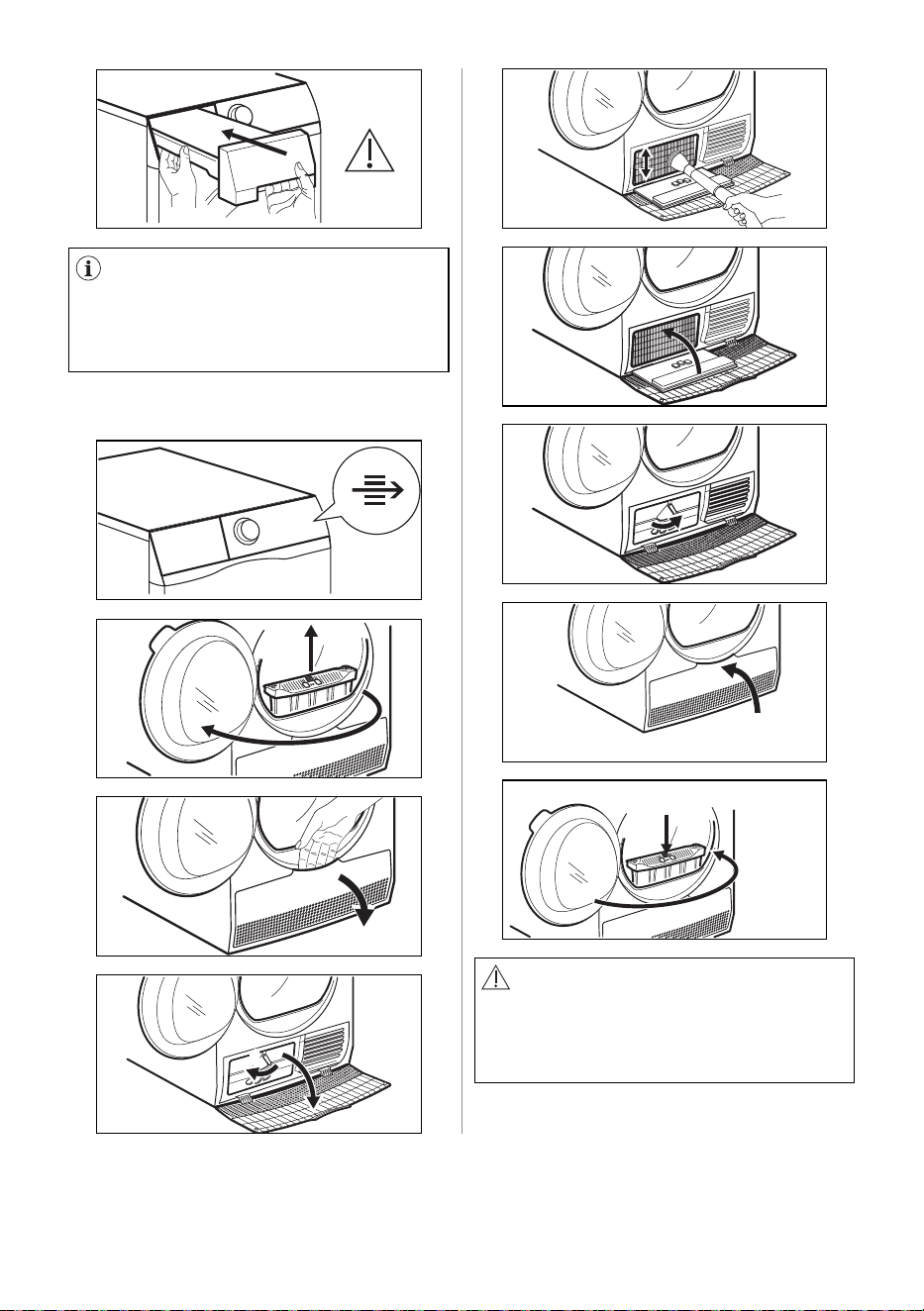

11.2 Emptying the water container
11. CARE AND CLEANING
24 ENGLISH
11.3 Cleaning the Heat Exchange
You can use the water from the
water container as an alternative to
distilled water (e.g. for steam ironing).
Before you use the water, remove dirt
residues with a filter.
1
2
2
1
1
1
1
2
2
2
2
CAUTION!
Do not touch the metal surface with
bare hands. Risk of injury. Wear
protective gloves. Clean carefully to
avoid damaging the metal surface.
ENGLISH 25
WARNING!
Disconnect the appliance before you
clean it.
11.4 Cleaning the drum
CAUTION!
Do not use abrasive materials or steel
wool to clean the drum.
CAUTION!
Do not use furniture cleaning agents
or cleaning agents which can cause
corrosion.
11.5 Cleaning the control panel and
housing
Use a standard neutral soap detergent to
clean the inner surface of the drum and
drum lifters. Dry the cleaned surfaces
with a soft cloth.
Use a standard neutral soap detergent to
clean the control panel and housing.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
11.6 Cleaning the airflow slots
Use a vacuum cleaner to remove fluff
from the airflow slots.
26 ENGLISH
12. TROUBLESHOOTING
WARNING!
Deactivate the appliance before you do the checks.
Problem Possible solution
You cannot activate the appliance.
Make sure that the mains plug is connected to
the mains socket.
Check fuse in fuse box (domestic installation).
The drum does not rotate.
Release the rear drum locks manually (see
chapter "INSTALLATION").
The programme does not start.
Press " Start/Pause".
Make sure that the appliance door is closed.
The appliance door does not close.
Make sure that the installation of the filter is
correct.
Make sure that the laundry is not caught between
the appliance door and the rubber seal.
The appliance stops during operation.
Make sure that the water container is empty.
Press " Start/Pause" to start the programme
again.
Load is too small, increase the load or use the
" Time Dry" programme.
Malfunction
Alarm
Code
Possible cause Solution
• The programme
was not
complete
• Appliance motor
overloaded. Too much
laundry or entrap in the
drum.
• The programme was not
completed. Remove the laundry
from the drum, set the programme
and restart the cycle.
• Machine does
not start
• The mains supply is unstable. • Wait until main supply is stable
then press start. If the appliance
pause the cycle without any
indication then press the cycle
start. If the warning will occur
check the power cord /socket
integrity or main supply.
• Machine
does not start
the steam
programmes.
• Possible empty steam tank,
steam heater failure.
• Fill water container for steam
system, Switch the appliance off
and on again. If the error code
appears again, contact the
Authorised Service Centre.
• Machine does
not start
*Connected models
• Internal fail. No
communication between
electronic elements of the
appliance.
• The programme was not finished
properly or the appliance
stopped too early. Switch the
appliance off and on again. If
the error code appears again,
contact the Authorised Service
Centre.
ENGLISH 27
1) After maximum 5 hours, the programme ends automatically.
2) It can happen that some area remains humid when drying big items (e.g. bed
sheets ).
If the drying results are not satisfactory
• The set programme was incorrect.
• The filter is clogged.
• The Heat Exchanger is clogged.
• There was too much laundry in the appliance.
• The drum is dirty.
• Incorrect setting of the conductivity sensor ( See chapter "Adjustment of remaining
laundry moisture" for better setting).
• The airflow slots are clogged.
• Room temperature is too low or too high ( optimal room temperature 18°C to 25°C )
Problem Possible solution
The cycle time is too long or unsatisfactory
drying result.
1)
Make sure that the weight of the laundry is
suitable for the duration of the programme.
Make sure that the filter is clean.
The laundry is too wet. Spin the laundry in the
washing machine again.
Ensure that the room temperature is higher
than +5°C and lower than +35°C. Optimal room
temperature is 18°C to 25°C.
Set the " Time Dry" or the " Extra Dry"
programme.
2)
The display shows
If you want to set a new programme, deactivate
and activate the appliance.
Make sure that the options are suitable for the
programme.
28 ENGLISH
Model Name EDH803R7WC
Height x Width x Depth 850 x 596 x 662 mm
Max. depth with the appliance door open 1107 mm
Max. width with the appliance door open 958 mm
Adjustable height 850 mm (+ 15 mm - feet adjustment)
Drum volume 113 l
Maximum load 8 kg
Voltage 220-240 V
Frequency 50 Hz
Total power 700 W
Type of use Household
Permitted ambient temperature + 5°C to + 35°C
Level of protection against ingress of solid
particles and moisture ensured by the protective
cover, except where the low voltage equipment
has no protection against moisture
IPX4
Gas designation R290
Gas weight 0.149 kg
Model Name EDH903R7WC, EDH903R7SC
Height x Width x Depth 850 x 596 x 662 mm
Max. depth with the appliance door open 1107 mm
Max. width with the appliance door open 958 mm
Adjustable height 850 mm (+ 15 mm - feet adjustment)
Drum volume 113 l
Maximum load 9 kg
Voltage 220-240 V
Frequency 50 Hz
Total power 700 W
Type of use Household
Permitted ambient temperature + 5°C to + 35°C
Level of protection against ingress of solid
particles and moisture ensured by the protective
cover, except where the low voltage equipment
has no protection against moisture
IPX4
Gas designation R290
Gas weight 0.149 kg
13. TECHNICAL DATA
ENGLISH 29
The materials marked with the symbol are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene.
This means that they can be recycled by disposing them properly in appropriate
collection containers.
Use authorized disposal sites for your old appliance. Help to keep your country tidy!
The symbol on the product or on its packaging indicates that this product may not
be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste handling of
this product.
For more detailed information about recycling of this product, please contact your
local city office, your household waste disposal service or the shop where you
purchased the product.
14.1 Packaging Materials
14.2 Old Machine
14. ENVIRONMENT CONCERNS
30 ENGLISH
ENGLISH 31
electrolux.com
G0043776-001-A28646606
