Operating and installation
instructions
Cooker hood
To prevent the risk of accidents or damage to the appliance, it is es-
sential to read these instructions before it is installed and used for
the first time.
en-GB M.-Nr. 12 406 930
Contents
2
Warning and Safety instructions...................................................................... 3
Caring for the environment .............................................................................. 12
Modes of operation ........................................................................................... 13

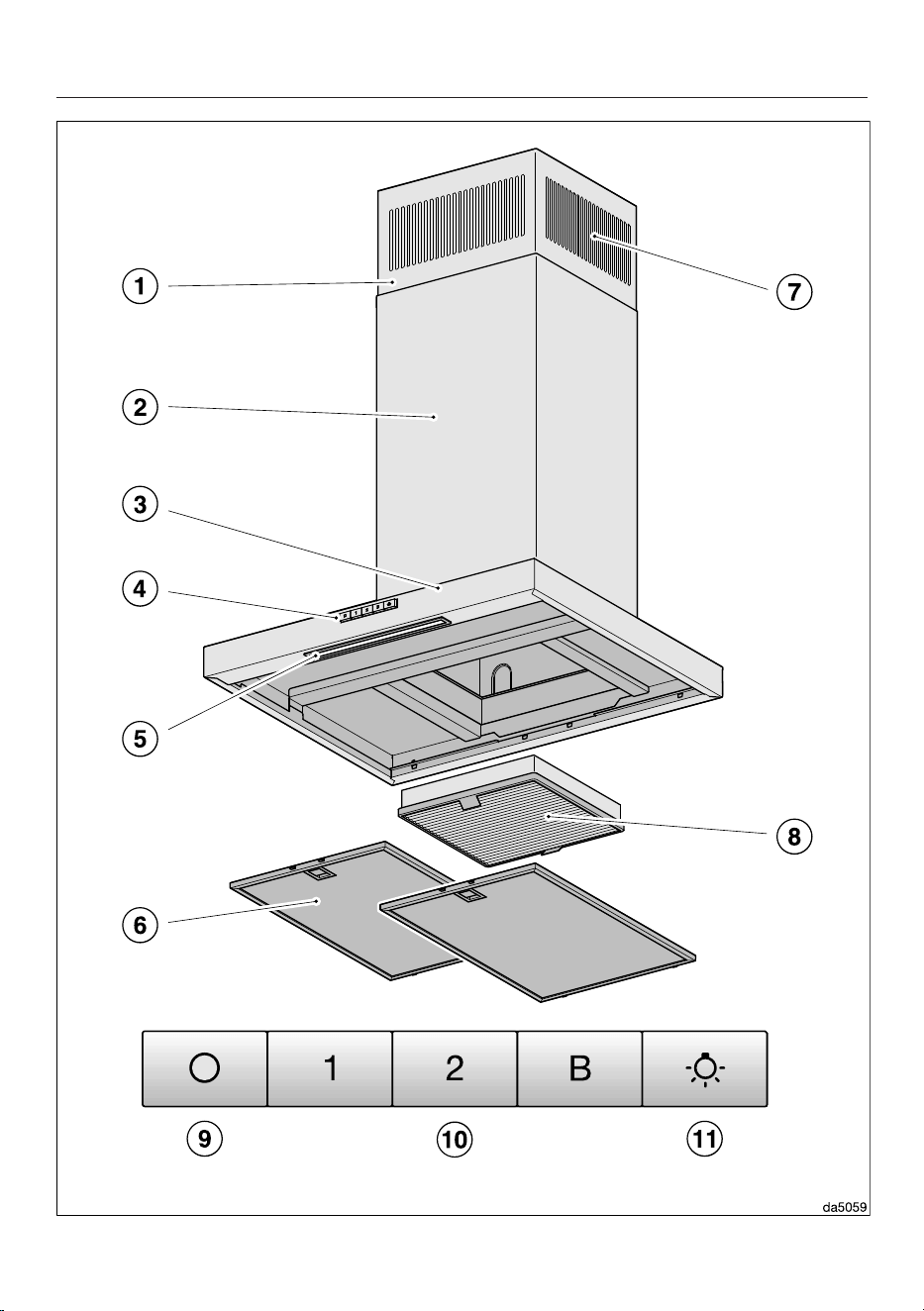

Guide to the cooker hood................................................................................. 14
Operation............................................................................................................ 16
Switching the fan on and off ............................................................................... 16
Run-on time......................................................................................................... 16
Switching the fan off ........................................................................................... 16
Switching the hob lighting on/off ........................................................................ 16
Energy saving tips ............................................................................................. 17
Cleaning and care ............................................................................................. 18
Housing ............................................................................................................... 18
Important information for appliances with lacquered casing......................... 18

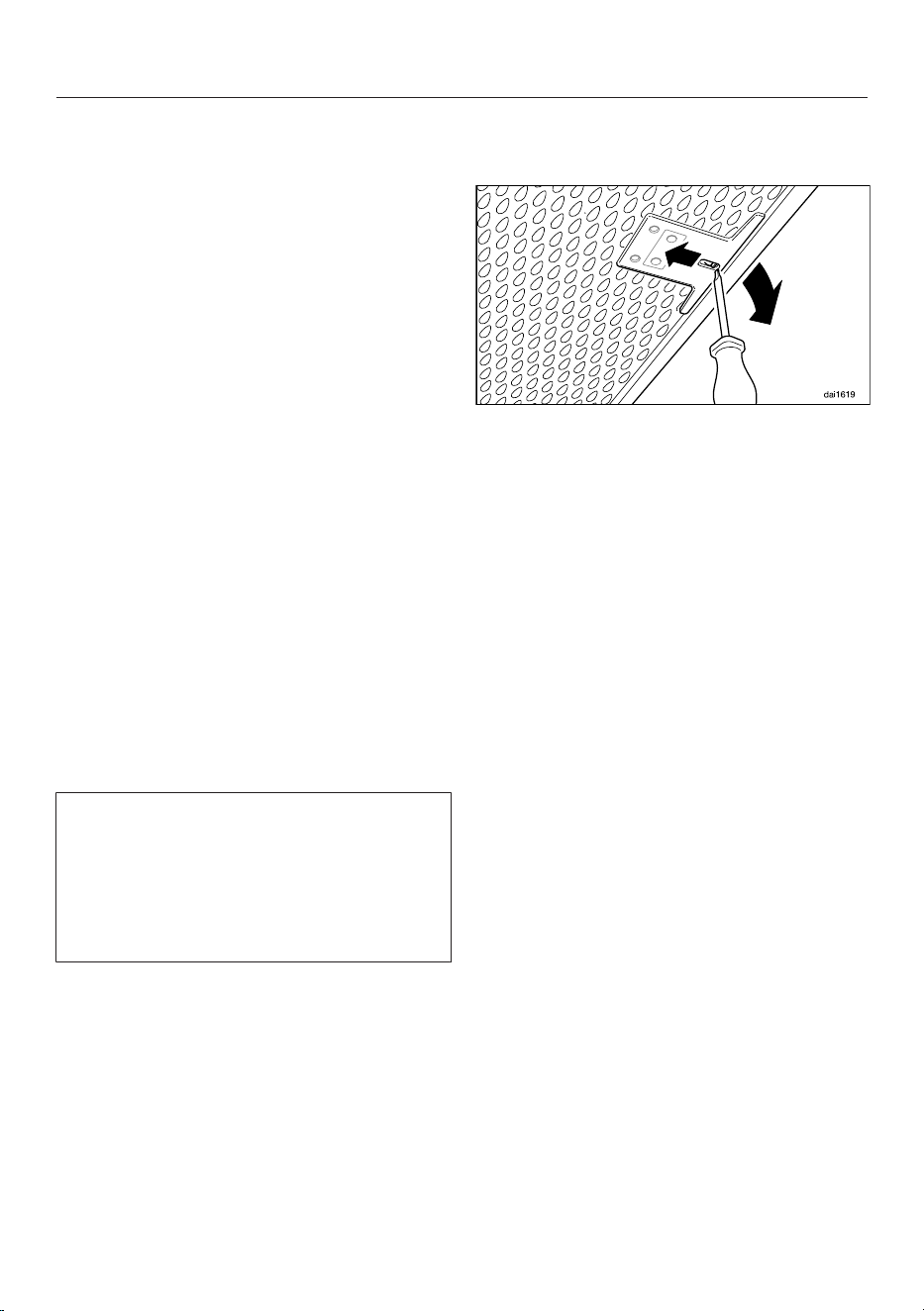

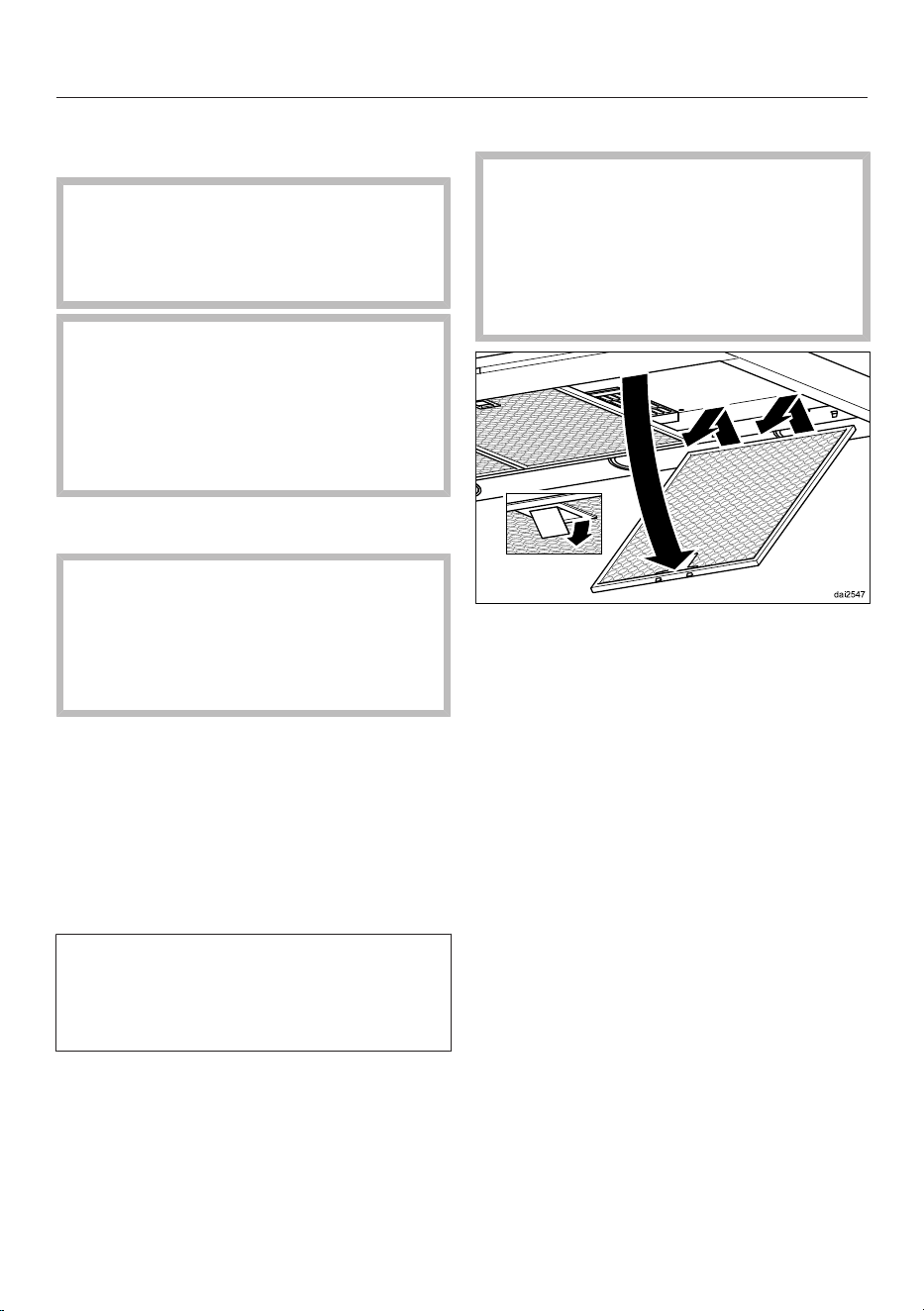

Grease filters ....................................................................................................... 19

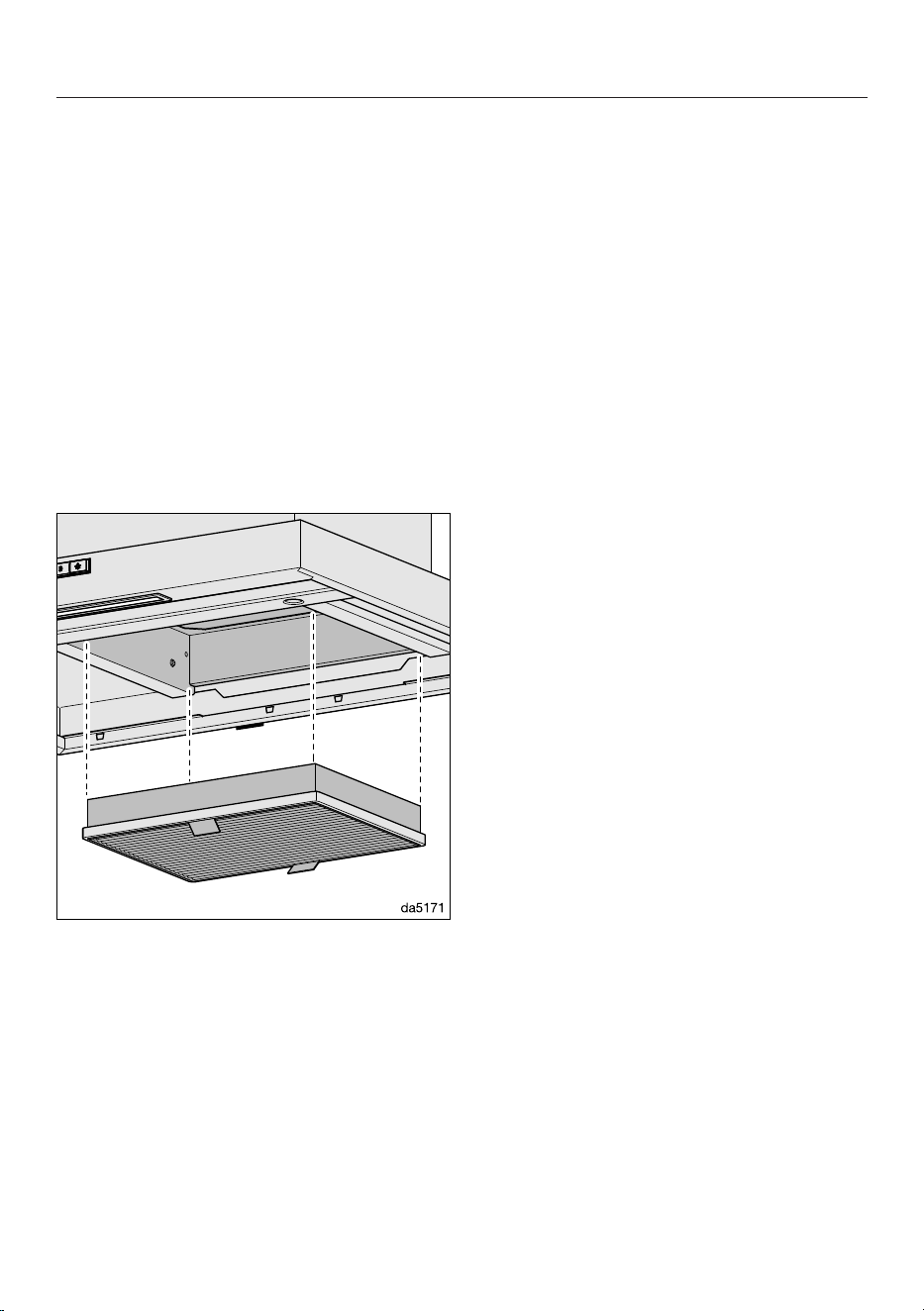

Charcoal filter ...................................................................................................... 21
Disposing of charcoal filters ........................................................................... 21
Installation.......................................................................................................... 22
Before installation................................................................................................ 22
Protective foil....................................................................................................... 22

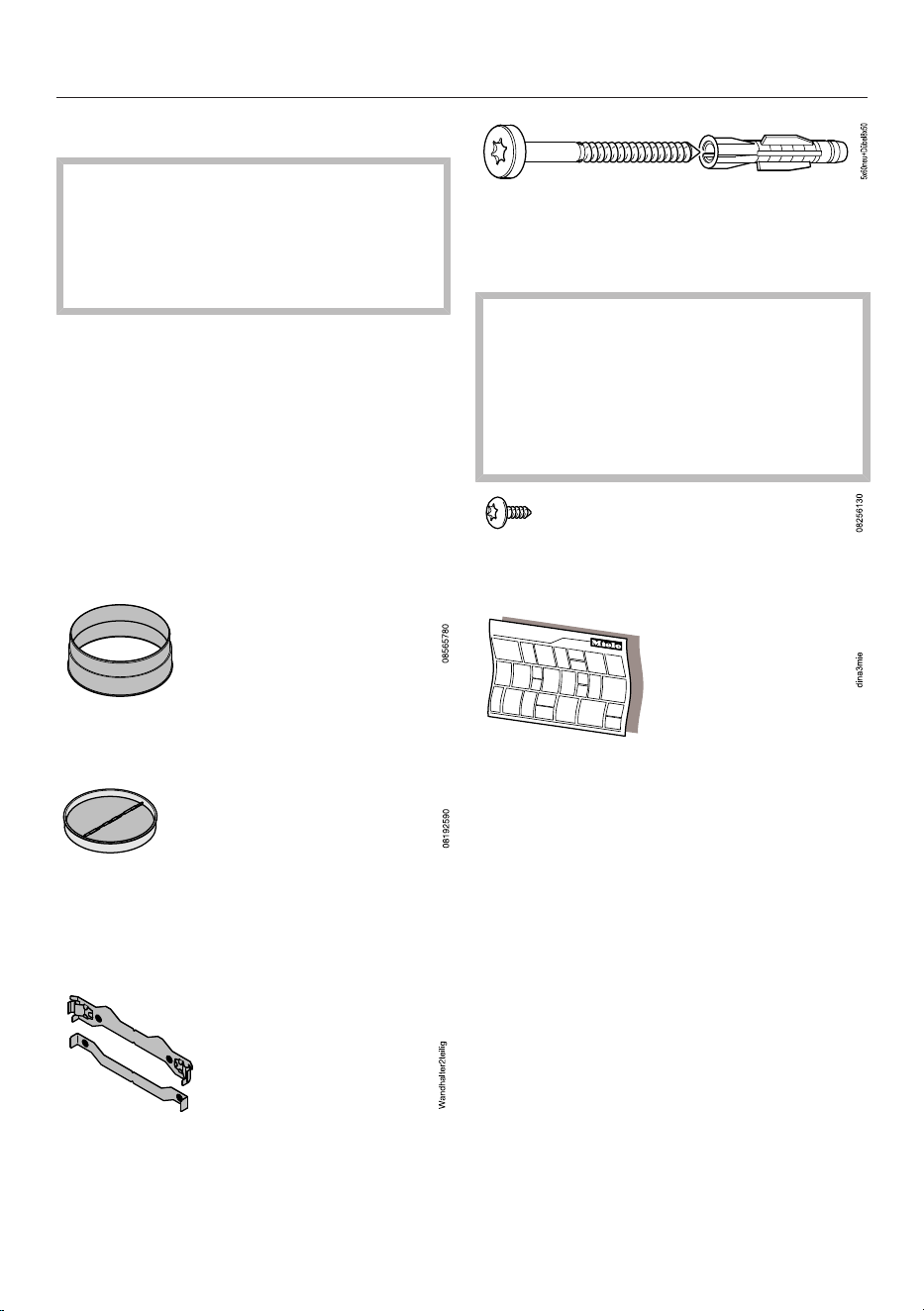

Installation materials............................................................................................ 22

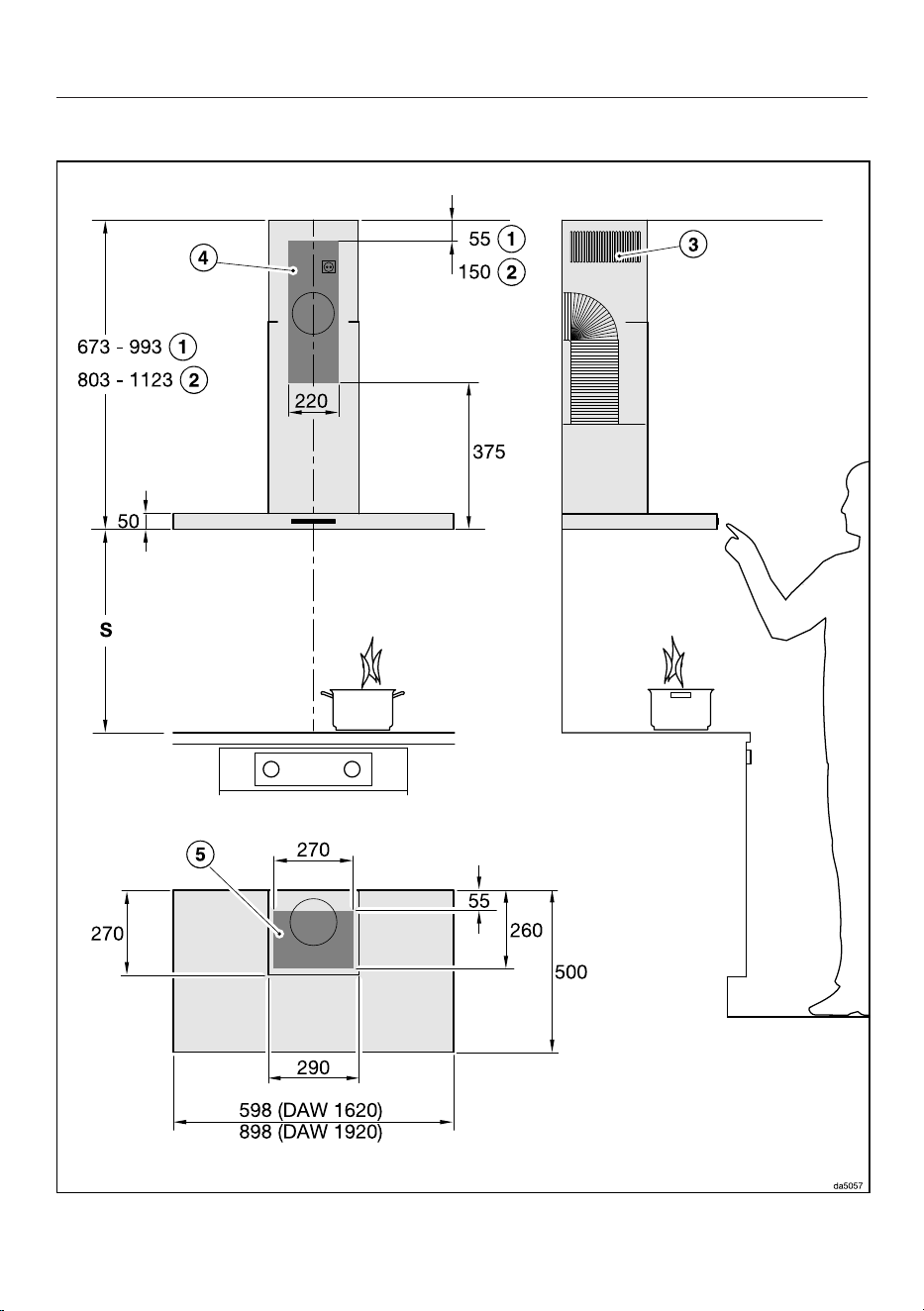

Appliance dimensions ......................................................................................... 24
Installation distance between hob and cooker hood (S) ..................................... 25
Installation recommendations ............................................................................. 26
Drilling diagram for wall mounting....................................................................... 26
Connection for air extraction............................................................................... 27
Non-return flap ............................................................................................... 27

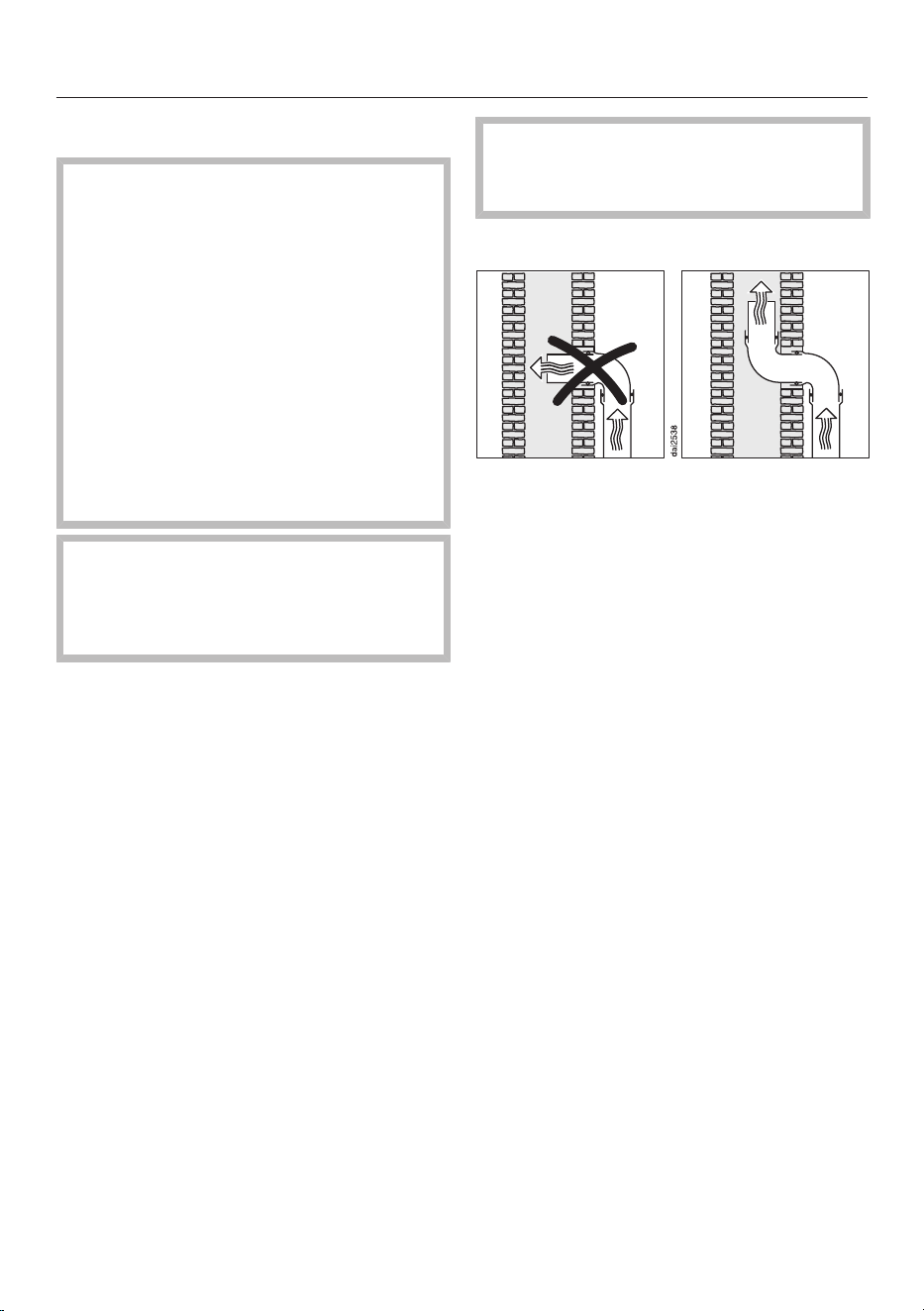

Condensation ................................................................................................. 28

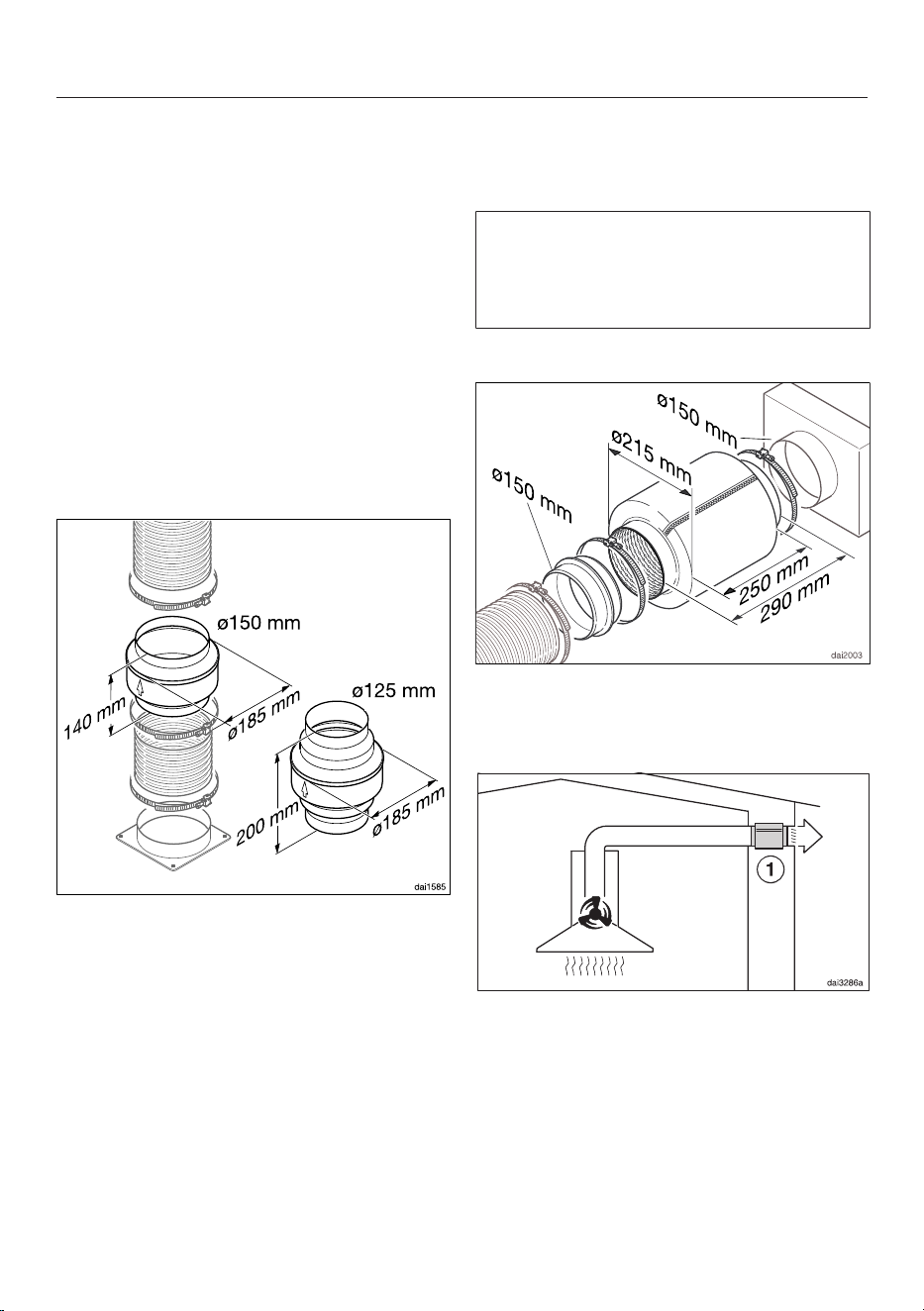

Silencer........................................................................................................... 28
Electrical connection ........................................................................................... 29
Service................................................................................................................ 31
Contact in the event of a fault ............................................................................. 31
Position of the data plate .................................................................................... 31
Warranty .............................................................................................................. 31
Technical data.................................................................................................... 32

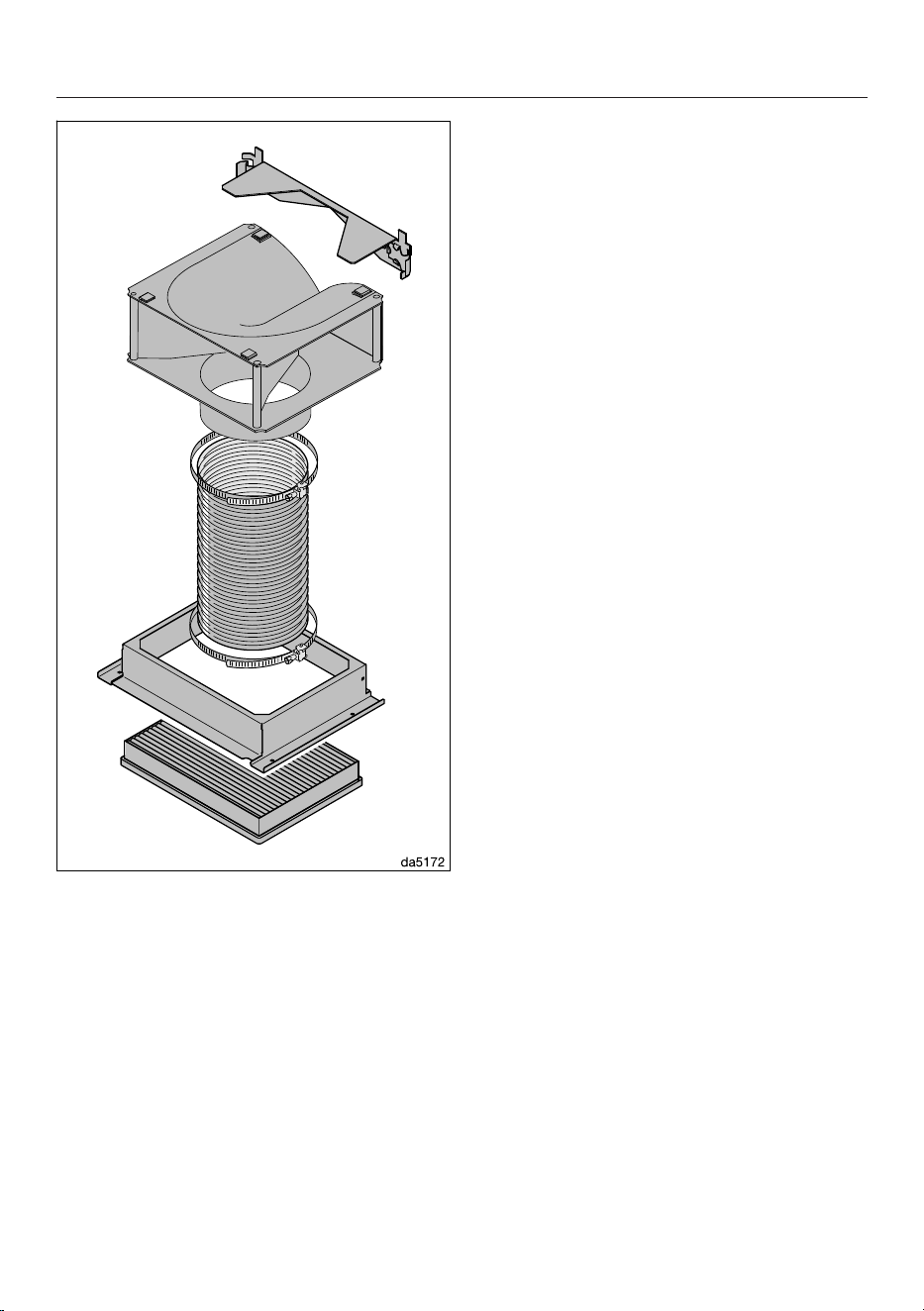

Optional accessories for recirculation mode....................................................... 32
Warning and Safety instructions
3
This cooker hood complies with all relevant local and national
safety requirements. Inappropriate use can, however, lead to per-
sonal injury and material damage.
Read the operating and installation instructions carefully before us-
ing the cooker hood. They contain important information on its
safety, installation, use and maintenance. This prevents both per-
sonal injury and damage to the cooker hood.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the appliance as well as the safety instruc-
tions and warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Correct application
This cooker hood is intended for use in domestic households and
similar working and residential environments.
The cooker hood is not intended for outdoor use.
It must only be used as a domestic appliance to extract vapours
and remove odours from cooking.
Any other usage is not supported by the manufacturer and could be
dangerous.
Warning and Safety instructions
4
The cooker hood can only be used by people with reduced phys-
ical, sensory or mental capabilities, or lack of experience and know-
ledge, if they are supervised whilst using it, or have been shown how
to use it in a safe way and recognise and understand the con-
sequences of incorrect operation.
Safety with children
Children under 8 years of age must be kept away from the cooker
hood unless they are constantly supervised.
Children aged 8 and older may only use the cooker hood without
supervision if they have been shown how to use it and are able to do
so in a safe manner. Children must be able to understand and recog-
nise the possible dangers caused by incorrect operation.
Children must not be allowed to clean or maintain the cooker
hood unsupervised.
Please supervise children in the vicinity of the cooker hood and do
not let them play with it.
The hob lighting is very intensive.
Ensure, in particular, that babies/small children do not look at the
light.
Danger of suffocation! Whilst playing, children may become en-
tangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
Warning and Safety instructions
5
Technical safety
Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and re-
pairs must only be carried out by a Miele authorised technician.
A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
The electrical safety of this appliance can only be guaranteed
when correctly earthed. It is essential that this standard safety re-
quirement is met. If in any doubt please have the electrical installa-
tion tested by a qualified electrician.
Temporary or permanent operation on an autonomous power sup-
ply system or a power supply system that is not synchronised with
the mains power supply (e.g. island networks, back-up systems) is
possible. A prerequisite for operation is that the power supply sys-
tem complies with the specifications of EN50160 or an equivalent
standard.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronised with the mains power supply, or these measures must
be replaced by equivalent measures in the installation. As described,
for example, in the current version of BS OHSAS 18001–2 ISO
45001.
The connection data (voltage and frequency) on the data plate of
the cooker hood must match the mains electricity supply in order to
avoid the risk of damage to the cooker hood
Compare this before connecting the appliance to the mains. Consult
a qualified electrician if in any doubt.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
Warning and Safety instructions
6
For safety reasons, this appliance may only be used after it has
been built in.
The cooker hood must not be used in a non-stationary location
(e.g. on a ship).
Touching electrical components and tampering with electrical and
mechanical parts is highly dangerous to the user and can cause op-
erational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the Cleaning and care section of this book-
let. Under no circumstances should any other parts of the housing
be opened.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised technician.
If the electrical connection cable is faulty it must only be replaced
by a Miele authorised technician to protect the user from danger.
The lamps are a built-in component of the lighting. Replacement
lamps may only be fitted by a Miele authorised technician or by the
Miele Customer Service Department.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply.
Warning and Safety instructions
7

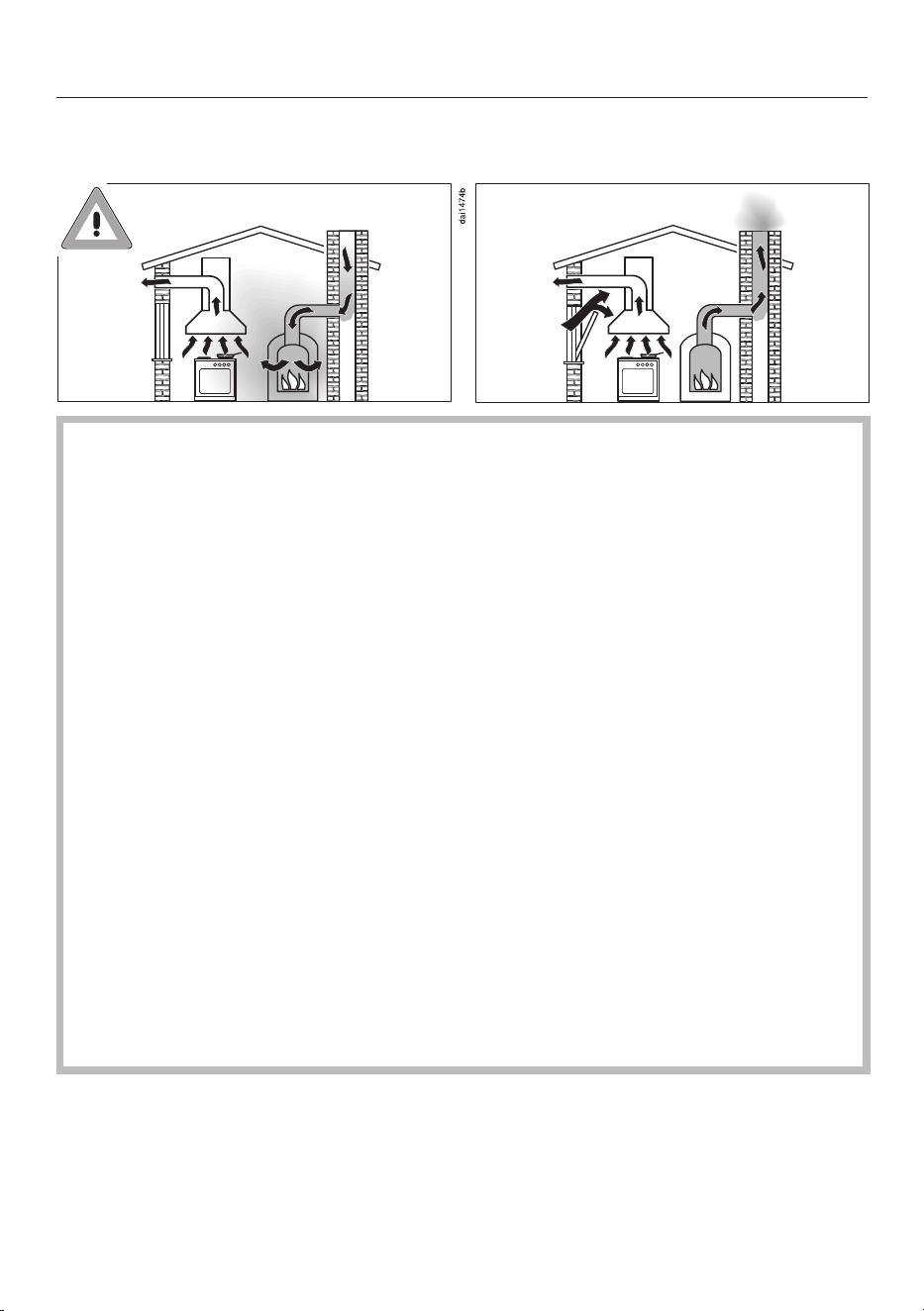

Using at the same time as another heating appliance that depends on the air
from the room
Danger of toxic fumes!
Great care should be taken when using the cooker hood in the
same room or the same area of the house at the same time as an-
other heating appliance that depends on the air from the room.
Such heating appliances draw in air from the room and duct ex-
haust gases out to the open air through a chimney or extraction
ducting. They include gas, oil, wood and coal-fired boilers and
heaters, continuous flow or other water heaters, gas hobs and
ovens.
The cooker hood draws in air from the kitchen and from neigh-
bouring rooms. This applies to the following modes of operation:
- extraction mode,
- recirculation mode with a recirculation box installed outside the
room.
If there is insufficient air, an underpressure will occur. The heating
appliance may be starved of oxygen. This impairs combustion.
Harmful gases could be drawn from the chimney or extraction
ducting back into the room.
Risk of death!
Warning and Safety instructions
8
In order to ensure safe operation and to prevent gases given off by
the heating appliance from being drawn back into the room, when
the cooker hood and the heater are both operated simultaneously,
an underpressure in the room of 0.04mbar (4Pa) is the maximum
permissible.
Sufficient ventilation can be maintained by air inlets which cannot
be blocked, e.g. in windows, doors and outside wall vents. The
cross-section of the inlet openings must enable sufficient ventila-
tion. A ventilation brick alone is not generally sufficient to ensure
safe ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, the advice of a competent builder, or for
gas, a qualified gas fitter should be sought.
If the cooker hood is being operated in recirculation mode,
whereby the air is redirected into the room in which it is installed,
the above restrictions do not apply.
Warning and Safety instructions
9
Correct use
Open flames are a fire hazard.
The use of an open flame under the cooker hood is not permitted. To
avoid the danger of fire, do not flambé or grill over an open flame.
When switched on, the cooker hood could draw flames into the filter.
Fat deposits could ignite, presenting a fire hazard.
Always switch the cooker hood on when a cooking zone is in use,
otherwise condensation may collect in the hood, which could cause
corrosion.
Overheated oil and fat can ignite, causing fire damage to the
cooker hood.
When cooking with oil or fat, chip pans and deep fat fryers, etc, do
not leave the pans unattended. Similarly, never leave an open grill
unattended when grilling.
Do not use the cooker hood without the filters in place. This way
you will avoid the risk of grease and dirt getting into the appliance
and hindering its smooth operation.
The cooker hood can get very hot during cooking due to heat
rising from the hob.
Do not touch the housing or the grease filters until the cooker hood
has cooled down.
This cooker hood is not suitable for placing objects on.
Warning and Safety instructions
10
Proper installation
To determine whether a cooker hood may be operated above your
cooking appliance, please refer to the information provided by the
appliance’s manufacturer.
Safety regulations prohibit the fitting of a cooker hood over solid
fuel stoves.
Safety regulations prohibit the fitting of a cooker hood over a gas
hob.
An insufficient safety distance between the hob and the cooker
hood can result in damage to the cooker hood.
The minimum safety distances between the top of the hob and the
bottom of the cooker hood given in the “Installation” section of this
manual must be observed, unless the hob manufacturer states that a
greater safety distance is required.
If more than one cooking appliance is fitted beneath the cooker
hood, and they have different minimum safety distances to the
cooker hood, select the greater distance.
The information provided in “Installation” must be observed when
fixing the ventilation hood.
Components can have sharp edges which may cause injury.
Wear gloves to protect your hands from being cut.
Exhaust ducting must be of non-inflammable material. Suitable
material is available from Miele specialist dealers or the Miele Spares
Dept.
The appliance must not be connected to a chimney or flue which
is in use. Neither should it be connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
Warning and Safety instructions
11
Cleaning and care
There is a risk of fire if the cooker hood is not cleaned as de-
scribed in these operating instructions.
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short cir-
cuit.
Accessories and spare parts
Only use genuine original Miele accessories and spare parts with
this appliance. Using accessories or spare parts from other manu-
facturers will invalidate the warranty and Miele cannot accept liabil-
ity.
Miele can only guarantee the safety of the appliance when genu-
ine original Miele replacement parts are used. Faulty components
must only be replaced by Miele spare parts.
Miele will guarantee to supply functional spare parts for a min-
imum of 10years and up to 15years following the discontinuation of
your vapour extraction unit.
Caring for the environment
12
Disposing of the packaging
material
The packaging material is used for
handling and protects the appliance
from transport damage. The packaging
material used is selected from materials
which are environmentally friendly for
disposal and can generally be recycled.
Recycling the packaging material re-
duces the use of raw materials. Use
material-specific collection points for
valuable materials and take advantage
of return options. Your Miele dealer will
take the packaging material away.
Disposing of your old appli-
ance
Electrical and electronic appliances
contain many valuable materials. They
also contain certain materials, com-
pounds and components which were
essential for their correct functioning
and safety. These could be hazardous
to human health and to the environment
if disposed of with household waste or
if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with household waste.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle elec-
trical and electronic appliances in your
local community, with your dealer or
with Miele, free of charge. By law, you
are solely responsible for deleting any
personal data from the old appliance
prior to disposal. You are legally obliged
to remove any old batteries which are
not securely enclosed by the appliance
and to remove any lamps without des-
troying them, where this is possible.
These must be taken to a suitable col-
lection point where they can be handed
in free of charge. Please ensure that
your old appliance poses no risk to chil-
dren while being stored for disposal.
Modes of operation
13
Depending on the model of the cooker
hood, the following options are avail-
able:
Extraction mode
The air is drawn in and cleaned by the
grease filters and directed outside.
Recirculation mode
(recirculation mode cooker hoods re-
quire a conversion kit and charcoal fil-
ter, see “Technical Data”)
The air is drawn in and cleaned first by
the grease filters and then by a charcoal
filter. The cleaned air is then recircu-
lated back into the kitchen.
Guide to the cooker hood
14
Guide to the cooker hood
15
a
Telescopic extension piece
b
Tower
c
Canopy
d
Control elements
e
Hob lighting
f
Grease filters
g
Recirculation grille
Only for recirculation mode
h
Charcoal filter
Optional accessories for recirculation mode
i
Control for switching the fan off
j
Controls for switching the fan on and setting the fan power level
k
Control for switching the lighting on and off
Operation
16
Switching the fan on and off
Switch the fan on as soon as you start
cooking. This is to ensure that vapours
are captured right from the start.
Select power levels 1 and 2 for light to
heavy cooking vapours, odours or heat-
ing.
Increase the power level as the level of
vapours, odours or heat increases.
For short periods of cooking food with
intensive vapours, odours or heat, e.g.
when searing meat, select Booster level
B.
Switch the fan on by pressing con-
trols 1, 2 or B.
Switching back the Booster
level
In Booster levelB, the fan power is re-
duced automatically after 5minutes.
Run-on time
It is advisable to run the fan for a few
minutes after cooking has finished.
This helps to remove any lingering va-
pours and odours from the air.
It also reduces the risk of residues ac-
cumulating in the cooker hood and any
resultant odours.
Switching the fan off
Use the control to switch the fan
off.
Switching the hob lighting on/
off
The hob lighting can be switched on
and off independently of the fan.
Use the lighting control to switch
the hob lighting on or off.
Energy saving tips
17
This cooker hood operates very effi-
ciently and economically. The following
will help you to save even more energy
when using it:
- Ensure that there is sufficient ventila-
tion in the kitchen when cooking. In
extraction mode, if there is insuffi-
cient air flow the cooker hood cannot
operate efficiently and this causes in-
creased operating noise levels.
- Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
cooker hood power level and there-
fore benefit from reduced energy
consumption.
- Check the power level selected on
the cooker hood. A lower power level
is generally sufficient for the majority
of cooking. Only use the Booster set-
ting when necessary.
- When a large volume of cooking va-
pours is being produced, switch to a
high power level in good time. This is
more efficient than operating the
cooker hood for longer to try to cap-
ture cooking vapours which have
already been distributed throughout
the kitchen.
- Make sure that you switch the cooker
hood off after use.
- Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
Cleaning and care
18
Before proceeding with any
maintenance or cleaning task, the
cooker hood must be disconnected
from the power supply (see “Warning
and Safety instructions”).
Housing
General information
Unsuitable cleaning agents can dam-
age the surfaces and control ele-
ments.
Do not use any cleaning agents con-
taining soda, acid, chloride or
solvent.
Do not use any abrasive cleaning
agents, e.g. powder cleaners or
cream cleaners and abrasive
sponges, as well as pot scourers or
sponges which have been used pre-
viously with abrasive cleaning
agents.
Moisture in the cooker hood can
cause damage.
Make sure that water does not get
into the cooker hood.
All external surfaces and control ele-
ments can be cleaned using hot wa-
ter with a small amount of washing-
up liquid applied with a well wrung-
out soft sponge or cloth.
After cleaning, wipe the surfaces dry
using a soft cloth.
Important information for appliances
with stainless steel surfaces
This information does not apply to the
control buttons.
Stainless steel surfaces can be cleaned
with a non-abrasive cleaning agent de-
signed specifically for use on stainless
steel.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel care
product (available from Miele).
Important information for appliances
with lacquered casing
(Customisation on request)
Minor scratches on the surface are in-
evitable when cleaning the casing;
they may be visible depending on the
lighting in the kitchen.
Cleaning and care
19
Important information for the control
elements
If soiling is not removed promptly, it
could cause the control elements to
alter or discolour.
Remove any soiling immediately.
The surface of the control elements
can become damaged if they are
cleaned using stainless steel clean-
ing agents.
Do not use stainless steel cleaning
agents on the control elements.
Grease filters
Fire hazard
Oversaturated grease filters are a fire
hazard.
Clean the grease filters at regular in-
tervals.
The re-usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen va-
pours, preventing soiling of the cooker
hood.
The grease filters must be cleaned at
regular intervals.
Heavily soiled grease filters hinder air
extraction and will lead to increased
levels of soiling in the cooker hood
and in the kitchen.
Cleaning interval
Accumulated grease solidifies over a
longer period of time and makes clean-
ing more difficult. The grease filters
should therefore be cleaned every 3 to
4 weeks.
Removing a grease filter
When handling a grease filter, be
careful not to drop it.
This can result in damage to the filter
and the hob below.
Make sure you hold the filter securely
at all times when handling it.
To take out a grease filter, release the
locking clip on the filter, lower the fil-
ter approx. 45°, unhook it at the back
and remove it.
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and a small amount of washing-up li-
quid. Do not use “neat” washing up
liquid.
Cleaning and care
20
Unsuitable cleaning agents
Unsuitable cleaning agents can cause
damage to the surface of the filters if
used regularly.
Do not use:
- cleaning agents containing descaling
agents
- powder cleaners, cream cleaners
- aggressive multi-purpose cleaning
agents or spray cleaners for grease
- oven sprays
Cleaning the grease filters in the
dishwasher
Place the grease filters upright or at a
slight angle in the lower basket. En-
sure the spray arm is not obstructed.
Use a standard household dish-
washer detergent.
Select a dishwasher programme with
a wash temperature between 50°C
and 65°C.
Depending on the detergent used,
cleaning the grease filters in a dish-
washer may cause the filter surfaces
to become discoloured. This will not
affect the functioning of the grease fil-
ters in any way.
After cleaning
After cleaning, leave the filters to dry
on an absorbent surface before repla-
cing them.
When removing the filters for clean-
ing, also clean off any residues of oil
or fat from the now accessible hous-
ing to prevent the risk of these catch-
ing fire.
Refit the grease filters, making sure
that the latch faces outwards.
If a grease filter is inadvertently fitted
upside down, insert a small screw-
driver blade into the slit to disengage
the clip.
Cleaning and care
21
Charcoal filter
With recirculation mode, a charcoal fil-
ter must be fitted in addition to the
grease filters. The charcoal filter is de-
signed to absorb cooking odours.
The charcoal filter is fitted in the canopy
above the grease filters.
Fitting/replacing charcoal filters
Remove the grease filter before fitting
or replacing a charcoal filter.
Take the charcoal filter out of its
packaging.
Press the charcoal filter into the
frame.
Refit the grease filters.
When to change the charcoal filter
Replace the charcoal filter when it no
longer absorbs kitchen odours effect-
ively.
It should, however, be replaced at
least every 6 months.
Disposing of charcoal filters
Used charcoal filters can be disposed
of with normal household waste.
Charcoal filters are available to order via
the Miele online shop, the Miele Cus-
tomer Service Department (see end of
these operating instructions for contact
details) or from your Miele dealer.
The model designation required is listed
under “Technical data”.
Installation
*INSTALLATION*
22
Before installation
Before installation, it is important
to read the information given on the
following pages as well as the
“Warning and Safety instructions” at
the beginning of this booklet.
Protective foil
The housing components have protect-
ive foil around them to protect them
from transport damage.
Please remove this foil before fitting
the housing components. It can be
peeled off easily.
Installation materials
1vent connection
for exhaust ducting 150mm.
1 non-return flap
for fitting into the exhaust socket on
the motor unit (not needed for recircu-
lation mode).
2 wall brackets
for securing the cooker hood to the
wall
8 screws, 5x60mm and
8 plugs, 8x50mm
for securing to the wall
The screws and plugs are de-
signed for use in solid walls only.
For other types of wall construction,
alternative fixings will be required.
Make sure the wall is able to take the
weight of the cooker hood.
2 screws, 3.9x7.5mm
for securing the chimney
Montage
Installation
Montaje
Montaggio
Montering
Montagem
Asennus
Installation plan
See the installation plan for details on
the individual steps involved in the in-
stallation of this appliance.
Installation
*INSTALLATION*
23
Installation kit for recirculation mode
The installation kit contains deflectors
with a holding plate, hose and hose
clips, and a charcoal filter with installa-
tion frame (not supplied, but available
as an optional accessory, see “Tech-
nical data”).
Installation
*INSTALLATION*
24
Appliance dimensions
The diagram is not drawn to scale.
Installation
*INSTALLATION*
25
a
Extraction
b
Recirculation
c
Ventilation grille positioned at the top for recirculation
de
(Only d is required for recirculation mode cooker hoods). The shaded area
represents the wall or ceiling area for the ducting cut-out and for the connec-
tion socket. Recirculation cooker hoods only need a connection socket to be
fitted.
Connection for air extraction 150 mm
Installation distance between hob and cooker hood (S)
Risk of heat damage.
The rising heat generated by a gas hob may damage the cooker hood.
Fitting this cooker hood over a gas hob is not permitted.
When planning the installation distance between the cooking appliance and the
bottom of the cooker hood, the information provided by the cooking appliance
manufacturer must be taken into account.
Unless a greater distance is specified by the cooking appliance manufacturer,
the minimum safety distances indicated below must be ensured.
Please also observe the information given under “Warning and safety instruc-
tions”.
Cooking appliance Minimum distance S
Electric hob 450mm
Electric grill, electric fryer 650mm
Gas hob Not possible
Installation
*INSTALLATION*
26
Installation recommendations
- When deciding on the safety distance
between the hob and cooker hood,
please note that a distance of
650mm above electric cookers/hobs
may be preferable to give more work-
ing space under the hood.
- Account should also be taken of the
height of the person who will be us-
ing the hood most often. They should
have sufficient space to work com-
fortably at the hob, and be able to
reach the cooker hood controls with
ease.
- Please be aware that if positioned too
high, extraction will be inefficient.
- To achieve optimum vapour extrac-
tion, the cooker hood must be posi-
tioned centrally over the hob, not to
the side.
- The hob should be no wider than the
cooker hood, and if possible, it
should be narrower.
- The installation area must be easily
accessible. The cooker hood should
be easily accessible and easy to dis-
mantle in the event that service is re-
quired. This should be taken into
consideration when planning the pos-
ition of cupboards, shelves, ceilings
or features in the vicinity of the
cooker hood.
Drilling diagram for wall
mounting
Please follow the directions given in
the installation instructions supplied
for drilling.
For pre-installation of a back wall
where the holes have to be pre-
drilled, please refer to the drilling dis-
tances in the drawing above (screws
5mm).
*The dimension for the middle wall
bracket is variable. It will depend on the
position of the wall vent and the socket.
It should be set as low as possible.
Installation
*INSTALLATION*
27
Connection for air extraction
If the cooker hood is used at the
same time as a heating appliance
that relies on oxygen from the same
room, there is a risk in certain cir-
cumstances of toxic fumes building
up.
It is essential that the “Warning and
Safety” instructions are observed.
The cooker hood should be installed
according to local and national build-
ing regulations. Seek approval from
the building inspector where neces-
sary.
Only use smooth pipes or flexible ex-
haust ducting made from approved
non-flammable materials for exhaust
ducting.
To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:
- The diameter of the exhaust ducting
must not be smaller than the cross-
section of the exhaust duct (see “Ap-
pliance dimensions”). This applies in
particular when using flat ducting.
- The exhaust ducting should be as
short and straight as possible.
- Only use wide radius bends.
- The exhaust ducting must not be
kinked or compressed.
- All connections must be strong and
airtight.
- If the exhaust ducting has flaps,
these must be opened whenever the
cooker hood is switched on.
Any constriction of the air throughput
will reduce extraction performance
and increase operating noise.
Flue
If the exhaust air is to be ducted into a
flue, the ducting must be directed in the
flow direction of the flue.
If the flue is used by several ventilation
units, the cross-section of the flue must
be large enough.
Non-return flap
Use a non-return flap in the exhaust
system.
A non-return flap ensures that when the
cooker hood is not in operation, the
duct is closed to prevent unwanted ex-
change of room air and outside air.
If the exhaust is ducted through an out-
side wall, a Miele wall vent or roof vent
(available as an optional accessory) is
recommended. Both of these have a
built-in non-return flap.
If the on-site ventilation system does
not have a non-return flap, one is sup-
plied with the cooker hood.
The non-return flap is fitted in the ex-
haust socket of the fan.
Installation
*INSTALLATION*
28
Condensation
If the exhaust ducting is to run through
cool rooms or ceiling space, for ex-
ample, the significant variations in tem-
perature between the different areas
can cause condensation to form. Insu-
late the exhaust ducting to reduce tem-
perature variations.
If the exhaust ducting is to be laid hori-
zontally, it must be laid with a down-
wards sloping gradient of at least 1cm
per meter. This is to ensure that con-
densation cannot drain back into the
cooker hood.
In addition to insulating the exhaust
ducting, it is advisable to also install a
condensate trap for collecting and
evaporating any potential condensation.
Condensate traps for 125mm or
150mm diameter exhaust ducting are
available as optional accessories.
When installing a condensate trap, en-
sure that it is positioned vertically and
as closely as possible to the cooker
hood above the exhaust connection.
The arrow on the casing indicates the
direction of airflow.
Miele shall not accept warranty claims
for any functional defects or damage
caused by inadequate exhaust duct-
ing.
Silencer
To reduce noise levels even further, a si-
lencer (optional accessory) can be in-
stalled in the exhaust ducting.
In extraction mode, the silencer not only
reduces noise from the fan outside the
house, but also sounds originating out-
side reaching the kitchen through the
exhaust ducting (e.g. traffic noise). For
this reason, the silencer must be posi-
tioned as close as possible to the duct-
ing exit.
Installation
*INSTALLATION*
29
In recirculation mode, the silencer
needs to be positioned between the ex-
haust socket and the directional unit.
Check that there is sufficient space.
Electrical connection
The cooker hood is supplied with a
mains cable with moulded plug ready
for connection to a suitable earthed
socket.
If the socket is not easily accessible or
a fixed connection is envisaged, ensure
that a suitable means of disconnection
is provided on the installation side for
each pole.
Risk of fire from overheating.
Connecting the cooker hood to
multi-socket adapters or extension
cables can overload the cables.
For safety reasons, do not use an ex-
tension cable or multi-socket ad-
apter.
The electrical system must comply with
local and national safety regulations
(BS7671 in the UK).
For safety reasons, we recommend us-
ing a type residual current device
(RCD) in the relevant electrical installa-
tion for connecting the cooker hood.
If the mains connection cable is dam-
aged, it must only be replaced with a
specific mains connection cable of the
same type (available from the Miele
Customer Service Department). For
safety reasons, such replacement may
only be carried out by a qualified spe-
cialist or the Miele Customer Service
Department.
These operating instructions and the
data plate indicate the nominal power
consumption and the appropriate fuse
rating. Compare this information with
the data of the on-site electrical con-
Installation
*INSTALLATION*
30
nection.
If in any doubt, consult a qualified elec-
trician.
Temporary or permanent operation on
an autonomous power supply system or
a power supply system that is not syn-
chronised with the mains power supply
(e.g. island networks, back-up systems)
is possible. A prerequisite for operation
is that the power supply system com-
plies with the specifications of
EN50160 or an equivalent standard.
The function and operation of the pro-
tective measures provided in the do-
mestic electrical installation and in this
Miele product must also be maintained
in isolated operation or in operation that
is not synchronised with the mains
power supply, or these measures must
be replaced by equivalent measures in
the installation. As described, for ex-
ample, in the current version of VDE-
AR-E 2510-2.
Service
31
Information to help you rectify faults
yourself and about Miele spare parts
can be found at www.miele.com/ser-
vice.
Contact in the event of a fault
In the event of any faults which you
cannot remedy yourself, please contact
your Miele dealer or the Miele Customer
Service Department.
You can book a Miele Customer Ser-
vice Department call-out online at
www.miele.com/service.
Contact information for the Miele Cus-
tomer Service Department can be
found at the end of this document.
Please quote the model identifier and
serial number of your appliance (Fabr./
SN/Nr.) when contacting the Miele Cus-
tomer Service Department. This inform-
ation can be found on the data plate.
Please note that telephone calls may be
monitored and recorded for training
purposes and that a call-out charge will
be applied to service visits where the
problem could have been resolved as
described in this booklet.
Position of the data plate
The data plate is visible after removing
the grease filter(s).
Warranty
For information on the appliance war-
ranty specific to your country please
contact Miele. See back cover for ad-
dress.
In the UK, your appliance warranty is
valid for 2 years from the date of pur-
chase. However, you must activate your
cover by calling 0330 160 6640 or re-
gistering online at www.miele.co.uk.
Technical data
32
Fan motor 245W
Hob lighting 3.2W
Total rated load 248.2W
Mains voltage, frequency AC230V, 50Hz
Fuse rating 10A
Length of mains connection cable 1.5m
Weight
DAW1620 13.5kg
DAW1920 15.0kg
Optional accessories for recirculation mode
For recirculation mode, you need installation kit DKFS36-P. The installation kit
contains the required original equipment components and 1charcoal filter.
The charcoal filter DKF36-P must be purchased as an optional accessory.
Technical data
33
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name/identifier DAW 1620 Active
Annual Energy Consumption (AEC
hood
) 49,9 kWh/year
Energy efficiency class A
Energy efficiency index (EEI
hood
) 51,7
Fluid Dynamic Efficiency (FDE
hood
) 31,1
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
hood
) 121,9 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 85,6%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) B
Airflow at best efficiency point
342,8 m
3
/h
Air flow (min. speed)
254 m
3
/h
Air flow (max. speed)
397 m
3
/h
Air flow (intensive or boost setting)
640 m
3
/h
Max. air flow (Q
max
)
640 m
3
/h
Air pressure at best efficiency point 472 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 52 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 62 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
71 dB
Electrical power input at best efficiency point 144,7 W
Power consumption in off mode (P
o
) 0,00 W
Power consumption in standby mode (P
s
) W
Nominal power of lighting system 3,2 W
Average illumination of the lighting system on the cooking surface 390 Ix
Time increase factor 0,9
Technical data
34
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name/identifier DAW 1920 Active
Annual Energy Consumption (AEC
hood
) 49,8 kWh/year
Energy efficiency class A
Energy efficiency index (EEI
hood
) 51,6
Fluid Dynamic Efficiency (FDE
hood
) 31,1
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
hood
) 109,4 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 85,2%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) B
Airflow at best efficiency point
352,0 m
3
/h
Air flow (min. speed)
260 m
3
/h
Air flow (max. speed)
405 m
3
/h
Air flow (intensive or boost setting)
646 m
3
/h
Max. air flow (Q
max
)
646 m
3
/h
Air pressure at best efficiency point 460 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 53 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 62 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
71 dB
Electrical power input at best efficiency point 144,4 W
Power consumption in off mode (P
o
) 0,00 W
Power consumption in standby mode (P
s
) W
Nominal power of lighting system 3,2 W
Average illumination of the lighting system on the cooking surface 350 Ix
Time increase factor 0,9
United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600, Internet: www.miele.co.uk/service, E-mail: [email protected]
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Tel: 1300 464 353
Internet: www.miele.com.au
Miele Electrical Appliances Co., Ltd.
1-3 Floor, No. 82 Shi Men Yi Road
Jing' an District
200040 Shanghai, PRC
Tel: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: [email protected],
Internet: www.miele.cn
China Mainland
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
Email:
Website: www.miele.hk
Hong Kong, China
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9,
Mathura Road, Jasola,
New Delhi - 110025
E-mail: customercare@miele.in
Website: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-Mail: [email protected]
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
New Zealand
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
Tel: +65 6735 1191
Fax: +65 6735 1161
E-Mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd.
63 Peter Place, Bryanston 2194
P.O. Box 69434, Bryanston 2021
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Showroom 1, Eiffel 1 Building
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-Mail: [email protected]
Website: www.miele.ae
United Arab Emirates
Manufacturer:
Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Sheikh Zayed Road, Umm Al Sheif
Kuwait
Miele Kuwait
Al Wazzan United Trading Co.
P. O. Box : 3379
Hawally, 32034 Kuwait
Tel.: 00965-22001010
Fax: 00965-24838292
E-mail: [email protected]
Website: www.alwazzanunited.com
M.-Nr. 12 406 930 / 00en-GB
DAW1620, DAW1920
