PORCH SWING USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
1
MODEL:YQ-117D
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
PORCH SWING
2
SAFETY INSTRUCTIONS
WARNING:
Read this instructions carefully before using this product. Failure to do so
can result in serious injury.
Assembly precautions
1. Assemble only should be according to these instructions. Improper
assembly can result in hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves
during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol,
drugs or medication.
6. The product capabilities apply to properly and completely assembled
products only.
7. Assemble on a flat, level, hard and smooth surface capable of safely
supporting the porch swing.
8. For additional information regarding the parts listed in the following
pages, please refer to the Assembly Diagram of this manual. Unwrap
and separate all parts in a clean work area.
Use precautions
1. Do not exceed weight capacities.
2. Use only on a flat, level and hard surface capable of safely supporting a
fully loaded porch swing.
3. Use as intended only.
4. Inspect before every use; do not use if parts are loose or damaged.
SAVE THESE INSTRUCTIONS
3

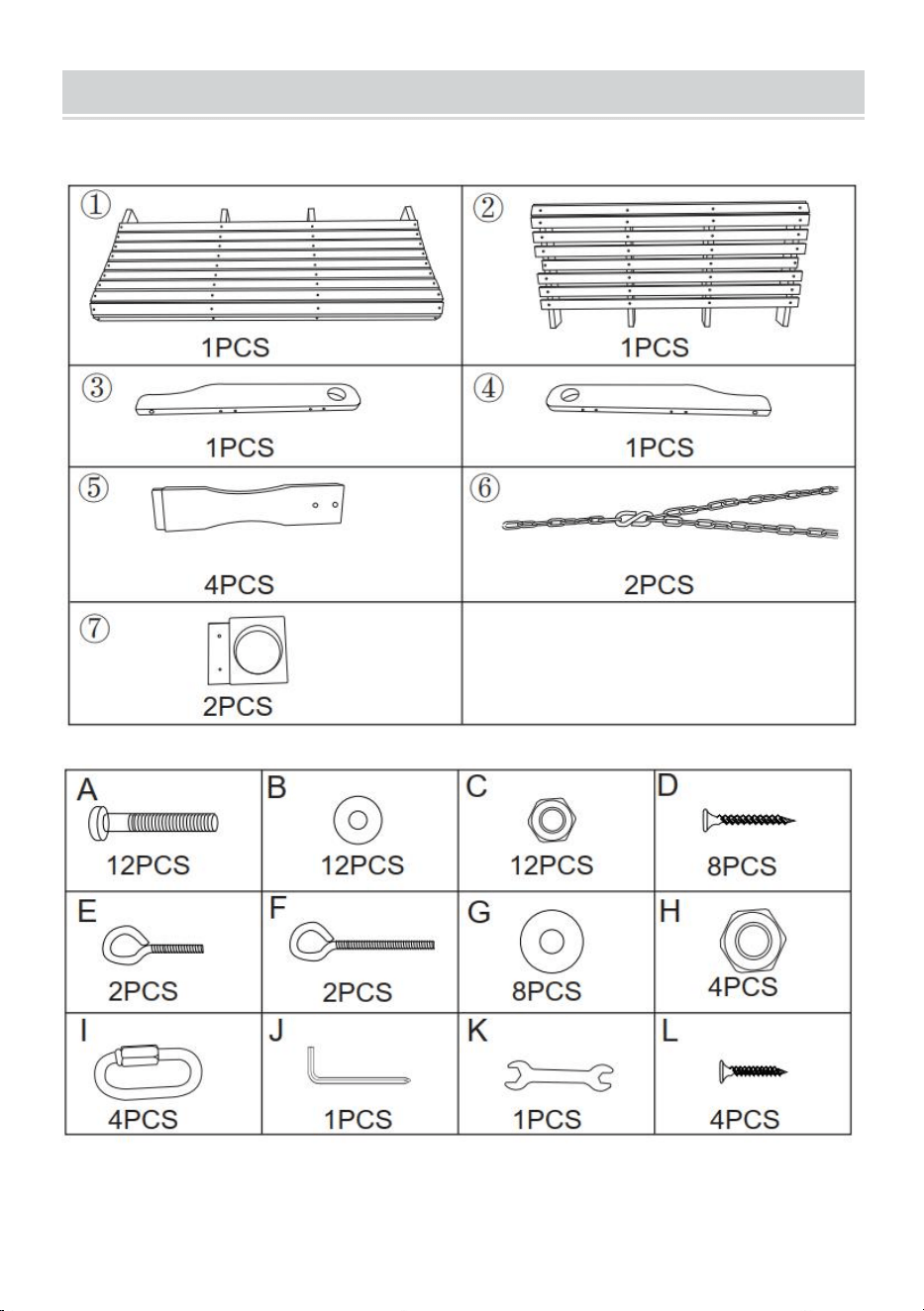

PARTS LIST
4
ASSEMBLY STEP
STEP1

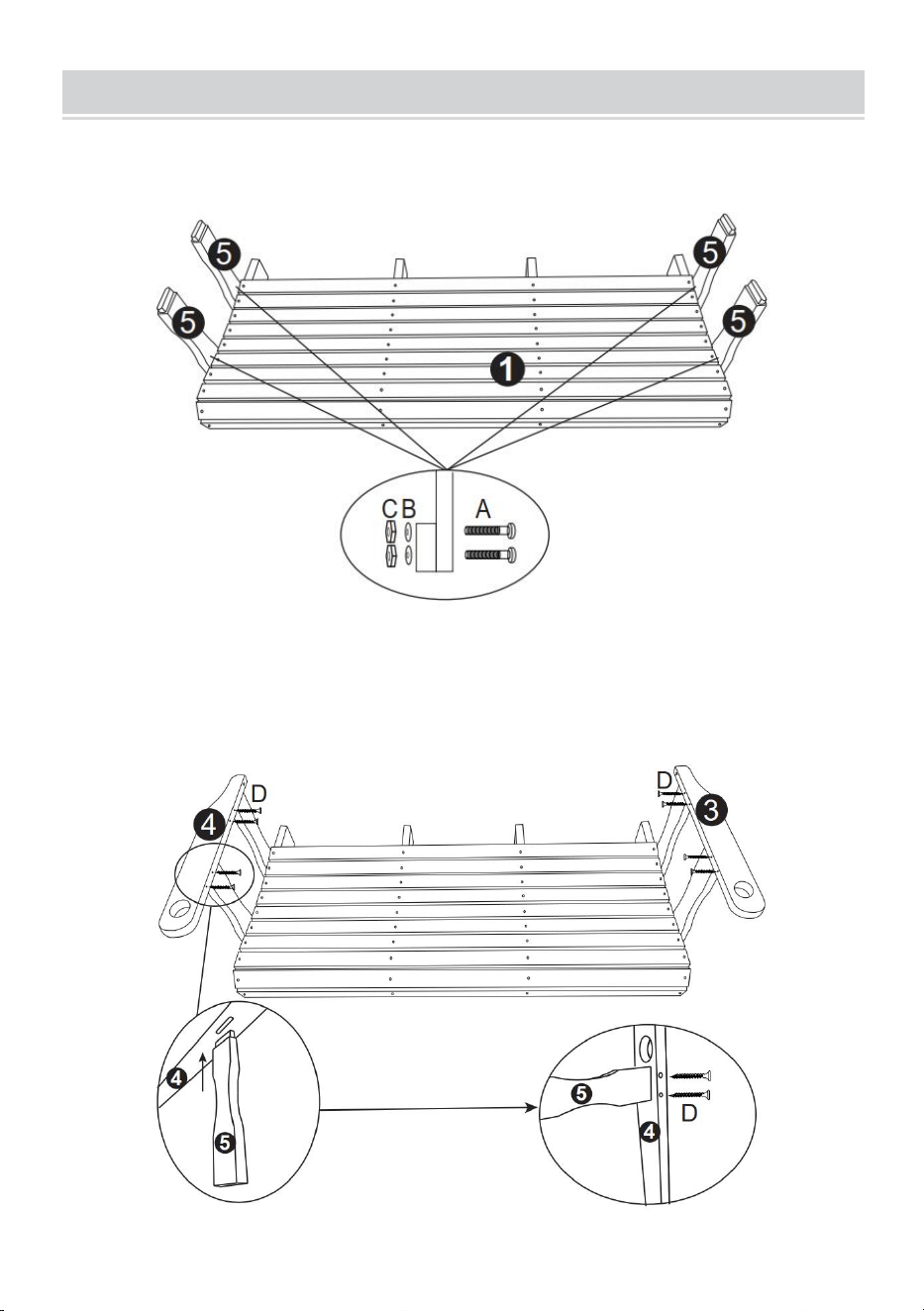

Install support plates 5 on seat 1 with parts A, B and C.
STEP2
Install the left and right handrails 3,4 on the support plate 5 and tighten them with
screw D.In order to install a perfect swing, we recommended you to tighten D after
completing step3.
5
STEP3

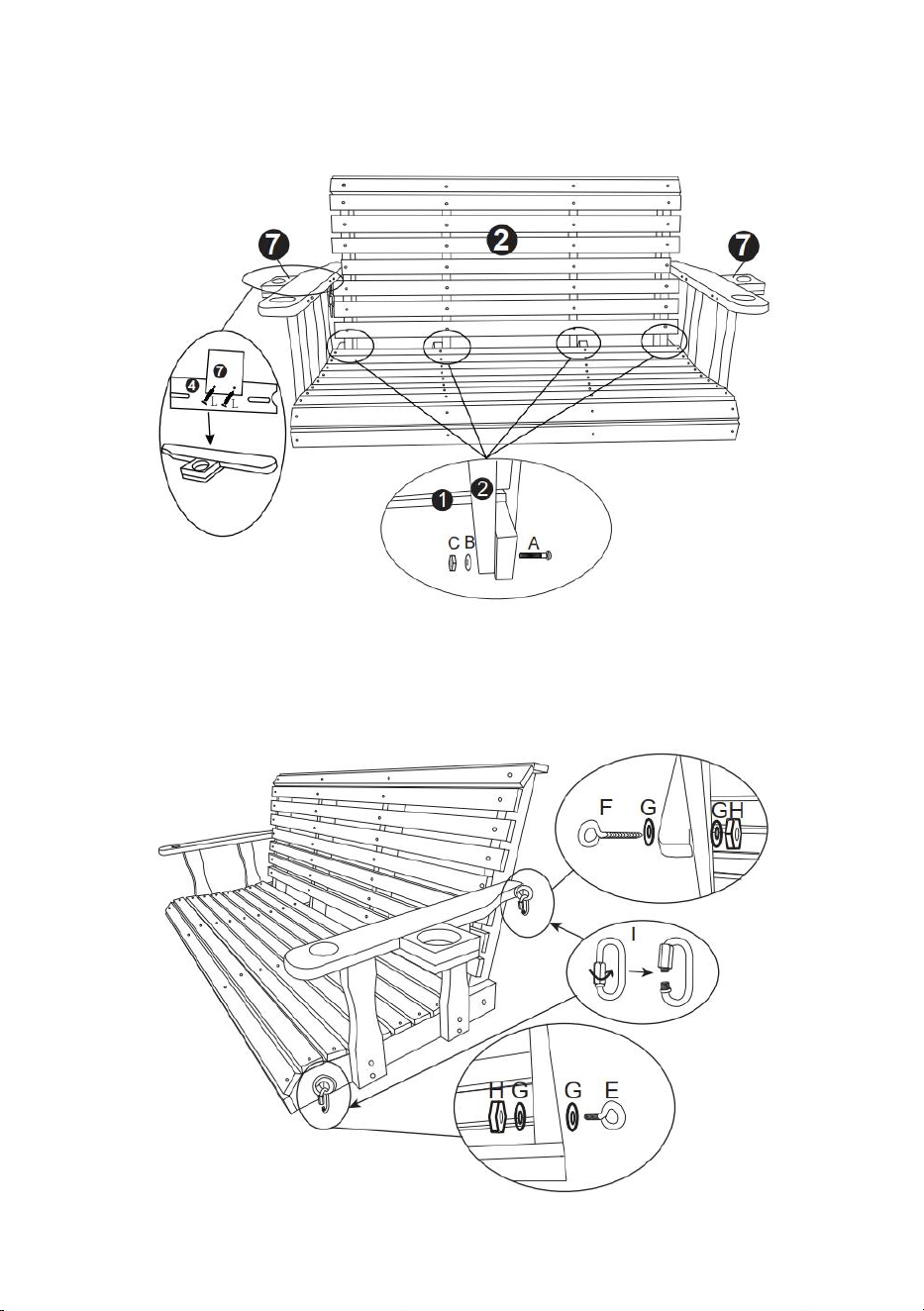

Connect the backrest 2 to the seat 1 with parts A, B, and C,install cup brackets 7 to
3 and 4 with L respectively.
STEP4
Connect armrests 3,4 to backrest 2 with parts F,G,H, and E,G,H to the front hole of
the seat noting that the holes of parts E and F facing forward. Then part E and F
hang ring l on respectively.

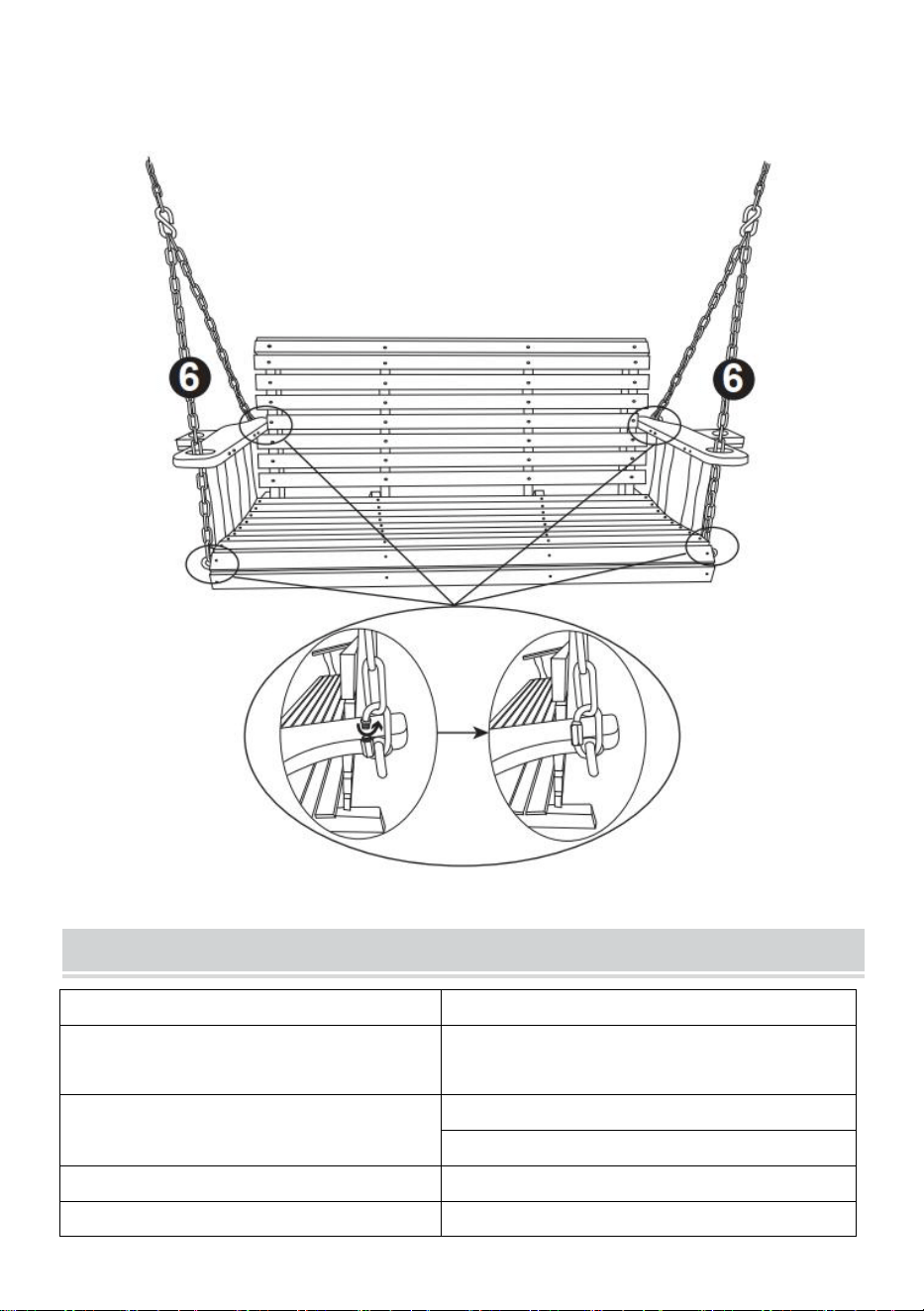

STEP5
7
