• Page 1 - English - : DO NOT RETURN THIS PRODUCT TO THE STORE If you have questions or need assistance please call customer service at 8559443571 User Manual WST 20V WSTT 20V 12 in Cordless String Trimmer
• Page 2 - English - : English TABLE OF CONTENTS Introduction 23 Safety 46 Components 7 Assembly89 Operation 10 Maintenance 11 Troubleshooting 12 Parts Page 13 Service Hot LineCompany Address Back Page INTRODUCTION WARNING Operating servicing and main taining this equipment may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm To minimize exposure wear gloves or wash your hands frequently when servicing this equipment For more information go to wwwP65warningscagov DISCLAIMERS All information illustrations and specications in this manual were in effect at the time of publishing The illus trations used in this manual are intended as representa tive reference views only We reserve the right to make any specication or design change without notice ALL RIGHTS RESERVED All rights reserved No reproduction allowed in any form without written permission from Westinghouse Outdoor Power Equipment DANGER Read this manual before using or performing maintenance on this product Failure to follow the instructions and safety pre cautions in this manual can result in serious in jury or death UPDATES The latest User Manual for your Westinghouse products can be found under our support tab wpowereqcom pagesmanuals Or scan the following QR code with your smartphone camera to be directed to the link PRODUCT REGISTRATION For troublefree warranty coverage it is important to register your Westing house product You can register by z Completing and mailing the product registration card included in the carton z Registering your product online at wpowereqcom pageswarrantyregistration z Scanning the above QR code with your smartphone cam era to be directed to the mobile registration link For Your Records Date of Purchase Model Number Serial Number Place of Purchase z Sending the following product information to Westinghouse Outdoor Power Warranty registration 777 Manor Park Drive Columbus OH 43228 IMPORTANT Keep your purchase receipt for troublefree warranty coverage
• Page 3 - English - : English INTRODUCTION SPECIFICATIONS DC Voltage 20V No Load Speed8000 RPM Cutting Diameter12 in 76 m NOTICE This product is designed and rated for continuous operation at ambient temperatures above 23F 5C If needed this product can be operated in extremely hot or extremely cold temperatures for short periods If the product is exposed to extreme temperatures during storage it should be brought back within the optimal tempera ture range before operation NOTICE Thank you for choosing Westinghouse PLEASE READ THIS MANUAL BEFORE RETURNING THIS PRODUCT FOR ANY REASON If you have a question or experience a problem with your Westinghouse purchase call us at 18559443571 to speak with an agent RETAIN THIS MANUAL FOR FUTURE REFERENCE HAVE QUESTIONS Email us at servicewpowereqcom or call 18559443571 NOTICE This product is designed for optimal compatibility with the Westinghouse batteries and chargers listed below Use with any other batteries or chargers not listed below may result in serious personal injury or death Model Motor Westinghouse Battery Pack Westinghouse Charger WST 20V WSTT 20V 20V DC W20V2AH W20V4AH W20V5AH W20V2AMP W20V2DP

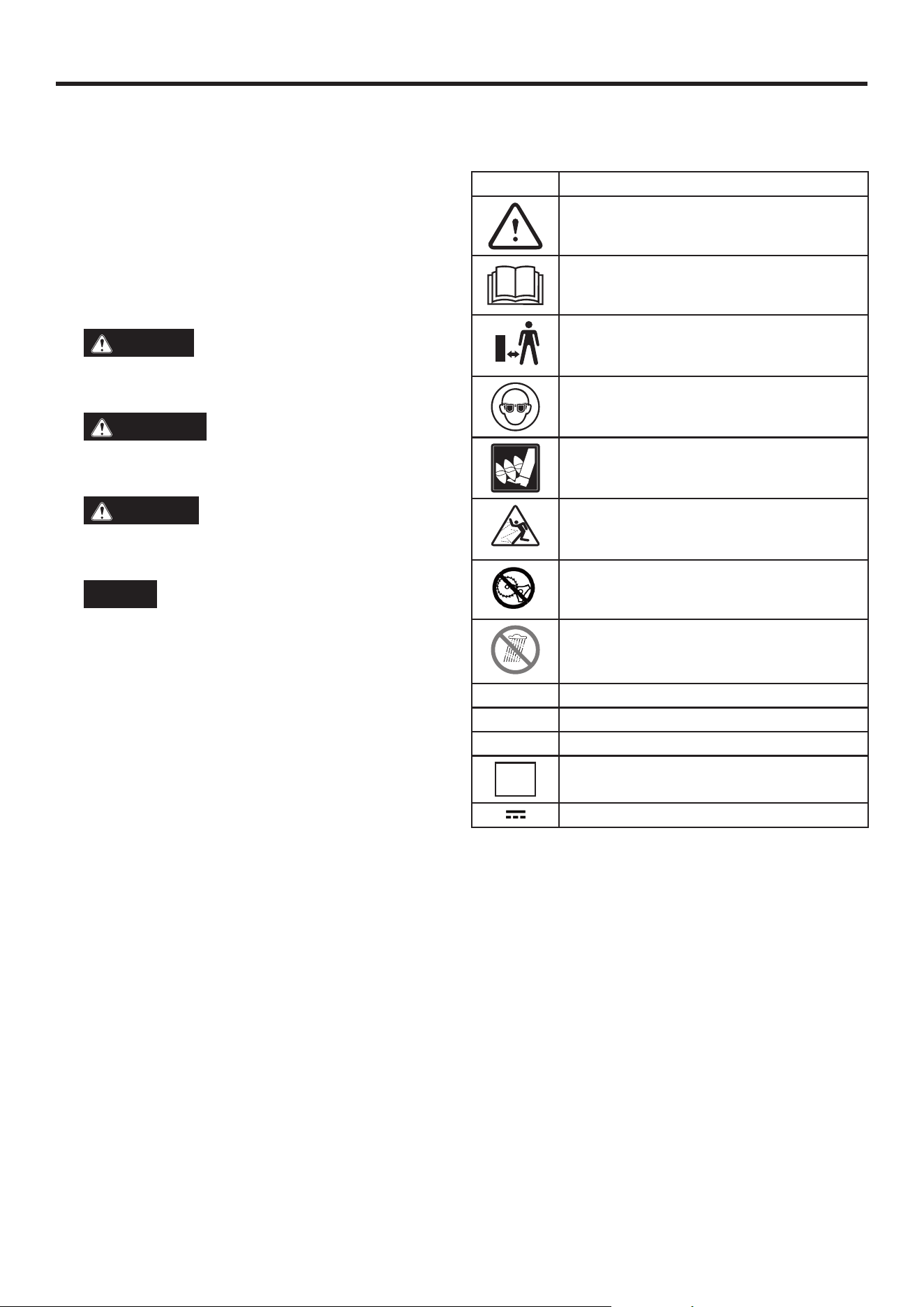

• Page 4 - English - : English SAFETY DEFINITIONS The words DANGER WARNING CAUTION and NO TICE are used throughout this manual to highlight import ant information Be sure that the meanings of this safety information is known to all who operate perform mainte nance on or are near the string trimmer This safety alert symbol appears with most safety state ments It means attention become alert your safety is involved Please read and abide by the message that follows the safety alerts symbol DANGER Indicates a hazardous situation which if not avoided will result in death or serious injury WARNING Indicates a hazardous situation which if not avoided could result in death or serious injury CAUTION Indicates a hazardous situation which if not avoided could result in minor or moder ate injury NOTICE Indicates a situation which can cause dam age to the string trimmer personal property andor the environment or cause the equipment to operate im properly NOTE Indicates a procedure practice or condition that should be followed for the string trimmer to func tion in the manner intended SAFETY SYMBOLS Follow all safety information contained in this user manual as well as the information on the product labeling SYMBOL DESCRIPTION Safety Alert Symbol Indicates a potential personal injury hazard Read User Manual To reduce the risk of injury user must read and understand user manual before using this product Keep all bystanders 50 ft away Wear Eye Protection Always wear eye protection with side shields marked to comply with ANSI Z871 DANGER avoid injury from rotating head Keep hands feet and clothing away Thrown objects can ricochet and result in personal injury or property damage Do not install or use any type of blade on a product displaying this symbol Wet Conditions Alert Do not expose the battery pack battery compartment or electronic compo nents to water or rain V Volts A Amperes Hz Hertz n o No Load Speed Direct Current SAFETY
• Page 5 - English - : English SAFETY WARNING READ AND UNDERSTAND ALL INSTRUCTIONS Failure to follow all instructions list ed below and on the machine may result in electric shock re andor serious personal injury z For safe operation read and understand all instructions before using this product Follow all safety instructions Failure to follow all safety instructions listed can result in serious personal injury z Do not allow children or untrained individuals to use this unit z Inspect the work area before each use Remove all objects that can be thrown or become entangled in the machine z Always wear eye protection with side shields marked to comply with ANSI Z871 Following this rule will reduce the risk of serious personal injury z Use Safety Glasses Wear a face or dust mask if the operation is dusty Always wear safety glasses with side shields Everyday glasses have only impact resistant lenses They are NOT safety glasses Following this rule will reduce the risk of eye injury z Protect your lungs Wear a face or dust mask if the op eration is dusty Following this rule will reduce the risk of serious personal injury z Dress Properly Do not wear loose clothing or jewelry They can be caught in moving parts Use of rubber gloves and substantial footwear is recommended when working outdoors Wear heavy long pants long sleeves boots and gloves Do not wear short pants sandals or go barefoot Do not wear jewelry of any kind z Secure long hair above shoulder level to prevent entan glement in moving parts z Keep children away Keep all bystanders children and pets at least 50 ft away z Stay alert Do not operate this unit when you are tired ill upset or under the inuence of alcohol drugs or medication z Do not operate in poor lighting z Keep all body parts away from any moving part on this unit z Do not operate power tools in explosive atmospheres such as in the presence of ammable liquids gases or dust Power tools create sparks which may ignite the dust or fumes z Avoid body contact with grounded surfaces such as pipes radiators ranges and refrigerators There is an increased risk of electric shock if your body is grounded z Avoid Dangerous Environments Dont expose the string trimmer to rain or wet conditions Water entering the string trimmer will increase the risk of electric shock z Use Right Appliance Do not force the tool Use the cor rect tool for your application The correct tool will operate better and safer at the rate for which it is designed z Dont Force Appliance It will operate better and with less likelihood of a risk of injury at the rate for which it was designed z Do not operate the equipment while barefoot or when wearing sandals or similar lightweight footwear Wear protective footwear that will protect your feet and improve your footing on slippery surfaces z Do not overreach Keep rm footing and balance Over reaching can result in a loss of balance z Avoid accidental starting Be sure the switch trigger is in the locked or off position before inserting the battery pack Carrying tools with your nger on the switch trigger or inserting the battery pack into a tool with the switch on increases the risk of injury z Do not use the tool if the switch trigger does not turn it on or off Any tool that cannot be controlled with the switch trigger is dangerous and must be repaired Contact Customer Service z Disconnect battery pack Disconnect the battery pack from the appliance before servicing or changing accessories Preventive safety measures reduce the risk of starting the tool accidentally z Only use identical accessories from the manufacturer Use of any other parts may create a hazard or cause product damage z Maintain appliance with care Replace the string head if it is cracked chipped or damaged Be sure the string head is installed properly and fastened securely Failure to do so can cause serious injury Keep the handles dry clean and free from oil and grease z Inspect for damaged parts Before use of the tool any part that is damaged should be carefully inspected to determine that it will operate properly and perform its intended function Inspect for alignment of moving parts binding of moving parts breakage of parts mounting and any other conditions that may affect the operation z Be sure all guards straps deectors and handles are attached securely z Use only the recommended replacement line in the cutting head Do not use any other cutting attachment To install any other brand of cutting head to this string trimmer can result in serious personal injury z Never operate the unit without the guard in place and in good condition z Maintain a rm grip on both handles while trimming Keep the string head below waist level Never use with the string head located over 30 in or more above the ground
• Page 6 - English - : English z Store idle appliances indoors When not in use the string trimmer should be stored in a dry locked place out of the reach of children z Never use blades ailing devices wire or rope The unit is designed for line trimmer use only Use of any other accessories or attachments increase the risk of injury z Inspect the area to be cut Remove objects that can be thrown or become entangled in the cutting head z Keep the air vents clean and free of debris to avoid overheating the motor Clean after each use z Before cleaning or performing any maintenance stop the motor Wait until all moving parts have come to a complete stop and remove the battery pack z Never use water or any liquids to clean or rinse off the product and do not expose the product to rain or wet conditions Store indoors in a dry area Corrosive liquids water and chemicals can enter the products electronic components andor battery compartment and damage electronic components andor the battery pack which can result in a short circuit increased risk of re and serious personal injury Remove any buildup of dirt and debris by wiping the product clean with a dry cloth occasionally z Stop the unit and disconnect the power source when not in use Only carry the unit when the motor is stopped z Store out of the reach of children z Do not hang unit so that the switch trigger is depressed z Battery tools do not have to be plugged into an electrical outlet therefore they are always in operating condition Be aware of possible hazards when not using the bat tery tool or when changing accessories Following this rule will reduce the risk of electric shock re or serious personal injury z Under abusive conditions liquid may be ejected from the battery pack avoid contact If contact occurs ush skin with water If liquid contacts eyes seek medical attention Liquid ejected from the battery pack may cause irritation or burns z Do not use a battery pack or appliance that is damaged or modied Damaged or modied batteries may exhibit unpredictable behavior resulting in re explosion or risk of injury z Do not expose a battery pack or appliance to re or excessive temperature Exposure to re or temperature above 265F may cause explosion z Do not charge the battery tool in rain or damp or wet location Following this rule will reduce the risk of electric shock z Do not use batteryoperated appliances in rain z Remove or disconnect the battery pack when not charging and before servicing cleaning removing material from the appliance or storing z Only use the battery pack with the charger listed SAFETY z Do not dispose of the batteries in a re The cell may explode Check with local codes for possible special disposal instructions z Do not open or mutilate the batteries Released electrolyte is corrosive and may cause damage to the eyes or skin It may be toxic if swallowed z Do not place battery tools or their batteries near re or heat This will reduce the risk of explosion and possibly injury z Batteries can explode in the presence of a source of ig nition To reduce the risk of serious personal injury never use any cordless product in the presence of an open ame An exploded battery can propel debris and chemicals If exposed ush with water immediately z Do not crush drop or damage the battery pack Do not use a battery pack or charger that has been dropped or received a sharp blow A damaged battery is subject to explosion Properly dispose of a dropped or damaged battery pack immediately z Under extreme usage or temperature conditions battery leakage may occur If liquid comes in contact with your skin wash skin immediately with soap and water If liquid gets into your eyes ush them with clean water for at least 10 minutes then seek immediate medical attention z Recharge the battery pack only with the charger specied by the manufacturer z Use the string trimmer only with specically designated battery packs Use of any other battery packs may create a risk of injury and re z When the battery pack is not in use keep it away from other metal objects that can make a connection from one terminal to another z Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specied in the instructions Charging improperly or at temperatures outside of the specied range may damage the battery and increase the risk of re z Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care z Retain these instructions Refer to them frequently and use them to instruct anyone who may use this power tool

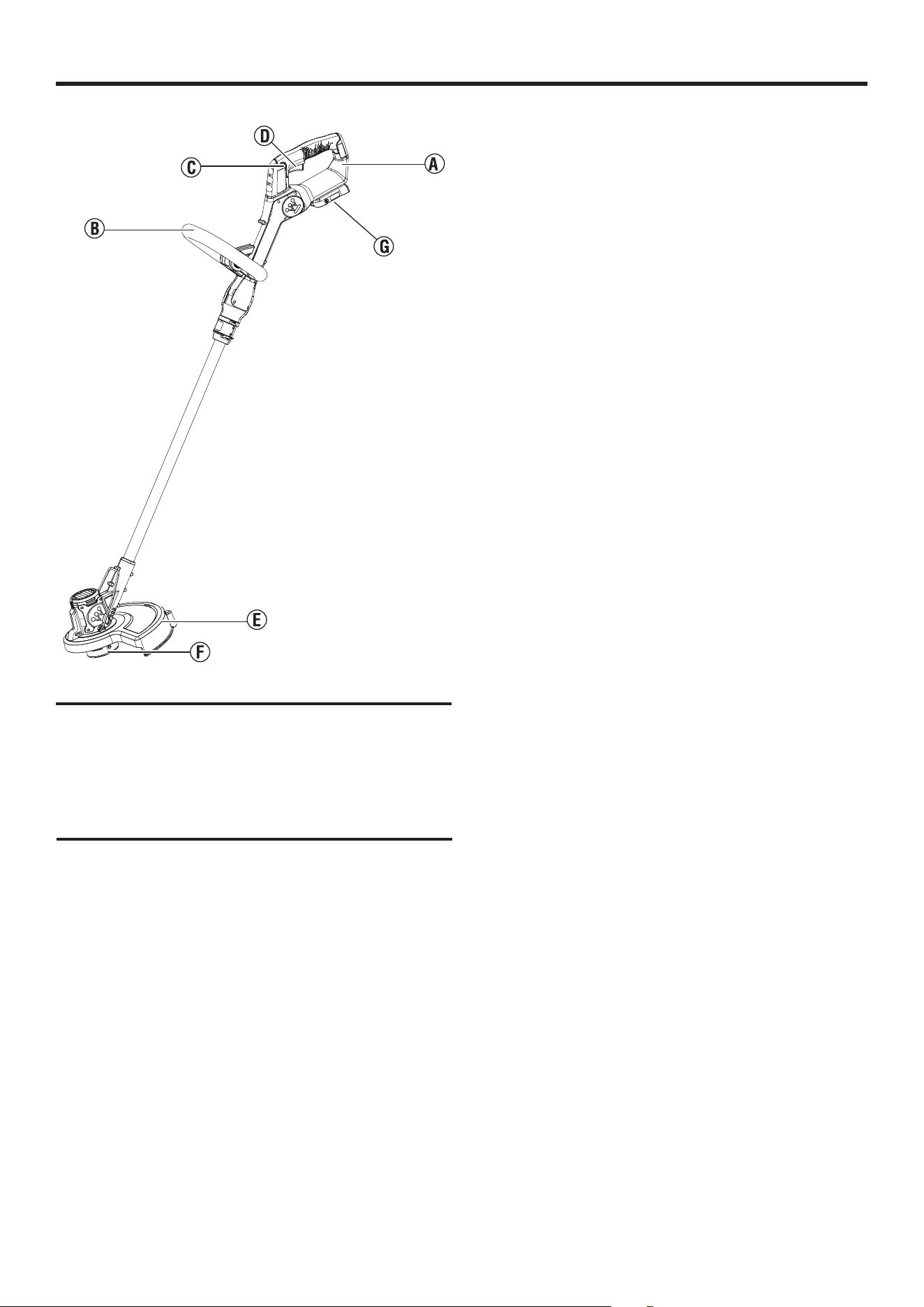

• Page 7 - English - : English COMPONENTS A Top handle B Front handle C Lockout button D Switch trigger E Guard F Spool housing G Battery pack housing UNDERSTANDING THE STRING TRIMMER See Figure 1 To reduce the risk of personal injury and product failure read and understand the information in this user manual and the information on the product labeling TOP HANDLE A Provides directional control and stability during use FRONT HANDLE B Provides additional comfort and stability during use LOCKOUT BUTTON C Prevents the string trimmer from initiating operation accidentally SWITCH TRIGGER D Initiates operation when squeezed in conjuction with holding the lockout button The switch trigger must be held throughout use or the string trimmer will not operate GUARD E Provides protection from debris and contact with the trimming wire SPOOL HOUSING F Storage for the wire used during operation BATTERY PACK HOUSING G Location of the battery pack for connection and disconnection to the unit Figure 1
• Page 8 - English - : English ASSEMBLY REMOVING CARTON CONTENTS WARNING This product requires assembly Do not attempt to operate this product if any items in the INCLUDED LIST are already assembled when you remove the carton contents These items are not assembled by the manufacturer and should require customer assembly Using an improperly assembled product can be hazardous and could result in serious personal injury z Carefully open the carton z Remove and inspect the carton contents Verify that all the items in the INCLUDED LIST are present and undamaged z Recycle or dispose of the packaging materials properly INCLUDED LIST Front handle guard top handle and spool housing and user manual If any parts are missing contact our service team at servicewpow ereqcom or call 18559443571 WARNING Do not alter or modify this prod uct unless instructed otherwise in this manual or by the manufacturer Do not use attachments or accessories that are not recommended for use with this product Making unauthorized modications and using incom patible accessories can damage the unit and may void your warranty WARNING Do not connect the string trimmer to the battery pack until assembly is complete Failure to comply could result in accidental starting and possi ble serious personal injury Figure 2 ATTACHING THE GUARD TO THE SPOOL HOUSING See Figure 2 z Remove the screw 1 from the spool housing Keep the screw for use later a underneath view of the spool housing Figure 3 See Figure 3 z Attach the guard to the spool housing z Align the markers on the guard 2 with the markers on the spool housing 1 Rotate the guard until the markers on the guard are secured into place

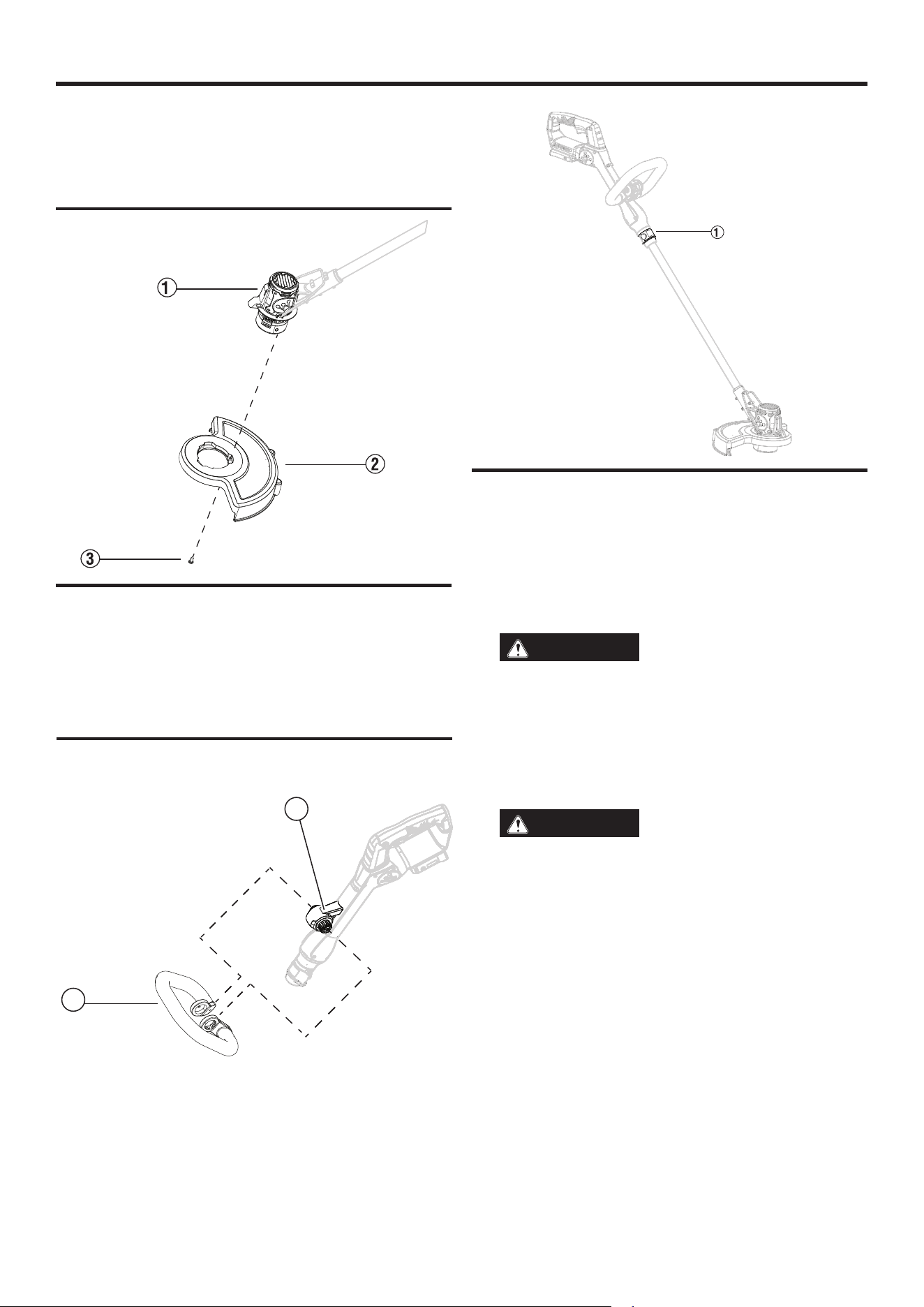

• Page 9 - English - : English ASSEMBLY See Figure 4 z With the guard 2 attached to the spool housing 1 secure the guard to the spool housing with the screw 3 ATTACHING THE FRONT HANDLE TO THE STRING TRIMMER ASSEMBLY See Figure 5 z Press the front handle 2 on the attachment body 1 on the string trimmer The front handle will click and lock in place Figure 4 WARNING Always disconnect the battery pack from the string trimmer when assembling parts making adjustments cleaning or when not in use ATTACHING THE BATTERY PACK z Insert the battery pack into the battery housing z Be sure that the latches on each side of the battery pack lock into place WARNING Remove the battery pack and keep hands clear of the lockout button when carrying or transporting the string trimmer Figure 5 Figure 6 USING THE TELESCOPIC FUNCTION See Figure 6 z Raise the latch 1 from the body of the string trimmer z Extend the tube as needed to the desired length z Close the latch to lock the tube in place

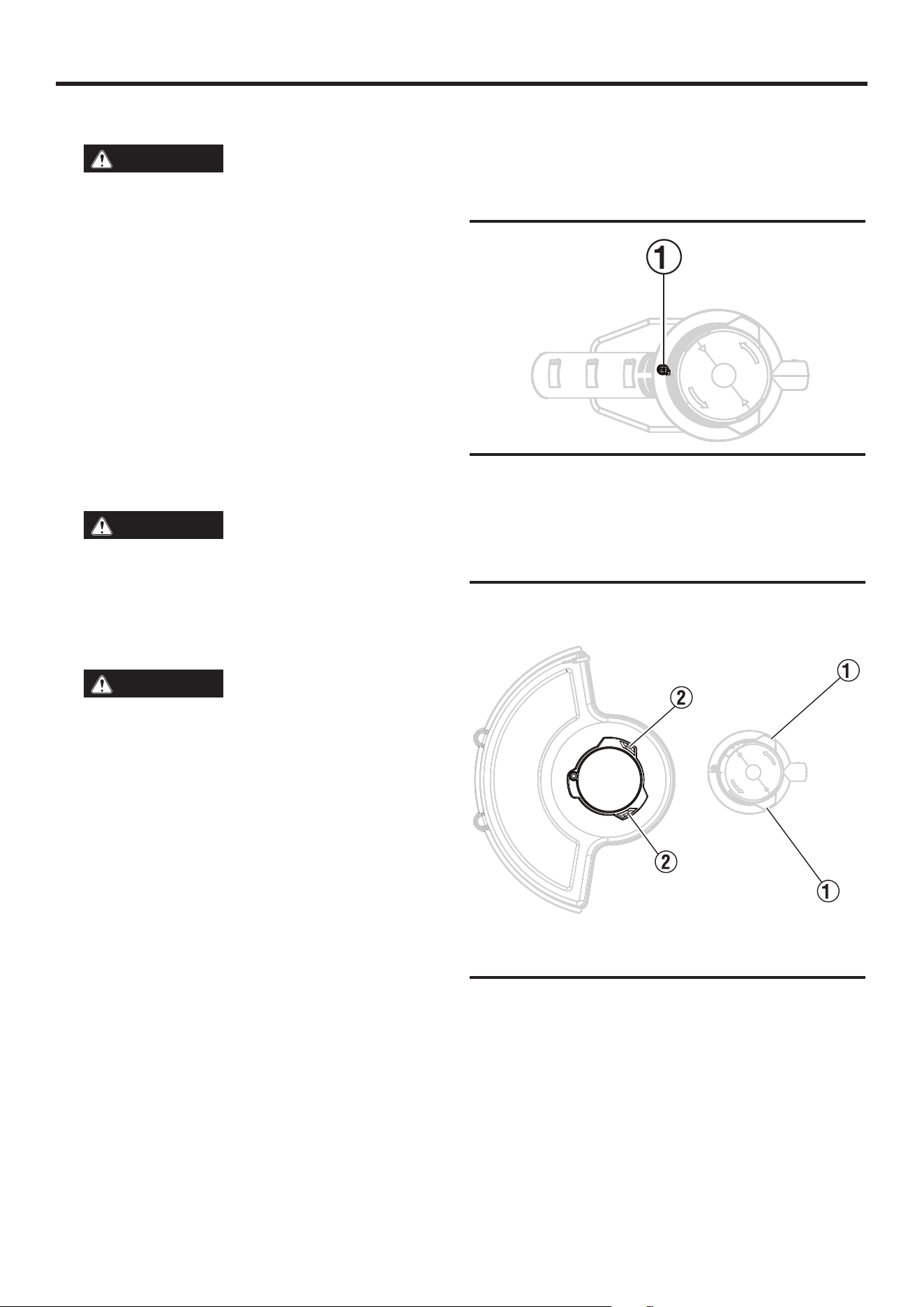

• Page 10 - English - : English OPERATION WARNING Always wear eye protection with side shields marked to comply with ANSI Z871 Fail ure to do so could result in objects being thrown into your eyes resulting in possible serious injury WARNING Do not use any attachments or accessories not recommended by the manufacturer of this product The use of attachments or accessories not recommended can result in serious personal injury NOTICE Before each use inspect the entire product for damaged missing or loose parts such as screws nuts bolts and caps Tighten securely all fas teners and caps and do not operate this product un til all missing or damaged parts are replaced Please contact customer service WARNING To avoid serious personal injury always remove the battery pack and keep hands clear of the lockout button when carrying or transporting the tool STARTING THE STRING TRIMMER z Install the battery pack z Press and hold the lockout button While holding the lockout button squeeze the switch trigger z To stop the string trimmer release the switch trigger OPERATING TIPS z Keep a rm grip with both hands while in operation z The string trimmer should be held at a comfortable position with the top handle about hip height z Cut tall grass from the top down This will prevent grass from wrapping around the boom housing and string head which may cause damage from overheating z If grass becomes wrapped around the string head Remove the battery pack Remove the grass z Keep the trimmer tilted toward the area being cut this is the best cutting area z The string trimmer cuts when passing the unit from side to side This will avoid throwing debris at the operator Avoid cutting in the dangerous area shown z Use the tip of the line to do the cutting do not force string head into uncut grass z Wire and picket fences cause extra line wear even breakage Stone and brick walls curbs and wood may wear line rapidly z Avoid trees and shrubs Tree bark wood moldings siding and fence posts can easily be damaged by the line WARNING Always hold the string trimmer away from the body Keep clearance between the body and the string trimmer Any contact with the string trim mer cutting head while operating can result in serious personal injury ADVANCING THE TRIMMER LINE NOTICE The trimmer is equipped with an au tofeed head Bumping the head to try to advance the line will damage the trimmer and void the warranty z With the trimmer running release the switch trigger z Wait two seconds and press the switch trigger NOTICE The line will extend approximately 14 in with each stop and start of the switch trigger until the line reaches the length of the grass deector cut off blade z Resume trimming ADVANCING THE LINE MANUALLY z Remove the battery pack z Push the button located on the string head while pulling on line to manually advance the line ADJUSTING THE LINE CUTOFF BLADE This trimmer is equipped with a line cutoff blade on the grass deector For best cutting advance line until it is trimmed to length by the line cutoff blade Advance line whenever you hear the engine running faster than normal or when trimming efciency diminishes This will maintain best performance and keep line long enough to advance properly This trimmer is currently set at the 11 in cutting swath To adjust to a cutting swath of 13 in z Remove the battery pack z Loosen the blade screw then rotate the line cutoff blade 180 z Tighten the blade screw
• Page 11 - English - : English MAINTENANCE WARNING Before inspecting cleaning or servicing the unit stop the motor wait for all moving parts to stop and disconnect the battery pack from the string trimmer Failure to follow these instructions can result in seri ous personal injury or property damage WARNING Always wear eye protection with side shields marked to comply with ANSI Z871 Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury NOTICE Periodically inspect the entire product for damaged missing or loose parts such as screws nuts and caps Secure all fasteners and caps Do not operate this product if parts are missing or damagedPlease con tact customer service GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts Most plastics are susceptible to damage from various types of com mercial solvents and may be damaged by their use Use clean cloths to remove dirt dust oil and grease WARNING Do not let brake uids gasoline petroleumbased products or penetrating oils come in contact with plastic parts Chemicals can damage weaken or destroy plastic which can result in serious personal injury SPOOL REPLACEMENT Use only 0065 in diameter round or twisted or 0080 in diameter twisted line Use original manufacturers replace ment line for best performance z Remove the battery pack z Push in tabs on side of spool retainer z Pull spool retainer up to remove z Remove the old spool z To install the new spool be sure the line is captured in the slot on the new spool Be sure the end of the line is extended approximately 6 in beyond the slot z Install the new spool so that the line and slot align with the eyelet in the string head Thread the line into the eyelet z Pull the line extending from the string head so the line releases from the slot in the spool z Reinstall the spool retainer by depressing tabs into slots and pushing down until spool retainer clicks into place LINE REPLACEMENT z Remove the battery pack z Remove the spool from the string head NOTE Remove any old line remaining on the spool z Cut a piece of line approximately 9 ft long z Use only 0065 in diameter round or twisted or 0080 in diameter twisted line z Insert the line into the anchor hole in the upper part of the spool Wind the line around the upper part of the spool clockwise as shown by the arrows on the spool Place line in the slot on upper spool ange leaving about 6 in ex tended beyond the slot Do not overll After winding the line there should be at least 14 in between the wound line and the outside edge of the spool z Replace the plastic retainer spool and the spool retainer STORING THE STRING TRIMMER z Remove the battery pack z Clean all foreign material from the trimmer z Store it in a place that is inaccessible to children z Keep away from corrosive agents
• Page 12 - English - : English PROBLEM POSSIBLE CAUSE CORRECTION Trimmer runs slowly Check that the spool housing can rotate freely Carefully clean it if necessary Check that the cutting line does not pro trude more than approximately 538 inches 136mm from the spool If it does cut it off so that it just reaches the line trimming blade Trimmer will not start Battery pack not installed properly Check battery pack installation Battery pack not charged Check battery pack charging requirements Battery pack will not charge Surrounding air temperature too hot or too cold Move charger and tool to a surrounding air temperature of above 40 degree F 45C or below 105 degree F 405C Charger not plugged in Plug charger into a working outlet Check current at receptacle by plugging in a lamp or other appliance Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights Battery pack not inserted into charger Insert battery pack into charger until red LED appears TROUBLESHOOTING

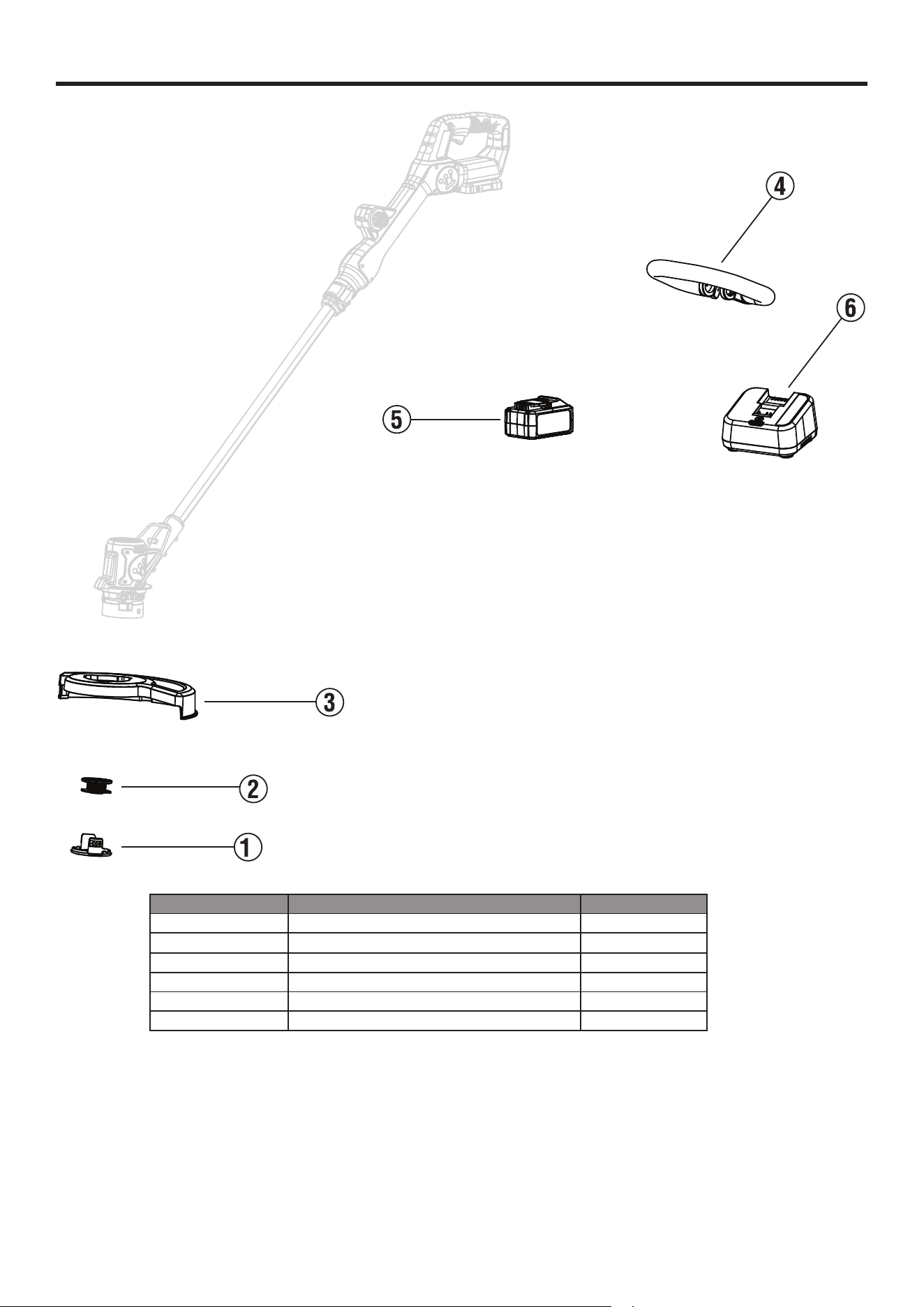

• Page 13 - English - : English PARTS PAGE Index Number Description Part Number 1 Lower cover of mower head 120180001 2 Single release cable pack 120190001 3 Kit guard 120160001 4 Assistant handle 120170002 5 Battery pack 811400211480013 6 Charger 925005
• Page 15 - English - : User Manual WLB 20V WLBT 20V CORDLESS BLOWER DO NOT RETURN THIS PRODUCT TO THE STORE If you have questions or need assistance please call customer service at 8559443571
• Page 16 - English - : SAFETY GUIDELINES DEFINITIONS It is important to read and understand this manual The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS The symbols below are used to help you recognize this information DANGER Indicates an imminently hazardous situation which if not avoided will result in death or serious injury WARNING Indicates a potentially hazardous situation which if not avoided could result in death or serious injury CAUTION Indicates a potentially hazardous situation which if not avoided may result in minor or moderate injury NOTICE Used without the safety alert symbol indicates potentially hazardous situation which if not avoided may result in property damage DISCLAIMERS All information illustrations and specications in this manual are based on the latest information available at the time of publishing The illustrations used in this manual are intended as representative reference views only Moreover because of our continuous product improvement policy we may modify information illustrations andor specications to explain andor exemplify a product service or maintenance improvement We reserve the right to make any change at any time without notice Some images may vary depending upon which model is shown ALL RIGHTS RESERVED No part of this publication may be reproduced or used in any form by any means graphic electronic or mechanical including photocopying recording taping or information storage and retrieval systems without the written permission of Westinghouse Outdoor Power Equipment DANGER This manual contains important instructions for operating this product For your safety and the safety of others be sure to read this manual thoroughly before operating the equipment Failure to properly follow all instructions and precautions can cause you and others to be seriously hurt or killed BLOWER SPECIFICATIONS Model Motor Air Speed Air Volume Westinghouse Battery Pack Battery Charger WLB 20V WLBT 20V 20V DC 110 MPH 350 CFM W20V2AH W20V4AH W20V5AH W20V2AMP W20V2DP WHAT COMES WITH TOOL Blower body Blower tube Blower tip Warranty Battery WLB 20V Charger WLB 20V User manual Some dust created by this product contains chemicals known to the State of California to cause cancer birth defects or other reproductive harm Some examples of these chemicals are compounds in fertilizers compounds in insecticides herbicides and pesticides arsenic and chromium from chemically treated lumber To reduce your exposure to these chemicals wear approved safety equipment such as dust masks that are specially designed to lter out microscopic particles WARNING

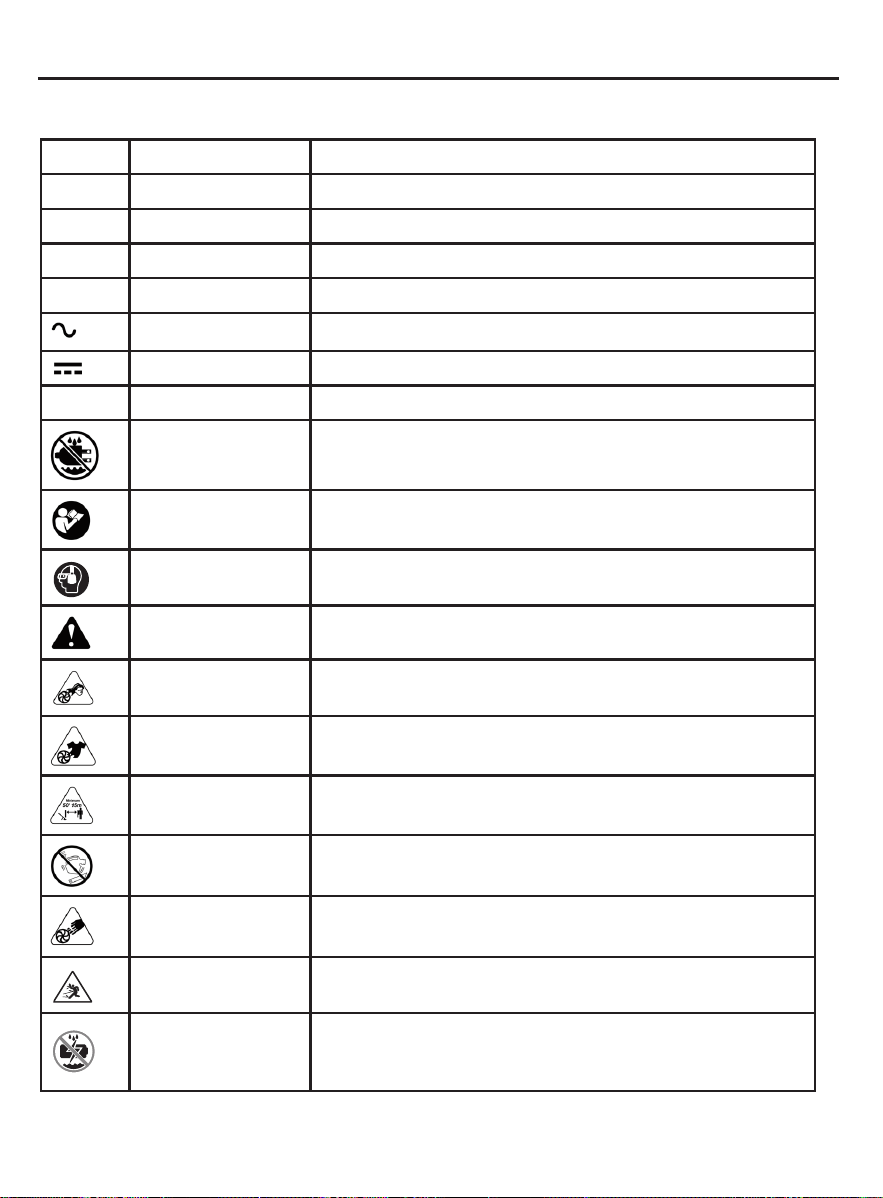

• Page 17 - English - : SAFETY SYMBOLS The following symbols may be used on this product These symbols facilitate safe and ecient operation of the product Symbols Name DesignationExplanation V Volts Voltage A Amperes Current W Watts Power min Minutes Time Alternating Current Type of current Direct Current Type or a characteristic of current min Per Minute Revolutions strokes surface speed orbits per minute Wet Conditions Alert Do not expose to rain or use in damp locations Read the User Manual To reduce the risk of injury the user must read and under stand the user manual before using this product Eye Protection Always wear eye protection with side shields marked to com ply with ANSI Z871 when operating this equipment Safety Alert Precautions that involve safety Long Hair Failure to keep long hair away from the air inlet could result in personal injury Loose Clothing Failure to keep loose clothing from being drawn into air intake could result in personal injury Keep Bystanders Away Keep all bystanders at least 50 ft away Blower Tubes Do not operate without tubes in place Impeller Blades Rotating impeller blades can cause severe injury Ricochet Thrown objects can ricochet and result in personal injury or property damage Wet Conditions Alert Do not expose battery battery compartment electrical components to rain water or liquids Do not charge battery or expose product to rain or damp locations
• Page 18 - English - : SAFETY INFORMATION IMPORTANT SAFETY WARNINGS amp INSTRUCTIONS WARNING TO REDUCE RISK OF INJURY Before use be sure everyone using this unit reads and understands all safety instructions and other information contained in this manual Keep these instructions and review them before use and while instructing others to use the product Do not point unit discharge at self or bystanders Keep long hair and loose clothing away from openings and moving parts WARNING When using an electric tool basic safety precautions should always be followed to reduce risk of re electric shock and personal injury WARNING Be aware of your surroundings when the blower is in use Dust may contain harmful chemicals Be sure to wear the approved safety equipment GENERAL SAFETY WARNINGS FOR THE BLOWER BEFORE USING WARNINGTo reduce the risk of re electric shock or injury Do not leave the appliance unattended when it is in operation Disconnect the battery pack from the blower when it is not in use and before maintenance is performed Do not clean the blower on steps or stairs Only use the blower for the use prescribed in the manual Only use the recommended attachments of the manufacturer Keep the blower inside when it is not in use Do not expose to rain or water Avoid direct sunshine Do not use the blower with wet hands Do not put any object into openings Do not use with any opening blocked keep free of dust linthair and anything that may reduce air ow Keep hair loose clothing and all body parts away from openings and moving parts Be sure that all of the controls are o before disconnecting the blower from the battery pack Do not use the blower where ammable or combustible materials are located WHEN USING Never allow children to operate the equipment Never allow adults to operate the equipment without proper instruction Do not operate power tools in near explosive materials For household use only Wear eye protection that is compliant with ANSI Z871 when operating this product Only use 20V Westinghouse batteries W20V2AHW20V4AHW20V5AH Only use Westinghouse charger W20V2AMPW20V2DP DO NOT operate the blower if tired ill or under the inuence of alcohol drugs or medication Do not operate in poor lighting Keep all body parts away from any moving parts and all hot surfaces of the blower Do not put any object into openings Do not use with any opening blocked Keep openings free of dust lint hair and anything that may reduce air ow Check the work area before each use Remove all objects that can be thrown or become entangled in the machine Only use replacement accessories from the manufacturer Use of any other parts may create a
• Page 19 - English - : SAFETY INFORMATION GENERAL SAFETY WARNINGS AND INSTRUCTIONS FOR ALL TOOLS A BATTERY OPERATED UNIT with integral batteries or a separate battery pack must be re charged only with the specied charger for the battery A charger that may be suitable for one type of battery may create a risk of re when used with another battery USE BATTERY OPERATED UNIT ONLY with Westinghouse 20V battery pack Use of any other batteries may create a risk of re AVOID accidental starting Be sure the switch is in the o position before inserting battery pack Carrying units with your nger on the switch or inserting the battery pack into a unit with the switch on may result in accidents DO NOT use the blower if the switch does not turn it on or o A blower that cannot be turned on or o with the switch is dangerous please contact Customer Service for troubleshooting DISCONNECT the battery pack from the unit or place the switch in the locked or o position before making any adjustments changing accessories or storing the unit ALWAYS WEAR EYE PROTECTION Only wear the approved safety glasses or goggles at all times when this unit is in use Also use face or dust mask DO NOT place outlet of sweeper near eyes or ears when operating STORE IDLE UNITS When not in use the blower should be stored in a dry high or lockedup place out of reach of children DONT OVERREACH Keep level footing and balance at all times MAINTAIN UNIT WITH CARE Keep the blower clean for best and safest performance See the instructions for proper maintenance To ensure product safety and reliability repairs maintenance and adjustments should NOT be performed Contact Customer Service for assistance with any questions DO NOT operate the blower near ammable or combustible materials AVOID DANGEROUS ENVIRONMENTAL CONDITIONS Do not use the blower in damp or wet locations Dont use the blower in the rain STAY ALERT Do not operate the blower when tired USE THE RIGHT UNIT Do not use blower for any purpose other than that for which it is intend ed DO NOT clean the blower on steps or stairs NOT RECOMMENDED for use by children DO NOT attempt to clear debris from unit without removing battery ONLY USE as described in this manual Only use the attachments recommended by the manufac turer DO NOT put any objects into openings Do not use with any opening blocked keep free of dust lint hair and everything that may reduce air ow KEEP hair loose clothing and body parts away from openings and moving parts DO NOT immerse any part of the unit in liquid DO NOT handle charger including charger plug and charger terminals with wet hands hazard or cause product damage Keep all bystanders children and pets at least 50 ft 15 m away Do not operate the equipment while barefoot or when wearing sandals or similar lightweight footwear Wear protective footwear that will protect your feet and improve your footing on slippery surfaces Secure long hair so it is above shoulder level to prevent entanglement in any moving parts Keep level footing and balance
• Page 20 - English - : SAFETY INFORMATION WARNING Do not expose the blower to liquid Do not use near moisture or wet surfaces Be sure to keep the unit in a cool dry storage area when it is not being used IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGERS WARNING Shock hazard Do not allow any liquid to get inside charger CAUTION Burn hazard To reduce the risk of injury charge only designated Westinghouse batter ies Other types of batteries may burst causing personal injury and damage CAUTION Under certain conditions with the charger plugged in to the power supply the charger can be shorted by foreign material Foreign materials of a conductive nature should be kept away from charger cavities Always unplug the charger from the power supply when there is no battery pack in the cavity Unplug the charger before cleaning DO NOT attempt to charge the battery pack with any chargers other than the chargers listed in this manual The charger and battery pack are specically designed to work together These chargers are not intended for any uses other than charging designated Westinghouse re chargeable batteries Any other uses may result in risk of re electric shock or electrocution DO NOT expose charger to rain or snow Disconnect the charger from the power supply by pulling the plug Be sure that the cord is located so that it will not be stepped on tripped over or otherwise sub jected to damage or stress DO NOT use an extension cord unless it is necessary The use of improper extension cord could result in risk of re electric shock or electrocution DO NOT operate the charger with damaged cord or plug If the cord or plug is damage contact Customer Service DO NOT operate the charger if it has been dropped or damaged in any way Contact Customer Service DO NOT disassemble the charger contact Customer Service when maintenance or repair is re quired Incorrect reassembly may result in a risk of electric shock electrocution or re Disconnect the charger from the power supply before cleaning This will reduce the risk of electric shock NEVER attempt to connect two chargers together The charger is designed to operate on standard household electrical power 120 V Do not use it on any other voltage An extension cord should not be used unless necessary Use of improper extension cord could result in a risk of re and electric shock If extension cord must be used be sure a That pins on the plug of extension cord are the same number size and shape as those of the plug on the charger KEEP CHILDREN BYSTANDERS AND ANIMALS AWAY from the work area a minimum of 50 ft 15 m when starting or operating the unit INSPECT THE AREA before using the blower Remove all debris and hard objects that can rico chet be thrown or otherwise cause injury or damage during operation ONLY USE the charger supplied by the manufacturer to recharge USE CAUTION in handling batteries in order not to short the battery with conducting materials such as rings bracelets and keys The battery or conductor may overheat and cause burns DO NOT OPEN the batteries Released electrolyte is corrosive and may cause damage to the eyes or skin It may be toxic if swallowed DO NOT CHARGE the blower outdoors
• Page 21 - English - : SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTION FOR BATTERY PACKS WARNING Read this manual and the manuals provided with the tools before using the charger The battery pack is not fully charged out of the carton Read the instructions below before using the battery pack and charger Follow the correct charging procedures READ ALL INSTRUCTIONS DO NOT incinerate the battery pack even if it is severely damaged or is completely worn out The battery pack can explode in a re Toxic fumes and materials are created when battery packs are burned DO NOT charge or use the battery near ammable or combustible areas If battery liquid comes into contact with the skin immediately wash area with mild soap and water If battery liquid gets into the eye rinse water over the open eye for 15 minutes or until irritation ceases If medical attention is needed the battery electrolyte for lithiumion batteries is composed of a mixture of liquid organic carbonates and lithium salts Contents of opened battery cells may cause respiratory irritation If symptoms persist seek medical attention WARNING Burn hazard Battery liquid may be ammable if exposed to spark or ame Charge the battery packs only in Westinghouse chargers DO NOT splash or immerse in water or other liquids This may cause premature cell failure Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 105F 40C such as outside sheds or metal buildings in summer WARNING Never open the battery pack for any reason If the battery pack casing is cracked or damaged do not insert it into the charger Avoid crushing dropping or damaging the battery pack Do not use a battery pack or charger that has been dropped run over or otherwise damaged For disposal of damaged battery packs contact your local waste management service for proper recycling procedures WARNING Fire hazard Do not store or carry the battery where metal objects can contact exposed battery terminals Transporting batteries can possibly cause res if the battery terminals inadvertently come in contact with conductive materials The US Department of Transportation Hazardous Material Regulations HMR prohibits transporting batteries in commerce or on airplanes ie packed in suitcases and carry on luggage UNLESS they are properly protected from short circuits Be sure that the battery terminals are protected and insulated from materials that may contact them and cause a short circuit when transporting individual batteries NOTE LithiumIon batteries should not be put in checked baggage b The extension cord is properly wired and in good electrical condition c The wire size is large enough for AC ampere rating of charger as specied below Cord Length ft 25 50 100 Cord Size AWG 16 16 16
• Page 22 - English - : SAFETY INFORMATION STORAGE RECOMMENDATIONS 1 The optimal storage place is cool and dry away from direct sunlight and excess heat or cold 2 Extended storage time will not harm the battery pack or charger CHARGING PROCEDURE Battery packs are shipped in a low charge condition to prevent possible problems Charge the battery packs before rst use Contact Customer Service if battery does not chargeCharge time varies and is dependent upon the amp hour capacity of battery pack Be sure the power supply is normal household voltage120 V AC only 60 Hz Connect the charger to a power supply Attach the battery pack to the charger by aligning the raised ribs on the battery pack with the grooves in the charger then slide the battery pack onto the charger Press down on the battery pack to be sure contacts on the battery pack engage properly with contacts in the charger Do not place the charger in an area of extreme heat or cold It will work best at normal room temperature The battery pack will become slightly warm to the touch while charging This is normal and does not indicate a problem The green LED light remains on after charging is complete Pull the battery pack up to remove the battery pack from the charger IMPORTANT CHARGING NOTES 1 Optimal performance can be obtained if the battery pack is charged when the air temperature is between 65F and 75F 18 24C DO NOT charge the battery pack in an air temperature below 40F 45C or above 105F 405C 2 The charger and battery pack may become warm to touch while charging This is a normal condition and does not indicate a problem To facilitate the cooling of the battery pack after use avoid placing the charger or battery pack in a warm environment 3 If the battery pack does not charge properly a Check the electrical current at the receptacle by plugging in a lamp or other appliance b Check to see if the receptacle is connected to a light switch that turns o power c Move the charger and battery pack to a location where the surrounding air temperature is approximately 65F 75F 18 24C d If charging problems persist contact Customer Service 4 The pack should be recharged when it fails to produce sucient power on jobs which were easily done previously DO NOT CONTINUE to use the battery pack under these conditions Follow the charging procedure 5 Materials of a conductive nature should be kept away from charger cavities Be sure to unplug the charger from the power supply when there is no battery pack in the cavity Unplug charger before cleaning
• Page 23 - English - : SAFETY INFORMATION 6 Do not freeze or immerse the charger in water or any other liquid WARNING Do not allow any liquid to get inside charger Never attempt to open the battery pack for any reason If the plastic housing of the battery pack breaks or cracks for disposal of damaged battery packs contact your local waste management service for proper recycling procedures FEATURES Description of the parts 1 Air inlet port 2 Battery location 3 Ono switch 4 Cruise control lever 5 Blower housing outlet 6 Blower tube 7 Nozzle mouth This product can accept any of the batteries and chargers listed in the chart below Westinghouse 20V LithiumIon Packs and Chargers Description Part number 20V Batteries LIION W20V2AH W20V4AH W20V5AH Chargers W20V2AMP W20V2DP

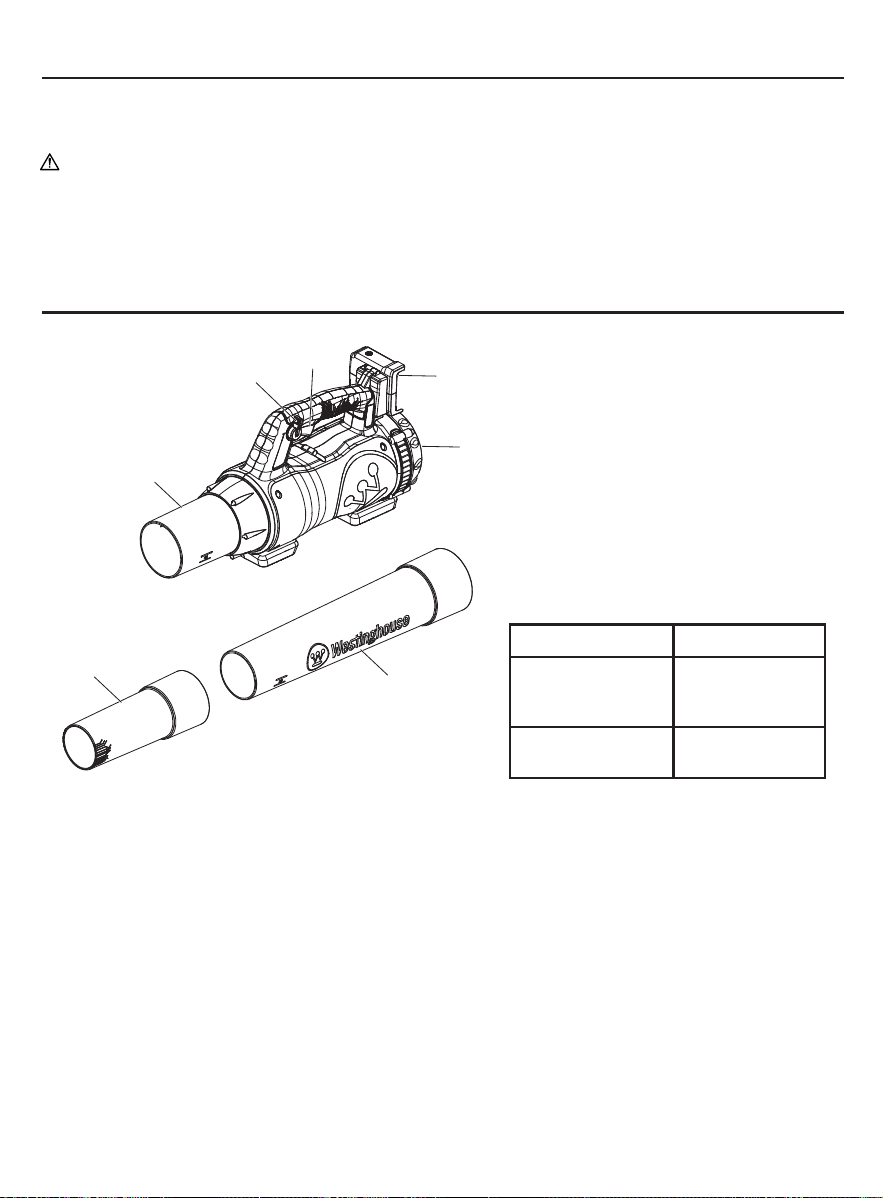

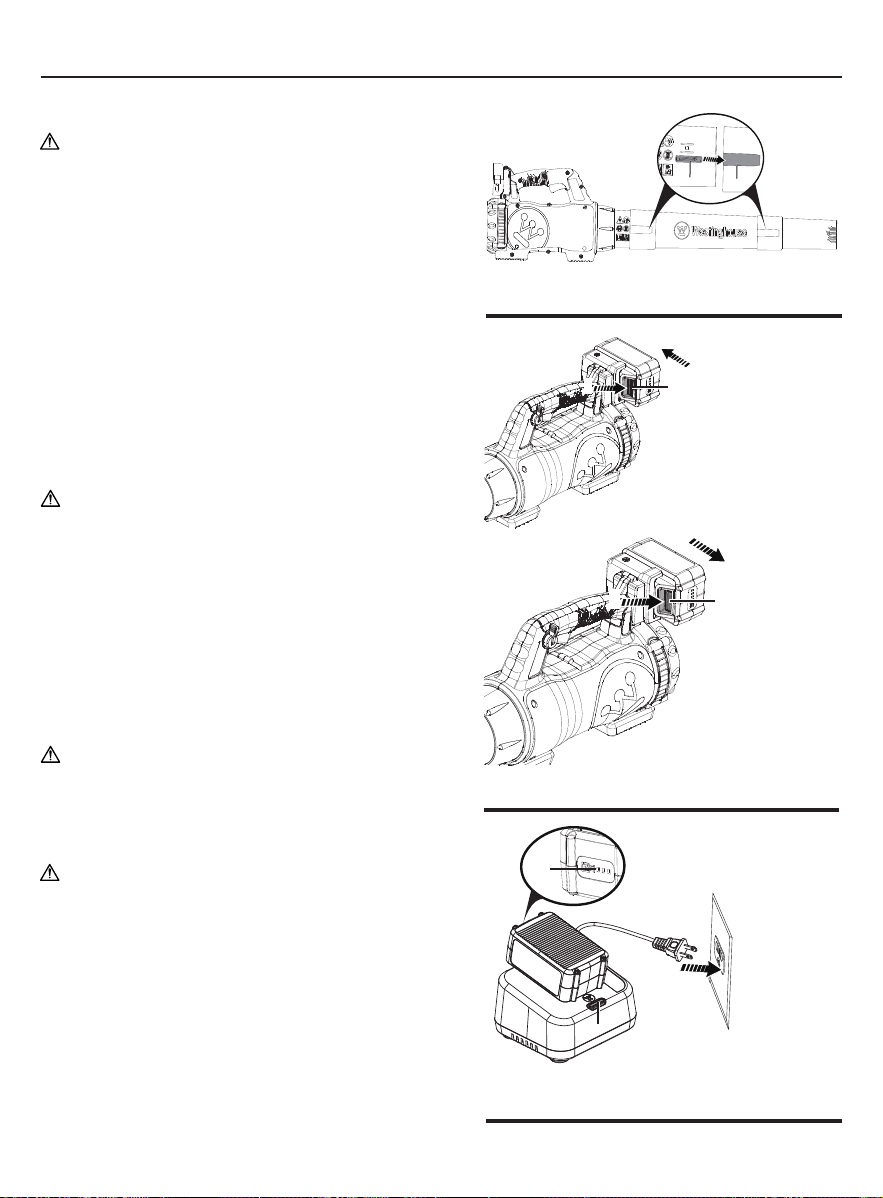

• Page 24 - English - : ASSEMBLY INSTALLING BLOW TUBE WARNING Do not use the device until the blow tube has been properly mounted on the blower housing Align the notches on the cordless turbine jet blower body with the notches on the upper blower tube and slide together until they click into place Repeat with the upper tube and the lower tube be sure they click into place NOTICE When correctly assembled the tube is dicult to separate The tube is not locked if it can be removed Be sure that the tab is securely fastened on the latch The tube can separate during operation if the tube is not in the locked position A A A A CHARGING BATTERIES WITH RAPID CHARGER WARNING Only use 20V Westinghouse rechargeable battery packs and Westinghouse 2A Rapid Charger Be sure the power supply is normal household voltage 120 V AC only 60 Hz Connect the charger to a power supply Attach the battery pack to the charger by aligning the raised ribs on the battery pack with the grooves in the charger then slide the battery pack onto the charger Press down on the battery pack to be sure slide on the battery pack engage properly with contacts in the charger A Notches A Interlock INSTALLING AND REMOVING THE RECHARGEABLE BATTERY WARNING Turn o the blower before inserting or removing the rechargeable battery Press the interlock of the battery and pull the battery from the blower to remove the rechargeable battery Align the base of the rechargeable battery with the guide on the housing to insert the rechargeable battery in the tool Push the rechargeable battery into the tool until the locking click is audible Injury is possible if the rechargeable battery is not locked into place WARNING Be sure to turn o battery tools when not in use Remove the battery pack when transporting or carrying the blower to avoid injury B A A Battery indicator B Charging indicator

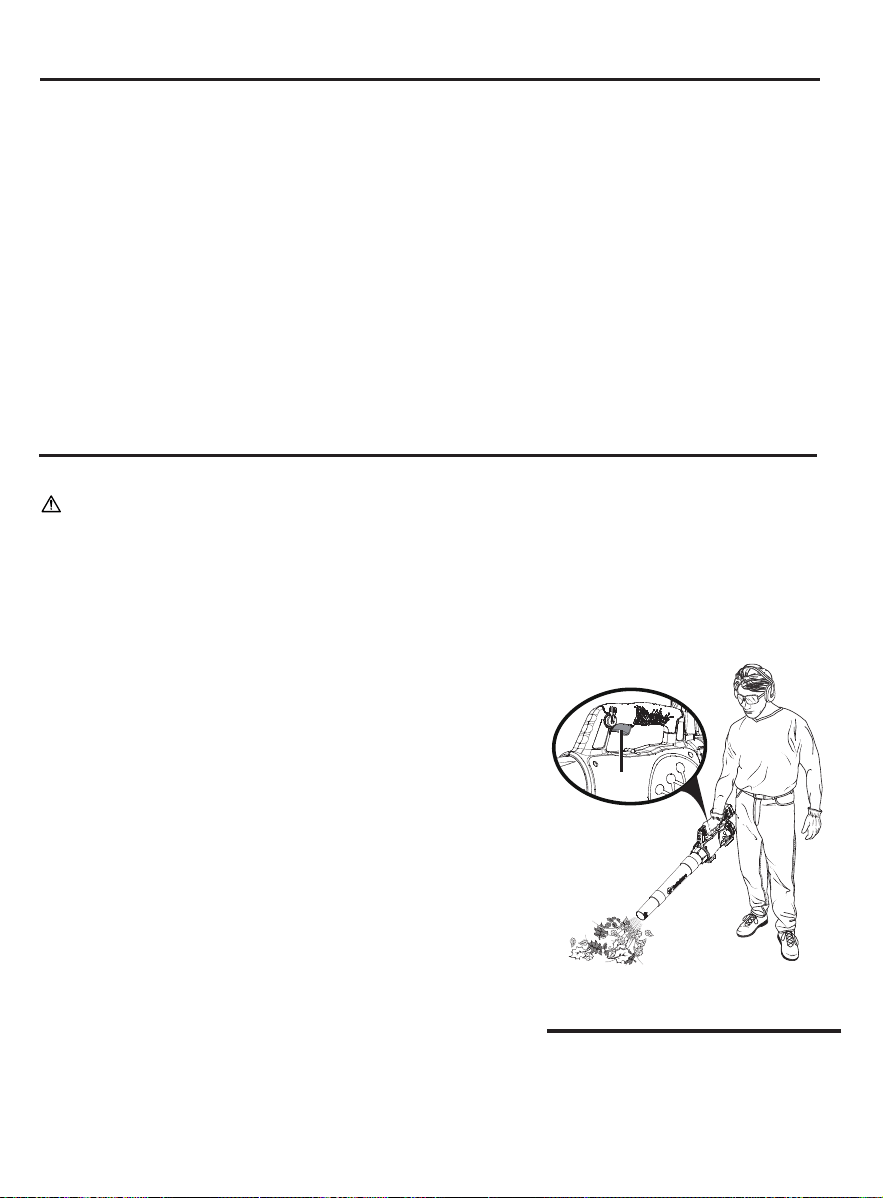

• Page 25 - English - : OPERATION ASSEMBLY Do not place the charger in an area of extreme heat or cold The battery pack will become slightly warm while charging This is normal and does not indicate a problem The green LED light will remain on after charging is complete Pull the battery pack up to remove the battery pack from the charger Note Occasionally the permissible temperature range may be exceeded during the charging cycle In this case the electronic charging control interrupts the charging cycle to avoid any damage to the battery The red control light will then glow continuously If you should witness this pull the battery from the charging station and let it cool down for about 30 minutes Then restart the charging cycle by sliding the battery back onto the charging station For complete charging instructions refer to the user manuals for your Westinghouse battery pack and charger models BEFORE OPERATING CAUTION Always wear safety glasses Wear a lter mask if the operation is dusty Use of gloves long pants and substantial footwear is recommended Keep long hair and loose clothing away from openings and moving parts THIS BLOWER IS FOR HOUSEHOLD USE ONLY Check that all parts are connected properly before operating the device Examine the work area before starting work Use a rake or broom to remove all objects or wastes which could be hurled away by the leaf blower If needed lightly moisten dusty ground BLOWING FUNCTION 1 Switch on the device by holding the switch button upwards 2 Hold the blower with one hand as shown and sweep from side to side with the nozzle several inches above the ground Advance slowly to keep debris ahead of the blower 3 Blow waste material into a heap Do not direct the air jet into the middle of the waste heap Adjust the blowing power to the requirements Be sure the air jet is not directed at children animals open windows or automobiles Keep the ventilation slots free during operation to prevent overheating Do not use the device on wet ground 4 Clean the device after use A A Ono switch

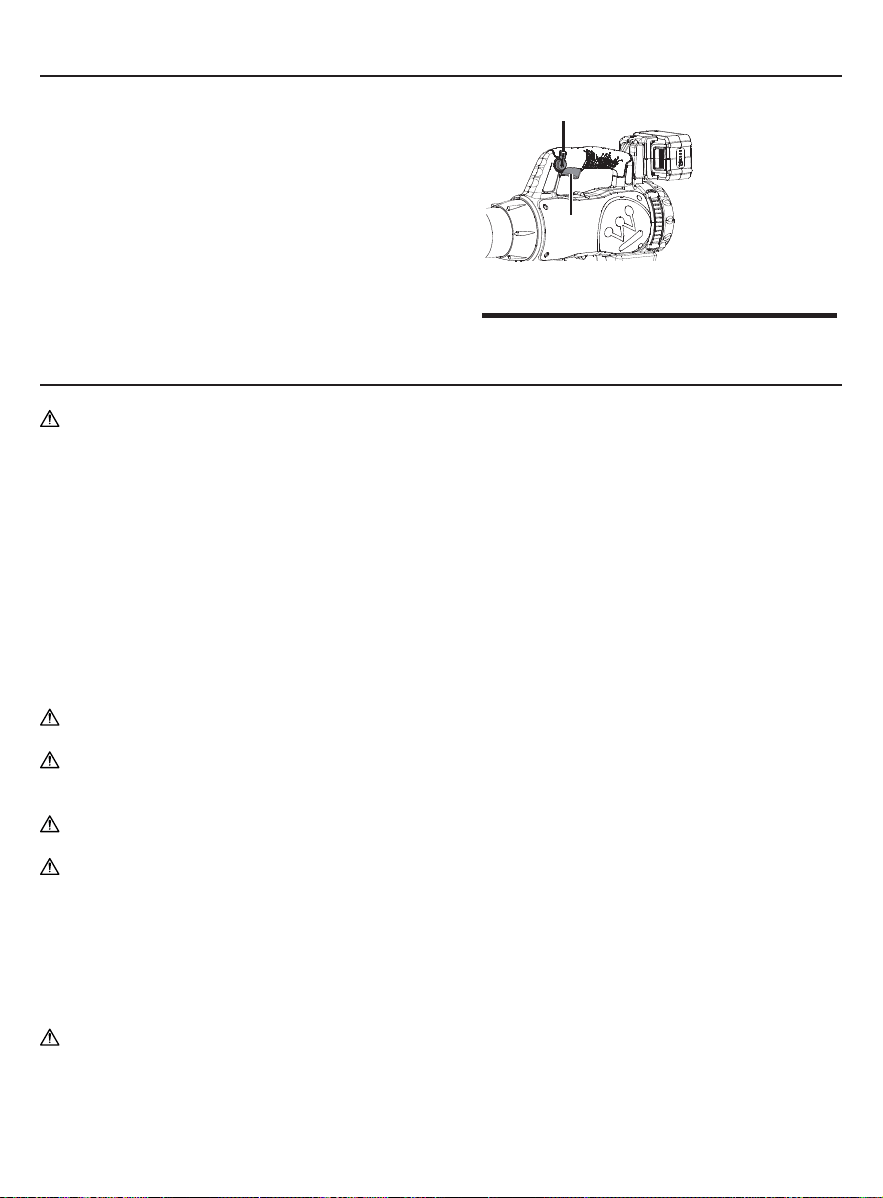

• Page 26 - English - : OPERATION CARE AND MAINTENANCE WARNING Remove the rechargeable battery from the device before use Be sure the blower is ready for safe operation by replacing damaged or worn parts Clean ventilation slots and openings with a brush DO NOT use any solvents or cleaning agents containing chemicals that could damage the plastic parts Use a dry cloth to clean the house of the blower Keep the blower away from children Keep the blower in a cool dry location Store and charge your rechargeable batteries in a cool dry location Temperatures above or below normal room temperature shorten the lifespan of the rechargeable batteries Do not store rechargeable batteries when discharged Wait until the rechargeable battery has cooled down and charge it completely Rechargeable batteries gradually lose their charge The higher the temperature the quicker they lose their charge For longer storage periods recharge the rechargeable battery every one or two months This will extend the lifespan of the rechargeable battery Do not store the blower where the switch trigger may be pressed WARNING Remove the battery pack from the product when cleaning or performing maintenance to avoid personal injury WARNING Always wear eye protection with side shields marked to comply with ANSI Z871 along with hearing protection Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury WARNING Use only identical replacement parts Use of any other parts can create a hazard or cause product damage WARNING Never use water or any liquids to clean or rinse o the product and do not expose the product to rain or wet conditions Keep the product inside in a cool dry area when not in use Corrosive liquids water and chemicals can enter electronic components and battery compartment Short circuitry can result when the electrical components or battery pack are damaged Remove any buildup of dirt and debris by wiping the product clean with a dry cloth occasionally Notice Inspect the entire product for damaged missing or loose parts Tighten all fasteners and caps until they are secure Do not operate this device if parts are damaged or missing Please contact customer service WARNING Do not let corrosive ammable or combustible chemicals come in contact with plastic parts Chemicals can damage weaken or destroy plastic which can result in serious injury USING CRUISE CONTROL The cruise control can be used to operate the blower without holding the switch trigger To engage the cruise control Press the switch trigger and stop at the desired speed Push the cruise control lever down Release the switch trigger Pull the cruise control lever up entirely to release the cruise control function A Ono switch B Cruise control lever A B
• Page 27 - English - : TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Unit will not start Battery not installed properly Check battery installation Battery not charged Check battery charging requirements Battery will not charge Battery not inserted into charger Insert battery into charger until red LED appears Charger not plugged in Plug charger into a work ing outlet Check current at recepta cle by plugging in a lamp or other appliance Check to see if receptacle is connected to a light switch which turns power o when you turn out the lights Surrounding air temperature too hot or too cold Move charger and tool to a surrounding air tempera ture of above 40 degree F 45C or below 105 degree F 405C BATTERY PACK REMOVAL AND PREPARATION FOR RECYCLING Please recycle or dispose of batteries properly This product contains lithiumion batteries Local state or federal laws may prohibit disposal of lithiumion batteries in ordinary trash Consult your local waste authority for information regarding available recycling and disposal options WARNING Cover the battery packs terminals with heavyduty adhesive tape after removal Do not attempt to destroy or disassemble battery pack or remove any of its components Lithiumion batteries must be recycled or disposed of properly never touch both terminals with metal objects or body parts as short circuit may result Keep away from children Failure to comply with these warnings could result in re and serious injury

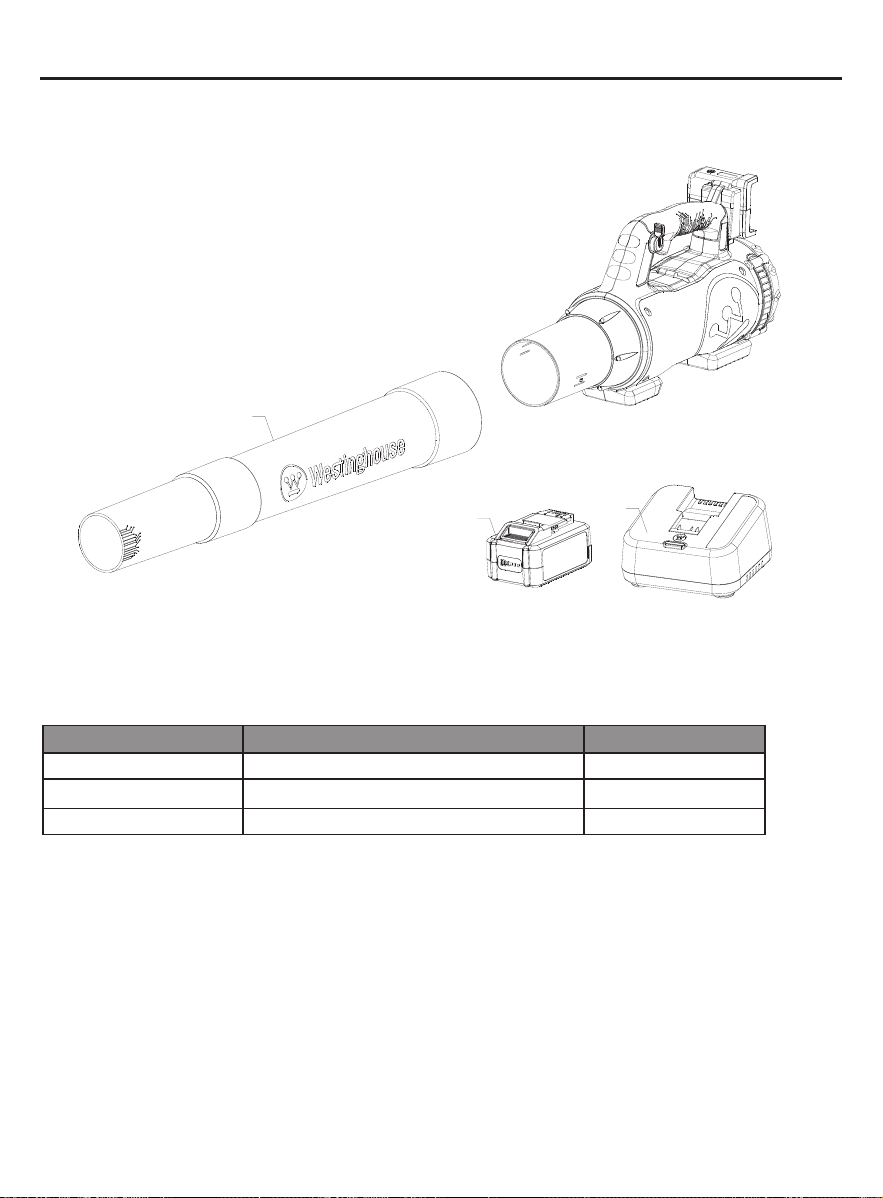

• Page 28: PARTS PAGE Index Number Description Part Number 1 Blower Tube Assembly 120090001 2 Battery Pack 811400211480013 3 Charger 925005
