A5P | 01
2500491
Please read all instructions carefully before use and
retain for future reference.
CAUTION Do not immerse in water.
CAUTION hot surfaces
Do not cover.
PRODUCT DISPOSAL INFORMATION For electrical
products sold within the European Community, at the
end of the electrical product’s useful life, it should not be
disposed of with household waste. Please recycle where
facilities exist. Contact your local authority for details of
collection schemes in your area.
In all circumstances:
Do not dispose of in domestic waste.
Do not incinerate.
Do not abandon in the environment.
Do not dispose of WEEE as unsorted municipal waste.
EN
Please read all instructions carefully before use and
retain for future reference.
INTENDED USE Only operate the appliance for its
intended purpose and within the parameters specied
in this manual.
This appliance is for domestic use only. Do not use
outdoors or on wet surfaces.
This appliance is not intended for use by persons with
reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless supervised or
given appropriate instruction concerning the product’s
use by a person responsible for their safety.
The appliance is not intended to be operated by means
of an external timer or separate remote-control system.
GENERAL SAFETY Do not allow to be used as a toy.
Children should be supervised to ensure they do not
play with the appliance.
If the appliance is not functioning properly, has been
dropped, damaged, left outdoors, or immersed in liquid,
do not use, contact DOMU Brands Customer Services.
Do not use the appliance if any parts appear to be faulty,
missing or damaged.
Ensure all parts are securely attached as instructed by
this instruction manual before use.
CABLES AND PLUGS Check to ensure your electricity
supply matches that shown on the rating plate. This
product should only be used as rated. Preferably, the
socket outlet should be protected by a Residual Current
Device RCD (UK/EU) Ground Fault Indicator (US).
Do not use with a damaged cable or plug. If the supply
cable is damaged, it must be replaced by a qualied
engineer or authorised service agent in order to avoid a
hazard. The use of an extension cable is not recom-
mended.
Do not handle the plug or appliance with wet hands.
Keep the cable away from heated surfaces.
Do not let the cable hang over the edge of the table or
countertop where it could be pulled on inadvertently by
children or pets.
Do not pull the cable around sharp edges or corners.
Do not leave unattended when plugged in. Unplug from
outlet when not in use.
Turn o all controls before unplugging.
Do not unplug by pulling on the cable. To unplug, grasp
the plug, not the cable.
Always unplug before performing user maintenance,
connecting or disconnecting attachments, or changing
accessories.
Ensure the cable is stored safely to prevent hazards.
RISK OF PERSONAL INJURY Always locate your
appliance away from the edge of the worktop, on a rm,
at, heat-resistant surface with sucient space around
all sides. Do not insert any objects into openings or
cover the appliance.
Do not place any cardboard, plastics or paper inside or
on the appliance unless stated in the instructions.
Do not use the appliance near any combustible
A5P | 01
surfaces. Only use suitable cookware where applicable.
Do not use outdoors or near heat sources.
Take care not to touch any surfaces that may get hot
when in use. Take care not to touch any surfaces that
may remain hot for a period of time after use.
Never operate the appliance when empty.
Do not overload/overll the appliance.
When using for the rst time your appliance may give
o a ‘new’ smell or vapour. This will dissipate after a few
uses. Do not lift or move the appliance whilst in use.
Do not operate continuously for periods longer than
those marked on the product or indicated in the
instructions.
Ensure the appliance is switched o and unplugged
before changing accessories or cleaning.
Use only as described in this manual and with DOMU
Brands recommended attachments only.
TECHNICAL SPECIFICATION
Rated Voltage 220V-240V
Rated Power 60W
Rated Frequency 50Hz
A5P | 01
COMPONENTS
1. Control Panel
2. LCD Display
3. Air Outlet
4. Base
5. Remote Control
6. Screws x8 (not shown)
1
2
3
5
4
A5P | 01

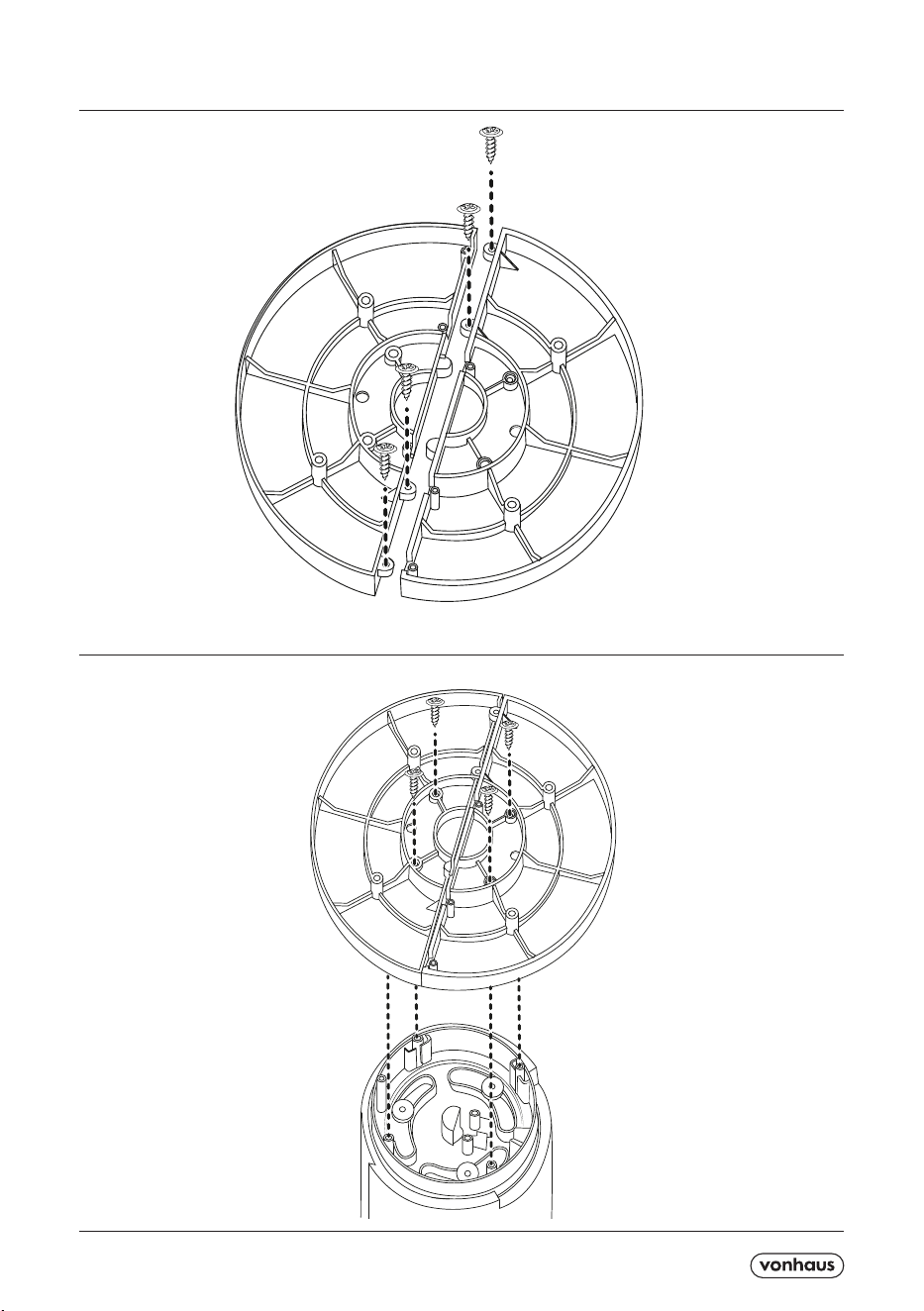

ASSEMBLY
A5P | 01
CONTROLS
On/Off
Speed
Timer
Mode
Select
Swing
Mode
DIGITAL DISPLAY
Timer is Set
Fan Speed : Low
Fan Speed :
Medium
Fan Speed : High
Night Mode
Natural Mode
Comfort Mode
A5P | 01
REPLACING THE BATTERY
To remove the battery compartment, squeeze the small
black tab and pull.
Insert 1 x CR2025 (3V) battery into the small crevice as
illustrated.
Comfort Mode This mode has three types of
air cycles: Low, Med, High.
Natural (intermittent) Mode
With the Fan speed set to low it will cycle on o every
5 seconds.
Fan Speed Medium the fan speed will cycle through
every 5 seconds to Medium, Low, Medium, Stop, Low
Medium, Low, stop.
Fan Speed set to High it will spend 5 seconds each at
Medium, Low, High, Medium, High, Low, High, Stop
and repeat.
Night Mode - The fan speed gradually
decreases every 30mins.
Fan Speed Low: The fan will run the same as in Low
Nature Mode.
Fan Speed Medium: The fan will operate in Medium
Nature Mode the switch to low.
Fan Speed High: The fan will operate for 30mins in
High, 30mins in Medium then switch to Low.
Press once to activate the fan, It will default into
Medium Mode / Low Speed .
The room temperature will be displayed.
Turns Oscillation On / O
The fan will operate for 1 Hour.
The fan will operate for 2 Hours.
The fan will operate for 4 Hours.
The fan will operate for 5 Hours.
The fan will operate for 6 Hours.
The fan will operate for 7 Hours.
This button allows you to enter the ‘timer mode’. Press
to increase the number of hours (1,2 to 7 ) you wish the
fan to remain operational.
• Speed Selection, cycles through 3 levels,
Low
Med
High
OPERATION / OPÉRATION / DIE ANWENDUNG / OPERACIÓN / FUNZIONAMENTO / FUNCIONAMIENTO
A5P | 01
EN
DISPOSAL INFORMATION Please recycle where
facilities exist. Check with your local authority for
recycling advice.
CUSTOMER SERVICE If you are having diculty using
this product and require support, please contact
WARRANTY To register your product and nd out if you
qualify for a free extended warranty please go to
www.vonhaus.com/warranty.
Please retain a proof of purchase receipt or statement
as proof of the purchase date. The warranty only applies
if the product is used solely in the manner indicated
in the warnings page of this manual, and all other
instructions have been followed accurately. Any abuse
of the product or the manner in which it is used will
invalidate the warranty. Returned goods will not be ac-
cepted unless re-packaged in its original packaging and
accompanied by a relevant and completed returns form.
This does not aect your statutory rights. No rights
are given under this warranty to a person acquiring the
appliance second-hand or for commercial or communal
use.
COPYRIGHT All material in this instruction manual are
copyrighted by DOMU Brands.Any unauthorised use
may violate worldwide copyright, trademark, and other
laws.
C
A5P | 01
THANK YOU
Thank you for purchasing your product/appliance.
Should you require further assistance with your
purchase, you can contact us at
VonHaus is a registered trademark of DOMU Brands Ltd.
Made in China for DOMU Brands. M24 2RW.
