TMO30
BUILT-IN COMBINATION
OVEN WITH HOT AIR
AND MICROWAVE
TABLE OF CONTENTS
1
1
1-3
3-4
8
8
9
4
5
5-6
11
14
14-15
15-16
11
11
12
16
17
27-28
28
1 Safety Warnings
1.1
Precautions To Avoid Possible Exposure To Excessive Microwave Energy
1.2
Specifications
1.3
Important Safety Instructions
1.4
Grounding Instructions
1.5
Radio Interference
1.6
Utensils
1.7
Materials You Can Use In Microwave Oven
6
1.8
Materials To Be Avoided I Microwave Oven
7
1.9
Causes Of Damage
2 Product Installation
2.1
Important Information
2.2
Before You Begin
2.3
Checklist For Installation
9-10
2.3
Installation Instructions
3 Product Overview
3.1
Your New Appliance
3.2
Control Panel
3.3
Touch Keys And Display
3.4
Parameter Adjustment
123.5 Cooling Fan
12-133.6 Accessories
4 Operation Instructions
4.1
Before Using The Appliance For The First Time
4.2
Setting The Oven
4.3
The Microwave
29
30
30
6 Troubleshooting
6.1
Malfunction Table
6.2
Acrylamide In Foodstuffs
6.3
Energy And Environment Tips
4.4
Multi-stage Cooking
4.5
Express Cooking
4.6
Automatic Programmes
17-19
20-21
22-23
24-25
23
4.7
Defrosting Programmes
4.8
Sensor Cook
4.9
Broil
4.10
Airfry Cooking
4.11
Setting The Time-setting Options
4.12
Childproof Lock
4.13
Expert Cooking Guide
5 Cleaning And Care
5.1
Care And Cleaning
5.2
Cleaning And Maintenance
7 Warranty
31
16-17
21-22
23-24
1
1 SAFETY WARNINGS
1.1 PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
• Do not attempt to operate this oven with the door open since open door
operation can result in harmful exposure to microwave energy.
It is important not to defeat or tamper with the safety interlocks.
• Do not place any object between the oven front face and the door or allows
soil or cleaner residue to accumulate on sealing surfaces.
• Do not operate the oven if it is damaged. It is particularly important that
the oven door close properly and that there is no damage to the:
- DOOR (bent)
- HINGES AND LATCHES (broken or loosened)
- DOOR SEALS AND SEALING SURFACES
• The oven should not be adjusted or repaired by anyone except properly
qualied service personnel.
1.2 SPECIFICATIONS
Model:
TMO30
Rated Voltage 120 V~ 60 Hz
Microwave Input 1750 W
Microwave Output 1000 W
Grill 1750 W
Convection 1700 W
1.3 IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed,
including the following:
WARNING - To reduce the risk of burns, electric shock, re, injury to persons or
exposure to excessive microwave energy:
• Read all instructions before using the appliance.
• Read and follow the specic: "PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on page 1.
2
• This appliance must be grounded. Connect only to properly grounded outlet.
See "GROUNDING INSTRUCTIONS" found on page 3.
• Install or locate this appliance only in accordance with the provided
installation instructions.
• Some products such as whole eggs and sealed containers - for example,
closed glass jars - are able to explode and should not be heated in this oven.
• Use this appliance only for its intended use as described in the manual. Do
not use corrosive chemicals or vapors in this appliance. This type of oven is
specically designed to heat, cook or dry food. It is not designed for industrial
or laboratory use.
• As with any appliance, close supervision is necessary when used by
children.
• Do not operate this appliance if it has a damaged cord or plug, if it is not
working properly, or if it has been damaged or dropped.
• This appliance should be serviced only by qualied service personnel.
Contact nearest authorized service facility for examination, repair, or
adjustment.
• Do not cover or block any openings on the appliance.
• Do not store this appliance outdoors. Do not use this product near water - for
example, near a kitchen sink, in a wet basement, near a swimming pool, or
similar location.
• Do not immerse cord or plug in water.
• Keep cord away from heated surface.
• Do not let cord hang over edge of table or counter.
• When cleaning surfaces of door and oven that comes together on closing the
door, use only mild, nonabrasive soaps, or detergent applied with a sponge
or soft cloth.
• To reduce the risk of re in the oven cavity:
- Do not overcook food. Carefully attend appliance when paper, plastic,
or other combustible materials are placed inside the oven to facilitate
cooking.
- Remove wire twist-ties from paper or plastic bag before placing bag in
oven.
- If material inside of the oven ignite, keep oven door closed, turn oven o,
and disconnect the power cord, or shut o power at the fuse or circuit
breaker panel.
- Do not use the cavity for storage purposes. Do not leave paper products,
cooking utensils, or food in the cavity when not in use.
• Liquids, such as water, coee, or tea are able to be overheated beyond the
boiling point without appearing to be boiling. Visible bubbling or boiling when
the container is removed from the microwave oven is not always present.
THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER
WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED
INTO THE LIQUID. To reduce the risk of injury to persons:
1 SAFETY WARNINGS1 SAFETY WARNINGS
3
- Do not overheat the liquid.
- Stir the liquid both before and halfway through heating it.
- Do not use straight-sided containers with narrow necks.
- After heating, allow the container to stand in the microwave oven for a
short time before removing the container.
- Use extreme care when inserting a spoon or other utensil into the
container.
• Do not operate any heating or cooking appliance beneath the appliance.
(Exception: A microwave oven investigated for use above another heating
appliance.)
• Do not mount unit over or near any portion of heating or cooking appliance.
(Exception: A microwave oven investigated for use above another heating
appliance.)
• Do not mount over sink.
• Do not store anything directly on top of the appliance surface when the
appliance is in operation.
• Oversized food or oversized metal utensils should not be inserted in a
microwave/toaster oven as they may create a re or risk of electric shock.
• Do not clean with metal scouring pads. Pieces can burn o the pad and
touch electrical parts involving a risk of electric shock.
• Do not use paper products when appliance is operated in the toaster mode.
• Do not store any materials, other than manufacturer's recommended
accessories, in this oven when not in use.
• Do not cover racks or any other part of the oven with metal foil. This will
cause overheating of the oven.
SAVE THESE INSTRUCTIONS
1.4 GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire for the
electric current. This appliance is equipped with a cord having a grounding wire
with a grounding plug. The plug must be plugged into an outlet that is properly
installed and grounded.
WARNING - Improper use of the grounding can result in a risk of electric shock.
Consult a qualied electrician or serviceman if the grounding instructions are not
completely understood, or if doubt exists as to whether the appliance is properly
grounded. If it is necessary to use an extension cord, use only a 3-wire extension
1 SAFETY WARNINGS
4
cord that has a 3-blade grounded plug, and 3-slot receptacle that will accept the
plug on the appliance. The marked rating of the extension cord shall be equal to
or greater than the electrical rating of the appliance.
DANGER - Electric Shock Hazard
Touching some of the internal components can cause serious personal injury or
death. Do not disassemble this appliance.
WARNING - Electric Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an
outlet until appliance is properly installed and grounded.
• A short power-supply cord is provided to reduce the risks resulting from
becoming entangled in or tripping over a longer cord.
• Longer cord sets or extension cords are available and may be used if care is
exercised in their use.
• If a long cord or extension cord is used:
- The marked electrical rating of the cord set or extension cord should be at
least as great as the electrical rating of the appliance.
- The extension cord must be a grounding-type 3-wire cord.
- The longer cord should be arranged so that it will not drape over the
counter top or tabletop where it can be pulled on by children or tripped
over unintentionally.
1.5 RADIO INTERFERENCE
• Operation of the microwave oven may cause interference to your radio, TV
or similar equipment.
• When there is interference, it may be reduced or eliminated by taking the
following measures:
- Clean door and sealing surface of the oven.
- Reorient the receiving antenna of radio or television.
- Relocate the microwave oven with respect to the receiver.
- Move the microwave oven away from the receiver.
- Plug the microwave oven into a dierent outlet so that microwave oven
and receiver are on dierent branch circuits.
This device complies with part 18 of the FCC Rules.
1 SAFETY WARNINGS1 SAFETY WARNINGS
5
1.6 UTENSILS
CAUTION - Personal Injury Hazard
Tightly-closed utensils could explode. Closed containers should be opened and
plastic pouches should be pierced before cooking.
See the instructions on "Materials you can use in microwave oven or to be
avoided in microwave oven."
There may be certain non-metallic utensils that are not safe to use for
microwaving. If in doubt, you can test the utensil in question following the
procedure below.
Utensil Test:
• Fill a microwave-safe container with 1 cup of cold water (250ml) along with
the utensil in question.
• Cook on maximum power for 1 minute.
• Carefully feel the utensil. If the empty utensil is warm, do not use it for
microwave cooking.
• Do not exceed 1 minute cooking time.
1.7 MATERIALS YOU CAN USE IN
MICROWAVE OVEN
Utensils Remarks
Browning dish
Follow manufacturer’s instructions.The bottom of
browning dish must be at least 3/16 inch (5mm) above
the turntable. Incorrect usage may cause the turntable
to break.
Dinnerware
Microwave-safe only. Follow manufacturer’s instructions.
Do not use cracked or chipped dishes.
Glass jars
Always remove lid. Use only to heat food until just
warm. Most glass jars are not heat resistant and may
break.
Glassware
Heat-resistant oven glassware only. Make sure there is
no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags
Follow manufacturer’s instructions. Do not close with
metal tie. Make slits to allow steam to escape.
Paper plates and cups
Use for short–term cooking/warming only. Do not leave
oven unattended while cooking.
1 SAFETY WARNINGS
6
Paper towels
Use to cover food for reheating and absorbing fat. Use
with supervision for a short-term cooking only.
Parchment paper
Use as a cover to prevent splattering or a wrap for
steaming.
Plastic
Microwave-safe only. Follow the manufacturer’s
instructions. Should be labeled "Microwave Safe". Some
plastic containers soften, as the food inside gets hot.
"Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Plastic wrap
Microwave-safe only. Use to cover food during cooking
to retain moisture. Do not allow plastic wrap to touch
food.
Thermometers Microwave-safe only ( meat and candy thermometers).
Wax paper
Use as a cover to prevent splattering and retain
moisture.
1.8 MATERIALS TO BE AVOIDED IN
MICROWAVE OVEN
Utensils Remarks
Aluminum tray
May cause arcing. Transfer food into microwave-safe
dish.
Food carton with metal
handle
May cause arcing. Transfer food into microwave-safe
dish.
Metal or metal-
trimmed utensils
Metal shields the food from microwave energy. Metal
trim may cause arcing.
Metal twist ties May cause arcing and could cause a re in the oven.
Paper bags May cause a re in the oven.
Plastic foam
Plastic foam may melt or contaminate the liquid inside
when exposed to high temperature.
Wood
Wood will dry out when used in the microwave oven and
may split or crack.
1 SAFETY WARNINGS1 SAFETY WARNINGS
7
1.9 CAUSES OF DAMAGE
Caution!
• Creation of sparks: Metal e.g. a spoon in a glass must be kept at least 2
cm from the oven walls and the inside of the door. Sparks could irreparably
damage the glass on the inside of the door.
• Water in the hot cooking compartment: Never pour water into the hot cooking
compartment. This will cause steam. The temperature change can cause
damage.
• Moist food: Do not store moist food in the closed cooking compartment for
long periods.
Do not use the appliance to store food. This can lead to corrosion.
• Cooling with the appliance door open: Only leave the cooking compartment
to cool with the door closed. Do not trap anything in the appliance door. Even
if the door is only slightly ajar, the fronts of adjacent units may be damaged
over time.
• Heavily soiled seal: If the seal is very dirty, the appliance door will no longer
close properly during operation. The fronts of adjacent units could be
damaged. Always keep the seal clean.
• Operating the microwave without food: Operating the appliance without food
in the cooking compartment may lead to overloading. Never switch on the
appliance unless there is food in the cooking compartment. An exception
to this rule is a short crockery test (see the section "Microwave, suitable
crockery").
• Using the appliance door for standing on or placing objects on: Do not stand
or place anything on the open appliance door. Do not place ovenware or
accessories on the appliance door.
• Transporting the appliance: Do not carry or hold the appliance by the door
handle. The door handle cannot support the weight of the appliance and
could break.
• Microwave popcorn: Never set the microwave power too high. Use a power
setting no higher than 600 watts. Always place the popcorn bag on a glass
plate. The disc may jump if overloaded.
• Liquid that has boiled over must not be allowed to run through the turntable
drive into the interior of the appliance. Monitor the cooking process. Choose
a shorter cooking time initially, and increase the cooking time as required.
• The oven should be cleaned regularly and any food deposits removed since
they may explode, even after microwave heating has ended.
• Failure to maintain the oven in a clean condition could lead to deterioration of
the surface that could adversely aect the life of the appliance and possibly
result in a hazardous situation.
1 SAFETY WARNINGS
8
2 PRODUCT INSTALLATION
2.1 IMPORTANT INFORMATION
Electrical connection with plug
(only for some models, subject to our prouducts)
The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.Only a qualified
electrician who takes the appropriate regulations into account may install the socket.or replace the connecting
cable. If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the
installation side with a contact gap of at least 3 mm. Contact protection must be ensured by the installation.
Fuse protection: see instructions for use-technical data.
Electrical connection without plug
(only for some models, subject to our prouducts)
The appliance is designed to be permanently installed with a three-pin power cord and may only be connected
by a licensed expert in accordance with the connection diagram.
Only a qualified electrician who takes the relevant regulations into account may replace the power cord.
Do not use multiple plugs, power strips or extensions. Overloading causes a risk of fire.
If the connection is no longer accessible following installation, an all-pin isolating switch with a contact gap of at least
3 mm must be provided.
Connect the wires of the mains power cord in accordance with the following colour coding:
Green and Earth wire < (E)
yellow
Blue Neutral wire (N)
Brown Live (L)
Great Britain and Australia:
Do not connect the appliance using a 13 A plug or protect it with a 13 A fuse. The appliance must be protected using
a fuse that is rated 16 A or higher. The appliance must be disconnected from the power supply during all installation
work.
When the appliance is installed, protection must be provided against accidental contact in the future.
2.2 BEFORE YOU BEGIN
Tools and parts needed
• Philips head screwdriver
• 1/8" drill bit and drill
• Measuring tape
• Knife
Parts included
• Microwave oven
• Philips head screws
Power Requirements
The outlet must be properly grounded in accordance with all applicable codes.
It can be installed in the back wall directly behind the appliance.
2.3 CHECKLIST FOR INSTALLATION
Use this checklist to verify that you have completed each step of the installation process. This can help you avoid
mistakes.
Refer to detailed instructions for each step in the sections following this checklist.
1. Before installing the appliance, be sure to verify the cabinet dimensions are correct for your appliance and that the
required electrical connections are present. Make sure the electrical conduit provided on the appliance is able to
reach to the point of connection.
2. Move the appliance into place in front of the cabinet opening.
3. Remove packaging materials, leaving the bottom packaging on the appliance to avoid damage to the floor.
4. Team-lift the appliance directly into the cabinet cutout.
5. Slide the appliance all the way into place.
6. Fasten the appliance to the cabinet opening with the screws supplied.
Always read and follow the complete installation instructions contained in this manual.
9

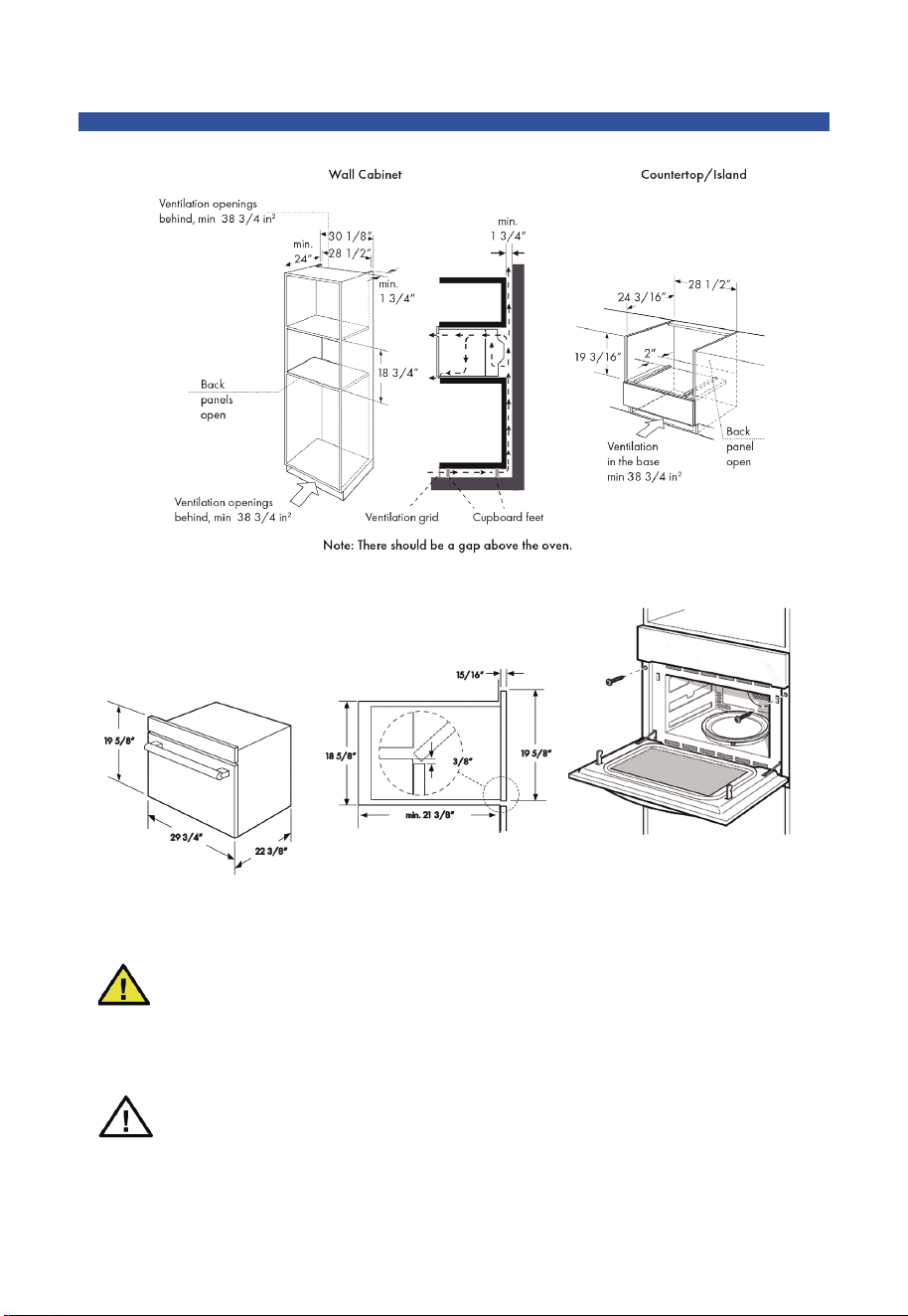

2.4 INSTALLATION INSTRUCTIONS
GENERAL CABINET REQUIREMENTS:
• 1⁄4” space is required between the side of the appliance and an adjacent wall or cabinet door when installed at
the end of a cabinet run.
• The cabinet base must be flat and capable of supporting the weight (roughly 90 pounds) of your appliance when
in use.
• The appliance door will overlap the furniture below by approx 3/16” when opened.
• There must be an air gap of at least 1/4” between the appliance and the cabinet walls when the appliance is
installed, i.e. 1/8” each side.
VENTILATED CABINET
• This appliance is only intended to be fully tted in a kitchen. This appliance is not designed to be used as a
tabletop appliance or inside a cupboard.
• The tted cabinet must not have a back wall behind the appliance.
• A gap of at least 1 3/4” must be maintained between the wall and the base or back panel of the unit above.
• The tted cabinet must have a ventilation opening of 38 3/4 in² in the base. To achieve this, cut back the base
panel or t a ventilation grill.
• Ventilation slots and intakes must not be covered.
• The safe operation of this appliance can only be guaranteed if it has been installed in accordance with these
installation instructions.
• The units into which the appliance is tted must be heat-resistant up to 194°F.
• Note: There should be a minimum 1/16” gap above the oven.
2 PRODUCT INSTALLATION
10
• Carefully push the microwave into the cabinetry, making sure that it is in the center.
• Do not kink the electrical cable.
• Open the door and fasten the microwave with the screws that were supplied.
WARNING
WARNING: The gap between the worktop and the appliance must not be closed by additional battens.
MOUNT TO CABINET
NOTE: The appliance is heavy. It is advisable to install it with a second person.
NOTICE
NOTICE: Before installing the appliance, be sure to verify the cabinet dimensions and electrical
connections.
1.
Fully insert the appliance and center it. Do not kink the electrical cable.
2. Screw the appliance into pre-drilled holes in the cabinetry.
2 PRODUCT INSTALLATION
BUILT-IN
11
3.1 YOUR NEW APPLIANCE
Use this section to familiarise yourself with your new appliance. The control panel and the individual operating controls
are explained. You will find information on the cooking compartment and the accessories.
3.2 CONTROL PANEL
3.3 TOUCH KEYS AND DISPLAY
The touch keys are used to set the various additional functions.
On the display, you can read the values that you have set.
Symbol Function
Select Auto Defrost programs
Select Airfry cook programs
Select Sensor Cook programs
Select Sensor Reheat programs
Cook popcorn
Heat beverages
Select pizza programs
Select auto menu programs
Set Broil modes (Hi/Lo)
Set power level for microwave operation
Select Bake Cook programs
Select Roast Cook programs
Select preheat programs
Set Temp. or weight of cooking
Set cooking time
Activate/deactivate child lock
Set time of day
0-9 Use the number keys to enter customized values
Confirm entered values/Start cooking mode
Add 30 seconds
Clear entered value/turn appliance off
3 PRODUCT OVERVIEW
AUTO
DEFROST
SENSOR
COOK
SENSOR
REHEAT
POPCORN
BEVERAGE
PIZZA
AUTO
MENU
BROIL
HIGH-LOW
POWER
LEVEL
CONVECTION
PREHEAT
TEMP.
WEIGHT
TIME
PANEL
LOCK
CLOCK
START/ENTER
+30 seconds
CLEAR /OFF
AIRRY
AUTO
MENU
AUTO
DEFROST
AIRFRY
BEVERAGEPOPCORN PIZZA
SENSOR
COOK
SENSOR
REHEAT
CONVECTION PREHEAT
BROIL
HIGH-LOW
POWER
LEVEL
PANEL
LOCK
+30 seconds
CLOCK
TEMP.
WEIGHT
1
6
2
7
3
8
4
9
5
0
TIME
START/ENTER
CLEAR/OFF
12
3.4 PARAMETER ADJUSTMENT
Use the adjusting keys to set the parameters.
parameter Function
Auto menu Select 8 automatic programmes.
Weight Set the weight of cooking.
Time Set the time of cooking.
3.5 COOLING FAN
Your appliance has a cooling fan. The cooling fan switches on during operation. The hot air escapes above the door.
The cooling fan continues to run for a certain time after operation.
Caution!
Do not cover the ventilation slots. Otherwise, the appliance will overheat.
Notes
• The appliance remains cool during microwave operation. The cooling fan will still switch on. The fan may run on
even when microwave operation has ended.
• Condensation may appear on the door window, interior walls and floor. This is normal and does not adversely
affect microwave operation. Wipe away the condensation after cooking.
3.6 ACCESSORIES
2 PRODUCT OVERVIEW
Turntable
As a surface for the wire rack.
Food which particularly requires a lot of heat from underneath can be prepared directly on the turntable.
The turntable can turn clockwise or anti-clockwise.
Place the turntable on the drive in the centre of the cooking compartment. Ensure that it is properly fitted.
• Never use the microwave without the turntable.
• The turntable can withstand max. 5 kg.
• The turntable must turn when using all types of heating.
13
Baking rack
For grilling, e.g. steaks, sausages and for toasting bread.
We recommend using the rack together with the baking tray when cooking items on the rack which might drip.
Bake Tray
Cannot be used in conjunction with microwave function and can be placed on the wire rack.
Note:
Type and quantity of accessories is subject to actual demand.
3 PRODUCT OVERVIEW
14
4.1 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
Here you will find everything you need to do before using your oven to prepare food for the first time. First read the
section on .IMPORTANT SAFETY INSTRUCTIONS.
Setting the clock
Once the appliance is connected, "12:00" will be displayed as the time of day. To set the correct time, proceed as
follows:
1. Touch
CLOCK
.
2. Enter the correct time using the number keys. Example: To set the clock to 12:41 type in 1 2 4 1.
3. Touch or
CLOCK
to confirm.
Heating up the oven
To remove the new oven smell, heat up the appliance when it is empty and closed. One hour with Convection at 350° F
(180 °C) is ideal. Ensure that no packaging remnants have been left in the oven cavity.
1. Touch
CONVECTION
once to enter bake mode.
2. Enter the numbers 3 5 0 with the number keys.
3. Touch
TIME
to adjust co oking time.
4. Enter the numbers 60 with the number keys.
5. Touch to start cooking.
The oven light turns on and the appliance starts heating.
Cleaning the accessories
Before you use the accessories for the first time, clean them thoroughly with hot soapy water and a soft dish cloth.
4.2 SETTING THE OVEN
There are various ways in which you can set your oven. Here we will explain how you can select the desired type of
heating and temperature or grill setting. You can also select the oven cooking time for your dish. Please refer to the
section on Setting the time-setting options.
Setting Convection mode
Example: Roast 350°F for 20 minutes
1. Touch
CONVECTION
twice to enter roast mode.
2. Enter the numbers 3 5 0 with the number keys.
3. Touch
TIME
to adjust cooking time.
The maximum time value is 99:99.
4. Enter the numbers 2 0 with the number keys.
5. Touch to start cooking.
Program Touch Convection key Temperature range
Bake once 250~400
o
F
Roast twice 300~450
o
F
NOTE:
• If you do not need to adjust the time, skip Step 3-4.
Opening the oven door during operation
Operation is suspended. After closing the door, touch the key. Operation continues.
Cancelling operation
Touch
CLEAR/OFF
to cancel the active oven mode. The appliance turns off and the clock is displayed.
The cooling fan may continue to run for awhile and then switch off automatically.
4 OPERATION INSTRUCTIONS
15
Rapid Preheating
With rapid preheating, your oven reaches the set temperature particularly quickly.
To ensure an oven cooking result, only put your food in the cooking compartment when the preheating phase is
complete.
1. Touch the
PREHEAT
.
2. Enter the temperature setting with the number keys.
The input temperature should be within 100 to 450 °F.
3. Touch the key.
The oven begins to heat up.
The preheating process is complete
A signal sounds. Put your dish in the oven. Set the cooking mode you need.
Opening appliance door during operation
Opening the appliance door during operation will interrupt the current mode. Close the appliance door and then touch
to resume operation.
Cancelling rapid preheating
During setting the rapid preheating function, touch the
CLEAR/OFF
can cancel the function.
During rapid preheating , touch
CLEAR/OFF
can cancel the function.
NOTE:
• Only when you can hear alarm and preheating icon is blinking you can open the door and put food inside.
4.3 THE MICROWAVE
Microwaves are converted to heat in foodstuffs. The microwave can be used solo, i.e. on its own, or in combination
with a different type of heating. You will find information about ovenware and how to set the microwave.
NOTE:
• In the Expert Cooking Guide, you will find examples for defrosting, heating and cooking with the microwave oven.
Microwave power settings
You can select from 11 different microwave power levels. If you do not set a power level, the microwave will
automatically operate at the highest power level 11.
The table below provides suggested power levels for various types of food that can be prepared in the microwave.
Power level Microwave output Use for
10 High 100%
• Boiling water
• Cooking ground meat
• Making candy
• Cooking fresh fruit & vegetables
• Cooking fish & poultry
• Preheating browning dish
• Reheating beverages
• Cooking bacon slices
9 90%
• Reheating meat slices quickly
• Saute onions,
• celery & green peppers
8 80%
• All reheating
• Cooking scrambled eggs
7 70%
• Cooking breads & cereal products
• Cooking cheese dishes Cooking muffins,
• brownies & cupcakes
• Cooking whole poultry
4 OPERATION INSTRUCTIONS
16
6 60% • Cooking pasta
5 50%
• Cooking meat
• Cooking custard
• Cooking spare ribs,
• rib roast & sirloin roast
4 40%
• Cooking less tender cuts of meat
• Reheating frozen packaged foods
3 30%
• Thawing meat, poultry & seafood
• Cooking small quantities of food
• Finish cooking casseroles,
• stew & some sauces
• Melting chocolate
2 20% • Softening butter & cream cheese
1 10%
• Softening ice cream
• Raise yeast dough
0 0%
• Work with fan for no power
• Remove the odour of the oven.
Setting the microwave
1. Enter the desired cook time with the number keys. The timer display will fill in from right to left.
Example: To set a microwave time of 20 minutes and 30 seconds, enter the numbers 2 0 3 0.
2. You can start microwave operation with the default power level 10 by touching ,
- or -
you can set a different power level. Touch
POWER LEVEL
.
3. Enter the desired power level using the number keys.
4. Touch to start microwave operation. The microwave timer will start to count down.
4.4 MULTI-STAGE COOKING
1. Enter the desired cook time with the number keys. The timer display will fill in from right to left.
2. Touch
POWER LEVEL
.
3. Enter the desired power level using the number keys.
4. Touch
POWER LEVEL
.
5. Enter the desired power level using the number keys.
6. Touch .
7. Enter the desired cook time with the number keys.
8. Touch to start microwave operation.
The buzzer will sound 3 times when the first stage cooking is finished and enter to the second stage.
4.5 EXPRESS COOKING
1. In standby mode, touch number keys 1 to 9 to start 100% microwave cooking in 1 to 9 minutes.
2. If the door is closed, the oven will start to cook automatically after 2 seconds.
Opening the oven door during operation
Operation is suspended.
After closing the door, touch the key. Operation continues.
Cancelling operation
Touch
CLEAR/OFF
to cancel the active oven mode. The appliance turns off and the clock is displayed.
The cooling fan may continue to run for awhile and then switch off automatically.
4 OPERATION INSTRUCTIONS
17
Speedy microwave cooking
Use the key to quick-start your microwave at the highest power level. You can touch the key repeatedly to
increase the microwave time in increments of 30 seconds.
Touching this key during microwave operation will add 30 seconds to the remaining microwave time.
The cooking time has elapsed
A signal sounds. Microwave operation has finished.
4.6 AUTOMATIC PROGRAMMES
The automatic programmes enable you to prepare food very easily. You select the programme and enter the weight of
your food. The automatic programme makes the optimum setting. You can choose from 8 programmes.
Always place the food in the cold cooking compartment.
Setting a programme
When you have selected a programme, set the oven. The temperature selector must be in the off position.
1. Touch
AUTO MENU
.
2. Touch
AUTO MENU
repeatedly to scroll through all Auto Menu .
3. Touch number keys to adjust weight of food.
4. Touch to start cooking.
Opening appliance door during operation
Opening the appliance door during operation will interrupt the current mode. Close the appliance door and then touch
to resume operation.
Cancel operation
Touch
CLEAR/OFF
to cancel the active oven mode. The appliance turns off and the clock is displayed. The cooling fan
may continue to run for awhile and then switch off automatically.
AUTO MENU
Program Weight range
1 - Chicken Breasts 0.5 - 3.0 lbs
2 - Chicken Thigh 0.5 - 3.0 lbs
3 - Whole Poultry 1.5 - 4.5 lbs
4 - Beef Roast 0.5 - 3.25 lbs
5 - Pork Tenderloin 1.0 - 3.0 lbs
6 - Pork Chops 0.5 - 3.0 lbs
7 - Meatloaf 1.0 - 3.25 lbs
8 - Fish Fillets 0.5 - 2.0 lbs
4.7 DEFROSTING PROGRAMMES
You can use the 2 defrosting programmes to defrost ground meat and meat pieces.
1. Touch
AUTO DEFROST
once or twice to choose "GROUND MEAT" or "MEAT PIECES".
2. Enter the weight of the food you want to defrost using the number keys.
3. Touch to start defrosting.
NOTE:
•
Preparing food
Use food that has been frozen at -18 °C and stored in portion-sized quantities that are as thin as possible.
Take the food to be defrosted out of all packaging and weigh it. You need to know the weight to set the
programme.
• Liquid will be produced when defrosting meat or poultry. Drain off this liquid when turning meat and poultry and
4 OPERATION INSTRUCTIONS
18
under no circumstances use it for other purposes or allow it to come into contact with other foods.
•
Ovenware
Place the food in a microwaveable shallow dish, e.g. a china or glass plate, but do not cover.
• When defrosting chicken and chicken portions (d 01), an audible signal will sound on two occasions to indicate
that the food should be turned.
•
Resting time
The defrosted food should be left to stand for an additional 10 to 30 minutes until it reaches an even temperature.
Large pieces of meat require a longer standing time than smaller pieces. Flat pieces of meat and items made
from minced meat should be separated from each other before leaving to stand.
After this time, you can continue to prepare the food, even though thick pieces of meat may still be frozen in the
middle. The giblets can be removed from poultry at this point.
Programme no. Defrost Weight range in kg
1 Ground meat 0.50 - 2.00
2 Meat pieces 0.50 - 3.00
Popcorn
！
CAUTION
Do not leave oven unattended while popping corn. Popcorn may ignite and cause fire.
The popcorn feature lets you pop 3 different bag sizes of commercially packaged microwave popcorn. Use the
following table to determine the setting to use:
Bag size Touch Popcorn key
1.2 oz. once
2.5 oz. twice
3.5 oz. 3 times
Setting Popcorn mode
The appliance must be turned off.
1. Touch
POPCORN
. The cook time is displayed.
2. Touch
POPCORN
repeatedly or touch number key 1 to 3 to choose the desired weight.
3. Touch .
The microwave timer starts counting down.
When the microwave time has elapsed, a beep will sound.
Beverage
The beverage feature heats 0.5 to 2 cups of a beverage. Use the table below to determine the setting to use.
Amount Touch Beverage key
0.5 cups once
1 cup twice
1.5 cups 3 times
2 cups 4 times
Setting Beverage mode
1. Touch
BEVERAGE
.
The cook time is displayed.
2. Touch
BEVERAGE
repeatedly or touch number key 1 to 4 to choose the desired amount.
3. Touch .
The microwave timer starts counting down.
When the microwave time has elapsed, a beep will sound.
4 OPERATION INSTRUCTIONS
19
Pizza
You can use the Pizza mode to bake three different types of pizza:
Mode no. Pizza type Bake on
1 Frozen pizza Metal tray
2 Fresh pizza Metal tray
3 Microwave pizza Ceramic tray
Pizza tips
• Check pizza before minimum time, pizza may cook faster compared to a traditional oven.
• For fresh pizza use a pizza paddle for sliding the pizza on and from the metal turntable.
• If using a pizza paddle, sprinkle the paddle liberally with cornmeal for ease in transferring the dough to the metal
turntable.
• Maximum size is 12 inches for fresh and frozen pizzas.
• Avoid using a pizza stone as it can damage the oven.
• The metal turntable can be used for cutting pizza into slices. Remove the turntable from the oven after the pizza
is baked.
Setting Pizza mode for fresh or frozen pizza.
The appliance must be turned off.
You can set a temperature range from 375 to 450° F (190 to 230°C) for fresh and frozen pizza modes.
You can bake fresh or frozen pizza directly on the metal tray turntable.
1. Touch
PIZZA
.
2. Touch
PIZZA
repeatedly to scroll through all pizza modes.
3. Touch .
4. You can change the temperature by using the number keys. Touch to confirm.
The appliance starts preheating.
The set temperature is reached once the preheat bar has filled up completely and a beep sounds.
Opening appliance door during operation
Opening the appliance door during operation will interrupt the current mode. When you close the appliance door, and
then touch , operation will be resumed.
Setting Pizza mode for microwave pizza
Place the microwave pizza on the ceramic tray and put it in the oven following package directions.
1. Touch
PIZZA
.
2. Touch the number key 3 or touch
PIZZA
repeatedly until MICROWAVE PIZZA is displayed.
3. Touch . The appliance starts sensing.
4. When sensing is complete, a beep will sound and the calculated cook time will start to count down.
After the cook time has run out a beep will sound.
Note:
Do not open the door during the sensing process, or the program will be cancelled .
Once the calculated cook time is displayed, you can open the door to stir, turn or rearrange the food. Touch
to resume operation.
Opening appliance door during operation
Opening the appliance door during operation will interrupt the current mode. Close the appliance door and then touch
to resume operation.
4 OPERATION INSTRUCTIONS
20
4.8 SENSOR COOKING
You can select two sensor cooking modes. Sensor cooking allows you to cook many of your favorite foods without
selecting cooking times and power levels. The microwave oven automatically determines the required cooking time for
each food item.
For best results for cooking by sensor, follow these recommendations:
• Food cooked with the sensor system should start from normal storage temperature.
• Turntable tray, ceramic tray and outside of container should be dry.
• Foods should always be covered loosely with microwavable plastic wrap, wax paper or lid.
• Do not open the door or touch
CLEAR/OFF
key during sensing time. When sensing time is over, the oven beeps
once and the remaining cooking time will appear in the display. At this time you can open the door to stir, turn or
rearrange the food .
Sensor Reheat
The Sensor Reheat feature lets you reheat dinner plates or casseroles (8-16 oz.) for your cooking convenience.
Setting Sensor Reheat
1. Touch
SENSOR REHEAT
.
2. Touch .
sensing is displayed. The microwave operates during sensing.
3. When sensing is complete, a beep will sound and the calculated cook time will start to count down.
Note:
Do not open the door during the sensing process, or the program will be cancelled .
Once the calculated cook time is displayed, you can open the door to stir, turn or rearrange the food. Touch
to resume operation.
When sensor reheat is finished, a beep will sound.
Notes
• Cover with vented plastic wrap or wax paper.
• Reheat food on a microwaveable dinner plate.
Reheat cooking suggestions
Food Directions Quantity
Dinner plate
Use only pre-cooked, refrigerated foods. Cover plate with vented
plastic wrap or waxed paper, tucked under plate. If food is not hot
enough after heating with the Reheat feature, continue heating using
manual time and power level setting.
Contents:
• 3-4 oz. meat, poultry or fish (up to 6 oz. with bone)
• 1/2 cup starch (potatoes, pasta, rice, etc.)
• 1/2 cup of vegetables (about 3-4 oz.)
1 serving (1 plate)
Casserole, Pasta
Cover plate with lid or vented plastic wrap. If food is not hot enough
after heating with the Reheat feature, continue heating using manual
time and power level setting.
Stir foods once before serving.
Contents:
• Casserole: refrigerated foods (such as beef stew or lasagna)
• Pasta: Canned spaghetti and ravioli, refrigerated foods
1 to 4 servings
4 OPERATION INSTRUCTIONS
21
Sensor Cook
Sensor Cook allows you to cook many of your favorite foods without selecting cooking times and power levels. The
microwave oven automatically determines the required cooking time for each food item.
Setting Sensor Cook
The appliance must be turned off.
Example: Set Sensor Cook for Ground Meat.
1. Touch
SENSOR COOK
.
2. Select the desired program from the label at the oven cavity.
Touch
SENSOR COOK
repeatedly to scroll through all Sensor Cook modes.
3. Touch .
The program will start sensing with the microwave operating.
Sensor Cook programs
Sensor Cook Program Quantity Cooking tips
1 - Baked Potato 1 - 4 potatoes (8 - 32 oz.)
Pierce skin with a fork. Do not cover.
After cooking, allow to stand wrapped in foil for 5
minutes.
2 - Ground Meat 8 - 24 oz. (0.5 - 1.5 lbs) After cooking, allow to stand, covered, for 3 - 4 minutes.
3 - Fresh Vegetables 4 - 16 oz. (0.25 - 1 lbs)
No water is needed if vegetables have just been
washed. Add 2 tablespoons water per 8 ounces of fresh
vegetables.
4 - Fish/Seafood 8 - 20 oz. (0.5 - 1.25 lbs)
Roll thin edges underneath. Arrange in a ring around
microwaveable dish.
5 - Frozen Entrees 10 - 20 oz.
Follow package instructions for venting, cutting plastic
film, etc.
When sensing is complete, a beep will sound and the calculated cook time will start to count down.
Note:
Do not open the door during the sensing process, or the program will be cancelled .
Once the calculated cook time is displayed, you can open the door to stir, turn or rearrange the food. Touch
to resume operation.
When sensor cook is finished a beep will sound.
Opening appliance door during operation
Opening the appliance door during operation will interrupt the current mode. Close the appliance door and then touch
to resume operation.
Cancel operation
Touch
CLEAR/OFF
to cancel the active oven mode. The appliance turns off and the clock is displayed.
The cooling fan may continue to run for awhile and then switch off automatically.
4.9 BROIL
The Broil feature uses intense heat radiated from the upper element.
You can set two intensity levels:
• Broil high
• Broil low
Setting Broil mode
The appliance must turned off.
1. Touch
BROIL
HIGH-LOW.
2. Touch
BROIL
again , to change to Broil low mode.
3. Enter the desired cooking time with the number keys. The maximum time value is 99:99.
4. Touch to start operation.
4 OPERATION INSTRUCTIONS
22
Note:
Always use a bake tray when cooking in Broil mode (see optional accessories).
Opening appliance door during operation
Opening the appliance door during operation will interrupt the current mode. When you close the appliance door,
operation will be resumed.
Cancel operation
Touch
CLEAR/OFF
to cancel the active oven mode. The appliance turns off and the clock is displayed.
The cooling fan may continue to run for awhile and then switch off automatically.
4.10 AIRFRY COOKING
The automatic programmes enable you to prepare food very easily.
The automatic programme makes the optimum setting. You can choose from 10 programmes.
Setting a programme
When you have selected a programme, set the oven. The temperature selector must be in the off position.
1. Touch
AIRFRY
.
2. Touch
AIRFRY
repeatedly or touch number keys to scroll through all Auto menu (A01 to A10).
3. Touch to start cooking.
Opening appliance door during operation
Opening the appliance door during operation will interrupt the current mode. Close the appliance door and then touch
to resume operation.
Cancel operation
Touch
CLEAR/OFF
to cancel the active oven mode. The appliance turns off and the clock is displayed.
The cooling fan may continue to run for awhile and then switch off automatically.
Auto Menu
Program Weight range
A01 Frozen French Fries 0.66lbs
A02 French Fries 0.66lbs
A03 Sweet potato 0.66lbs
A04 Cucurbita pepo 0.5lbs
A05 Onion ring 0.5lbs
A06 Frozen chicken pieces 0.66lbs
A07 Frozen chicken wings 1lbs
A08 Spring Rolls 1lbs
A09 Churros 0.13lbs
A10 Frozen Apple Pie 0.66lbs
Note:
Prepare a bake tray for Airfry.
4 OPERATION INSTRUCTIONS
23
Manual cook
Customer should cook airfrying food by adjusting up and down time and temp. with his choice.
Setting Manual cook
1. Touch
AIRFRY
.
2. Touch
AIRFRY
repeatedly until A11 display.
Or touch 11.
3. Enter the desired temperature using the number keys. The temperature should be within 300~450
o
F
4. Touch
TIME
.
5. Enter the desired cooking time using the number keys. The maximum time value is 99:99.
6. Touch to start cooking.
Note:
If you do not need to adjust the time, skip Step 3-4.
Opening appliance door during operation
Opening the appliance door during operation will interrupt the current mode. Close the appliance door and then touch
to resume operation.
Cancel operation
Touch
CLEAR/OFF
to cancel the active oven mode. The appliance turns off and the clock is displayed.
The cooling fan may continue to run for awhile and then switch off automatically.
4.11 SETTING THE TIME-SETTING OPTIONS
Your oven has various time-setting options. You can use the Clock key to call up the menu and switch between the
individal functions.
Setting the cooking time
The cooking time for your meal can be set on the oven. When the cooking time has elapsed, the oven switches itself
off automatically. This means that you do not have to interrupt other work to switch off the oven. The cooking time
cannot be accidentally exceeded.
The oven starts. The cooking time counts down in the display.
The cooking time has elapsed
An audible signal sounds. The oven stops heating.
Setting the clock
1. Touch
CLOCK
.
2. Enter the correct time using the number keys. Example: To set the clock to 12:41 type in 1 2 4 1.
3. Touch or Clock to confirm.
Changing the clock
1. Touch
CLOCK
in standby mode.
The actual time disappear and then the time will blink in the display.
2. Enter the correct time using the number keys.
3. Touch to confirm.
4.12 CHILDPROOF LOCK
The oven has a childproof lock to prevent children switching it on accidentally.
The oven will not react to any settings.
Switching on the childproof lock
Requirement: No cooking time should be set .
Touch and hold the
PANEL LOCK
key for approx. 3 seconds.
The lock symbol appears in the display. The childproof lock is activated.
4 OPERATION INSTRUCTIONS
24
Switching off the childproof lock
Touch and hold the
PANEL LOCK
key for approx. 3 seconds.
The lock symbol on the display goes out. The childproof lock isdeactivated.
Childproof lock with other cooking operations
When other cooking programmes have been set, the childproof lock is not operational.
4.13 EXPERT COOKING GUIDE
The charts can be used as a guide. Follow package or recipe directions.
Broil
Place pan of food on the wire rack with the recess facing up.
Food
Oven
temperature
Cooking time
(minutes)
Internal
temperature
Cooking tip / Procedure
Hamburgers,
_ " to 1",
medium
High
Side 1: 9 - 11
Side 2: 10 - 12
160°F (71°C)
Use pan that allows fat to drain away from
the food.
High fat meat causes more spattering.
Lamb chops,
1", medium
High
Side 1: 9 - 11
Side 2: 10 - 12
160°F (71°C)
Use pan that allows fat to drain away from
the food.
Slit fat to prevent curling.
Sausage,
fresh
High
Side 1: 9 - 11
Side 2: 8 - 10
160°F (71°C)
Use pan that allows fat to drain away from
the food.
Steaks, _ " to
1", medium
rare
High
Side 1: 9 - 11
Side 2: 10 - 12
145°F (63°C)
Use pan that allows fat to drain away from
the food.
Slit fat to prevent curling.
Steaks, _ " to
1", medium
High
Side 1: 9 - 11
Side 2: 10 - 12
160°F (71°C)
Use pan that allows fat to drain away from
the food.
Slit fat to prevent curling.
Toasting
bread
Low 3 - 5 - Check at minimum time.
Top browning
cas-seroles
Low 3 - 5 -
Use only metal or glass ceramic dishes such
as Corning Ware®
Convection Broil
Place pans of food on the wire rack with the recess facing up.
Food
Oven
temperature
Cooking time
(minutes)
Internal
temperature
Cooking tip / Procedure
Chicken
breasts,
bone-in
Low
Side 1: 9 - 11
Side 2: 10 - 12
170°F (76°C) Start breast side down.
Fish filets, _
" to 1"
Low 11-15
145°F
(63°C)
No turning of fish.
Turn thin ends under.
Brush with olive oil or butter to prevent
sticking.
4 OPERATION INSTRUCTIONS
25
Convection
Preheat the oven before adding foods. Once the oven is preheated, place the food in the oven quickly to minimize loss
of heat. Place pans of food on the wire rack with the recess facing down.
Food
Oven
temperature
Cooking time (minutes) Cooking tip / Procedure
Biscuits 350°F (175°C) 13 - 20
A dark or dull baking sheet will result in a browner,
crisper crust.
Cake, 13"x9" 350°F (175°C) 23 - 28
For a tender, light golden brown crust, use light, shiny
metal bakeware.
Cookies
350 - 375°F
(175 - 190°C)
8 - 14
A dark or dull baking sheet will result in a browner,
crisper crust.
Cornbread
425 - 450°F
(220 - 230°C)
25 - 30 Use a square baking pan.
Cupcakes 350°F (175°C) 18 - 21
Ideal for ready-made mixes. Prepare according to
package directions.
Dinner rolls 400°F (205°C) 12 - 18 Use with fresh or frozen dinner rolls.
Fresh fruit pie 375°F (190°C) 50 - 60
A dark or dull baking pie pan will result in a browner,
crisper crust.
Muffins 400°F (205°C) 10 - 18
Ideal for ready-made mixes. Prepare according to
package directions.
Roasted
vegetables
425 - 450°F
(220 - 230°C)
15 - 20 Use dark or dull metal pan. Stir once.
Shortcakes 450°F (230°C) 10 - 18 Best for individual shortcakes. Use dark coated pan.
Cooking eggs in your microwave
• Never cook eggs in the shell and never warm hard-cooked eggs in the shell; they can explode.
• Always pierce yolk on whole eggs to keep them from bursting.
• Cook eggs just until set; they will become tough if overcooked.
• Cooking scrambled eggs is safe.
Cooking vegetables in your microwave
• Vegetables should be washed just before cooking. Rarely is extra water needed. If dense vegetables such as
potatoes or carrots are being cooked, add about
¼ cup of water.
• Small vegetables (sliced carrots, peas, lima beans, etc.) will cook faster than larger vegetables.
• Whole vegetables, such as potatoes, acorn squash or corn on the cob, should be arranged in a circle on the
turntable before cooking. They will cook more evenly if turned over halfway through cooking.
• Always place vegetables like asparagus and broccoli with the stem ends pointing towards the edge of the dish
and the tips toward the center.
• When cooking cut vegetables, always cover the dish with a lid or vented microwavable plastic wrap.
• Whole, unpeeled vegetables such as potatoes, sweet potatoes, squash, eggplant, etc., should have their skin
pricked in several locations before cooking to prevent them from bursting.
• For more even cooking, stir or rearrange whole vegetables halfway through the cook time.
• Most of the time, the denser the food, the longer the required standing time. For example, a baked potato should
stand for 5 minutes before serving, while a dish of peas may be served immediately.
4 OPERATION INSTRUCTIONS
26
Heating food
Risk of scalding!
There is a possibility of delayed boiling when a liquid is heated. This means that the liquid reaches boiling temperature
without the usual steam bubbles rising to the surface. Even if the container only moves a little, the hot liquid can
suddenly boil over and spatter. When heating liquids, always place a spoon in the container. This will prevent delayed
boiling.
Cooking seafood in your microwave
Be sure to place fish on a microwave-safe roasting rack in a microwave-safe dish. Be sure to always cook fish until
it flakes easily with a fork. Use a tight cover to steam fish; a lighter cover of wax paper or paper towel provides less
steaming. And be sure not to overcook fish; check it for doneness at a minimum cooking time before cooking longer.
Seafood Power level Cook time Directions
Fish steaks up
to 1½ lbs
medium high
(7)
7–11 min. /lb
Arrange fish on roasting rack with meaty portions
towards the outside of rack. Cover with wax paper.
Turn over and rearrange halfway through cook time.
Cook until fish flakes easily with fork.
Let stand 3–5 mins.
Fish fillets up to
1½ lbs.
medium high
(7)
7–11 min. /lb
Arrange fillets in a baking dish, turning any thin
pieces under. Cover with wax paper. If over ½ inch
thick, turn over and rearrange halfway through cook
time. Cook until fish flakes easily with fork.
Let stand 2–3 mins.
Shrimp up to
1½ lbs.
medium high
(7)
7–11 min. /lb
Arrange shrimp in a baking dish without overlapping
or layering. Cover with wax paper. Cook until firm and
opaque, stirring 2 or 3 times.
Let stand 5 mins.
4 OPERATION INSTRUCTIONS
27
5 CLEANING AND CARE
5.1 CARE AND CLEANING
With careful care and cleaning your microwave oven will retain its looks and remain good order. We will explain here
how you should care for and clean your appliance correctly.
Risk of electric shock.!
Penetrating moisture may cause an electric shock. Do not use any high-pressure cleaners or steam cleaners.
Risk of burns!
Never clean the appliance immediately after switching off. Let the appliance cool down.
Risk of serious damage to health!
Microwave energy may escape if the cooking compartment door or the door seal is damaged. Never use the appliance
if the cooking compartment door or the door seal is damaged. Contact the after-sales service.
NOTE:
• Slight differences in colour on the front of the appliance are caused by the use of different materials, such as
glass, plastic and metal.
• Shadows on the door panel which look like streaks, are caused by reflections made by the oven light.
• Unpleasant odours, e.g. after fish has been prepared, can be removed very easily. Add a few drops of lemon juice
to a cup of water. Place a spoon into the container as well, to prevent delayed boiling. Heat the water for 1 to 2
minutes at maximum microwave power.
Cleaning agents
To ensure that the different surfaces are not damaged by using the wrong cleaning agent, observe the information in
the table. Do not use
• sharp or abrasive cleaning agents,
• metal or glass scrapers to clean the glass in the appliance door.
• metal or glass scrapers to clean the door seal,
• hard scouring pads and sponges,
• cleaning agents with high concentrations of alcohol.
Wash new sponge cloths thoroughly before use.
Allow all surfaces to dry thoroughly before using the appliance again.
Area Cleaning agents
Appliance front
Hot soapy water:
Clean with a dish cloth and dry with a soft cloth. Do not use glass cleaners or
metal or glass scrapers for cleaning.
Appliance front with stainless
steel
Hot soapy water:
Clean with a dish cloth and dry with a soft cloth. Remove flecks of limescale,
grease, starch and albumin (e.g. egg white) immediately. Corrosion can form
under such residues. Special stainless steel cleaning agents can be obtained
from the after-sales service or from specialist shops. Do not use glass cleaners
or metal or glass scrapers for cleaning.
Cooking compartment
Hot soapy water or a vinegar solution: Clean with a dish cloth and dry with a soft
cloth.
If the oven is very dirty: Do not use oven spray or other aggressive oven cleaners
or abrasive materials. Scouring pads, rough sponges and pan cleaners are also
unsuitable. These items scratch the surface. Allow the interior surfaces to dry
thoroughly.
Recess in cooking compartment
Damp cloth:
Ensure that no water seeps through the turntable drive into the appliance interior.
Wire racks
Hot soapy water:
Clean using stainless steel cleaning agent or in the dishwasher.
Door panels
Glass cleaner:
Clean with a dish cloth. Do not use a glass scraper.
28
Seal
Hot soapy water:
Clean with a dish cloth, do not scour. Do not use a metal or glass scraper for
cleaning.
5.2 CLEANING AND MAINTENANCE
！
WARNING
Be sure the entire appliance has cooled and grease has solidified before attempting to clean any part of the appliance.
Cleaning Guide
• For best performance and for safety reasons, keep the oven clean inside and outside. Take special care to keep
the inner door panel and oven front frame free of food and grease build–up.
• Never use abrasive scouring powder or pads on the microwave. Wipe the microwave oven inside and out with a
soft cloth and warm (not hot) mild detergent solution. Then rinse and wipe completely dry.
• Wipe spatters immediately with a wet paper towel, especially after cooking greasy foods like chicken or bacon.
• Clean your microwave oven weekly or more often, if needed.
• Never operate the microwave oven without food in the oven cavity, unless pre-heating with Convection, Pizza,
Frozen Foods and Keep Warm mode; this can damage the magnetron tube or ceramic tray. You may wish to leave
a cup of water standing inside the oven when it is not in use to prevent damage if the oven is accidentally turned
on.
Part Recommendations
Oven cavity
Keep inside (cavity) of the oven clean. Food particles and spilled liquids can stick
to the oven walls, causing the oven to work less efficiently.
Wipe up spills immediately. Use a damp, clean cloth and mild soap. DO NOT use
harsh deter-gents or abrasive cleaners.
To help loosen baked–on food particles or liquids, heat 2 cups of water (add
the juice of 1 lemon if you desire to keep the oven fresh smelling) in a 4 cup
measuring glass at High power for 5 minutes or until boiling. Let stand in oven
cavity for 1 or 2 minutes.
For baked-on grease spatters, wash with hot, soapy water, rinse and dry.
Wire rack
Wash with soapy water. Rinse thoroughly and dry, or gently rub with cleansing
powder or soap-filled pads as directed. The wire rack can also be washed in the
dishwasher.
Metal turntable tray
Remove metal turntable tray from the oven when cleaning the oven cavity and
tray. Wash the metal turntable tray in warm sudsy water or in the dishwasher.
Ceramic tray Clean with warm, soapy water or in the dishwasher.
Door seal Wipe with damp cloth.
Door glass
Wash with soap and water or glass cleaner. Apply Fantastik® or Formula 409®
to a clean sponge or paper towel and wipe clean. Avoid using powder cleaning
agents, steel wool pads and oven cleaners.
If steam accumulates inside or outside the oven door, wipe with a soft cloth.
Steam can accu-mulate when operating the oven in high humidity and in no way
indicates microwave leakage.
Painted surfaces
Clean with hot soapy water or apply Fantastik® or Formula 409® to a clean
sponge or paper towel and wipe clean. Avoid using powder cleaning agents, steel
wool pads and oven cleaners.
Stainless steel sur-faces/exterior
sur-faces
Always wipe or rub in the direction of the grain. Clean with a soapy sponge, then
rinse and dry, or wipe with Fantastik® or Formula 409® spray on a paper towel.
Protect and polish with Stain-less Steel Magic® and a soft cloth. Remove water
spots with a cloth dampened with white vine-gar.
Plastic & Controls When cool, clean with soapy water, rinse and dry.
Printed areas
(words & numbers)
Do not use abrasive cleaners or petroleum based solvents.
5 CLEANING AND CARE
29
6.1 MALFUNCTION TABLE
Malfunctions often have simple explanations. Please refer to the malfunction table before calling the after-sales
service.
If a meal does not turn out exactly as you wanted, refer to the Expert Cooking Guide section, where you will find plenty
of cooking tips and tricks.
Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers.
Problem Possible cause Remedy/information
The appliance does
not work.
Faulty circuit breaker.
Look in the fuse box and check that the circuit breaker for the
appliance is in working order.
Plug not plugged in. Plug in the plug.
Power cut Check whether the kitchen light works.
The appliance does
not work.
appears
in the display panel.
Childproof lock is
active.
Deactivate the childproof lock (see section: Childproof lock).
‹ :‹‹ is in the display
panel.
Power cut Reset the clock.
The microwave does
not switch on.
Door not fully closed. Check whether food residue or debris is trapped in the door.
It takes longer than
before for the food
to heat up in the
microwave
The selected
microwave power
level is too low.
Select a higher power level.
A larger amount
than usual has
been placed in the
appliance.
Double the amount = almost double the cooking time.
The food was colder
than usual.
Stir or turn the food during cooking.
Turntable grates or
grinds.
Dirt or debris in the
area around the
turntable drive.
Clean the rollers under the turntable and the recess in the oven
floor thoroughly.
A particular operating
mode or power level
cannot be set.
The temperature,
power level or
combined setting is
not possible for this
operating mode.
Choose permitted settings.
“‚ appears in the
display panel.
The thermal safety
switch-off function
has been activated.
Call the after-sales service.
appears in the
display panel.
The thermal safety
switch-off function
has been activated.
Call the after-sales service.
“… appears in the
display panel.
Moisture in the control
panel.
Allow the control panel to dry.
“‚ˆ appears in the
display panel.
Rapid heating has
failed.
Call the after-sales service.
6 TROUBLESHOOTING
30
6.2 ACRYLAMIDE IN FOODSTUFFS
Which foods are affected?
Acrylamide is mainly produced in grain and potato products that are heated to high temperatures, such as potato
crisps, chips, toast, bread rolls, bread, fine baked goods (biscuits, gingerbread, cookies).
Tips for keeping acrylamide to a minimum when preparing food
General
Keep cooking times t o a minimum. Cook meals until they are golden brown, but
not too dark. Large, thick pieces of food contain less acrylamide.
Baking biscuits Oven chips
Max. 200 °C in Top/bottom heating or max. 180 °C in 3D hot air or hot air mode.
Max. 190° C in Top/bottom heating or ma x. 170 °C in 3D hot air or hot air mode.
Egg white and egg yolk reduce the formation of acrylamide. Distribute thinly and
evenly over the baking tray. Cook at least 400 g at once on a baking tray so that
the chips do not dry out.
6.3 ENERGY AND ENVIRONMENT TIPS
Here you can find tips on how to save energy when baking and roasting and how to dispose of your appliance properly.
Saving energy
• Only preheat the oven if this is specified in the recipe or in the operating instruction tables.
• Use dark, black lacquered or enamelled baking tins. They absorb the heat particularly well.
• Open the oven door as infrequently as possible while you are cooking, baking or roasting.
• It is best to bake several cakes one after the other. The oven is still warm. This reduces the baking time for the
second cake. You can also place two loaf tins next to each other.
• For longer cooking times, you can switch the oven off
10 minutes before the end of the cooking time and use the residual heat to finish cooking.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly manner.
This appliance complies with European Directive 2002/ 96/EC on Waste Electrical and Electronic
Equipment (WEEE). The directive gives a framework for the collection and recycling of old
appliances, which is valid across the EU.
6 TROUBLESHOOTING
7 WARRANTY
Warranty&Service
This product has been manufactured by Thor Group, 4651 E Airport Dr, Ontario, CA 91761
For Customer Service, please call (877) 288 - 8099
For the most up to date warranty and service policy, please refer to our website
WWW.THORKITCHEN.COM/WARRANTY-REGISTRATION
For in-warranty service requests, please visit our website at
WWW.THORKITCHEN.COM/SERVICE
Please Note: You must provide proof of purchase or installation date for any in-
warranty service requests
31
