Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference. 24d
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2024 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
read this material before using this product.
Failure to do so can result in serious injury.
SaVe THiS ManuaL.
9500 WATT
INVERTER
GENERATOR
7600 RUNNING WATTS
9500 MAX STARTING WATTS
Visit our website at: http://www.harborfreight.com
email our technical support at: [email protected]
email our engine support at: [email protected]
71365
DanGer
using a generator indoors Can
KiLL yOu in MinuTeS.
Generator exhaust contains
carbon monoxide. This is a poison
you cannot see or smell.
Do not use in
trailers, truck
beds, or tents.
use at least 20 feet away from
people, animals, and structures
with exhaust pointed away.
20′
20′
20′
20′
20′
neVer use inside
a home or garage,
eVen iF doors and
windows are open.
Only use OuTSiDe
and far away from
windows, doors,
and vents.
SUPER QUIET INVERTER
Page 2
For technical questions, please call 1-888-866-5797.
ITEM 71365
Table of Contents
Specifications ............................................................... 2
Safety ...........................................................................3
Setup ............................................................................8
Operation .....................................................................10
Maintenance ................................................................ 18
Troubleshooting ........................................................... 22

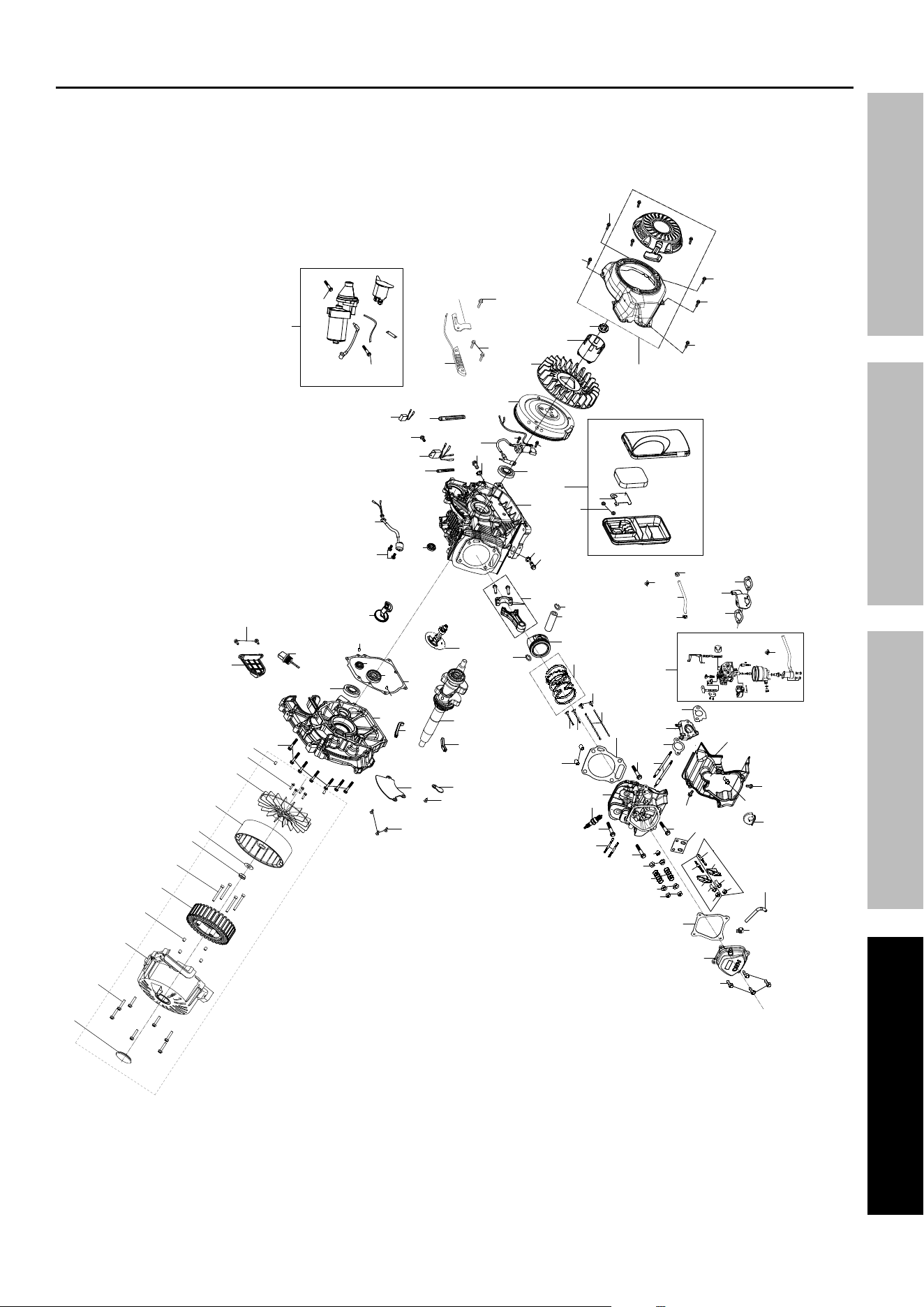

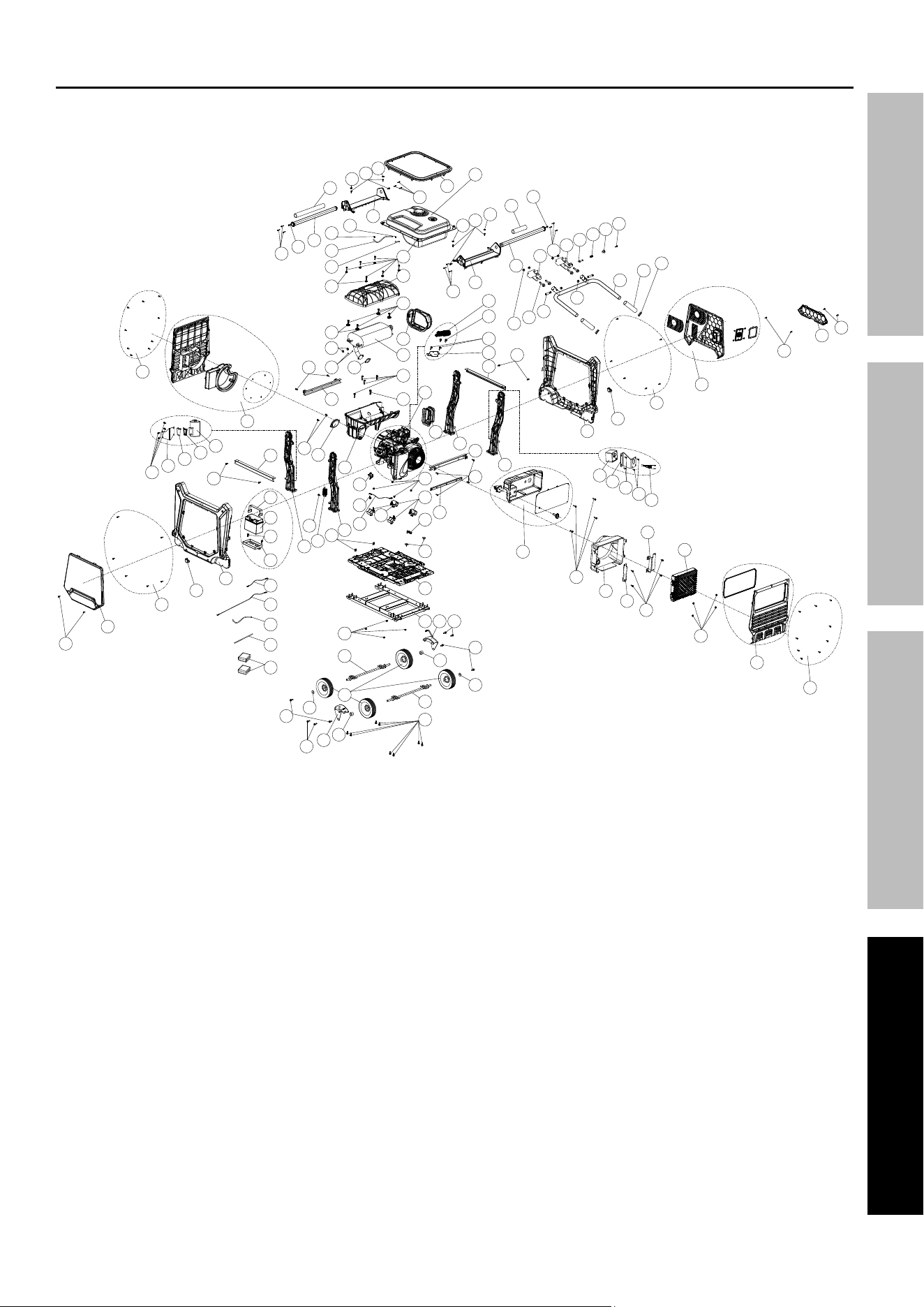

Parts List and Diagram ................................................ 26
Warranties ................................................................... 30
Specifications
Generator
Output
120/240 VAC, 60 Hz, 63.3 / 31.7 A, 1 Phase
12 VDC, 8 A (nominal)
5V USB, 3.1A
7600 Running Watts
9500 Maximum Starting Watts
Receptacles
2 x GFCI NEMA #5-20R (3-prong, 120 VAC)
1 x NEMA #L5-30R (3-prong, 120 VAC)
1x NEMA #L14-30R (4-prong, 120/240 VAC)
1 x 12 VDC Two Pin Outlet
2 x USB-A Outlets
Parallel Kit Terminals
Battery Type
Contains non-replaceable battery:
CR2032, 3 V
Displacement 459 cc
Compression Ratio 8.5:1
Battery for Electric Start 12V, 14Ah Lead Acid
Engine Type
Horizontal Single Cylinder
4-stroke, OHV
Cooling System Forced air cooled
Fuel
Type
87+ octane, stabilizer-treated
unleaded gasoline
Capacity 6.60 Gallon / 25.00 Liter
Engine Oil
Type SAE 10W-30
Capacity 37 fl. oz.
Run Time @ 25% Load
with full tank
18.5 hr.
Sound Level at 23 feet, 25% load 67 dB(A)
Bore x Stroke 92mm x 69mm
Spark Plug
Type BPR6ES (NGK) or equivalent
Gap 0.027"– 0.031"
Valve Clearance
Intake 0.0039"– 0.0059"
Exhaust 0.0059"– 0.0078"
Engine Speed 2560 - 3410 RPM
The emissions control system for this Engine is warranted for standards set by the
U.S. Environmental Protection Agency. For warranty information, refer to the last pages of this manual.
Page 3
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTyOperaTiOnMainTenanCe SeTup

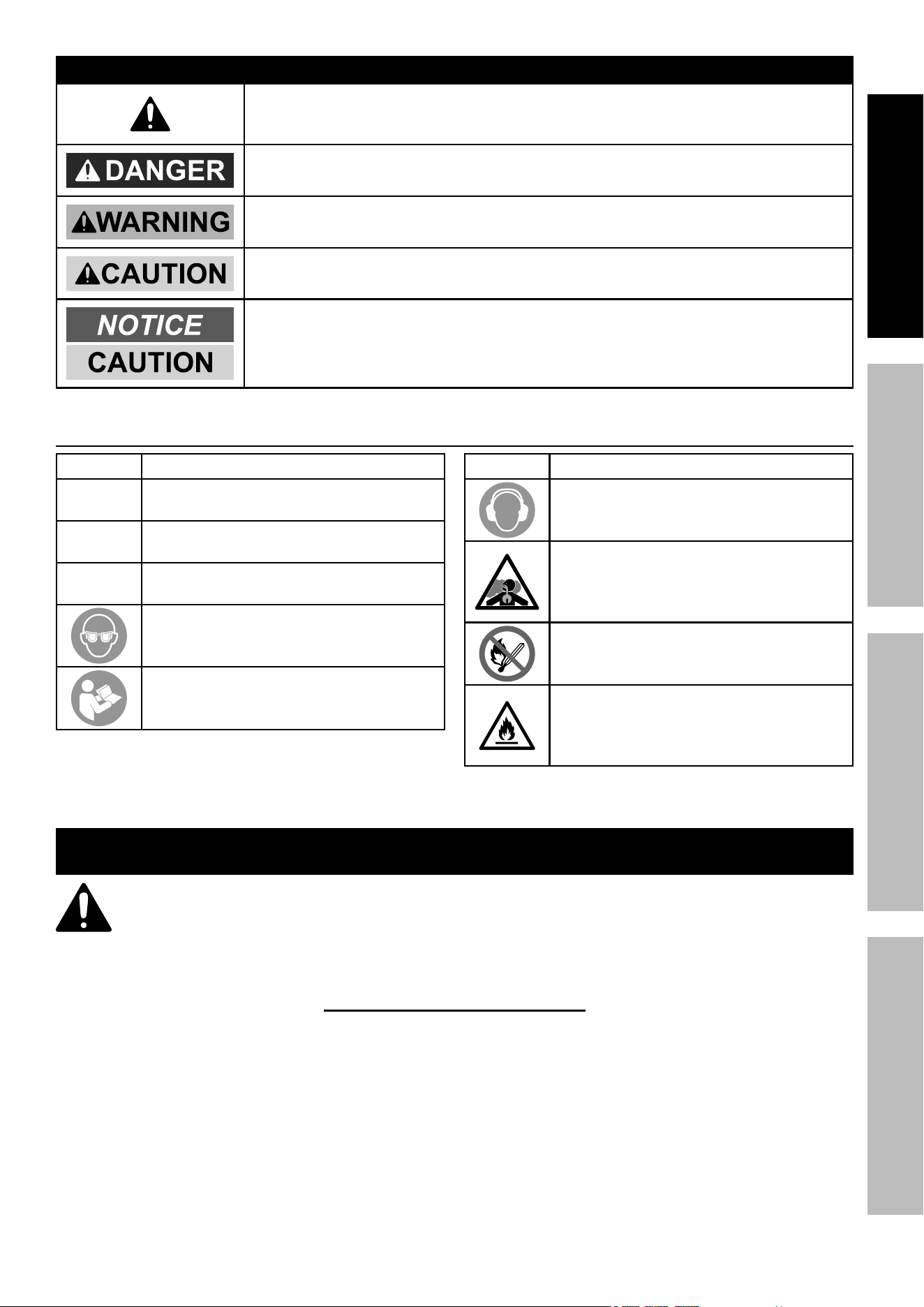

WarninG SyMBOLS anD DeFiniTiOnS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
Symbol Definitions
Symbol property or Statement
rpM
Revolutions Per Minute
Hp
Horsepower
aWG
American Wire Gauge
WARNING marking concerning
Risk of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Read the manual before
set-up and/or use.
Symbol property or Statement
WARNING marking concerning
Risk of Hearing Loss.
Wear hearing protection.
WARNING marking concerning
Risk of Respiratory Injury.
Operate engine OUTSIDE and far away
from windows, doors, and vents.
WARNING marking concerning
Risk of Fire while handling fuel.
Do not smoke while handling fuel.
WARNING marking concerning
Risk of Fire. Do not refuel while
operating. Keep flammable
objects away from engine.
iMpOrTanT SaFeTy inSTruCTiOnS
WarninG! read all instructions.
Failure to follow all instructions listed below may result in fire, serious injury and/or DeaTH.
The warnings and precautions discussed in this manual cannot cover all possible conditions and
situations that may occur. It must be understood by the operator that common sense and caution
are factors which cannot be built into this product, but must be supplied by the operator.
SaVe THeSe inSTruCTiOnS
Page 4
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTy OperaTiOn MainTenanCeSeTup
Setup precautions
1. Gasoline fuel and fumes are flammable, and
potentially explosive. Use proper fuel storage
and handling procedures. Do not store fuel
or other flammable materials nearby.
2. Have multiple ABC class fire extinguishers nearby.
3. Operation of this equipment may create sparks that
can start fires around dry vegetation.
A spark arrestor may be required. The operator
should contact local fire agencies for laws or
regulations relating to fire prevention requirements.
4. Set up and use only on a flat, level,
well-ventilated surface.
5. All connections and conduits from the Generator
to the load must only be installed by trained and
licensed electricians, and in compliance with all
relevant local, state, and federal electrical codes and
standards, and other regulations where applicable.
6. Connections for standby power to a building
electrical system must be made by a qualified
electrician. The connection must isolate the
Generator power from utility power, and must
comply with all applicable laws and electrical codes.
7. 7. A transfer switch should be installed by a A transfer switch should be installed by a
licensed electrician in compliance with all licensed electrician in compliance with all
applicable laws and electrical codes.applicable laws and electrical codes.
8. Wear ANSI-approved safety goggles, heavy-duty
work gloves, and dust mask/respirator during set up.
9. Use only lubricants and fuel recommended
in the Specifications chart of this manual.
10. Improper connections to a building electrical system
can allow electrical current from the Generator
to backfeed into the utility lines. Such backfeed
may electrocute utility company workers or others
who contact the lines during a power outage,
and the Generator may explode, burn, or cause
fires when utility power is restored. Consult
the utility company and a qualified electrician if
intending to use the Generator for back up power.
11. Do not operate the Generator before grounding.
The Generator must be earth-grounded
in accordance with all relevant electrical
codes and standards before operation.
12. 12. Install carbon monoxide alarm(s) with Install carbon monoxide alarm(s) with
battery backup in nearby buildings according battery backup in nearby buildings according
to manufacturer’s instructions.to manufacturer’s instructions.
Operating precautions

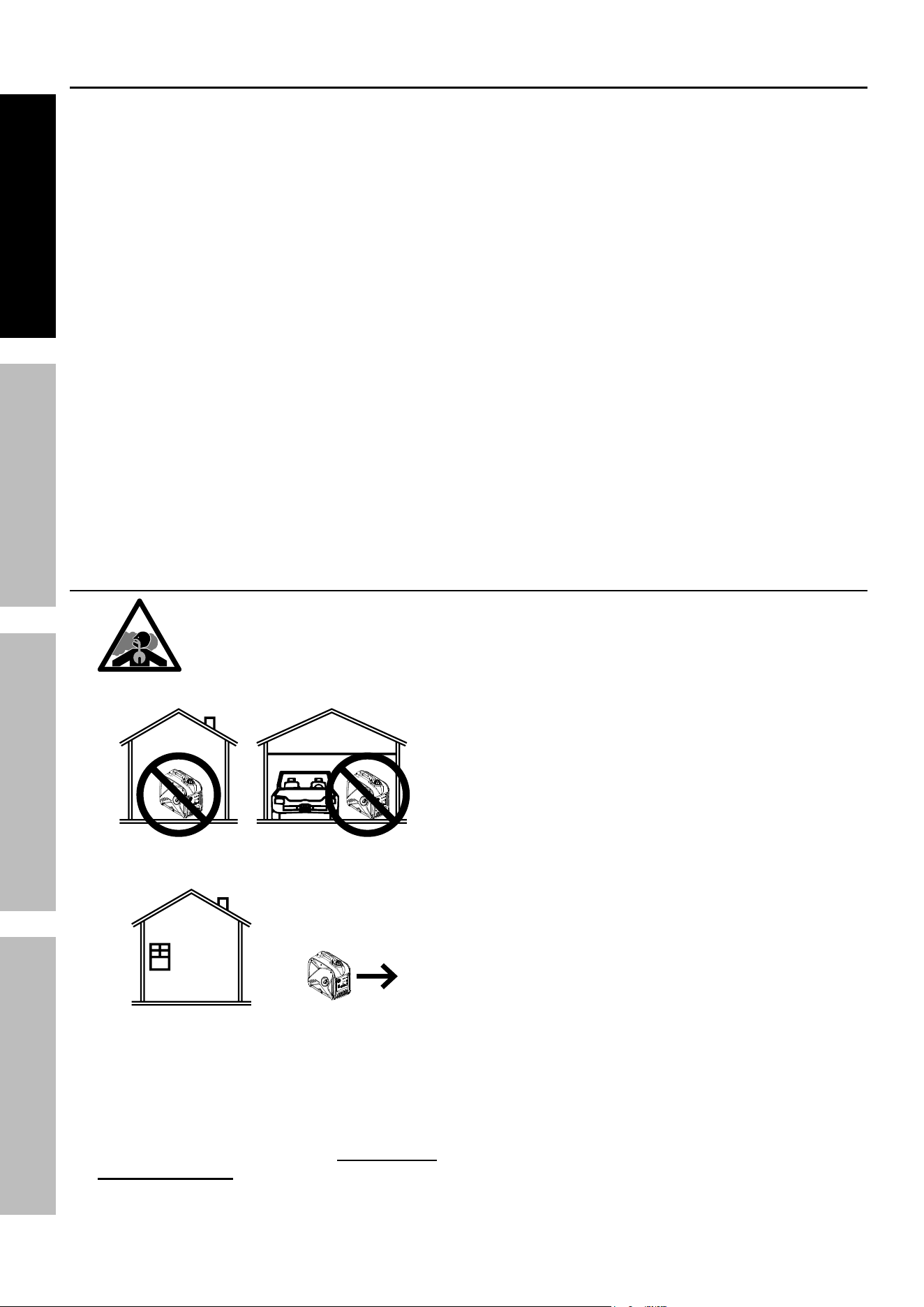

1. CarBOn MOnOXiDe HaZarD
using a generator indoors Can KiLL
yOu in MinuTeS.
Generator exhaust contains
carbon monoxide. This is a poison
you cannot see or smell.
OFF
RUN
START
LOW OIL
OVERLOAD
OUTPUT
PARALLEL OUTLETS
RESET
AC 120V
RESET
DC 12V
ESC
THROTTLE
OFF
RUN
START
LOW OIL
OVERLOAD
OUTPUT
PARALLEL OUTLETS
RESET
AC 120V
RESET
DC 12V
ESC
THROTTLE
NEVER use inside a home or garage,
EVEN IF doors and windows are open.
OFF
RUN
START
LOW OIL
OVERLOAD
OUTPUT
PARALLEL OUTLETS
RESET
AC 120V
RESET
DC 12V
ESC
THROTTLE
Only use OUTSIDE and far away from windows,
doors, and vents.
2. CarBOn MOnOXiDe SHuTOFF
DanGer! TO preVenT SeriOuS
inJury anD DeaTH FrOM
CarBOn MOnOXiDe inHaLaTiOn:
The Carbon Monoxide sensor is an additional
layer of protection only. Do not use the
Generator in any area or situation that will
allow carbon monoxide to accumulate.
• FLASHING RED LIGHT:
Dangerous levels of carbon monoxide gas have
built up and generator will shutoff.
Leave immediately until area has aired
out. Move Generator to well-ventilated
area before operation.
• FLASHING YELLOW LIGHT:
Carbon monoxide sensor malfunction.
Sensor needs service. Do not use the
Generator until the sensor is working
properly. For technical questions, please call
1-888-866-5797.
NOTE: Yellow light flashes once NOTE: Yellow light flashes once
after starting to indicate passing self-after starting to indicate passing self-
check and is functioning normally. check and is functioning normally.
Carbon Monoxide sensor must only be serviced
by qualified technician to restore it to original
settings. Do not modify or tamper with the
Carbon Monoxide sensor. not following these
instructions can result in death or serious injury
due to Carbon Monoxide sensor malfunction.
3. Never use a generator indoors, including in
garages, basements, crawl spaces and sheds.
Opening doors and windows or using fans will NOT
prevent carbon monoxide build up in the home.
4. When using generators, keep them outdoors
and far away from open doors, windows,
and vents to avoid toxic levels of carbon
monoxide from building up indoors.
Page 5
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTyOperaTiOnMainTenanCe SeTup
5. If you start to feel sick, dizzy, or weak while
using a generator, get to fresh air right away.
The carbon monoxide from generators can
quickly lead to full incapacitation and death.
6. Keep children away from the equipment,
especially while it is operating.
7. Keep all spectators at least six feet
from the engine during operation.
8. Fire Hazard! Do not fill gas tank while engine is
running. Do not operate if gasoline has been spilled.
Clean spilled gasoline before starting engine.
Do not operate near pilot light or open flame.
9. Do not touch engine during use.
Let engine cool down after use.
10. Never store fuel or other flammable
materials near the engine.
11. If the plugged in product operates abnormally
or unusually slow, immediately stop using the
generator as a power source. Read and adhere
to the instruction manual of the product to be
powered to make sure that it can be safely and
efficiently powered by a portable generator.
12. Before connecting an appliance or power cord
to the generator: Make sure that it is in good
working order. Faulty appliances or power cords
can create a potential for electrical shock.
13. Do not exceed the running wattage of the generator.
Make sure that the total electrical rating of the
all of the tools or appliances plugged into the
generator at the same time does not exceed that
of the generator. Check that the startup surge
will not be beyond the limit of the generator.
14. Avoid substantially overloading which will trip
the circuit breaker. Slightly overloading the
generator may not trip the circuit breaker,
but will lead to premature generator failure.
15. Do not attempt to connect or disconnect
load connections while standing in water,
or on wet or soggy ground.
16. Do not touch electrically energized parts of
the generator and interconnecting cables or
conductors with any part of the body, or with
any non-insulated conductive object.
17. Connect the generator only to a load that is
compatible with the electrical characteristics
and running wattage of the generator.
18. Insulate all connections and disconnected wires.
19. Guard against electric shock.
Prevent body contact with grounded surfaces such
as pipes, radiators, ranges, and refrigerators.
20. Only use a suitable means of transport and
lifting devices with sufficient weight bearing
capacity when transporting the generator.
21. Secure the generator on transport vehicles to
prevent it from rolling, slipping, and tilting.
22. Industrial applications must follow
OSHA requirements.
23. Do not leave the generator unattended when it is
running. Turn off the generator (and remove safety
keys, if available) before leaving the work area.
24. The generator can produce high noise levels.
Prolonged exposure to noise levels
above 85 dBA is hazardous to hearing.
Wear ear protection when operating the generator
or when working nearby while it is operating.
25. Keep access doors on enclosures locked.
26. Wear ANSI-approved safety glasses
and hearing protection during use.
27. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to a heart pacemaker could cause
pacemaker interference or pacemaker failure.
Caution is necessary when near the
engine’s magneto or recoil starter.
28. Use only accessories that are recommended
by Harbor Freight Tools for your model.
Accessories that may be suitable for one
piece of equipment may become hazardous
when used on another piece of equipment.
29. Do not operate in explosive atmospheres,
such as in the presence of flammable
liquids, gases, or dust. Gasoline-powered
engines may ignite the dust or fumes.
30. Stay alert, watch what you are doing and
use common sense when operating this
generator. Do not use while tired or under the
influence of drugs, alcohol or medication.
31. Dress properly. Do not wear loose clothing or
jewelry. Keep hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or
long hair can be caught in moving parts.
32. Parts, especially exhaust system components,
get very hot during use. Stay clear of hot parts.
33. Do not cover the generator during operation.
34. Keep the generator and surrounding area
clean at all times. Keep generator at least
5 feet from combustible objects.
35. Do not smoke, or allow sparks, flames,
or other sources of ignition around the
equipment, especially when refuelling.
36. Use the equipment, accessories, etc.,
in accordance with these instructions and in
the manner intended for the particular type of
equipment, taking into account the working
conditions and the work to be performed.
Use of the equipment for operations different from
those intended could result in a hazardous situation.
37. Do not operate the equipment with known
leaks in the engine’s fuel system.
Operating precautions (continued)
Page 6
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTy OperaTiOn MainTenanCeSeTup
38. When spills of fuel or oil occur, they must be
cleaned up immediately. Dispose of fluids and
cleaning materials as per any local, state, or
federal codes and regulations. Store oil rags in
a bottom-ventilated, covered, metal container.
39. Keep hands and feet away from moving parts.
Do not reach over or across
equipment while operating.
40. Before use, check for misalignment or binding of
moving parts, breakage of parts, and any other
condition that may affect the equipment’s operation.
if damaged, have the equipment serviced
before using. Many accidents are caused
by poorly maintained equipment.
41. Use the correct equipment for the application.
Do not modify the equipment and do not use the
equipment for a purpose for which it is not intended.
42. 42. Extension Cord - Make sure your extension cord is Extension Cord - Make sure your extension cord is
in good condition. When using an extension cord, be in good condition. When using an extension cord, be
sure to use one heavy enough to carry the current sure to use one heavy enough to carry the current
your product will draw. An undersized extension your product will draw. An undersized extension
cord will cause a drop in line voltage resulting in loss cord will cause a drop in line voltage resulting in loss
of power and overheating. of power and overheating.
The table below shows the correct cord size to use The table below shows the correct cord size to use
depending on cord length and nameplate ampere depending on cord length and nameplate ampere
rating. If in doubt, use the next heavier gauge. rating. If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord. The smaller the gauge number, the heavier the cord.
reCOMMenDeD MiniMuM Wire GauGe FOr eXTenSiOn COrDS
CurrenT
(aMpS)
Load @
120V
(WaTTS)
Load @
240V
(WaTTS)
0 ~ 50 ft 50 ~ 75 ft 75 ~ 100 ft
2 240 480 18 AWG
4 480 960 18 AWG 16 AWG
6 720 1440 18 AWG 16 AWG 14 AWG
8 960 1920 16 AWG 12 AWG
10 1200 2400 16 AWG 14 AWG 12 AWG
15 1800 3600 14 AWG 12 AWG 10 AWG
20 2400 4800 12 AWG 10 AWG
25 3000 6000 12 AWG 10 AWG 8 AWG
30 3600 7200 10 AWG 8 AWG
35 4200 8400 8 AWG 6 AWG
40 4800 9600 6 AWG
parallel Kit precautions
TO preVenT SeriOuS inJury, DeaTH, anD GeneraTOr anD/Or eQuipMenT
DaMaGe FrOM eLeCTriC SHOCK anD Fire:
1. Follow parallel Kit instructions provided with
Kit for connection and use of a parallel Kit.
2. Only connect two identical Inverter Generators
together using a Parallel Kit.
3. Connect Parallel Kit only to terminals marked
“Parallel Outlets” on the front of the Generator.
4. Do not remove or connect a Parallel Kit
while the Generator is running.
5. Do not use a Parallel Kit that is
attached to only one Generator.
Page 7
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTyOperaTiOnMainTenanCe SeTup
Service precautions
1. Before service, maintenance, or cleaning:
a. unplug all devices from the generator.
b. Turn the Combination Switch
to its “OFF” position.
c. Disconnect the negative battery terminal.
d. allow the engine to completely cool.
e. Then, remove the spark plug cap
from the spark plug.
2. Keep all safety guards in place and in
proper working order. Safety guards include
muffler, air cleaner, mechanical guards,
and heat shields, among other guards.
3. Keep all electrical equipment clean and dry.
Replace any wiring where the insulation is
cracked, cut, abraded, or otherwise degraded.
Replace terminals that are worn, discolored, or
corroded. Keep terminals clean and tight.
4. Do not alter or adjust any part of the
equipment or its engine that is sealed by the
manufacturer or distributor. Only a qualified
service technician may adjust parts that may
increase or decrease governed engine speed.
5. Wear ANSI-approved safety goggles,
heavy-duty work gloves, and
dust mask/respirator during service.
6. Maintain labels and nameplates on the equipment.
These carry important information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
7. Have the equipment serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the equipment
is maintained. Do not attempt any service or
maintenance procedures not explained in this
manual or any procedures that you are uncertain
about your ability to perform safely or correctly.
8. Store equipment out of the reach of children.
9. Follow scheduled engine and
equipment maintenance.
refueling:
1. Do not refill the fuel tank while the
engine is running or hot.
2. Do not smoke, or allow sparks, flames,
or other sources of ignition around the
equipment, especially when refuelling.
3. Do not fill fuel tank to the top.
Leave a little room for the fuel to expand as needed.
4. Refuel in a well-ventilated area only.
5. Wipe up any spilled fuel and allow excess
to evaporate before starting engine.
To prevent Fire, do not start the engine
while the smell of fuel hangs in the air.
Button/Coin Battery Safety
WarninG
• inGeSTiOn HaZarD: This product contains
a button cell or coin battery.
• DeaTH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause
internal Chemical Burns in as little as 2 hours.
• Keep new and used batteries OuT OF reaCH OF CHiLDren
• Seek immediate medical attention if a battery is suspected
to be swallowed or inserted inside any part of the body.
This symbol means:
inGeSTiOn HaZarD: This product contains a
button cell or coin battery.
1. Remove and immediately recycle or dispose
of used batteries according to local regulations
and keep away from children. Do NOT dispose
of batteries in household trash or incinerate.
2. Even used batteries may cause
severe injury or death.
3. Call a local poison control center
for treatment information.
4. Non-rechargeable batteries are not to be recharged.
5. Do not force discharge, recharge, disassemble,
heat above 140° Fahrenheit or incinerate. Doing
so may result in injury due to venting, leakage
or explosion resulting in chemical burns.
SaVe THeSe inSTruCTiOnS.
Page 8
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTy OperaTiOn MainTenanCeSeTup
Set up
read the enTire iMpOrTanT SaFeTy inFOrMaTiOn section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
TO preVenT SeriOuS inJury anD Fire: Operate only with proper spark arrestor installed.
Operation of this equipment may create sparks that can start fires around dry vegetation.
a spark arrestor may be required.
The operator should contact local fire agencies for laws or regulations relating to fire
prevention requirements.
At high altitudes, the engine’s carburetor, governor, and any other parts that control the fuel-air ratio
will need to be adjusted by a qualified mechanic to allow efficient high-altitude use and
to prevent damage to the engine and any other devices used with this product.
Grounding
The Generator must be properly grounded in
accordance with all relevant electrical codes and
standards before operation. In many locations, local
code will not require this generator to be grounded
when used with cord and plug equipment plugged
directly into the receptacles on the generator. However,
your local regulations may require the generator to be
grounded. Contact a licensed electrician or consult
local authorities regarding local grounding requirements.
If grounding is required, have the unit grounded by a
qualified electrician if you are not qualified to do so.
General grounding instructions are as follows:
Use one of the following as the grounding electrode:
pipe or conduit, minimum ¾ in. diameter, minimum
8 ft. long. If steel, it must have anti-corrosion coating.
rod, stainless steel or copper- or zinc-coated steel,
minimum 5/8 in. diameter, minimum 8 ft. long.
1. Drive electrode at least 8 ft vertically into the ground.
a. If rock layer prevents vertical entry, drive at an
angle not exceeding 45 degrees from vertical.
b. If rock layer prevents angle entry, bury
electrode in horizontal trench at least 30 in. deep.
2. The upper end of electrode must be
protected if above ground level.
3. Connect a #6 AWG grounding wire (not included)
from the Grounding Terminal on the Generator
Control Panel to the buried electrode.
For additional information on grounding methods,
please see the National Electrical Code.
note: There is a permanent conductor between
the portable generator inverter module
(Neutral Conductor) and the frame.
electric Starter Battery Connection
For the electric start function, the included 12 VDC
Battery must be connected before first use.
1. Remove the Battery Access Panel.
2. Make sure the black strap stretches over the top of
the Battery and hooks into the Battery Platform.
3. Remove the covers from the Battery Terminals.
4. Locate the black and red battery cables.
5. Connect the red cable to the positive battery
terminal first. Then connect the black
cable to the negative battery terminal.
6. Replace the Battery Access Panel.
note: This generator is equipped with a battery charging
circuit specific to the installed battery type that will
charge the battery when the Generator is running.
If battery needs charging during storage, make sure
to use a proper lead acid charger (not provided).
Unplug charger when battery is fully charged.
Page 9
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTyOperaTiOnMainTenanCe SeTup
Components and Controls
OFF
OFF
engine
Switch
economy
(eSC) Switch
Voltage
Selector
CO alarm
Light
Output
Overload
Low Oil
Combination
Switch
12VDC receptacle
12VDC Breaker
reset Button
Ground
Terminal
120VaC 30a
L5-30r
120VaC
20a GFCi
120/240VaC 30a
L14-30r
Circuit
Breaker
120VaC
Breaker resets
parallel Kit
Terminals
Hour Meter
5V uSB-a

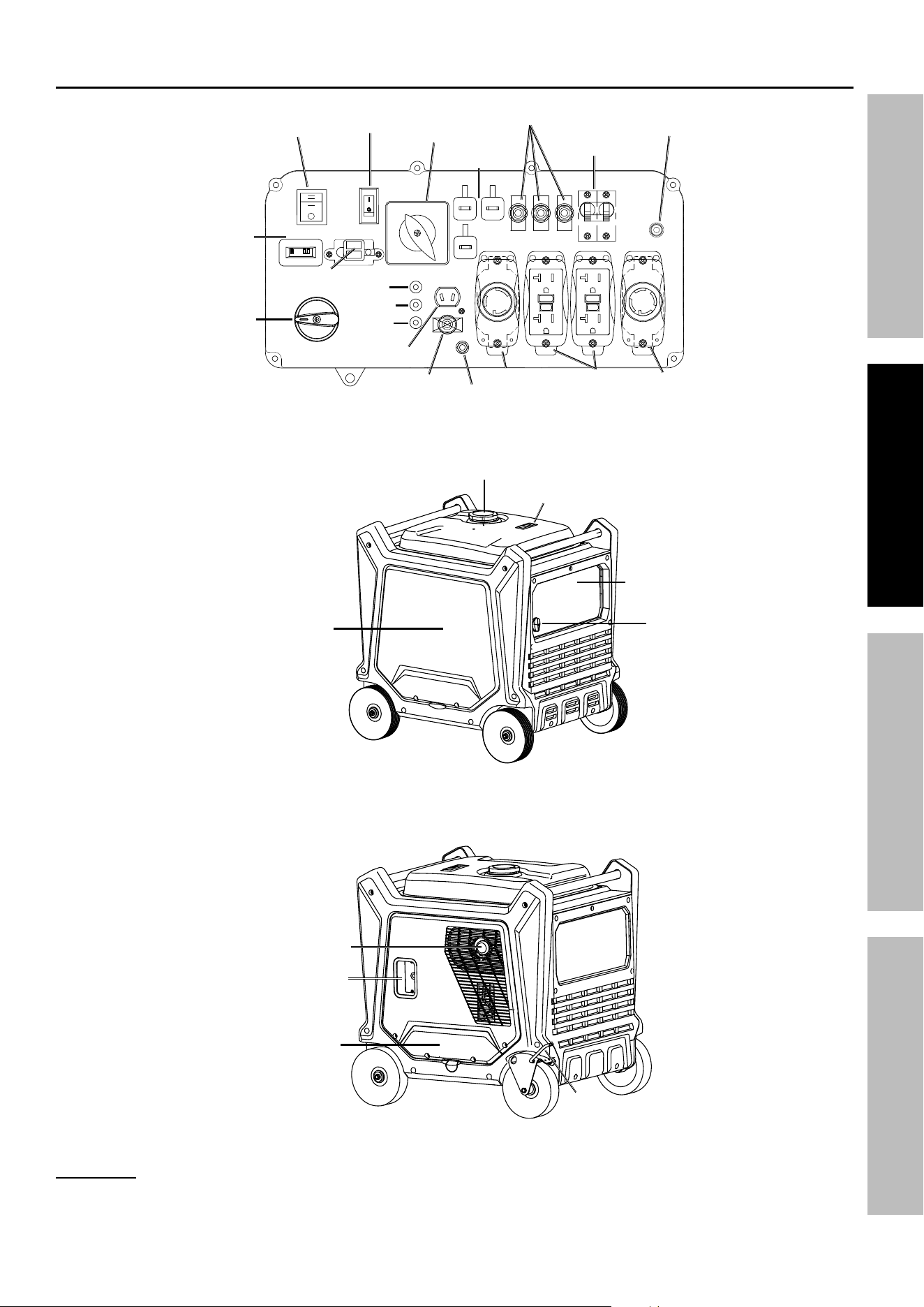

Figure a: Control panel
Fuel Tank Cap
Fuel Gauge
Control panel
Combination
Switch
air Filter/Spark plug/
Battery acess panel
Muffler
recoil
Handle
Oil Fill
access Door
Wheel Lock
Figure B: Generator Components
WarninG! TO preVenT SeriOuS inJury: Follow parallel Kit instructions for
connection and use of a parallel Kit (parallel Kit and instructions sold separately).
Generator must be in 120V/240V mode for parallel function.
Page 10
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTy OperaTiOn MainTenanCeSeTup
Operation
read the enTire iMpOrTanT SaFeTy inFOrMaTiOn section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
pre-Start Checks
Inspect Engine and Generator looking for damaged, loose, and missing parts before set up and starting.
If any problems are found, do not use equipment until fixed properly.

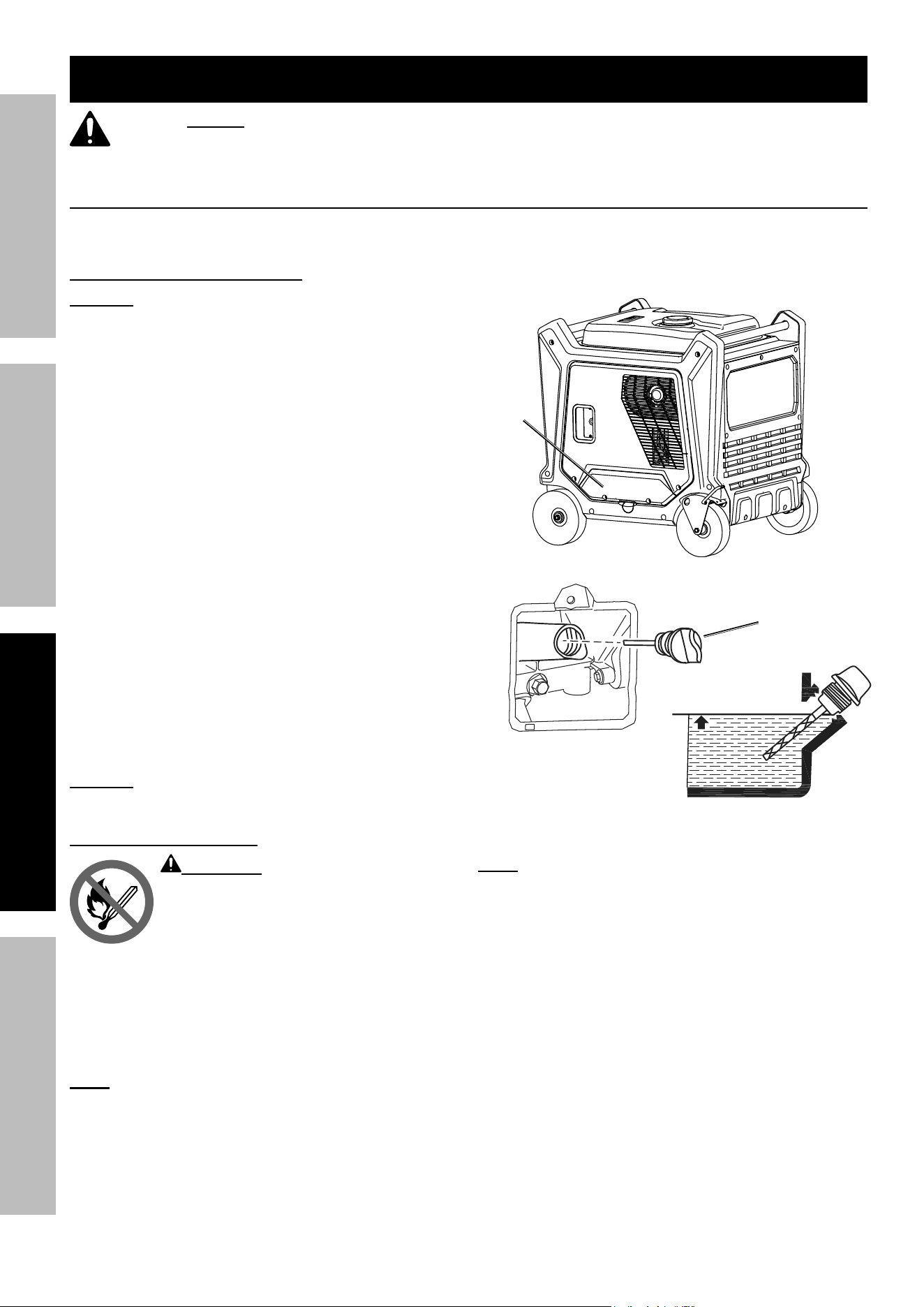

Checking and Filling engine Oil
nOTiCe: Generator is shipped without engine
oil. engine’s crankcase MuST be filled with
oil before first use. your Warranty is VOiD if
the engine’s crankcase is not properly filled
with oil before first use and before each use
thereafter. Before each use, check the oil level.
engine will not start with low or no engine oil.
1. Make sure the Engine is stopped and is level.
2. On the left side of the Generator, loosen
the Screw and remove the Oil Fill
Access Door, as shown to the right.
3. Clean the top of the Oil Fill Cap / Dipstick
and the area around it. Remove the
Cap / Dipstick, turning it counterclockwise.
4. Check the oil level. The oil level should be
up to the edge of the hole as shown.
5. As needed, add the appropriate type of
oil until the oil level is at the proper level.
SAE 10W-30 oil is recommended for general use.
6. Thread the Oil Fill Cap / Dipstick back in clockwise
and replace the Oil Fill Access Door.
nOTiCe: Do not run the engine with too little oil.
engine will shut off if engine oil level is too low.
Oil Fill
access
Door
Full Level
x
x
x x
x x
x
Oil Fill
Cap / Dipstick
Checking and Filling Fuel
WarninG! TO preVenT SeriOuS
inJury FrOM Fire:
Fill the fuel tank in a well-ventilated area
away from ignition sources. If the Engine
is hot from use, shut the Engine off and
wait for it to cool before adding fuel. Do not smoke.
1. Clean the Fuel Cap and the area around it.
2. Unscrew and remove the Fuel Cap.
3. Remove the Strainer and remove any dirt
and debris. Then replace the Strainer.
note: Do not use gasoline containing more than
10% ethanol (e10). Do not use e85 ethanol. add fuel
stabilizer to the gasoline or the Warranty is VOiD.
note: Do not use gasoline that has been stored in a
metal fuel container or a dirty fuel container. it can
cause particles to enter the carburetor, affecting
engine performance and/or causing damage.
4. If needed, fill the Fuel Tank to about 1 inch under
the fill neck of the Fuel Tank with 87 octane or
higher unleaded gasoline that has been treated
with a fuel stabilizer additive. Follow fuel stabilizer
manufacturer’s recommendations for use.
5. Replace the Fuel Cap.
6. Wipe up any spilled fuel and allow excess
to evaporate before starting engine.
To prevent FIRE, do not start the engine
while the smell of fuel hangs in the air.
Page 11
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTyOperaTiOnMainTenanCe SeTup
Starting the engine
Before Starting the engine
a. inspect the generator and engine.
b. Disconnect all electrical loads from the generator.
c. Fill the engine with the proper amount and type of
both stabilizer-treated unleaded gasoline and oil.

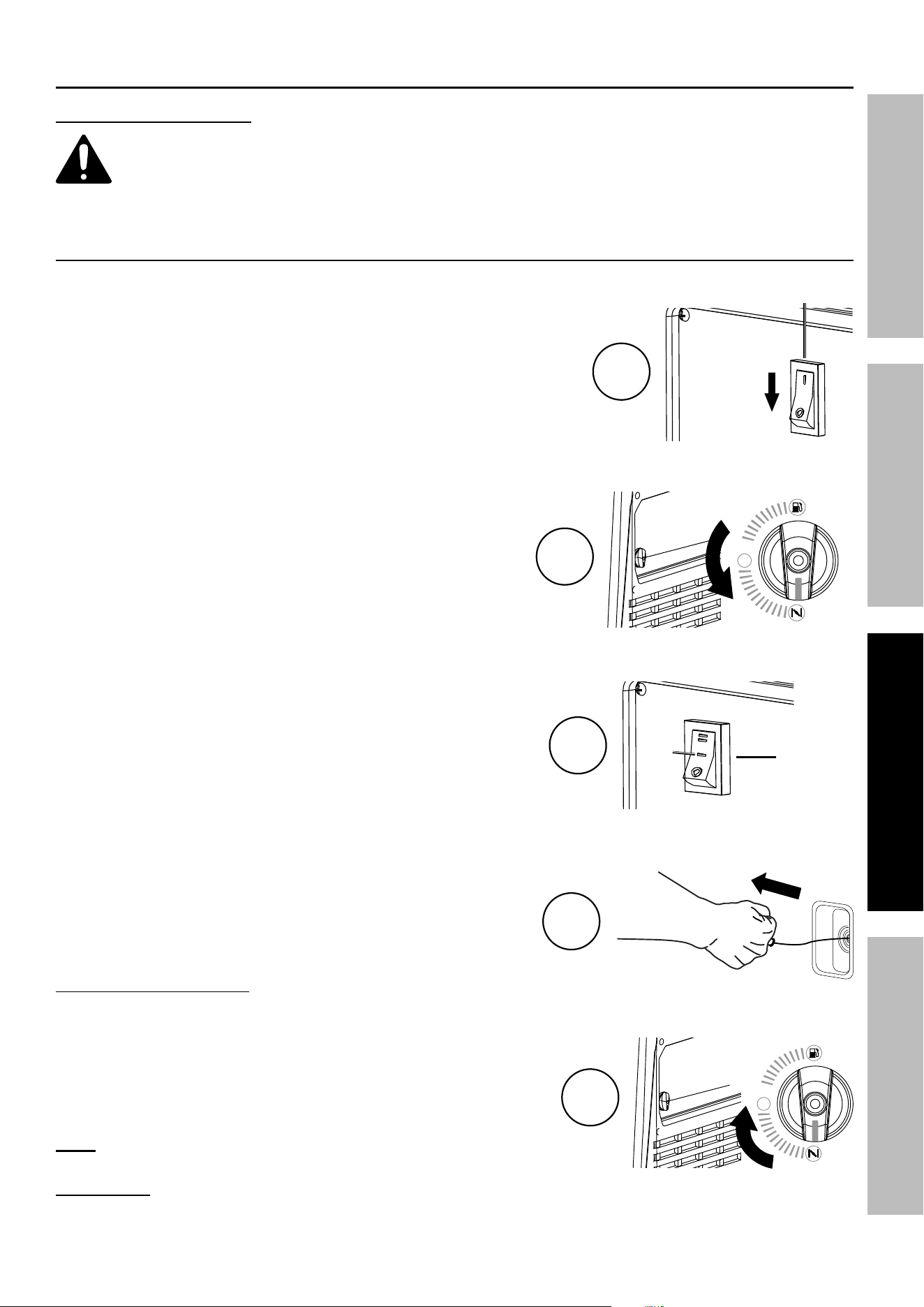

Manual Start
1. Turn the Economy Switch
to the OFF position.
2. Turn the Combination Switch
to the START position.
3. Turn the Engine Switch to the ON position.
4. Grip the Starter Handle of the Engine loosely and
pull it slowly several times to allow the gasoline to flow
into the Engine’s carburetor. Then pull the Starter
Handle gently until resistance is felt. Allow Cable to
retract fully and then pull it quickly. Repeat until the
Engine starts. Do not let the Starter Handle snap back
against the housing. Hold it as it recoils so it doesn't
hit the housing.
5. After the engine starts, allow to run for
20 seconds then turn the Combination
Switch to the RUN position.
if engine does not start:
• Check engine oil level.
Engine will not start with low or no engine oil.
• Check spark arrestor cleanliness.
Engine will not start if spark arrestor is clogged.
• For warm engine – turn Combination Switch
to RUN before trying to start it again.
note: Moving the Combination Switch
too fast could stall the Engine.
iMpOrTanT: Allow the Engine to run at no load for five minutes
after each start-up so that the Engine can stabilize.
ON
OFF
ON
START
OFF
OFF
STORAGE
RUN
START
CHOKE
ON
START
OFF
1
eCOnOMy
SWiTCH
2
LOW IDLE MODE
ON
OFF
ENGINE SW.
ON
START
OFF
OFF
STORAGE
RUN
START
CHOKE
ENGINE SW.
ON
START
OFF
LOW IDLE MODE
ON
OFF
ON
START
OFF
OFF
STORAGE
RUN
START
CHOKE
ON
START
OFF
3
enGine
SWiTCH
4
OFF
STORAGE
RUN
START
CHOKE
5
Page 12
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTy OperaTiOn MainTenanCeSeTup

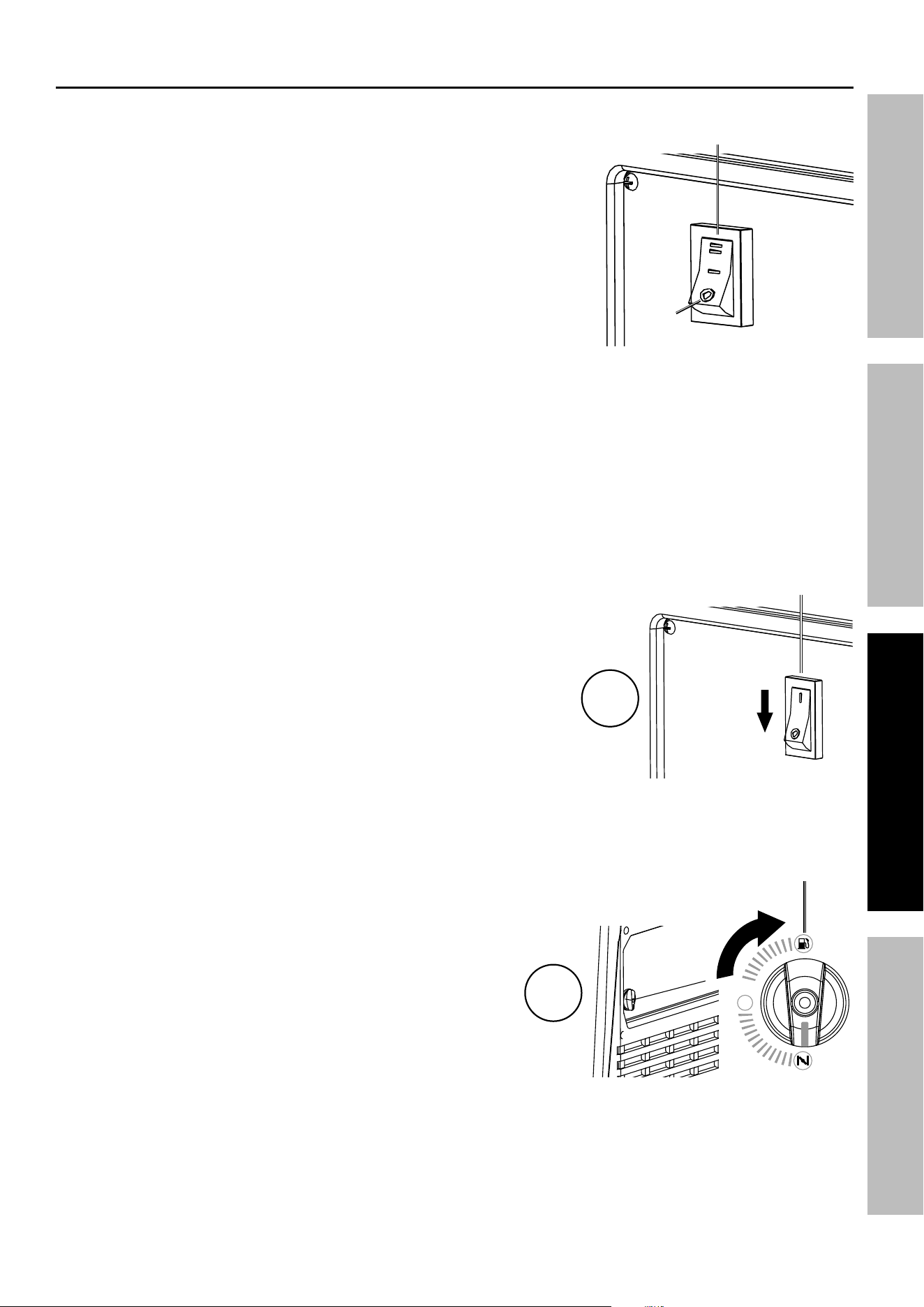

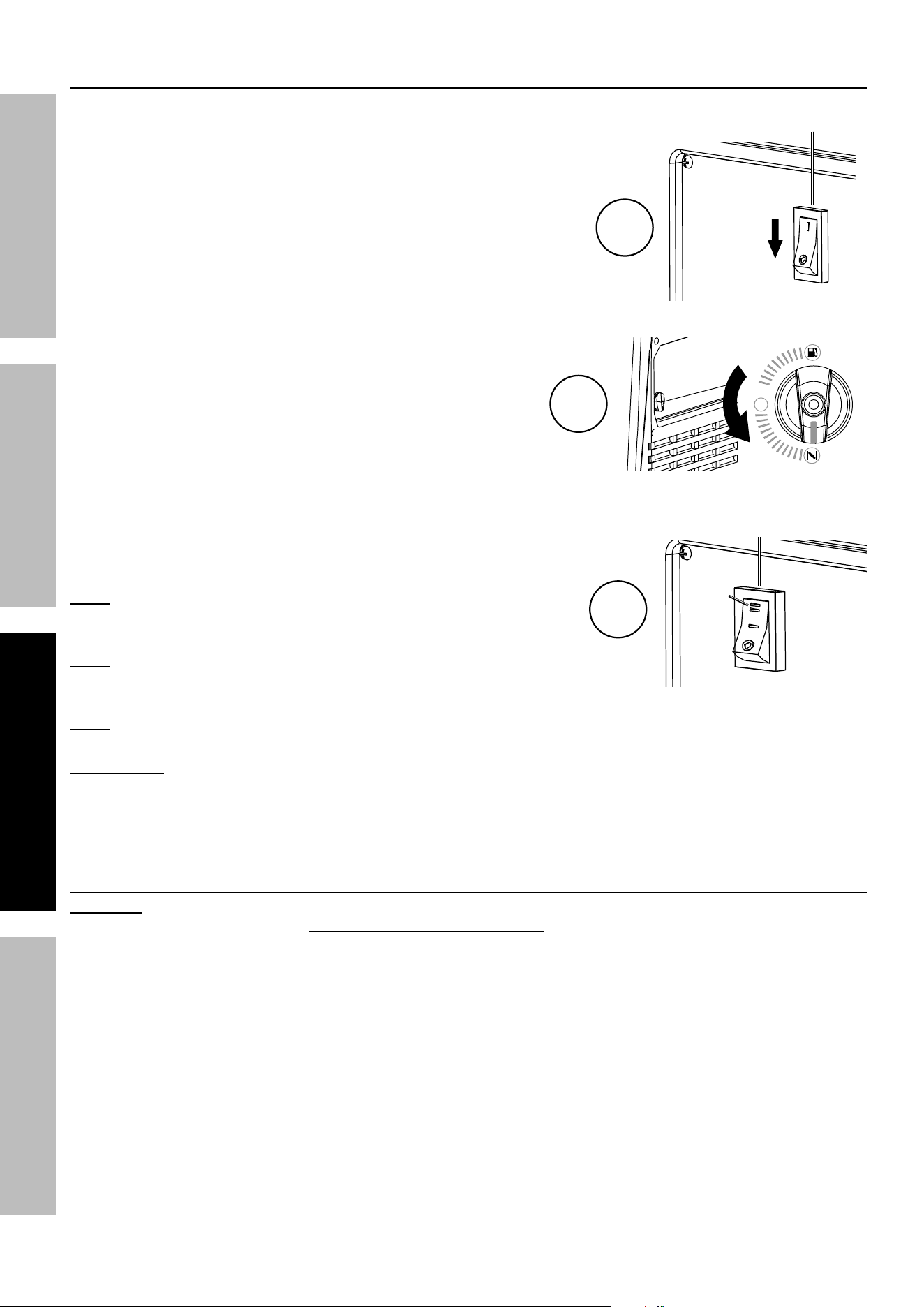

electric Start
1. Turn the Economy Switch
to the OFF position.
2. Turn the Combination Switch to the
START position.
3. Turn the Engine Switch to START
position to start the Engine. If Engine
does not start within 3 seconds,
release Starter Button. Wait at
least 10 seconds, then try again.
4. After the engine starts, allow to run for
20 seconds then turn the Combination
Switch to the RUN position.
note: If engine does not start, check
engine oil level. Engine will not
start with low or no engine oil.
note: If warm engine does not start,
turn Combination Switch to RUN
before trying to start it again.
note: Moving the Combination
Switch too fast could stall the Engine.
iMpOrTanT: Allow the Engine to run
at no load for five minutes after each
start-up so that the Engine can stabilize.
CarBOn MOnOXiDe SHuTOFF
DanGer! TO preVenT SeriOuS inJury anD DeaTH FrOM CarBOn MOnOXiDe inHaLaTiOn:
The Carbon Monoxide sensor is an additional layer of protection only. Do not use the
Generator in any area or situation that will allow carbon monoxide to accumulate.
• FLASHING RED LIGHT:
Dangerous levels of carbon monoxide gas
have built up. Leave immediately until
area has aired out. Move Generator to
well-ventilated area before operation.
• FLASHING YELLOW LIGHT:
Carbon monoxide sensor malfunction.
Sensor needs service. Call 1-888-866-5797 as
soon as possible. Do not use the Generator until
the sensor is working properly.
NOTE: Yellow light flashes once NOTE: Yellow light flashes once
after starting to indicate passing self-after starting to indicate passing self-
check and is functioning normally. check and is functioning normally.
Carbon Monoxide sensor must only be serviced by qualified technician to restore it to original
settings. Do not modify or tamper with the Carbon Monoxide sensor. not following these
instructions can result in death or serious injury due to Carbon Monoxide sensor malfunction.
ON
OFF
ON
START
OFF
OFF
STORAGE
RUN
START
CHOKE
ON
START
OFF
1
eCOnOMy
SWiTCH
2
LOW IDLE MODE
ON
OFF
ENGINE SW.
ON
START
OFF
OFF
STORAGE
RUN
START
CHOKE
ENGINE SW.
ON
START
OFF
LOW IDLE MODE
ON
OFF
ON
START
OFF
OFF
STORAGE
RUN
START
CHOKE
ON
START
OFF
enGine
SWiTCH
3
Page 13
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTyOperaTiOnMainTenanCe SeTup
Break-in period
a. Breaking-in the Engine will help to ensure proper equipment and Engine operation.
b. The break-in period will last about 30 hours of use.
DO NOT exceed 75% of the Generator’s running wattage during this period.
• Change the engine oil after this period.
Under normal operating conditions subsequent maintenance follows
the schedule explained in the MainTenanCe section.
Nominal 12 VDC Output
1. Move the Economy (ESC) Switch to the OFF position.
2. Only use the 12 VDC receptacle to charge a 12 volt lead-acid type battery using an appropriate
charge controller. (Battery and controller not included.) The 12 VDC output is not regulated.
3. Do not connect any device to the 12 VDC terminal that draws more than 8 amps.
4. If this 12 VDC circuit protection is tripped, reduce the load, and press the Reset Button next to the outlet.
note: Do not allow the Generator to completely run out of fuel with devices attached. a Generator’s
output may sharply spike as it runs out of fuel, causing damage to attached devices.

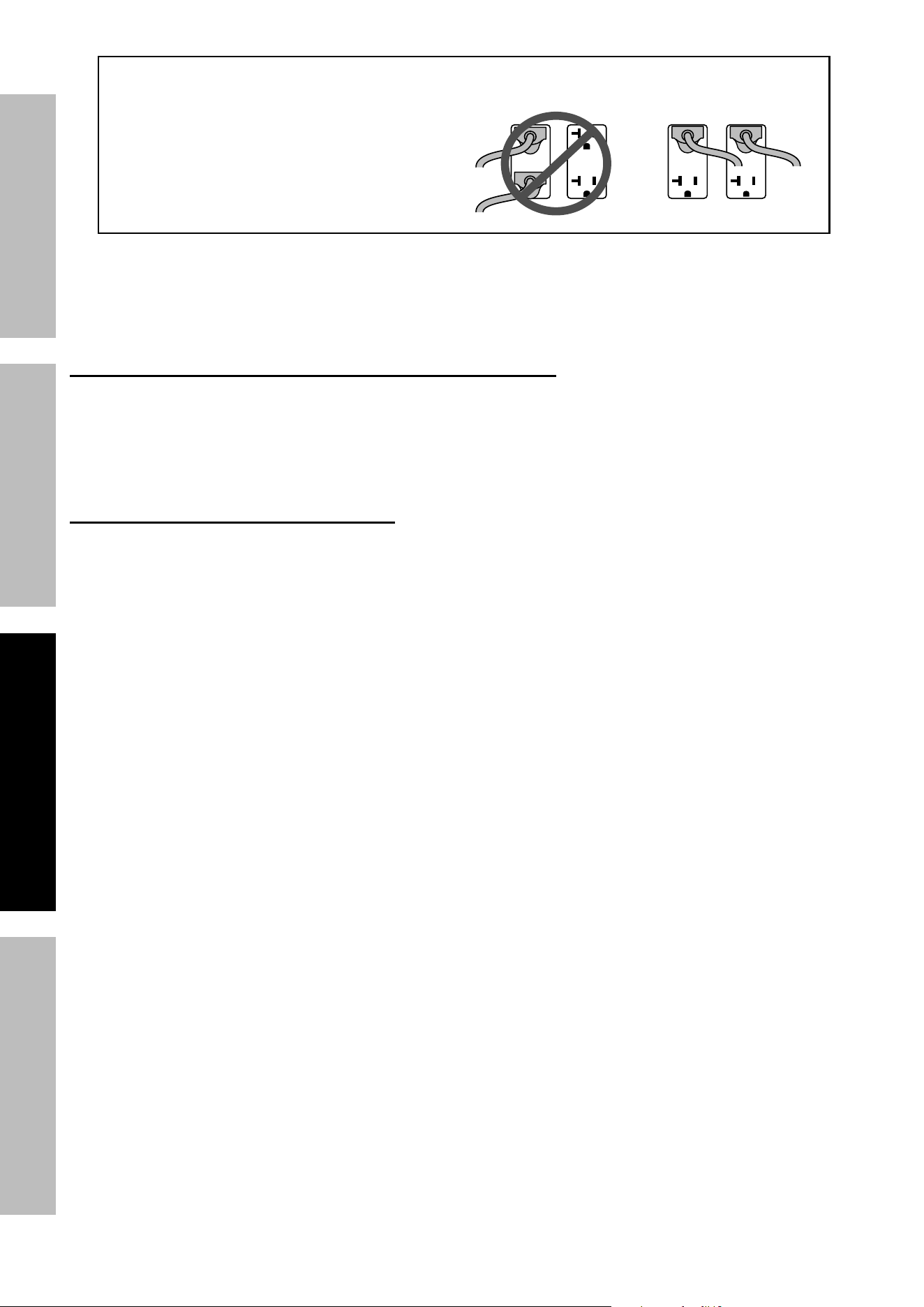

Connecting electrical Loads
Familiarize yourself with the engine controls, power panel and how to start the engine
before using the Generator. Calculate the wattage of the products you will use with
the Generator and verify that the Generator can handle the total load.
WarninG! Connect only properly wired plugs to the Generator.
A plug that is spliced onto a different cord may be hazardous.
Only a qualified electrician should wire a plug onto a cord.
WarninG! Never exceed the rated capacity for this Generator,
as serious damage to the Generator and/or appliances, tools, and
equipment could result from an overload. Starting and running
wattage requirements should always be calculated when matching
this Generator’s wattage capacity to the appliance, tool, or
equipment.
Use the DC12 V Receptacle to power 12 VDC equipment.
WarninG! TO preVenT SeriOuS inJury: Do not charge batteries
without a proper charge controller. Do not overcharge.
a. Connect the items that require the most wattage first.
b. Connect “inductive” load appliances, tools, and equipment next. Inductive
loads are small hand tools and some small appliances.
c. Connect any lights next.
d. Voltage sensitive appliances, tools, and equipment should be the last to be connected to the Generator.
Plug voltage sensitive items such as TVs, DVD players, microwaves, and cordless telephones into a UL
®
Listed voltage surge protector (not included). Then, connect the surge protector into the Generator.
iMpOrTanT! Failure to connect and operate appliances, tools, and equipment in this sequence can cause
damage to the Generator, appliances, tools, and equipment and will void the Warranty of this Generator.
l
S
t
1,
000
400
200
1,200
To
ta
l r
u
n
n
in
g
Wa
tts
(m
u
s
t b
e
le
s
s
th
a
n
4,200
L
a
rg
e
s
t
a
d
d
itio
n
a
l S
ta
rt-u
p
Wa
tts
1,200
a
rtu
p
Wa
tts
n
e
e
d
e
d
fo
r a
ll lo
a
d
s
(m
u
s
t b
e
le
s
s
th
a
n
5,400
Must be
Less than
Must be
Less than
Page 14
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTy OperaTiOn MainTenanCeSeTup
evenly distributed
over outlets:
iF any CirCuiT BreaKerS Trip CHeCK THe FOLLOWinG:
1. Make sure that ALL circuit breakers are reset
before starting the Generator again.
2. Adjust the plugs so the loads are
shared across outlet circuits.
To achieve rated output from the Generator,
distribute loads over outlets.
The generator uses a 2-circuit system to supply power to the receptacles. The loads must
be evenly distributed across receptacles to prevent overload on a single circuit. If the loads
being drawn are below the max rated wattage of the generator, yet the overload light begins
blinking or the generator shuts off, try redistributing plugs across receptacles.
120V Only (3-wire) adaptor Cord Connected to L14-30 receptacle:
If the overload light begins blinking or the Generator shuts off, too much wattage is being drawn from one
circuit even though the rated wattage of the Generator has not been reached. If an additional plug is connected
to one of the duplex receptacles, move the plug to the other duplex receptacle. Restart the Generator.
Note: Only half the Generator’s rated wattage, or 3800W, will be delivered through
a 120V (3-wire) adaptor cord. Exceeding this may cause overload.
240V Cord Connected to L14-30 receptacle:
The 240V cord will draw full wattage from both circuits. If further loads
are possible, distribute them across receptacles.
Page 15
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTyOperaTiOnMainTenanCe SeTup
Before using the Generator, check that the products
you want to plug into the unit are below the rated and
maximum wattage ratings of the Generator. Use the
Wattage Calculation Table below, and the watts listed
on your products, to help calculate multiple
wattage totals.
To use the table:
1. Add up the Running Watts for all items you
would like to use at any given time.

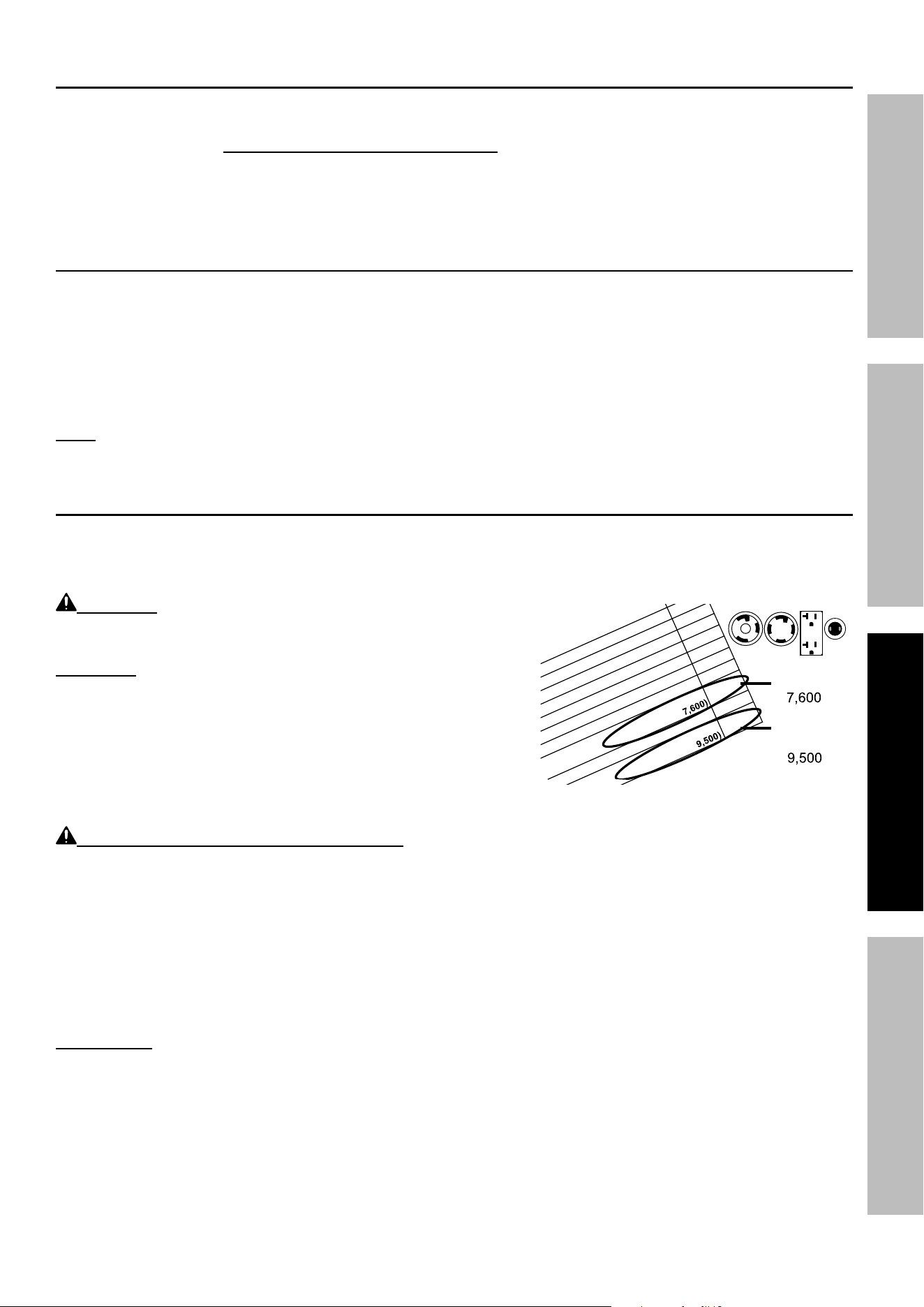

2. Make sure that this total is under the 7,600
running wattage of the Generator.
3. Find the single highest starting watts for
the selected items and add to the total.
4. Make sure that this total is under the 9,500
max. starting wattage of the Generator.
5. Plug in and turn on products from largest wattage
to smallest.
example
equipment
running
Watts
Electric Water Heater (2,000 + 0) 2,000
Television (400 + 0) 400
Lawn Mower (1,200 + 1,200) 1,200
Hand Drill (600 + 600) 600
Total Running Watts
(must be less than 7,600)
4,200
Largest Additional Start-up Watts
1,200
Total Startup Watts needed for all loads
(must be less than 9,500)
5,400
Wattage Calculation Table
equipment
running
Watts
Total running Watts
(must be less than 7,600)
Largest additional Start-up Watts
Total Startup Watts needed for all loads
(must be less than 9,500)
A generator that is rated more than the minimum
required max. starting watts will last much longer than
a generator that only supplies the exact watts needed.
To Calculate Wattage
Volts and amps can be multiplied together to get watts
(volts x amps = watts).
To Calculate additional Start-up Watts
(if They are not Listed)
For equipment with a motor: Use the rated watts
amount as an estimate of additional Start-up Watts.
For most lights or heaters:
there are no additional start-up watts.
Calculating Total Wattage of Devices used with the Generator
JOB SiTe
Device
running
Watts
additional
Start-up
Watts
Air Compressor - 1/2 HP 1000 1000
Table Saw - 10" 1700 1300
Belt Sander - 3" 1200 1200
Hand Drill - 1/2" 600 600
Halogen Work Light 1000 0
Recipricating Saw 900 900
HOuSeHOLD
Device
running
Watts
additional
Start-up
Watts
Computer w/ Monitor 800 0
Electric Clothes Dryer 5500 500
Electric Range 2100 0
Electric Water Heater 2000 0
Light Bulb - 100 watts 100 0
Microwave - 1000 watts 1000 200
Sump Pump - 1/2 HP 1000 1100
Television 400 0
Washing Machine 1100 1100
Well Pump - 1/2 HP 1000 1000
reCreaTiOn
Device
running
Watts
additional
Start-up
Watts
AM/FM Radio 100 0
Electric Grill 1700 0
Inflator Pump 50 100
CD/DVD Player 100 0
Box Fan - 20" 200 200
Coffee Maker 600 0
LaWn & GarDen
Device
running
Watts
additional
Start-up
Watts
Hedge Trimmer 400 400
Pressure Washer 1200 1200
Lawn Mower 1200 1200
Edger 1000 1000
HeaTinG & COOLinG
Device
running
Watts
additional
Start-up
Watts
Central AC - 10,000 BTU 1500 1500
Furnace Fan - 1/2 HP 900 1400
Space Heater 1800 0
Window AC - 10,000 BTU 1200 600
eMerGenCy
Device
running
Watts
additional
Start-up
Watts
Refrigerator/Freezer 700 1500
Radio 100 0
Wattage estimate Charts
note: Wattages listed below are estimates for that type of
equipment only. Check nameplate wattages on all loads
before connecting to Generator.
Page 16
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTy OperaTiOn MainTenanCeSeTup
Overload indicator
note: The OVERLOAD light may turn on for a few seconds as a large device starts up.
This is normal for loads approaching the capacity of this Generator.
1. The total combined load through the outlets on the Generator must not exceed the running power of the unit.
2. The OVERLOAD light will begin blinking if the generator is approaching overload limit. If the OVERLOAD light
stays on and the Generator stops producing power, the generator has been overloaded.
3. Turn off and disconnect all electrical devices and stop the Engine. Compare device
requirements to Generator rating and reduce the total wattage of connected devices if
necessary. Move anything that may be limiting Generator ventilation away.
4. Check if any circuit breakers have tripped and make sure that ALL circuit
breakers are reset before starting the Generator again.
5. Restart the Engine and reconnect devices while being careful to not overload Generator.
6. Distribute loads evenly across receptacles to achieve rated output.
Low Oil indicator
1. If the Engine oil level is too low, the LOW OIL light turns on and the Engine will automatically shut off.
2. The Engine cannot be restarted until the proper amount of oil has been added. Add the appropriate
type of oil until the oil level is at the proper level. SAE 10W-30 oil is recommended for general use.
nOTiCe: Do not run the engine with too little oil. engine will shut off if engine oil level is too low.
note: The LOW OIL light will blink if the Generator stops due to CO sensor shutoff. This does
not indicate low oil. Follow all instructions under Carbon Monoxide Shutoff on page 12.
economy (eSC) Switch
1. Turn the Economy (ESC) Switch ON to limit noise and fuel consumption for lighter generator loads.
2. Turn the Economy (ESC) Switch OFF to operate engine at full speed:
a. when starting
b. when a heavy load is applied
c. when using the 12 VDC output
Hour Meter
The Hour Meter shows cumulative run time in hours.
Voltage Selector
The Voltage Selector allows more current to be available at 120V outlets if 240V output is not required:
• Place switch at 120V only - only 120V outlets can be used.
• Place switch at 120/240V: Both 120V and 240V outlets can be used.
nOTe: Do not change the switch while under load.
For parallel function, Switch position must be at 120/240V.
Circuit Breakers
The circuit breaker protects the Generator from overloading. The rating of the breaker and the load it protects are
marked near the breaker. Should any of the Circuit Breakers trip, the Generator will stop the electricity output. If
this happens, unplug all loads from the Generator. Then, turn the tripped Circuit Breaker to ON and re-attach
loads gradually. Note: For push-type Circuit Breakers allow a few minutes for cool-down before restarting.
On
OFF
Page 17
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTyOperaTiOnMainTenanCe SeTup
Stopping the engine
To stop the Engine in an emergency,
turn the Engine Switch OFF.
Under normal conditions, use the following procedure to shut off the Generator:
1. Turn all electrical load devices off and unplug them from the
Generator. If the Economy Switch is ON, turn it to the OFF position.
2. Turn the Combination Switch OFF.
3. After engine stops, turn
Engine Switch to OFF.
LOW IDLE MODE
ON
OFF
ON
START
OFF
OFF
STORAGE
RUN
START
CHOKE
ON
START
OFF
enGine
SWiTCH
ON
OFF
ON
START
OFF
OFF
STORAGE
RUN
START
CHOKE
ON
START
OFF
1
eCOnOMy
SWiTCH
OFF
STORAGE
RUN
START
CHOKE
Combination
Switch
2
Page 18
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTy OperaTiOn MainTenanCeSeTup
Maintenance
WarninG
TO preVenT SeriOuS inJury FrOM aCCiDenTaL STarTinG:
Turn the Combination Switch of the equipment to its “OFF” position, wait for the engine to cool, and
disconnect the spark plug cap before performing any inspection, maintenance, or cleaning procedures.
TO preVenT SeriOuS inJury FrOM eQuipMenT FaiLure:
Do not use damaged equipment. if abnormal noise, vibration, or
excess smoking occurs, have the problem corrected before further use.
Follow all service instructions in this manual. The engine may fail critically if not serviced properly.
Many maintenance procedures, including any not detailed in this manual, will need to be performed
by a qualified technician for safety. if you have any doubts about your ability to safely service the
equipment or engine, have a qualified technician service the equipment instead.
Cleaning, Maintenance, and Lubrication Schedule
note: This maintenance schedule is intended solely as a general guide. If performance decreases or if
equipment operates unusually, check systems immediately. The maintenance needs of each piece of equipment
will differ depending on factors such as duty cycle, temperature, air quality, fuel quality, and other factors.
note: The following procedures are in addition to the regular checks and maintenance
explained as part of the regular operation of the engine and equipment.
procedure
Before
each use
Monthly or
every 8 hr.
of use
every 3 mo.
or 50 hr.
of use
every 6 mo.
or 100 hr.
of use
yearly or
every 300 hr.
of use
every
2 years
page
1. Brush off outside of engine
2. Check engine oil level
3. Check air filter
Change engine oil
19
Clean/replace air cleaner
*
20
1. Check and clean spark plug
2. Check and clean spark arrestor
20
1. Check/adjust idle speed
2. Check/adjust valve clearance
3. Clean fuel tank, strainer
and carburetor
4. Clean carbon build-up from
combustion chamber
**
–
Replace fuel line if necessary
**
–
*Service more frequently when used in dusty areas.
**These items should be serviced by a qualified technician.
Page 19
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTyOperaTiOnMainTenanCe SeTup

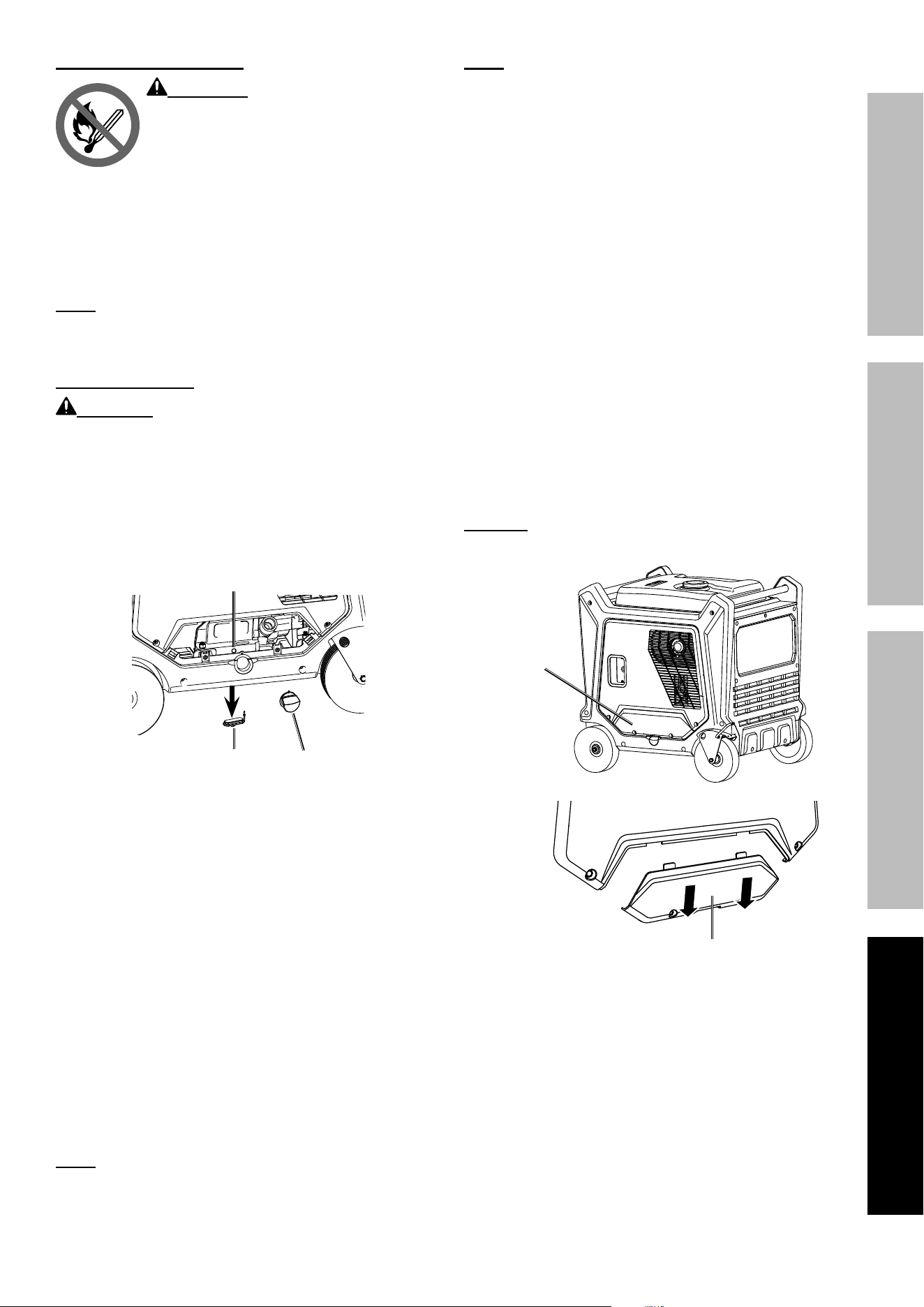

Checking and Filling Fuel
WarninG! TO preVenT SeriOuS
inJury FrOM Fire:
Fill the fuel tank in a well-ventilated area
away from ignition sources. If the engine is
hot from use, shut the engine off and wait
for it to cool before adding fuel. Do not smoke.
1. Clean the Fuel Cap and the area around it.
2. Unscrew and remove the Fuel Cap.
3. Remove the Strainer and remove any dirt
and debris. Then replace the Strainer.
note: Do not use gasoline containing more than
10% ethanol (e10). Do not use e85 ethanol. add fuel
stabilizer to the gasoline or the Warranty is VOiD.
note: Do not use gasoline that has been stored in a
metal fuel container or a dirty fuel container. it can
cause particles to enter the carburetor, affecting
engine performance and/or causing damage.
4. If needed, fill the Fuel Tank to about 1 inch under
the fill neck of the Fuel Tank with 87 octane or
higher unleaded gasoline that has been treated
with a fuel stabilizer additive. Follow fuel stabilizer
manufacturer’s recommendations for use.
5. Replace the Fuel Cap.
6. Wipe up any spilled fuel and allow excess
to evaporate before starting engine.
To prevent FIRE, do not start the engine
while the smell of fuel hangs in the air.
engine Oil Change
CauTiOn! Oil is very hot during operation and can cause burns. Wait for engine to cool before changing oil.
1. Make sure the Engine is stopped and is level.
2. On the right side of the Generator, loosen
the Screws and remove the Oil Fill
Access Door, as shown to the right.
3. Remove the lower Rubber Seal from
underneath the Generator. See below.
Lower
Seal
Oil Drain
plug
upper
Seal
4. Place an oil drain pan under the Generator
and center under the Oil Drain Hose opening.
Remove the Oil Drain Cap, tilt the Generator
slightly to facilitate drainage and wait for oil
to drain completely. Recycle used oil.
5. Clean the top of the Oil Fill Cap / Dipstick
and the area around it. Remove the
Cap / Dipstick, turning it counterclockwise.
6. Remove the upper Rubber Seal from
just below the Oil Drain Plug.
7. Use a wrench (sold separately) to remove the Oil
Drain Plug and allow the oil to drain completely.
8. Replace the Oil Drain Cap. Put the Oil
Drain Hose back into the Generator.
9. Add the appropriate type of oil until
the oil level is at the proper level.
SAE 10W-30 oil is recommended for general use.
note: Make sure Generator is level when adding oil to
prevent overfilling which could cause engine damage.
10. Check the oil level. The oil level should be
up to the edge of the hole as shown.
11. Thread the Oil Fill Cap / Dipstick back in clockwise
and replace the Oil Fill Access Door.
nOTiCe: Do not run the engine with too little oil.
engine will not start with low or no engine oil.
Oil Fill
access
Door
Oil Fill access
Door
Page 20
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTy OperaTiOn MainTenanCeSeTup

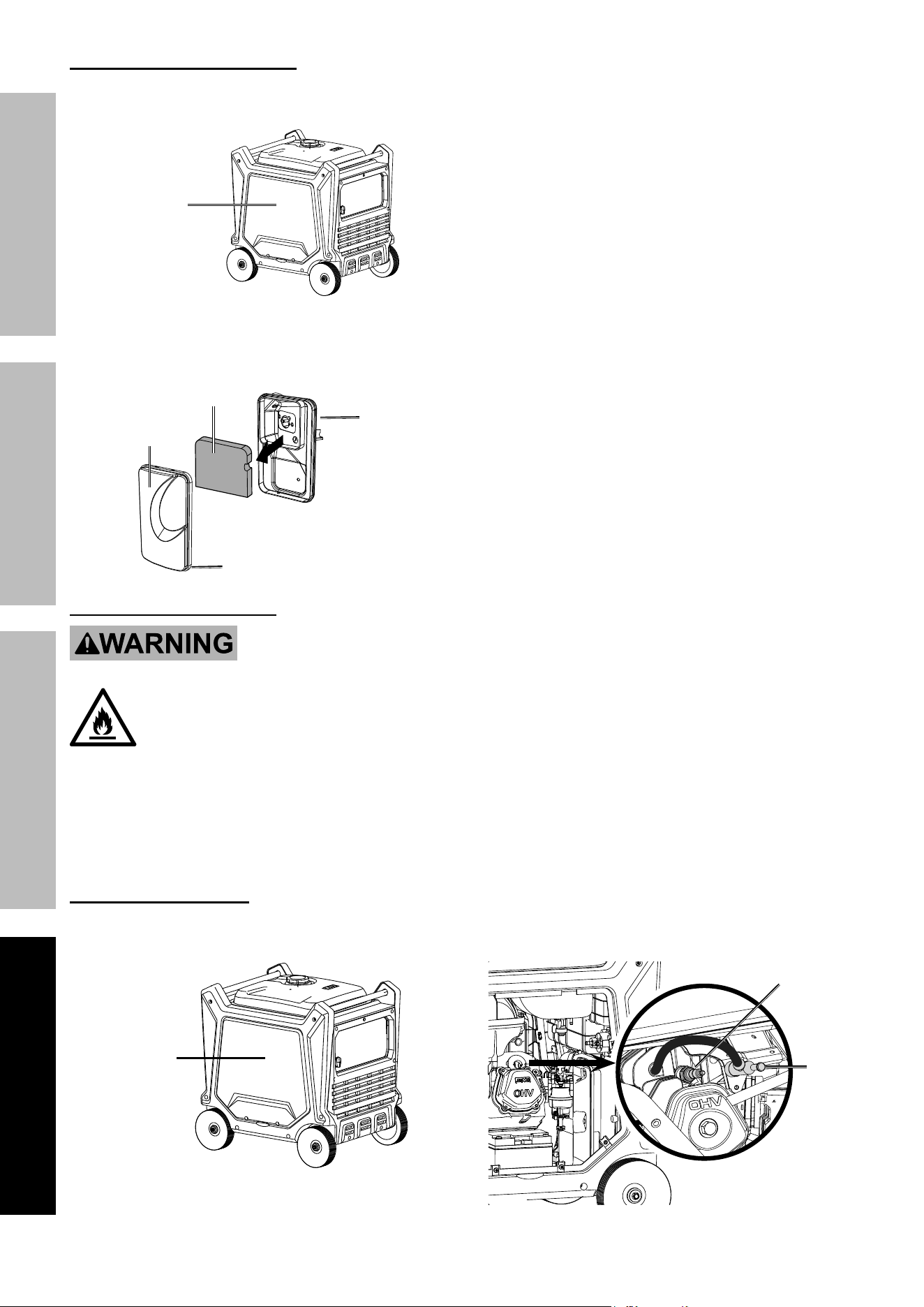

air Filter element Maintenance
1. Loosen screws and remove the Air Filter Access
Panel on the left side of the Generator.
access
panel
2. Unsnap the Air Filter Cover Clip and remove
Air Filter Cover. See figure below.
3. Remove Air Filter.
air Filter
Cover
air Filter
Housing
Clip (not shown)
4. Cleaning:
• For “paper” filter elements:
To prevent injury from dust and debris,
wear ANSI-approved safety goggles,
NIOSH-approved dust mask/respirator, and
heavy-duty work gloves. In a well-ventilated
area away from bystanders, use pressurized
air to blow dust out of the air filter.
• For foam filter elements:
Wash the element in warm water and
mild detergent several times. Rinse.
Squeeze out excess water and allow it to dry
completely. Soak the filter in lightweight oil
briefly, then squeeze out the excess oil.
5. Install the cleaned filter.
6. Secure the Air Filter Cover and replace the
Access Panel before use.
Spark arrestor Maintenance
TO preVenT SeriOuS inJury anD Fire: Operate only with proper spark arrestor installed.
Operation of this equipment may create sparks that can start fires around dry vegetation.
a spark arrestor may be required. The operator should contact local fire agencies for laws or
regulations relating to fire prevention requirements.
1. Allow the Generator to cool completely.
2. Remove the Screws from the back of the Generator.
3. Remove the Tail Pipe and Spark Arrestor.
4. Clean the Spark Arrestor using a wire brush
(sold separately). Replace arrestor if damaged.
5. WarninG! TO preVenT SeriOuS inJury
FrOM aCCiDenTaL BruSH Fire, secure
Spark arrestor back in place immediately
after cleaning and before further operation.
Spark plug Maintenance
1. Loosen two screws and remove the Access
Panel on the left side of the Generator.
access
panel
2. Disconnect Spark Plug Cap from end of plug.
Clean out debris from around Spark Plug.
0.7 - 0.8 mm
0.028 - 0.031 in.
Spark
plug
Spark
plug
Cap
Page 21
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTyOperaTiOnMainTenanCe SeTup
3. Using the Spark Plug Wrench,
remove the Spark Plug.
4. Inspect the Spark Plug:
If the electrode is oily, clean it using a clean, dry rag.
If the electrode has deposits on it, polish it using
emery paper. If the white insulator is cracked or
chipped, the spark plug needs to be replaced.
nOTiCe: Use only BPR6ES (NGK) type
spark plug or equivalent. Using an incorrect
spark plug may damage the engine.
5. When installing a new spark plug,
adjust the plug’s gap to the specification on the
Specifications chart. Do not pry against the
electrode, the spark plug can be damaged.
6. Apply anti-seize material to Spark Plug threads.
Install the new spark plug or
the cleaned spark plug into the engine.
• Gasket-style:
Finger-tighten until the gasket
contacts the cylinder head,
then tighten about 1/2-2/3 turn more.
• non-gasket-style:
Finger-tighten until the plug
contacts the cylinder head,
then tighten about 1/16 turn more.
nOTiCe: Tighten the Spark Plug properly.
if loose, the Spark Plug will cause the
engine to overheat.
if overtightened, the threads in the
engine block will be damaged.
7. Apply dielectric spark plug boot protector
(not included) to the end of the spark plug
and reattach the cap securely.
8. Replace Spark Plug Access Cover
and Access Panel.
Storage
When the equipment is to remain idle for longer than
20 days, prepare the engine for storage as follows:
1. CLeaninG:
Wait for engine to cool, then clean engine with
dry cloth. nOTiCe: Do not clean using water.
The water will gradually enter the
engine and cause damage.
2. FueL:
Gasoline Treatment/Draining the Fuel Tank
To protect the fuel tank during storage, fill the
tank with fresh gasoline that has been treated
with a fuel stabilizer additive. Follow fuel
stabilizer manufacturer’s recommendations
for use. Refer to Checking and Filling Fuel
Checking and Filling Fuel on page 11.
Aged gasoline that has not been treated with
stabilizer ahead of time must be safely drained
away and not run through the engine.
WarninG! TO preVenT SeriOuS
inJury FrOM Fire:
Fill tank in a well-ventilated area away from
ignition sources. If the engine is hot from
use, shut the engine off and wait for it to
cool before adding fuel. Do not smoke.
Draining the Carburetor
After closing the Fuel Valve, place an appropriate
container under the Carburetor and carefully
remove the Drain Bolt from the bottom of the
Carburetor Bowl, allowing the fuel to drain
completely. Replace the Drain Bolt after draining.
WarninG! To prevent serious
injury and fire, close the Fuel Valve
before draining the Carburetor.
3. LuBriCaTiOn:
a. Change engine oil.
b. Clean out area around spark plug.
Remove spark plug and pour one tablespoon of
engine oil into cylinder through spark plug hole.
c. Replace spark plug, but leave
spark plug cap disconnected.
d. Pull Starter Handle to distribute oil in cylinder.
Stop after one or two revolutions when you
feel the piston start the compression stroke
(when you start to feel resistance).
4. STOraGe area:
Cover and store in a dry, level, well-ventilated
area out of reach of children. Storage area should
also be away from ignition sources, such as
water heaters, clothes dryers, and furnaces.
Avoid direct exposure to rain and sunlight.
nOTiCe: During extended storage periods the
Engine must be started every 3 months and allowed
to run for 15 – 20 minutes or the Warranty is VOID.
5. aFTer STOraGe:
Before starting the engine after storage, keep in
mind that untreated gasoline will deteriorate quickly.
Drain the fuel tank and change to fresh fuel if
untreated gasoline has been sitting for a month, if
treated gasoline has been sitting beyond the fuel
stabilizer’s recommended time period, or if the
engine does not start.
Page 22
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTy OperaTiOn MainTenanCeSeTup
Troubleshooting
problem possible Causes probable Solutions
Engine will not start FUEL RELATED:
1. No fuel in tank or fuel valve closed.
2. Combination Switch not in START
position, cold engine.
3. Gasoline with more than 10% ethanol
used. (E15, E20, E85, etc.)
4. Low quality or deteriorated, old gasoline.
5. Carburetor not primed.
6. Dirty fuel passageways.
7. Carburetor needle stuck.
Fuel can be smelled in the air.
8. Too much fuel in chamber. This can be
caused by the carburetor needle sticking.
9. Clogged Fuel Filter.
FUEL RELATED:
1. Fill fuel tank with fresh 87+ octane stabilizer-treated
unleaded gasoline and open fuel valve.
Do not use gasoline with more than
10% ethanol (e15, e20, e85, etc.).
2. Move Combination Switch to START position.
3. Clean out ethanol rich gasoline from fuel system.
Replace components damaged by ethanol. Use fresh
87+ octane stabilizer-treated unleaded gasoline only.
Do not use gasoline with more than
10% ethanol (e15, e20, e85, etc.).
4. Use fresh 87+ octane stabilizer-treated
unleaded gasoline.
Do not use gasoline with more than
10% ethanol (e15, e20, e85, etc.).
5. Pull on Starter Handle to prime.
6. Clean out passageways using fuel additive.
Heavy deposits may require further cleaning.
7. Gently tap side of carburetor float
chamber with screwdriver handle.
8. Turn Choke to RUN position. Remove spark plug and
pull the start handle several times to air out the chamber.
Reinstall spark plug and set Choke to START position.
9. Replace Fuel Filter.
IGNITION (SPARK) RELATED:
1. Engine Switch at OFF position.
2. Spark plug cap not connected securely.
3. Spark plug electrode wet or dirty.
4. Incorrect spark plug gap.
5. Spark plug cap broken.
6. Circuit breaker tripped (electric
start models only).
7. Incorrect spark timing or
faulty ignition system.
IGNITION (SPARK) RELATED:
1. Turn Engine Switch to ON.
2. Connect spark plug cap properly.
3. Clean spark plug.
4. Correct spark plug gap.
5. Replace spark plug cap.
6. Reset circuit breaker. Check wiring and
starter motor if breaker continues to trip.
7. Have qualified technician diagnose/
repair ignition system.
COMPRESSION RELATED:
1. Cylinder not lubricated.
Problem after long storage periods.
2. Loose or broken spark plug.
(Hissing noise will occur
when trying to start.)
3. Loose cylinder head or damaged
head gasket. (Hissing noise will
occur when trying to start.)
4. Engine valves or tappets
mis-adjusted or stuck.
ENGINE OIL RELATED:
1. Low engine oil.
2. Engine mounted on slope,
triggering low oil shutdown.
SPARK ARRESTOR RELATED:
1. Spark Arrestor clogged with soot.
COMPRESSION RELATED:
1. Pour tablespoon of oil into spark plug hole. Crank
engine a few times and try to start again.
2. Tighten spark plug.
If that does not work, replace spark plug.
If problem persists, may have head
gasket problem, see #3.
3. Tighten head.
If that does not remedy problem, replace head gasket.
4. Have qualified technician adjust/
repair valves and tappets.
ENGINE OIL RELATED:
1. Fill engine oil to proper level. Check engine
oil before EVERY use.
2. Operate engine on level surface. Check engine oil level.
SPARK ARRESTOR RELATED:
1. Clean and replace Spark Arrestor.
Follow all safety precautions whenever diagnosing or servicing the generator or engine.
Page 23
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTyOperaTiOnMainTenanCe SeTup
problem possible Causes probable Solutions
Engine will not start
(continued)
ELECTRIC START RELATED:
1. No battery or defective battery installed.
2. Battery is low.
3. Electric start fuse (5A) is blown.
ELECTRIC START RELATED:
1. Install a new battery (see page 8).
2. Charge the battery.
3. Replace fuse with similar size fuse.
Engine misfires 1. Spark plug cap loose.
2. Incorrect spark plug gap or
damaged spark plug.
3. Defective spark plug cap.
4. Old or low quality gasoline.
5. Incorrect compression.
1. Check cap and wire connections.
2. Re-gap or replace spark plug.
3. Replace spark plug cap.
4. Use only fresh 87+ octane stabilizer-treated
unleaded gasoline. Do not use gasoline with
more than 10% ethanol (e15, e20, e85, etc.).
5. Diagnose and repair compression. (Use engine will
not start: COMpreSSiOn reLaTeD section.)
Engine stops suddenly 1. 1. Carbon Monoxide level high. Red light Carbon Monoxide level high. Red light
on Carbon Monoxide Sensor illuminates.on Carbon Monoxide Sensor illuminates.
2. 2. CO Sensor Alarm flashes yellow CO Sensor Alarm flashes yellow
continually shortly after starting. continually shortly after starting.
3. 3. CO Sensor Alarm flashes yellow CO Sensor Alarm flashes yellow
continually after longer period of operation. continually after longer period of operation.
4. Low oil shutdown.
5. Fuel tank empty or full of impure or low
quality gasoline.
6. Combination Switch at OFF/
Storage position.
7. Defective fuel tank cap creating
vacuum, preventing proper fuel flow.
8. Faulty magneto.
9. Disconnected or improperly
connected spark plug cap.
1. 1. Leave area immediately and allow area to ventilate Leave area immediately and allow area to ventilate
thoroughly. Only operate generator outside.thoroughly. Only operate generator outside.
2. 2. Carbon monoxide sensor malfunction. Carbon monoxide sensor malfunction.
Sensor needs service. Call 1-888-866-5797 as Sensor needs service. Call 1-888-866-5797 as
soon as possible. Do not use the Generator soon as possible. Do not use the Generator
until the sensor is working properly.until the sensor is working properly.
3. 3. Make sure to operate generator within rated Make sure to operate generator within rated
ambient temperature; maintain minimum ambient temperature; maintain minimum
5 ft. clearance from all sides.5 ft. clearance from all sides.
4. Fill engine oil to proper level. Check
engine oil before EVERY use.
5. Fill fuel tank with fresh 87+ octane stabilizer treated
unleaded gasoline.
Do not use gasoline with more than 10%
ethanol (E15, E20, E85, etc.).
6. Turn Combination Switch to RUN position.
7. Test/replace fuel tank cap.
8. Have qualified technician service magneto.
9. Secure spark plug cap.
Engine stops when
under heavy load
1. Dirty air filter
2. Engine running cold.
1. Clean element.
2. Allow engine to warm up prior to operating equipment.
Engine knocks 1. Old or low quality gasoline.
2. Engine overloaded.
3. Incorrect spark timing, deposit
buildup, worn engine, or other
mechanical problems.
1. Fill fuel tank with fresh 87+ octane stabilizer-treated
unleaded gasoline.
Do not use gasoline with more than
10% ethanol (e15, e20, e85, etc.).
2. Do not exceed equipment’s load rating.
3. Have qualified technician diagnose and service engine.
Engine backfires 1. Impure or low quality gasoline.
2. Engine too cold.
3. Intake valve stuck or overheated engine.
4. Incorrect timing.
1. Fill fuel tank with fresh 87+ octane stabilizer-treated
unleaded gasoline.
Do not use gasoline with more than
10% ethanol (e15, e20, e85, etc.).
2. Use cold weather fuel and oil additives
to prevent backfiring.
3. Have qualified technician diagnose and service engine.
4. Check engine timing.
Attached device
doesn’t have power
1. Device not plugged in properly.
2. Circuit Breaker tripped.
3. Product needs service.
1. Turn off and unplug the device,
then plug it back in again and turn on.
2. Turn off and unplug device, reset Circuit
Breaker, plug in device and turn on.
3. Have product repaired.
Follow all safety precautions whenever diagnosing or servicing the generator or engine.
Page 24
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTy OperaTiOn MainTenanCeSeTup
Troubleshooting (continued)
problem possible Causes probable Solutions
Attached device
begins to operate
abnormally
1. Problem with device.
2. Rated load capacity exceeded.
1. Immediately unplug device.
Have device repaired by a qualified
technician, or replace device.
2. Lower the number of items plugged into the
generator to stay within the rated capacity,
or use a more powerful generator.
Follow all safety precautions whenever diagnosing or servicing the generator or engine.
Page 25
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTyOperaTiOnMainTenanCe SeTup
record product’s Serial number Here:
note: If product has no serial number, record month and year of purchase instead.
note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175546340 when ordering parts.
pLeaSe reaD THe FOLLOWinG CareFuLLy
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LISTS AND ASSEMBLY
DIAGRAMS IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY
CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK
AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT
PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Page 26
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTy OperaTiOn MainTenanCeSeTup
part Description Qty
1
Engine
1
2
Hex Flange Nut
4
3
Damping Bearing A
3
4
Damping Bearing B
1
5
Plug
1
6
Inverter Shock Pad
2
7
Backplane Assembly
1
8
Support Components
1
9
Hex Flange Nut
21
10
Brake Parts
2
11
Hex Flange Bolt
4
12
Hex Flange Bolt
18
13
Flat Washer
4
14
Bush
2
15
Wheel Shaft
2
16
Wheel Assy
4
17
Muffler Housing
1
18
Under Cover Plate Of Muffler
1
19
Hex Flange Nut
11
20
Hex Flange Nut
1
21
Hex Flange Nut
4
22
Muffler
1
23
Muffler Exhaust Hood A
1
24
Hex Flange Bolt
4
25
Exhaust Valve Spring Lower Seat
1
26
The Push Rod Guide
10
27
Alternator Exhaust Hood
1
28
Support
2
29
Support
2
30
Rack Right Beam
2
31
Front And Rear Top Beam
2
32
Front And Bottom Beam
1
33
Hex Flange Bolt
14
34
Battery
1
35
Battery Box
1
36
Control Panel
1
37
Hex Flange Bolt
4
38
Air Guide Hood Assembly
1
39
Inverter Left Bracket
1
40
Inverter Right Bracket
1
41
Inverter
1
42
Hex Flange Nut
5
43
Fuel Tank Assy
1
44
Fuel Tank Heat Insulation Cotton Assy
1
45
Self Tapping Screw
12
46
Upper Cover Assembly
2
47
Handle Pipe Assembly
1
48
Handle Pipe Assembly
1
49
Hex Flange Bolts
43
50
Right Plate
2
51
Plug
2
52
Right Side Window Panel Assembly
1
part Description Qty
53
Right Side Window Oil Plate Assembly
1
54
Left Side Window Panel Assembly
1
55
Alternator Cover Plate Assembly
1
56
Inverter Cover Panel Assembly
1
57
Hand The Glue Sets
2
58
Hand The Glue Sets
1
59
Clamp
2
60
Clamp
5
61
Fuel Pipe
1
62
Filter Mesh Assembly
1
63
Flat Washer
10
64
Flat Washer
4
65
Hex Flange Nut
2
66
Spring Washer
2
67
Muffler Gasket
2
68
Battery Band
1
69
Wire Harness
1
70
Wire Harness
1
71
Clip Nut
16
72
Wiring Harness Parts
1
73
Stabilizer Module Bracket
1
74
Hex Flange Bolts
2
75
Dc Stabilizer
1
76
Handle Fixing Seat
1
77
Handle Fixing Seat
1
78
Movable Pin
1
79
Tighten The Spring
1
80
Shake Hands handle Components
1
81
Hex Flange Nut
1
82
Handle Pipe Assembly
1
83
Hex Flange Nut
2
84
Handle Retaining Pin
2
85
Hex Flange Bolt
4
86
Nylon Nut
4
87
Hand The Glue Sets
1
88
Charger Module
1
89
Carbon Canister
1
90
Carbon Tank Pressure Plate A
1
91
Carbon Tank Pressure Plate B
1
92
Carbon Tank Bracket
1
93
Breather Pipe
1
94
Breather Pipe
1
95
CO Sensor
1
96
CO Sensor Support
1
97
Anti-Theft Bolt 12/8.8
4
98
Anti-Theft Bolt 10/8.8
2
99
Wire Harness
1
100
Plug
4
101
Insulation Sleeve
2
102
Rubber Plug
2
103
Air Filter Support
1
parts List and Diagram
parts List - Generator
Page 27
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTyOperaTiOnMainTenanCe SeTup
assembly Diagram - Generator
Y
10003-00644-00
1:25
33
爆炸图
00
签名
年、月、日
阶段版本
重量
比例
共
张
第
张
所属
部件
名 称
数
量
材 料
重 量
单件
总计
备 注
神驰机电股份有限公司
通机研究院
线束部件/ 接地线束
1
16
夹片螺母/M6
直流稳压器/TJ4016
1
手把固定座/ 左
活动销
紧固弹簧
1
1
1
1
手把固定座/ 右
拉手组件
手把管总成
1
1
4
尼龙螺母/M8*1.25
4
稳压模块支架
1
2
手把固定销/M10*55
2
2
1
充电模块/CHB-S02
1
1
碳罐/650CC/ 利凯特
1
碳罐压板A
1
碳罐压板B
1
碳罐支架
1
通气管/ 弯管
1
通气管/ 直管
1
一氧化碳报警器
1
CO 报警器支架
1
防盗螺栓/M6
4
防盗螺栓/M3
2
CO 转接线
1
堵头/ Φ15x5.5
4
1
3
5
6
7
8
9
10
11
12
12
13
13
16
15
15
14
12
2
18
19
20
21
22
23
24
25
26
27
28
29
28
29
30
30
33
33
33
31
31
32
33
11
34
35
36
37
38
39
40
33
41
42
43
44
46
46
49
58
48
47
45
45
45
45
50
51
50
52
53
54
55
56
49
49
49
49
49
49
49
17
63
72
64
65
66 67
49
68
71
69
70
59
61
60
73
74
75
19
49
49
88
87
62
19
4
10
14
11
51
19
79
78
77
76
57
82
84
80
83
85
86
81
89
90
91
92
19
93
94
95
96
97
98
99
100
100
100
100
101
102
103
Page 28
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTy OperaTiOn MainTenanCeSeTup
parts List a - engine
part Description Qty
1A
Hex Flange Bolt M6*1
8
2A
Cylinder Head Assembly
1
3A
Cylinder Head Gasket
1
4A
Clamp ∅14x∅15.5x10
1
5A
Waste Pipe
1
6A
Nut M6-0.75
2
7A
Rocker Shaft
2
8A
Rocker Arm
2
9A
Rocker Shaft Bolt
2
10A
Exhaust Valve Rotor
2
11A
Exhaust Valve Spring Seat
2
12A
Spring, Valve
2
13A
Exhaust Valve Spring Lower Seat
2
14A
Oil Seal
2
15A
Push Rod Guide
1
16A
Cylinder Head
1
17A
Hex Flange Bolt M10x1.25
4
18A
Spark Plug Component
1
19A
Bolt,Stud,Exhaust
2
20A
Bolt,Stud,Inlet
2
21A
Spark Plug Rubber Cover
1
22A
Hex Flange Bolt M6x1
14
23A
Shroud
1
24A
Air Inlet Gasket
1
25A
Carburetor Connector Block
1
26A
Carburetor Washer
1
27A
Carburetor
1
28A
Wire Clamp
1
29A
Clamp
1
30A
Tube, Fuel
1
31A
Wire Clamp
1
32A
Tubing Sleeve
1
33A
Gasket, Air Cleaner
2
34A
Carburetor Cable Support
1
35A
Air Filter
1
36A
Cylinder Head Gasket
1
37A
Locating Pin ∅10x12x20
2
38A
Push Rod
2
39A
Valve, Intake
1
40A
Valve, Exhaust
1
41A
Lifter, Valve
2
42A
Ring Set, Piston
1
43A
Clip, Piston Pin
2
44A
Piston
1
45A
Piston Pin ∅15x20x62
1
46A
Connecting Rod Assy
1
47A
Hex Flange Bolt M12x1.5
2
part Description Qty
48A
Aluminum Washer
2
49A
Crankcase
1
50A
Metal Clip
1
51A
Oil Alert
1
52A
Speed Governor
1
53A
Metal Clip
1
54A
Oil Seal
2
55A
Coil Assy, Ignition
1
56A
Hex Flange Bolt M8x1.25
2
57A
Flywheel Part
1
58A
Charging Coil Unit
1
59A
Hex Flange Bolt M6x1
2
60A
Wire Press Plate
1
61A
Fan
1
62A
Pulley, Starter
1
63A
Hex Flange Nut M16x1.5
1
64A
Recoil Starter Assembly
1
65A
Deep Groove Ball Bearing
2
66A
Hex Flange Bolt M6x1
2
67A
Engine Oil Sensor
1
68A
Balance Shaft
1
69A
Camshaft
1
70A
Crankshaft
1
71A
Cylinder Head Air Guide Sealing Strip
1
72A
Clamp Part
1
73A
Cross Recessed Countersunk Screw
4
74A
Clamp Part
1
75A
Cylinder Head Air Guide Sealing Strip
1
76A
Crankcase Cover
1
77A
Hex Flange Bolt M8x1.25
17
78A
Crankcase Cover Baffle
1
79A
Oil Gauge Assembly
1
80A
Deep Groove Ball Bearing
1
81A
Dowel Pin
4
82A
Crankcase Cover Gasket
1
83A
Hex Flange Bolt M6x1
2
84A
Starting Motor
1
85A
Nut With Flange M6x1.0
2
86A
Fan
1
87A
Inverter Rotor
1
88A
Flat Washer ∅18.5x∅36.5x5
1
89A
Nut With Flange M18x1.5
1
90A
Hex Socket Cap Screw M8x1.25
4
91A
Invertor Stator
1
92A
Locating Pin
4
93A
End cover
1
94A
Alternator Cover Plug
1
When ordering replacement parts from this list, the “A” suffix must be included in order to receive the correct part.
Page 29
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTyOperaTiOnMainTenanCe SeTup
assembly Diagram a - engine
5
2
3
6
7
8
6
7
8
9
9
15
17
10
11
12
13
17
19
17
18
17
4
1
14
16
20
21
22
22
22
23
24
25
26
29
30
31
32
36
37
38
39
40
41
42
43
44
45
43
46
47
48
47
48
49
50
51
22
53
54
55
56
56
57
58
59
60
22
52
54
61
62
63
22
22
22
22
22
64
65
66
67
68
69
70
71
72
73
74
73
75
77
78
22
79
65
80
81
81
82
76
83
83
84
85
35
27
33
34
33
28
1
86
87
88
89
90
91
92
93
77
94
81
Page 30
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTy OperaTiOn MainTenanCeSeTup
Warranties
Limited 90 Day Warranty (retail)
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so
the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY
AND FITNESS, EXCEPT FOR THE EMISSIONS CONTROL SYSTEM WARRANTY BELOW.
To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid.
Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our
inspection verifies the defect, we will either repair or replace the product at our election or we may elect to
refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return
repaired products at our expense, but if we determine there is no defect, or that the defect resulted from
causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Page 31
For technical questions, please call 1-888-866-5797.
ITEM 71365
SaFeTyOperaTiOnMainTenanCe SeTup
emissions Control System Warranty
Harbor Freight Tools (HFT) is pleased to explain the emissions control system warranty on your Small Off-Road
Engine produced after January 1, 2024 (engine), in addition to the Retail Warranty above. HFT warrants that the
emissions control system on your engine is designed, built, and equipped so that it conforms to the United States
Environmental Protections Agency’s (EPA) emissions requirements in effect at the time of manufacture. HFT also
warrants that the emissions control system on your engine will be free from defects in material and workmanship
for two (2) years, provided there has been no improper maintenance, misuse, or abuse of your engine.
Your emissions control system may include parts such as the carburetor or fuel-injection system, and the
ignition system. Also included may be hoses, belts, connectors and other emissions-related assemblies.
WHaT We WiLL DO
Where a warrantable condition exists, HFT will repair or replace, at our option, any emissions-related part on
your engine if it becomes defective, malfunctions, or otherwise fails to conform with this warranty under normal use
and service during the two (2) year term of this warranty at no cost to you, including diagnosis, parts and labor. This
warranty applies to the original purchaser and any subsequent owner within the two year warranty period.
WHaT iS COVereD?
The following parts are examples of components of the emissions control system and are covered by this
two (2) year warranty. For a full list of emissions control components covered by this warranty, please see 40 CFR
§1068, Appendix I.
1. Fuel Metering System
a. Carburetor and its internal parts.
b. Fuel pump (if so equipped).
c. Cold start enrichment system.
2. Air Induction System
a. Intake pipe/manifold.
b. Air cleaner.
3. Ignition System
a. Spark plug.
b. Magneto ignition system.
4. Catalyst System (if so equipped)
a. Exhaust pipe stud.
b. Muffler.
c. Catalytic converter (if so equipped).
5. Miscellaneous Items Used in Above Systems
a. Vacuum, temperature and time sensitive valves
and switches.
b. Hoses, belts, connectors, and assemblies.
This warranty does not cover normal maintenance services or replacement of maintenance items such as filters,
oils, or spark plugs.
WHaT yOu MuST DO TO OBTain WarranTy SerViCe
As the engine owner, you are responsible for the performance of the required maintenance listed in your
Owner’s Manual. HFT may deny you warranty coverage if your engine or a part has failed due to abuse (including
failure to follow the fuel use instructions contained in this manual), neglect, improper maintenance, or unapproved
modifications.
In order to obtain warranty repair or replacement, you may either (a) contact HFT product support at
1-888-866-5797 or [email protected]; or (b) bring the engine/equipment to your nearest
Harbor Freight Tools retail store. When going to the retail store or contacting product support, you must indicate
the specific emissions control part or defect that you are claiming and the date this was originally purchased.
The nearest Harbor Freight Tools retail store can be found on the internet at http://www.harborfreight.com
26677 agoura road • Calabasas, Ca 91302 • 1-888-866-5797
