00
WIRING INSTRUCTION
REVISED BULLETIN DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERVICE PARTS LIST
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005

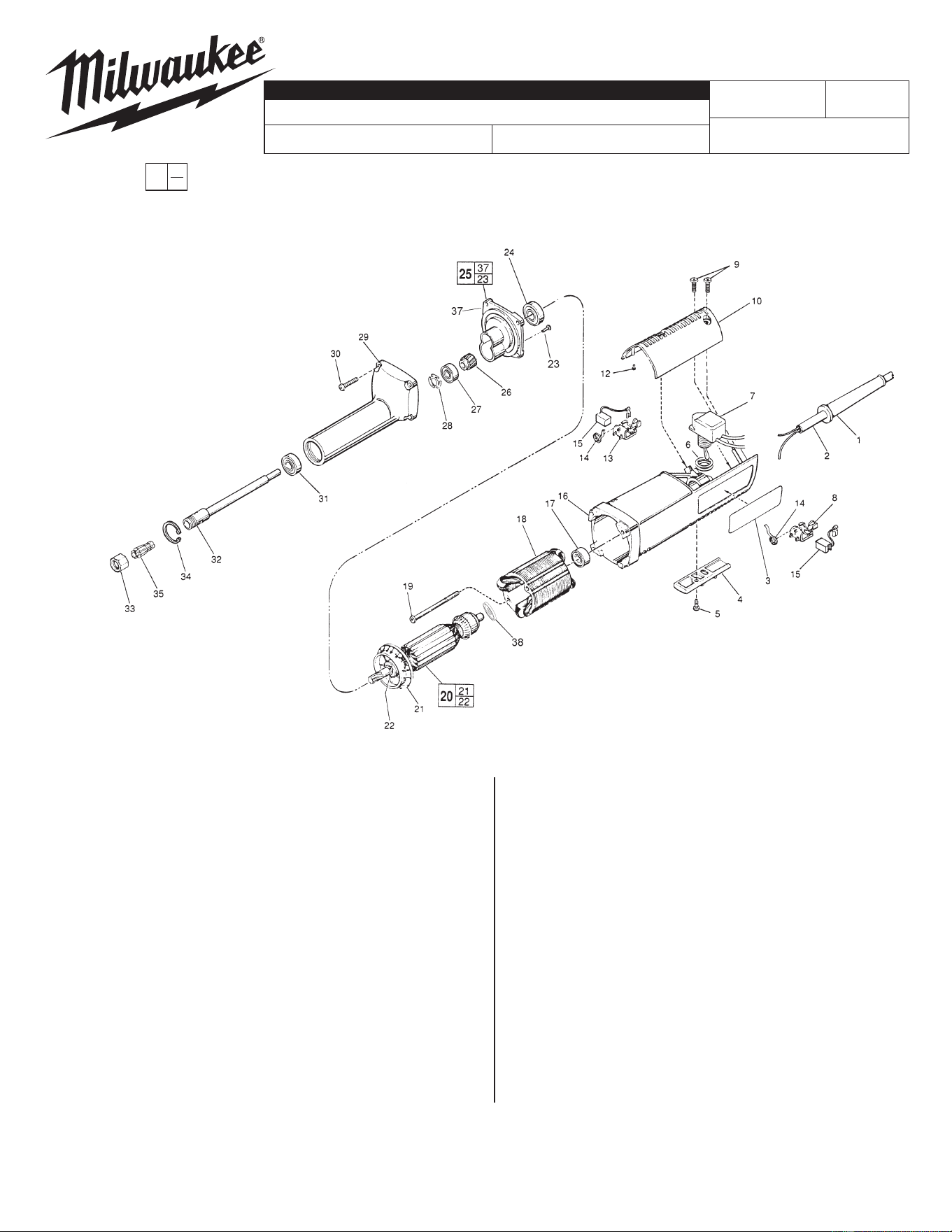

Drwg. 3
BULLETIN NO.
STARTING
SERIAL NO.
54-22-1026
58-01-0309
54-22-1027
Oct. 2012
D. I. DIE GRINDER
20 16-07-0100 120 Volt Armature (1)
21 22-84-0680 Fan (1)
22 34-60-0920 Ball Brg. Retaining Ring (1)
23 06-82-5275 Pan Head Screw (2)
24 02-04-1207 Ball Bearing (1)
25 28-28-1906 Diaphragm Service Kit (1)
26 32-75-2880 Spindle Gear (1)
27 02-04-0845 Ball Bearing (1)
28 45-88-7550 Finger Washer (1)
29 28-50-7722 Spindle Housing (1)
30 06-82-7296 7-18 x 1" Pan Hd. Slt. Plastite T-20 Scr. (4)
31 02-04-1005 Ball Bearing (1)
32 38-50-5211 Spindle Shaft (1)
33 48-68-0031 1/4" Collet Nut (1)
34 34-80-5090 Retaining Ring (1)
35 48-66-0975 1/4" Collet (1)
36 28-28-1901 Diaphragm (1)
38 23-16-1670 Commutator Insulator (1)
49-96-4040 1/2" Open End Wrench (1)
49-96-4090 11/16" Open End Wrench (1)
FIG. LUBRICATION
29 1/4 Oz. Type "G" Grease, No. 49-08-4140.
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
669D
0
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
CATALOG NO.
5192
1 44-76-0130 Cord Protector (1)
2 22-64-0215 Cord Set (1)
3 12-20-0900 Service Nameplate Kit (1)
4 31-55-0156 Trigger Cover (1)
5 06-82-7409 8-16 x 1/2" Pan Hd. Plastite T-20 Screw (1)
6 34-40-4015 O-Ring (2)
7 23-66-2190 Switch (1)
8 22-20-0691 Left Brush Holder (1)
9 06-82-7270 8-16 x 5/8" Pan Hd. Slt.Plastite T-20 Scr. (3)
10 31-15-0143 Motor Housing Cover (1)
12 42-38-0181 Rubber Bumper (2)
13 22-20-0692 Right Brush Holder (1)
14 23-52-0240 Brush Spring (2)
15 22-18-0710 Carbon Brush (2)
16 31-50-0426 Motor Housing (1)
17 02-04-0845 Ball Bearing (1)
18 18-07-0100 120 Volt Field (1)
19 06-82-7375 8-16 x 2-1/2" Pan Hd. Plastite T-20 Scr. (2)
