User manual
OKP C5 Robot Vacuum Cleaner
1
Congratulations on the purchase of your OKP ROBOTS!
We hope it brings you satisfaction. We trust your purchase will keep your home clean and provide you a high-quality life.
Should you encounter situations that have not been properly addressed in this User Manual, please contact our Customer Service Center, we will solve your
specific problem.For more information, please visit the OKP ROBOTICS official website: www.okplife.com or send email to
The Company reserves the right to make technological and/or design changes to this product for continuous improvement.
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire or serious injury.
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
1. The robot must be used in accordance with the directions in this User
Manual. Our company cannot be held liable or responsible for any
damages or injuries caused by improper use.
2. Do not allow to be used as a toy. Close attention is necessary when
used by or near children.x.
Do not allow children to sit on the vacuum.
3. Clear the area to be cleaned. Remove power cords and small objects
from the floor that could entangle the Robot. Tuck rug fringe under the rug
base, and lift items such as curtains and table cloths off the floor.
4. If there is a drop off in the cleaning area due to a step or stairs, you
should operate the Robot to ensure that it can detect the step necessary
to place a physical barrier at the edge to keep the unit from falling. Make
sure the physical barrier is not a trip hazard.
5. Only use as described in this manual. Only use attachments recom-
mended or sold by the manufacturer.
6. Please make sure your power supply voltage matches the power
voltage marked on the Docking Station.
7. Do not handle or plug appliance with wet hands.
8. Non-rechargeable batteries are prohibited.
9. Do not use without dust bin and/or filters in place.
10. Do not operate the robot in an area where there are lit candles or
fragile objects on the floor to be cleaned.
11. Do not use and store in extremely hot or cold environments (below
-5°C /23°F or above 40°C/104°F). Please charge the robot in temperature
above 0°C/32°F and below 40°C/104°F. Follow all charging instructions
and do not charge the battery pack or appliance outside
of the temperature range specified in the instructions. Charging improperly
or at temperatures outside of the specified range may damage the battery
and increase the risk of fire.
12. Keep hair, loose clothing, fingers, and all parts of body away from any
openings and moving parts.
13. Do not operate the robot in a room where an infant or child is sleeping.
14. For INDOOR use ONLY. Do not use the robot in outdoor, commercial or
industrial environments. Do not use Appliance on wet surfaces or surfaces
with standing water.
15. Do not allow the robot to pick up large objects like stones, large pieces
of paper or any item that may clog the robot.
16. Do not use the robot to pick up flammable or combustible materials
such as gasoline, printer or copier toner, or use in areas where they may be
present.
17. Do not use the robot to pick up anything that is burning or smoking, such
as cigarettes, matches, hot ashes, or anything that could cause a fire.
18. Do not put any object into openings. Do not use with any opening
blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
19. Take care not to damage the power cord. Do not pull on or carry the
robot or the Docking Station by the power cord, use the power cord as a
handle, close a door on the power cord, or pull power cord around sharp
edges or corners. Do not run the robot over the power cord.Keep power
cord away from hot surfaces. Do not unplug by pulling on cord, To unplug,
grasp the plug, not the cord.
20. If the power cord is damaged, it must be replaced by the manufacturer
or its service agent in order to avoid a hazard.
For Household use only
When using an electrical appliance, basic precautions should always be followed, including the following:
3
21. Do not use the Docking Station if it is damaged.
22. Do not use the robot or the Docking Station if it is not working properly,
has been dropped, damaged, left outdoors, or come in contact with water.
It must be repaired by the manufacturer or its service agent in order to
avoid a hazard.
23. Turn OFF the power switch before cleaning or maintaining the robot. Turn
off all controls
24. The plug must be removed from the receptacle before cleaning or
maintaining the Docking Station.
25. Remove the robot from the Docking Station, and turn OFF the power
switch to the Appliance before removing the battery for disposal of the
robot.
26. The battery must be removed and discarded according to local laws
and regulations before disposal of the robot.
27. Please dispose of used batteries according to local laws and regula-
tions.
28. Do not incinerate the robot even if it is severely damaged. The batteries
can explode in a fire.
29. When not using the Docking Station for a long period of time, please
unplug it.
30. Prevent unintentional starting. Ensure the switch is in the off position
before connecting to battery pack, picking up or carrying the appliance.
Carrying the robot with your finger on the switch or energizing the robot that
have the switch on invites accidents.
31. When battery pack is not in use, keep it away from other metal objects,
like paper clips, coins,keys, nails, screws,ect, that can make a connection
from one terminal to another. Shorting the battery terminals together may
cause burns or a fire.
32. Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, flush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritation or burns.
33. Do not use a battery pack that is damaged or modified. Damaged or
modified batteries may exhibit unpredictable behavior resulting in fire,
explosion or risk of injury.
34. Do not expose a battery pack or appliance to fire or excessive tempera-
ture. Exposure to fire or temperature above 130°C/265°F may cause
explosion.
35. Have servicing performed by a qualified repair person using only
identical replacement parts.
36. Do not modify or attempt to repair the robot or the battery pack (as
applicable) except as indicated in the instructions.
37. Do not operate the robot in a room that has lit candles on furniture that
the vacuum may accidentally hit or bump into.
38. Recharge only with the charger specified by the manufacturer. A
charger that is suitable for one type of battery pack may create a risk of
fire when used with another battery pack.
39. Use the robot only with specifically designated battery packs. Use of any
other battery packs may create a risk of injury and fire.
40. The robot contains batteries that are only replaceable by skilled
persons. To replace the robot's battery, please contact Customer Service.
41. If the robot is not going to be used for a long time, fully charge the robot,
power it OFF, and unplug the Docking Station.
4
SAVE THESE INSTRUCTIONS
Short-circuit-proof safety isolating transformer
Switch mode power supply
For indoor use only
Direct current
Alternating current
detachable supply unit
S
This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To
recycle your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can safely
recycle this product.
Correct Disposal of this Product
To satisfy RF exposure requirements, a separation distance of 20 cm or more
should be maintained between this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recom-
mended. The antenna used for this transmitter must not be co-located in
conjunction with any other antenna or transmitter.
5
Federal Communications Commission (FCC) Interference Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution:
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user 5s authority to operate this
equipment.
RF exposure warning
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment.This equipment must be installed and
operated in accordance with provided instructions and the antenna(s)
used for this transmitter must be installed antenna(s) used for this
transmitter must be installed to provide a separation distance of at least
20 cm from all persons and must not be collocated or operating in
conjunction with any other antenna or transmitter.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generate, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interfer-
ence by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
6
Contents
1. Product introduction
7
1.1 Packing list
1.2 Part name
···················································
2. Preparation
10
2.1 Assemble and charge
2.2 Using environment preparation
···················································
4. Abnormal symptoms
4.1 Troubleshooting
17
···················································
5. Technical parameters 19
···················································
3. Using the product
12
3.1 Buttons operation & Indicator and display screens status
3.2 Use the Boundary Strip
3.3 App download and configuration
3.4 Maintenance
···················································
7

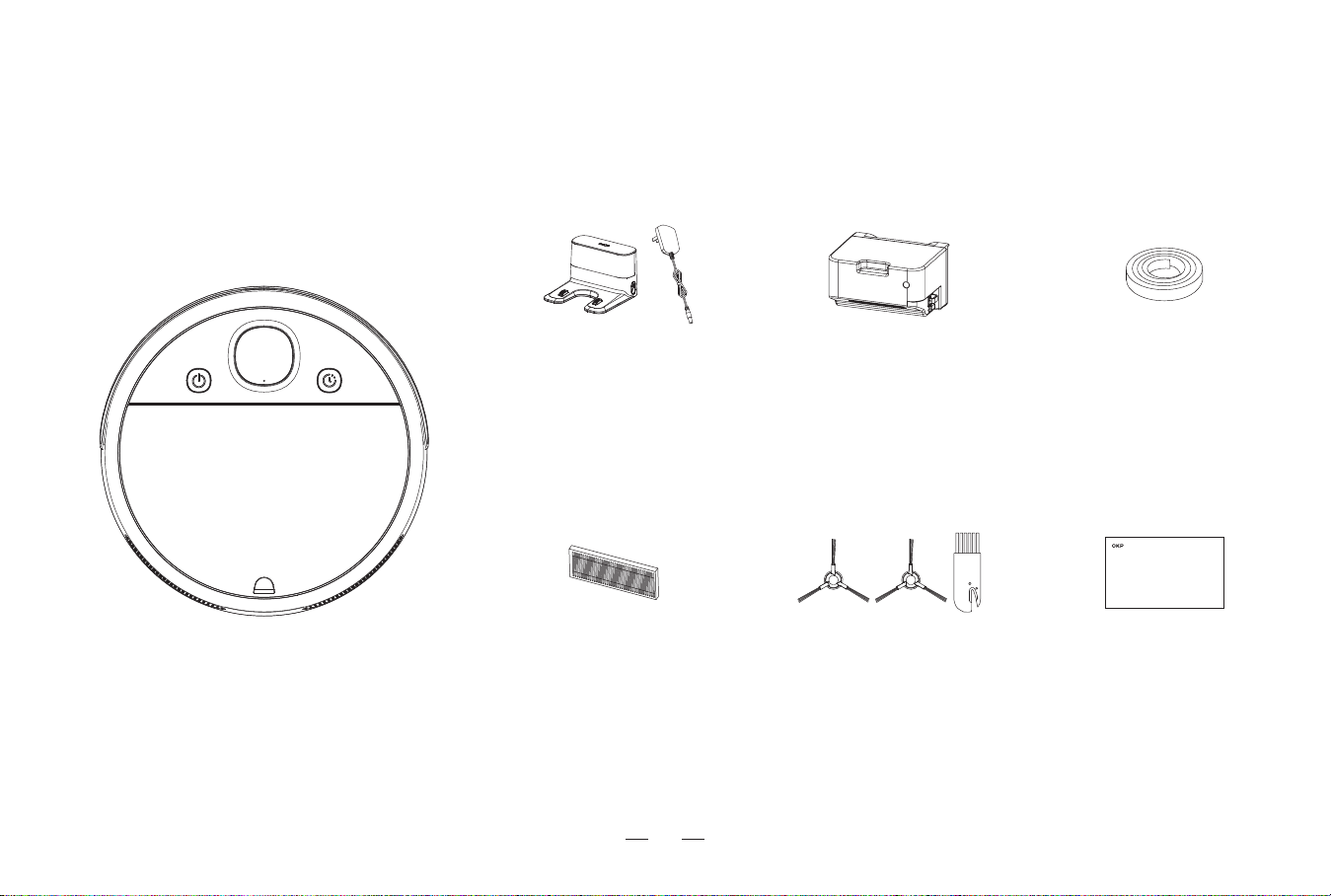

1. Product introduction / 1.1 Packing list
Robot Vacuum Cleaner
High Efficient Particulate
Air (HEPA) Filter
Docking Station & AC Adapter
Dust bin
Side brush & Cleaning tool
Boundary Strip
User manual
Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.
User manual
OKP C5 Robot Vacuum Cleaner
8

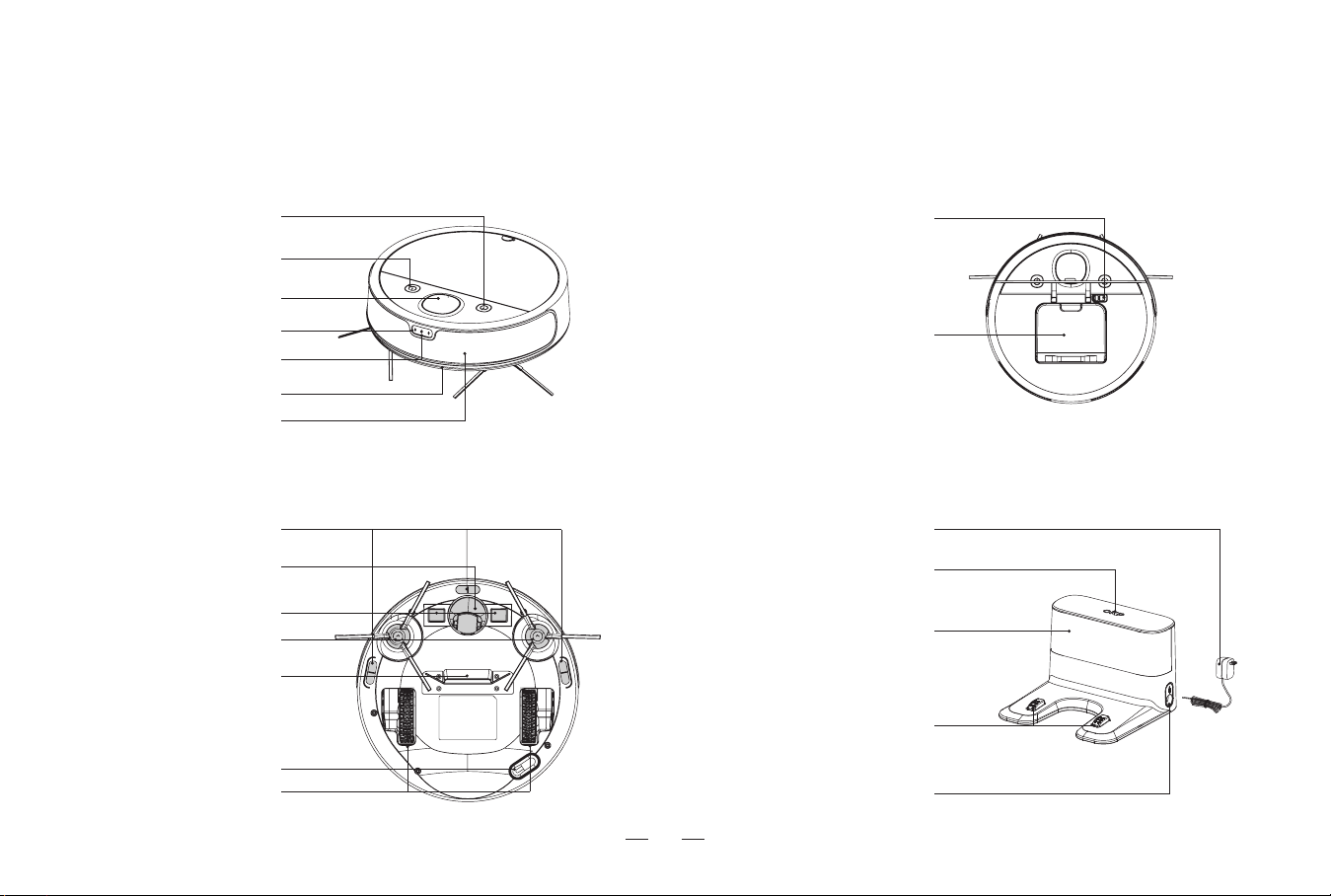

1. Product introduction / 1.2 Part Name
Internal view
Docking StationBottom view
Front view
Return and charge button
Start/pause button
Front view camera
Display screens
Fill light
Anti-collision sensor
Bumper strip
Dust bin
Power Switch
Green at the bottom of the Power Switch is ON
red at the bottom of the Power Switch is OFF
Drive wheel
Anti-falling sensor
Suction mouth
Universal wheel
Charging electrode
Side brush
Charging electrode
Indicator light
Power adapter
Power adapter socket
Infrared signal transmitter
Optical flow sensors
9
1. Product introduction / 1.2 Part Name
Dust bin
High Efficiency Filter
(HEPA)
Filter Net
10
2. Preparation / 2.1 Assemble and charge

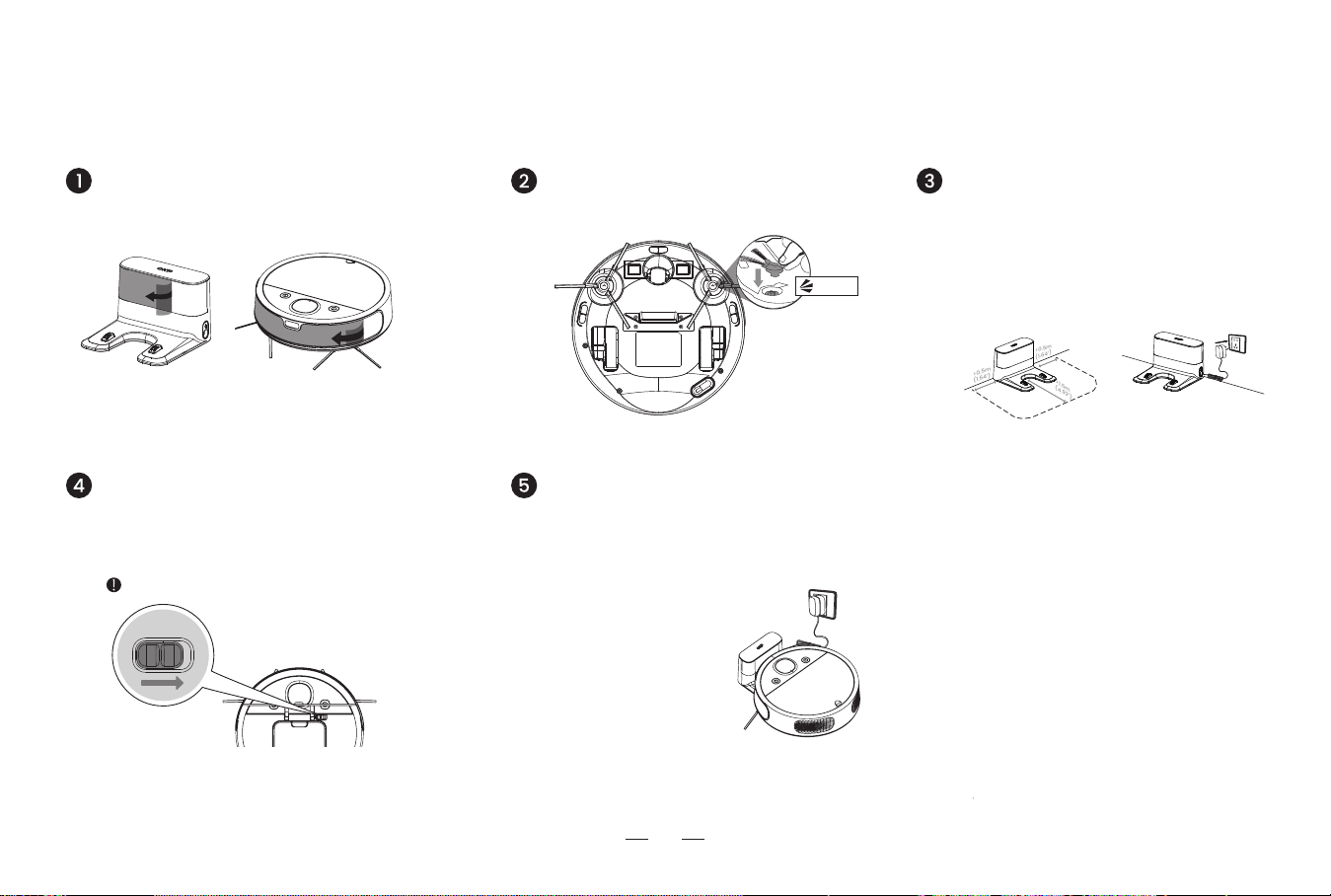

* Place the docking station on an open
place.
* Connect the power supply and tidy up
the power cord to avoid twining.
Placement of the charging base /
connection of power supply
Turn on the robot
Green at the bottom of the Power Switch is ON.
Red at the bottom of the Power Switch is OFF.
Charging
Remove the protective film on the robot
and docking station
Install the side brushes
Reminder: Cannot charge when product is turned off.
Place the robot at Docking Station and make sure
to align the charging electrodes.
A full charge takes 4.5 hours.
>0.5m
(1.64’)
>0.5m
(1.64’)
>1.5m
(4.92’)
Click
11
2. Preparation / 2.2 Using environment preparation

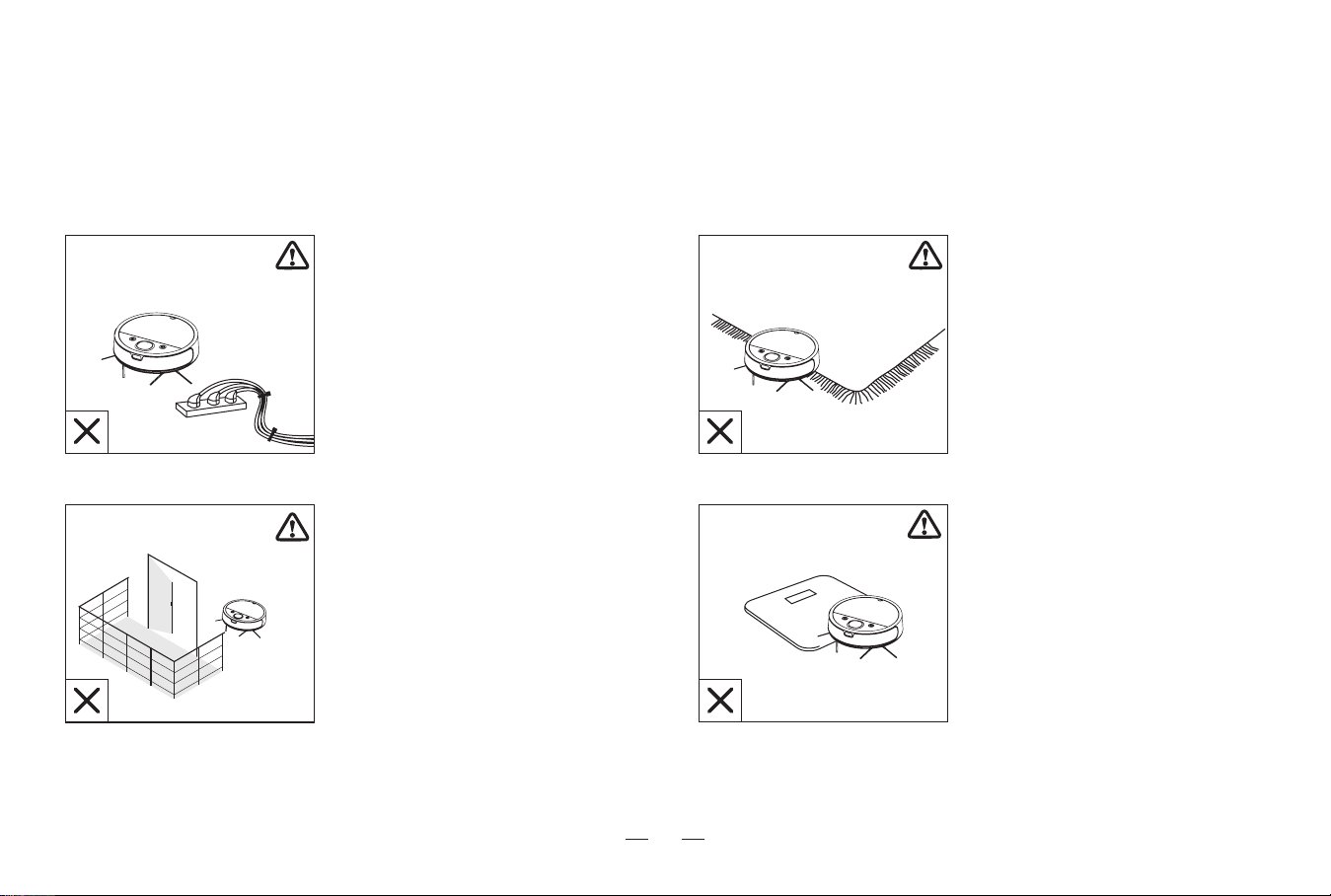

Tidy up the room
If the rug at home has fringed
edges, please put the edges
under the rug in advance.
Organize the items on the floor,
such as wires, slippers and other
sundries to avoid affecting the
operation of the robot.
The robot can climb to the top of
objects with a height of less than
12mm. If you don't want the robot
to climb on them, please take
them away.
Do not allow the sweeper to
operate on wet or overhanging
floors, etc. Close the bathroom and
balcony doors.
12
3. Using the product / 3.1 Buttons operation & Indicator and display screens status

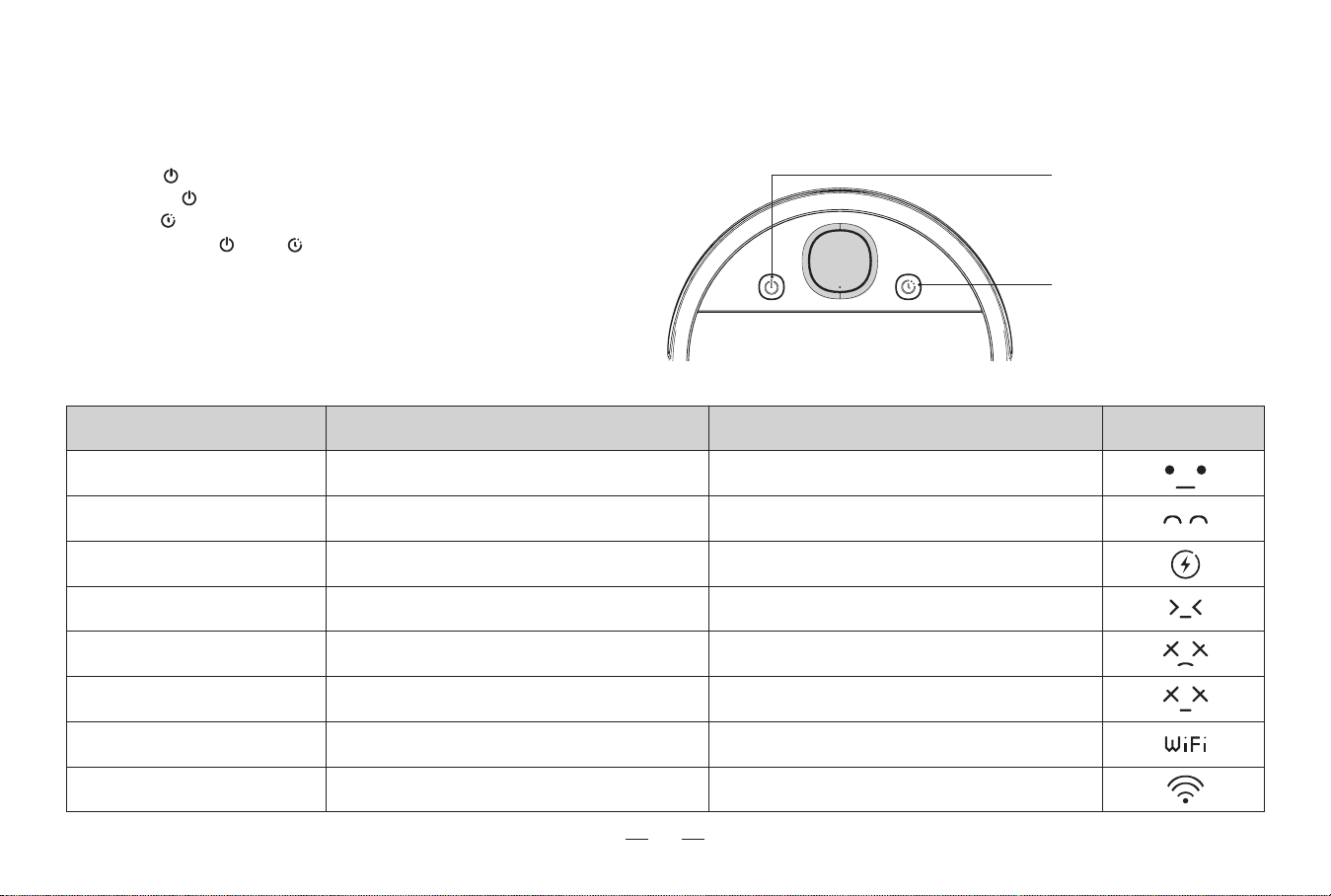

Short press : Start/pause
Long press for 3 seconds: Enter network distribution mode
Short press : Return and charge
Press and hold the and at the same time for 6 seconds:
Switch the language of the broadcast voice (Chinese/English/Japanese)
Start/pause button
Return and charge button
Robot status
Return and charge button light display status Display status
Start up
Cleaning
Automatic recharging
Charging
Entering Wi-Fi pairing mode
White light flashes slowly three times
and then goes out
No light
No light
No light
White light Slow flashing
Connect to Wi-Fi No light
Error No light
Start/pause button light display status
White light flashes slowly three times
and then goes out
No light
No light
No light
White light Slow flashing
No light
Red light always on
Error No lightRed light always blinking
Indicator Meaning
13
3. Using the product / 3.2 Use of Boundary Strip

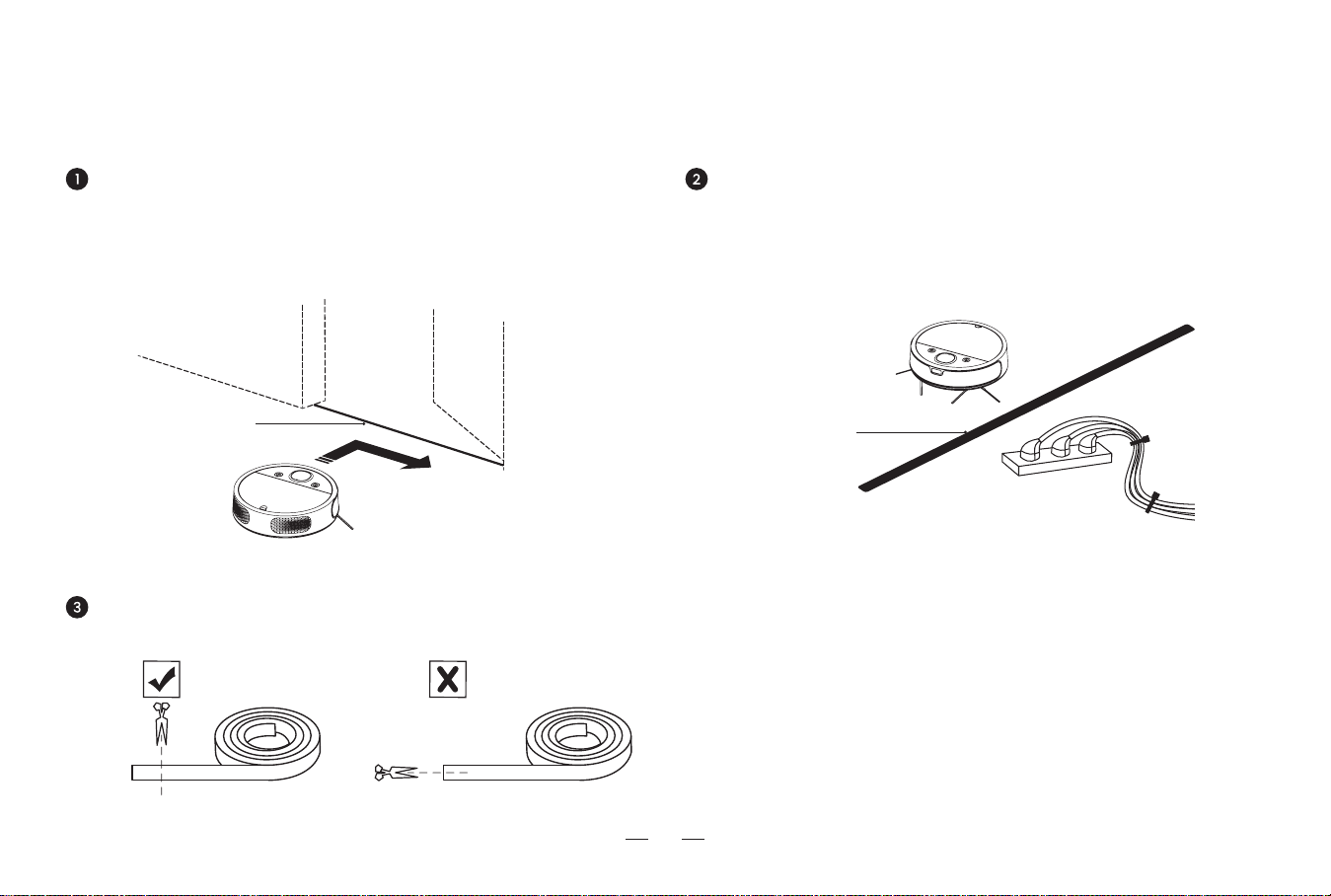

Boundary Strip can be used to isolate areas that you do not
want to be cleaned (bathrooms with wet floors or areas where
the sweeper may get stuck).
In areas where you do not want the sweeper to enter the area to
be cleaned, flatten the Boundary Strip along the entrance.
Please fix the Boundary Strip on the ground to prevent detachment,
otherwise it will affect the effect of using the Boundary Strip
If necessary, use scissors to cut the magnetic strip short. Be sure
to measure the length correctly before cutting.
Boundary Strip
Boundary Strip
14
3. Using the product / 3.3 App download and configuration
Downloading and installation of the “OKP” app
Method I : Scan the following QR code, and then download and
install App as prompted.
Method II : Search "OKP" in the App store, download and install the
OKP app.
Tips:
* Follow the guidance in the OKP app to register, login, and pair
the robot.
* Please make sure that the mobile phone is connected to your
Wi-Fi network before paring the robot vacuum cleaner.
Note: The robot works with 2.4GHz Wi-Fi networks only.
OKP_2.4G
OKP_5G
OKP
3. Using the product / 3.4 Maintenance
15
* When cleaning and maintaining the robot and its accessories, please unplug the charging stand.

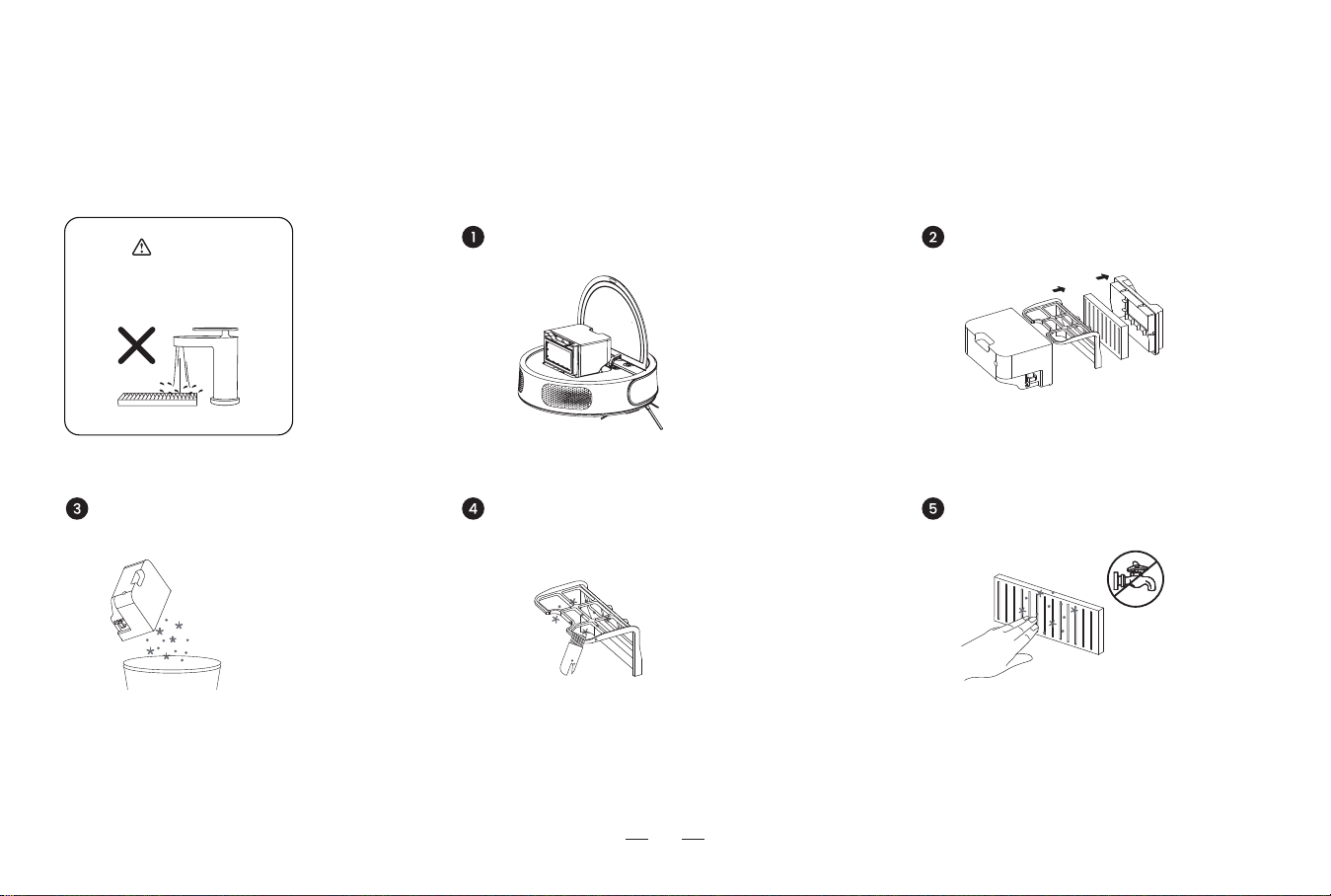

Remove the filter assembly
Clean the HEPA-filterClean the Pre-filter
Open the faceplate and take out the
dust bin
Dumping of garbage
The HEPA Filter
should not touch the water.
Warning
16

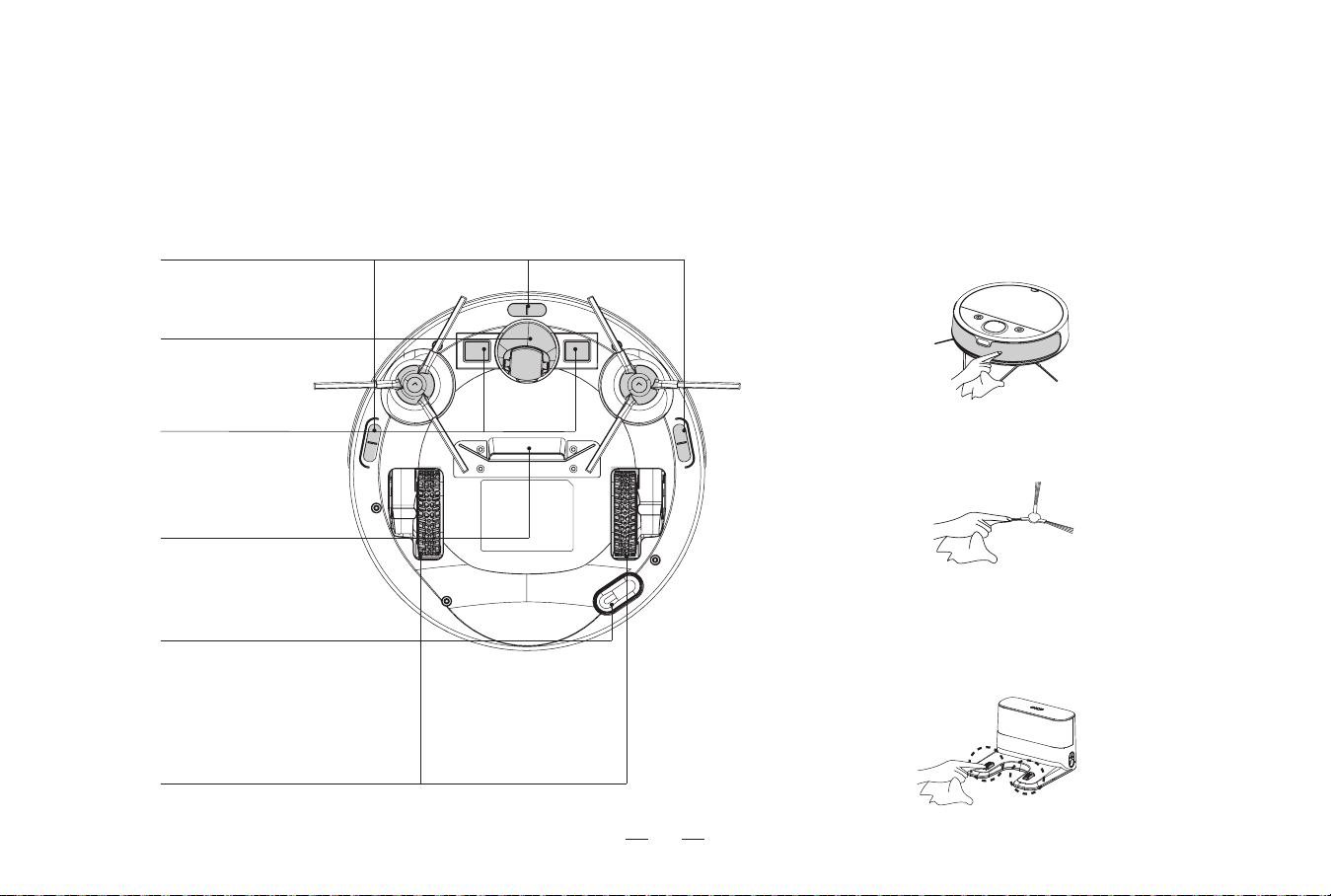

8. Clean the side brush to prevent hair from tangling
6. Clean the driving wheel to ensure
clean smoothly
5. Clean optical flow sensor to ensure
sensor sensitivity
2. Clean the universal wheel to
prevent hair from tangling
7. Clean the Anti-collision sensors to ensure sensitive
obstacle avoidance
4. Clean the suction mouth to
avoid dust clogging
1. Clean the anti-drop sensor to ensure the sensitivity of the sensor
9. Clean the charging electrode of the docking station to
ensure successful charging
3. Clean the charging electrode
to ensure successful charging
* When cleaning and maintaining the robot and its accessories, please unplug the charging stand.
3. Using the product / 3.4 Maintenance
17
4. Abnormal symptoms / 4.1 Troubleshooting
* If the fault cannot be eliminated according to the operation in the table, contact our customer service representative.
If the following problems occur in the application process of the product, users can resolve them independently by comparison and inquiry.
The home Wi-Fi username or password
entered is incorrect
The robot is out of Wi-Fi signal range
The robot is not ready to be wired when
the network is connected
Cleaning components blockage
Dust on sensors and other components
Incorrect placement of charging base
The charging stand is powered off or
moved manually
The home is too large, and the
environment is complex
The robot didn't clean from the docking
station
Possible causes
Abnormal
cleaning
Unable to
connect to App
Difficult to return
and charge
FaultS/N
1
2
3
Make sure The robot is in range of Wi-Fi signal
2.4G Hz network isn't used.
Please refer to the manual's chapter [App download and configuration].
It is recommended to replace consumables regularly, such as high-efficiency
filters (HEPA), pre-filter, side brushes, etc.
Please refer to the chapter [Maintenance] of the manual to clean the robot.
Please refer to the chapter [Using environment preparation] of the manual.
Please check whether the charging base is connected to the power supply. Do
not move the position of the charging base when the robot is working.
Please place the charging stand in an open and flat area.
Let the robot clean from the docking station.
Solutions
Please enter the correct Wi-Fi username and password
Keep pressing the Start/pause button for 3 seconds: Entering Wi-Fi pairing mode.
Please refer to the manual's chapter [App download and configuration].
18
4. Abnormal symptoms / 4.1 Troubleshooting
* If the fault cannot be eliminated according to the operation in the table, contact our customer service representative.
If the following problems occur in the application process of the product, users can resolve them independently by comparison and inquiry.
Possible causesFaultS/N
The power supply is not connected, or
the plug is loose
Poor contact between the robot and the
charging electrode of the docking
station
Battery deterioration caused by
non-long-term use
Unable to
charge
4
It is recommended to use this product frequently. If not used for a long time,
please turn off the power switch under the cover after fully charged and
keep charging once a month. If the battery cannot be charged, please
contact the after-sales service.
Ensure that the charging electrode of the robot and the charging base are fully
connected, and clean the charging electrode of the robot and the docking
station regularly.
Check whether both ends of the power adapter are connected and powered
on normally.
Solutions
19
Note: Since the product needs continuous improvement, the actual product shall prevail.
Our company reserves the right to update the product.
5. Technical parameters
Product model C5
Rated input of machine
19V
1A, 19W
Docking Station Model C3
Power Adapter Model AD-0191900100US/UK
Power Adapter Input 100-240V~ 50-60Hz 0.5A
Off/Standby Mode Power
Networked Standby Power
Less than 0.5W
Less than 2.00W
Power Adapter Output DC 19V, 1A, CLASS II
Rated Output Voltage Rated Output Current 1A19V
Warranty
This warranty covers the repair or replacement of the malfunction device at our company’s discretion for a period of 1-year. In addition this certificate is void
if altered. The serial number must be provided as well as all accessories to be eligible for warranty coverage. Please kindly fill in below form accurately and
completely.
Important:
When returning this device, carefully pack the product to avoid damage in shipping. Damage in shipping is not covered by the Warranty and shall be the
sole responsibility of Buyer. Damage or loss not covered by this Warranty or occurring outside the Warranty Period will require a fee to cover the cost of
handling and shipping. All such fees and costs shall be the sole responsibility of Buyer.
Exclusion
Unless agreed in writing, the warranty will not apply if the defects relate to:
• Consumable parts such as filters, or brushes etc, that are subject to normal wear and tear, and require regular maintenance and/or replacement to
ensure the proper functioning of your unit.
• Defects caused by rough or inappropriate handling or use or damage caused by accident, misuse, neglect, fire, water, lighting or other acts of nature,
external sources such as weather, electrical outages or power surges.
• Improper operation or maintenance, use not in accordance with the product instructions or connection to improper voltage supply.
• Accident, abuse, misapplication, or any unauthorized repair, modification, or disassembly of the product.
• Any failure to adequately package the Product for transportation.
• Use of parts not in accordance with the product instructions.
• Use of parts and accessories other than those produced or recommended by our company.
• Use in a commercial environment as the Product is designed for residential use only.
• Consequential and incidental damages.
• Any product(s) purchased from unauthorized dealers/resellers.
• Products used outside the country of purchase.
• Lost and/or stolen products.
Order Number:
Serial Number:
Date of Purchase:
C5-LH20220719-V01
Building 2, Fashion Brand Industrial Park, E'Bu Town,
Shenzhen-Shanwei Special Cooperation Zone, Shenzhen, Guangdong, China.
Website: www.okplife.com
Facebook: @okplifeofficial
OKP Technologies Corp
