M A N U A L
INSTRUCTION
User manual
OKP L7 Robotic Vacuum Cleaner
Scan the QR code for the English version of the online user manual.
Scannen Sie den QR-Code, um das Online-Handbuch auf Deutsch zu erhalten.
Scannez le QR code pour obtenir le manuel en ligne en français.
Scansiona il codice QR per ottenere il manuale online in italiano.
Escanee el código QR para obtener el manual en línea en español.
コードをスキャンして、日本語のオンライン マニュアルを取得します。
1
Please read this instruction manual carefully before using the product and keep it in a safe place.
You can scan the QR code or download the "OKP" app from the app store to connect to the robot and unlock more
features.
Thank you for choosing OKP
This manual will guide you through a comprehensive understanding and quick installation of the robotic vacuum
cleaner (referred to as "robot" hereafter), providing detailed important information regarding usage and maintenance
to help you achieve the best product experience.
If you encounter any issues during usage, please dial the service hotline. OKP technical support experts will be
dedicated to assisting you with any inquiries.
www.okplife.com
Products are subject to physical appearance and specific details may differ from those shown.
Tips:
* Follow the guidance in the OKP app to register, login, and pair the robot.
* Please make sure that the mobile phone is connected to your Wi-Fi network before paring the robot.
OKP
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in
electric shock, fire or serious injury.
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
1. The robot must be used in accordance with the
directions in this user manual. Our company cannot be
held liable or responsible for any damages or injuries
caused by improper use.
2. Do not allow to be used as a toy. Close attention is
necessary when used by or near children.x
Do not allow children to sit on the vacuum.

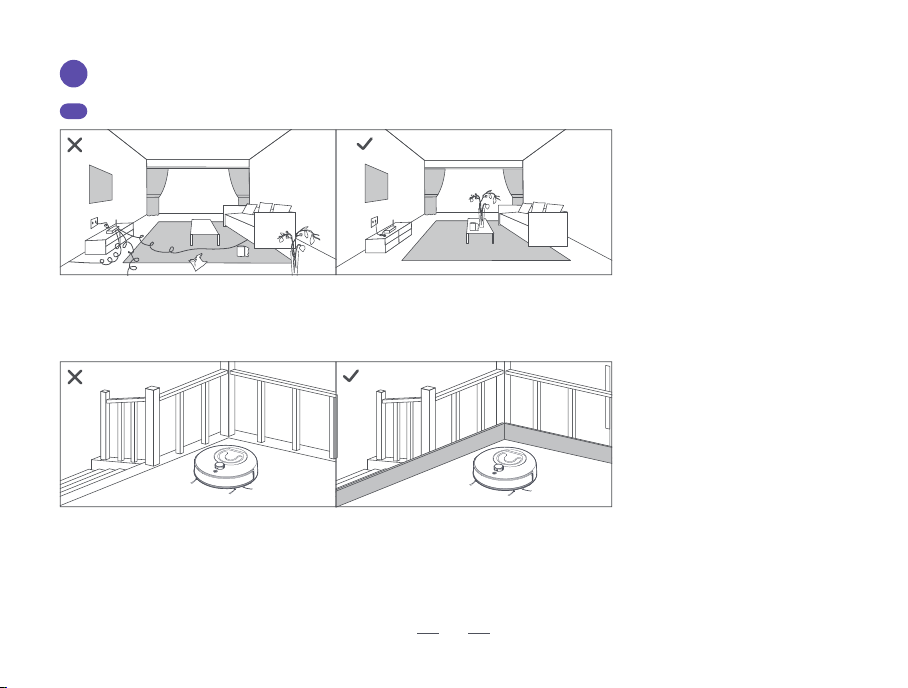

3. Clear the area to be cleaned. Remove power cords and
small objects from the floor that could entangle the
Robot. Tuck rug fringe under the rug base, and lift items
such as curtains and table cloths off the floor.
4. If there is a drop off in the cleaning area due to a step
or stairs, you should operate the robot to ensure that it
can detect the step necessary to place a physical barrier
at the edge to keep the unit from falling. Make sure the
physical barrier is not a trip hazard.
5. Only use as described in this manual. Only use
attachments recommended or sold by the manufacturer.
6. Please make sure your power supply voltage matches
the power voltage marked on the docking station.
7. Do not handle or plug appliance with wet hands.
8. Non-rechargeable batteries are prohibited.
9. Do not use without dust bin and/or filters in place.
10. Do not operate the robot in an area where there are lit
candles or fragile objects on the floor to be cleaned.
11. Do not use and store in extremely hot or cold environ-
ments (below -5°C /23°F or above 40°C/104°F). Please
charge the robot in temperature above 0°C/32°F and
below 40°C/104°F. Follow all charging instructions and do
not charge the battery pack or appliance outside of the
temperature range specified in the instructions. Charging
improperly or at temperatures outside of the specified
range may damage the battery and increase the risk of
fire.
12. Keep hair, loose clothing, fingers, and all parts of body
away from any openings and moving parts.
13. Do not operate the robot in a room where an infant or
child is sleeping.
14. For INDOOR use ONLY. Do not use the robot in outdoor,
commercial or industrial environments. Do not use robot on
wet surfaces or surfaces with standing water.
15. Do not allow the robot to pick up large objects like
For Household use only
When using an electrical appliance, basic precautions should always be followed, including the following:
3
stones, large pieces of paper or any item that may clog
the robot.
16. Do not use the robot to pick up flammable or
combustible materials such as gasoline, printer or copier
toner, or use in areas where they may be present.
17. Do not use the robot to pick up anything that is burning
or smoking, such as cigarettes, matches, hot ashes, or
anything that could cause a fire.
18. Do not put any object into openings. Do not use with
any opening blocked; keep free of dust, lint, hair, and
anything that may reduce air flow.
19. Take care not to damage the power cord. Do not pull on
or carry the robot or the docking station by the power cord,
use the power cord as a handle, close a door on the power
cord, or pull power cord around sharp edges or corners. Do
not run the robot over the power cord.Keep power cord
away from hot surfaces. Do not unplug by pulling on cord,
To unplug, grasp the plug, not the cord.
20. If the power cord is damaged, it must be replaced by
the manufacturer or its service agent in order to avoid a
hazard.
21. Do not use the docking station if it is damaged.
22. Do not use the robot or the docking station if it is not
working properly, has been dropped, damaged, left
outdoors, or come in contact with water. It must be
repaired by the manufacturer or its service agent in order
to avoid a hazard.
23. Turn off the power switch before cleaning or
maintaining the robot. Turn off all controls
24. The plug must be removed from the receptacle
before cleaning or maintaining the docking station.
25. Remove the robot from the docking station, and turn
off the power switch to the robot before removing the
battery for disposal of the robot.
26. The battery must be removed and discarded
according to local laws and regulations before disposal
of the robot.
27. Please dispose of used batteries according to local
laws and regulations.
28. Do not incinerate the robot even if it is severely
damaged. The batteries can explode in a fire.
29. When not using the docking station for a long period
of time, please unplug it.
30. Prevent unintentional starting. Ensure the switch is in
the off position before connecting to battery pack,
picking up or carrying the robot. Carrying the robot with
your finger on the switch or energizing the robot that
have the switch on invites accidents.
31. When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins,keys, nails,
screws,ect, that can make a connection from one
terminal to another. Shorting the battery terminals
together may cause burns or a fire.
32. Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause
4
irritation or burns.
33. Do not use a battery pack that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behavior resulting in fire, explosion or risk
of injury.
34. Do not expose a battery pack or appliance to fire or
excessive temperature. Exposure to fire or temperature
above 130°C/265°F may cause explosion.
35. Have servicing performed by a qualified repair person
using only identical replacement parts.
36. Do not modify or attempt to repair the robot or the
battery pack (as applicable) except as indicated in the
instructions.
37. Do not operate the robot in a room that has lit
candles on furniture that the vacuum may accidentally
hit or bump into.
38. Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
39. Use the robot only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
40. The robot contains batteries that are only replace-
able by skilled persons. To replace the robot's battery,
please contact Customer Service.
41. If the robot is not going to be used for a long time,
fully charge the robot, power it off, and unplug the
docking station.
42. Please remove any fragile and miscellaneous items
from the floor (such as vases, plastic bags, etc.) to
prevent the robot from being obstructed or causing
damage to valuable items in the home due to minor
collisions.
SAVE THESE INSTRUCTIONS
For indoor use only
Direct current
Alternating current
detachable supply unit
To satisfy RF exposure requirements, a separation
distance of 20 cm or more should be maintained
between this device and persons during device
operation.
To ensure compliance, operations at closer than this
distance is not recommended. The antenna used for this
transmitter must not be co-located in conjunction with
any other antenna or transmitter.
5
This marking indicates that this product should not be disposed of with other household waste throughout
the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material resources. To recycle your used device,
please use the return and collection systems or contact the retailer where the product was purchased.
They can safely recycle this product.
Correct Disposal of this Product
Federal Communications Commission (FCC) Interference Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
FCC Caution:
Any changes or modifications not expressly approved by
the party responsible for compliance could void the user
5s authority to operate this equipment.
RF exposure warning
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment.This
equipment must be installed and operated in
accordance with provided instructions and the
antenna(s) used for this transmitter must be installed
antenna(s) used for this transmitter must be installed
to provide a separation distance of at least 20 cm from
all persons and must not be collocated or operating in
conjunction with any other antenna or transmitter.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generate, uses and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
FCC ID: 2AZ2R-L
6
- English:
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic
Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the
device.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
RF exposure statement:
The equipment complies with IC Radiation exposure limit set forth for uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator and your body.
- French:
Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS) d'Innovation,
Sciences et Développement économique Canada. Le fonctionnement est soumis aux deux conditions suivantes:
(1) Cet appareil ne doit pas causer d'interférences.
(2) Cet appareil doit accepter toutes les interférences, y compris celles susceptibles de provoquer un fonctionnement
indésirable de l'appareil.
Tout changement ou modification non expressément approuvé par la partie responsable de la conformité pourrait
annuler l'autorité de l'utilisateur à utiliser l'équipement.
Déclaration d'exposition RF:
L'équipement est conforme à la limite d'exposition aux radiations de la IC établie pour un environnement non contrôlé.
Cet équipement doit être installé et utilisé avec une distance minimale de 20cm entre le radiateur et votre corps.
IC Caution:
7
Product introduction
A
How to use buttons
Indicator Meaning
Purple breathing light: Charging (battery level <50%)
Blue breathing light: Charging ((battery level >50%)
Blue flashes light: Enters the network state
Red light on: low battery auto recharge
Hold for 3 seconds: Turn on
Fast press: Start/Pause (planned cleaning)
Fast press twice: Auto-recharge
Hold for 6 seconds: Enter network pairing mode
(Networking operation: Press and hold for 6 seconds and release when you
hear two beeps, the light will blink and the robot will enter the networking
mode, please open the App for networking and pairing).
Hold for 12 seconds: Turn off
8
Drive wheel
Mop holder
mounting holes
Anti-falling sensor
Suction mouth
Charging electrode
Universal wheel
Side brush
Battery
Ultrasonic Inspection
A1
Robot (Top View)
A2
Robot (Bottom View)
A3
Docking Station
A4
Dust bin
Start/pause button
Dust bin
Exhaust port
Anti-collision sensor
Bumper
Laser Navigation
Sensors
Charging electrode
Power adapter
Indicator light
Power adapter socket
Infrared signal
transmitter
HEPA Filter
Pre-filter
Snap Lock
9
Product Installation
B
Special Note
B1
2. If using this product in an
environment with drop-offs, it is
essential to employ sturdy
physical barriers to prevent the
robot from accidentally falling
and causing harm to individuals
or property.
1. Before starting, please clear the
floor of scattered wires, hard objects,
sharp items (such as nails, glass),
and other debris. Also, remove items
that are easily toppled, fragile,
valuable, or could potentially cause
danger. Avoid situations where the
robot may become entangled, stuck,
dragged, or cause harm to
individuals or property.
Tips:
1. During the initial cleaning process, it is advisable to accompany the robot throughout the entire session to assist with addressing any minor
issues that may arise. Once resolved, the robot will be able to proceed with autonomous cleaning smoothly in subsequent sessions.
2. If there are areas that do not require cleaning or where the robot may get stuck, you can set up virtual barriers using the mobile app to
prevent the robot from entering those zones.
3. Avoid letting the robot vacuum up hard or sharp objects (such as construction debris, glass, nails, etc.), as this may cause damage to both
the robot and the floor surface.
10
1. Remove the protective film on the robot and
docking station
4. Charging
Place the docking station against the wall on a
flat surface. Ensure there are no items within
0.5m to the left or right and 1.5m in front to avoid
blocking the charging signal. Avoid having
reflective objects, such as floor mirrors, near the
docking station to prevent signal reflection.
3. Placement of the docking station / connection of power supply
2. Install the side brushes
Click
>1.5m
(4.92’)
>0.5m
(1.64’)
>0.5m
(1.64’)
Place the robot with its button side facing the docking
station. When the button light starts to blink, it indicates
correct placement. (As shown below)
Charging time is approximately 4-6 hours.
When the robot is charging under powered off status, it
will automatically turn on during the charging process.
Assemble
B2
11
Note: Do not use water to clean
the HEPA Filter, just pat it gently
to remove the dust.
2. Open the dust bin latch and dump the garbage
5. Clean the pre-filter and the HEPA-filter
4. Remove the HEPA-filter 1. Take out the dust bin
3. Remove the filter assembly
The HEPA Filter should not touch the water.
Maintenance
C
Dust bin
C1
12
Clean the side brush to prevent hair tangling.
Clean the anti-collision sensors to ensure
sensitive obstacle avoidance.
Use a soft, dry cloth to wipe and clean various sensors and
components of the robot, including:
Anti-falling sensor
Universal wheel
Charging electrode
Suction mouth
Drive wheel
① Clean the charging pins on the docking
station to ensure smooth charging.
②Clean the infrared sensor lens on the
docking station to prevent signal interference.
1
2
Anti-falling sensor Anti-falling sensor
Ultrasonic sensors
Drive wheel
Charging electrode
Anti-collision sensors
C2
Robot Accessories
C5
Side brush
C3
Docking station
C4
. The three anti-drop sensors on the bottom of the robot.
. The ultrasonic sensors on the bottom of the robot.
. The omnidirectional wheel on the bottom of the robot.
. The two charging contacts on the bottom of the robot.
. The suction port on the bottom of the robot.
. The two drive wheels on the bottom of the robot.
1
2
3
4
5
6
13
Technical parameters
Environmental Protection
Instructions
Robotic Vacuum Cleaner
Product model L7
Battery 12.8V/4000mAh
li-ion battery
Wireless Connections WiFi Smart Fast Connect
Robot operating voltage 12.8V
Robot rated power 35W
charging time < 5 hours
The chemicals contained in the lithium-ion battery built into this product
may pollute the environment. Before disposal, remove the battery and
dispose of it at a designated battery recycling facility.
Battery Removal Steps
* The following information is applicable only when disposing of this
robot and is not part of regular operating instructions.
Tip:
• When disassembling the battery, ensure it is fully discharged and
operate without being connected to the charging dock.
• Please remove the entire battery pack together. Do not damage the
battery pack casing to prevent short circuits or leakage of hazardous
substances.
• If the battery leaks and comes into contact accidentally, rinse with
plenty of water and seek medical attention promptly.
Battery Cover
1. Allow the robot to run until it completely discharges and shuts down
automatically without being connected to the charging dock.
2. Ensure the robot is powered off.
3. Remove the screws securing the battery cover on the bottom shell
of the robot.
4. Open the battery cover.
5. After removing the battery, unplug the connector plug from the
battery.
14
Troubleshooting
* If the issue cannot be eliminated according to the operation in the table, contact our customer service representative.
If the following problems occur in the application process of the product, users can resolve them independently by
comparison and inquiry.
Cleaning components blockage
Not entered Wi-Fi pairing mode
Possible causes
Abnormal cleaning
Fault
It is recommended to replace consumables regularly, such as high-efficiency filters
(HEPA), pre-filter, side brushes, etc.
Keep pressing button for 6 seconds: Entering Wi-Fi pairing mode. please refer to
the App Networking Guide for details.
Solutions
2.4G Hz network isn't used.
Incorrect placement of docking station
The docking station is powered off or moved manually
Unable to connect to
App
Please place the docking station in an open and flat area.
The home is too large, and the environment is complex
Please refer to the chapter [B1 Special Note] of the manual.
You need to switch to 2.4G Hz network, please refer to the App Networking Guide for
details.
Please check whether the docking station is connected to the power supply. Do not
move the position of the docking station when the robot is working.
The power supply is not connected, or the plug is loose
Poor contact between the robot and the charging
electrode of the docking station
Battery deterioration caused by non-long-term use
Unable to charge
It's recommended to use this product regularly. If not used for an extended period,
charge fully, turn off the robot, and ensure it's charged once a month. If the
battery can't be charged, please contact after-sales service.
Ensure that the charging electrode of the robot and the docking station are fully
connected, and clean the charging electrode of the robot and the docking station
regularly.
Check if both ends of the power cord are connected and if the docking station
indicator light is on.
Dust on sensors and other components Please refer to the chapter [Maintenance] of the manual to clean the robot.
Difficult to return and
charge
The robot didn't clean from the docking station
Let the robot clean from the docking station.
Warranty
This warranty covers the repair or replacement of the malfunction device at our company’s discretion for a period of
1-year. In addition this certificate is void if altered. The serial number must be provided as well as all accessories to be
eligible for warranty coverage. Please kindly fill in below form accurately and completely.
Important:
When returning this device, carefully pack the product to avoid damage in shipping. Damage in shipping is not covered by the Warranty and
shall be the sole responsibility of Buyer. Damage or loss not covered by this Warranty or occurring outside the warranty period will require a
fee to cover the cost of handling and shipping. All such fees and costs shall be the sole responsibility of Buyer.
Exclusion
Unless agreed in writing, the warranty will not apply if the defects relate to:
• Consumable parts such as filters, or brushes etc, that are subject to normal wear and tear, and require regular maintenance and/or
replacement to ensure the proper functioning of your unit.
• Defects caused by rough or inappropriate handling or use or damage caused by accident, misuse, neglect, fire, water, lighting or other acts
of nature, external sources such as weather, electrical outages or power surges.
• Improper operation or maintenance, use not in accordance with the product instructions or connection to improper voltage supply.
• Accident, abuse, misapplication, or any unauthorized repair, modification, or disassembly of the product.
• Any failure to adequately package the product for transportation.
• Use of parts not in accordance with the product instructions.
• Use of parts and accessories other than those produced or recommended by our company.
• Use in a commercial environment as the product is designed for residential use only.
• Consequential and incidental damages.
• Any product(s) purchased from unauthorized dealers/resellers.
• Products used outside the country of purchase.
• Lost and/or stolen products.
Order Number:
Serial Number:
Date of Purchase:
Building 2, Fashion Brand Industrial Park, E'Bu Town,
Shenzhen-Shanwei Special Cooperation Zone, Shenzhen, Guangdong, China.
OKP Technologies Corp
Website:
Email:
Facebook:
www.okplife.com
@okplifeofficial
