Marine Wakeboard Water Resistant Speaker
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: suppor[email protected]
Model: PLMRWK63WT, PLMRWK63BK
Model: PLMRWK83WT, PLMRWK83BK
8" -inch Speaker Box Pairs with Built-in LED Lights
6.5" -inch Speaker Box Pairs with Built-in LED Lights
Model: PLMRWKBT65WT, PLMRWKBT65BK
Model: PLMRWKBT65WT, PLMRWKBT65BK
8" -inch Speaker Box Pairs with Built-in LED Lights and Wireless BT
6.5" -inch Speaker Box Pairs with Built-in LED Lights and Wireless BT
www.PyleUSA.com
Technical Specs:
Model
Number
Subwoofers
Size
Peak
Power
Frequency
Response
HxWxD(mm)
Impedance
Magnet Colour
PLMRWK63WT
PLMRWK63BK
PLMRWK83WT
PLMRWK83BK
6.5''200 Watt 10 Oz White
6.5''
Tweeter
1.0''
1.0''200 Watt
RMS
Power
100 Watt
100 Watt 10 Oz Black
White
Black
4 Ohm
4 Ohm
Sensitivity
Dimensions
90 dB 317x213x240
317x213x240
362x260x290
362x260x290
90 dB
60-20 kHz
60-20 kHz
8'' 1.0''300 Watt 150 Watt 20 Oz 4 Ohm 91 dB40-20 kHz
8'' 1.0''300 Watt 150 Watt 20 Oz 4 Ohm 91 dB40-20 kHz
Model
Number
Subwoofers
Size
Peak
Power
Frequency
Response
HxWxD(mm)
Impedance
Magnet Colour
PLMRWKBT65WT
PLMRWKBT65BK
PLMRWKBT85WT
PLMRWKBT85BK
6.5''200 Watt 10 Oz White
6.5''
Tweeter
1.0''
1.0''200 Watt
RMS
Power
100 Watt
100 Watt 10 Oz Black
White
Black
4 Ohm
4 Ohm
Sensitivity
Dimensions
90 dB 317x213x240
317x213x240
362x260x290
362x260x290
90 dB
60-20 kHz
60-20 kHz
8'' 1.0''300 Watt 150 Watt 20 Oz 4 Ohm 91 dB40-20 kHz
8'' 1.0''300 Watt 150 Watt 20 Oz 4 Ohm 91 dB40-20 kHz
Model
PLMRWK63WT PLMRWK63BK PLMRWK83WT PLMRWK83BK
Built-in LED Lights
Color White Black White Black
PLMRWKBT65WT
PLMRWKBT65BK
PLMRWKBT85WT
PLMRWKBT85BK
White Black White Black
Wireless BT Streaming
Mounting hole dimension
1 1/3”
(3.4cm) (4.45cm/6cm)
1 3/4” 2 2/5”
www.PyleUSA.com
Picture 1. Picture 2.
1. The base of the bracket.
2. The connecting base of the bracket,
360° rotation, connect to picture1.
3. The cover of the bracket is xed by 4
mounting screws after picture 2
rotates to an angle.
Remark:
Two types of screws for choice: M5x65/M5x80
360°
rotation
www.PyleUSA.com

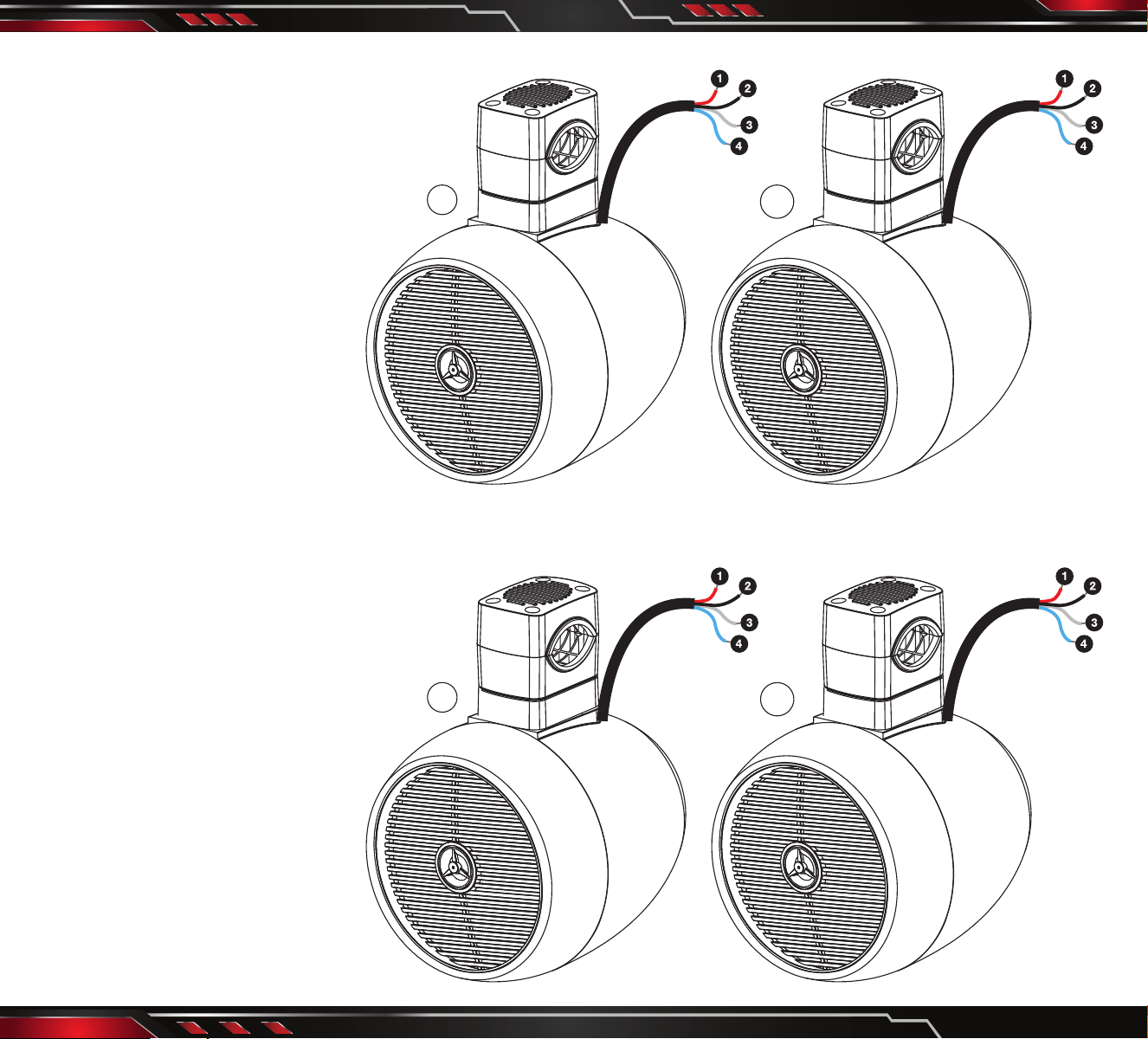

Picture 3.
PLMRWK63WT/PLMRWK63BK
PLMRWK83WT/PLMRWK83BK
1. Speaker power +(red)
2. Speaker power - (black)
3. LED power + (white) - DC12V
4. LED power - (blue) - DC12V
Wireless BT Connection Diagram
Built in Wireless BT power amplier
1
2
Picture 4.
PLMRWKBT65WT/PLMRWKBT65BK
PLMRWKBT85WT/PLMRWKBT85BK
1. Speaker power + (red)
2. Speaker power - (black)
3. LED power + (white)
and Wireless BT - DC12V
4. LED power - (blue) - DC12V
1
2
