Hydrostatic Zero-Turn
Commercial Riding Mower
Professional Turf Equipment
ILLUSTRATED PARTS LIST
48" Fabricated Deck
2
TABLE OF CONTENTS
Frame Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
48" Fabricated Cutter Deck. . . . . . . . . . . . . . . . . . . . . 4 and 5
48" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 6 and 7
Hydro Hose and Pump Assembly. . . . . . . . . . . . . . . .8 and 9
Brake Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 and 11
Fuel Tank Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Rear Bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Front Caster Assembly . . . . . . . . . . . . . . . . . . . . . . 14 and 15
Control Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 16 and 17
48" Wheel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Seat/Floor Panel Assembly . . . . . . . . . . . . . . . . . . . . . . . . 19
23HP Kawasaki Engine Assembly . . . . . . . . . . . . . 20 and 21
25HP Kohler Engine Assembly. . . . . . . . . . . . . . . . 22 and 23
Lift Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 and 25
23HP Electrical Assembly Kawasaki . . . . . . . . . . . . . . . . . 26
25HP Electrical Assembly Kohler . . . . . . . . . . . . . . . . . . . . 27
Decal Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
MODELS LISTED IN THIS MANUAL
23HP Tank, 25HP Tank,
53AI8CT2050 53AH8CT2050
3

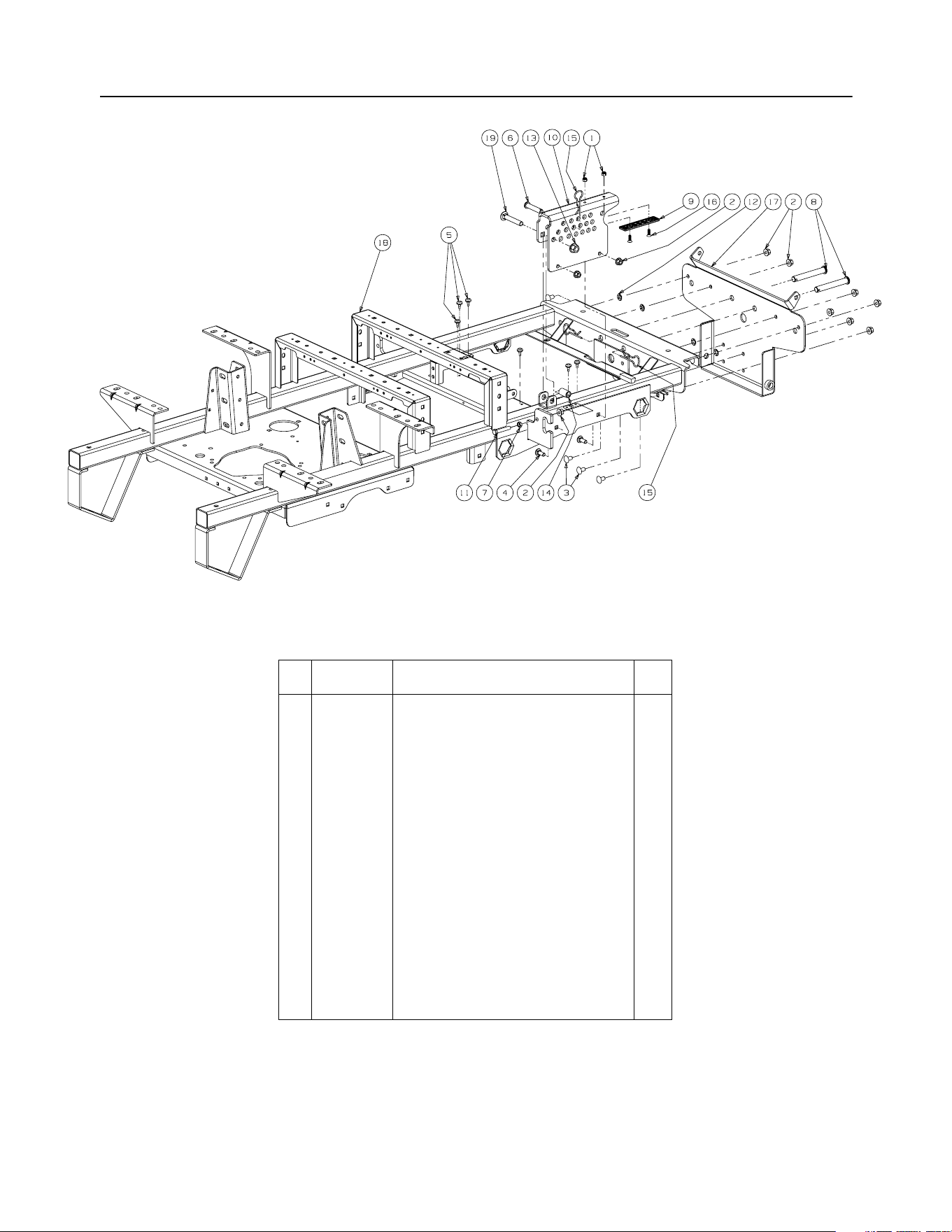

Frame Assembly
GD: 02004641-10/08/08
- Figure 1 and Parts List
Ref.
No.
Part No. Description Qty.
1 00012152
Lock Nut w/Nylon Insert
2
2 00022560 Hex Nut, 3/8-16 Flange Lock 10
3 01000372 Carriage Bolt, 3/8-16 x .75 Long 7
4 710-3168 Carriage Bolt, 3/8-16 x 1 2
5 01001170 Rubber Bumper, .62 OD x .22 Thick 6
6 01001776 Clevis Pin, .500 Dia. x 2.50 Lg. 1
7 01002511
Nut, 3/8-16, Jam
1
8 01003282
Clevis Pin, .625 Dia x 4.375 Long
2
9 02003749 Wear Plate, 1.25 x 5.00 1
10 02005101 Lift Index Bracket 1
11 01005810 Hex Cap Screw 3/8-16 x 2.00 1
12 01008225 Push Retainer, 3/8 4
13 01010119 Nut, 1/2-13, Flangelock 1
14 02002655 Spacer, .51 ID x .75 OD x 1.40 1
15 02003074 HitchPin, .120 Dia. x 3.0 3
16 02003505 Flat Head Cap Screw, 1/4-20 x .75 2
17 680-00063 Bracket Assembly, Frame, Front 1
18 02003536 Frame Assembly 1
19 02003563 Carriage Bolt, 1/2-13 x 3.00 1
4

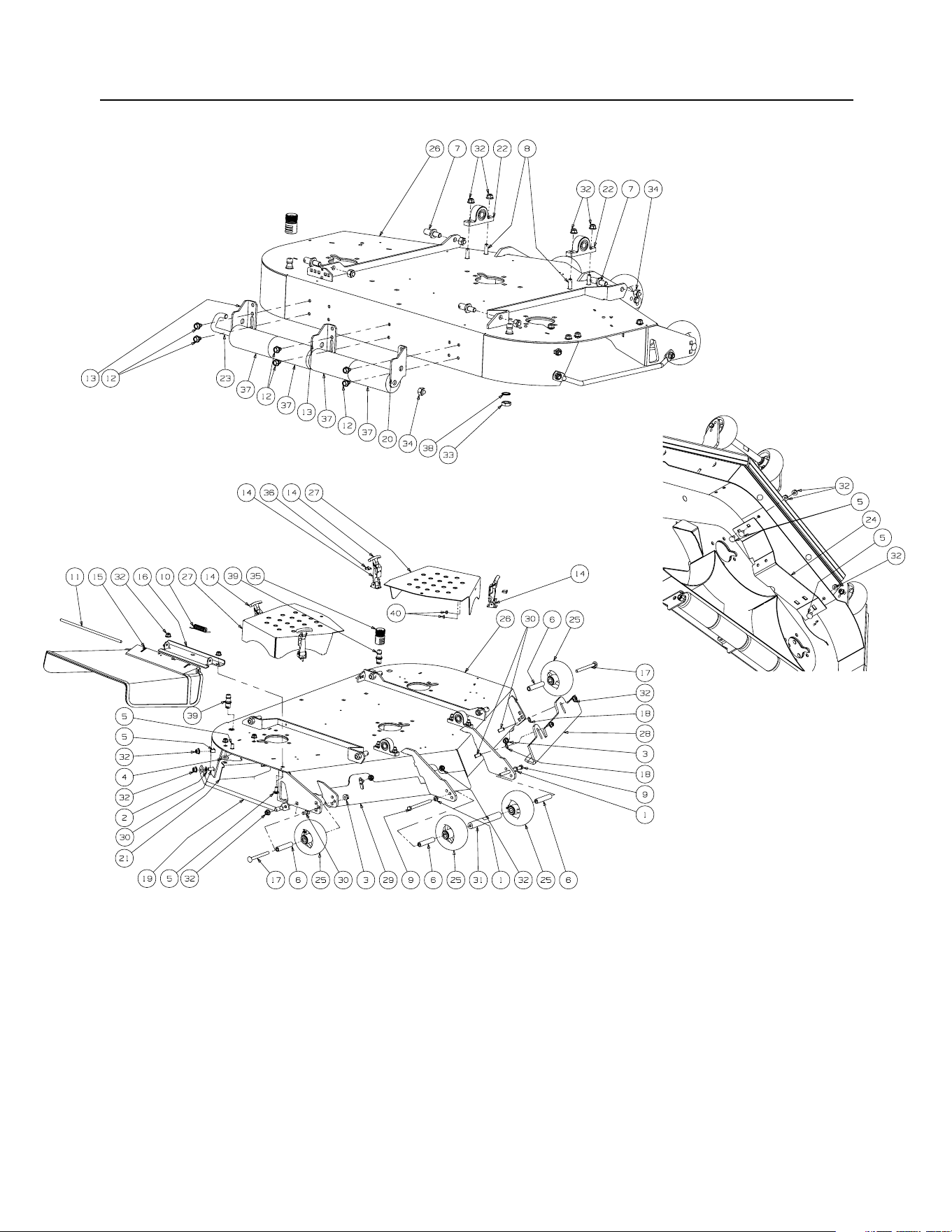

48" Fabricated Cutter Deck - Figure 2
GD: 853-000010-11/14/08
5
48" Fabricated Cutter Deck - Parts List for Figure 2
Ref.
No.
Part No. Description Qty.
1 00012157 Lock Washer, 3/8 2
2 00012158 Flat Washer, 3/8 1
3 00022560
Flange Lock Hex Nut, 3/8-16
2
4 00083192 Idler Washer 1
5 01000372 Carriage Bolt, 3/8-16 x .75 Lg. 6
6 01000398 Wheel Spacer 4
7 01001745 Pin, 5/8 Dia. x 1.2 Lg. 4
8 01002010
Carriage Bolt, 3/8-16 x 1.25
4
9 01002539 Hex Cap Screw, 3/8-16 x 4.50 2
10 01003253 Torsion Spring, 0.4ID x 2.16Lg 1
11 01003254 Chute Deflector Rod 1
12 01004304
Hex Index Washer Screw, 3/8-16, .05
6
13 01004707
Deck Roller Mount Bracket
2
14 01005869 T-Handle Latch Draw 4
15 01006693 Deflector Chute 1
16 01006748 Deflector Chute Bracket 1
17 01008049 Carriage Bolt, 3/8-16 x 4.00 2
18 01008225 Push Retainer 4
19 01008644 Finger Guard 1
20 01008790
Deck Roller Mounting Bracket, Right Hand
1
21 01009296 Chute Baffle 1
22 02000109 Pillow Block, Steel 2
23 02002799
J-Hook w/ Threaded Roller
1
24 02005695 48" Adjustment Baffle 1
25 634-3159 Complete Wheel, 5.00 Dia. 4
26 680-00039 48" Deck Assembly 1
27 703-06871 Deck Belt Cover 2
28 703-07121
Left Hand Front Adjustment Skirt
1
29
703-07122
Right Hand Front Adjustment Skirt
1
30 710-3168
Carriage Bolt, 3/8-16 x 1
8
31 711-05159 Ball Wheel Mounting Shaft 1
32 712-04065 Lock Nut, Nylon Insert, 3/8-16 18
33 712-0641 Hex Nut, M16-1.5 2
34 712-3083 Lock Nut, Nylon Insert, 1/2-13 6
35 721-04041 Water Nozzle Adaptor 1
36 00017778 Phillips Head Screw, #10-32 x 1/2 16
37 731-3005 Front Roller 4
38 736-0760 Lock Washer, 17 x 23.8 x 1.95 2
39 737-04003D Deck Water Nozzle 2
40 00014608 Lock Nut, Nylon Insert, #10-32 16
6

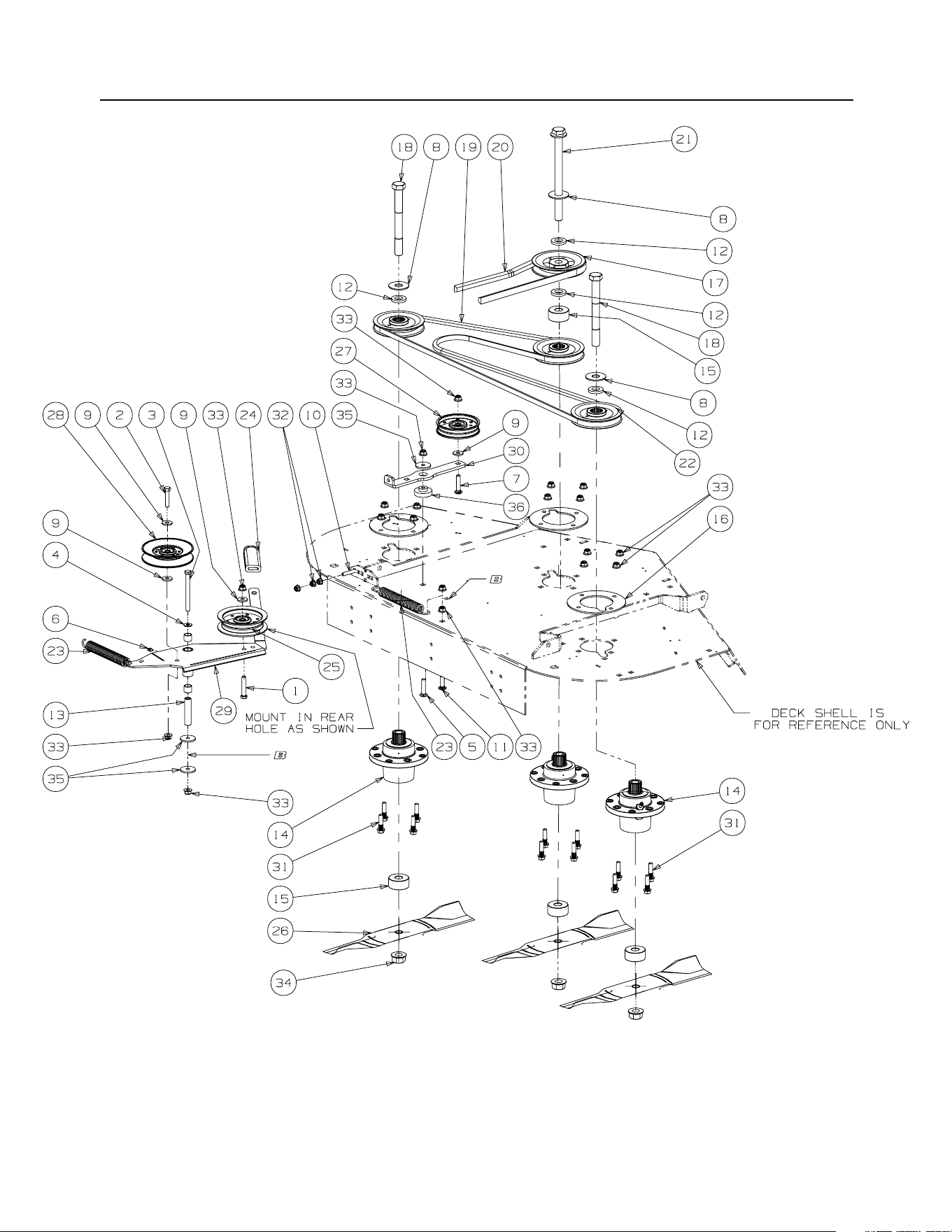

48" Fabricated Deck Spindle Assembly - Figure 3
GD: 853-000011-11/25/08
7
48" Fabricated Deck Spindle Assembly - Parts List for Figure 3
Ref.
No.
Part No. Description Qty.
1 00002528 Hex Cap Screw, 3/8-16 x 2.00 1
2 00008495 Hex Cap Screw, 3/8-16 x 1-3/4 1
3 00011925
Hex Cap Screw, 3/8-16, 4.00
1
4 00012158
Washer, 3/8
1
5 00030276
Carriage Bolt, 3/8-16 x 1-1/2
1
6 00060078
Grease Fitting, 1/4-28 x 3/16
1
7 01000364 Hex Carriage Screw, 3/8-16, 1.75 1
8 01000392 Flat Washer, .781 ID 2.00 OD, .105 3
9 01000723 Flat Washer, .406 ID, 1.0 OD, .105 4
10 01000956 Carriage Bolt, 5/16-18 x 1.75 1
11 01002010 Carriage Bolt, 3/8-16 x 1.25 1
12 01003123 Spacer .812 ID x .268 LG 4
13 01003245 Spacer, .39 ID x .625 OD x 2.75 1
14 01003532 Aluminum Spindle Assembly 3
15 01004415
Spacer, .760 ID x 2.000 OD x .900
4
16 01004478 Spindle, Aluminum Cast Support Plate 3
17 01005201 V-Pulley 5.25 OD 1
18
01005213 Hex Cap Screw, 3/4-16, 7.00
2
19 01005374
V-Belt, A Section x 105.3
1
20 01005378 V-Belt, B Section x 87.2 1
21 01005388
Hex Cap Screw, 3/4-16, 9.00
1
22 01005616
V-Pulley, 5.00 OD
3
23 02003712 Extension Spring, .94 OD x 7.57 LG 2
24 02003740 Idler Tension Handle Grip 1
25 02004447 Idler Pulley, 4.06 OD w/Deep Flange 1
26 02005017
Blade, 17.0, Hi-Lift, 0.756 ID
3
27 02005077 Idler Pulley, 4.06 Dia. 1
28 02005079 Idler Pulley, 5.06 Dia. 1
29
02005509 Idler Arm Assembly includes: 1
01000308 Bearing 2
30 703-07010
Idler Arm
1
31 710-04829 Bolt, 3/8-16 x 1.50 12
32 712-04063 Nut, Nylon Insert, 5/16-18 3
33 712-04065 Nut, Nylon Insert, 3/8-16 19
34 712-3078 Nut, 3/4-16, Flangelock 3
35 736-0227
Washer, .390 x 1.50 x .134
3
36 738-04376 Shoulder Spacer, .854 x .280 1
8

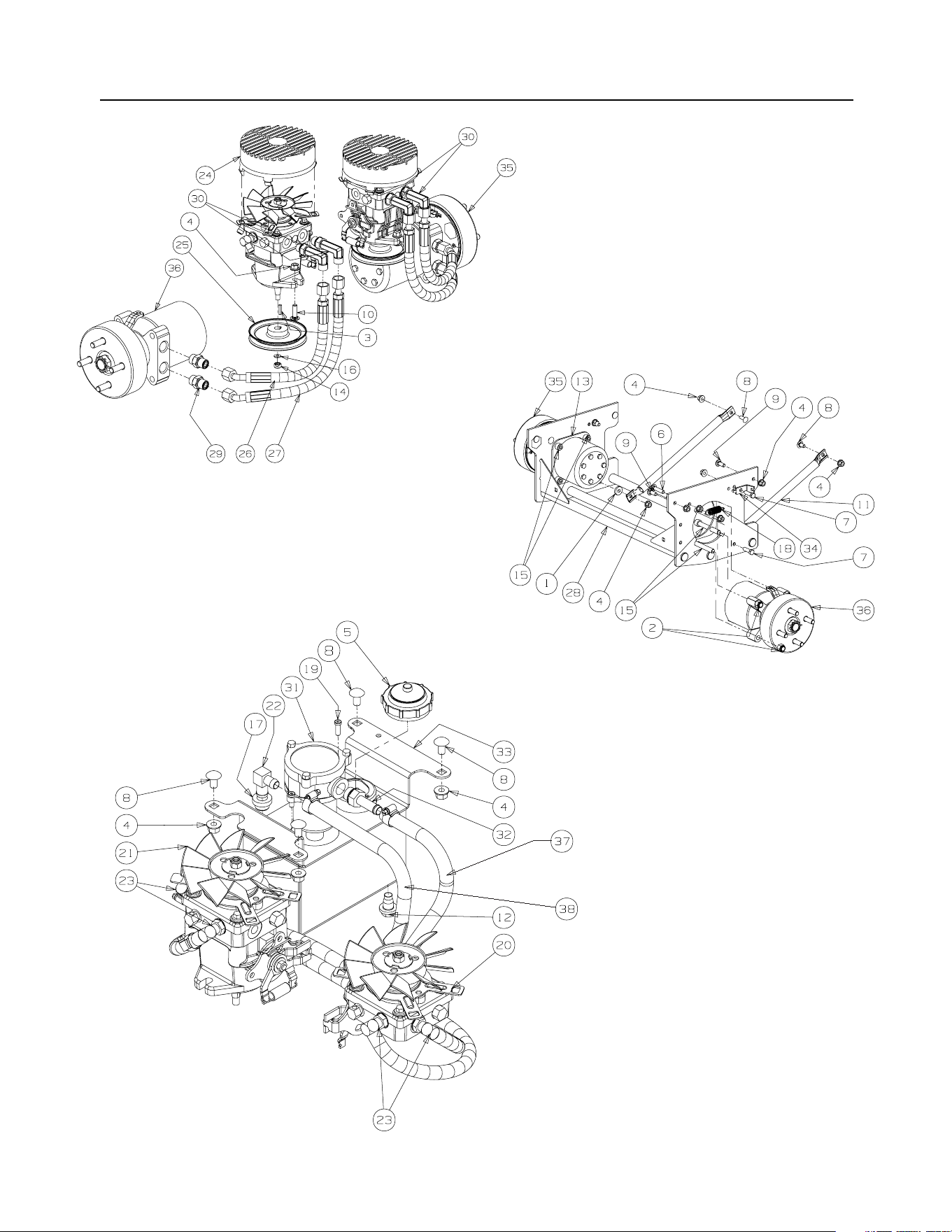

Hydro Hose and Pump Assembly
Pump & Motor Systems
Pilot &Drain Systems
Motor Mount Systems
GD: 02004444-04/07/08
- Figure 4
9
Hydro Hose and Pump Assembly- Parts List for Figure 4
Ref.
No.
Part No. Description Qty.
1 00083192 Idler Washer 2
2 712-3083 Washer lock 3/8 zinc 8
3 00020628 Key, 3/16" x 7/8" 2
4 00022560
Flange Lock Hex Nut, 3/8-16
22
5 00030261 Cap, Hydro Oil Tank 1
6 01000364
Hex Carriage Screw, 3/8-16, 1.75
2
7 710-3005 Hex Cap Screw, 3/8 -16 x 1.25 4
8 01000372 Carriage Bolt, 3/8-16 x .75 LG. 6
9 710-3168 Carriage Bolt, 3/8-16 x 1 4
10 01002010 Carriage Screw, 3/8-16 x 1.25 4
11 01002593
Strut Frame
2
12 01004192 Oil Pan Drain Plug w/ Seal 1
13 01006948
Hydro Wheel Motor Backup Plate
2
14 01007309
Hex Nut, 3/8-24
2
15 01007791
Socket Head Capscrew, 1/2-13; 3-1/2
8
16 00006168
Flat Washer, 3/8
2
17 02000296 Grommet Fitting, .54 ID x .78 OD 1
18 02000401 Spring Extension, .740 OD x 2.656 2
19 02000841
Socket Low Head Cap Screw, 1/4-20 x 0.75
2
20 02000905
Hydro Pump, BDP-12, RH
1
01009631
Kit, Fan
1
21 02000906
Hydro Pump, BDP-12, LH
1
01009631
Kit, Fan
1
22 02001151
Fitting Elbow Spur, 5/8 x 1/2
1
23 02001160
Fitting Elbow, 9/16 x 1/2
4
24 02001169
Fan Pump Shroud
2
25 02001172
Hydro Pump Pulley
2
26 02001176
Short Pressure Hose Assembly
2
27 02001177
Long Pressure Hose Assembly
2
28 02004429
Hydro Motor Frame Assembly
1
29 02001715
Adaptor Fitting, 8 x 10
4
30 02002003
Adaptor, 8 x 8
4
31 02002257
Hydraulic In-Tank Filter includes:
1
02002258
Replacement Filter
1
32 02002557
Fitting, 3/4 ORB x 1/2 Tube
1
33 02002701
Hydraulic Tank Assembly
1
34 02003826
Rear Cable Mounting Bracket
2
35 02004442
Hydro Motor, Left Hand Assembly w/ Brake & Drum
1
36 02004441
Hydro Motor, Right Hand Assembly w/ Brake & Drum
1
37 02001872 Hose Assembly, Pilot inlcudes: 1
02001175 Tee Fitting, 1/2 1
02002392
Hose Clamp, 1/2
3
--
Fuel Hose, .50 ID x .75 OD (in inches)
43
38 02001873 Hose Assembly, Drain inlcudes: 1
02001175 Tee Fitting, 1/2 1
02002392
Hose Clamp, 1/2
3
--
Fuel Hose, .50 ID x .75 OD (in inches)
36
NOTE: Lubricant, 02002058 Quarts, 2.00
10

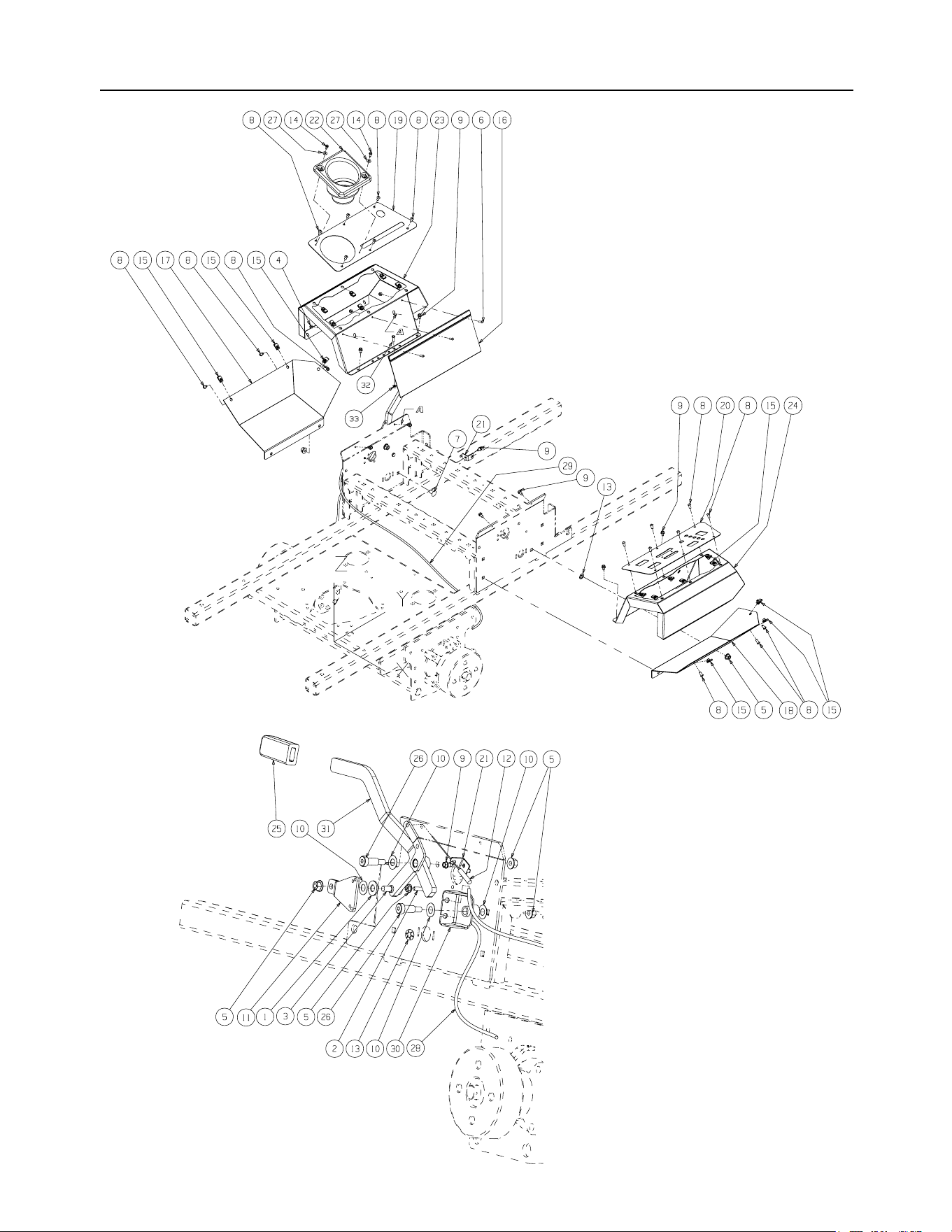

Brake Assembly
GD: 02002926-04/24/08
- Figure 5
11
Brake Assembly
- Parts List for Figure 5
Ref.
No.
Part No. Description Qty.
1 00012577 Washer, 1/2 Zinc 1
2 710-3168 Carriage Bolt, 3/8-16, 1.00 1
3 00011450 Shoulder Bolt, 1/2 x 1/2 1
4 00014608 Lock Nut, Nylon Insert, 10-32 3
5 00022560 Flange Lock Hex Nut, 3/8-16 6
6 00030906
Phillips Head Machine Screw, 10-32 x 5/8
3
7 01000372 Carriage Bolt, 3/8-16 x .75 2
8 01000443
Screw Button Head, 1/4-20 x .5
18
9 01000628
Screw, TT, 1/4-20, 0.5, Hex Index Washer
10
10 01000930 Washer, .508 ID x 1.0 OD x .020 4
11 02003841 Centering Bracket 1
12 01008198 Left Hand Brake Cable 1
13 01008225 Push Retainer, 3/8 2
14 01008531 Screw, #10-32 x 0.500 2
15 01008539 U-Nut, 1/4-20 18
16 02000362 Bag, Debris Storage 1
17 02002785 Lower Panel, LH 1
18 02002786 Lower Panel, RH 1
19 02002806 Control Panel Cover, LH 1
20 746-04544 Control Panel Cover, RH 1
21 02002864 Brake Cable Mounting Bracket 2
22 02002874 Cup Holder 1
23 02002969 Control Panel, LH 1
24 02002970 Control Panel, RH 1
25 02003010 Parking Brake Grip 1
26 02003603 Shoulder Bolt, 1/2 x 1.00, 3/8-16 2
27 02003725 Washer, 3/16 2
28 02003770 Brake Cable, LH 1
29 02003774 Brake Cable, RH 1
30 02003776 Brake Cable Bracket 1
31 02005151 Brake Lever 1
32 710-3015
Screw, Hex, Cap, 1/4-20 x .75
1
33 01002766 Lock Nut, 1/4-20 1
12

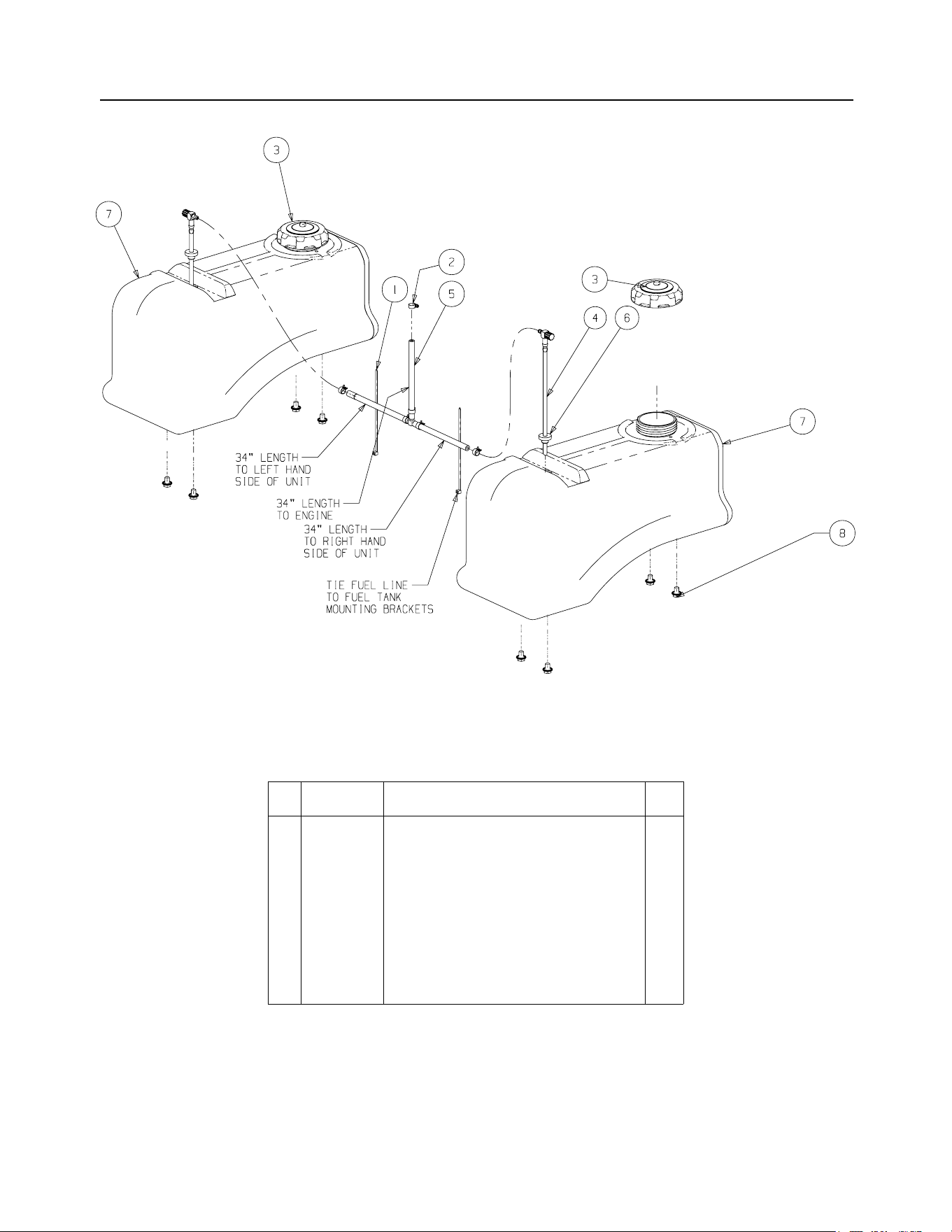

Fuel Tank Assembly
GD: 02001910-08/01/08
- Figure 6 and Parts List
Ref.
No.
Part No. Description Qty.
1 00012470 Cable Tie 2
2 01000215 Hose Clamp, SAE #4: 1/4-5/8, SS 1
3 751-3124D
Fuel Cap, 3.5
2
4 01007425 Fuel Fitting 2
5 02001908 Fuel Hose Assembly includes: 1
-- Hose, 1/4" Fuel Line (in inches) 102
00012235 Clamp, Union 5
01003473 Tee Fitting, Fuel 1
6 02002253
Grommet, Fuel Tank
2
7 02003842
Fuel Tank
2
8 02005013
Hex Cap Screw, 3/8-16 x .50 Flange Whiz
8
13

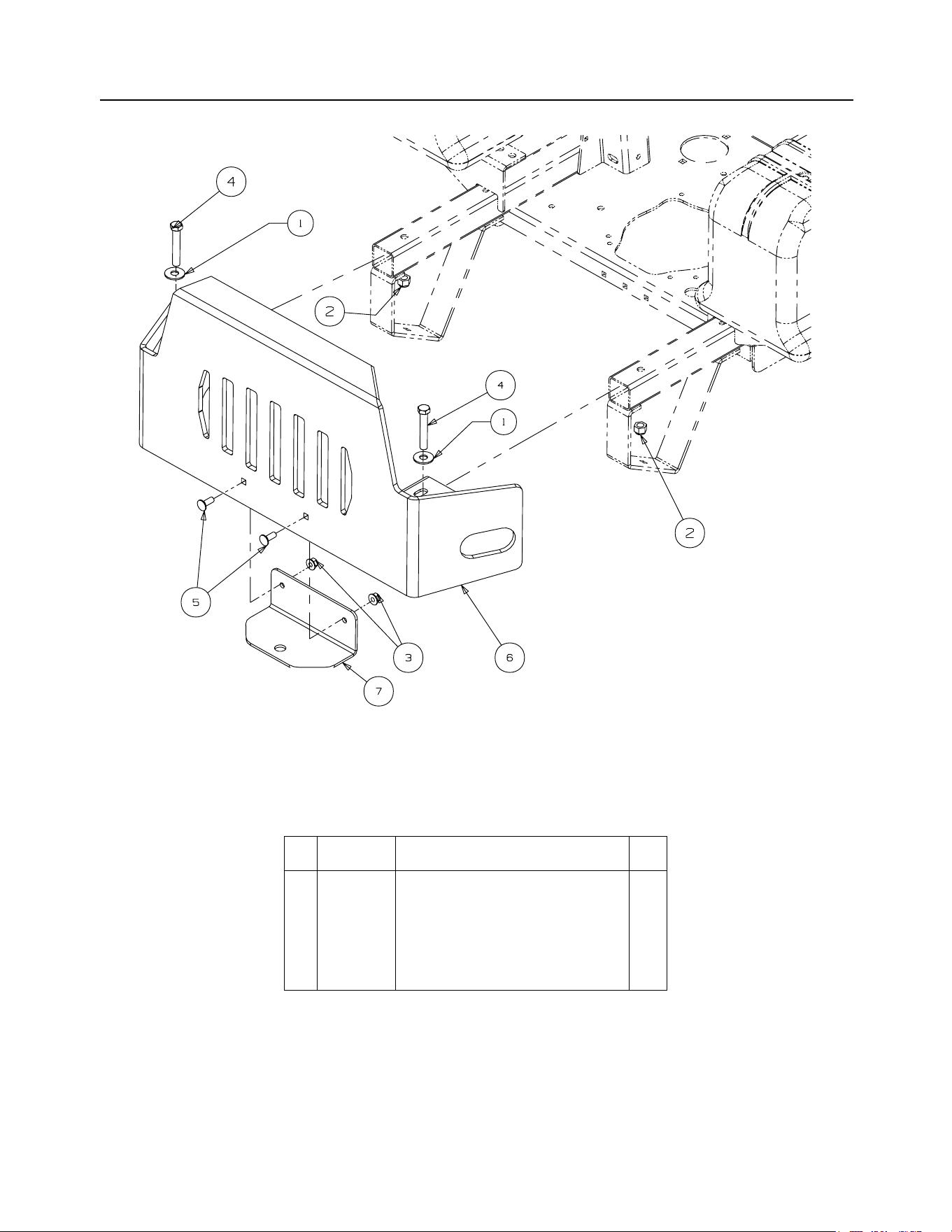

Rear Bumper
GD: 02005021-04/16/08
- Figure 7 and Parts List
Ref.
No.
Part No. Description Qty.
1 00011459 Flat Washer, 1/2 2
2 712-3083 Hex Nut, 1/2-13, Insert Lock 2
3 00022560 Nut, Hex 3/8-16 Flange Lock 2
4 00030046 HHCS, 1/2-13, 3.00 2
5 710-3168 Carriage Bolt, 3/8-16 x 1.00 2
6 02004118
Bumper Assembly
1
7 02004120 Hitch Bracket 1
14

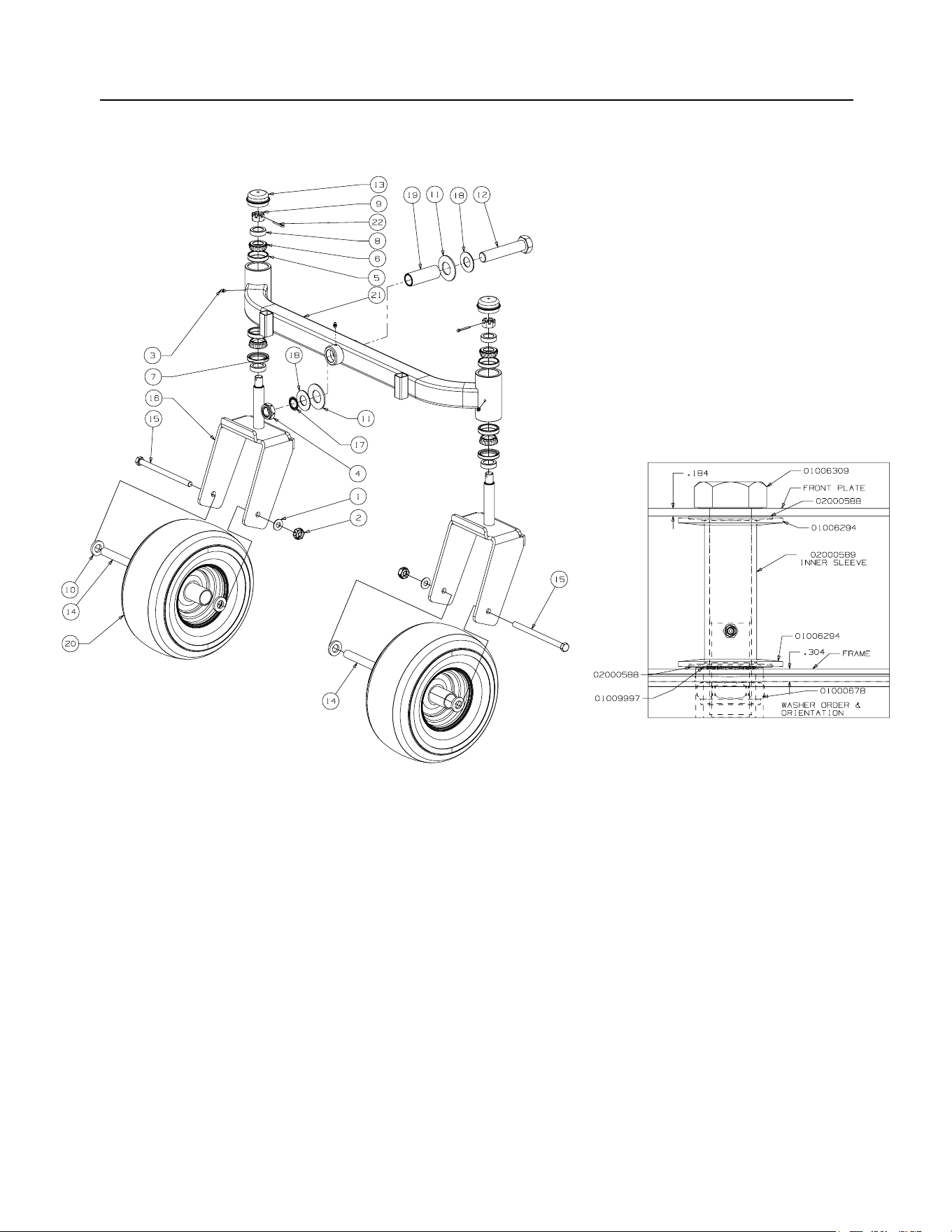

Front Caster Assembly
GD: 02002600-06/17/08
- Figure 8
15
Front Caster Assembly - Parts List for Figure 8
Ref.
No.
Part No. Description Qty.
1 00012577 Washer, 1/2 x 1 Shim 2
2 00023287 Nut, 1/2-20, Center Lock 2
3 00060078
Grease Fitting, 1/4-28 x 3/16
3
4 01000678
Nut, Jam, 1.0-14, Insert Lock
1
5 01002620 Cup Bearing 4
6 01002621 Bearing Cone 4
7 01002622 Seal 2
8 01002624 Ring Seal 4
9 01002626 Slotted Nut, 3/4-16 2
10 01003123 Spacer, .812 ID x .218LG 4
11 01006294
Bell Washer, 1.25 ID x 2.5 x .157
2
12 01006309 Hex Cap Screw, 1-14 x 5.0 1
13 01006347 Grease Cap, 1.986 OD 2
14 01006912 Wheel Spacer 2
15 01006961 HHCS, 1/2-20, 7.50 2
16 01007342 Yoke, Caster Wheel 2
17 01009997 Retainer Extension, Self Locking 1
18 02000588 Flat Washer, 1.00 ID 2
19 02000589
Spacer, 1.005 ID x 1.25 OD x 3.6
1
20 02002821 Wheel, 13 x 6.50 x 6.0, Beige, includes: 2
02002108 Tire 1
02002106 Roller Bearings (per tire) 2
02002107 Retainer Bushings (per tire) 2
21 680-00040 Front Axle Assembly 1
22 714-0162 Cotter Pin, 5/32, 1.25 2
16

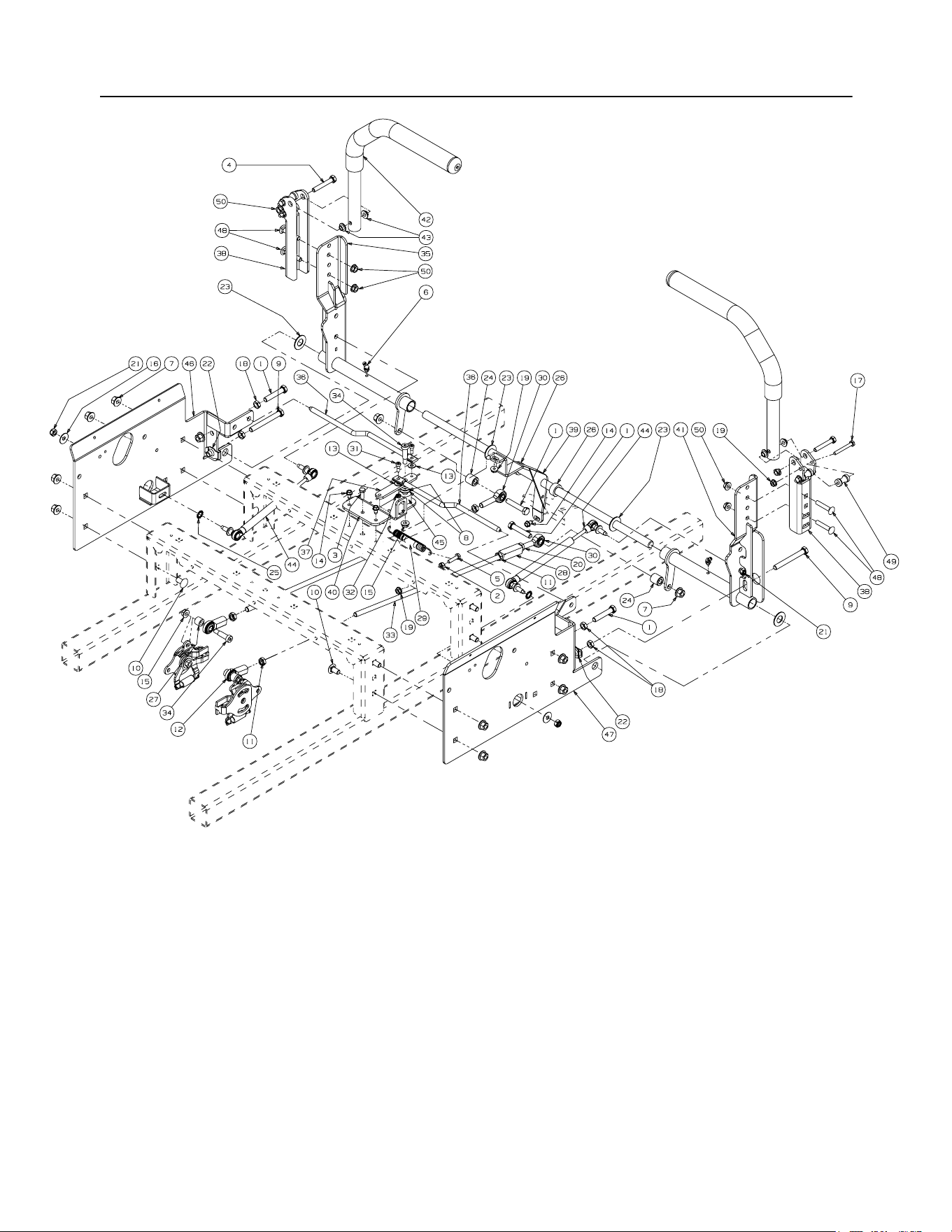

Control Assembly
GD: 02005062-09/18/08
- Figure 9
17
Control Assembly -
Parts List for Figure 9
Ref.
No.
Part No. Description Qty.
Ref.
No.
Part No. Description Qty.
1 00002528 Hex Cap Screw, 3/8-16 x 2.00 4 28 01007734 Tur n bu ck le 2
2 00012186 Hex Nut, 1/4-20 1
29
732-0470A
Extension Spring, .53 OD x 4.75
1
3 710-3015 Hex Cap Screw, 1/4-20, .75 1 30 01008367 B/Joint, 3/8-24, Left Hand Female 2
4 00013198 Hex Cap Screw, 5/16-18 x 2.00 2 31 01009322
Shoulder Bolt, 1/4 x 1/4
2
5 00013416 HHCS, 1/4-20 x 1.00 1 32 01009377
Nut w/ Star Washer, 10-24
2
6 00021958 Grease Fitting, 1/4-28, 45 degree 2 33 01009560 Control Rod, 3/8 x 17.312 2
7 00022560 Hex Nut, 3/8-16, Lock Flange 12 34 02000069
Screw, Shoulder Control Rod
3
8 00061053 Washer, 3/8, SS 2 35 02002931 Lapbar Control Assembly, LH 1
9 02003666 Hex Cap Screw, 3/8-16 x 3.50 2 01004265
Bearing
2
10 01000372 Carriage Bolt, 3/8-16 x .75 8 36 02002542 Brake/Control Rod 2
11 712-0711 Hex Jam Nut, 3/8-24 4 37 02002543 Lapbar Control Arm 1
12 01000451 B/Joint, 3/8-24, Right Hand Female 2 38 02004044 Lapbar Pivot Bracket 2
13 01000600 Flat Washer, 1.4 x .630 x .0515 2 39 02002555
Lapbar Control Shaft Assembly
1
14 01000628
Screw, TT, 1/4-20, 0.5, Hex Index Washer
3 40 02004382
Lapbar/Brake Control Mounting Bracket
1
15 01000635 Nut, Lock, HexFlange, 5/16-18 3 41 02002932 Lapbar Control Assembly, RH 1
16 01000960 Belle Washer, .325 x .930 x .045 2 01004265
Bearing
2
17 01006898 Hex Cap Screw, 1/4-20 x 2.00 4 42 02004049 Lapbar Assembly includes: 2
18 010
02511 Nut, 3/8-16, Jam
4 02002662
Grip, 1.0
2
19 712-04064 Hex Flange Lock Nut, 1/4-20 6 43 02003419
Bushing, .310 x .172 x .688 x .06
4
20 01002986
Nut, 3/8-24, Jam, LH Third
2 44 02003653
Cylinder Return to Neutral
2
21 01003561
Nut, Hex, Center Lock, M8
4 45 02003664
Spacer, .405 ID x 1.0 OD x .72
1
22 01003947 U-Nut, 3/8-16, .75 2 46 02003883
Side Panel, Control, Left
1
23 01004003
Flat Washer, 5/8 Nylon
4 47 02003884
Side Panel, Control, Right
1
24 01004129 Spacer, .385 ID x .75 OD x .875 2 48 01000956 Carriage Bolt, 5/16-18 x 1.75 4
25 01005851
External Washer, 3/8
2 49 02003644 Spacer, .251 ID x .38 OD x 1.13 LG 4
26 01006350 Shaft Collar 2 50 712-04063 Nut, Lock, HexFlange, 5/16-18 6
27 01007312
Spacer, .625 OD x .385 ID x 1/2
2
18

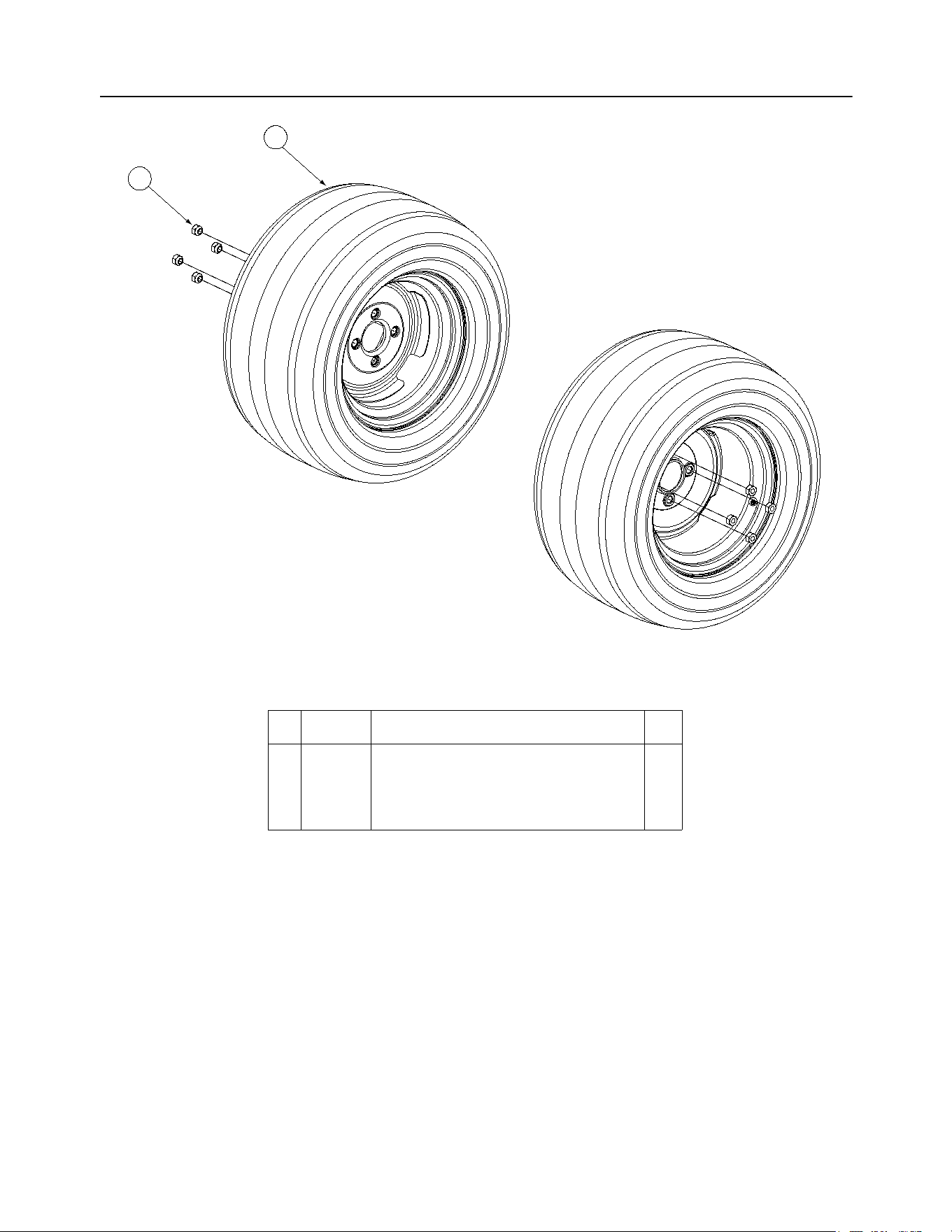

48" Wheel Assembly
2
1
GD: 02002667-10/04/06
- Figure 10 and Parts List
Ref.
No.
Part No. Description Qty.
1 00012187 Lug Nut, 1/2-20 8
2 02002666
Wheel Assembly, 23 x9.5-12, Beige
Includes:
2
02002104
Tire, 23 x 9.50-12
Rim, 12 Dia x 7.00 width
19

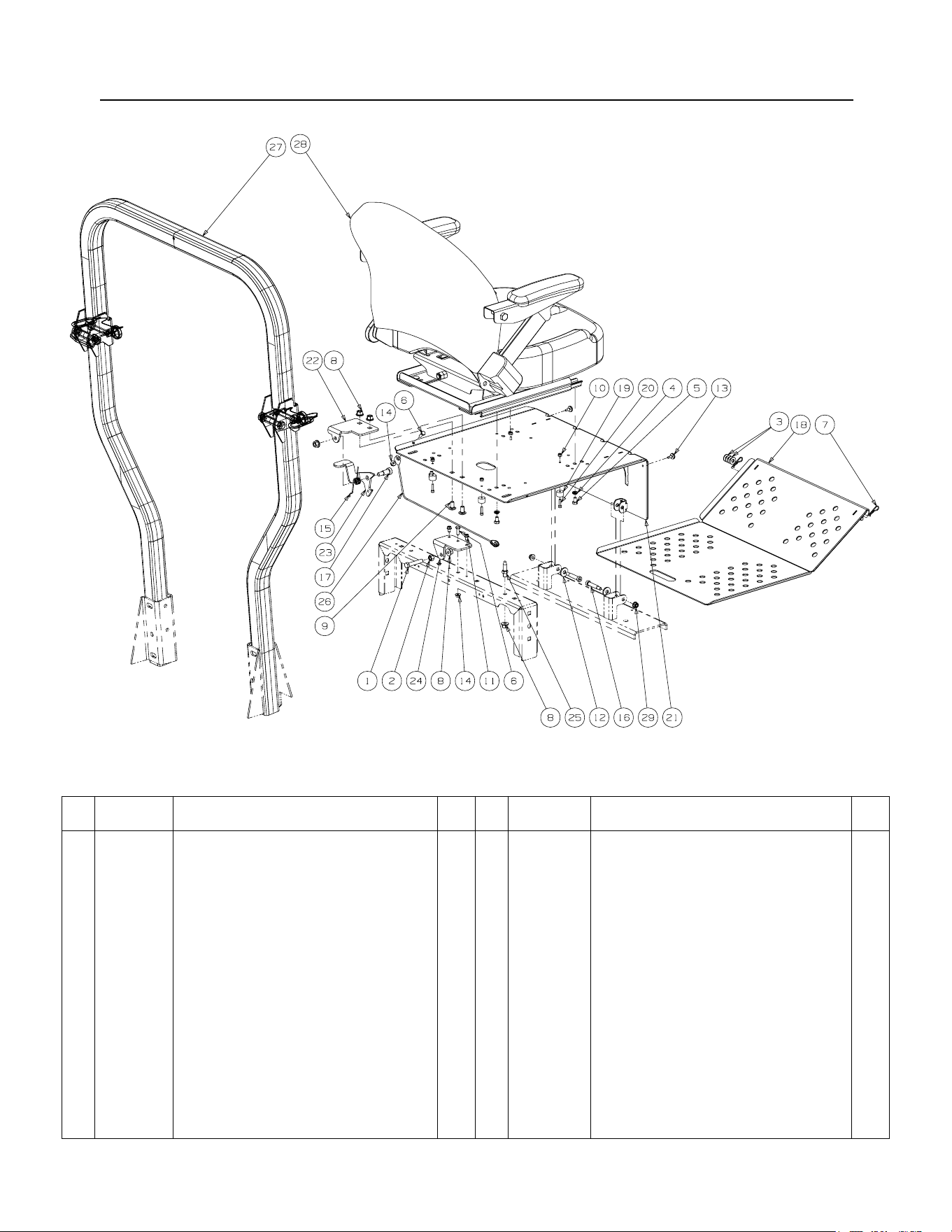

Seat/Floor Panel Assembly
GD: 02005208-04/16/08
- Figure 11 and Parts List
Ref.
No.
Part No. Description Qty.
Ref.
No.
Part No. Description Qty.
1 00002528 Hex Cap Screw 3/8-16 x 2.00 1 19 02002963
Rubber Stop with Washer
4
2 00006131
Hex Nut, 3/8-16
1 20 02002964
Standard Cap Screw, #10-24 x .75
4
3 00012158 Washer AR 21 02003404
Seat Plate Assembly
1
4 736-0119 Lock Washer, 5/16 4 22 02003730
Seat Latch Bracket
1
5 00012178 Hex Cap Screw, 5/16-18 x 1/2 4 23 02003732
Latch Lever Bracket
1
6 710-3015
Screw, Hex, Cap, 1/4-20 x .75
2 24 02003738
Latch Bracket
1
7 00021956 Hair Pin, 3/8-1/2 2 25 02003745 Adjustable Stud 1
8 00022560 Flange Lock, Hex Nut, 3/8-16 5 26 02004062 Cable Support 1
9 01000372 Carriage Bolt, 3/8-16 x .75 Long 2 27 02005081 Foldable Rops Assembly includes: 1
10 712-0161
Nut, #10-24, Nylon Lock
4 02004323 Knob 2
11 01000628
Screw, TT, 1/4-20, 0.5, Hex Index Washer
2 02004324 Pin, Lock 2
12 01000723
Flat Washer, .406 ID, 1.0 OD, .105
2 28 02005209 Seat w/ Seat Belt & Suspension 1
13 01001170 Rubber Bumper, .62 OD x .22 Thick 2 01008364 Armrest Kit
14 01002766 Lock Nut, 1/4-20 2
Seat Back Cover
15 01008140
Deck Lift Spring, Left Hand
1
Seat Bottom Cover
16 01009459
Shoulder Bolt, .375 x 1.50
2 02000767
Seat Switch Assembly
17 02002091 Shoulder Bolt, 1/2 x 3/4, 3/8-16 1 29 712-04063 Flange Lock Nut, 5/16-18 2
18 02002334 Floor Panel Assembly 1
20
23HP Kawasaki Engine Assembly

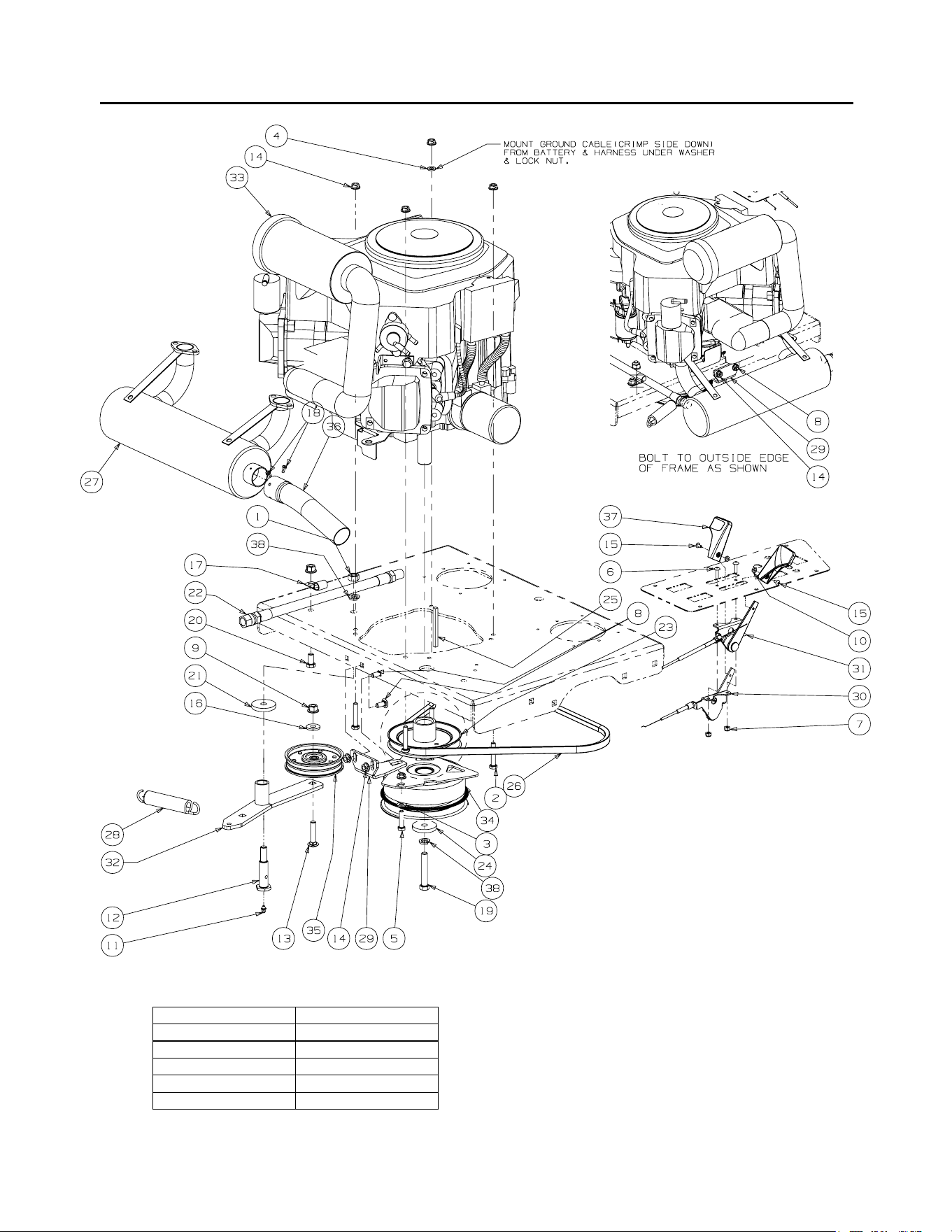

- Figure 12
GD: 02004943-09/04/08
Description Part Number
Air Filter KM-11013-7019
Pre Filter KM-11013-7020
Fuel Filter KM-49019-7001
Oil Filter KM-49065-2078
Spark Plug KM-BPR4ES
21
23HP Kawasaki Engine Assembly
- Parts List for Figure 12
Ref
No
Part No. Description Qty.
1 00005763 Hex Nut, 7/16-14 1
2 00006129 HHCS, 5/16-18, 1-3/4 4
3 00009812
Flat Washer, 5/16
1
4 00012169 Flat Washer, .320 ID x .591 OD x .078 1
5 00013116
HHCS, 5/16-18 x 1-1/4
1
6 00014602
Round Hd. Machine Screw, 10-32 x 3/4
2
7 00014608
Lock Nut, Nylon Insert, 10-32
2
8 00020508
Carriage Bolt, 5/16-18 x .75
2
9 00022560 Flange Lock, Hex Nut, 3/8-16 2
10 00060056
Nut Washer, W/Star, 8-32
2
11 00060078
Grease Fitting, 1/4-28 x 3/16
1
12 01000302 Shoulder Screw, 7/16-14 1
13 01000364
Hex Carriage Screw, 3/8-16, 1.75
1
14 736-0171 Lock Washer, 7/16 2
15 01000635 Hexflange Lock Nut, 5/16-18 7
16 01000721 Machine Screw, 8-32, .375 2
17 01000723 Flat Washer, .406 ID, 1.0 OD, .105 1
18 01000728
Clip, Heat Shield Cable
1
19 01000811
Screw, #8-32 x 0.375
2
20 01000981
Hex Head Cap Screw, M10 x 1.25, 20mm
1
21 01001395 Capscrew, 7/16-20 x 2.50 1
22 02004878
Clutch Brake, 1.125 ID
1
23 01002601 Hex Cap Screw, 3/8-16, .750 1
24 01003269 Flat Washer, 7/16 ID x 1.75 OD x .25 1
25 01003283 Oil Drain Hose 1
26 731-04914 Control Throttle Knob 2
27 02005077 Flat Pulley with Flanges 1
28 02004075 Engine Idler Arm Assembly Includes: 1
01000308 Bearing 2
29 01005104 Pump Drive Pulley 1
30 01005314 Flat Washer, 7/16 ID x 1.75 OD x .25 1
31 01005856
Key, 1/4 x 1/4 x 3
1
32 01008523 23HP Engine, Kawasaki 1
33 02005082 Muffler Accessory Exhaust Tube 1
34 01009299 Muffler Accessory, Kawasaki 1
35 01009635
Extension Spring, .98 OD x 5.00
1
36 01007015 V Belt, A Section x 51.2 1
37 02001992 Retainer Clutch Assembly, Ogura 1
38 02003421 Throttle, Control Cable 1
39 02003422 Choke, Control Cable, 43.0 1
Note: Engine Oil 15w40
22

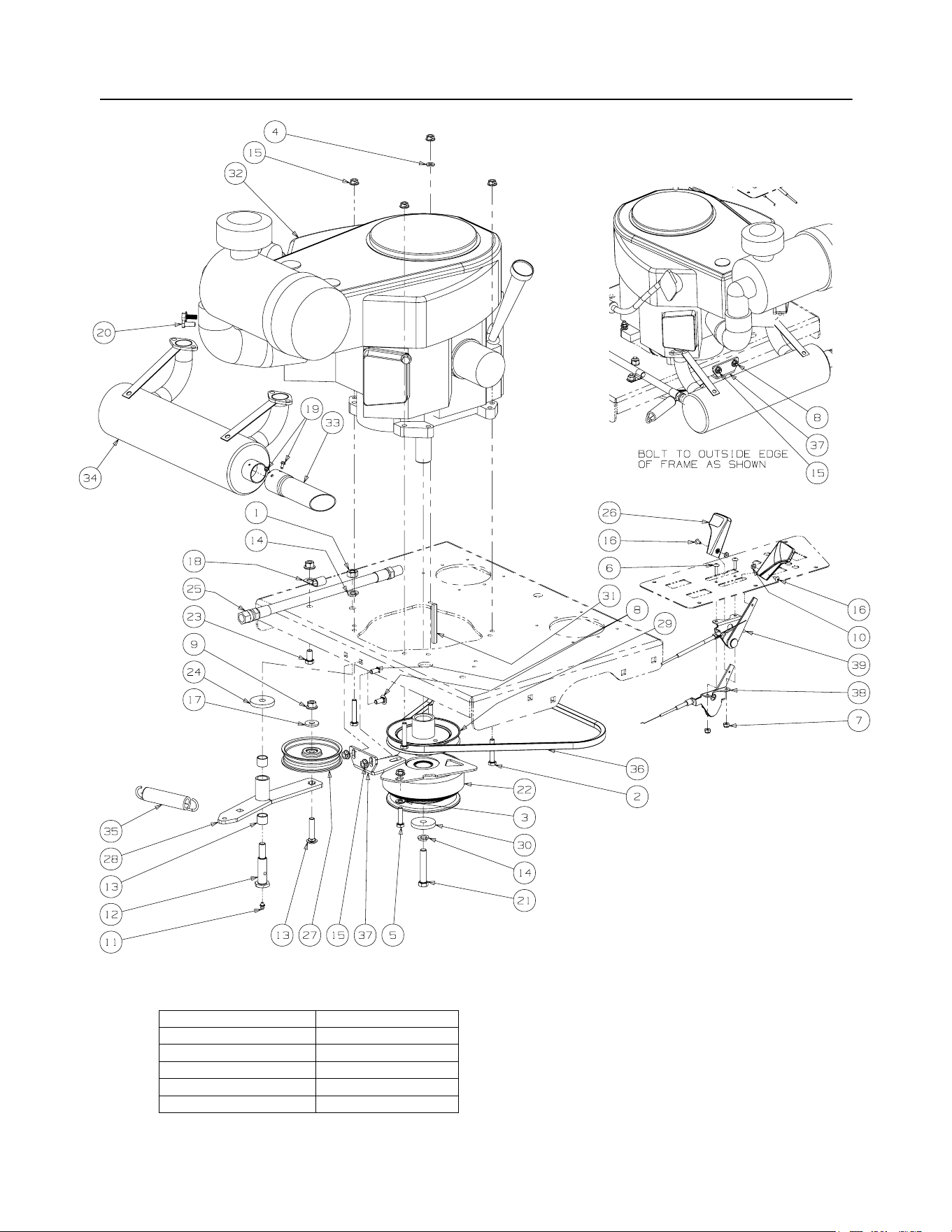

25HP Kohler Engine Assembly
- Figure 13
GD: 853-000050-11/03/08
Description Part Number
Air Filter (Primary) KH-25-083-01-S
Air Filter (Safety) KH-25-083-04-S
Fuel Filter KH-25-050-08-S
Oil Filter KH-12-050-08
Spark Plug 759-3336
23
25HP Kohler Engine Assembly
- Parts List for Figure 13
Ref
No
Part No. Description Qty.
1 00005763 Hex Nut, 7/16-14 1
2 00006129 HHCS, 5/16-18, 1-3/4 4
3 00009812
Flat Washer, 5/16
1
4
00012169
Flat Washer, 5/16 1
5 00013116
HHCS, 5/16-18 x 1-1/4
1
6 00014602
Round Hd. Machine Screw, 10-32 x 3/4
2
7 00014608
Lock Nut, Nylon Insert, 10-32
2
8 00020508 Carriage Bolt, 5/16-18 x .75 2
9 00022560 Flange Lock, Hex Nut, 3/8-16 2
10 00060056
Nut Washer, W/Star, 8-32
2
11 00060078
Grease Fitting, 1/4-28 x 3/16
1
12 01000302 Shoulder Screw, 7/16-14 1
13 01000364
Hex Carriage Screw, 3/8-16, 1.75
1
14 01000635 Hexflange Lock Nut, 5/16-18 7
15 01000721 Machine Screw, 8-32, .375 2
16 01000723
Flat Washer, .406 ID, 1.0 OD, .105
1
17 01000728
Clip, Heat Shield Cable
1
18 01000811
Screw, #8-32 x 0.375
2
19 01001395 Capscrew, 7/16-20 x 2.50 1
20 01002601 Hex Cap Screw, 3/8-16, .750 1
21 01003269 Flat Washer, 7/16 ID x 1.75 OD x .25 1
22 01003283 Oil Drain Hose 1
23 01005104 Pump Drive Pulley 1
24 01005314 Flat Washer, 7/16 ID x 1.75 OD x .25 1
25 01005856
Key, 1/4 x 1/4 x 3
1
26 01007015 Belt, 51.2 Lg 1
27 01006566 Muffler Accessory Kohler 1
28 01009635
Extension Spring, .98 OD x 5.00
1
29 02001992 Retainer Clutch Assembly, Ogura 1
30 02003421 Throttle, Control Cable 1
31 02003423 Choke Control Cable 1
32 02004075 Engine Idler Arm 1
01000308 Bearing 2
33 752KCV7303122 Engine, 25HP Kohler 1
34 02004878
Clutch Brake, 1.125 ID
1
35 02005077 Flat Pulley with Flanges 1
36 02005082 Muffler Accessory Exhaust Tube 1
37 731-04914 Control Throttle Knob 2
38 736-0171 Lock Washer, 7/16 2
Note: Engine Oil 15W40
24

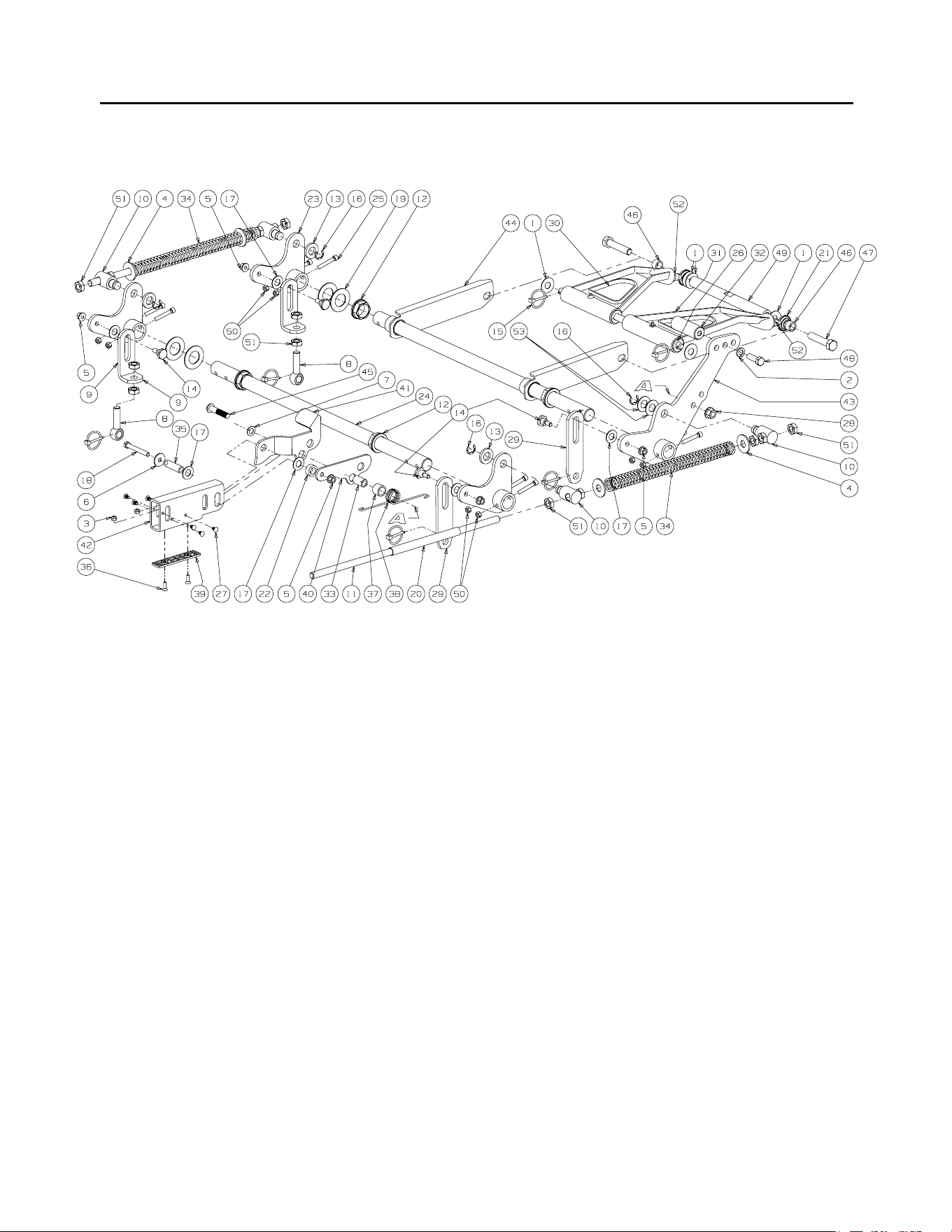

Lift Assembly
- Figure 14
GD: 853-000063-11/11/08
25
Lift Assembly
- Parts List for Figure 14
Ref.
No.
Part No. Description Qty.
1 00002766 Washer, 1.5 x .655 x .055 5
2 00010734 Lock Washer, 1/2 1
3 00012152
Lock Nut w/Nylon Insert
2
4 00013432
Flat Washer, 5/8
4
5 00022560 Hex Nut, Flange Lock, 3/8-16 5
6 01000872 Flat Washer, 1.25 x .411 x .100 1
7 01000873 Flat Washer, .536 ID x .930 OD x .05 1
8 01001744
Eye Bolt, 5/8ID
2
9 01001746 Eye Bolt Mount Link, 5/8 ID 2
10 01001855 Ferule Lift 4
11 01001857 Lift Connector Rod 2
12 01001930 Hex Flange Bearing, 1.25 ID 4
13 01003123 Spacer, .812 ID x .268 Lg. 3
14 01003535
Shoulder Screw, 0.625 OD x .437 Lg.
4
15 01003993 Linch Pin, 3/16 Dia. 6
16 01003994 E Clip, 3/4 Dia. 4
17 01004003 Nylon Flat Washer, 5/8 6
18 01004127
HHCS, 3/8-16, 3.00
1
19 01006408 Flat Washer, 1.25 ID 4
20 01006823
Hose, 5/8 ID 13/16 OD, 8" LG
2
21 01007487
Rod End, Male
2
22 01007527 Spacer, .630 ID x 1.06 OD x .440 1
23 01007680
Bellecrank Weldment Assembly
3
24 01007681 Deck Lift Shaft 2
25 01007962
Socket Head CapScrew, 5/16-18 x 2
8
26 01008453 Lift Link Rod 1
27 01008801 Rivet, 1/4 x 5/8 6
28 01010119 Nut, 1/2-13, FlangeLock 1
29 02000561 Deck Link 2
30 02002708 Bearing Lift Brace Assembly, Left Hand includes: 1
00060078 Grease Fitting 1
02002384 Bearing 2
31 02002709
Bearing Lift Brace Assembly, Right Hand includes:
1
00060078
Grease Fitting
1
02002384
Bearing
2
32 02002596 Deck Lift Foot Pedal 1
33 02002655 Spacer, .51 ID x .75 OD x 1.240 1
34 01003318 Lift Compression Spring 2
35 02003043 Spacer, .375 ID x .625 OD x 2.20 1
36 02003505 Flat Head Cap Screw, 1/4-20 x .75 2
37 02003586 Spacer, .76 ID x 1.0 OD x .75 1
38 02003588 Torsion Spring, .120 Wire x 1.32 OD 1
39 02003749
Lift Wear Plate
1
40 02005048
Yo k e P l a t e
1
41 02005050 Lift Link Bracket 1
42 02005103
Lift Tube, 3.0 x 1.5
1
43 02005137 Deck Lift Foot Pedal Weldment 1
44 02005223 Front Frame Strut Assembly 2
45 02005518 Socket Head Cap Screw, 1/2-13 x 2.50 1
46 02005535 Spacer, .632 x .877 x .548 2
47 710-04813 HHCS, 5/8-11 x 3.00 2
48 710-3181 Hex Cap Screw, 1/2-13 x 1.50 1
49 711-05072
Front Lift Link Shaft, Threaded
1
50 712-0429 Nut, 5/16-18, Nylock 8
51 712-3015
Jam Nut, 5/8-11
14
52 712-3056
Jam Nut, 5/8-18
2
53 736-0188 Washer, .76 x 1.49 x .06 2
26

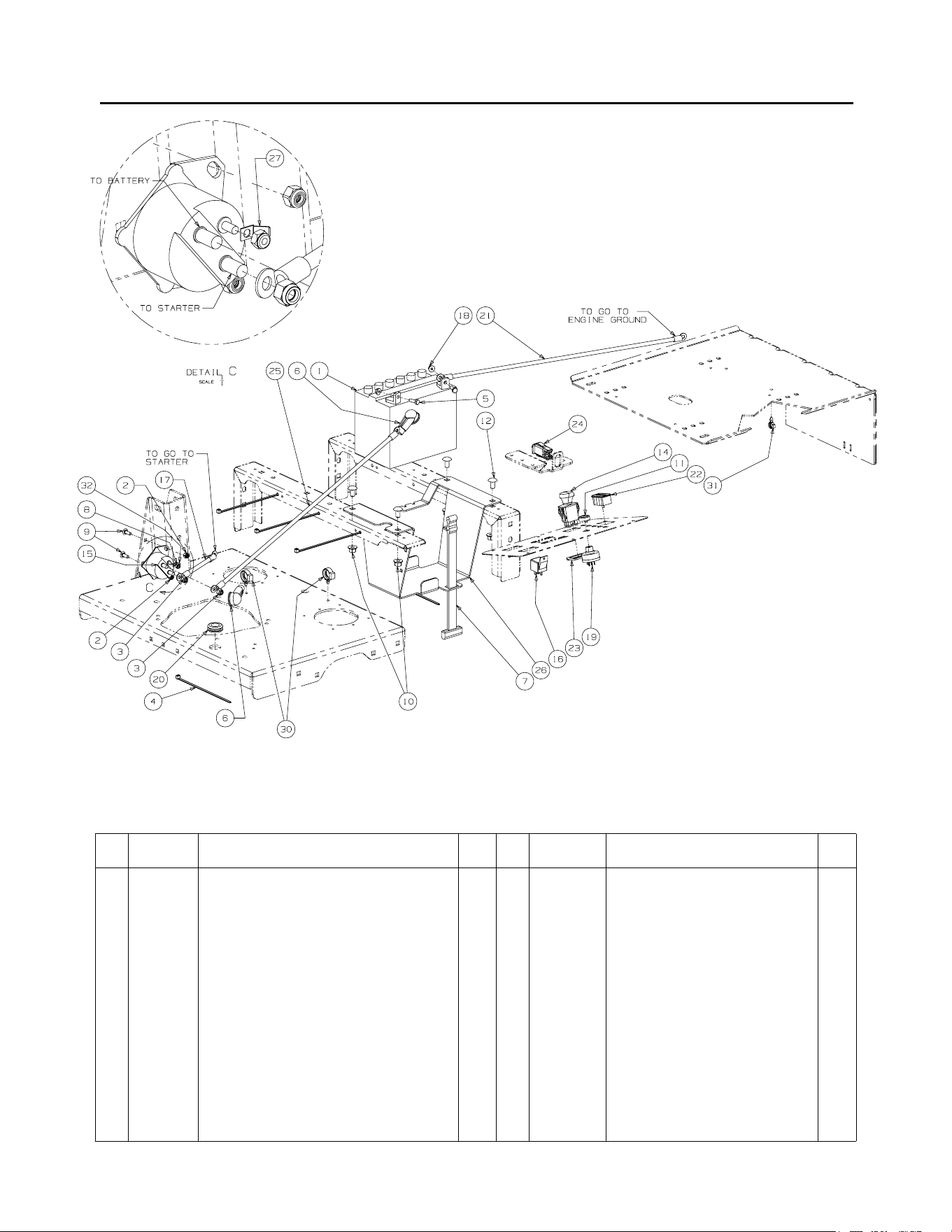

23HP Electrical Assembly Kawasaki
- Figure 15 and Parts List
GD: 02002560-11/20/08
Fasten relay (01002251) with self-tapping screw
(01000628) on LH control panel shown in Fig. 5.
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 00012032 Battery, 12V 225CCA 30 Min 1 17 01002253 Cable, Battery Red, 5" 1
2 00012152
Lock Nut w/Nylon Insert
2 18 01002766 Hex Flange Lock Nut, 1/4-20 2
3 712-0429 Nylock Nut, 5/16-18 2 19 01003581 Switch, Ignition, 6 Pin includes: 1
4 00012470
Tie, Cable, 3/16 x .05 x 7.4"
5 725-1341B Key 1
5 710-3015
Screw, Hex, Cap, 1/4-20 x .75
2 20 01004040 Grommet, .75 ID 1
6 00013258
Boot, 1" OD Rubber Battery-PST, Red
2 21 01009623 Cable, Battery Black, 34" 1
7 723-3064 Strap, Battery 1 22 725-04893
Meter, Hour
1
8 00014608
Nut, Lock, Nylon Insert, #10-32
1 23 01009905
Bracket, PTO Switch Retainer
1
9 00017584 Carriage Bolt, 1/4-20 x .750 2 24 02000024 Switch, Safety N.O./N.C. 1
10 00022560 Hex Nut, Flange Lock, 3/8-16 4 25 02002059 Cable, Battery Red, 42" 1
11 00032097
Nut, W/Cap, 5/8-32 Ignition
1 26 02002552 Battery Bracket 1
12 01000372 Carriage Bolt, 3/8-16 x .75 Long 4 27 02003533
Terminal Tab, 1/4" Blade
1
13 01001811
Hourmeter, Harness (not shown)
1 28 02002822 Wire Harness Adaptor 1
14 01002111 Switch, Electric, PTO 1 29 02002824
Harness Assembly (not shown)
1
15 01002228 Solenoid Magnetic Switch 1 30 02003775
Electrical Conduit Clip, 5/8
2
16 01002251 Relay, 12V 40A 1 31 02003038
Electrical Conduit Clip, 3/8
1
27

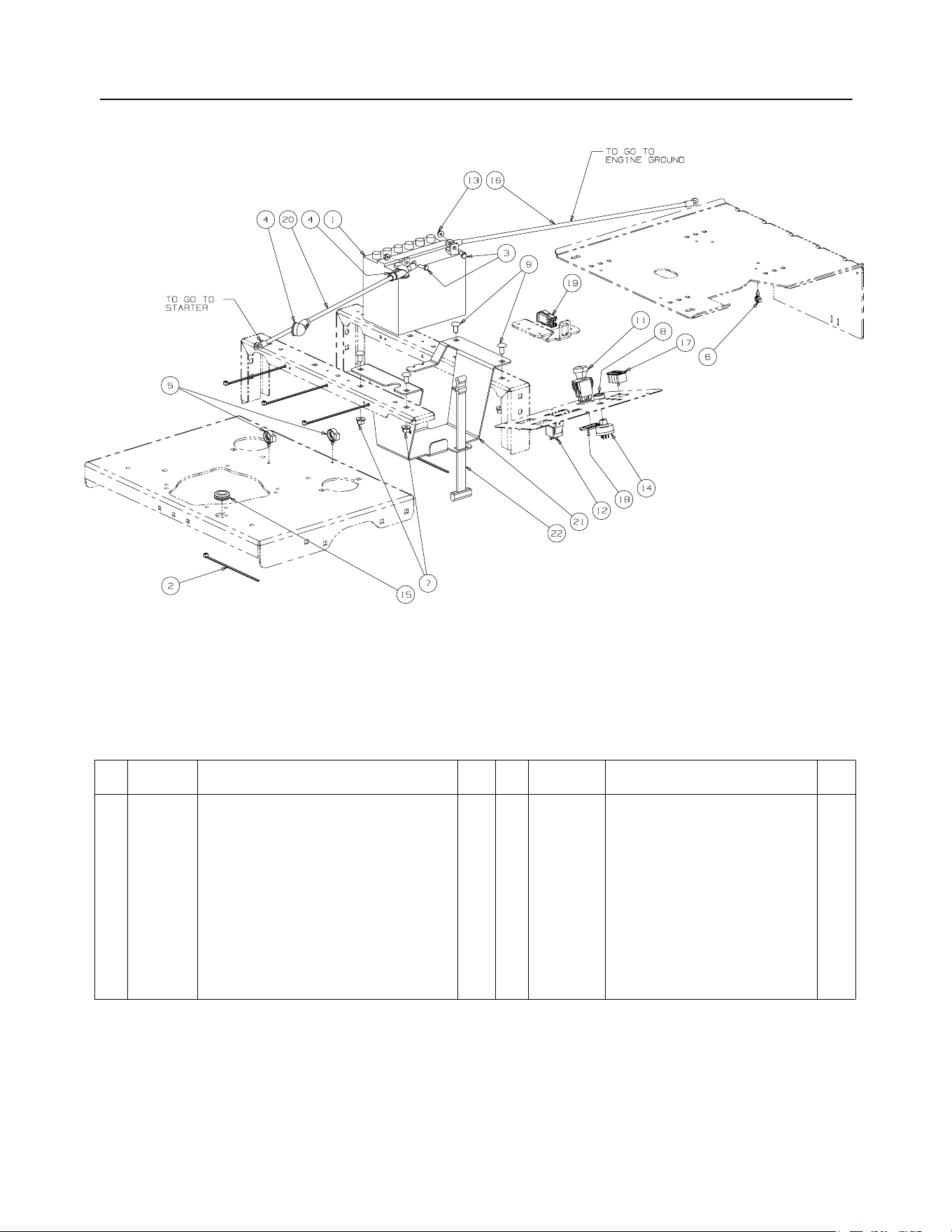

25HP Electrical Assembly Kohler
- Figure 16 and Parts List
GD: 02002838-10/02/08
Fasten relay (01002251) with self-tapping screw
(01000628) on LH control panel shown in Fig. 5.
Ref.
No.
Part No. Description Qty.
Ref.
No.
Part No. Description Qty.
1 00012032 Battery, 12V 225CCA 30 Min 1 13 01002766 Lock Nut, 1/4-20 2
2 00012470
Tie, Cable, 3/16 x .05 x 7.4"
5 14 01003581 Switch, Ignition, 6 Pin includes: 1
3 710-3015
Screw, Hex, Cap, 1/4-20 x .75
2 725-1341B Key 1
4 00013258
Boot, 1" OD Rubber Battery-PST, Red
2 15 01004040 Grommet, .75 ID 1
5 02003775
Electrical Conduit Clip, 5/8
2 16 01009623 Cable, Battery Red, 34" 1
6 02003038
Electrical Conduit Clip, 3/8
1 17 725-04893
Meter, Hour
1
7 00022560 Flange Lock, Hex Nut, 3/8-16 4 18 01009905
Bracket, PTO Switch Retainer
1
8 00032097
Nut, W/Cap, 5/8-32 Ignition
1 19 02000024 Switch, Safety N.O./N.C. 1
9 01000372 Carriage Bolt, 3/8-16 x .75 Long 4 20 02002059 Cable, Battery, Red, 42" 1
10 01001811
Hourmeter, Harness (not shown)
1 21 02002551 Battery Bracket 1
11 01002111 Switch, Electric, PTO 1 22 723-3064 Strap, Battery 1
12 01002251 Relay, 12V 40A 1 23 02002824
Harness Assembly (not shown)
1
28
Decal Map
777S32801
777S32797
02003753
777D09015
777S32598
777D10683
02005198
02005359
777X42993 02005198 777D10683
777D10679
Near deck wash out
777D10679
Near deck wash out
00030635
Top of deck
under belt cover
02002041
On top of
Hydraulic Tank
02003676
On bottom of
Foot Platform
02005264
On top of front rail
on main frame
(Beside S/N Label)
777D09752
Both sides of unit
02003753
Centered on rear bumper
02003616
Aligned near fuse mounting holes
on inner side control panel
02002693
Centered top of Tow Hitch
02005110
777D12837
On top of front rail
on main frame
(Beside S/N Label)
01002166
777S30503
29
This Page Intentionally Left Blank-
30
This Page Intentionally Left Blank-
31
This Page Intentionally Left Blank
Cub Cadet Commercial
P.O. Box 368023
Cleveland, OH 44136
Form No. 02004715 Rev. 09-4 12/16/2008
