QUICK START GUIDE
eufy Security Video Doorbell Dual (Battery)
English
1
INCLUDED
WHAT’S
1
For Video Doorbell Installation
QSG
eufy Security Video
Doorbell Dual (Battery)
Model: T8213
Screw Pack
Screw Hole
Positioning Card
micro-USB
charging cable
15° Mounting
Wedge (Optional)
Mounting Bracket
Extension Wires
and Wire Nuts
(Optional)
Detaching
Pin
Quick
Start Guide
2
English
For HomeBase 2 Installation
HomeBase 2
Model: T8010X
Power Adapter for
HomeBase 2
Ethernet Cable for
HomeBase 2
Note:
Power plug may vary in different regions.
English
3
OVERVIEW
PRODUCT
2
Video Doorbell
Front View:
5
3
2
1
6
4
7
1. Motion Sensor
2. Microphone
3. Primary Camera Lens
4. Ambient Light Sensor
5. LED Ring / Doorbell Button
6. Secondary Camera Lens
7. Speaker
Rear View:
2
3
4
1
1. Detaching Mechanism
2. Micro USB Charging Port
3. SYNC/RESET Button
4. Power Terminals for Existing
Doorbell Wires (Optional)
4
English
Operation How-to
Power on the doorbell Press the SYNC button
.
Add doorbell to HomeBase Press and hold the SYNC button until you hear a beep.
Power off the doorbell Quick-press the SYNC button 5 times in 3 seconds.
Reset the doorbell Press and hold the SYNC button for 10 seconds.
HomeBase 2
2
3
4 5 6
7
1
1. Status LED
2. Speaker
3. Power Port
4. USB Port
5. Ethernet Port
6. SYNC/ALARM OFF Button
7. Reset Button
English
5
THE SYSTEM WORKS
HOW
3
How the System Works
The video doorbell system includes 2 parts. One is the video doorbell at your
door. The other is the HomeBase in your house.
The video doorbell detects motion at your porch and allows you to answer the
door anytime and anywhere. The HomeBase stores video clips on its built-in
storage. When someone rings the doorbell, people in the house will be notied.
Doorbell Chime
Video Doorbell Dual
(Battery)
6
English
CONNECTING THE HOMEBASE
STEP 1
4
Connect HomeBase 2 to the Internet
1. Power on the HomeBase 2, then use the ethernet cable provided to
connect the HomeBase 2 to your home router.
2. The LED indicator turns blue (this may take up to 1min) when HomeBase
2 is ready for setup.
English
7
SETTING UP THE SYSTEM
STEP 2
5

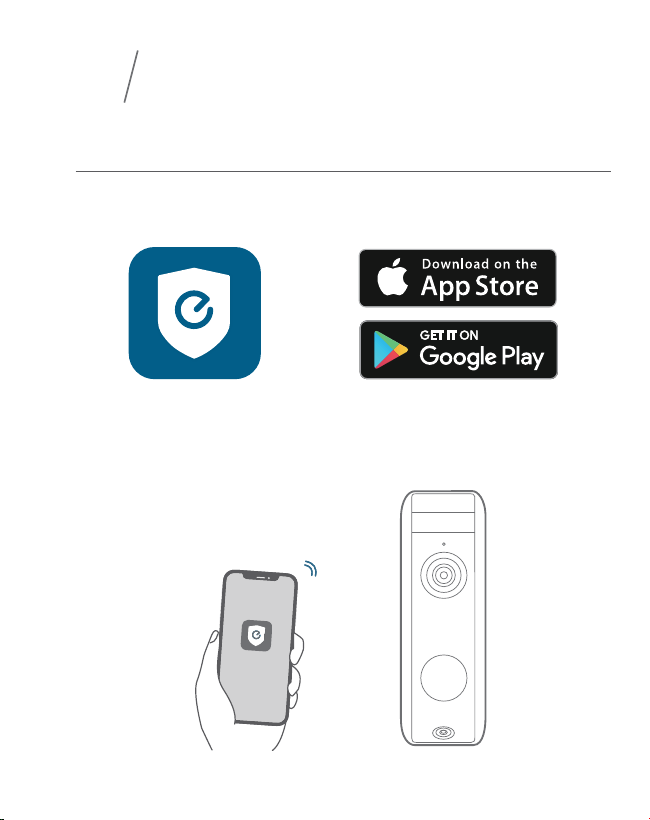

Download the App and Set up the System
Download the eufy Security app from the App Store (iOS devices) or Google
Play (Android devices).
Sign up for a eufy Security account, then follow the onscreen instructions to
complete the setup.
8
English
DETERMINING THE POWER OPTION
STEP 3
6
Option 1 - Battery Powered
1. If you don’t have existing doorbell wiring at the front door, use the built-in
battery. You are free to determine the doorbell position and the mounting
is easy and quick.
2. When the doorbell battery level is low, you need to detach and charge it.
3. If you choose this option, please jump to
STEP 4 FINDING A
MOUNTING SPOT
.
6 months
Note:
The battery life varies depending on usage. In most common cases,
a doorbell may have up to 10 events per day and each recording lasts 20
seconds on average. Under this scenario, the doorbell battery life can last up
to 6 months.
English
9
Option 2 - Doorbell Wire Powered
1. If you have existing and working doorbell wiring at the front door, the
doorbell will be powered by the wires constantly. So you don’t need to
detach and charge it after installation.
2. Since the doorbell is connected to the wires, the mounting position is
limited.
3. If you choose this option, please jump to
APPENDIX 3 POWERING THE
DOORBELL WITH EXISTING DOORBELL WIRES
.
8 - 24V AC Doorbell Wiring
10
English
FINDING A MOUNTING SPOT
STEP 4
7

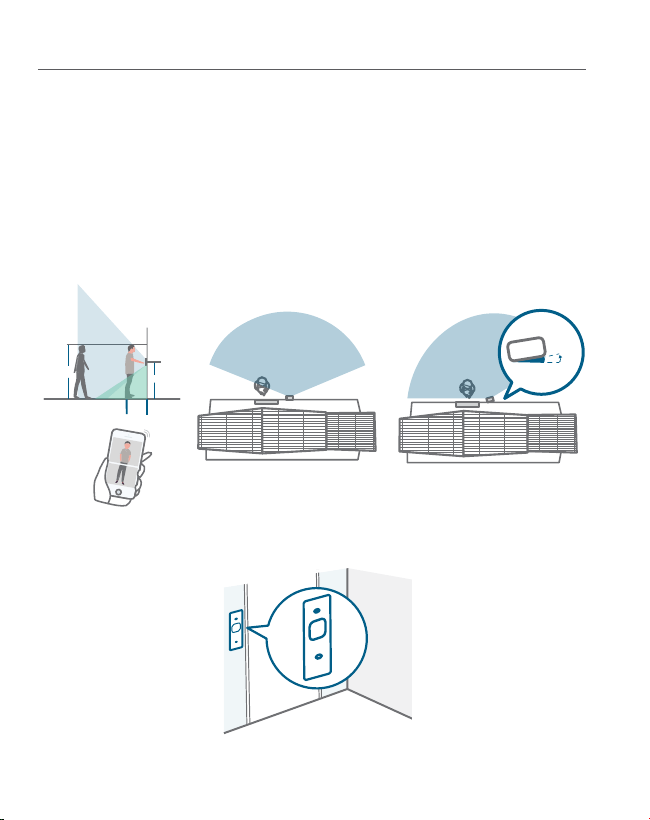

Find a Mounting Spot
Take the video doorbell to your front door and check the live view on the app
at the same time. Find a location where you can see the desired eld of view.
Consider the following factors:
1. Check if you can reuse the existing holes and anchors on the wall or door
frame.
2. If you want to place the doorbell close to a side wall, make sure the wall
doesn’t show up in the eld of view. Otherwise IR light will be reected and
night vision will become blurry.
3. If you are drilling the mounting holes for the rst time, the recommended
mounting height is 48" / 1.2 m from the ground.
4. To adjust the angel, use the 15° mounting wedge as a supplementary
mounting bracket.
1.76m(5’9”)
1.2m (48")
0.3m
(12")
1m
(40")
15°
Without 15° Mounting wedge With 15° Mounting wedge
Door
Door
Video Doorbell
Video Doorbell
English
11
Place the screw hole positioning card against the wall to mark the position.
12
English
MOUNTING THE BRACKET
STEP 5
8

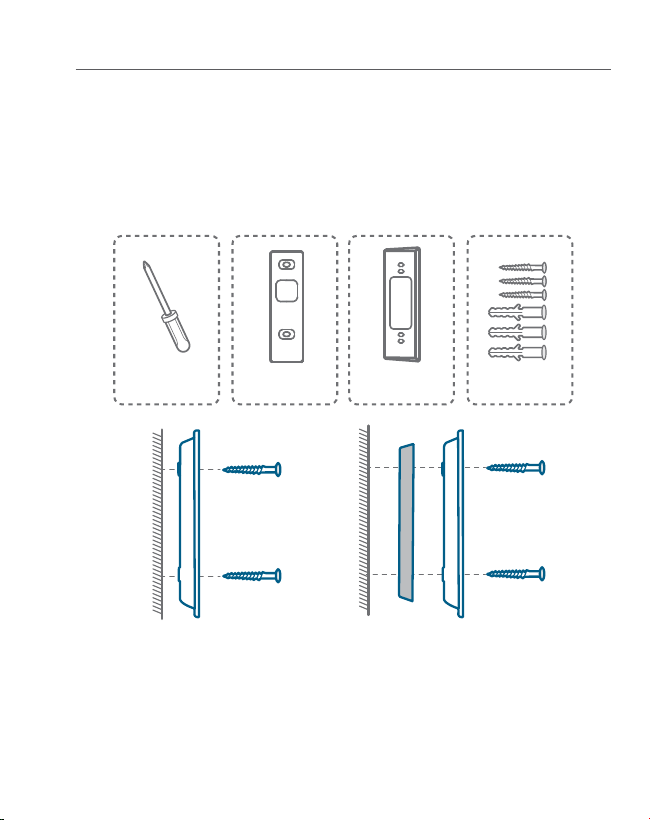

Mount the Doorbell on a Wooden Surface
If you’re mounting the doorbell on a wooden surface, you don’t need to pre-
drill pilot holes. Use the provided screws to secure the mounting bracket on
the wall, the screw hole positioning card indicates the position of the screw
holes.
What you need: Screwdriver, Mounting Bracket, 15° Mounting Wedge
(Optional), Screw Packs
Phillips-Head Screwdriver
(not provided)
Wall
Wall
Mounting
Bracket
Mounting
Wedge
Mounting
Bracket
Mounting Bracket
(Attached to 15° Mounting
Wedge)
15° Mounting
Wedge (Optional)
Screw Packs (Spare screws
and anchors are included.)
Without 15° Mounting Wedge
With 15° Mounting Wedge
English
13

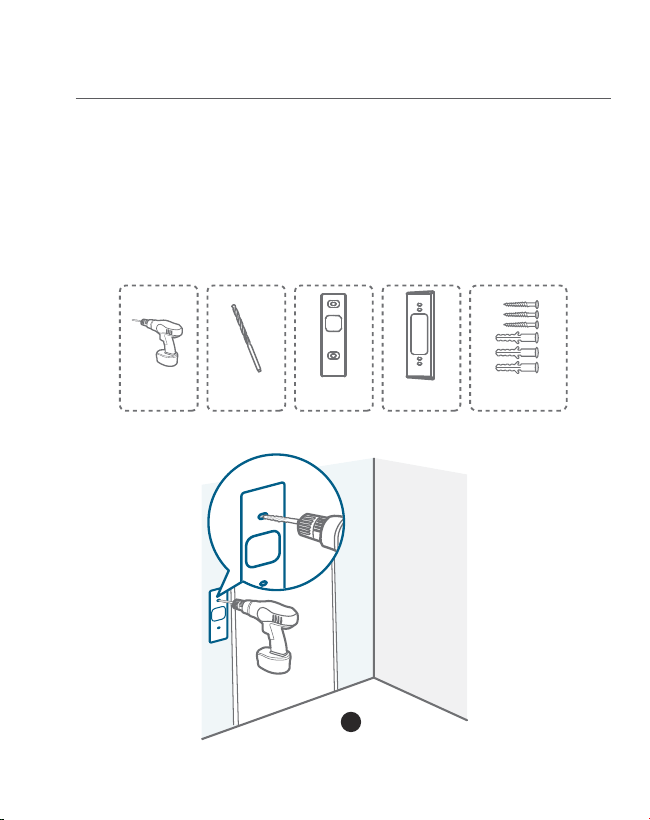

Mount the Doorbell on Surfaces Made Out of
Hard Materials
1. If you’re mounting the doorbell on a surface made out of hard materials,
like brick, concrete, stucco, drill 2 holes through the screw hold positioning
card with a 15/64”(6mm) drill bit.
2. Insert the provided anchors, and then use the provided long screws to
secure the mounting bracket on the wall.
What you need: Power Drill, 15/64”(6 mm) Drill Bit, Mounting Bracket,
15° Mounting Wedge (Optional), Screw Packs
Power Drill
(not provided)
15/64”(6 mm) Drill
Bit
Mounting Bracket
(Attached to 15°
Mounting Wedge)
15° Mounting
Wedge (Optional)
Screw Packs (Spare screws
and anchors are included.)
1
14
English
2
2
Wall
Wall
Mounting
Bracket
Mounting
Wedge
Mounting
Bracket
Without 15° Mounting Wedge
With 15° Mounting Wedge
English
15
MOUNTING THE DOORBELL
STEP 6
9
Mount the Doorbell
Align the doorbell on the bottom, and then move it into place on top. Press the
doorbell down until it clicks.
You’re all set!
If you want to detach the doorbell or recharge it, please refer to the following
sections.
16
English
DETACHING THE DOORBELL
APPENDIX 1
10
Detach the Doorbell
1. Use the doorbell detaching pin provided if you wish to detach the doorbell
from the mounting bracket.
2. Press into the pinhole on top of the doorbell, and then lift the top for
removal.
What you need: Doorbell Detaching Pin
Doorbell
Detaching Pin
English
17
RECHARGING THE DOORBELL
APPENDIX 2
11
Recharge the Doorbell
LED indicator
Charging: Flashing Green
Fully charged: Green
Charging time 6 hours from 0% to 100%
18
English
POWERING THE DOORBELLWITH EXISTING DOORBELL WIRES
APPENDIX 3
12
3.1 Verify whether the doorbell wires are working
1. Ring the existing doorbell to check if it is working. If the doorbell doesn’t
ring, your doorbell wires may be defective. Power the doorbell on its own
battery or consult an electrician to x the wires.
2. Shut off power at the breaker. Turn the lights on / off in your home to make
sure the electricity in your house is properly shut off.
OFF
OFF
Always be careful when handling wires. If you’re not comfortable
installing it yourself, have a qualied electrician do it.
English
19
3.2 Detach the Existing Doorbell Button
If you already have existing doorbell wiring:
1. Remove the existing doorbell button with a Phillips-head screwdriver (not
provided).
2. Pull the two wires out carefully when removing the existing doorbell.
Straighten the wire ends if necessary.
What you need: Philips-Head Screwdriver
Phillips-Head Screwdriver
(Not provided)
20
English
3.3 Find a Mounting Spot
1. When determining the mounting position of the doorbell, consider these
factors:
①
Check if you can reuse the existing holes and anchors on the wall or
door frame.
②
If you are drilling the mounting holes for the rst time, the recommended
mounting height is 48" / 1.2 m from the ground.
③
To adjust the angel, use the 15° mounting wedge as a supplementary
mounting bracket.
1.76m(5’9”)
1.2m (48")
0.3m
(12")
1m
(40")
15°
Without 15° Mounting wedge With 15° Mounting wedge
Door
Door
Video Doorbell
Video Doorbell
2. Place the screw hole positioning card against the wall to mark the position.
English
21
3.4 Mount the Bracket
If you’re mounting the doorbell on a wooden surface, you don’t need to pre-
drill pilot holes. Use the provided screws to secure the mounting bracket on
the wall. The screw hole positioning card indicates the position of the screw
holes.
What you need: Power Drill, Mounting Bracket, 15° Mounting Wedge
(Optional), Screw Packs
Phillips-Head Screwdriver
(Not provided)
Wall
Wall
Mounting
Bracket
Mounting
Wedge
Mounting
Bracket
Mounting Bracket
(Attached to 15° Mounting
Wedge)
15° Mounting
Wedge (Optional)
Screw Packs (Spare screws
and anchors are included.)
Without 15° Mounting Wedge With 15° Mounting Wedge
22
English

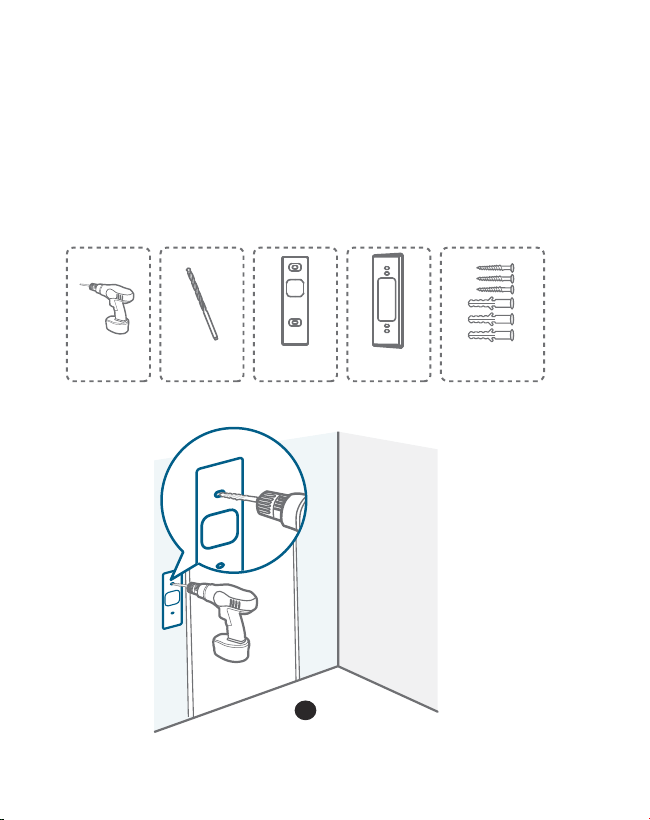

If you’re mounting the doorbell on a surface made out of hard materials, like
brick, concrete, stucco:
①
Drill 2 holes through the screw hole positioning card with 15/64”(6mm)
drill bit.
②
Insert the provided anchors, and then use the provided long screws to
secure the mounting bracket on the wall.
What you need: Power Drill, 15/64”(6mm) Drill Bit, Mounting Bracket,
15° Mounting Wedge (Optional), Screw Packs
Power Drill
(not provided)
15/64”(6 mm) Drill
Bit
Mounting Bracket
(Attached to 15°
Mounting Wedge)
15° Mounting
Wedge (Optional)
Screw Packs (Spare screws
and anchors are included.)
1
English
23
2
2
Wall
Wall
Mounting
Bracket
Mounting
Wedge
Mounting
Bracket
Without 15° Mounting Wedge With 15° Mounting Wedge
24
English
3.5 Connect the Doorbell Wires to the Doorbell
Connect the wires to the terminals at the back of the doorbell, then tighten
the terminal screws. Wire can connect to any terminal.
What you need: Wires and Wire Nuts (Optional), Video Doorbell, Philips-
head Screwdriver
Extension Wires and
eufy Security Video
Doorbell Dual (Battery)
Model: T8213
Phillips-Head
Screwdriver
(Not provided)
Note:
•
To prevent short-circuiting, make sure the wires are not touching each
other after connecting them to the terminals.
•
If the wires are too short, use the extension wires and wire nuts provided
to make them longer. Use electrical wiring tape instead if there is no more
space on the wall for wire nuts.
English
25
3.6 Mount the Doorbell on the Bracket
Align the doorbell on the bottom, and then move it into place on top. Press the
doorbell down until it clicks.
3.7 Restore Power
Switch the master circuit breaker back to ON.
ON
ON
You’re all set!
If you want to detach the doorbell or recharge it, please refer to the
corresponding sections.
26
English
NOTICE
13
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Warning:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Note:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures: (1)
Reorient or relocate the receiving antenna. (2) Increase the separation between
the equipment and receiver. (3) Connect the equipment into an outlet on a
circuit different from that to which the receiver is connected. (4) Consult the
dealer or an experienced radio/TV technician for help.
FCC Radio Frequency Exposure Statement
The device has been evaluated to meet general RF exposure requirements.
The device can be used in xed/mobile exposure condition. The min separation
distance is 20cm.
English
27
Notice:
Shielded cables
All connections to other computing devices must be made using shielded cables
to maintain compliance with FCC regulations.
The following importer is the responsible party
Company Name: POWER MOBILE LIFE, LLC
Address: 10900 NE 8TH ST, STE 501, BELLEVUE, WA 98004
Telephone:1-800-988-7973
IC Statement
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device."
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes:
(1) l'appareil nedoit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement."
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
IC RF Statement:
When using the product, maintain a distance of 20cm from the body to ensure
compliance with RF exposure requirements.
Lors de l'utilisation du produit, maintenez une distance de 20 cm du corps an
de vous conformer aux exigences en matière d'exposition RF.
28
English
Customer Service
Warranty
12-month limited warranty
Call Us
United States
+1 (800) 988 7973 Mon-Fri 9AM-5PM (PT)
United Kingdom
+44 (0) 1604 936 200 Mon-Fri 6AM-11AM (GMT)
Germany
+49 (0) 69 9579 7960 Mon-Fri 6:00-11:00
Email Us
Customer Support: suppor[email protected]
Anker Innovations Limited
Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong
@EufyOfficial @EufyOfficial @EufyOfficial
