DH24UWH
Front-Loading Dryer
Owner’s Guide:
Installation and OperationInstructions
2960314233_EN/171224.1520
Dear Customer,
Please read this guide prior to use this product!
Thank you for choosing Smeg product. We would like you to achieve the optimal efficiency
from this high quality product which has been manufactured with state of the art technology.
Please make sure you read and understand this guide and supplementary documentation fully
before use.
Observe all warnings and information herein. Therefore you can protect both yourself and your
product against potential damages.
Keep the manual. Include this guide with the unit if you hand it over to someone else.
Symbols and Remarks
The following symbols are used in the user guide:
Danger that may cause death or injury
Read the manual
Important information or useful usage tips
Warning against hot surfaces
B
Warning against electric shock
Warning against UV Radiation hazard
Warning against scalding
The product's packaging is made of recyclable materials, in accordance with the
National Environment Legislation.
Warning against fire
NOTICE Danger that may cause material damage on the product or surrounding area
1 Your Dryer 4
1.1 Overview ..............................................4
1.2 Technical Specifications ........................5
2 Important Safety Instructions 6
3 Installation Instructions 11

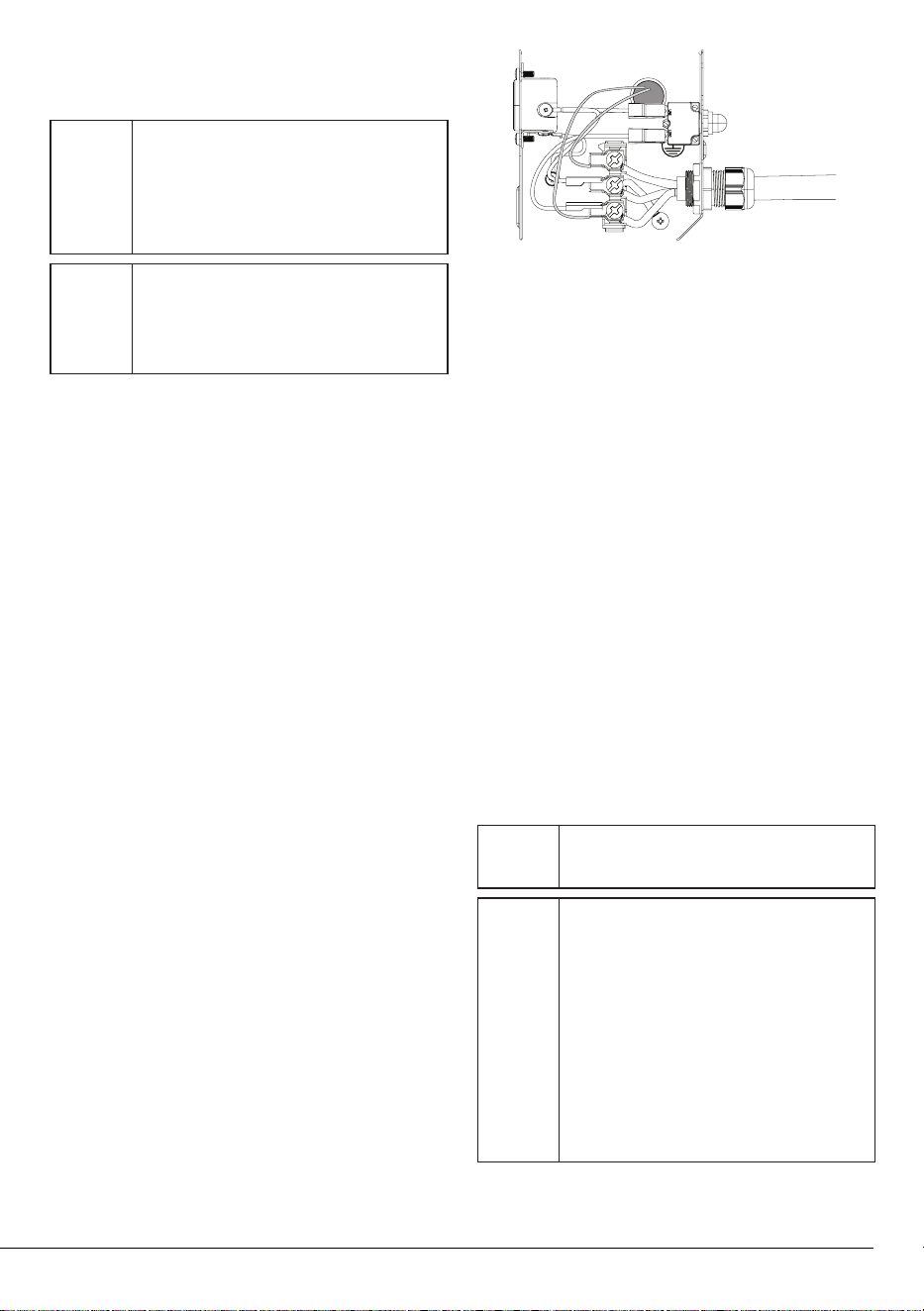

3.1 Electrical connection ........................... 11
3.2 Grounding Instructions .......................12

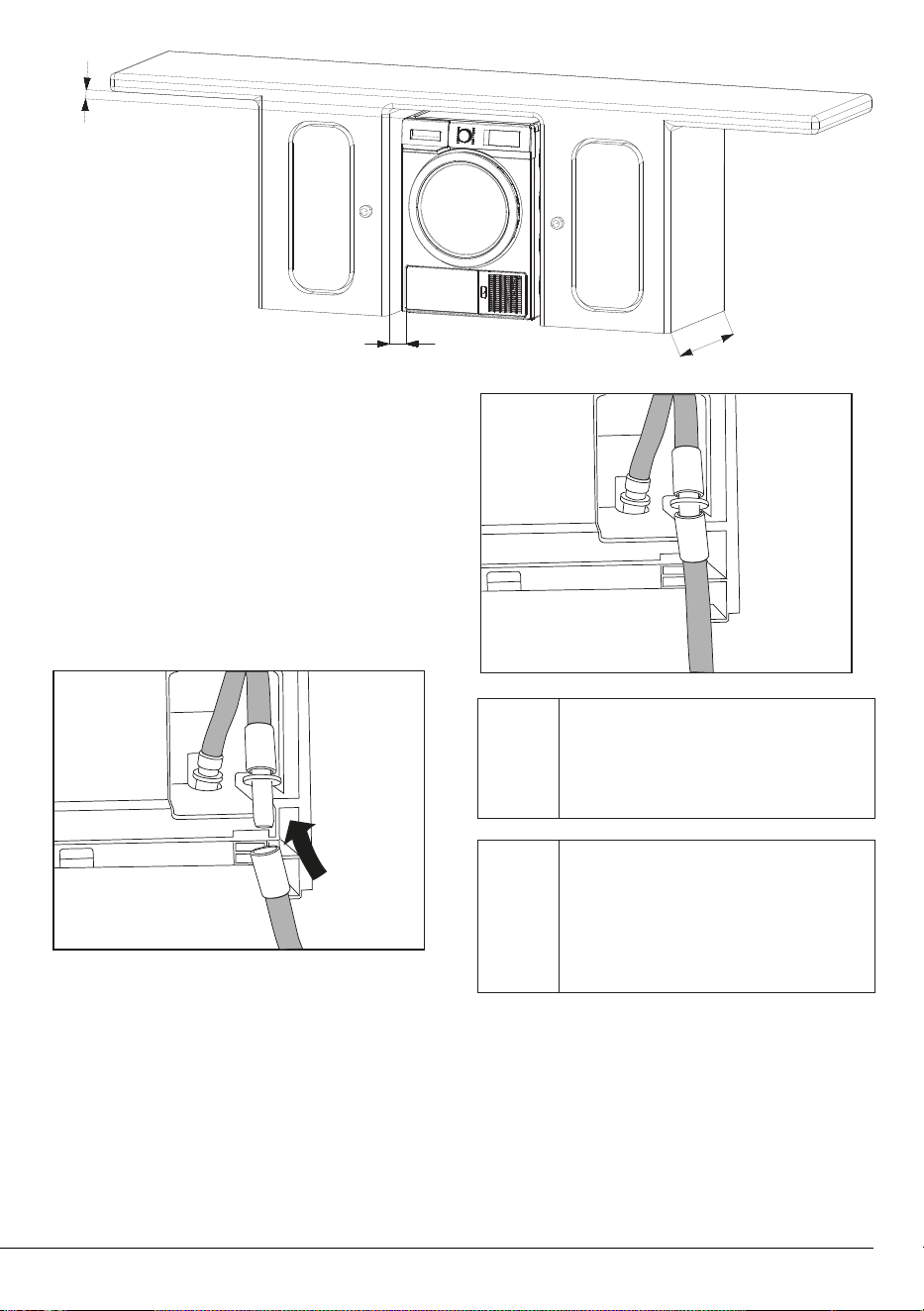

3.3 Appropriate installation location ..........13
3.4 Minimum Installation Clearances .........13
3.5 Use on top of a washer ......................13
3.6 Adjusting the feet ................................ 13
3.7 Destroying packaging material ............13
3.8 Connecting to the drain ......................14
4 Preparation 15
4.1 Laundry suitable for drying in drying
machine ...................................................15
4.2 Laundry not suitable for drying in drying
machine ...................................................15
4.3 Preparing the laundry to be dried ........15
4.4 What to do for energy saving ..............15
4.5 Correct load capacity .........................16
5 Running the product 17

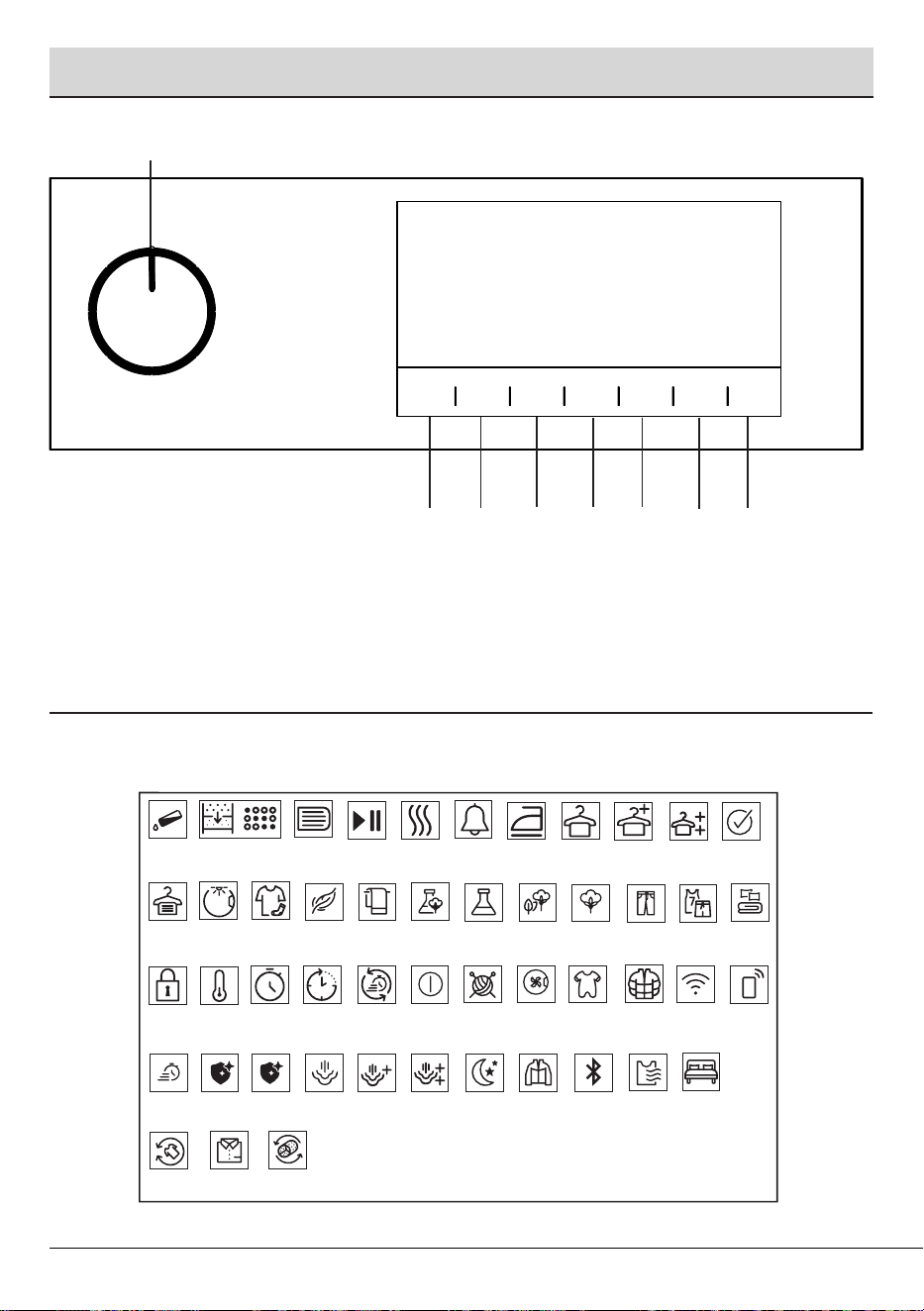

5.1 Control Panel ......................................17
5.2 Symbols .............................................17
5.3. Preparation of drying machine ...........18
5.4 Program selection and consumption
chart ......................................................... 19
5.5 Auxiliary functions ...............................21
5.6 Warning indicators .............................. 21
5.7 Starting the program ...........................22
5.8 Child Lock ..........................................22
5.9 Changing the program after it is started 22
5.10 Cancelling the program .....................23
5.11 End of program ................................23
5.12 Odour feature ...................................23
6 Maintenance and cleaning 24
6.1 Loading Door Inner Surface ................24
6.2 Cleaning the sensor ...........................25
6.3 Cleaning the condenser ......................26
7 Troubleshooting 29
8 Warranty Statement 31
4 / EN
Dryer / User Manual

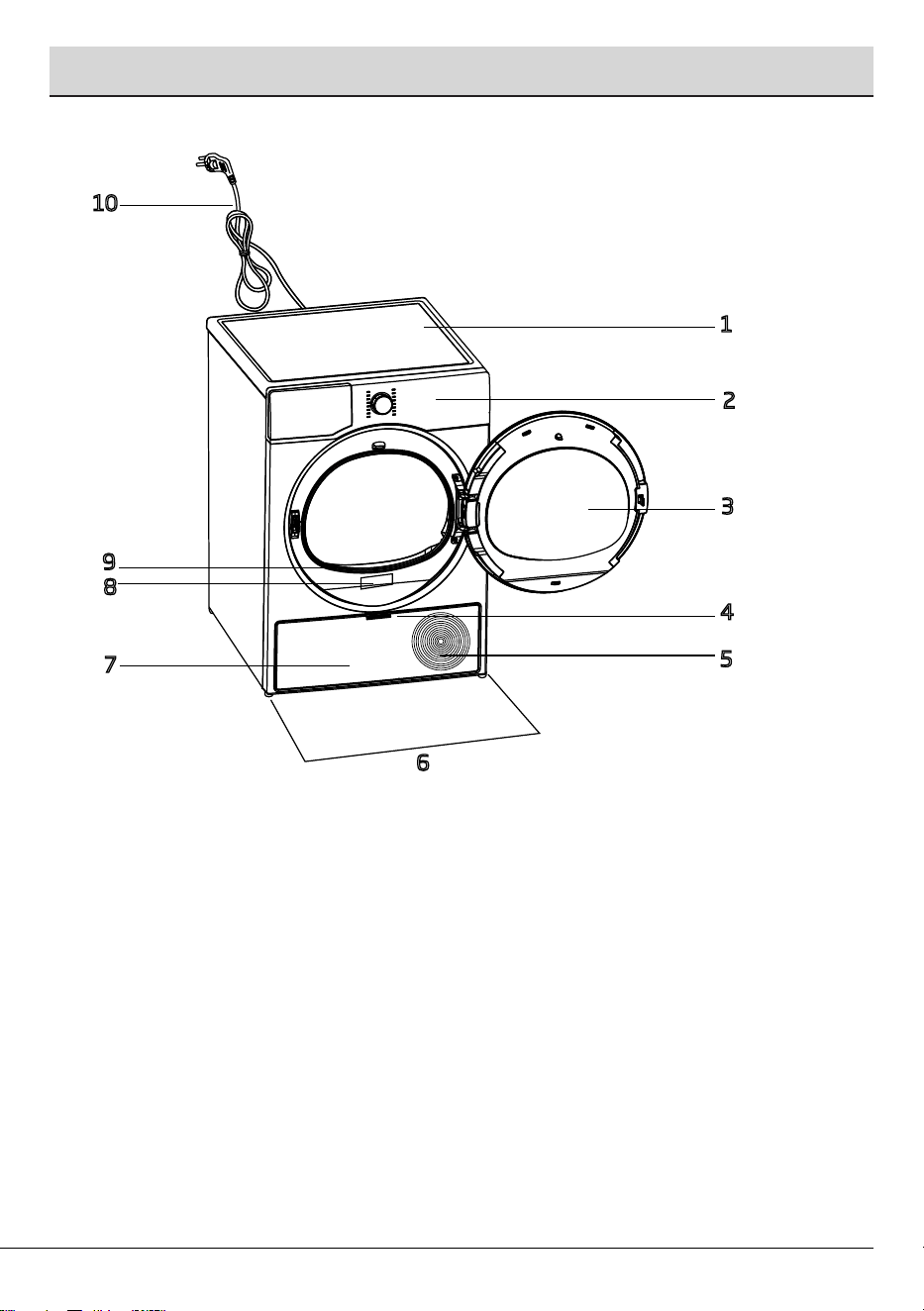

1. Top panel
2. Control panel
3. Loading door
4. Kick plate opening tab
5. Ventilation grids
6. Adjustable feet
7. Kick plate
8. Type label
9. Lint filter
10.Power cable
1.1 Overview
1 Your Dryer
10
1
2
3
4
5
6
7
8
9
5 / EN
Dryer / User Manual
1.2 Technical Specifications
Model
Heat Pump Dryer with
electronic sensor control
Height (in) 33 5/16
Width (in) 23 3/4
Depth (in) 27 1/2
Height adjustment of feet (in) 1/5
Net weight (lbs) 105
Voltage / Frequency 208-240V ~ 60 Hz
Connected load 800 W - 4 A
Dry Load Capacity 8kg / 18 lb
Capacity 4,5 cu-ft
6 / EN
Dryer / User Manual
2 Important Safety Instructions
A
WARNING : To reduce the risk of fire or electric shock
resulting in serious injury or death when using this
appliance, follow the basic precautions including the
following:
• Read all instructions before using the appliance. Failure
to follow these instructions will increase the risk of fire or
electric shock and will void the warranty.
A
WARNING :This product has been designed for home
use only.
• The appliance must be operated at temperatures between
+5°C and +35°C. (41°F and +95°F)
• The appliance must not be installed behind a lockable door,
a sliding door or a door with the hinges on the opposite
side to that of the tumble dryer.
• Do not install or store this appliance where it will be
exposed to weather.
• Do not tamper with the controls.
• Do not repair or replace any part of the appliance or
attempt any servicing unless specifically recommended
in the user-maintenance instructions or in published user-
repair instructions that you understand and have the skills
to carry out.
• Never wash the appliance with water.
• Never touch the plug with wet hands.
• Never pull from the cable to unplug the dryer.
• Do not operate the appliance if the power cord or plug is
damaged.
• For malfunctions that cannot be solved by information in
the operating manual: Turn off and unplug the appliance
and call an authorized service provider.
7 / EN
Dryer / User Manual
• This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance
for electric current. This appliance is equipped with a cord
having an equipment-grounding conductor and a grounded
plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with
all local codes and ordinances.
B
WARNING : Improper connection of the equipment-
grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service
representative or personnel if you are in doubt as to
whether the appliance is properly grounded.
• Power cord plug must be within easy reach after
installation.
• To reduce the risk of fire or electric shock, do not use
extension cords, multi-plugs or an adapter to connect the
dryer to electrical mains.
• Do not modify the plug provided with the appliance: if it
will not fit the outlet, have a proper outlet installed by a
qualified electrician.
• If the power supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid an electrical hazard.
• The appliance must not be operated unless it is repaired!
• Ventilation openings in the base must not be obstructed by
carpets, etc.
• Exhaust air must not be discharged into a flue used for
exhausting fumes from appliances burning gas or other
fuels.
• Adequate ventilation must be provided to avoid the back
flow of gases into the room from appliances burning other
fuels, including open fires.
8 / EN
Dryer / User Manual
• Do not dry articles that have been previously cleaned in,
washed in, soaked in or spotted with gasoline, dry-cleaning
solvents or other flammable or explosive substances as
they give off vapors that could ignite or explode.
• Do not use the tumble dryer if industrial chemicals have
been used for cleaning what you want to dry.
• Do not dry unwashed items in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber-backed articles and clothes or
pillows fitted with foam rubber pads should not be dried in
the tumble dryer.
• Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product.
• does not recommend the use of fabric softening dryer
sheets in our Electric Dryers. The contents of these sheets
can clog the units filters, causing reduced air flow and
possible damage to the heating system. You may use
fabric softeners in the washing machine but not the dryer
• The appliance may only be used for the drying of textiles
that are marked accordingly.
• Undergarments that contain metal reinforcements should
not be placed in a tumble dryer. Damage to the tumble
dryer can result if any of the metal reinforcement come
loose during drying.
• Before loading check all garments for lighters, coins, metal
pieces, needles, etc.
• The use of fabric softener sheets is not recommended.
• Do not place items exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute to
a chemical reaction that could cause a load to catch fire.
To reduce the risk of fire due to contaminated loads, the
final part of a tumble dryer cycle occurs without heat (cool
down period). Avoid stopping a tumble dryer before the
end of the drying cycle unless all items are quickly removed
and spread out so that the heat is dissipated.
9 / EN
Dryer / User Manual
A
WARNING : Never stop the tumble dryer before the
end of the drying cycle unless all items are quickly
removed and spread out to dissipate heat.
• Do not reach into the appliance if the drum is moving.
• Do not allow children to play on or in the appliance.Close
supervision of children is necessary when the appliance is
used near children.
• Keep pets away from the appliance during the drying cycle.
• Before the appliance is removed from service or discarded,
remove the door to the drying compartment.
• Close the loading door when you leave the area where the
dryer is located.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they are supervised or have been given instructions
concerning the use of the appliance by a person
responsible for their safety.
• Clean lint filter before or after each load.
• Keep area around the exhaust vent and adjacent
surrounding areas free from the accumulation of lint, dust,
and dirt.
• The interior of the appliance and exhaust ductwork should
be cleaned periodically by qualified service personnel.
• Never use the dryer without the lint filter.
• When your dryer is not in use or after the laundry is taken
out following the completion of drying process, turn off by
using the On/Off button. In cases when the On/Off button
is in the On position while the dryer is plugged in, keep the
door of the dryer closed.
• For power saving in models with lamps, when your dryer is
not in use, keep the door closed if the On/Off button is in
the On position and the dryer is energized.
10 / EN
Dryer / User Manual
• Do not use replacement parts that have not been
recommended by the manufacturer (e.g. parts made at
home using a 3D printer).
Also R290 is a flammable refrigerant. Therefore ensure
that the system and pipes are not damaged during
operation and transportation.
Keep the product from heat sources, otherwise it may
catch fire if damaged.
Do not dispose of the product by throwing it into fire.
A
WARNING : In the appliance enclosure, keep
ventilation epenings clear of obstruction.
WARNING : Do not damage the refrigerant circuit.
A
WARNING : This product can expose you to
chemicals including Nickel (Metallic) which is known to
the State of California to cause cancer.
For more information go to www.P65Warnings.ca.gov
Note : Nickel is a component in all stainless steel and
some other metal components.
SAVE THESE INSTRUCTIONS
11 / EN
Dryer / User Manual
3 Installation Instructions
A
WARNING!
Risk of fire
The clothes dryer (“appliance‘) installation
must be performed by a qualified installer.
Install the appliance according to the
manufacturer’s instructions and local codes.
Do not install a clothes dryer with flexible
plastic venting materials. If flexible metal (foil
type) duct is installed, it must be of a specific
type identified by the ap pliance manufacturer
as suitable for use with clothes dryers. Flexible
venting materials are known to collapse, be
easily crushed, and trap lint. These conditions
will obstruct the clothes dryer’s airflow and
increase the risk of fire.
To reduce the risk of severe injury or death,
follow all installation instructions.
3.1 Electrical connection
Connect the appliance to a grounded outlet
protected by a fuse or circuit breaker of
suitable capacity.

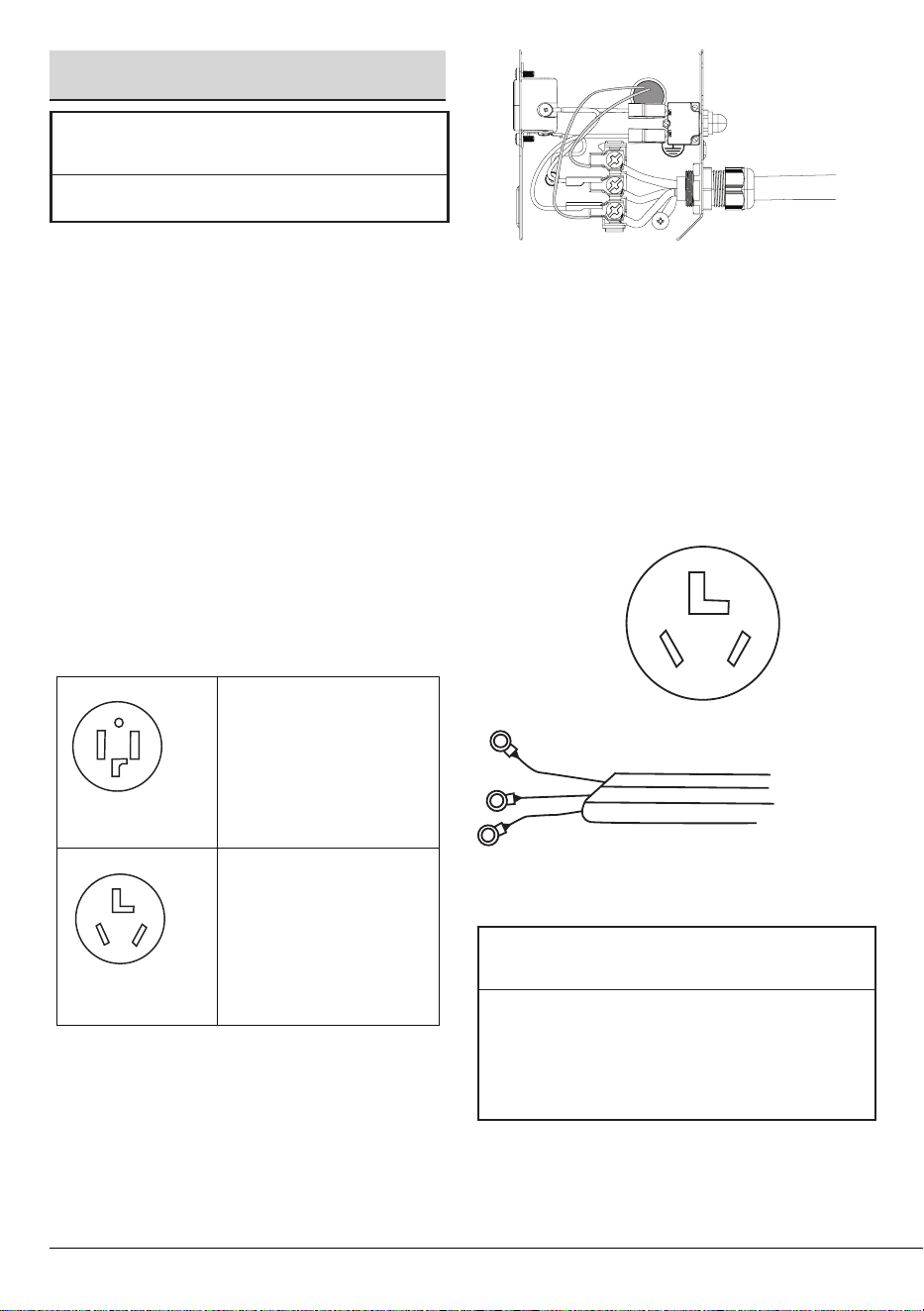

4-wire receptacle
(14 -30R)
3-wire receptacle
(10 -30R)
If yo u have 3-wir e receptacle, like
this , a 3-wire dryer cord must be
purchased locall y.
Dryer shipped with cord to fit this
type 4 -wire receptacle
Power Cabl
e
LL
G
N
3-Wire Electrical Connection
If your receptacle is a 3-wire receptacle as
shown below, you must obtain a 3-wire dryer
cord. A dryer cord can usually be found at
your local hardware supply, electrical supply
or home center. Cord should have closed loop
or upturned end wire terminating connectors.
The cord kit must be marked “For Use with
Clothes Dryers”.
3- wire receptacle
( 10-30R)
Typical 3- Wire Dryer Cord 240V/30 amp
NEMA 10-30 Type SRDT
A
WARNING!
If the dryer is installed in a mobile home,
recreational vehicles, new branch-circuit
installations or in areas where local codes
do not permit grounding through the neutral
conductor, only a 4-wire power supply cord
shall be used.
12 / EN
Dryer / User Manual
To change the cord:
1. Make sure that the dryer is not plugged into
any power outlet.
B
DO NOT plug end of dryer power
cord into a live receptacle before
connecting dryer power cord to
dryer terminals and closing junction/
splitter box as described below.
B
DO NOT repair old power supply
cords. Power cord must be
changed only by a qualified person.
There is a risk of electric shock!
2. Remove the screw from the cover of the
junction box located at the top rear of the
dryer.
3. Remove the red, white and black wire from
the terminal block.
4. Remove the green ground wire from the
ground terminal.
5. Loosen the strain relief clamp holding the
4-wire cable.
6. Thread the 4-wire cable out through the
strain relief clamp.
7. Thread the new 3-wire dryer cord through
the strain relief clamp.
8. Attach the power cord Ground conductor
(the center wire) to the terminal labeled N.
Connect the terminal labeled N and the
Ground terminal labeled G. Tighten the
terminals so that they securely hold the
conductors.
9. Attach the two remaining power cord outer
conductors to the 2 terminals labeled L.
Tighten both screws so that the power
conductors are securely held in place.
10. Tighten the strain relief so that the power
cord cannot be moved.
11. Replace the cover on the junction box and
fasten in place.
The dryer is now ready to be plugged into the
3-wire receptacle of the proper rating.
The receptacle should be located so that the
plug and receptacle will be accessible with the
dryer in its installed position.
Power Cabl
e
LL
G
N
3.2 Grounding Instructions
This appliance must be grounded. In the event
of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing
a path of least resistance for electric current.
This appliance is equipped with a cord having
an equipment-grounding conductor and a
grounding plug. The plug must be plugged
into an appropriate outlet that is properly
installed and grounded in accordance with all
local codes and ordinances.
• Power cord plug must be within easy
reach after installation.
• The voltage and the allowed fuse/breaker
protection are specified in the section
“Technical Specifications”.
• The stated voltage must match your
mains voltage.
• Connection via extension cords or multi-
plugs should not be made.
• The main fuse/breaker and switches must
have a contact distance of minimum 3
mm.
B
A damaged power cable must be
replaced by a qualified electrician.
A
WARNING – Improper connection of
the equipment-grounding conductor
can result in a risk of electric shock.
Check with a qualified electrician or
service representative or personnel
if you are in doubt as to whether
the appliance is properly grounded.
Do not modify the plug provided
with the appliance: if it will not fit the
outlet, have a proper outlet installed
by a qualified electrician.
13 / EN
Dryer / User Manual
B
The appliance must not be operated
unless it is repaired! There is the risk
of electric shock!
3.3 Appropriate
installation location
• Install your appliance in environments that
have no risk of freezing and in a stable
and level position.
• Do not place your appliance on a long pile
rug or on similar surfaces.
• Operate your appliance in a well-
ventilated, dust-free environment.
• Do not block the air ducts in front of and
under the dryer.
B
Make sure that your appliance is not
placed on the power cable.
A
Keep at least 0.6” (1.5 cm) from the
edges of other furniture.
3.4 Minimum Installation
Clearances
Alcove or
Built-under
Closet
A Sides 0.5 in. (13 mm) 0.5 in. (13 mm)
B Top 1 in. (25 mm) 1 in. (25 mm)
C Rear 0.5 in. (13 mm) 0.5 in. (13 mm)
Front 0.20 in. (5 mm) 0.20 in. (5 mm)
Ventilation Requirements
Closet door must have 2 openings, one
located 3.2 inches (8 cm) from bottom of door
having a minimum area of 16 sq. inches (103
cm2) and the other one located 3 inches (7.5
cm) from top of door having a minimum area
of 46 sq. inches (294 cm2).
3.5 Use on top of a washer
• A stacking-kit (Part no: 2974640200)
should be used between washer and
dryer for use on top of a washer. The
stacking-kit should be installed by the
Authorized Service provider.
• Place the appliance on a solid floor. If
it is to be placed on top of a washer,
the approximate weight together may
reach 397 lbs (180 kg) when they are full.
Therefore, the floor must be capable of
carrying the load placed on it!
3.6 Adjusting the feet
• In order to ensure that the dryer operates
more silently and vibration-free, it must
stand level and balanced on its feet.
Balance the dryer by adjusting the feet.
• Turn the feet to left or right until the dryer
stands level and firmly.
C
Never unscrew the adjustable feet
from their housings.
A
Dryer contains R290 refrigerant.*
R290 is an environment-friendly, but
flammable refrigerant.*
Ensure that the air inlet of the dryer
is open and it is well-ventilated.*
Keep potential flame sources away
from the dryer.*
3.7 Destroying packaging material
Packaging material can be dangerous to
children. Keep the packaging materials out
of the reach of children or dispose of them
accordingly. Do not dispose of them together
with normal domestic waste.
Packaging materials of your appliance are
manufactured from recyclable materials.
14 / EN
Dryer / User Manual
3.8 Connecting to the drain
In products equipped with condenser unit,
water accumulates in the water tank during
the drying cycle.
Connecting the water drain hose
Connect one end of the drain hose supplied
with the dryer to the connection point from
where you removed the hose of the product in
previous step.
Connect the other end of the drain hose
directly to the wastewater drain or to the
washbasin.
A
B
C
A
Hose connection should be made in
a safe manner. Your drain house will
be flooded if the hose comes out of
its housing during water discharge.
C
Water drain hose should be
attached to a height of maximum
80 cm.
Make sure that the water drain
hose is not stepped on and it is not
folded between the drain and the
dryer.
15 / EN
Dryer / User Manual
4 Preparation
A
Read the “Safety Instructions” first!
4.1 Laundry suitable for
drying in drying machine
NOTE
Laundry that are not drying machine
safe may damage the appliance and
the laundry during drying. Follow
the instructions on the labels on the
laundry to be dried. Only dry the
laundry with “drying machine safe”
written on their labels.
Do not dry
with dryer
4.2 Laundry not suitable for
drying in drying machine
NOTE
Undergarments with metal supports
shall not be dried in drying machine.
If these metal supports get loose
and ripped from the garment, it may
damage the machine.
Delicate embroidery textiles, cotton
and silk garments, garments
manufactured from delicate and
valuable textiles, non breathing
garments and tulle curtains shall not
be dried in drying machine.
4.3 Preparing the
laundry to be dried
NOTE
Items such as coins, metal parts,
needles, nails, screws, stones etc.
may damage the drum group of the
product or may cause functional
operation issues. Therefore check
all laundry that will be loaded to the
product.
Dry the laundry with metal
accessories such as zippers by
turning them inside out.
Close the zippers, hooks and
clasps, button up the covers’
buttons, tie textile belts and apron
belts.
4.4 What to do for energy saving
• Use the highest possible wringing option
as you wash the laundry. Therefore you
can reduce the drying period and reduce
energy consumption. Sort the laundry
based on their types and thickness.
Dry same types of laundry together. For
instance kitchen towels and table cloths
dry faster than bathroom towels.
• Follow the recommendations in the user
manual for program selection.
• During drying do not open the loading
door unless necessary. If you are required
to open the loading door, do not keep it
open for too long.
• Do not add wet laundry as the drying
machine operates.
• Clean the Fibre Filter before and after
each drying session.
• For condensation models, be sure to
clean the condenser at least once a
month or after each 30 drying sessions.
• Make sure the filters are clean. Refer to
maintenance and cleaning for details.
• For models with flue, follow the flue
connection rules specified in the guides
and clean the flue.
• During drying session, properly ventilate
the environment in which the drying
machine is in.
16 / EN
Dryer / User Manual
• On models with heat pump, check the
condenser at least every six months and
clean it if it is dirty.
• If you are using environment friendly filter,
you are not required to clean the filter
after every cycle. When the environment
friendly icon is lit on the screen, change
the filter cloth.

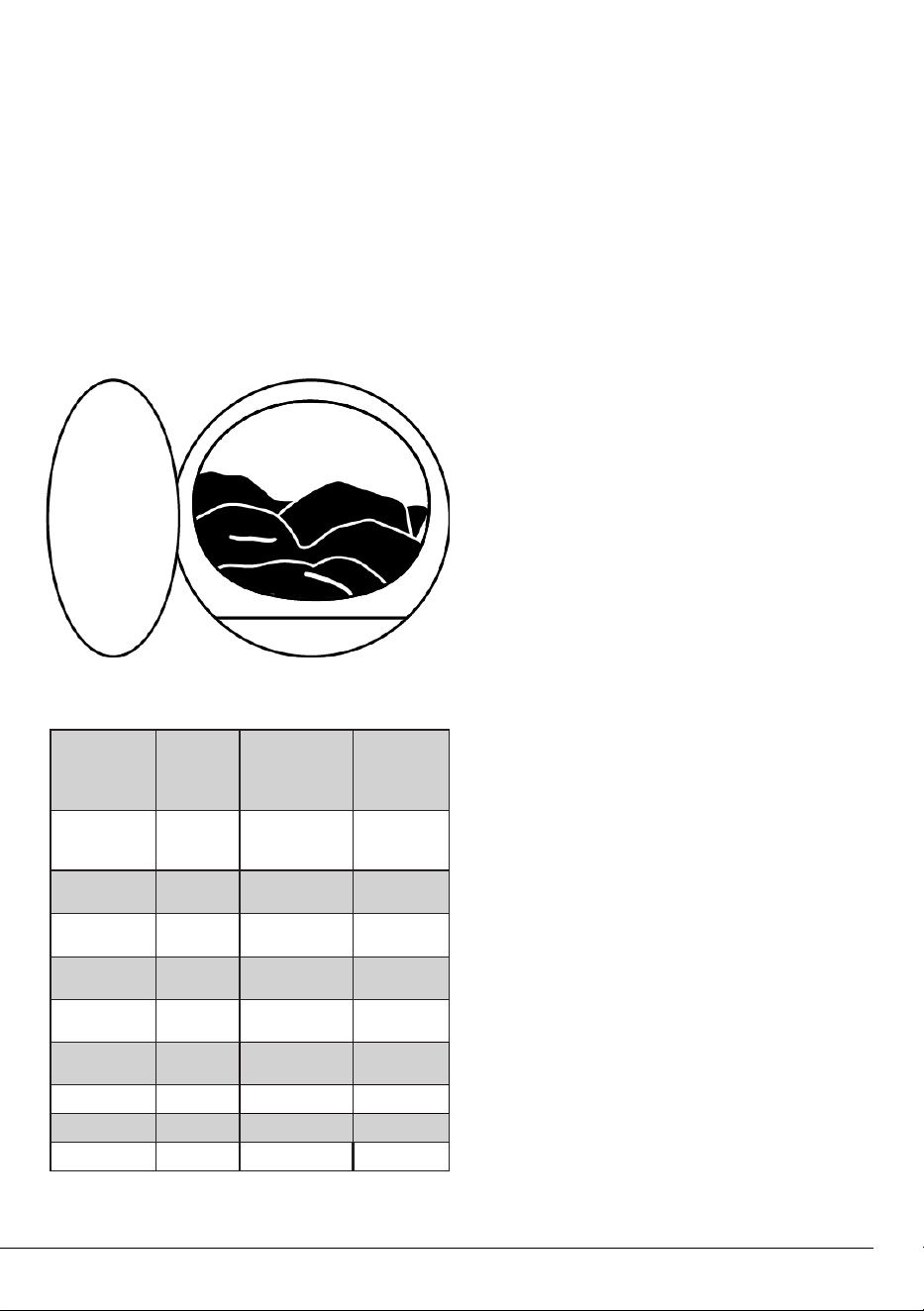

4.5 Correct load capacity
If the laundry in the product exceed maximum
load capacity, it may not operate as intended
and may cause material damage or damage
the product. For each program, follow the
maximum load capacity.
The weights below are provided as examples.
Laundry
Approx.
weight
(g)*
Laundry
Approx.
weight (g)*
Cotton
bedding
(double size)
1500 Cotton dress 500
Bedding
(single size)
1000 Dress 350
Bed sheet
(double size)
500 Denim 700
Bed sheet
(single size)
350
Handkerchief
(10 pcs)
100
Large table
cloth
700 T-Shirt 125
Small table
cloth
250 Blouse 150
Tea napkin 100 Cotton shirt 300
Bath towel 700 Shirt 200
Hand towel 350
*Weight of dry laundry before washing.
17 / EN
Dryer / User Manual
5 Running the product
5.1 Control Panel
1. On / Off / Program selection button.
2. Start / Stand-by button.
3. End time selection button.
4. Time program selection button.
5. Low temperature selection button.
Filter
Cleaning
Water tank
Filter drawer /
Heat exchanger
cleaning
Start
pause
cancel
Iron Dry
Drying Buzzer Cupboard
Dry
Cupboard
Dry +
Extra dry End
Anti-
creasing
Child-proof
lock
Low
temperature
TimeDry Ending In RapiDry
Drum
Light
Dryness
Level
Half Mix
Delicates
SyntheticsTowels Mix Cottons
Eco
Cottons Jeans Sport
Duvet/
DownWear
Shirts
Express Hygienic
Drying
Hygienic
Refresh
Steam Steam
Level 1
Steam
Level 2
On / Off Wool Protect
Night
Freshen
Up
Outdoor
Hygiene
(Baby Protect+)
Downwear Wifi
Remote
Control
Bluetooth Gentle
Dry
Reverse
Drum
Bedding
5.2 Symbols
3
4
5
2
6
7
8
1
6. Audible warning and child lock selection
button.
7. Wrinkle prevention selection button / Drum
light button.
8. Dryness level selection button.
18 / EN
Dryer / User Manual
5.3. Preparation of drying machine
• Plug the drying machine.
• Open the loading door.
• Place the laundry to the drying machine
without jamming them.
• Push and close the loading door.
A
WARNING !
• Ensure that no
laundry is jammed
to the loading
door.
• Select the desired program by using
On/Off/Program Selection button, the
machine will turn on.
C
NOTE!
• Selecting the program with the On/Off/
Program Selection button does not mean
that the program started. Press Start /
Stand-by button to start the program.
19 / EN
Dryer / User Manual
5.4 Program selection and consumption chart
EN
Programmes Programme Description
Capacity (kg)
Spin speed in washing
machine (rpm)
Drying Time (minutes)
Energy Saver Cycle
Normal
You can dry your heat-resistant cotton
textiles with this programme. A drying setting
suitable for the thickness of the products
to be dried and the desired level of dryness
should be selected.
8 medium 145 -
ECO Mode
It dries single layer, casual cotton textiles in
the most economical way.
8 medium 135
Cottons Iron dry
You may dry your cotton laundry to be ironed
in this program to have them slightly damp
for ease of ironing. (Shirt, T-shirt, tablecloth,
etc.)
8 medium 100 -
Synthetic Fabrics
You can dry all your synthetic textiles with
this programme. A drying setting suitable
for the level of dryness you desire should be
selected.
4 low 70 -
Sanitize
It is the programme that you can dry your
washed products you want to provide with
extra hygiene (baby clothes, underwear,
towels, etc.). It provides high hygiene for your
textiles via heat effect.
5 low 200 -
Refresh
You can use this programme for your dry
clothes and laundry that you want to provide
with hygiene without washing them. It
provides high hygiene for your dry textiles via
heat effect.
1,5 - 120 -
Quiet
In this programme the level of noise emitted
to the ambient will be the lowest.With this
program you can dry your cotton or synthetic
blend clothes quietly.
8 medium 240 -
Heavy Duty
Drying towels such as kitchen towel, bath
towel and hand towel.
5 medium 175 -
Timed Dry
You may select from time programmes
between 10 and 160 minutes to achieve
the desired drying level at low temperature.
In this programme, tumble drier’s operation
lasts for the set time independently from the
dryness of laundry.
- - - -
Speed Refresh
It only ventilates for 10-160 minutes without
giving hot air. You can ventilate the cotton
and linen clothes that have been enclosed
for a long time with this program to remove
their odour.
- - - -
20 / EN
Dryer / User Manual
Quick Dry
Use this program to have 2 shirts ready for
ironing.
0,5 high 30 -
Bulk/Bedding
You can dry your feather or fibre filled textile
that bears can be dried in drier label as a
single piece of laundry. You can dry double
duvet, pillow or coats as single piece of
laundry. Dry your cloths such as coats and
jackets turned inside out.
- low 165 -
Sportswear
Use it to dry your clothes made of synthetics,
cotton or mixed fabrics or waterproof
products such as functional jacket, raincoat
etc. Turn them inside out prior to drying.
4 low 135 -
Mixed Load
Use this programme to dry non-pigmenting
synthetic and cotton laundry items together.
Sports and fitness clothes may be dried with
this program.
8 medium 105 -
Delicates
It dries the shirts in a more sensitive manner,
and causes less creasing and easier ironing.
4 low 50 -
Denim
You may dry denim pants, skirts, shirts or
jackets in this program.
4 high 130 -
Energy Saver Cycles provides the most energy savings.
21 / EN
Dryer / User Manual
5.5 Auxiliary functions
Dryness level
Dryness level button is used for adjusting
to desired dryness. Program time may change
depending on the selection.
C
NOTE!
• You can activate this function only prior
to start of program.
Wrinkle prevention
If you will not take the laundry out immediately
after the program has finished, you may
use Wrinkle Prevention function to prevent
wrinkling of your laundry. This function is
disabled by default and can be enabled by
pressing drum light button for 3 seconds.
Audible warning
Drying machine makes an audible warning
when the program is completed. Press the
“Audible Warning” button if you do not want
audible warning. When you press the audible
warning button, the light goes off and it does
not sound when the program is completed.
C
NOTE!
• You can select this function before the
program starts or after the program
starts.
Low temperature
You can activate this function only prior to
start of a program. You can activate this
function if you want to dry your laundry at a
lower temperature. The program duration will
be longer after it becomes activated.
End time
You can delay the end time of the program up
to 24 hours with end time function.
1.Open the loading door and place the
laundry.
2.Select the drying program.
3.Press the End Time selection button and set
the delay time you wish. End Time LED turns
on. (When pressed and hold the button, End
Time proceeds non-stop).
4.Press the Start / Stand-by button. End Time
countdown begins. The “:” sign in the middle
of displayed delay time flashes.
C
NOTE!
• You can add or remove laundry within
end time. Displayed time is the sum
of normal drying time and end time.
End Time LED turns off at the end of
countdown, the drying starts and the
drying LED turns on.
Changing the end time
If you want to change the duration during the
countdown:
Pause the program and Turn the On/Off/
Program Selection button and cancel the
program. Select the desired program and
repeat the End Time selection.
Cancelling the end time function
If you want to cancel the end time countdown
and start the program immediately:
Pause the program and Turn the On/Off/
Program Selection button and cancel the
program. Select the desired program and
press the “Start/Pause” button.
Drum Light
You can turn on and off the drum light by
pressing this button. The light turns on when
the button is pressed and turns off after
certain time.
5.6 Warning indicators
C
NOTE!
• Warning indicators may vary depending
on the model of your drying machine.
22 / EN
Dryer / User Manual
Filter cleaning
When the program is completed, the warning
indicator for filter cleaning turns on.
Water tank
If the water tank fills up while the program
continues, the warning indicator starts
flashing and the machine goes into stand-by.
In this case, empty the water tank and start
the program by pressing the Start / Stand-
by button. Warning indicator turns off and
program resumes.
Cleaning of filter drawer/
heat exchanger
Warning symbol flashes periodically to remind
that filter drawer must be cleaned.
5.7 Starting the program
Press the Start/Stand-by button to start the
program.
Start/Stand-by and Drying indicators turn on
to show that program started.
5.8 Child Lock
The drying machine has a child lock which
prevents the program flow from being
interrupted when the buttons are pressed
during a program. When the Child Lock is
activated, all buttons on the panel except
the On/Off/Program Selection button are
deactivated.
Press the Audible Warning button for 3
seconds in order to activate the child lock.
The child lock has to be deactivated to be
able to start a new program after the current
program is finished or to be able to interfere
with the program. To deactivate the child
lock, keep the same buttons pressed for 3
seconds.
C
NOTE!
• When the child lock is activated, the child
lock warning indicator on the screen
turns on.
When the child lock is active:
The drying machine runs, or in stand-by state
the indicator symbols will not change upon
changing the position of the program selection
button.
C
NOTE!
• When the drying machine is operating
and the child lock is activated, double
beep sound is heard when the program
selector switch is turned. If the child lock
is cancelled without turning the program
selector button back to its original
position, the program is terminated since
the program selector button is turned.
5.9 Changing the program
after it is started
You can change the program you selected to
dry your laundry with a different program after
the drying machine starts running.
• For example, Pause the program and turn
the On/Off/Program Selection button to
select the Extra Dry program in order to
select the Extra Dry program instead of
Ironing Dryness.
• Press the Start/Stand-by button to start
the program.
Adding and removing clothes during stand-by
If you want to add or remove clothes to/from
the drying machine after the drying program
starts:
• Press the Start/Stand-by button to put
the drying machine in Stand-by state. The
drying operation stops.
• Open the loading door while in Stand-
by state, and close the door after you
remove or add laundry.
• Press the Start/Stand-by button to start
the program.
23 / EN
Dryer / User Manual
C
NOTE!
• Adding laundry after the drying operation
starts may cause the dried laundry inside
the drying machine to mix with wet
laundry and leave the laundry damp at
the end of operation.
• Adding or removing laundry during drying
may be repeated as many times as you
wish. But this operation continuously
interrupts the drying operation, and thus
increases program duration and energy
consumption. So, it is recommended to
add laundry before the program starts.
• If a new program is selected by turning
the program selection button while
the drying machine is in stand-by, the
running program terminates.
WARNING !

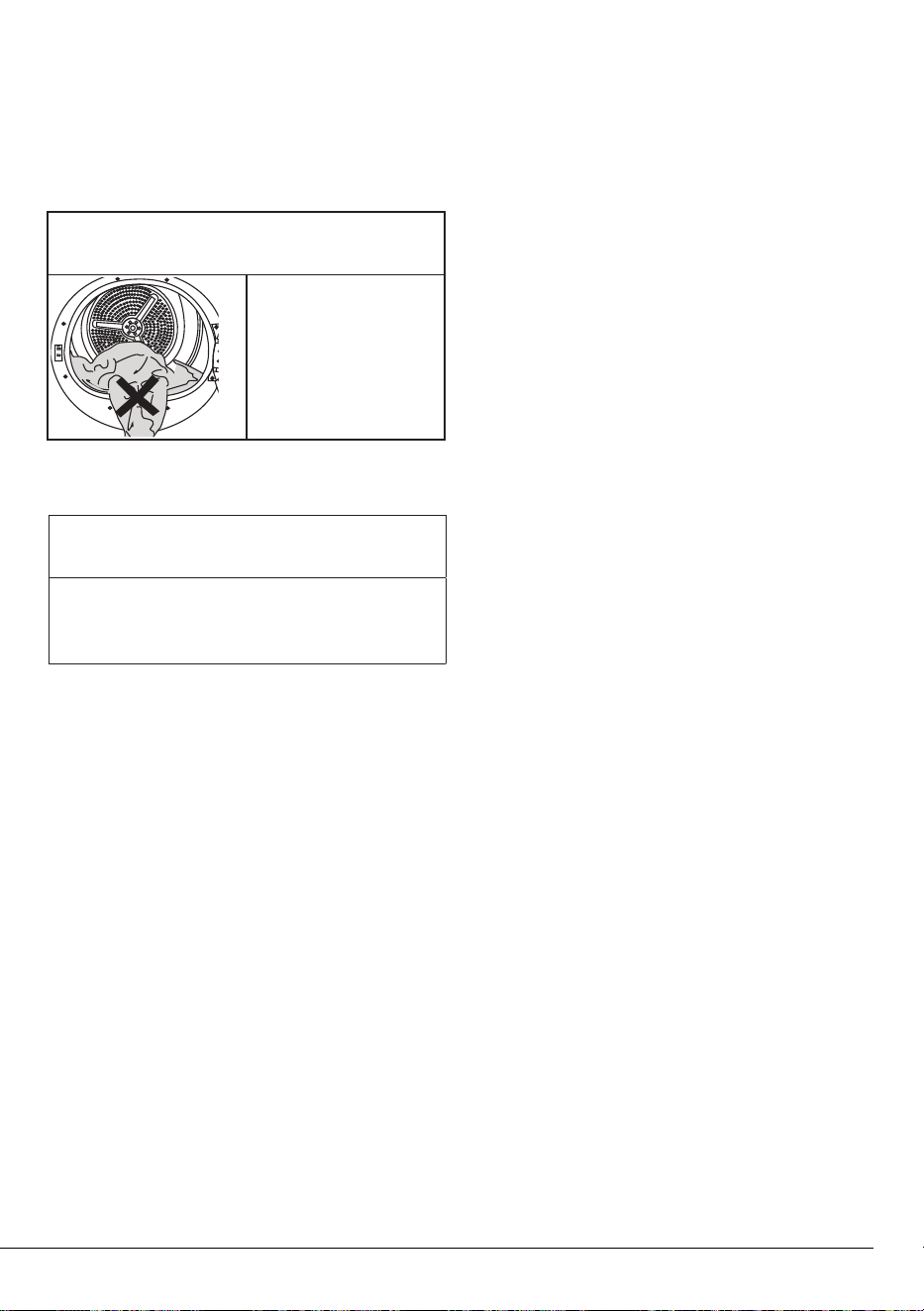

• Do not touch the inner surface of the drum
while adding or removing clothes during a
continuing program. The drum surface is hot.
5.10 Cancelling the program
If you want to cancel the program and
terminate the drying operation for any reason
after the drying machine starts running, Pause
the program and turn the On/Off/Program
Selection button; the program terminates.
A
WARNING !
• The inside of the drying machine shall
be extremely hot when you cancel the
program during machine operation, so
run the refreshing program to allow it to
cool down.
5.11 End of program
When the program ends, the LED’s of End/
Wrinkle Prevention and Fibre Filter Cleaning
Warning on the program follow-up indicator
turn on. Loading door can be opened and
drying machine is ready for another operation.
Turn the On/Off/Program Selection button to
On/Off position in order to turn off the drying
machine.
C
NOTE!
• If the Wrinkle Prevention mode is active
and the laundry is not removed after
the program is completed, the wrinkle
prevention function activates for 2 hours
to prevent the laundry inside the machine
to get wrinkled. The program tumbles
the laundry with 10-minute intervals to
prevent them from wrinkling.
5.12 Odour feature
If your drying machine has odour feature, read
the ProScent manual to use this feature.
24 / EN
Dryer / User Manual
6 Maintenance and cleaning
6.1 Loading Door Inner Surface
The hair and fibres that are separated from the
laundry during drying process is collected by
the Fibre Filter.
C
Fibres are formed during wearing
and washing clothes.
You can clean the filter slot with a
vacuum cleaner.
A
After each drying cycle, clean the
fibre filter and the inner surface of
the loading door.

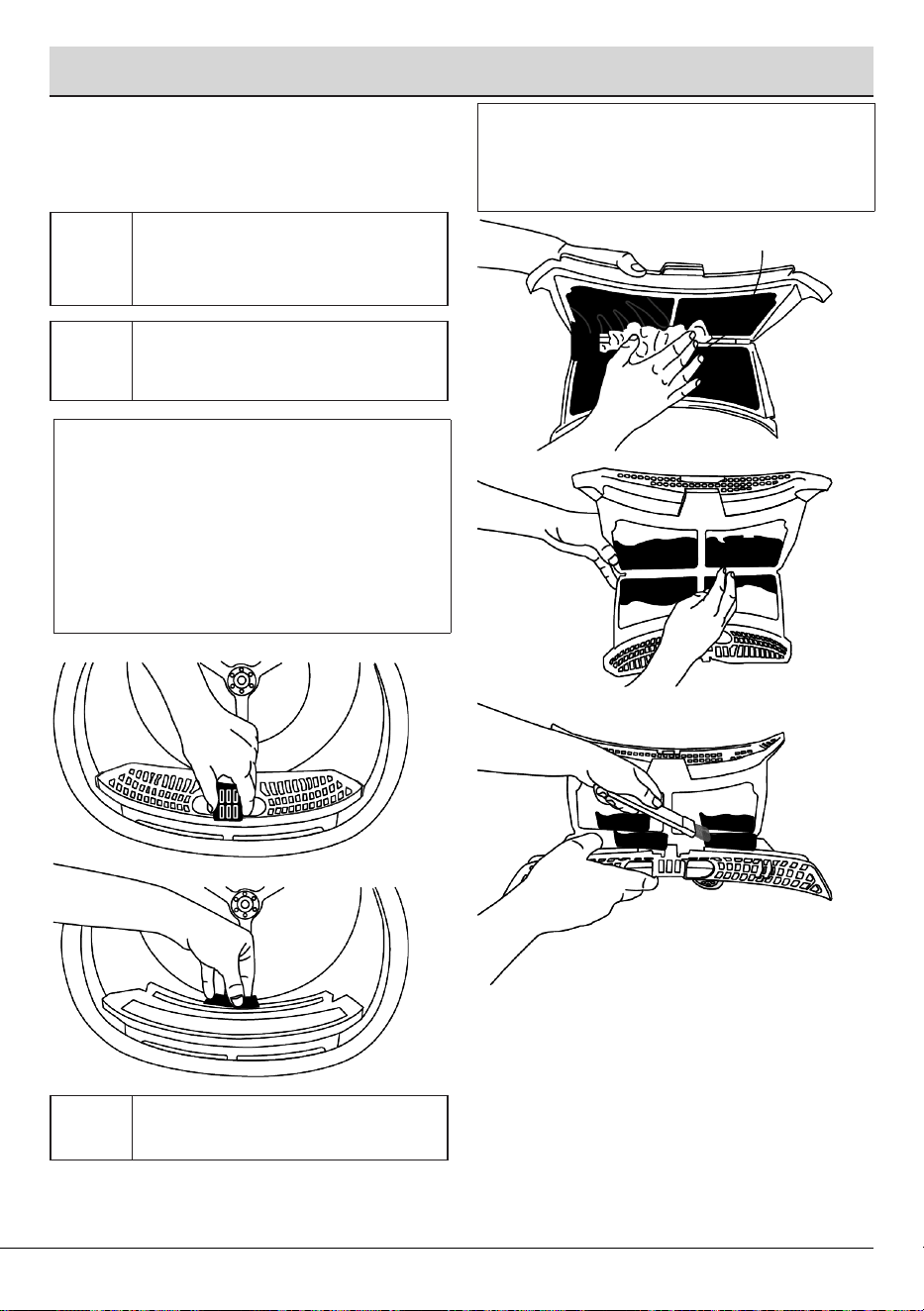

To clean the fibre filter:
• Open the loading door.
• Hold the first part (inner filter) of the two
part fibre filter and remove it by pulling it
upwards.
• Collect the hair, fibres and cotton balls with
hand or with a soft cloth.
• Remove the second part (outer filter) by
pulling it upwards.
C
Ensure that hair, fibre and cotton
balls do not fall into the slot where
the filters are installed.
• Open both filters (top and bottom filters)
and to remove the lint with your hand, or
use cleaning brush at air routing cover. And
if necessary, use a vacuum cleaner to clean
filters.
25 / EN
Dryer / User Manual
• Insert the fibre filters on one another and
place it back in its place.

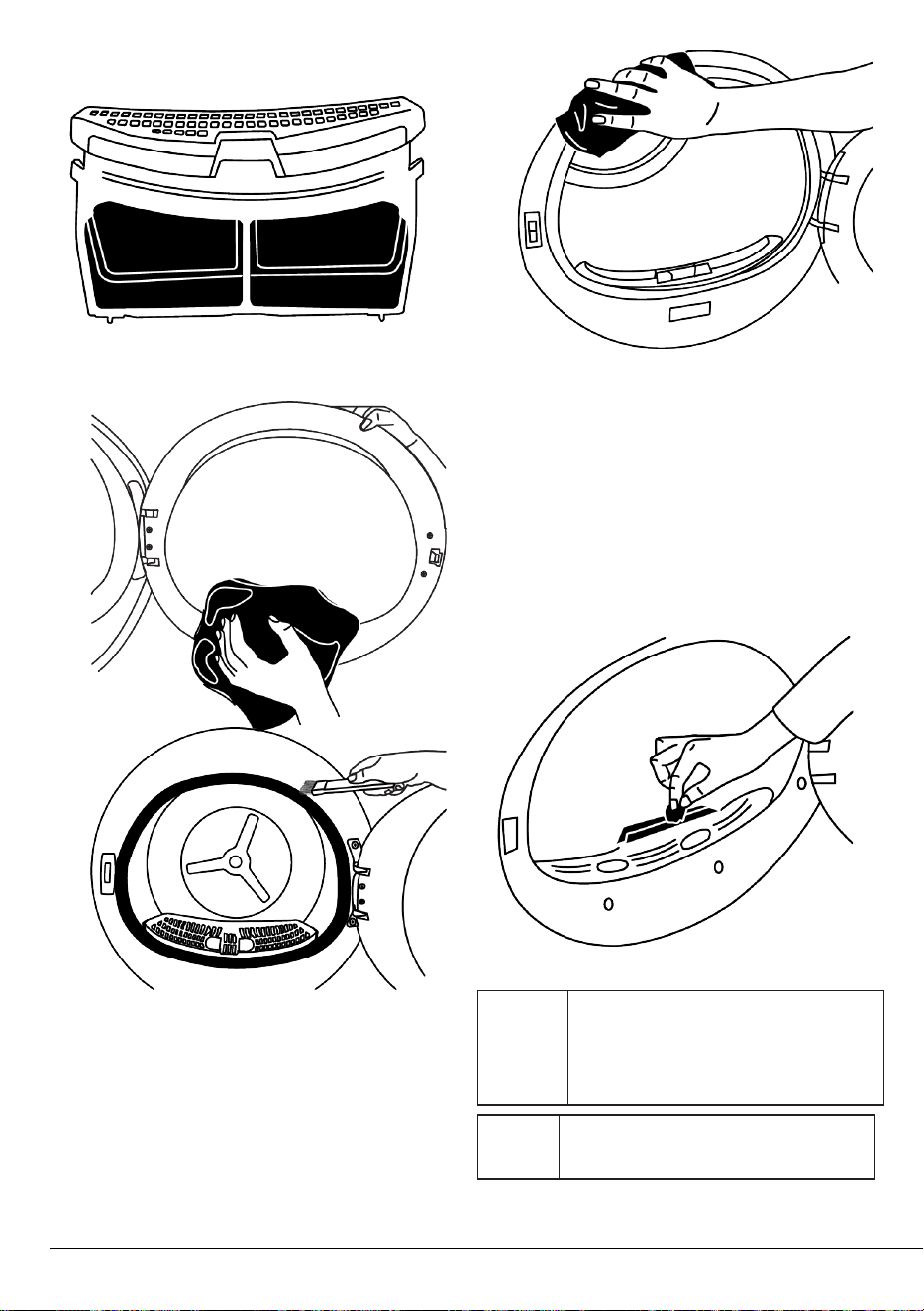

• Clean the front door interior surface and its
gaskets with a soft damp cloth or with the
brush on air routing cover.
6.2 Cleaning the sensor
There are dampness sensors in the dryer that
detect whether the laundry is dry or not.
To clean the sensors:
• Open the loading door of the dryer.
• Allow the machine to cool down if it is still
hot due to the drying process.
• Wipe the metal surfaces of the sensor
with a soft cloth, dampened with vinegar
and dry them.
C
Clean metal surfaces of the sensors
4 times a year.
Do not use metal tools when
cleaning metal surfaces of the
sensors.
A
Never use solvents, cleaning agents
or similar substances for cleaning
due to the risk of fire and explosion!
26 / EN
Dryer / User Manual
6.3 Cleaning the condenser
The hair and the fibre that are not collected
by the fibre filter accumulates on the metal
surface of the condenser behind the air
deflector. These fibres shall be cleaned
regularly.
If the condenser cleaning icon blinks, check
the metal surface. If there is any fibre, clean it.
It must be checked at least every 6 months.

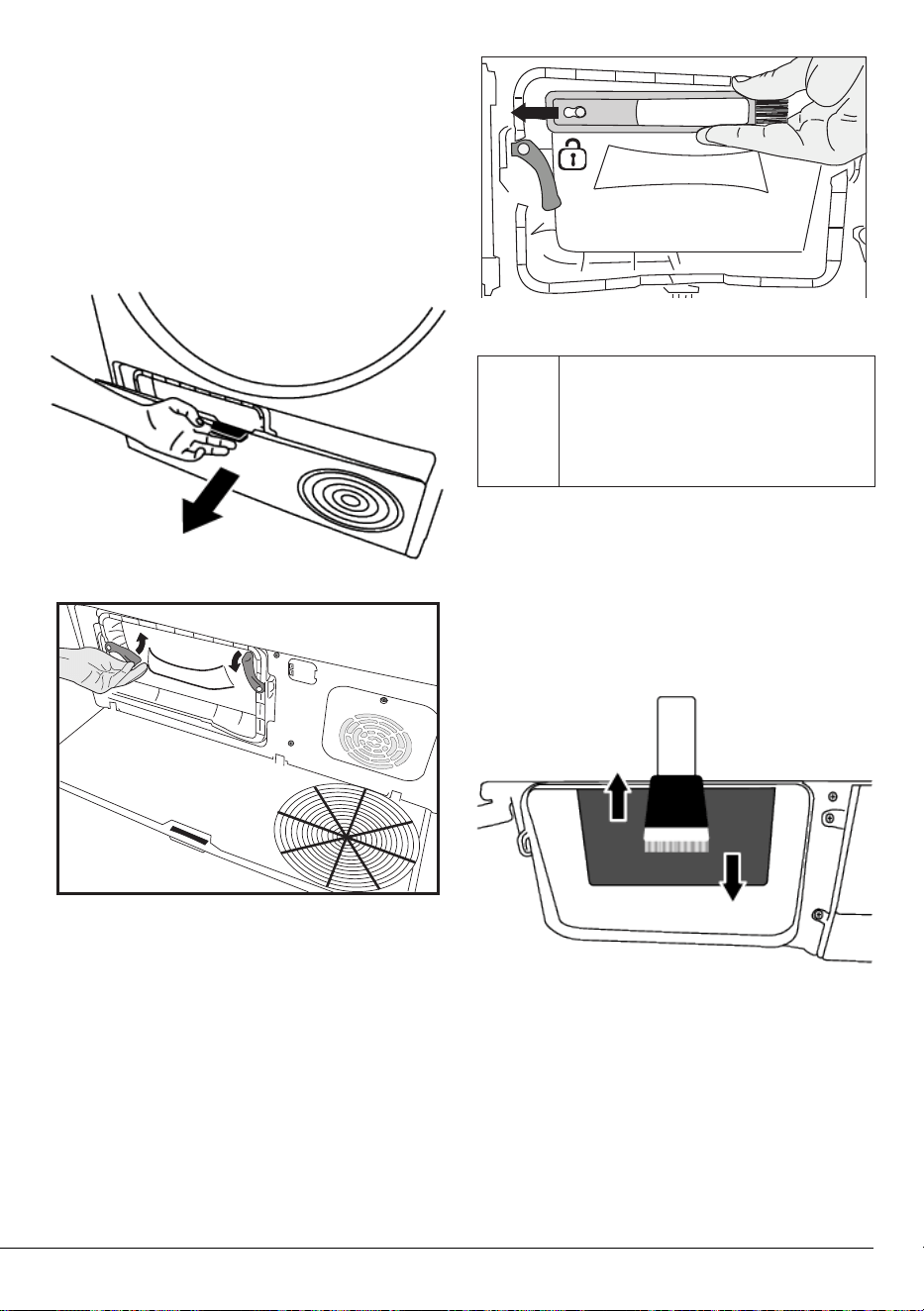

Open the toe board by pulling its button.
Move the latches to open the air deflector lid.
Pull the brush to the left to remove it. You
can use the cleaning brush to clean filter,
condensing metal surface and accumulated
fibre on the door.
C
The cleaning brush is inside the
documentation bag. Get your
brush from the documentation bag
and insert it to its place on the air
deflector to store it.
Clean the fibre on the metal surface of the
condenser with damp cloth or the brush on
the air deflector in up - down direction. Do
not clean with left - right direction since it will
damage the metal plates of the condenser.
You can use a vacuum cleaner with a brush
for cleaning. If the vacuum cleaner does not
have a brush, it is not recommended to be
used for condenser cleaning.
27 / EN
Dryer / User Manual

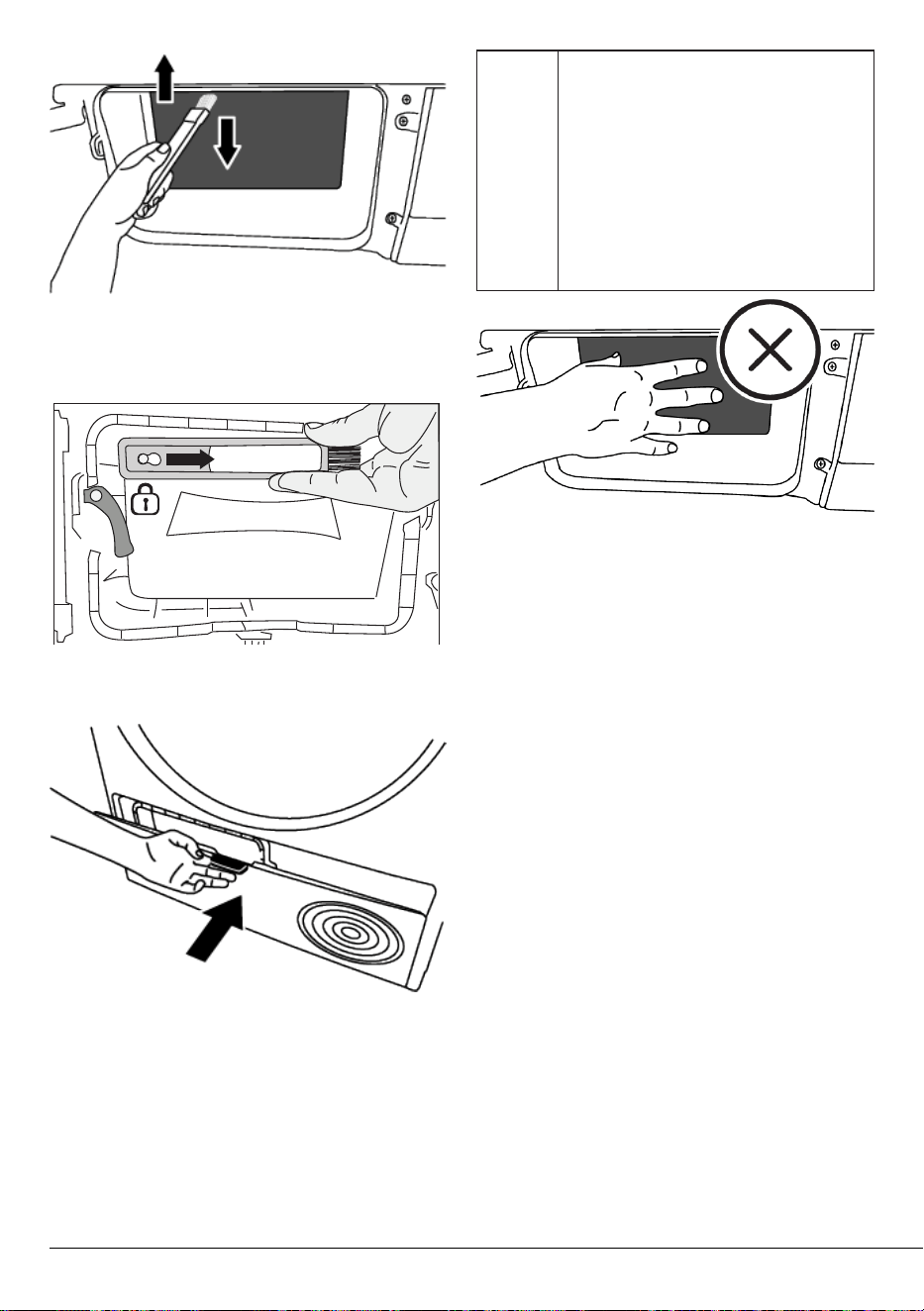

After cleaning the filter, door and the
condenser, drag the brush to the right and
lock it in its place.
After the cleaning process is completed, place
the air deflector cover to its place, move the
latches to close it and close the toe board.
C
Sharp Edges – To reduce the
risk of injury, use care when
cleaning the condenser or
evaporator coil fins. You can
clean by hand, provided you
wear protective gloves. Do not
try to clean with bare hands. The
condenser fins may damage your
hands. Cleaning from left to right
may damage the condenser fins.
This may lead to drying issues.
28 / EN
Dryer / User Manual
C
When the air deflector cover is
removed, it is normal to have water
at the plastic section in front of the
condenser.

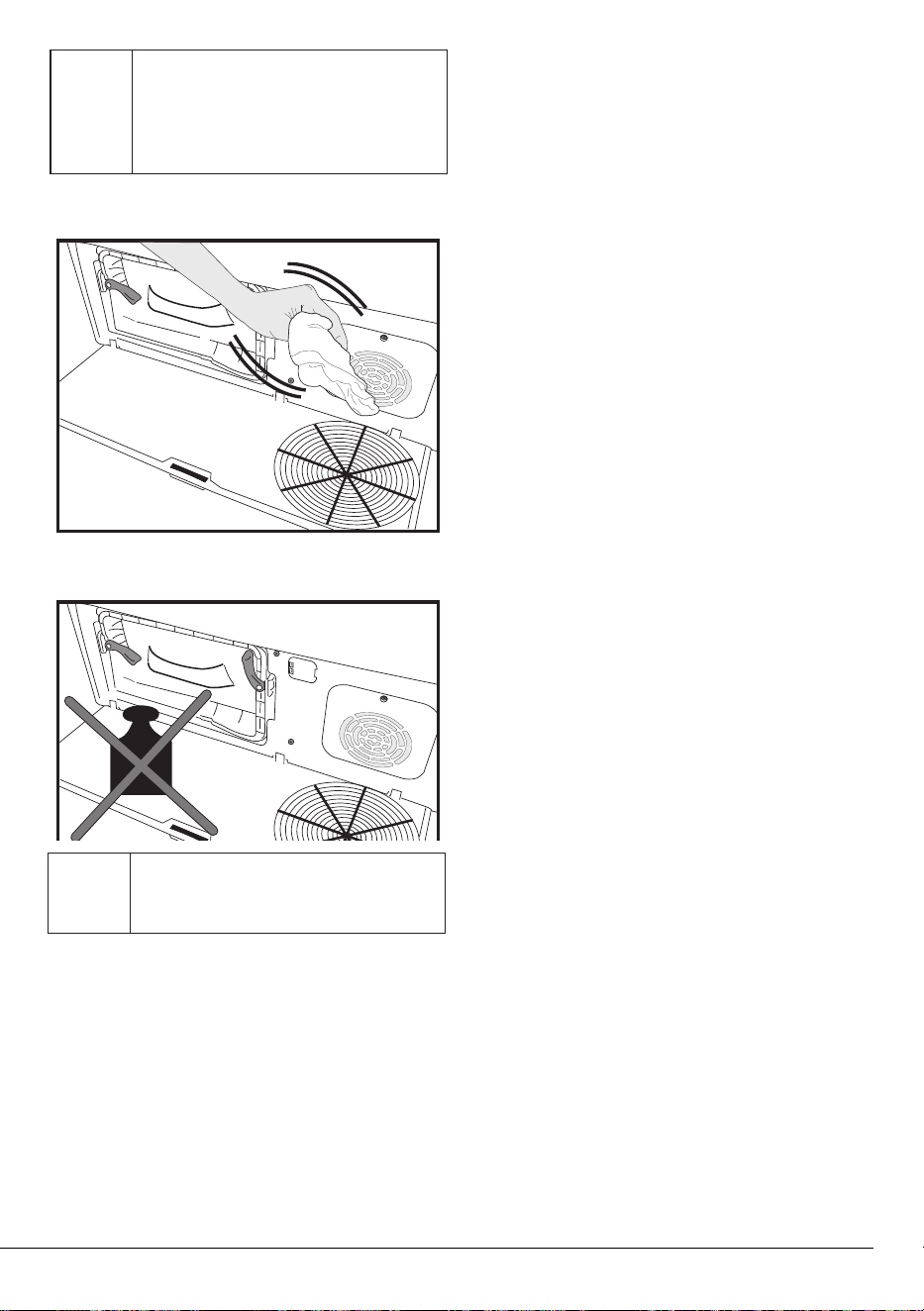

If you see fibre accumulation on the fan cover
and the toe board, remove with a cloth.
Do not have weight on the toe board when it
is open.
NOTICE
Do not use abrasive materials or
steel wool to clean the drum.
29 / EN
Dryer / User Manual
7 Troubleshooting
Drying operation takes too long.
Fibre filter (interior and exterior filter) pores may
be clogged. >>> Wash the fibre filters with warm
water and dry.
Evaporator front side may be clogged. >>> Clean
the front side of the evaporator.
The ventilation grills in front of the machine may
be closed. >>> Remove any object in front of the
ventilation grills that blocks air.
Ventilation may be inadequate because the are the
machine is installed in is too small. >>> Open the
door or windows to prevent the room temperature
from rising very high.
A lime layer may have accumulated on the
humidity sensor. >>> Clean the humidity sensor.
Excessive amount of laundry might be loaded.
>>> Do not load the drying machine excessively.
Laundry might not have been wrung adequately.
>>> Perform a higher speed wringing on the
washing machine.
Clothes come out damp after drying.
A program not suitable for the laundry type may
have been used.>>> Check the maintenance
labels on the clothes and select a program
suitable for the clothes’ type or use time programs
as extra.
Fibre filter (interior and exterior filter) pores may be
clogged. >>> Wash the filters with warm water
and dry.
Evaporator front side may be clogged. >>> Clean
the front side of the evaporator.
Excessive amount of laundry might be loaded.
>>> Do not load the drying machine excessively.
Laundry might not have been wrung adequately.
>>> Perform a higher speed wringing on the
washing machine.
Drying machine does not turn on or program
cannot be started. Drying machine does not run
after it is configured.
Power plug might be unplugged. >>> Make sure
the power cord is plugged in.
Loading door might be open. >>> Ensure that the
loading door is properly closed.
A program might not be set or Start / Pause /
Cancel button might not be pressed. >>> Check
that the program is set and it is not in Pause
position..
Child lock may be activated. >>> Turn off the child
lock.
Program terminated prematurely for no reason.
Loading door might be closed completely. >>>
Ensure that the loading door is properly closed.
There might be a power outage. >>> Press the
Start / Pause / Cancel button to start the program.
Clothes have shrunk, hardened or spoiled.
A program not suitable with the laundry type might
have been used. >>> Check the maintenance
labels on the clothes and select a program
suitable for the clothes.
Water drips from the loading door.
Fibres might have gathered on the inner sides of
the loading door and the loading door gasket. >>>
Clean the inner surfaces of the loading door and
the loading door gasket surfaces.
Loading door opens by itself.
Loading door might be closed completely. >>>
Push the loading door until the closing sound is
heard.
The lighting inside the drying machine does not
turn on. (In models with lamp)
The drying machine might not have been turned
on using On/Off button. >>> Check that the
drying machine is turned on.
Lamp might be malfunctioning. >>> Contact
Authorized Service to replace the lamp.
Anti-crease icon is lit.
Anti-Crease mode that prevents the laundry in the
drier to crease may be activated. >>> Turn the
drier off and remove the laundry.
Fibre filter cleaning icon is lit.
Fibre filter (interior and exterior filter) may be
unclean. >>> Wash the filters with warm water
and dry..
A layer may be formed on the fibre filter pores that
leads to clogging. >>> Wash the filters with warm
water and dry.
An audible warning is heard from the machine
Fibre filters may not be inserted. >>> Insert the
interior and exterior filters to their places.
Filters of the machine may not have been
installed.>>> Install the fibre filters (internal and
external) or the environmentally-friendly filter to
their housing.
Evaporator warning icon is flashing.
Evaporator front side may be clogged with fibres.
>>> Clean the front side of the evaporator.
Fibre filters may not be inserted. >>> Insert the
interior and exterior filters to their places.
30 / EN
Dryer / User Manual
The lighting inside the drying machine turns on. (In
models with lamp)
If the drying machine is plugged to the power
outlet, the On/Off button is pressed and the door
is open; the light turns on. >>> Unplug the drying
machine or bring the On/Off button to Off position.
Steam symbol is flashing.(For the products with a
steam function)
Steam tank may be empty => Fill the steam tank
with distilled or condensed water.
Steam programs do not start (For the products
with a steam function)
Steam tank may be empty, steam tank warning
icon may light up on the screen => Fill the steam
tank until the steam icon goes off.
Wrinkles are not removed with wrinkle removing
program. (For the products with a steam function)
Excess amount of laundry may have been placed
=> Place specified amount of laundry.
Steam application time may be selected in low
level => Choose a program with high amount of
steam.
After completion of the program, the laundry
may have stayed in the machine for a long time
=> Take the laundry out as soon as the program
finishes, and hang it out.
Laundry odour not lessened with the odour
removal program.(For the products with an odour
removal program)
Excess amount of laundry may have been placed
=> Place specified amount of laundry.
Steam application time may be selected in low
level => Choose a program with high amount of
steam.
A
If the problem persists after
following the instructions in this
section, contact your vendor or an
Authorized Service. Never try to
repair your product yourself.
C
In an event that you encounter an
issue on any part on your appliance,
you can ask for a replacement by
contacting the authorized service
with the appliance model number.
Operating the appliance with
non-authentic parts may lead the
appliance to malfunction.
Manufacturer and distributor are not
liable for malfunctions resulting from
using non-authentic parts.
