Tumble Dryer / User Manual
EN
DT393PIT
Thank you for choosing this product.
This User Manual contains important safety information and instructions on the
operation and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep
this book for future reference.
Icon Caption Description
WARNING Risk of serious injury or death
RISK OF ELECTRIC SHOCK Dangerous voltage
FIRE
ATTENTION Risk of injury or material damage
IMPORTANT/NOTE Information on correct operation of the system
Read the instructions.
Hot surface
EN - III
CONTENTS
1. SAFETY INSTRUCTIONS ................................................................................. 5
1.1. Electrical Safety ............................................................................................... 5
1.2. Children's Safety ............................................................................................. 6
1.3. Product Safety ................................................................................................. 7
1.4. Correct Use ..................................................................................................... 8
1.5. Installing On Top Of a Washing Machine......................................................... 9
1.6. Connection to Water Outlet (with optional drain hose) .................................. 11
1.6.1. Connecting the Water Discharge Hose ...................................................... 11
1.7. Adjusting the Feet .......................................................................................... 11
1.8. Electrical Connection ..................................................................................... 11
1.9. Under Counter Installation ............................................................................. 11
2. OVERVIEW ...................................................................................................... 12
3. PREPARING THE LAUNDRY .......................................................................... 13
3.1. Sorting the Laundry to be Dried..................................................................... 13
3.2. Preparing the Laundry to be Dried ................................................................ 14
3.3. Load Capacity................................................................................................ 14
4. USING THE TUMBLE DRYER ........................................................................ 15
4.1. Control Panel ................................................................................................. 15
4.1.1. Programme Selection Knob........................................................................ 15
4.1.2. Electronic Indicator and Additional Functions ............................................. 15
4.1.3. Auxiliary Functions...................................................................................... 18
4.1.4. Starting the Programme ............................................................................. 19
4.1.5. Programme Progress ................................................................................ 20
4.2. Drum Light Information .................................................................................. 20
5. CLEANING AND CARE ................................................................................... 22
5.1. Cleaning the Lint Filters ................................................................................. 22
5.2. Emptying the Water Tank............................................................................... 22
5.3. Cleaning the Heat Exchanger........................................................................ 23
5.4. Cleaning the Humidity Sensor ....................................................................... 23
5.5. Cleaning the Inner Surface of the Loading Door ........................................... 24
6. TECHNICAL SPECIFICATIONS ...................................................................... 25
7. TROUBLESHOOTING ..................................................................................... 26
8. AUTOMATIC FAULT WARNINGS AND WHAT TO DO ................................... 28
EN - IV
9. ENVIRONMENTAL PROTECTION AND PACKAGING INFORMATION ........ 29
9.1. Packaging Information ................................................................................... 29
10. DESCRIBING THE ENERGY LABEL AND SAVING ENERGY .................... 29
10.1. Energy Labelling .......................................................................................... 29
10.2. Energy Efficiency ......................................................................................... 30
EN - 1
PRIMARY CONSIDERATIONS
• This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children must not play with the
appliance. Cleaning and user maintenance must not
be made by children without supervision.
• This tumble dryer is intended only for household
and indoor use. The warranty will be void in case of
commercial use.
• Use this product only for laundry with a label that
indicates it is suitable for drying.
• The manufacturer will not accept responsibility for
damages resulting from incorrect use or transport.
• The service life time of your tumble dryer is 10
years. This is the period during which the spare
parts required for the tumble dryer to operate
properly will be commercially available.
•
ventilation openings.
• Installation and repair of the machine should
only be made by an authorised repair agent.
The manufacturer cannot be held responsible for
damages resulting from un-authorised repairs.
WARNING: Never spray or pour water onto the
dryer to wash it! There is risk of electric shock!
• Leave at least 3 cm of space between the side and
rear walls of the product and above if you plan on
placing your appliance under a worktop.
• Assembly / disassembly for under-counter
installation if neccessary must be done by an
authorised service agent.
EN - 2
• Before installation, check the product for visible
damage. Never install or operate a damaged
product.
• Keep pets away from the dryer.
• Fabric softeners or similar products should be used
in accordance with the manufacturers instructions.
• Remove all objects from pockets such as lighters
and matches.
• The appliance must not be installed behind a
lockable door, a sliding door or a door with a hinge
on the opposite side to that of the tumble dryer, if it
prevents the door from being fully opened.
WARNING: In the appliance enclosure or in the
built-in structure, keep ventilation openings clear of
obstruction.
• Before contacting the local Authorised Service
Provider for the installation of the dryer, check the
information in the user manual to make sure that
the electrical installation and water outlet is suitable.
plumber to have the necessary adjustments made.
• It is the customer’s responsibility to prepare the
dryer’s installation place, as well as the electricity
and waste water installation. Before installation,
check the dryer for damage. If damaged, do not
have it installed. Damaged products may endanger
your health.
•
• Run the dryer in a dust-free environment where the
air ventilation is good.
•
should not be reduced with objects such as
carpets, wood or tape.
EN - 3
• Do not block the ventilation grills found on the
plinth of the tumble dryer.
• The appliance must not be installed behind a
lockable door, a sliding door or a door with a hinge
on the opposite side of the tumble dryer, in such a
way that blocks the full opening of the tumble dryer
door.
• Once the dryer has been installed, the connections
must remain stable. When installing the dryer, make
sure that the rear surface is not leaning on anything
(e.g. tap, socket).
• The operating temperature of the dryer is +5°C to
+35°C. If operated out of this temperature range,
negatively and the product will be damaged.
• Be careful when carrying the product since it is
heavy. Always wear safety gloves.
• Always install the product should be placed against
a wall.
• The rear surface of the product should be placed
against the wall.
• When the product is placed on a stable surface,
use a water level to check if it is fully stable. If not,
adjust the feet until it becomes steady. Repeat this
process every time you relocate the product.
• Do not place the dryer onto the power cable.
EN - 4
Disposing the Old Product
This product complies with EU WEEE Directive
(2013/19/EU). This product bears a
electronic equipment (WEEE).
This symbol, which is found on the product or
information label, indicates that this product must
not be disposed together with other household
waste at the end of its service life. To prevent the
potential harms of uncontrolled waste disposal on
the environment and human health, please keep this
product separate from other types of waste, and to
prevent sustainable reuse of material resources, make
sure that it is recycled responsibly. Contact your dealer
or local authorities to get information on how and
where you can take the product for environmentally-
safe recycling. This product cannot be mixed with
other commercial wastes for recycling.
EN - 5
1. SAFETY INSTRUCTIONS
This section contains safety instructions that will help
protect you from risk of personal injury or property
damage. Failure to follow these instructions will void
any warranty.
1.1. Electrical Safety
• The appliance must not be supplied through an
external switching device, such as a timer, or
connected to a circuit that is regularly switched on
• Do not touch the power plug with wet hands. Always
pull the plug to unplug the product, otherwise, there
will be risk of an electric shock.
• Connect the dryer to a grounded socket with fuse
protection. The earth connection must be installed
held responsible for damages/losses resulting from
using the dryer without an earth connection as
required by local regulations.
• The voltage and the allowable fuse protection are
indicated on the type plate.(For the type plate,
please see Overview)
• Voltage and frequency values indicated on the
type plate must be equal to the mains voltage and
frequency value in your house.
• Unplug the dryer when it is not used for an
extended period, and before installation,
maintenance, cleaning and repair, otherwise, the
dryer may get damaged.
• The plug socket must be freely accessible at all
times after installation.
osoblje.
EN - 6
use extension cords, multi sockets or adapters to
connect the dryer to mains power.
1.2. Children's Safety
• This appliance is not intended for use by people
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children of less than 3 years should be kept away
unless continuously supervised.
• This appliance can be used by children aged from
8 years and above, and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children must not play with the
appliance. Cleaning and user maintenance must not
be made by children without supervision.
• Do not leave children unattended near the machine.
• Children might lock themselves in the machine
resulting in risk of death.
• Do not allow children to touch the glass door during
operation. The surface becomes extremely hot and
may cause skin damage.
• Keep packaging material away from children.
• Poisoning and irritation may occur if detergent and
cleaning materials are consumed or come into
contact with the skin and eyes.
• Keep cleaning materials out of the reach of children
Electrical products are dangerous for children.
• Keep children away from the product while it is
running.
EN - 7
• To prevent children from interrupting the dryer cycle,
you can use the child lock to avoid any changes in
the running programme.
• Do not allow children to sit/climb on or climb inside
the product.
1.3. Product Safety
Due to risk of re, the following laundry items
and products should NEVER be dried in the dryer:
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such
as cooking oil, acetone, alcohol, petrol, kerosene,
spot removers, turpentine, waxes and wax
removers should be washed in hot water with an
extra amount of detergent before being dried in the
tumble dryer.
• Cleaning cloths and mats that have residues
patrol, stain remover, turpentine, candle, wax, wax
remover or chemicals.
• Laundry that has residues of hair sprays, nail polish
remover and similar substances.
• Laundry on which industrial chemicals have been
used for cleaning (such as chemical cleaning).
• Laundry that has any kind of foam, sponge, rubber
or rubber-like parts or accessories. These include
latex foam sponge, shower caps, waterproof
•
during the drying process.
• Operating the dryer in environments that contain
EN - 8
ATTENTION: Underwear that contains metal
reinforcements should not be put in the dryer. The
dryer may be damaged if metal reinforcements come
FIRE:R290
Risk of re and damage!
This product contains enviromental friendly but
sources away from the product.
1.4. Correct Use
ATTENTION: Never stop a tumble dryer before
the end of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
ATTENTION: Make sure that pets do not enter
the dryer. Check the inside of the dryer before
using it.
ATTENTION: Superheating of clothes inside the
dryer can occur if you cancel the programme or in the
event of a power failure whilst the dryer is running.
This concentration of heat can cause self-combustion
so always activate the Refresh programme to cool
down or quickly remove all laundry from the dryer in
order to hang them up and dissipate the heat.
• Use the dryer only for household drying and to dry
fabrics with a label that indicates they are suitable
for drying. All other uses are out of the scope of
intended use and are prohibited.
• The warranty will be void in case of any commercial
use.
EN - 9
• This appliance is designed to be used inside
domestic residences only, and should be placed on
a straight and stable surface.
• Do not lean against or sit on the door of the dryer.
The dryer may tip over.
• To maintain a temperature that will not harm the
laundry (e.g. to prevent the laundry from catching
process. After this, the programme ends. At the
end of the programme, always remove the laundry
promptly.
ATTENTION: Never use the dryer without a lint
• after each use as
indicated in Cleaning the Lint Filter.
•
process.
• Lint accumulation must not to be allowed around
the tumble dryer (not applicable for appliances
intended to be vented to the exterior of the building)
IMPORTANT: The clearance between the dryer
intake cannot be ensured for the machine.
• Do not install the dryer in rooms where there is risk
the dryers performance.Condensed water that
freezes in the pump and hose may cause damage.
1.5. Installing On Top Of a Washing Machine
ATTENTION: A washing machine cannot be placed
on the dryer. Pay attention to the warnings below
when installing the dryer on a washing machine.
EN - 10
ATTENTION: The dryer can only be placed on
washing machines that have a same capacity and
above.
•
part must be used between the two products. The
Service Provider.
• When the dryer is placed on the washing machine,
the total weight of these products may reach almost
150 kilograms (when loaded). Place the products on
Appropriate Installation Table for Washing Machine and Tumble Dryer
Tumble Dryer
(Depth)
Washing Machine
37 cm 42 cm 53 cm 56 cm 59 cm 85 cm
56 cm X X
61 cm X X X
(For the depth information, please see 7. Technical Specications)
In order to put the dryer machine onto the washing
machine, a special stacking kit is required as an
optional extra. Please contact customer service to
acquire. The assembly instruction will be served
together with the stacking kit.
CE Declaration of conformity
We declare that our products meet the applicable European Directives, Decisions and
Regulations and the requirements listed in the standards referenced.
EN - 11
1.6. Connection to Water Outlet (with
optional drain hose)
In products with a heat pump unit, water
accumulates in the water tank during
the drying process. You must empty the
accumulated water after each drying
process. Instead of periodically emptying
the water tank, you can also use the water
drain hose provided with the product to
directly drain the water outside.

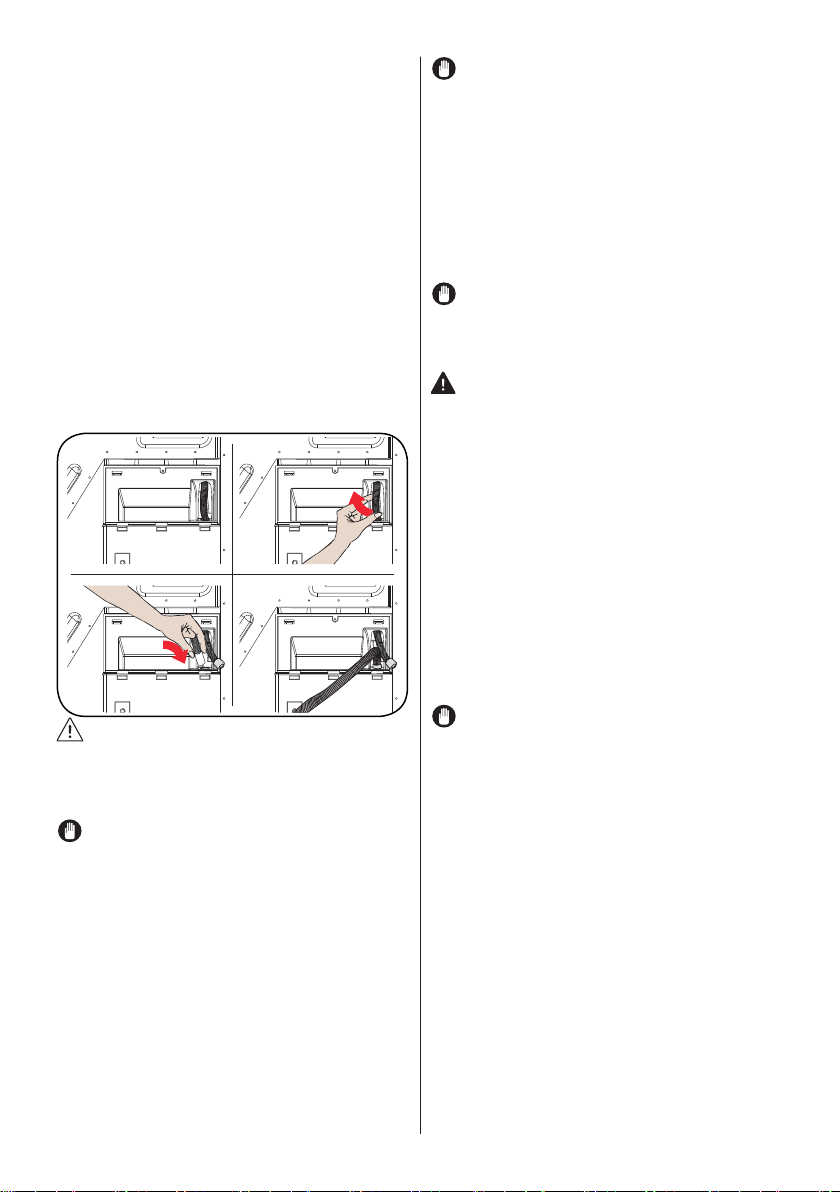

1.6.1. Connecting the Water Discharge
Hose
1. Pull and take out the end of the hose at the
back of the dryer. Do not use any tools to
take out the hose.
2.
3.
.
ATTENTION: The hose must be
connected in a manner that it cannot be
displaced. If the hose comes out during
your house.
IMPORTANT: The water discharge
house must be installed at a height of 80
cm maximum.
2
1
3
IMPORTANT: The water discharge
hose must not be bent between the outlet
and the product, folded or stepped over.
1.7. Adjusting the Feet
• For the dryer to work with less noise
and vibration, it must be stable and
balanced on its feet. Adjust the feed to
ensure that the product is balanced.
• Rotate the feet to the right and to the
left until the dryer is even and stable.
IMPORTANT: Never remove the
adjustable feet.
1.8. Electrical Connection
ATTENTION:
electric shock.
• Your dryer is set to 220-240 V and 50
Hz.
• The mains cable of the dryer is
equipped with a special plug. This
plug must be connected to an earthed
socket protected by a fuse of 16
Amperes as indicated on the type plate.
The fuse current rating of the power
line where the outlet is connected must
electrician if you do not have such an
outlet or fuse.
• Our company cannot be held
responsible for damages resulting from
usage without earthing.
IMPORTANT: Operating your machine
at low voltage values will shorten the
service life and decrease the performance
of your machine.
1.9. Under Counter Installation
• Leave at least 3 cm of space between
the side and rear walls of the product
and the underside of the worktop when
installing your product under a counter.
• Assembly / disassembly under the
counter if neccessary must be done by
authorized service.
EN - 12
2. OVERVIEW
1
2
3
4
5
6
7
8
9
10
11
1. Upper tray
2. Control panel
3. Loading door
4. Plinth
5. Plinth opening slot
6. Ventilation grills
7. Adjustable feet
8. Plinth cover
9. Type plate
10.
11. Drawer Cover
EN - 13
3. PREPARING THE LAUNDRY
3.1. Sorting the Laundry to be Dried
Follow the instructions on the labels of the laundry to be dried. Only dry items that have a
statement/symbol that indicates "they can be dried in a dryer".
• Do not operate the product with load amounts and laundry types other than those
given in 4.3. Load Capacity.
Suitable for drying in a
dryer
Does not need ironing
Sensitive/Delicate drying
Not suitable for drying in a
dryer
No drying
Do not dry-clean
At any temperature
At high temperatures
At medium temperatures At low temperatures Heatless Hang to dry
Spread to dry Hang wet to dry Spread in shadow to dry Suitable for dry cleaning
this reason, dry clothes together that have the same structure and fabric type. This way,
you can get an even drying result. If you think that the laundry is still wet, you can select a
time programme for additional drying.
Please dry your big (like duvets) and small sizes of laundries seperately in order to not to
have a damp laundries.
EN - 14
IMPORTANT: Delicate fabrics,
embroided fabrics, woolen/silk fabrics,
clothes made of delicate and expensive
fabrics, airtight clothes and tulle curtains
are not suitable for drying in the dryer.
3.2. Preparing the Laundry to be Dried
Risk of explosion and re!
Remove all objects from pockets such as
lighters and matches.
ATTENTION: The drum of the dryer and
the fabrics may get damaged.
• The clothes may have become
entangled during the washing process.
Separate them from each other before
placing them in the dryer.
• Remove all objects in the pockets of the
clothes and apply the following:
• Tie fabric belts, apron laces etc. to each
other or use a laundry bag.
• Lock the zips, clasps and fasteners, do
up the buttons of covers.
• To get the best drying result, sort the
laundry according to the textile type and
drying programme.
• Remove clips and similar metal parts
from the clothes.
• Woven goods such as t-shirts and knit
clothes generally shrink in the rst
drying. Use a protective programme.
• Do not over-dry synthetics. This will
cause creases.
• When washing the laundry to be dried,
adjust the amount of softener according
to the data from the manufacturer of the
washing machine.
3.3. Load Capacity
Follow the instructions in the "Programme
selection and consumption table". (See: 5.2
Programme selection and consumption
table). Do not load the product with more
in the table.
IMPORTANT: It is not recommended
to load the dryer with more laundry than
overloaded, the drying performance of
the dryer will decrease and the dryer and
laundry might be damaged.
Laundry Dry load weight (gr)
Bedsheet (double) 725
Pillowcase 240
Bath Towel 700
Hand Towel 225
Shirt 190
Cotton Shirt 200
Jean 650
Fabric - Gabardine Trousers 400
T-shirt 120
EN - 15
4. USING THE TUMBLE DRYER

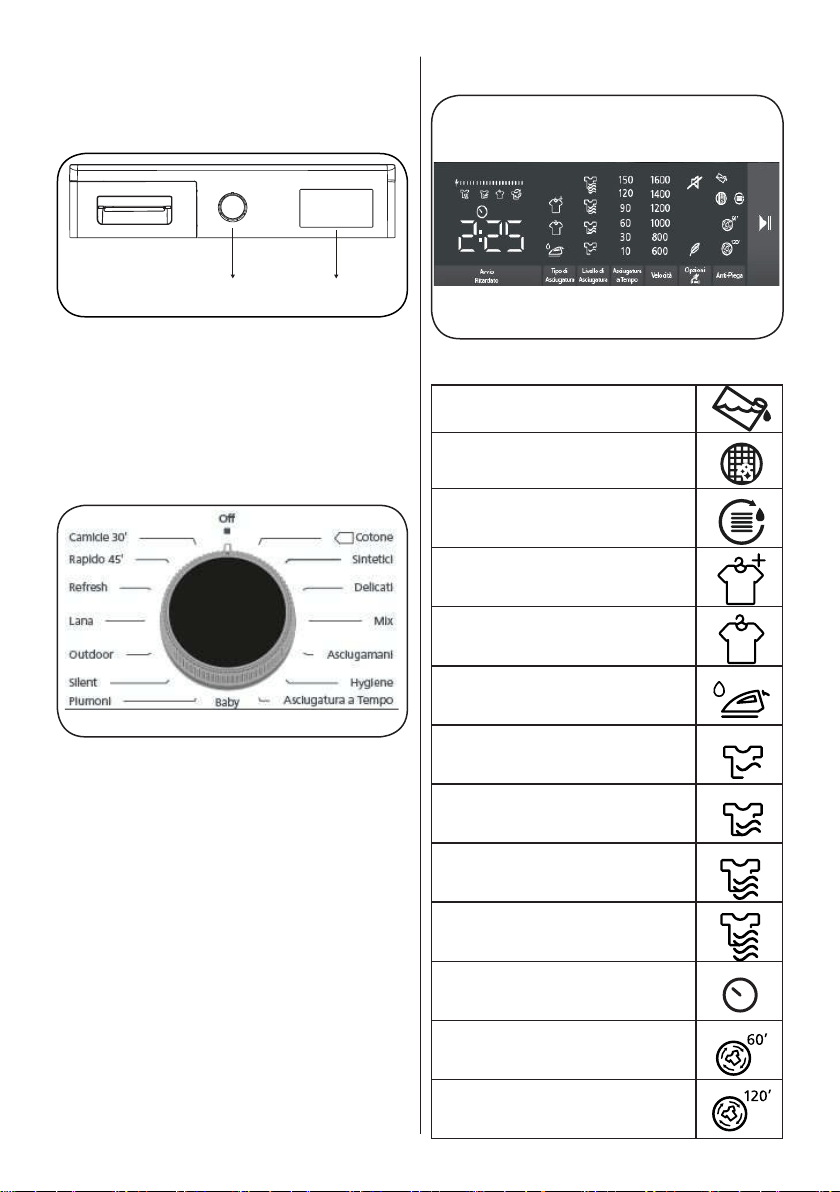

4.1. Control Panel
1. Programme Selection Knob
2. Electronic indicator and additional
functions
4.1.1. Programme Selection Knob
Use the programme selection knob to select
the desired drying programme
1
2
4.1.2. Electronic Indicator and Additional
Functions
Display symbols:
Water tank warning indicator
Heat exchanger cleaning warning
indicator
Extra Dry
Cupboard Dry
Iron Dry
Drying level 1
Drying level 2
Drying level 3
Drying level 4
Delay Timer
Anti-crease 60‘
Anti-crease 120‘
EN - 16
Delicate
Buzzer Cancel
Start and pause
Drying Step Display:
Drying
Iron dry
Cupboard dry
End
The electronic display shows the drying steps
throughout the program. Every time a program step
starts, the relevant drying step light turns on. Once
the drying step is complete, the relevant drying step
Energy Consumption Display
The energy consumption display shows the energy
consumption of the selected program. The bigger
the display, the more the energy consumption. The
energy consumption level increases or decreases
depending on the fabric type, duration of the selected
program, the drying level and the spinning speed.
EN - 17
Programme Selection and Consumption Table
Press the Start/Pause button to start the programme. The Start/Pause LED that indicates
that the programme has started and the remaining the of the program is seen on the
display.
Programme Load (kg)
Washing
machine
spin speed
Approximate
amount of
remaining
humidity
Duration
(minutes)
Cotone + Asciugatura
pronto armadio
9 1000 60% 205
Sintetici + Asciugatura
pronto armadio
4,5 800 40% 84
Delicati 2 600 50% 58
Mix 4 1000 60% 112
Asciugamani 3 1000 60% 92
Hygiene 3 1000 60% 80
Asciugatura a tempo - - - -
Baby 3 1000 60% 87
Piumone 2,5 800 60% 109
Silent 9 1000 60% 244
Outdoor 2 800 40% 63
Lana 1,5 600 50% 160
Refresh - - - 10
Rapido 45’ 1 1200 50% 45
Camicia 30’ 0,5 1200 50% 30
Energy consumption values
Programme Load (kg)
Washing
machine
spin speed
Approximate
amount of
remaining
humidity
Energy
consumption
values (kWh)
Cotone + Asciugatura
pronto armadio
9 1000 60%
1,57
Cotone + Asciugatura
pronto stiro
9 1000 60%
1,15
Sintetici + Asciugatura
pronto armadio
4,5 800 40%
0,64
Power consumption in the "o mode" P
O
(W) 0,5
Power consumption in the "on mode" P
L
(W) 1
The Cotton Cupboard Dry programme is the standard drying programme
that can be run with a full or half load and for which the information is
given on the label and product receipt. This programme is the most energy
EN - 18
*Energy labelling standard programme (EN 61121:2013)
All values in the table were determined in accordance with the EN 61121:2013 standard.
Consumption values may vary from the values in the table depending on the fabric type,
spin speed, environment conditions and voltage values.
4.1.3. Auxiliary Functions
The table that summarises the options that can be selected in programmes is given below.
Option Description
Tipo di asciugatura
Select the drying target suitable for your laundry to be dried.
Select Extra Dry for thick and multilayer laundry that takes time to dry. Select
Closet Dry for regular, single-layer laundry. Select Iron Dry for laundry that you
wish to leave damp, ready for ironing.
Livello di asciugatura
The dampness level obtained after drying can be increased by another 3 levels
in addition to the standard setting. This way, it is ensured that the laundry is drier.
Levels that can be selected apart from the standard setting (Level 1) 2 (low), 3
(medium), 4 (high). After selection, light of the relevant drying level turns on.
Asciugatura delicata* Delicate fabrics are dried in a longer time at low temperatures.
Avvio ritardato
You can delay the start of the program by selecting a time between 1 and 23
hours. You can press Start/Pause to activate the desired delay time. When this
time is up, the selected program will start automatically. During the delay time,
options compatible with the program can be activated/deactivated. If you long
press the Delayed Start button, the delay time will change continuously.
Cancellare avvertimento
acustico
The drying machine will give an audio warning when the buttons are pressed,
when the program selection knob is turned and when the program ends. To cancel
audio warnings, press and hold the “Anti-Crease Option” for 3 seconds. When you
press this button, you will hear an audible warning that indicates that the option
has been activated and the audible warnings stated will be cancelled.
Asciugatura a tempo
If the program knob is turned to Time Drying, you can press the Time Drying option
button to select it and press Start/Pause to start the program.
Blocco bambini
pressed during the program. To activate child lock, press and hold “Anti-Crease”
and “Option” keys simultaneously for 3 seconds. When the child lock is active,
all keys will be deactivated. Child lock will be deactivated automatically at the
end of the program. When the child lock is being activated/deactivated, “CL” will
when the product is running or the child lock is active, if you turn the program
selection knob, you will hear an audible warning. Even if you set the program knob
to another program, the previous program will continue running. To select a new
program, you need to deactivate the child lock and then set the program selection
knob to “Cancel” position. Then, you can select and start the desired program.
Anti-piega*
If you do not open the door of the machine at the end of the program, the
anti-crease option will be active for 60 minutes. When the anti-crease option is
selected, anti-crease will be active for 120 minutes.
Selezione velocità centrifuga
For the laundry to be dried, set the spin speed on the washing machine where you
washed the laundry. This way, it is ensured that the estimated drying time is more
accurately displayed.
*Options vary depending on model.
4.1.4. Starting the Programme
to start the programme. The Start/Pause LED that indicates that the programme has
started and the drying LED will come on.
Programme Description
Cotone
This programme dries cotton laundry including bedsheets, pillowcases, pyjamas,
underwear, tablecloths etc.
Sintetici
This programme dries synthetics, such as shirts, t-shirts, blouses, at a lower
temperature compared to the cottons programme.
Delicati
This programme dries thin clothes like shirts, blouses and silk garments at a low
temperature to make them ready to wear.
Misti
This programme dries cotton-synthetic mixed garments that do not discolour to
make them ready to wear.
Asciugamani This programme dries thick cotton laundry such as towels, bathrobe, etc.
Hygiene
"This programme is suitable for the fabrics which need
hygiene requirements."
Asciugatura a tempo
To reach the required drying level at a low temperature, you can use the time
programmes of 10 min. to 150 min. Regardless of the drying level, the programme
stops at the desired time.
Baby
This programme provides hygienic drying for delicate infant clothes at a low
temperature.
Piumoni
Silent
Silent program operates the tumble dryer by decreasing noise emitted to
Dry programme.
Outdoor
This programme is suitable for outdoor clothing, waterproof jackets, jackets with
inner insulation, etc.
Lana
Use this program for gentle drying of woolen clothes, washed as stated in the
washing instructions. Take out the clothes at the end of the drying cycle. Do not
use this program to dry acrylic items.
Refresh
Time drying option is selected from 10 minutes to 120 minutes without providing
hot air, refresh is done and bad odors can be eliminated.
Rapido 45’
1 kg of synthetics spun at a high speed in the washing machine are dried in 45
minutes.
Camicie 30’ 2 to 3 shirts are ready for to be ironed in 30 minutes.
IMPORTANT: Do not open the loading door while the programme is running. If you
have to open the door, do not keep it open for a long time.
EN - 20
4.1.5. Programme Progress
During the Programme
If you open the door when the programme
is running, the product will switch to
standby mode. Once the door has been
closed, press the Start/Pause key to
resume the programme.
Do not open the loading door when the
programme is running. If you have to
open the door, do not keep it open for a
long time.
Programme End
Once the programme is over, the warning
LEDs for Start/Pause, water tank level,
cleaning will turn on. Additionally, an
audible warning will be given at the end
of the programme. You can remove the
laundry to make the machine ready for a
new load.
IMPORTANT:
every programme. Empty the water tank
after every programme.
IMPORTANT: If you do not take out
the laundry after the programme has
ended, the 1-hour Anti Crease phase
will automatically be activated. This
programme rotates the drum at regular
intervals to prevent creases.
4.2. Drum Light Information
• This product includes LED Drum Light.
• The light works automatically when you
open the door. And closes itself after a
while automatically.
• It is not an adjustable option for user to
open or close it.
• Please do not try to replace or modify the
LED Light.
EN - 21

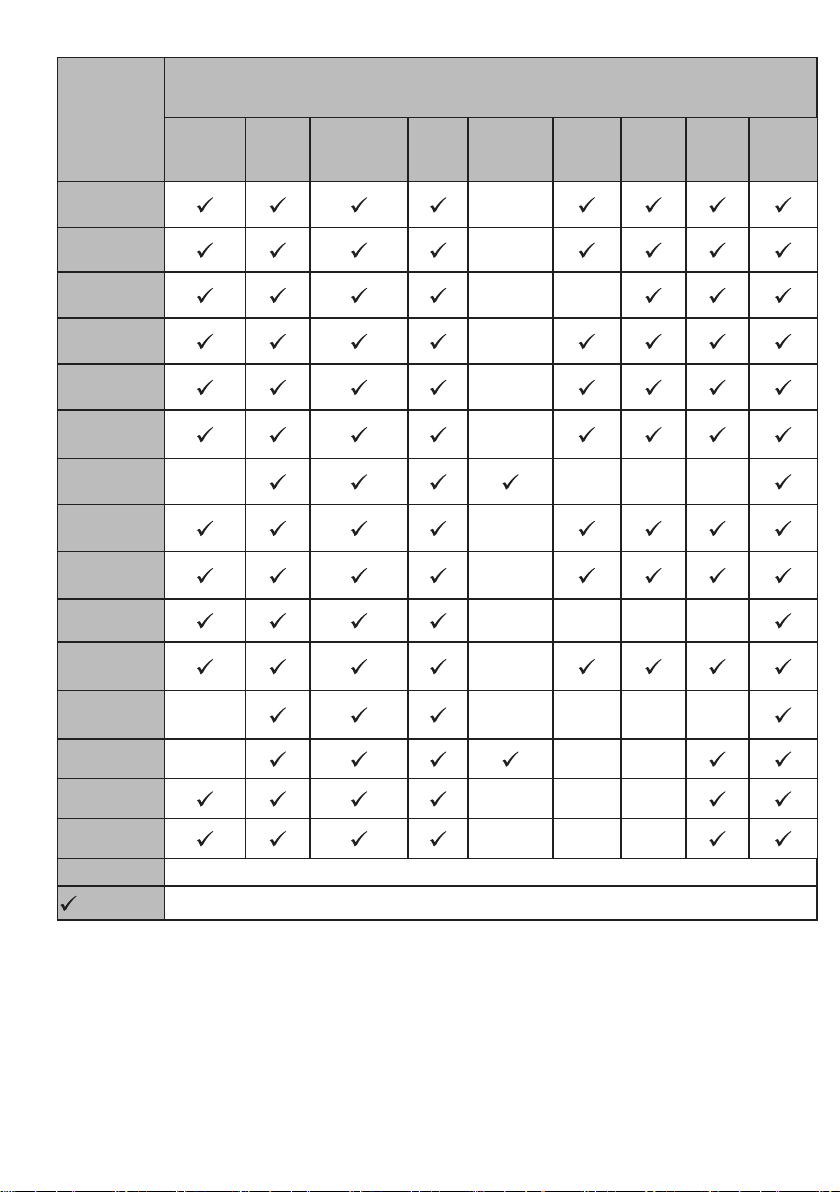

Programme
Options
Tipo di
asciugatura
Avvio
ritardato
Cancellazione
avviso acustico
Blocco
bambini
Asciugatura a
tempo
Livello
asciuga-
tura
Delicati Vel. Antipiega
Cotone
X
Sintetici X
Delicati X X
Mix X
Asciugamani X
Hygiene X
Asciugatura
a Tempo
X X X X
Baby X
Piumone X
Silent X X X X
Outdoor X
Lana X X X X X
Refresh X X X
Rapido 45’ X X X
Camicia 30’ X X X
X Not selectable
Selectable
EN - 22
7.
8.
9.
After the dryer has been used for a certain
period of time, if you encounter a layer that
reinstalling it again.
5.2. Emptying the Water Tank
1. Pull the drawer cover and carefully take
out the tank.
2. Empty the water in the tank.
3. If there is lint accumulated on the
discharge cap in the tank, clean it with
water.
1
2
5. CLEANING AND CARE
IMPORTANT: Do not use industrial
chemicals to clean your dryer. Do not use a
dryer that has been cleaned with industrial
chemicals.

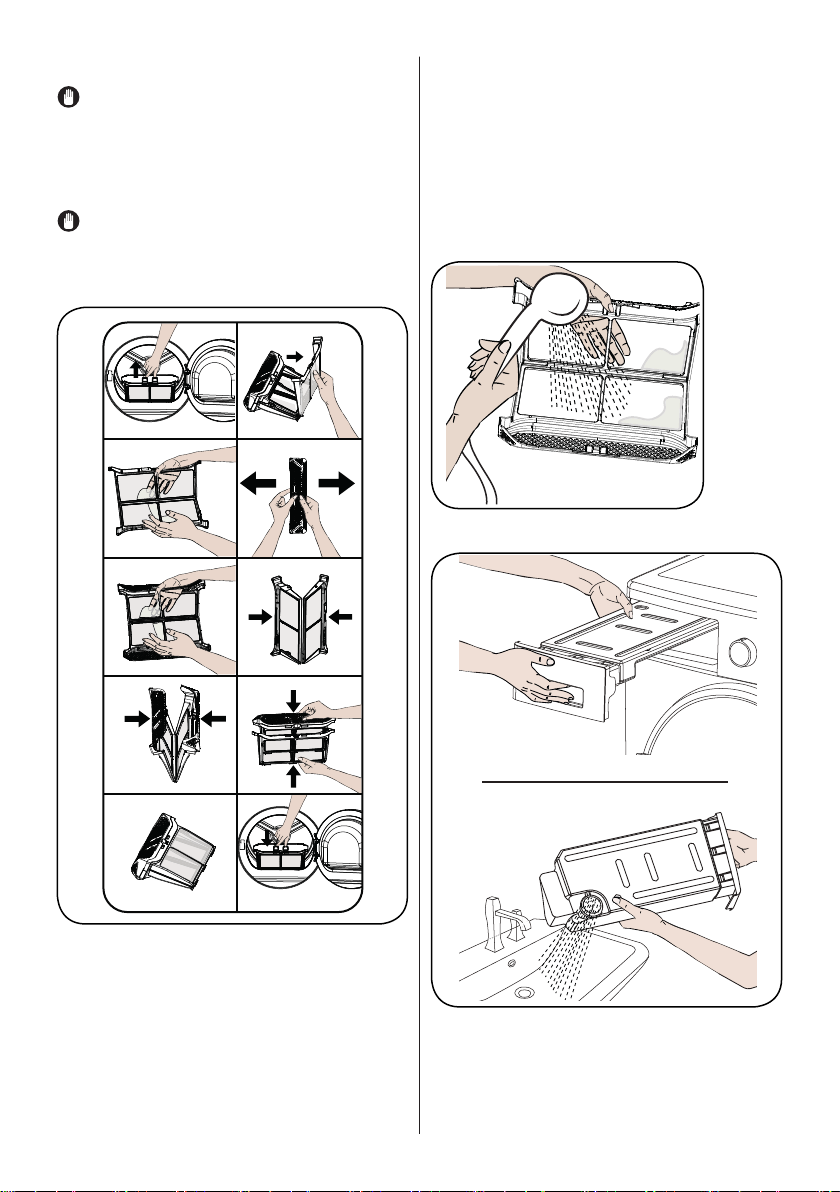

5.1. Cleaning the Lint Filters
IMPORTANT: DO NOT FORGET TO
CLEAN THE LINT FILTERS AFTER EACH
USE.
1. Open the loading door.
2.
3.
4.
using a soft cloth.
5.
6.
using a soft cloth
EN - 23
4.
IMPORTANT: Never remove the water
tank when the programme is running. The
water condensed in the water tank is not
suitable for human consumption.
IMPORTANT: DO NOT FORGET TO
EMPTY THE WATER TANK AFTER EACH
USE.

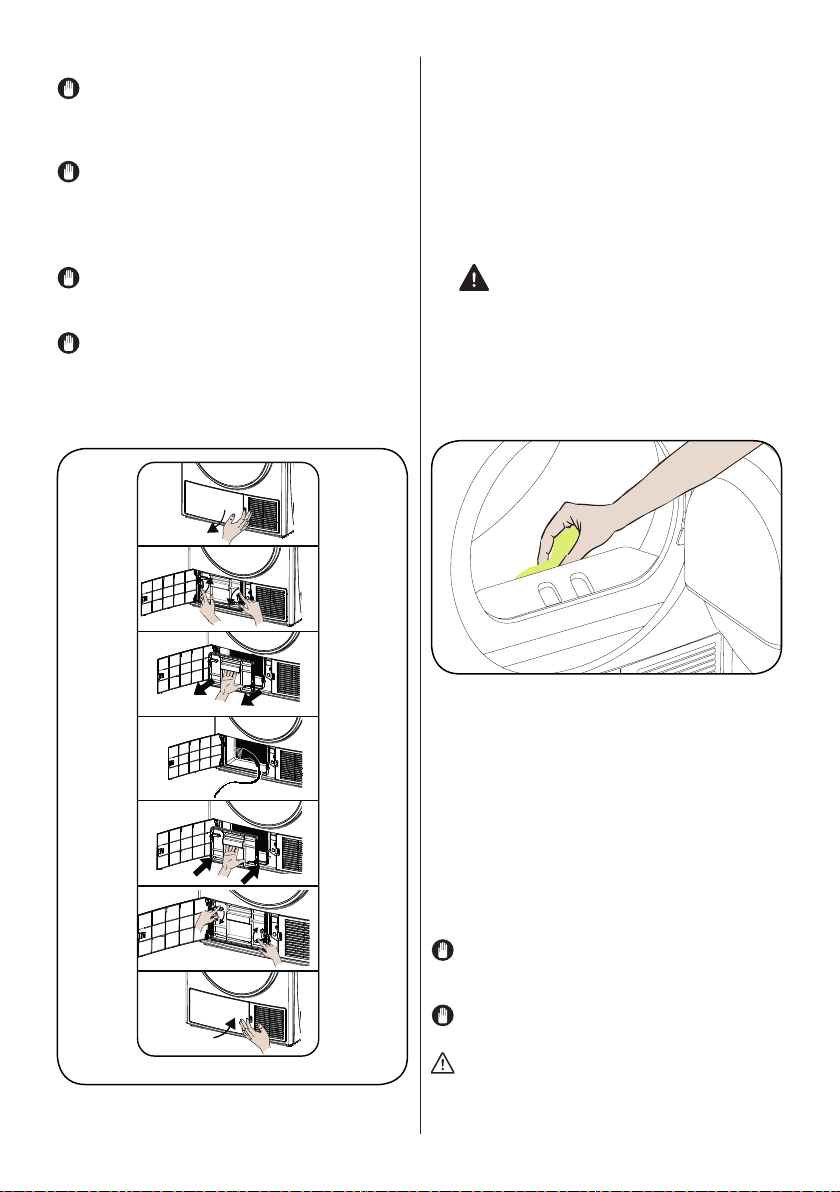

5.3. Cleaning the Heat Exchanger
IMPORTANT: Clean the heat exchanger
when you see the warning “Heat Exchanger
cleaning”.
IMPORTANT: EVEN IF THE “HEAT
EXCHANGER CLEANING WARNING
LED” IS NOT ON: CLEAN THE HEAT
EXCHANGER AFTER EVERY 10 DRYING
PROCESSES OR THREE TIMES A
MONTH.
If the drying process is completed, open the
loading door and wait for it to cool down.
1. Open the kick plate cover as shown.
3. Take out the exchanger cover as shown.
4. Clean the front surface of the exchanger
as shown.
WARNING: DO NOT CLEAN
WITH BARE HANDS SINCE
THE EXCHANGER FINS ARE
SHARP. THEY MAY HURT
YOUR HANDS
5.4. Cleaning the Humidity Sensor
Inside the machine, there are humidity
sensors that detect whether the laundry is
dry or not.
To clean the sensors:
1. Open the loading door of the machine.
2. If the machine is still hot due to the drying
process, wait for it to cool down.
3. Using a soft cloth soaked in vinegar, wipe
the metal surfaces of the sensor and dry
them.
IMPORTANT: CLEAN THE METAL
SURFACES OF THE SENSOR 4 TIMES A
YEAR.
IMPORTANT: Do not use metal tools to
clean the metal surfaces of the sensor.
WARNING:
explosion, do not use solution agents,
cleaning agents or similar products when
cleaning the sensors.
EN - 24
5.5. Cleaning the Inner Surface of the
Loading Door
IMPORTANT: DO NOT FORGET TO
CLEAN THE INNER SURFACE OF THE
LOADING DOOR AFTER EACH DRYING
PROCESS.
Open the loading door of the dryer and
clean all of the inner surfaces and the
gasket with a soft, damp cloth.
EN - 25
6. TECHNICAL SPECIFICATIONS
Brand Smeg
Model name DT393PIT
Height Min: 845 mm / Max: 855 mm*
Width 596 mm
Depth 609mm
Capacity (max.) 9 kg**
Net weight (with plastic door) 49 kg
Net weight (with glass door) 51,4 kg
Voltage
220-240 V
Power
1000 W
*Min. height: Height with the adjustable feet not used. Max. height: Height with the
adjustable feet extended to the maximum.
**Dry laundry weight before washing.
IMPORTANT:
change without prior notice.
IMPORTANT: The values declared have been obtained in a laboratory environment
according to the relevant standards. These values may change depending on the
environmental conditions and use of the dryer.
ATTENTION:
1. Due to safety reasons, legislation forces a room of at least 1 m³ per 8 g refrigerant for
such equipment. For 150 g propane, the minimum allowed room size would be 18.75 m³.
2.
appliance. The appliance contains refrigerant which, although it is environmentally friendly,
Dispose of the appliance properly and do not damage the pipes in the refrigerant circuit.
• Type of refrigerant : R290
• Quantity of gas : 150 g
• ODP (Ozone Depletion Potential) : 0
• GWP (Global Warning Potential) : 3
3.
4.
EN - 26
7. TROUBLESHOOTING
process to take the necessary measures and warn you in case of any malfunction.
WARNING: If the problem persists even if you have applied the steps in this section,
please contact the your dealer or an Authorised Service Provider. Never try to repair a
nonfunctional product.
PROBLEM REASON SOLUTION
The drying process takes a long
time.
clogged.
The heat exchanger might be
clogged.
Clean the heat exchanger
The ventilation grills in front of the
machine might be closed.
Open the doors/windows to prevent
the room temperature from rising
too much.
There might be a layer of limescale
on the humidity sensor.
Clean the humidity sensor.
The dryer might be overloaded with
laundry.
Do not overload the dryer.
spun.
Select a higher spin speed on your
washing machine.
Laundry comes out damp at the end
of the drying process.
The laundry that comes out hot at the end of the drying process
generally feels more humid.
The programme used might not be
suitable for the type of laundry.
Check the care labels on the
laundry items, select a suitable
programme for the type of laundry
and additionally, use the time
programmes.
clogged.
The heat exchanger might be
clogged.
Clean the heat exchanger
The dryer might be overloaded with
laundry.
Do not overload the dryer.
spun.
Select a higher spin speed on your
washing machine.
The dryer cannot be opened or the
programme cannot be started. The
dryer does not get activated when
adjusted.
The dryer might not be plugged in.
the socket.
The loading door might be open.
Make sure that the loading door is
properly closed.
You might not have set a
programme or pressed the Start/
Pause key.
Make sure that the programme has
been set and the dryer is not in the
Standby (Pause) mode.
Child lock might be active. Deactivate the child lock.
The programme has been
interrupted for no reason.
The loading door might not be
closed properly.
Make sure that the loading door is
properly closed.
There might have been a power
failure.
Press the Start/Pause key to start
the programme.
The water tank might be full. Empty the water tank.
EN - 27
PROBLEM REASON SOLUTION
Clothes have shrunk, felted or
deteriorated.
The programme used might not be
suitable for the type of laundry.
Check the care labels on the
laundry items, select a suitable
programme for the type of laundry.
Water leaking from the loading door.
There might be lint accumulated on
the inner surfaces of the loading
door and on the surfaces of the
gasket of the loading door.
Clean the inner surfaces of the
loading door and the surfaces of the
gasket of the loading door.
The loading door opens on its own.
The loading door might not be
closed properly.
Push the loading door until you hear
the closing sound.
The water tank warning symbol is
The water tank might be full. Empty the water tank.
The water discharge hose might
be bent.
If the product is connected directly
to the water outlet, check the water
discharge hose.
is on.
by lint.
There might be a layer that causes
obstruction on the surface of the
The heat exchanger cleaning
warning symbol is on.
The heat exchanger might be
unclean.
Clean the heat exchanger.
cleaning warning symbol are
by lint.
There might be a layer that causes
obstruction on the surface of the
The heat exchanger might be
clogged.
Clean the heat exchanger.
The program can not be started and
Call technical service.
cleaning warning symbol are
by lint.
There might be a layer that causes
obstruction on the surface of the
The heat exchanger might be
clogged.
Clean the heat exchanger.
The program can not be started and
Call technical service.
EN - 28
8. AUTOMATIC FAULT WARNINGS AND WHAT TO DO
Your tumble dryer is equipped with a built-in fault detection system, indicated by a
ERROR CODE SOLUTION
E00
Contact the nearest authorised service agent.
E03 /
Empty the water tank, if problem does not solved,
contact the nearest authorised service agent.
E04
Contact the nearest authorised service agent.
E05
Contact the nearest authorised service agent.
E06
Contact the nearest authorised service agent.
E07
Contact the nearest authorised service agent.
E08
until voltage is appropriate for working range.
EN - 29
9. ENVIRONMENTAL
PROTECTION AND PACKAGING
INFORMATION
9.1. Packaging Information
The packaging of this product is made
of recyclable materials. Do not dispose
of the packaging, waste together with
household or other waste. Instead, take it to
local authority.
10. DESCRIBING THE ENERGY
LABEL AND SAVING ENERGY

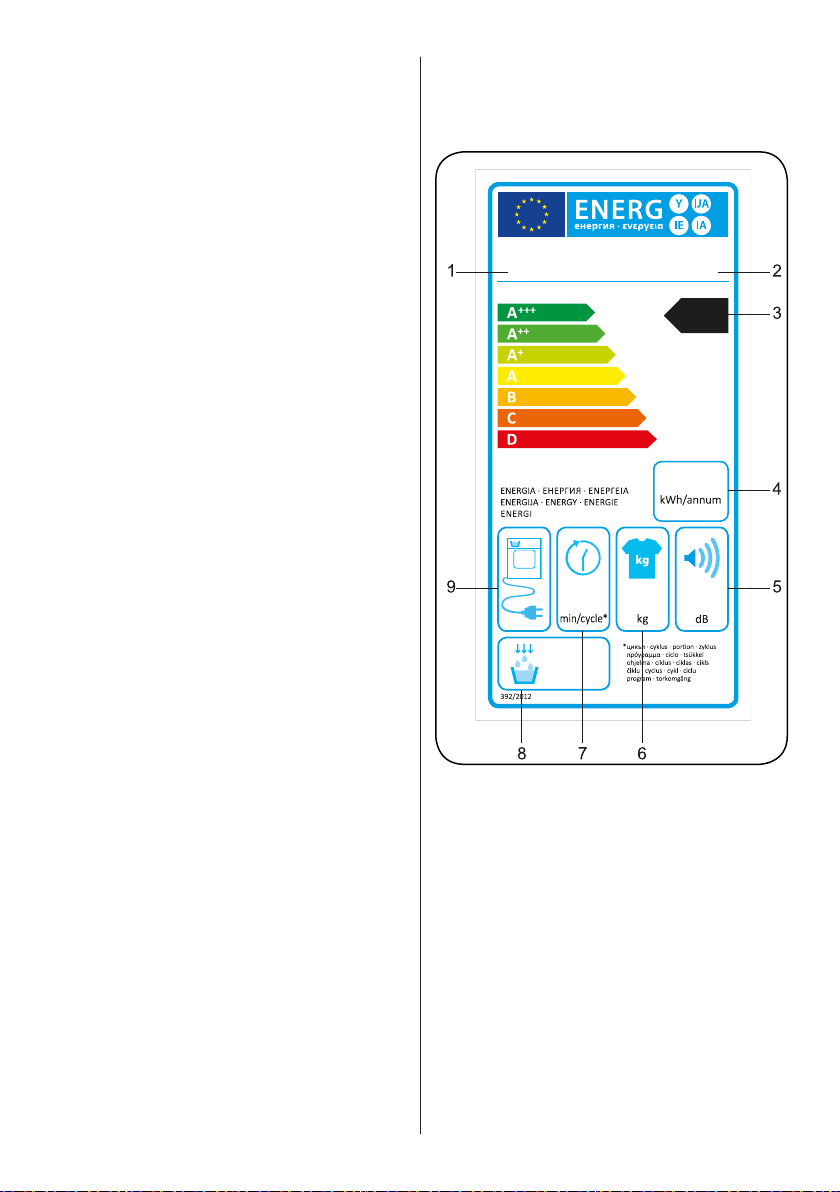

10.1. Energy Labelling
1. Trademark
2. Model
3. Energy Class
4. Annual Power Consumption
5. Noise During Drying
6. Dry Laundry Capacity
7. Cotton Cupboard Dry Cycle Time
8.
9. Machine Technology
A CDEFG
B
A+++
EN - 30
10.2. Energy Eciency
• You should operate the dryer to full
capacity, but make sure that it is not
overloaded.
• When the laundry is being washed,
the spin speed should be at the
highest level possible. This will shorten
the drying time and reduce energy
consumption.
• Make sure that the same kinds of
laundry are dried together.
• Please follow the recommendations
in the user manual for programme
selection.
• For air circulation, leave an appropriate
clearance on the front and back sides
of the dryer. Do not cover the grills on
the front side of the machine.
• Unless necessary, do not open the
door of the machine when drying. If you
have to open it, do not keep it open for
a long time.
• Do not add new (wet) laundry during
the drying process.
• Hairs and lint that detach from the
laundry and merge in the air are
collected by the "Lint Filters". Please
before and after each use.
• For models with a heat pump, make
sure that the heat exchanger is cleaned
at least three times a month or after
each 10 uses.
• During the drying process, the
environment where the dryer is installed
must be well ventilated.
EN - 31
PRODUCT FICHE
Complying Commission Delegated Regulation (EU) No 392/2012
Supplier name or trademark Smeg
Model name DT393PIT
Rated capacity (kg) 9
Type of Tumble Dryer Heat Pump
(1)
A+++
Annual Energy Consumption (kWh)
(2)
194
Automatic of Non-automatic Automatic
Energy Consumption of the standard cotton programme at full load (kWh) 1,57
Energy Consumption of the standard cotton programme at partial load (kWh) 0,88
O
(W)
0,5
Power consumption of the left-on mode for the standard cotton programme at full load
P
L
(W)
1
The duration of the left mode on (min) n/a
Standard cotton programme
(3)
-
Programme time of the standard cotton programme at full load , T
dry
(min.) 205
Programme time of the standard cotton programme at partial load , T
dry1/2
(min.) 120
Weighted programme time of the standard cotton programme at full and partial load
(T
t
)
157
(4)
B
dry
81%
C
dry1/2
81%
partial load C
t
81%
Sound power level for the standard cotton programme at full load
(5)
65
Built-in No
(2)Energyconsumption based on 160 drying cycles of the standard cotton programme
at full and partial load,and the consumption of the low-power modes. Actual energy
consumption per cycle will depend on how the appliance is used.
(3) “Cotton cupboard dry programme” used at full and partial load is the standard drying
in terms of energyconsumption for cotton
(5) Weighted average value - L wA expressed in dB(A) re 1 pW
52319143-201022-00
