* Product picture is for reference only.
22” FHD LED 12V TV
User Manual
Model: FDFD22A0A
- 2 -
CCD-0005855
REV: 10.20.2023
Welcome
Thank you for purchasing this Furrion FHD LED 12V TV. Before operating your new product,
please read these instructions carefully. This user manual contains information for safe use,
installation and maintenance of the product.
The manufacturer does not accept responsibility for any damages due to not observing these
instructions.
If you have any further questions regarding our products, please contact us at
Supplier’s Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier
Trade Name: Furrion
Model No.: FDFD22A0A
Responsible Party – U.S. Contact Information
Furrion Innovation Center & Institute of Technology
52567 Independence Ct., Elkhart, IN 46514, USA
Toll free: 1-800-789-3341; Email: [email protected]
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2)this device must accept any interference received,
including interference that may cause undesired operation.
- 3 -
CCD-0005855
REV: 10.20.2023
Contents
Welcome .................................................................................................. 2
Contents ..................................................................................................3
Safety Warnings .....................................................................................4
Important Safety Instructions ...........................................................................................................4
Safety Precautions ................................................................................................................................ 7
Function Overview .................................................................................9
Control Panel ...........................................................................................................................................9

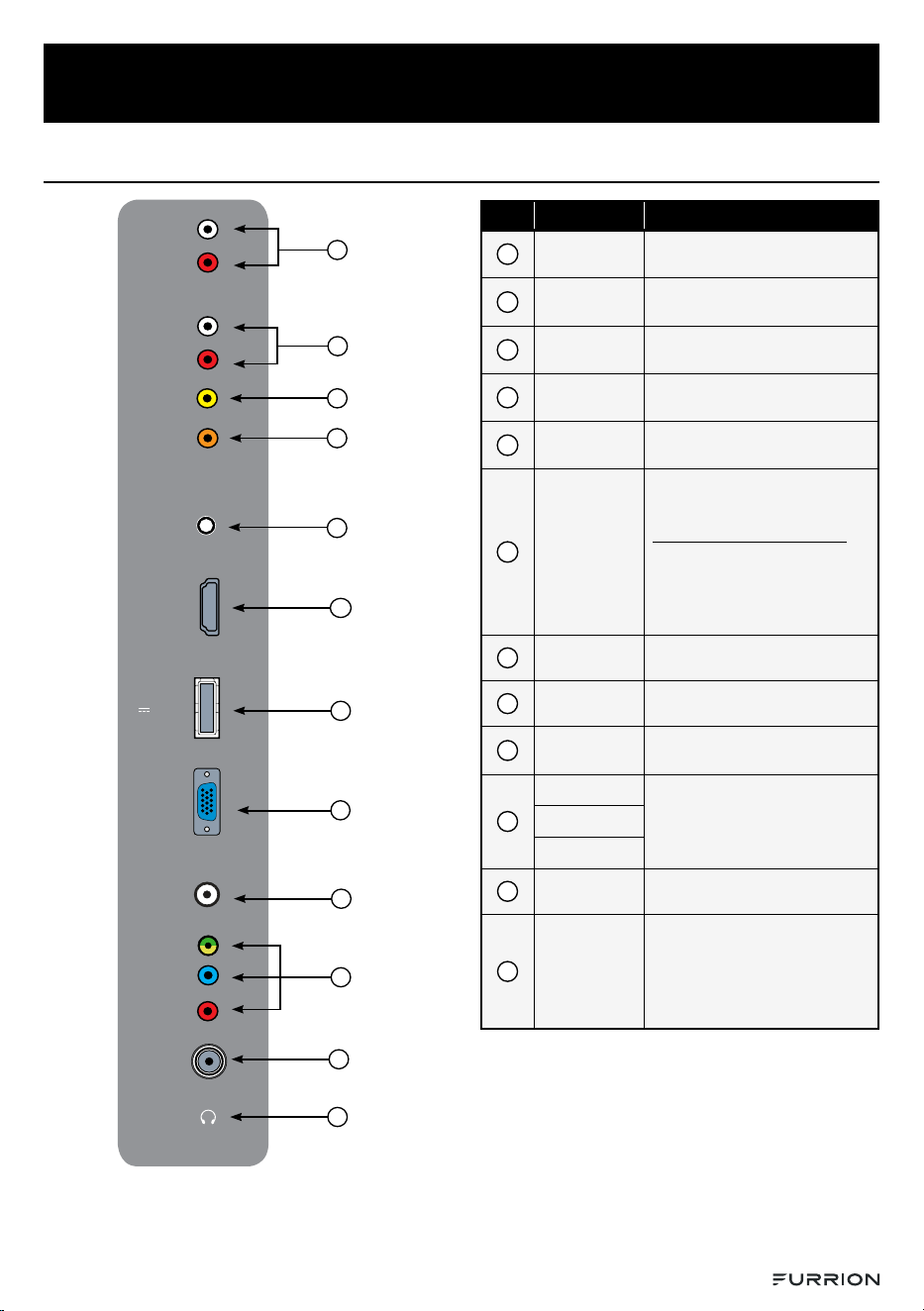

Rear Panel ............................................................................................................................................... 10

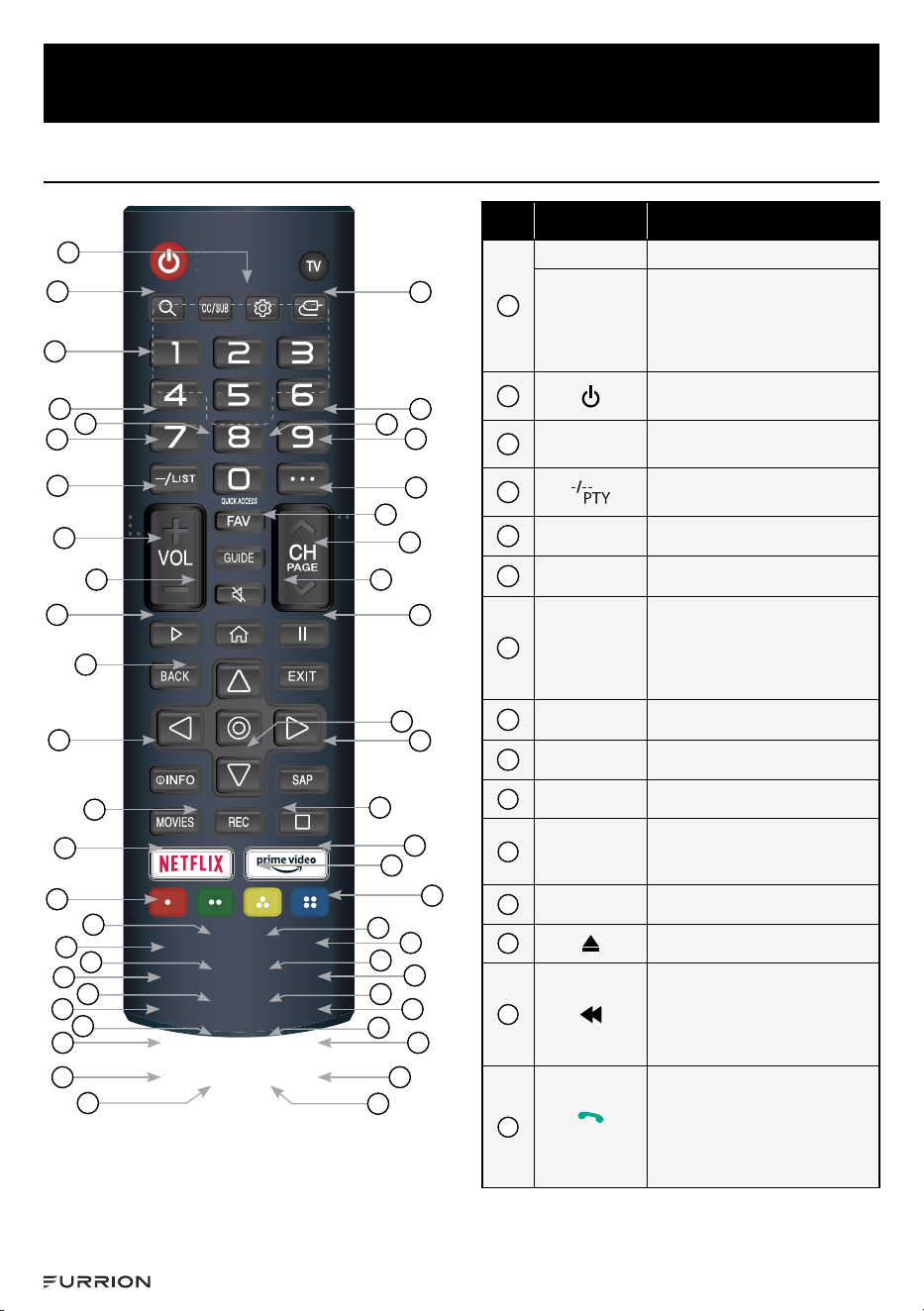

Unimote ..................................................................................................................................................... 11
About Your FHD LED 12V TV ............................................................... 13
Features ................................................................................................................................................... 13
Power Source ........................................................................................................................................ 13
Before Operation.................................................................................. 14
What’s in the Box .................................................................................................................................. 14

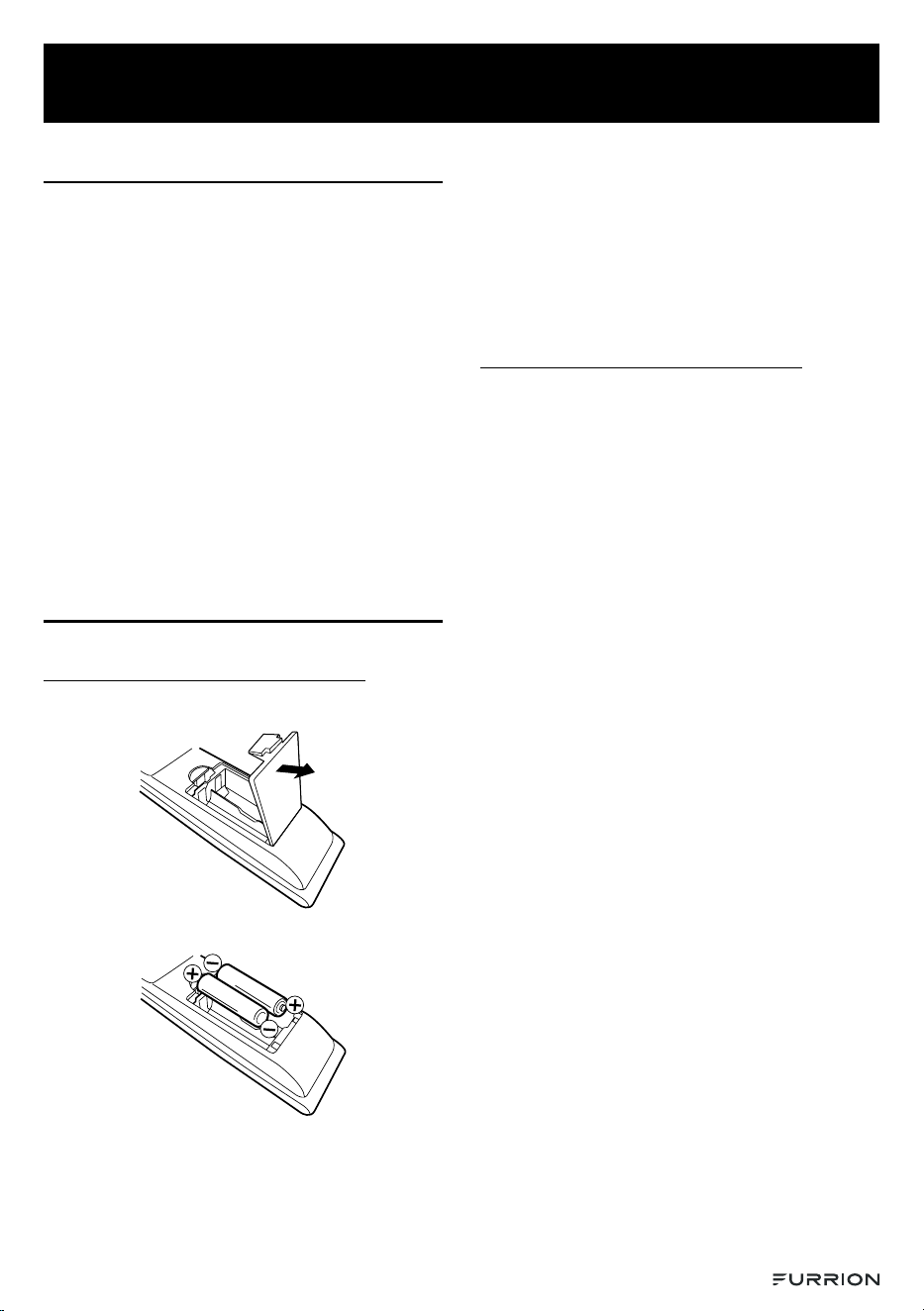

Prepare your Remote Control ........................................................................................................ 14

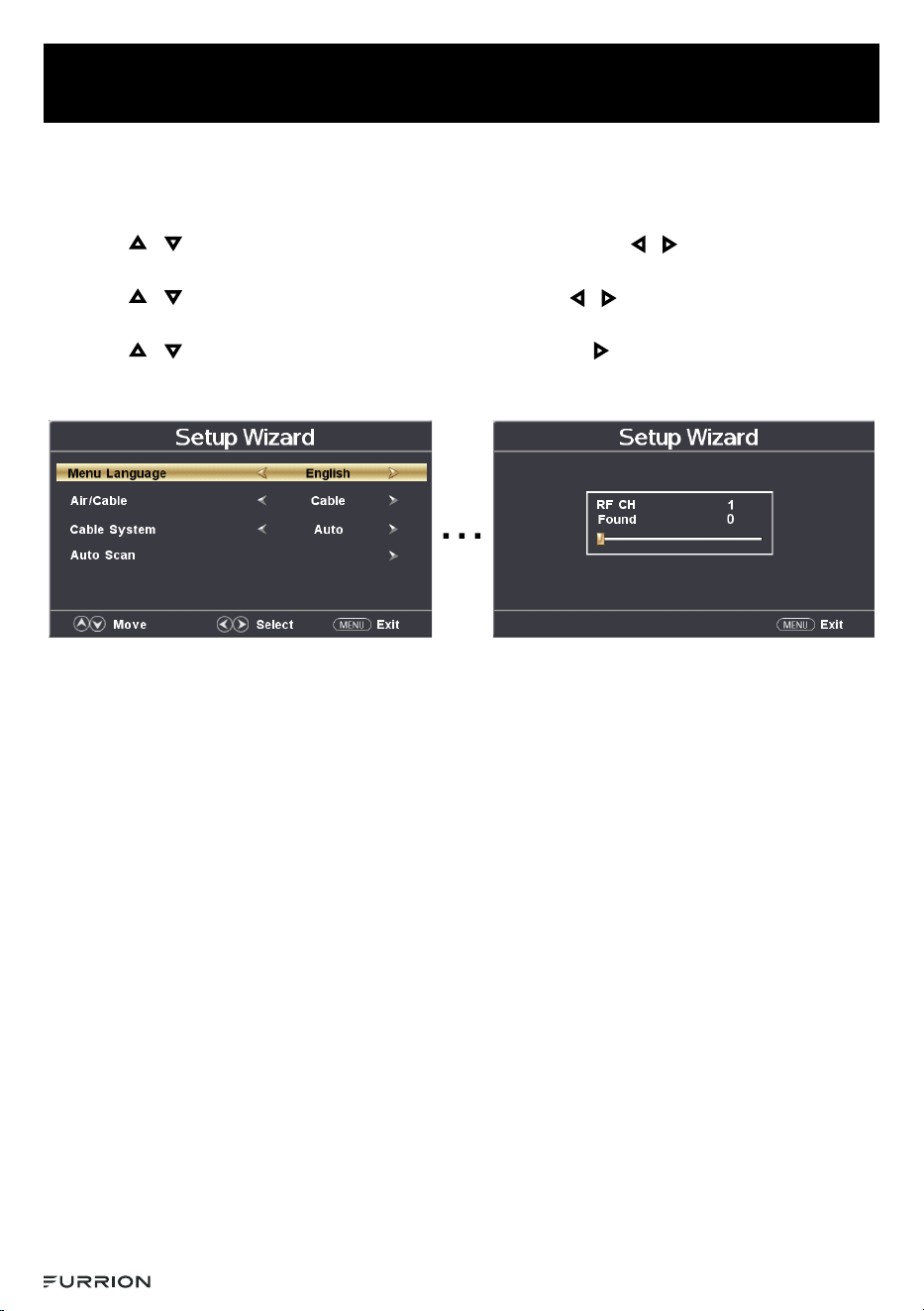

Getting Started ..................................................................................... 15
TV Settings ............................................................................................ 16
Setup Setting ......................................................................................................................................... 16
Picture Setting .......................................................................................................................................19
Audio Setting.........................................................................................................................................20
Time Setting ........................................................................................................................................... 21

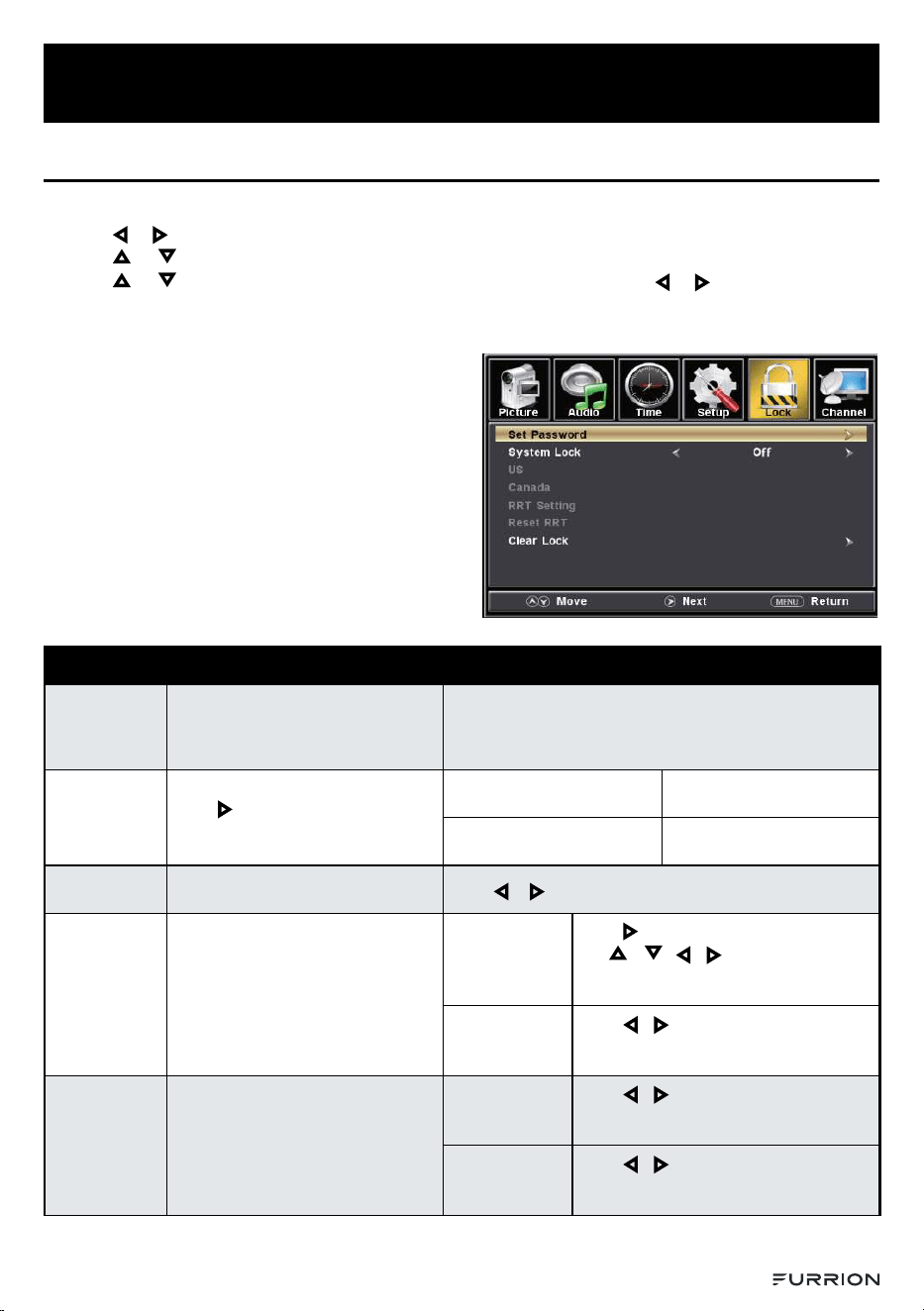

Lock Setting .......................................................................................................................................... 22

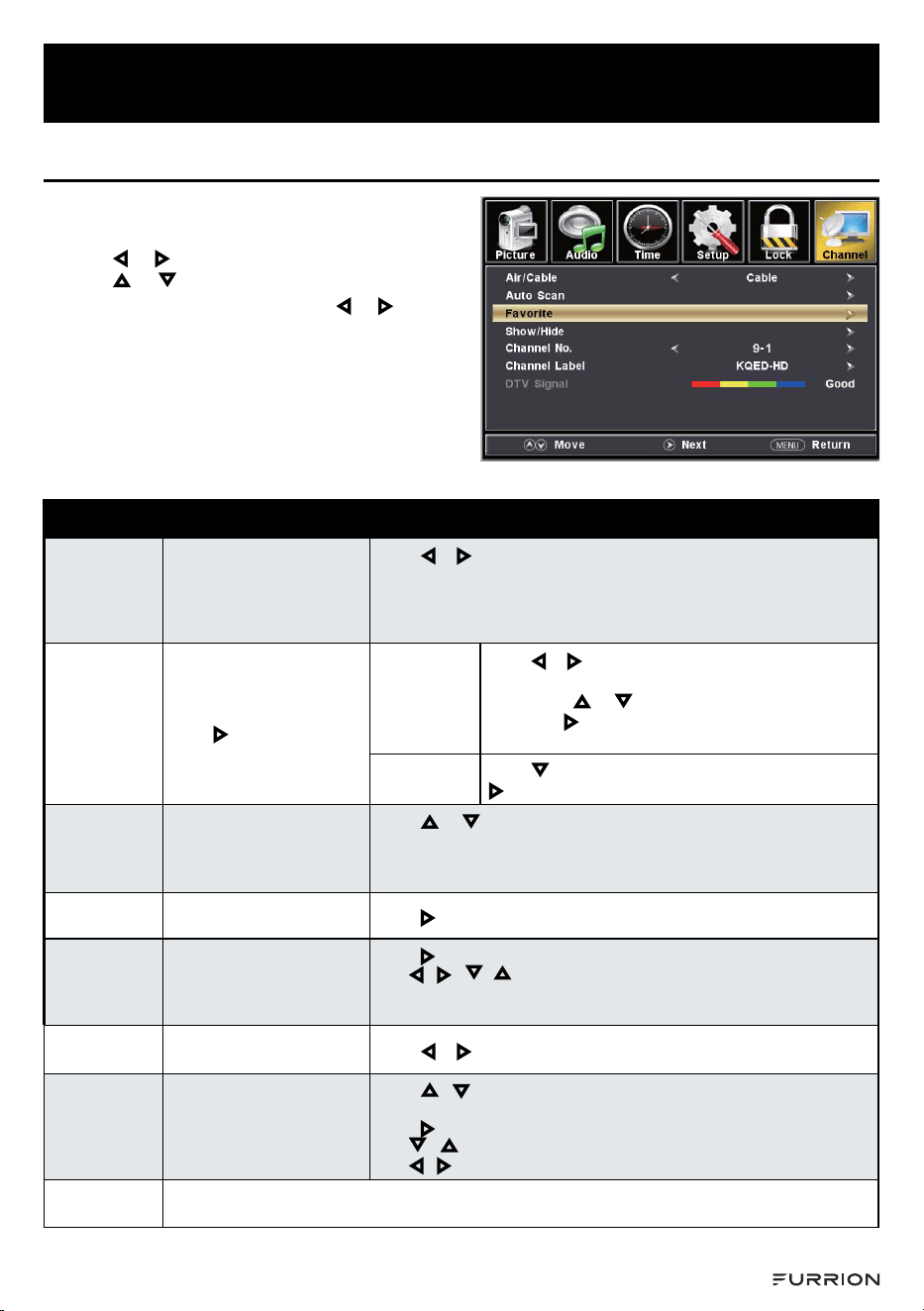

Channel Setting ................................................................................................................................... 24
Change Settings ...................................................................................25

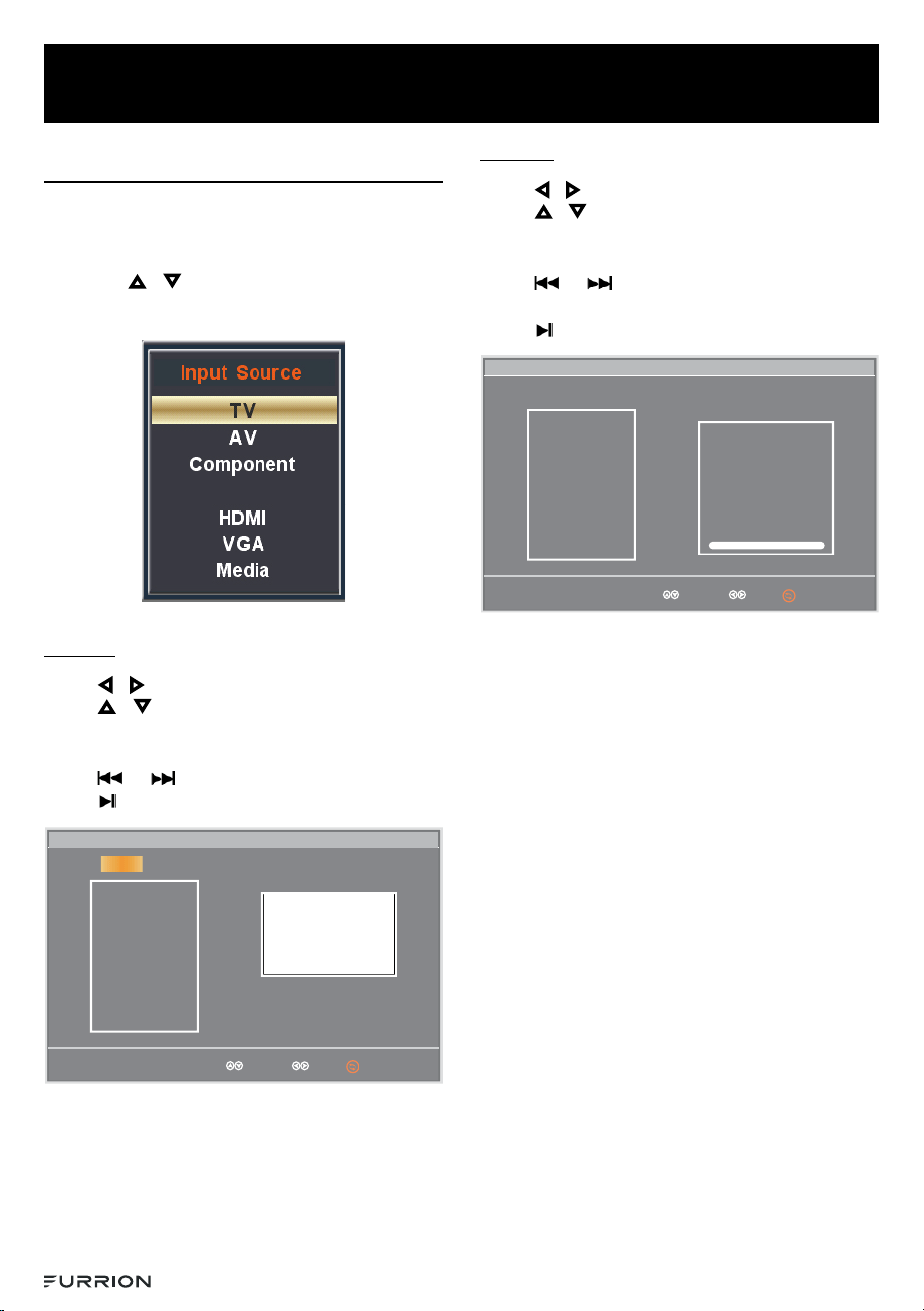

USB Mode .............................................................................................................................................. 25
Troubleshooting ...................................................................................26
Specifications ......................................................................................27
- 4 -
CCD-0005855
REV: 10.20.2023
Safety Warnings
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NOUSER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This ‘bolt of lightning’ indicates
uninsulated material within your
unit which may cause an electric
shock. For the safety of everyone in your
household, please do not remove product
covering.
The ‘exclamation mark’ calls
attention to features within the
enclosed literature to prevent
operating and maintenance problems.
This equipment is a Class II or
double insulated electrical
appliance. It has been designed in
such a way that it does not require a
safety connection to electrical earth.
WARNING: To reduce the risk of fire or
electric shock, this apparatus should not
be exposed to rain, moisture placed in the
vicinity or objects filled with liquids (such as
vases).
CAUTION: To prevent electric shock, fully
insert the plug. For regions with polarized
plugs: Please match wide blade to wide slot.
Important Safety
Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation
openings. Install in accordance with the
manufacturers instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves or
other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of
the polarized or grounding-type plug.
Apolarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong. The wide blade or the third prong
are provided for your safety. When the
provided plug does not fit into your outlet,
consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being walked
on or pinched, particularly at plugs,
convenience receptacles and the point
where they exit from the apparatus.
11. Only use attachments/accessories
specified by the manufacturer.
12. Use only with a cart, stand,
tripod, bracket or table
specified by the manufacturer
or sold with the apparatus.
When a cart is used, use
caution when moving the cart/apparatus
to avoid injury from tip-over.
13. Unplug this apparatus during lightning
storms or when unused for long periods
of time.
14. Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as if the power-supply cord or
plug is damaged, liquid has been spilled
or objects have fallen into the apparatus,
or when the apparatus has been exposed
to rain or moisture, does not operate
normally, or has been dropped.
15. Apparatus should not be exposed to
dripping or splashing, and objects filled
with liquids, such as vases, should not be
placed on the apparatus.
- 5 -
CCD-0005855
REV: 10.20.2023
Safety Warnings
16. An outside antenna system should not
be located in the vicinity of overhead
power lines or other electric light or power
circuits, or where it can fall into such
power lines or circuits. When installing an
outside antenna system, extreme care
should be taken to eliminate touching
power lines or circuits as contact might
be fatal.
17. Do not overload wall outlets, extension
cords, or integral convenience
receptacles as this can result in a risk of
fire or electric shock.
18. Never push objects of any kind into this
product through openings as they may
touch short-out parts or dangerous
voltage points that could result in a fire
or electric shock. Never spill liquid of any
kind on the product.
19. If an outside antenna is connected to the
television equipment, be sure the antenna
system is grounded so as to provide
some protection against voltage surges
and built up static charges. Section 810
of the National Electrical Code provides
information with respect to proper
grounding of the mast and supporting
structure, grounding of the lead-in wire
to an antenna discharge unit, size of
grounding conductors, location of antenna
discharge unit, connection to grounding
electrodes, and requirements for the
grounding electrodes.
NEC-NATIONAL
ELECTRICAL
CODE S2898A
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H))
GROUND CLAMPS
GROUND CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
EXAMPLE OF ANTENNA GROUNDING AS PER
THE NATIONAL ELECTRICAL CODE
ANTENNA
LEAD IN WIRE
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
ELECTRIC SERVICE
EQUIPMENT
20. NOTE TO CABLE/TV INSTALLER: This
reminder is provided to call the CATV
system installer’s attention to Article 820-40
of the National Electric Code (U.S.A.).
The code provides guidelines for proper
grounding and, in particular, specifies that
the cable ground shall be connected to
the grounding system of the building, as
close to the point of the cable entry as
practical.
21. When replacement parts are required,
be sure the service technician uses
replacement parts specified by the
manufacturer or those that have the
same characteristics as the original part.
Unauthorized substitutions may result in
fire, electric shock or other hazards.
22. Upon completion of any service or repairs
to this unit, ask the service technician to
perform safety checks to determine that
the unit is in proper operating condition.
23. When you connect the product to other
equipment, turn off the power and unplug
from the wall outlet. Failure to do so may
cause an electric shock and serious
personal injury. Read the owner’s manual
of the other equipment carefully and
follow the instructions when making any
connections.
24. Sudden high volume may cause hearing
or speaker damage. When you use
headphones (if the unit is equipped with
a headphone jack), keep the volume at a
moderate level. If you use headphones
continuously with high volume, you may
suffer hearing damage.
25. Do not allow the product to output
distorted sound for extended periods of
time. This may cause speaker overheating
and fire.
26. The socket-outlet must be installed near
the unit and easily accessible.
27. The mains plug is used as the disconnect
and shall remain readily operable.
- 6 -
CCD-0005855
REV: 10.20.2023
Safety Warnings
28. Batteries (battery pack or batteries
installed) shall not be exposed to
excessive heat such as sunshine, fire or
the like.
CONDENSATION
Moisture will form in the operating section
of the unit if the unit is brought from cool
surroundings into a warm room or if the
temperature of the room rises suddenly.
When this happens the unit’s performance will
be impaired. To prevent this, let the unit stand
in its new surroundings for about an hour
before switching on, or make sure the room
temperature rises gradually.
Condensation may also form during the
summer if the unit is exposed to the breeze
from an air conditioner. In such cases, change
the location of the unit.
HOW TO HANDLE THE LED PANEL
● Do not press hard or jolt the LED panel.
Itmay cause the LED panel glass to break
and injury may occur.
● If the LED panel is broken, make
absolutely sure you do not touch the
liquid in the panel. This may cause skin
inflammation.
● If the liquid gets in your mouth,
immediately gargle and consult with your
doctor. Also, if the liquid gets in your eyes
or touches your skin, consult your doctor
after rinsing for at least 15 minutes in clean
water.
Possible Adverse Effects on LED Panel: If a
fixed (non-moving) pattern remains on the
LED panel for long periods of time, the image
can become permanently engrained and
cause subtle but permanent ghost images.
This type of damage is NOT COVERED BY
YOUR WARRANTY. Never leave your LED
panel on for long periods of time while it is
displaying the following formats or images:
● Fixed images, such as stock tickers, video
game patterns, TV station logos and
websites.
● Special formats that do not use the entire
screen. For example, viewing letterbox
style (16:9) media on a normal (4:3) display
(black bars at top and bottom of screen);
or viewing normal style (4:3) media on a
wide screen (16:9) display (black bars on
left and right sides of screen).
The following symptoms are not signs of
malfunction but technical limitation. Therefore
we disclaim any responsibility for these
symptoms.
● LED panels are manufactured using
an extremely high level of precision
technology, however sometimes parts
of the screen may be missing picture
elements or have luminous spots. This is
not a sign of a malfunction.
● Do not install the LED panel near
electronic equipment that produces
electromagnetic waves. Some equipment
placed too near this unit may cause
interference.
● Effect on infrared devices – there may be
interference while using infrared devices
such as infrared cordless headphones.
Power source: This LED TV is designed
to operate on 100~240 volt 50/60 Hz,
AC current. Insert the power cord into a
100~240volt 50/60 Hz outlet.
To prevent electric shock, do not use the LED
TV’s (polarized) plug with an extension cord,
receptacle, or other outlet unless the blades
and ground terminal can be fully inserted to
prevent blade exposure.
Warning: To reduce the risk of fire or electric
shock, do not expose this apparatus to rain or
moisture.
- 7 -
CCD-0005855
REV: 10.20.2023
Safety Warnings
Caution: Never remove the back cover of the
LED TV as this can expose you to very high
voltages and other hazards. If the TV does not
operate properly, unplug the LED TV and call
your authorized dealer or service center.
Adjust only those controls that are covered
in the instructions, as improper changes or
modifications not expressly approved by
Furrion could void the user’s warranty.
COMPLIANCE
FCC Statement
Note: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
WARNING: Changes or modifications to
this unit not expressly approved by the party
responsible for compliance could void the
user’s authority to operate this equipment
under FCC Rules.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
Safety Precautions
WARNING: Never place a television set in
an unstable location. A television set may
fall, causing serious personal injury or death.
Many injuries, particularly to children, can be
avoided by taking simple precautions such as:
– Using cabinets or stands recommended
by the manufacturer of the television set.
– Only using furniture that can safely
support the television set.
– Ensuring the television set is not
overhanging the edge of the supporting
furniture.
– Not placing the television set on tall
furniture (for example, cupboards or
bookcases) without anchoring both
the furniture and the television set to a
suitable support.
– Not placing the television set on
cloth or other materials that may be
located between the television set and
supporting furniture.
– Educating children about the dangers
of climbing on furniture to reach the
television set or its controls.
- 8 -
CCD-0005855
REV: 10.20.2023
Safety Warnings
If your existing television set is being retained
and relocated, the same considerations as
above should be applied.
The unit emits heat when in operation. Do
not place any covers or blankets on the unit,
this may cause overheating. Do not block
ventilation holes, or set up near radiators.
Do not place in direct sunlight. When placing
on a shelf, leave 4 inches (10 cm) free space
around the entire unit.
4 inches
YES !!
NO !!
Wire
Clamp
Screw
4 inches
Wire
Wire
Screw
Clamp
Wire
Wire
Wire
1.5 inches
1.5 inches
Notes when mounting the LED
TV on the wall
If the unit is to be mounted on the wall,
contact the retailer where you purchased the
LED TV for advice, and have the equipment
professionally installed. Incomplete or
improper installation may cause injury to you
and/or damage to the LED TV.
WARNING:
● Do not use this TV with wall mounts that
allow the TV to tilt vertically. Vertical tilting
wall mounts may cause structural damage
to the TV.
● Use ONLY fixed or horizontal swiveling
wall mounts with this TV.
Notice for TV Cabinet
If the unit is to be mounted on a cabinet
smaller than the length of the unit, it could
result in an unstable location. The unit may
tumble over, making a risk of personal,
possibly fatal injury. This would also damage
the product seriously. Accordingly, Furrion
accepts no responsibility or liability for any
injuries or property damage resulting from the
improper installation.
4 inches
YES !! NO !!
Wire
Clamp
Screw
4 inches
Wire
Wire
Screw
Clamp
Wire
Wire
Wire
1.5 inches
1.5 inches
- 9 -
CCD-0005855
REV: 10.20.2023
Function Overview
Control Panel
Item Button Function
1
VOL+
Press to increase volume
2
VOL-
Press to decrease volume
3
CH+
Press to skip to the next
channel
4
CH-
Press to skip to the
previous channel
5
MENU
Press to enter the main
menu
6
SOURCE
Press to select the input
source
7
Press to start, pauses or
restarts playback.
8
Press to eject DVD/ CD.
9
POWER
Press to switch the TV
on/off
* Please note that the button layout of the
controls may vary from model to model.
POWER
VOL- VOL+
CH- CH+
MENU SOURCE
- 10 -
CCD-0005855
REV: 10.20.2023
Function Overview
* The configuration of the connection ports
may vary from model to model.
AUDIO
IN
L- -R
L- -R
AUDIO
OUT
R
L
COAX
OUT
4
5
11
7
2
DC
R
L
1
9
PC AUDIO
IN
10
VGA IN
RF IN
Pb
Pr
Y
HDMI 1 IN
ARC
6
USB2.0
(5V 500mA)
3
AV
8
12
Rear Panel
Item Port Function
1
L-AUDIO
OUT-R
Connect to the AUDIO IN ports of
an audio device.
2
L-AUDIO
IN-R
Connect to the AUDIO OUT ports
of an audio device.
3
AV
Connect to an AV source.
4
COAX OUT
Connect to the COAX IN port of
an audio device.
5
DC
Connect to a 12V DC power
source.
6
HDMI 1 IN
ARC
Connect to the HDMI OUT port
of a DVD Player, Games Console,
Cable Box or other HDMI device.
• ARC (Audio Return Channel)
When connected with a HDMI1.4
cable to an ARC compatible
audio system, the TV links with
the device to give extra audio
functionality.
7
USB
Connect to portable USB device
to view pictures and listen to MP3.
8
VGA IN
Connect to the VGA OUT port of a
PC to use the TV as a monitor.
9
PC AUDIO
IN
Connect to the AUDIO OUT port
of a PC.
10
Y
Connect to the COMPONENT
VIDEO OUT ports of a DVD
Player, Cable Box or other
compatible device.
P
b
P
r
11
RF IN
Connect to the ANTENNA,
CABLE, or CABLE BOX.
12
EARPHONE
OUT
Connect to the 3-conductor
(TRS) phone connector of an
earphone. Compatibility with
earphones with 4-conductor
(TRRS) phone connectors is not
guaranteed.
- 11 -
CCD-0005855
REV: 10.20.2023
Function Overview
Unimote
1
2
3
4
5
6
7
8
9
11
10
12
13
14
15
16
17
18
19
20
21
22
23
24
25
27
26
28
29
30
31
32
33
34
35
37
49
38
39
40
41
42
43
44
50
45
46
47
48
36
Item Button Function
1
TV
Switches to TV mode.
FIREPLACE
Selects Furrion Fireplace
remote control functions.
* Please refer to your Furrion
Fireplace manual for more
information.
2
Turn on/off the TV/
Entertainment System.
3
NUMBER
BUTTONS
Enters numbers or select
channels.
4
Toggles between single &
double digit input.
5
S.MODE
Cycles through sound modes.
6
P.MODE
Cycles through picture modes.
7
INFO/OSD
In TV mode, press to display
information on the selected TV
channel;
In Stereo mode, press to
display DVD playback status.
8
F.LIST
Displays the favorites list.
9
EPG
Displays the program guide.
10
SOURCE
Cycles through input sources.
11
NAVIGATION
& OK
BUTTONS
Navigates within a menu and
press OK to confirm your
selection.
12
VOL+/-
Increases/decreases volume.
13
Ejects DVD/ CD.
14
During playback, press to
select the previous track/
chapter. Press and hold to
rewind. Automatic or Manual
tuning in radio mode.
15
STEP
Press to forward frame by
frame during DVD/ VCD
playback.
Dial or accept a call (when the
system is connected to a cell
phone).
- 12 -
CCD-0005855
REV: 10.20.2023
Function Overview
Item Button Function
16
DVD/USB
Selects DVD/USB.
17
AM/FM
Selects AM/FM/WB Radio.
18
SLEEP/
CLOCK
Sets the sleep timer.
19
MTS/AUDIO
Cycles through MTS sound
modes.
20
RDM
Toggles random playback
mode on & off.
21
RPT
Press to select repeat playback
modes.
22
SEARCH/
GOTO
Jumps to a specific time on a
DVD/VCD/MP3/WMA or CD.
23
ZOOM
Press to enlarge screen
images.
24
SEL
Toggles between Volume, Bass,
Treble & Balance; Adjusts hours
& minutes.
25
LOC*/SLOW
Toggles radio reception
strength;
Press to start slow motion
playback.
26
ST#/ANGLE
Toggles Stereo & Mono sound/
switches viewing angles on
compatible media.
27
EQ
Toggles the sound mode
Cinema, Rock, Classic & Flat.
28
SUBT
Press to display subtitles on
compatible media;
Repeatedly press to cycle
through subtitle options.
29
PBC/TITLE
Displays DVD/VCD Title lists;
Toggles PBC (Play Back
Control) on & off.
30
PROG
Press to start the programmed
playback function.
31
A-B
Press to start the A-B repeat
function (playback loop of a
segment of track).
32
SETUP
Enters the Setup menu for the
entertainment system.
Item Button Function
33
CC
Closed Captions On & Off.
34
AV
Selects AV Mode.
35
AUX/ARC
Selects AUX/ ARC Mode.
36
APS
Press to scan radio stations:
Abrief press searches through
each stored station. Press
& hold to scan and store the
6strongest stations.
End or reject a call (when the
system is connected to a cell
phone).
37
During playback, press to
select the next track/ chapter.
Press and hold to fast forward.
Automatic or Manual tuning in
radio mode.
38
Stops playback.
39
CH+/-
Channel Up/Down.
40
Toggles audio On or Off.
41
EXIT
Exits the current menu.
42
FAV
Adds or deletes the current
channel from the favorites
channel list.
43
C.LIST
Displays the channel list.
44
AUTO
Automatically adjusts the
picture in PC mode.
45
DISPLAY
Display the information.
46
ASPECT
Cycles through available
display aspect ratios.
47
Toggles between the current
and previous channel.
48
STEREO
Switches to Stereo mode.
49
Starts, Pauses or restarts
playback.
50
MENU
Enters the main menu.
- 13 -
CCD-0005855
REV: 10.20.2023
About Your FHD LED 12V TV
Features
Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on
the screen for hearing impaired viewers.
Picture Adjustments Using The Remote Control - The On-Screen display allows precise
remote control adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.
Programmable TV Sleep Timer - Operable from the remote control, the TV can be
programmed for up to 240 minutes to turn off automatically.
On-Screen 3 Language Display - You can select one of 3 languages, English, Spanish or
French for on-screen programming.
HDMI/Component Video Jacks - A VCR, DVD player, satellite receiver or other audio/video
component can be connected to this unit.
Power Source
NOTE:
● Please make sure to insert the cord securely at both the LED TV and the wall outlet.
WARNING:
● DO NOT CONNECT THIS UNIT TO THE POWER USING ANY DEVICE OTHER THAN THE
SUPPLIED AC CORD. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
● DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE SPECIFIED. THIS
COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
CAUTION:
● WHEN THIS UNIT IS NOT USED FOR A LONG TIME (E.G., AWAY ON A TRIP), IN THE
INTEREST OF SAFETY, BE SURE TO UNPLUG IT FROM THE AC OUTLET.
● DO NOT PLUG/UNPLUG THE AC CORD WHEN YOUR HANDS ARE WET. THIS MAY
CAUSE ELECTRICAL SHOCK.
● IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED
ONE IS RECOMMENDED. CONTACT THE DEALER THAT YOU PURCHASED THE UNIT
FROM.
- 14 -
CCD-0005855
REV: 10.20.2023
Before Operation
What’s in the Box
Thanks for purchasing this Furrion HD LED
TV. First, check the contents of your box with
the parts checklist below:
● FHD LED 12V TV x 1
● AAA battery × 2
● Bottom Mount Stand x 1
● TV Stands Screws (ST4x10mm) x 4
● Wall Mount Screws (M4*8mm) x 4
● 12V Cigarette Adapter x 1
● AC Power Adapter x 1
● Quick Start Guide x 1
● Warning Card x 1
● Warranty Manual x 1
Prepare your Remote
Control
BATTERY INSTALLATION
1. Open battery compartment cover.
2. Install two AAA batteries.
3. Close the cover of the battery
compartment.
NOTE: Use two “AAA” size batteries.
Thebatteries may last approximately one
year depending on how much the remote
control is used. For best performance, itis
recommended that batteries should be
replaced on a yearly basis, or when the
remote operation becomes erratic. Do not mix
old and new batteries or different types.
BATTERY PRECAUTIONS
These precautions should be followed when
using batteries in this device:
● Use only the size and type of batteries
specified.
● Be sure to follow the correct polarity when
installing the batteries as indicated in the
battery compartment. Reversed batteries
may cause damage to the device.
● Do not mix different types of batteries
together (e.g. Alkaline and Carbon-zinc)
or old batteries with fresh ones.
● If the device is not to be used for a long
period of time, remove the batteries to
prevent damage or injury from possible
battery leakage.
● Do not try to recharge batteries not
intended to be recharged; they can
overheat and rupture. (Follow battery
manufacturer’s directions.)
● Please use caution when inserting
batteries to avoid battery damage. If the
spring terminal in the remote control
remains in contact with a side of a
damaged battery it can cause a short
circuit. Never use damaged batteries
as they can become very hot and are
dangerous.
- 15 -
CCD-0005855
REV: 10.20.2023
Getting Started
The Setup Wizard window appears when turning on the TV for the first time and without
channel scanning. After connecting your TV antenna or cable wire, turn the television ON.
TheSetup Wizard will direct you to the TV menu to select antenna options and perform channel
Auto Scan. Channels found will be stored into the TV tuner memory.
1. Press / buttons to highlight Menu Language and then use / buttons to select
desired language.
2. Press
/ buttons to highlight Air/Cable and then use / buttons to select Air or
Cable based on your antenna connection.
3. Press
/ buttons to highlight Auto Scan and press OK/ buttons to run auto scanning.
It may take several minutes to complete channel Auto Scan.
- 16 -
CCD-0005855
REV: 10.20.2023
TV Settings
Setup Setting
1. Press MENU button to remote control to enter the main menu.
2. Use
or to highlight Setup mode.
3. Use
or to highlight the item you would like to reset, then press or to select the
settings.
4. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.
Setup Menu
Menu Language
Select the menu language.
Press
or button to select English, Français or
Español.
Transparency
Adjust the transparency of the OSD
(on screen display) menu.
Press
or button to select On/Off.
Zoom Mode
Adjust the display width on screen.
Press
or button to select Wide, Normal, Cinema,
Zoom.
Noise
Reduction
Adjust the level of noise reduction..
Press
or button to select Weak, Middle, Strong, Off.
Advanced
This is not user adjustable.
Source Label
Create labels for the devices
connected to your TV.
Press
button to enter the sub-menu.
Press or buttons to highlight the input source TV/AV/
Component/HDMI1/HDMI2/HDMI3/PC/USB to be labeled.
Then press or buttons to select Custom, Default,
Antenna, Cable, Satellite, DTV, DVD, Blu-ray, HD-DVD,
XBOX, Wii, PS3, Game, Computer, VCR or DV.
- 17 -
CCD-0005855
REV: 10.20.2023
TV Settings
Setup Menu
Closed Caption
Configure Closed
Caption functions.
CC Mode
Press
or button to select Off, On or CC On Mute.
Basic
Selection
Press
or button to select CC1, CC2, CC3, CC4, Text 1,
Text 2, Text 3 or Text 4 .
Advanced
Press
or button to select Service1, Service 2, Service
3, Service 4, Service 5 or Service 6.
Option
* Press
to enter the
sub menu to
customize
text fonts,
colors and
opacity.
Mode
Press
or button to select Default or
Custom .
Font Style
Press
or button to select Default,
Font 0, Font 1, Font 2, Font 3, Font 4,
Font 5, Font 6 or Font 7.
Font Size
Press
or button to select Default,
Normal, Large or Small.
Font Edge
Style
Press
or button to select Default,
None, Raised, Depressed, Uniform,
Left Shadow or Right Shadow.
Font Edge
Color
Press
or button to select Default,
Black, White, Red, Green, Blue,
Yellow, Magenta or Cyan.
FG Color
Press
or button to select Default,
White, Red, Green, Blue, Yellow,
Magenta or Cyan.
BG Color
Press
or button to select Default,
Black, Red, Green, Blue, Yellow,
Magenta or Cyan.
FG Opacity
Press
or button to select Default,
Solid, Flashing, Translucent or
Transparent.
BG Opacity
Press
or button to select Default,
Solid, Flashing, Translucent or
Transparent.
DLC
Turn on/o the DLC.
Press
or button to select On/Off.
Setup Wizard
Start the Setup Wizard.
Press OK or
button to enter Setup Wizard.
- 18 -
CCD-0005855
REV: 10.20.2023
TV Settings
Setup Menu
HDMI CEC
Press
to enter sub-
menu, then press or
to select Off /On for
HDMI CEC.
When selecting On,
the sub-menu in the
right column will be
available to set up.
HDMI CEC
Press
or button to select HDMI CEC, and then
press or button to select On/Off.
Auto Standby
Press
or button to select Auto Standby, and
then press or button to select On/Off. If you select
On, the TV will turn off automatically when there’s no
signal on TV for several minutes.
Auto TV On
Press
or button to select Auto TV On, and then
press or button to select On/Off. If you select On,
the TV will turn on automatically when the connected
CEC device is turned on.
HDMI ARC
Press
or button to select Auto TV On, and then
press or button to select On/Off.
If you select On, it enables the ARC function with a
connected 5.1 / 7.1 Home Theater System. (Note: Refer
to the user manual of your Home Theater System to
operate the HDMI ARC feature.)
Device Control
Press
or button to select Device Control, and
then press or button to select On/Off.
If you select On, it allows a connected CEC device
to be controlled by the TV remote.(Note: Refer to
the user manual of your connected CEC device for
compatibility, instructions, and connections.).
Device List
Press
to display a list of HDMI CEC devices currently
connected to the TV.
Restore Default
Reset all settings to
factory settings.
Press
button to select No or Ye s to reset all to original factory settings.
- 19 -
CCD-0005855
REV: 10.20.2023
TV Settings
Picture Setting
1. Press MENU button to remote control to
enter the main menu.
2. Use or to highlight Picture mode.
3. Use
or to highlight the item you
would like to reset, then press or to
select the settings.
4. Press MENU to return to the previous
menu or exit the setting.
Picture Menu
Picture Mode
Select the display mode.
Press
or button to select Standard > Dynamic > Mild > User.
Contrast
Control the contrast
level of the picture.
Press
or button to increase or decrease contrast intensity.
Brightness
Control the brightness
level of the picture.
Press
or button to increase or decrease the overall brightness.
Color
Control the color level
of the picture.
Press
or button to increase or decrease the color intensity.
Tint
Control picture tint.
Press
or button to adjust colors toward green or reddish tint.
Sharpness
Control the sharpness
of the picture.
Press
or button to soften or view crisper edges in the picture.
Color
Temperature
Select the color mode.
Press
or button to select Cool, Medium or Warm.
Blue Screen
Control blue screen
mode.
Press
or button to select Off / On..
- 20 -
CCD-0005855
REV: 10.20.2023
TV Settings
Audio Setting
1. Press MENU button to remote control to enter the main menu.
2. Use
or to highlight Audio mode.
3. Use
or to highlight the item you would like to reset, then press or to select the
settings.
4. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.
NOTE: The display menu may vary while different input source was selected.
Audio Menu
Sound Mode
Select the sound mode.
Press / buttons to select Standard > Music > Movie > User.
Standard: To produce a balanced sound in all environments.
Music: To preserve the original sound.
Movie: To enhance treble and bass for a rich sound.
User: To customize audio settings.
Bass
Control the bass level.
Press
or button to increase or decrease low frequency intensity.
Treble
Control the treble level.
Press
or button to increase or decrease high frequency intensity.
Balance
Control the balance level.
Press
or button to adjust sound towards the left or right speaker.
Surround
Sound
Control the surround sound
Press
or buttons to select Off / On.
Auto Volume
Adjust the volume automatically.
Press
or buttons to select Off / On.
Audio
Languages
(only Digital
TV mode)
Select the language
supported by the chosen
digital channel.
Press
or button to select different Audio Languages.
MTS
(only Analog
TV mode)
Configures the multi-track
sound.
Press
or button to select Stereo / SAP / Mono.
SPDIF Type
Send digital audio to external
audio system.
Press
or button to select Raw / Off / PCM.
Accessibility
Configure the VoiceGuide /
VideoDescription.
Press
button to enter sub-menu VoiceGuide / VideoDescription.
- 21 -
CCD-0005855
REV: 10.20.2023
TV Settings
Time Setting
1. Press MENU button to remote control to
enter the main menu.
2. Use or to highlight Time mode.
3. Use
or to highlight the item you
would like to reset, then press or to
select the settings.
4. Press MENU to return to the previous
menu or press EXIT at any time to exit the
setting.
Time Menu
Sleep Timer
Set the countdown time
before TV automatically
shutdown.
Press
or button to select 5min > 10min > 15min > 30min > 45min >
60min > 90min > 120min > 180min > 240min > Off.
Time Zone
Set the time zone.
Press
or buttons to select Eastern > Central > Mountain > Pacific
> Alaska > Hawaii > Atlantic.
Daylight
Savings Time
Turn on/off daylight
saving time.
Press
or button to set as On or Off.
Time Format
Select the time display
format.
Press
or button to set as 12-hour or 24-hour.
Auto Clock
Set automatic time.
Press
or button to set as On or Off.
Clock
Display the current date
and time.
The date and time are automatically set the first time when the tuner
receives a broadcast channel.
- 22 -
CCD-0005855
REV: 10.20.2023
TV Settings
Lock Setting
1. Press MENU button to remote control to enter the main menu.
2. Use or to highlight Lock mode.
3. Use or to highlight “Enter Password” and input “0000” to enter the setup window.
4. Use or to highlight the item you would like to reset, then press or to select the
settings.
5. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.
Lock Menu
Enter
Password
Input the password to access the
Lock menu.
Use the Number Buttons (0~9) to enter the password.
* Default password is 0000.
* If you forgot the password, use 8888 to enter any locked
menu.
Set Password
Change the User Password.
Press
to enter your new password,
then input it again to confirm the
password.
Set Password
Use Number buttons (0-9) to
enter a new password.
Confirm Password
Repeat the password to
confirm.
System Lock
Change the parental controls.
Press
or to set as On or Off .
US
Set up parental locks based on US
rating system .
* Only available when System Lock is
set as On mode.
TV
Press
to enter the TV Ratings menu and
use
/ / / to select your TV
rating preference. (Refer to the following
tables of Age and Genre)
MPAA
Press
/ buttons to select your movie
rating preference based on US Rating
System .
Canada
Set up parental locks based on
Canadian rating system .
* Only available when System Lock
was set as On mode.
Canada
English
Press
/ buttons to select your ratings
preference based on Canadian Rating
System (English) .
Canada French
Press
/ buttons to select your ratings
preference based on Canadian Rating
System (French) .
- 23 -
CCD-0005855
REV: 10.20.2023
TV Settings
Lock Menu
RRT Setting
Not user adjustable settings.
Reset RRT
Restore to default RRT settings.
Press
to select Yes or No.
Clear Lock
Restore to default V-chip settings and
clear the lock setting.
Press
to select Yes or No.
Genre
ALL
All
FV
Fantasy Violence
V
Violence
S
Sex
L
Language
D
Dialogue
Age
T V-Y
All Children
T V-Y7
Suitable for 7 years old or above
TV-G
General Audience
TV-PG
Parental Guidance
TV-14
Suitable for 14 years old or above
TV-MA
Suitable for 17 years old or above
US Rating System
Off
All Ages
G
General Audience
PG
Parental Guidance
PG-13
Parental Guidance below 13 years
R
Parental Guidance below 17 years
NC-17
Suitable for 17 years old or above
X
Adults Only
Canadian Rating System (English)
E
Exempt from the ratings (All ages)
C
Suitable for children age of 0–7 years
C8+
Suitable for children age over 8 years
G
General Audience
PG
Parental Guidance
14+
Suitable for viewers age over 14 years
18+
Suitable for adults over 18 years
Canadian Rating System (French)
E
Exempt from the ratings (All ages)
G
General Audience
8 ans+
Suitable for children ages over 8 years
13 ans+
Suitable for children ages over 13 years
16 ans+
Suitable for viewers ages over 16 years
18 ans+
Suitable for adults over 18 years
- 24 -
CCD-0005855
REV: 10.20.2023
TV Settings
Channel Setting
1. Press MENU button to remote control to
enter the main menu.
2. Use or to highlight Channel mode.
3. Use or to highlight the item you
would like to reset, then press
or to
select the settings.
4. Press OK to confirm your selections or
settings and enter the sub menus.
5. Press MENU to return to the previous
menu or press EXIT at any time to exit the
setting.
Channel Menu
Air/Cable
Set the reception type.
Press
or button to select Air or Cable based on your antenna
connection.
• Select Air when TV is connected to an indoor / outdoor antenna.
• Select Cable if you subscribe to a pay television service WITHOUT a
set top box.
Auto Scan
Automatically scan for
available channels.
Press
or OK to enter sub
menu.
Cable
System
Press
or button to select STD / IRC / HRC / Auto.
(Only available when you select Cable as the reception
type.) Press
or button to highlight Start to Scan,
then press / OK button to start scanning available
channels.
Air Mode
Press
to highlight Start to Scan directly, then press
/ OK button to start Auto Scan.
Favorite
Add or delete a channel in
the favorite list.
Press
or button to select a channel, then press ENTER button
to add or delete the channel in the favorite list. A checkmark indicates
a channel has been added. You may also display your list of Favorite
channels by pressing the FAV button on the remote control.
Channel List
Display your program list.
Press
button to enter.
Show / Hide
Show or hide the channels
in your program list.
Press
to enter sub-menu to show or hide channels already in memory.
Use / / / buttons to access the list of available channels.
Press ENTER to change the channels status. A checkmark will appear to
indicate that a channel has been added.
Channel No.
Select a channel number to
be labeled.
Press
or button to select a channel to be labeled.
Channel
Label
Allow custom labeling to
name or rename a channel.
Press
/ buttons to highlight Channel Label to name or rename a
channel.
Press to enter the sub-menu to relabel a channel.
Use / buttons to spell out each letter, number or character.
Use / buttons to skip to the next space.
DVT Signal.
Display the current signal status.
- 25 -
CCD-0005855
REV: 10.20.2023
Change Settings
USB Mode
1. After connecting a flash drive, press Input
button on the remote control to display the
Input Menu.
2. Press
/ buttons to select Media in
the Source menu, and then press ENTER
button to confirm.
DVD
Press / buttons to select Photo.
Press
/ buttons to select the photo you
want to view.
Press ENTER to view the photo.
Press
or to view the next photo.
Press to return main menu.
Select Move
Play File:1
Total size:2.0GB
Unused size:1.8GB
001/001534 x 80034.3KB
Repeat
Music
C:\
C:
USB
Music
Press / buttons to select Music.
Press / buttons to select the song you
want to hear.
Press ENTER to start playing the song.
Press
or to skip to the next/previous
song.
Press
to stop playback.
Select Move
LOVE.mp3
Play File:1
Total size:2.0GB
Unused size:1.8GB
002/002
Repeat
Title:
Artist:
Album:
Year
Pause
00:00 02:38
Music
C:\
C:
USB
- 26 -
CCD-0005855
REV: 10.20.2023
Troubleshooting
Problem Solution/Issue
TV does not
operate
● Make sure the power cord is plugged in.
● Try another AC outlet.
● Power is off, check fuse or circuit breaker.
● Unplug unit for an hour, then plug it back in.
Normal picture,
but no sound
● Check the volume settings.
● Sound muted? Press MUTE button.
● Try another channel.
● Check audio cable connections.
The remote
control does not
work
● Make sure the remote control is in range with no obstructions.
● Check the batteries.
● Correct operating mode set: TV, VCR etc.
Poor sound or no
sound
● Station or Cable TV experiencing problems, tune to another station.
● Check sound adjustments (Volume or Mute).
● Check for sources of possible interference.
Poor picture or no
● Station or Cable TV experiencing problems, tune to another station.
● Make sure channels are set into memory.
● Check antenna or Cable TV connections, adjust antenna.
● Check the possible interference sources.
● Check picture control adjustments.
Poor TV reception
● Ensure the antenna amplifier is turned on for Antenna TV.
● Adjust the antenna position to a stronger signal receiving angle.
● Check if the Antenna connection is tight to the TV.
● Check if there is power supplied to the Antenna distribution box.
● Confirm your incoming cable is connected to the correct cable / antenna wall connection
inside the RV.
● Ensure the internal RV coax jump cable is connected to the correct port.
Poor Cable /
Satellite TV
Reception
● Ensure antenna amp is turned off for cable signal.
● Check if incoming Cable is connected correctly to RV.
● Ensure cable splitter box has power.
● Check if the incoming cable is connected to the correct cable / Satellite wall connection
inside your RV.
● Ensure the internal RV coax jump cable is connected to the correct port.
● Ensure Dish has no obstruction.
TV shuts off
● Sleep Timer is set.
● Power interrupted.
Black and white
image from the
connected AV
device
● Check video connections on both the TV and connected AV device. Ensure the colors match
between the connectors and sockets: green (Y), blue (Pb/Cb) and red (Pr/Cr) for component
connection, and yellow (VIDEO) for composite connection.
● Ensure all video cables are connected firmly.
- 27 -
CCD-0005855
REV: 10.20.2023
Specifications
D
H
W
MODEL, DIMENSION & RESOLUTION
Model
Dimension without Stand
(W*H*D)
Dimension with Stand
(W*H*D)
Max Resolution
FDFD22A0A
201/16” x 121/16” x 3⅜”
(509 x 307 x 86mm)
201/16” x 137/16” x 6½”
(509 x 341 x 165mm)
1920×1080 @ 60Hz FHD
Shipping Weight lbs. (kg) 11.2 lbs. (5.1 kg) in the box weight
INPUT & OUTPUT CONNECTIONS
Model EARPHONE
COAX
OUT
VIDEO
IN
VIDEO
OUT
L-AUDIO IN-R
YP
b
P
r
VIDEO IN
HDMI IN RF IN USB
FDFD22A0A 1 1 1 1
1 x White (L)
1 x Red (R)
1 x Green
1 x Blue
1 x Red
1 1 1 1
- 28 -
CCD-0005855
REV: 10.20.2023
Specifications
81∕16"
205 mm
311⁄16"
93 mm
41∕2"
114 mm
35∕16"
100 mm
35∕16"
100 mm
81∕16"
205 mm
VESA MOUNTING PATTERN
Model Width mm Height mm Screw Size Quantity
FDFD22A0A 100 100 M4*8 mm 4
