Technical Support and E-Warranty Certificate www.vevor.com/support
ALCOHOL STILL
MODEL:
STDB-10L,STDB-20L,STDB-30L,STDB-10L-U,STDB-10L-E,
STDB-10L-A,STDB-20L-U,STDB-20L-E,STDB-20L-A,
STDB-30L-U,STDB-30L-E,STDB-30L-A,STDB-50L-U,
STDB-50L-E,STDB-50L-A
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools
with us compared to the major top brands and does not necessarily mean to cover
all categories of tools offered by us. You are kindly reminded to verify carefully
when you are placing an order with us if you are actually Saving
Half in comparison with the top major brands.
- 1 -
MODEL:
STDB-10L,STDB-20L,STDB-30L,STDB-10L-U,STDB-10L-E,STDB-10L-
A,STDB-20L-U,STDB-20L-E,STDB-20L-A,STDB-30L-U,STDB-30L-E,ST
DB-30L-A, STDB-50L-U,STDB-50L-E,STDB-50L-A
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
ALCOHOL STILL
- 2 -
OPERATING MANUAL OF ALCOHOL DISTILLER
Safety instructions of the submersible aquarium pump
The manipulation and utilization of our pump are very simple and
convenient. The user just needs to pour a suitable height level of water and
link the pump with the outlet water pipe and then connect the pump with
power supply in accordance with the mark on the label.
Thus, the pump can run well.
Technical data
Model
JYC-1100
Rating voltage
110-120V~
220-240V~
Rating Frequency
60Hz
50Hz
Rating power
8W
8W
Protection type
IPX8
IPX8
Max. supply height
110cm
110cm
Max. conveying amount
450L/h
450L/h
To reduce risk of electric shock
• Always unplug the pump from the electric outlet before cleaning and
handling.
• use with clean water only. Do not place it in other liquid. Never let the
pump run dry.
• Option -The pump is supplied with ground in conductor and a
grounding type attachment plug , and must be connected only to a proper
ground outlet to reduce the risk of electric shock (Europe
- 3 -
standard only) .
• The use of liquid temperature can not be higher than 35℃ .
• prevent the water from running into the electrical outlet down the cord .
• Do not lift , carry, or pull the pump by the power cord .
• Do not replace the pump cord . stop using the pump if it sustains damage
(option for pump with safe low voltage) .
• Always use the transformer provided to run the water pump or consult
with your electrician before other transformer is
connected .
• Do not connect the transformer provided to other appliance.
• Always unplug the power transformer from the electrical outlet before any
cleaning and handling.
• Indoor use only. place the transformer away from fire , moisture & direct
sunlight. (option for pump with light)
• The supply cord cannot be replaced. If the cord is damaged the
appliance should be scrapped.
To clean the pump
• unplug the pump from electrical outlet. use a small soft brush or place it
underwater stream to remove debris.
To keep water clean
• periodically change water to prevent water from becoming sticky and
forming microorganisms.
Troubleshooting
if the pump fails to run, the following should be checked, · check the circuit
breaker, or try a different outlet to make sure that the pump is getting
electrical power. NOTE-Always disconnect the pump from electrical outlet
before checking.
• check the pump discharge and tubing for kinks and obstructions. · Algae
buildup can be flushed out with a garden hose.
WARNING !!! the water pump must be fully soaked or it will be damaged!
- 4 -
Disposal information
This product is subject to the provision of European Directive
2012/19/EC. The symbol showing a wheelie bin crossed through
indicates that the product requires separate refuse collection in the
European union. This applies to the product and all accessories marked
with this symbol. products marked as such may not be discarded with
normal domestic waste , but must be taken to a collection point for
recycling electrical and electronic devices.
please read this manual carefully before using the product.
BOM
Item
Part Name
QTY
1
Boiler Lid
1PCS
2
Boiler Pot
1PCS
●
- 5 -
3
Cooling bucket
1PCS
4
Corrugated pipe
1PCS
5
Copper Connection
1PCS
6
Copper Connection
1PCS
7
Silicone Tubes
2PCS
8
Copper pipe
1PCS
- 6 -
9
Wine copper pipe
1PCS
10
Nut
1PCS
11
Short Silicone Tube
1PCS
12
Copper Extension Tube
1PCS
13
Thermometer
1PCS
- 7 -
14
Brass Nut
1PCS
15
Bubble Airlock
1PCS
16
Stopper
1PCS
17
Silicone Washer
2PCS
18
Gasket
2PCS
- 8 -
19
Pump
1PCS
20
User Manual
1PCS
Product Introduction
• stainless steel fermenters concentrate steam by heating to boiling and
then cooling. In addition , the entire alcohol distillation unit is made of 201
food-
grade stainless steel , which is durable and easy to clean .
• Efficient condensation Treatment: The alcohol distiller adopts stainless
steel spiral tube , which has fast thermal conductivity and ensures good
cooling
performance. At the same time , it has a large contact area with the
condenser keg and provides a relatively low distillation temperature.
• Full set of Accessories: The set comes with a thermometer (0 - 150℃/32
-302℉) for easy real-time monitoring of alcohol temperature. Also includes
a one-way vent valve and adds 2/3 water to it to help release air (only gas
out) when the grain is fermented. our distillation kits also include an alcohol
meter kit for accurate measurement of wine strength.
• Multiple Heating Methods: This wine boiler is compatible with various
stoves including gas stove , coal stove , and firewood. It's perfect for
fermented liquors such as beer, brandy, whiskey, wine , and seasonings
such as Soy sauce and vinegar.
The following are the reference data , the yield is mainly determined by the
fermentation , distillate time and fire power.
- 9 -
Volume
Model No
Dimension(mm)
Wine barrel
Cooling
bucket
Filter barrel
3 Gal
11.4L
(±10%)
STD-10L-U
Φ250×H250
Φ200×H110
Φ180×H100
STD-10L-E
Φ250×H250
Φ200×H110
Φ180×H100
STD-10L-A
Φ250×H250
Φ200×H110
Φ180×H100
5 Gal
19L
(±10%)
STD-20L-U
Φ300×H300
Φ200×H110
Φ180×H100
STD-20L-E
Φ300×H300
Φ200×H110
Φ180×H100
STD-20L-A
Φ300×H300
Φ200×H110
Φ180×H100
8 Gal
30L
(±10%)
STD-30L-U
Φ350×H350
Φ200×H110
Φ180×H100
STD-30L-E
Φ350×H350
Φ200×H110
Φ180×H100
STD-30L-A
Φ350×H350
Φ200×H110
Φ180×H100
13.2
Gal
50L
(±10%)
STD-50L-U
Φ400×H400
Φ200×H110
Φ180×H100
STD-50L-E
Φ400×H400
Φ200×H110
Φ180×H100
STD-50L-A
Φ400×H400
Φ200×H110
Φ180×H100
Warning To reduce the risk of injury, user must
read instructions manual carefully.
BEFORE YOU START
please read all instructions carefully.
Retain instructions for future reference. separate and count all
parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that , where possible , all items are assembled near to the
- 10 -
area in which they will be placed in use , to avoid moving the production
necessarily once assembled.
Always place the product on a flat , steady and stable surface.
keep all small parts and packaging materials for this product away
from babies and children as they potentially pose a serious choking
hazard .
OWNER'S MANUAL
ATTENTION! PLEASE READ THESE INTRUCIONS BEFORE
USING THIS DEVICE
NOTICE:
If your package is missing parts or you are having issues with assemble ,
our customer service team will address any questions or concerns you
may have . please have this manual open and ready for reference.
SAFETY
- 11 -
To reduce the risk of fire or injury when using your distiller follow these
precautions:
• lf the water/Alcohol Distiller is to be used for making distilled alcohol
beverages , it must be used only by adults of legal drinking age. Never
attempt to operate distiller while under the influence of alcohol , etc.
• consult federal and state laws and obtain any permits required for
distilling alcohol .
• Distilling outdoors is always preferred.
• Never use distiller over an open-flame heat source indoors. An electric
heat source is preferred.
• Never leave hot or boiling liquids on a heat source unattended .
• keep distiller and any heating unit out of reach and away from children .
o use caution when removing Boiler Lid while heating any liquid within
the Boiler.
• To avoid affecting the normal operation of the distiller , it is recommended
not to exceed 70% of the rated volume during distillation .
• Do not heat or boil liquids in the distiller if all openings are blocked or
closed . steam and heat must be allowed to escape through the
• Condenser unit or one of the holes in the Boiler Lid for safe operation.
Failure to do So may result high pressure and explosion.
• Prevent alcohol vapor from leaking from the Distiller Alcohol vapor is
highly explosive.
• Always check for, and address any leaks during the alcohol distilling
process.
• To prevent liquid/mash contents of the boiler pot from overflowing or
being forced up into the condenser copper tube or into the bubble airlock ,
always leave approximately4" of airspace above the top of contents of the
boiler pot.
• RISK OF METHANOL POISONING: Avoid consumption of Methanol
(Methyl Alcohol)!
Methanol can cause blindness and be fatal . carefully follow precautions in
recipes for distilled beverages. Discard the first 4- 7 oz (100 -200ml) of
liquid as it comes out of the condenser Distillate outlet , for of each 5
- 12 -
gallons (20L) of fermented "mash " . These first ounces are often referred
to as " heads" or fore-shots" . DO NOT CONSUME THEM .
PARTS & FEATURES

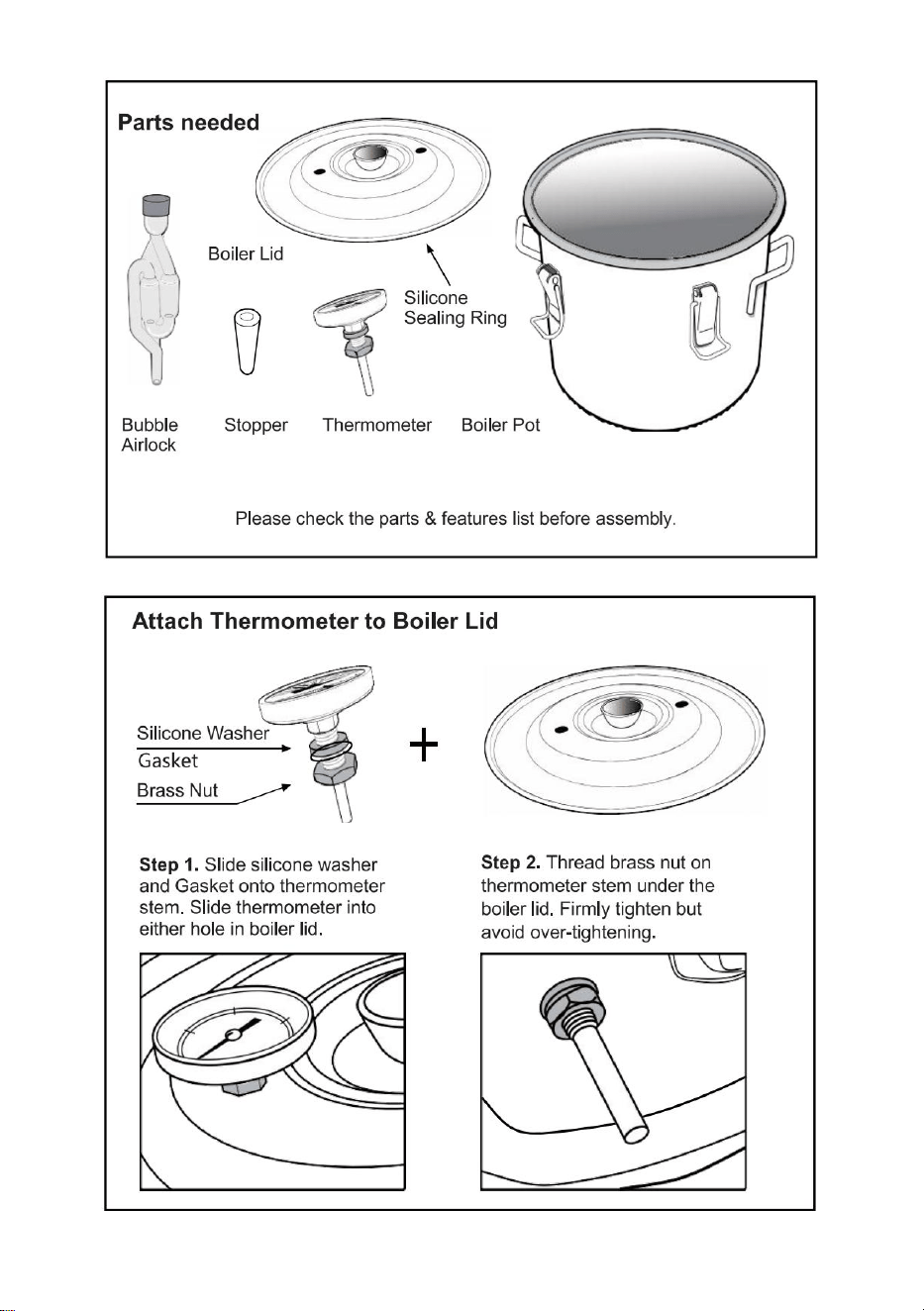

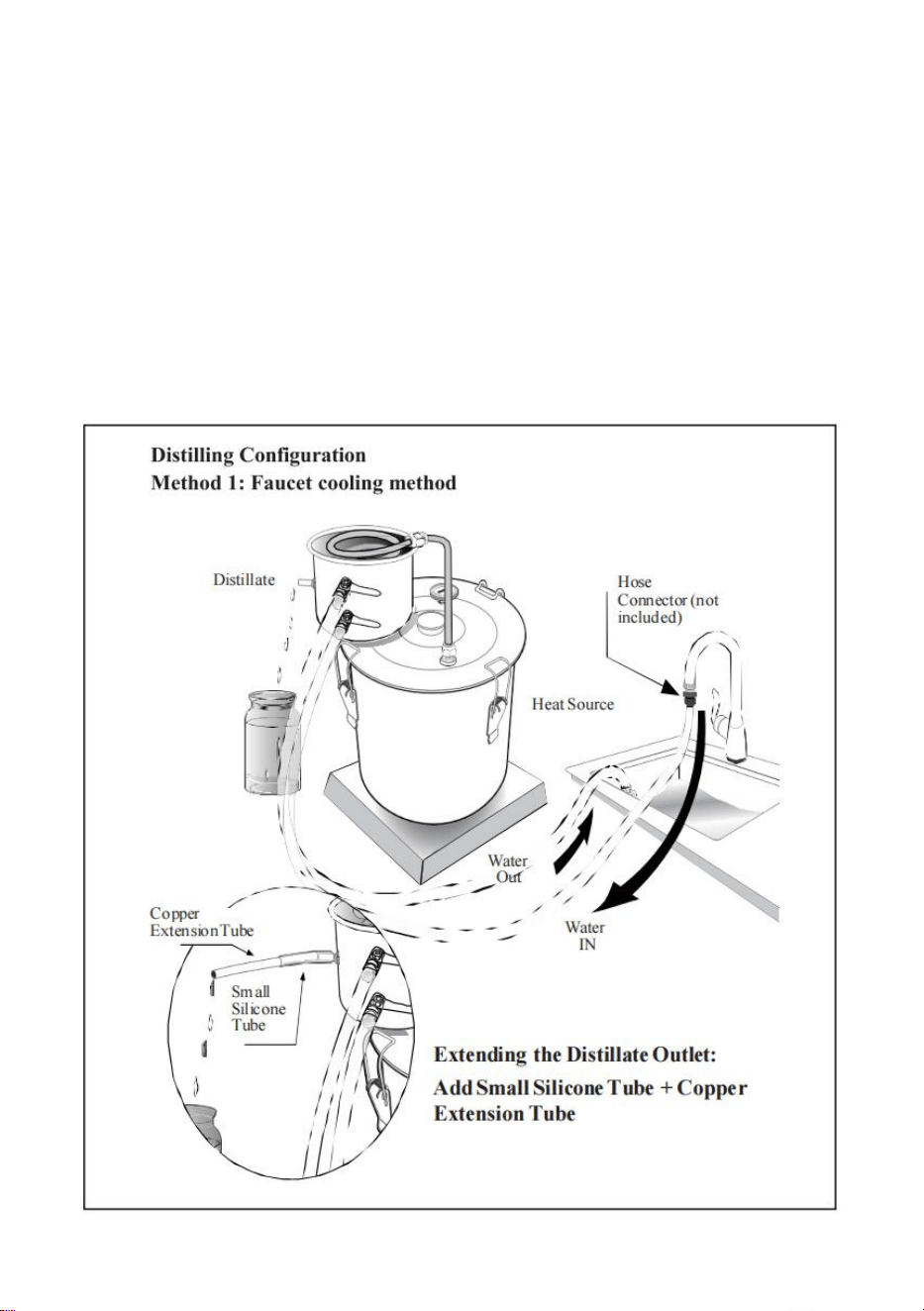

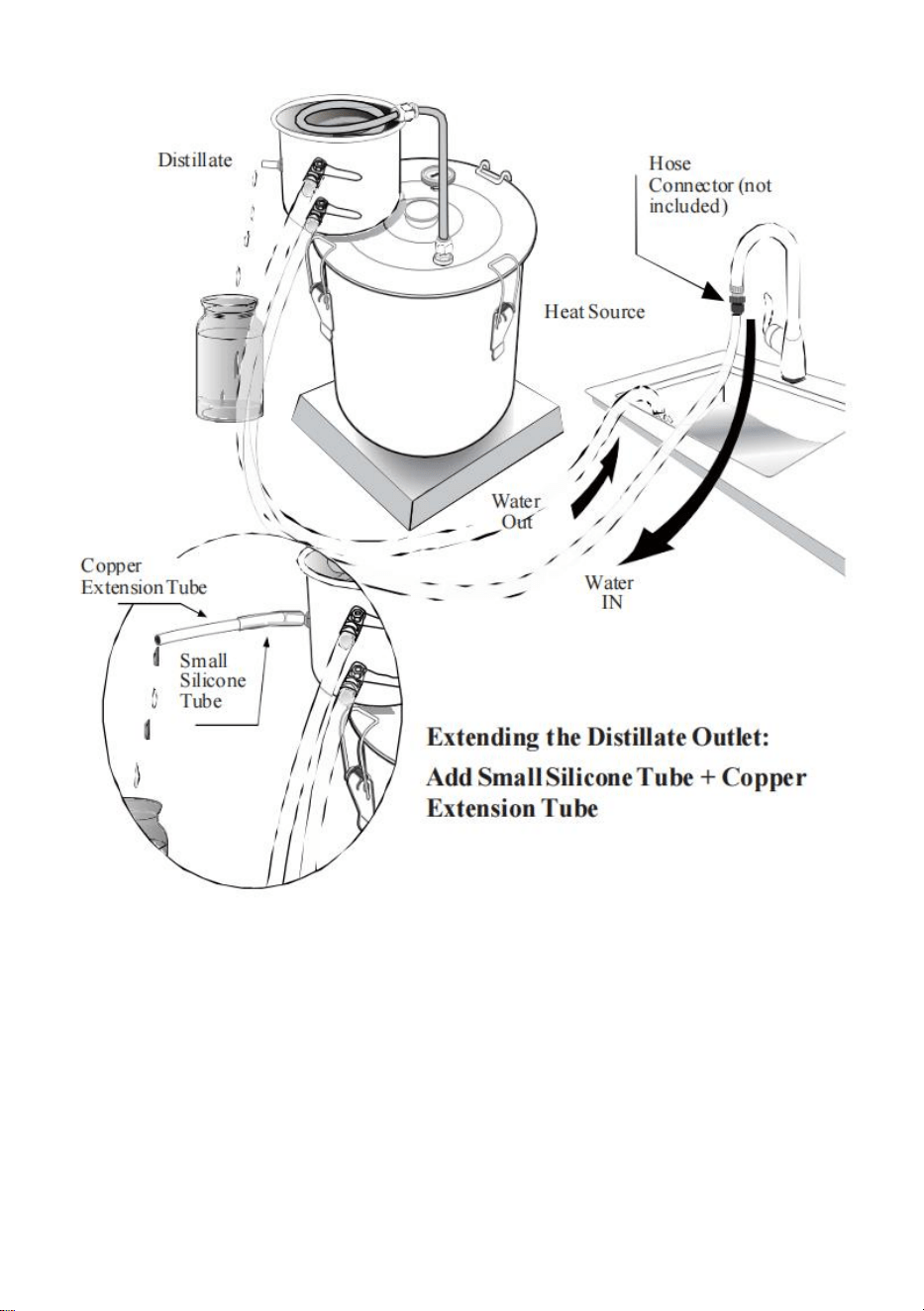

SETTING UP FOR DISTILLING
- 13 -
• Wash all parts with dish soap and hot water before assembling.

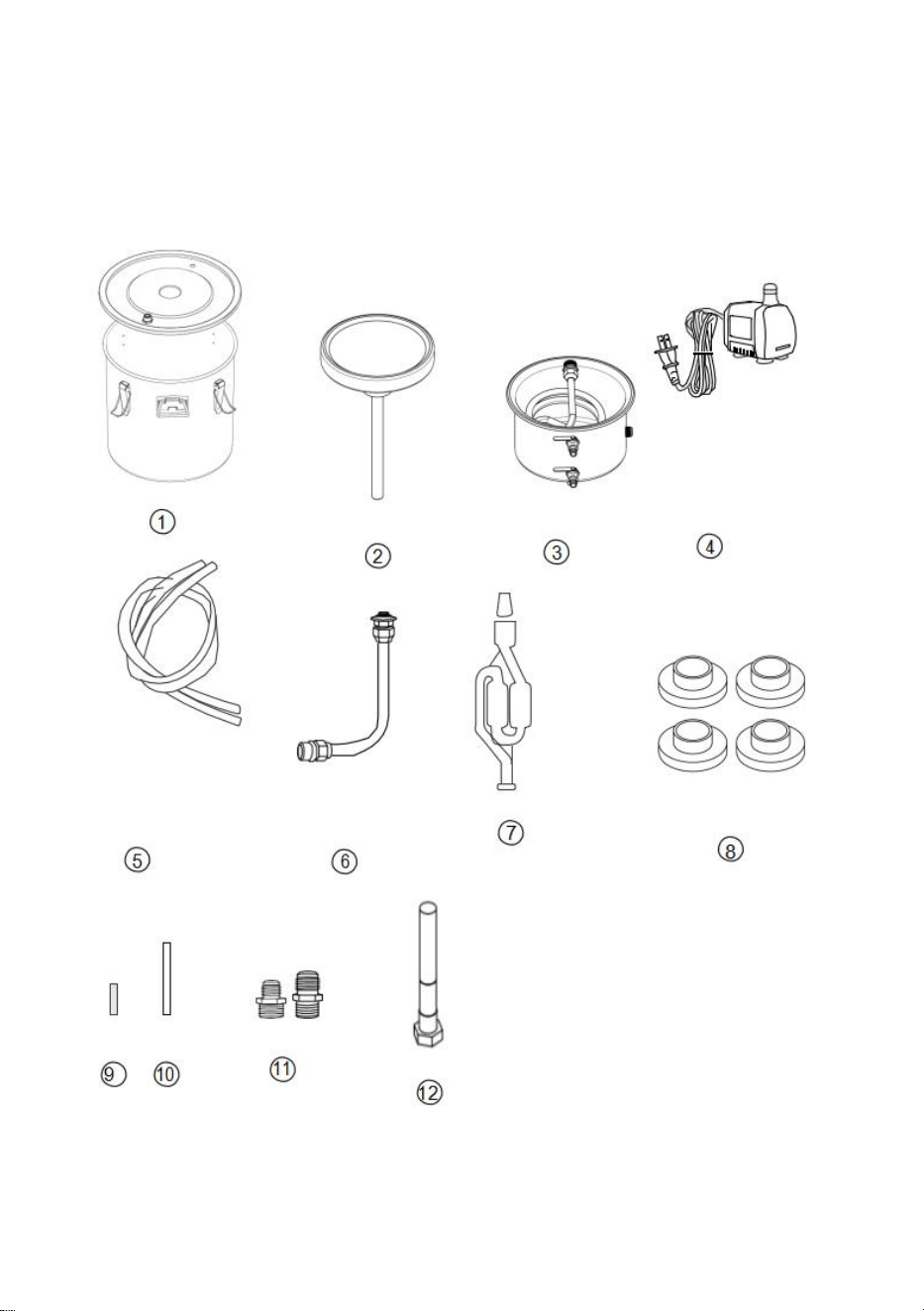

PARTS & FEATURES
①
Fermenter pot
X1
⑦
Exhaust valve
X1
②Metal thermometer
X1
⑧Extension silicone tube
X1
③
Corrugated pipe
X1
⑨
Extension copper pipe
X1
④
Pump
X1
⑩
Wine ou
X1
⑤Water outlet/inle
X1
⑥
Copper pipe
X1
Equipment cleaning and Maintenance
The distiller needs to clean the inside of its pot, condenser and other
components before or after each use , and drain all the impurities inside it.
After we have used the distilled water dispenser, we need to clean it every
- 14 -
once in a while. pay attention to cleaning the inner wall of its evaporation
pot, the inner wall of the condenser, the surface of the condenser tube and
the scale in the outlet pipe of the condenser. Avoid affecting its use.
For some newly purchased stills , we need to clean them first and power
them on for more than 2 hours to evaporate until the obtained distilled
water meets the requirements. Remember not to cut off the water during
use .
Note that when the distilled device is working , its surface temperature
will be very high , So be careful not to touch it to prevent being scalded.
please wait until the temperature drops to normal temperature before
cleaning.
USING YOUR WATER/ALCOHOL DISTILLER
Before making your first fermented and distilled beverages , or distilling
water, perform the followings:
• wash all parts of your distiller with hot water and dish soap and dry
completely.
• perform a "vinegar Run " described in the Distilling section .
• If distilling water only, perform a "water Run " by distilling 1 gallon or more
of clean water, which will be discarded .
• Your Distiller can be used for the fermentation process , and then used for
the addition process.
• For fermenting , use the Fermenting configuration , for Distilling use the
Distilling configuration.
• This product manual is not a complete guide to fermenting and distilling In
order to produce a satisfying and safe product suitable for adult
consumption , please consult books , recipes , and how-to resources and
videos on-line , in bookstores and libraries.
• Caution: RISK OF METHANOL POISONING
• Avoid consumption of Methanol (Methyl Alcohol)! Methanol can cause
blindness and be fatal .
• Carefully follow precautions in recipes for distilled beverages. Discard
- 15 -
the first4-7 oz (100 - 200ml) of liquid as it comes out of the condenser
Distillate outlet , for of each 5 gallons (20L) of fermented " mash " . These
first ounces are often referred to as "heads " or "foreshots" . DO NOT
CONSUME THEM.
MAKING DISTILLED SPIRITS:
A2 stage process: Fermenting &Distilling STAGE1 : FERMENTATION
• Fermenting beverages into wine or beer is the first step to then producing
brandy, whiskey origin.
• The next step is distilling the results of fermentation , resulting in greater
concentrations of alcohol , and refinement of color and flavors. Distilling the
result a second time further concentrates alcohol and clarity.
• Fermentation is the process of microorganisms , usually yeast ,
• converting (metabolizing) sugars into carbon dioxide and alcohol . The
carbon dioxide bubbles out of the beverage , leaving behind alcohol .
• Beer, Ale and wine are fermented beverages which are complete at this
stage. They do not need to go through the second stage: distillation .
• A wide variety of foods can be fermented . Grains such as corn , wheat ,
barley, or rye , are used for many beverages , such as beer and whiskey.
Fruits , sugars , rice , and molasses are most often used to make
wine,brandy, rum , and other spirits. potatoes are used to create vodka.
• You can use a separate large container for fermenting The fermentation
process happens over several days or weeks. You may wish to keep your
Distiller available for distilling only. use clean glass , stainless steel or
food-safe ceramic or plastic containers. It's helpful to have 2 or more
containers available.

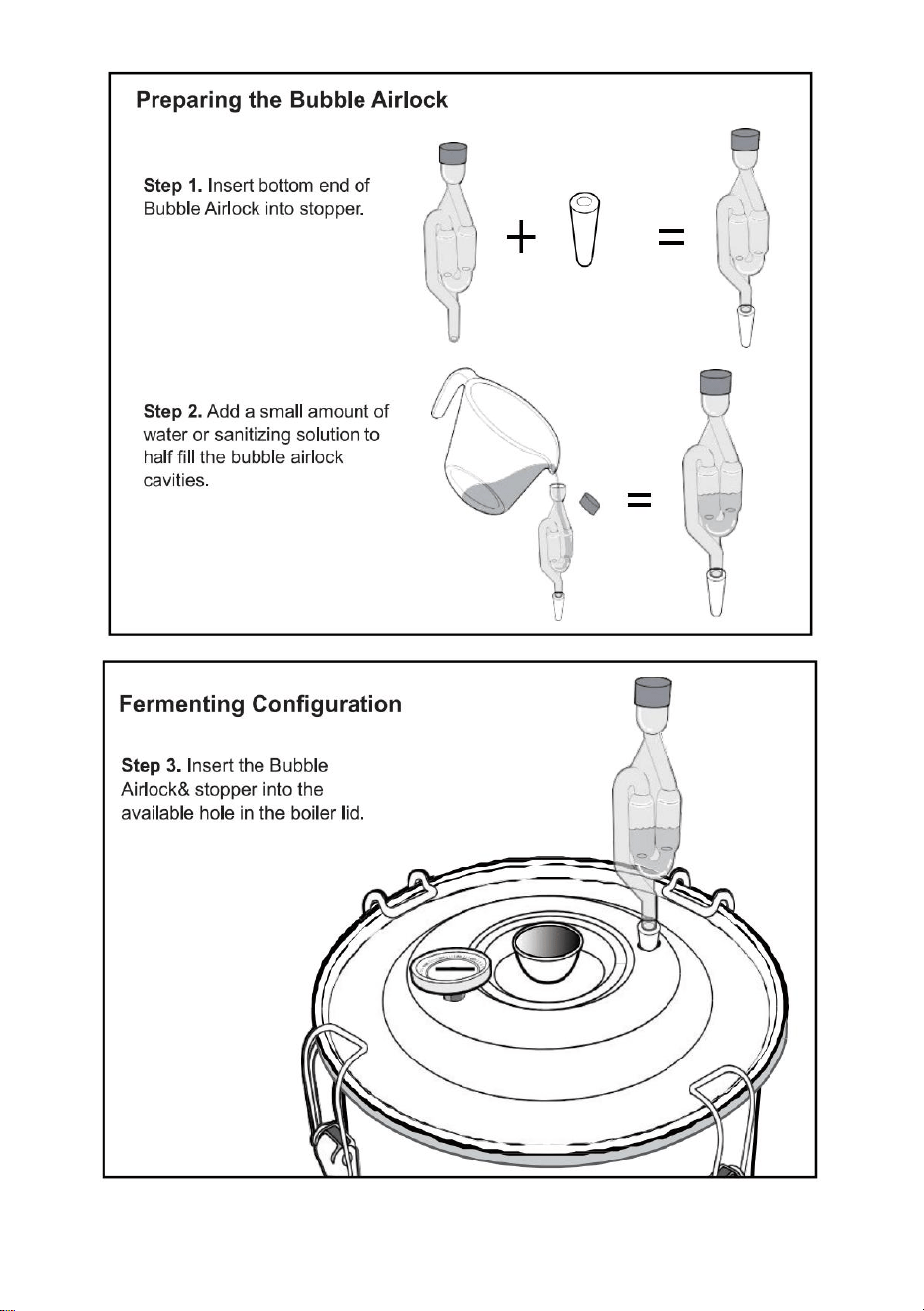

SETTING UP FOR FERMENTING
• Wash all parts with dish soap and hot water before assembling.
- 16 -
- 17 -
- 18 -
STAGE 2: DISTILLING
Distillation of fermented beverages is the process of concentrating the
alcoholic content by separating much of the alcohol from the fermented
product. Slowly heating the fermented beverage in the Distillation causes
the alcohol to vaporize, rise into the Copper Coil and then be cooled as it
travels through the condenser. The alcohol in the fermented beverage
turns to vapor at about 173°F, before the water content of the beverage
turns to steam at 212°F. As the alcohol cools, it drips from the Condenser
Distillate Outlet.
This more pure form of alcohol dipping from the Distillate Outlet (after the
initial 4- 7 oz) is ethanol.
Read the caution about methanol(See Distillation Configuration)
SET UP WATER FLOW TO CONDENSER
Provide a continuous source of cold water to the condenser pot. The
cold water flowing into the condenser pot cools the distillate flowing
through the copper coil . There are two methods:
Method 1 . Home faucet method:
Locate lose end of the condenser's "water out" tube . Attach a hose
connector (not included) to it.
Attach hose connector your home faucet.
place the loose end of the "water out" tube to drain into sink basin .
Distilling Configuration
Method 1: Faucet cooling method
- 19 -

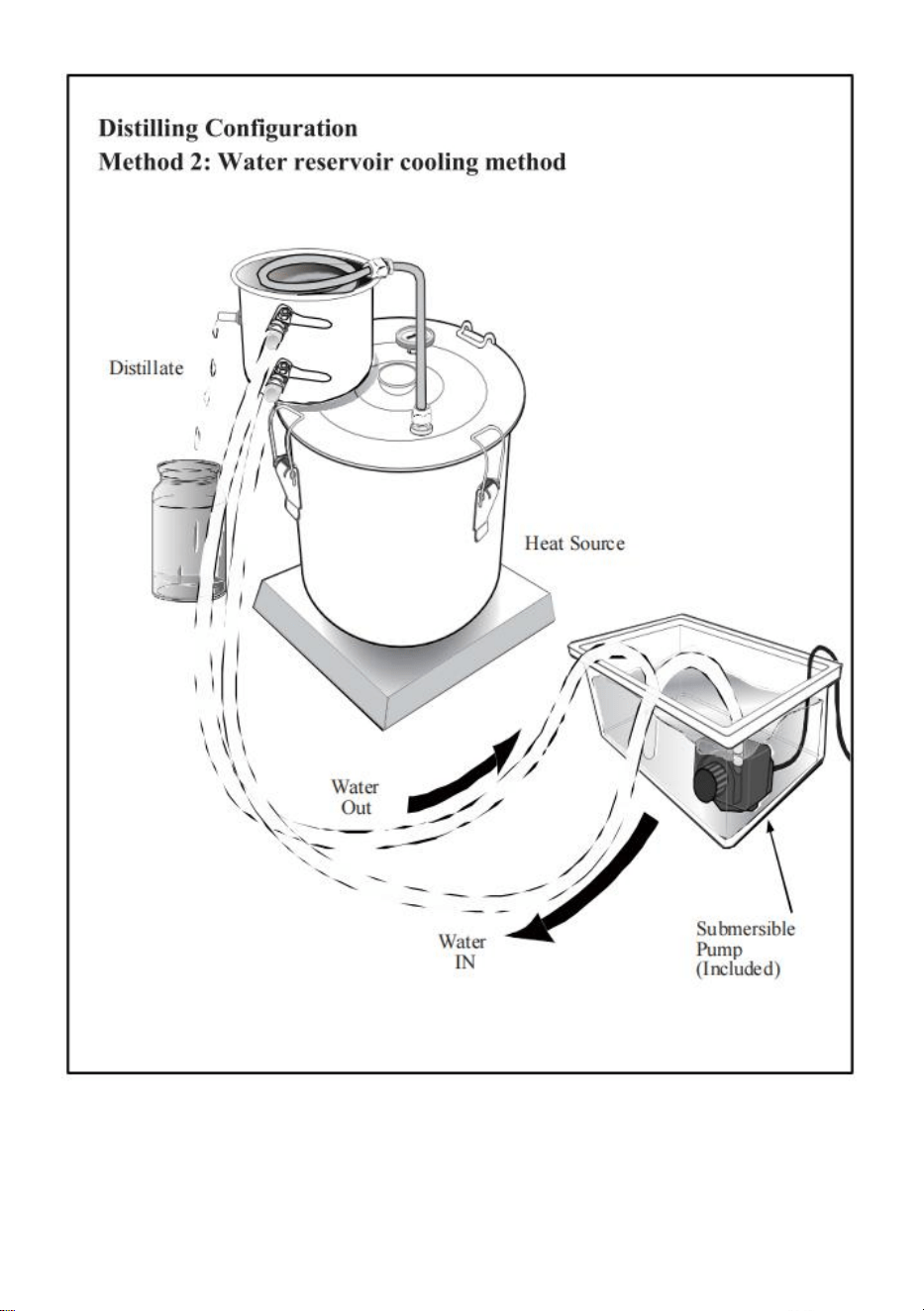

Method 2. Water reservoir method:
Recirculate cold water from a cold-water reservoir: Fill a large container
with cold water.
Place a submersible pump (included) into the container.
Connect the pump to the "Water In” Tube, which is connected to the
Condenser.
The Condenser's "Water Out" Tube will drain into the container.
- 20 -
BEFORE DISTILLING:
- 21 -
The preliminary Runs
Vinegar Run (using the Distilling configuration)
The vinegar Run cleans the parts of the distiller more thoroughly than soap
and water. perform this before your first use of your Distiller.
step 1 . combine 1/2 gallon white vinegar and 1/2 gallon tap water in the
Boiler pot.
step 2 . Latch in place the Distiller Lid with the condenser and
Thermometer attached.
step 3 . start cold water flow to the condenser.
step4 . Heat on medium to high heat until steaming. and liquid drips out of
the distillate outlet.
step 5 . Turn off heat , allow to cool Dispose of the distilled vinegar and
water mixture.
step 6 . Follow this by performing the "sacrificial Run " .
Sacrificial Run (Final cleaning Run &christening of your still)
• The sacrificial Run clears the distiller pats of anything which might affect
the purity of favors of your distilled beverages or distilled water. This stage
is considered a " rite of passage " .
• Follow instructions for making your first batch of a distilled beverage.
Distill the first batch , but discard and do not drink it.
Caution about the output of Distilled Beverages:
• RISK OF METHANOL POISONING
Avoid consumption of Methanol (Methyl Alcohol)! Methanol can cause
blindness and be fatal .
carefully follow precautions in recipes for distilled beverages Discard the
first 4 -7 oz (100- 200ml) of liquid as it comes out of the condenser
Distillate outlet , for of each 5 gallons (20L) of fermented " mash " . These
first ounces are often referred to as " heads" or "foreshots" . DO NOT
CONSUME THEM.
SET UP WATER FLOW TO CONDENSER
- 22 -
Provide a continuous source of cold water to the condenser pot. The cold
water flowing into the condenser
Pot cools the distillate flowing through the copper coil. There are two
methods:
Method 1. Home faucet method:
Locate lose end of the condenser's "water out" tube. Attach a hose
connector (not included) to it.
Attach hose connector your home faucet.
Place the loose end of the "water out" tube to drain into sink basin.
- 23 -

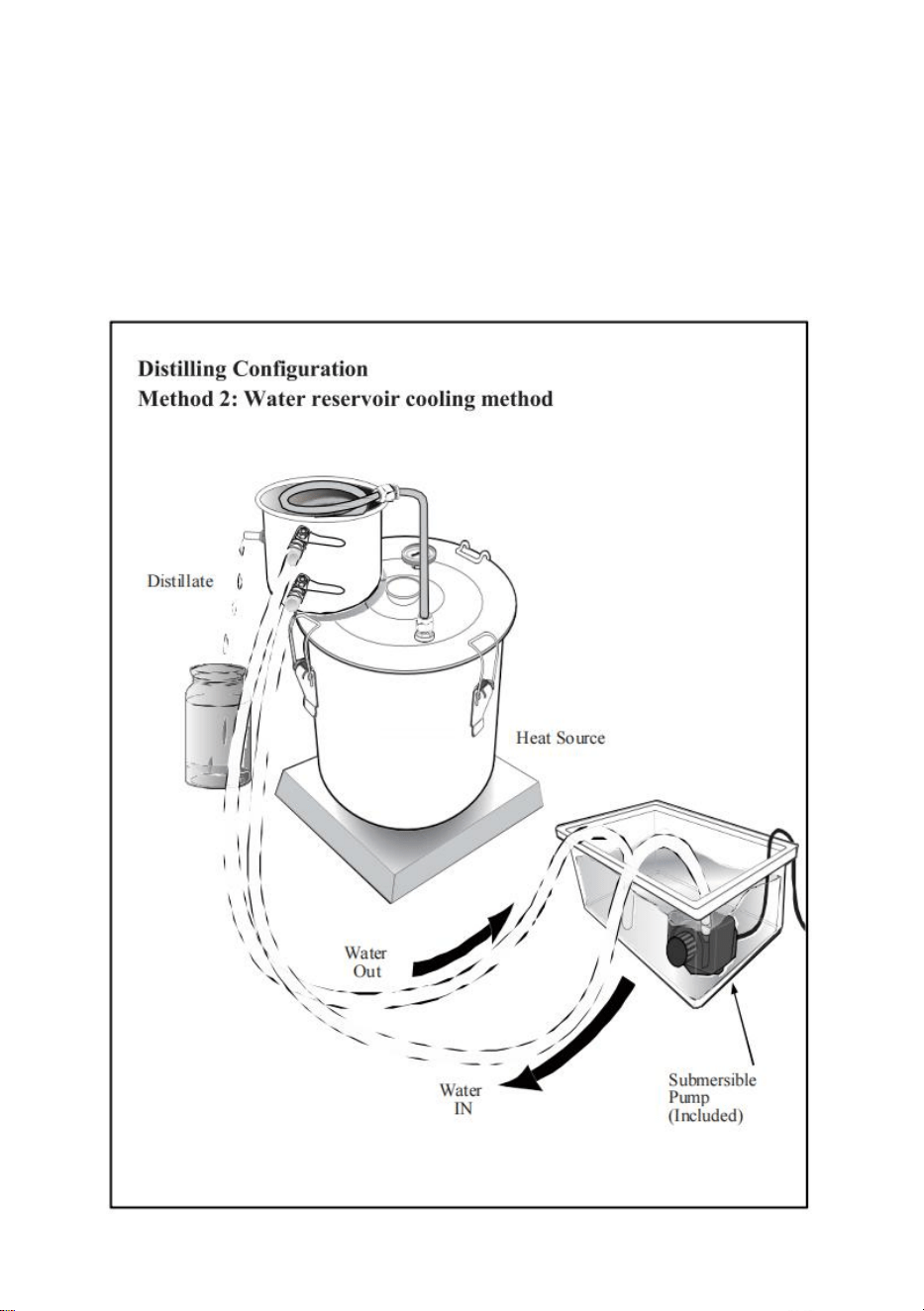

Method 2. Water reservoir method:
Recirculate cold water from a cold-water reservoir: Fill a large container
with cold water.
Place a submersible pump (included) into the container.
Connect the pump to the "Water In” Tube, which is connected to the
Condenser.
The Condenser's "Water Out" Tube will drain into the container.
- 24 -
BEFORE DISTILLING:
The Preliminary Runs
Vinegar Run (using the Distilling Configuration)
• The Vinegar Run cleans the parts of the distiller more thoroughly than
soap and water. Perform this before your first use of your Distiller.
Step 1. Combine 1/2 gallon white vinegar and 1/2 gallon tap water in the
Boiler Pot.
Step 2. Latch in place the Distiller Lid with the Condenser and
Thermometer attached.
Step 3. Start cold water flow to the Condenser.
Step 4. Heat on medium to high heat until steaming. and liquid drips out of
the distillate outlet.
Step 5. Turn off heat, allow to cool Dispose of the distilled vinegar and
water mixture.
Step 6. Follow this by performing the “Sacrificial Run".
Sacrificial Run (Final Cleaning Run & Christening of your still)
• The Sacrificial Run clears the distiller pats of anything which might affect
the purity of favors of your distilled beverages or distilled water. This stage
is considered a “rite of passage”.
• Follow instructions for making your first batch of a distilled beverage.
Distill the first batch, but discard and do not drink it.
Caution about the output of Distilled Beverages:
• RISK OF METHANOL POISONING
Avoid consumption of Methanol (Methyl Alcohol)! Methanol can cause
blindness and be fatal.
Carefully follow precautions in recipes for distilled beverages Discard the
first 4-7 oz (100 200ml) of liquid as it comes out of the Condenser Distillate
Outlet, for of each 5 gallons (20L) of fermented "mash". These first ounces
are often referred to as "heads" or “foreshots”. DO NOT CONSUME
THEM.
- 25 -
How to use
Distill Liquor
1. choose good common rice for steaming , add the steamed rice in the
ratio of 500g grain , 1kg water and 5g distilled yeast, mix well and then
carry out liquid fermentation .
2. Fermentation temperature of20 -25℃ , stirring once a day,
fermentation10 -20 days.
3. Fill the fermented grain into the matching filter bag and pour the liquid
produced during the fermentation process direct y into the barrel. Then
place the bag containing the grain directly on the grate (to prevent
gumming up the pot) . After installation, the distillation starts, the
pre-prepared submersible pump is connected to the power supply for
cooling water circulation when there is heat at the outlet.
Distill Hydrolat
1. choose the petals or other plants you like.
2. soak the petals in pure water for 3-5 cm for 8 hours (only for dried
petals) .
3. Take out the petals and place them in a matching strainer bag. Then ,
place the filter bag with the petals on the grate, pour the soaked water into
the bucket, install it and start distilling.
Distill Brandy
1. crush grapes , and add ingredients such as pectinase , yeast ,
fermentation promoter and tannin in proper order.
2. Add white sugar in the next day of fermentation , and generally separate
peels and residues after fermentation for 7 - 10 days.
3. Add bentonite into the separated wine for ageing and clarification.
4. put the separated peel and residue into a filter bag , put the bag on the
grate and add water at the bottom of the barrel. The distilled spirit is
brandy ·
- 26 -
Ferment wine
1. crush grapes , and add sulfur regulating tablets to prevent microbial
contamination .
2. Add pectinase to decompose pectin and increase juice yield. 3 . Add
yeast, ferment for 7- 10 days , and increase juice yield.
4. Add bentonite for clarification after filtration , brew for about 1 month ,
and put the wine in a bottle.
5. store the wine in a cool place after bottling.
