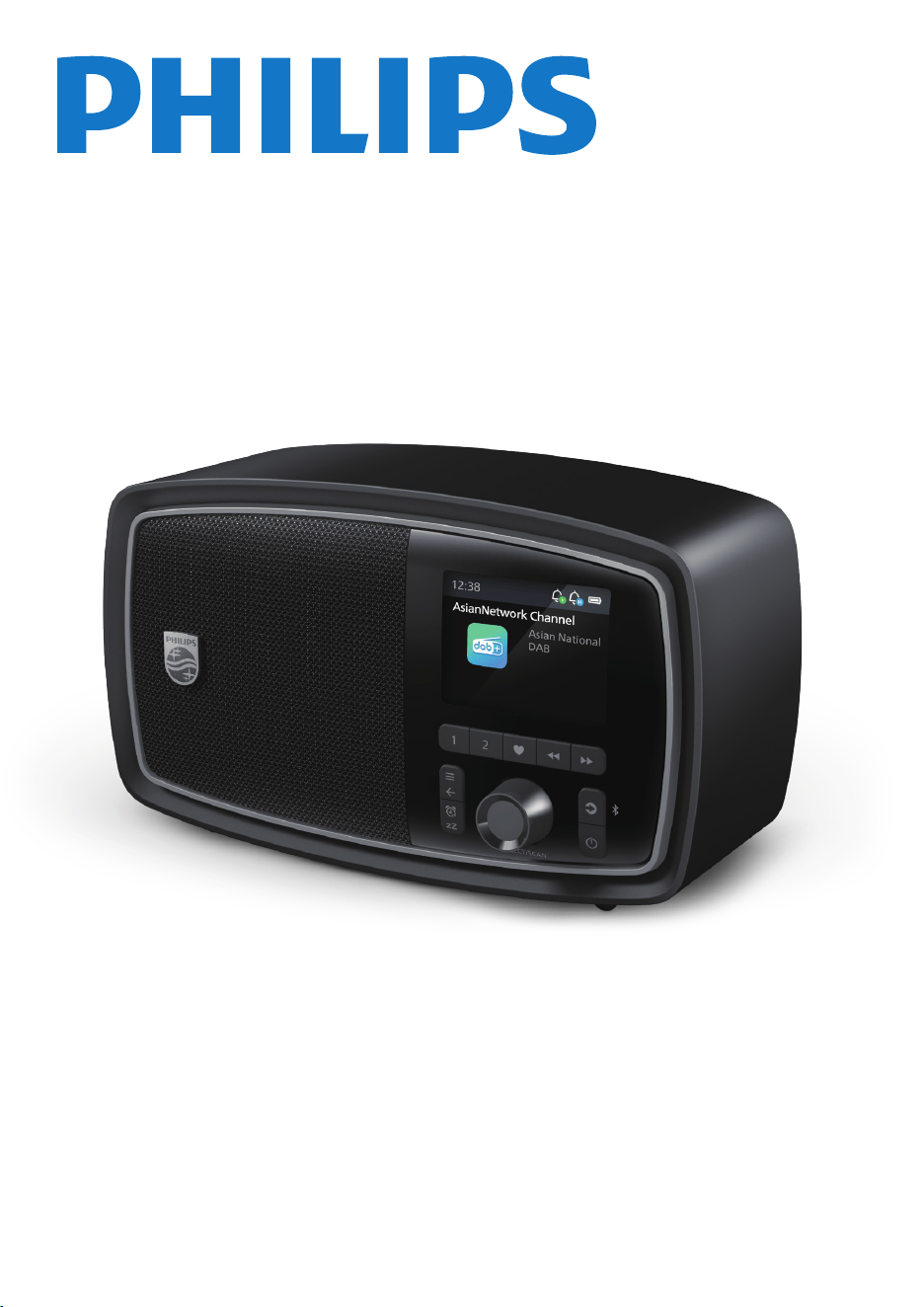

Portable Radio
TAV2000DB
User manual
Register your product and get support at
www.philips.com/support
1EN
7 Listen to FM radio 13
Auto tuning 13
Manual tuning 13
13
Search and store FM radio stations
automatically
Store FM radio stations manually 13
Store and select favorite stations 13
Select a preset radio station 14
Scan sensitivity setting 14
Show RDS information 14
Show menu in FM mode 15
8 Listen to Bluetooth® music 16
Connect Bluetooth® 16
Disconnect Bluetooth® 16
16 Clear Bluetooth® pairing records
Play music 16
Show menu in Bluetooth® mode 17
9 Kitchen timer setting 18
Set kitchen timer 18
Stop kitchen timer sounds 18
Cancel the kitchen timer 18
10 Other features 19
22
Compliance
Safety 2
Introduction 3
What's in the box 3
Overview of the portable radio 4
3 Get started 5
Charge the built-in battery 5
Adjust volume 5
Adjust display brightness 5
Show menu in standby mode 6
4 Clock setting 7
Automatically set the clock 7
Manually set the clock 7
Set time format 7
Set date format 7
Clock style 7
5 Alarm setting 8
Set alarm time 8
Activate/deactivate alarm timer 8
Snooze 9
6 Listen to DAB radio 10
Tune to DAB radio stations 10
Manual tuning 10
10 Store DAB radio stations
Store and select favorite stations 11
Select a preset radio station 11
Remove invalid stations 11
DRC 11
Show DAB information 11
Show menu in DAB mode 12
Contents
22
2 EN
1
Important
Safety
• Read these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not block any ventilation openings.
• Do not install near any heat sources such as
radiators, heat registers, stoves, or other
produce heat.
• Keep this product away from direct sunlight,
• The product shall not be exposed to dripping
or splashing.
•
surface.
• Do not place any source of danger on the
• Never place this product on other electrical
equipment.
•
by the manufacturer.
• Never remove the casing of this product,
personnel. Servicing is required when the
product has been damaged in any way, such
as power-supply cord or plug is damaged,
into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
•
shall not be exposed to excessive heat such
• Danger of explosion if batteries are
incorrectly replaced. Replace only with the
same or equivalent type.
• Battery in extreme high or low temperatures
during use, storage or transportation, and
low air pressure at high altitude can pose
safety hazards.
• Risk of explosion if a battery is replaced by
an incorrect type.
• Do not replace a battery with an incorrect
type that can defeat a safeguard (for
• Install all batteries correctly.
• Leaving a battery in an extremely high
temperature surrounding, or an extremely
low air pressure environment may result in
or gas.
• Batteries contain chemical substances. They
should be disposed of properly.
• If you suspect that a battery has been
swallowed or placed inside any part of the
body, seek immediate medical attention.
• When you change the batteries, always keep
all new and used batteries out of reach of
children. Ensure that the battery compart-
ment is completely secure after you replace
the battery.
• If the battery compartment cannot be
completely secured, discontinue use of the
product. Keep out of reach of children and
contact the manufacturer.
• This product shall not be exposed to
dripping or splashing.
• Do not place any sources of danger on the
• Please use the product safely in an environ-
ment with temperature between 0°C and
45°C.
•
supplied only by external power
source which output shall comply
with PS1 (with output capacity less
• The power delivered by the charger
must be between min. 5 Watts
required by the radio equipment,
and max. 15 Watts in order to
achieve the maximum charging
speed.
3EN
2
Your portable radio
Congratulations on your purchase, and welcome
www.philips.com/support.
Introduction
With this portable radio, you can
•
FM radio and Bluetooth® music;
• ;
What's in the box
Check and identify the contents of your package:
• Main unit
• TYPE-C charging cable
• Quick start guide
• Safey sheet
Warranty
•
www.philips.com/welcome
Note
• Images, illustrations and drawings shown on this
user manual are for reference only. Actual
product may vary in appearance.
4 EN
• Store/directly access preset 1 or 2.
Favorite stations (1 or 2)
• Switch to DAB/FM/Bluetooth source.
• Bluetooth pairing.
Overview of the portable radio
7
1
2
3
4
6
5
10
12
11
13
8
9
• Back to previous menu.
• Exit menu setting.
• To activate preset programming mode.
• Select a preset radio station.
• Set time.
• Tune to a radio stations.
• Navigate through the menu list.
• Previous track.
Headphone jack
DAB/FM antenna
Battery cover
• Snooze alarm.
• Sleep setting.
•
• Stop alarm.
• Enter menu setting.
• Display info.
•
• Set time.
• Tune to a radio station.
• Navigate through the menu list.
• Next track.
•
•
Enter selected menu item list.
Adjust volume or select a menu option.
Store the preset stations selected.
• Scan and store radio stations automatically.
• Play/pause.
®
1 2 3 4 5 6
7
8
9
10
11
12
13
5EN
3
Get started
Adjust display brightness
1
Press to access menu.
3
2
4
Press
to exit the menu.
Adjust volume
While listening, rotate the knob to adjust
volume.
Always follow the instructions in this chapter
in sequence.
•
Press to turn the unit on.
The radio switches to the last selected source.
• Press to switch the unit to Standby.
The portable radio is powered by a built-in
rechargeable battery.
Charge the built-in battery
When the portable radio is being charged,
the icon ' ' is shown.
When the portable radio is fully charged,
the icon ' ' is shown.
Note
•
An icon ' ' is shown when the battery power is low.
Please recharge the built-in battery as soon as possible.
standby
Note
• Bluetooth device not connected for more than 15 minutes
In any mode, press and hold for three seconds to turn
off the unit directly. The display screen turns off.
or connected but not playing, the radio switches to
standby mode automatically.
•
5
Connect the TYPE-C socket on the portable
radio to an outlet (5V 2A) by using the
provided TYPE-C cable.
5V 2A
Turn the rotary knob or press to select
[Backlight level], and then press SELECT to
con�rm.
Turn the rotary knob or press to select
[Display], and then press SELECT to con�rm.
Turn the rotary knob or press to select
brightness level (High, Medium, Low) on the
display screen, and then press SELECT to
con�rm.
/
/
/
Note
• Please note that your device contains built-in lithium
batteries. The charging capacity of lithium batteries
will decrease over time due to their self-discharge
characteristics. To ensure the longevity of your device's
battery, we recommend charging the built-in lithium
battery to around 50% every 6 months when the
device is not in use.
6 EN
Show menu in standby
mode
1
In standby mode, press to access menu.
2
• [Display]: adjust Backlight setting/Dim
setting/Timeout setting.
• [Alarm]
setup.
• [Clock]: set time synchronization, date/time,
select time format and date format.
• [System]
3
Repeat Step 2 if any sub-option is available
under one option.
4
Press to return to the previous menu.
When the unit is in standby mode, you can access
the menu for control options.
Display
Alarm
Clock
System
Backlight level
Higt
Medium
Low
Dim level
Timeout
Alarm 1
Alarm 1 setup
Alarm 2
Alarm 2 setup
Set auto/manual
Set time&date
Set 12H/24H
Set date format
Clock style
Language
Factory reset
SW version
On
On
Manual
12H
24H
MM-DD-YYYY
DD-MM-YYYY
YYYY-MM-DD
English
Deutsch
Italiano
Français
Norsk
Dansk
Nederlands
Svenska
Español
Suomi
Polski
Yes
No
Standby
Turn the rotary knob or press to select
a menu option, and then press SELECT to
con�rm the option or enter the lower-level
menu.
Higt
Medium
Low
10 seconds
Always on
20 seconds
30 seconds
60 seconds
90 seconds
120 seconds
180 seconds
/
Classic analog
Normal digital
Frequency
Wake Up time
Source
Frequency
Wake Up time
Source
7EN
1
Press to access menu.
2
3
4
5
Press to return to the previous menu.
Note
• If no button is pressed within 30 seconds, the menu exits.
4
Clock setting
Manually set the clock
1
Press to access menu.
2
3
4
5
6
7
In DAB/FM RDS station, the unit can synchronize
with time transmitted by DAB/FM RDS station
Automatically set the
clock
8
The time is set.
9
Press to return to the previous menu.
1
Press to access menu.
2
3
4
5
Press to return to the previous menu.
Set time format
1
Press
to access menu.
2
3
4
5
Press to return to the previous menu.
Set date format
Turn the rotary knob or press to select
[Clock], then press SELECT to con�rm.
Turn the rotary knob or press to select
[Clock], then press SELECT to con�rm.
Turn the rotary knob or press to select
[Set 12H/24H], then press SELECT to con�rm.
Turn the rotary knob or press to select
[12H] or [24H], then press SELECT to con�rm.
Turn the rotary knob or press to select
[Clock], then press SELECT to con�rm.
Turn the rotary knob or press to select
[Set date format], then press SELECT to
con�rm.
Turn the rotary knob or press to select
[MM-DD-YYYY], [DD-MM-YYYY] or
[YYYY-MM-DD] date format, then press
SELECT to con�rm.
Turn the rotary knob or press to select
[Set auto/manual], then press SELECT to
con�rm.
Turn the rotary knob or press to select
[Auto(DAB/RDS)], then press SELECT to
con�rm.
Turn the rotary knob or press to select
[Clock], then press SELECT to con�rm.
Turn the rotary knob or press to select
[Set date&time], then press SELECT to con�rm.
Turn the rotary knob or press to select
hour, then press SELECT to con�rm.
Turn the rotary knob or press to select
minute, then press SELECT to con�rm.
Turn the rotary knob or press to select
month, then press SELECT to con�rm.
Turn the rotary knob or press to select
day, then press SELECT to con�rm.
Turn the rotary knob or press to select
year, then press SELECT to con�rm.
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
Clock style
1
Press
to access menu.
2
3
4
5
Press to return to the previous menu.
Turn the rotary knob or press to select
[Clock], then press SELECT to con�rm.
Turn the rotary knob or press to select
[Clock style], then press SELECT to con�rm.
Turn the rotary knob or press to select
[Classic analog] or [Normal digital], then press
SELECT to con�rm.
/
/
/
8 EN
1
Press to access menu.
2
3
5
6
8
• If [Once] is selected as the alarm period,
please use and SELECT to set the
alarm date.
10
•
11 Press to return to the previous menu.
The corresponding alarm icon will
appear.
5
Alarm setting
Set alarm time
Note
• Make sure that you have set the clock correctly.
Tip
• The unit exits alarm setting mode after being idle for 30
seconds.
• If DAB/FM is selected as the alarm source but the preset
station is not selected, BUZZER is activated automatically.
• Alarm timeout is 60 minutes if there is no user action.
Activate/deactivate alarm
timer
1
Press
to access menu.
2
3
4
5
Press to return to the previous menu.
If the alarm timer is activated, the icon
will appear.
If the alarm timer is deactivated, the icon
will disappear.
Turn the rotary knob or press to select
[Alarm], then press SELECT to con�rm.
/
Turn the rotary knob or press to select
[Alarm 1 Setup] or [Alarm 2 Setup], then press
SELECT to con�rm.
/
Turn the rotary knob or press to set
hour, then press SELECT to con�rm, the minute
will blink.
/
Turn the rotary knob or press to set
minute
, then press SELECT to con�rm.
/
Turn the rotary knob or press to select
alarm
repeat cycle (Once, Daily, Weekday or
Weekday mode), then press SELECT to
con�rm.
/
/
Turn the rotary knob or press to select
alarm source
, (BUZZER, DAB or FM station),
then press SELECT to con�rm.
If
[DAB] or [FM] is selected as the alarm
source (default is BUZZER), the Alarm
menu will have an additional [Source]
option, please use and SELECT
to select DAB or FM preset radio station
number.
/
/
/
/
/
Turn the rotary knob or press to select
[Alarm], then press SELECT to con�rm.
/
Turn the rotary knob or press to select
[Alarm 1] or [Alarm 2], then press SELECT to
con�rm.
/
Turn the rotary knob or press to select
[On] or [Off], then press SELECT to con�rm
activate or deactivate the alarm timer.
/
4
Turn the rotary knob or press to select
[Wake up time], then press SELECT to con�rm,
the hour will blink.
/
7
Turn the rotary knob or press to select
[Frequency], then press SELECT to con�rm,
the alarm repeat cycle will blink.
/
9
Turn the rotary knob or press to select
[Source], then press SELECT to con�rm,
the alarm source will blink.
/
9EN
When the alarm sounds, press key to pause
alarm sound and enter snooze mode or press
button to stop alarm sound .
The alarm stops but the alarm settings remain.
Stop alarm sounds
Set sleep timer
This portable radio can switch to standby mode
automatically after the sleep time is set.
1
Turn on the unit.
2
•
Repeat the above steps, set the sleep timer to
15 30
90 120 45 60
Press to choose sleep time.
Press continuously to select from
different sleep time.
1
When the alarm rings, press .
The alarm snoozes and repeats ringing
• During alarm snooze time, press to select
another period (in minutes) to ringing gain.
2
During alarm snooze time, press or
for three seconds to cancel the alarm snooze.
The alarm stops.
Snooze
10 20
50 60 30 40
10 EN
or
5
Press to access DAB menu, then press
SELECT to enter [Full scan], turn the rotary
knob or press
to select [Yes], (activate
full scan) or [No], then press SELECT to con�rm.
Manual tuning
As well as the auto tune function, you can
manually tune the receiver. This can help you
when aligning your aerial or when adding
stations that were missed during auto tuning.
1
Press to access DAB menu.
2
Turn the rotary knob or press to select
[Manual tune], then press SELECT to con�rm.
Turn the rotary knob or press to cycle
through the DAB channels, which are
numbered from 5A to13F, then press
SELECT to con�rm.
3
The unit will show the frequency and
start to scan.
4
Press to exit the menu.
Tune to DAB radio stations
the station list is empty, the radio performs a
full scan automatically.
1
Turn on the unit.
2
Press to select DAB mode.
[Scanning...] is displayed.
The radio scans all the DAB radio stations
automatically, and then broadcasts the
�rst available station.
The station list is displayed in the radio.
Next time when you turn on the radio,
the station scan does not take place.
3
All the stations that have been found. Press
to explore the found stations, then
press SELECT to con�rm.
4
To re-tune, press SCAN for three seconds to
perform a quick scan again.
6
Listen to DAB radio
Note
•
Keep the portable radio away from other electronic devices
to avoid radio interference.
of the DAB/FM antenna.
•
/
/
/
Store DAB radio stations
1
In DAB mode, tune to a DAB radio station.
2
Press and hold for three seconds to
activate programming mode.
Preset list shows on the screen.
3
Turn the rotary knob or press to select
the number.
Press SELECT to store preset station.
4
"Preset xx Stored" shows on the screen.
5
6
Repeat steps 1 to 5 to store more DAB radio
stations.
Note
• You can manually store a maximum of 20 DAB radio
stations.
Tip
• To remove a pre-stored station, store another station
in its place.
/
/
or
1
Press MENU to access DAB menu.
2
Press ENTER to enter [Full scan].
3
Press C /D to select [Yes] (activate full
, then press ENTER .
[Scanning...] is displayed.
The radio scans and stores all the DAB
radio stations automatically, and then
The station list is memorized in the radio.
Next time when you turn on the radio,
the station scan does not take place.
Manual tuning
As well as the auto tune function, you can
manually tune the receiver. This can help you
when aligning your aerial or when adding
stations that were missed during auto tuning.
1
Press MENU to access DAB menu.
2
Press C /D to select [Manual tune], then
press
ENTER .
3
Press C /D to cycle through the DAB
channels, which are numbered from 5A to
13F, then press ENTER .
The unit will show the frequency and
start to scan.
4
Press BACK to exit the menu.
Store and select favorite
stations
1
In DAB mode, tune to a DAB radio station.
2
Press and hold 1, 2, 3, 4 or 5 for 3 seconds
to save the current station to the
corresponding position directly.
[Stored] is displayed.
The station is stored in the selected
position.
Tune to DAB radio stations
the station list is empty, the radio performs a
full scan automatically.
1
Turn on the unit.
2
Press SOURCE to select DAB mode.
[Scanning...] is displayed.
The radio scans and stores all the DAB
radio stations automatically, and then
The station list is memorized in the radio.
Next time when you turn on the radio,
the station scan does not take place.
3
All the stations that have been found will be
stored automatically. Press C /D to
explore the found stations, then press ENTER
4
To re-tune, press SCAN for 3 seconds to
perform a quick scan again.
Auto scan
Press and hold SCAN for 3 seconds to activate
full scan mode.
[Scanning...] is displayed.
The radio scans and stores all the DAB radio
stations automatically, and then broadcasts
The station list is memorized in the radio.
Next time when you turn on the radio, the
station scan does not take place.
• In DAB mode, press 1, 2, 3, 4 or 5 to select a
Store DAB radio stations
1
In DAB mode, tune to a DAB radio station.
2
Press and hold PRESET for 3 seconds to
activate programming mode.
[Preset Store] and preset number is
displayed.
3
Press C /D to select a number.
4
Press PRESET
[Stored] is displayed.
The station is stored in the selected
position.
5
Repeat steps 1 to 4 to store more DAB radio
stations.
Select a preset radio station
In DAB mode, press PRESET to select a preset
radio station.
or
1
In DAB mode, press PRESET.
2
Press C /D to select a preset radio
station.
Remove invalid stations
1
Press MENU to access DAB menu.
2
Press C /D to select [Prune], then press
ENTER .
3
Press C /D to select [Yes] (remove all the
,
then press ENTER .
4
Press BACK to exit the menu.
DRC
Compress the dynamic range of a radio signal,
so that the volume of quiet sounds is increased,
and the volume of loud sounds is reduced.
1
Press MENU to access DAB menu.
2
Press C /D to select [DRC level], then
press
ENTER .
3
Press C /D ,
then press ENTER .
4
Press BACK to exit the menu.
Show DAB information
While listening to DAB radio, press and hold
INFO for 3 seconds to display the following
DAB or DAB+
Station Name
Scrolling text
Programme type
Multiplex name
Channel
Frequency
Mode: Transfer speed
Mode: Channel type
Signal quality
11
11EN
Select a preset radio station
1
In DAB mode, press .
2
Remove invalid stations
1
Press to access DAB menu.
2
3
4
Press to exit the menu.
DRC
Compress the dynamic range of a radio signal,
so that the volume of quiet sounds is increased,
and the volume of loud sounds is reduced.
1
Press to access DAB menu.
2
3
4
Press to exit the menu.
Show DAB information
While listening to DAB radio, press and hold
for three seconds to display the following
DAB or DAB+
Station Name
Scrolling text
Programme type
Multiplex name
Channel
Frequency
Mode: Transfer speed
Mode: Channel type
Signal quality
Note
•
automatically.
Turn the rotary knob or press to select
a preset radio station.
Turn the rotary knob or press to select
[DRC level], then press SELECT to con�rm.
Turn the rotary knob or press to select
[Prune], then press SELECT to con�rm.
Turn the rotary knob or press to select
[High], [Low] or [Off], then press SELECT to
con�rm.
/
/
/
/
Turn the rotary knob or press to select
[Yes] (remove al the invalid stations from the
station list) or [No], then press SELECT to
con�rm.
/
Store and select favorite
stations
1
In DAB mode, tune to a DAB radio station.
2 Press and hold 1 or 2 for three seconds to save
the current station to the corresponding
position directly.
[Preset 1 or 2 stored] is displayed.
The station is stored in the selected position.
Note
• You can store the favorite stations in direct
buttons 1 or 2.
• In DAB mode, press 1 or 2 to select apreset
radio station (1 or 2) directly.
12 EN
When you listen to DAB, you can access the
menu for control options.
1
Press to access DAB menu.
2
• [Full scan]: scan and store all the available
DAB radio stations.
• [Manual tune]
frequency manually and add it to the
station list.
• [Prune]: remove all the invalid stations
from the station list.
• [DRC level]: compress the dynamic range
of a radio signal, so that the volume of
quiet sounds is increased, and the volume
of loud sounds is reduced.
• [Kitchen timer]: set kitchen timer.
• [Sleep timer]: set sleep timer.
• [Display]: adjust Backlight setting/Dim
setting/Timeout setting.
• [Alarm]
• [Clock]: set time synchronization, date/time,
select time format and date format.
• [System]
3
Repeat Step 2 if any sub-option is available
under one option.
4
Press to return to the previous menu.
Note
• If no button is pressed within 30 seconds, the menu exits.
Show menu in DAB mode
Full scan
Manual tune
Prune
DRC level
Kitchen timer
Sleep timer
Alarm
Clock
System
DAB Menu
On
On
Manual
12H
24H
MM-DD-YYYY
DD-MM-YYYY
YYYY-MM-DD
Yes
No
Yes
No
5A 174.928MHz
5B 176.640MHz
5C 178.352MHz
13F 239.200MHz
Yes
No
High
Low
On/Off
Kitchen timer setup
15 minutes
30 minutes
45 minutes
60 minutes
90 minutes
120 minutes
Alarm 1
Alarm 1 setup
Alarm 2
Alarm 2 setup
Set auto/manual
Set time&date
Set 12H/24H
Set date format
Language
Factory reset
SW version
Display
Backlight level
Higt
Medium
Low
Dim level
Timeout
Higt
Medium
Low
Turn the rotary knob or press to select
a menu option, and then press
SELECT to
con�rm the option or enter the lower-level
menu.
/
10 seconds
Always on
20 seconds
30 seconds
60 seconds
90 seconds
120 seconds
180 seconds
Clock style
Classic analog
Normal digital
English
Deutsch
Italiano
Français
Norsk
Dansk
Nederlands
Svenska
Español
Suomi
Polski
Frequency
Wake Up time
Source
Frequency
Wake Up time
Source
13EN
1
Press to turn on the unit.
2
Press
to select FM mode.
3
Press and hold for three seconds.
The portable radio tunes to a station with
strong reception automatically.
Tip
• To remove a pre-stored station, store another station in its
place if the quantity of preset is over 20 .
1
In FM tuner mode, tune to an FM radio station.
2
Press and hold for three seconds to
activate programming mode.
Preset list shows on the screen.
3
4
5
Repeat steps 1 to 4 to store more FM radio
stations.
Store FM radio stations
manually
7
Listen to FM radio
Search and store FM radio
stations automatically
In FM tuner mode, press and hold SCAN for
three seconds.
[Auto Scanning...] is displayed.
The radio scans and stores all the FM radio
stations automatically, and then broadcasts
Note
• You can store a maximum of 20 FM radio stations.
Note
•
Keep the portable radio away from other electronic
devices to avoid radio interference.
of the DAB/FM antenna.
•
Auto tuning
Press to select a frequency to tune to
a station manually.
Manual tuning
Note
• The tuning grid of the portable radio is 50KHz. The radio
frequency on the display panel will increase 0.05MHz by
pressing
.
Store and select favorite
stations
1
In FM tuner mode, tune to an FM radio station.
2
Press and hold 1
or 2 (preset number) for
three seconds to save the current station to
the corresponding position directly.
[Preset 1 or 2 stored] is displayed.
The preset number and station frequency
are displayed.
Note
• You can store the favorite stations in direct buttons 1, 2.
• In FM tuner mode, press 1 or 2 to select a
preset radio station (1 or 2) directly.
/
/
/
Turn the rotary knob or press to select
the number.
Press SELECT to store preset station.
/
14 EN
Select a preset radio
station
1
Tune to an FM RDS station.
2
Press and hold for three seconds to
display the following information (if available):
Station name
Time
Text
Frequency
Show RDS information
FM stations to show additional information.
Note
• After three seconds, preset radio station will be
con�rmed automatically.
1
In FM tuner mode, press .
2
Scan sensitivity setting
1
Press
to access FM menu.
2
Press SELECT to enter [Scan setting].
3
4
Press
to exit the menu.
Turn the rotary knob or press to select
a preset radio station.
/
Turn the rotary knob or press to select
[Strong] (strong stations only) or [All]
(all stations), then press
SELECT to con�rm.
/
15EN
When you listen to FM, you can access the menu
for control options.
1
Press to access FM menu.
2
• [Scan setting]: select the scan sensitivity
• [Kitchen timer]: set kitchen timer.
• [Sleep timer]: set sleep timer.
•
•
[Alarm]
• [Clock]: set time synchronization, date/time,
select time format and date format.
• [System]
3
Repeat Step 2 if any sub-option is available
under one option.
4
Press to return to the previous menu.
Note
• If no button is pressed within 30 seconds, the menu exits.
Show menu in FM mode
Scan setting
Kitchen timer
Sleep timer
Alarm
Clock
System
FM Menu
Strong
All
On/Off
Kitchen timer setup
15 minutes
30 minutes
45 minutes
60 minutes
90 minutes
120 minutes
Alarm 1
Alarm 1 setup
Alarm 2
Alarm 2 setup
Set auto/manual
Set time&date
Set 12H/24H
Set date format
Language
Factory reset
SW version
On
On
Manual
12H
24H
MM-DD-YYYY
DD-MM-YYYY
YYYY-MM-DD
Yes
No
Display
Backlight level
Higt
Medium
Low
Dim level
Timeout
Higt
Medium
Low
[Display]: adjust Backlight setting/Dim
setting/Timeout setting.
Turn the rotary knob or press to select
a menu option, and then press
SELECT to
con�rm the option orenterthe lower-level
menu.
/
10 seconds
Always on
20 seconds
30 seconds
60 seconds
90 seconds
120 seconds
180 seconds
Clock style
Classic analog
Normal digital
English
Deutsch
Italiano
Français
Norsk
Dansk
Nederlands
Svenska
Español
Suomi
Polski
Frequency
Wake Up time
Source
Frequency
Wake Up time
Source
16 EN
8
Listen to Bluetooth®
music
1
Press to select Bluetooth mode.
[Not Connected] will appear.
2
On your Bluetooth device, switch on
Bluetooth, search for [Philips TAV2000DB]
to start connection.
If connected successfully:
You will hear a prompt sound.
[Connected] will appear.
Connect Bluetooth®
Note
• The operational range between the unit and the device is
• Compatibility with all Bluetooth® devices is not guaranteed.
• Any obstacle between the device and the unit can reduce
operational range.
• Keep this unit away from other electronic devices that
may cause interference.
approximately 25 metres (open area).
• The unit will also be disconnected when your device is
moved beyond the operational range.
• Switch to another source on the unit;
• Disable the function from your Bluetooth®
device;
Press and hold for three seconds to
disconnect Bluetooth connection.
If disconnected successfully:
You will hear a prompt sound.
[Pairing] will appear.
Disconnect Bluetooth®
or
1
Press
to access Bluetooth menu.
2
Press SELECT to select [Bluetooth pair].
3
When playing music on your Bluetooth® device,
you can use this unit to control the music
playback.
• Press SELECT to pause/resume playback.
• Press to skip to a track.
• Rotate the knob to adjust the volume.
Play music
Clear Bluetooth® pairing
records
1
Press to access Bluetooth menu.
2
3
4
Press to exit the menu.
[Pairing] will appear.
/
Turn the rotary knob or press to select
[Yes] (disconnect the Bluetooth and enter
pairing state),then press
SELECT to con�rm.
/
Turn the rotary knob or press to select
[Bluetooth clean], then press
SELECT to con�rm.
/
Turn the rotary knob or press to select
[Yes] to
disconnect current connection or select
[No] to keep connection, then press SELECT
to con�rm.
/
or
17EN
When you listen via Bluetooth®, you can access
the menu for control options.
1
Press to access Bluetooth® menu.
2
• [Bluetooth pair]: select it to disconnect
Bluetooth connection and enter pairing
mode.
• [Bluetooth clean]: clear Bluetooth pairing
records.
• [Kitchen timer]: set kitchen timer.
• [Sleep timer]: set sleep timer.
•
•
[Alarm]
• [Clock]: set time synchronization, date/time,
select time format and date format.
• [System]
3
Repeat Step 2 if any sub-option is available
under one option.
4
Press to return to the previous menu.
Show menu in Bluetooth®
mode
Note
• If no button is pressed within 30 seconds, the menu exits.
Bluetooth pair
Bluetooth clean
Kitchen timer
Sleep timer
Alarm
Clock
System
Bluetooth Menu
Yes
No
Yes
No
On/Off
Kitchen timer setup
15 minutes
30 minutes
45 minutes
60 minutes
90 minutes
120 minutes
Alarm 1
Alarm 1 setup
Alarm 2
Alarm 2 setup
Set auto/manual
Set time&date
Set 12H/24H
Set date format
Language
Factory reset
SW version
On
On
Manual
12H
24H
MM-DD-YYYY
DD-MM-YYYY
YYYY-MM-DD
Yes
No
[Display]: adjust Backlight setting/Dim
setting/Timeout setting.
Display
Backlight level
Higt
Medium
Low
Dim level
Timeout
Higt
Medium
Low
Turn the rotary knob or press to select
a menu option, and then press SELECT to
con�rm the option or enter the lower-level
menu.
/
10 seconds
Always on
20 seconds
30 seconds
60 seconds
90 seconds
120 seconds
180 seconds
Clock style
Classic analog
Normal digital
English
Deutsch
Italiano
Français
Norsk
Dansk
Nederlands
Svenska
Español
Suomi
Polski
Frequency
Wake Up time
Source
Frequency
Wake Up time
Source
18 EN
Stop kitchen timer sounds
When the kitchen timer rings, press any key to
stop the buzzer.
Cancel the kitchen timer
1
If you want to cancel the kitchen timer, press
to access menu.
2
3
4
5
Press to exit the menu.
Note
• The unit exits menu setting when idle for 30 seconds.
9
Kitchen timer setting
Set kitchen timer
1
Press to turn on the unit.
2
Press
to access menu.
3
Turn the rotary knob or press to select
[Kitchen timer setup], then press SELECT
to con�rm.
4
The minute digits blink.
5
The second digits blink.
6
Turn the rotary knob or press to select
[On/Off], then press SELECT to con�rm.
8
7
9
10
Press to return to the previous menu.
The icon and kitchen timer appear.
Note
• Kitchen timer timeout is 60 minutes if there is no user
action.
Note
• The kitchen timer can only be cancelled when the unit is
turned on.
The hour digits blink.
Long press can enter Kitchen timer.
/
/
Turn the rotary knob or press to select
[On/Off], then press select to con�rm.
/
Turn the rotary knob or press to select
[Kitchen timer], then press SELECT to con�rm.
/
Turn the rotary knob or press to set
the hour, and then press SELECT to con�rm.
/
Turn the rotary knob or press to set
the minute, and then press SELECT to con�rm.
/
Turn the rotary knob or press to set
the second, and then press SELECT to con�rm.
/
Turn the rotary knob or press to select
[On] (activate) or [Off] (deactivate) the kitchen
timer, and then press SELECT to con�rm.
/
Turn the rotary knob or press to select
[Kitchen timer], then press SELECT to con�rm.
/
Turn the rotary knob or press to select
[Off], then press SELECT to con�rm.
/
or
Stop kitchen timer sounds
When the kitchen timer rings, press any key to
stop the buzzer.
Cancel the kitchen timer
1
If you want to cancel the kitchen timer, press
MENU to access menu.
2
Press C /D to select [Kitchen timer], then
press
ENTER .
[Cancel timer?] is displayed.
3
Press C /D to select [Yes] ( or
[No], then press ENTER .
4
Press BACK to exit the menu.
Set kitchen timer
1
Press to turn on the unit.
2
Press MENU to access menu.
3
Press C /D to select [Kitchen timer], then
press
ENTER .
The hour digits blink.
4
Press C /D to set the hour, and then
press ENTER
The minute digits blink.
5
Press C /D to set the minute, and then
press ENTER
The second digits blink.
6
Press C /D to set the second, and then
press ENTER
The [On] and is appear.
7
Press C /D to select [On]
press ENTER
8
Press BACK to return to the previous menu
or press and hold BACK for 3 seconds to exit
the menu.
The icon and kitchen timer appear.
1
Turn on the unit.
2
Press MENU to access menu.
3
Press C /D to select [DBB level], then
press
ENTER .
Press C /D to select sound reproduced
, then press ENTER to
.
5
Press BACK to exit the menu.
Select menu language
1
Press MENU to access menu.
2
Press C /D to select [System], then press
ENTER .
3
Press C /D to select [Language], then
press
ENTER .
4
Press C /D to select menu display
language, then press ENTER .
5
Press BACK to return to the previous menu
or press and hold BACK for 3 seconds to exit
the menu.
Listen through headphone
Plug a headphone into the socket in the
back of the main unit.
Factory reset
1
Press MENU to access menu.
2
Press C /D to select [System], then press
ENTER .
3
Press C /D to select [Factory reset], then
press
ENTER .
4
Press C /D to select [Yes] (reset all radio
, then
press
ENTER .
[Restarting...] is displayed.
19EN
Select menu language
1
Press to access menu.
2
3
4
5
Press to return to the previous menu.
Listen through headphone
Plug a headphone into the socket in the
back of the main unit.
Factory reset
1
Press to access menu.
2
3
4
[Restarting...] is displayed.
10
Other features
Turn the rotary knob or press to select
[System], then press SELECT to con�rm.
/
Turn the rotary knob or press to select
[Language], then press SELECT to con�rm.
/
Turn the rotary knob or press to select
menu display language, then press SELECT to
con�rm.
/
Turn the rotary knob or press to select
[System], then press SELECT to con�rm.
/
Turn the rotary knob or press to select
[Factory reset], then press SELECT to con�rm.
Turn the rotary knob or press to select
[Yes] (reset all radio settings to the factory
default status), then press SELECT to con�rm.
/
English
Deutsch
Italiano
Français
Norsk
Dansk
Nederlands
Svenska
Español
Suomi
Polski
/
20 EN
11
Product
Note
•
notice.
87.5-108 MHz
50 KHz
<22 dBf
<10%
>50 dBA
V5.4
2.4 Ghz~2.48 GHz
5.37 dBm
5V 2A
3.65V/2600mAh
190x111.6x91.5 mm
555g
Rated Output Power
Tuner
Tuning Grid
Sensitivity
- Mono, 26 dB S/N Ratio
Total Harmonic Distortion
Signal to Noise Ratio
Bluetooth
Bluetooth Version
Bluetooth Frequency Band
Max. e.i.r.p.
Bluetooth Range
General information
USB port
Lithium battery
25m (open area)
21EN
No power
• Make sure the portable radio is fully charged.
• Make sure the USB socket of the portable radio
is properly connected.
No sound
•
•
• Make sure that your Bluetooth device is
within the operational range.
No response from the unit
• Restart the portable radio.
Poor radio reception
• Keep the portable radio away from other
electronic devices to avoid radio interference.
•
antenna.
Alarm does not work
• Set the clock/alarm correctly.
Clock/alarm setting erased
• Reset the clock/alarm.
• Replace the backup batteries.
The audio quality is poor after connection with
a Bluetooth-enabled device
Fail to �nd [Philips TAV2000DB] on your
Bluetooth device for pairing
• The Bluetooth reception is poor. Move the
device closer to this speaker or remove any
obstacle between them.
• Press and hold for three seconds to enter
Bluetooth pairing mode, and then try again.
12
Troubleshooting
Warning
•
Never remove the casing of the product.
To keep the warranty valid, never try to repair
the device yourself. If you encounter problems
when using this device, check the following
points before requesting service. If the problem
remains unsolved, go to the Philips webpage
www.philips.com/support. When you contact
Philips, make sure that the device is nearby
and the model number and serial number are
available.
• If you want to purchase extra battery, please
visit https://www.philips.com/support to get
more information.
Cannot connect with your Bluetooth device
• The Bluetooth function of your device is not
enabled. Refer to the user manual of your
• This portable radio is not in pairing mode.
• This portable radio is already connected to
another Bluetooth-enabled device.
• Disconnect and try again.
Battery cannot be charged properly or the
battery drains too quickly
• Replace the battery.
•
1INR19/66
Model: TACR5001BA
Nominal Capacity: 3.65V, 2600mAh, 9.49Wh
Max Charge Voltage: 4.2V
TP Vision Europe B.V. Prins Bernhardplein200,
1097 JB Amsterdam, The Netherlands.
1
2
3
Lock the battery cover .
Open the battery cover at the back of the unit,
and remove the original battery from the
battery compartment.
22 EN
that are not expressly approved by
MMD Hong Kong Holding Limited may void the
user’s authority to operate the product.
Hereby, TP Vision Europe B.V. declares that this
product is in compliance with the essential
requirements and other relevant provisions of
Directive 2014/53/EU and UK Radio Equipment
Declaration of Conformity on
www.philips.com/support.
This product complies with the radio
interference requirements of the
European Community.
This product is designed and
manufactured with high-quality
materials and components, which can be
recycled and reused.
This symbol means the product must not
be discarded as household waste and
should be delivered to an appropriate
collection facility for recycling. Follow
local rules and never dispose of the
product and rechargeable batteries with
normal household waste.
Correct disposal of old products and
rechargeable batteries helps prevent
negative consequences for the
environment and human health.
This symbol means that the product
contains batteries covered by European
Regulation 2023/1542 which cannot be
disposed of with normal household
waste. Inform yourself about the the
local separate collection system for
electrical and electronic collection
system for electrical and electronic
products and batteries. Follow local rules
and never dispose of the product and
batteries with normal household
waste. Correct disposal of old products
and batteries helps prevent negative
consequences for the environment and
human health.
13
Notice
Compliance
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by MMD Hong
Kong Holding Limited is under license. Other
trademarks and trade names are those of their
respective owners.
TAV2000DB_00_UM_V1.0
under license. This product has been manufactured by and is sold under the responsibility of MMD Hong
relation to this product.
