OWNER’S MANUAL
INSTALLATION AND
OPERATION INSTRUCTIONS FOR
SUBMERSIBLE UTILITY PUMP
Model:
91575
2
If for any reason you have questions concerning your new Barracuda Pump, call us toll free at
1-800-495-9278.
Carefully read and understand all of the Warnings and installation instructions in this
manual. Failure to follow these instructions could lead to serious bodily injury and/or
property damage. Retain these instructions for future reference.
This pump has been manufactured with your needs in mind. Properly installed in the right
application, your new Barracuda Pump will give you years of carefree performance.
DANGER !
Water and electricity can be dangerous if certain precautions are not adhered to. This pump is
designed to operate perfectly safe in a water environment; however, improper use and installation
can result in personal harm from electrical shock. Please pay attention to the following warnings.
WARNING !
Never touch any electrical device, including this pump, when it is touching water, in water, or
even in a moist environment. Always unplug (disconnect the electricity) when working on or
installing the unit.
WARNING !
RISK OF ELECTRICAL SHOCK. This pump is supplied with a grounding conductor and
grounding-type attachment plug. To reduce the risk of electrical shock, be certain that it is
connected only to a properly grounded, grounding-type receptacle.
WARNING !
Do not use the power cord or discharge hose to carry or handle the pump. Doing so may cause
damage to the power cord or discharge hose. Use the carrying handle supplied with the pump.
WARNING !
Always use a grounded outlet. A three-prong mating type receptacle is needed for safe use.
This should be in accordance with the National Electric Code and any additional codes or laws
required by your local government.
NOTICE !
It is strongly recommended to use a ground fault interrupt device on any electrical appliance,
including this pump, when used in a wet or moist environment. This is required by many local
codes and enforcement agencies. It is strongly recommended by Barracuda Pump as it provides
a much safer installation and will greatly reduce possible injury from electrical shock.
7
LIMITED WARRANTY AND LIMITATION OF LIABILITY
Barracuda Pumps warrants this product free from material and/or manufacturing defects for
two years from date of purchase. As the sole and exclusive remedy for a breach of this limited
warranty, if the product is found by Barracuda Pumps to be defective, Barracuda Pumps, at its
option, will refund the purchase price or replace the product with an equivalent product if it is
returned to the place of purchase or returned postpaid to Barracuda Pumps, ATTN: Warranty
Dept., 2301 Traffic St. NE, Minneapolis, MN 55413, with proof of purchase. Any disassembly,
modification, or abuse of this product voids this limited warranty. This product is not designed
for pumping flammable or corrosive fluids, and use of this product to pump such materials also
voids this limited warranty
BARRACUDA PUMPS DISCLAIMS ALL OTHER
EXPRESS OR IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IMPORTANT NOTICE: Some commercial and residential insurance policies extend coverage
for damages incurred by product failure. In most cases, you will need to have possession of
the product to support your claim. In the case where you need to retain possession of the
product to support a damage claim you submit to your insurance company, Barracuda Pumps
will exchange the unit or refund the original price once the claim is settled with the insurer.
6

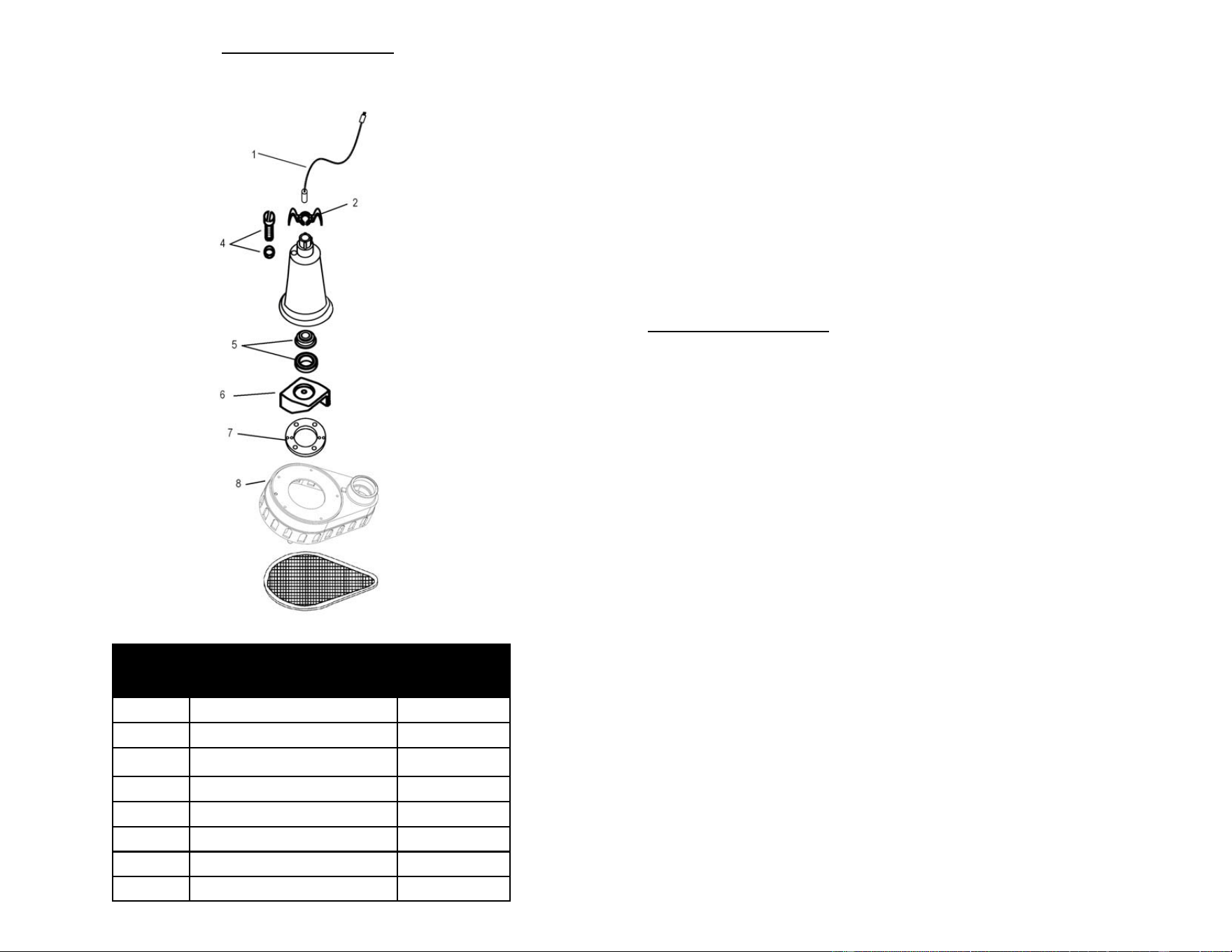

REPLACEMENT PARTS
To order replacement parts call
1-800-495-9278
Ref# Description Part #
1 Power Cord 99009
2 Handle 99050
4 Oil Fill Plug with O-ring 99056
5 Shaft Seal 99057
6 Impeller 99096
7 Gasket 99088
8 Volute/Base 99185
9 Intake Screen 99186
3
DANGER !
Do not use this pump to pump chemicals, flammable liquids, sewage or corrosive liquids. You
could injure yourself and the pump will fail. Pumping these types of liquids voids the warranty.
Barracuda Pump and other pump companies manufacture pumps for these types of liquids.
Make sure you purchase a pump designed for your specific needs. This pump will handle fluids
with the same characteristics as water. If you have any questions call us at 1-800-495-9278.
WARNING !
Your pump has thermal over-load protection built in. It is not recommended for pumping liquids
over 120° F. The thermal overload protector will automatically shut down the pump in an
overheat situation. It will then reset itself once the pump cools down. This overload is designed
as a safety device and it will fail after repeated use. Normal operation is for fluids between 32° F
& 120° F.
WARNING !
DO NOT RUN THE PUMP DRY. The pump depends on water for cooling and lubrication.
Operating the pump without water may cause the motor to overheat or cause damage to parts of
the pump. It may also shorten the life of your pump.
NOTICE !
EXTENSION CORDS
For best performance, it is recommended to connect the power cord directly to the grounded
GFCI outlet. If the use of an extension cord is necessary, always use a grounded waterproof type
cord. Never use longer than a 25-ft. cord that is lighter than 14/3 gauge.
DANGER !
Keep all electrical connections away from wet and moist environments. Wet connections can
cause electrical shock resulting in personal injury.
4
USE AND INSTALLATION
WARNING !
Always disconnect the power source before attempting to install, service or perform maintenance
on the pump. failure to do so may result in fatal electrical shock. Always disconnect the power
source before
Your Barracuda Pump is designed and built to give you reliable performance and long life. It will
pump water automatically for years when properly installed in the right environment.
INSTALLATION/OPERATION
1. Place the pump on a hard surface in the water. Do not set the pump directly in mud or sand.
This may cause the intake screen to clog or damage to your pump.
2. The water level must be at least ½” deep for the pump to operate.
3. Plug the power cord into a grounded 120-volt AC outlet. The pump will start to operate as
soon as the cord is plugged in.
4. The pump will remove water down to 1/2” of the surface
5. The pump should be turned off once the water reaches these levels.
6. Do not let the pump run dry. The pump depends on water for cooling and lubrication.
Operating the pump without water may cause the motor to overheat or cause damage to
parts of the pump. It may also shorten the life of your pump.
Anything that will pass through the intake screen holes will pass through the pump without
causing damage. The intake screen on the pump removes easily for cleaning. The pump can
also be back-flushed using the garden hose adapter.
NOTE: This pump has a built in anti-airlock device. Leakage is normal from this device
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES HOW TO CORRECT
If the pump does not
start or run
Pump is not plugged in, switch or breaker is off Plug pump in or turn on switch/breaker
Check for blown fuses or tripped circuit breakers
or tripped GFCI outlets
Replace fuse, reset breaker, reset GFCI outlet
Motor thermal protector tripped Allow pump to cool. Pump will reset
If the pump runs but
moves little or no
water
Clogged intake screen Clean or replace screen
Clogged discharge hose/pipe Remove clog
Frozen discharge hose/pipe Allow hose/pipe to thaw
Pump is air locked
Clean out airlock hole with a paper clip or
pipe cleaner
Low line voltage Check wire size and increase if necessary
Check valve is stuck in the closed position Inspect, repair or replace if necessary
Worn, damaged or clogged pump parts
Inspect for wear, damage or clog and clean or
replace if necessary
Discharge head exceeds pump capacity
If pumping height is over 25’, the pump will not
move water. See performance chart
5
NOTICE ! Height and/or piping restriction will reduce the pump output performance. See
the performance chart below. Whenever possible use the same or larger size pipe than the
pump discharge for optimum performance. Reducing the pipe size will not harm your pump, it
will just reduce the output.
PERFORMANCES
SPECIFICATIONS
Power supply requirements 120V, 60 Hz
Motor 1/2 HP, Continuous Duty,
Split Capacitor
Thermally Protected
Amps 4.1
Liquid Temperature Range 32°F-120°F (0°C - 49°C)
Circuit Requirements 15 amp minimum
Solids Handling 3/8”
Discharge Size 1-1/2” NPT or
Garden Hose
(with supplied adapter)
Warranty 2 Years
Model
Output in gallons per minute at listed discharge height
above pumping level
0’ 5’ 10’ 15’ 20’ 25’
91575 55 48 42 34 25 16
