Operating instructions
Washer-dryer
To avoid the risk of accidents or damage to the machine, it is essen-
tial to read these instructions before it is installed and used for the
first time.
en-GB M.-Nr. 12 248 240
Contents
2
Caring for the environment......................................................................................... 5
Environmentally friendly washing and drying ......................................................... 6
Warning and Safety instructions .............................................................................. 7
Operating the washer-dryer ....................................................................................... 14

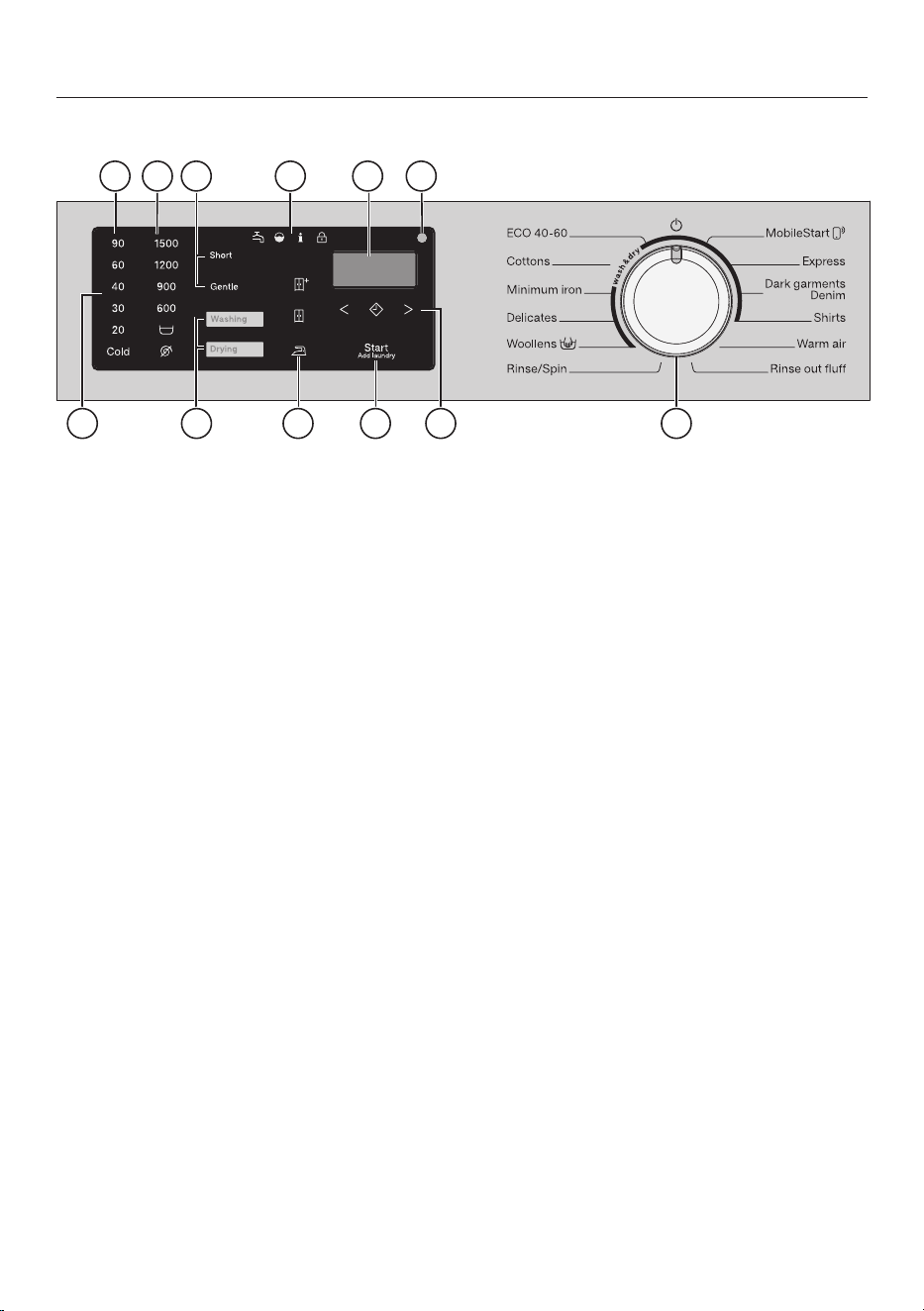

Control panel...................................................................................................................
14
How the control field works..........................................................................................
15
Applications.....................................................................................................................
15
Before using for the first time..................................................................................... 16
Requirements for networking ......................................................................................
17
Setting up Miele@home...............................................................................................
17
Running the first wash programme .............................................................................
18
WASHING ...................................................................................................................... 19
1. Prepare the laundry ....................................................................................................
19
General tips ............................................................................................................... 19
2. Loading the washer-dryer.........................................................................................
20
3. Selecting a programme.............................................................................................
21
4. Adding detergent .......................................................................................................
22
5. Starting the programme............................................................................................
25
6. End of the programme/unloading laundry..............................................................
25
Spin speeds.....................................................................................................................
26
Programme chart............................................................................................................
28
Programme sequence....................................................................................................
30
Detergent.........................................................................................................................
31
Water softeners ........................................................................................................ 31
Fabric conditioners, liquid starch, starch .............................................................. 32
DRYING........................................................................................................................... 35
1. Prepare the laundry ....................................................................................................
35
2. Loading the washer-dryer.........................................................................................
35
3. Selecting a programme.............................................................................................
36
4. Select programme settings......................................................................................
37
5. Starting the programme............................................................................................
37
6. End of the programme/unloading laundry..............................................................
37
Programme chart............................................................................................................
39
Thermospin................................................................................................................ 40
WASHING AND DRYING ........................................................................................... 41
1. Prepare the laundry ....................................................................................................
41
2. Loading the washer-dryer.........................................................................................
41
3. Selecting a programme.............................................................................................
41
4. Selecting programme settings.................................................................................
41
5. Add detergent.............................................................................................................
42
Contents
3
6. Programme start/finish.............................................................................................
42
After each washing or drying programme...................................................................
42
Rinse out fluff programme .......................................................................................... 43
Changing the programme sequence ........................................................................ 44
Changing a programme (safety lock)...........................................................................
44
Cancelling a programme................................................................................................
44
Adding laundry - AddLoad.............................................................................................
44
Delay start/SmartStart ................................................................................................ 45
Delay start .......................................................................................................................
45
Cleaning and care ......................................................................................................... 47
Cleaning the casing and control panel ........................................................................
47
Cleaning the detergent dispenser drawer ..................................................................
47
Cleaning the drum..........................................................................................................
49
Cleaning the water intake filter.....................................................................................
49
Troubleshooting............................................................................................................. 50
A programme does not start.........................................................................................
50
Programme cancellation and fault indicator light......................................................
50
Fault indicator light lights up at the end of a programme.........................................
51
Symbols on the time display ........................................................................................
52
General problems with the washer-dryer...................................................................
53
An unsatisfactory wash result ......................................................................................
55
Unsatisfactory drying results........................................................................................
56
The door will not open ...................................................................................................
57
Opening the door in the event of a blocked drain outlet and/or power cut...........
58
Service............................................................................................................................. 60
Contact in the event of a fault......................................................................................
60
Optional accessories .....................................................................................................
60
EPREL database .............................................................................................................
60
Warranty ..........................................................................................................................
60
Installation...................................................................................................................... 61
Front view........................................................................................................................
61
Rear view .........................................................................................................................
62
Installation surface.........................................................................................................
63
Carrying the washer-dryer to its installation site.......................................................
63
Removing the transport safety device ........................................................................
63
Refitting the transit bars................................................................................................
64
Additional installation requirements............................................................................
65
Installing under a worktop....................................................................................... 65
Aligning the washer-dryer .............................................................................................
65
The water protection system .......................................................................................
66
Contents
4
Water intake....................................................................................................................
67
Water drainage................................................................................................................
67
Electrical connection ....................................................................................................
69
Technical data................................................................................................................ 70
EU Conformity declaration............................................................................................
70
UK Conformity declaration ...........................................................................................
71
Consumption data ........................................................................................................ 72
Garment care label symbols....................................................................................... 73
Programmable functions............................................................................................. 74
Choosing and selecting a programmable function....................................................
74
Editing and saving a programmable function .............................................................
75
Exiting the programming level ......................................................................................
75
Buzzer duration..........................................................................................................
75
Buzzer ........................................................................................................................
75
Keypad tone ..............................................................................................................
76
PIN code ...................................................................................................................
76
Control field switch-off behaviour........................................................................
76
Memory....................................................................................................................
77
Gentle action...........................................................................................................
77
Temperature reduction...........................................................................................
77
Maximum rinse level...............................................................................................
77
Suds cooling.............................................................................................................
77
Low water pressure................................................................................................
78
Display brightness..................................................................................................
78
Cottons drying levels..............................................................................................
78
Minimum iron drying levels.....................................................................................
78
Extended cool down...............................................................................................
78
Laundry ring prevention..........................................................................................
78
Operating hours......................................................................................................
79
Remote control........................................................................................................
79
SmartGrid................................................................................................................
79
RemoteUpdate........................................................................................................
80
Factory default ........................................................................................................
81
Switching off WiFi ..........................................................................................................
81
Copyrights and licences for the communication module.........................................
81
Caring for the environment
5
Disposing of the packaging ma-
terial
The packaging material is used for hand-
ling and protects the appliance from
transport damage. The packaging ma-
terial used is selected from materials
which are environmentally friendly for
disposal and can generally be recycled.
Recycling the packaging material re-
duces the use of raw materials. Use ma-
terial-specific collection points for valu-
able materials and take advantage of re-
turn options. Your Miele dealer will take
the packaging material away.
Disposing of your old appliance
Electrical and electronic appliances con-
tain many valuable materials. They also
contain certain materials, compounds
and components which were essential
for their correct functioning and safety.
These could be hazardous to human
health and to the environment if dis-
posed of with household waste or if
handled incorrectly. Please do not,
therefore, dispose of your old appliance
with household waste.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle elec-
trical and electronic appliances in your
local community, with your dealer or
with Miele, free of charge. By law, you
are solely responsible for deleting any
personal data from the old appliance
prior to disposal. You are legally obliged
to remove any old batteries which are
not securely enclosed by the appliance
and to remove any lamps without des-
troying them, where this is possible.
These must be taken to a suitable col-
lection point where they can be handed
in free of charge. Please ensure that
your old appliance poses no risk to chil-
dren while being stored for disposal.
Environmentally friendly washing and drying
6
Energy and water consumption
- Use the maximum load size for the
current wash programme. The energy
and water consumption will then be
the lowest in relation to the size of the
load.
- Programmes that are more efficient
with regard to energy and water con-
sumption generally have a longer pro-
gramme running time. By extending
the programme running time, the
wash temperature that is actually
reached can be reduced while still
providing the same wash results.
For example, the ECO40-60 pro-
gramme has a longer programme run-
ning time than the Cottons 40°C or
60°C programme. The ECO40-60
programme is more efficient in terms
of energy and water consumption.
- Use the Express programme for small,
lightly soiled loads.
- Modern detergents make it possible
to wash at lower temperatures (e.g.
20°C). Using lower temperature set-
tings will save energy.
- To maintain the hygiene of the
washer-dryer, carry out a hot wash
(above 60°C) at regular intervals. The
indicator light lights up in the con-
trol field and appears on the time
display of the washer-dryer to remind
you.
Detergent
- Do not exceed the amounts of deter-
gent recommended by the manufac-
turer on the packaging.
- Adjust the dosage to the degree of
soiling of the laundry.
- Reduce the amount of detergent with
smaller loads (approx. 1/3 less than
the amount recommended can be
used when washing a half load).
When drying with a tumble
dryer
To save energy when tumble drying, se-
lect the highest possible spin speed for
the wash programme and for the
thermo-spin.
Warning and Safety instructions
7
It is essential to read these instructions.
This washer-dryer complies with all current local and national
safety requirements. However, inappropriate use can lead to per-
sonal injury and damage to property.
Read the operating instructions carefully before using the washer-
dryer. They contain important information on safety, installation,
use and maintenance. This prevents both personal injury and dam-
age to the washer-dryer.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the washer-dryer as well as the safety instruc-
tions and warnings.
Miele cannot be held liable for damage caused by non-compliance
with these instructions.
Keep these operating instructions in a safe place and pass them on
to any future owner.
Correct application
This washer-dryer is intended for use in domestic households and
similar working and residential environments.
This washer-dryer is intended for use in domestic households for
the following applications only:
- washing textiles which have a care label stating that they are
washable.
- drying textiles which have been washed in water and have a care
label stating that they are suitable for tumble drying.
Any other usage is not permitted. Miele cannot be held liable for
damage resulting from improper use or incorrect operation of the ma-
chine.
This washer-dryer is not intended for outdoor use.
Warning and Safety instructions
8
This washer-dryer can only be used by people with reduced phys-
ical, sensory or mental capabilities, or lack of experience or know-
ledge, if they are supervised whilst using it or have been shown how
to use it in a safe way and understand and recognise the con-
sequences of incorrect operation.
Safety with children
Children under eight years of age must be kept away from the
washer-dryer unless they are constantly supervised.
Children eight years and older may only use the washer-dryer un-
supervised if they have been shown how to use it safely and recog-
nise and understand the consequences of incorrect operation.
Children must not be allowed to clean or maintain the washer-
dryer unsupervised.
Please supervise children in the vicinity of the washer-dryer and do
not let them play with it.
Technical safety
Before setting up the washing-dryer, check it for any externally vis-
ible damage.
Do not install or use a damaged washer-dryer.
Before connecting the washer-dryer, ensure that the connection
data on the data plate (fuse rating, voltage and frequency) match the
mains electricity supply. If in any doubt, consult a qualified electri-
cian.
The electrical safety of this washer-dryer can only be guaranteed
when correctly earthed.
It is essential that this standard safety requirement is met. If in any
doubt, please have the household wiring system tested by a qualified
electrician.
Miele cannot be held liable for the consequences of an inadequate
earthing system (e.g. electric shock).
Do not connect the machine to the mains electricity supply by an
extension lead, multi-socket adapter or similar. These can overheat
and are a fire hazard.
Warning and Safety instructions
9
Unauthorised repairs could result in unforeseen dangers for the
user, for which the manufacturer cannot accept liability. Repairs
should only be undertaken by a Miele authorised service technician,
otherwise any subsequent damage will not be covered by the guaran-
tee.
Please observe the instructions in “Installation” and the “Technical
data”.
The electrical socket must be easily accessible after installation so
that the washer-dryer can be disconnected from the electricity sup-
ply if necessary.
The washer-dryer must be isolated from the electricity supply
when cleaning and maintaining the machine and in the event of a
fault.
The Miele “Water protection system” protects from water damage
provided the following conditions are met:
- The machine is correctly plumbed in and connected to the electri-
city supply.
- If a fault or damage has been identified, the washer-dryer must be
examined by a competent person before further use, and repaired
if necessary.
The water inlet pressure must be at least 100kPa and must not
exceed 1000kPa.
Faulty components must only be replaced by genuine Miele ori-
ginal spare parts. Only when these parts are fitted can Miele guaran-
tee the safety standards of the machine.
If the electrical connection cable is faulty it must only be replaced
by a Miele authorised service technician to protect the user from
danger.
This washer-dryer must not be used in a non-stationary location
(e.g. on a ship).
Do not make any alterations to the washer-dryer, unless author-
ised to do so by Miele.
Warning and Safety instructions
10
Temporary or permanent operation on an autonomous power sup-
ply system or a power supply system that is not synchronised with
the mains power supply (e.g. island networks, back-up systems) is
possible. A prerequisite for operation is that the power supply system
complies with the specifications of EN50160 or an equivalent stand-
ard.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronised with the mains power supply, or these measures must
be replaced by equivalent measures in the installation. As described,
for example, in the current version of BS OHSAS 18001–2 ISO
45001.
The manufacturer’s warranty will be invalidated if the washer-dryer
is not repaired by a service technician authorised by Miele.
Correct use
Do not install the washer-dryer in a room where there is a risk of
frost. Frozen hoses may burst or split. The reliability of the electronic
control unit may be impaired at temperatures below freezing point.
Before using the machine for the first time, check that the transit
bars at the rear of the washer-dryer have been removed (see “Install-
ation - Removing the transit bars”). During spinning, a transit bar
which is still in place may result in damage to both the washer-dryer
and adjacent furniture or appliances.
Turn off the stopcock if the washer-dryer is to be left for any length
of time (e.g. holiday), especially if there is no floor drain (gully) in the
immediate vicinity.
Flooding danger. If hooking the drain hose into a wash basin, check
that the water can drain off quickly enough to prevent the sink from
overflowing. Make sure the drain hose is secure, so that the force of
the water flowing out of the hose does not dislodge it.
Take care to ensure that foreign objects (e.g. nails, pins, coins, pa-
per clips) do not find their way into the machine with the laundry.
These may damage components of the machine (e.g. suds container,
drum), which in turn can result in damage to the laundry.
Do not leave any detergent dispensing aids, e.g. plastic dispenser
balls, in the laundry when tumble drying. These dispensers can melt
during the drying programme and cause damage to the washer-dryer
and the laundry.
Warning and Safety instructions
11
Risk of burning or scalding due to hot temperatures. The metal cap
located on the inside of the door glass will be hot after drying. Open
the door wide after drying. Do not touch the metal cap.
Fabric conditioner and similar products must be used according to
the instructions on the manufacturer's packaging.
If the correct amount of detergent is dispensed, the washer-dryer
should not need to be descaled. If, however, there is large build-up of
limescale and you need to descale it, you must use a special non-cor-
rosive descaling agent. A suitable descaling agent is available to order
from Miele (see “Optional accessories”). Instructions on the pack-
aging must be strictly observed.
Only use dyes specified by the manufacturer as being suitable for
use in a domestic washing machine. These must only be used in do-
mestic quantities. Always observe the manufacturer's instructions
carefully.
Colour run and dye removers contain sulphur compounds which
can cause corrosion. Do not use these products in this washer-dryer.
In many programmes, the heating phase is followed by a cooling
down phase to ensure that the items are not too hot to handle when
you remove them (this also avoids the danger of the laundry self-ig-
niting). The programme is not finished until the cooling down phase
has been completed. As soon as the programme has finished, re-
move all laundry from the drum.
To prevent the risk of fire, the following textiles must not be dried:
- Items which have not been washed.
- Items, such as workwear, which have not been thoroughly washed
and which are still soiled with grease, oil or other deposits (such as
cooking oil, cosmetics, lotions etc). If items have not been thor-
oughly washed there is a danger that these might ignite when
heated, even after they have been removed from the washer-dryer
at the end of the programme.
- Items (e.g. mops and floor cloths) which have been treated with
inflammable cleaning agents or which contain residues of acetone,
alcohol, benzene, petrol, stain remover, turpentine, wax and wax
remover or other chemicals.
- Items which have been splashed with hair lacquer, hair spray, nail
varnish remover or similar substances.
Warning and Safety instructions
12
When washing heavily soiled items ensure that you use sufficient
detergent and select a high temperature. If in doubt, wash the
items several times.
To prevent the risk of fire, the following textiles must not be tumble
dried:
- Items which have been cleaned using chemicals (e.g. professional
dry-cleaning agents).
- Items which contain a large proportion of rubber, foam rubber or
rubber-like materials. For example, products made from latex foam
rubber, shower caps, waterproof textiles, rubberised articles and
items of clothing and pillows with foam rubber filling.
- Damaged items which contain padding or fillings (e.g. pillows,
jackets). When damaged, the filling can get out with the risk of it
igniting.
Warning: do not switch the washer-dryer off before the drying pro-
gramme has finished. If this is done, the laundry must be removed
immediately and hung up or spread out to cool it down.
This washer-dryer must not be connected to a controllable socket,
e.g. a timer or electrical device with peak-load negotiation. There is a
risk of the laundry igniting itself if a drying programme is cancelled
before the cooling phase has finished.
Textiles which have been pre-treated in solvent based cleaning
agents must be thoroughly rinsed in clean water before being washed
in the machine.
Do not use solvent based cleaning agents, e.g. those containing
benzine, in this washer-dryer, as this may result in damage to com-
ponent parts and create toxic fumes. Such agents also pose a fire and
explosion hazard.
If detergent comes into contact with the eyes, rinse them thor-
oughly with lukewarm water immediately. If swallowed, seek medical
assistance immediately and retain the packaging or label for refer-
ence. Those with skin problems or sensitive skin should avoid their
skin coming into contact with detergent.
The maximum load for this washer-dryer is 8.0 kg (dry weight) for
washing and 5.0 kg (dry weight) for tumble drying. See the “Pro-
gramme chart” for the maximum recommended loads for individual
programmes.
Warning and Safety instructions
13
Accessories
Accessory parts may only be fitted when expressly approved by
Miele. If other parts are used, guarantee, performance and product li-
ability claims will be invalidated.
Miele will guarantee to supply functional spare parts for a min-
imum of 10years and up to 15years following the discontinuation of
your washer-dryer.
If you order a plinth for this washer-dryer (available from Miele as
an optional accessory), make sure it is the correct one.
Miele cannot be held liable for damage caused by non-compliance
with these Warning and Safety instructions.
Operating the washer-dryer
14
Control panel
2 3
7
12
1
64
95
10
8
11
a
Control field
The control field consists of a time
display and various sensor controls.
The individual sensor controls are ex-
plained in the following sections.
b
Temperature sensor controls
for selecting the temperature
c
Spin speed sensor controls
for selecting the spin speed
d
Extra options sensor controls
You can supplement programmes
with extra options.
When a programme is selected, the
sensor controls for the possible extra
options light up.
e
Washing/drying sensor controls
You can use the Washing and Drying
sensor controls to select whether
you want to wash, dry or wash and
dry.
f
Indicator lights
lights up if there are faults af-
fecting the water inlet and
drainage
lights up if excess detergent
was used
displays various information in
combination with a number on
the time display
The Add laundry function can-
not be selected.
g
Drying level sensor controls
Select the drying level of a drying
programme using the , and
sensor controls.
h
Time display
After the programme has started, the
programme running time will appear
on the display in hours and minutes.
When delay start is being used, the
programme running time will appear
after the delay start period has
elapsed.
Operating the washer-dryer
15
i
Start/Add laundrysensor control
– The programme can be started as
soon as the sensor control is
flashing on and off. Touching the
Start/Add laundry sensor control
starts the selected programme.
The sensor control lights up con-
stantly.
– Once the programme has been
started, the Start/Add laundry
sensor control allows you to add
laundry.
j
Optical interface
This is used by the Customer Service
Department as a transmission point.
k
Delay start sensor control with
arrow buttons and
With the delay start function, you
can delay the start of the pro-
gramme.
l
Programme selector
for selecting programmes and for
switching off the appliance. The
washer-dryer is switched on by se-
lecting a programme. You can switch
the washer-dryer off by turning the
programme selector to the posi-
tion.
How the control field works
The sensor controls react to fingertip
contact. If a sensor control is illumin-
ated, it can be selected.
If a sensor control is brightly lit, this
means it is currently selected
If a sensor control is dimly lit, this
means it can be selected
Applications
You can use this washer-dryer to:
- Wash separately
Maximum load (depending on pro-
gramme) 8.0kg
- Dry separately
Maximum load (depending on pro-
gramme) 5.0kg
or
- Wash and dry in a continuous se-
quence
Maximum load (depending on pro-
gramme) 5.0kg
Before using for the first time
16
Damage resulting from incorrect
installation and connection.
Installing and connecting the washer-
dryer incorrectly will cause serious
property damage.
Please observe the instructions in
“Installation”.
This washer-dryer has undergone a
complete functional test at the factory
and there will be some residual water
in the drum from this process.
Removing the protective foil
and stickers
Remove:
- Any protective film from the door
- Any stickers from the front and the lid
Please do not remove any labels (e.g.
the data plate) which are visible
when you open the door.
Remove the drain hose elbow
from the drum
An elbow piece for the drain hose is
stored in the drum.
Reach under the door grip and pull
the door open.
Remove the elbow piece.
Shut the door with a gentle swing.
Before using for the first time
17
Requirements for networking
Note the following requirements for net-
working:
1. A home network is available at the
installation site.
Have the WiFi password ready.
2. The Miele app is available on a mo-
bile device.
3. You have a user account in the Miele
app.
Miele App
The Miele App is available to download
free of charge from the Apple App
Store
®
or from the Google Play Store™.
Setting up Miele@home
There are 2 ways of connecting:
1. Via the Miele app (default)
2. Via WPS
Logging in via the Miele app
Turn the programme selector to the
MobileStart programme.
appears on the time display. The
timeout then starts to count down from
10minutes on the time display.
The Miele app will guide you through
the remaining steps.
When you have successfully connected,
will appear on the time display.
Logging in via WPS
Turn the programme selector to the
MobileStart programme.
Touch the sensor control until
appears on the time display and a
short keypad tone sounds.
The timeout then starts to count down
from 2minutes on the time display.
When you have successfully connected,
will appear on the time display.
Tip: If the connection has not been set
up when the timeout has finished
counting down, repeat the process.
Before using for the first time
18
Running the first wash pro-
gramme
Damage resulting from failure to
remove the transit bars.
Failure to remove the transit bars can
result in damage to the washer-dryer
and to adjacent cabinetry or appli-
ances.
Remove the transit bars as described
in “Installation”.
Before first use, the Cottons pro-
gramme must be run without laundry
and without detergent.
Open the stopcock.
Turn the programme selector to Cot-
tons.
The washer-dryer is switched on and
the temperature 40°C lights up in the
control field.
Touch the Start/Add laundry sensor
control.
The wash programme will start.
After 10minutes, the indicators dim,
except for the Start/Add laundry
sensor control.
Opening the door at the end of
the programme
The door remains locked during the anti-
crease phase. The control field lights up
for the first 10minutes. The control field
then goes out and the Start/Add laun-
dry sensor control flashes.
Turn the programme selector to the
position.
appears on the time display and the
indicator light goes out.
The door will unlock.
Tip: After the anti-crease phase, the
washer-dryer switches off. The door is
unlocked automatically. The control field
will be completely dark.
Reach under the recessed grip and
pull the door open.
Tip: Leave the door slightly open to al-
low the drum to dry.
Initial commissioning is now complete.
WASHING
19
1. Prepare the laundry
Empty all pockets.
Damage due to foreign objects.
Nails, coins, paper clips, etc. can
cause damage to garments and com-
ponents inside the machine.
Check laundry before washing and
remove any foreign objects.
Sort the laundry
Sort the laundry by colour and by care
label. Most garments have a textile
care label in the collar or side seam.
Tip: Dark textiles often contain excess
dye and should be washed separately
several times before being included in a
mixed load. Always wash whites and
colours separately.
Pre-treating stains
Badly soiled areas and stains should
be cleaned as soon as possible,
preferably whilst still fresh. Stains
should be carefully dabbed off using a
soft, colourfast cloth. Do not rub.
Damage due to solvent-based
cleaning agents.
Cleaning agents containing benzine,
stain remover, etc. can damage
plastic parts.
When pre-treating textiles, make sure
that plastic parts do not come into
contact with the cleaning agent.
Risk of explosion due to solvent-
based cleaning agents.
If solvent-based cleaning agents are
used, an explosive mixture can form.
Never use solvent-based cleaning
agents in the washer-dryer.
General tips
- Curtains: remove rollers and lead
weights or place in a laundry bag.
- Sew in or remove any loose underwir-
ing in bras.
- Close any zips, attach velcro fasten-
ers, fasten hooks and eyes, etc. be-
fore washing.
- Fasten duvet covers and pillow cases
to prevent small items from becoming
rolled up inside them.
Do not wash items which are specified
by the manufacturer as not washable
according to the symbol on the care la-
bel (symbol).
WASHING
20
2. Loading the washer-dryer
Open the door
Reach under the recessed grip and
pull the door open.
Check the drum for pets or foreign
objects before loading it with laundry.
Unfold the laundry and load loosely
into the drum.
Mixing both large and small items gives
better wash results and also helps to
distribute the load evenly during spin-
ning.
The most efficient use of energy and
water consumption is achieved when a
full load is washed. However, do not
overload as this reduces cleaning effi-
ciency and causes creasing.
Tip: Please note the maximum load size
for different wash programmes.
Close the door
Make sure that no items are caught
between the door and the sealing
ring.
Shut the door with a gentle swing.
WASHING
21
3. Selecting a programme
Switching the washer-dryer on
Turn the programme selector to a pro-
gramme.
The control field lights up.
Selecting a programme
Turn the programme selector to the
required programme.
The estimated wash time is shown on
the time display and the pre-set tem-
perature and spin speed light up in the
control field.
- Using the MobileStart programme
selector position
Turn the programme selector to the
MobileStart position.
Tip: In order to use MobileStart, the
washer-dryer must be logged on to the
WiFi network and Remote control must
be switched on.
appears on the time display.
Once the programme has started, the
washer-dryer can be operated with the
Miele app.
Selecting washing
Touch the Washing or Drying sensor
control until just the Washing sensor
control is brightly lit up.
The Drying sensor control must only
light up dimly as otherwise the wash
programme would be followed imme-
diately by the relevant drying pro-
gramme.
Selecting a temperature and spin
speed
The wash programme’s pre-set tem-
perature and spin speed light up
brightly. The choice of available tem-
peratures and spin speeds for the
wash programme light up dimly.
The temperatures reached in the wash
programme might not be the same as
the temperatures selected. Perfect
wash results are achieved through a
combination of energy use and wash
duration.
WASHING
22
Touch the sensor control for the tem-
perature you want.
The sensor control lights up brightly.
Touch the sensor control for the spin
speed you want.
The sensor control lights up brightly.
Selecting extra options
The sensor controls for the Short and
Gentle extra options light up dimly when
they can be selected in addition to the
programme.
Touch the sensor control for the extra
option you want.
The sensor control lights up brightly.
Gentle
Drum rotation and wash duration are re-
duced. Lightly soiled fabrics are washed
more gently.
Short
For textiles with light soiling with no vis-
ible stains.
The duration of the main wash is re-
duced.
Selecting the delay start function
You can use delay start to set the start
time for a programme.
Select a delay start time if required.
4. Adding detergent
Detergent is depensed either via the de-
tergent drawer or with Cap dosing.
Detergent drawer
Any detergent suitable for domestic
washing machines can be used. Please
observe the instructions for use and
dosage on the detergent packaging.
Adding detergent
Pull out the detergent drawer and add
detergents to the compartments.
No use
Detergent for the main wash
Fabric conditioner, liquid starch or
capsules
WASHING
23
Adding fabric conditioner
Add fabric conditioner or liquid starch
to the compartment. Do not ex-
ceed the maximum level mark.
This will be automatically dispensed in
the final rinse cycle. At the end of the
wash programme a small amount of wa-
ter remains in the compartment.
If starching frequently, thoroughly
clean the detergent drawer, espe-
cially the siphon, regularly.
Tips on dispensing
Adjust the detergent dosage to the de-
gree of soiling of the laundry and the
load size. Reduce the amount of deter-
gent with smaller load sizes (e.g. reduce
the amount of detergent by ¹⁄₃ when
washing a half load).
Too little detergent:
- Results in laundry not being cleaned
properly and may cause it to become
grey and hard to the touch over time
- Can lead to a build-up of mould in the
washer-dryer
- Results in grease not being com-
pletely removed from the laundry
- Can lead to limescale deposits on the
heater elements
Too much detergent:
- Causes poor wash, rinse and spin res-
ults
- Causes higher water consumption as
an extra rinse cycle is automatically
activated
- Is a greater burden on the environ-
ment
See “Washing” – “Detergent” for fur-
ther information about detergents and
how much to dispense.
Using detergent tablets or pods
Always put detergent tablets or pods
directly in the drum with the laundry.
They cannot be added via the detergent
drawer.
WASHING
24
CapDosing
CapDosing can only be activated via
the Miele app.
3 different types of capsule are avail-
able:
= Fabric care (e.g. fabric condi-
tioner, proofing agent)
= Additives (e.g. detergent en-
hancer)
= Detergent (for the main wash
only)
Each capsule contains the correct
amount for one wash cycle.
Capsules are available from
shop.miele.com, the Miele Customer
Service Department or your Miele
dealer.
Capsules pose a health risk.
The ingredients of capsules can be
hazardous to health if they are swal-
lowed or come into contact with skin.
Keep capsules out of the reach of
children.
Inserting a capsule
Open the detergent drawer.
Open the lid of the /compart-
ment.
Press the capsule in firmly.
WASHING
25
Close the lid and press it firmly shut.
Close the detergent drawer.
The capsule is opened by the act of
inserting it into the detergent drawer.
The contents can run out of the cap-
sule if you then remove it from the
detergent drawer before it is used.
Dispose of the capsule and do not re-
use it.
The wash programme will dispense the
contents of the capsule at the correct
time.
When using CapDosing, water intake
to the compartment takes place
solely via the capsule.
When using capsules, do not add
fabric conditioner to the compart-
ment.
Remove the empty capsule at the end
of the programme.
For technical reasons, a small amount
of water will remain in the capsule.
5. Starting the programme
Touch the flashing Start/Add laundry
sensor control.
The door will lock and the wash pro-
gramme will start.
If a delay start period has been selec-
ted, this counts down on the time dis-
play. At the end of the delay start period
or immediately after the programme has
started, the programme running time
appears on the time display.
Laundry can be added or removed at
any time, provided that the symbol
is not illuminated in the display (see
“Changing the programme sequence –
Adding laundry”).
Saving energy
After 10minutes, the indicators dim.
The Start/Add laundry sensor control
flashes slowly.
To reactivate the indicators:
Touch the Start/Add laundry sensor
control (this does not have any effect
on a programme that is running).
6. End of the programme/un-
loading laundry
In the anti-crease phase, the drum con-
tinues to turn for up to 30minutes after
the end of the programme. The door is
locked. The control field lights up for the
first 10minutes. The control field then
goes out and the Start/Add laundry
sensor control flashes.
Turn the programme selector to the
position.
appears on the time display and the
indicator light goes out.
The door will unlock.
WASHING
26
Tip: The door unlocks automatically at
the end of the anti-crease phase.
Pull open the door.
Remove the laundry.
Items left in the drum could discolour
other items in the next wash or be-
come discoloured themselves.
Remove all items from the drum.
Check the door sealing ring for any
foreign objects.
Tip: Leave the door slightly open to al-
low the drum to dry.
If applicable, remove the used cap-
sule from the detergent drawer.
Tip: Leave the detergent drawer slightly
open to allow it to dry.
Spin speeds
Final spin speed in wash programme
When a programme is selected, the
sensor control for the optimum spin
speed for that wash programme will be
brightly lit up in the control field.
A faster spin speed can be selected for
certain wash programmes.
The highest selectable spin speed is in-
dicated in the table.
Programme rpm
ECO40-60 1500
Cottons 1500
Minimum iron 1200
Delicates 900
Woollens 1200
Rinse/Spin 1500
Express 1200
Dark garments/Denim 900
Shirts 900
Rinse-spin
There is a spin cycle after the main wash
and between the rinse cycles. A reduc-
tion in the final spin speed will also re-
duce the rinse-spin speed as appropri-
ate.
WASHING
27
Omitting the final spin (Rinse hold)
Touch the sensor control (Rinse
hold).
The laundry is not spun after the final
rinse cycle and remains in the rinse wa-
ter. This helps prevent creasing if the
laundry is not going to be removed from
the washer-dryer immediately after the
end of the programme.
To start the final spin:
The sensor control for the optimum spin
speed lights up in the control field. You
can change the spin speed.
Start the final spin with the Start/Add
laundry sensor control.
To end the programme:
Touch the sensor control (no spin).
Touch the Start/Add laundry sensor
control.
The water will be pumped away.
Omitting the rinse-spin and the final
spin
Touch the sensor control (no spin).
After the last rinse, the water will be
pumped away and the anti-crease
phase will switch on.
In some programmes, an extra rinse is
introduced with this setting.
WASHING
28
Programme chart
ECO40-60 Max. load 8.0kg
Use for Normally soiled cotton garments
Tip - A laundry load consisting of mixed cottons that are intended for
washing at 40°C or 60°C can be washed in the same wash cycle.
- This programme is the most efficient in terms of energy and water
consumption for washing cottons.
Note for test institutes: test programme for compliance with EU legislation re-
garding ecodesign No. 2019/2023 and energy labelling in accordance with Regu-
lation No. 2019/2014.
Note for test institutes: the following switchover must be made for the test pro-
gramme in accordance with EN60456:
- When selecting the ECO40-60 programme, the temperature 60°C lights up
dimly in the temperature display.
- Touch the temperature 60 sensor control. Temperature 60 lights up brightly.
The Cottons test programme is selected.
Cottons 90°C to cold Max. load 8.0kg
Use for Cotton, linen or mixed fibre fabric, e.g. table linen, underwear, T-
shirts, etc.
Tip - Select the temperature according to the instructions on the care
label, the detergent, the type of soiling and the hygiene require-
ments.
- 20 °C programme for lightly soiled cotton garments.
Minimum iron 60°C to cold Max. load 3.5kg
Items Synthetic and mixed fibre fabric and easy care cotton
Tip Reduce the spin speed for items which crease easily.
Delicates 40°C to cold Max. load 2.0kg
Use for Delicate garments made from synthetic fibre, mixed fibre and viscose
Tip Deselect the spin speed for items which crease easily.
Woollens 40°C to cold Max. load 2.0kg
Items Wool or wool blend fabric
Tip Reduce the final spin speed for fabric that creases easily.
WASHING
29
Rinse/Spin Max. load 8.0kg
Use for Rinsing and spinning hand-washed items
Tip - Make sure you select the appropriate spin speed.
- Spin only: select the Short extra option.
- Rinse only: set spin speed to.
MobileStart
Tip The Miele app is used for selecting programmes and operating the
appliance.
Express 40°C to cold Max. load 3.5kg
Items Cotton garments that have hardly been worn or are only very lightly
soiled
Dark garments/Denim 60°C to cold Max. load 3.0kg
Use for Black and dark items made of cotton, mixed fibre or denim
Tip - Wash inside out.
- Denim often contains excess dye and may run during the first few
washes. Therefore, wash light and coloured items separately.
Shirts 40°C to cold Max. load 2.0kg
Use for Shirts and blouses made of cotton and mixed fibre
Tip - Pre-treat collars and cuffs depending on the level of soiling.
- Turn shirts and blouses inside out, do up buttons and turn collars
and cuffs inwards.
Warm air “Programme chart – DRYING”
Rinse out fluff “Rinse out fluff programme” section
WASHING
30
Programme sequence
Main wash Rinse Spin
Water level Wash
rhythm
Water level Rinse
cycles
ECO40-60
2–3
2
Cottons
2–4
1.2
Minimum iron
2–3
2
Delicates
2–3
2
Woollens
2
Rinse/Spin – –
1
Express
1
Dark garments
3–4
2
Shirts
3
Please see the next page for a description of the symbols.
WASHING
31
= low water level
= medium water level
= high water level
= intensive rhythm
= normal rhythm
= sensitive rhythm
= hand wash rhythm
= carried out
– = not carried out
This washer-dryer has fully electronic
controls with automatic load control.
The washer-dryer takes in the right
amount of water required for the pro-
gramme depending on the amount of
laundry and its absorbency rate.
The programme sequences outlined are
based on the standard programme with
a full load.
Special features in the programme se-
quence
Anti-crease:
At the end of the programme, the drum
continues to turn for up to 30minutes
to help prevent creasing.
Exception: there is no anti-crease phase
in the Woollens programme.
The washer-dryer can be opened at any
time.
1
If a temperature of 60°C or higher is
selected, 2 rinse cycles are carried
out. If a temperature of less than
60°C is selected, 3 rinse cycles are
carried out.
2
An extra rinse is carried out if:
- There is too much foam in the drum
- The spin speed is less than 700rpm
Detergent
All detergents produced for automatic
washing machines are suitable. Follow
the manufacturer's instructions and
dosage recommendations on the pack-
aging.
The dispensing quantity will depend
on:
- The degree of soiling of the laundry
- The amount of laundry
- The water hardness
Check with your local water supplier
if you do not know the water hard-
ness level in your area.
Water softeners
A water softener can be used to cut
down on the use of detergents in areas
with water hardness levels II and III.
Dispense according to the amount spe-
cified on the packaging. First add deter-
gent and then the water softener.
You can then use the recommended
amount of detergent for water hardness
level I.
Water hardness levels
Hardness
scale
Hardness level
in mmol/l
German scale
°d
I (soft) 0 – 1.5 0 – 8.4
II (medium) 1.5 – 2.5 8.4 – 14
III (hard) above 2.5 above 14
WASHING
32
Dispensing aids
Use dispensing aids, (e.g. balls) if these
are supplied with the detergent, particu-
larly when using liquid detergent.
Refill packs of detergent
When purchasing detergent buy refill
packs wherever possible. This helps re-
duce the amount of waste packaging.
Fabric conditioners, liquid starch,
starch
Fabric conditioners make garments soft
to handle and help prevent static cling
when tumble drying.
Liquid starch is synthetic and provides
good stiffness to fabric.
Starch stiffens and gives body to fabric.
Using fabric conditioner, liquid starch
or starch separately
Prepare the starch in accordance with
the manufacturer’s instructions on the
packaging.
Add fabric conditioner to the com-
partment.
Add liquid starch to the compart-
ment and powder or viscous starch to
the compartment.
Select the Rinse/Spin programme.
Change the spin speed if necessary.
Touch the Start/Add laundrysensor
control.
Colour run and dye removers/dyes
Damage due to colour run/dye
removers.
Colour run and dye removers can
cause corrosion in the washer-dryer.
Do not use colour run or dye re-
movers in this washer-dryer.
Dyes suitable for use in domestic
washer-dryers can be used. However,
please note that the salt used in the
dyeing process can cause corrosion to
stainless steel components in the ma-
chine if you use dye frequently. Always
follow the dye manufacturer’s instruc-
tions carefully.
WASHING
33
Recommended Miele detergents
Miele detergents have been specially designed for day-to-day use in Miele washing
machines.
Miele detergents Miele capsules
UltraWhite UltraColor
ECO40-60 –
Cottons –
Minimum iron – –
Delicates – –
Woollens – – – –
Rinse/Spin – – – –
Express – – –
Dark garments/Denim – –
Shirts –
Recommended Special-purpose detergents (e.g. Wool-
Care)
– Not recommended Fabric care (e.g. fabric conditioner)
Additive (e.g. booster)
WASHING
34
Recommended detergents in accordance with Directive (EU)No.1015/2010
The recommendations apply to the temperature ranges given in the “WASHING”
section in the Programme chart.
Universal Colour Delicates
and woollens
Special
detergents
ECO40-60 – –
Cottons – –
Minimum iron – – –
Delicates – – –
Woollens – –
Rinse/Spin – – –
Express –
1
– –
Dark garments/
Denim –
1
– –
Shirts – –
Recommended
1
Liquid detergent
– Not recommended
DRYING
35
Separate drying
The separate drying programme
should be run if the load in the wash
programme is greater than the max-
imum load permitted for drying, or if
you only want to dry part of the load
that was washed.
1. Prepare the laundry
Sort the laundry
Sort the laundry according to type of
fibre/weave and the residual moisture
content.
This will help you achieve an even drying
result.
Before drying, check the drying sym-
bol on the care label.
If there is no care label, the article
should only be tumble dried in a pro-
gramme specially designed for it.
Tips on drying
- Do not load the drum with items that
are still soaking wet. Spin the laundry
for at least 30seconds after washing.
- Woollens and wool blends are sus-
ceptible to becoming matted or
shrinking. Only use the Woollens pro-
gramme for these textiles.
- Pure linen should only be tumble
dried if it is specified as suitable on
the care label. The surface of the fab-
ric may otherwise become rough.
- Jersey fabrics (e.g. T-shirts, under-
wear) tend to shrink when they are
washed for the first time. Therefore,
do not overdry the fabrics to prevent
them from shrinking further. Buy jer-
sey garments that are one or two
sizes bigger.
- Starched laundry can be tumble dried.
To achieve the usual finish, double the
amount of starch should be used.
- New dark coloured garments should
be washed and dried separately from
light coloured garments. The colour of
dark garments can run or fluff from
garments of other colours may settle
on them.
- Observe the maximum loads given for
the drying programmes in the Pro-
gramme chart.
The drying result and amount of
creasing depend on the size of the
load. The smaller the load in the dryer,
the better the result. Therefore, if you
reduce the load, you will achieve a
more even drying result with less
creasing.
2. Loading the washer-dryer
Open the door
Reach under the door grip and pull
the door open.
Check the drum for pets or foreign
objects before loading it with laundry.
Load the laundry loosely in the drum.
Overloading places a strain on the
textiles and affects drying results.
Observe the maximum loads given in
the “Programme chart”.
Close the door
Make sure that no items are caught
between the door and the seal.
Shut the door with a gentle swing.
DRYING
36
Detergent dispensing aids, e.g.
plastic dispenser balls, can melt dur-
ing the drying programme and cause
damage to the machine and the laun-
dry.
These dispensing aids must be re-
moved from laundry before drying.
The water supply stopcock must be
kept open for drying.
3. Selecting a programme
Switching the washer-dryer on
Turn the programme selector to a pro-
gramme.
The control field lights up.
Selecting a programme
Turn the programme selector to the
required programme.
The estimated wash time is shown on
the time display and the pre-set tem-
perature and spin speed light up in the
control field.
- Using the MobileStart programme
selector position
Turn the programme selector to the
MobileStart position.
Tip: In order to use MobileStart, the
washer-dryer must be logged on to the
WiFi network and Remote control must
be switched on.
appears on the time display.
Once the programme has started, the
washer-dryer can be operated with the
Miele app.
Selecting drying
Touch the Washing or Drying sensor
control until just the Drying sensor
control is brightly lit up.
The Washing sensor control must
only light up dimly as otherwise the
relevant wash programme would be-
gin before the drying process.
DRYING
37
4. Select programme settings
Selecting the drying level
The pre-set drying level for a drying
programme can be changed if re-
quired.
Touch the sensor control for the dry-
ing level you want.
- Normal plus
- Normal
- Hand iron
The sensor control for the selected dry-
ing level lights up brightly.
Warm air programme: Select the dry-
ing time with the or sensor con-
trols.
Selecting a thermospin spin speed
The preset thermospin spin speed for
a drying programme can be changed if
required.
Touch the sensor control for the spin
speed you want.
The sensor control lights up brightly.
Selecting extra options
The sensor controls for the Gentle extra
option light up dimly if the Gentle option
can be selected in addition to the pro-
gramme.
Touch the Gentle sensor control.
The sensor control lights up brightly.
Gentle
Delicate textiles such as acrylics are
dried gently (care label symbol).
The programme running time will in-
crease when Gentle option is selected
because of the lower temperature.
Selecting the delay start function
You can use delay start to set the start
time for a programme.
Select a delay start time if required.
5. Starting the programme
Touch the flashing Start/Add laundry
sensor control.
The door will lock and the drying pro-
gramme will start.
If a delay start period has been selec-
ted, this counts down on the time dis-
play. At the end of the delay start period
or immediately after the programme has
started, the programme running time
appears on the time display.
Laundry can be added or removed at
any time, provided that the symbol
is not illuminated in the display (see
“Changing the programme sequence –
Adding laundry”).
Saving energy
After 10minutes, the indicators dim.
The Start/Add laundry sensor control
flashes slowly.
To reactivate the indicators:
Touch the Start/Add laundry sensor
control (this does not have any effect
on a programme that is running).
6. End of the programme/un-
loading laundry
In the anti-crease phase, the drum con-
tinues to turn for up to 150minutes
after the end of the programme. The
door is locked. The control field lights up
for the first 10minutes. The control field
then goes out and the Start/Add laun-
dry sensor control flashes.
DRYING
38
Turn the programme selector to the
position.
The door will unlock.
If you unload the laundry during the
anti-crease phase, heat can build up.
Spread the laundry out to cool it
down.
The door unlocks automatically at the
end of the anti-crease phase.
Pull open the door.
Remove the laundry.
Items left in the dryer could be dam-
aged by overdrying when the dryer is
used the next time.
Remove all items from the drum.
Tip: See “Washing and drying – After
each washing or drying programme”.
DRYING
39
Programme chart
* Weights are based on the weight of dry laundry.
ECO40-60 Max. load 5.0kg*
Drying levels:
Cotton textiles: T-shirts, underwear, baby clothes, workwear, jackets,
covers, aprons, overalls, hand towels/bath towels/bathrobes and
flannelette/bed linen.
Cottons Max. load 5.0kg*
Drying levels: ,
Use for Single and multi-layered cotton fabric such as T-shirts, underwear,
baby clothes, workwear, jackets, covers, aprons, overalls, hand tow-
els/bath towels/bathrobes and flannelette/bed linen.
Drying levels:
Use for Cotton or linen fabric requiring further processing, e.g. table linen,
bed linen, starched laundry.
Tip To prevent laundry from drying out, it should be rolled up until you are
ready for ironing.
Minimum iron Max. load 3.5kg*
Drying levels: , ,
Use for Minimum iron items made of cotton, synthetic or mixed fibre, e.g.
workwear, overalls, jumpers, dresses, trousers, table linen, tights.
Delicates Max. load 1.0kg*
Drying levels: , ,
Use for Delicate items with the symbol on the care label made of synthetic
fibres, artificial silk, easy care cotton or mixed fibres, e.g. shirts,
blouses, lingerie and evening wear with sequins and beading.
Tip Reducing the load will reduce creasing.
Woollens Max. load 2.0kg*
3minutes
Use for Woollen garments and fabric containing wool blends, e.g. pullovers,
cardigans, tights
Tip - Wool and wool blend items are only fluffed up; they are not dried
completely.
- Remove the garments immediately after the end of the programme.
DRYING
40
MobileStart
Tip The Miele app is used for selecting programmes and operating the
appliance.
Express Max. load 3.5kg*
Drying levels: , ,
Use for Items suitable for the Cottons programme
Note The programme running time for this programme is particularly short
when washing and drying lightly soiled laundry in a continuous se-
quence.
Dark garments/Denim Max. load 3.0kg*
Drying levels: , ,
Use for Black and dark items made of cotton, mixed fibre or denim
Shirts Max. load 1.0kg*
Drying levels: , ,
Use for Shirts and blouses
Tip - Turn shirts and blouses inside out, do up buttons and turn collars
and cuffs inwards.
Warm air Max. load 4.0kg*
20–120minutes
Tip - Additional drying for multi-layered items whose layers have differ-
ent drying characteristics, e.g. jackets, pillows, sleeping bags
- For drying and airing individual items
Rinse out fluff See “Rinse out fluff” section.
Thermospin
A thermospin is carried out in some drying programmes to reduce energy con-
sumption.
The maximum spin speed for the thermospin is the maximum permitted spin speed
for the appropriate wash programme.
The thermospin spin speed can be reduced in some programmes to 900rpm.
WASHING AND DRYING
41
Washing and drying in one con-
tinuous sequence
It is advisable to wash and dry in a
continuous sequence when the
amount of laundry to be washed does
not exceed the amount to be dried and
the amount to be dried does not ex-
ceed the permitted dry weight for the
programme.
It is very important to read the sec-
tions “Separate washing” and “Sep-
arate drying” before proceeding.
1. Prepare the laundry
Empty all pockets.
Sort the laundry according to colour
and type of fibre/weave.
Check the symbols on the care labels.
2. Loading the washer-dryer
Open the door.
Check the drum for pets or foreign
objects before loading it with laundry.
Unfold the laundry and load loosely
into the drum.
Detergent dispensing aids, e.g.
plastic dispenser balls, can melt dur-
ing the drying programme and cause
damage to the washer-dryer and the
laundry.
These dispensing aids must be re-
moved from the laundry before dry-
ing.
Close the door.
3. Selecting a programme
Turn the programme selector and se-
lect the required programme.
The control field lights up.
Touch the Washing and Drying sensor
control until both sensor controls are
brightly lit up.
4. Selecting programme set-
tings
Select the desired spin speed, tem-
perature and drying level.
The sensor controls for the selected
settings light up brightly.
The minimum spin speed cannot be
lower than 900rpm.
For some programmes the spin speed
cannot be changed.
Select further extra options as re-
quired.
With the thermospin, the spin speed
displayed for the wash cycle is used.
Select a delay start time if required.
WASHING AND DRYING
42
5. Add detergent
Dispense detergent either with Cap
dosing or via the detergent dispenser
drawer.
6. Programme start/finish
Touch the flashing Start/Add laundry
sensor control.
The door is locked.
The programme will start.
The anti-crease phase will start at the
end of the programme.
The door remains locked during the
anti-crease phase.
Touch the Start/Add laundry control
or turn the programme selector to the
position.
The door will unlock.
If you have unloaded the drum during
the anti-crease phase make sure you
spread out the laundry to allow it to
cool down.
The door unlocks automatically at the
end of the anti-crease phase.
Pull the door open and unload the
laundry.
See “After each washing or drying pro-
gramme”.
After each washing or drying
programme
Open the door fully.
Risk of burning due to hot metal.
The metal cap located on the inside
of the door glass will be hot after dry-
ing.
Do not touch the metal cap.
Remove the laundry.
Laundry left in the drum could shrink,
discolour or be damaged in the next
washing or drying programme.
Check that all items have been re-
moved from the drum.
Check the door sealing ring for any
foreign objects. After drying, remove
any fluff from around the door sealing
ring and the door glass.
Tip: Leave the door slightly open to al-
low the drum to dry.
Turn the programme selector to the
position.
Tip: Leave the detergent drawer slightly
open to allow it to dry.
Rinse out fluff programme
43
During drying, fluff develops and can
collect in the drum and suds container.
You can rinse out fluff before the ma-
chine is used again so that this fluff (e.g.
from dark coloured textiles) cannot be
deposited on other items (e.g. light col-
oured textiles) in the next load or cause
a blockage in the washer-dryer.
The Rinse out fluff programme must
not be used for rinsing laundry. En-
sure there are no items of laundry in
the drum before starting the pro-
gramme.
Turn the programme selector to the
Rinse out fluff programme.
Do not use detergent.
Touch the Start/Add laundrysensor.
Any fluff will be rinsed away within a few
minutes.
If necessary wipe any remaining fluff
off the door sealing ring and door
glass.
Switch the washer-dryer off.
Changing the programme sequence
44
Changing a programme (safety
lock)
A programme, temperature, spin speed
or selected options cannot be changed
once the machine has been successfully
started. This prevents the machine be-
ing operated unintentionally, e.g. by chil-
dren.
If the washer-dryer is switched off dur-
ing active programme operation, the
standby function does not switch the
washer-dryer off completely after
15minutes. Safety functions continue
to be active because there may still be
water inside the drum.
Cancelling a programme
You can cancel a programme at any time
after it has started.
Turn the programme selector to the
position.
The programme is interrupted.
Then turn the programme selector to
any position.
Rotating bars ...... appear
on the time display.
- During washing:
The washer-dryer pumps the suds away
and the wash programme is cancelled.
The door lock is released.
- During drying:
The washer-dryer cools the laundry
down before the door can be opened.
Removing the laundry
Wait until the symbol in the display
goes out and the door is unlocked.
Pull the door open and unload the
laundry.
Selecting another programme
Close the door.
Select the programme you want to
use.
Add detergent to the detergent
drawer, if necessary.
Touch the Start/Add laundrysensor.
The programme will start.
Adding laundry - AddLoad
You can add or remove laundry items
during the first few minutes after the
programme has started.
Laundry cannot be added if the
symbol is illuminated in the display.
Touch the Start/Add laundrysensor
control.
Rotating bars ...... appear
on the time display.
appears on the time display.
Open the door.
Add or remove laundry.
Close the door.
Touch the Start/Add laundrysensor
control.
The programme continues.
Laundry cannot be added or removed if:
- The suds temperature is above 55°C
- The water inside the drum is above a
certain level
Delay start/SmartStart
45
Delay start
Delay start is active when the
SmartGrid programmable function
is switched off.
With delay start, you can delay the start
of a programme from 30minutes up to
a maximum of 24hours. This allows you
to make use of night-time economy
electricity rates, for example.
Setting the delay start time
Select the wash programme required.
Touch the sensor control.
The sensor control lights up brightly.
Touch the or sensor control re-
peatedly until the required delay start
time appears on the time display.
- In the case of settings below
10hours, the delay start time
changes in increments of 30minutes.
- In the case of settings above
10hours, the delay start time
changes in increments of 1hour.
Starting delay start
Touch the flashing Start/Add laundry
sensor control.
The delay start process starts and
counts down on the time display.
Changing or cancelling delay start
If the selected delay start function has
started, it is no longer possible to
change the time.
Turn the programme selector to the
position.
Turn the programme selector to any
programme.
Rotating bars ... ... or are
shown on the time display.
The delay start process stops.
Select a programme and a new delay
start time.
Delay start/SmartStart
46
SmartStart
The SmartStart function is active
when the SmartGrid program-
mable function is switched on.
The SmartStart function lets you define
a time period during which your washer-
dryer will start automatically based on
an external signal. The appliance will
start on receipt of a signal, e.g. from
your energy supplier, that indicates that
the electricity tariff is particularly eco-
nomical.
The time period can be defined between
30minutes and 24hours. During this
period, the washer-dryer waits for the
external signal. If no signal is sent during
the defined period, the washer-dryer
starts the programme.
Setting the time period
If the SmartGrid programming
functions are activated, the function of
the sensor control changes. The
time display no longer shows the delay
start period, and instead shows the
time period in which your washer-
dryer can be started automatically (see
“Programmable functions –
SmartGrid”).
The procedure for setting this is the
same as for setting the delay start time.
Touch the sensor control.
Set the time period you want using
the or sensor controls.
Touch the Start/Add laundrysensor
control.
appears on the time display.
Cleaning and care
47
Cleaning the casing and control
panel
Risk of electric shock from mains
voltage.
The mains voltage is applied to the
washer-dryer even if it is switched
off.
Disconnect the power plug before
cleaning or maintenance.
Risk of damage due to ingress of
water.
The pressure of a water jet can cause
water to get into the washer-dryer,
resulting in damage to components.
Do not spray the washer-dryer with a
water jet.
Damage caused by cleaning
agents.
Solvent-based cleaning agents, ab-
rasive cleaners, glass cleaners or
multi-purpose cleaning agents can
cause damage to plastic surfaces and
other parts.
Do not use these cleaning agents.
Clean the casing and control panel
with a mild cleaning agent or soap
and water and dry both with a soft
cloth.
The drum can be cleaned using a suit-
able stainless steel cleaning agent.
Cleaning the detergent dis-
penser drawer
Washing at low temperatures and the
use of liquid detergent can lead to a
build-up of mould and bacteria in the
detergent dispenser drawer.
For hygiene reasons, clean the entire
drawer at regular intervals.
Pull out the detergent dispenser
drawer until a resistance is felt. Press
down the release button and at the
same time pull the drawer right out of
the machine.
Clean the drawer with hot water.
Cleaning and care
48
Cleaning the siphon and the channel
Pull the siphon out of the compart-
ment and clean it under warm running
water.
Clean the siphon tube in the same
way.
Refit the siphon.
Clean the fabric conditioner channel
using a brush and warm water.
Liquid starch results in clogging.
Clean the siphon particularly thor-
oughly after using liquid starch a few
times.
Cleaning the detergent dispenser
drawer housing
Use a bottle brush to remove deter-
gent residues and limescale from the
jets inside the detergent dispenser
drawer housing.
Replace the detergent dispenser
drawer.
Tip: Leave the detergent dispenser
drawer slightly open to allow it to dry.
Cleaning and care
49
Cleaning the porthole glass
Clean the inside of the porthole glass
from time to time and the metal cap
inside the porthole glass with a suit-
able mild cleaning agent or with soapy
water.
Dry both with a soft cloth.
Cleaning the drum
Washing at low temperatures and/or us-
ing liquid detergent can cause bacteria
and unpleasant odours to build up in the
washer-dryer. Use the Cottons 90°C
programme to clean the washer-dryer.
Clean the drum no later than the point
at which the indicator light and light
up on the time display.
Cleaning the water intake filter
The washer-dryer has a filter to protect
the water intake valve. The filter at the
open end of the water inlet hose should
be checked approximately every
6months. Perform this check more of-
ten if there are frequent interruptions to
the external water supply.
First turn off the stopcock.
Unscrew the water inlet hose from
the stopcock.
Remove the rubber seal 1 from the re-
cess.
Hold the free end of the water inlet
hose upside down. The plastic filter 2
will fall out.
Clean the plastic filter.
Reassemble in reverse order.
Turn on the stopcock and check that
the connection is watertight. If water
drips out, tighten the connection.
Never forget to put the filter back in
place after cleaning.
Troubleshooting
50
Many malfunctions and faults can be easily remedied. You can save time and
money in many cases, as you do not need to contact Customer Service.
More information to help you remedy faults yourself can be found at
www.miele.co.uk/support/customer-assistance.
A programme does not start
Problem Cause and remedy
The control field remains
dark.
There is no power to the washer-dryer.
Check whether the power plug is plugged in.
Check whether the fuse has tripped.
The washer-dryer has switched off automatically to
save energy.
Switch the washer-dryer on again by turning the
programme selector.
and alternate on the
time display.
The door is not closed properly. The door lock could
not engage.
Close the door again.
Start the programme again.
If the fault message appears again, contact the
Miele Customer Service Department.
Programme cancellation and fault indicator light
Problem Cause and remedy
The fault indicator
light lights up. and
alternate on the time
display and the buzzer
sounds.
The water inlet is blocked or restricted.
Check whether the stopcock has been properly
opened.
Check whether the water inlet hose is kinked.
Check whether there is sufficient water pressure.
The filter in the water inlet is blocked.
Clean the filter.
The fault indicator
light lights up. and
alternate on the time
display and the buzzer
sounds.
The drain is blocked or restricted.
The drain hose has been fixed too high.
Clean the drain filter and the drain pump.
Check whether the maximum delivery head of 1m
has been exceeded.
Troubleshooting
51
Problem Cause and remedy
The fault indicator
light lights up. and
alternate on the time
display and the buzzer
sounds.
The water protection system has reacted.
Close the stopcock.
Call the Miele Customer Service Department.
and alternate on
the time display and the
buzzer sounds.
There is a fault.
Disconnect the washer-dryer from the electricity
supply. Switch off at the wall and withdraw the plug
from the socket, or disconnect the fuse.
Wait at least 2minutes before reconnecting the
washer-dryer to the electricity supply.
Switch the washer-dryer back on.
Restart the programme.
If the fault message appears again, contact the
Miele Customer Service Department.
Fault indicator light lights up at the end of a programme
Problem Cause and remedy
The indicator light
lights up.
Excessive foam has built up during washing.
Use less detergent next time and follow the manu-
facturer’s instructions on dosage given on the pack-
aging.
The indicator light
lights up and appears
on the time display.
When washing, a wash programme using a temperat-
ure above 60°C has not been run for a long time.
Run the Cottons90°C programme using Miele ma-
chine cleaner or a multi-purpose powder detergent.
This will clean the washer-dryer and prevent a build-
up of bacteria and odours.
The indicator light
lights up and appears
on the time display.
TheRinse out fluff programme has not been used for a
long time.
Start the Rinse out fluff programme as described in
“Rinse out fluff”.
Troubleshooting
52
Problem Cause and remedy
The indicator light
lights up and appears
on the time display.
There is no laundry in the drum.
The load is too small. The laundry is still damp be-
cause the residual moisture content in the laundry
cannot be measured.
In the future, use a Warm air programme for small
amounts of laundry.
The amount of laundry exceeded the maximum load
for the selected drying programme.
Observe the maximum load sizes given in the Pro-
gramme chart.
Symbols on the time display
Message Cause and remedy
is lit up on the time
display.
The programme selector was moved to a different po-
sition after the programme had started.
Turn the programme selector back to the original po-
sition.
lights up when
switching on the
washer-dryer.
An update is available for the washer-dryer. See “Pro-
grammable functions – RemoteUpdate” for more
information.
lights up briefly in
the time display when a
programme is selected.
The washer-dryer is indicating that it is networked.
lights up in the time
display when the Mo-
bileStart programme
is selected.
The remote control function is switched off.
Activate the remote control programmable func-
tion to operate the washer-dryer via the app.
lights up in the time
display when the Mo-
bileStart programme
is selected.
The washer-dryer is networked and can be operated
via the app.
lights up in the time
display when the Mo-
bileStart programme
is selected.
Miele@home is not set up.
Network the washer-dryer; see “Before using for the
first time – Setting up Miele@home”.
Troubleshooting
53
Message Cause and remedy
lights up when
switching on the
washer-dryer.
There is a fault.
Switch the washer-dryer off.
Switch the washer-dryer back on.
If appears again, contact the Miele Customer
Service Department.
You can continue to use the washer-dryer.
Touch the lit sensor control.
General problems with the washer-dryer
Problem Cause and remedy
The display is dark. The display has switched off automatically to save en-
ergy (Standby mode).
Press a button. Standby comes to an end.
The washer-dryer is not
steady during a spin
cycle.
The machine feet are not level.
Level the washer-dryer and secure the feet.
Unusual pumping
noises.
This is not a fault. These slurping noises occur at the
end of the pump sequence as a normal part of opera-
tion.
Spinning sounds during
the drying process.
This is not a fault. The machine will spin, even during
a drying programme (thermospin).
The laundry has not
been spun properly and
the laundry is still wet.
The machine detected an imbalance during the final
spin cycle and reduced the spin speed automatically.
Include both large and small items in the load as this
will give better distribution during spinning.
Large amounts of deter-
gent residue remain in
the detergent drawer.
The water flow pressure is too low.
Clean the filters in the water inlet.
Select Water plus.
Powder detergent used in conjunction with water
softeners tends to become sticky.
Clean the detergent drawer and, in the future, add
washing powder in the compartment first, and then
add the water softener.
Fabric conditioner is not
completely dispensed or
too much water remains
in the compartment.
The siphon tube is not correctly positioned or is
clogged.
Clean the siphon, see “Cleaning and care - Cleaning
the detergent dispenser drawer”.
Troubleshooting
54
Problem Cause and remedy
There is water in the fab-
ric conditioner compart-
ment next to the cap-
sule.
CapDosing was not activated or an empty capsule
was not removed at the end of the last wash pro-
gramme.
Make sure that you remember to activate CapDos-
ing the next time you insert a capsule.
Remove and dispose of the empty capsule at the
end of each programme.
There is a blockage in the small pipe in the detergent
drawer onto which the capsule is placed.
Clean the small pipe.
At the end of the pro-
gramme there is still li-
quid in the capsule.
The small pipe in the detergent dispenser drawer
onto which the capsule is placed is blocked.
Clean the small pipe.
This is not a fault. For technical reasons a small
amount of water will remain in the capsule.
The time left duration in
the display fluctuates.
The countdown time adapts constantly to the current
washing and drying process.
Foam comes out of the
detergent dispenser
drawer while the Rinse
out fluff programme is
running.
Residual detergent from the last programme is still
present in the suds container.
Make sure you dispense the correct amount of de-
tergent.
Follow the dispensing recommendations on the
packaging.
There is foam in the
drum at the end of the
Rinse out fluff pro-
gramme.
The Rinse out fluff programme also rinses out residual
detergent from the suds container. This can lead to
the formation of foam.
Run the Rinse out fluff programme regularly to pre-
vent detergent residues from accumulating in the
suds container.
There is still fluff in the
drum after the end of the
Rinse out fluff pro-
gramme.
You have not run the Rinse out fluff programme for a
long time.
Remove the fluff from the drum.
Run the Rinse out fluff programme on a regular
basis.
Troubleshooting
55
Problem Cause and remedy
The washer-dryer
smells.
The indicator light was ignored. A wash programme
using a temperature above 60°C has not been run for
a long time.
In order to prevent bacteria and unpleasant odours
building up in the washer-dryer, run the Cottons
90°C programme using the Miele machine cleaner
or multi-purpose powder detergent.
The door and the detergent drawer were closed after
washing.
Leave the door and the detergent drawer slightly
open to allow them to dry.
An unsatisfactory wash result
Problem Cause and remedy
White residues which
look like powder deter-
gent are seen on dark
textiles after washing.
The detergent contained compounds (zeolites) to aid
water softening which are not soluble in water. These
have ended up on the laundry.
Try and brush off the residues with a soft brush once
the laundry is dry.
Wash dark textiles using a detergent which contains
no zeolites. Liquid detergents usually contain no
zeolites.
Use the Dark garments programme.
Liquid detergent does
not give the required
result.
Liquid detergents usually contain no bleaching agents.
They do not remove fruit, coffee and tea stains.
Use a general purpose powder detergent containing
a bleaching agent.
Pour stain remover into compartment and liquid
detergent into a dispensing ball (remove the dis-
pensing ball before drying!).
Never put stain removers and liquid detergent to-
gether in the dispenser drawer.
Grey, greasy particles
cling to washed laundry.
Insufficient amounts of detergent were used to break
down the particles of grease in heavily soiled laundry.
Use more detergent.
Before washing the next load, run the Maintenance
wash using Miele machine cleaner or a powder de-
tergent.
Troubleshooting
56
Unsatisfactory drying results
Problem Cause and remedy
The laundry is too damp
after a drying cycle.
The load is too small. The electronics could not assess
the residual moisture correctly.
In the future, use a Warm air programme for small
amounts of laundry.
During the spin cycle, the laundry formed a ring in the
drum because the laundry was distributed unevenly.
The laundry formed a ring during the thermospin be-
cause it was too damp or because the spin speed was
set too high.
Open the door and loosen the laundry.
Start the drying programme again with a lower spin
speed.
The laundry feels damp
after drying.
Warm laundry can feel damp.
Spread the laundry out to cool it down.
The laundry is too damp
or too dry after a drying
cycle.
The desired residual moisture level is between two
drying stages.
Change the level of drying as described in “Set-
tings”, “Drying levels”.
There is still water in the
drum after drying.
There is a blockage in the water outlet.
Clean the drain filters and the drain pumps as de-
scribed in “Opening the door in the event of a
blocked drain outlet and/or power failure” and check
the height of the drainage point.
Troubleshooting
57
The door will not open
Problem Cause and remedy
The door cannot be
opened during a pro-
gramme sequence.
The door is locked during a programme sequence.
Follow the instructions in “Changing the programme
sequence – Adding laundry”.
There is still water in the drum and the washer-dryer is
unable to drain.
Clean the drain filter and the drain pump as de-
scribed in “Opening the door in the event of a
blocked drain outlet and/or power cut”.
The water level in the drum is too high.
Cancel the programme. The washer-dryer will pump
the water away.
The door cannot be
opened at the end of the
programme or after a
programme cancellation.
Flashing bars
......... are
shown on the time dis-
play.
The door cannot be opened for safety reasons. The
temperature in the drum exceeds 55°C during wash-
ing or 70°C during drying.
Wait until the temperature in the drum has de-
creased and the door will be unlocked.
The door will not unlock.
and alternate on the
time display.
The door lock has jammed.
Call the Miele Customer Service Department.
Troubleshooting
58
Opening the door in the event
of a blocked drain outlet and/or
power cut
Switch the washer-dryer off.
Open the drain pump access panel.
Blocked drain outlet
If the drain outlet is blocked, a large
quantity of water can remain in the
washer-dryer.
Risk of scalding due to hot suds.
Escaping suds will be hot if laundry
has been washed at high temperat-
ures.
Carefully allow all suds to drain off.
Draining water from the machine
Remove the drain filter, though not
completely.
Place a suitable container under the
access panel, e.g. a universal oven
tray.
Slowly unscrew the drain filter to let
the water out.
Tighten the drain filter back up again if
you need to interrupt the flow of wa-
ter.
Once the flow of water ceases:
Remove the drain filter completely.
Troubleshooting
59
Cleaning the drain filter
Clean the drain filter thoroughly.
Turn the impellers by hand to check
that they rotate freely.
Remove any foreign objects (e.g. but-
tons, coins, etc.) and clean the in-
terior.
Put the drain filter back in place and
secure it.
Risk of damage from leaking wa-
ter.
Water will escape from the washer-
dryer if you forget to replace the drain
filter.
Replace the drain filter correctly and
tighten it securely.
Open the door
Danger of injury due to rotating
drum.
Reaching into a moving drum is ex-
tremely dangerous.
Always make sure that the drum is
stationary before reaching in to re-
move laundry.
Unlock the door with a screwdriver,
for example.
Pull open the door.
Service
60
Information to help you rectify faults
yourself and about Miele spare parts
can be found at www.miele.com/ser-
vice.
Contact in the event of a fault
In the event of any faults which you can-
not remedy yourself, please contact
your Miele dealer or the Miele Cus-
tomer Service Department.
You can book a Miele Customer Ser-
vice Department call-out online at
www.miele.com/service.
Contact information for the Miele Cus-
tomer Service Department can be
found at the end of this document.
Please quote the model identifier and
serial number of your appliance (Fabr./
SN/Nr.) when contacting the Miele Cus-
tomer Service Department. This informa-
tion can be found on the data plate.
Please note that telephone calls may be
monitored and recorded for training pur-
poses and that a call-out charge will be
applied to service visits where the prob-
lem could have been resolved as de-
scribed in this booklet.
The data plate is found above the
porthole glass when the door is opened.
Optional accessories
Products specially tailored to your
washer-dryer – such as detergent and
accessories – are available from the
Miele online shop, Miele Customer Ser-
vice or your Miele specialist dealer.
You can access the Miele online shop
via the following QR code:
EPREL database
From 1 March 2021, information on en-
ergy labelling and ecodesign require-
ments will be available in the European
Product Database (EPREL). You can find
the product database at the following
link https://eprel.ec.europa.eu/. You will
be asked to enter the model identifier.
The model identifier can be found on the
data plate.
Made in xxx
Mod.: XXXxxx
Miele Service
www.miele.com/service
M-Nr.: xxxxxxxx
Type: XXxx-X
Nr.:/ xxxxxxxxx
Warranty
For information on the appliance warranty
specific to your country please contact
Miele. See back cover for address.
In the UK, your appliance warranty is
valid for 2 years from the date of pur-
chase. However, you must activate your
cover by calling 0330 160 6640 or re-
gistering online at www.miele.co.uk.
Installation
*INSTALLATION*
61
Front view
a
Water inlet hose (waterproof metal,
braided)
b
Electrical connection
c
Flexible drain hose (with detachable
elbow)
d
Control panel
e
Detergent drawer
f
Door
g
Access to drain filter, drain pump and
emergency release
h
4height-adjustable feet
Installation
*INSTALLATION*
62
Rear view
a
Protruding lid for holding when mov-
ing the appliance
b
Drain hose
c
Water inlet hose
d
Safety caps for transit bars
e
Transport clips for water inlet hoses
and drain hoses
f
Electrical connection
Installation
*INSTALLATION*
63
Installation surface
A concrete floor is the most suitable in-
stallation surface. It is far less prone to
vibration during the spin cycle than
wooden floorboards or a carpeted sur-
face.
Please note:
The washer-dryer must be level and
securely positioned.
To avoid vibrations during spinning,
the washer-dryer must not be in-
stalled on soft floor coverings.
If installing on a wooden joist floor,
please note:
Use a plywood base underneath the
washer-dryer (at least
59x52x3cm). The base must span
several joists and be bolted to the
joists and not only to the floorboards.
Tip: If possible, install the washer-dryer
in a corner of the room, as this is usually
the most stable part of the floor.
Danger of injury due to unse-
cured washer-dryer.
If the washer-dryer is installed on an
existing on-site plinth (concrete or
brick), there is a danger of the ma-
chine falling off the plinth during the
spin cycle.
Secure the washer-dryer with a
fastening bracket (optional access-
ory).
Carrying the washer-dryer to its
installation site
Danger of injury due to unse-
cured lid.
The fixings at the back of the lid
could break as a result of external
forces. There is a danger of the lid be-
ing pulled off when carrying the ma-
chine.
Before carrying the machine, check
that the lid is secure where it pro-
trudes at the back of the machine.
Carry the washer-dryer by the front
feet and by the lid where it protrudes
at the back of the machine.
Removing the transport safety
device
Removing the transit bars
Remove the left-hand transit bar first,
followed by the right-hand transit bar.
3
2
1
Push the cover out.
Using the open spanner supplied,
turn the transit bar 90°.
Pull out the transit bar.
Installation
*INSTALLATION*
64
Remove the right-hand transit bar in
the same way.
Covering the holes
Risk of injury from sharp edges.
There is a risk of injury from reaching
into holes that are not covered.
After removing the transport safety
device, cover the exposed holes.
Push the covers in firmly until they
engage in position.
Refitting the transit bars
Risk of damage from incorrect
transport.
The washer-dryer may become dam-
aged if moved without the transit
bars in place.
Keep the transit bars in a safe place.
Fit them again if the washer-dryer is
to be moved (e.g. when moving
house).
Opening the covers
Press against the retainer with a
sharp object (a narrow screwdriver,
for example).
The cover will open.
Fitting the transit bars
To fit the bars, follow the instructions
for removing them in reverse order.
Tip: The bars will slide in more easily if
you lift the drum slightly.
Installation
*INSTALLATION*
65
Additional installation require-
ments
Installing under a worktop
Building under kits* must only be in-
stalled/dismantled by a specialist.
- A special building under kit* is re-
quired. The cover plate included in the
building under kit* replaces the lid of
the washer-dryer. It is necessary to fit
the cover plate for electrical safety
reasons.
- Connections for electricity, water and
drainage should be installed in such a
way that they remain accessible when
the washer-dryer is in its final posi-
tion.
The building under kit includes installa-
tion instructions.
* Optional accessories
Aligning the washer-dryer
The washer-dryer must stand perfectly
level on all four feet to ensure safe and
proper operation.
Incorrect installation may increase elec-
tricity and water consumption and may
cause the washer-dryer to move about.
Screwing out and adjusting the feet
The 4 adjustable feet are used to level
the washer-dryer. The appliance is sup-
plied with all feet screwed in.
Using the open spanner supplied, turn
counter nut 2 in a clockwise direction.
Then turn counter nut 2 together with
foot 1 to unscrew.
Installation
*INSTALLATION*
66
Use a spirit level to check the washer-
dryer is standing level.
Hold foot 1 securely with a pipe
wrench. Turn counter nut 2 again us-
ing the open spanner supplied until it
sits firmly up against the casing.
Risk of damage from incorrectly
aligned washer-dryer.
There is a danger of the washer-dryer
moving about if the feet are not se-
cured.
Turn all 4 counter nuts for the feet
until they sit firmly up against the
casing. Please also check this for the
feet which did not need adjustment.
The water protection system
The Miele water protection system pro-
tects all parts of the washer-dryer from
water damage.
The system mainly consists of the fol-
lowing components:
- the inlet hose
- the electronic unit and drainage and
overflow protection
- the drain hose
Inlet hose
- Protects the safety valve from burst-
ing
The inlet hose can withstand pres-
sure greater than 14,000kPa.
- The inlet hose has a protective sleeve.
The inlet hose has metal braiding as a
“second skin” to protect against dam-
age.
Electronic unit and casing
- The floor tray
Any leaking water is collected in a
floor tray in the base of the washer-
dryer. A float switches off the water
inlet valves. Further water intake is
blocked. The water inside the suds
container is pumped down.
- Overflow protection
This prevents the washer-dryer from
taking in too much water and over-
flowing. If the water level exceeds a
certain level, the drain pump
switches on and pumps the excess
water away.
Drain hose
The drain hose is protected by a ventila-
tion system which prevents the washer-
dryer from being emptied completely.
Installation
*INSTALLATION*
67
Water intake
Health risk and risk of damage
due to contaminated incoming water.
The quality of the incoming water
must correspond to the drinking wa-
ter specification of the country in
which the machine is being operated.
Always connect the washing machine
to the mains water supply.
The washer-dryer is not required to have
a non-return valve connected to the
mains water supply as the washing ma-
chine has been designed to comply with
DIN regulations in Germany.
The water inlet pressure must be at
least 100kPa and must not exceed an
overpressure of 1000kPa. If the pres-
sure exceeds 1000kPa, a pressure re-
ducing valve must be installed.
Connection to the mains water supply
should incorporate a stopcock with a
¾" screw thread. If no stopcock is
available, only a qualified installer may
connect the washer-dryer to the mains
water supply.
The connection point is subject to
mains water pressure.
You should open the stopcock slowly
and check for leaks. Correct the posi-
tion of the seal and screw thread if
water escapes.
The washer-dryer is not suitable for
connection to a hot water supply.
Maintenance
Only use a genuine Miele hose that has
been pressure tested to withstand at
least 14,000kPa should you ever need
a replacement.
The dirt filter in the union nut at the
open end of the water protects the
water intake valve.
This filter must not be removed.
Hose extension
A 1.5metre long metal extension hose is
available from Miele as an optional ac-
cessory.
Water drainage
The suds are drained through a drain
pump with a 1m delivery head. For the
water to drain freely, the hose must be
free of kinks. The elbow piece supplied
hooks onto the end of the hose. If re-
quired, the hose can be extended to a
length of up to 5m. Accessories are avail-
able from Miele or from your Miele dealer.
For a delivery head of more than 1m (up
to a max. of 1.8m) a replacement drain
pump will need to be fitted. Please con-
tact Miele for advice. With a delivery
head in excess of 1m the hose can be
extended to a maximum of 2.5m. Ac-
cessories are available from Miele or
from your Miele dealer.
Drainage options:
1. Directed into a sink or basin:
Please note:
– Hook the hose over the edge and
secure it.
– If the water is pumped into a
washbasin, make sure that it can
drain away freely. Otherwise there
is a risk of water overflowing or of
some of the drained water being
sucked back into the machine.
2. Connected securely to a plastic drain
pipe with a rubber nipple (there is no
need to use a siphon).
Installation
*INSTALLATION*
68
3. Connected securely to a floor drain
(gully).
4. Connected securely to a washbasin
with a plastic nipple.
Connected securely to a washbasin
a
Adapter
b
Spigot nut
c
Hose clip
d
End of the hose
Fit adapter to the sink drain outlet
using nut .
Attach the end of hose to adapter
.
Use a screwdriver to tighten hose clip
up close to the nut.
Installation
*INSTALLATION*
69
Electrical connection
The washer-dryer is supplied with a
mains cable with moulded plug ready
for connection to a suitable earthed
socket.
The socket must be easily accessible
after the washer-dryer has been in-
stalled. If that is not possible, ensure
that a suitable means of disconnection
is provided on the installation side for
each pole.
Risk of fire from overheating.
Connecting the washer-dryer to a
multi-socket adapter or to an exten-
sion lead can overload the cable.
For safety reasons, do not use an ex-
tension lead or multi-socket adapter.
The electrical system must comply with
local and national safety regulations
(BS7671 in the UK). We recommend
the use of a suitable RCD.
If the mains connection cable is dam-
aged, it must only be replaced with a
specific mains connection cable of the
same type (available from the Miele
Customer Service Department). For
safety reasons, such replacement may
only be carried out by a qualified techni-
cian or the Miele Customer Service De-
partment.
These operating instructions and the
data plate indicate the nominal power
consumption and the appropriate fuse
rating. Compare this information with
the data of the on-site electrical con-
nection.
If in any doubt, consult a qualified elec-
trician.
Temporary or permanent operation on
an autonomous power supply system or
a power supply system that is not syn-
chronised with the mains power supply
(e.g. island networks, back-up systems)
is possible. A prerequisite for operation
is that the power supply system com-
plies with the specifications of
EN50160 or an equivalent standard.
The function and operation of the pro-
tective measures provided in the do-
mestic electrical installation and in this
Miele product must also be maintained
in isolated operation or in operation that
is not synchronised with the mains
power supply, or these measures must
be replaced by equivalent measures in
the installation. As described, for ex-
ample, in the current version of BS OH-
SAS 18001–2 ISO 45001.
Technical data
70
Height 850mm
Width 596mm
Depth 637mm
Depth with door open 1055mm
Height for building under 820(+8/-2)mm
Width for building under 600mm
Weight Approx. 95kg
Capacity, washing
Capacity, drying
8.0kg dry laundry
5.0kg dry laundry
Supply voltage See data plate
Rated load See data plate
Fuse rating See data plate
Consumption data See “Consumption data”
Minimum water flow pressure 100kPa (1bar)
Maximum water flow pressure 1000kPa (10bar)
Water inlet hose length 1.55m
Drain hose length 1.50m
Connection cable length 2.00m
Maximum delivery head 1.00m
Maximum drainage length 5.00m
LEDs Class 1
Test certifications awarded See data plate
Power rating in off mode 0.30 W
Networked standby 0.70 W
Frequency range of the WiFi module 2.4000–2.4835GHz
Maximum transmission power of the
WiFi module
<100mW
EU Conformity declaration
Miele hereby declares that this washing machine complies with Directive 2014/53/
EU.
The complete text of the EU declaration of conformity is available from one of the
following internet addresses:
- Products, Download from www.miele.ie
Technical data
71
- For service, information, operating instructions etc: go to
https://miele.co.uk/manuals and enter the name of the product or the serial num-
ber
UK Conformity declaration
Miele hereby declares that this washing machine complies with UK Radio Equip-
ment Regulations 2017, as amended.
The complete text of the UK declaration of conformity is available from one of the
following internet addresses:
- Products, Download from www.miele.co.uk
- For service, information, operating instructions etc: go to https://miele.co.uk/
manuals and enter the name of the product or the serial number
ThisStatement of Compliance confirms this Miele product fully complies with the
Product Security and Telecommunications Infrastructure (Security Requirements
for Relevant Connectable Products) Regulations 2023.
1) Household Appliance –
2)
Manufactured by: Miele & Cie KG,
Carl Miele Street 29, 33332 Gutersloh Germany
Imported by and contact point: Miele Company Ltd, Fairacres, Marcham Road,
Abingdon, Oxon, OX14 ITW Great Britain
The defined support period at the time of first supply is 10 years
3)
To report vulnerabilities and cybersecurity issues please contact: [email protected]4)
5) Signature
Name: Paul Wright
Company Position: Head of Technical Management
Date of signature: 19th March 2024
Place of signature:
Abingdon, Oxfordshire
Washer-Dryer HWT04-W
Consumption data
72
Programmes Load Energy Water
Programme
running time Temperature
1
Residual mois-
ture Spin speed
kg kWh Litres h:min °C % rpm
Washing
ECO40-60* 8.0 0.77 60 3:39 43 47 1500
4.0 0.42 52 2:48 32 47 1500
2.0 0.18 28 2:48 25 49 1500
Cottons 60 8.0 1.35 57 2:29 54 51 1500
20
2
8.0 0.35 72 2:39 20 51 1500
Minimum iron 30 3.5 0.32 47 1:59 30 30 1200
Express
3
40 3.5 0.33 30 0:20 27 60 1200
Woollens 30 2.0 0.23 35 0:39 – – –
Washing and drying
ECO40-60*
Normal
5.0 3.30 85 6:29 35 0 1500
2.5 1.60 43 3:59 28 0 1500
*Test programme for compliance with EU legislation regarding ecodesign 2019/2023 and energy labelling in accordance with Regulation
No.2019/2014
1
Maximum laundry temperature reached in main wash.
2
20 °C programme for lightly soiled cotton garments.
3
Short extra option activated
Information for customers
Consumption data can vary from the nominal values given depending on water pressure, water hardness, water inlet temperature, room tem-
perature, type and volume of load, fluctuations in the mains voltage and any extra options selected.
Garment care label symbols
73
Washing
The figure quoted in the bucket is the
maximum temperature at which the
garment can be washed.
Normal agitation
Reduced agitation
Much reduced agitation
Hand wash
Do not wash
Programme selection examples
Programme Care symbols
ECO40–60
Cottons
Minimum iron
Delicates
Woollens
Drying
Normal temperature
Low temperature
Do not tumble dry
Ironing
Approx. 200°C
Approx. 150°C
Approx. 110°C
Ironing with steam can cause ir-
reversible damage.
Ironing/rotary ironing prohibited
Professional cleaning
Dry clean only. The letters indic-
ate the type of cleaning agent
required.
Wet cleaning
Dry cleaning prohibited
Bleaching
Any oxidation bleach can be
used
Use oxygen bleach only
Do not bleach
Programmable functions
74
The programmable functions are used
to alter the washer-dryer’s electronics
to suit changing requirements. Pro-
grammable functions can be altered at
any time.
Programming is carried out in 9 steps
(, , ...) using the sensor con-
trols.
Opening the programming level
Prerequisites:
- The washer-dryer is switched on and
the programme selector is pointing to
a programme.
- The door of the washer-dryer is open.
Touch the Start/Add laundry sensor
control and hold it down whilst carry-
ing out steps –.
Close the washer-dryer door.
Wait until the Start/Add laundry
sensor control lights up constantly...
...and then release the Start/Add
laundry sensor control.
After a few seconds, , for example,
will light up on the time display.
Choosing and selecting a pro-
grammable function
The number of the programmable
function will appear on the time dis-
play as and a number: e.g..
Touch the or sensor control to
scroll to the next or previous pro-
grammable function:
Programmable functions
Buzzer duration
Buzzer
Keypad tone
PIN code
Control field switch-off beha-
viour
Memory
8 Gentle action
Temperature reduction
Maximum rinse level
Suds cooling
Low water pressure
Display brightness
Cottons drying level
Minimum iron drying level
Extended cool down
Laundry ring prevention
Operating hours
Remote control
SmartGrid
RemoteUpdate
Factory default
Confirm the selected programmable
function by touching the Start/Add
laundry sensor control.
Programmable functions
75
Editing and saving a program-
mable function
You can switch a programmable func-
tion on/off or select different options.
Touch the or sensor control to
switch a programmable function on/
off or to select an option.
Programmable function
Available options
4 to
8
to
Confirm the chosen selection with
the Start/Add laundrysensor control.
The number of the programmable func-
tion, e.g., will then light up again.
Exiting the programming level
Turn the programme selector to the
position.
The settings you have selected are now
stored in the memory. You can alter the
settings again at any time.
Buzzer duration
The buzzer sounds to let you know the
programme has finished. You can de-
cide how long the buzzer should sound
for.
Options
= The buzzer sounds 3times at
the end of the programme.
= The buzzer sounds until the
washer-dryer switches off
automatically (max. 1hour).
Buzzer
The buzzer sounds to let you know the
programme has finished.
Options
= Off
= On – quiet
= On – loud
Programmable functions
76
Keypad tone
The buzzer that sounds when a sensor
control is pressed can be switched on
or off.
Options
= Off
= On – quiet
= On – loud
PIN code
The PIN code prevents your washer-
dryer being used without your know-
ledge.
When the PIN code has been activated,
you have to enter the code after switch-
ing the washer-dryer on. Otherwise the
washer-dryer cannot be operated.
Options
= Off
= On
If the option has been selected, you
will have to enter the PIN code before
you can operate the washer-dryer.
Using the washer-dryer when the PIN
code is activated
The code is 125 and cannot be altered.
Switch the washer-dryer on.
appears on the time display and
the and sensor controls light up.
Touch the sensor control.
appears on the time display.
Confirm the number with the Start/
Add laundry sensor control.
The first number has been saved.
Enter the second and third numbers
using the and sensor controls
and confirm the numbers with the
Start/Add laundry sensor control.
The lock function is deactivated.
Control field switch-off be-
haviour
To save energy the time display and
sensor controls will go out after
10minutes, and only the Start/Stop
sensor control will flash slowly.
Options
= Off
The time display and sensor
controls will remain lit up while
the washer-dryer is switched
on.
= On
The time display and sensor
controls will switch off
10minutes after the pro-
gramme has started.
However, the time display and
sensor controls will remain lit
up for 10minutes after a delay
start period has elapsed, after
the end of a programme or at
the end of the anti-crease
phase.
Programmable functions
77
Memory
The washer-dryer will save the last
settings selected for a programme
(temperature, spin speed) after the
programme has started.
The next time that programme is used
the washer-dryer will show those set-
tings in the display.
Options
= Off
= On
Gentle action
With gentle action activated, drum
agitation is reduced. In this way, lightly
soiled items can be washed more
gently.
Gentle action can be activated for the
Cottons and the Minimum iron wash
programmes.
Options
= Off
= On
Temperature reduction
At high altitudes, water has a lower
boiling point. Miele recommends ac-
tivating the reduced temperature set-
ting at altitudes of 2000m or above to
prevent water from boiling.
Options
= Off
= On
Maximum rinse level
The water level in the rinses can be
permanently set to the highest value in
the Cottons and Minimum iron pro-
grammes.
This function is important for allergy suf-
ferers as it achieves excellent rinse res-
ults. The water consumption will be in-
creased.
Options
= Off
= On
Suds cooling
Additional water flows into the drum at
the end of the main wash to cool the
suds down.
Suds cooling takes place when a Cot-
tons programme with a temperature of
70°C or higher is selected.
Suds cooling should be activated under
the following circumstances:
- To prevent the danger of scalding if
the drain hose is hooked over the
edge of a sink or slops basin
- In buildings where the drainage pipes
do not comply with DIN1986
Options
= Off
= On
Programmable functions
78
Low water pressure
If the water pressure is below 100kPa
(1bar), the programme will be can-
celled. If the on-site water pressure
cannot be increased, activating the
setting will prevent the programme
from being cancelled prematurely.
Options
= Off
= On
Display brightness
The brightness of the dimmed sensor
controls in the control field can be set
to one of 7 different levels.
The brightness changes as soon as you
select a different setting.
Options
= Darkest level
= Brightest level
Cottons drying levels
You can adjust the drying levels for the
Cottons programme if needed.
Options
= Damper
= Drier
Minimum iron drying levels
You can adjust the drying levels for the
Minimum iron programme if needed.
Options
= Damper
= Drier
Extended cool down
The cooling phase which takes place
before the end of a programme can be
extended if required. This cools the
garments down even more. The cool-
ing phase can only be extended if a
drying level has been selected. Exten-
ded cool down is not active for timed
drying.
Options
= Minutes
= Minutes
Laundry ring prevention
The maximum final spin speed can be
limited to prevent laundry forming a
ring around the drum.
The Laundry ring prevention setting is
only effective with continuous washing
and drying.
Options
= Off
= 1200rpm
= 1100rpm
= 1000rpm
= 900rpm
Programmable functions
79
Operating hours
You can read off how many hours your
washer-dryer has been in operation
for.
The total operating time is shown on the
time display in single digits. The washer-
dryer has been in operation for
1234hours, for example. The figure
shown on the time display will start with
an followed by a, then a and after
this a and a. The letter is displayed
again after this.
Remote control
You can use the Miele app to check
the status of your washer-dryer from
anywhere and start it remotely. You
can also control it remotely via the
MobileStart programme.
You can switch off the program-
mable function if you do not want to op-
erate the washer-dryer with your mobile
device.
If the programmable function is not
switched on, the app can still be used to
cancel a programme.
Use the sensor control to set a time
period within which you want to start
the washer-dryer and start the delay
start function (see “Delay start/
SmartStart”). The washer-dryer will
then start within the specified time-
frame when it receives your signal. If it
has not received a start signal by the
latest start time set, the washer-dryer
will start automatically.
Options
= Off
= On
SmartGrid
You can set your washer-dryer to start
automatically based on an external sig-
nal within a certain time period.
If you have activated SmartGrid, the
sensor control will have the new
SmartStart function rather than the
Delay start function.
Use the sensor control to set a
SmartStart time period. The washer-
dryer will then start within the time
period specified by you when it receives
an external signal. If an external signal
has not been received by the latest start
time set, the washer-dryer will start
automatically (see “Delay start/
SmartStart”).
Options
= Off
= On
Programmable functions
80
RemoteUpdate
The RemoteUpdate function is used for
updating the software in your washer-
dryer. If an update is available for your
washer-dryer, it will automatically
download it. Updates will not be in-
stalled automatically. They must be initi-
ated manually.
If you do not install an update, you can
continue to use your washer-dryer in the
usual way. However, Miele recommends
installing updates.
RemoteUpdate procedure
Information about the content and
scope of an update will be provided in
the Miele app.
A message will appear on the time
display if an update is available.
You can install the update immediately
or postpone this until later. When the
washer-dryer is switched on again, you
will be reminded about the update.
The update may take several minutes.
Please note the following about the Re-
moteUpdate function:
- You will only receive a message when
an update is available.
- Once an update has been installed, it
cannot be undone.
- Do not switch off the washer-dryer
during an update. Otherwise, the up-
date will be aborted and will not be in-
stalled.
- Some updates can only be carried out
by the Miele Customer Service De-
partment.
Activating/deactivating
The RemoteUpdate function is activated
as standard. A new update will be
downloaded automatically but will only
be installed if you initiate installation
manually. Deactivate the RemoteUp-
date function if you do not want any up-
dates to be downloaded automatically.
Options
= Off
= On
Starting the update
After the washer-dryer is switched on,
appears on the time display.
Touch the Start/Add laundry sensor
control.
will flash on the time display. The up-
date starts.
Bars on the time display show the pro-
gress of the update:
= 0%
= 100%
Postponing the update
After the washer-dryer is switched on,
appears on the time display.
Touch the sensor control.
The running time of the selected pro-
gramme appears on the time display.
The next time you switch on the appli-
ance, you will be prompted to start the
update again.
Programmable functions
81
Factory default
All programmable functions except
operating hours are reset to the
factory default settings.
Options
= Go back (without reset to fact-
ory default settings)
= Reset programmable functions
to the factory default settings
Switching off WiFi
Turn the programme selector to the
MobileStartprogramme.
appears on the time display.
Press the sensor control and hold
the sensor control until the count-
down on the time display has fin-
ished.
appears on the time display.
- The WiFi is switched off.
- The WiFi connection will be reset to
the factory default setting.
The network configuration should be
reset whenever a washer-dryer is be-
ing disposed of or sold, or if a used
washer-dryer is being put into opera-
tion. This is the only way to ensure
that all personal data has been re-
moved and the previous owner will no
longer be able to access the washer-
dryer.
A new connection setup has to be
carried out in order to use
Miele@home again.
Copyrights and licences for the
communication module
For the purpose of operating and con-
trolling the communication module,
Miele uses proprietary or third-party
software that is not covered by open
source licensing terms. These items of
software/software components are pro-
tected by copyright. The copyrights held
by Miele and third parties must be re-
spected.
Furthermore, this communication mod-
ule contains software components
which are distributed under open source
licence conditions. The open source
components contained in the appliance
along with the corresponding copyright
notices, copies of the licensing terms
valid at the time, and any further inform-
ation can be accessed locally via IP us-
ing a web browser (http://<IP address>/
Licenses). The liability and warranty ar-
rangements for the open source li-
cences displayed in this location only
apply in relation to the respective rights
holders.
United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600, Internet: www.miele.co.uk, E-mail: [email protected]
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Tel: 1300 464 353
E-mail: [email protected]
Internet: www.miele.com.au
Miele Electrical Appliances Co. Ltd.
No. 82, Shimenyi Road, JingAn District
Shanghai, China, P.R.C
Post Code: 200040
Phone: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: info@miele.cn
Internet: www.miele.cn
China Mainland
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
E-mail:
Website: www.miele.hk
Hong Kong, China
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9, Mathura Road,
Jasola, New Delhi - 110025
E-mail: customercare@miele.in
Website: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-mail: [email protected]
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
Tel: +65 6735 1191
Fax: +65 6735 1161
E-mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd.
63 Peter Place, Bryanston 2194
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Showroom 1, Eiffel 1 Building
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-mail: [email protected]
Website: www.miele.ae
United Arab Emirates
Manufacturer: Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Sheikh Zayed Road, Umm Al Sheif
E-mail: customercare@miele.co.nz
P.O. Box 69434, Bryanston 2021
M.-Nr. 12 248 240 / 03 / 002en-GB
WTD 165 WPM
