ACCESSORY KIT INSTALLATION MANUAL
EXTERNAL BOTTOM MOUNT FILTER FRAME ACCESSORY - 1BR0514/614, 1BR0517/617, 1BR0521/621
& 1BR0524/624 - FOR USE WITH: HORIZONTAL/UPFLOW GAS-FIRED 33” FURNACES
Subject to change without notice. Printed in U.S.A. 506177-UAI-A-0309
Copyright © 2009 by Johnson Controls, Inc. All rights reserved. Supersedes: Nothing
Johnson Controls Unitary Products
5005 York Drive
Norman, OK 73069
GENERAL INFORMATION
The filter frame accessory allows installation of an external
furnace filter in a bottom return horizontal / upflow application.
Models 524 / 624 have provisions for either 1”, 2” or 4” filters.
The following kits are used with the listed furnace cabinet.
INSTALLATION
Use these instructions along with the furnace installation
instructions.
If installing the unit at the side of the furnace, cut open side at
marked corner locations on desired side. Install field-supplied
gasket material between the filter rack and the base of the fur-
nace. Install the frame using field-supplied brackets and with
the flanged opening away from the furnace.
NOTE: Filter frames are orientation specific. The block-off box
provided with the kit, are to be installed after the air filter has
been inserted. For 4” filters the two side tracks must be
removed. Refer to Figure 3.
For upflow platform return applications, cut the hole in the
return air platform the same size as the filter frame opening. DO
NOT cut an oversized hole.
1BR0514 / 1BR0614 14-1/2” Cabinet
1BR0517 / 1BR0617 17-1/2” Cabinet
1BR0521 / 1BR0621 21” Cabinet
1BR0524 / 1BR0624 24-1/2” Cabinet

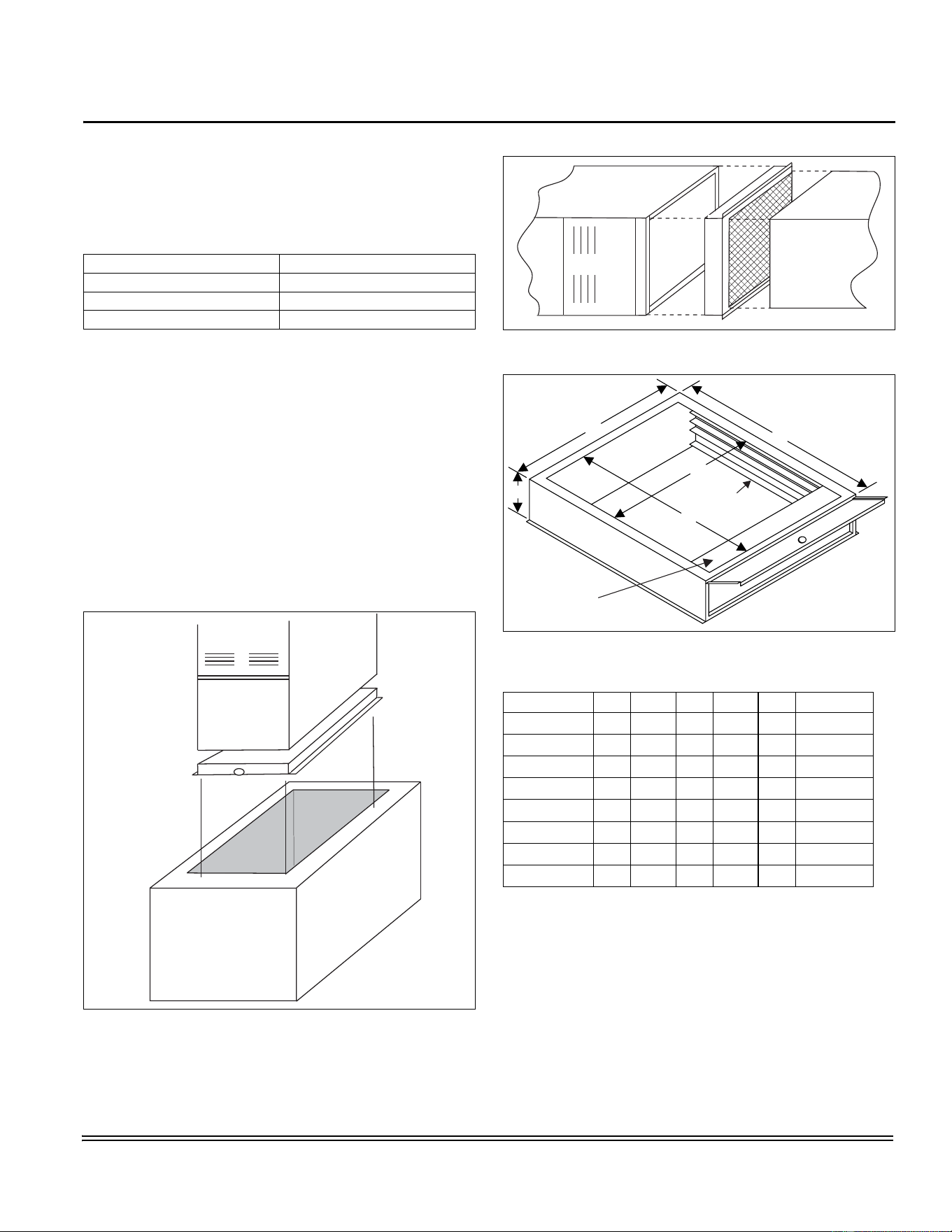

FIGURE 1: Bottom Return Using Platform
FILTER
RACK
FURNACE
RETURN AIR
PLATFORM
FIGURE 2: Bottom/Horizontal Mount
FIGURE 3: Dimensions
TABLE 1:Dimensions
Model A B C D E Filter size
S1-1BR0514 14.5 28.75 2.75 26.38 11.5 25 x 14 x 1
S1-1BR0517 17.5 28.75 2.75 26.38 14.5 25 x 16 x 1
S1-1BR0521 21 28.75 2.75 26.38 18 25 x 20 x 1
S1-1BR0524 24.5 28.75 2.75 26.38 21.5 25 x 24 x 1
S1-1BR0614 14.5 28.75 5.75 26.38 11.5 25 x 14 x *
S1-1BR0617 17.5 28.75 5.75 26.38 14.5 25 x 16 x *
S1-1BR0621 21 28.75 5.75 26.38 18 25 x 20 x *
S1-1BR0624 24.5 28.75 5.75 26.38 21.5 25 x 24 x *
* Maybe 1, 2, or 4 thick filters - Not supplied with kit.
RETURN
DUCT
SYSYTEM
A
C
B
D
E
Side
Tracks
Block-off
Box
