PCP AIR PUMP INSTRUCTIONS
MODEL: DQT-4JH
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: DQT-4JH
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
PCP AIR PUMP
- 2 -
Warning-To reduce the risk of injury, user must read instructions
manual carefully.
WARNING
1. This manual contains repair methods, please keep it safe for future
review.
2. Do not use this product when it is harmful.
3. It is forbidden to add lubricating oil to new equipment.
4. First loosen the pressure relief valve when the inflation is
completed, and do not pull out the gas pipe connector under
pressure.
5. Do not use pressure exceeding 31mpa/310bar/4500psi.
6. Ensure that the pressurized container is used within the safe
pressure range and within the inspection period, the pressurized
container must be equipped with safety explosion-proof devices.
7. Do not allow children to operate the device and store it in the place
where children cannot touch it.
8. Do not use this product or this manual by people who are not
familiar with it.
9. Do not operate this product on uneven, sloping or slippery ground.
SAVE THIS MANUAL
Model
Compression
principle
MWP
Base
Oil and water filtration
DQT-4JH
Level 4
compression
4500 PSI
Folding
base
Oil and water filter
- 3 -

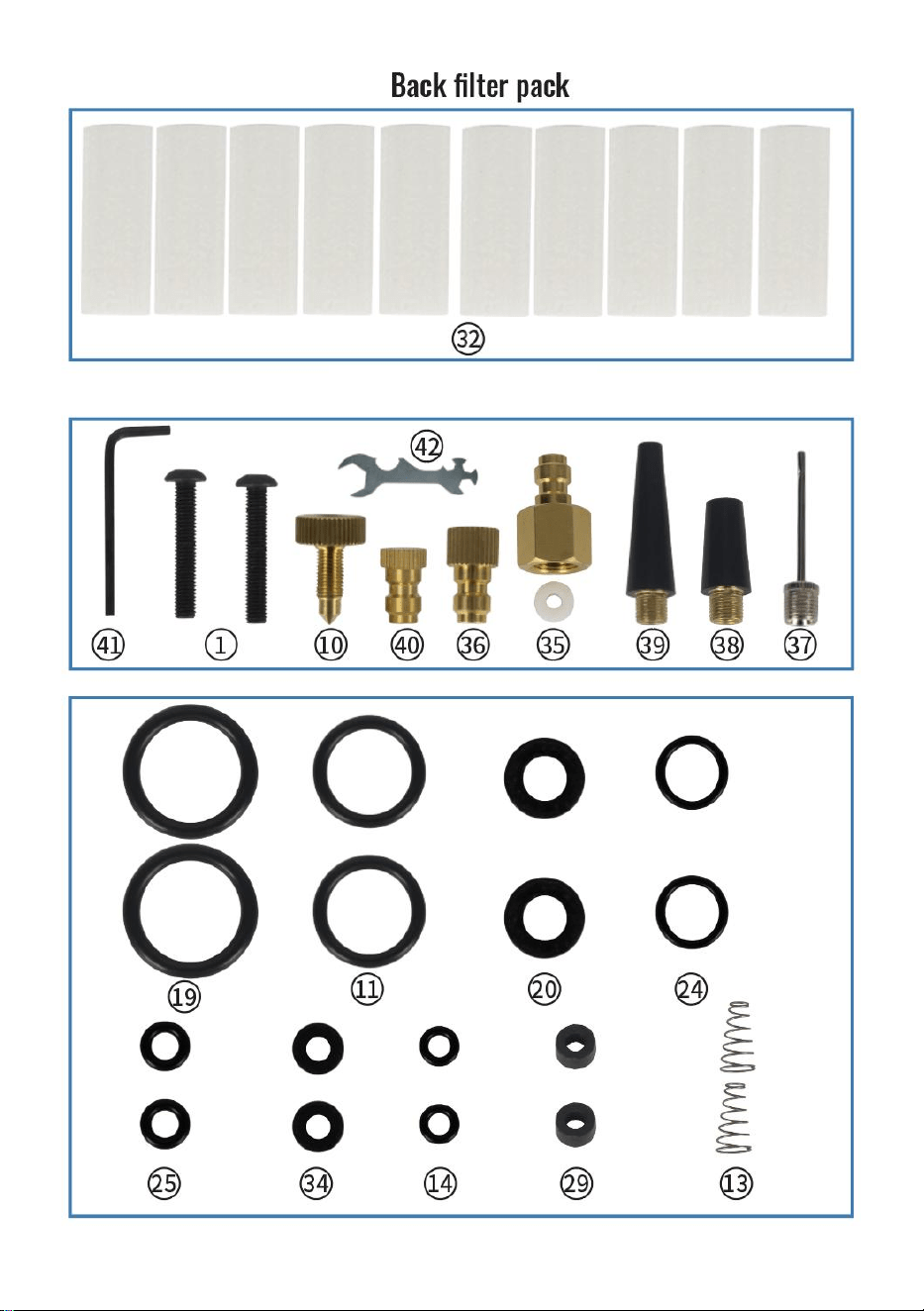

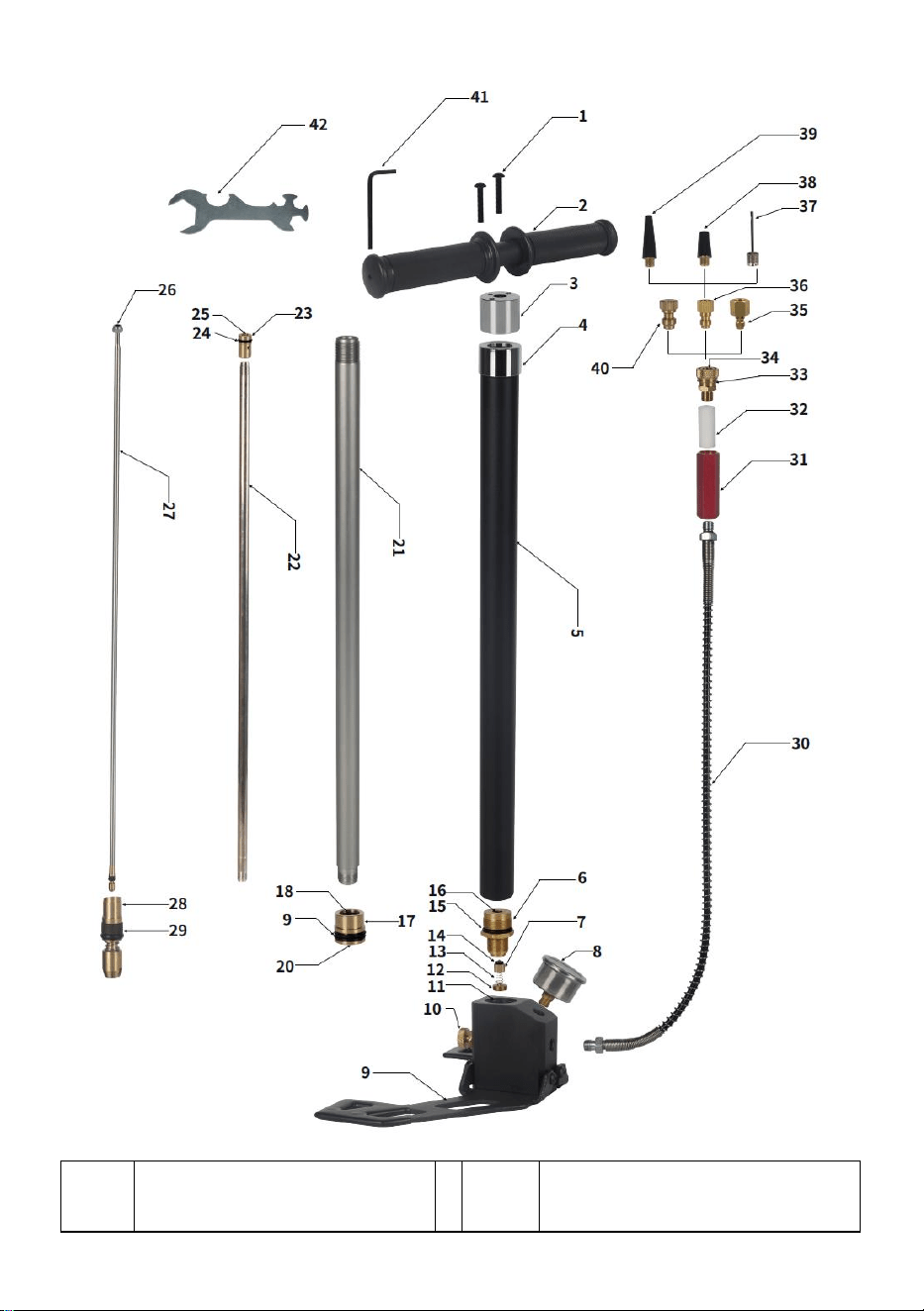

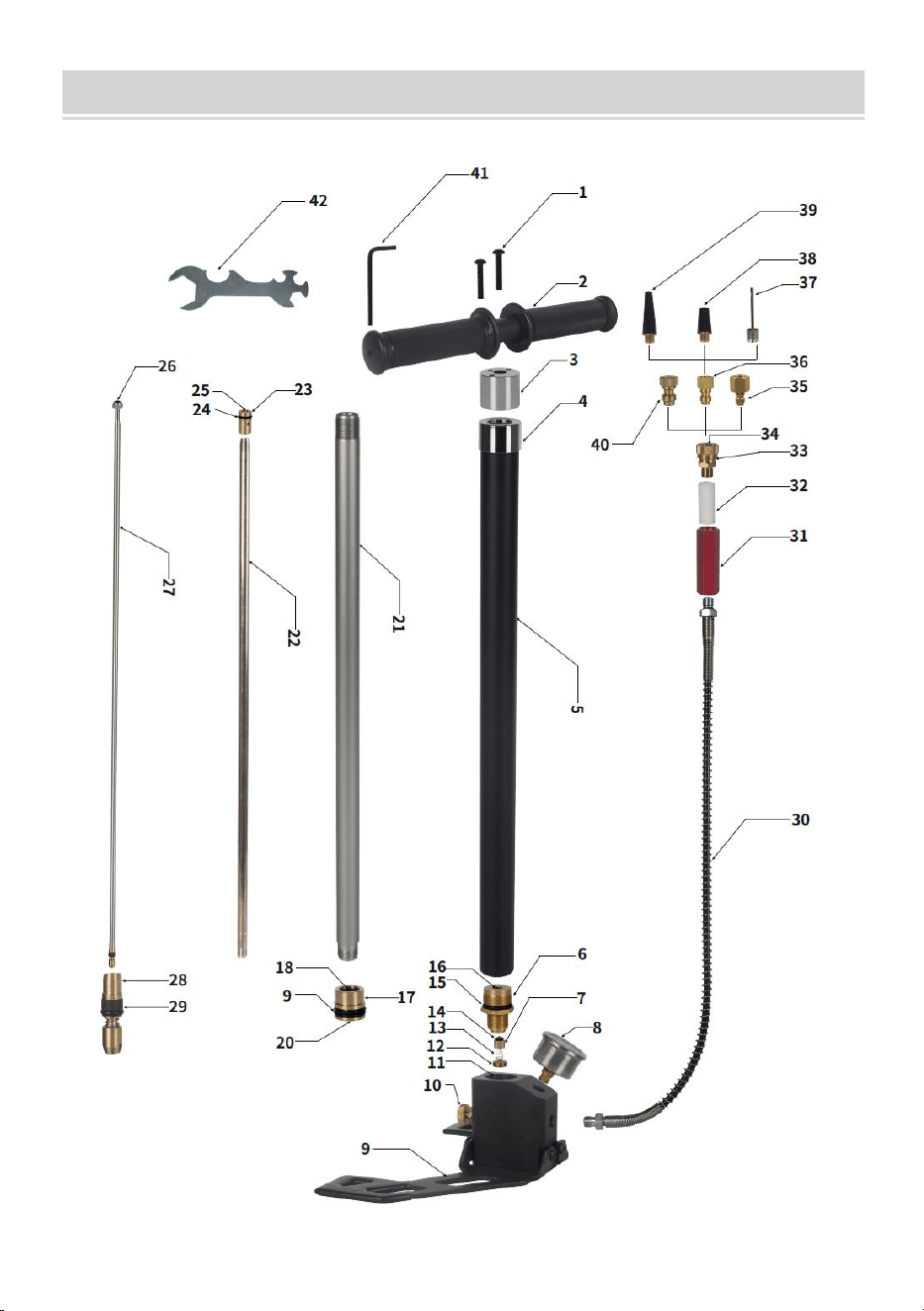

PART NAME
- 4 -
NO.
Name of parts
NO.
Name of parts
1
Handle screw
22
Four stage pump body pipe
2
Handle
23
Three-stage piston
3
Handle mounting body
24
Third piston outer O-ring
4
First stage piston
25
Three stage piston inner
O-ring
5
Primary pump body pipe
26
Solid rod limit screw
6
High pressure one-way
valve body
27
High pressure solid rod
7
High pressure check valve
28
Four-stage piston head
8
Pressure gage
29
Four stage piston ring
9
Folding base
30
Exit pipe
10
Pressure relief screw
31
Oil-water filter
11
Check valve body link seal
ring
32
Oil water filter element
12
Check valve limit screw
33
Adapter quick socket
13
Check valve spring
34
Quick seat seal ring
14
Check valve seal ring
35
1/8 BSP internal screw
inflatable adapter
15
O-ring in primary tube
36
American tire valve adapter
16
Four outer O-ring
37
Balloon needle for balls
17
Two-stage piston
38
Float inflator nozzle
18
Secondary piston upper
inner O-ring
39
Balloon nozzle
19
Secondary piston outer
O-ring
40
Test the plug quickly
20
Secondary piston lower
inner O-ring
41
Allen key L
21
Secondary pump body tube
42
Multipurpose wrench
- 5 -
Tool set
- 6 -

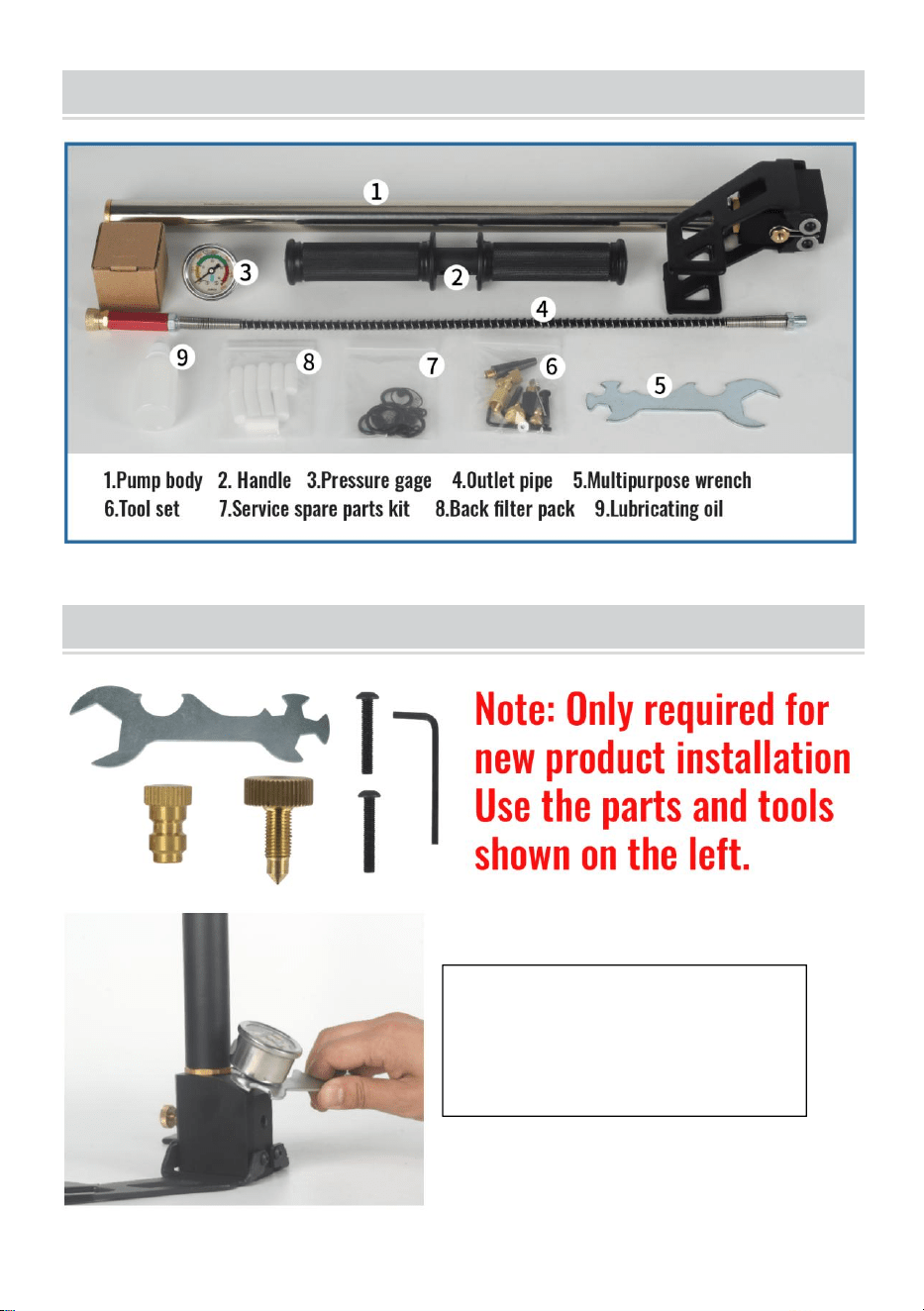

PACKING LIST
INSTALLATION INSTRUCTIONS

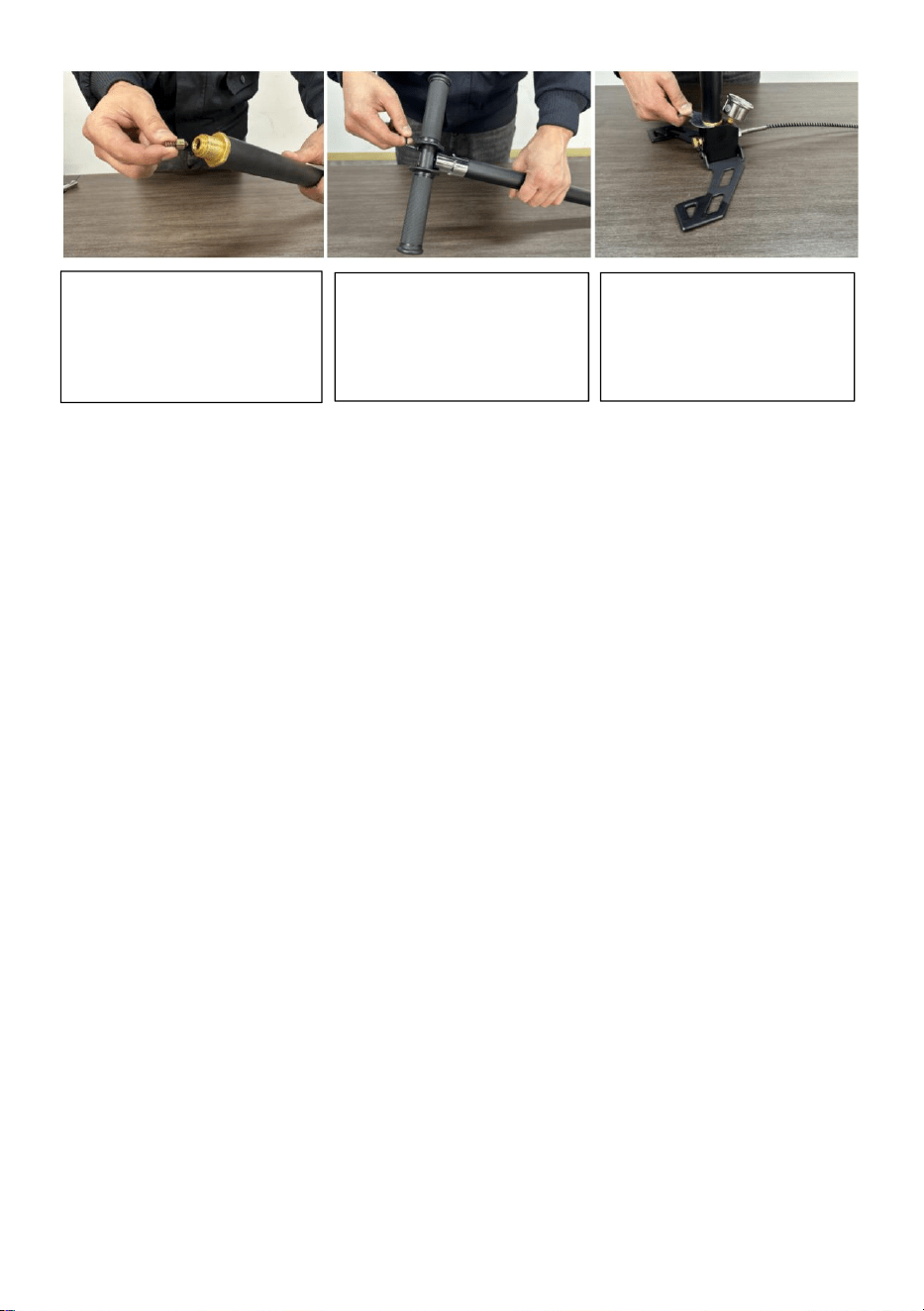

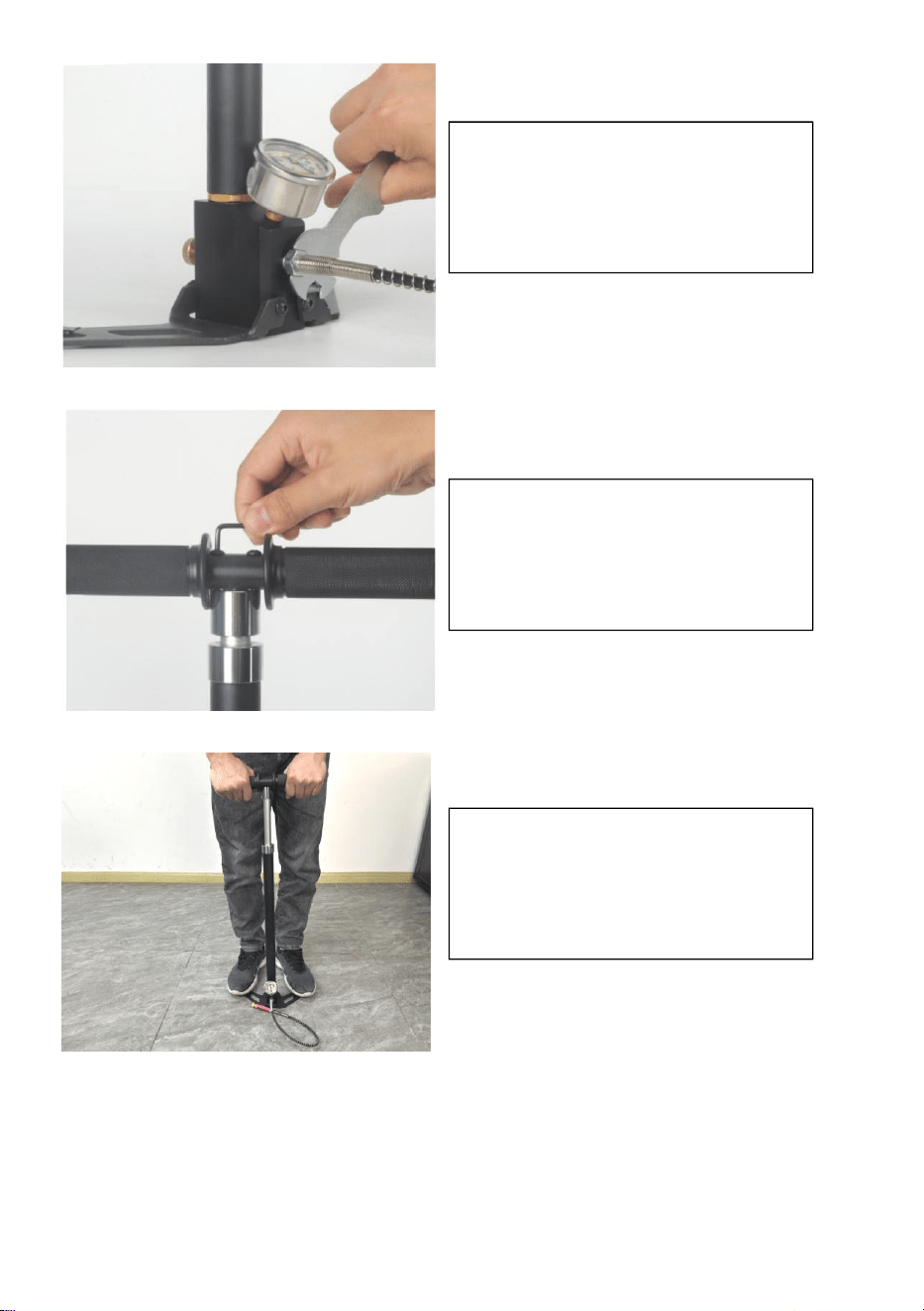

1. Install the pressure gauge
and tighten it using a
multi-function wrench.
- 7 -
2. Install the air exhaust
pipe and tighten it using a
multifunctional wrench.
3. Install the handle and
tighten the screws with an
Allen wrench.
4. Pull the pump up and
down for 100 rounds.
- 8 -

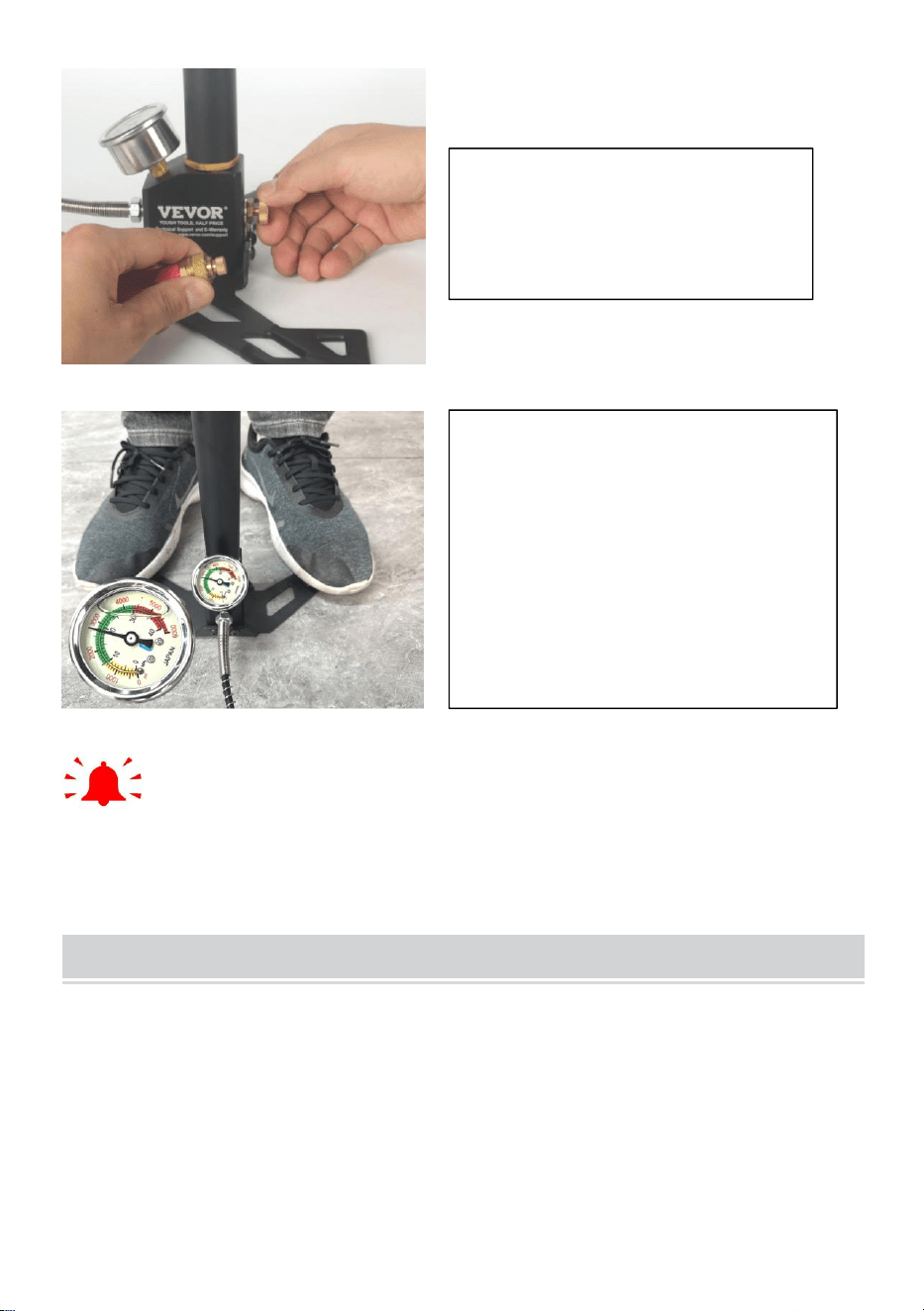

Tip: Plug test pressure should not exceed 3500psi. The very limited
space pressure change can cause the oil to burn and damage the product
seal.
USE AND MAINTENANCE

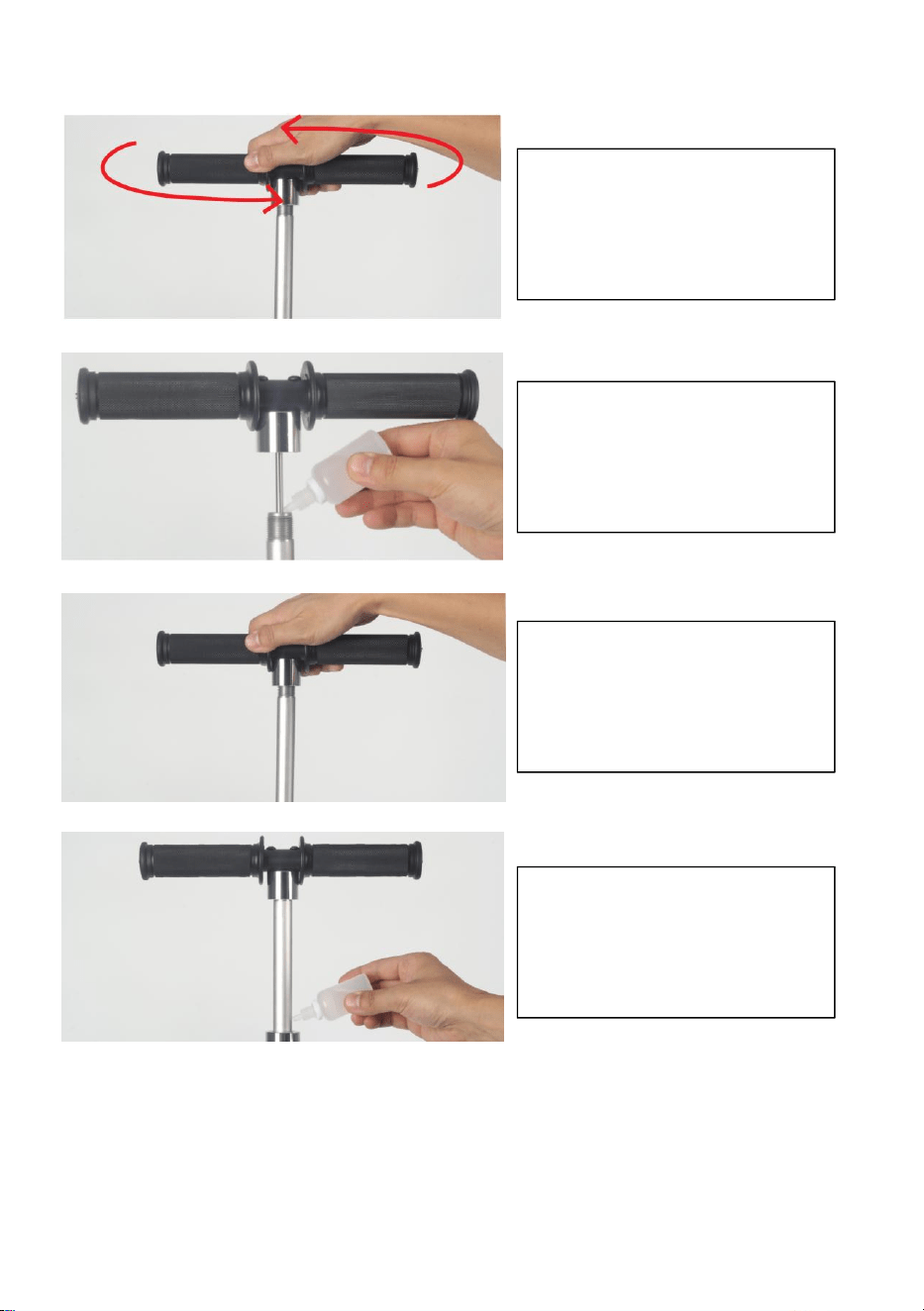

1. Lube job
The new pump does not require refueling. Fill up once every 1500
times or so, there are two positions that need to be filled, and add
three drops of oil to each position (as shown below). After filling up,
stretch the pump about 50 times. When not in use, drain excess
water.
5. Install the pressure test
plug and tighten the
pressure relief screws.
6. Pull the pump up and down
to test whether the product
works normally.
Note: After filling, the pressure
relief valve must be loosened
to remove the internal
pressure before opening the
gas pipe connector.
- 9 -

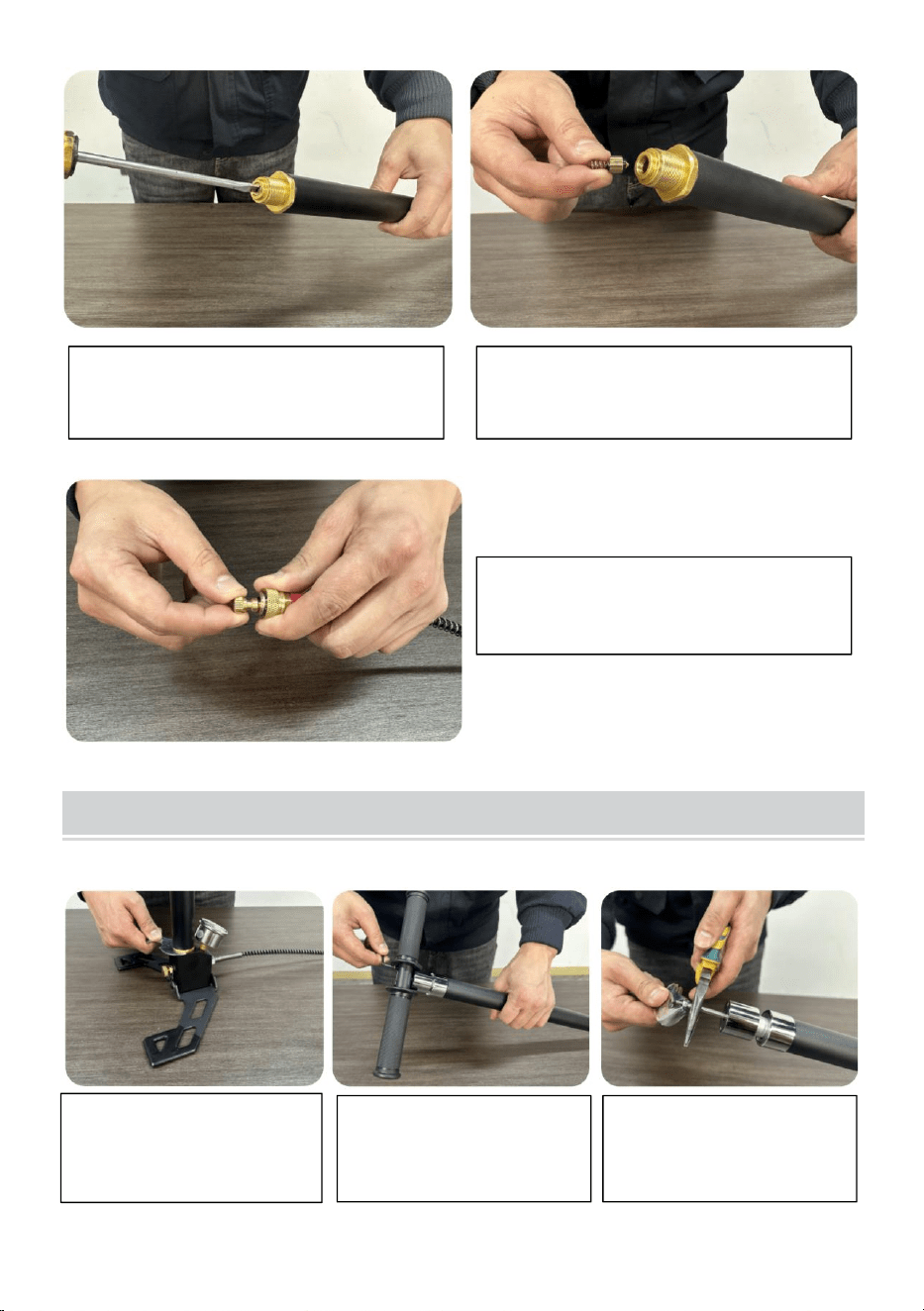

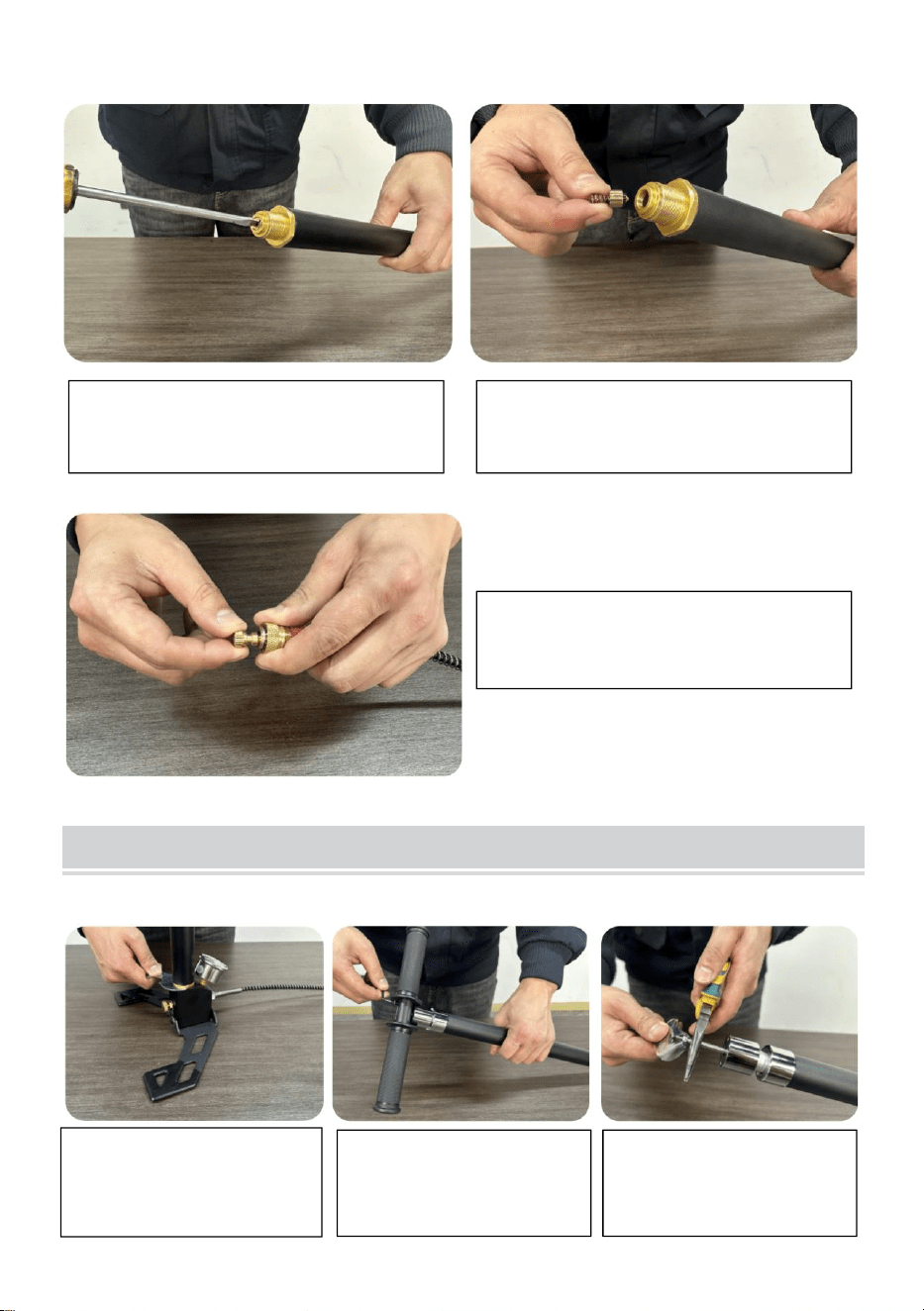

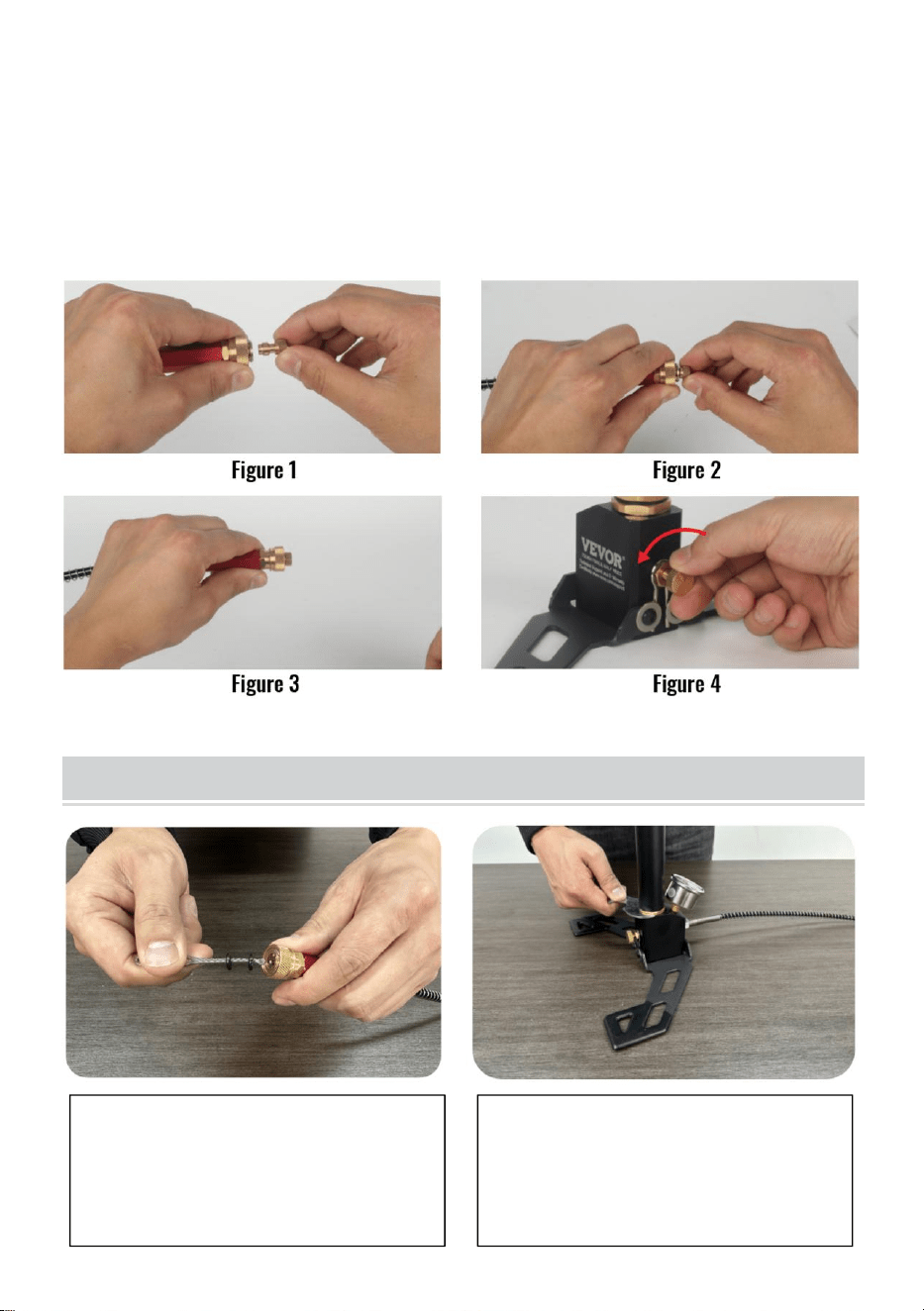

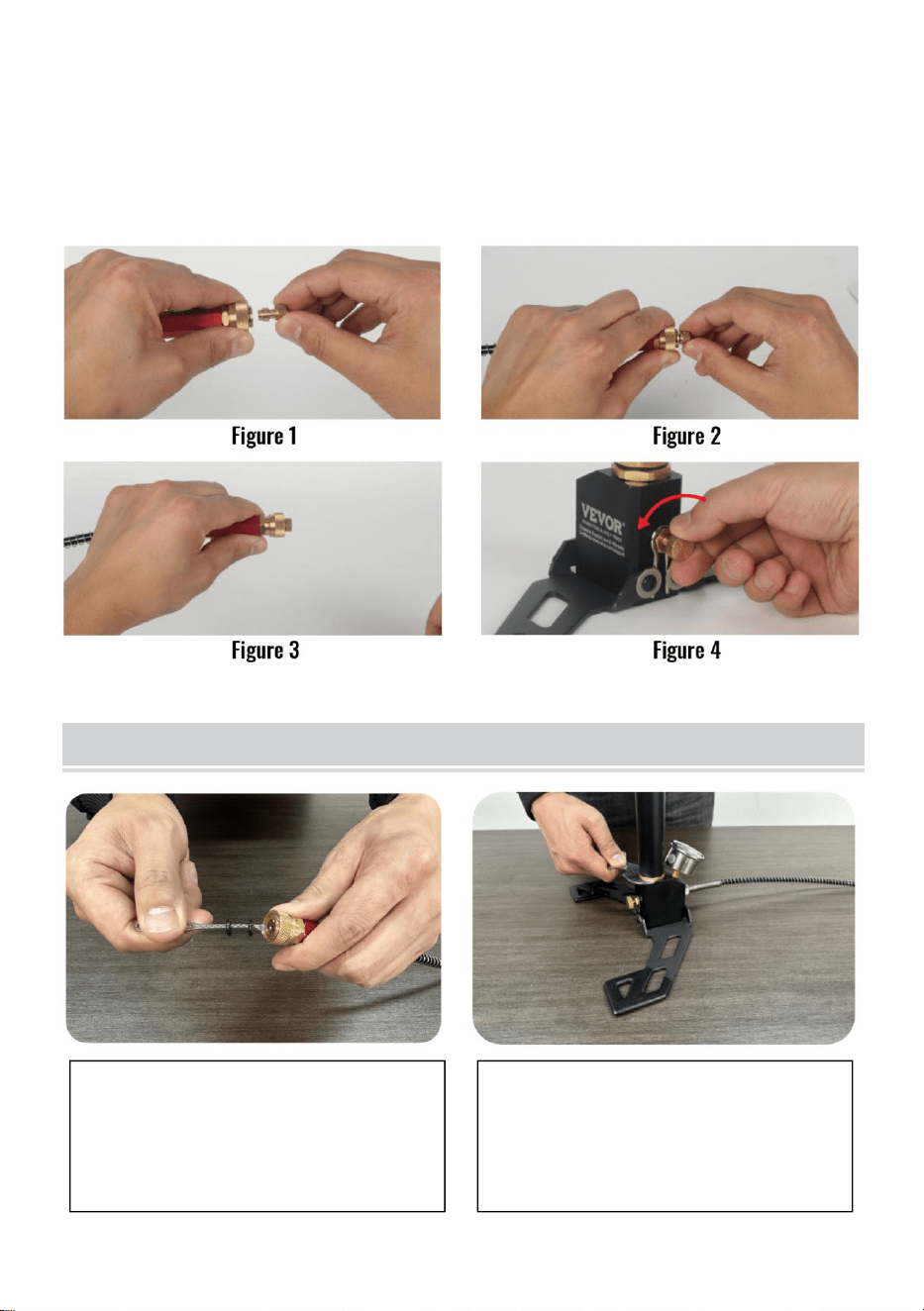

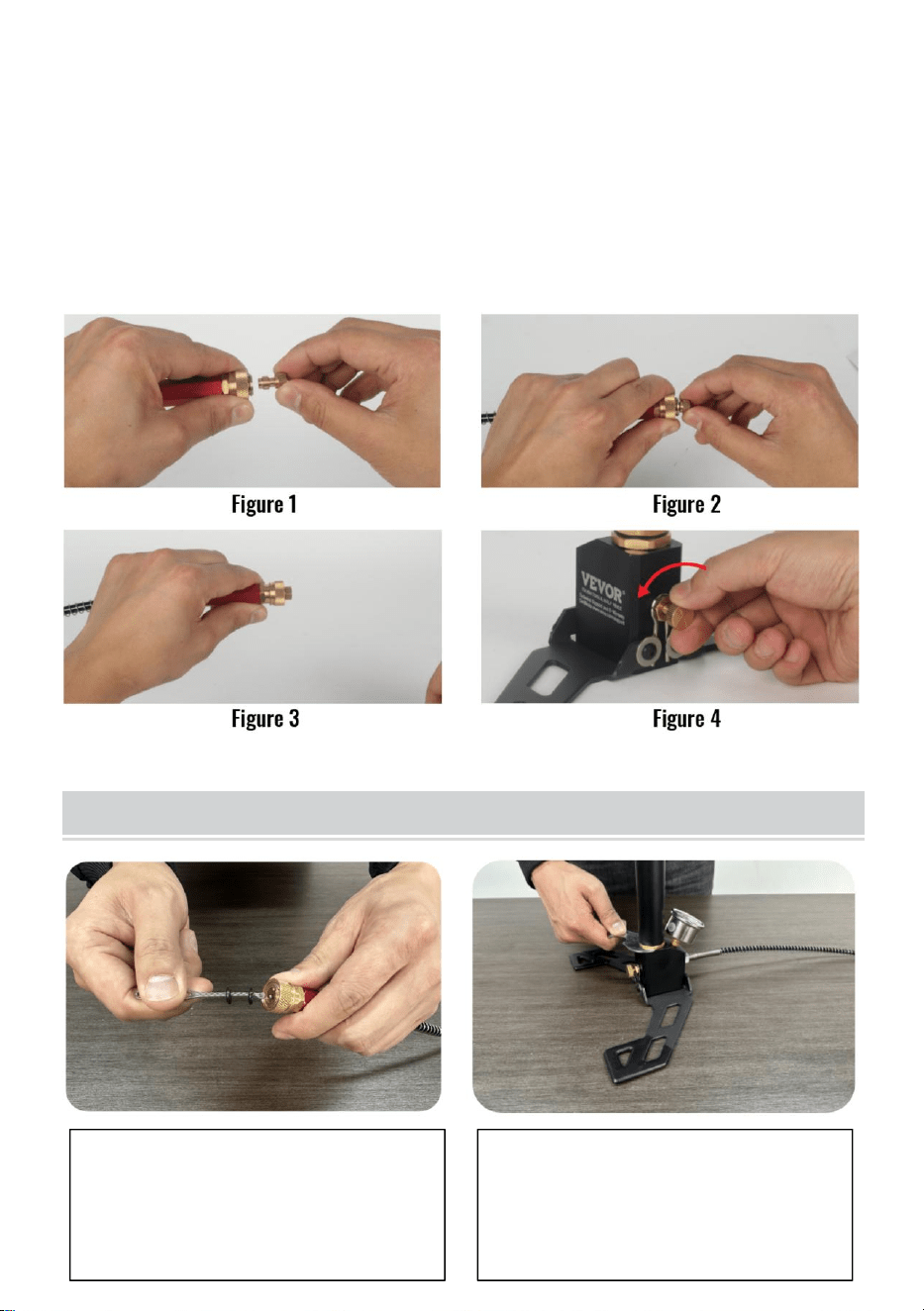

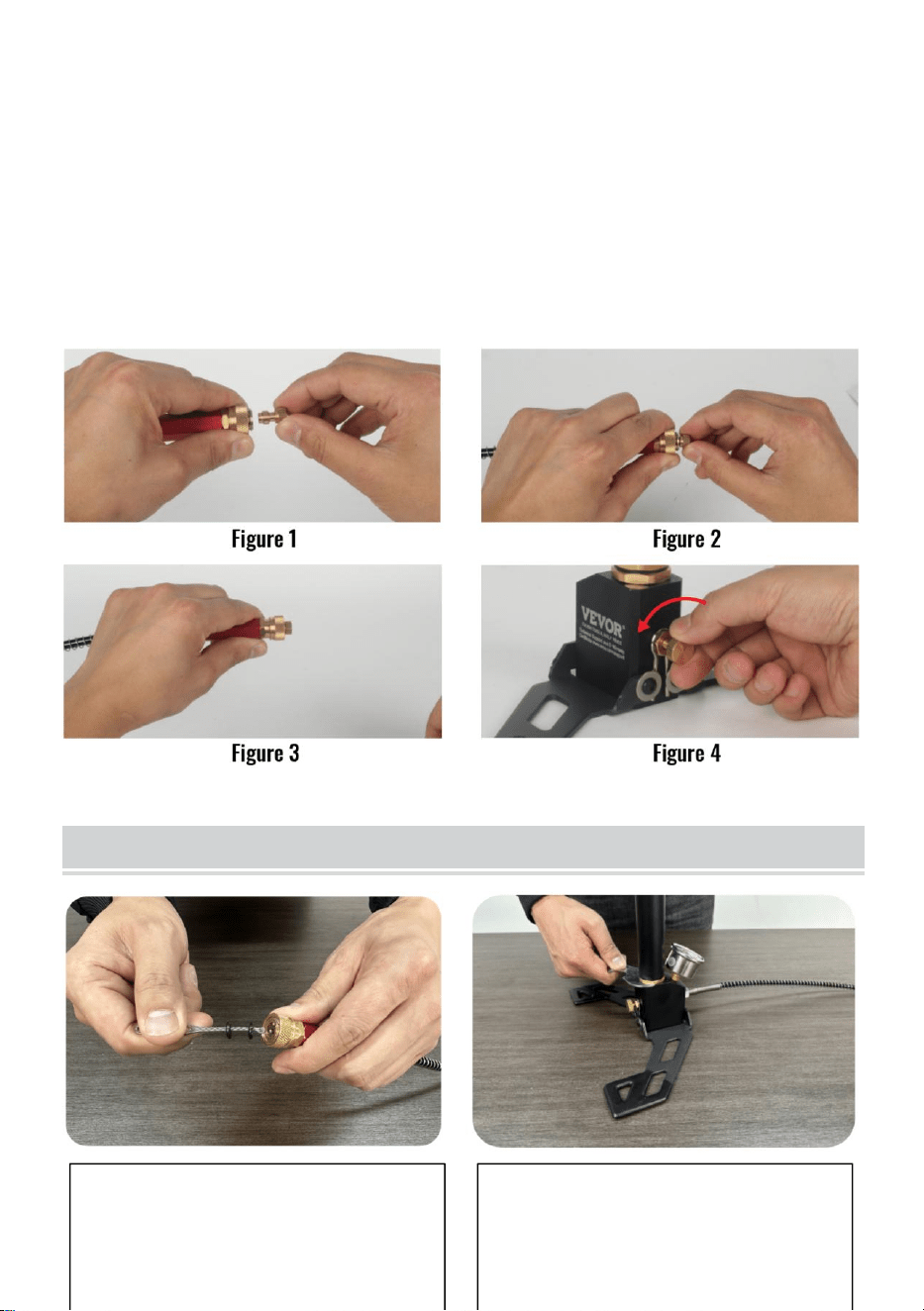

2. Adapter socket installation metho
The adapter socket should be properly installed, otherwise it is prone to
blockage problems (as shown in Figure 1.2.3 below).

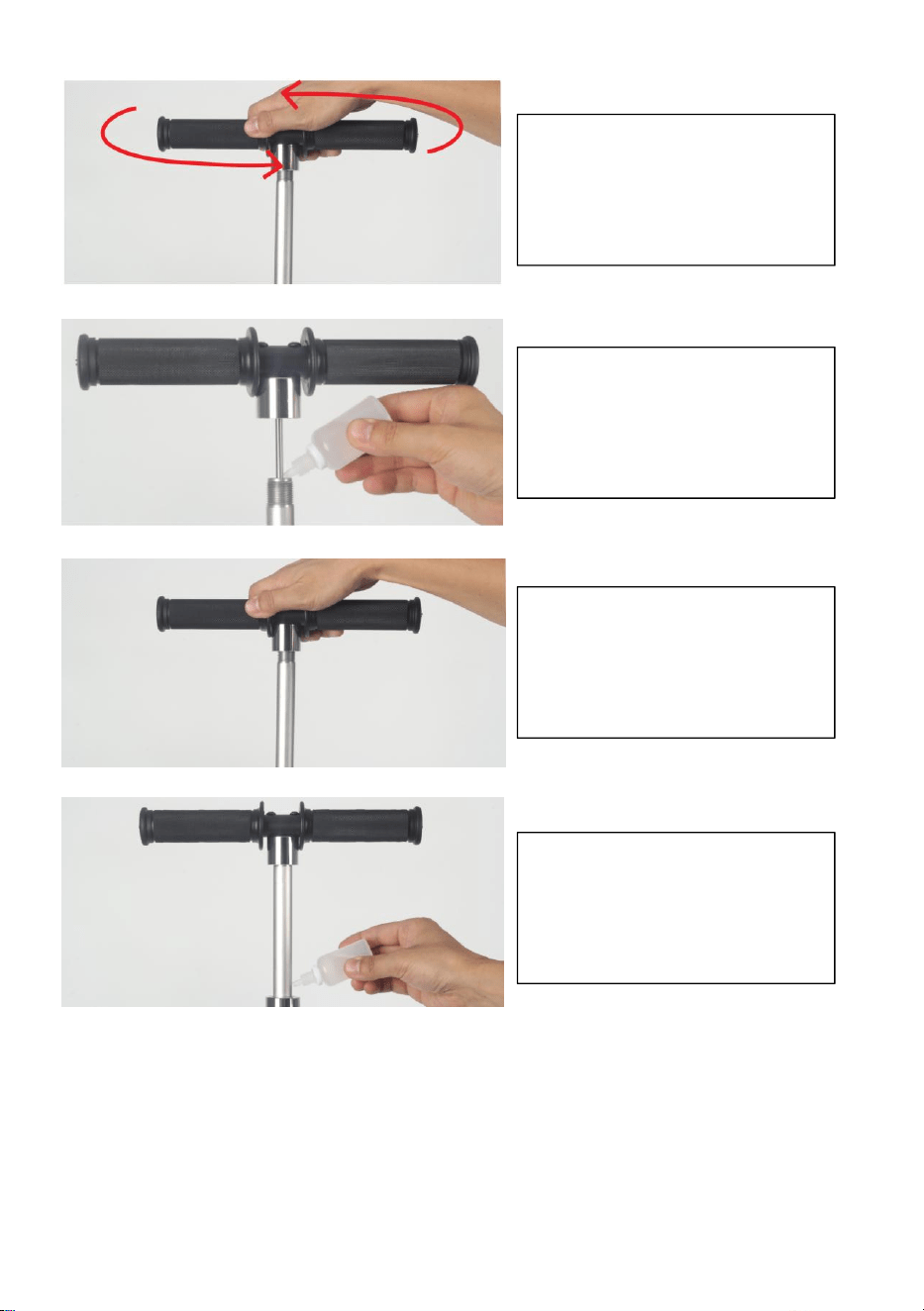

1. Hold the handle and
unscrew the handle
assembly.
2. Add 3 drops of oil to
the high pressure solid
rod.
3. Tighten the handle as
shown.
4. After pulling the
handle up, add 3 drops
of oil to the outer wall of
the diode.
- 10 -
3. Decompression
After using the pump, be sure to relieve the pressure first (as shown in
Figure 4 below), and then remove the connector. Usually do not use the
pump, please try to keep no pressure, the hose can not knot, not excessive
bending, do not bump the pressure gauge.
TROUBLESHOOTING

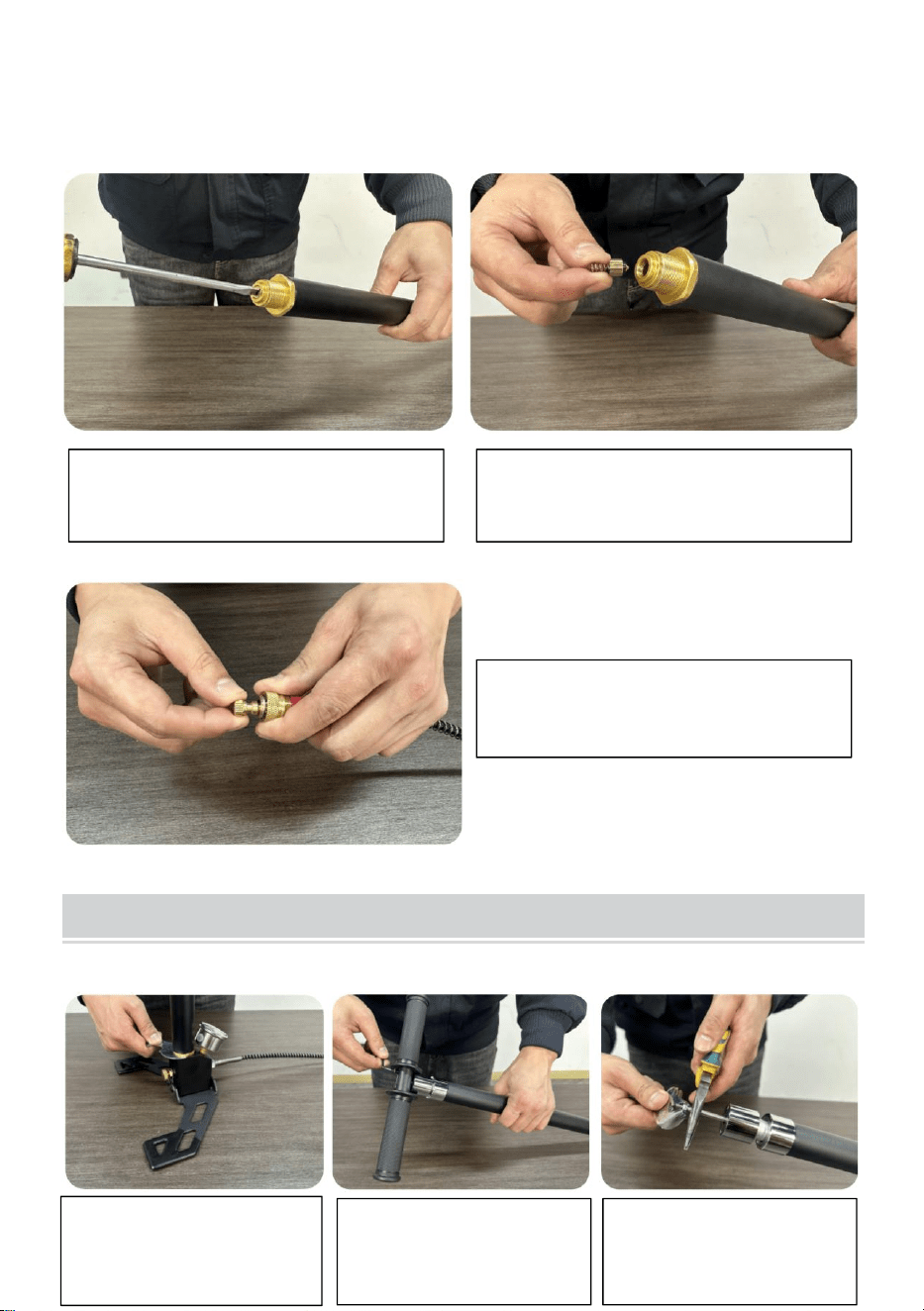

Check whether the O-ring of
the adapter socket is 2,
which must be used to seal
properly.
Check valve clean and check
O-ring for damage.
- 11 -

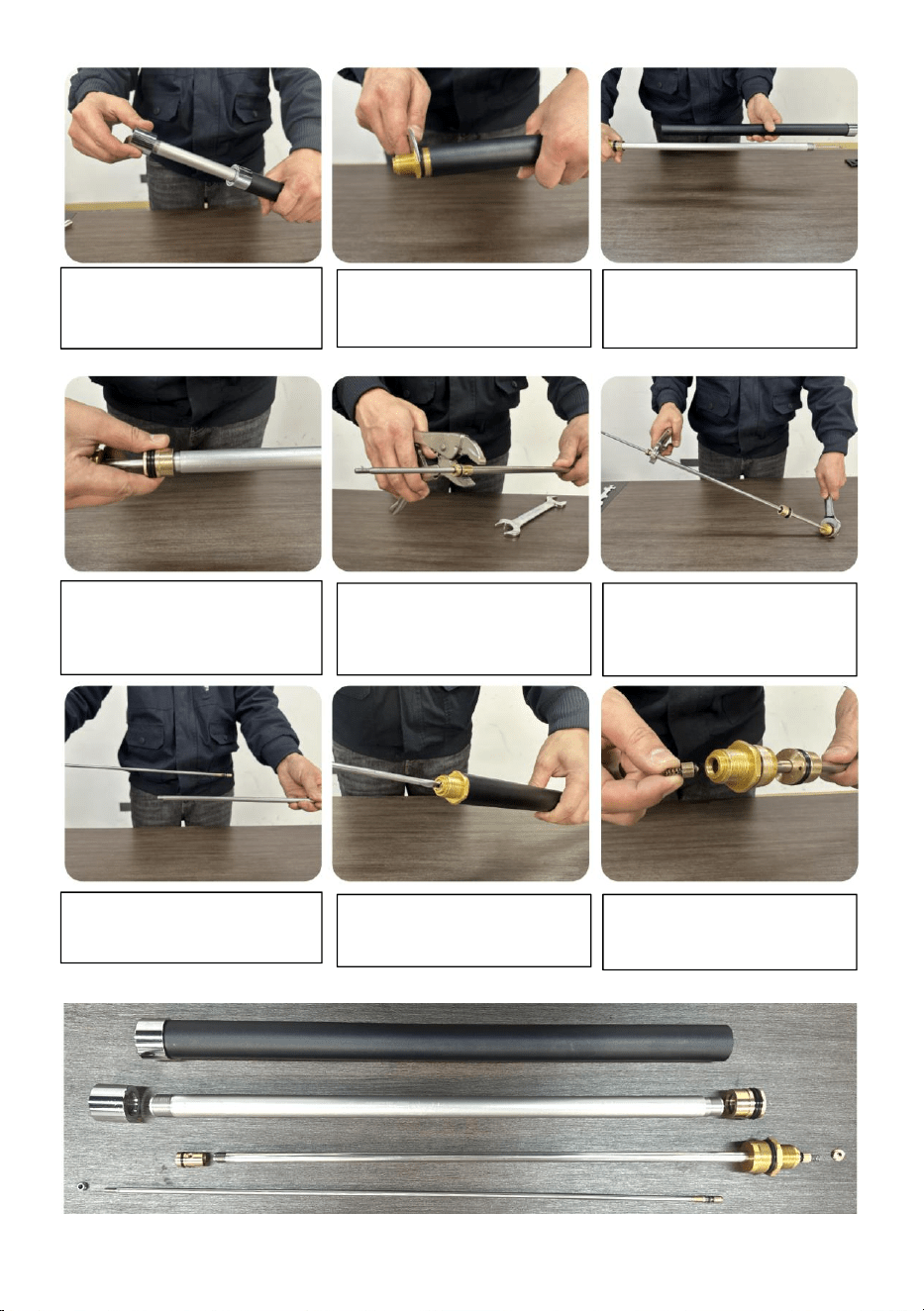

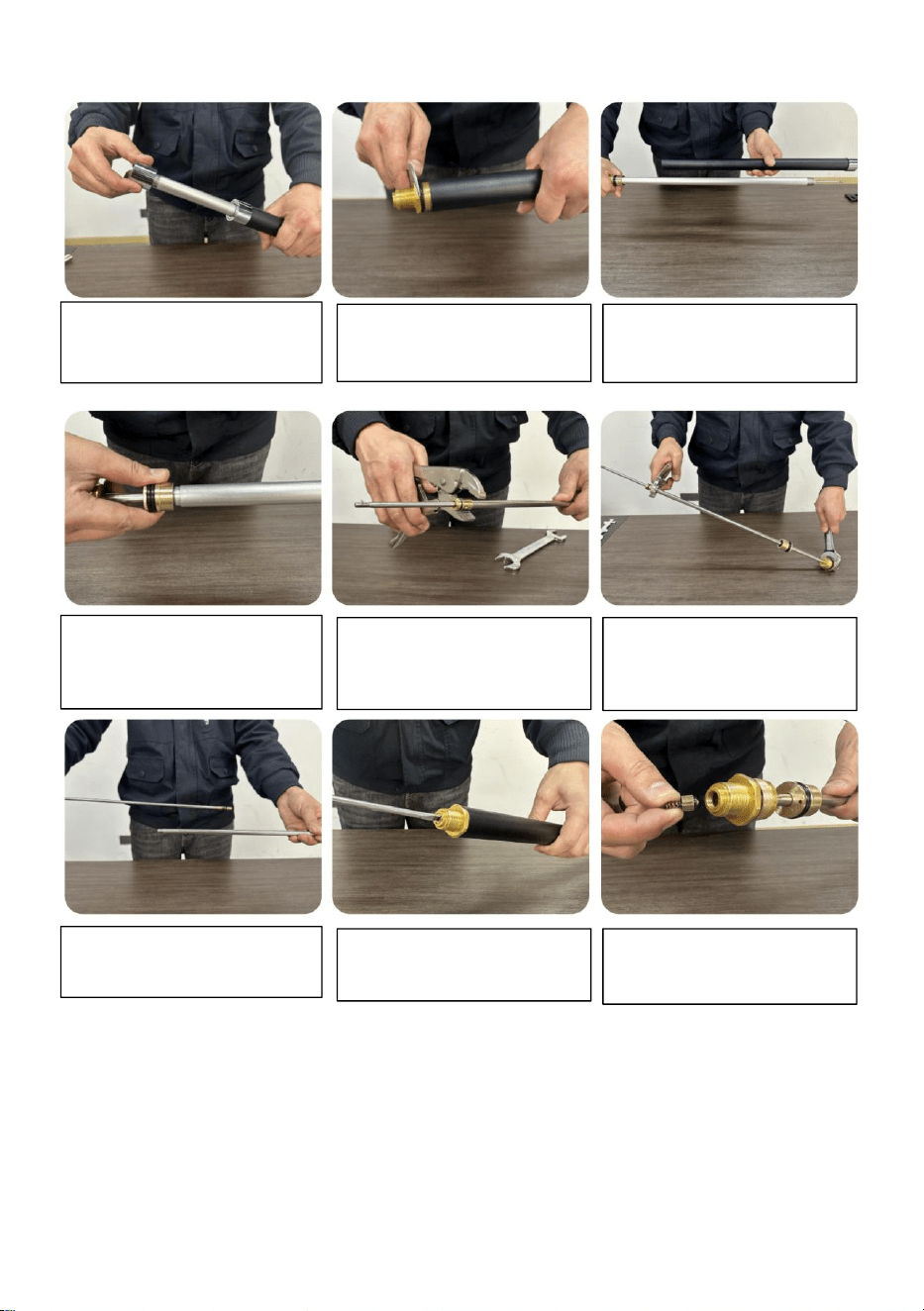

DISASSEMBLY PROCEDURE DIAGRAM
Check valve clean and check
O-ring for damage.
Check valve clean and check
O-ring for damage.
Plug quickly test whether the
product is working properly.

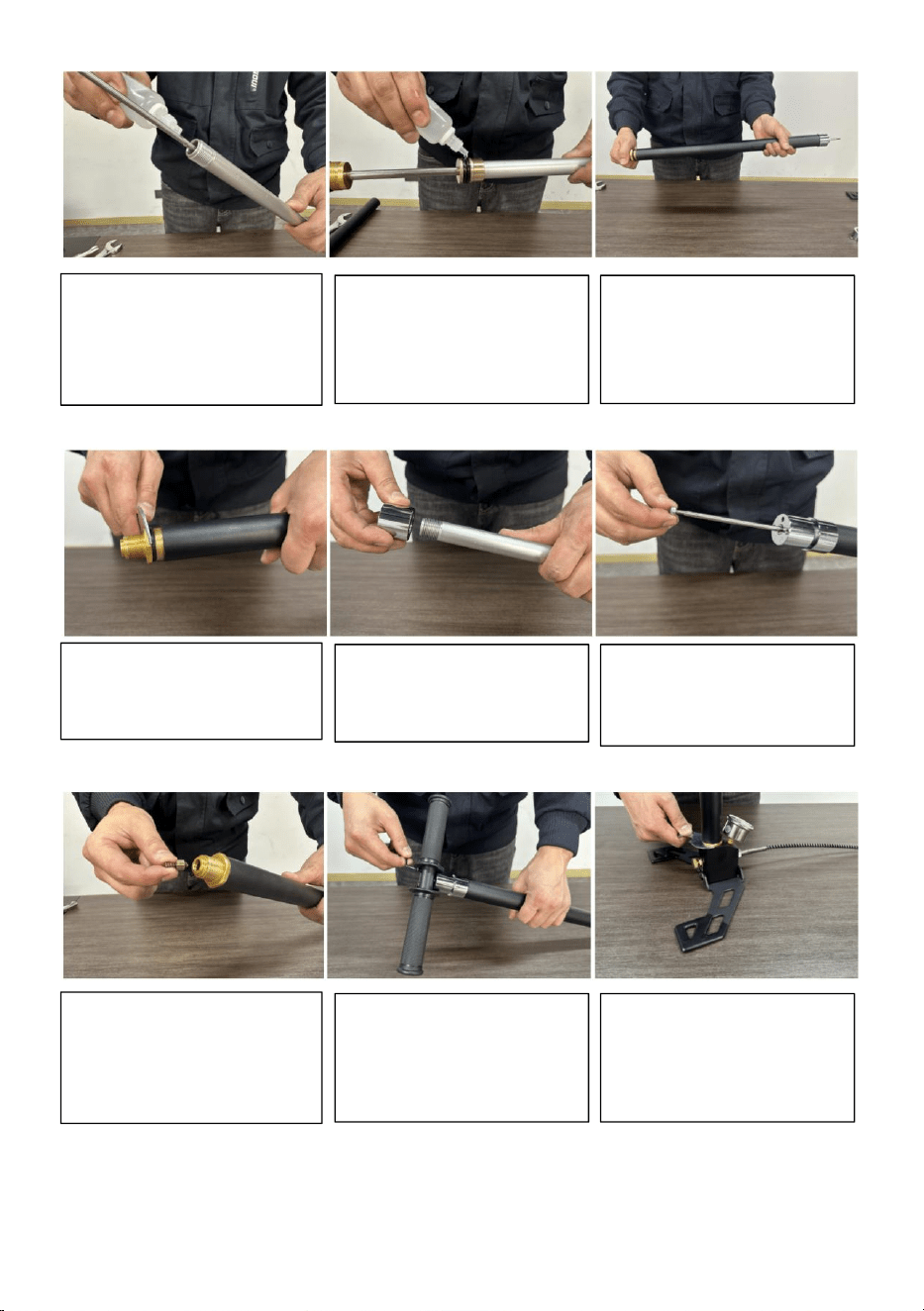

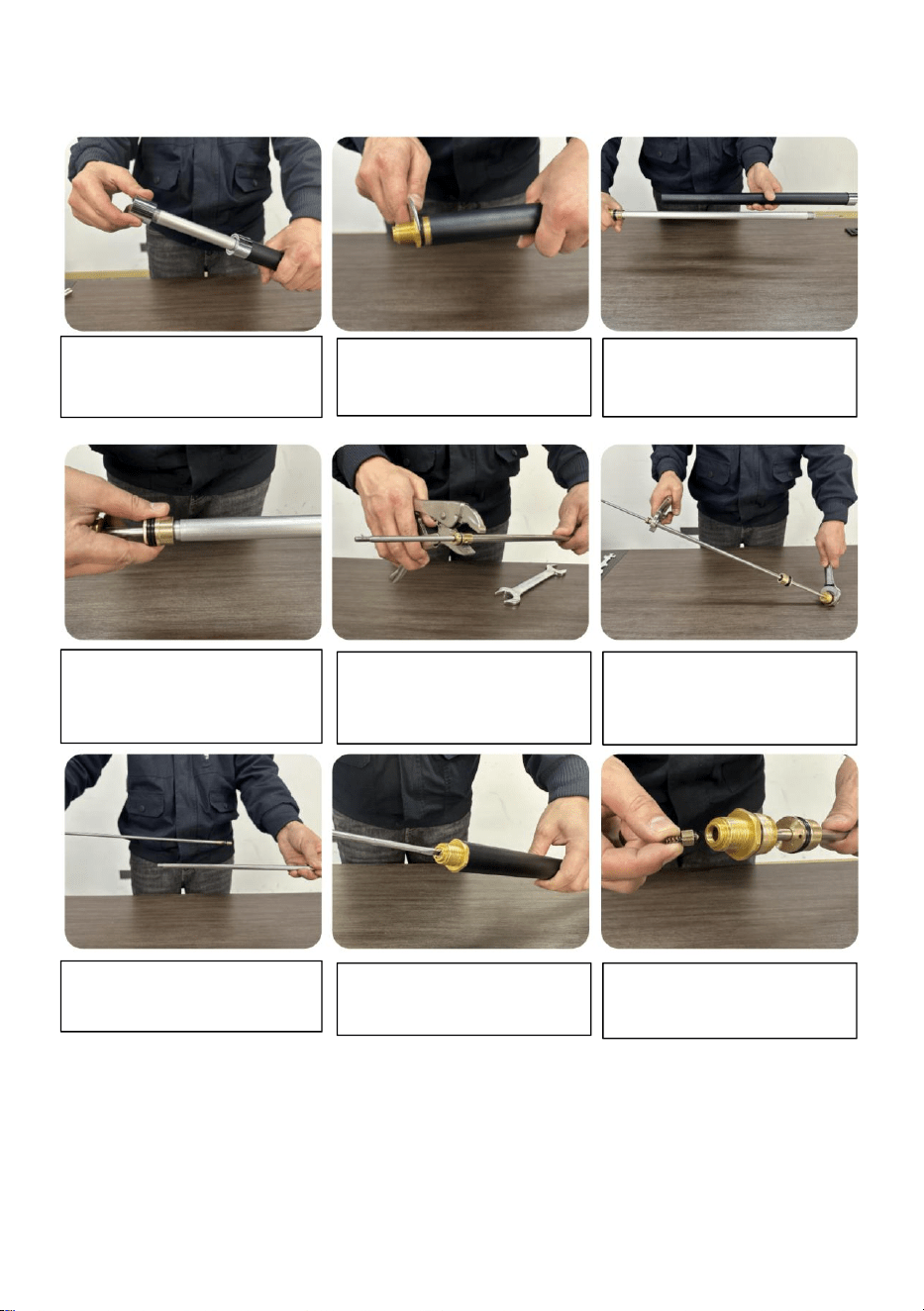

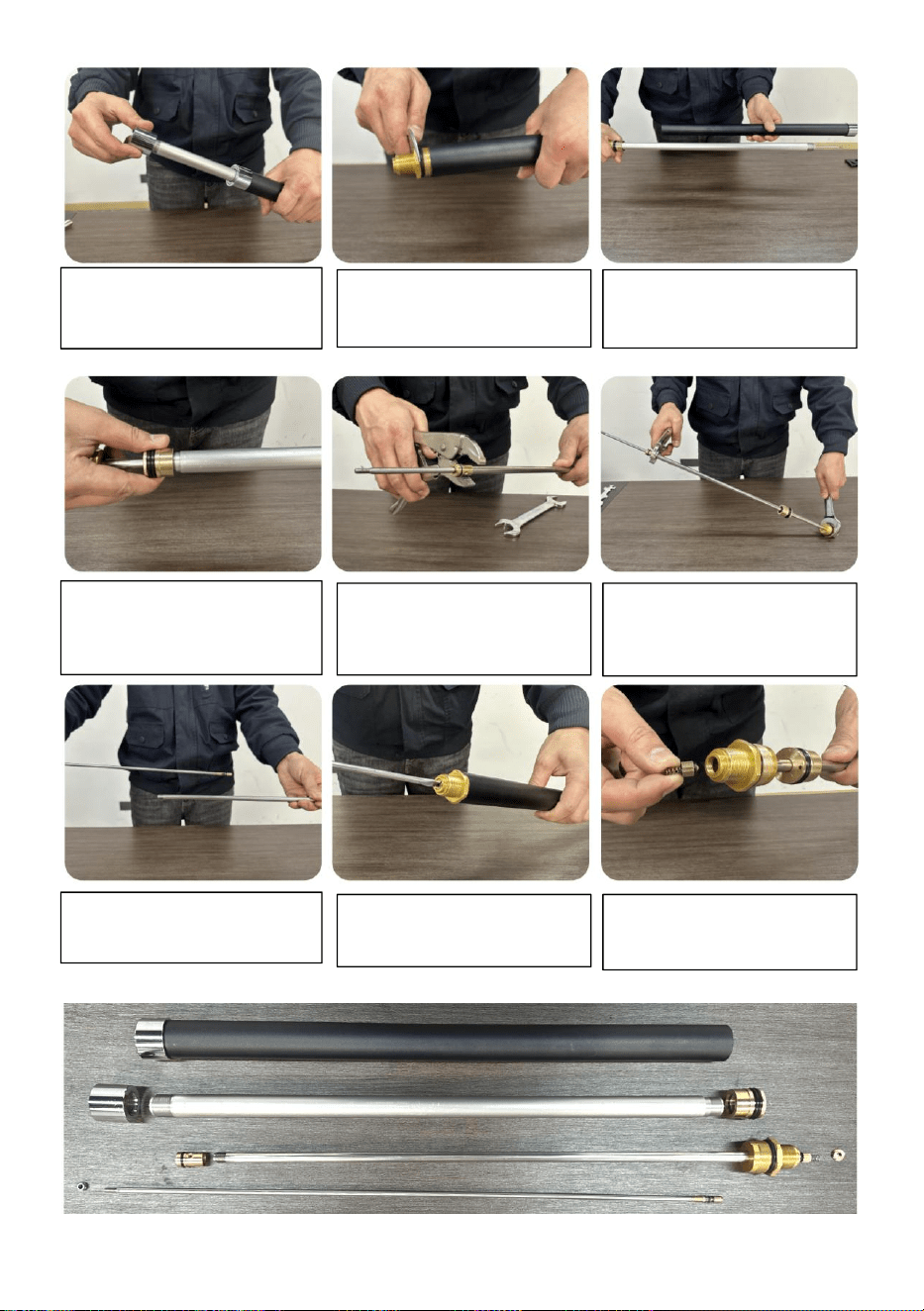

1.Loosen and remove
cylinder body with
multi-function wrench.
2.Unscrew the
handle to remove the
handle.
3.Wrench unscrews
the limit screws of the
solid rod.
- 12 -
4.Remove the handle
mounting body.
5.Loosen the primary
pipe with a wrench.
6.Remove the
primary tube.
10.Remove the high
pressure solid rod.
11.Loosen the check
valve limit screw.
7.Remove the
secondary piston.
12.Remove the
check valve.
8.Clamp the triple
pipe piston with pipe
pliers.
9.Loosen and
remove triplet piston.
- 13 -

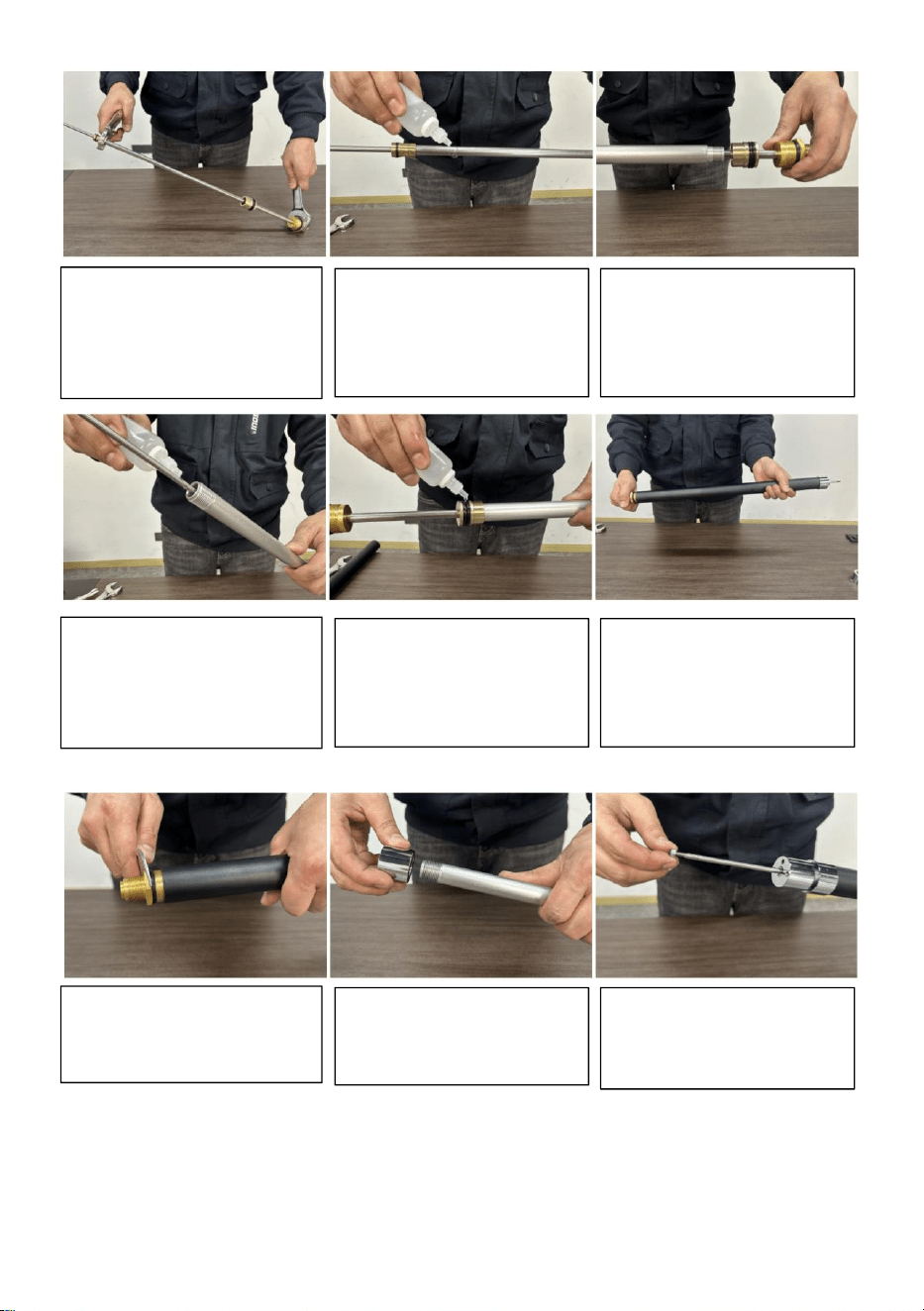

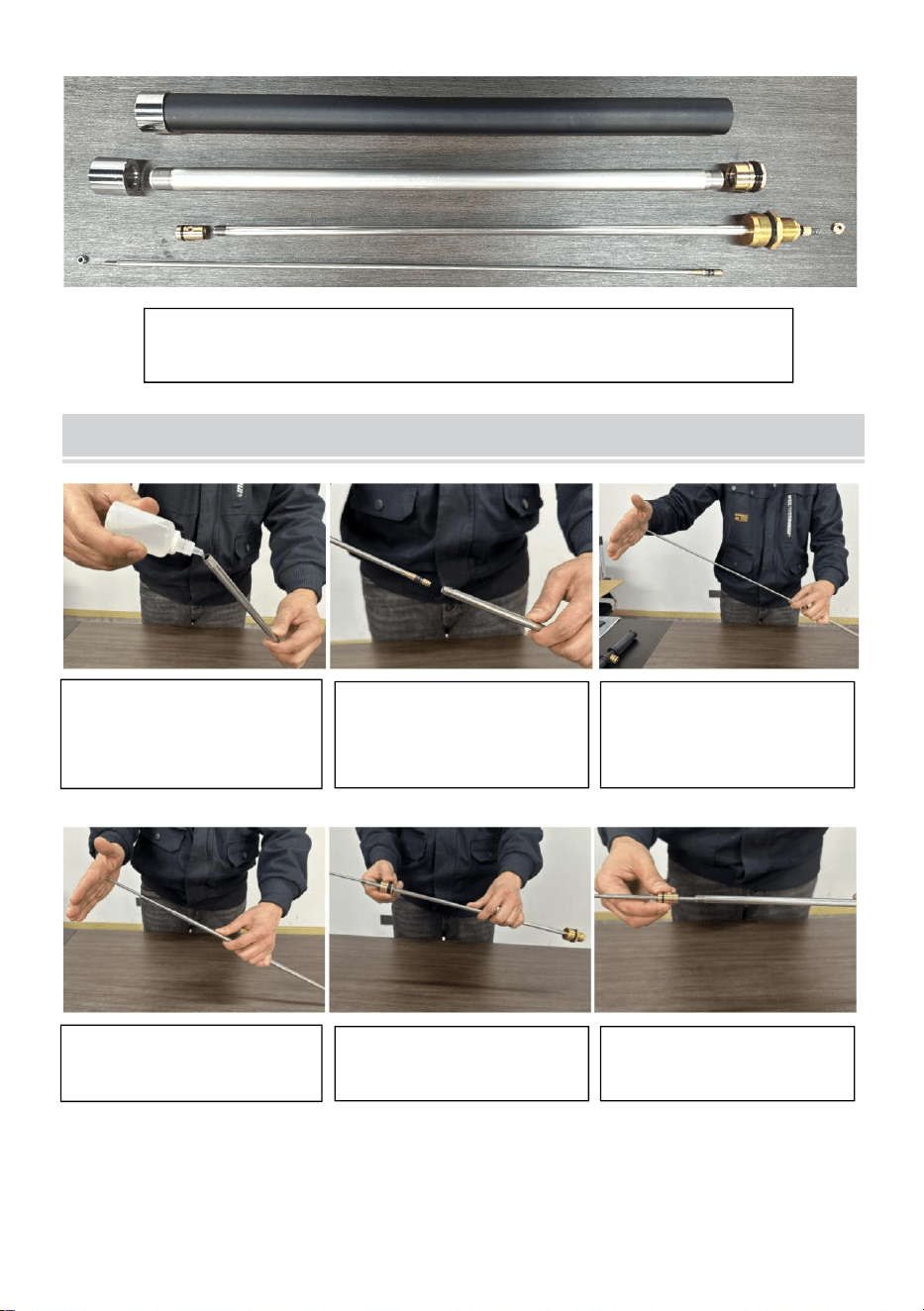

INSTALLATION PROCEDURE DIAGRAM

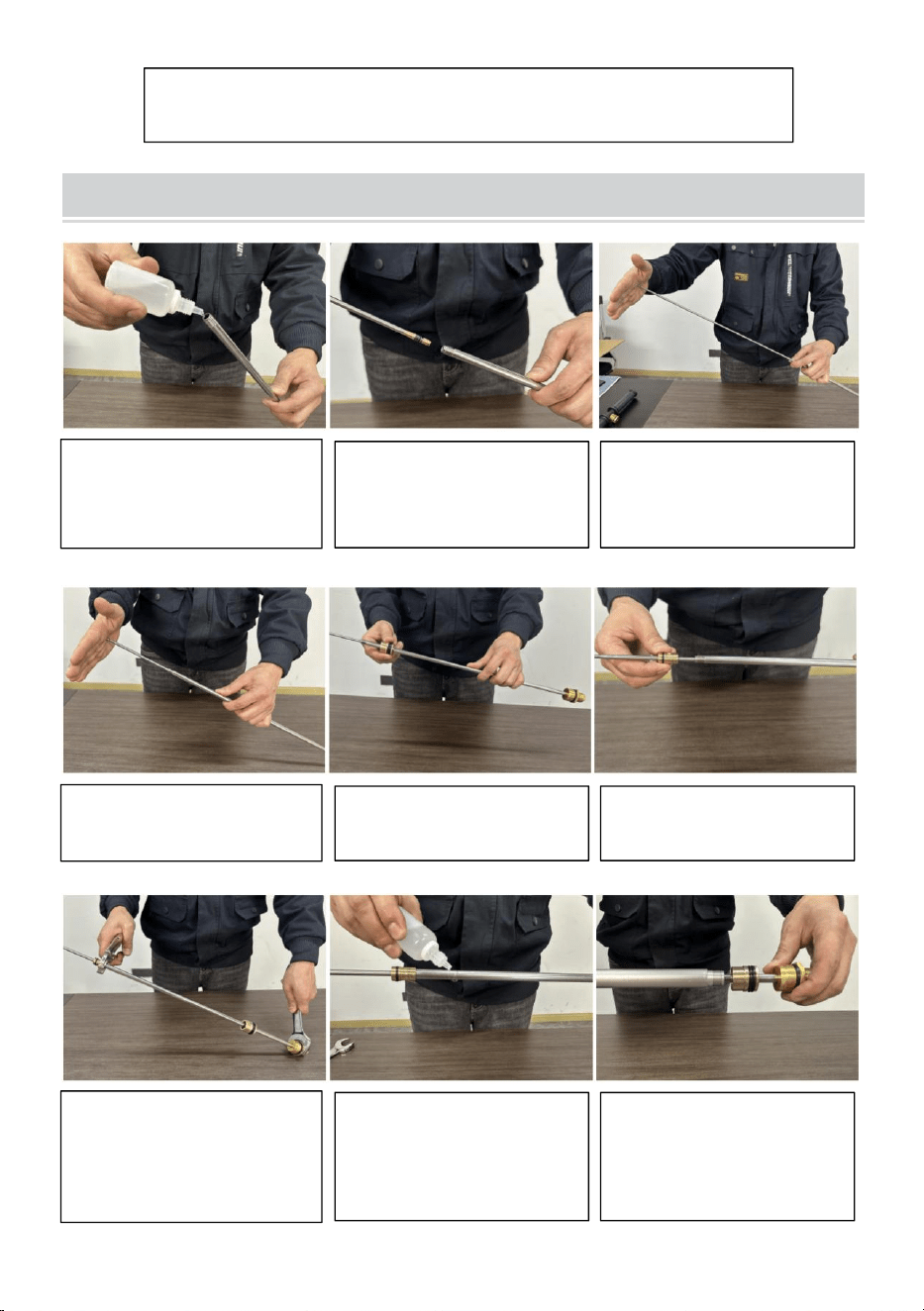

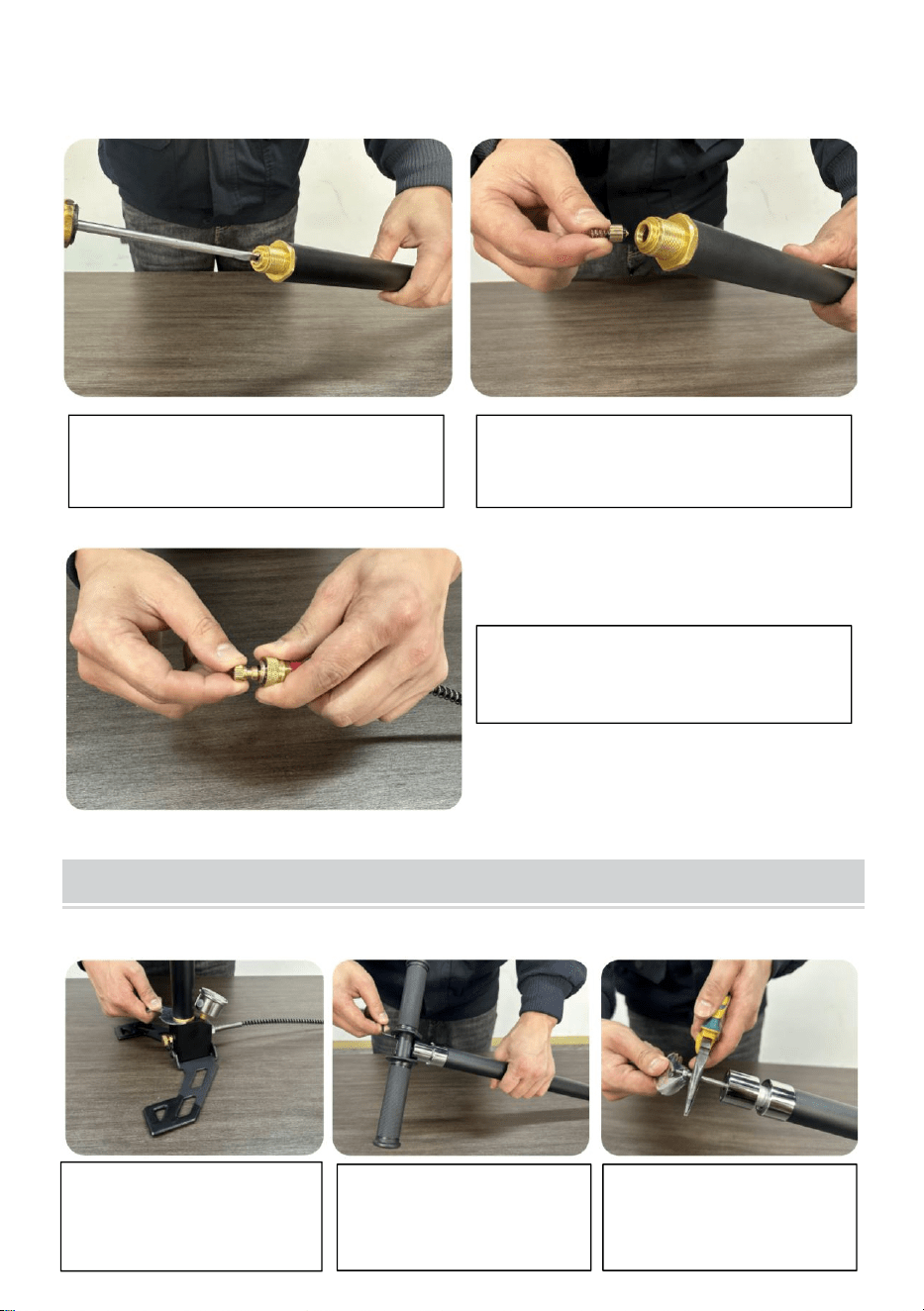

5.Install the
secondary piston.
1.Pour 3-4 drops of
lubricating oil into the
four-stage pipe.
6.Install the
three-stage piston.
2.Ease the high
pressure piston head
into the quadruple.
13. After the disassembly is complete, clean the components
and check to replace the damaged O-rings.
3.Pat the solid bar
from the top with your
hand.
4.Insert the solid rod
into the four-tube.
7.Tighten the
three-stage piston
with a wrench.
8.Add 3-4 drops of
lubricating oil to the
wall of the four-stage
pipe.
9.Install the diode
(fine teeth connected
to the secondary
piston).
- 14 -
13.Tighten the
primary pipe with a
wrench.
18.Screw the main
body into the base to
complete the
installation.
14.Install the handle
main body.
10.Put 3-4 drops of
lubricating oil into the
inner wall of the
secondary pipe.
15.Install the solid
rod limit screw.
11.Put 3-4 drops of
lubricating oil into the
secondary piston.
12.Install primary
pipe.
16.Install the check
valve.
17.Install the handle.
- 1 -
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu,
shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW
2122 Australia
Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place,
Rancho Cucamonga, CA 91730
REP
EC
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main.
REP
UK
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House,
London Road, Staines-upon-Thames, Surrey, TW18 4AX
