Models UC-PS16-30 | UC-PS16-36
INSTRUCTION,
USE & CARE MANUAL
Table of Contents
Safety Information .................................... 2
Warranty Information ............................... 3
Specifications ............................................ 4
Package Contents.................................... 4
Tools Needed ........................................... 4
Preparation: What to do before
installation .................................................
5
1. Read This Manual...................................................
5
2. Gather YourTools .................................................. 5
3. Inspect the Unit....................................................... 5
4. Ensure There is Proper Height Clearance........... 5
5. Check Your Power Supply and Ducts..................
5

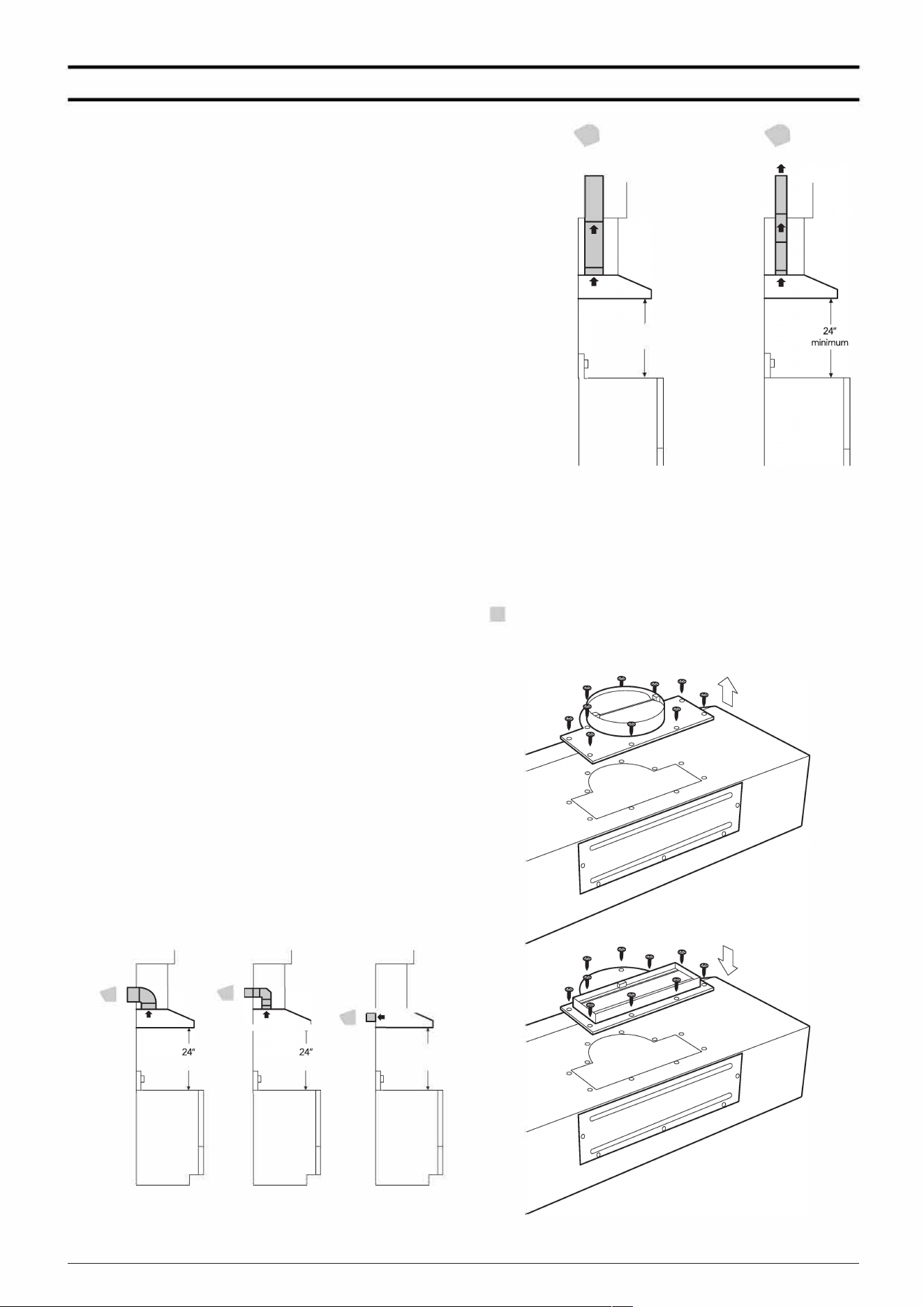

6. Figure Out Ducting Requirements & Install
Adapter .................................................................... 5

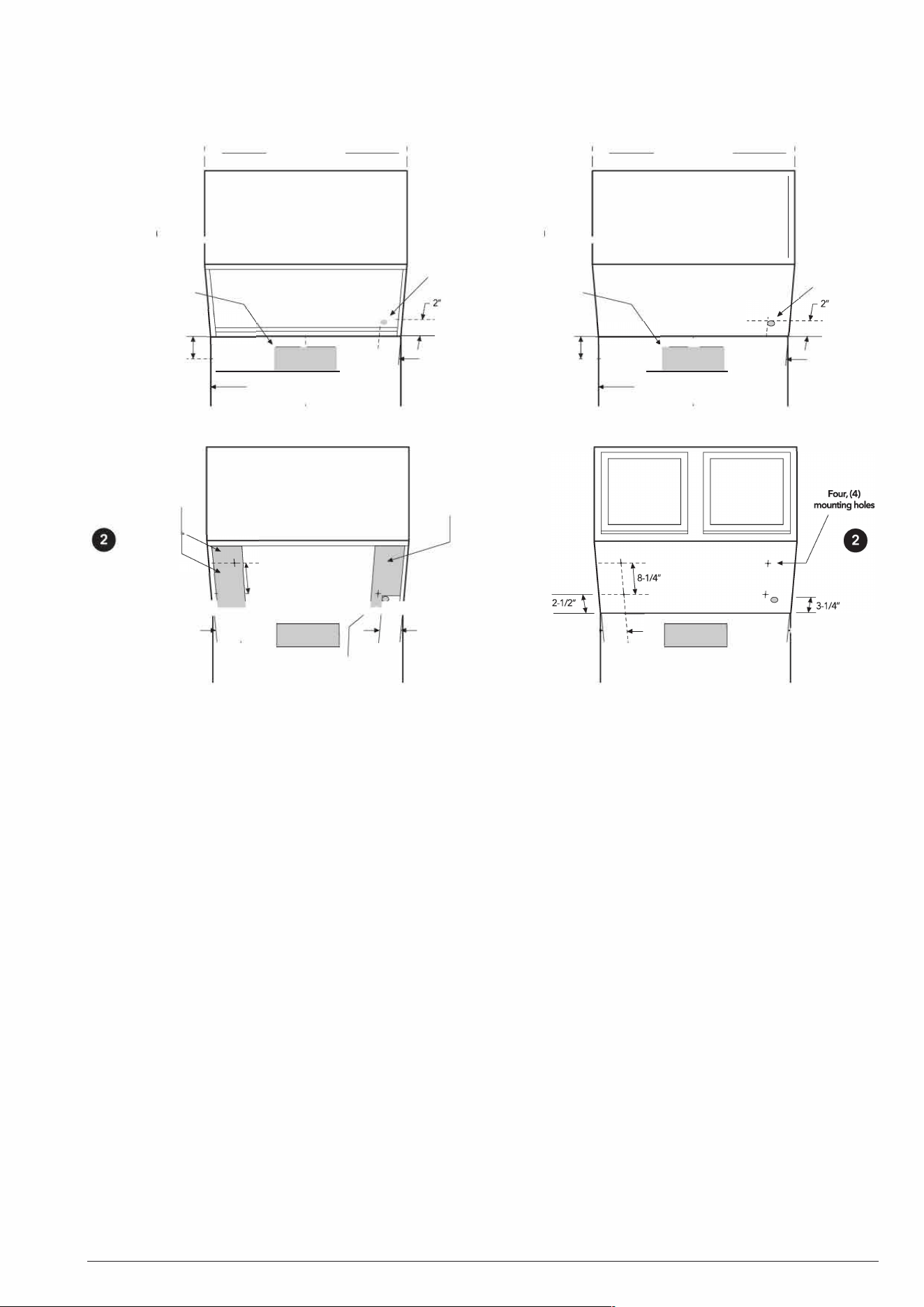

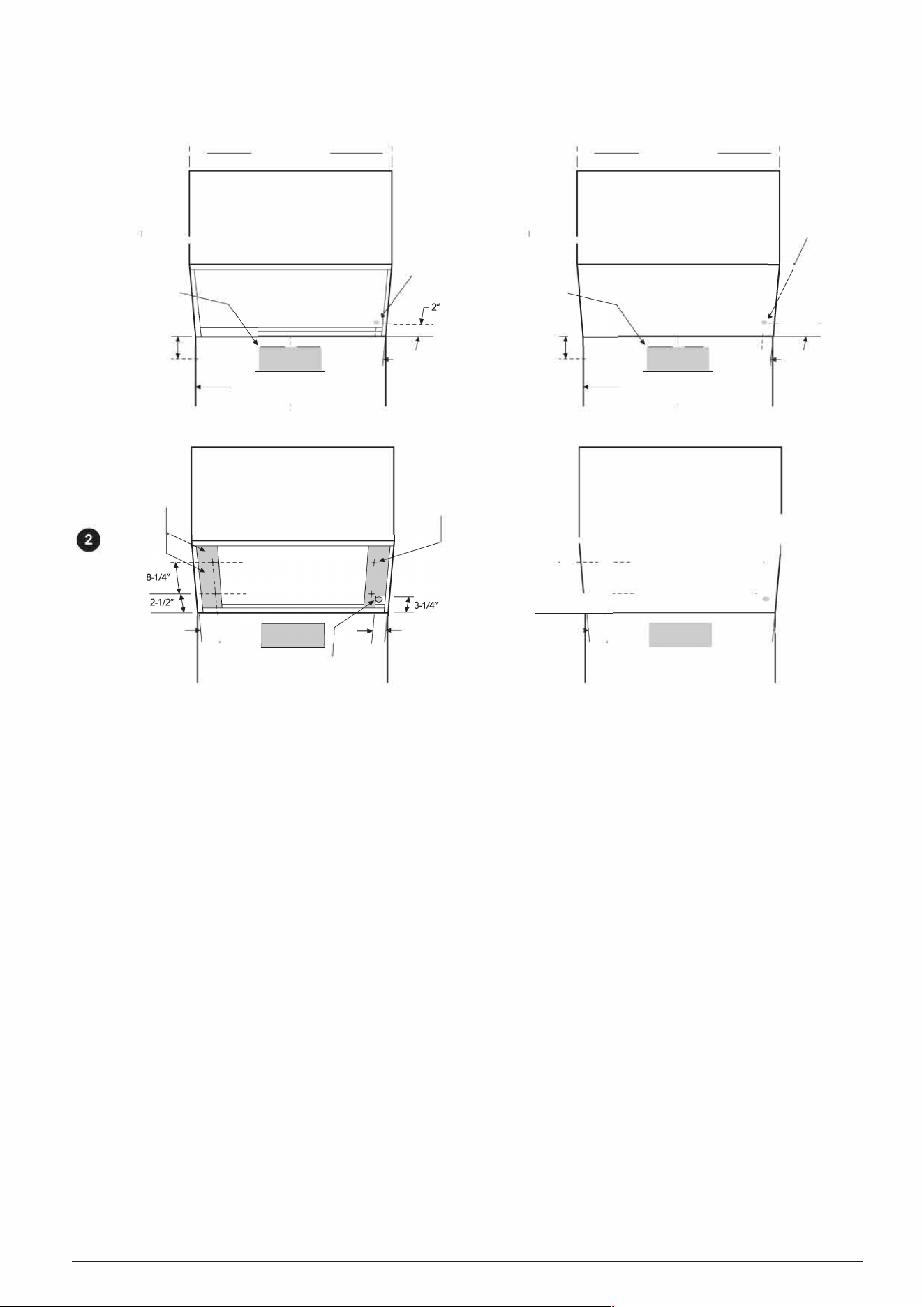

7. Prepare the Cabinet (Soit)................................... 6
8. Find a Helper........................................................... 6
How to Install Your Range Hood ............ 11
Safety Information
Bere installing your range hood, read the entire instruction
manual. Installers, leave this manual with the homeowner.
WARNING
SUITABLE FOR USE IN HOUSEHOLD COOKING AREA ONLY.
TO REDUCE THE RISK OF FIRE, ELECTRIL SHOCK, OR
INJURY, OBSERVE THE FOLLOWING:
1.Use this range hood only in the manner intended by the
manufacturer. If you have the questions, contact HAUSLANE
at 1-800-929-0168 or email at [email protected].
2.Before servicing or cleaning, switch power off at service
panel and lock service panel to prevent power from being
switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
3.Installation work and electrical wiring must be done by
qualified personnel in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.
4. Sufficient air is needed for proper combustion and exhaust
ing of gases through the flue (chimney) of fuel-burning
equipment to prevent back draing. Follow the heating
equipment manufacturer's guidelines and safety standards
such as those published by the National Fire Protection
Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASH RAE),
and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any solid-state speed control
device.
8. To reduce the risk of fire, use only steel ductwork.
UC-PS16 USER MANUAL
1. Testing the Unit ....................................................... 11

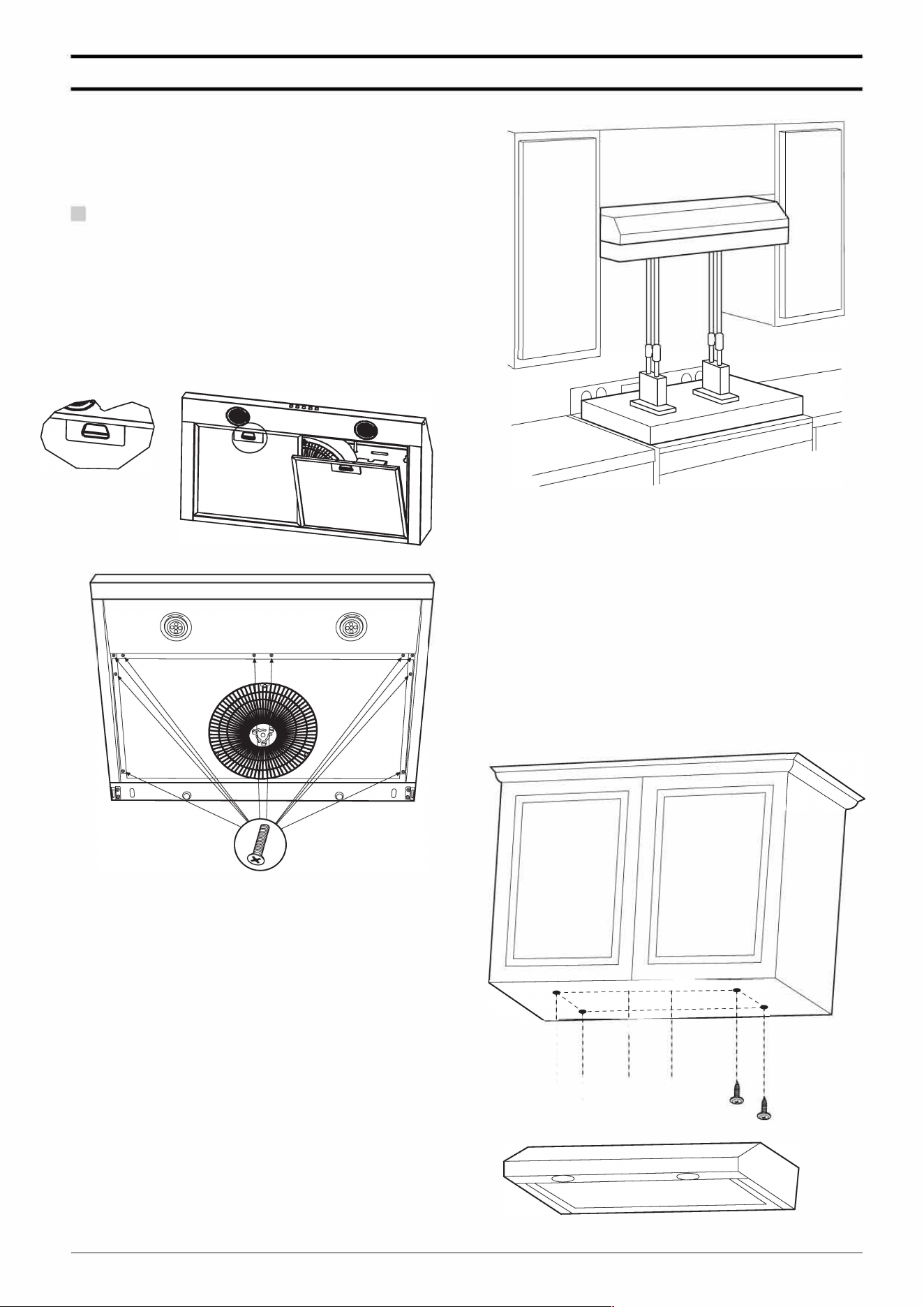

2. Uninstall the Range Hood's Bottom Cover .......... 11
3. Jack Up the Hood ................................................... 11
4. Screw It Into Place ................................................... 11
5. Double-Check Installation & Remove Support ... 12
6. Check for Airtightness ............................................ 12

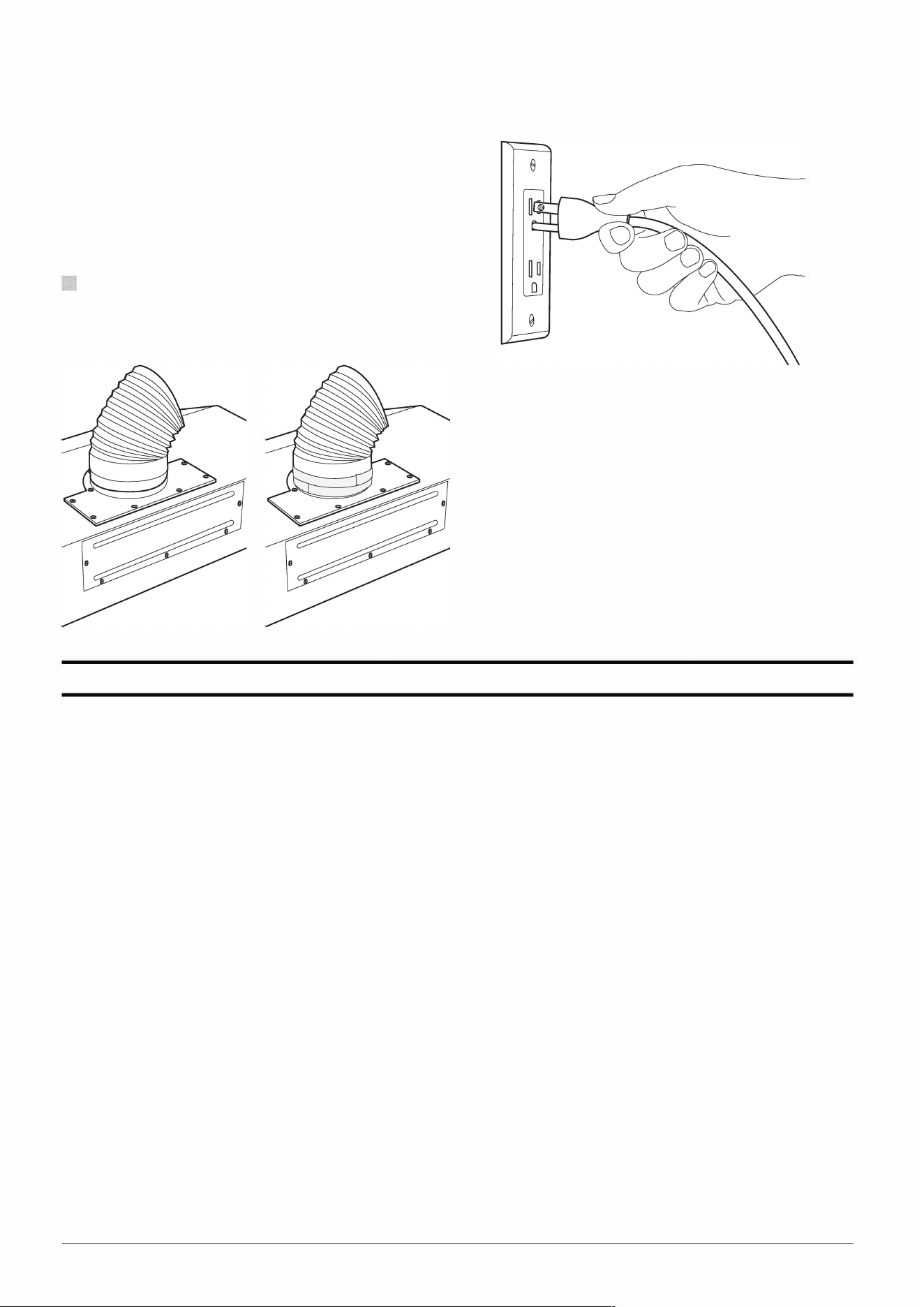

7. Plug the Range Hood In ......................................... 12
8. Reinstall Bottom Cover & Filters ....................... 12
9. Keep This Manual. ................................................... 12
How to Use Your Range Hood ................ 12
Using the Front Control Panel. ................................... 12
Basic Maintenance lnstructions .............. 13
Maintaining the Filter
Maintaining the Lighting
Cleaning Your Range Hood
13
13
13

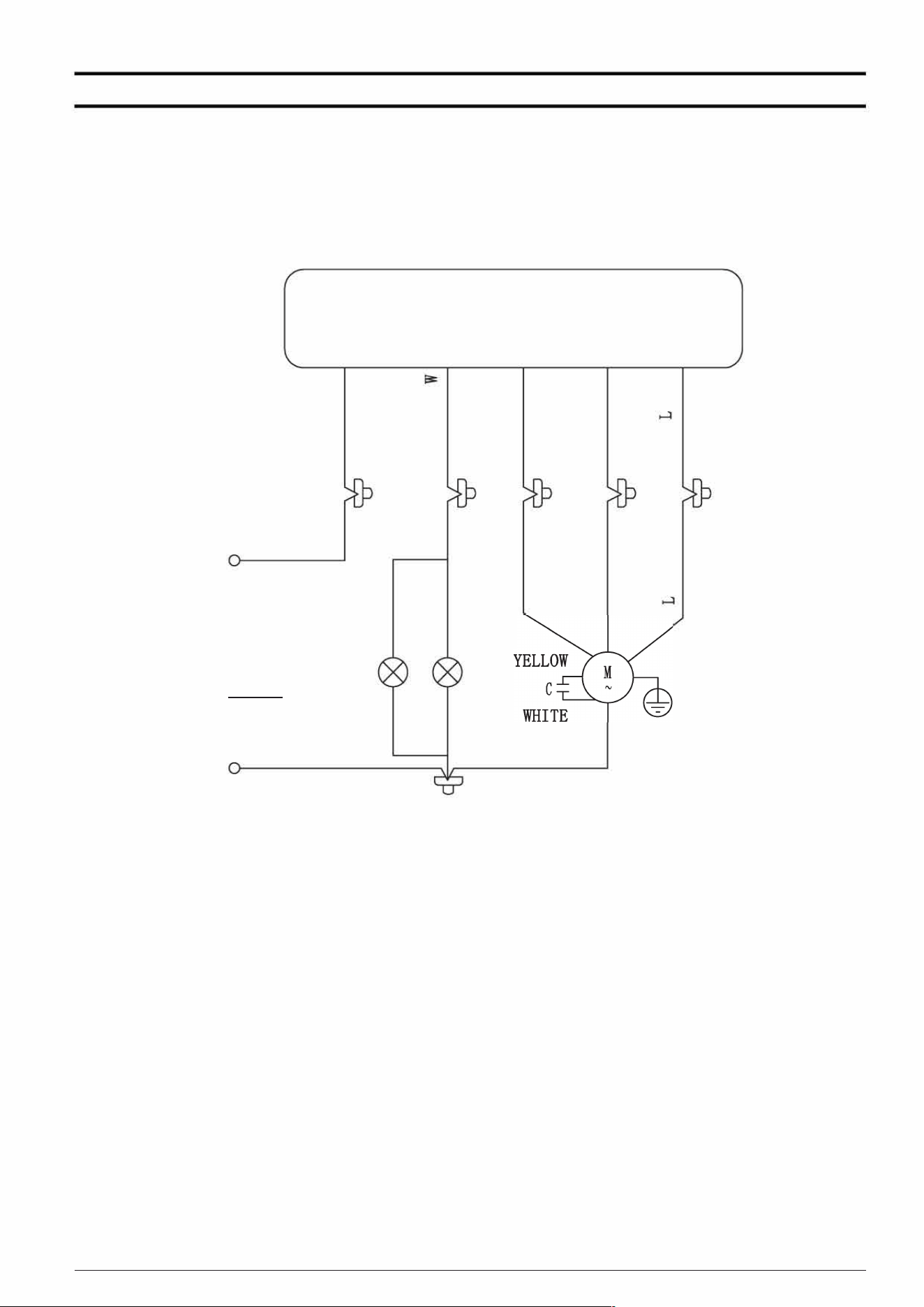

Wiring Diagram ........................................
1
5
Troubleshooting Tips ..............................
1
6
Contact Hauslane .. ................................... 17
9. This unit must be grounded.
TO REDUCE THE RISK OF A NGE TOP GREASE
FIRE:
1. Never leave surface units unattended at high settings.
Boil overs cause smoking and greasy spillovers that
may ignite.
2. Heat oils slowly on low or medium settings.
3. Always turn hood ON when cooking at high heat or
when cooking flaming foods.
4. Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
5. Use proper pan size. Always use cookware appropriate
for the size of the surface element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet
or metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. IF THE FLAMES DO NOT GO OUT
IMMEDIATELY, EVACUATE AND CALL THE FIRE
DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN as you may be
burned.
3. DO NOT USE WATER, including wet dishcloths or
towels. This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you know
how to operate it.
B. The fire is small and contained.
2
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
*Based on "Kitchen Fire Safety Tips" published by NFPA.
& CAUTION
1.For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
2.To avoid damage and noisy and/or unbalanced impellers,
keep drywall/construction dust, etc. off power unit.
3.Mount your range hood so that the boom of the hood is
24" to 30" above the cooking surface. The minimum hood
distance above cooktop must not be less than 24"; any
installation less than 24" may cause overheating and cause
damage to the range hood, HAUS
L
ANE does not warrant
this improper installation.
Warranty Information
This range hood is warranted to the original purchaser to be
free of defects in material and workmanship for two (2) years
from the date of purchase.
Our obligation shall be limited to the repair or replacement of
a unit (at our discretion) that may prove, by our sole examina
tion, to be defective under normal use and service during the
warranty period. We may issue credit in the amount of the
invoice value of the defective product (or a percentage of it
according to use) in lieu of repair or replacement. Any failure
of this product that is not traceable to a defect in material or
workmanship is not covered by this warranty. These non-war
rantable items include, but are not limited to:
•
Any defects or damage to light bulbs
• Change in color or finish due to chemical usage
• Improper installation not in accordance with the instructions
• Dents, bumps, and scratches incurred during shipping,
handling, or installation
• Damage caused by failure to follow care and cleaning
guidelines, including damage caused by the use of abrasive
cleaners
• Alterations made to the unit by the purchaser or installer
•
Damage caused by accidental impact, fire, flood, freezing,
and normal wear
• Bends and warping caused by forced connections,
over-tightened fittings, and inadequate support during
installation
UC-PS16 USER MANUAL
4. Two to three installers are recommended because of
the larger size and weight of this hood.
5. To reduce the risk of fire and to properly exhaust air, be
sure to duct air outside. Do not exhaust air into spaces
within walls and ceiling or into aics, crawl space or
garages.
6. Because of the high exhausting capacity of this hood,
you should make sure enough air is entering the house
to replace exhausted air by opening a window close to
or in the kitchen.
7.Use with approved cord-connection kit only.
8. Please read product specification label on range hood
for further information and requirements.
A thorough inspection must be made before installation
and any damage must be promptly repoed. We will not
be liable for failures or damage that could have been
discovered or avoided by proper inspection and testing
prior to installation.
Incidental repairs that would involve a minimum of time
and eo on behalf of the purchaser will not be consid
ered warranty work and no compensation will be deemed
foh coming.
This warranty is non-transferable and shall be voided if
the unit is removed from its initial installation or if it is not
installed following the instructions.
Under no circumstance shall we be held liable for
personal injury or property damage resulting from
improper installation or use of this product. We will not
be held liable for inconvenience caused by loss of use of
this product, costs incurred for labor or materials, removal
and installation of replacement units, or any other
incidental or consequential damages. Costs relating to
obtaining access for repair or replacement are the
responsibility of the user.
This warranty does not extend to commercial and
institutional installation or use.
Warranty Claim Procedure
If a claimable defect occurs, please contact our customer
service team at 1-800-929-0168 (8 a.m. - 5 p.m., PST,
Monday - Friday). or email us at [email protected]
Before you make your claim call, please ensure that you
have:
• Description of the range hood
• Proof of sale
• Details regarding the defect
• Name(s) and address(es) of the owner and installer
Claims must be filled out in writing and returned within six
(6)months of the appearance of a defect. Failure to
comply with this stipulation will make this warranty null
and void. We reserve the right to a thirty-day (30) delay
following the receipt of a claim in which to inspect the
product. We assume no responsibility for labor costs,
removing or replacing a previously installed product,
transportation, or the return of a product.
3
Specifications
Dimentions UC-PS16-30
Dimentions UC-PS16-36
Volts
He
Fan CFM
29-3/4" W
35-3/4" W
22" D22" D
8"H
8"H

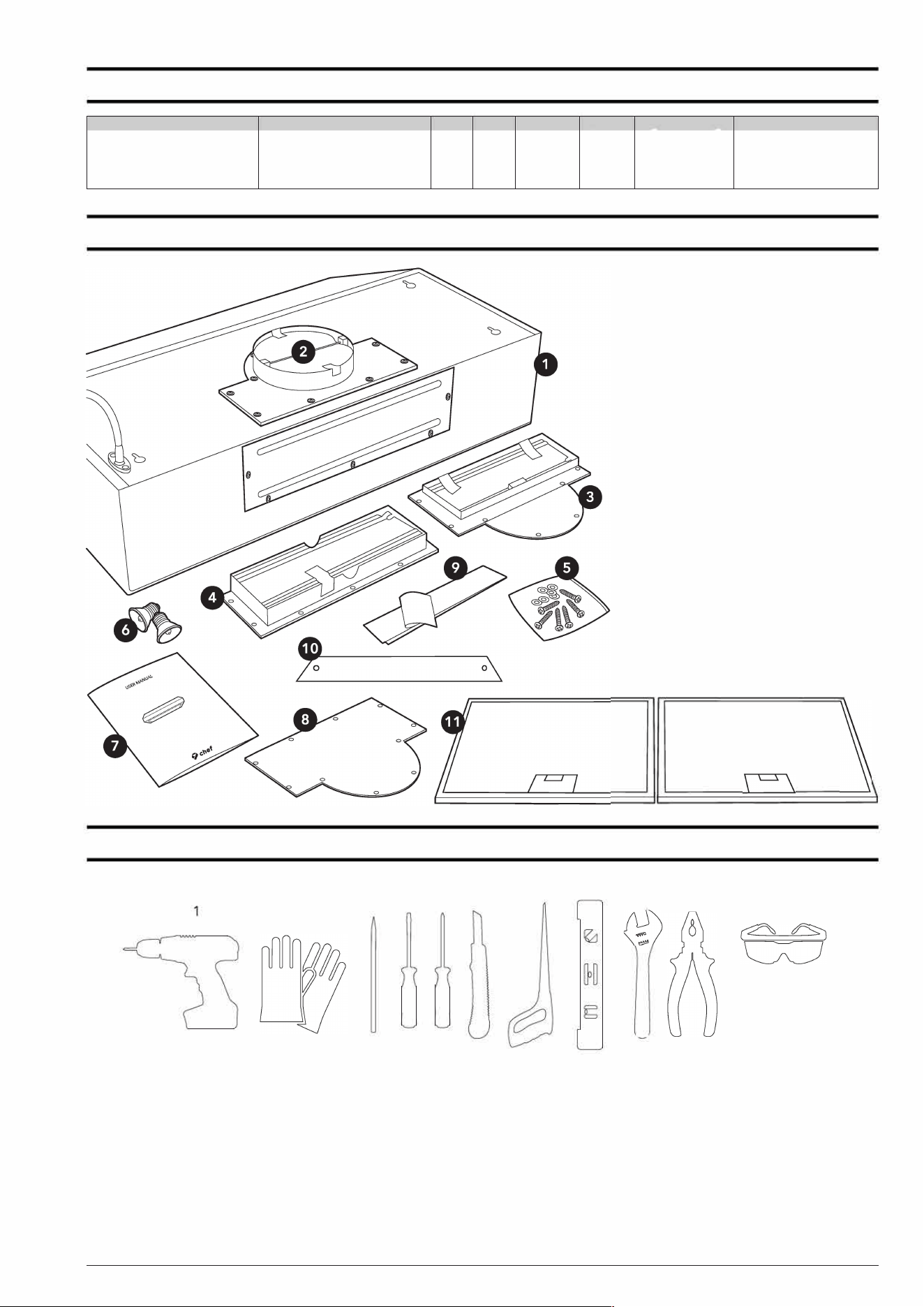

Package Contents
Tools Needed
2
Electric Drill & Extended
0 length head driver bit
0
Safety Gloves
e
Pencil
•
Flathead Screwdriver
Philips Screwdriver
UC-PS16 USER MANUAL
3
120
4
5
0 0
6
60
450
7
0 Utitlity Knife
0
Keyhole Saw 1"
0
Level
0
Adjustable Wrench
Needle Nose Pliers
Speeds
6
8
0
Light Wattage
Stainless Steel Grade
3W x2
430
0 Hood
0
Round Adapter (Preinstalled)
e
Vertical Rectangular Adapter
G Horizontal Rectangular Adapter
Bag of screws (AA)
A 2 x 3Watts LED Light
V (Preinstalled)
0
User Manual
0
Sealing Lid
0
Aluminum Tape
Seal Plate for Ducted Version
•
2x Aluminum Filter(UC-PS16-30)
3x Aluminum Filter(UC-PS16-36)
9
0
10
11
U@
12
13
•
Safety Goggles
e Measuring Tape
e Aluminum Foil Tape
4
Preparation: What to Do Before Installation
Before installing your range hood, carefully follow these steps:
1.Read This Manual
Read through all the steps. If you fail to read the instructions
carefully, we will not be responsible for damages incurred on
your part. If you're not confident in your abilities to install the
range hood properly, we recommend hiring a certified
technician to complete the installation.
2.Gather Your Tools
Ensure you have all the necessary tools according to the
previous page.
3.Inspe the Unit
Unpack the unit and check your range hood for damage or
missing parts. Plug it in to an outlet to ensure the fan and
lights work. If anything is damaged or missing, contact the
seller to get the issues solved. Don't throw away packaging
until you're sure you are fully satisfied with the product.
4.Ensure There is Proper Height Clearance
To ensure the highest performance, the bottom of your range
hood must be between 24" and 30" from the top of the
cooking surface. For gas ranges, the required distance is 30".
Do not exceed the maximum height of 30" while in operation.
This is very important! Installing at the incorrect height could
lead to drastic reduction in the range's performance or even
cause a fire.
5.Check Your Power Supply and Ducts
Check to ensure your main voltage is in line with the required
voltage outlined on the rating plate inside this hood. Also
check the domestic power supply to guarantee adequate
earthing before installation.
This range hood must be ducted to the outside. Don't
connect the range hood to exhaust ducts that carry any type
of combustion fumes like fireplaces, boilers, or any similar
items. The vents should have a short, straight run to the
outside. Avoid any elbows if possible, and if an elbow is
required, a minimum of a 12" straight run is imperative before
the elbow.
6.Figure Out Ducting Requirements & Install Adapter
This range hood requires ducting to the outside for ventila
tion. This range hood comes pre-installed with a vertical 6"
round adapter. The package comes with a horizontal and a
vertical rectangular adapter.
Look at the duct you're going to attach the range hood to.
ernal vent
cap by others
q
ernal vent
cap by
�
:
minimum
ernal vent
--
cap by
�
:
-
minimum
2
4
"
minimum
6" round horizontal
through cabinet
3-1/4"x 1 O" rectangulaor
horizontal through cabinet
3-1/4"x 10" reangular
horizontal through wall
UC-PS16 USER MANUAL
ernal ro
�
!
n
cap by othe
>
6" round vertil
through cabin
•
2
4
"
minimum
Is it a veical reangular duct?
ernal ro
�
!
n
cap by oth
>
3-1/4"x10"
reangulaor
vertical through
cabinet

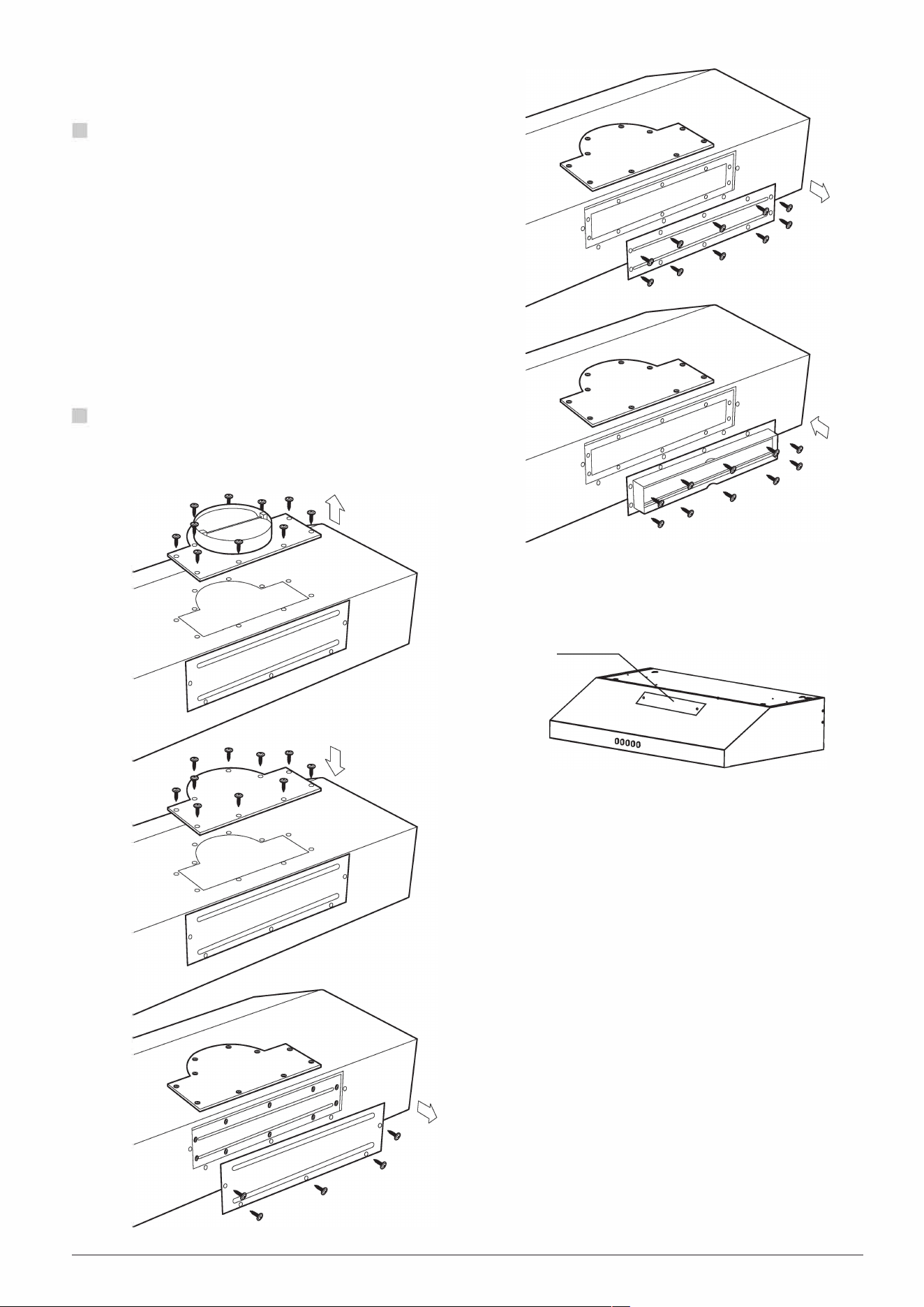

If so, take off the round adapter that is preinstalled on the
unit by removing 10 screws. Attach the rectangular
adapter in its place and tighten the adapter with the
previously-removed 10 screws. Remove the tape holding
up thedampers.
& IMPORTANT: Failure to remove the tape om the
damper will cause reduction in performance.
5
Is it a 6" round du?
You won't have to make any extra preparations. The range
hood will aach directly to your duct. Be sure to
remove the tape holding up the dampers.
& IMPORTANT: Failure to remove the tape om the damper
will cause reduction in performance. Make sure to install with
the existing black rubber gasket.
Is it a horizontal rectangular duct?
If so, remove existing round adapter by removing the 10
screws. Cover the opening with the shuto plate and secure
with 10 screws. This renders the round duct opening useless,
and you can move forward with the installation of proper
arrangements for horizontal discharge.
Remove the 5 screws and carefully take o the large shuto
plate on the back of the hood. Then, carefully remove the 8
screws holding the small sealing lid inside the back of the
hood.
Attach the horizontal rectangular adapter into the back of the
hood. Attach it using the 8 screws you removed from the
small shuto plate. Remove the tape holding up the dampers.
& IMPORTANT: Failure to remove the tape om the damper
will cause reduction in performance. Make sure to install with
the existing black rubber gasket.
UC-PS16 USER MANUAL
Replace the grill plate by the seal plate to block the
ductless vent.
Seal Plate for Ducted Version
8.Prepare the Cabinet (Soit)
Measure the size of the outlet adapter relative to the
cabinet. If it is not already done, you'll need to cut an
opening in the cabinet to ensure the outlet adapter and
power cable can pass through. If you must do this, use a
pencil and ruler to mark the area, then cut with a wall/key
hole saw.
If you're installing the UC-PS16SS-30 under a cabinet with
a recessed bottom, we recommend using 4" wood fillers
on each side to stabilize the cabinet for mounting
purposes. For UC-PS16SS-36, we recommend using 6"
wood fillers on each side for easier, more secure mount
ing.
9.Find a Helper
This range hood is best installed by two or more people
due to its size and weight. Again, it is recommended to
hire a certified technician for installation to reduce the risk
of damage or injury.
6

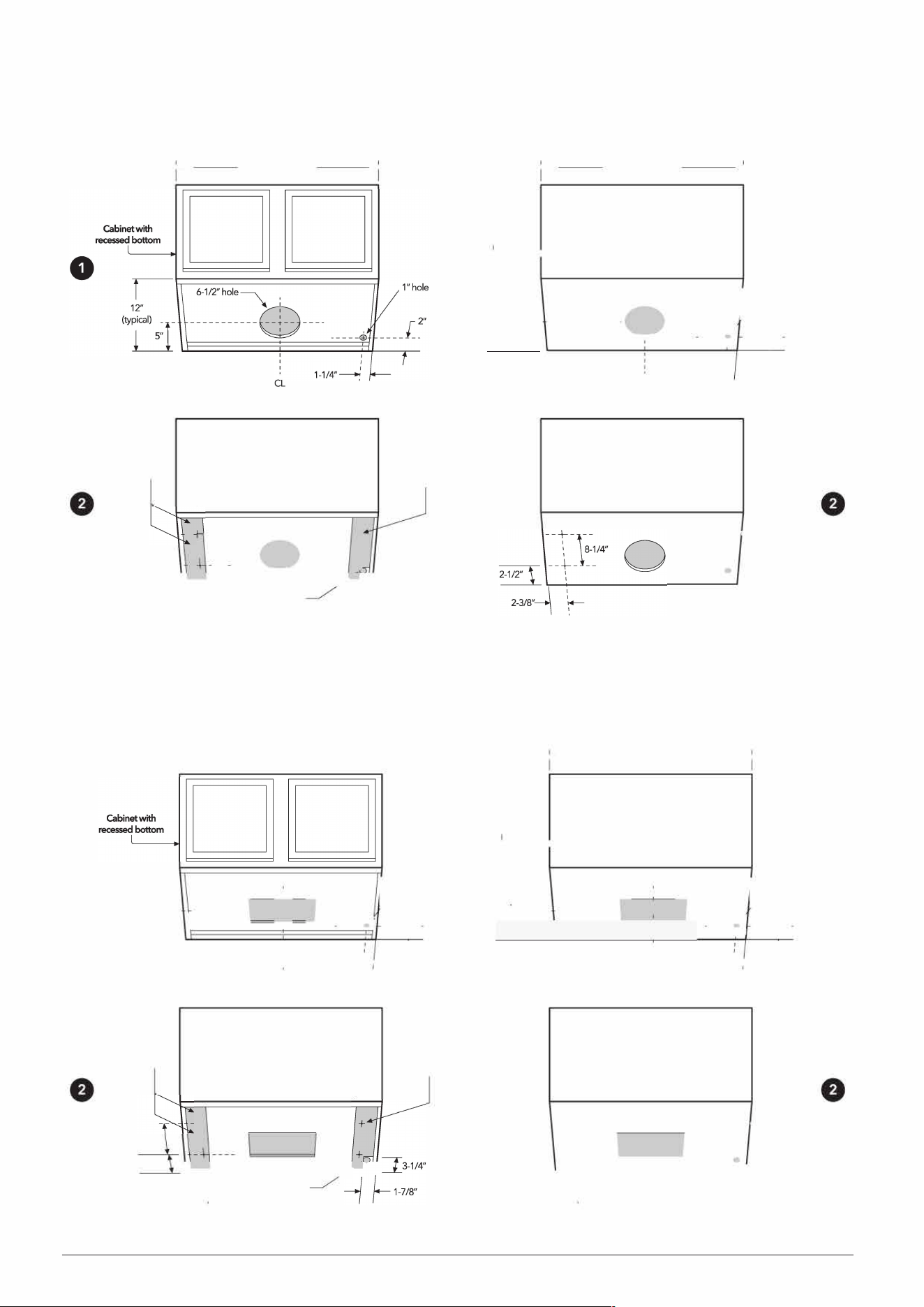

UC-PS16-30
1.Round Veical Adapter
3-1/2"
widefiller
along fnt
and sides
Cabinet with recessed boom
---30" cabinet(pical)---
□□
Four,(4}
mounting hol
-
_
:,
,
-
_F
1/4"
0 :
�
======= �3-1/4"
2-3/8"
\
�.
RHfillerned
/ / 1-7/8"
I
atbackmerto
I I
allow plug dan
2.Rectangular Veical Adapter
0
Cabinet with recessed boom
1
---
30" cabinet
(
pical)
---
1
r
--
y
1"hole
I
10-1/2"x3-3/4"hole
12"
'
(
u-
1---------1----+--+-----¥
____
2
"
4-1/8"
\
1
15"
CL
1-1 /4" �
3-1/2"
widefiller
along fnt
and sides
□□
+----
8-1/4"
\
2-1/2"
' =======
�
�
2-3/8"
\
�
RHfillerned
I
at back mer to
allow plug dan
i
Four,(4}
mounting hol
UC-PS16 USER MANUAL
Cabinet or soit with flush bottom
'
---30" cabin(pical)
___
,
I
bin
w □ □
flush bom
I 6-1/2"hole� ;
V
1"hole
(
�
;
:
l
l
sl
-
-------
---
-G
---
-
---
-
---
2"
CL
'
'
1-1/4"�
f
□□
+
� Four,(4}
mounting holes
+
o �3-1/4"
�
1-7/8"
Cabinet or soit with flush bottom
1---
30" cabin
(
pical)
---
1
bin
w □ □
flush bom
r
--
r
;
1"hole
I
10-1/2"x3-3/4"hole
12"
'
(
l
cal)
T
________ -+-_
-
l
-
_
-
+
-
___
-
___
2"
4-1/8"
\
'
i
1
5
"
1-1/4"�
�
CL
□□
0
0
--tT
-
, 8-1/4"
\
I
+
-- Four,(4}
mounting holes
�
--
--L
===
+
�
:
O I �3-1/4"
2-3/8"
�
-
�
----
----
�
1-7/8"
7
3.Rectangular Horizontal Adapter
Cabinet with recessed bottom
---30" binet(pical)---
•
bin
�
wh □D
bom ~
1 0-1 /2" x 3-3/4" hole
2-3/8"
3-1/2"
wide filler
along nt
and sides
2-3/8"
-----©
---------�----+----1-
'
'
1-1/4"�
'
1
5
"
'
CL
□□
'
'
'
RH filler nhed
at ba mer to
all plug daran
UC-PS16 USER MANUAL
1"hole
Four,(4}
mounting hol
1-7/8"
Cabinet with flush boom
---30" cabin(pical) ---�
bin
�
with □ □
flushbom ~
1"hole
•
10-1/2" x3-3/4" hole
-----t-
___ _2"
2-3/8"
---------�----+---
1-1/4"�
1
5
"
'
CL
□□-���
-
e
.
,
,
.
-
\
L
:-
2-1/2"
:
o �3-1/4"
2-3/8"
-':
---
======= 1-7/8"
8

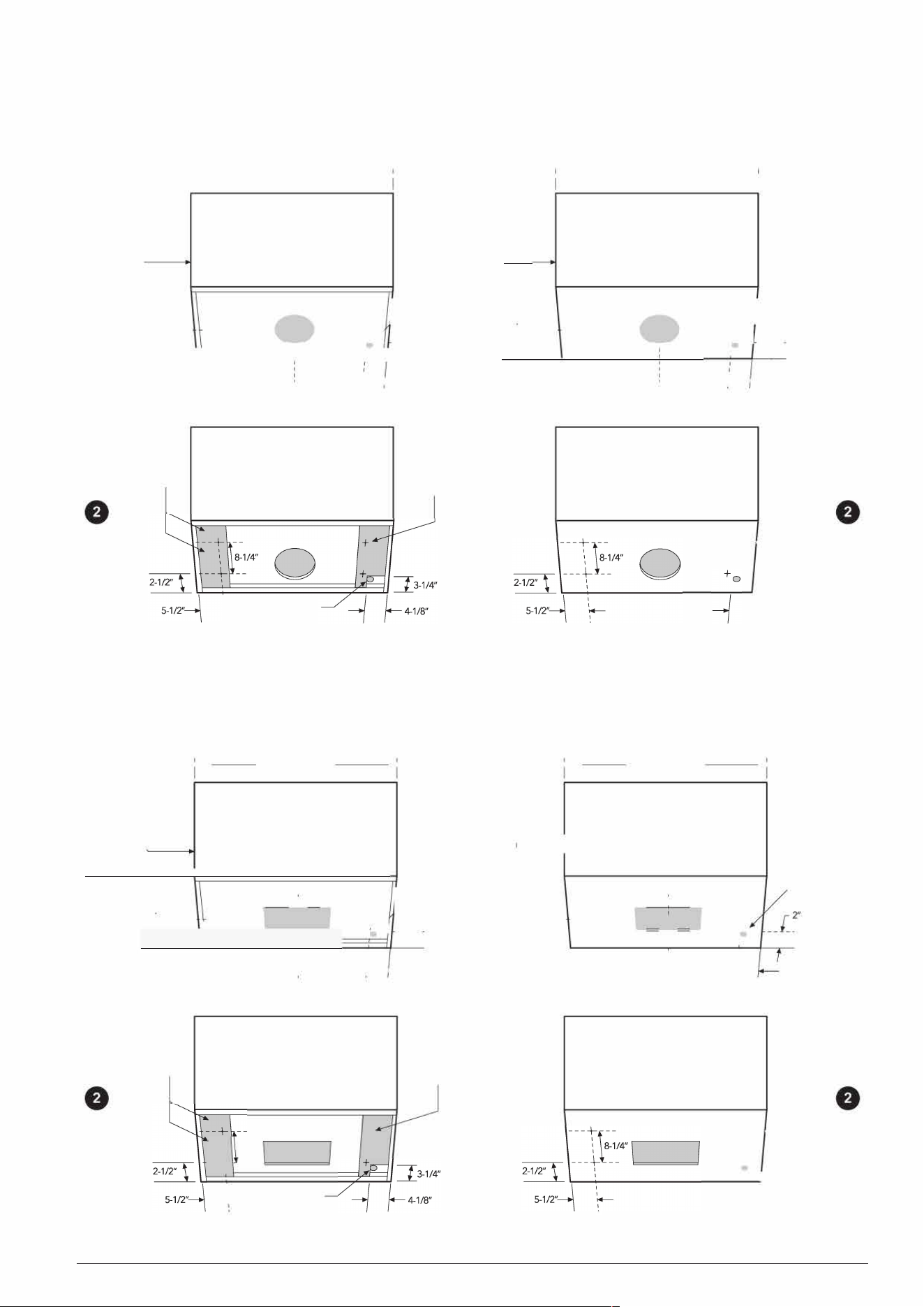

UC-PS16-36
1.Round Veical Adapter
0
Cabinet with recessed boom
i
---36"
binet(pi
l)
-
--
�
1
binwith
�
bm
□□
i
6-1/2"hole� :,
v
1"hole
12"
(pical)
,:r ---------------
[ 2"
�
� ---o( ----
�
i
-
6-1/2"
widefiller
along nt
and sides
CL
4-1/8"� -
-
□□
'
RH filler nched
at ba mer
allow plug dan
Four,(4)
mounting holes
2.Rectangular Veical Adapter
Cabinet with recessed boom
---36" cabinet(pical) ---
.
4
�-□□
1"hole
I
10-1/2"x3-3/4"hole I /
12"
'
/
(
l
cal)
T \ ---------\----+--+-
____ o(_ _[
2"
4-1/8"
\
'
: f
1
5
"
4-1/8"
CL
6-1/2"
widefiller
along nt
and sides
□□
\ 8-1/4"
-+ --
'
' RH filler nhed
at ba mer
allow plug dance
UC-PS16 USER MANUAL
+
Four,(4)
mounting holes
bin wh
flush
�
m
Cabinet or soit with flush boom
1
---36" cabinet(pical) ---
1
I
□□
I
6-1/2"hole� ;
1"hole
12"
V
(
l
cal)
sl ----------------
---�o! _ _[
2"
CL
i
4-1 /8"
□□
+ -Four,(4)
mounting holes
�3-1/4"
�4-1/8"
Cabinet or soit with flush boom
---36" cabinet(pical)---�
bin
,
wh
_,
□ □
flushb
�
I
10-1/2"x3-3/4"hole
12"
'
(u----------+--+--+----�o--
4-1/8" \
'
'
18"
4-1/8''
CL
□□
1"hole
0
0
+
-
Four,(4)
mounng holes
+
a
�
I _t_
3-1/
4
"
�4-1/8"
9
3.Rectangular Horizontal Adapter
Cabinet with recessed bottom
---36" cabinet(pical) ---�
0
bin
�
wh □ □
��bom
~
10-1/2" x3-3/4" hole
2
-
3/8"
6-1/2"
widefiller
along nt
and sides
-
--
-b
-
---------�----�-----�
'
r
'
18"
�
4
-
1/8"
'
CL
□□
+
\ 8-1/4"
1"hole
Four,(4}
mounting hol
� --
t
-=-=====��
�
3-1/4"
5-1/2"
'
'
'
RH filler nhed
at back mer to
all plug d=ran
UC-PS16 USER MANUAL
4-1/8"
Cabinet with flush boom
---36" cabinet(pical) ---�
bin
�
wh □ □
flushbom
~
0
10-1/2" x3-3/4" hole
1"hole
2-3/8"
-
--------- -
+
---+----
1
-
4-1/8"
'
18"�
'
CL
5-1/2"
-
,
�4-1/8"
10

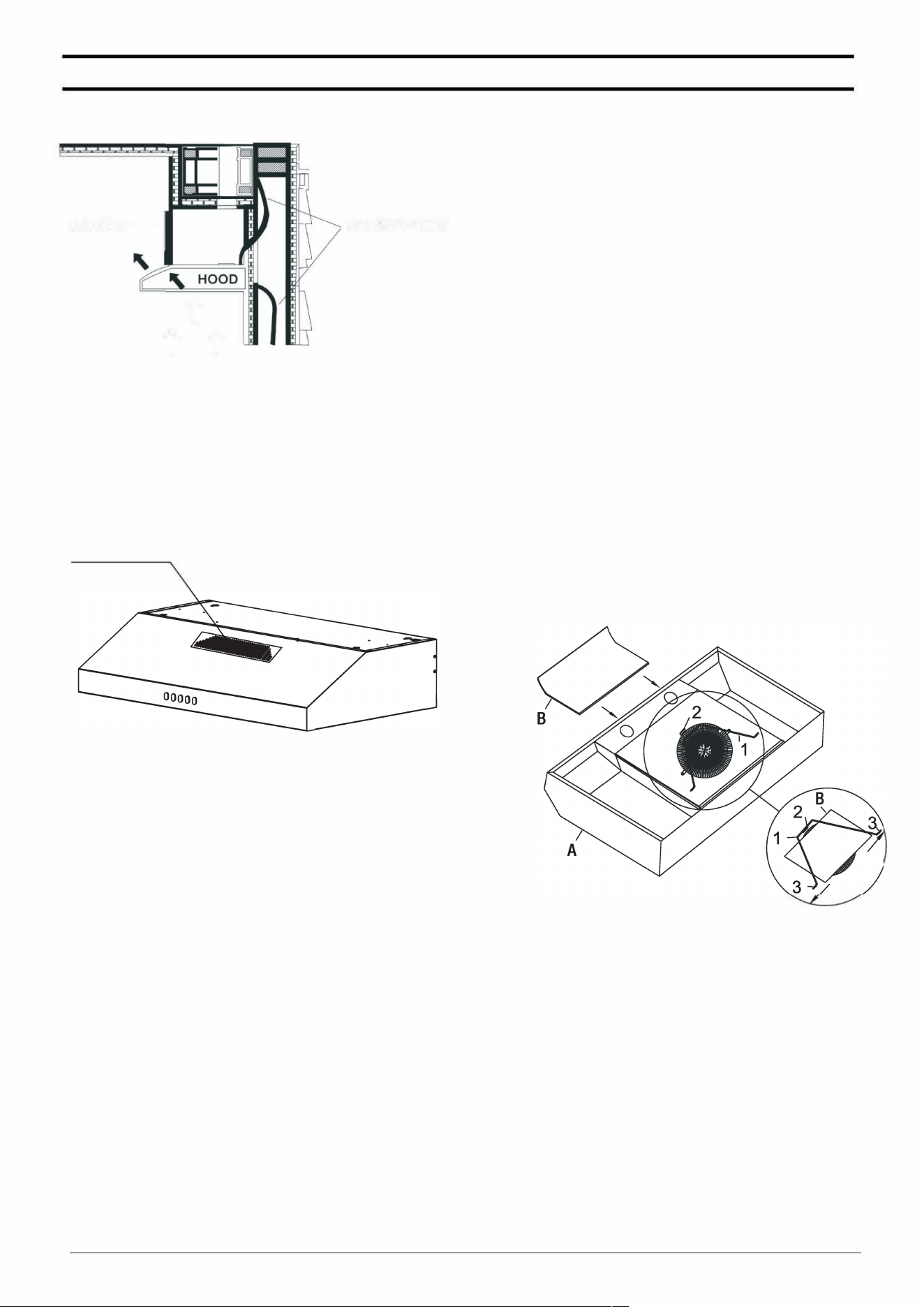

Ductless Version
CABINET--
t
t
t
HOUSEWRIING
1.It can be modified to ductless version(re-circulates the
air back into the kitchen) with addition of Charcoal Filter
(sold separately).
2.For ductless version, no need to install a duct.
Grill Plate for Ducted Version
3.Charcoal filter must be installed on the hood (sold separately).
UC-PS16 USER MANUAL
How to Install the Charcoal Filter
NOTE:The charcoal filter should only be installed if
you are not using an external venting system
1. Turn over the range hood (A) and place its top on
a protective surface.
2.Remove the filters.
3.Unhook the charcoal filter support (1) from the
support hook (2) and pull the charcoal filter
support up.
4.Place the charcoal filter (B) under the charcoal
filter support (1). Ensure that the filter is placed
horizontally, or the charcoal filter support (1) will
not close properly.
5.Slide the charcoal filter support (1) to the left or
right in its braces (3) until you can re-hook it on its
support hook (2).
11
How to Install Your Range Hood
When you've completed all the preparation steps, you're
ready to install your range hood.
1. Test the Unit
Plug the unit into an outlet and press the touch panel to make
sure that the unit is working.
& IMPORTANT: If the range hood is not working properly,
please contact us immediately (1-800-929-0168 I
in@hauslane.com).
2. Uninstall the Range Hood's Boom Cover
Remove the filter from the hood by pushing the filter
knob inward. Slowly pull the filter down and remove gently
from the range hood. Then, remove the bottom cover by
carefully unscrewing the eight screws as shown.
3.Jack Up the Hood
If you are not removing the range, place the plywood (30" x
24") over the range / cooktop to avoid possible damage. Put
the cabinet jacks on the plywood and place the second piece
of plywood over the two cabinet jacks. Using the cabinet
jacks, li the hood into its position under the cabinet. Ensure
that the adapter and power cord enter the cabinet openings
and that the power cord is not pinched between the hood
and the cabinet.
If you do not wish to use a cabinet jack, you will need three
people. Have two helpers holding the range hood in place
while the third person inserts the screws to mount the range
hood. For cabinet jack operation, please refer to its manual.
UC-PS16 USER MANUAL
[JD
4.Screw It Into Place
From the bottom of the hood, carefully insert the mount
ing screws (AA) with washers into each of the pre-drilled
mounting holes in the range hood. Start with the front le,
then front right.
Aer the screws are in place for the front mounting holes,
work on the rear le, then rear right. If you feel that you
need to install the range hood more securely, you can use
the additional two mounting screw holes in the front/cen
ter.
P: To easily reach the rear mounting holes, use an
extension tool r the power drill.
00
I
I
I
I
I
I
I
I
I
I
I
�,:
!
! !
V
Oional
12
5.Double-Check Installation and Remove Suppo
Be sure that the hood is securely aached before removing
the cabinet jacks and plywood.
6.Connect Damper & Check for Aiightness
Turn on the hood to make sure that the damper opens and
closes freely. This will ensure beer and quieter performance.
Inse the duct into the adapter, then aach with the two
previously loosened screws. Make sure the duct is firmly
attached to the adapter and wrap the joint with aluminum foil
tape to make it air-tight.
& IMPORTANT: Be careful when connecting the vent pipe to
the adapter. cessive rce might dislodge the damper and
ll into the house, which may damage the motor.
How to Use Your Range Hood
7.Plug the Range Hood In
Plug the power cable into an outlet.
8.Reinstall Bottom Cover and Filters
Using the 8 screws you removed earlier, reinstall the
bottom cover and then reinstall the filters.
9.Keep This Manual
Put this manual in a safe place and keep for further
1.The hood is operated by using a push button switch on the front panel.
2.The light switch turns the lamps on and off. The blower switch turns the
blower on to three speed settings:
1-OFF
2 -LOW SPEED
3 -MEDIUM SPEED
4-HIGH SPEED
5-LIGHT
@ 8 8 8 8
I I
I I I
5 4 3 2 1
UC-PS16 USER MANUAL
13

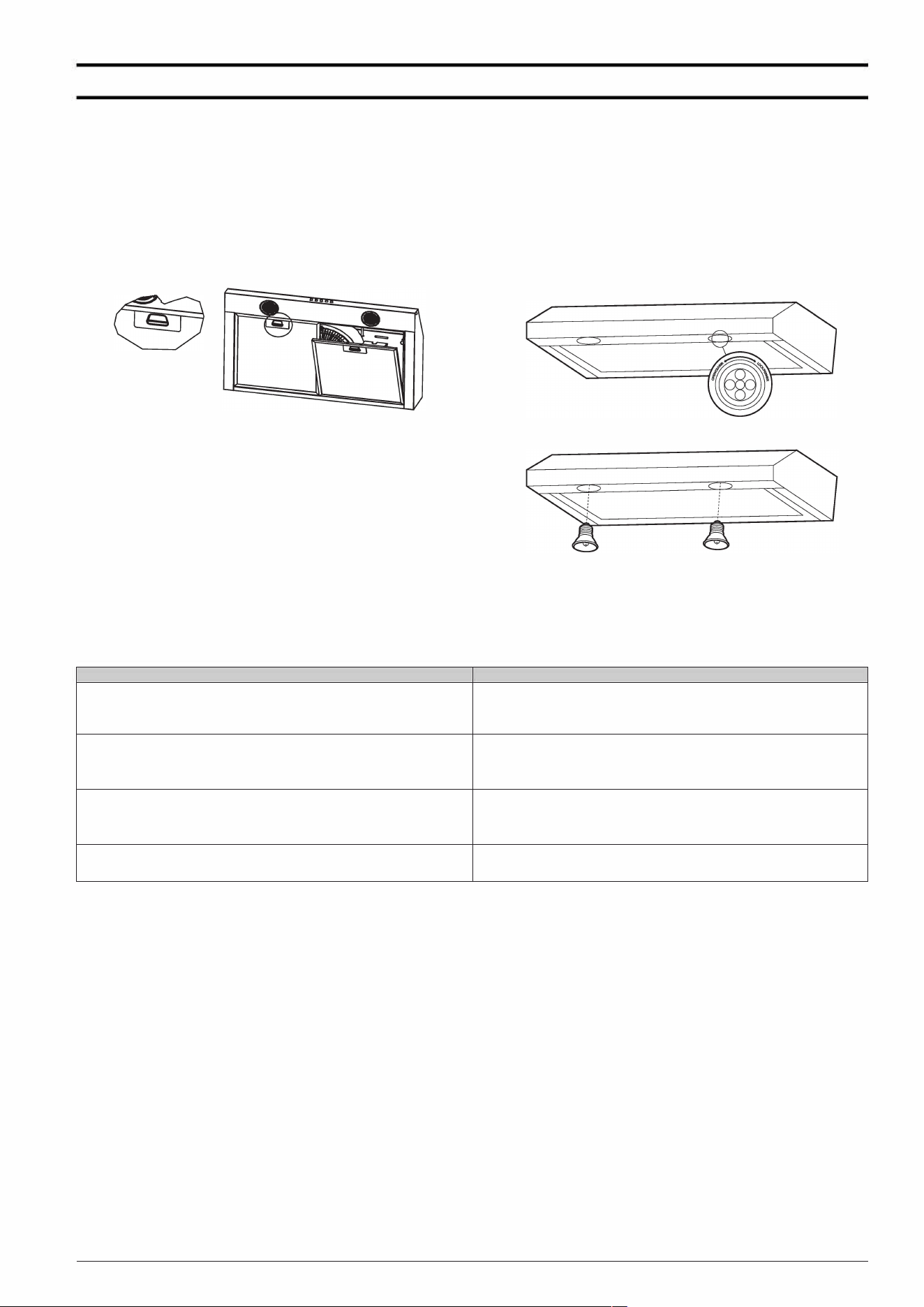

Basic Maintenance Instructions
Your range hood requires some easy routine maintenance to
keep it running efficiently.
Maintaining the Filter
Clean the grease filters frequently-we suggest cleaning every
2 weeks. For your convenience, the filters are dishwasher safe!
1. Remove the baffle filters from the hood by pushing the filter
knob inward. Then, carefully pull the bale filter down and
remove it gently.
2. Clean the filters with warm water and detergent, or
place them in the dishwasher. Be careful with the filters to
avoid damage.
3. Let the filters dry completely.
4. Reinstall the filters.
Cleaning Your Range Hood
Maintaining the Lighting
This range hood uses two lamps of 3W.
1. Turn o power. For halogen lights, let light bulbs cool
completely before removing, if needed (about 5
minutes).
2. Wearing protective gloves, rotate the light bulb
counterclockwise to disengage the bulb.
3. Place new lightbulb into the socket and rotate
This range hood will look great and function correctly for a long time with proper care. Here are a few do's and dont's when
caring for your range hood.
WARNING: ilure to maintain basic standards of care and cleaning will increase the risk of fire.
DO
DONT
Clean the range hood with warm, soapy cloth or a
Don't use cleaners or cloths that are corrosive or abrasive.
stainless-steel polish.
Don't use detergents with ingredients like chloride, iodide,
or fluoride.
Clean the hood in line with the grain of the stainless steel.
Don't leave di or soap residue on the hood. This can
damage the surface. Wash the hood's surface and rinse
immediately with clean water.
Aer cleaning with soap, rinse with clean water and wipe with
Don't let paicles, especially construction particles (from
a clean, dry cloth.
sanding, etc.) enter the hood. Cover the hood during room
renovations.
Check the ducts and vents regularly to make sure they are not
Don't use flammable agents near the stove, as these can
clogged.
cause explosions.
UC-PS16 USER MANUAL
14
-
Wiring Diagram
lamp
high
mid
low
stop
0
0
0 0 0
L
key switch
1
�
0
u
0
�
�
�
BLACK
L
�
u u
u
< <
0
�
PE
�
�
GREEN
�
�
H
H
GREEN
ITE
�
�
BLUE
N
UC-PS16 USER MANUAL
15
Troubleshooting Tips
WARNING: Failure to maintain basic standards of care and cleaning will increase the risk of re.
Problem
Solution
My range hood won't work.
1.Make sure the power supply and wiring are connected
securely.
2.Double-check to see that the power breaker is on and
the power supply is live.
3.Check to see that the control panel cables are connect-
ed correctly to the switchboards.
My range hood vibrates while the fan is operating.
1.Check to ensure the hood is firmly secured to the
cabinet/wall. Tighten or add screws if necessary.
2.Confirm that the motor is firmly in place and secured
safely. If it is not, tighten it.
3.If those steps haven't resolved the issue, your fan may
be damaged. If it is damaged, you may need to replace it.
The fan is operating weakly.
1.Double-check to ensure the duct size is correct.
2.Clean ducts or filters if they're dirty. Also, check to make
sure the mesh enclosure on the hood is receiving proper
air ventilation.
3.If possible, check to see that the damper is functioning
properly regarding the opening.
The fan is not working properly even though the lights are
1.Double-check that the fan is not jammed /that it isn't
working.
scraping any of the surfaces of the hood.
2.If this doesn't work, you may need to replace the motor
as it may be defective.
The vent hood is not working eiciently.
1. The minimum distance between the cooking area and
the appliance should be 24" or 30" maximum. Check to
see ifthis is correct.
2.Make sure that the duct is not susceptible to easy wind
opening.
3.Make sure the fan speed is at the appropriate rate. The
heavier the cooking, the greater the speed of the hood
should be set.
4.Closing the windows and doors in the room will allow
the vent to work much better.
5. As noted during the installation process, all ductwork
must be done correctly. You may need to reduce the
length of ductwork or reduce elbows.
6.Make sure all joinery in ductwork is sealed and secured
properly.
The light is not working.
1.Check to see if lightbulb is loose and needs to be
tightened.
2.If tightening doesn't fix the problem, replace bulb with a
new one and see if that solves the issue.
3.If replacement and/or tightening does not solve, you
may need to replace the lighting service system on the
hood.
The touch panel is not responding.
1.Perform a power cycle reset by unplug the power cord,
wait 10 seconds, and plug the power cord back.
2.If Step 1 doesn't resolve the issue, please contact us
immediately for a control panel replacement.
Still experiencing problems aer following these steps? Contact a technician to assist. Contact us at 1-800-929-0168
UC-PS16 USER MANUAL
16
Contact
H
a
usl
ane
Extended Warranties
If you are interested in an extended warranty, sign up on our website at
www.ha
u
s
l
ane.com
Pas and Accessories
If you need replacement parts or accessories, visit
www.ha
u
s
l
ane.com
Q
Contact Us
We'd be happy to answer your questions or resolve any issues you may have.
Phone: 1-800-929-0168
f@ w
Find Us and Conne with Us
UC-PS16 USER MANUAL
17
