KEROSENE HEATER
MODEL:ZB-K70/ZB-K175/ZB-K215
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:ZB-K70/ZB-K175/ZB-K215
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
KEROSENE HEATER
- 2 -
CONSUMER:Retain this manual for future reference.
IMPORTANT: Read and understand all of the directions in this manual
before assembling, starting, or servicing the heater. Improper use of this
heater can cause serious injury. Keep this manual for future reference. Not
suitable for the use of wood floors or other combustible materials.
GENERAL HAZARD WARNING:
Be sure to comply with the instructions and warnings provided with this heater, or
death, serious bodily injury and property loss, or damage from the hazards of fire,
explosion, burn, asphyxiation, and carbon monoxide poisoning can result.
Only people who understand these instructions should use or service this heater.
If you need heater information such as an instruction manual, labels etc; contact
the dealer or manufacturer.
NOT FOR USE IN NON-ADEQUATELY VENTEILED
ENCLOSED SPACES.
NEVER LEAVE THE HEATER UNATTENDED WHILE
BURNING OR WHILE CONNECTED TO A POWER SOURCE
Fire, burn, inhalation, and explosion hazard. Keep combustibles,
such as building materials, paper, or cardboard, a safe distance from the heater,
as these instructions recommend. Never use the heater in spaces that contain
products such as gasoline, solvents, paint thinners, dust particles, volatile or
airborne combustibles, or any unknown chemicals. This is an unvented portable
heater. It uses air (oxygen) from the area in which it is used. Adequate
combustion and ventilation air must be provided. Refer to ventilation on Page 16.
Do not operate this heater until you have read and thoroughly
understand these safety and operating instructions. Failure to comply with the
precautions and instructions provided with this heater can result in death, serious
bodily injury, property loss or damage from fire hazards, soot production,
explosion, burns, asphyxiation or carbon monoxide poisoning. Only persons who
can read and understand these instructions should use or service this heater. Not
for use in the home or recreational vehicles.
- 3 -
Electrical Safety The owner is responsible for checking this
electrical product before use to ensure it is safe. You must inspect power cables,
plugs, sockets, etc, for signs of wear or damage. You must ensure this electric
shock risk is minimized by installing appropriate safety devices. The main
distribution board should incorporate a residual current circuit breaker (RCCB).
We also recommend that a residual current device is used (RCD). An RCD is
Particularly important for mobile devices that are connected to a supply without an
RCCB. Any fault rectification or electrical work, including the connection of a plug
must be carried out by a qualified electric.
You must also comply with electrical safety requirements, including the Electricity
at Work Act 1989, which requires portable electrical appliances used on business
premises to be PAT tested annually. The Health & Safety at Work Act 1974 places
responsibility for the safe condition of electrical appliances upon owners. Power
cables and plugs should always be regularly inspected for safety. If in doubt about
electrical safety, you must consult a qualified electrician.
Safety Information
Indicates an imminently hazardous Situation which,
if not avoided, WILL result in death or serious injury.
Indicates an potentially hazardous
situation which, if not avoided, COULD result in death or
serious injury.
Indicates an potentially hazardous Situation which,
if not avoided, MAY result in minor or moderate injury.
This is a Kerosene (1-K Diesel) directed-fire forced air heater. It is primarily
intended for temporarily heating buildings under construction, alteration, or
repair. Directed-fired means that all of the combustion products of the
heater enter the heated space. This appliance is rated at 98% combustion
efficiency but does produce small amounts of carbon monoxide. Carbon
monoxide is toxic.
Carbon Monoxide poisoning may lead to death!
Humans can tolerate small amounts of carbon monoxide, and precautions
should be taken to provide proper ventilation. According to this manual,
- 4 -
WARNING
failure to provide proper ventilation can result in death. Early signs of
carbon monoxide poisoning resemble the flu. Symptoms of improper
ventilation are:
* Headache * dizziness * burning of the nose and eyes
* nausea * dry mouth * sore throat *
For optimal performance of this heater, it is strongly suggested that 1-K
kerosene be used, 1-K kerosene has been refined to virtually eliminate
contaminants, such as sulfur. Which can cause a rotten egg odor during
the operation of the heater, However, #1 or #2 fuel oil - diesel may also be
used if 1-K kerosene is not available. Be advised that these fuels do not
burn as clean as 1-K kerosene, and care should be taken to provide more
fresh air ventilation to accommodate any added contaminants that may be
added to the heated space. Use of #1 or #2 fuel oil may result in more
periodic maintenance.
Risk of indoor air pollution!
-Use this heater only in well-ventilated areas! Provide at least a
three-square-foot (2800 sq cm) outside air opening for every 29KW/hr )
heater rating.
-Carbon Monoxide Poisoning. Early signs of carbon monoxide poisoning
resemble flu-like symptoms such as headaches, dizziness, and/or nausea.
If you have these symptoms, your heater may not be working properly.
-Get fresh air at once! Have the heater serviced. Some people are more
affected by carbon monoxide than others. These include pregnant women,
those with heart or lung problems, anemia, or those under alcohol or at
high altitudes.
Risk of burns / fire / explosion!
-NEVER use fuels such as gasoline, benzene paint thinners, or other oil
compounds in this heater(RISK OF FIRE OR EXPLOSION)
-NEVER refill the heater’s fuel tank while the heater is operating or still hot.
This heater is EXTREMELY HOT While in operation.
-Keep all combustible materials away from this heater.
-NEVER block the air inlet or air outlet of the heater.
-NEVER use ductwork in front or at the rear of the heater.
-NEVER move or handle the heater while still hot.
- 5 -
-NEVER transport a heater with fuel in its tank.
-If equipped with a thermostat, the heater may start anytime.
-ALWAYS locate the heater on a stable and level surface.
-ALWAYS keep children and animals away from the heater.
-Bulk fuel storage should be a minimum of 762cm from heaters, torches,
portable generators, or other ignition sources. All fuel storage should be in
accordance with federal, state, or local authorities jurisdiction.
-NEVER use this heater in living or sleeping areas.
-NEVER use this heater where flammable vapors may be present.
Risk of electric shock!
-Use only the electrical power (Voltage and frequency) specified on the
model plate of the heater. Use only a local correct plug, grounded outlet
and extension cord.
-ALWAYS install the heater so that it is not directly exposed to water spray,
rain, dripping water, or wind.
-ALWAYS unplug the heater when not in use.
Minimum clearance from combustibles:
Features

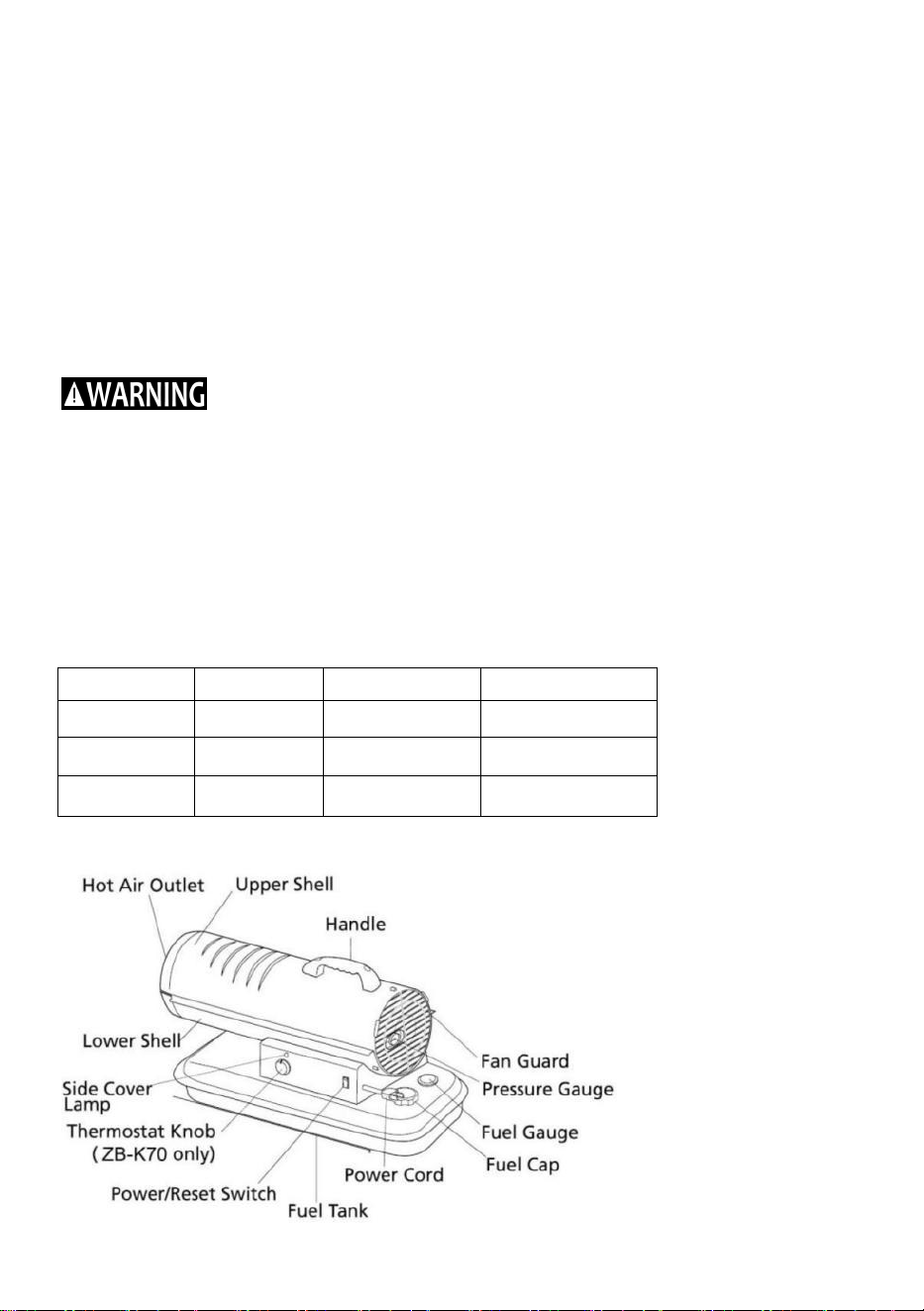

Feature1. Model ZB-K70
Orientation
ZB-K70
ZB-K175
ZB-K215
Top（cm)
125
125
125
Side（cm)
125
125
125
Front（cm)
250
250
250
- 6 -

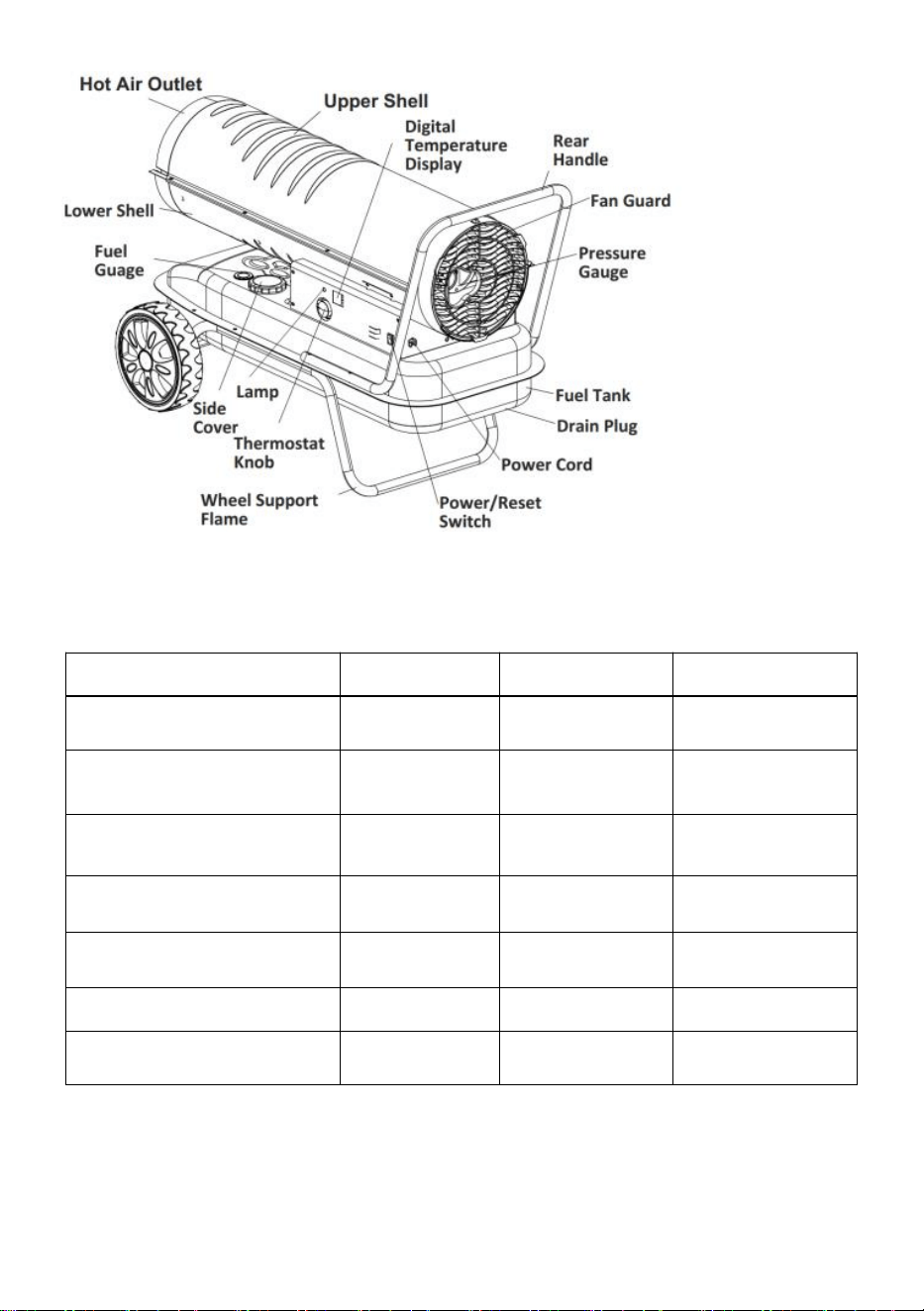

Figure 2. Model ZB-K175 / ZB-K215
Specifications
Model
ZB-K70
ZB-K175
ZB-K215
Heat Output
(btu)
70000
175000
215000
Fuel Consumption
(Gal/Hr)
0.53
1.32
1.62
Fuel Tank Capacity
(Gal)
5
13.5
13.5
Pump Pressure
(Kpa/psi)
31.0/4.5
48.0/7.0
52.0/7.5
Power Supply
(V/Hz/A)
120/60/1.8
120/60/3.5
120/60/3.5
Phase
single
single
single
Net Weight
(kg)
12.9
23.54
23.84
- 7 -
Specifications subject to change without notice

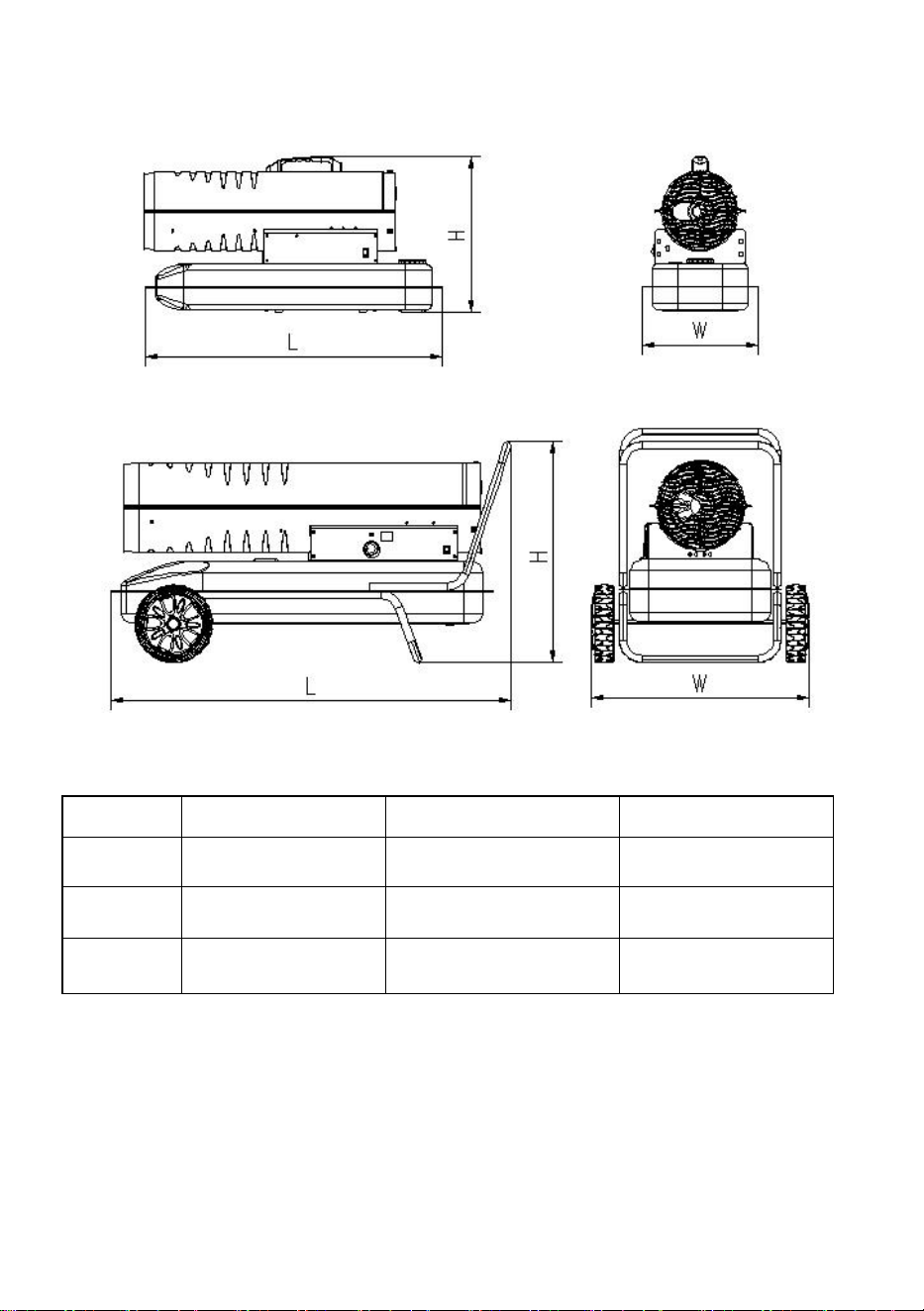

Figure 3. Product Dimensions
ZB-K70
ZB-K175
ZB-K215
L
(mm)
770
1040
1040
W
(mm)
290
560
560
H
(mm)
395
600
600
Unpacking
Remove the heater and all of the packing materials from the shipping
carton.
NOTE:Save the box and packing materials for future storage.
Check the chart below to ensure you have all the parts required to
assemble your heater.
- 8 -
Assembly
ZB-K70
ZB-K175
ZB-K215
Wheel support frame
/
YES
YES
Wheel ( 2 pieces)
/
YES
YES
Rear Handle
/
YES
YES
Axle
/
YES
YES
Top Handle
YES
/
/
Screws & Nuts (A) 2
YES
/
/
Screws & Nuts (B) 6
each
/
YES
YES
Cotter Pins,Washers
/
YES
YES

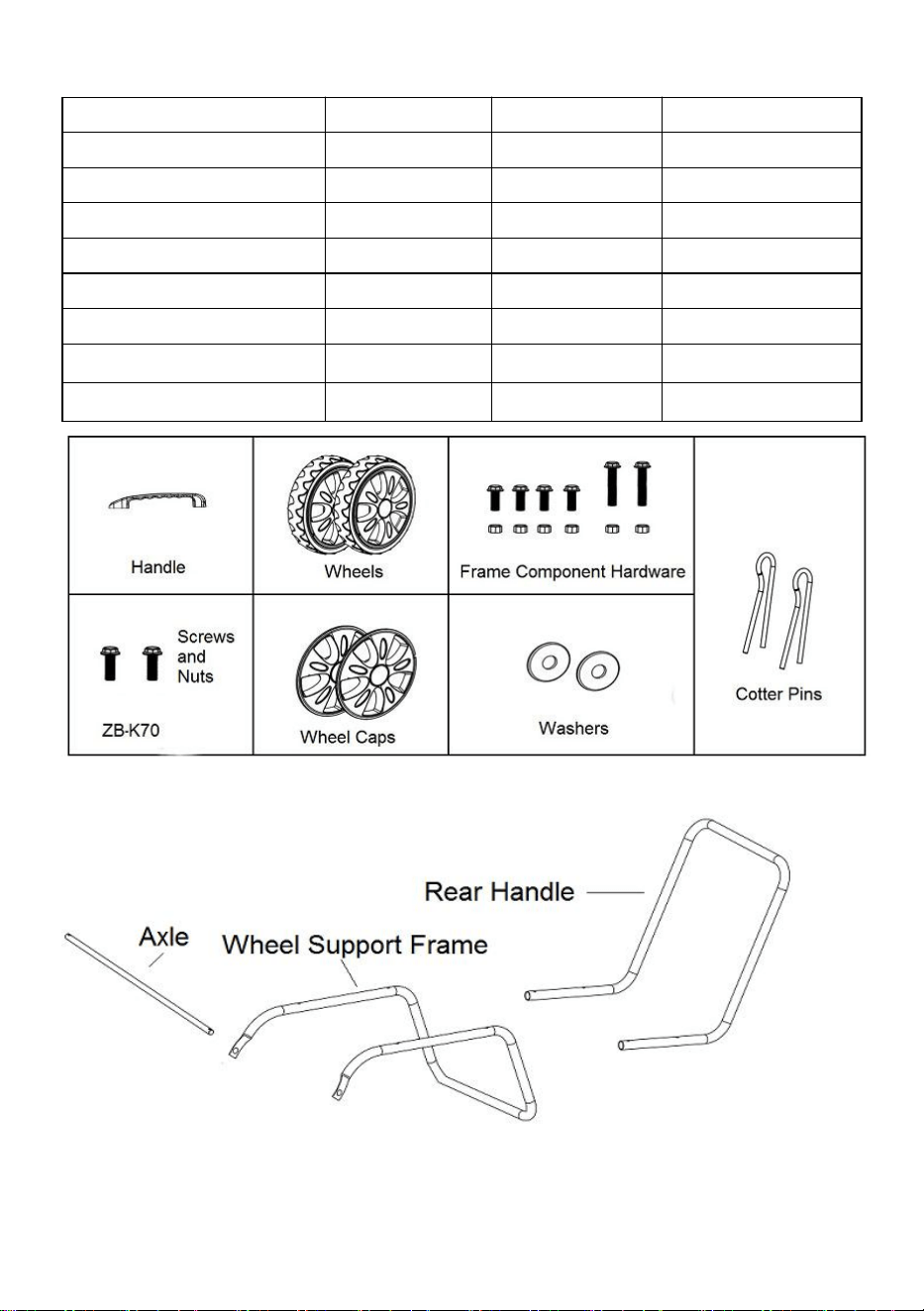

Figure 4. Hardware Components
Figure 5. Frame Components,Models ZB-K175/ZB-K215
- 9 -
MODELS ZB-K70 ONLY
-Tools required: Medium Phillips screws driver.
ASSEMBLING HANDLE
1.Align the holes in the upper housing with the 2 holes in the handle as
shown in Figure 6.
2.Insert and tighten screws securely with screw driver.

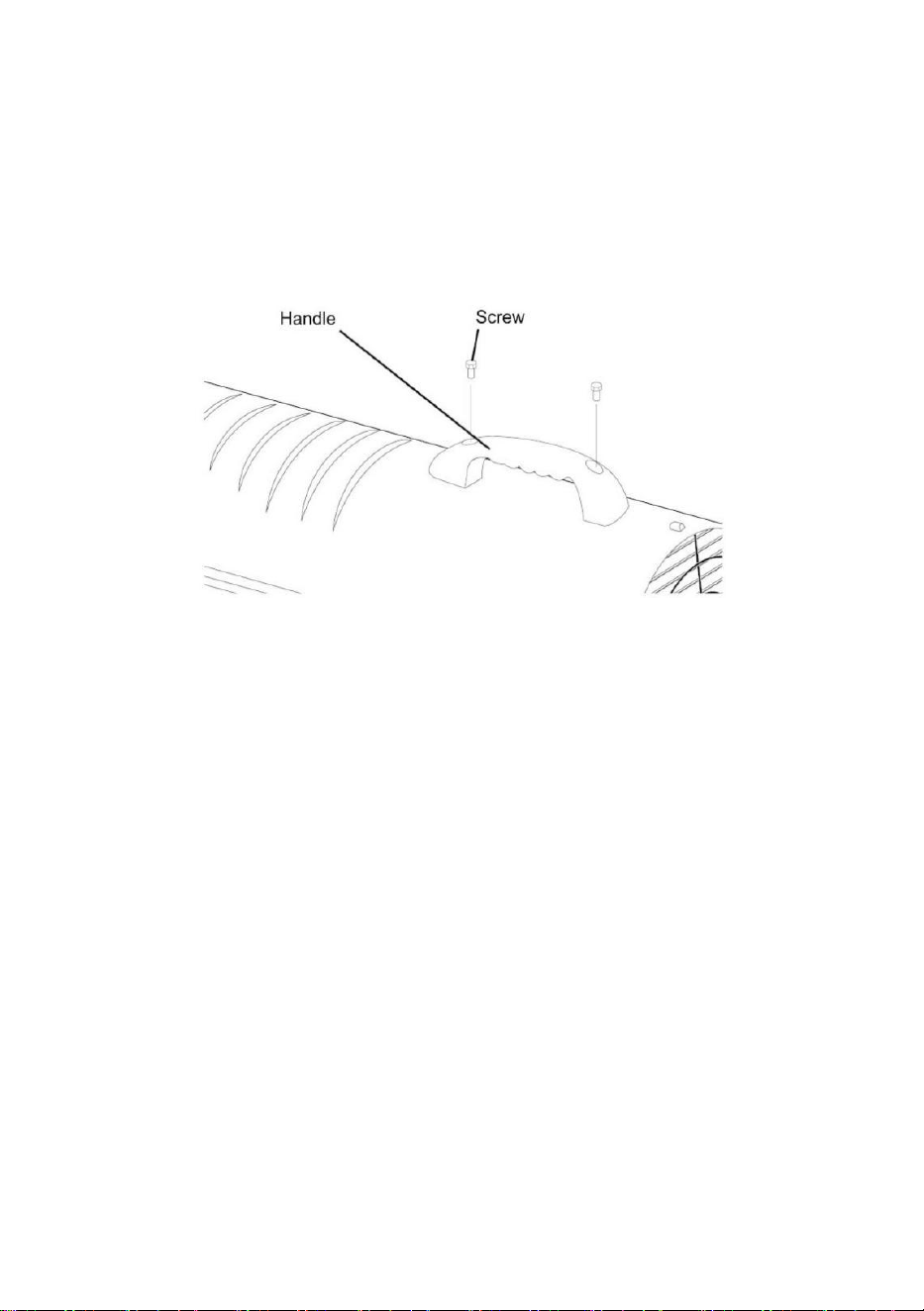

Figure 6. Handle Mounting, Model ZB-K70
MODELS ZB-K175/ZB-K215 ONLY
-Tools required: Medium Phillips screw driver, 5/16’ open end or adjustable
wrench, needle nose pliers.
ASSEMBLING FRAME AND WHEELS
1. Slide the axle through holes in the wheel support frame.
2. Slide Wheels onto each axle, ensuring that the valve stem (if pneumatic)
is to the outside (see Figure 7.)
3. Slide flat washers (L) onto the axle past the small hole. Insert the cotter
pin in the axle hole and bend the pin's legs with needle nose pliers to
secure.
4. Place the heater on the assembled frame, ensuring that the air inlet end
is by the wheels and that the mounting holes on the tank flange of the
heater align with the holes in the frame.
Take the rear handle, align the mounting holes with the corresponding
holes in the tank flange/wheel frame, slide a screw through the holes, and
loosely attach a nut. Repeat for the other 2 holes, then fully tighten all 6
screws and nuts.
- 10 -
Do not operate heater without support frame fully
assembled to tank.

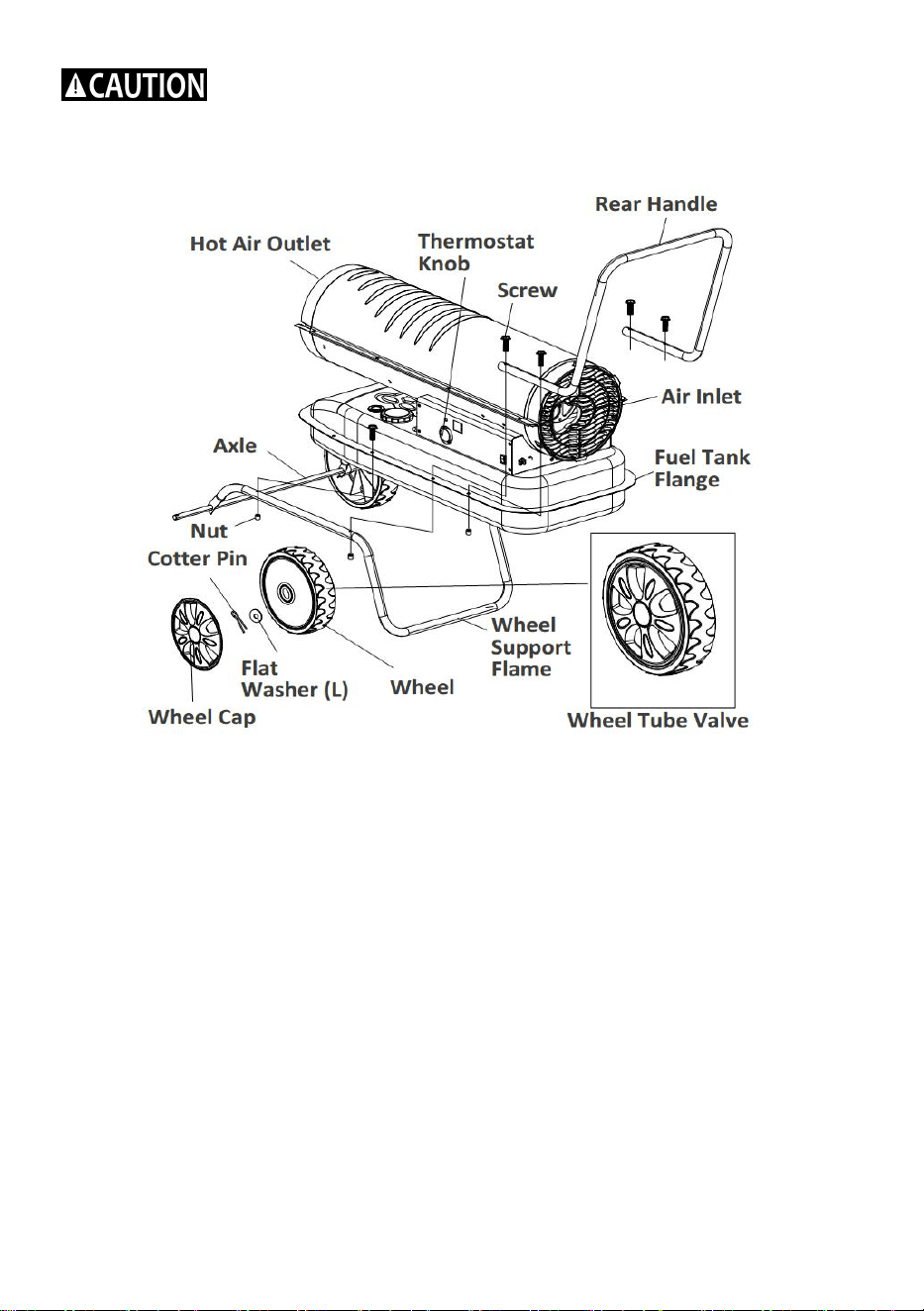

Figure 7. Assembly of Models ZB-K175/ZB-K215
Operation
Kerosene (1-K Diesel)
For optimal performance of this heater, it is strongly suggested that 1-K
kerosene be used. 1-K kerosene has been refined to virtually eliminate
contaminants, such as sulfur, which can cause a rotten egg odor during the
operation of the heater. However, #1 or #2 fuel oil - Diesel may also be
used if 1-K kerosene is not available. Be advised that these fuels do not
burn as clean as 1-K kerosene, and care should be taken to provide more
fresh air ventilation to accommodate any added contaminants that may be
added to the heated space. Using diesel fuel can cause excess soot
production.
DO NOT use any fuel that is not approved above.
- 11 -
NOTE: Kerosene (1-K Diesel) should only be stored in a blue container
that is clearly marked “Kerosene (1-K Diesel))”. Never store Kerosene (1-K
Diesel) in a red container. Red is associated with gasoline.
-NEVER store Kerosene (1-K Diesel) in the living space. Kerosene (1-K
Diesel) should be stored in a well ventilated area outside the living area.
-NEVER use fuel such as gasoline, benzene, alcohol, white gas, camp
stove fuel, paint thinners, or other oil compounds in this heater (THESE
ARE VOLATILE FUELS THAT CAN CAUSE A FIRE OREXPLOSION).
-NEVER store Kerosene (1-K Diesel) in direct sunlight or near a source
of heat.
-NEVER use Kerosene (1-K Diesel) heat has been stored from one season
to the next. It deteriorates over time.
OLD Kerosene (1-K Diesel) WILL NOT BURN PROPERLY IN THIS
HEATER.
Use diesel in the heater. 1-K Kerosene is a suitable substitute.
THEORY OFOPERATION
Fuel System: This heater is equipped with an air pump that operates off
of the electric motor. The pump forces air through the air line connected to
the fuel tank, drawing fuel to the nozzle in the burner head. Air also passes
through the nozzle where it mixes with the fuel and is sprayed into the
combustion chamber in a fine mist.
Quick-Fire Ignition: A transformer sends high voltage to a two-pronged
spark plug. The spark ignition the fuel/air mixture as it is sprayed into the
combustion chamber.
Air System: A fan is turned by the heavy duty motor, which forces air
around and into the combustion chamber, where it is super-heated and
forced out the front of the chamber.
Temperature Limit Control: This heater is equipped with a temperature
limit control designed to turn it off should the internal temperature rise to an
- 12 -
unsafe level. If this device activates and turns your heater off, it may
require service.
You can start your heater once the temperature falls below the reset
temperature.
MODELS
Internal Shut-Off Temp.
Plus/Minus 10 Degrees
Reset Temperature
Plus/Minus 10 Degrees
ZB-K70
176˚F/80˚C
176˚F/80˚C
ZB-K175
176˚F/80˚C
176˚F/80˚C
ZB-K215
176˚F/80˚C
176˚F/80˚C

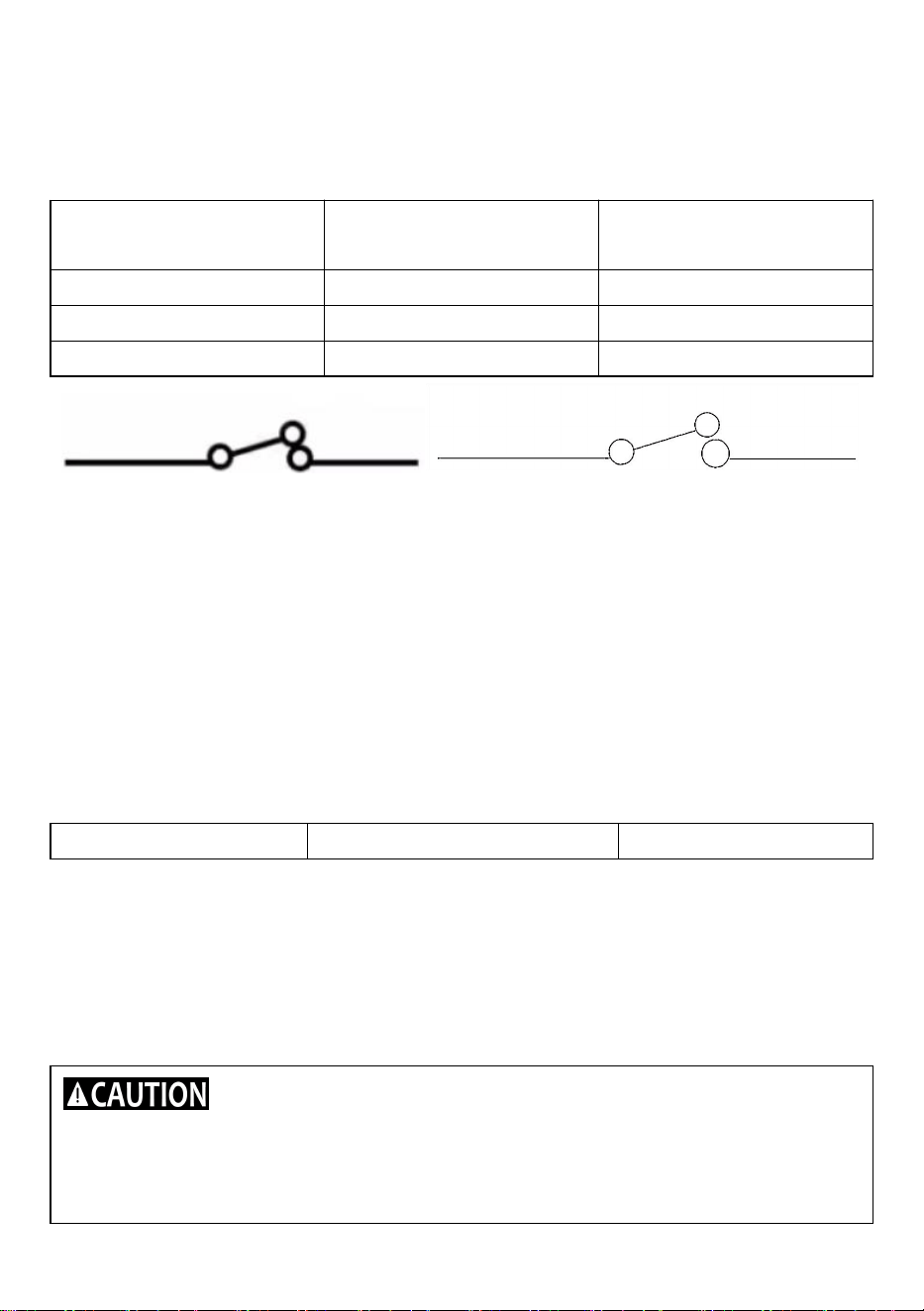

Figure 8.
Temperature control switch
Normally closed diagram
The contact is disconnected when the sensing temperature exceeds the
rated temperature. For example, the line is disconnected when the sensing
temperature exceeds 80 degrees.
Electrical System Protection: The heaters’ electrical system is
protected by a circuit breaker that protects the system components from
damage. If the heater fails, check the fuse first, and replace if
necessary.
FUSE TYPE:
ZB-K70/ZB-K175/ZB-K215
KSD
Flame Sensor: The heater uses a photocell to see the flame in the
combustion chamber. Should the flame extinguish, the sensor will stop the
electrical current, and the heater will shut off.
FUELING THE HEATER
NEVER FILL THE FUEL TANK INDOORS. ALWAYS FILL FUEL
TAHNK OUTDOORS.
BE SURE THE HEATER IS ON LEVEL GROUND WHEN FUELING, AND
NEVER OVERFILL THE FUEL TANK.
- 13 -
NEVER FILL THE FUEL TANK INDOORS. ALWAYS FILL FUEL
TAHNK OUTDOORS.
BE SURE THE HEATER IS ON LEVEL GROUND WHEN FUELING, AND
NEVER OVERFILL THE FUEL TANK.
It is always a good idea to fire the heater outdoors for the first time. This will
allow any oils used in the manufacturing process to be burned off in a safe
environment. This is initial burn should last at least 10minutes.
VENTILATION
Risk of indoor air pollution. Use heater only in well ventilated areas.
Always provide a fresh air opening in the heated space of at least three
square feet(2800 sq.cm) for each 29KW/hr of heater output. Provide a
larger opening if more heater will require.
-a two-car garage door raised 15.24cm (6 inches)
-a single-car garage door raised 22.86cm (9 inches)
-TWO, 76.2cm (30 inches) windows raised 38.1cm(15inches)
TO START THE HEATER
1. Fill the tank with Kerosene (1-K Diesel)) until fuel gauge point to “F”
2. Be sure fuel cap is secure.
3.Plug power cord into the local correct plug. Grounded extension cord and
plug extension cord into three prong 110-120V grounded outlet. The
extension cord should be at least six feet (1.8 meters) long.
Extension cord wire size requirements are as follows:
-6 to 10 feet (1.8 to 3 meters), use 18 AWG wire.
-11 to 100 feet (3.4 to 30.4 meters), use 16 AWG wire.
-101 to 200 feet (30.8 to 61 meters ), use 14 AWG wire.
4.Turn the thermostat control knob to the desired temperature setting
(ZB-K70/ZB-K175/ZB-K215 only). The setting range is from 40°F to 110 °F.
Push the power switch to the “ON” position(Figure 9). The power indicator
lamp and room temperature display ( ZB-K175/ZB-K215 only ) will light,
and the heater will start.
NOTE: The room temperature display ( ZB-K175/ZB-K215 only ) will
indicate the following:
- 14 -
-When the room temperature is less than 0°F, the display will show “LO.”
The thermostat may be set too low if the heater does not fire. Turn the
control knob to a higher setting until the heater fires; if the heater still does
not start, push the power switch to “OFF”, then back to “ON”. If the heater
still does not fire, see Troubleshooting Guide on page20-21
NOTE: The electrical components of
this heater are protected by a fuse
mounted on the PC board. If the heater
fails to fire, check the fuse and replace
it if necessary. Also, check the power
source to ensure the proper voltage is
being provided to the heater.
ZB-K70/ZB-K175/ZB-215

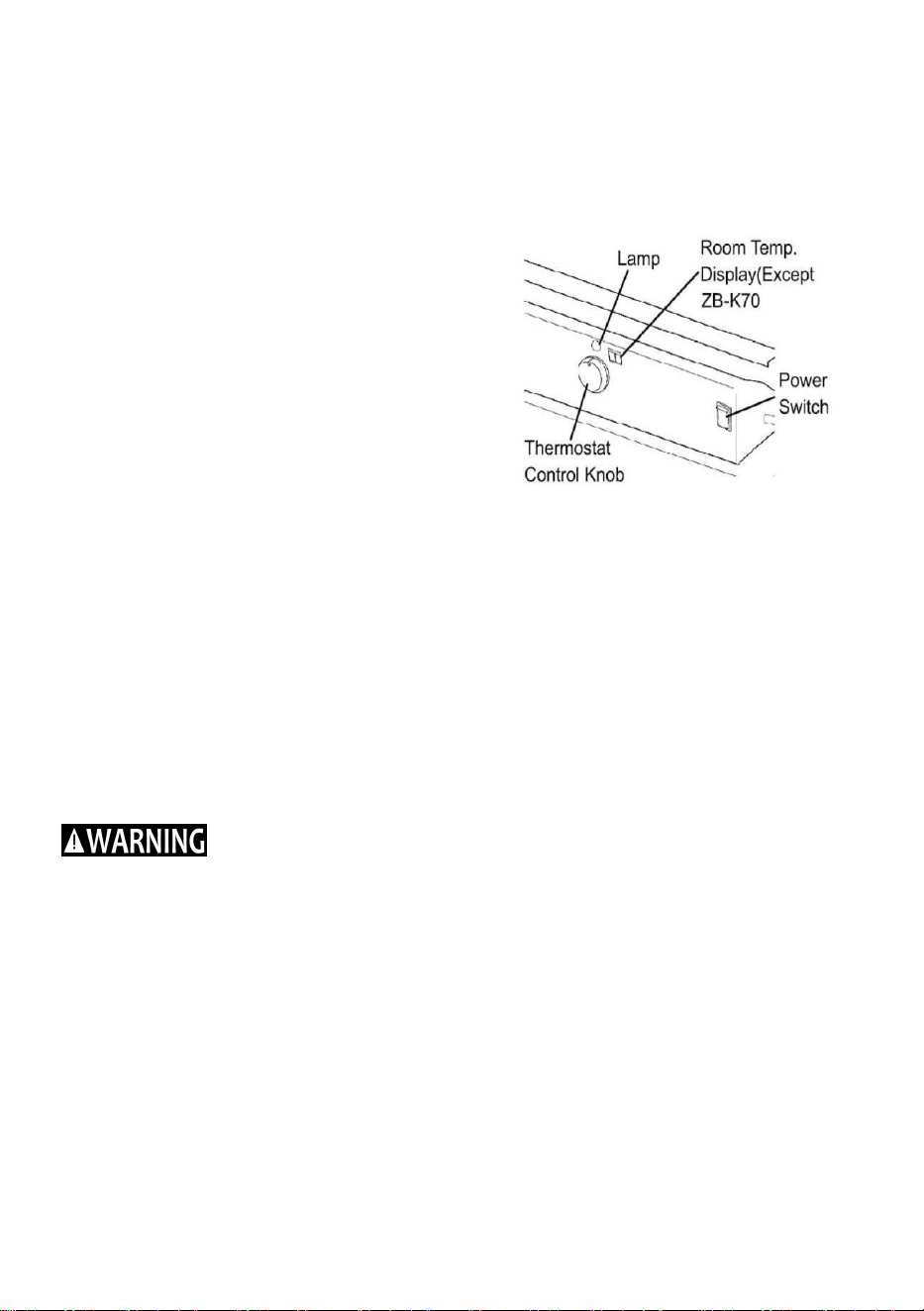

Figure 9. Control panel for all models
TO STOP THE HEATER
Simply turn the power switch to “OFF” position and unplug the power cord.
TO RESTART THE HEATER
1.Wait 10 seconds after shutting off the heater.
2.Turn the power switch to “ON” position.
3.Be sure to follow all starting procedure precautions.
ELECTRICAL OUTLET
Shock Hazard !
-Never plug an appliance with more than a 5 amp rating into this outlet.
-Always keep the outlet covered when not in use.
LONG TERM STORAGE
Drain Fuel Tank
1.For models ZB-K70, drain fuel through the fuel cap opening using an
approved siphon. For models ZB-K175/ZB-K215, drain fuel through the
Drain Plug at the bottom of the fuel tank.
2.To remove the Drain plug ( ZB-K175/ZB-K215). Pull the plug grip
downward and remove the seal head from the drain hole tank(see Figure
9).
DANGER
- 15 -
3.Using a small amount of Kerosene (1-K
Diesel). Rinse and swirl the Kerosene
(1-K Diesel) inside of the fuel tank.
Empty the tank fully.
4.To replace, push the drain head fully
into the drain hole and secure by pushing
the seal cap fully into the head hole (see
Figure 10).
IMPORTANT: Never store leftover
Kerosene (1-K Diesel) over the
summer. Using old fuel can damage
your heater.
Store heater in a dry, well-ventilated
area.
Be sure that the storage area is free of
dust and corrosive vapors. Repack the
heater in the original shipping material.
Keep the Users Manual in an easily
accessible place.
Maintenance
Never service heater while it is plugged in or while hot!
Use only original equipment replacement parts. Using alternate or
third-party components can cause unsafe operating conditions and will
void your warranty.
We suggest following a maintenance schedule as follows:
FUEL/FUELTANK
Flush every 200 hours of operation or as needed. Do not use water to flush
the tank. Use fresh Kerosene (1-K Diesel) only.
AIR FILTERS:

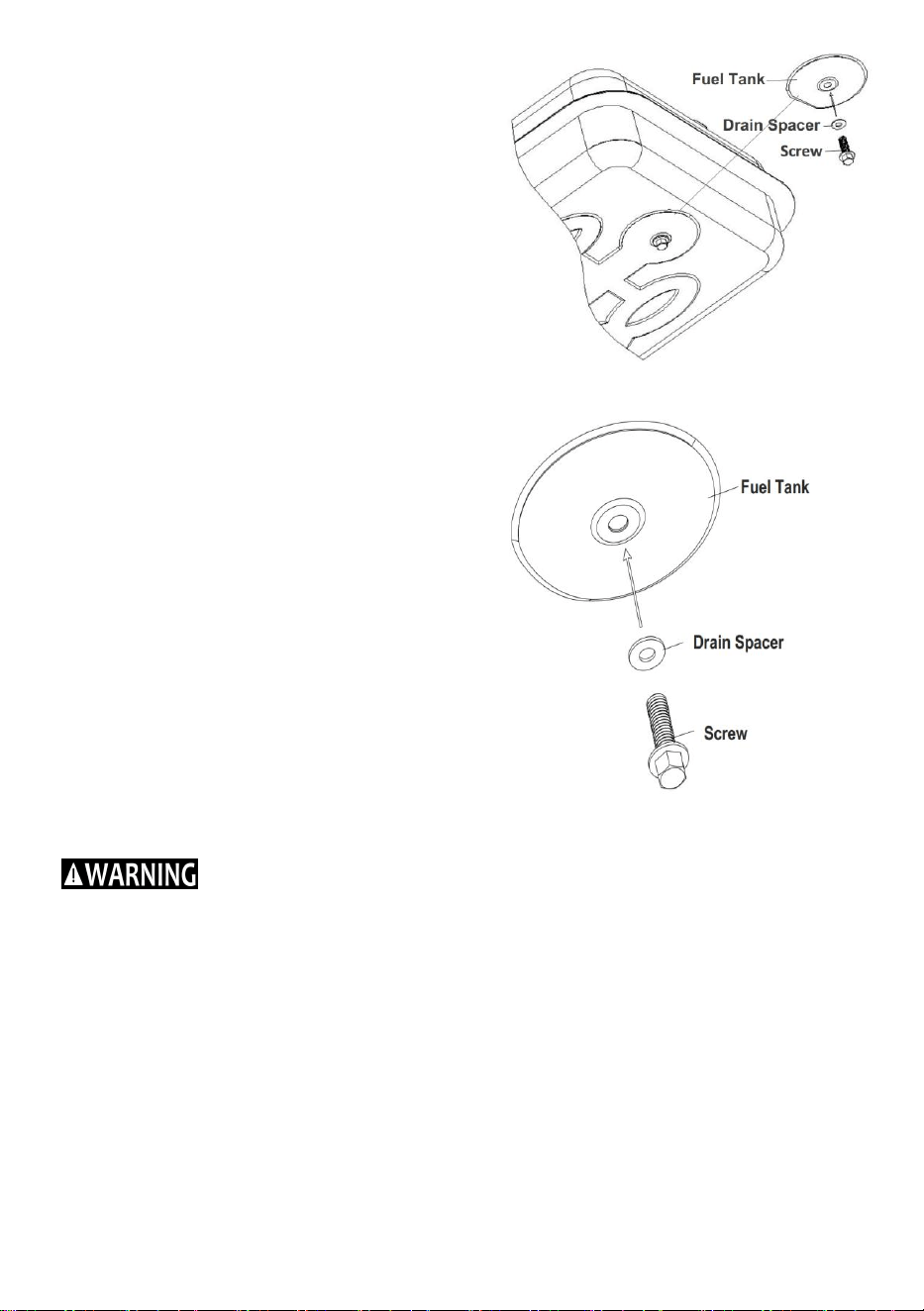

Figure 10. Drain Plug Removal
19. Pump pressure adjustment
Figure 11. Drain Plug Reinstall
DANGER
CAUTION
- 16 -
The air intake Filter should be replaced or washed with soap and water and
dried thoroughly every 500 hours of operation, or less, depending on
conditions.
The output and lint Filter should be replaced every 500 hours of operation,
or less, depending on conditions.
NOTE: Use of Kerosene (1-K Diesel) may require additional maintenance.

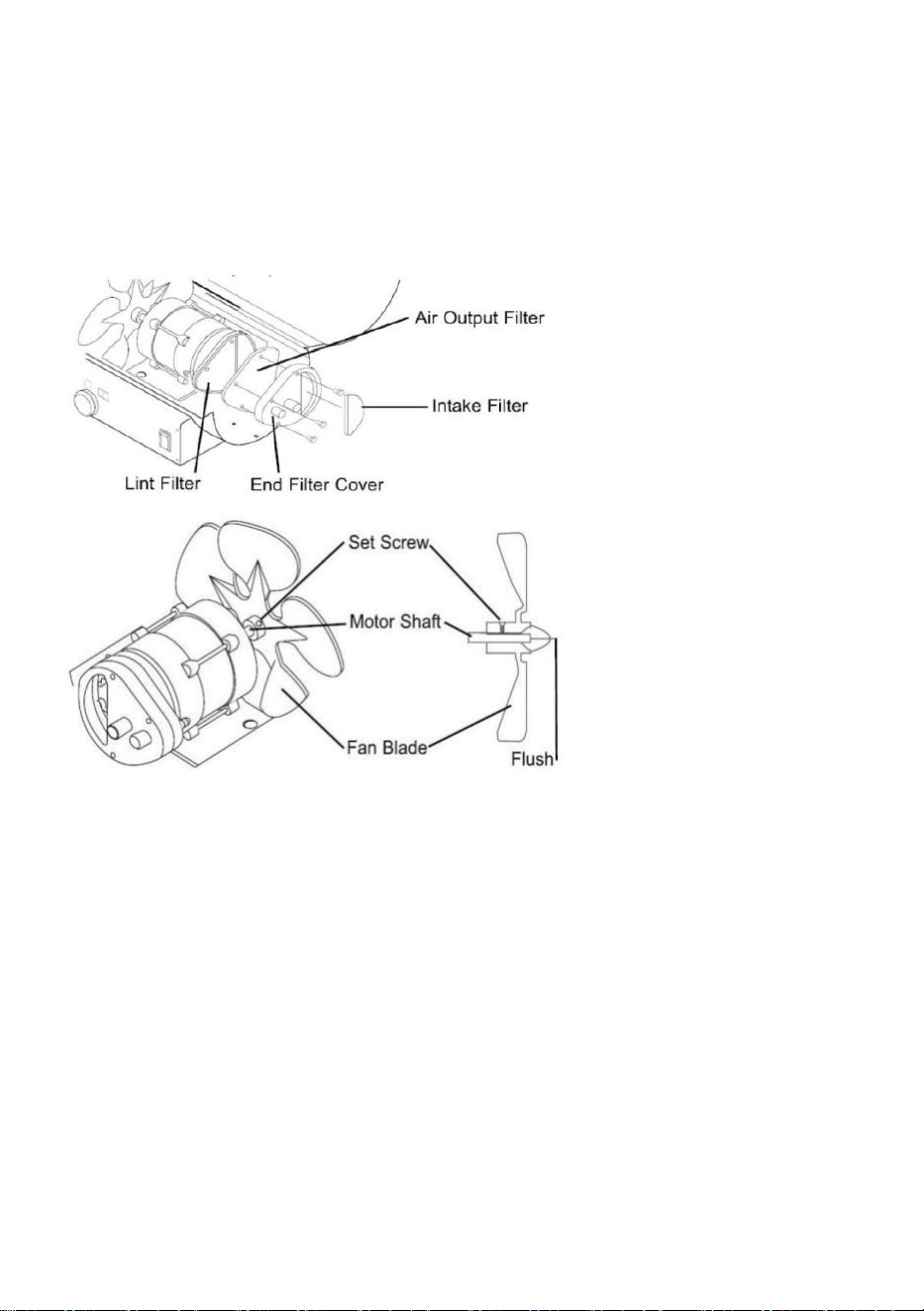

Figure 12. Filter Replacement
Figure 13. Fan Replacement
FAN BLADES:
Blades should be cleaned at least once per heating season, depending on
the condition. Remove all accumulated dust and dirt with a damp cloth, not
bending any of the fan blades. Be sure the fan blades are dry before
re-starting the heater. For Fan removal, see Figure 13.
NOZZLES:
Nozzles should be cleaned or replaced at least once per heating season.
Contaminated fuel could make this necessary immediately.
To clean dirt from the nozzle, blow compressed air through the nozzle front.
It may be necessary to soak the nozzle in clean Kerosene (1-K Diesel) to
help loosen any particles.
- 17 -

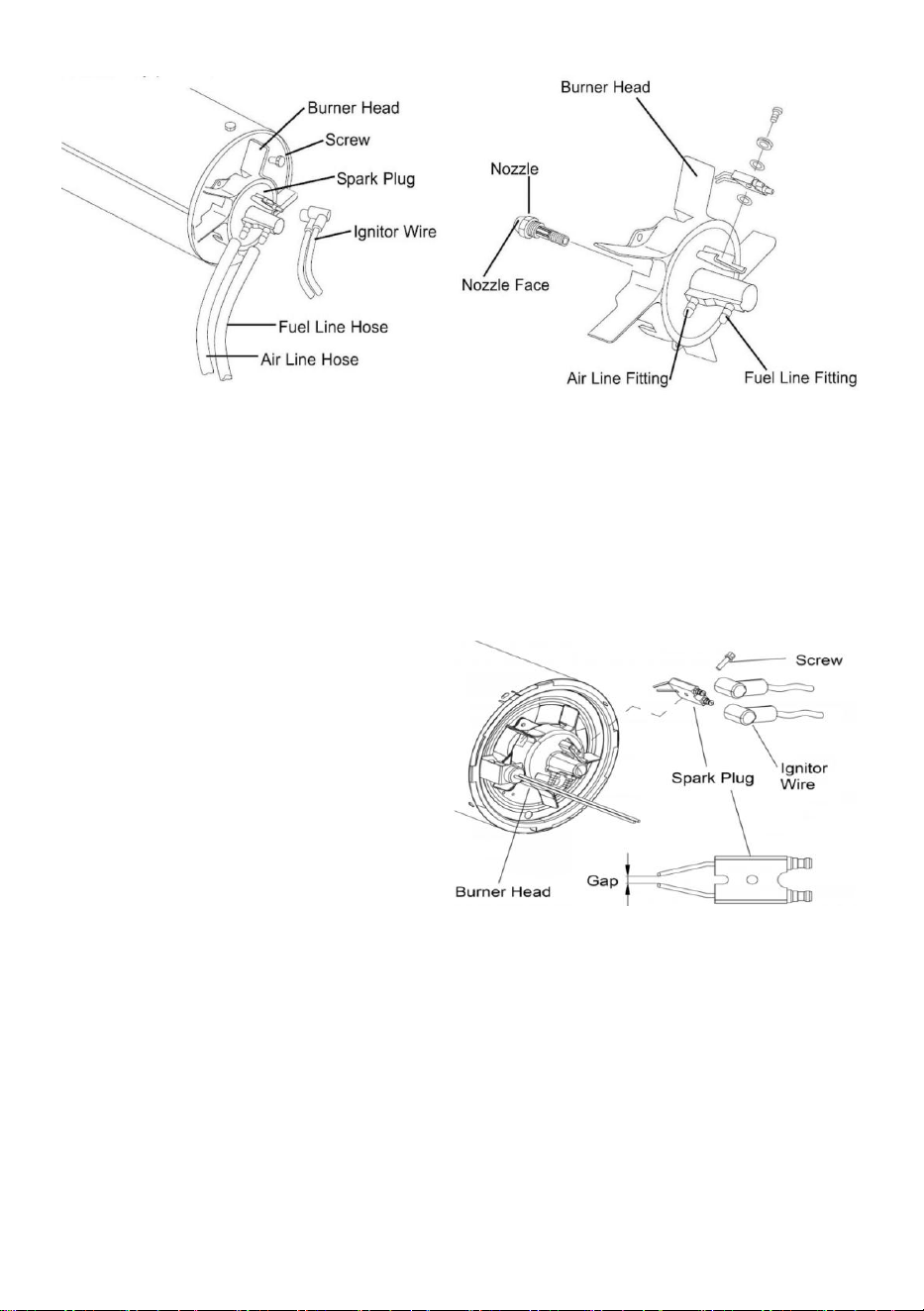

Figure 14. Nozzle Replacement
NOTE:
The use of Kerosene (1-K Diesel) may require additional
maintenance. Using this heater without proper maintenance or with
contaminated or old fuel may lead to improper combustion and possible
soot production.
BE SURE FUEL USED IS
APPROVED (see OPERATION
on Page 10).
SPARK PLUG:
Clean and re-gap every 600 hours
of operation, or replace as needed.
After removing the spark plug,
clean the terminals with a wire
brush. Re-gap the terminals to
0.35cm
Figure 15. Spark plug Replacement
PHOTOCELL:
The Photocell should be cleaned at least once per heating season or more,
depending on the condition.
Use a cotton swap dipped in water or alcohol to clean the lens of the
Photocell. Note the proper photocell position, as noted in Figure 16 and
Figure 17.
- 18 -

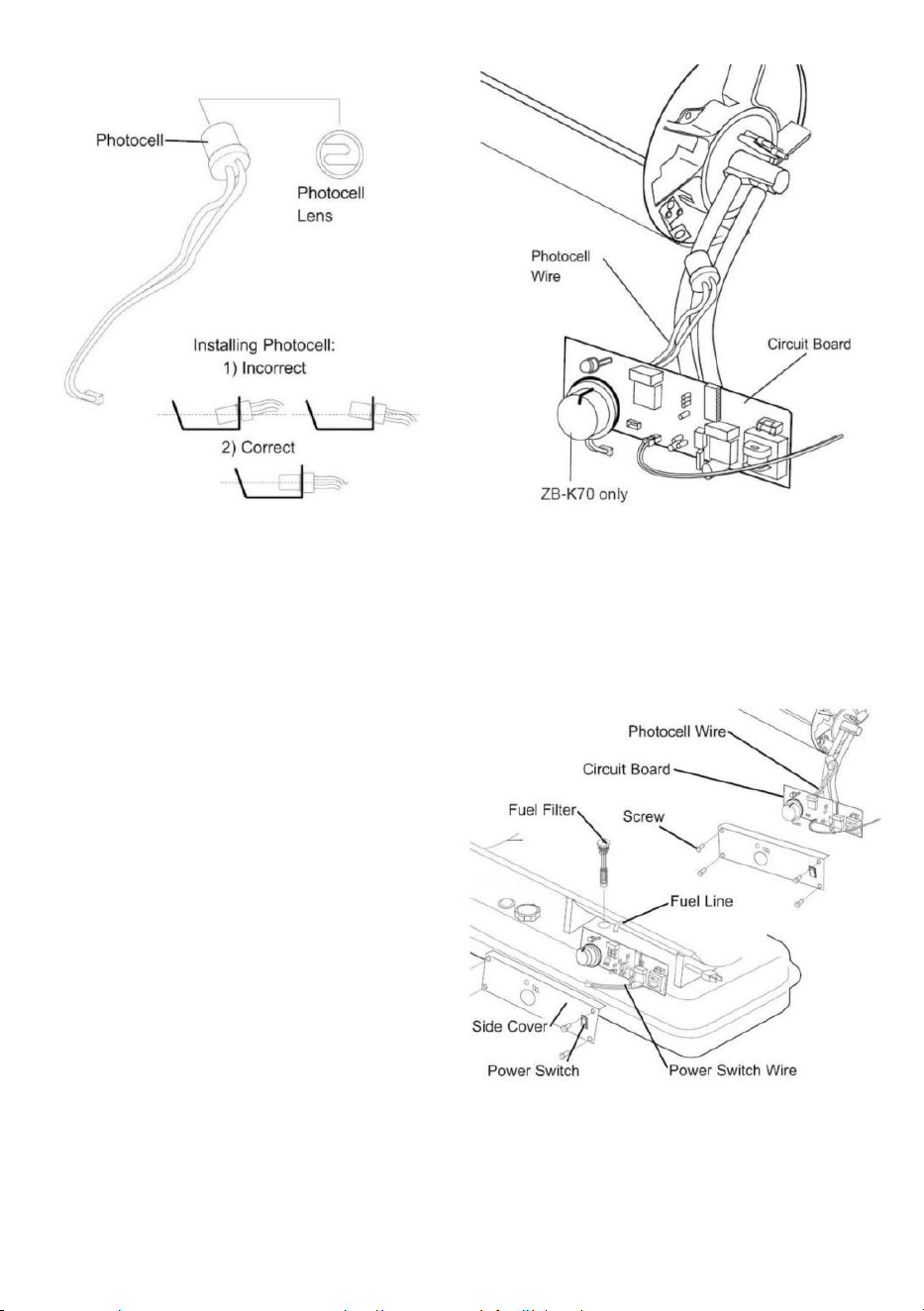

Figure 16. Photocell Positioning Figure 17. Photocell position for ZB-K70
FUEL FILTER:
The fuel filter should be cleaned at least twice per heating season by
rinsing it in clean Kerosene (1-K Diesel). Contaminated fuel could make
this necessary immediately (See Figure 18)
.
NOTE:
Please draw out the rubber
plug directly to remove the fuel
filter for all models. The use of
diesel may require additional
maintenance. Improper
maintenance can lead to poor
combustion and soot production.
PUMP PRESSUREADJUSTMENT:
While heater is operating, turn relief
valve clockwise to increase.
Counterclockwise to decrease (see
Figure 19). Use flat blade screw
driver to turn valve. Correct pump
pressure is as follows:
Figure 18. Fuel filter replacement
- 19 -
Model#
Pump
Pressure(Kpa/Psi)
ZB-K70
31.0/4.5
ZB-K175
48.0/7.0
ZB-K215
52.0/7.5
Tolerance 士 10%
1. If the flame is dim, turn up the
pressure.
2. If the flame comes out of the
incendiary cylinder, reduce the
pressure.
For best measurement of pressure,
test with full tank of fuel. Optimum
pressure occurs when the nose
cone is cherry red and there are no
extending flames from the heater.

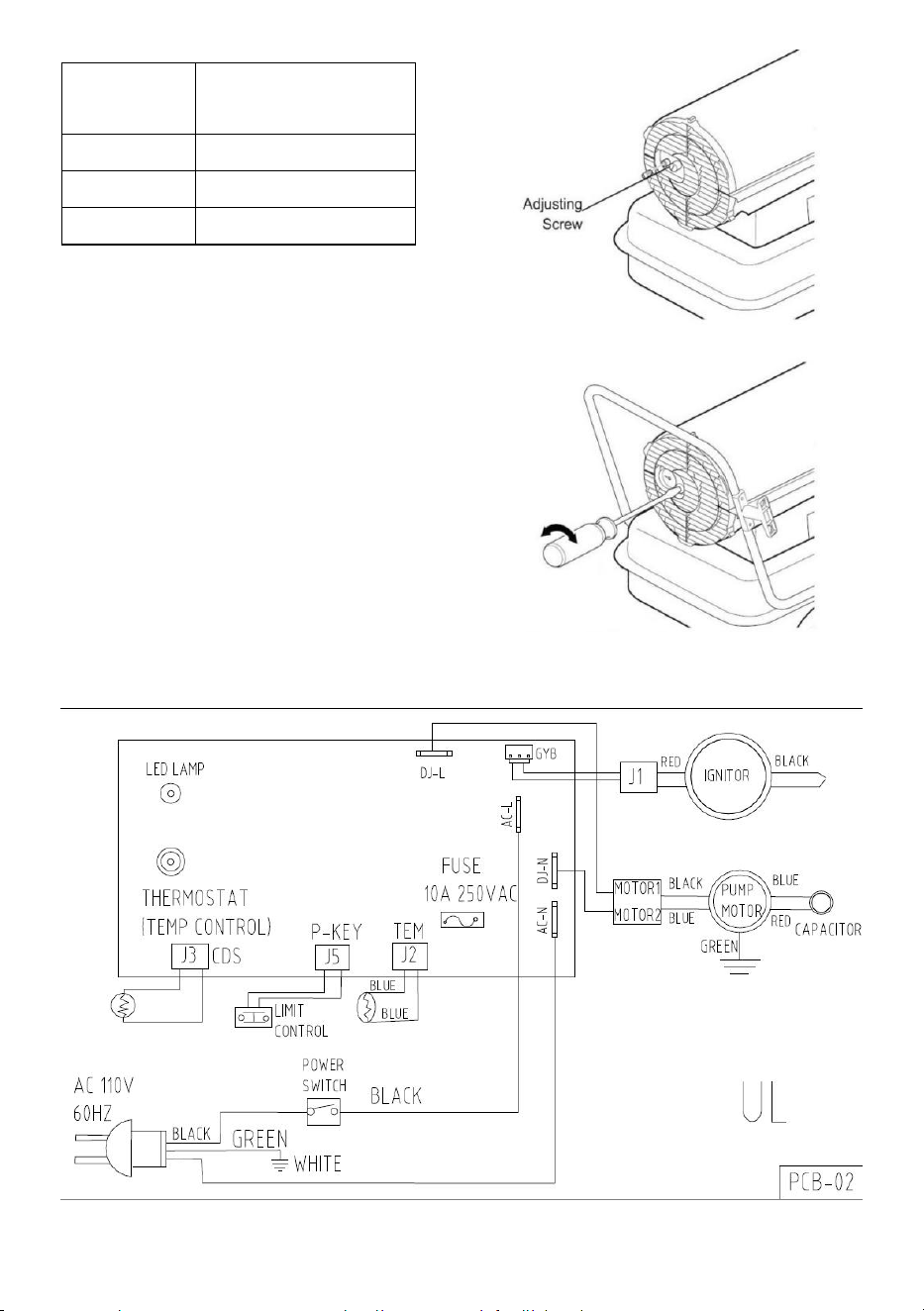

Wiring Diagrams
Figure 20. Model ZB-K70
Figure 19.
Pump pressure adjustment
Figure 19. Pump pressure adjustment
- 20 -

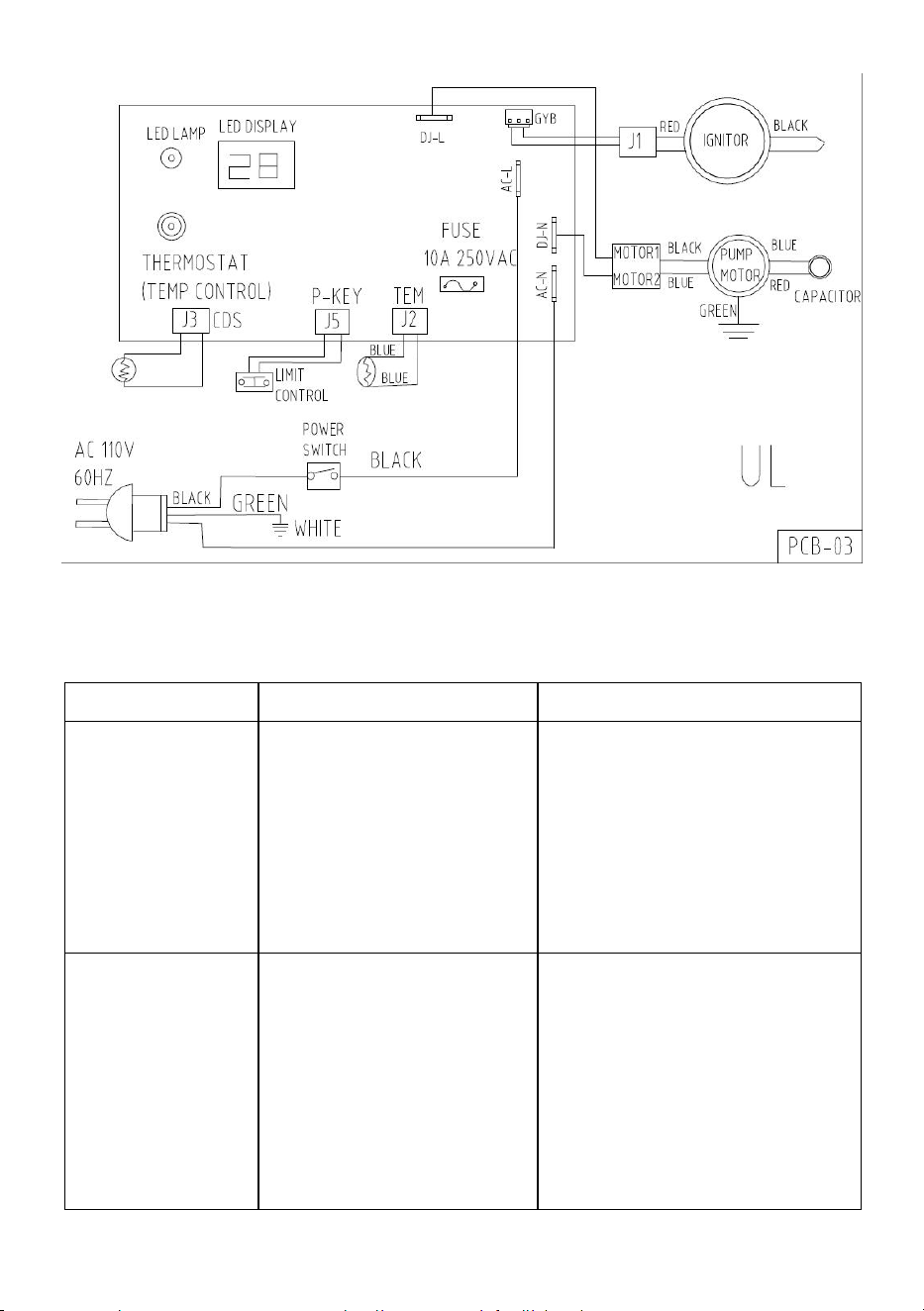

Figure 21. Models ZB-K175/ZB-K215
Troubleshooting Guide:
Problem
Possible Cause
Solution
Heater fires, but main
PCB shuts heater off
after a short period of
time lame is
flickering, and LED
display show”E1”
(1flash)
1.Incorrect pump pressure.
2.2.Dirty input output or lint filter
3.Dirty fuel filter.
4.Nozzle is dirty. 5.Photocell lens
is dirty.
6.Photocell not installed
properly. 7.Photocell defective.
8.Improper electrical connection
between main PCB and
photocell.
1.Adjust pump Pressure (page 20)
2.Clean/replace air filter (page 15-16)
3.Clean/replace Fuel Filter (page
16-17)
4.Clean/replace Nozzle (page16-17))
5.Clean/replace Photocell (page 18)
6.Adjust Photocell position (page 18)
7.Replace Photocell (page 18)
8.Check wring connections (See
wiring Diagrams, page 19-20)
Heater will not
operate, or motor
runs for short time,
Lamp flickers and
LED display
shows”E1”(1flash)
No Diesel in fuel tank.
Incorrect pump pressure.
3.Corroded spark plug or
incorrect plug gap.
4.Dirty fuel filter.
5.Dirty nozzle.
6.Moisture in fuel/fuel tank.
7.Improper electrical connection
between transformer and circuit
board.Ignitor wire not connected
to spark plug.Detective Ignitor.
Fill tank with fresh Diesel
Adjust pump pressure (page 20)
3.Clean/replace spark plug (page 17)
4.Clean/replace fuel filter (page 18)
5.Clean/replace nozzle (page 16-17)
6.Rinse out fuel tank with clean fresh
Diesel (page 14-15)
Inspect all electrical connection (see
wiring diagrams page 19-20)
Re-attach Ignitor wire to spark plug
(page17)Replace Ignitor
- 21 -
Fan does not opera
when heater is
plugged in and power
switch is in the “ON”
position. The lamp is
flickering or on and
LED display shows
“E1” or “E2”(1 flash or
2 flashes)
Thermostat is set too low (Does
not apply to ZB-K45)
Broken electrical connection
between main PCB and motor
Rotate thermostat to a higher setting
Inspect all electrical connection (see
wiring diagrams page19-20)
Lamp is flickering,
and LED display
shows “E3” (3flashes)
1.Thermostat switch has failed
1.Replace thermostat switch, wiring
diagrams (page19-20)
Poor combustion and
/ or excess soot
production
1.Dirty input output or lint filter
2.Dirty fuel filter
Poor quality of fuel
Pump pressure is too high or too
low
1.Clean/replace air filter (page15-16)
2.Clean/replace fuel filter (page 16-17)
3.Be sure fuel is not contaminated or
old
4.Use proper pressure (page19)
Heater does not turn
on and the lamp
Is not lit
Temperature limit sensor has
overheated
No electrical power
3.Fuse blown
4.Improper electrical connection
between Temperature Limit
Sensor and Circuit Board
1.Push power switch to “OFF” and
allow heater to cool for 10 minutes.
Push switch back to “ON” 2.Check
power cord and extension cord to
insure of proper connection, test
power supply
Check/replace fuse
Inspect all electrical connection (see
wiring diagrams page19-20)
