241-0338
20V BRUSHLESS
SCREW DRIVER
OPERATOR’S MANUAL
CAUTION:
To Reduce the Risk of Injury, User Must
Read and Understand the Operator’s Manual. Save These
Instructions For Future Reference.
For questions / comments, technical assistance or repair parts –
Please Call Toll Free: 1-866-917-4374 (M-F 8:30am-5:00pm EST).
TABLE OF CONTENTS
Safety Symbols ......................................................... Page 2
Safety Instructions ...................................................... Page 3

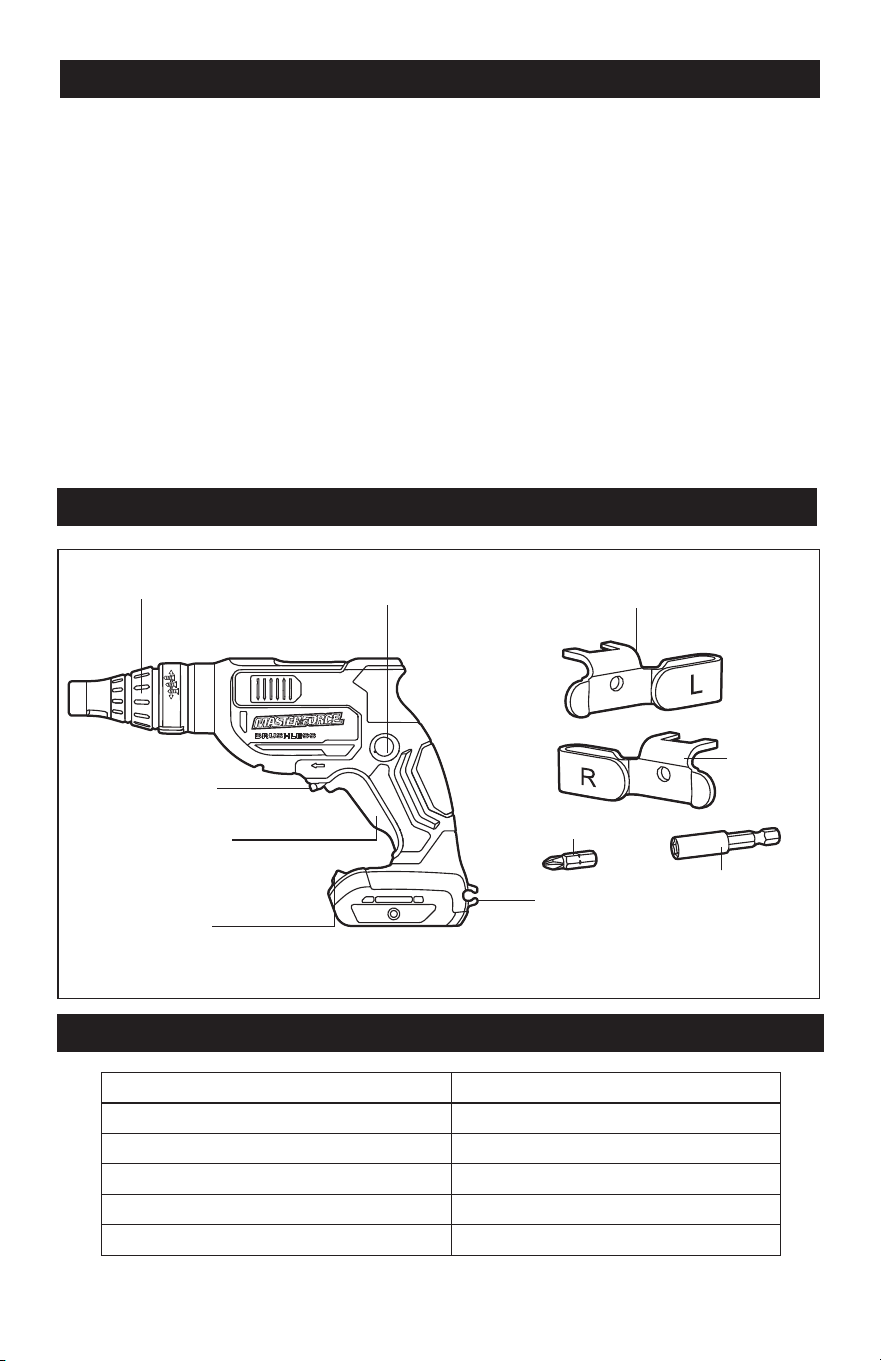

Overview/Specifications ................................................. Page 7

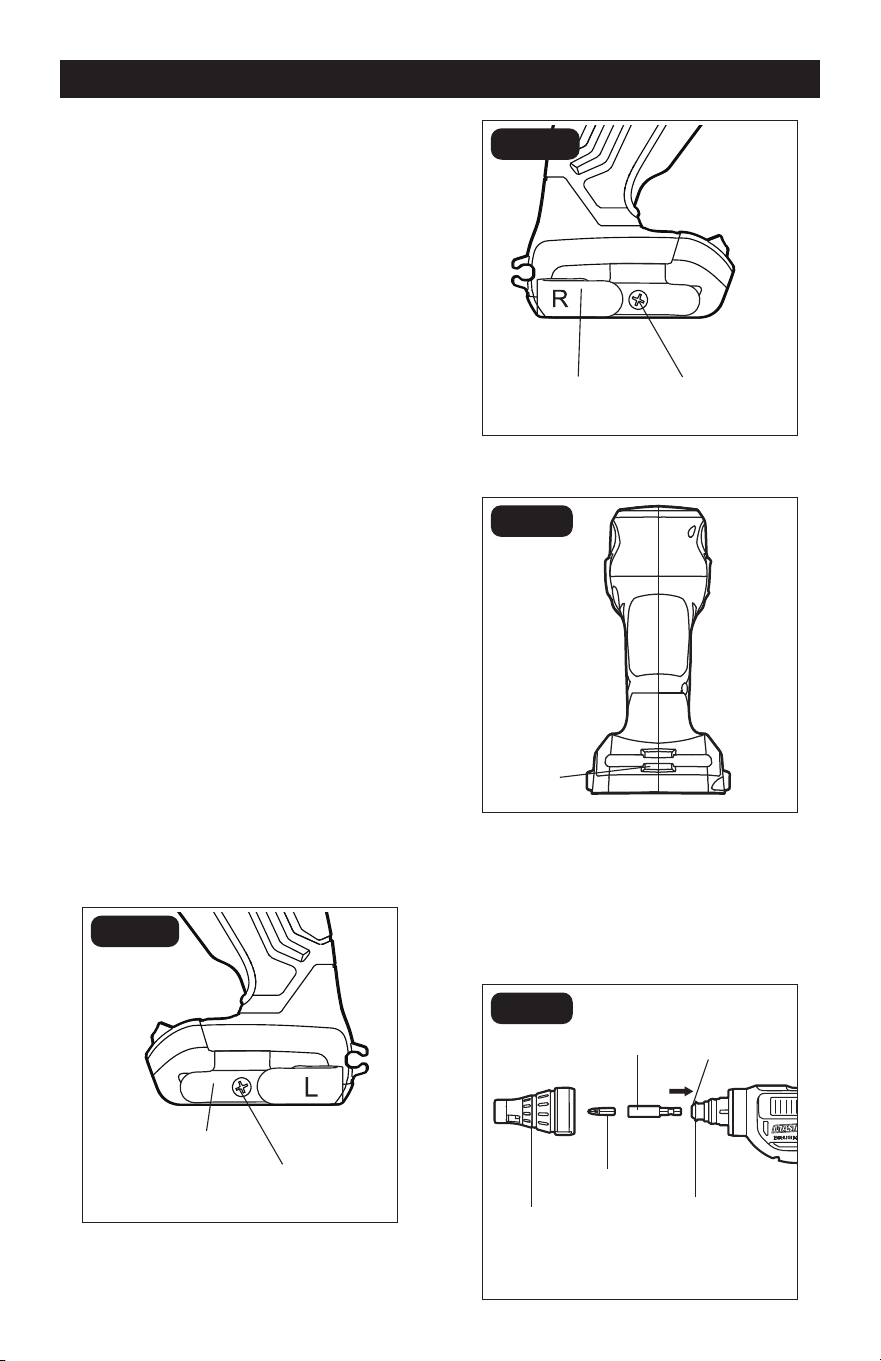

Assembly ............................................................. Page 8

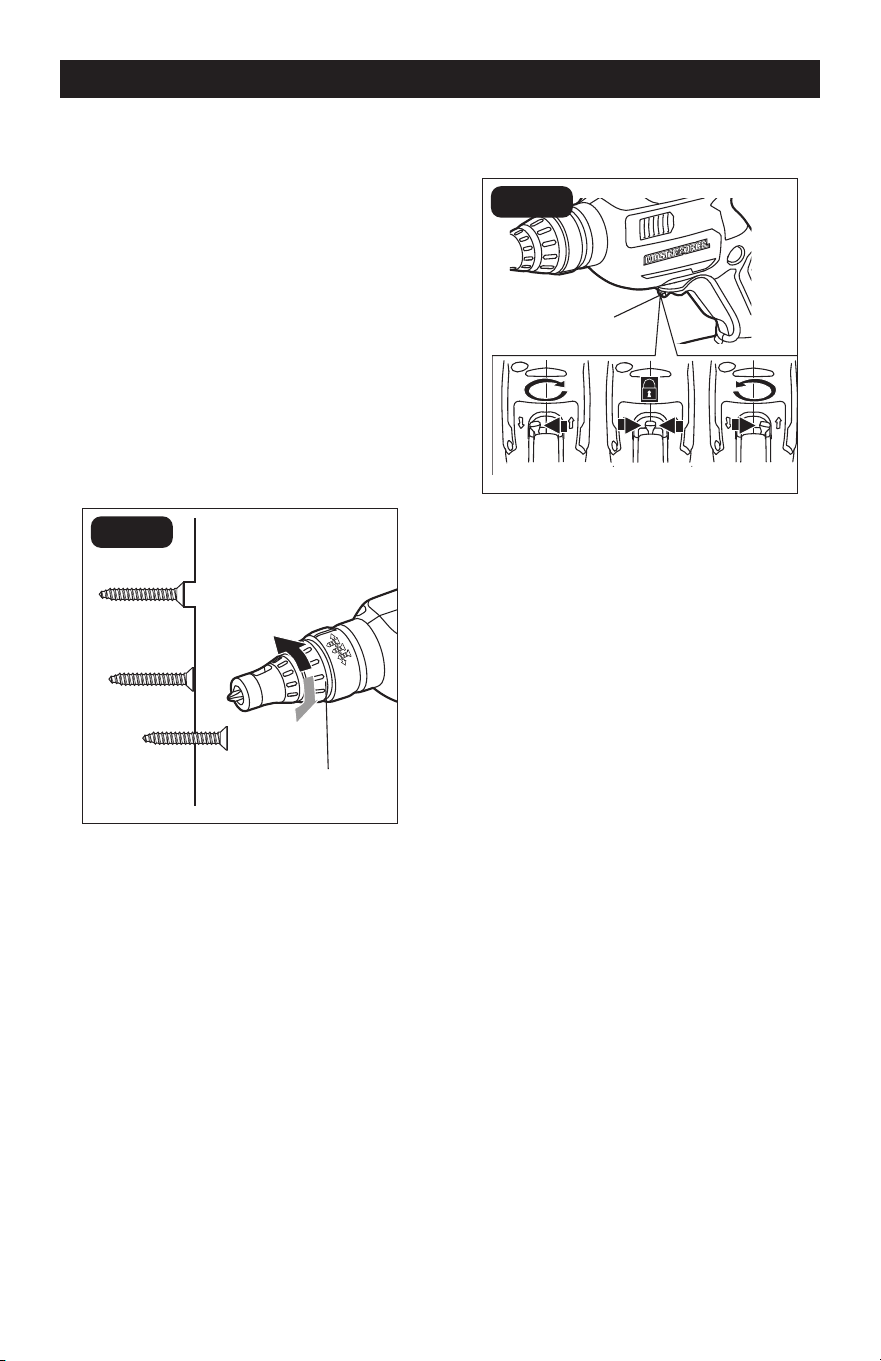

Operation ............................................................. Page 8
Maintenance .......................................................... Page 12
Troubleshooting ....................................................... Page 13

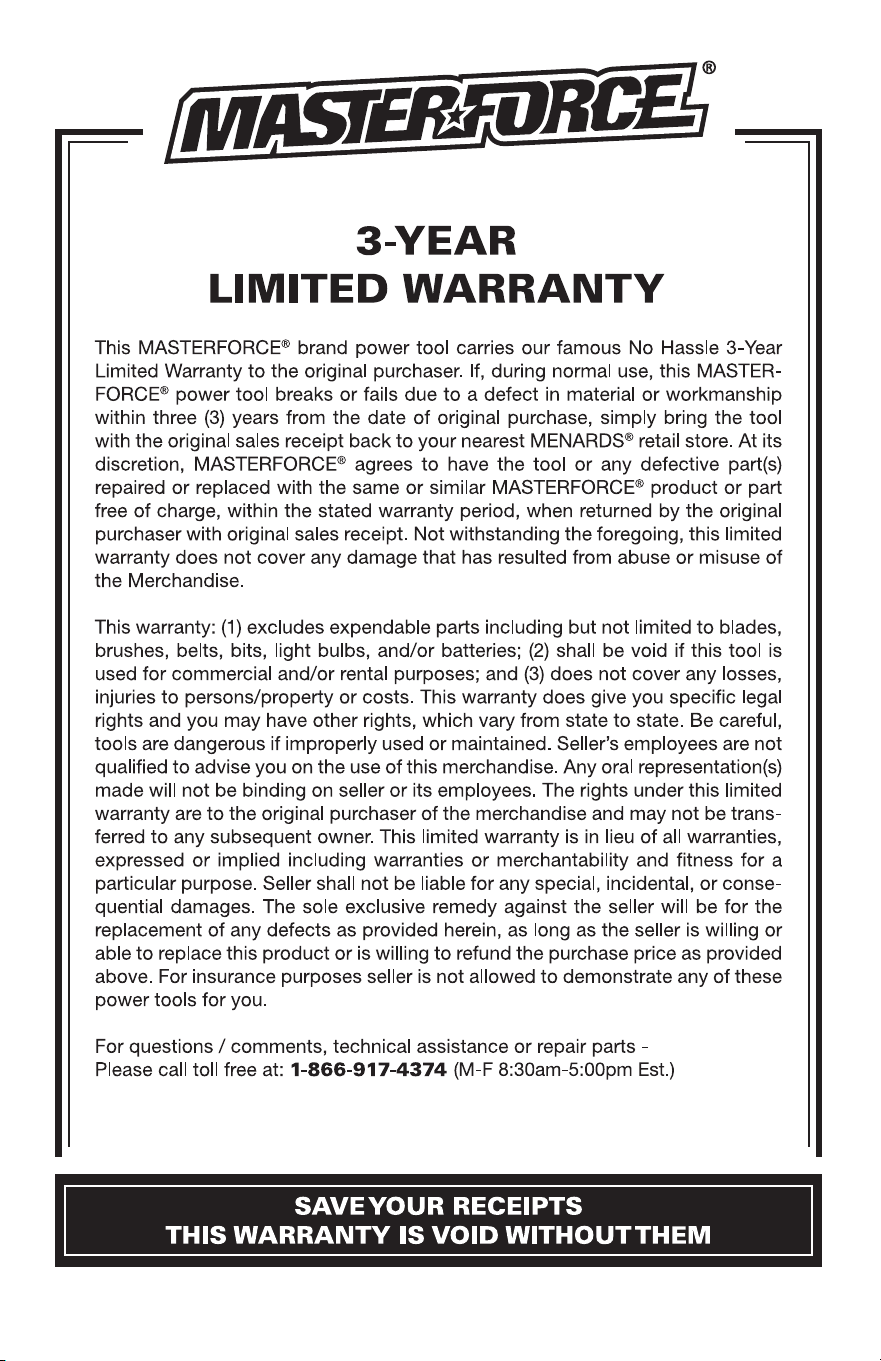

Warranty .............................................................Page 14
Page 2
SAFETY SYMBOLS
Some of these following symbols may be used on this tool. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the tool better and
more safely.
Symbol
Name
Designation / Explanation
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watts Power
lbs Pounds Weight
n
o
No-load speed Rotational speed at no load
/min or
RPM
Revolutions per minute Unit of speed
�
or d.c.
Direct current Type of characteristic of current
Read instruction manual
To reduce the risk of injury, user must
read instruction manual.
WARNING:
To ensure safety and reliability, all repairs should be performed by a
qualied service technician.
Page 3
SAFETY INSTRUCTIONS
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols, and the explanations with them, deserve your careful attention and understand-
ing. The symbol warnings do not, by themselves, eliminate any danger. The instructions and
warnings they give are no substitutes for proper accident prevention measures.
WARNING:
Be sure to read and understand all safety instructions in this manual,
including all safety alert symbols such as “DANGER”, “WARNING” and “CAUTION” before
using this tool. Failure to follow all instructions listed below may result in electric shock,
re, and/or serious personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, OR CAUTION. May be used
in conjunction with other symbols or pictographs.
DANGER:
Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
WARNING:
Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation, which, if not avoided, could
result in minor or moderate injury.
NOTICE: (Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
SAVE THESE INSTRUCTIONS!
Page 4
SAFETY INSTRUCTIONS
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING:
Read all safety
warnings, instructions, illustrations and
specications provided with this power
tool. Failure to follow all instructions listed
below may result in electric shock, fire and/
or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE.
The term “power tool” in the warnings refers
to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
WORK AREA SAFETY
1. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
ammable liquids, gases or dust. Power
tools create sparks which may ignite the
dust or fumes.
3. Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the
outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of
electric shock.
2. Avoid body contact with earthed
or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your
body is earthed or grounded.
3. Do not expose power tools to rain or
wet conditions. Water entering a power tool
will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
5. When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
6. If operating a power tool in a damp
location is unavoidable, use a ground fault
circuit interrupter (GFCI) protected supply.
Use of an GFCI reduces the risk of electric
shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing
and use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the inuence of
drugs, alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.
2. Use personal protective equipment.
Always wear eye protection. Protective
equipment such as a dust mask, non-skid
safety shoes, hard hat or hearing protection
used for appropriate conditions will reduce
personal injuries.
3. Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the
switch or energizing power tools that have
the switch on invites accidents.
4. Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
5. Do not overreach. Keep proper footing
and balance at all times. This enables better
control of the power tool in unexpected
situations.
Page 5
SAFETY INSTRUCTIONS
6. Dress properly. Do not wear loose
clothing or jewelry. Keep your hair and
clothing away from moving parts. Loose
clothes, jewelry or long hair can be caught
in moving parts.
7. If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use of dust
collection can reduce dust-related hazards.
8. Do not let familiarity gained from
frequent use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause
severe injury within a fraction of a second.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the
correct power tool for your application. The
correct power tool will do the job better and
safer at the rate for which it was designed.
2. Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
3. Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk
of starting the power tool accidentally.
4. Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
5. Maintain power tools and accessories.
Check for misalignment or binding of
moving parts, breakage of parts and
any other condition that may affect the
power tool’s operation. If damaged, have
the power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
7. Use the power tool, accessories
and tool bits etc. in accordance with
these instructions, taking into account
the working conditions and the work to
be performed. Use of the power tool for
operations different from those intended
could result in a hazardous situation.
8. Keep handles and grasping surfaces
dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do
not allow for safe handling and control of the
tool in unexpected situations.
BATTERY TOOL USE
AND CARE
1. Recharge only with the charger
specied by the manufacturer. A charger
that is suitable for one type of battery pack
may create a risk of fire when used with
another battery pack.
2. Use power tools only with specically
designated battery packs. Use of any other
battery packs may create a risk of injury and
fire.
3. When battery pack is not in use, keep
it away from other metal objects, like
paper clips, coins, keys, nails, screws or
other small metal objects, that can make
a connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a fire.
4. Under abusive conditions, liquid may
be ejected from the battery; avoid contact.
If contact accidentally occurs, ush with
water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the
battery may cause irritation or burns.
5. Do not use a battery pack or tool that
is damaged or modied. Damaged or
modified batteries may exhibit unpredictable
behavior resulting in fire, explosion or risk of
injury.
Page 6
SAFETY INSTRUCTIONS
6. Do not expose a battery pack or tool
to re or excessive temperature. Exposure
to fire or temperature above 212 °F (100 °C)
may cause explosion.
7. Follow all charging instructions and
do not charge the battery pack or tool
outside the temperature range specied
in the instructions. Charging improperly or
at temperatures outside the specified range
may damage the battery and increase the
risk of fire.
SERVICE
1. Have your power tool serviced by a
qualied repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
2. Never service damaged battery
packs. Service of battery packs should
only be performed by the manufacturer or
authorized service providers.
SCREW DRIVER SAFETY
WARNINGS
SAFETY INSTRUCTIONS FOR
ALL OPERATIONS
• Hold the power tool by insulated gripping
surfaces, when performing an operation
where the fastener may contact hidden
wiring. Fasteners contacting a “live” wire
may make exposed metal parts of the power
tool “live” and could give the operator an
electric shock.
IMPORTANT SAFETY
INSTRUCTIONS
1. To reduce the risk of electric shock
or damage to the chargers and batteries,
use only with the MASTERFORCE
®
battery
packs and chargers listed.
Battery pack Charger
252-8029 (1.5Ah)
252-8031 (2.0Ah)
252-8030 (2.5Ah)
252-8003 (2.5Ah)
252-8034 (4.0Ah)
252-8013 (4.0Ah)
252-8035 (5.0Ah)
252-8005 (5.0Ah)
252-8007 (7.5Ah)
252-8014 (8.0Ah)
252-8025
252-8037
252-8026
252-8043
2. For best results, your battery and tool
should be stored, charged and used in a
location where the temperature is more
than 41 °F (5 °C) but less than 104 °F (40 °C).
Do not store outside or in vehicles.
DANGER:
People with electronic
devices, such as pacemakers, should
consult their physician(s) before using this
product. Operation of electrical equipment
in close proximity to a heart pacemaker
could cause interference or failure of the
pacemaker.
WARNING:
• Some dust created by power sanding,
sawing, grinding, drilling, and other
construction activities contains chemicals
known to the state of California to cause
cancer, birth defects, or other reproductive
harm. Some examples of these chemicals
are:
– Lead from lead-based paints
– Crystalline silica from bricks, cement, and
other masonry products
– Arsenic and chromium from chemically-
treated lumber
• Your risk from these exposures varies,
depending upon how often you do this type
of work. To reduce your exposure to these
chemicals:
– Work in a well-ventilated area.
Page 7
OVERVIEW
Direction-of-
Rotation Selector
Variable-Speed
Trigger Switch
LED Work Light
Stop Sleeve
Left Belt Clip
Lock-on Button
1’’ Insert Drive Bit
Right Belt
Clip
Magnetic Bit
Holder
Bit Holder
SPECIFICATIONS
Rated Voltage 20 V d.c.
No-load Speed (n
0
) 0-5000 /min (RPM)
Chuck Capacity 1/4” hex chuck
Replacement Bit Holder Menards SKU: 208-0372
Replacement Bit 1” insert drive bit with 1/4’’ hex shank
Weight (without battery) 2 lbs. (0.9 Kg)
– Work with approved safety equipment,
such as dust masks that are specially
designed to filter out microscopic
particles.
– Avoid prolonged contact with dust from
power sanding, sawing, grinding, drilling,
and other construction activities. Wear
protective clothing and wash exposed
areas with soap and water. Allowing dust
to get into your mouth or eyes or to lie
on the skin may promote absorption of
harmful chemicals.
SAVE THESE INSTRUCTIONS!
SAFETY INSTRUCTIONS
Page 8

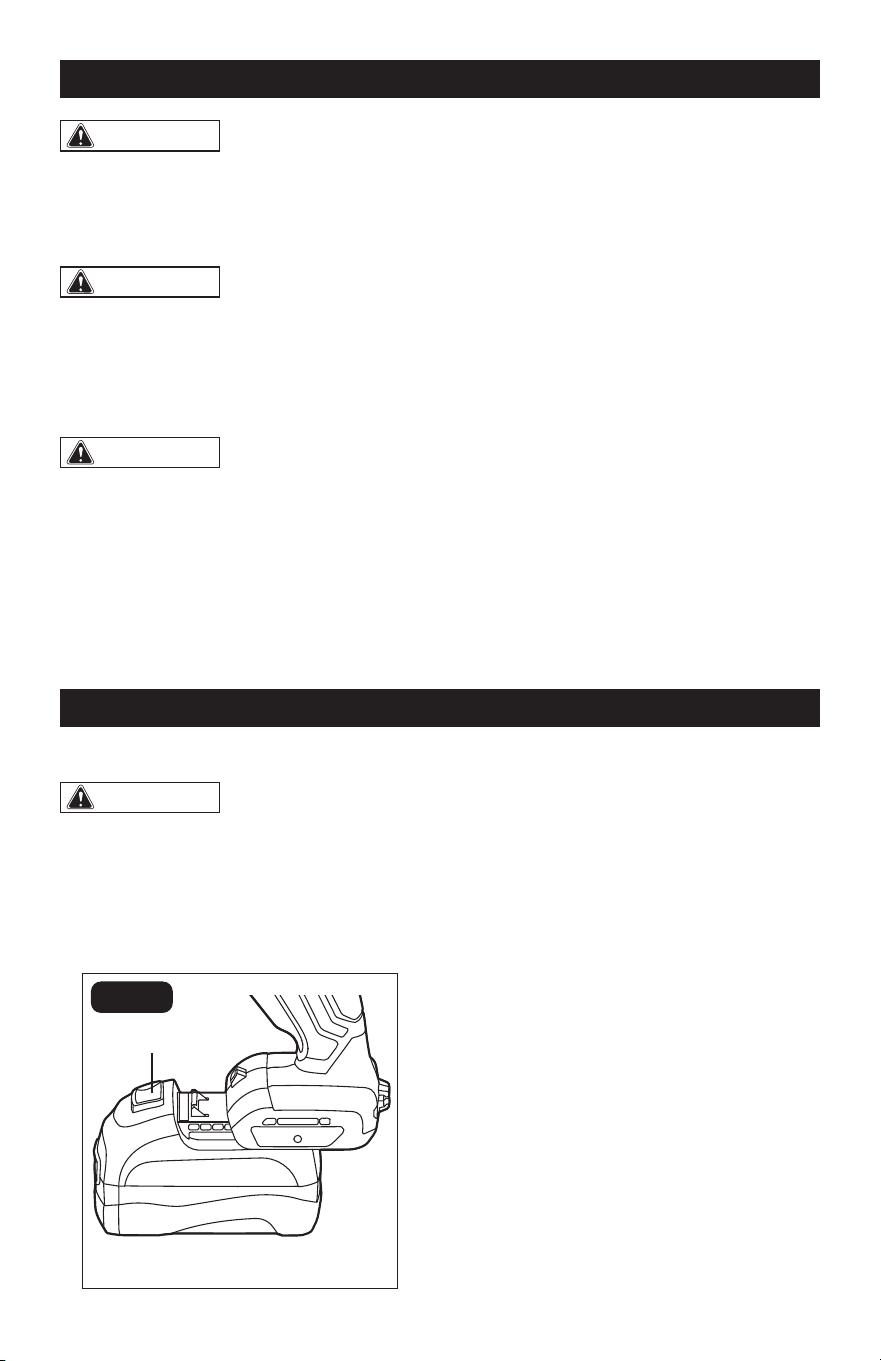

OPERATION
WARNING:
If any part is broken or
missing, DO NOT attach the battery pack
or operate the tool until the broken or
missing part is replaced. Failure to do so
could result in possible serious injury.
WARNING:
Do not attempt to
modify this tool or create accessories not
recommended for use with this tool. Any
such alteration or modication is misuse
and could result in a hazardous condition
leading to possible serious injury.
WARNING:
Your tool should
never be connected to the battery pack
when you are assembling parts, making
adjustments, cleaning, or when it is not in
use. Disconnecting the tool will prevent
accidental starting, which could cause
serious personal injury.
ASSEMBLY
PACKING LIST
– Screw driver,
– 1’’ PH2 short bit,
– magnetic bit holder,
– left(L) belt clip(x1),
– right(R) belt clip(x1),
– screw(x2) for the belt clip,
– instruction manual.
UNPACKING
1. Carefully remove the tool and any
accessories from the carton. Make sure
that all items listed in the packing list are
included.
2. Inspect the tool carefully to make sure
that no breakage or damage occurred
during shipping.
3. Do not discard the packing material
until you have carefully inspected and
satisfactorily operated the tool.
WARNING:
Remove the battery
before carrying out any work on the
power tool.
ATTACHING BATTERY PACK
(FIG. 1)
FIG. 1
Battery-Release
Button
1. Align the raised ribs on the battery pack
with the grooves on the bottom of the
tool, then slide the battery pack onto the
tool.
2. Ensure that the battery-release button
on the battery pack snaps into place
and the battery pack is secured to the
tool before beginning operation.
NOTICE: When placing the battery pack on
the tool, be sure that the raised ribs on the
battery pack align with the grooves on the
tool and the latches snap into place prop-
erly. Improper assembly of the battery pack
can cause damage to internal components.
Page 9
DETACHING BATTERY PACK
(FIG. 1)
1. Press the battery-release button to
release the battery pack.
2. Pull the battery pack to remove it from
the tool.
INSTALLING THE BELT CLIP
(FIG. 2)
1. Align the rib of the clip with the hole on
the base of the tool.
2. Insert the screw and tighten the screw
securely with a Phillips head screwdriver
(not included). The left belt clip carved
“L” should be positioned on the left side
of the tool. The right belt clip carved “R”
should be positioned on the right side of
the tool.
REMOVING THE BELT CLIP
(FIG. 2)
1. Use a Phillips head screwdriver (not
included) to loosen the screw that
attaches the belt clip to the tool.
2. Remove the screw and the belt clip.
FIG. 2a
Screw
FIG. 2b
Screw
Right Belt Clip
BIT STORAGE (FIG. 3)
FIG. 3
Bit
Holder
Your tool is equipped with a bit holder on the
heel of the tool. After using the bit, you can insert
it into the bit holder for convenient storage.
INSTALLING THE SHORT BIT
(FIG. 4)
FIG. 4
Stop Sleeve
1’’ Short Bit
Clutch
Magnetic
Bit Holder
Hex Chuck
OPERATION
Left Belt Clip
Page 10
OPERATION
1. Push the clutch towards the rear of the tool
as shown, insert the magnetic bit holder
into the hex chuck of the tool and then
release the clutch to lock the bit holder.
2. Insert the 1’’ short bit into the magnetic
bit holder.
3. To remove the bit holder, push the clutch
towards the rear of the tool again.
4. Attach stop sleeve to screw driver. If you
want to detach the stop sleeve, just pull
the stop sleeve off from the tool.
ADJUSTING SCREW-IN DEPTH
(FIG. 5)
FIG. 5
Stop Sleeve
Adjust the screw-in depth by turning the
stop sleeve.
– Turn clockwise: Screw-in depth
decreases.
– Turn counterclockwise: Screw-in depth
increases.
One “click” (45° turn) of the stop sleeve cor-
responds to a 0.008” (0.2mm) change in the
screw-in depth.
One complete rotation (360°) of the stop
sleeve corresponds to a 1/16” (1.6mm)
change in the screw-in depth.
NOTICE: Start with a fairly shallow screw-in
depth to prevent damaging the workpieces
which are to be screwed in place.
DIRECTION-OF-ROTATION
SELECTOR (FIG. 6)
FIG. 6
Direction-of-
Rotation Selector
1. To loosen screws, position the direction-
of-rotation selector to the far left for
reverse rotation.
2. To drive screws in, position the
direction-of-rotation selector to the far
right for forward rotation.
3. To lock the trigger switch, set the
direction-of-rotation selector in the off
(center-lock) position. This helps reduce
the possibility of accidentally starting
the tool.
NOTICE: To prevent gear damage, always
allow the tool to come to a complete stop
before changing the direction of rotation.
NOTICE: The tool will not run unless the di-
rection-of-rotation selector is engaged fully
to the left or right.
Page 11
OPERATION

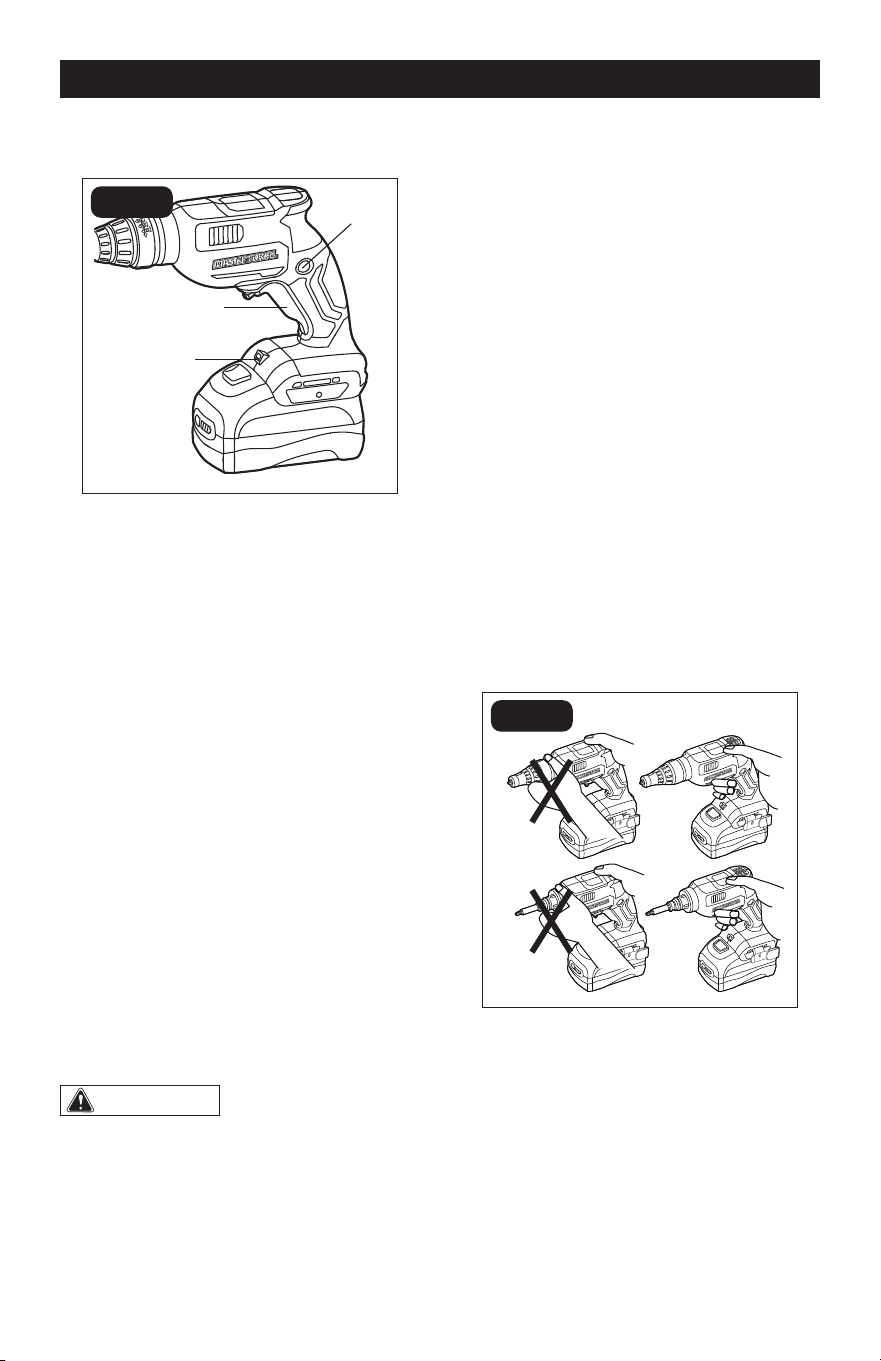

VARIABLE-SPEED TRIGGER
SWITCH (FIG. 7)
FIG. 7
Lock-on
Button
Variable-Speed
Trigger Switch
LED Work
Light
1. To turn the tool on, press the trigger
switch.
2. To turn the tool off, release the trigger
switch.
3. The variable-speed trigger switch
delivers higher speed with increased
trigger pressure and lower speed with
decreased trigger pressure.
LOCK-ON BUTTON (FIG. 7)
Your tool is equipped with a lock-on button
to lock the switch in the on position for con-
tinuous operation. This button is essential
when using the collated screw magazine.
1. Depress and hold down the trigger
switch, then press the lock-on button to
lock the trigger switch on. The tool will
continue to run.
2. Squeeze and release the variable-speed
trigger switch once to turn off the tool.
WARNING:
Be sure to release the
locking mechanism before removing the
battery from the tool. Failure to do so will
cause the tool to start immediately the
next time the battery is installed. Damage
or injury could result.
LED WORK LIGHT (FIG. 7)
The LED work light, located on the base
of the tool, will illuminate when the trigger
switch is depressed before the tool starts
running. This provides additional light on the
surface of the workpiece. The light will auto-
matically turn off within 10 seconds after the
trigger switch is released.
ELECTRIC BRAKE
To stop the tool, release the trigger switch
and allow the chuck to come to a complete
stop. The electric brake quickly stops the
chuck from rotating. This feature engages
automatically when you release the trigger
switch.
OPERATING INSTRUCTIONS FOR
USING STOP SLEEVE (FIG. 8)
√
√
FIG. 8
NOTICE: Do not grip the rotating screw
driver head during operation (Fig.8).
Screwing in screws:
1. Insert an appropriate screwdriver bit.
2. Set the screw-in depth.
3. Set the direction of rotation to forward
rotation.
4. Grip the tool with one hand on the
handle and assume a working position.
Page 12
5. Place a screw onto the screwdriver bit.
The screw is held by magnetic force.
6. Press the screw tip against the
workpiece to be screwed in place until
the stop sleeve is positioned on the
workpiece. Hold the tool at right angle
to the surface of the workpiece.
7. Turn on the tool. The screw is screwed
into the workpiece until the set screw-
in depth is reached. Check the screw-in
depth, change if required.
NOTICE: When the preset screw-in depth
is reached, the drive is disengaged and the
screwdriver bit stops turning.
8. When you have finished driving screws,
turn off the tool.
9. At the end of work, move the direction-
of-rotation selector to the center-lock
position.
OPERATION
Loosening screws:
1. Insert an appropriate screwdriver bit.
2. Set direction of rotation to reverse
rotation.
3. Grip the tool with one hand on the
handle and assume a working position.
4. Engage the screwdriver bit with the
screw to be loosened and apply enough
pressure onto the screw.
5. Turn on the tool by pressing the
variable-speed trigger switch to loosen
the screw.
6. After loosening the screw, release the
trigger switch.
7. At the end of work: move the direction-
of-rotation selector to the center-lock
position.
NOTICE: The screwdriver bit will not turn
until pressure is applied to the screw. Push
to engage.
MAINTENANCE
BEFORE EACH USE
1. Check for damaged, missing, or worn
parts.
2. Check for loose screws, misalignment
or binding of moving parts, or any other
condition that may affect the operation.
3. If abnormal vibration or noise occurs,
turn the tool off immediately and have
the problem corrected before further
use.
WARNING:
• When servicing, use only identical
replacement parts. Use of any other parts
may create a hazard or cause product
damage.
• To avoid serious personal injury,
always remove the battery pack from the
product when cleaning or performing any
maintenance.
• Avoid using solvents when cleaning
plastic parts. Most plastics are susceptible
to damage from various types of
commercial solvents and may be damaged
by their use. Use a clean cloth to remove
dirt, dust, oil, grease, etc.
• Using compressed air may be the most
effective cleaning method. Always wear
safety goggles when cleaning tools with
compressed air.
Page 13
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The tool does not work.
The battery pack charge
is depleted.
Charge the battery pack.
The tool is overheated. Allow the tool to cool down.
The battery pack is
overheated.
Allow the battery pack to
cool down.
Motor is overheating.
The cooling vents may be
obstructed.
Clean and clear the colling
vents. Do not cover the
vents with your hand during
operation.
20V Brushless Screw Driver
08/2023
© 2023 Menard, Inc., Eau Claire, WI 54703
