Important Notes to the Installer
• Read all instructions contained in these installation instructions before
installing the range.
• Remove all packing material from the oven and the drawer compartments
before connecting the electrical supply to the range.
• Observe all governing codes and ordinances. Be sure to leave these
instructions with the consumer.
Important Note to the Customer
• Keep these instructions with your owner's guide for future reference.
Definitions
• This manual contains important safety symbols and instructions.
• Please pay attention to these symbols and follow all instructions given.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
If the instructions contained in this manual are not followed
precisely, a fire or explosion may result causing property
damage, personal injury or loss of life.
INSTALLATION AND SERVICE MUST BE PERFORMED BY A
QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR THE LOCAL INSPECTOR’S USE.
Important Safety Instructions
4
TIP OVER HAZARD
• Check for proper installation and
use of the anti-tip bracket.
Carefully tip the range forward
by pulling it from the back to
ensure that the anti-tip bracket
engages the range leg and
prevents tip-over. The range
should not move more than 1”
(2.5cm).
Appliance Handling Safety
Hidden surfaces may have sharp
edges. Use caution when reaching
behind or under the appliance.
• Wear gloves to avoid cutting
fingers on sharp edges during
installation.
• The unit is heavy and requires at
least two persons or proper
equipment to move it.
• Do not lift appliance by the oven
door handle. Remove the oven
door for easier handling and
installation.
• Do not use the oven for storage.
WARNING
This symbol will help alert you to
situations that may cause serious bodily
harm, death or property damage.
CAUTION
This symbol will help alert you to
situations that may cause injury or
property damage.
WARNING: Tip Over Hazard
• A child or adult
could tip the
range over and
be killed.
• Install the anti-tip
device on the floor or wall as per
the installation instructions.
• Engage the range with the anti-
tip device as per the installation
instructions.
• Ensure the anti-tip device is re-
engaged when the range is
moved.
• Do not operate the range
without the anti-tip device in
place and engaged.
• See installation instructions for
details.
• Failure to follow these
instructions can result in death or
serious burns to children and
adults.
To check if the anti-tip
bracket is installed
properly, use both arms
and grasp the back edge
of the range. Carefully
attempt to tilt the range forward. When
properly installed, the range should not
tilt forward.
Refer to the anti-tip bracket installation
instructions supplied with your range for
proper installation.
Important Safety Instructions
5
EN
Safety Codes and Standards
This appliance complies with one or
more of the following Standards:
UL 858 - The Standard for the
safety of Household Electric Ranges
CAN/CSA-C22.2 No. 61
Household Cooking Ranges
• It is the responsibility of the owner
and the installer to determine
whether additional requirements
and/or standards apply to
specific installations.
• The appliance must be electrically
grounded in accordance with
local codes or, in the absence of
local codes, with the National
Electrical Code, NFPA 70 latest
edition or, in Canada, the
Canadian Electric Code, CSA
C22.1-02.
• Before installing the range in an
area covered with linoleum or
any other synthetic floor covering,
make sure the floor covering can
withstand heat at least 90°F
above room temperature without
shrinking, warping or discoloring.
Do not install the range over
carpeting unless you place an
insulating pad or sheet of ¼"
(10,16cm) thick plywood
between the range and
carpeting.
• Be sure your range is installed
and grounded properly by a
qualified installer or service
technician.
• Make sure the wall coverings
around the range can withstand
the heat generated by the range.
• Do not store items of interest to
children in the cabinets above the
range. Children could be
seriously burned if they climb on
the range to reach items.
• Do not use the oven as a storage
space. This creates a potentially
hazardous situation.
• Do not store or use gasoline or
other flammable vapors and
liquids near this or any other
appliance. Explosions or fires
could result.
• Never use your range for
warming or heating the room.
Prolonged use of the range
without adequate ventilation can
be dangerous.
WARNING
Never leave children alone or
unattended in the area where an
appliance is in use. As children grow,
teach them the proper, safe use of all
appliances. Never leave the oven door
open when the range is unattended.
CAUTION
Stepping, leaning or sitting on the doors
or drawers of this range can result in
serious injuries and can also cause
damage to the range.
Important Safety Instructions
6
• THIS COOKTOP IS NOT
REMOVABLE. Do not attempt to
remove the cooktop.
Electric Safety
• Personal injury or death from
electrical shock may occur if the
appliance is not installed by a
qualified installer or electrician.
• Make sure your appliance is
properly installed and grounded
by a qualified electrician.
Installation, electrical connections
and grounding must comply with
all applicable codes.
• Before installing, turn power OFF
at the service panel. Lock service
panel to prevent power from
being turned ON accidentally.
• For appliances equipped with a
cord and plug, do not cut or
remove the ground prong. It must
be plugged into a matching
grounding type receptacle to
avoid electrical shock. If there is
any doubt as to whether the wall
receptacle is properly grounded,
the customer should have it
checked by a qualified
electrician.
• Do not use an extension cord.
• Do not use an adapter.
• If required by the National
Electrical Code (or Canadian
Electrical Code), this appliance
must be installed on a separate
branch circuit.
• The circuit breaker should have a
contact separation of at least 3
mm on all poles.
• INSTALLER – show the owner the
location of the circuit breaker or
fuse. Mark it for easy reference.
• Refer to rating label for more
information.
Proposition 65 Warning:
This product may contain a chemical known
to the State of California, which can cause
cancer or reproductive harm. Therefore, the
packaging of your product may bear the
following label as required by California:
WARNING
Do not repair, replace or remove any
part of the appliance unless specifically
recommended in the manuals. Improper
installation, service or maintenance can
cause injury or property damage. Refer
to this manual for guidance. All other
servicing should be done by an
authorized service provider.
WARNING
Before you plug the electrical cord into
an outlet, make sure that all the
appliance controls are in the OFF
position.
State of California Proposition 65
WARNING
Cancer or Reproductive Harm -
www.P65Warnings.ca.gov
Important Safety Instructions
7
EN
Related Equipment Safety
• The appliance should only be
used if installed by a qualified
technician in accordance with
these installation instructions and
all applicable regulations and
codes. The manufacturer is not
responsible for damages resulting
from incorrect installation.
• Remove all tape and packaging
before using the appliance.
Dispose of the packaging after
unpacking the appliance. Never
allow children to play with
packaging material.
• Never modify or alter the
construction of the appliance. For
example, do not remove leveling
legs, panels, wire covers or anti-
tip brackets/screws.
• To eliminate the risk of burns or fire
by reaching over hot surface
units, cabinet storage space
located above the surface units
should be avoided. If cabinet
storage is to be provided, the risk
can be reduced by installing a
hood that projects horizontally a
minimum of 5 inches (127 mm)
beyond the bottom of the cabinet.
Be sure cabinets above the
cooktop are a maximum of 13"
(330 mm) deep.
• When installing a cooktop over a
single oven, be sure to follow
both the oven and cooktop
installation manuals.
Ventilation Recommendations
• Do not obstruct air vents or heat
vent openings.
• We strongly recommend the
installation of a ventilation hood
above this appliance. The hood
must be installed according to the
instructions provided with the
hood.
• Do not obstruct the flow of
combustion air at the oven vent
nor around the base or beneath
the lower front panel of the range.
Avoid touching the vent openings
or nearby surfaces as they may
become hot while the oven is in
operation.
• Air curtains or other overhead
range hoods, which operate by
blowing air downwards onto a
range, shall not be used in
conjunction with gas ranges other
than when the hood and range
have been designed, tested and
listed by an independent test
laboratory for use in combination
with each other.
CAUTION
The appliance should not be installed
with a ventilation system that blows air
downward toward the cooktop. This type
of ventilation system may cause ignition
and combustion problems with the gas
cooking appliance and may result in
personal injury or unintended operation.
Important Safety Instructions
8
High altitude installation
• This appliance can operate up to
an altitude of 10,000 ft.
(3048 m.) elevation above sea
level. If desired, for altitudes
above 2,000 ft (610 m) elevation
above sea level, adjustments may
be made.
• It is required that a Certified
Professional make the high
altitude adjustments during
installation.
• Improper installation is not
covered by the warranty.
How to read the user manual
This user manual uses the following reading
conventions:
1. Use instruction sequence.
• Single use instructions.
SAVE THESE INSTRUCTIONS
WARNING
If the information in this manual is not
followed exactly, fire or shock may result
causing property damage or personal
injury.
Installation
Information for the qualified
technician: installation, operation
and inspection.
Safety instructions
Information
Advice
Important Safety Instructions
9
EN
1 Installation

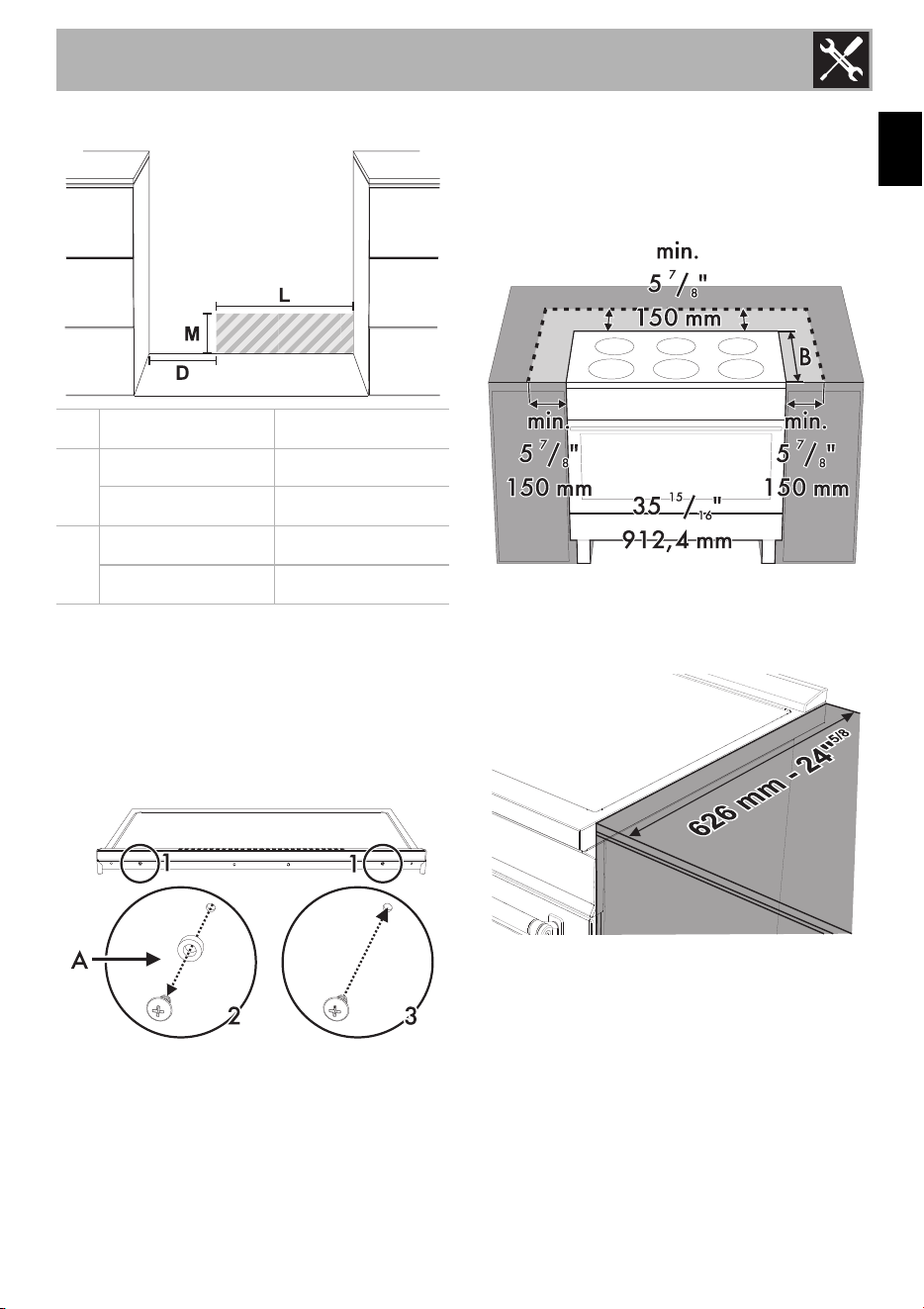

1.1 Product dimensions

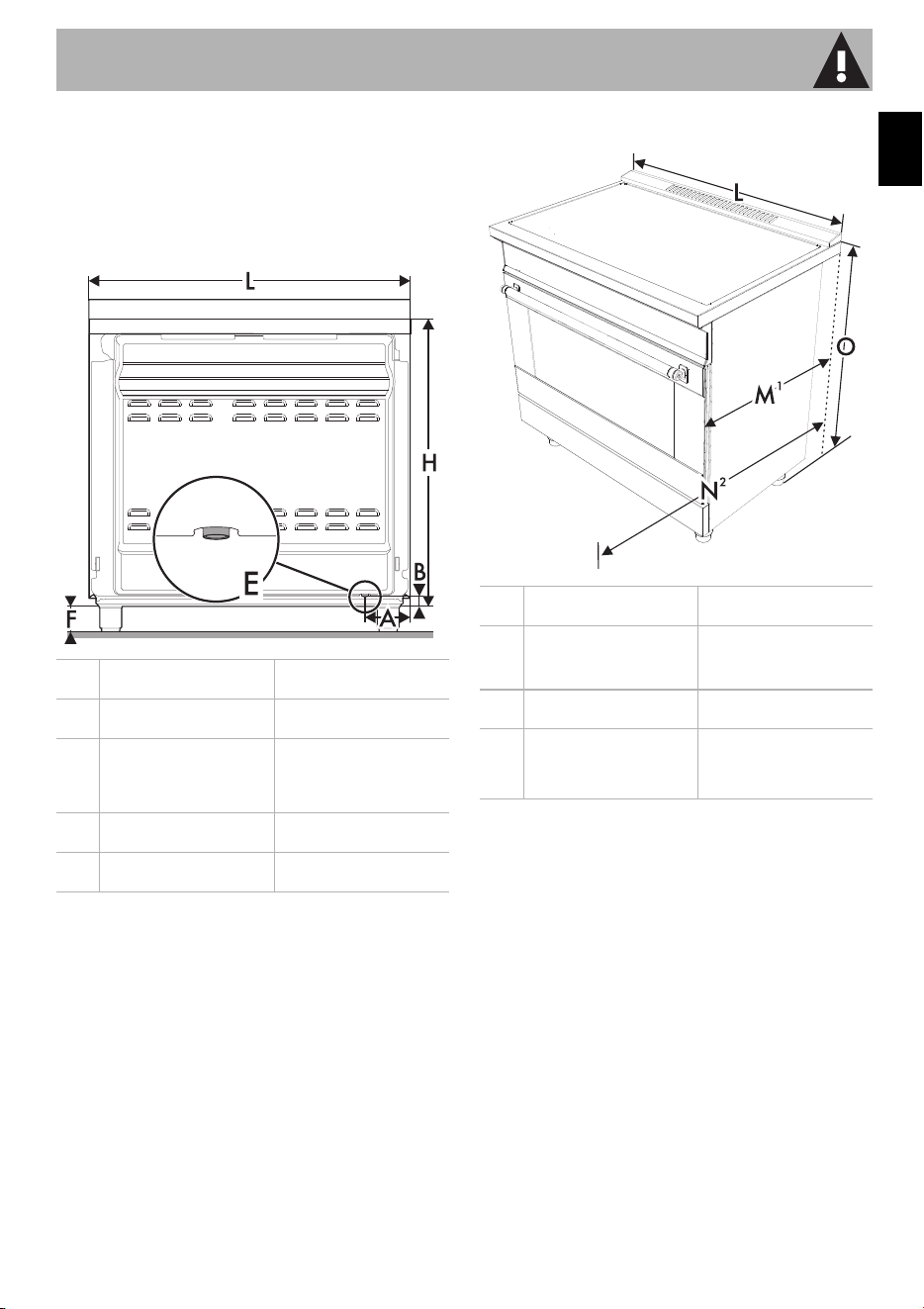

Overall dimensions: Location of electrical
connection point.
E = Electrical connection
1
Measurement M varies according to the
model: the minimum is obtained without the
rear spacers (see "Island installation") and
the maximum is obtained for traditional
installation (slot-in installation - with the rear
spacers).
2
Measurement N refers to the open door.
A
5
1
/
8
"
130 mm
B
1
1
/
8
"
29 mm
F
min. 3
1
/
4
"
Max. 4
7
/
16
"
min. 83 mm
Max. 113 mm
H
31
7
/
8
"
809 mm
L
35
15
/
16
"
912.4 mm
L
35
15
/
16
"
912.4 mm
M
1
min. 24
5
/
8
"
Max. 25”
min. 626 mm
Max. 630 mm
N
2
42
13
/
16
"
1088 mm
O
min. 35
1
/
8
"
Max. 36
5
/
16
"
min. 892 mm
Max. 922 mm
Installation
10

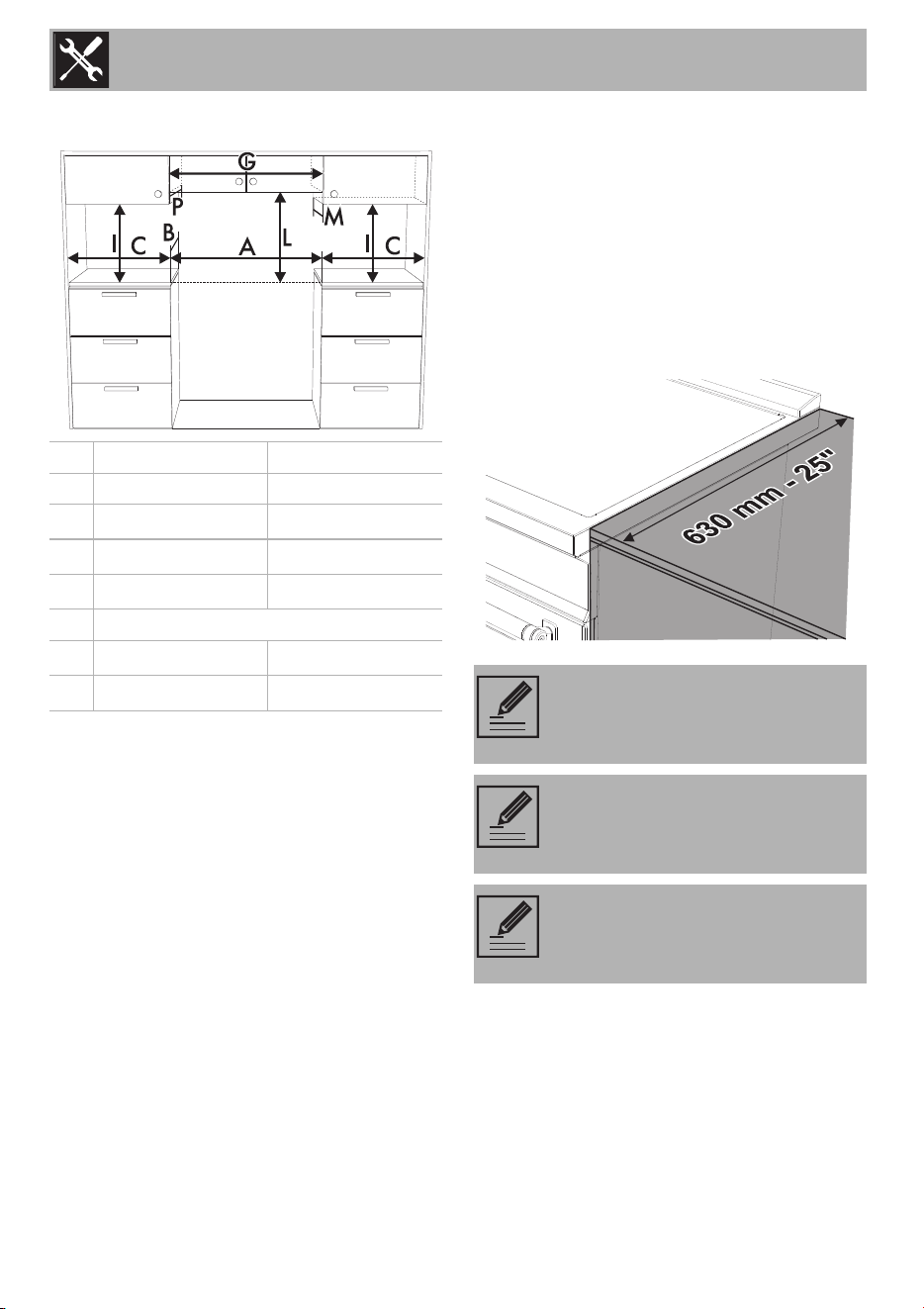

Cabinet clearances
Clearance L can have the following values:
• L = 30” (762 mm) min. minimum
clearance between the top of the
cooking surface and the bottom of an
unprotected wood or metal cabinet..
• L = 24" (610 mm) minimum when the
bottom of wood or metal cabinet is
protected by not less than 1/4-inch-
thick flame-retardant millboard covered
with not less than No. 28 MSG sheet
steel, 0.015-inch-thick stainless steel,
0.024-inch-thick aluminum, or 0.020-
inch-thick copper. Clearances from non-
combustible materials are not part of the
ANSI Z21.1 scope and are not certified
by CSA. Clearances of less than 30''
should be approved by the local codes
and/or by the local authority having
jurisdictiont.
1
min. clearance from the sides of range to
side wall or other combustible material;
2
min. cabinet opening width;
3
upper cabinet to countertop;
4
max. upper cabinet depth.
The side cabinet depth (clearance B) must
match the front edge of the range side
panel.
A 36" 914 mm
B 25” 630 mm
C
1
20" 508 mm
G
2
min. 36" min. 914 mm
I
3
18" 457 mm
L see notes below
M
4
13" 330 mm
P
4
13" 330 mm
The distance between the
appliance and the rear wall below
the worktop is zero.
The distance between the
appliance and the side cabinets
below the worktop is zero.
Any opening in the wall behind the
appliance and in the floor under
the appliance shall be sealed.
Installation
11
EN
Location of the electric outlet
Island installation
If the appliance is installed as an island:
1. Unscrew the screws shown.
2. Remove the spacers (A).
3. Replace the screws that were previously
removed.
Keep a minimum clearance of 5
7
/
8
"
(150 mm) between the appliance and the
other furnishings or decorative elements
according to the diagram below.
The side cabinet depth (clearance B) must
match the front edge of the range side
panel.
D
min. 11
7
/
8
”
Min. 300 mm
M
min. 2” min. 51 mm
Max. 9
7
/
8
”
Max. 250 mm
L
min. 11
7
/
8
”
min. 300 mm
Max. 24
2
/
8
”
Max. 614 mm
Installation
12
1.2 Unpacking, moving and
positioning the range
• When positioning the appliance during
installation, do not
use the door handle
to lift or move this appliance.
• Remove the outer carton and packing
material from the shipping base.
• Remove angle-mounting brackets from
the range.
• Due to its weight, a dolly/fork lift with
soft rubber tread wheels should be used
to move this unit. The weight must be
supported uniformly across the bottom.
• The floor under the legs should be
protected (wood, strips, carpet,
paneling, etc.) before pushing the unit
into position.
• The anti-tip device must be installed, and
the electrical connection should be
made before the range is placed in its
final position.
• Legs should be installed near to where
the appliance will be used as they are
not secure for long transit. Keep the unit
raised so that the legs can be screwed
into their couplings, then lower the range
gently to prevent the legs and mounting
hardware from being subject to any
undue strain. Instead of tilting the unit, it is
recommended that a pallet or lift jack be
used.
• After making the electrical connection,
screw on the four feet supplied with the
appliance.
CAUTION
This unit is designed as a cooking
appliance. For safety reasons, never use
it for warming the room or as a space
heater.
NOTE: First insert the front feet and
then the rear ones.
Installation
13
EN

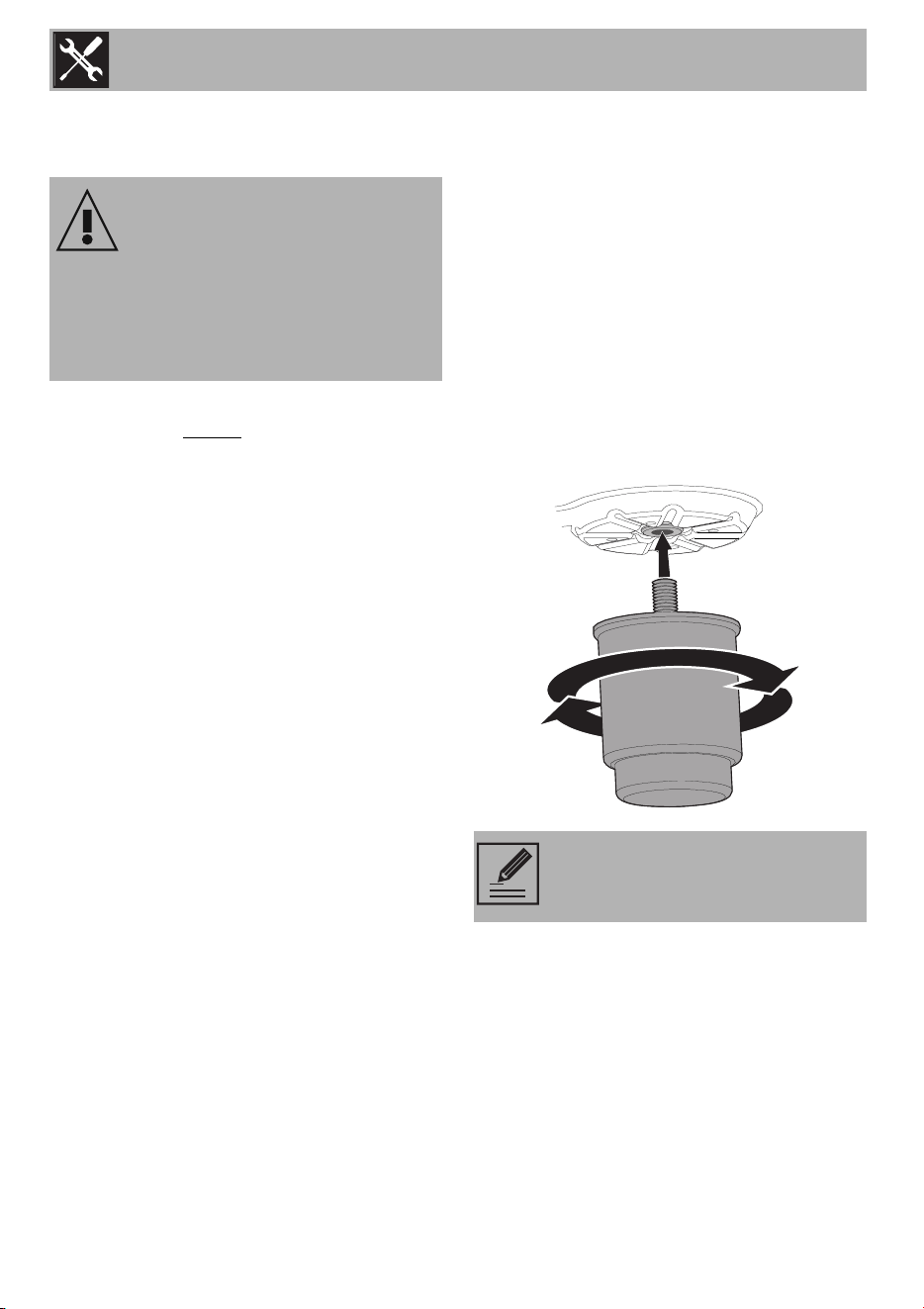

The appliance must sit level on the floor to
ensure stability:
• Screw or unscrew the bottom part of the
foot until the appliance is stable and
level on the floor. The adjustment range
of the screw is 1.18“(30 mm).

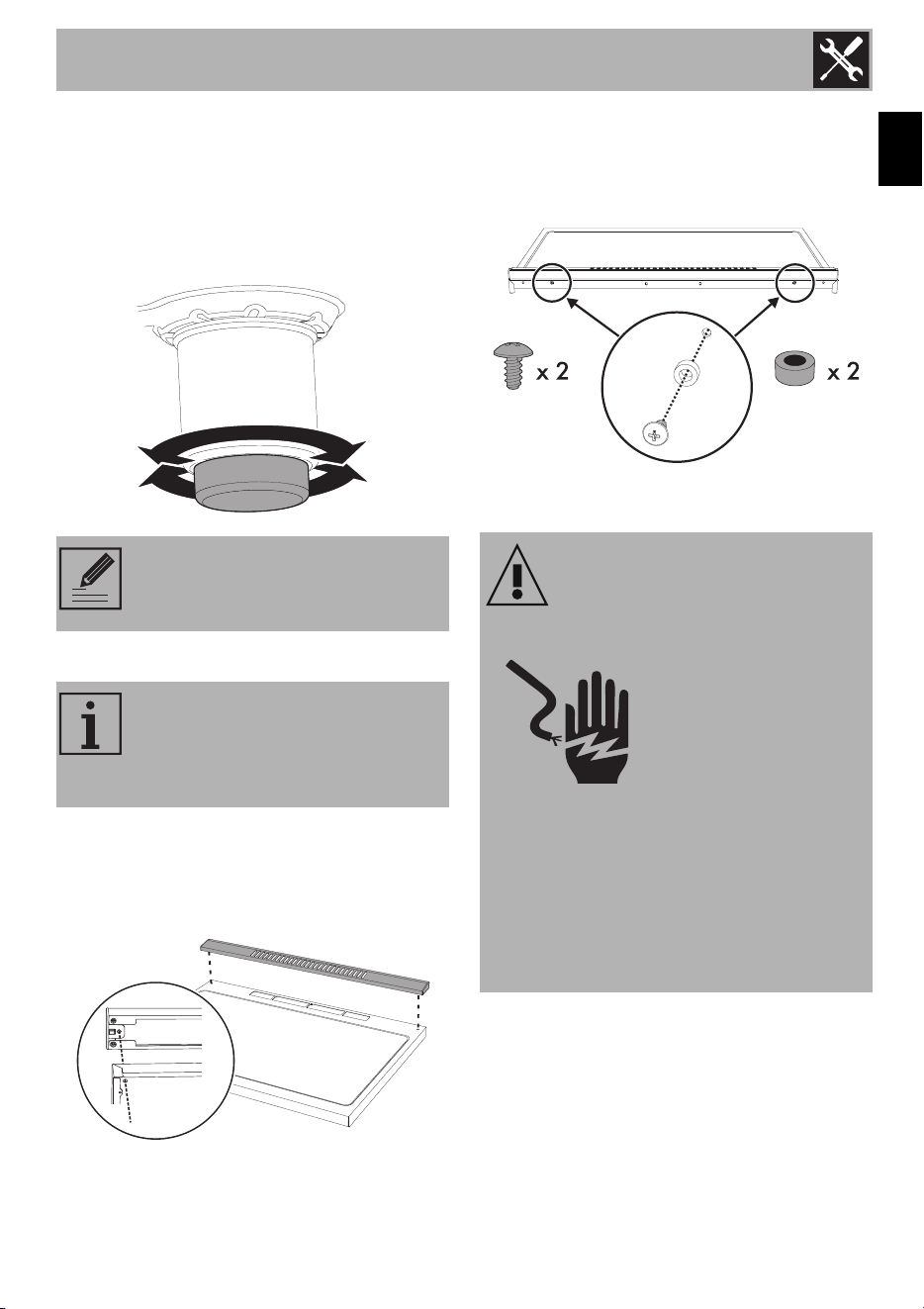

Assembling the backguard
The backguard must always be positioned
and secured correctly on the appliance.
1. Position the backguard above the top,
taking care to align the holes.
2. Secure the backguard to the top by
tightening screws.
3. Once you have fixed the backguard to
the appliance, you must insert the screws
and spacers provided that are necessary
for the slot-in installation.
1.3 Electrical connection
NOTE: this appliance must only
use the specific leveling legs
provided by the manufacturer.
The backguard provided is an
integral part of the product; it must
be fastened to the appliance prior
to installation.
WARNING
Electrical shock hazard
•This appliance is
equipped with a four-
prong grounding plug for
your protection against
electric shock and should
be plugged directly into a properly
grounded receptacle. Do not cut or
remove the grounding prong from this
plug.
• Failure to do any of the above could
result in a fire, personal injury or
electrical shock.
Installation
14
This range is equipped with a factory-
connected power cord. The cord must be
connected to a grounded 120/240 volt or
120/208 volt outlet. If no outlet is
available, have one installed by a qualified
electrician.
See the rating plate for technical
specifications.
The rating plate is visibly located on the
right side of the oven door frame.
This ID plate must never be removed.
1.4 Wall and floor attachment
WARNING
Electrical shock hazard
• Disconnect the electrical supply before
servicing the appliance
• It is the personal responsibility of the
consumer to have the appropriate outlet
or junction box with the correct, properly
grounded wall receptacle installed by a
qualified electrician. It is the
responsibility and obligation of the
consumer to contact a qualified installer
to ensure that the electrical installation is
suitable and in conformance with all
local codes and ordinances.
CAUTION
Do not use multiple outlets, extension
cords or adapters.
WARNING
Electrical shock hazard
•Use extreme caution
when drilling holes in the
wall or floor. There may
be concealed electrical
wiring behind the wall or
under the floor.
• Identify the location of the electrical
circuits that could be affected by the
installation of the anti-tip device, then
turn off power to these circuits.
• Failure to follow these instructions may
result in electrical shock or other
personal injury.
Installation
15
EN
CAUTION
• Contact a qualified installer or
contractor to determine the proper
method for drilling holes through the
wall or floor material (such as ceramic
tile, hardwood, etc.)
• Failure to follow these instructions may
result in damage to wall or floor
coverings.
WARNING
Visually check from the inside of the
drawer that the wall/floor-mounted
bracket is inserted into the appropriate
lateral hook (left side).
WARNING: Tip Over
Hazard
• A child or adult
could tip the
range over and
be killed.
• Install the anti-tip
device on the floor or wall as
per the installation instructions.
• Engage the range with the anti-
tip device as per the installation
instructions.
• Ensure the anti-tip device is re-
engaged when the range is
moved.
• Do not operate the range
without the anti-tip device in
place and engaged.
• See installation instructions for
details.
• Failure to follow these
instructions can result in death or
serious burns to children and
adults.
Installation
16

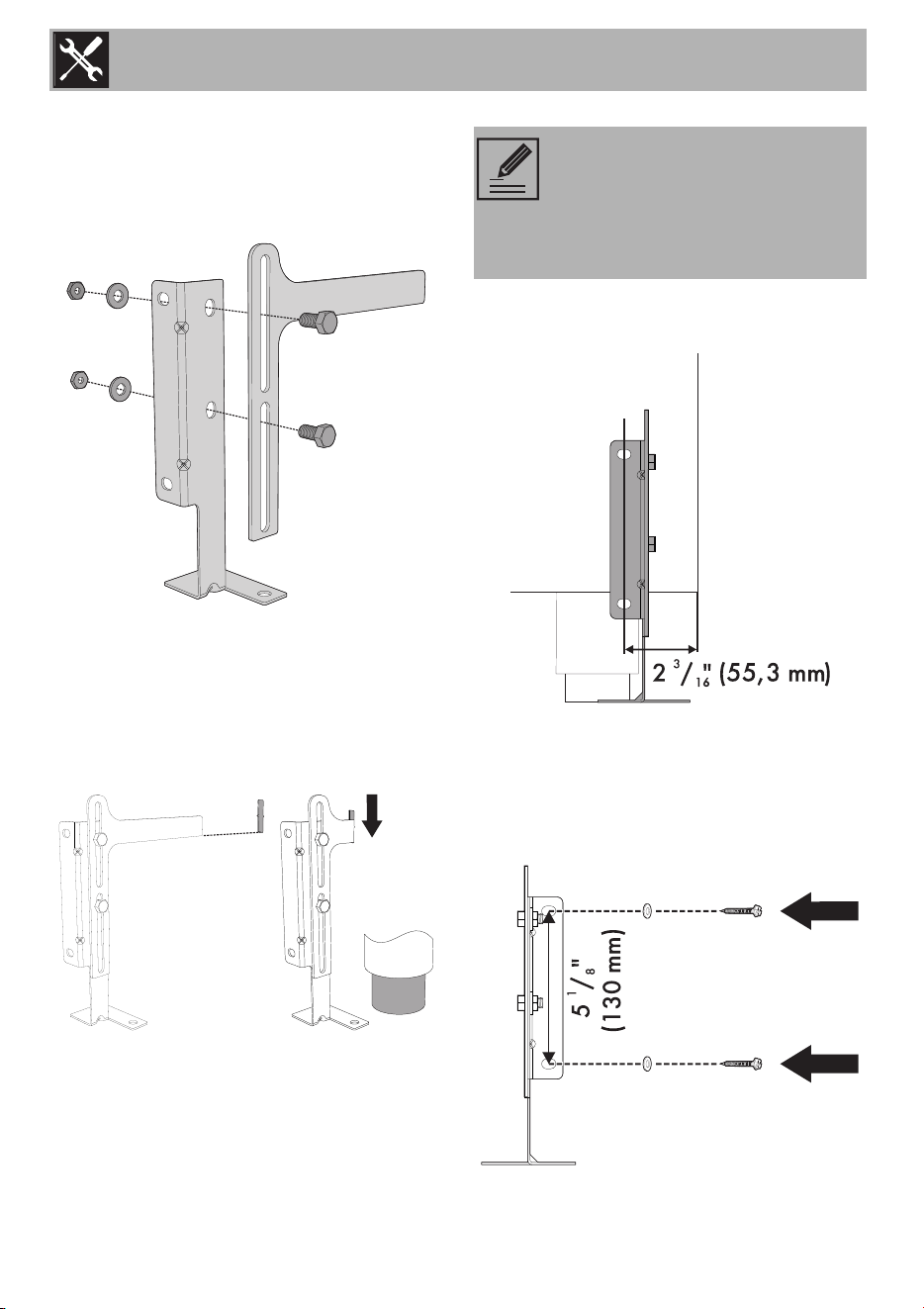

Installing the anti-tip bracket
1. Ensure that the electrical connection is in
the correct position.
2. Assemble the bracket.
3. Align the base of the hook of the bracket
with the base on the slot of the rear wall
fastening bracket. Align the base of the
fastening bracket with the floor and
tighten the screws to fix the
measurements.
4. For wall mounting, go to steps 5, 6, 9
and 10. For floor mounting, to steps 7, 8
and 10.
5. Use the specified distance from the side
of the appliance to the bracket holes.
6. Move the bracket to the wall and fix with
the two washers and screws. A qualified
technician must verify the suitability of the
materials in accordance with the type
and condition of the wall.
NOTE: The wall attachment is
recommended if the appliance is
placed against a wall. Floor
attachment is recommended in
case of island installation.
Installation
17
EN
7. Use the following distances for the
distance from the side of the appliance
to the bracket holes.
8. After having positioned and leveled the
appliance, move the bracket close to the
rear of the appliance and anchor it to the
floor using the two washers and screws.
A qualified technician must verify the
suitability of the materials in accordance
with the type and condition of the floor.

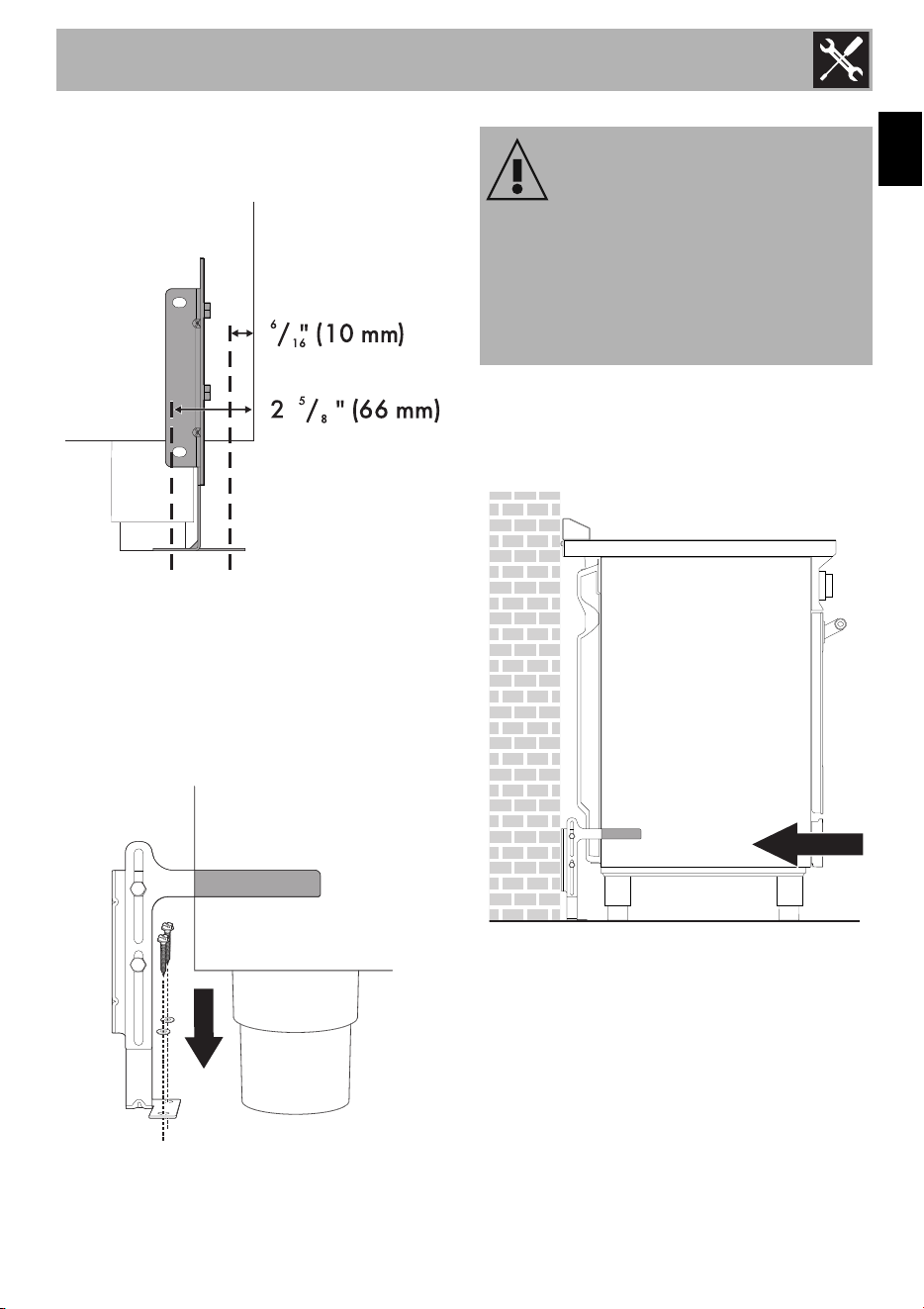

9. Push the cooker towards the wall, and at
the same time, insert the bracket in the
plate that is fastened to the rear of the
appliance.
10. Check for proper installation and use of
the anti-tip bracket. Carefully tip the
range forward by pulling it from the
back to ensure that the anti-tip bracket
engages the range leg and prevents
tip-over. The range should not move
more than 1” (2.5cm).
WARNING
The rear vent trim has
3
/
16
” (5 mm)
standoffs to keep the appliance slightly
away from the back wall. Do not remove
or tamper with standoffs due to potential
temperature issues.
Installation
18
Door removal
It is not necessary to remove the door in
order to install the range, but is an added
convenience. Refer to the Use and Care
Guide for the oven door removal
instructions.
1.5 For the installer
• The plug must remain accessible after the
installation is complete. Do not kink or
trap the mains connection cable.
• The appliance must be fitted according
to the installation diagrams.
• When satisfied with the appliance,
please instruct the user on the correct
method of operation.
• In case the appliance fails to operate
correctly after all checks have been
carried out, refer to the Authorized
Assistance Center in your area.
• LEAVE THESE INSTRUCTIONS WITH
APPLIANCE AFTER INSTALLATION IS
COMPLETE.
