User's Guide
Notations Used in This Guide 7
Using the Manual to Search for Information .....................................8
Searching by Keyword ......................................................................................8
Jumping Directly from Bookmarks .....................................................................8
Printing Only the Pages You Need ..................................................................... 8
Getting the Latest Version of the Documents ................................... 9
Introduction to Your Projector 10
Projector Features ............................................................................. 11
Quick and Easy Setup ......................................................................................11
Easy Wireless Projection ..................................................................................11
Linking with Apple Devices ............................................................................. 12
Projector Parts and Functions .......................................................... 13
Projector Parts - Front
.....................................................................................13
Projector Parts - Rear .......................................................................................14
Projector Parts - Base ...................................................................................... 15
Projector Parts - Control Panel ......................................................................... 16
Projector Parts - Remote Control ......................................................................17
Setting Up the Projector 19
Projector Placement ..........................................................................20
Projector Setup and Installation Options .......................................................... 21

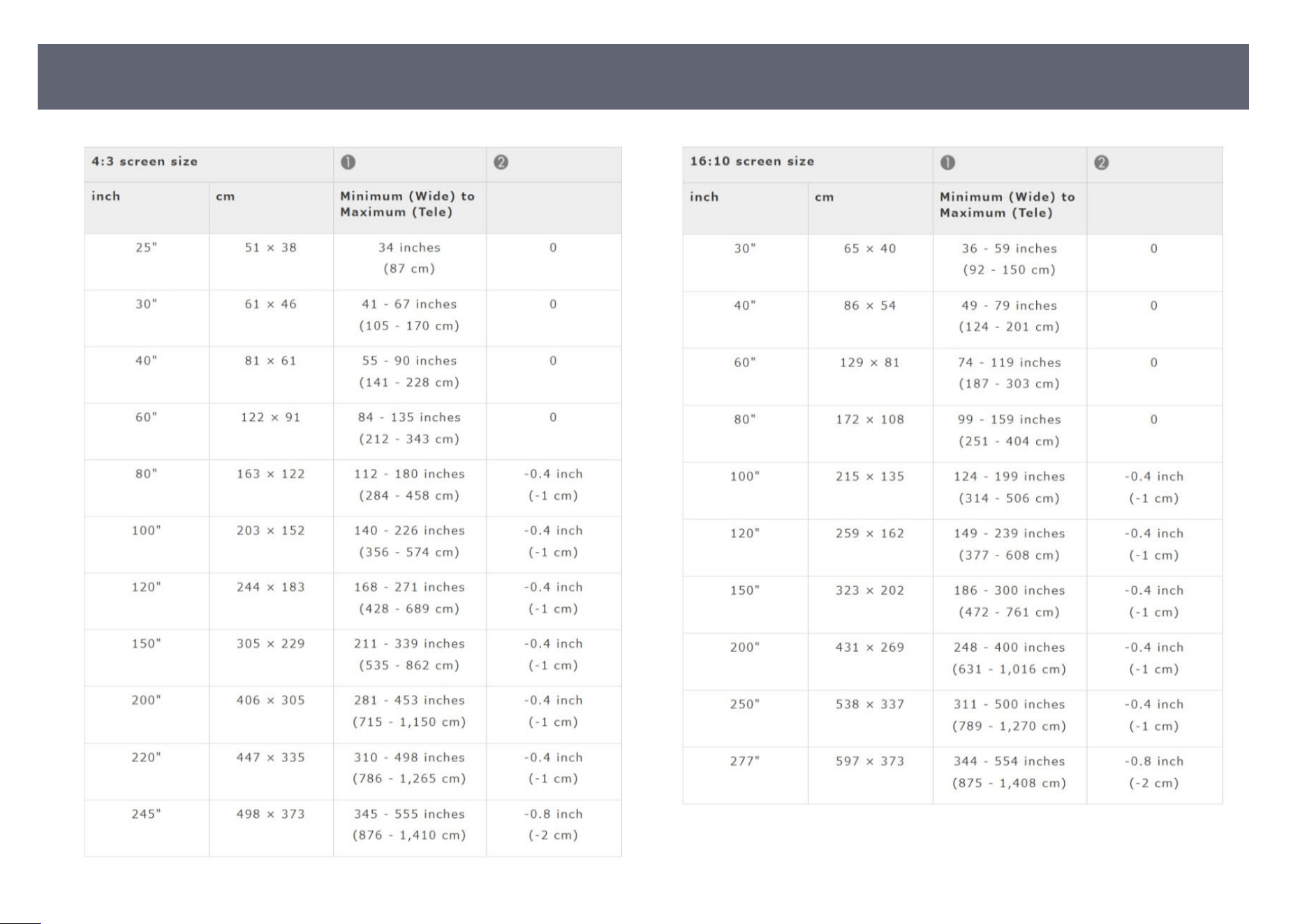

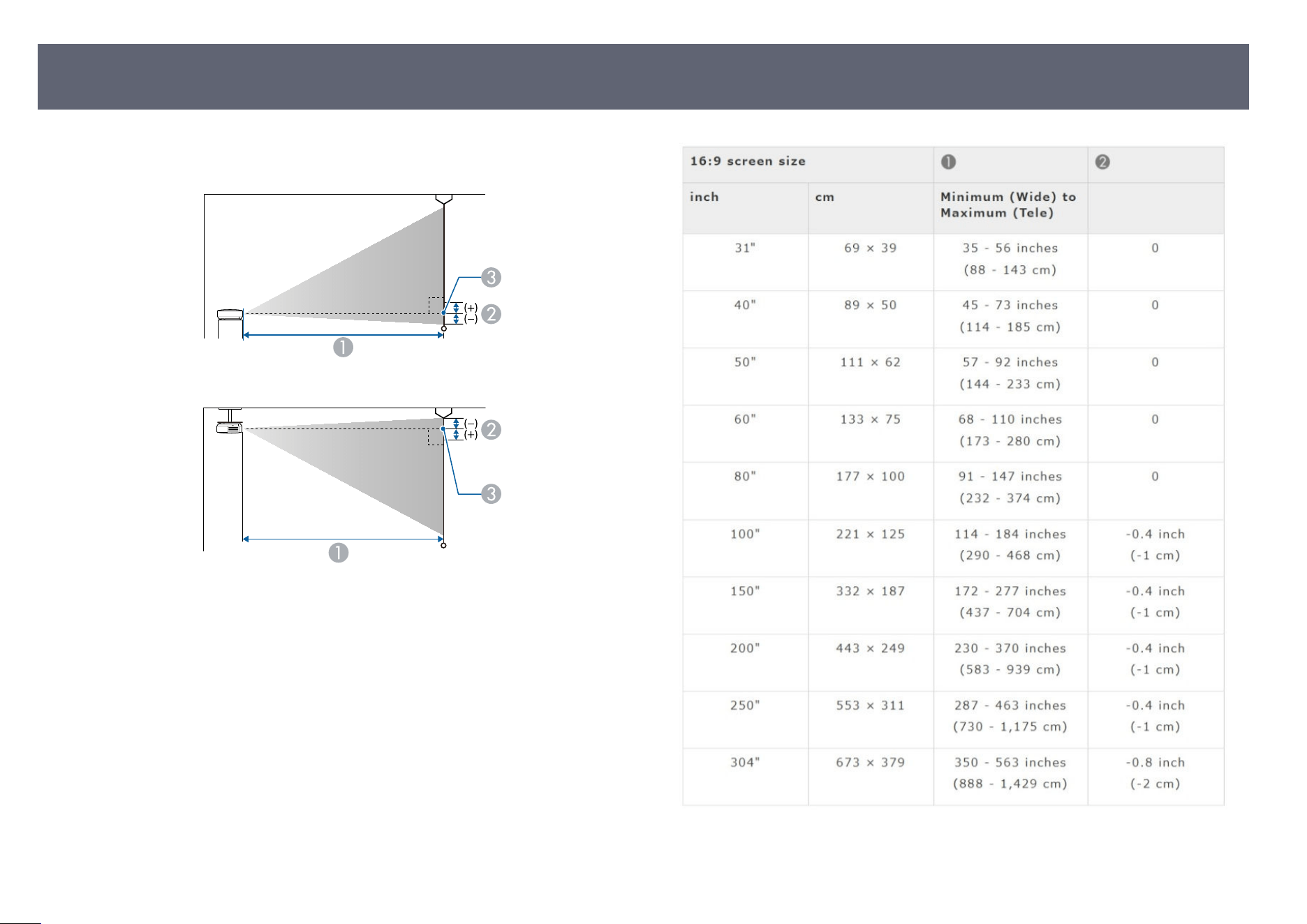

Projection Distance .........................................................................................21
Projector Connections .......................................................................23
Connecting to a Computer
..............................................................................23
Connecting to a Computer for VGA Video and Audio ......................................23
Connecting to a Computer for HDMI Video and Audio ....................................24
Connecting to Video Sources ...........................................................................24
Connecting to an HDMI Video Source ............................................................25
Connecting to a Composite Video Source ......................................................25
Connecting to External USB Devices .................................................................26
USB Device Projection ..................................................................................26
Connecting to a USB Device ......................................................................... 27
Disconnecting a USB Device .........................................................................27
Connecting to a Document Camera ................................................................. 27
Connecting to External Devices ....................................................................... 27
Connecting to a VGA Monitor .......................................................................27
Connecting to External Speakers .................................................................. 28
Connecting a Microphone ............................................................................29

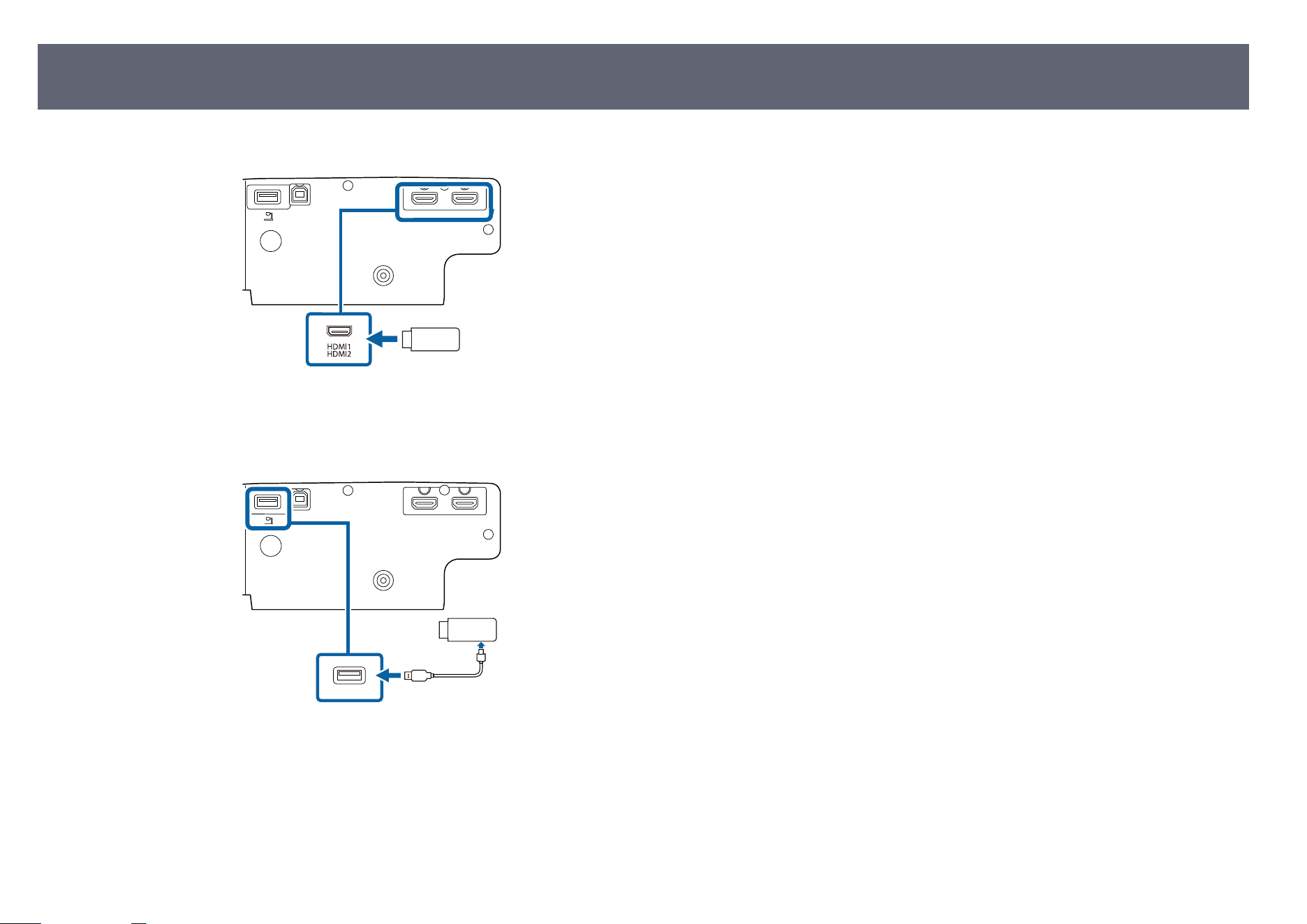

Connecting to a Streaming Media Player .......................................................29
Installing Batteries in the Remote Control ...................................... 31
Remote Control Operation ............................................................... 32
Opening the Lens Cover ....................................................................33
Using Basic Projector Features 34

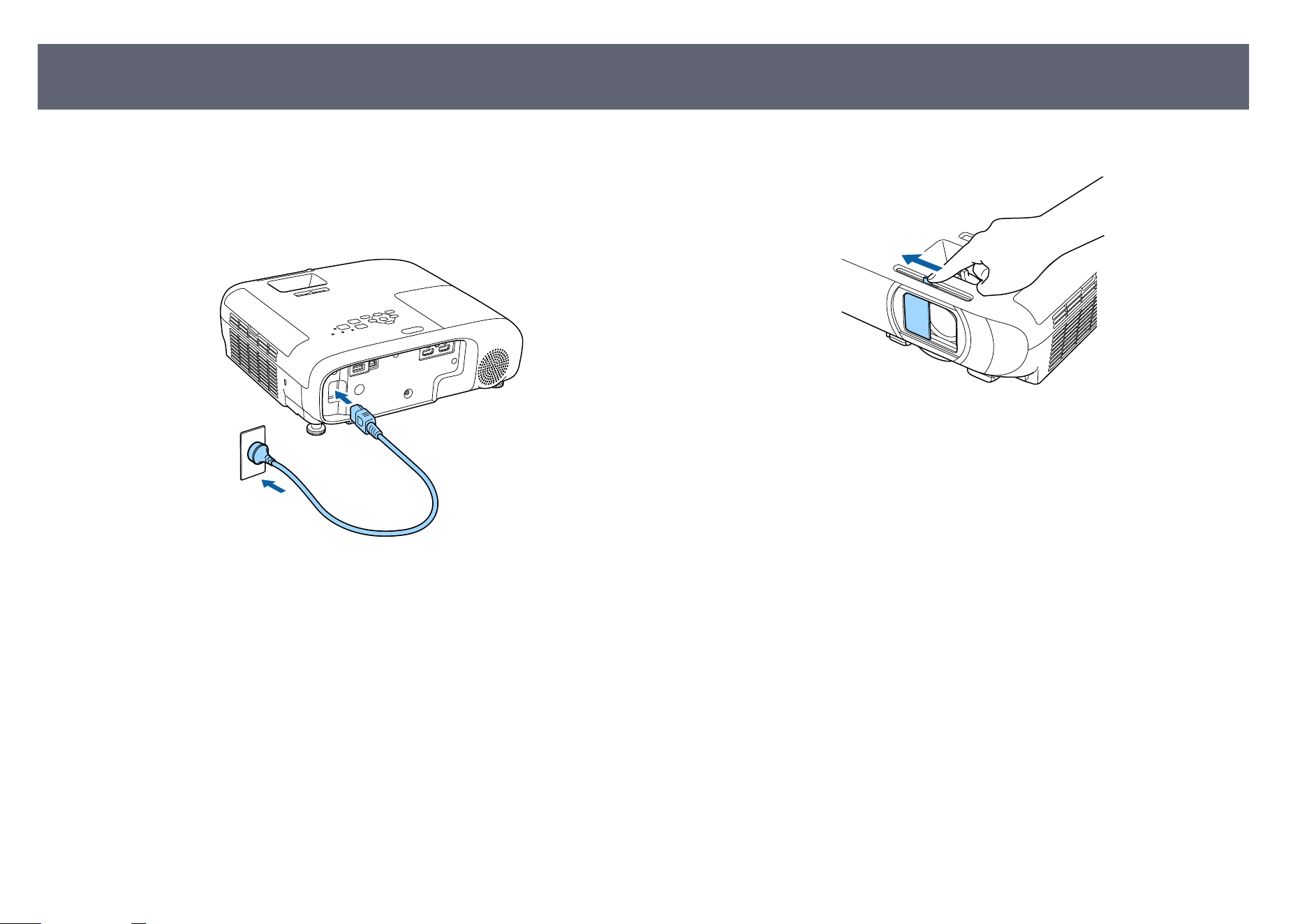

Turning On the Projector .................................................................. 35

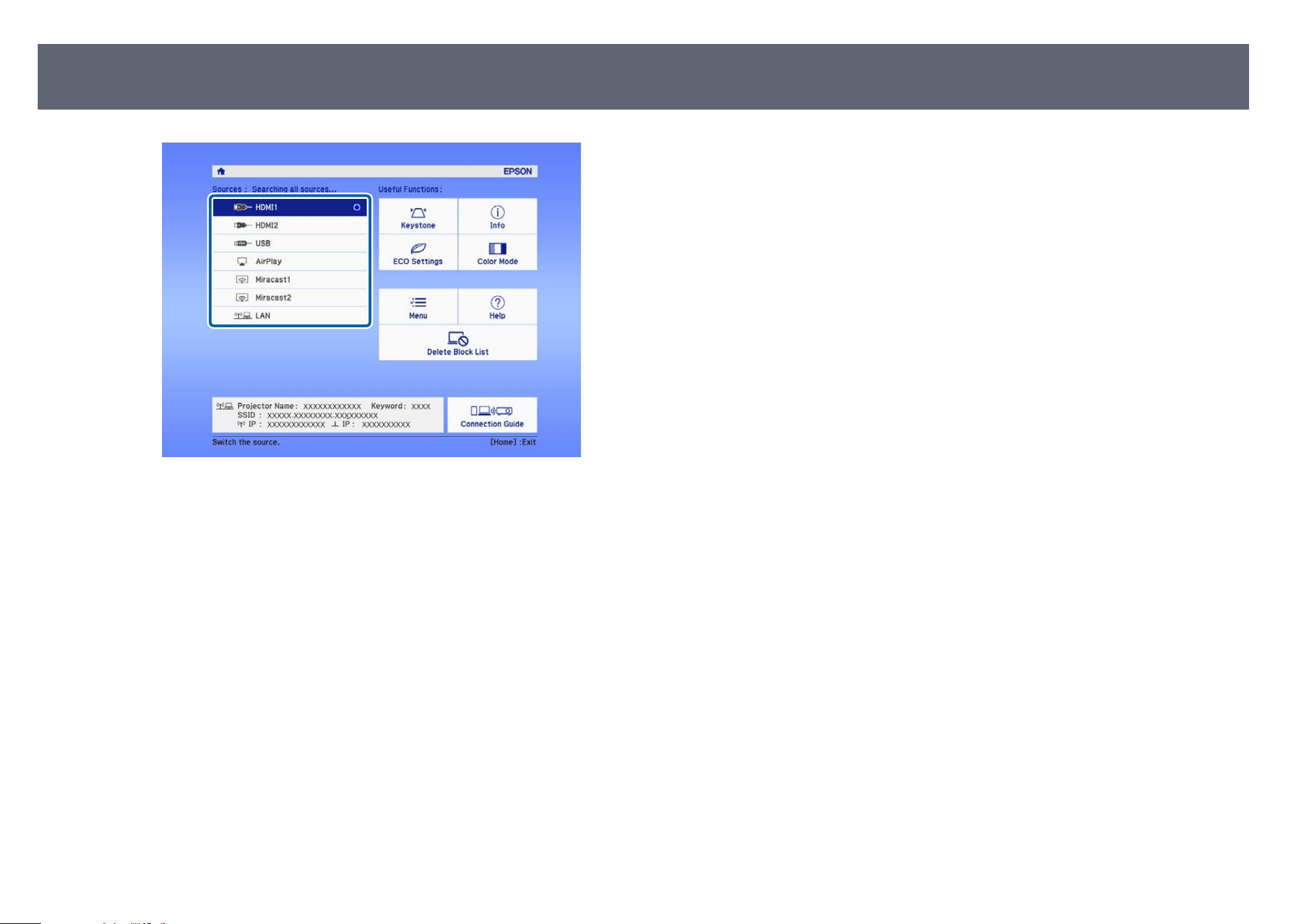

Home Screen ................................................................................................. 36
Turning O the Projector ..................................................................38
Setting the Date and T
ime ................................................................ 39
Selecting the Language for the Projector Menus ........................... 41
Projection Modes ...............................................................................42
Changing the Projection Mode Using the Remote Control ................................. 42
Changing the Projection Mode Using the Menus ...............................................42
Displaying a Test Pattern ..................................................................44
Adjusting the Image Height ............................................................. 45
Image Shape .......................................................................................46
Auto V-Keystone .............................................................................................46
Correcting the Image Shape with the Horizontal Keystone Slider ........................46
Correcting the Image Shape with the Keystone Buttons .....................................47
Correcting the Image Shape with Quick Corner .................................................48
Contents
2
Resizing the Image with the Zoom Ring .......................................... 50
Focusing the Image Using the Focus Ring .......................................51
Selecting an Image Source ................................................................
52
Image Aspect Ratio ............................................................................54
Changing the Image Aspect Ratio ....................................................................54
Available Image Aspect Ratios .........................................................................54
Projected Image Appearance with Each Aspect Mode ....................................... 55
Adjusting Image Quality (Color Mode) ............................................ 56
Changing the Color Mode ............................................................................... 56
Available Color Modes .................................................................................... 56
Setting Auto Iris ..............................................................................................56
Controlling the Volume with the Volume Buttons ......................... 58
Adjusting Projector Features 59
Projecting Two Images Simultaneously (PowerLite 994F) .............60
Unsupported Input Source Combinations for Split Screen Projection ..................62
Split Screen Projection Restrictions .................................................................. 62
HDMI Link Features ........................................................................... 63
Operating the Connected Devices Using the HDMI Link Features
....................... 63
Projecting a PC Free Presentation ....................................................65
Supported PC Free File Types .......................................................................... 65
Precautions on PC Free Projection ....................................................................65
Starting a PC Free Slide Show .......................................................................... 66
Starting a PC Free Movie Presentation ..............................................................67
PC Free Display Options ..................................................................................68
Shutting O the Image and Sound Temporarily .............................70

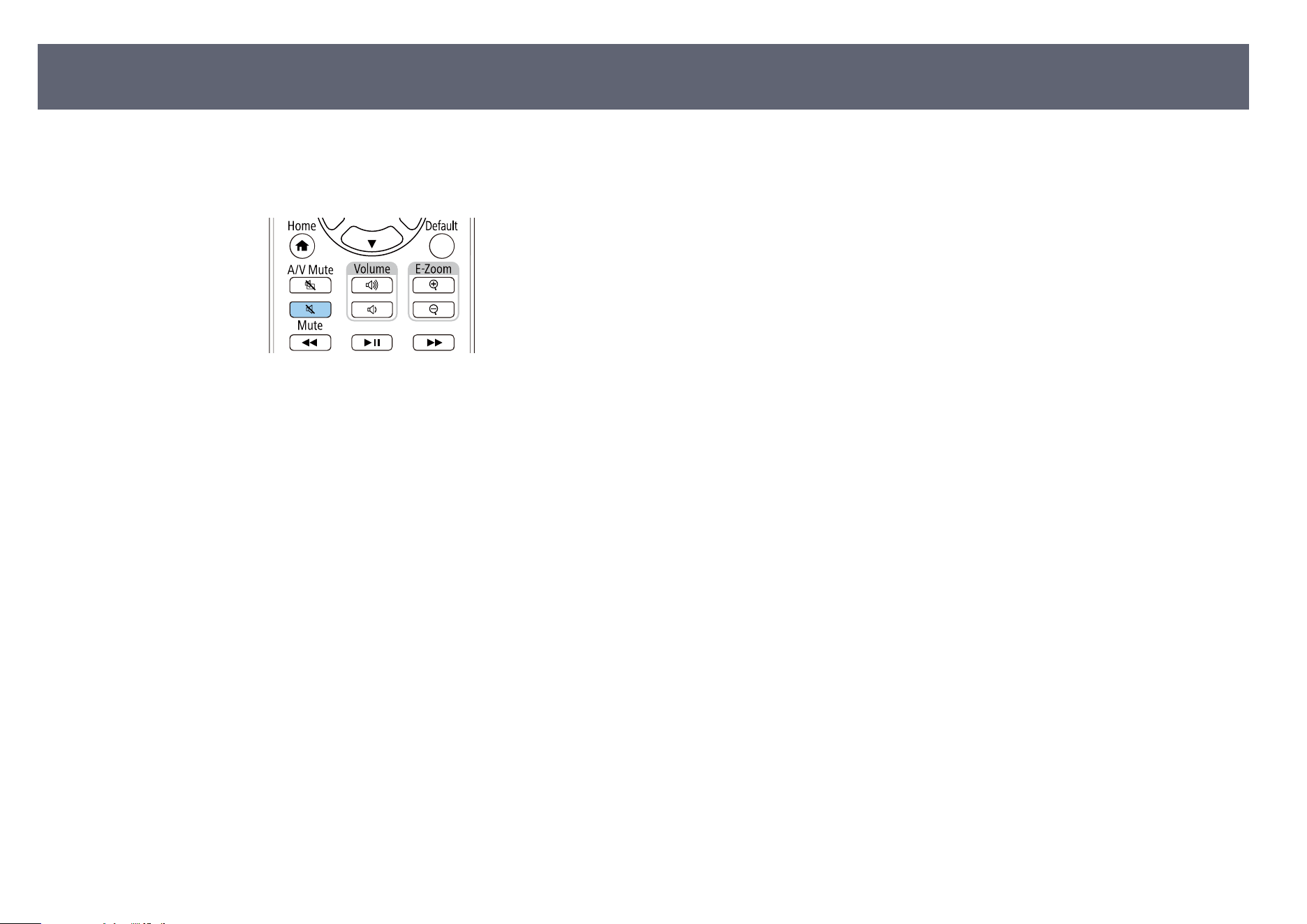

Shutting O the Sound Temporarily ................................................71
Stopping Video Action Temporarily ................................................ 72
Zooming In/Zooming Out of Images (E-Zoom) ............................... 73
Zooming Into Images ......................................................................................73
Zooming Out of Images .................................................................................. 73
Saving a User's Logo Image .............................................................. 75
Saving a User Pattern ........................................................................ 77
Color Dierence Correction when Projecting from Multiple
Projectors ........................................................................................... 78
Setting the Projector ID ...................................................................................78
Selecting the Projector You want to Operate .................................................... 78
Matching Multiple-Projector Display Quality .....................................................79
Projector Security Features .............................................................. 81
Password Security Types .................................................................................81
Setting a Password ...................................................................................... 81
Selecting Password Security Types ................................................................82
Entering a Password to Use the Projector .......................................................83
Locking the Projector's Buttons ....................................................................... 83
Unlocking the Projector's Buttons .................................................................84
Installing a Security Cable ................................................................................84
Using the Projector on a Network 86
Wired Network Projection ................................................................ 87
Connecting to a Wired Network .......................................................................87
Selecting Wired Network Settings ....................................................................87
Wireless Network Projection ............................................................ 90
Safety Instructions for Built-in Wireless LAN Module
..........................................90
Connection Methods for Wireless Network Projection ....................................... 90
Selecting Wireless Network Settings Manually .................................................. 91
Selecting Wireless Network Settings in Windows ...............................................93
Selecting Wireless Network Settings in Mac ......................................................94
Setting Up Wireless Network Security when Simple AP Mode is Set to On ........... 94
Setting Up Wireless Network Security when Simple AP Mode is Set to O ........... 94
Supported Client and CA Certicates .............................................................97
Using a QR Code to Connect a Mobile Device ....................................................97
Using a USB Key to Connect a Windows Computer ............................................98
Contents
3
Wireless Network Projection from a Mobile Device (Miracast) ..... 99
Selecting Miracast Settings ..............................................................................99
Connecting Using Miracast ............................................................................100
Connecting Using Miracast in Windows 10 ...................................................101
Connecting Using Miracast in Windows 11 ...................................................102
Using AirPlay ....................................................................................103
Settings for AirPlay
........................................................................................103
Streaming/Mirroring Media with an AirPlay Connection ...................................105
Secure HTTP ..................................................................................... 107
Importing a Web Server Certicate Using the Menus ....................................... 107
Supported Web Server Certicates ..............................................................108
Monitoring and Controlling the Projector 109
Epson Projector Management Connected / Epson Projector
Management ....................................................................................110

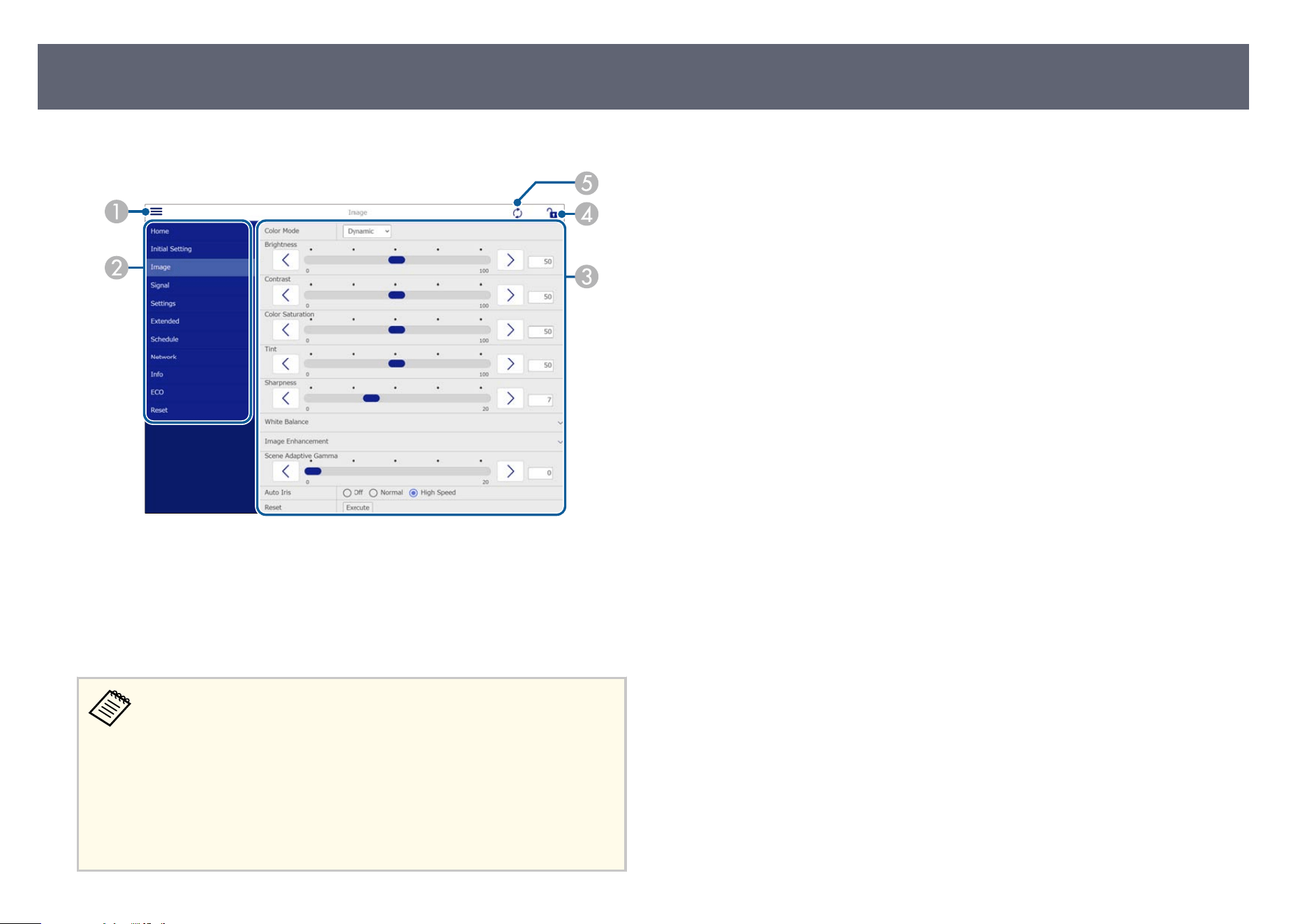

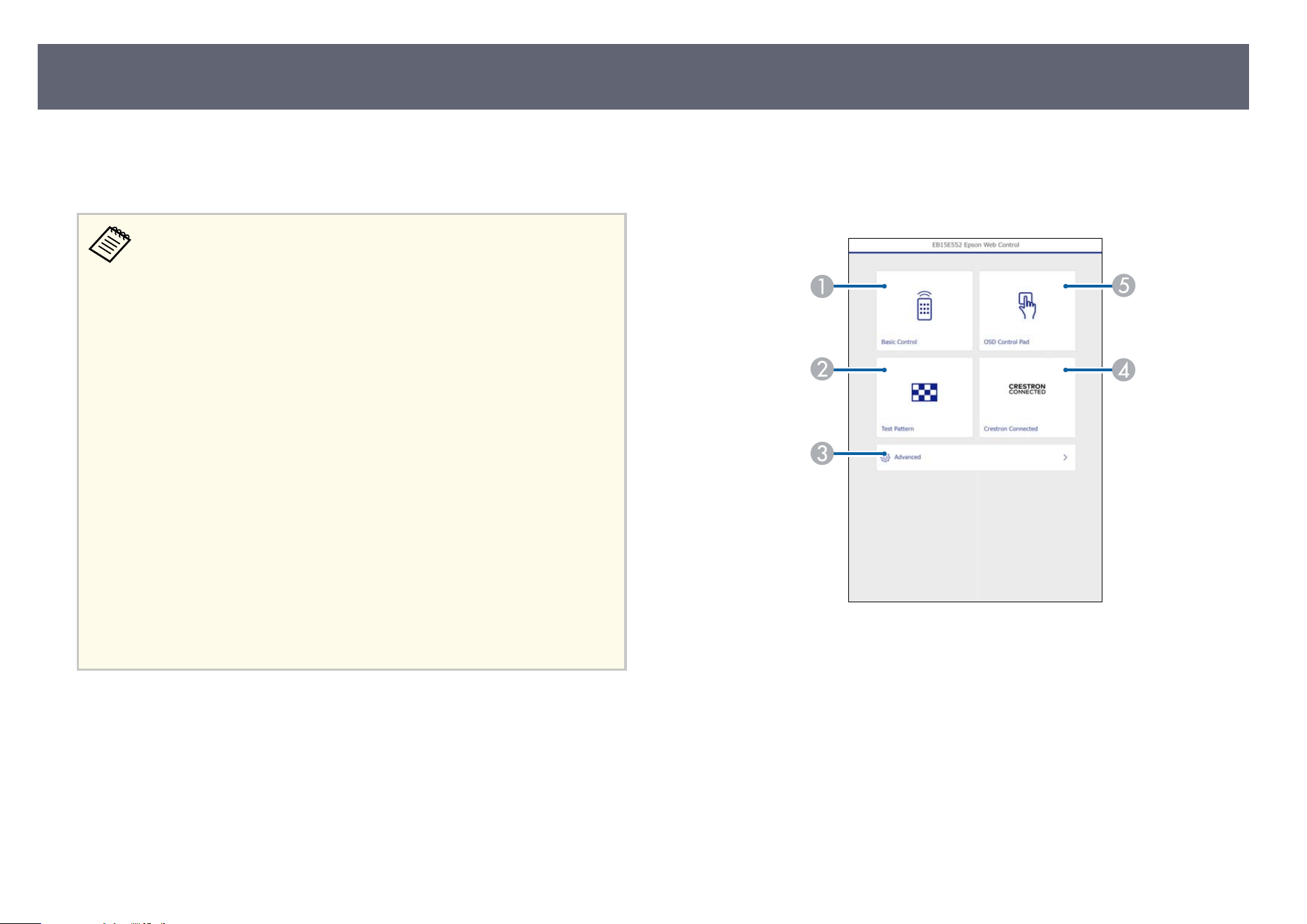

Controlling a Networked Projector Using a Web Browser ...........
111

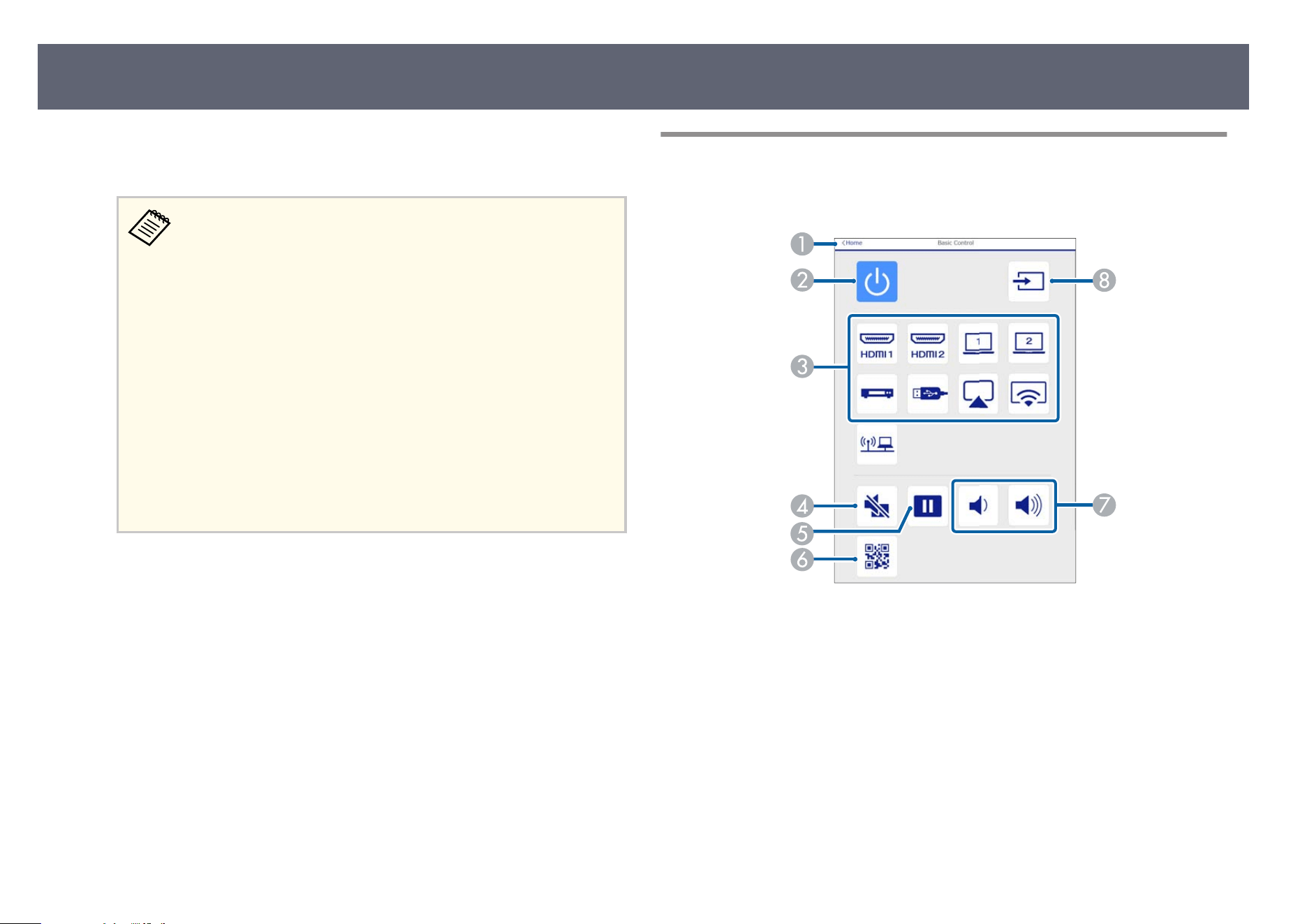

Web Control Options .................................................................................... 112
Registering Digital Certicates from a Web Browser ................... 115
Setting Up Projector Network E-Mail Alerts ..................................116
Network Projector E-mail Alert Messages ........................................................117
Setting Up Monitoring Using SNMP ...............................................118
Using ESC/VP21 Commands .......................................................... 119
ESC/VP21 Command List ...............................................................................119
Cable Layouts ...............................................................................................119
PJLink Support .................................................................................121
Crestron Connected Support ..........................................................122
Setting Up Crestron Connected Support .........................................................122

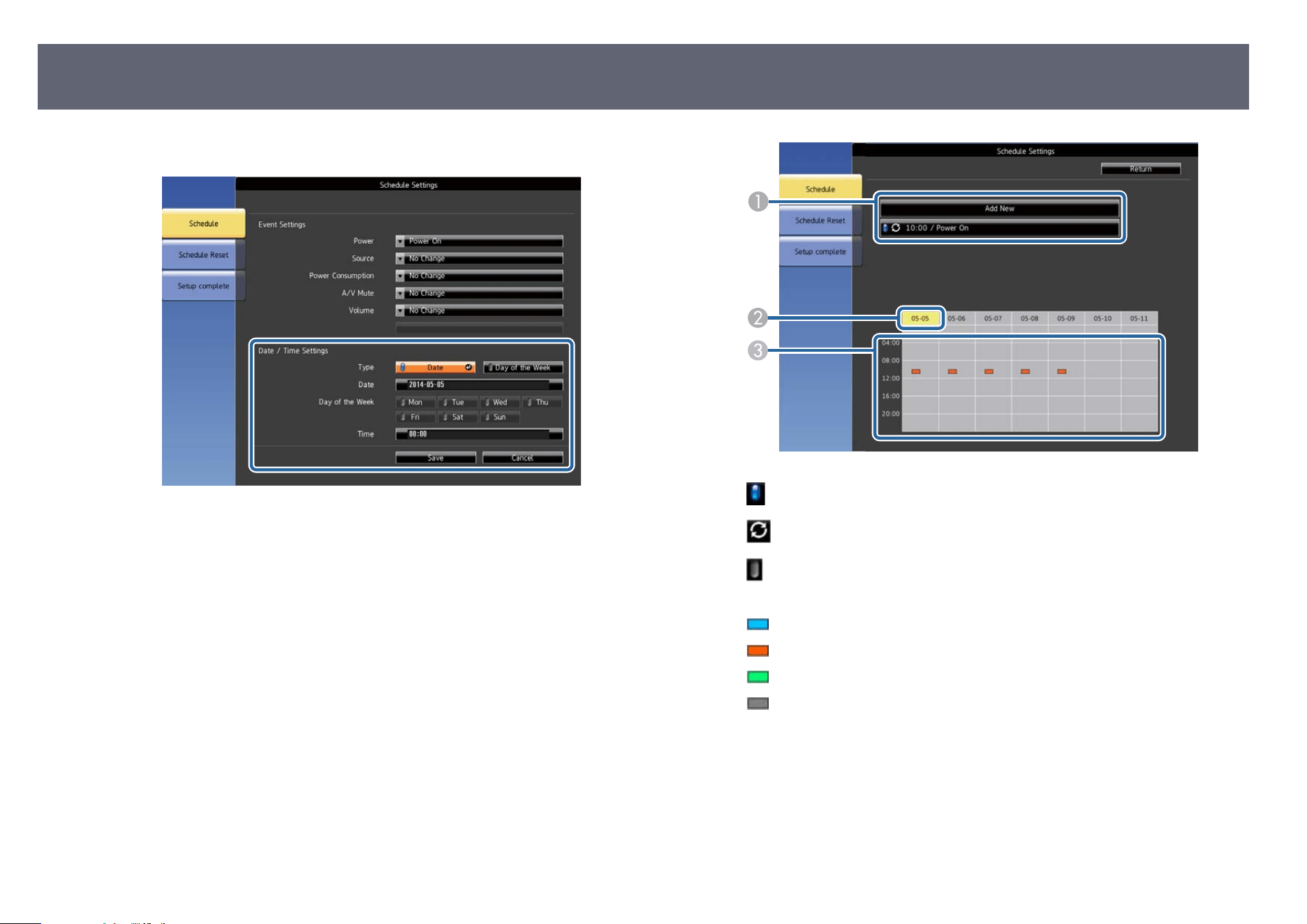

Setting Projector Event Schedules .................................................124
Web API ............................................................................................ 127
Enabling Web API ......................................................................................... 127
Adjusting the Menu Settings 128
Using the Projector's Menus ...........................................................129
Using the Displayed Keyboard .......................................................130
Available Text Using the Displayed Keyboard
..................................................130
Image Quality Settings - Image Menu ............................................131
Input Signal Settings - Signal Menu ...............................................133
Projector Feature Settings - Settings Menu .................................. 134
Projector Setup Settings - Extended Menu ................................... 137
Projector Network Settings - Network Menu ................................ 140
Network Menu - Basic Menu .......................................................................... 141
Network Menu - Wireless LAN Menu ...............................................................142
Network Menu - Wired LAN Menu ..................................................................146
Network Menu - Notications Menu ...............................................................146
Network Menu - Others Menu ........................................................................148
Network Menu - Reset Menu ..........................................................................149
Projector Setup Settings - ECO Menu ............................................ 151
Projector Information Display - Info Menu ................................... 153
Info Menu - Projector Info Menu .....................................................................153
Event ID Code List ......................................................................................154
Projector Reset Options - Reset Menu ........................................... 156
Copying Menu Settings Between Projectors (Batch Setup) .........157
Transferring Settings From a USB Flash Drive .................................................. 157
Transferring Settings From a Computer ..........................................................158
Batch Setup Error Notication .....................................................................159
Contents
4
Maintaining the Projector 160
Projector Maintenance ....................................................................161
Cleaning the Lens ............................................................................ 162
Cleaning the Projector Case ...........................................................
163
Air Filter and Vent Maintenance .................................................... 164
Cleaning the Air Filter and Vents ....................................................................164
Replacing the Air Filter ..................................................................................164
Projector Lamp Maintenance ......................................................... 167
Replacing the Lamp ......................................................................................167
Resetting the Lamp Timer ..............................................................................170
Updating the Firmware ...................................................................171
Updating Firmware Using a USB Storage Device ..............................................171
Updating the Firmware over the Network .......................................................172
Solving Problems 174
Projection Problems ........................................................................175
Projector Indicator Status ...............................................................176
Using the Projector Help Displays ..................................................
179
Solving Image or Sound Problems .................................................180
Solutions When No Image Appears ................................................................ 180
Solutions When "No Signal" Message Appears .................................................180
Displaying From a Laptop ...........................................................................181
Displaying From a Mac Laptop ....................................................................181
Solutions When "Not Supported" Message Appears .........................................181
Solutions When Only a Partial Image Appears ................................................. 181
Solutions When the Image is not Rectangular ................................................. 182
Solutions When the Image Contains Noise or Static .........................................182
Solutions When the Image is Fuzzy or Blurry ................................................... 183
Solutions When the Image Brightness or Colors are Incorrect ...........................183
Solutions to Sound Problems .........................................................................184
Solutions When Image File Names are not Displayed Correctly in PC Free ..........184
Solving Projector or Remote Control Operation Problems ......... 185
Solutions to Projector Power or Shut-O Problems ..........................................185
Solutions to Problems with the Remote Control ..............................................185
Solutions to Password Problems .................................................................... 186
Solution When "The Battery that Saves Your Clock Settings is Running Low"
Message Appears ..........................................................................................186
Solving Network Problems ............................................................. 187
Solutions When Wireless Authentication Fails ................................................. 187
Solutions When You Cannot Access the Projector Through the Web .................187
Solutions When Network Alert E-Mails are not Received ...................................187
Solutions When the Image Contains Static During Network Projection ..............188
Solutions When You Cannot Connect Using Miracast .......................................188
Solutions When the Image or Sound Contains Static During Miracast Connection
....................................................................................................................188
Solutions When You Cannot Connect Using AirPlay .........................................189
Solutions When the Image or Sound Contains Static During AirPlay Connection 189
Solutions When HDMI Link does not Function ............................. 190
Appendix 191
Optional Accessories and Replacement Parts ...............................192
Screens ........................................................................................................192
Mounts ........................................................................................................192
External Devices ........................................................................................... 192
Replacement Parts ........................................................................................192
Screen Size and Projection Distance ..............................................194
Supported Monitor Display Resolutions .......................................
196
Projector Specications .................................................................. 197
Connector Specications ...............................................................................198
Wireless Channels Supported Frequency ........................................................199
External Dimensions ....................................................................... 201
Contents
5
Warning Label ..................................................................................202
List of Safety Symbols and Instructions ........................................ 203
Glossary ............................................................................................
205
Notices ..............................................................................................207
FCC Compliance Statement ...........................................................................207
Innovation, Science and Economic Development Canada (ISED) Notices ...........207
Restriction of Use ..........................................................................................208
Operating System References ........................................................................208
Trademarks ..................................................................................................208
Copyright Notice .......................................................................................... 209
Copyright Attribution ....................................................................................209
Contents
6
Notations Used in This Guide
Saf
ety Symbols
e projector and its manuals use graphical symbols and labels to indicate content that tells you how to use the projector safely.
Read and carefully follow the instructions that are marked with these symbols and labels to avoid injury to persons or damage to property.
Warning
is symbol indicates information that, if ignored, could possibly result in personal injury or even death.
Caution
is symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.
General Information Notations
Attention
is label indicates procedures that may result in damage or injury if sucient care is not taken.
is label indicates additional information that may be useful to know.
[B
utton name] Indicates the name of the buttons on the remote control or the projector.
Exam
ple: [Esc] button
Menu/Setting name Indicates projector menu and setting names.
Exam
ple:
Select the Image menu
s Image > Color Mode
is label indicates links to the related pages.
s
i
s label indicates the projector's current menu level.
g
Related Links
•
"Usin
g the Manual to Search for Information" p.8
•
"Getting the Latest Version of the Documents" p.9
e PDF manual allows you to search for information you are looking for by
k
eyword, or jump directly to specic sections using the bookmarks. You can
also print only the pages you need. is section explains how to use a PDF
manual that has been opened in Adobe Reader X on your computer.
g
Related Links
•
"Searching by Keyword" p.8
•
"Jumping Directly from Bookmarks" p.8
•
"Printing Only the Pages You Need" p.8
Searching by Keyword
Click Edit > Advanced Search. Enter the keyword (text) for information you
want to nd in the search window, and then click Search. Hits are displayed as a
list. Click one of the displayed hits to jump to that page.
Jumping Directly from Bookmarks
Click a title to jump to that page. Click + or > to view the lower level titles in
t
h
at section. To return to the previous page, perform the following operation on
your keyboard.
•
Windows: Hold down Alt, and then press ←.
•
Mac OS: Hold down the command key, and then press ←.
Printing Only the Pages You Need
You can extract and print only the pages you need. Click Prin
t in the File menu,
and then specify the pages you want to print in Pages in Pages to Print.
•
To specify a series of pages, enter a hyphen between the start page and the
end page.
Example: 20-25
•
To specify pages that are not in series, divide the pages with commas.
Example: 5, 10, 15
Using the Manual to Search for Information
8
is projector comes with these special features. Refer to these sections for more
det
ails.
g
Related Links
•
"Quick and Easy Setup" p.11
•
"Easy Wireless Projection" p.11
•
"Linking with Apple Devices" p.12
Quick and Easy Setup
•
Direct Power On feature to turn on the projector as soon as you plug it in.
•
Auto Power On feature to turn on the projector when the projector detects an
image signal from the port you specied as the Auto Power On source.
•
Home screen feature to easily select an input source and useful functions.
•
Automatic vertical keystone correction always displays a rectangular screen
( Auto V-Keystone).
•
Horizontal keystone slider allows you to quickly correct horizontal distortion
in the projected image.
g
Related Links
•
"Tur
ning On the Projector" p.35
•
"Projector Setup Settings - Extended Menu" p.137
•
"Correcting the Image Shape with the Horizontal Keystone Slider" p.46
•
"Auto V-Keystone" p.46
Easy Wireless Projection
•
Mirac
ast to connect your projector and mobile device wirelessly using
Miracast technology.
•
Eps
on iProjection (Windows/Mac) to project up to four images at the same
time by splitting the projected screen. You can project images from computers
on the network, or from smartphones or tablet devices.
See the Epson iProjection Operation Guide (Windows/Mac) for details.
Projector Features
11
You can download the necessary s o
ware and manuals from the
following Web site:
epson.com/support (U.S.)
epson.ca/support (Canada)
latin.epson.com/support (Latin America)
•
Epson iProjection (iOS/Android) to connect your projector and mobile
device wirelessly using the app available on the App Store or Google Play.
Any fees incurred when communicating with the App Store or Google
Pl
ay are the responsibility of the customer.
•
Eps
on iProjection (Chromebook) to connect your projector and
Chromebook device wirelessly using the app available on the Chrome Web
Store.
Any fees incurred when communicating with the Chrome Web Store
are t
he responsibility of the customer.
g
Related Links
•
"Usin
g the Projector on a Network" p.86
Linking with Apple Devices
•
Wi
th AirPlay, you can stream media such as videos, music, and photos to this
projector using Apple devices that support AirPlay.
•
By r
egistering the projector with Apple HomeKit on your Apple device, you
can control the projector using your Apple device.
Use of the Works with Apple AirPlay badge means that an accessory has been
design
ed to work specically with the technology identied in the badge and
has been certied by the developer to meet Apple performance standards.
Use of the Works with Apple badge means that an accessory has been designed
to work specically with the technology identied in the badge and has been
certied by the developer to meet Apple performance standards. Apple is not
responsible for the operation of this device or its compliance with safety and
regulatory standards.
Controlling this HomeKit-enabled accessory automatically and away from
home requires a HomePod, HomePod mini, or Apple TV set up as a home
hub. It is recommended that you update to the latest soware and operating
system.
Projector Features
12
e following sections explain the projector parts and their functions.
A
ll of the features in this guide are explained using illustrations of EX9270/
PowerLite 1290/PowerLite FH54+ unless otherwise mentioned.
g
Related Links
•
"Projector Parts - Front" p.13
•
"Projector Parts - Rear" p.14
•
"Projector Parts - Base" p.15
•
"Projector Parts - Control Panel" p.16
•
"Projector Parts - Remote Control" p.17
Projector Parts - Front
Name Function
A
Air exhaust vent Exhaust vent for air used to cool the projector internally.
Name Function
Warning
Do n
ot look into the vents. If the lamp
explodes, gases may escape and small
fragments of glass may be scattered which
could cause an injury. Contact a doctor if any
fragments of broken glass are inhaled or get
into the eyes or mouth.
Caution
Whi
le projecting, do not put your face or hands
near the air exhaust vent, and do not place
objects that may become warped or damaged
by heat near the vent. Hot air from the air
exhaust vent could cause burns, warping, or
accidents to occur.
B
A/V Mute slide lever Slide the knob to open and close the lens cover.
C
Foot release lever Press the foot release lever to extend and retract the
fr
ont adjustable foot.
D
Lens cover Close when not using the projector to protect the lens.
By c
losing it during projection you can hide the image
and the sound.
E
Front adjustable foot When the projector is set up on a surface such as a desk,
exten
d the foot to adjust the position of the image.
F
Lens Images are projected from here.
G
Remote receiver Receives signals from the remote control.
H
Horizontal keystone
slider
C
orrects horizontal distortion in the projected image.
I
Air intake vent (air
lt
er)
Takes in air to cool the projector internally.
J
Air lter cover Open to access the air lt
er.
Projector Parts and Functions
13
Name Function
K
Security slot e security slot is compatible with the Microsaver
S
ecurity System manufactured by Kensington.
L
Control panel Operates the projector.
M
Zoom ring Adjusts the image size.
N
Focus ring Adjusts the image focus.
e sh
ape may vary depending on the model of your
projector.
O
Lamp cover Open to access the projector's lamp.
g
Related Links
•
"R
esizin
g the Image with the Zoom Ring" p.50
•
"Focusing the Image Using the Focus Ring" p.51
•
"Projector Indicator Status" p.176
•
"Correcting the Image Shape with the Horizontal Keystone Slider" p.46
Projector Parts - Rear
EX9270/PowerLite 1290/PowerLite FH54+
PowerLite 994F
Name Function
A
Power inlet Connects the power cord to the projector.
B
Remote receiver Receives signals from the remote control.
C
Audio Out port Outputs audio from the current input source to an
ext
er
nal speaker.
D
Speaker Outputs audio.
E
HDMI1, HDMI2
po
rts
Inputs video signals from HDMI compatible video
equipment and computers.
is projector is compatible with HDCP.
F
USB-B port Use this to copy menu settings when using the batch
set
tings function.
G
USB-A (
)
po
rt
Connects a USB memory device or a digital camera and
projects movies or images using PC Free.
Connects the optional document camera.
Provides a connection for a commercially available
streaming media player allowing you to power it.
Projector Parts and Functions
14
Name Function
H
RS-232C port Connects an RS-232C cable to control the projector
fr
om a computer. (You do not need to use this port
normally.)
I
Video port Inputs composite video signals from video sources.
J
Mic port Inputs audio from the microphone.
K
L-Audio-R ports Inputs audio from equipment connected to the Video
po
rt.
L
Monitor Out port Outputs analog RGB signals input from the Computer1
po
rt to an external monitor. You cannot output signals
input from other ports.
M
Audio 1 port Inputs audio from equipment connected to the
Co
mputer1 port.
N
Audio 2 port Inputs audio from equipment connected to the
Co
mputer2 port.
O
Computer2 port Inputs image signals from a computer.
P
Computer1 port Inputs image signals from a computer.
Q
LAN port Connects a LAN cable to connect to a network.
Projector Parts - Base
Name Function
A
Ceiling mount xing
p
oints (three points -
M4×9)
Use all the xing points to attach the optional ceiling
mount here when suspending the projector from a
ceiling.
B
Security cable
att
achment point
Pass a commercially available wire lock through here
and lock it in place.
You can also attach the optional safety wire here to
prevent the projector from falling from the ceiling or
wall.
Projector Parts and Functions
15
Name Function
C
Rear feet When the projector is set up on a surface such as a
desk, t
urn to extend and retract the feet to adjust the
horizontal tilt.
D
Front adjustable foot When the projector is set up on a surface such as a desk,
exten
d the foot to adjust the position of the image.
g
Related Links
•
"In
stalling a Security Cable" p.84
Projector Parts - Control Panel
Name Function
A
[Source Search]
b
u
tton
Switches to the next input source.
Name Function
B
[Enter] button [ ]
Enters the current selection and moves to the next level
whi
le displaying the projector's menu or help.
Optimizes Tracking, Sync., and Position in the
projector's Signal menu while projecting an analog RGB
signal from the Computer port.
C
Keystone adjustment
bu
ttons and arrow
buttons
Displays the Keystone screen allowing you to correct
keystone distortion.
Selects menu items while displaying the projector's
menu or help.
D
[Esc] button Stops the current function.
Mo
ves back to the previous menu level while displaying
the projector's menu.
E
Volume buttons and
arr
ow buttons
: Decreases the volume.
: Increases the volume.
Co
rrects keystone distortion in the horizontal direction
when the Keystone screen is displayed.
Selects menu items while displaying the projector's
menu or help.
F
[Menu] button Displays and closes the projector's menu.
G
[Home] button Displays and closes the Home screen.
H
Power button [
]
Turns the projector on or o.
I
I
ndicators Indicates the projector's status.
g
Related Links
•
"Input Signal Settings - Signal Menu" p.133
•
"Home Screen" p.36
•
"Projector Indicator Status" p.176
•
"Correcting the Image Shape with the Keystone Buttons" p.47
Projector Parts and Functions
16
Projector Parts - Remote Control
Name Function
A
Power button [
]
Turns the projector on or o
.
B
[HD
MI] button Switches the image source between the HDMI ports.
C
[Wireless] button Switches the image source to a device connected over
th
e network.
D
Numeric buttons Enters numbers in the projector's menu.
E
[Customize] button Performs the function set for the Cus
tomize Button in
the Settings menu.
F
[Menu] button Displays and closes the projector's menu.
G
Arrow buttons Selects menu items while displaying the projector's
men
u.
H
[Enter] button [
]
Enters the current selection and moves to the next level
whi
le displaying the projector's menu.
I
[Home] button Displays/exits the home screen.
J
[Volume] up/down
bu
ttons
Adjusts the speaker volume.
K
[A/V Mute] button Turns the video and audio on or o
temporarily.
L
[Mute] button Mutes the audio temporarily.
M
Playback control
bu
ttons
Controls devices that comply with the HDMI CEC
standard.
Controls media being streamed with AirPlay.
N
[Freeze] button Pauses or resumes images.
O
[E-Zoom] +/– buttons Resizes the projected image.
P
[Default] button Returns the selected setting to its default value.
Q
[Esc] button Stops the current function.
M
o
ves back to the previous menu level while displaying
the projector's menu.
Projector Parts and Functions
17
Name Function
R
[ID] button Hold down this button and press the numeric buttons to
se
lect the ID for the projector you want to operate using
the remote control.
S
[0/All] button Allows you to operate all projectors regardless of the
Pr
ojector ID setting.
T
[Computer/
HDB
aseT] button
Switches the image source to the Computer ports.
is button may not be available depending on the
model you are using.
U
[USB] button Switches the image source to the USB-A port.
V
[Source Search]
bu
tton
Switches to the next input source.
W
Remote control light
emit
ting area
Outputs remote control signals.
g
Related Links
•
"In
put Signal Settings - Signal Menu" p.133
•
"Projector Setup Settings - Extended Menu" p.137
•
"Projecting a PC Free Presentation" p.65
•
"Projecting Two Images Simultaneously (PowerLite 994F)" p.60
•
"Using the Projector on a Network" p.86
•
"Home Screen" p.36
Projector Parts and Functions
18
You can place the projector on almost any at sur
face to project an image.
You can also install the projector in a ceiling mount if you want to use it in
a xed location. An optional ceiling mount is required when suspending the
projector from a ceiling.
Note the following points when selecting a projector location:
•
Place the projector on a sturdy, level surface or install it using a compatible
mount.
•
Le
ave plenty of space around and under the projector for ventilation, and do
not place it on top of or next to anything that could block the vents.
•
Place the projector so it squarely faces the screen, not at an angle.
If you cannot install the projector squarely facing the screen, correct
any r
esulting keystone distortion using the projector controls. For the
best quality images, we recommend adjusting the installation position
of the projector to achieve the correct image size and shape.
Warning
•
Yo
u must install a ceiling mount when suspending the projector from a ceiling. If
you do not install the projector correctly, it could fall and cause damage or injury.
•
Do not use adhesives on the ceiling mount xing points to prevent the screws
from loosening, or use lubricants, oils, or similar substances on the projector; the
projector case may crack causing it to fall from its ceiling mount. is could cause
serious injury to anyone under the ceiling mount and could damage the projector.
•
Improper installation of the ceiling mount and projector could cause the projector
to fall. Secure the ceiling mount using all of the ceiling mount xing points
specied in the projector's User's Guide. Also, use a wire or other item that is
strong enough to secure the projector and the mount. Use only mounts specied
by Epson that are compatible with this projector.
•
Do not install the projector in a location subject to high levels of dust or humidity,
or in a location subject to smoke or steam. Otherwise, it could cause a re
or electric shock to occur. e projector's case could also deteriorate and be
damaged causing the projector to fall from the mount.
Examples of environments that could cause the projector to fall due to case
deterioration
•
Locations subject to excessive smoke or airborne oil particles, such as factories
or kitchens
•
Locations containing volatile solvents or chemicals, such as factories or
laboratories
•
Locations where the projector could be subjected to detergents or chemicals,
such as factories or kitchens
•
Locations in which aroma oils are oen used, such as relaxation rooms
•
Near devices that produce excessive smoke, airborne oil particles, or foam at
events
Projector Placement
20
Warning
•
Do n
ot cover the projector's air intake or air exhaust vents. If the vents are
covered, the internal temperature could rise and cause a re.
•
Do not use or store the projector in locations where it will be subject to dust or
dirt. Otherwise, the quality of the projected image may decline, or the air lter
may become clogged, resulting in a malfunction or re.
•
Do not install the projector on an unstable surface or in a location beyond the
weight specications of the projector. Otherwise, it could fall or topple causing an
accident and injury.
•
When installing the projector in a high position, take measures to prevent falling
by using wires to ensure safety in an emergency, such as an earthquake, and to
prevent accidents. If it is not installed correctly, it could fall causing an accident
and injury.
•
Do not install in locations where salt damage could occur, or in locations subject
to corrosive gas such as sulphuric gas from hot springs. Otherwise, corrosion
could cause the projector to fall. It could also cause the projector to malfunction.
Attention
•
Do n
ot operate the projector on its side. is may cause the projector to
malfunction.
•
If you are using the projector at altitudes above 4,921 feet (1,500 m), set the High
Altitude Mode setting to On in the projector's menu to ensure the projector's
internal temperature is regulated properly.
s Extended > Operation > High Altitude Mode
•
Try not to setup the projector in locations subject to high humidity and dust, or in
locations subject to smoke from res or tobacco smoke.
g
Related Links
•
"Pr
ojector Setup and Installation Options" p.21
•
"Projection Distance" p.21
•
"Image Shape" p.46
•
"Projector Setup Settings - Extended Menu" p.137
Projector Setup and Installation Options
You can set up or install your projector in the following ways:
Fr
ont/Rear
Front Ceiling/Rear Ceiling
Make sure you select the correct Pr
ojection option in the projector's Extended
menu according to the installation method being used.
g
Related Links
•
"Projection Modes" p.42
Projection Distance
e distance at which you place the projector from the screen determines the
ap
proximate size of the image. e image size increases the farther the projector
Projector Placement
21
is from the screen, but can vary depending on the zoom factor, aspect ratio, and
ot
her settings.
See the Appendix for details about how far to place the projector from the
screen based on the size of the projected image.
When correcting keystone distortion, your image is slightly smaller.
g
Related Links
•
"Screen Size and Projection Distance" p.194
Projector Placement
22
See these sections to connect the projector to a variety of projection sources.
Attention
Ch
eck the shape and orientation of the connectors on any cable you plan to connect.
Do not force a connector into a port if it does not t. e device or your projector
could be damaged or could malfunction.
Purchase optional or commercially available cables when necessary.
g
Related Links
•
"Co
nnecting to a Computer" p.23
•
"Connecting to Video Sources" p.24
•
"Connecting to External USB Devices" p.26
•
"Connecting to a Document Camera" p.27
•
"Connecting to External Devices" p.27
Connecting to a Computer
Follow the instructions in these sections to connect a computer to the projector.
g
Related Links
•
"Co
nnecting to a Computer for VGA Video and Audio" p.23
•
"Connecting to a Computer for HDMI Video and Audio" p.24
Connecting to a Computer for VGA Video and Audio
Yo
u can connect the projector to your computer using a VGA computer cable.
(PowerLite 994F)
You can play sound through the projector's speaker system by connecting a
commercially available 3.5 mm stereo mini-jack audio cable.
•
To co
nnect a computer that does not have a VGA video port, you need
an adapter that allows you to connect to the projector's VGA video
port.
•
You can also set the port used for audio input in the projector's
Extended menu.
s Extended > A/V Settings > Audio Settings > Audio Output
•
Make sure the audio cable is labeled "No resistance".
a
Connect the VGA computer cable to your computer's monitor port.
b
Connect the other end to a Computer port on the projector.
c
Tighten the screws on the VGA connector.
d
Connect the audio cable to your laptop's headphone or audio-out jack, or
yo
ur desktop's speaker or audio-out port.
Projector Connections
23
e
Connect the other end to the Audio port that corresponds to the
Co
mputer port you are using.
g
Related Links
•
"Pr
ojector Setup Settings - Extended Menu" p.137
Connecting to a Computer for HDMI Video and Audio
If y
our computer has an HDMI port, you can connect it to the projector using
an HDMI cable and send the computer's audio with the projected image.
To connect a Mac that does not have an HDMI port, you need an adapter
th
at allows you to connect to the projector's HDMI port. Contact Apple
for compatible adapter options. Older Mac computers (2009 and earlier)
may not support audio through the HDMI port.
a
Connect the HDMI cable to your computer's HDMI output port.
b
Connect the other end to the projector's HDMI port.
If you have problems hearing audio through the HDMI connection,
conn
ect one end of a commercially available 3.5 mm stereo mini-jack
audio cable to the projector's Audio port and the other end to your
computer's audio out port. Select the audio input port you connected to in
the projector's Extended menu. (PowerLite 994F)
s Extended > A/V Settings > Audio Settings > HDMI1 Audio Output
s Extended > A/V Settings > Audio Settings > HDMI2 Audio Output
g
Related Links
•
"Pr
ojector Setup Settings - Extended Menu" p.137
Connecting to Video Sources
Follow the instructions in these sections to connect video devices to the
pr
ojector.
Projector Connections
24
•
If t
he port on the device you connect has an unusual shape, use the
cable supplied with the device or an optional cable to connect to the
projector.
•
e cable diers depending on the output signal from the connected
video devices.
•
Some video devices are capable of outputting dierent types of signals.
See your video device manual to conrm what type of signals can be
output.
g
Related Links
•
"Co
nnecting to an HDMI Video Source" p.25
•
"Connecting to a Composite Video Source" p.25
Connecting to an HDMI Video Source
If y
our video source has an HDMI port, you can connect it to the projector
using an HDMI cable and send the image source's audio with the projected
image.
Attention
D
o n
ot turn on the video source before connecting it to the projector. Doing so could
damage the projector.
a
Connect the HDMI cable to your video source's HDMI output port.
b
Connect the other end to the projector's HDMI port.
If you have problems hearing audio through the HDMI connection,
conn
ect one end of a commercially available 3.5 mm stereo mini-jack
audio cable to the projector's Audio port and the other end to your video
source's audio out port. Select the audio input port you connected to in
the projector's Extended menu. (PowerLite 994F)
s Extended > A/V Settings > Audio Settings > HDMI1 Audio Output
s Extended > A/V Settings > Audio Settings > HDMI2 Audio Output
g
Related Links
•
"Pr
ojector Setup Settings - Extended Menu" p.137
Connecting to a Composite Video Source
If y
our video source has a composite video port, you can connect it to the
projector using a RCA-style video or A/V cable. (PowerLite 994F)
You can play sound through the projector's speaker system by connecting a
commercially available RCA audio cable.
Make sure the audio cable is labeled "No resistance".
Projector Connections
25
a
Connect the cable with the yellow connector to your video source's yellow
vide
o output port.
b
Connect the other end to the projector's Video port.
c
Connect the audio cable to your video source's audio-out ports.
d
Connect the other end to the projector's L-Audio-R ports.
Connecting to External USB Devices
Follow the instructions in these sections to connect external USB devices to the
pr
ojector.
g
Related Links
•
"USB D
evice Projection" p.26
•
"Connecting to a USB Device" p.27
•
"Disconnecting a USB Device" p.27
USB Device Projection
Y
o
u can project images and other content without using a computer or video
device by connecting any of these devices to your projector:
•
USB ash drive
•
Digital camera or smartphone
•
USB hard drive
•
Digi
tal cameras or smartphones must be USB-mounted devices, not
TWAIN-compliant devices, and must be USB Mass Storage Class-
compliant.
•
USB hard drives must meet these requirements:
•
USB Mass Storage Class-compliant (not all USB Mass Storage Class
devices are supported)
•
Formatted in FAT16/32
•
Self-powered by their own AC power supplies (bus-powered hard
drives are not recommended)
•
Avoid using hard drives with multiple partitions
You can project slide shows from image les on a co
nnected USB device.
g
Related Links
•
"Projecting a PC Free Presentation" p.65
Projector Connections
26
Connecting to a USB Device
Yo
u can connect your USB device to the projector's USB-A port and use it to
project images and other content.
a
If your USB device came with a power adapter, plug the device into an
ele
ctrical outlet.
b
Connect the USB cable or USB ash
drive to the projector's USB-A port as
shown.
Attention
•
Us
e the USB cable supplied with or specied for use with the device.
•
Do not connect a USB hub or a USB cable longer than 9.8 feet (3 m), or the
device may not operate correctly.
c
Connect the other end to your device, if necessary.
Disconnecting a USB Device
Wh
en you have nished presenting with a connected USB device, disconnect
the device from the projector.
a
Turn o
and unplug the device, if necessary.
b
Di
sconnect the USB device from the projector.
Connecting to a Document Camera
You can connect a document camera to your projector to project images viewed
by the camera.
e connection method varies depending on your Epson document camera
model. See the document camera manual for details.
Connecting to External Devices
Follow the instructions in these sections to connect external devices to the
p
r
ojector.
g
Related Links
•
"Connecting to a VGA Monitor" p.27
•
"Connecting to External Speakers" p.28
•
"Connecting a Microphone" p.29
•
"Connecting to a Streaming Media Player" p.29
Connecting to a VGA Monitor
If y
ou connected the projector to a computer using a Computer port, you
can also connect an external monitor to the projector. is lets you see your
presentation on the external monitor even when the projected image is not
visible. (PowerLite 994F)
Projector Connections
27
•
If y
ou want to output images to an external monitor when the projector
is turned o, select Always On as the A/V Output setting in the
projector's Extended menu.
s Extended > A/V Settings > A/V Output
•
Monitors that use a refresh rate of less than 60 Hz may not be able to
display images correctly.
a
Make sure your computer is connected to the projector's Computer port.
Only analog RGB signals from the Computer1 port can be output
to an ext
ernal monitor. You cannot output signals input from other
ports.
b
Connect the external monitor's cable to your projector's Monitor Out
po
rt.
g
Related Links
•
"Projector Setup Settings - Extended Menu" p.137
Connecting to External Speakers
To en
hance the sound from your presentation, you can connect the projector to
external self-powered speakers. You can control the volume using the projector's
remote control.
•
If y
ou want to output audio from the external speakers when the
projector is turned o, select Always On as the A/V Output setting in
the projector's Extended menu.
s Extended > A/V Settings > A/V Output
•
You can also connect the projector to an amplier with speakers.
•
e projector's built-in speaker system is disabled when you connect
external speakers.
a
Make sure your computer or video source is connected to the projector
wi
th both audio and video cables as necessary.
b
Locate the appropriate cable to connect your external speakers, such as a
st
ereo mini-jack-to-pin-jack cable, or another type of cable or adapter.
c
Connect one end of the cable to your external speakers as necessary.
Projector Connections
28
d
Connect the stereo mini-jack end of the cable to your projector's Audio
Ou
t port.
g
Related Links
•
"Pr
ojector Setup Settings - Extended Menu" p.137
Connecting a Microphone
Yo
u can connect a microphone to the projector's Mic port to provide audio
support during presentations. (PowerLite 994F)
•
Pl
ug-in-power is not supported.
•
If you want to output audio from a microphone when the projector
is turned o, select Always On as the A/V Output setting in the
projector's Extended menu.
s Extended > A/V Settings > A/V Output
•
Adjust Mic Input Level if the microphone audio is dicult to hear, or if
it is too loud resulting in a crackling sound.
s Settings > Mic Input Level
a
Connect the microphone cable to the projector's Mic port.
b
Turn on the microphone, if necessary.
Connecting to a Streaming Media Player
Yo
u can connect your streaming media player to the projector's HDMI port. By
connecting the power supply USB cable, you can power the streaming media
player from the projector.
e co
nnection method and operating environment for the streaming
m
edia player vary depending on the model you are using. For details, see
the documentation supplied with your streaming media player; otherwise,
it may not operate properly.
Projector Connections
29
a
Connect your streaming media player to the projector's HDMI port.
b
Connect the power supply USB cable to the projector's USB-A port.
c
Connect the other end to the streaming media player.
Projector Connections
30
e remote control uses the two AA batteries that came with the projector.
Attention
Mak
e sure you read the safety instructions in the online Notices guide before
handling the batteries.
a
Remove the battery cover as shown.
b
Remove the old batteries, if necessary.
Dispose of used batteries according to local regulations.
c
Insert the batteries with the + and
– ends facing as shown.
Warning
Ch
eck the positions of the (+) and (–) marks inside the battery holder to
ensure the batteries are inserted the correct way. If the batteries are not used
correctly, they could explode or leak causing a re, injury, or damage to the
product.
d
Replace the battery cover and press it down until it clicks into place.
Installing Batteries in the Remote Control
31
e remote control lets you control the projector from almost anywhere in the
r
oom.
Make sure that you aim the remote control at the projector's receivers within the
distance and angles listed here.
A
30°
B
19.7 feet (6 m)
C
15°
Avoid using the remote control in conditions with bright uor
escent lights
or in direct sunlight, or the projector may not respond to commands. If
you are not going to use the remote control for a long time, remove the
batteries.
Remote Control Operation
32
a
To open the projector's lens cover, slide the A/V Mute slide lever until it
clic
ks.
b
To cover the lens or temporarily turn o
the projected image and sound,
close the lens cover.
e projector's power automatically turns o 30 minutes aer A/V Mute is
enabled. You can disable this feature.
s ECO > Lens Cover Timer
Opening the Lens Cover
33
Using Basic Projector Features
Fo
llow the instructions in these sections to use your projector's basic features.
g
Related Links
•
"Turning On the Projector" p.35
•
"Turning O the Projector" p.38
•
"Setting the Date and Time" p.39
•
"Selecting the Language for the Projector Menus" p.41
•
"Projection Modes" p.42
•
"Displaying a Test Pattern" p.44
•
"Adjusting the Image Height" p.45
•
"Image Shape" p.46
•
"Resizing the Image with the Zoom Ring" p.50
•
"Focusing the Image Using the Focus Ring" p.51
•
"Selecting an Image Source" p.52
•
"Image Aspect Ratio" p.54
•
"Adjusting Image Quality (Color Mode)" p.56
•
"Controlling the Volume with the Volume Buttons" p.58
Turn on the computer or video equipment you want to use aer yo
u turn on the
projector.
a
Connect the power cord to the projector's power inlet and plug it into an
ele
ctrical outlet.
e projector's power indicator turns blue. is indicates that the
p
rojector is receiving power, but is not yet turned on (it is in standby
mode).
b
Press the power button on the control panel or remote control to turn on
th
e projector.
e projector beeps and the status indicator ashes blue as the projector
warms up. Once the projector is warmed up, the status indicator stops
ashing and turns blue.
c
Open the projector's lens cover.
Try the following if you do not see a projected image.
•
Verify the lens cover is open all the way.
•
Turn on the connected computer or video device.
•
Change the screen output from the computer when using a laptop computer.
•
Insert a DVD or other video media, and press play (if necessary).
•
Press the [Source Search] button on the control panel or remote control to
detect the source.
•
Press the button for the desired video source on the remote control.
•
If the Home screen is displayed, select the source you want to project.
Turning On the Projector
35
Warning
•
Ne
ver look into the projector lens when the lamp is on. is can damage your
eyes and is especially dangerous for children.
•
When turning on the projector at a distance using the remote control, make sure
there is no one looking into the lens.
•
During projection, do not block the light from the projector with a book or
other objects. If the light from the projector is blocked, the area on which the
light shines becomes hot which could cause it to melt, burn, or start a re. Also,
the lens may get hot due to the reected light which could cause the projector
to malfunction. To stop projection, use the A/V Mute function, or turn o the
projector.
•
A mercury lamp with high internal pressure is used as the projector's light source.
If the lamp is subjected to vibrations or shocks, or if it is used for an overly
extended length of time, the lamp may break or it may not turn on. If the lamp
explodes, gases may escape and small fragments of glass may be scattered which
could cause an injury. Be sure to observe the instructions below.
•
Do not disassemble or damage the lamp or subject it to any impacts.
•
Do not bring your face close to the projector while it is in use.
•
Particular care should be taken when the projector is installed to a ceiling, as
small pieces of glass may fall down when the lamp cover is removed. When
cleaning the projector or replacing the lamp yourself, be very careful not to
allow such pieces of glass to get into the eyes or mouth.
If the lamp breaks, ventilate the area immediately, and contact a doctor if any
fragments of broken glass are inhaled or get into the eyes or mouth.
•
Wh
en the Direct Power On setting is set to On in the projector's
Extended menu, the projector turns on as soon as you plug it in. Note
that the projector also turns on automatically in cases such as recovery
from a power outage.
s Extended > Operation > Direct Power On
•
If you select a specic port as the Auto Power On setting in the
projector's Extended menu, the projector turns on as soon as it detects
a signal or cable connection from that port.
s Extended > Operation > Auto Power On
g
Related Links
•
"Ho
me Screen" p.36
•
"Projector Setup Settings - Extended Menu" p.137
Home Screen
e Home screen feature allows you to easily select an image source and
acces
s useful functions. You can display the Home screen by pressing the
[Home] button on the control panel or remote control. e Home screen is
also displayed when you turn on the projector and no signal is being input.
Press the arrow buttons on the control panel or remote control to select a menu
item, and then press [Enter].
Turning On the Projector
36
A
Selects the source you want to project.
B
Displays the Connection Guide. You can select the wireless connection methods
accor
ding to the devices you are using, such as smartphones or computers.
C
Removes all devices from the block list. e block list contains devices that are
automatically denied Miracast projection.
is message is displayed when a device has been added to the block list.
D
Displays the Help screen.
E
Displays the projector's menu.
F
Performs menu options assigned to Home Screen in the projector's Extended
menu.
G
Displays the Info menu. (Other than PowerLite 994F)
Projects two images from dierent image sources simultaneously by splitting the
projected screen. (PowerLite 994F)
H
Corrects the shape of an image that is an uneven rectangle.
e H
ome screen disappears aer 10 minutes of inactivity.
g
Related Links
•
"Im
age Shape" p.46
•
"Projector Setup Settings - Extended Menu" p.137
•
"Using the Projector's Menus" p.129
•
"Using the Projector Help Displays" p.179
•
"Projecting Two Images Simultaneously (PowerLite 994F)" p.60
Turning On the Projector
37
Turn o the projector aer use.
•
Tur
n o this product when it is not in use to prolong the life
of the projector. Lamp life varies depending on the mode selected,
environmental conditions, and usage. Brightness decreases over time.
•
Since the projector supports the direct shutdown feature, it can be
turned o directly using the breaker.
a
Press the power button on the control panel or remote control.
e pr
ojector displays a shutdown conrmation screen.
b
Press the power button again. (To leave it on, press any other button.)
e p
r
ojected image disappears, the projector beeps twice, and the status
indicator turns o.
With Epson's Instant O te
chnology, there is no cool-down period
so you can pack up the projector for transport right away.
c
To transport or store the projector, make sure the power indicator is blue
(bu
t not ashing) and the status indicator is o, then unplug the power
cord.
d
Close the projector's lens cover.
Turning O the Projector
38
You can set the date and time for the projector.
If the date and time are not correctly set on the projector, the AirPlay
conn
ection may be disconnected while projecting. Set the correct date
and time in Date & Time and Daylight Saving Time from the Extended
menu.
s Extended > Operation > Date & Time
a
Turn on the projector.
b
Press the [Menu] button on the control panel or remote control.
c
Select the E
xtended menu and press [Enter].
d
S
elect the Operation setting and press [Enter].
e
S
elect the Date & Time setting and press [Enter].
Y
ou see this screen:
f
Select the D
ate & Time setting and press [Enter].
Y
ou see this screen:
g
Select Date, press [Enter], and use the displayed keyboard to enter today's
d
ate.
h
Select Time, press [Enter], and use the displayed keyboard to enter the
c
urrent time.
i
Select Time Dierence (UTC), press [Enter], and set the time dierence
f
rom Coordinated Universal Time.
j
When you are nis
hed, select Set and press [Enter].
Setting the Date and Time
39
k
To activate daylight saving time, select the Day
light Saving Time setting
and press [Enter]. en select settings.
l
When you are nis
hed, select Set and press [Enter].
m
To update the time automatically through an Internet time server, select
th
e Internet Time setting and press [Enter]. en select settings.
n
When you are nis
hed, select Set and press [Enter].
o
Press [Menu] or [Esc] to exit the menus.
Setting the Date and Time
40
If you want to view the projector's menus and messages in another language,
yo
u can change the Language setting.
a
Turn on the projector.
b
Press the [Menu] button on the control panel or remote control.
c
Select the E
xtended menu and press [Enter].
d
Select the L
anguage setting and press [Enter].
e
S
elect the language you want to use and press [Enter].
f
Press [Menu] or [Esc] to exit the menus.
Selecting the Language for the Projector Menus
41
Depending on how you positioned the projector, you may need to change the
pr
ojection mode so your images project correctly.
•
Front lets you project from a table in front of the screen.
•
Front/Ceiling ips the image over top-to-bottom to project upside-down
from a ceiling or wall mount.
•
Rear ips the image horizontally to project from behind a translucent screen.
•
Rear/Ceiling ips the image over top-to-bottom and horizontally to project
from a ceiling or wall mount and behind a translucent screen.
g
Related Links
•
"Changing the Projection Mode Using the Remote Control" p.42
•
"Changing the Projection Mode Using the Menus" p.42
•
"Projector Setup and Installation Options" p.21
Changing the Projection Mode Using the Remote
Control
You can change the projection mode to ip the image over top-to-bottom.
a
Turn on the projector and display an image.
b
Hold down the [A/V Mute] button on the remote control for 5 seconds.
e image disappears briey and reappears ipped top-to-bottom.
c
T
o change projection back to the original mode, hold down the [A/V
Mu
te] button for 5 seconds again.
Changing the Projection Mode Using the Menus
You can change the projection mode to ip
the image over top-to-bottom
and/or le-to-right using the projector menus.
a
Turn on the projector and display an image.
b
Press the [Menu] button on the control panel or remote control.
c
Select the E
xtended menu and press [Enter].
Projection Modes
42
d
Select Projection and press [Enter].
e
S
elect a projection mode and press [Enter].
f
Press [Menu] or [Esc] to exit the menus.
Projection Modes
43
You can display a test pattern to adjust the projected image without connecting
a com
puter or video device.
To set menu items that cannot be set while the test pattern is being
dis
played or to ne-tune the projected image, project an image from the
connected device.
a
Turn on the projector.
b
Press the [Menu] button on the control panel or remote control.
c
Select the S
ettings menu and press [Enter].
d
Select P
attern > Test Pattern, and press [Enter].
e
test pattern is displayed.
e
Adjust the image as necessary.
f
Press [Esc] to clear the test pattern.
Displaying a Test Pattern
44
If you are projecting from a table or other at sur
face and the image is too high
or low, you can adjust the image height using the projector's adjustable feet.
e larger the angle of tilt, the harder it becomes to focus. Locate the projector
so that it only needs to be tilted at a small angle.
a
Turn on the projector and display an image.
b
To adjust the front foot, pull up on the foot release lever and li t
h
e front
of the projector.
e foot extends from the projector.
Y
ou can adjust the position up to approximately 12 degrees.
c
Release the lever to lock the foot.
d
If the image is tilted, rotate the rear feet to adjust their height.
A
Extend the rear foot
B
Retract the rear foot
If the projected image is unevenly rectangular, you need to adjust the image
sh
ape.
g
Related Links
•
"Image Shape" p.46
Adjusting the Image Height
45
You can project an even, rectangular image by placing the projector directly in
fr
ont of the center of the screen and keeping it level. If you place the projector at
an angle to the screen, or tilt it up or down, or o to the side, you may need to
correct the image shape.
Aer correction, your image is slightly smaller.
For the best quality images, we recommend adjusting the installation position of
the projector to achieve the correct image size and shape.
g
Related Links
•
"Auto V-Keystone" p.46
•
"Correcting the Image Shape with the Horizontal Keystone Slider" p.46
•
"Correcting the Image Shape with the Keystone Buttons" p.47
•
"Correcting the Image Shape with Quick Corner" p.48
Auto V-Keystone
When the projector is moved or tilted, Auto V-Keystone automatically corrects
any vertical keystone distortion.
Auto V-Keystone can correct the projected image distortion in these
conditions:
•
Projection angle is about 30º up or down
•
e Projection setting is set to Front in the projector's Extended menu
If you do not want to use the Au
to V-Keystone function, set Auto V-
Keystone to O in the projector's menu.
s Settings > Keystone > H/V-Keystone > Auto V-Keystone
g
Related Links
•
"Pr
ojection Modes" p.42
•
"Projector Setup Settings - Extended Menu" p.137
•
"Projector Feature Settings - Settings Menu" p.134
Correcting the Image Shape with the Horizontal
Keystone Slider
You can use the projector's horizontal keystone slider to correct the shape of
an imag
e that is an uneven horizontal rectangle, such as when the projector is
placed to the side of the projection area.
You can make eective corrections when the projection angle is about 30º right
or le.
a
Turn on the projector and display an image.
b
Adjust the slider until the image is an even rectangle.
Aer correction, your image is slightly smaller.
•
When you use the horizontal keystone slider, set H-Keystone
Adjuster to On in the projector's Settings menu.
s Settings > Keystone > H/V-Keystone > H-Keystone
Adjuster
•
You can also correct the shape of the image in the horizontal
direction in the projector's Settings menu.
s Settings > Keystone > H/V-Keystone
g
Related Links
•
"Pr
ojector Feature Settings - Settings Menu" p.134
Image Shape
46
Correcting the Image Shape with the Keystone Buttons
You can use the projector's keystone correction buttons to correct the shape of
an imag
e that is unevenly rectangular.
You can use keystone buttons to correct images up to 30º right, le, up, or down.
a
Turn on the projector and display an image.
b
Press one of the keystone adjustment buttons on the control panel to
di
s
play the Keystone adjustment screen.
c
Press a keystone button to adjust the image shape.
If the projector is installed out of your reach, you can also correct the
sh
ape of the image using the remote control.
s Settings > Keystone > H/V-Keystone
g
Related Links
•
"P
r
ojector Feature Settings - Settings Menu" p.134
Image Shape
47
Correcting the Image Shape with Quick Corner
You can use the projector's Qui
ck Corner setting to correct the shape and size
of an image that is unevenly rectangular.
a
Turn on the projector and display an image.
b
Press the [Menu] button on the control panel or remote control.
c
Select the S
ettings menu and press [Enter].
d
Select Keystone and press [Enter].
e
S
elect Quick Corner and press [Enter]. en press [Enter] again if
n
ecessary.
You see the area selection screen.
f
Use the arrow buttons to select the corner of the image you want to adjust.
en p
r
ess [Enter].
g
Press the arrow buttons to adjust the image shape as necessary.
To return to the area selection screen, press [Enter].
Image Shape
48
•
If y
ou see this screen, you cannot adjust the shape any further in
the direction indicated by the gray triangle.
•
To r
eset the Quick Corner corrections, hold down [Esc] for
about 2 seconds while the Quick Corner adjustment screen is
displayed, and select Reset Quick Corner. Select Switch to H/
V-Keystone to switch the image shape correction method to
H/V-Keystone.
h
Repeat steps 6 and 7 as needed to adjust any remaining corners.
i
When you are ni
s
hed, press [Esc].
e Keystone setting is now set to Quick Corner in the projector's Settings
menu. e next time you press the keystone adjustment buttons on the control
panel, the area selection screen is displayed.
g
Related Links
•
"Pr
ojector Feature Settings - Settings Menu" p.134
Image Shape
49
You can resize the image using the projector's zoom ring.
a
Turn on the projector and display an image.
b
Rotate the zoom ring to enlarge or reduce the image.
Resizing the Image with the Zoom Ring
50
You can correct the focus using the focus ring.
a
Turn on the projector and display an image.
b
Rotate the focus ring to adjust the focus.
Focusing the Image Using the Focus Ring
51
When multiple image sources are connected to the projector, such as a
com
puter and DVD player, you can switch from one image source to the other.
Available sources vary depending on the projector model.
a
Make sure the connected image source you want to use is turned on.
b
For video image sources, insert a DVD or other video media and press
p
l
ay.
c
Do one of the following:
•
Pr
ess the [Source Search] button on the control panel or remote control
until you see the image from the source you want.
is screen is displayed when no image signal is detected. Check
t
he cable connections between the projector and image source.
•
Pr
ess the button for the source you want on the remote control. If there
is more than one port for that source, press the button again to cycle
through the sources.
•
Press the [Home] button on the control panel or remote control.
en select the source you want to use from the screen displayed.
Selecting an Image Source
52
Selecting an Image Source
53
e projector can display images in dierent width-to-height ratios called
as
pect ratios. Normally, the input signal from your video source determines
the image's aspect ratio.
If you always want to use a particular aspect ratio for a certain video input
source, you can select it using the projector's Signal menu.
g
Related Links
•
"Changing the Image Aspect Ratio" p.54
•
"Available Image Aspect Ratios" p.54
•
"Projected Image Appearance with Each Aspect Mode" p.55
•
"Input Signal Settings - Signal Menu" p.133
Changing the Image Aspect Ratio
You can change the aspect ratio of the displayed image.
a
Turn on the projector and switch to the image source you want to use.
b
Press the [Menu] button on the control panel or remote control.
c
Select S
ignal and press [Enter].
d
Select A
spect and press [Enter].
e
S
elect one of the displayed aspect modes and press [Enter].
f
Press [Menu] or [Esc] to exit the menus.
To display images without black bars, set Res
olution to Wide or Normal
in the projector’s Signal menu according to the computer’s resolution.
(PowerLite 994F)
g
Related Links
•
"In
put Signal Settings - Signal Menu" p.133
Available Image Aspect Ratios
You can select the following image aspect ratios, depending on the input signal
fr
om your image source.
Image Aspect Ratio
54
•
e avail
able aspect ratio setting varies depending on the input signal.
•
Note that using the aspect ratio function of the projector to reduce,
enlarge, or split the projected image for commercial purposes or for
public viewing may infringe upon the rights of the copyright holder of
that image based on copyright law.
Aspect mode Description
Auto
No
rmal
Automatically sets the aspect ratio according to the
input signal and the Resolution setting.
Full Displays images using the full size of the projection
are
a, but does not maintain the aspect ratio.
Zoom Displays images using the full width of the projection
are
a and maintains the aspect ratio of the image.
Native Displays images as is (aspect ratio and resolution are
main
tained).
Projected Image Appearance with Each Aspect Mode
Black bands and cropped images may project in certain aspect ratios, depending
on t
he aspect ratio and resolution of your input signal. See the following table to
conrm the position of black bands and cropped images.
e image for Native varies depending on the input signal.
Aspect mode Aspect ratio for input signals
16:10 16:9 4:3
Auto
No
rmal
Aspect mode Aspect ratio for input signals
16:10 16:9 4:3
Full
Zoom
Native
Image Aspect Ratio
55
e projector oers dierent color modes to provide optimum brightness,
co
ntrast, and color for a variety of viewing environments and image types.
You can select the mode designed to match your image and environment, or
experiment with the available modes.
g
Related Links
•
"Changing the Color Mode" p.56
•
"Available Color Modes" p.56
•
"Setting Auto Iris" p.56
Changing the Color Mode
You can change the projector's Color Mode to optimize the image for your
viewing environment.
a
Turn on the projector and switch to the image source you want to use.
b
Press the [Menu] button on the control panel or remote control.
c
Select I
mage and press [Enter].
d
Select Color Mode and press [Enter].
e
S
elect one of the displayed color modes and press [Enter].
f
Press [Menu] or [Esc] to exit the menus.
g
Related Links
•
"I
m
age Quality Settings - Image Menu" p.131
Available Color Modes
You can set the projector to use these color modes, depending on the input
so
urce you are using:
Color mode Description
Dynamic is is the brightest mode. Best for prioritizing
b
rightness.
Presentation Best for projecting vivid images.
Cinema Best for enjoying content such as movies.
sRGB Best for faithfully reproducing the color of the source
imag
e.
Blackboard Best for projecting images directly on a green
ch
alkboard.
Setting Auto Iris
You can turn on Au
to Iris to automatically optimize the image based on the
brightness of the content.
a
Turn on the projector and switch to the image source you want to use.
Adjusting Image Quality (Color Mode)
56
b
Press the [Menu] button on the control panel or remote control.
c
Select the I
mage menu and press [Enter].
d
Select Auto Iris and press [Enter].
e
C
hoose one of the following options and press [Enter]:
•
No
rmal for standard brightness adjustment.
•
High Speed to adjust brightness as soon as the scene changes.
f
Press [Menu] or [Esc] to exit the menus.
Adjusting Image Quality (Color Mode)
57
e volume buttons control the projector's internal speaker system.
Y
ou can also control the volume of any external speakers you connected to the
projector.
You must adjust the volume separately for each connected input source.
a
Turn on the projector and start a presentation.
b
To lower or raise the volume, press the [Volume] buttons on the control
p
an
el or remote control as shown.
A volume gauge appears on the screen.
c
To set the volume to a sp
ecic level for an input source, select Volume in
the projector's Settings menu.
Caution
Do n
ot start a presentation at a high volume setting. Sudden loud noises may cause
hearing loss.
Always lower the volume before powering o, so that you can power on and then
gradually increase the volume.
g
Related Links
•
"Pr
ojector Feature Settings - Settings Menu" p.134
Controlling the Volume with the Volume Buttons
58
Adjusting Projector Features
Fo
llow the instructions in these sections to use your projector's adjustment features.
g
Related Links
•
"Projecting Two Images Simultaneously (PowerLite 994F)" p.60
•
"HDMI Link Features" p.63
•
"Projecting a PC Free Presentation" p.65
•
"Shutting O the Image and Sound Temporarily" p.70
•
"Shutting O the Sound Temporarily" p.71
•
"Stopping Video Action Temporarily" p.72
•
"Zooming In/Zooming Out of Images (E-Zoom)" p.73
•
"Saving a User's Logo Image" p.75
•
"Saving a User Pattern" p.77
•
"Color Dierence Correction when Projecting from Multiple Projectors" p.78
•
"Projector Security Features" p.81
You can use the split screen feature to simultaneously project two images from
dieren
t image sources. You can control the split screen feature using the
remote control or the projector menus.
is function may not be available depending on the model you are using.
While using the split screen feature, other projector features may not be
avail
able and some settings may be automatically applied to both images.
a
Press the [Menu] button on the control panel or remote control.
b
Select S
ettings and press [Enter].
c
S
elect Split Screen and press [Enter].
e
currently selected input source moves to the le of the screen.
d
Press the [Menu] button.
Yo
u see this screen:
Projecting Two Images Simultaneously (PowerLite 994F)
60
e
To select an input source for the other image, select the So
urce setting,
press [Enter], select the input source, select Execute, and press [Enter].
•
Y
o
u can only select input sources that can be combined.
•
While using the split screen feature, the Source screen appears
when you change the input source from the remote control.
f
To switch images, select S
wap S
creens and press [Enter].
e projected images on the le and right are swapped.
g
To enlarge one image while reducing the other image, select Scr
een Size,
press [Enter], select a size, and press [Enter]. To exit the menu, press
[Menu].
Depending on the video input signals, the images may not appear at
th
e same size even if you select Equal.
h
To select the audio, select Au
dio Source, press [Enter], select an audio
option, and press [Enter]. To exit the menu, press [Menu].
Select Auto to hear audio from the largest screen or the le screen.
i
To align the projected images, select Alig
n
, press [Enter], select the
setting, and press [Enter] again. To exit the menu, press [Menu].
j
To exit the split screen feature, press [Esc].
g
Related Links
•
"Un
supported Input Source Combinations for Split Screen Projection" p.62
•
"Split Screen Projection Restrictions" p.62
Projecting Two Images Simultaneously (PowerLite 994F)
61
Unsupported Input Source Combinations for Split
Screen Projection
ese input source combinations cannot be projected on a split screen.
•
C
omputer1 and Computer2
•
Computer1/Computer2 and Video
•
HDMI1 and HDMI2
•
HDMI1/HDMI2 and LAN/Miracast1/Miracast2
•
USB and LAN
•
LAN and Miracast1/Miracast2
•
Miracast1 and Miracast2
•
Combinations that include AirPlay
Split Screen Projection Restrictions
Operating restrictions
e fo
llowing operations cannot be performed during split screen projection.
•
Setting the projector's menu
•
E-Zoom
•
Switching the aspect mode
•
Operations using the [Customize] button on the remote control
•
Auto Iris
Image restrictions
•
If you make adjustments such as Brightness, Contrast, Color Saturation,
Tint, and Sharpness in the projector's Image menu, you can apply them only
to the image on the le. Default adjustments are applied to the image on the
right. Adjustments that ae ct the entire projected image such as Color Mode
and Color Temp. are applied for both le and right images.
•
Even if you make adjustments for Noise Reduction and Deinterlacing in the
projector's Image menu, Noise Reduction is set to 0 and Deinterlacing is set
to O for the image on the right.
•
Even if you set Display Background to Logo in the projector's Extended
menu, the blue screen appears when no image signal is being input.
g
Related Links
•
"Image Aspect Ratio" p.54
•
"Adjusting Image Quality (Color Mode)" p.56
•
"Projector Feature Settings - Settings Menu" p.134
•
"Projector Setup Settings - Extended Menu" p.137
•
"Image Quality Settings - Image Menu" p.131
•
"Zooming In/Zooming Out of Images (E-Zoom)" p.73
•
"Setting Auto Iris" p.56
Projecting Two Images Simultaneously (PowerLite 994F)
62
When an audio/video source that meets the HDMI CEC standard is connected
to t
he projector's HDMI port, you can use the projector's remote control to
control certain features of the linked device.
Example: Projector, audio/video system, and multi-media players connection
•
As lo
ng as the connected device meets the HDMI CEC standard,
you can use the HDMI Link features even if the audio/video system
in-between does not meet the HDMI CEC standard.
•
Up to 3 multi-media players that meet the HDMI CEC standard can be
connected at the same time.
g
Related Links
•
"Op
erating the Connected Devices Using the HDMI Link Features" p.63
Operating the Connected Devices Using the HDMI Link
Features
You can select the connected device that is available for HDMI Link and control
t
h
e selected device using the HDMI Link features.
•
Wh
en you use the HDMI Link features, set the HDMI Link setting to
On in the projector's Settings menu.
s Settings > HDMI Link > HDMI Link
•
You must also congure the connected device. See the documentation
supplied with the device for more information.
•
Some connected devices or functions of those devices may not
operate properly even if they meet the HDMI CEC standard. See the
documentation supplied with the device for more information.
•
Use a cable that supports the HDMI standard.
a
Press the [Menu] button on the control panel or remote control.
b
Select S
ettings and press [Enter].
c
S
elect HDMI Link and press [Enter].
On t
he screen displayed, make sure that HDMI Link is set to On.
d
Select Device Connections and press [Enter].
HDMI Link Features
63
e
Select the device you want to control and project the image from, and
pr
ess [Enter].
•
A link
ed device is indicated by a blue mark.
•
e device name is le blank if it cannot be acquired.
f
Press [Esc] to select the HDMI Link options as necessary.
•
A
u
dio Out Device: Select the device for audio output.
•
S
e
lect Projector to output audio from the projector itself.
•
Select AV System to output audio from an AV amplier that is
connected using an HDMI cable.
•
Po
wer On Link lets you control what happens when you turn on the
projector or linked device.
•
Se
lect PJ -> Device or Bidirectional to turn the linked device
on when the projector is turned on.
•
Select Device -> PJ or Bidirectional to turn the projector on
when the linked device is turned on.
•
P
o
wer O Link lets you control whether linked devices are turned o
when the projector is turned o.
•
Po
wer O Link only works when the connected device's CEC
power link function is enabled.
•
Note that depending on the status of the connected device (for
example, if it is recording), the device may not be turned o.
g
Press [Esc] to exit the menus.
You can use the projector's remote control to control the linked device, such as
p
l
ayback, stop, fast forward, and rewind.
HDMI Link Features
64
You can use your projector's PC Free feature whenever you connect a USB
dev
ice that contains compatible presentation les. is lets you quickly and
easily display a presentation and control it using the projector's remote control.
g
Related Links
•
"Su
pported PC Free File Types" p.65
•
"Precautions on PC Free Projection" p.65
•
"Starting a PC Free Slide Show" p.66
•
"Starting a PC Free Movie Presentation" p.67
•
"PC Free Display Options" p.68
Supported PC Free File Types
You can project these types of les usin
g the projector's PC Free feature.
•
F
o
r best results, place your les on media that is formatted in
FAT16/32.
•
If you have trouble projecting from media formatted for non-Windows
le systems, try formatting the media for Windows instead.
File contents File type
(exten
sion)
Details
Image .jpg Make sure the le is n
ot:
•
CMYK format
•
Progressive format
•
Highly compressed
•
Above 8192 × 8192 resolution
.bmp Make sure the le is n
ot:
•
Above 1280 × 800 resolution
.gif Make sure the le is n
ot:
•
Above 1280 × 800 resolution
•
Animated
•
Interlaced
.png Make sure the le is n
ot:
•
Above 1920 × 1200 resolution
•
Interlaced
Movie .avi
(Mo
tion
JPEG)
Supports only AVI 1.0.
Make sure the le is not:
•
Saved with an audio codec other than PCM or
ADPCM
•
Above 1280 × 720 resolution
•
Larger than 2 GB
Precautions on PC Free Projection
Note the following precautions when using PC Free features.
•
You cannot use a USB key for PC Free features.
•
Do not disconnect the USB storage device while it is being accessed;
otherwise, PC Free may not operate correctly.
Projecting a PC Free Presentation
65
•
Yo
u may not be able to use the security features on certain USB storage
devices with PC Free features.
•
When connecting a USB device that includes an AC adapter, connect the AC
adapter to an electrical outlet when you use the device with your projector.
•
Some commercially available USB card readers may not be compatible with
the projector.
•
e projector can recognize up to 5 cards inserted into the connected card
reader at one time.
•
You cannot correct keystone distortion while projecting in PC Free, so correct
the image shape before you begin your presentation.
•
You can use the following functions while projecting in PC Free.
•
Freeze
•
A/V Mute
•
E-Zoom
g
Related Links
•
"Stopping Video Action Temporarily" p.72
•
"Shutting O the Image and Sound Temporarily" p.70
•
"Zooming In/Zooming Out of Images (E-Zoom)" p.73
Starting a PC Free Slide Show
Aer connecting a USB device to the projector, you can switch to the USB input
source and start your slide show.
You can change the PC Free operation options or add special eec
ts by
highlighting Option at the bottom of the screen and pressing [Enter].
a
Press the [USB] button on the remote control.
e PC Fr
ee le list screen is displayed.
•
If t
he Select Drive screen is displayed, press the arrow buttons to
select the drive and press [Enter].
•
To display images on the other USB drive, highlight Select Drive
at the top of the le list screen and press [Enter].
b
Do one of the following to locate your les:
•
If y
ou need to display les inside a subfolder on your device, press the
arrow buttons to highlight the folder and press [Enter].
•
To move back up a folder level on your device, highlight Back to Top
and press [Enter].
c
Do one of the following:
•
To di
splay an individual image, press the arrow buttons to highlight the
image and press [Enter]. (Press the [Esc] button to return to the le list
screen.)
•
To display a slide show of all the images in a folder, press the arrow
buttons to highlight the Slideshow option at the bottom of the screen
and press [Enter].
Projecting a PC Free Presentation
66
•
Yo
u can change the image switching time by highlighting Option
at the bottom of the screen and pressing [Enter].
•
If any le names are longer than the display area or include
unsupported symbols, the le names may be shortened or
changed only on the screen display.
d
While projecting, use the following commands to control the display:
•
To r
otate a displayed image, press the up or down arrow button.
•
To move to the next or previous image, press the le or right arrow
button.
e
To stop the display, follow the on-screen instructions or press the [Esc]
bu
tton.
You return to the le list screen.
f
Turn o the USB device, if necessary, and then disconnect the device from
t
he projector.
g
Related Links
•
"PC Fr
ee Display Options" p.68
•
"Connecting to a USB Device" p.27
Starting a PC Free Movie Presentation
Aer connecting a USB device to the projector, you can switch to the USB input
source and start your movie.
You can change the PC Free operation options by highlighting Op
tion at
the bottom of the screen and pressing [Enter].
a
Press the [USB] button on the remote control.
e PC Fr
ee le list screen is displayed.
•
If t
he Select Drive screen is displayed, press the arrow buttons to
select the drive and press [Enter].
•
To display movie les on the other USB drive, highlight Select
Drive at the top of the le list screen and press [Enter].
Projecting a PC Free Presentation
67
b
Do one of the following to locate your les:
•
If y
ou need to display les inside a subfolder on your device, press the
arrow buttons to highlight the folder and press [Enter].
•
To move back up a folder level on your device, highlight Back to Top
and press [Enter].
c
To play back a movie, press the arrow buttons to highlight the le and
p
ress [Enter].
•
If an
y le names are longer than the display area or include
unsupported symbols, the le names may be shortened or
changed only on the screen display.
•
If you want to play back all the movies in a folder in sequence,
select the Slideshow option at the bottom of the screen.
d
To stop movie playback, press the [Esc] button, highlight Exi
t, and press
[Enter].
You return to the le list screen.
e
Turn o the USB device, if necessary, and then disconnect the device from
t
he projector.
g
Related Links
•
"PC Free Display Options" p.68
•
"Connecting to a USB Device" p.27
PC Free Display Options
You can select these display options when using PC Free. To access this screen,
high
light Option at the bottom of the PC Free le list screen and press [Enter].
Setting Options Description
Display Order Name Order Displays les in name order
Date Order Displays les in dat
e order
Sort Order In Ascending Sorts les in rs
t-to-last order
In Descending Sorts les in las
t-to-rst order
Continuous Play On Displays a slide show continuously
O Displays a slide show once
Screen Switching
Tim
e
No Does not display the next le
automatically
1 Second to 60 Seconds Displays les fo
r the selected time and
switches to the next le automatically;
high resolution images may switch at
a slightly slower rate
Eect No No eect
W
ipe Transitions between images using a
wi
pe eect
Dissolve Transitions between images using a
dis
solve eect
Projecting a PC Free Presentation
68
Setting Options Description
Random Transitions between images using a
rando
m variety of eects
Projecting a PC Free Presentation
69
You can temporarily turn o
the projected image and sound if you want to
redirect your audience's attention during a presentation. Any sound or video
action continues to run, however, so you cannot resume projection at the point
that you stopped it.
If you want to display an image such as a company logo or picture when
th
e [A/V Mute] button is pressed, you can select the screen displayed in
the A/V Mute setting in the projector's Extended menu.
s Extended > Display > A/V Mute
a
Press the [A/V Mute] button on the remote control to temporarily stop
pr
ojection and mute any sound.
b
To turn the image and sound back on, press [A/V Mute] again.
•
Yo
u can also stop projection using the A/V Mute slide lever on the
projector.
•
e projector's power automatically turns o 30 minutes aer A/V
Mute is enabled. You can disable this feature.
s ECO > A/V Mute Timer
•
e lamp is still operating during A/V Mute, so the lamp hours
continue to accumulate.
g
Related Links
•
"Pr
ojector Setup Settings - Extended Menu" p.137
•
"Projector Setup Settings - ECO Menu" p.151
Shutting O the Image and Sound Temporarily
70
You can temporarily mute the audio.
a
Press the [Mute] button on the remote control to mute the audio.
b
To unmute, press [Mute] again.
Shutting O the Sound Temporarily
71
You can temporarily stop the action in a video or computer presentation and
ke
ep the current image on the screen. Any sound or video action continues to
run, however, so you cannot resume projection at the point that you stopped it.
a
Press the [Freeze] button on the remote control to stop the video action.
b
To restart the video action in progress, press [Freeze] again.
Stopping Video Action Temporarily
72
You can zoom in or zoom out of the projected image using the [E-Zoom] button
on t
he remote control.
e size and the position of the zoomed image remain even aer switching the
input source or turning o the projector.
g
Related Links
•
"Zo
oming Into Images" p.73
•
"Zooming Out of Images" p.73
Zooming Into Images
a
Press the [E-Zoom] + button on the remote control.
e projected image is enlarged focusing around the center of the image.
Y
ou can enlarge the image between one to four times in 25 incremental
steps.
b
Use the following buttons on the remote control to adjust the zoomed
imag
e while the zoom ratio is displayed:
•
Press the [E-Zoom] + button repeatedly to zoom into the image.
•
To p
an around the zoomed image, use the arrow buttons.
•
To zoom out of the image, press the [E-Zoom] – button.
•
To return to the original image size, press the [Default] button.
When projecting images from an Epson document camera, you can
enl
arge the image from one to eight times its size in 57 incremental steps
using the [E-Zoom] + button on the document camera.
When the zoom ratio display disappears, the size and the position of the
zoomed image will be saved. Press the [E-Zoom] +/- buttons to make
adjustment again.
Zooming Out of Images
a
Press the [E-Zoom] - button on the remote control.
e projected image is reduced. You can reduce the image between 100%
t
o 50% in incremental steps.
b
Use the following buttons on the remote control to adjust the zoomed-out
imag
e while the zoom ratio is displayed:
•
Press the [E-Zoom] - button repeatedly to zoom out of the projected
image.
Zooming In/Zooming Out of Images (E-Zoom)
73
•
To m
ove the zoomed-out image in the projection area, use the arrow
buttons.
•
To zoom into the image, press the [E-Zoom] + button.
•
To return to the original image size, press the [Default] button.
When projecting image from an Epson document camera, you can also
re
duce the image using the [E-Zoom] - button on the document camera.
When the zoom ratio display disappears, the size and the position of the
zoo
med image will be saved. Press the [E-Zoom] +/- buttons to make
adjustment again.
Zooming In/Zooming Out of Images (E-Zoom)
74
You can save an image on the projector and display it whenever the projector
tur
ns on. You can also display the image when the projector is not receiving an
input signal. is image is called the user's logo screen.
You can select a photo, graphic, or company logo as the user's logo, which is
useful in identifying the projector's owner to help deter the. You can prevent
changes to the user's logo by setting up password protection.
•
If t
he User's Logo Protection setting in the Password Protection
setting menu is set to On, set to O before saving the user's logo.
•
When you copy the menu settings from one projector to another using
the batch setup feature, user's logo is also copied. Do not register the
information that you do not want to share between multiple projectors
as a user's logo.
•
You cannot save content that is protected by HDCP.
•
is function is unavailable if the input source is AirPlay, LAN, or
Miracast.
a
Display the image you want to project as the user's logo.
b
Press the [Menu] button, select the E
xt
ended menu, and press [Enter].
c
Select User's Logo > Start Setting and press [Enter].
Y
ou see a prompt asking if you want to use the displayed image as a user's
logo.
Adjustments such as Keystone, E-Zoom, or Aspect are temporarily
can
celed when you select User's Logo.
d
Select Yes and press [Enter].
e
C
heck the displayed image, and then select Yes
to save it as the user's logo.
e user's logo is overwritten and a completion message is displayed.
f
Press [Esc] to exit the message screen.
g
Select the E
xtended menu and press [Enter].
h
S
elect Display and press [Enter].
i
S
elect when you want to display the User's Logo screen:
•
To di
splay it whenever there is no input signal, select Display
Background and set it to Logo.
s Extended > Display > Display Background
•
To display it whenever you turn the projector on, select Startup Screen
and set it to On.
s Extended > Display > Startup Screen
•
To display it whenever you press the [A/V Mute] button, select A/V
Mute and set it to Logo.
s Extended > Display > A/V Mute
Saving a User's Logo Image
75
To prevent anyone from changing the User's Logo settings without rs
t entering
a password, set the User's Logo Protection setting to On in the Password
Protection setting menu and set the password.
g
Related Links
•
"Shutting O the Image and Sound Temporarily" p.70
•
"Selecting Password Security Types" p.82
Saving a User's Logo Image
76
ere are four types of patterns pre-registered in the projector, such as ruled
lin
es and grid patterns. You can project these patterns to aid in presentations
using the Pattern Display settings.
You can also save the image that is currently being projected as a User Pattern.
Once you save a User Pattern, the pattern cannot be returned to the
fact
ory default.
a
Project the image you want to save as the User Pattern, and then press the
[Menu] button on the control panel or remote control.
b
Select the Settings menu and press [Enter].
c
Select P
attern > User Pattern and press [Enter].
Y
ou see a prompt asking if you want to use the displayed image as a User
Pattern.
•
Ad
justments such as Keystone, E-Zoom, or Aspect are
temporarily cancelled when you select User Pattern.
•
You cannot save digital images protected by HDCP technology as
a User Pattern.
d
Select Yes and press [Enter].
e
P
ress [Enter].
Yo
u see a prompt asking if you want to save the image as the User Pattern.
f
Select Yes and press [Enter].
Y
ou see a completion message.
Saving a User Pattern
77
When lining up multiple projectors to project images, you can correct the
br
ightness and color tone of each projector's image so that the images match
closely.
You can set a unique projector ID for each projector to operate them
individually using a remote control, and then correct the brightness and color
for each projector.
•
In s
ome cases the brightness and color tone may not match completely
even aer correction.
•
If brightness and color tone dierences become more noticeable over
time, repeat the adjustments.
g
Related Links
•
"Set
ting the Projector ID" p.78
•
"Selecting the Projector You want to Operate" p.78
•
"Matching Multiple-Projector Display Quality" p.79
Setting the Projector ID
To control multiple projectors from a remote control, give each projector a
unique ID
.
a
Press the [Menu] button, select the Ext
ended menu, and press [Enter].
b
Select Projector ID and press [Enter].
c
U
se the arrow buttons to select the identication number you want to use
for the projector. en press [Enter].
d
Press [Menu] or [Esc] to exit the menus.
e
Repeat these steps for all the other projectors you want to operate from
o
n
e remote control.
Selecting the Projector You want to Operate
Aer setting the projector's ID, select the ID for the projector you want to
o
perate using the remote control.
Color Dierence Correction when Projecting from Multiple Projectors
78
a
Aim the remote control at the target projector and press the [ID] button.
e c
urrent Projector ID is displayed on the projected screen. It
di
sappears aer about 3 seconds.
b
While holding the [ID] button, press the number button that matches the
ID of t
he projector you want to operate.
e projector you want to operate is selected.
•
Wh
en you select [0/All] on the remote control, you can operate
all projectors regardless the Projector ID setting.
•
When you set the Projector ID setting to O, you can operate
the projector using the remote control whichever ID you select
on the remote control.
•
e projector ID setting is saved in the remote control. Even if
the remote control batteries are removed to replace them and
so on, the saved ID setting is retained. However, if the batteries
are le out of the remote control for an extended period, the ID
returns to its default setting ( 0/All).
•
When you use multiple remote controls at the same time, you
may not be able to operate projectors as intended due to infrared
interference.
Matching Multiple-Projector Display Quality
You can match the display quality of multiple projectors that will project next to
e
ac
h other.
a
Turn on all the projectors on which you want to match the display quality.
b
Set ID numbers on each projector.
c
Make sure all the projectors are using the same Color Mode setting.
d
Select the remote control ID to match the r
s
t projector.
Color Dierence Correction when Projecting from Multiple Projectors
79
e
Press the [Menu] button, select the Image
menu, and press [Enter].
f
Select settings as necessary.
g
Select the remote control ID to match the next projector, then repeat
Im
age menu adjustments as necessary to match the projectors' displays.
Color Dierence Correction when Projecting from Multiple Projectors
80
You can secure your projector to deter th
e or prevent unintended use by
setting up the following security features:
•
Password security to prevent people who do not know the password from
using the projector, and prevent changes to the startup screen and other
settings.
is acts as an anti-the function as the projector cannot be used even if it is
stolen, and you can limit who can use the projector.
•
Button lock security to block operation of the projector using the buttons on
the control panel.
is is useful at events or shows when you want to deactivate all buttons
during projection or at schools when you want to limit button operation.
•
Security cabling to physically secure the projector in place.
g
Related Links
•
"Password Security Types" p.81
•
"Locking the Projector's Buttons" p.83
•
"Installing a Security Cable" p.84
Password Security Types
You can set up the following types of password security using one shared
password:
•
Power On Protection password prevents anyone from using the projector
without rst entering a password. When plugging the power cord and turning
on the projector, you must enter the correct password. is also applies to
Direct Power On and Auto Power On.
•
User's Logo Protection password prevents anyone from changing the custom
screen displayed when the projector turns on, when no signal is being input,
or when you use the A/V Mute feature. e custom screen discourages the
by identifying the projector's owner.
•
Network Protection password prevents anyone from changing the projector's
Network settings.
•
Sche
dule Protection password prevents anyone from changing the
projector's schedule settings.
g
Related Links
•
"Setting a Password" p.81
•
"Selecting Password Security Types" p.82
•
"Entering a Password to Use the Projector" p.83
Setting a Password
F
o
r the rst time you use the projector, you must set a password.
No password is set by default. You must set a password.
a
Hold down the [Freeze] button on the remote control for about 5 seconds.
You see the Password Protection setting menu.
•
If n
o password has been set, a screen prompting you to set
a password is displayed before you can view the Password
Protection setting menu.
•
If Password Protection is already activated, you must enter the
correct password to display the Password Protection setting
menu.
Projector Security Features
81
b
Select Password and press [Enter].
You see the prompt Chan
ge the password?.
c
Select Yes and press [Enter].
If you select No
, the Password Protection setting menu is displayed
again.
d
Use the numeric buttons on the remote control to set a four-digit
p
as
sword.
e password displays as **** as it is entered. A conrmation prompt is
di
splayed when you enter the fourth digit.
e
Enter the password again.
Yo
u see the message Password accepted. If you enter the password
incorrectly, a message is displayed prompting you to re-enter the
password.
f
Press [Esc] to return to the menu.
g
Make a note of the password and keep it in a safe place.
Selecting Password Security Types
Aer
setting a password, you see this menu, allowing you to select the password
security types you want to use.
If you do not see this menu, hold down the [Freeze] button on the remote
con
trol for 5 seconds until the menu appears.
•
To prevent unauthorized use of the projector, select On as the Power On
Protection setting.
•
To prevent changes to the User's Logo screen or related display settings, select
On as the User's Logo Protection setting.
•
To prevent changes to network settings, select On as the Network Protection
setting.
Projector Security Features
82
•
To p
revent changes to the projector's schedule settings, select On as the
Schedule Protection setting.
You can attach the password protect sticker to the projector as an additional
the deterrent.
Be sure to keep the remote control in a safe place; if you lose it, you will
no
t be able to enter the password.
Entering a Password to Use the Projector
Wh
en the password screen is displayed, enter the correct password.
a
Use the numeric buttons on the remote control to enter the password.
e password screen closes.
b
I
f the password is incorrect, you see a message and a prompt to try again.
Ent
er the correct password to proceed.
Attention
•
If an in
correct password is entered three times in succession, the message
e projector's operation will be locked. is displayed for approximately
5 minutes, and the projector switches to standby mode. If this happens,
disconnect the power plug from the electrical outlet, reinsert it, and turn
the projector back on. e projector displays the password entry screen
again so that you can enter the correct password.
•
If you have forgotten the password, make a note of the " Request Code:
xxxxx" number that appears on the screen and contact Epson for help.
•
If you continue to repeat the above operation and input the wrong
password 30 times in succession, the message e projector's operation
will be locked. Contact Epson as described in your documentation. is
displayed and the projector does not accept any more password entries.
Contact Epson for help.
Locking the Projector's Buttons
You can lock the buttons on the control panel to prevent anyone from using the
pr
ojector. e projector can still be operated using the remote control.
Projector Security Features
83
a
Press the [Menu] button on the control panel or remote control.
b
Select the S
ettings menu and press [Enter].
c
Select Lock Setting > Control Panel Lock, and press [Enter].
d
Select one of these lock types and press [Enter]:
•
To lo
ck all of the projector's buttons, select Full Lock.
•
To lock all buttons except the power button, select Partial Lock.
You see a conrmation prompt.
e
Select Yes and press [Enter].
e
Control Panel Lock setting takes eect.
g
Related Links
•
"Unlocking the Projector's Buttons" p.84
Unlocking the Projector's Buttons
If t
he projector's buttons have been locked, do one of the following to unlock
them.
•
Hold down the [Enter] button on the control panel for 7 seconds. A message
is displayed and the lock is released.
•
Select O as the Control Panel Lock setting in the projector's Settings menu.
s Settings > Lock Setting > Control Panel Lock
g
Related Links
•
"Projector Feature Settings - Settings Menu" p.134
Installing a Security Cable
You can install the security cable on the projector to deter the.
•
Use the security slot on the projector to attach a Kensington Microsaver
Security system.
For more details on the Microsaver Security System, visit the
Ken
sington Web site.
https://www.kensington.com/
•
Us
e the security cable attachment point on the projector to attach a wire cable
and secure it to a room xture or heavy furniture.
Projector Security Features
84
You can use a commercially available th
e-prevention wire lock. See
the documentation supplied with the wire lock for locking instructions.
Projector Security Features
85
Using the Projector on a Network
Fo
llow the instructions in these sections to set up your projector for use on a network.
g
Related Links
•
"Wired Network Projection" p.87
•
"Wireless Network Projection" p.90
•
"Wireless Network Projection from a Mobile Device (Miracast)" p.99
•
"Using AirPlay" p.103
•
"Secure HTTP" p.107
is feature is available only for models that support wired LAN projection.
Y
ou can send images to your projector through a wired network. To do this,
connect the projector to your network, and then set up your projector and
computer for network projection.
Aer connecting and setting up the projector as described here, download and
install Epson iProjection (Windows/Mac) from the following Web site.
epson.com/support (U.S.)
epson.ca/support (Canada)
latin.epson.com/support (Latin America)
Epson iProjection soware sets up your computer for network projection. It also
allows you to hold interactive meetings by projecting user's computer screens
over a network. See the Epson iProjection Operation Guide (Windows/Mac) for
instructions.
•
If t
he Web Control Password has not been set, a screen prompting
you to set a password is displayed when you save the network settings.
Follow the on-screen instructions to set the password.
•
When using the Moderator function in Epson iProjection to display the
projector screen on a computer, you cannot capture the screen on that
computer.
g
Related Links
•
"Co
nnecting to a Wired Network" p.87
•
"Selecting Wired Network Settings" p.87
Connecting to a Wired Network
To connect the projector to a wired local area network (LAN), use a 100Base-TX
or 10B
ase-T network cable. To ensure proper data transmission, use a Category
5 shielded cable or better.
a
Connect one end of the network cable to your network hub, switch, or
r
o
uter.
b
Connect the other end of the cable to the projector's LAN port.
Selecting Wired Network Settings
Before you can project from computers on your network, you need to select
net
work settings on the projector.
Make sure you already connected the projector to your wired network
usin
g the LAN port.
Wired Network Projection
87
a
Press the [Menu] button, select the Ne
twork menu, and press [Enter].
b
Select Network Conguration and press [Enter].
c
S
elect the Basi
c menu and press [Enter].
d
Select the basic options as necessary.
•
Pr
ojector Name lets you enter a name up to 16 alphanumeric
characters long to identify the projector over the network.
•
PJLink Password lets you enter a password up to 32 alphanumeric
characters long for using the PJLink protocol for projector control.
•
Remote Password lets you enter a password between 8 and 32
alphanumeric characters long for accessing the projector using Basic
Control. (e user name is EPSONREMOTE. No password is set by
default.)
•
Web Control Password lets you enter a password between 8 and 32
alphanumeric characters long for accessing the projector over the Web.
(e user name is EPSONWEB. No password is set by default.)
•
Monitor Password lets you enter a password up to 16 alphanumeric
characters long when using Epson Projector Management Ver.5.30
or earlier, or when monitoring the projector in combination with a
switcher or controller. (No password is set by default.)
•
Moderator Password lets you enter a four-digit number password for
accessing the projector as a moderator using Epson iProjection. (No
password is set by default.)
•
Projector Keyword lets you turn on a security password to prevent
access to the projector by anyone not in the room with it. You must
enter a displayed, randomized keyword from a computer using Epson
iProjection to access the projector and share the current screen.
•
Display Keyword lets you select whether to display a projector keyword
on the projected image when accessing the projector using Epson
iProjection.
•
Display LAN Info. lets you set the display format for the projector's
network information.
Use the displayed keyboard to enter numbers and characters. Press
th
e arrow buttons on the remote control to highlight characters and
press [Enter] to select them.
Wired Network Projection
88
e
Select the Wired LAN menu and press [Enter].
f
Assign the IP settings for your network as necessary.
•
I
f y
our network assigns addresses automatically, select IP Settings to set
the DHCP setting to On.
•
If you must set addresses manually, select IP Settings to set the DHCP
setting to O, and then enter the projector's IP Address, Subnet Mask,
and Gateway Address as necessary.
To highlight the numbers you want from the displayed keyboard,
pr
ess the arrow buttons on the remote control. To select a
highlighted number, press [Enter].
g
To prevent the IP address from being displayed on the LAN standby
scr
een and Home screen, set the IP Address Display setting to O.
h
When you ni
s
h selecting settings, select Complete and follow the on-
screen instructions to save your settings and exit the menus.
If no Web Control Password has been set, a screen prompting
y
ou to set a password is displayed before you can save the settings.
Follow the on-screen instructions to set the password.
i
Press the [Source Search] button on the control panel or remote control
un
t
il you see the LAN standby screen.
e wired network settings complete when you see the correct IP address
on the LAN standby screen.
Wired Network Projection
89
You can send images to your projector through a wireless network.
Yo
u can connect the projector to your wireless network by conguring the
connection manually using the projector's Network menus.
When you have nished making the projector's network settings, download
and install the necessary network soware. Use the following soware and
documentation to set up and control wireless projection.
•
Epson iProjection (Windows/Mac) soware allows you to hold interactive
meetings by projecting the computer screens of users over a network. See the
Epson iProjection Operation Guide (Windows/Mac) for instructions.
•
Epson iProjection (iOS/Android) app allows you to project from iOS or
Android devices.
You can download Epson iProjection from the App Store or Google Play. Any
fees incurred when communicating with the App Store or Google Play are the
responsibility of the customer.
•
Epson iProjection (Chromebook) app allows you to project from
Chromebook devices.
You can download Epson iProjection from the Chrome Web Store. Any
fees incurred when communicating with the Chrome Web Store are the
responsibility of the customer.
•
I
f t
he Web Control Password has not been set, a screen prompting
you to set a password is displayed when you save the network settings.
Follow the on-screen instructions to set the password.
•
When using the Moderator function in Epson iProjection to display the
projector screen on a computer, you cannot capture the screen on that
computer.
g
Related Links
•
"Safet
y Instructions for Built-in Wireless LAN Module" p.90
•
"Connection Methods for Wireless Network Projection" p.90
•
"Selecting Wireless Network Settings Manually" p.91
•
"Selecting Wireless Network Settings in Windows" p.93
•
"Selecting Wireless Network Settings in Mac" p.94
•
"S
et
ting Up Wireless Network Security when Simple AP Mode is Set to On"
p.94
•
"Setting Up Wireless Network Security when Simple AP Mode is Set to O"
p.94
•
"Using a QR Code to Connect a Mobile Device" p.97
•
"Using a USB Key to Connect a Windows Computer" p.98
Safety Instructions for Built-in Wireless LAN Module
is projector contains built-in wireless LAN modules. Be sure to follow these
im
portant guidelines when using a wireless LAN connection.
Warning
•
Do n
ot use the device near medical equipment such as pace makers. Furthermore,
when using the device, make sure there is no medical equipment such as pace
makers, in the surrounding area. Electromagnetic interference may cause medical
equipment to malfunction.
•
Electromagnetic interference may cause automatically controlled equipment
to malfunction which could cause an accident. Do not use the device near
automatically controlled equipment such as automatic doors or re alarms.
Caution
Mak
e sure you keep a distance of at least 7.9 inches (20 cm) between the device and
your body. Otherwise, it could cause you to feel unwell.
Connection Methods for Wireless Network Projection
Choose a connection method for connecting your computer and projector over
a net
work based on your network environment.
•
Turning on simple AP mode lets you directly connect to smartphones, tablets,
or computers using your projector as an access point. When you use this
Wireless Network Projection
90
method, connect the projector using Qui
ck Connection Mode of the Epson
iProjection soware or use Miracast.
Selecting Wireless Network Settings Manually
Before you can project from your wireless network, you need to select network
set
tings for the projector.
You can use the wireless LAN even when the projector is o.
To do so,
follow the steps below to congure the wireless LAN, and then set A/V
Output to Always On in A/V Settings from the Extended menu.
s Extended > A/V Settings > A/V Output
a
Press the [Menu] button, select the Ne
twork menu, and press [Enter].
b
Select On as th
e Wireless LAN Power setting.
c
Select Network Conguration and press [Enter].
d
S
elect the Basi
c menu and press [Enter].
Wireless Network Projection
91
e
Select the basic options as necessary.
•
Pr
ojector Name lets you enter a name up to 16 alphanumeric
characters long to identify the projector over the network.
•
PJLink Password lets you enter a password up to 32 alphanumeric
characters long for using the PJLink protocol for projector control.
(PowerLite 994F)
•
Remote Password lets you enter a password between 8 and 32
alphanumeric characters long for accessing the projector using Basic
Control. (e user name is EPSONREMOTE. No password is set by
default.)
•
Web Control Password lets you enter a password between 8 and 32
alphanumeric characters long for accessing the projector over the Web.
(e user name is EPSONWEB. No password is set by default.)
•
Monitor Password lets you enter a password up to 16 alphanumeric
characters long when using Epson Projector Management Ver.5.30
or earlier, or when monitoring the projector in combination with a
switcher or controller. (No password is set by default.)
•
Moderator Password lets you enter a four-digit number password for
accessing the projector as a moderator using Epson iProjection. (No
password is set by default.)
•
Projector Keyword lets you turn on a security password to prevent
access to the projector by anyone not in the room with it. You must
enter a displayed, randomized keyword from a computer using Epson
iProjection to access the projector and share the current screen.
•
Display Keyword lets you select whether to display a projector keyword
on the projected image when accessing the projector using Epson
iProjection.
•
Display LAN Info. lets you set the display format for the projector's
network information.
Use the displayed keyboard to enter numbers and characters. Press
th
e arrow buttons on the remote control to highlight characters and
press [Enter] to select them.
f
Select the Wireless LAN menu and press [Enter].
g
Select the connection method.
•
To connect in simple AP mode, set the Simple AP setting to On and go
to step 11.
You must set the Pass
phrase when using simple AP mode
for the rst time. Follow the on-screen instructions to set the
passphrase.
•
If y
ou are not using simple AP mode and want to connect using a
wireless LAN access point, go to the next step.
Wireless Network Projection
92
h
Select Search Access Point to select the access point you want to connect
t
o.
If you need to assign the SSID manually, select SSID
to enter the
SSID.
i
Assign the IP settings for your network as necessary.
•
If y
our network assigns addresses automatically, select IP Settings to set
the DHCP setting to On.
•
If you must set addresses manually, select IP Settings to set the DHCP
setting to O, and then enter the projector's IP Address, Subnet Mask,
and Gateway Address as necessary.
j
To prevent the SSID or IP address from being displayed on the LAN
st
andby screen and Home screen, set the SSID Display setting or the IP
Address Display setting to O.
k
When you nis
h selecting settings, select Complete and follow the on-
screen instructions to save your settings and exit the menus.
If no Web Control Password has been set, a screen prompting
y
ou to set a password is displayed before you can save the settings.
Follow the on-screen instructions to set the password.
l
Press the [Wireless] button on the remote control until you see the LAN
standby screen.
e wireless network settings are complete when you see the correct IP
address on the LAN standby screen.
When you have nis
hed making wireless settings for your projector, you need to
select the wireless network on your computer. en start the network soware
to send images to your projector through a wireless network.
Selecting Wireless Network Settings in Windows
Before connecting to the projector, select the correct wireless network on your
com
puter.
a
To access your wireless utility so
ware, click the network icon on the
Windows taskbar.
b
Select the network name (SSID) of the network the projector is connecting
t
o
.
c
Click Connect.
Wireless Network Projection
93
Selecting Wireless Network Settings in Mac
Before connecting to the projector, select the correct wireless network in Mac.
a
Click the Wi-Fi icon on the menu bar at the top of the screen.
b
Make sure Wi-Fi is turned on and select the network name (SSID) of the
n
etwork the projector is connecting to.
Setting Up Wireless Network Security when Simple AP
Mode is Set to On
You can set up security for your projector to use on a wireless network with
simp
le AP mode. You can use WPA2-PSK security.
Contact your network administrator for guidance on entering the correct
info
rmation.
a
Press the [Menu] button, select the N
e
twork menu, and press [Enter].
b
Select Network Conguration and press [Enter].
c
S
elect the Wireless LAN menu and press [Enter].
d
Select S
imple AP and press [Enter].
e
S
elect Passphrase, press [Enter], and enter a passphrase from 8 to 63
c
haracters long. To enter more than 32 characters, use your Web browser.
f
When you have nis
hed making settings, select Complete and follow the
on-screen instructions to save your settings and exit the menus.
Setting Up Wireless Network Security when Simple AP
Mode is Set to O
You can set up security for your projector to use on a wireless network. Set
up one of the following security options to match the settings used on your
network:
•
WPA3-PSK security
•
WPA2/WPA3-PSK security
Wireless Network Projection
94
•
WPA3-EAP s
ecurity
•
WPA2/WPA3-EAP security
Contact your network administrator for guidance on entering the correct
info
rmation.
a
When setting WPA3-EAP or WPA2/WPA3-PSK security, store the
certicate in a format that is compatible with the projector in the root
directory of the USB storage device.
b
Press the [Menu] button, select the Ne
twork menu, and press [Enter].
c
Select Network Conguration and press [Enter].
d
S
elect the Wireless LAN menu and press [Enter].
e
Select the Security setting and press [Enter].
f
Select the security settings to match your network settings.
g
Do one of the following according to the security you selected.
•
WP
A3-PS
K or WPA2/WPA3-PSK: Select Passphrase, press [Enter],
and enter a passphrase from 8 to 63 characters long. To enter more than
32 characters, use your Web browser. en go to step 16.
•
WPA3-EAP or WPA2/WPA3-EAP: Select EAP Method and press
[Enter].
Wireless Network Projection
95
h
Select the protocol for authentication as the EAP Ty
pe setting.
i
To import your cer
t
icate, select the certicate type and press [Enter].
•
Client Certicate for the EAP-TLS type
•
CA certicate for all EAP types
You can also register the digital cert
icates from your Web browser.
However, be sure to register just once or the certicate may not
install correctly.
j
Select Register and press [Enter].
k
F
ollow the on-screen instructions to connect a USB storage device to the
pr
ojector's USB-A port.
l
Press [Enter] to display the cert
icate list.
m
Select the cert
icate to import using the displayed list.
A message is displayed prompting you to enter the password for the
certicate.
n
Enter a password and press [Enter].
e cert
icate is imported and a completion message appears.
o
Select your EAP settings as necessary.
•
Us
er name lets you enter a user name using up to 64 alphanumeric
characters. To enter more than 32 characters, use your Web browser.
When importing a client certicate, the name the certicate was issued
to is automatically set.
•
Password lets you enter a password using up to 64 alphanumeric
characters for authentication when using the PEAP type. To enter more
than 32 characters, use your Web browser.
•
RADIUS Serv.Name lets you enter the server name to be veried.
p
When you have nis
hed making settings, select Complete and follow the
on-screen instructions to save your settings and exit the menus.
Wireless Network Projection
96
g
Related Links
•
"Su
pported Client and CA Certicates" p.97
•
"Network Menu - Wireless LAN Menu" p.142
Supported Client and CA Certicates
Y
o
u can register these types of digital certicates.
Client Certicate (EAP-TLS)
Specication Description
Format PKCS#12
Extension PFX, P12
Encryption RSA
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
Password * Up to 64 alphanumeric characters; required
CA Certicate (PEAP/EAP-TLS)
Specication Description
Format X509v3
Extension DER/CER/PEM
Encryption RSA
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
Encoding BASE64/Binary
* You can set a password using up to 64 alphanumeric characters. However, you
ne
ed to use your Web browser to enter more than 32 characters.
Using a QR Code to Connect a Mobile Device
Aer selecting the wireless network settings for your projector, you can display
a Q
R code on the screen and use it to connect a mobile device using the Epson
iProjection (iOS/Android) app.
•
Mak
e sure you have installed the latest version of Epson iProjection on
your device.
•
You can download Epson iProjection for free from the App Store or
Google Play. Any fees incurred when communicating with the App
Store or Google Play are the responsibility of the customer.
•
When using Epson iProjection in Quick connection mode, we
recommend making security settings.
a
Press the [Wireless] button on the remote control.
e QR co
de is displayed on the projected surface.
•
If y
ou do not see the QR code, set the Display LAN Info. setting
to Text & QR Code in the projector's Network menu.
s Network > Network Conguration > Basic > Display LAN
Info.
•
To hide the QR code, press [Esc].
•
When the QR code is hidden, press [Enter] to display the code.
b
Start Epson iProjection on your mobile device.
Wireless Network Projection
97
c
Read the projected QR code using Epson iProjection to connect it to the
pr
ojector.
To correctly read the QR code, make sure you face the screen
sq
uarely and closely enough so that the projected code ts into the
guide of the mobile device's QR code reader. If you are too far from
the screen, the code may not be read.
When a connection is established, select Co
ntents menu from
, and
th
en select the le you want to project.
Using a USB Key to Connect a Windows Computer
You can set up your USB ash
drive as a USB key to quickly connect the
projector to a wireless LAN supported Windows computer. Aer creating the
USB key, you can quickly project images from the network projector.
a
Set up the USB key using Epson iProjection (Windows) so
ware.
See the Epson iProjection Operation Guide (Windows/Mac) for
in
structions.
b
Turn on the projector.
c
Press the [Wireless] button on the remote control until you see the LAN
s
t
andby screen.
e LAN standby screen is displayed. Verify that an SSID and IP address
are displayed.
d
Connect the USB key to the projector's USB-A port.
Yo
u see a projected message that the network information update is
complete.
e
Remove the USB key.
f
Connect the USB key to a USB port on your computer.
g
Follow the on-screen instructions to install the necessary application.
•
If t
he Windows Firewall message is displayed, click Yes to disable
the rewall.
•
You need administrator authority to install the soware.
•
If it is not installed automatically, double-click MPPLaunch.exe
in the USB key.
Aer a few minutes, your computer image is displayed by the projector.
h
W
hen you have nis
hed projecting wirelessly, select the Safely Remove
Hardware option in the Windows taskbar, and then remove the USB key
from your computer.
You may need to restart your computer to reactivate your wireless
LAN co
nnection.
Wireless Network Projection
98
You can send image to your projector from mobile devices such as laptops,
smar
tphones, and tablets using Miracast technology.
If your device supports Miracast, you do not need to install any additional
soware. When using a Windows computer, make sure the necessary adapter
for the Miracast connection is available.
Note the following limitations when using Miracast features.
•
You cannot play an interlaced image.
•
You cannot play multi-channel audio over 3ch (channel 3).
•
You cannot project images with a resolution above 1920 × 1080 and a frame
rate above 30 fps.
•
You cannot play 3D video.
•
e projector cannot play copyright-protected content using a Miracast
connection.
•
Do not change the projector's Miracast settings during Miracast projection.
Doing so may cause the projector to disconnect and it may take a while to
re-connect.
s Network > Network Conguration > Wireless LAN > Miracast
•
Do not turn o the projector directly by the breaker during Miracast
projection.
•
M
o
bile devices with Android installed or Windows 8.1 or later installed
mainly support Miracast.
Support for Miracast varies depending on the mobile device. See your
mobile device manual for details.
•
If the Web Control Password has not been set, a screen prompting
you to set a password is displayed when you save the network settings.
Follow the on-screen instructions to set the password.
g
Related Links
•
"Se
lecting Miracast Settings" p.99
•
"Connecting Using Miracast" p.100
Selecting Miracast Settings
You must select Miracast settings for your projector to project images from your
mo
bile device.
a
Press the [Menu] button, select the Ne
twork menu, and press [Enter].
b
Select Network Conguration and press [Enter].
c
S
elect Wireless LAN and press [Enter].
d
S
elect Simple AP and press [Enter].
e
S
elect On as th
e Simple AP setting.
If no Passphrase has been set, a screen prompting to set the
P
assphrase appears. Follow the on-screen instructions to set the
Passphrase.
f
Go back to the W
ir
eless LAN screen, select Miracast, and press [Enter].
Wireless Network Projection from a Mobile Device (Miracast)
99
g
Select On as th
e Miracast setting.
h
Change the following settings as needed.
•
A
c
cess Control lets you select whether or not to connect to another
mobile device during Miracast projection.
•
Secondary Connections lets you select the connection behavior for
devices attempting to connect during a Miracast connection.
•
Adjust Image Quality lets you adjust the Miracast speed/quality. Select
a small number to improve the quality and select large number to
increase the speed.
•
Miracast Info. lets you select whether or not to display Miracast
information.
i
When you have ni
s
hed selecting settings, select Complete and follow the
on-screen instructions to save your settings and exit the menus.
If no Web Control Password has been set, a screen prompting
y
ou to set a password is displayed before you can save the settings.
Follow the on-screen instructions to set the password.
j
Press the [Home] button on the remote control. e set
tings are complete
when you see the Display Name on the Home screen.
Connecting Using Miracast
If your mobile device such as a smartphone supports Miracast, you can connect
it t
o the projector wirelessly and project images. You can play audio through the
projector's speaker system by connecting using Miracast.
a
Select Miracast settings on your projector as necessary.
b
P
ress the [Wireless] button on the remote control to switch to the Miracast
so
urce.
You see the Miracast standby screen.
c
On your mobile device, use your Miracast function to search for the
pr
ojector.
You see a list of available devices.
d
Select the projector's Display Name from the list.
If y
ou see the screen asking if you allow the projection using Miracast on
the projector, check the device name displayed and select if you allow the
projection or not.
e projector displays the image from your mobile device.
Wireless Network Projection from a Mobile Device (Miracast)
100
•
It m
ay take some time until the connection is established. While
connecting, do not disconnect the projector's power cord. Doing
so may cause your device to freeze or malfunction.
Depending on the mobile device, you may need to delete a device
when connecting. Follow the on-screen instructions on your
device.
•
To add a device to the block list, select Add to Block List on the
Miracast projection conrmation screen and then select No. is
registers the device name to the block list.
•
When a device registered to the block list attempts to connect
using Miracast, the standby screen remains displayed, and the
images are not projected. e block list cannot be displayed as a
list. Use the following method to delete the entire block list.
•
Select Delete Block List on the home screen.
•
Turn o the projector.
•
Update the network settings.
•
Press the [Enter] button on the standby screen, and then select
Yes on the screen displayed.
g
Related Links
•
"Co
nnecting Using Miracast in Windows 10" p.101
•
"Connecting Using Miracast in Windows 11" p.102
Connecting Using Miracast in Windows 10
Yo
u can set up your computer for wireless projection and play audio through
the projector's speaker system by connecting using Miracast.
a
Select Miracast settings on your projector as necessary.
b
P
ress the [Wireless] button on the remote control to switch to the Miracast
so
urce.
You see the Miracast standby screen.
c
Display Action Center, and then select Connect.
You see a list of available devices.
d
Select the projector's Display Name from the list.
Wireless Network Projection from a Mobile Device (Miracast)
101
e
If you see the screen asking if you allow the projection using Miracast on
th
e projector, check the device name displayed and select if you allow the
projection or not.
e projector displays the image from your computer.
It may take some time until the connection is established. While
conn
ecting, do not disconnect the projector's power cord. Doing so
may cause your device to freeze or malfunction.
Connecting Using Miracast in Windows 11
Yo
u can set up your computer for wireless projection and play audio through
the projector's speaker system by connecting using Miracast.
a
Select the Mirac
ast settings on your projector as necessary.
b
Press the [Wireless] button on the remote control to switch to the Miracast
so
urce.
You see the network information screen.
c
Click the speaker icon on your computer's taskbar.
d
Click C
ast.
Y
ou see a list of available devices.
If Cast is not displayed or another message is displayed, see the
m
anual supplied with the computer.
e
Select the projector's Projector Name from the list.
f
If you see the screen asking if you allow the projection using Miracast on
t
h
e projector, check the device name displayed and select if you allow the
projection or not.
e projector displays the image from your computer.
It may take some time until the connection is established. While
conn
ecting, do not disconnect the projector's power cord. Doing so
may cause your device to freeze or malfunction.
Wireless Network Projection from a Mobile Device (Miracast)
102
You can stream media such as videos, music, and photos to the projector using
Ap
ple devices that support AirPlay. You can also mirror the entire screen of
your Apple device.
is projector is compatible with HomeKit. When you register the projector
with HomeKit on your Apple device, you can control the projector using the
Apple Home app on your Apple device.
•
Wh
en connected to a network by wireless LAN and A/V Output is set
to Always On from A/V Settings in the Extended menu, you can make
AirPlay connections even if the projector is in standby mode (when the
power is o).
•
You need to connect to the internet to enable AirPlay. Make network
settings in the Network menu. If you have never connected to the
internet before, a screen is displayed indicating that you need to make
network settings when you try to connect using AirPlay.
•
You need to congure a DNS server to use AirPlay. Depending on your
network, set DHCP to On in IP Settings from the Wired LAN menu
or the Wireless LAN menu. If DHCP is set to O or if you want to
specify a DNS server address, enter the IP address in DNS Server 1 or
DNS Server 2.
s Network > Network Conguration > Wireless LAN
s Network > Network Conguration > Wired LAN
•
You cannot use AirPlay when the same access point is used for wired
LAN and wireless LAN. (PowerLite 994F only)
•
To stream content that is not stored on your Apple device with AirPlay,
set Priority Gateway to Wireless LAN or Wired LAN according to the
network to be used. (PowerLite 994F only)
•
e maximum display resolution is 1920 × 1080.
•
You may not be able to use AirPlay to view copyright-protected
content.
•
e audio supports up to 2 channels with a maximum sampling
frequency of 44.1 kHz.
g
Related Links
•
"Set
tings for AirPlay" p.103
•
"Streaming/Mirroring Media with an AirPlay Connection" p.105
Settings for AirPlay
When using AirPlay, make sure your Apple device and the projector are using
the same network.
You can make AirPlay settings from the AirPlay and HomeKit settings screen.
•
If t
he date and time are not correctly set on the projector, the AirPlay
connection may be disconnected while projecting. Set the correct
date and time in Date & Time and Daylight Saving Time from the
Extended menu.
s Extended > Operation > Date & Time
•
When using AirPlay, if there are no operations for about 10 minutes on
the standby screen, the screen may turn black to prevent burn-in.
a
Change the source to something other than AirPlay.
Using AirPlay
103
b
Press the [Menu] button, select the Ne
twork menu, and press [Enter].
c
Select AirPlay and HomeKit in the Network menu and press [Enter].
e
AirPlay and HomeKit settings screen is displayed.
•
Wh
en the source is AirPlay, you cannot select AirPlay and
HomeKit from the Network menu. If you want to change the
settings, stop playback on your Apple device. Display the AirPlay
and HomeKit settings screen from the following screen that is
displayed.
•
Wh
en AirPlay is O, the AirPlay and HomeKit settings screen is
displayed when you set the source to AirPlay.
d
Set AirPlay to On.
Using AirPlay
104
e
Change the other settings as needed.
To r
egister with HomeKit, scan the projected QR code using your Apple
device.
Once registered with HomeKit, you can control the projector and change
the device name from the Home app on your Apple device.
When changing the device name in the Home app, only characters
th
at can be entered using the so keyboard are available. You
cannot use other characters.
g
Related Links
•
"Avai
lable Text Using the Displayed Keyboard" p.130
Streaming/Mirroring Media with an AirPlay
Connection
When using an Apple device that supports AirPlay, you can stream media such
as vide
os, music, and photos to the projector. You can also mirror and display
the entire screen of your Apple device.
When using AirPlay, if there are no operations for about 10 minutes on
th
e standby screen, the screen may turn black to prevent burn-in.
a
On your Apple device, select the media you want to play using AirPlay
and select the AirPlay icon ( or ).
To mirror, open the Control Center and select the screen mirroring icon
( ).
Using AirPlay
105
b
Select the projector's device name from the list displayed on your Apple
dev
ice.
•
To c
heck the projector's device name, stop media playback on
your Apple device and press the [Wireless] button on the remote
control until the following screen is displayed. You can also check
it on the Home screen or LAN standby screen.
•
Wh
en AirPlay is o, the projector's device name is not displayed
in the list on your Apple device. Use one of the following
operations to display the AirPlay and HomeKit settings screen,
and then turn on AirPlay.
•
Press the [Wireless] button until the AirPlay and HomeKit
settings screen is displayed.
•
Select AirPlay and HomeKit in the Network menu and press
[Enter].
c
If the projector prompts you for a 4-digit PIN code, enter it on your Apple
de
v
ice.
Media streaming or mirroring of your Apple device screen starts.
When streaming, you can play, pause, fast-forward, rewind, change
th
e volume, and mute using the projector's remote control.
d
To end the AirPlay connection, press [Esc].
e screen that was displayed before the connection started is projected.
•
Yo
u can also end the AirPlay connection by switching to a
dierent target device or by canceling mirroring on your Apple
device.
•
e AirPlay connection ends if you switch from the screen on
which AirPlay is playing to another display, such as displaying
the projector's home screen.
Using AirPlay
106
You can use the HTTPS protocol to increase security between the projector and
a We
b browser communicating with it. To do this, you create a server certicate,
install it on the projector, and turn on the Secure HTTP setting in the projector
menus to verify the reliability of the Web browser.
s Network > Network Conguration > Others > Secure HTTP
Even if you do not install a server certicate, the projector automatically
creates a self-signed certicate and allows communication. However, because
the self-signed certicate cannot verify reliability from a Web browser, you see a
warning about the server's reliability when you access the projector from a Web
browser. is warning does not prevent communication.
g
Related Links
•
"Importing a Web Server Cer ticate Using the Menus" p.107
Importing a Web Server Certicate Using the Menus
You can create your Web server certicate, and import it using the projector
menus and a USB ash drive.
You can also register the digital cert
icates from your Web browser.
However, be sure to register just once or the certicate may not install
correctly.
a
Make sure your digital cer
t
icate le is compatible with projector
registration and directly placed on the USB storage device.
b
Press the [Menu] button, select the Ne
twork menu, and press [Enter].
c
Select Network Conguration and press [Enter].
d
S
elect the O
thers menu and press [Enter].
e
Set the S
ecure HTTP setting to On.
f
S
elect Web Server Cert. and press [Enter].
g
S
elect Register and press [Enter].
h
F
ollow the on-screen instructions to connect a USB storage device to the
pr
ojector's USB-A port.
i
Press [Enter] to display the cert
icate list.
j
Select the cert
icate to import using the displayed list.
A message is displayed prompting you to enter the password for the
certicate.
k
Enter a password and press [Enter].
e cert
icate is imported and a completion message appears.
Secure HTTP
107
g
Related Links
•
"Su
pported Web Server Certicates" p.108
Supported Web Server Certicates
Y
o
u can register these types of digital certicates.
Web Server Certicate (Secure HTTP)
Specication Description
Format PKCS#12
Extension PFX, P12
Encryption RSA
Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512
Key length 512/1024/2048/4096 bit
Common name Network host name
Organization Optional
Password * Up to 64 alphanumeric characters; required
* You can set a password using up to 64 alphanumeric characters. However, you
ne
ed to use your Web browser to enter more than 32 characters.
Secure HTTP
108
Monitoring and Controlling the Projector
Fo
llow the instructions in these sections to monitor and control the projector over a network.
g
Related Links
•
"Epson Projector Management Connected / Epson Projector Management" p.110
•
"Controlling a Networked Projector Using a Web Browser" p.111
•
"Registering Digital Certicates from a Web Browser" p.115
•
"Setting Up Projector Network E-Mail Alerts" p.116
•
"Setting Up Monitoring Using SNMP" p.118
•
"Using ESC/VP21 Commands " p.119
•
"PJLink Support" p.121
•
"Crestron Connected Support" p.122
•
"Setting Projector Event Schedules" p.124
•
"Web API" p.127
Epson Projector Management Connected and Epson Projector Management is
so
ware that lets you monitor and control the status of projectors connected to
your network.
Epson Projector Management Connected manages projector information on a
cloud server, enabling remote monitoring and control from any device.
Epson Projector Management is soware for Windows only that lets you
monitor and control projectors on the same network from a computer.
Choose the appropriate option based on your usage environment and needs. For
more details, visit the following website.
https://www.projection-service.epson.com/epm-connected/
•
e aut
hentication method when registering projectors varies
depending on the version of the Epson Projector Management soware
you are using.
•
Ver.5.30 or earlier: Monitor Password
•
Ver.5.40 or later: Web Control Password
For the best results, we recommend that you use the latest version of
the Epson Projector Management.
s Network > Network Conguration > Others
•
To monitor and control the projector using Epson Projector
Management Connected or Epson Projector Management, set A/V
Output to Always On from A/V Settings in the Extended menu.
If A/V Output is set to While Projecting, you cannot monitor and
control the projector using Epson Projector Management Connected or
Epson Projector Management when the projector is in standby mode.
Epson Projector Management Connected / Epson Projector Management
110
Once you have connected your projector to your network, you can select
pr
ojector settings and control projection using a compatible Web browser. is
lets you access the projector remotely.
•
Mak
e sure the computer and projector are connected to the network.
When projecting images using a wireless LAN, connect using a wireless
LAN access point.
•
You can use the following Web browsers.
•
Microso Edge (Windows)
•
Safari (Mac, iOS)
•
Chrome (Android)
•
When connected to a network by wireless LAN and A/V Output is
set to Always On from A/V Settings in the Extended menu, you can
use a Web browser to select settings and control projection even if the
projector is in standby mode (when the power is o).
s Extended > A/V Settings > A/V Output
•
While using the Web browser, do not connect using a proxy server. You
cannot select all of the projector menu settings or control all projector
functions using a Web browser.
•
When connected to a network by wired LAN, if you set Standby Mode
to Communication On, you can use a Web browser to select settings
and control projection even if the projector is in standby mode (when
the power is o). (PowerLite 994F)
s ECO > Standby Mode
a
Make sure the projector is turned on.
b
Make sure your computer or device is connected to the same network as
t
h
e projector.
c
Start your Web browser on the computer or device.
d
Go to the Epson Web Control screen by entering the projector's IP address
in
t
o the browser's address box. When entering an IPv6 address, wrap the
address with [ and ].
You see the Epson Web Control screen.
A
Controls the projector remotely.
B
Displays a test pattern.
C
Sets detailed projector settings.
D
Opens the Crestron Connected and Crestron XiO Cloud operation windows.
(PowerLite 994F)
E
Operates the projector's menu settings with your nger or mouse.
Controlling a Networked Projector Using a Web Browser
111
e
Select the option corresponding to the projector function you want to
con
trol.
You may need to log in to access some of the options on the Eps
on
Web Control screen. Set the following passwords rst.
•
To access the Basic Control option, you need to log in using
EPSONREMOTE as the user name and your Remote Password.
(No password is set by default.)
Set Basic Control to On in the projector's Network menu, and
then set the password.
s Network > Network Conguration > Others > Basic
Control
•
To access other options and save settings, you need to log in
using EPSONWEB as the user name and your Web Control
Password. (No password is set by default.)
Set the password in the projector's Network menu.
s Network > Network Conguration > Basic > Web Control
Password
g
Related Links
•
"W
e
b Control Options" p.112
•
"Projector Setup Settings - ECO Menu" p.151
•
"Network Menu - Basic Menu" p.141
Web Control Options
Basic Control
A
Returns to the Epson Web Control screen.
B
Turns the projector on or o.
C
S
elects the input source.
D
Turns the video and audio on or o temporarily.
E
Pauses or resumes images.
F
Displays the QR code.
G
Adjusts the speaker volume.
H
Searches for sources.
Controlling a Networked Projector Using a Web Browser
112
OSD Control Pad
A
Returns to the Epson Web Control screen.
B
Displays the projector's setting menus.
C
Use your nger or mouse to navigate the menus.
D
S
witches the operation method to button operation.
E
Resets the selected setting to its default value.
F
Returns to the previous menu.
G
Displays help topics.
Test Pattern
A
Returns to the Epson Web Control screen.
B
Displays available test patterns; select to project a test pattern.
C
Turns o test pattern display.
Controlling a Networked Projector Using a Web Browser
113
Advanced
A
Opens the menus.
B
Displays the menu name you selected.
C
Species the projector settings.
D
L
ock/unlock the projector settings.
E
Updates the projector settings.
You cannot change the following settings using Epson Web Control.
•
HDMI L
ink
•
Customize Button
•
User's Logo
•
HDMI EQ Setting
•
Language
•
Reset Lamp Hours
Controlling a Networked Projector Using a Web Browser
114
You can register the digital cert
icates on the projector to provide security for
your presentation les.
You can also register the digital cert
icates in the projector's Network
menu. However, be sure to register just once or the certicate may not
install correctly.
s Network > Network Conguration > Wireless LAN > EAP Method
> Client Certicate
s Network > Network Conguration > Wireless LAN > EAP Method
> CA certicate
s Network > Network Conguration > Others > Web Server
Certicate
a
Make sure your digital cert
icate le is compatible with projector
registration.
b
Make sure the projector is turned on.
c
Start your Web browser on a computer or device connected to the
n
et
work.
d
Go to the Epson Web Control screen by entering the projector's IP address
in
t
o the browser's address box.
You see the Epson Web Control screen.
e
Select Advanced.
•
Yo
u may need to log in before you see the Advanced screen. If
a login screen is displayed, enter your user name and password.
(e user name is EPSONWEB. No password is set by default.)
•
You can change the password in Web Control Password in the
projector's Network menu.
s Network > Network Conguration > Basic > Web Control
Password
f
Under N
etwork, select Certicate.
g
S
elect the cert
icate le you want to register.
h
Enter the password in the Pass
word box, and then click Set.
i
When you nis
h registering the certicate, click Apply to nalize your
changes and complete the registration.
Registering Digital Certicates from a Web Browser
115
You can set up the projector to send you an e-mail alert over the network if
th
ere is a problem with the projector.
When connected to a network by wireless LAN and A/V Output is set to
Always On from A/V Settings in the Extended menu, you can use a Web
browser to select settings and control projection even if the projector is in
standby mode (when the power is o).
s Extended > A/V Settings > A/V Output
When connected to a network by wired LAN, if you set Standby Mode to
Communication On, you can receive the e-mail alerts even if the projector is in
standby mode (when the power is o). (PowerLite 994F)
s ECO > Standby Mode
a
Press the [Menu] button, select the Ne
twork menu, and press [Enter].
b
Select Network Conguration and press [Enter].
c
S
elect the Notications menu and press [Enter].
d
Set the Mail Notication setting to On.
e
En
ter the IP address for the S
MTP S
erver option.
Do not use "127.x.x.x" (where x is a number from 0 to 255) for the
SMTP S
erver.
f
Select a number for the SMTP server Po
rt Number, from 1 to 65535
(default is 25).
g
Enter the e-mail address to be indicated as the sender in Fr
om.
h
Choose an address eld
, enter the e-mail address, and select the alerts you
want to receive. Repeat for up to three addresses.
Your e-mail address can be up to 64 alphanumeric characters long.
To en
ter more than 32 characters, use your Web browser.
i
When you nis
h selecting settings, select Complete and follow the on-
screen instructions to save your settings and exit the menus.
If a critical problem causes a projector to shut down, you may not receive
an e-mai
l alert.
g
Related Links
•
"Net
work Projector E-mail Alert Messages" p.117
•
"Projector Setup Settings - Extended Menu" p.137
Setting Up Projector Network E-Mail Alerts
116
Network Projector E-mail Alert Messages
When a problem occurs with a projector on the network, and you selected
to r
eceive e-mail alerts, you receive an e-mail containing the following
information:
•
e email address set in From as the mail sender
•
Epson Projector in the subject line
•
e name of the projector experiencing a problem
•
e IP address of the aected projector
•
Detailed information about the problem
Setting Up Projector Network E-Mail Alerts
117
Network administrators can install SNMP (Simple Network Management
Pr
otocol) soware on network computers so they can monitor projectors.
If your network uses this soware, you can set up the projector for SNMP
monitoring.
a
Press the [Menu] button, select the Ne
twork menu, and press [Enter].
b
Select Network Conguration and press [Enter].
c
S
elect the Notications menu and press [Enter].
d
Set the SNMP setting to On.
e
En
ter the SNMP Co
mmunity Name up to 32 alphanumeric characters
long.
f
Enter up to two IP addresses to receive SNMP no
tications, using 0 to 255
for each address eld.
Do not use these addresses: 224.0.0.0 through 255.255.255.255
(wh
ere x is a number from 0 to 255). is projector supports SNMP
agent version 1 (SNMPv1).
g
When you ni
s
h selecting settings, select Complete and follow the on-
screen instructions to save your settings and exit the menus.
Setting Up Monitoring Using SNMP
118
You can control the projector from an external device using ESC/VP21.
is
feature is only available on the PowerLite 994F.
g
Related Links
•
"ESC/VP21 Command List" p.119
•
"Cable Layouts" p.119
ESC/VP21 Command List
When the power ON command is transmitted to the projector, the power turns
on and it enters warm-up mode. When the projector's power has turned on, a
colon ":" (3Ah) is returned.
When a command is input, the projector executes the command and returns a
":", and then accepts the next command.
If the command being processed terminates abnormally, an error message is
output and a ":" is returned.
e following commands are available.
Item Command
Power On/O On PWR ON
O PWR OFF
Signal selection Computer1 SOURCE 10
Computer2 SOURCE 20
HDMI1 SOURCE 30
HDMI2 SOURCE A0
Video SOURCE 41
USB SOURCE 52
LAN SOURCE 53
Miracast SOURCE 56
Item Command
A/V Mute On/O On MUTE ON
O MUTE OFF
Add a Carriage Return (CR) code (0Dh) to the end of each command and
tran
smit.
Contact Epson for more details.
Cable Layouts
Serial connection
•
Co
nnector shape: D-Sub 9-pin (male)
•
Projector input port name: RS-232C
•
Cable type: Crossover (null modem) cable
In the following illustration, the projector side is shown on the le, and the
computer side on the right:
Using ESC/VP21 Commands
119
Signal name Function
GND Signal wire ground
TD Transmit data
RD Receive data
Communications protocol
•
Defau
lt baud rate setting: 9600 bps
•
Data length: 8 bit
•
Parity: None
•
Stop-bit: 1 bit
•
Flow control: None
Using ESC/VP21 Commands
120
is feature is only available on the PowerLite 994F.
PJL
ink was established by the JBMIA (Japan Business Machine and Information
System Industries Association) as a standard protocol for controlling network-
compatible projector's as part of their eorts to standardize projector control
protocols.
e projector complies with the PJLink Class2 standard established by the
JBMIA.
e port number used for the PJLink search function is 4352 (UDP).
You need to make network settings before you can use PJLink.
It complies with all commands except for the following commands dened
by PJLink Class2, and agreement was conrmed by the PJLink standard
adaptability verication.
http://pjlink.jbmia.or.jp/english/
•
Non-compatible commands
Function PJLink command
Mute settings Image muting set AVMT 11
Audio muting set AVMT 21
•
In
put ports and corresponding input source number
Input port name Input source number
Computer1 11
Computer2 12
Video 21
HDMI1 32
HDMI2 33
USB 41
LAN 52
Miracast 57
Input port name Input source number
AirPlay 59
•
Manufacturer name displayed for "Manufacture name information query"
EPSON
•
Model name displayed for "Product name information query"
•
EPSON 994F
g
Related Links
•
"Using the Projector on a Network" p.86
PJLink Support
121
If you are using the Crestron Connected network monitoring and control
syst
em, you can set up your projector for use on the system. Crestron
Connected lets you control and monitor your projector using a Web browser.
is feature is only available on the PowerLite 994F.
•
Yo
u cannot use the Message Broadcasting feature in Epson Projector
Management when you use Crestron Connected.
•
When connected to a network by wired LAN, if you set Standby Mode
to Communication On, you can control the projector even if the
projector is in standby mode (when the power is o).
s ECO > Standby Mode
•
When connected to a network by wireless LAN and A/V Output is
set to Always On from A/V Settings in the Extended menu, you can
control the projector even if the projector is in standby mode (when the
power is o).
s Extended > A/V Settings > A/V Output
For additional information on Crestron Connected, visit the Crestron Web site.
ht
tps://www.crestron.com/
To monitor devices in the system, you can use Crestron RoomView Express or
Crestron Fusion provided by Crestron. You can communicate with the help desk
and send emergency messages. See the following Web site for details.
http://www.crestron.com/getroomview
To monitor or control your projector and other various devices over a network,
you can use Crestron XiO Cloud. You can manage multiple devices from one
location. See the following Web site for details.
https://www.crestron.com/Products/Featured-Solutions/XiO-Cloud
is manual describes how to perform operations on your computer using a
Web browser.
g
Related Links
•
"Setting Up Crestron Connected Support" p.122
•
"Projector Setup Settings - ECO Menu" p.151
•
"Pr
ojector Setup Settings - Extended Menu" p.137
Setting Up Crestron Connected Support
To set up your projector for monitoring and control using a Crestron Connected
syst
em, make sure your computer and projector are connected to the network.
When projecting images using a wireless LAN, connect using a wireless LAN
access point.
a
Press the [Menu] button, select the Ne
twork menu, and press [Enter].
b
Select Network Conguration and press [Enter].
c
S
elect the Others menu and press [Enter].
Crestron Connected Support
122
d
Set the Crestron Connected setting to On to allow the projector to be
det
ected.
To enable the Crestron XiO Cloud service, set Cr
estron XiO Cloud
to On.
e
When you have nis
hed selecting settings, select Complete and follow the
on-screen instructions to save your settings and exit the menus.
f
Turn o the projector, and then turn it on again to enable the setting.
g
S
tart your Web browser on a computer or device connected to the
net
work.
h
Go to the Epson Web Control screen by entering the projector's IP address
int
o the browser's address box.
i
Select the Crestron Connected settings. See the Crestron Web site for
det
ails.
Crestron Connected Support
123
You can schedule up to 30 events to occur automatically on your projector, such
as tur
ning the projector on or o or switching the input source. e projector
performs the selected events on the specied date and time in the schedule you
set up.
Warning
Do n
ot place ammable objects in front of the lens. If you schedule the projector to
turn on automatically, ammable objects in front of the lens could catch on a re.
•
If y
ou set a Schedule Protection password, turn o your Schedule
Protection password rst.
a
Set the date and time in the Date & Time menu.
s Extended > Operation > Date & Time
b
Press the [Menu] button, select the Ext
ended menu, and press [Enter].
c
Select Schedule Settings and press [Enter].
d
S
elect Schedule and press [Enter].
e
S
elect A
dd New and press [Enter].
f
Select the event details you want to perform.
Setting Projector Event Schedules
124
g
Select the date and time at which you want the event to occur.
h
Select S
ave and press [Enter].
e
scheduled events are displayed on the screen with icons indicating the
event status.
A
: valid schedule
: regular schedule
: invalid schedule
B
e date currently selected (highlighted in yellow)
C
: one time schedule
: regular schedule
: standby schedule (turns communication on or o
during standby)
: invalid schedule
i
To edit a scheduled event, select the schedule and press [Esc].
j
Select an option from the menu displayed.
•
On o
r
O lets you enable or disable the selected event.
•
Edit lets you change the event details or date and time.
Setting Projector Event Schedules
125
See the Web API Specications for Projectors for details.
•
Yo
u can authenticate Web API communications using API
authentication (Digest authentication).
•
e user name for API authentication is EPSONWEB; use the
password that is set for Web Control Password.
s Network > Network Conguration > Basic > Web Control
Password
g
Related Links
•
"Enab
ling Web API" p.127
Enabling Web API
You can enable Web API using the projector's menu.
a
Press the [Menu] button, select the N
e
twork menu, and press [Enter].
b
Select Network Conguration and press [Enter].
c
S
elect Others and press [Enter].
d
S
elect Web API Settings.
e
S
et Web API to On.
f
W
hen you nis
h selecting settings, select Complete and follow the
onscreen instructions to save your settings and exit the menus.
Web API
127
Adjusting the Menu Settings
Fo
llow the instructions in these sections to access the projector menu system and change projector settings.
g
Related Links
•
"Using the Projector's Menus" p.129
•
"Using the Displayed Keyboard" p.130
•
"Image Quality Settings - Image Menu" p.131
•
"Input Signal Settings - Signal Menu" p.133
•
"Projector Feature Settings - Settings Menu" p.134
•
"Projector Setup Settings - Extended Menu" p.137
•
"Projector Network Settings - Network Menu" p.140
•
"Projector Setup Settings - ECO Menu" p.151
•
"Projector Information Display - Info Menu" p.153
•
"Projector Reset Options - Reset Menu" p.156
•
"Copying Menu Settings Between Projectors (Batch Setup)" p.157
You can use the projector's menus to adjust the settings that control how your
pr
ojector works. e projector displays the menus on the screen.
a
Press the [Menu] button on the control panel or remote control.
Yo
u see the menu screen displaying the Image menu settings.
b
Press the up or down arrow buttons to move through the menus listed on
the le. e settings for each menu are displayed on the right.
e available settings depend on the current input source.
c
To change settings in the displayed menu, press [Enter].
d
Press the up or down arrow button to move through the settings.
e
Change the settings using the buttons listed on the bottom of the menu
s
cr
eens.
f
To return all the menu settings to their default values, select Reset.
g
When you nis
h changing settings on a menu, press [Esc].
h
Press [Menu] or [Esc] to exit the menus.
Using the Projector's Menus
129
You can use the displayed keyboard to enter numbers and characters.
a
Use the arrow buttons on the control panel or remote control to highlight
th
e number or character you want to enter and press the [Enter] button.
Each time you select the CAPS key, the characters change between
up
per case and lower case. Each time you select the SYM1/2 key, the
symbols enclosed by the frame change.
b
Aer entering the text, select Finish on the keyboard to conrm your
en
tries. Select Cancel to cancel entering text.
You can select projector settings and control projection over a network
usin
g a Web browser from your computer.
Some symbols cannot be entered using the displayed keyboard. Use your
Web browser to enter the text.
g
Related Links
•
"Avai
lable Text Using the Displayed Keyboard" p.130
•
"Controlling a Networked Projector Using a Web Browser" p.111
Available Text Using the Displayed Keyboard
You can enter the following text when using the displayed keyboard.
Text type Details
Numbers 0123456789
Alphabet ABCDEFGHIJKLMNOPQRSTUVWXY
Z
abcdefghijklmnopqrstuvwxyz
Symbols ! " # $ % & ' ( ) * + , - . / : ; < = > ? @ [ \ ] ^
_ ` { | } ~
Using the Displayed Keyboard
130
Settings on the Image
menu let you adjust the quality of your image for the
input source you are currently using. e available settings depend on the
currently selected input source.
To change settings for an input source, make sure the source is connected and
se
lect that source.
Setting Options Description
Color Mode See the list of
avail
able color
modes
Adjusts the vividness of image colors for
various image types and environments.
Brightness Varying levels
avail
able
Lightens or darkens the overall image.
Contrast Varying levels
avail
able
Adjusts the dierence between light and
dark areas of the image.
Color Saturation Varying levels
avail
able
Adjusts the intensity of the image colors.
Tint Varying levels
avail
able
Adjusts the balance of green to magenta
tones in the image.
Setting Options Description
Sharpness Varying levels
avail
able
Adjusts the sharpness or soness of image
details.
White Balance Adjusts the overall tint of the image.
Color Temp. Color Temp.: sets t
he color temperature
according to the color mode you selected.
Higher values tint the image blue and
lower values tint the image red.
Custom Custom: adjusts the individual R (red), G
(g
reen), and B (blue) components of the
oset and gain.
Enh
ancement
Adjusts the perceived resolution of the
image:
Noise Reduction Noise Reduction: re
duces ickering in
analog images.
Deinterlacing
(Fo
r interlaced
signal [480i/576i/
1080i] input)
Deinterlacing: sets whether or not to
convert interlaced-to-progressive signals
for certain video image types.
•
O: for fast-moving video images.
•
Video: for most video images.
•
Film/Auto: for movies, computer
graphics, and animation.
Scene Adaptive
Gamma
V
arious levels
available
Adjusts the coloring according to the
scene, and obtains a more vivid image.
Select a large number to enhance
contrast.
Auto Iris O
No
rmal
High Speed
Adjusts the projected luminance based on
the image brightness.
Reset — Resets all adjustment values on the Image
m
enu for the selected color mode to their
default settings.
Image Quality Settings - Image Menu
131
Normally the projector automatically detects and optimizes the input signal
set
tings. If you need to customize the settings, you can use the Signal menu. e
available settings depend on the currently selected input source.
To change settings for an input source, make sure the source is connected and
se
lect that source.
Setting Options Description
Resolution* Auto
Wide
N
ormal
Sets the input signal resolution if not
detected automatically using the Auto
option.
Aspect See the list of
avail
able aspect
ratios.
Sets the aspect ratio (width-to-height
ratio) for the selected input source.
Tracking* Varying levels
avail
able
Adjusts the signal to eliminate vertical
stripes in computer images.
Sync.* Varying levels
avail
able
Adjusts the signal to eliminate fuzziness
or ickering in computer images.
Position* — Adjusts the image location on the screen.
Setting Options Description
Auto Setup* On
O
Automatically optimizes computer image
qu
ality (when On).
Advanced Video Range Sets the video range to match the setting
of t
he device connected to the HDMI
port.
Video Signal* Video Signal: sp
ecies the signal type
from the input sources connected to the
Video ports. If interference appears or no
image appears when set to Auto, select
the appropriate signal according to the
connected equipment.
Reset — Resets all adjustment values on the Sig
nal
menu to their default settings.
* is setting is only available on the PowerLite 994F.
g
Related Links
•
"A
vailable Image Aspect Ratios" p.54
Input Signal Settings - Signal Menu
133
Options on the Se
ttings menu let you customize various projector features.
Setting Options Description
E-Zoom Varying levels
available
Adjusts the size of the projected image.
Keystone Adjusts image shape to rectangular
(ho
rizontally and vertically).
H/V-Keystone V-Keystone: Se
lect to manually correct
vertical sides.
H-Keystone: Select to manually correct
horizontal sides.
Auto V-Keystone: Turns automatic
correction on or o.
H-Keystone Adjuster: Turns H-Keystone
Adjuster on or o.
Quick Corner Quick Corner: Se
lect to correct image
shape and alignment using an on-screen
display.
Setting Options Description
Split Screen Screen Size
So
urce
Swap Screens
Audio Source
Align
Display the QR
Code
Exit Split Screen
Divides the viewing area horizontally and
displays two images side-by-side (press
[Esc] to cancel split screen display).
is setting is only available on the
PowerLite 994F.
Volume Varying levels
avail
able
Adjusts the volume of projector’s speaker
system.
You can also adjust the volume of external
speakers.
Setting values are saved for each source.
Mic Input Level Varying levels
avail
able
Adjusts the input level from a
microphone.
When Mic Input Level is turned up, the
volume of the other connected device is
turned down; when it is turned down, the
volume of the other connected device is
turned up.
(PowerLite 994F)
HDMI Link Device
Co
nnections
Lists the devices connected to the HDMI
ports.
Setting is only displayed when HDMI
Link is set to On.
HDMI Link Set to On to enable the HDMI Link
f
eatures.
Projector Feature Settings - Settings Menu
134
Setting Options Description
Audio Out Device Sets the audio output destination.
•
Pr
ojector: Audio is output from
the projector’s speakers or external
speakers connected to the projector's
Audio Out port.
•
AV System: Audio is output from
speakers connected to an AV amplier
connected using an HDMI cable.
Power On Link Controls what happens when you turn on
th
e projector or connected device.
•
Bidirectional: automatically turns on
the connected device when you turn
on the projector, and vice versa.
•
Device -> PJ: automatically turns on
the projector when you turn on the
connected device.
•
PJ -> Device: automatically turns on
the connected device when you turn
on the projector.
Power O Link Controls whether connected devices are
tur
ned o when you turn o the
projector.
Lock Setting Control Panel Lock Controls projector button locking to
se
cure the projector:
Full Lock: locks all buttons.
Partial Lock: locks all buttons except the
power button.
O: no buttons locked.
Remote Receiver Front/Rear
Fr
ont
Rear
O
Limits reception of remote control signals
by the selected receiver; O turns o all
receivers.
Setting Options Description
Customize Button Power
Co
nsumption
Info
Test Pattern
Mic Input Level
Pattern Display
Display the QR
Code
Split Screen
Assigns a menu option to the
[Customize] button on the remote control
for one-touch access.
Mic Input Level and Split Screen are
only available on the PowerLite 994F.
Pattern Selects various pattern display options.
Attention
If a p
attern is displayed for a
long time, a residual image may
be visible in projected images.
Pattern Display Pattern Display: lets y
o
u display the
selected pattern type on the screen to aid
in presentation.
Pattern Type Pattern Type: se
lect from Patterns 1 to 4
or User Pattern. Patterns 1 to 4 display
patterns pre-registered in the projector,
such as ruled lines or grid patterns.
User Pattern User Pattern: cap
tures a projected screen
and saves it as a pattern for display.
Test Pattern Test Pattern: dis
plays a test pattern to
assist in focusing and zooming the image
and correcting image shape (press the
[Esc] button to cancel pattern display).
Projector Feature Settings - Settings Menu
135
Setting Options Description
Reset — Resets all adjustment values on the
Se
ttings menu to their default settings,
except for the following:
•
E-Zoom
•
HDMI Link (except for On and O
settings in HDMI Link)
•
Customize Button
Projector Feature Settings - Settings Menu
136
Settings on the Ext
ended menu let you customize various projector setup
features.
Setting Options Description
Home Screen Selects the projector's Home screen
dis
play options:
Home Screen Auto
Dis
p.
Home Screen Auto Disp.: select whether
or not to display the Home screen
automatically when there is no input
signal when turning on the projector.
Custom Function 1
Cu
stom Function 2
Custom Function 1/Custom Function 2:
select to set functions and the display as
the customized Home screen.
Display Selects various display options:
Messages Messages: set to On to display messages
s
uch as input source name, color mode
name, aspect ratio, no signal message,
or high temperature warning on your
projected image. Set to O if you do not
want to display messages.
Setting Options Description
Display
Bac
kground
Display Background: sets the screen
color or logo to display when no signal
is received.
Startup Screen Startup Screen: set t
o On to display a
logo when the projector starts up.
A/V Mute A/V Mute: sets the screen color or logo to
di
splay when A/V Mute is turned on.
User's Logo — Creates a screen that the projector
dis
plays to identify itself and enhance
security.
Projection Front
Fr
ont/Ceiling
Rear
Rear/Ceiling
Selects the way the projector faces the
screen so the image is oriented correctly.
Operation Selects various operation options:
Direct Power On Direct Power On: lets yo
u turn on
the projector by plugging it in without
pressing the power button.
High Altitude
Mo
de
High Altitude Mode: regulates the
projector’s operating temperature at
altitudes above 4,921 feet (1,500 m).
Auto Source Search Auto Source Search: set t
o On to detect
the input signal automatically and project
images when there is no input signal.
Projector Setup Settings - Extended Menu
137
Setting Options Description
Auto Power On Auto Power On: se
lect the image source
from which you want to automatically
start projection. When the projector
detects the input signal from the selected
image source, it projects automatically in
standby mode.
e following image sources are available
for this feature. Computer1 is only
available on the PowerLite 994F.
•
HDMI1
•
Computer1
Power On Trigger Sets the way the projector turns on when
Au
to Power On is set to HDMI1.
Plug-in Detection: Automatically turns
on the projector when it detects that a
connected device has been turned on.
Signal Detection: Automatically turns on
the projector when it detects an HDMI
video signal.
When set to Signal Detection, the
standby power increases. Please consider
the environment before making any
changes.
USB Power Set to Always On
to continue supplying
power to the streaming media player
when the projector is not projecting
images.
When set to Always On, the standby
power increases.
Setting Options Description
HDMI EQ Setting HDMI EQ Setting: Ad
just the HDMI
input signal level depending on the
devices connected to the HDMI port. If
there is a lot of interference in the image,
or if a problem such as no image being
projected occurs, change the setting.
If no images are displayed using a thumb-
sized media streaming device, select 1.
Advanced Log Save Destination: sets t
he location
in which to save error and operation log
les.
Batch Setup Range: select All to copy
all of the projector menu settings using
the batch setup feature. Select Limited,
if you do not want to copy the following
settings:
•
Password Protection settings
•
Network menu settings
Date & Time Date & Time: adj
usts the projector's
system time and date settings.
•
Daylight Saving Time: set to On to
activate daylight saving time.
•
Internet Time: set to On to update the
time automatically through an Internet
time server.
A/V Settings Selects various audio and video output
set
tings:
A/V Output A/V Output: set t
o Always On to output
audio and images to external devices
when the projector is in standby mode.
Projector Setup Settings - Extended Menu
138
Setting Options Description
Audio Settings
(Avai
lable only for
PowerLite 994F)
Audio Output: selects the audio input
port when projecting images from
anything except for HDMI ports.
HDMI1 Audio Output/HDMI2 Audio
Output: selects the audio input port
when projecting images from HDMI
ports.
Projector ID O
1 thr
ough 9
Assigns an ID for the projector when you
use multiple projectors.
Schedule Settings To Schedule
Set
tings menu
Schedules projector events to occur
automatically at selected dates and times.
Language Various languages
avail
able
Select the language for projector menu
and message displays.
Reset — Resets all adjustment values on the
Ext
ended menu to their default settings,
except for the following:
•
User's Logo
•
Projection
•
High Altitude Mode
•
Auto Source Search
•
USB Power
•
HDMI EQ Setting
•
Date & Time
•
A/V Output
•
Projector ID
•
Schedule Settings
•
Language
When you set Us
er's Logo Protection to On in the Password Protection
screen, you cannot change settings related to user's logo display (Display
Background, Startup Screen, A/V Mute in the Display setting). Set
User's Logo Protection to O rst.
g
Related Links
•
"Se
lecting Password Security Types" p.82
Projector Setup Settings - Extended Menu
139
Settings on the Ne
twork menu let you view network information and set up the
projector for controlling over a network.
When you set Network Protection to On in the Password Protection screen,
you cannot change the network settings. Set Network Protection to O rst.
If no Web Control Password has been set, a screen prompting you to set
a p
assword is displayed before you can save network settings. Follow the
on-screen instructions to set the password.
Setting Options Description
Wireless LAN
Po
wer
On
O
Congures your wireless LAN settings.
Select On to project images via a wireless
LAN. If you do not want to connect
via wireless LAN, turn it o to prevent
unauthorized access by others.
AirPlay and
Ho
meKit
— Displays the AirPlay and HomeKit
settings screen.
Not available when the source is AirPlay.
Setting Options Description
Network
info
rmation
Simple AP
Wireless LAN
Wired LAN
(Wired LAN is
only available on
the PowerLite
994F.)
Displays the network connection status
and detailed information. Wireless LAN
is available when you have set Wireless
LAN Power to On.
Simple AP is only available when
Wireless LAN Power is set to On, and
Simple AP in the Wireless LAN menu is
set to On.
e following settings are displayed when
you select On as the IPv6 setting.
•
IPv6 Address (Auto)
•
Temporary Address
•
Link-local Address
•
Stateless Address
•
Stateful Address
Display the QR
Co
de
— Displays a QR code for connecting with
iOS or Android devices using the Epson
iProjection app.
Network
Co
nguration
To additional
network menus
Congures your network settings.
Projector Network Settings - Network Menu
140
Setting Options Description
EPMC Monitoring
Co
ntrol
EPMC Settings
Export EPMC
Settings
Import EPMC
Settings
EPMC Settings: Set to On as the EPMC
Monitoring Control to communicate
directly with the Epson Projector
Management Connected cloud server
without going through the Epson
Projector Connected Agent.
See the Epson Projector Management
Connected Operation Guide for details.
https://www.projection-
service.epson.com/pages/epm-connected/
online-manual/web-front/EN/index.html
Export EPMC Settings: Exports the
settings for Epson Projector Management
Connected.
Import EPMC Settings: Imports the
settings for Epson Projector Management
Connected.
Firmware Update
Set.
N
otify
Do not notify
Auto update at
midnight
O
Select whether to receive notications
about rmware updates and whether to
update automatically during the night.
Set this to O if you do not want to
update the projector’s rmware over the
network.
If you are using
Eps
on Projector
Management
Connected, we
recommend setting
this to O.
Once you have connected your projector to your network, you can select
pr
ojector settings and control projection using a compatible Web browser.
is allows you to access the projector remotely.
g
Related Links
•
"Net
work Menu - Basic Menu" p.141
•
"Network Menu - Wireless LAN Menu" p.142
•
"Network Menu - Wired LAN Menu" p.146
•
"Network Menu - Notications Menu" p.146
•
"Network Menu - Others Menu" p.148
•
"Network Menu - Reset Menu" p.149
•
"Selecting Password Security Types" p.82
Network Menu - Basic Menu
Settings on the Basic menu let you select the basic network settings.
s Network > Network Conguration > Basic
Setting Options Description
Projector Name Up to 16
alp
hanumeric
characters
(do not use " *
+ , / : ; < = > ? [ \ ] `
| spaces)
Enter a name to identify the projector
over the network.
Projector Network Settings - Network Menu
141
Setting Options Description
PJLink Password Up to 32
alp
hanumeric
characters
(do not use spaces
and any symbols)
Enter a password for using the PJLink
protocol for projector control. (PowerLite
994F)
Remote Password 8 to 32
alp
hanumeric
characters
(do not use * :
spaces)
Enter a password for accessing the
projector using the Basic Control. (e
user name is EPSONREMOTE. No
password is set by default.)
Web Control
Pas
sword
8 to 32
alphanumeric
characters
(do not use * :
spaces)
Enter a password for accessing the
projector over the Web. (e user name
is EPSONWEB. No password is set by
default.)
Monitor Password Up to 16
alp
hanumeric
characters
(do not use spaces
and any symbols
other than @)
Enter a password when using Epson
Projector Management Ver.5.30 or earlier,
or when controlling and monitoring the
projector in combination with a switcher
or controller. (No password is set by
default.)
Make sure the Monitor Password matches
the password used with the switcher or
controller.
Available when you have set Command
Communication to Compatible.
s Network > Network Conguration >
Others
Moderator
Pas
sword
Four-digit number Enter a password for accessing the
projector as a moderator using Epson
iProjection. (No password is set by
default.)
Setting Options Description
Projector Keyword On
O
Set to On to enable a security password to
p
revent access to the projector by anyone
not in the same room as the projector.
You must enter a displayed, randomized
keyword from a computer using Epson
iProjection to access the projector and
share the current screen.
Display Keyword On
O
Set to On to display a projector keyword
o
n the projected image when accessing
the projector using Epson iProjection.
Available when Projector Keyword is set
to On.
Display LAN Info. Text & QR Code
Text
S
et the display format for the projector's
network information.
By simply reading the QR code with
Epson iProjection, you can connect the
mobile device to the projector through a
network. e default value is Text & QR
Code.
Proxy IP Address
Po
rt Number
Enter the IP address and port number
of the proxy server when using a proxy
server.
IPv6 On
O
Set to On when connecting the projector
t
o a network using IPv6.
IPv6 is supported to monitor and control
the projector over a network using Epson
Web Control and PJLink. (PJLink is only
available for the PowerLite 994F.)
Network Menu - Wireless LAN Menu
Settings on the Wireless LAN menu let you select the wireless LAN settings.
s Network > Network Conguration > Wireless LAN
Projector Network Settings - Network Menu
142
Setting Options Description
Simple AP Select the settings for connecting to a
wir
eless LAN network using Simple AP.
Simple AP Set to On when connecting using Simple
AP
.
SSID Displays the SSID (network name) of
th
e wireless LAN system to which the
projector is connected.
Simple AP automatically detects and
connects to the wireless LAN system.
Security For Simple AP, this is xe
d at WPA2-
PSK.
Communication is performed using
WPA2 security with AES encryption.
When connecting to the projector from
a computer, enter the value set as the
passphrase.
Setting Options Description
Passphrase
(Var
ious
passphrases from
8 to 32 characters
(when entering
from a Web
browser: various
passphrases from 8
to 63 characters))
Enter the passphrase of the projector
for entry on your device in simple AP
connections.
You must set the Passphrase when using
simple AP mode for the rst time.
Enter a passphrase and press [Enter] to
set the value. e set value is displayed as
a string of asterisks (*).
For increased security, we recommend
changing the passphrase periodically.
If you reset the network settings, the
passphrase is reset to its default value.
Channel For Simple AP, this is xe
d at Auto
(5GHz).
Search Access Point To Search View Search for available wireless network
access p
oints. Depending on the access
point settings, they may not be displayed
in the list.
SSID Up to 32
alp
hanumeric
characters
Sets the SSID (network name) of the
wireless LAN system the projector is
connecting to.
Security Selects the type of security used on the
wir
eless network.
When setting security, follow the
instructions from the administrator of the
network system you want to connect to.
Open Security is not set.
WPA3-PSK Communication is performed using
WPA3 s
ecurity. Uses AES method
for encryption. When establishing a
connection from a computer to the
projector, enter the value set in the
passphrase.
Projector Network Settings - Network Menu
143
Setting Options Description
WPA2/WPA3-PSK Connects in WPA2/WPA3 personal
mo
de. Encryption method is selected
automatically according to the access
point settings. Set a passphrase which is
the same for the access point.
WPA3-EAP Connects in WPA3 enterprise mode.
Encr
yption method is selected
automatically according to the access
point settings.
WPA2/WPA3-EAP Connects in WPA2/WPA3 enterprise
mo
de. Encryption method is selected
automatically according to the access
point settings.
Passphrase Various
pas
sphrases from 8
to 32 characters
(when entering
from a Web
browser: various
passphrases from 8
to 63 characters)
For WPA3-PSK and WPA2/WPA3-PSK
security, selects the pre-shared passphrase
used on the network.
When the passphrase is entered and the
[Enter] button is pressed, the value is set
and displayed as an asterisk (*).
We recommend changing the passphrase
periodically for security. If the network
settings are initialized, it returns to the
initial passphrase.
EAP Method Set the EAP settings for WPA3-EAP
and
WPA2/WPA3-EAP security.
EAP Type EAP Type: selects the protocol for
au
thentication.
•
PEAP: authentication protocol widely
used in Windows Server.
•
EAP-TLS: authentication protocol
widely used to use a client certicate.
Setting Options Description
User name User name: Ent
er up to 64 alphanumeric
characters. You can enter up to 32
alphanumeric characters in the projector
menu. To enter more than 32 characters,
use your Web browser. You can enter a
domain name by adding it before the
user name and separating them with a
backslash (domain\username).
When importing a client certicate, the
name the certicate was issued to is
automatically set.
Password Password: Ent
er a password up
to 64 alphanumeric characters for
authentication when EAP Type is set
to PEAP. You can enter up to 32
alphanumeric characters in the projector
menu. To enter more than 32 characters,
use your Web browser. Aer you enter
the password and select Set, the password
is displayed as an asterisk (*).
Client Certicate C
lient Certicate: imports the client
certicate when EAP Type is set to EAP-
TLS.
CA certicate CA
certicate: imports the CA
certicate.
RADIUS
Ser
v.Name
RADIUS Serv.Name: Enter the server
name you want to verify. You can enter up
to 64 alphanumeric characters. To enter
more than 32 characters, use your Web
browser.
Projector Network Settings - Network Menu
144
Setting Options Description
IP Settings DHCP
IP Addr
ess
Subnet Mask
Gateway Address
DHCP: set to On if your network assigns
addresses automatically; set to O to
manually enter the network's IP Address,
Subnet Mask, and Gateway Address
using 0 to 255 for each address eld.
Do not use these addresses:
0.0.0.0, 127.x.x.x, 192.0.2.x, 192.168.48.x,
192.168.88.x or 224.0.0.0 through
255.255.255.255 (where x is a number
from 0 to 255) for IP Address,
255.255.255.255 or 0.0.0.0 through
254.255.255.255 for Subnet Mask, and
0.0.0.0, 127.x.x.x or 224.0.0.0 through
255.255.255.255 for Gateway Address.
DNS Server 1
DNS S
erver 2
Various IP
addresses
Enter the IP address for the DNS server,
using 0 to 255 for each address eld.
e DNS server resolves the host name.
Do not use the following IP addresses:
127.x.x.x (where x is a number from 0 to
255).
When these settings are not set
and remain as 0.0.0.0, DNS server
information is acquired using DHCP.
SSID Display On
O
Select whether to display the SSID on
th
e network standby screen and Home
screen.
IP Address Display On
O
Select whether to display the IP address
on t
he network standby screen and Home
screen.
Miracast Select the settings for using the Miracast
fun
ction.
Miracast Set to On when using the Miracast
f
unction.
Setting Options Description
Access Control Set to On to display a conrmation
s
creen that asks whether to allow
projection each time a Miracast
connection is made.
Secondary
Co
nnections
Selects the connection behavior for
devices attempting to connect during a
Miracast connection.
•
Interruptions OK: Images from
devices that connect subsequently are
projected as the Miracast1 source.
If the subsequent device is
disconnected when Access Control is
set to On, images from the previously
connected device are projected as the
Miracast1 source. You can connect up
to two devices to the projector at the
same time.
When Access Control is set to O,
the previously connected device is
disconnected.
•
No Interruptions: A second device
can connect to the projector while
images from the previously connected
device continue to be projected as
the Miracast1 source. If you switch
the source to Miracast2, images from
the second device are projected. You
can connect up to two devices to the
projector at the same time.
•
O: No additional devices can connect
to the projector during Miracast
connection.
Projector Network Settings - Network Menu
145
Setting Options Description
Adjust Image
Qu
ality
Adjusts the image display speed and
quality for Miracast.
You can select from 1 (Fine) to 4 (Fast).
1: Improved display quality.
4: Improved display speed.
Miracast Info. Set to On to display information
n
ecessary to connect to the device while
projecting from a Miracast source.
Network Menu - Wired LAN Menu
Settings on the Wir
ed LAN menu let you select the wired LAN settings.
s Network > Network Conguration > Wired LAN
is menu is available only for models that support wired LAN projection.
Setting Options Description
IP Settings DHCP
IP Addr
ess
Subnet Mask
Gateway Address
DHCP: set to On if your network assigns
addresses automatically; set to O to
manually enter the network's IP Address,
Subnet Mask, and Gateway Address
using 0 to 255 for each address eld.
Do not use these addresses:
0.0.0.0, 127.x.x.x, 192.0.2.x, 192.168.48.x,
192.168.88.x or 224.0.0.0 through
255.255.255.255 (where x is a number
from 0 to 255) for IP Address,
255.255.255.255 or 0.0.0.0 through
254.255.255.255 for Subnet Mask, and
0.0.0.0, 127.x.x.x or 224.0.0.0 through
255.255.255.255 for Gateway Address.
DNS Server 1
DNS S
erver 2
Various IP
addresses
Enter the IP address for the DNS server,
using 0 to 255 for each address eld. e
DNS server resolves the host name. You
cannot use the following IP addresses:
127.x.x.x (where x is a number from 0 to
255).
When these settings are not set
and remain as 0.0.0.0, DNS server
information is acquired using DHCP.
IP Address Display On
O
Select whether to display the IP address
on t
he network standby screen.
Network Menu - Notications Menu
Settings on the No
tications menu let you receive an email notication if a
problem or warning occurs in the projector.
s Network > Network Conguration > Notications
Projector Network Settings - Network Menu
146
Setting Options Description
Mail Notication On
O
Set to On to send an email to the preset
addresses when a problem or warning
occurs with a projector.
SMTP Server IP address Enter the IP address for the projector's
SMTP s
erver using 0 to 255 for each
address eld.
Do not use these addresses:
127.x.x.x, 192.0.2.x or 224.0.0.0 through
255.255.255.255 (where x is a number
from 0 to 255).
Port Number 1 to 65535 (default
is 25)
S
elect a number for the SMTP server Port
Number.
Setting Options Description
From Up to 32
alp
hanumeric
characters
Up to 64
alphanumeric
characters from the
Web browser
(do not use " ( ) , : ;
< > [ \ ] spaces)
Enter the email address of the sender.
Enter an email address that does not
contain personal information.
Address 1 Setting
Addr
ess 2 Setting
Address 3 Setting
Enter the e-mail address, and select the
alerts you want to receive. Repeat for
up to three addresses. Enter an email
address that does not contain personal
information.
SNMP On
O
Set to On to monitor the projector
using SNMP. To monitor the projector,
you need to install the SNMP manager
program on your computer. SNMP
should be managed by a network
administrator.
Trap IP Address 1
Trap IP A
ddress 2
IP address Enter up to two IP addresses to receive
SNMP notications, using 0 to 255 for
each address eld.
Do not use these addresses: 127.x.x.x or
224.0.0.0 through 255.255.255.255 (where
x is a number from 0 to 255).
Community Name Up to 32
alp
hanumeric
characters
(do not use spaces
and any symbols)
Set the SNMP community name.
Projector Network Settings - Network Menu
147
Setting Options Description
Notied IP Addr
ess IP address Enter the IP address to receive the
projector's operating status when the
PJLink notication function is enabled.
Enter the addresses using 0 to 255 for
each address eld.
Do not use these addresses: 127.x.x.x or
224.0.0.0 through 255.255.255.255 (where
x is a number from 0 to 255).
(PowerLite 994F)
Network Menu - Others Menu
Settings on the Othe
rs menu let you select other network settings.
s Network > Network C ongur ati on > Others
Setting Options Description
Command
Co
mmunication
Select the authentication method for
using commands to communicate with
the projector over a network from
external devices such as a computer or
controller.
Protected Select this when using Digest
aut
hentication to authenticate using a
Web Control Password. Be sure to use
the latest version of Epson Projector
Management.
Compatible Select this when performing plain
text au
thentication using the Monitor
Password (up to 16 alphanumeric
characters long).
Select Compatible
w
hen using
Epson Projector
Management Ver.5.30
or earlier, or
when monitoring
the projector in
combination with a
switcher or controller.
Make sure the
Monitor Password
matches the password
used with the switcher
or controller.
Secure HTTP On
O
To strengthen security, communication
bet
ween the projector and computer
in Web control is encrypted. When
setting security with Web control, it is
recommended to set this to On.
Projector Network Settings - Network Menu
148
Setting Options Description
Web Server Cert. — Imports the Web server cert
icate for
secure HTTP.
Web API Settings Web API Select On to enable the Web API
f
unction.
Authentication Selects the security for your projector to
us
e during Web API communications.
Open: Security is not set.
Digest: Communication is performed
using API authentication (Digest
authentication).
See the Web API Specications for
Projectors for details.
Priority Gateway * Wired LAN
Wir
eless LAN
You can set the priority gateway.
Basic Control On
O
Set to On to monitor and control the
p
rojector using Basic Control in Epson
Web Control.
PJLink * On
O
Set to On to enable the PJLink
n
otication function.
AMX Device
Dis
covery *
On
O
Set to On when you want to allow the
projector to be detected by AMX Device
Discovery.
Crestron
Co
nnected *
On
O
Set to On only when monitoring or
controlling the projector over the network
using Crestron Connected.
Enabling Crestron Connected disables
the Epson Message Broadcasting feature
in the Epson Projector Management
soware.
Setting Options Description
Crestron XiO
Clo
ud *
On
O
Set to On to monitor or control your
projector and other devices over the
network using the Crestron XiO Cloud
service.
Control4 SDDP * On
O
Set to On to allow device information
t
o be acquired using Control4 Simple
Device Discovery Protocol (SDDP).
Message
Br
oadcasting
On
O
Set to On to receive the message delivered
by Epson Projector Management. See the
Epson Projector Management Operation
Guide for details.
* Available only for the PowerLite 994F.
g
Related Links
•
"Cres
tron Connected Support" p.122
Network Menu - Reset Menu
Settings on the R
es
et menu let you reset all of the network settings.
s Network > Network Conguration > Reset
Projector Network Settings - Network Menu
149
Setting Options Description
Reset Yes
No
Select Yes to reset all network settings.
Not available when the source is AirPlay.
Attention
Al
l of the passwords that have
been set for the Network menu
are also reset and you need
to set them again. To prevent
the passwords from being reset
by unauthorized users, set
Network Protection to On in
the Password Protection menu.
Setting Options Description
Reset All System Yes
No
S
elect Yes to reset the apps, network
settings, and so on stored in the network
rmware.
Not available when the source is AirPlay.
Use Reset All System when experiencing
network-related problems or similar
issues.
Attention
Al
l of the passwords that have
been set for the Network menu
are also reset and you need
to set them again. To prevent
the passwords from being reset
by unauthorized users, set
Network Protection to On in
the Password Protection menu.
Projector Network Settings - Network Menu
150
Settings on the ECO
menu let you customize projector functions to save power.
When you select a power-saving setting, a leaf icon appears next to the menu
item.
Setting Options Description
Power
Consumption
High
Medium
ECO
Selects the brightness mode of the
projector lamp. You cannot select settings
when you use your projector at high
altitude or in locations subject to high
temperatures.
Select ECO to reduce lamp brightness
and fan noise, and to save power and
lamp life.
Medium is only available for the
PowerLite 994F.
Setting Options Description
Light Optimizer On
O
When set to On, th
e lamp brightness
is adjusted according to the projected
image. is helps to reduce the power
consumption by lowering the lamp
brightness according to the scene being
projected.
e setting is stored for each Color Mode.
is item is enabled when:
•
Power Consumption is set to High or
Medium. (Medium is only available
for the PowerLite 994F.)
•
Auto Iris is set to O.
s Image > Auto Iris
Sleep Mode On
O
Automatically turns o
the projector aer
an interval of inactivity (when On).
Sleep Mode Timer 15 seconds to 30
minu
tes
Sets the interval for Sleep Mode.
Lens Cover Timer On
O
Automatically turns o
the projector aer
30 minutes if the lens cover is closed
(when On).
A/V Mute Timer On
O
Automatically turns o
the projector aer
30 minutes if A/V Mute is enabled (when
On).
Projector Setup Settings - ECO Menu
151
Setting Options Description
Standby Mode Communication
On
Co
mmunication
O
When connected to a network by wired
LAN, set to Communication On to allow
monitoring and controlling the projector
over a network when the projector is in
standby mode. (PowerLite 994F)
Setting is only displayed in the following
cases:
•
A/V Output is set to While
Projecting.
•
Auto Power On is not set to HDMI1
and Power On Trigger is set to Plug-
in Detection.
•
USB Power is set to On While
Projecting.
s Extended > A/V Settings > A/V
Output
s Extended > Operation > Auto Power
On
s Extended > Operation > Power On
Trigger
s Extended > Operation > USB Power
ECO Display On
O
Displays a leaf icon in the bottom le
cor
ner of the projected screen to indicate
the power-saving status when the lamp
brightness changes (when On).
Reset — Resets all adjustment values on the ECO
m
enu to their default settings, except for
Standby Mode.
•
Wh
en the Sleep Mode Timer setting is enabled, the lamp dims for a
short time before the timer limit is reached and the projector turns o.
•
When the Lens Cover Timer or A/V Mute Timer settings are enabled,
the lamp uses less power when the lens cover is closed or A/V Mute is
activated.
g
Related Links
•
"Projector Setup Settings - Extended Menu" p.137
Projector Setup Settings - ECO Menu
152
You can display information about the projector and version by viewing the
Inf
o menu. However, you cannot change any settings in the menu.
Information item Description
Projector Info Displays the projector information.
Version Displays the projector's r
m
ware version.
Temp Warning Info Displays various high temperature warnings.
Power On/O Hi
story Displays the projector's power on and power o history.
License Agreement Displays the License Agreement.
Privacy Statement Displays the Privacy Statement.
Projector Operation Log
Inf
o.
Select whether or not to allow Epson to investigate the
projector’s usage status.
Firmware Update Enters the rm
ware update mode. You can update by
USB-A or over the network.
You can select to update rmware over the network
when the latest rmware has been uploaded on the
server. is cannot be selected if Firmware Update Set.
is set to O.
s Network > Firmware Update Set.
Information item Description
Export Batch Settings Exports the projector's menu settings to a USB ash
dr
ive or a computer, allowing you to copy them to other
projectors of the same model.
Import Batch Settings Imports menu settings that have been saved to a USB
ash
drive or a computer.
g
Related Links
•
"Inf
o Menu - Projector Info Menu" p.153
•
"Updating the Firmware" p.171
Info Menu - Projector Info Menu
You can display information about the projector and input sources by viewing
th
e Projector Info menu in the projector's Info menu.
e avai
lable settings depend on the current input source.
e
lamp usage timer does not register any hours until you have used the
lamp for at least 10 hours.
Projector Information Display - Info Menu
153
Information item Description
Lamp Hours Displays the number of hours (H) th
e lamp has
been used in each Power Consumption mode; if the
information is displayed in yellow, obtain a genuine
Epson replacement lamp soon.
s ECO > Power Consumption
Source Displays the name of the port to which the current
inp
ut source is connected.
Input Signal Displays the input signal setting of the current input
so
urce.
Resolution Displays the resolution of the current input source.
Refresh Rate Displays the refresh rate of the current input source.
Sync Info Displays information that may be needed by a service
te
chnician.
Status Displays information about projector problems that
may b
e needed by a service technician.
Serial Number Displays the projector's serial number.
Event ID Displays the Event ID number corresponding to a
net
work problem; see the list of Event ID codes.
g
Related Links
•
"Event ID Code List" p.154
Event ID Code List
If t
he Event ID option on the Projector Info menu displays a code number,
check this list of Event ID codes for the solution to the projector problem
associated with the code.
If you cannot resolve the problem, contact your network administrator or Epson
for technical support.
Event ID
code
C
ause and solution
0432
0435
e network soware did not start. Turn the projector o and then on
again.
0433
Cannot display the transferred images. Restart the network so
ware.
0434
0481
0482
0485
Unstable network communication. Check the network
comm
unication status, wait a few moments, and try connecting to
the network again.
0483
04FE
e network soware quit unexpectedly. Check the network
co
mmunication status, then turn the projector o and then on again.
0484 Communication with computer was disconnected. Restart the
net
work soware.
0479
04FF
A projector system error has occurred. Turn the projector o
and then
on again.
0523 When attempting to connect using Miracast, the WPS connection
tim
ed out. Move the projector and mobile device closer together and
try connecting again.
0524 When attempting to connect using Miracast, an unknown error
occ
urred during the WPS process between the projector and mobile
device. Set Miracast to O in Wireless LAN from the Network menu,
then set it back to On, and restart the projector.
0525 When attempting to connect using Miracast, the security settings
bet
ween the projector and mobile device do not match. Set Miracast
to O in Wireless LAN from the Network menu, then set it back to
On, and restart the projector.
0526 When attempting to connect using Miracast, the WPA2 handshake
was no
t completed correctly. Set Miracast to O in Wireless LAN
from the Network menu, then set it back to On, and restart the
projector.
Projector Information Display - Info Menu
154
Event ID
code
C
ause and solution
0527 When attempting to connect using Miracast, the WPA2 four-way
han
dshake failed, and the connection could not be established. Set
Miracast to O in Wireless LAN from the Network menu, then set it
back to On, and restart the projector.
0528 Aer connecting using Miracast, IP address acquisition failed, or the
p
rojector was unable to provide a valid IP address. Set Miracast to O
in Wireless LAN from the Network menu, then set it back to On, and
restart the projector.
0529 Miracast control communication (RTSP message exchange) failed.
Dis
connect the Miracast connection and then reconnect.
0530 When attempting to connect using Miracast, video or audio streaming
cou
ld not be performed correctly. Move the projector and mobile
device closer together and try connecting again.
0532 When attempting to connect using Miracast, there is a video or audio
code
c incompatibility between the mobile device and projector, such
as dierences in H.264/H.265, or an unsupported format is being
used. Check if the resolution and codec settings on the mobile device
are compatible with Miracast specications.
0535 e Miracast session ended unexpectedly. Restart the projector and
m
obile device and try connecting again.
0536 When attempting to connect using Miracast, an unexpected
comm
unication disconnection occurred, such as an application crash.
Restart the projector and try connecting using Miracast again.
0542 When attempting to connect using Miracast, an unknown P2P
conn
ection error occurred. Restart the projector and mobile device
and try connecting again.
0543 When attempting to connect using Miracast, a video format
err
or occurred. You cannot project using the projector due to an
unsupported resolution or frame rate. Check if your mobile device is
compatible with Miracast specications.
Event ID
code
C
ause and solution
0544 e mobile device you tried to connect to the projector using Miracast
i
s on the block list, and the connection has been denied. Remove the
device from the block list and try connecting again.
0891 Cannot nd an access point with the same SSID. Set your computer,
acces
s point, and projector to the same SSID.
0892 e WPA2/WPA3 authentication type does not match. Make sure the
w
ireless network security settings are correct.
0893 e TKIP/AES encr
yption type does not match. Make sure the
wireless network security settings are correct.
0894 Communication with an unauthorized access point was disconnected.
Co
ntact your network administrator.
0895 Communication with a connected device was disconnected. Check
yo
ur device connection status.
0898 Failed to acquire DHCP. Make sure the DHCP server is operating
cor
rectly. If you are not using DHCP, set the DHCP setting to O in
the projector's Network menu.
s Network > Network Conguration > Wireless LAN > IP
Settings > DHCP
0899 Other communication errors.
089A e EAP authentication type does not match the network. Check
t
he wireless LAN security settings and make sure that the security
certicate is installed correctly.
089B EAP server authentication failed. Check the wireless LAN security
set
tings and make sure that the security certicate is installed
correctly.
089C EAP client authentication failed. Check the wireless LAN security
set
tings and make sure that the security certicate is installed
correctly.
089D Key exchange failed. Check the wireless LAN security settings and
mak
e sure that the security certicate is installed correctly.
Projector Information Display - Info Menu
155
You can reset most of the projector settings to their default values using the
Res
et menu.
Setting Options Description
Reset Lamp Hours — Reset the projector's lamp usage timer to
zer
o w
hen you replace the lamp.
Reset All Cong — R
esets most of the projector settings to
their default values.
You cannot reset the following settings using the Res
et All Cong option:
•
E-Zoom
•
User's Logo
•
Display Background *
•
Startup Screen *
•
A/V Mute *
•
Schedule Settings
•
Language
•
Date & Time
•
Network menu items
•
Lamp Hours
•
Password
* Only when you set the User's Logo Protection setting to On in the Password
Protection setting menu.
Projector Reset Options - Reset Menu
156
Aer selecting the projector's menu settings for one projector, you can use the
f
ollowing methods to copy the settings to other projectors, as long as they are
the same model.
•
by using a USB ash drive
•
by connecting a computer and projector using a USB cable
Menu settings such as the following are not copied to the other projector.
•
Network menu settings (except for the Notications menu and the Others
menu)
•
Lamp Hours and Status from the Projector Info menu
•
Per
form batch setup before adjusting the image settings such as
keystone distortion correction. Since image adjustment values are
also copied to another projector, the adjustments you made before
performing the batch setup are overwritten and the projected screen
you adjusted may change.
•
When copying the menu settings from one projector to another, user's
logo is also copied. Do not register the information that you do not
want to share between multiple projectors as a user's logo.
•
Make sure Batch Setup Range is set to Limited if you do not want to
copy the following settings:
•
Password Protection settings
•
Network menu settings (except for the Notications menu and the
Others menu)
s Extended > Operation > Advanced > Batch Setup Range
Caution
Eps
on takes no responsibility for batch setup failures and associated repair costs due
to power outages, communication errors, or other problems that may cause such
failures.
g
Related Links
•
"Tran
sferring Settings From a USB Flash Drive" p.157
•
"Tran
sferring Settings From a Computer" p.158
Transferring Settings From a USB Flash Drive
You can copy menu settings from one projector to another of the same model
usin
g a USB ash drive.
•
e USB
ash drive must use a FAT16/32 format and not incorporate
any security function. Delete any les on the drive before using it for
batch setup or the settings may not be saved correctly.
•
You can also use this batch setup method from the projector's menu.
a
Disconnect the power cord from the projector, and check that all of the
pr
ojector's indicators have turned o.
b
Connect an empty USB ash
drive directly to the projector's USB-A port.
c
Hold down the [Esc] button on the remote control or the control panel
and co
nnect the power cord to the projector.
d
When all of the projector's indicators turn on, release the [Esc] button.
e indic
ators start ashing and the batch setup le is written to the USB
ash drive. When writing is nished, the projector turns o.
Caution
D
o n
ot disconnect the power cord or the USB ash drive from the projector
while the le is being written. If the power cord or USB ash drive is
disconnected, the projector may not start correctly.
Copying Menu Settings Between Projectors (Batch Setup)
157
e
Remove the USB ash
drive.
e le name for the batch setup le is PJCONFDATA.bin. If you
n
eed to change the le name, add text aer PJCONFDATA using
only alphanumeric characters. If you change the PJCONFDATA
section of the le name, the projector may not be able to recognize
the le correctly.
f
Disconnect the power cord from the projector to which you want to copy
s
et
tings, and check that all of the projector's indicators have turned o.
g
Connect the USB ash
drive containing the saved batch setup le to the
projector's USB-A port.
h
Hold down the [Menu] button on the remote control or the control panel
and co
nnect the power cord to the projector.
i
When all of the projector's indicators turn on, release the [Menu] button.
Wh
en all of the indicators start ashing, the settings are being written.
When writing is nished, the projector turns o.
Caution
D
o n
ot disconnect the power cord or the USB ash drive from the projector
while the le is being written. If the power cord or USB ash drive is
disconnected, the projector may not start correctly.
j
Remove the USB as
h
drive.
Transferring Settings From a Computer
You can copy menu settings from one projector to another of the same model by
connecting the computer and projector with a USB cable.
•
Yo
u can use this batch setup method with the following operating
system versions:
•
Windows 10 and later
•
macOS 12.x and later
•
You can also use this batch setup method from the projector's menu.
a
Disconnect the power cord from the projector, and check that all of the
pr
ojector's indicators have turned o.
b
Connect a USB cable to the computer's USB port and to the projector's
USB-B p
ort.
c
Hold down the [Esc] button on the remote control or the control panel
and co
nnect the power cord to the projector.
d
When all of the projector's indicators turn on, release the [Esc] button.
e com
puter recognizes the projector as a removable disk.
e
Open the removable disk icon or folder, and save the batch setup le to t
he
computer.
e le name for the batch setup le is PJCONFDATA.bin. If you
n
eed to change the le name, add text aer PJCONFDATA using
only alphanumeric characters. If you change the PJCONFDATA
section of the le name, the projector may not be able to recognize
the le correctly.
f
Eject the USB device (Windows) or drag the removable disk icon to the
T
ras
h (Mac).
g
Disconnect the USB cable.
e pr
ojector turns o.
Copying Menu Settings Between Projectors (Batch Setup)
158
h
Disconnect the power cord from the projector to which you want to copy
set
tings, and check that all of the projector's indicators have turned o.
i
Connect the USB cable to the computer's USB port and to the projector's
USB-B p
ort.
j
Hold down the [Menu] button on the remote control or the control panel
and co
nnect the power cord to the projector.
k
When all of the projector's indicators turn on, release the [Menu] button.
e com
puter recognizes the projector as a removable disk.
l
Copy the batch setup le (PJ
C
ONFDATA.bin) that you saved to your
computer to the top level folder of the removable disk.
Do not copy any les or f
olders other than the batch setup le to the
removable disk.
m
Eject the USB device (Windows) or drag the removable disk icon to the
Tras
h (Mac).
n
Disconnect the USB cable.
W
h
en all of the indicators start ashing, the settings are being written.
When writing is nished, the projector turns o.
Caution
Do n
ot disconnect the power cord from the projector while the le is being
written. If the power cord is disconnected, the projector may not start
correctly.
g
Related Links
•
"Bat
ch Setup Error Notication" p.159
Batch Setup Error Notication
e pr
ojector's indicators notify you if an error occurs during a batch setup
operation. Check the status of the projector's indicators and follow the
instructions described in the table here.
Indicator status Problem and solutions
•
Lam
p: Orange - ashing
fast
•
Temp: Orange - ashing
fast
e batch setup le may be corrupt, or the USB ash
drive or USB cable may not be connected correctly.
Disconnect the USB ash drive or the USB cable, unplug
and then plug in the projector's power cord, and then try
again.
•
Po
wer: Blue - ashing
fast
•
Status: Blue - ashing
fast
•
Lamp: Orange - ashing
fast
•
Temp: Orange - ashing
fast
Writing the settings may have failed and an error may
have occurred in the projector's rmware.
Stop using the projector, remove the power plug from
the electrical outlet. Contact Epson for help.
g
Related Links
•
"Pr
ojector Indicator Status" p.176
Copying Menu Settings Between Projectors (Batch Setup)
159
Maintaining the Projector
Fo
llow the instructions in these sections to maintain your projector.
g
Related Links
•
"Projector Maintenance" p.161
•
"Cleaning the Lens" p.162
•
"Cleaning the Projector Case" p.163
•
"Air Filter and Vent Maintenance" p.164
•
"Projector Lamp Maintenance" p.167
•
"Updating the Firmware" p.171
You may need to clean the projector's lens periodically, and clean the air
lt
er and air vents to prevent the projector from overheating due to blocked
ventilation.
e only parts you should replace are the lamp, air lter, and remote control
batteries. If any other part needs replacing, contact Epson or an authorized
Epson servicer.
Warning
Bef
ore cleaning any part of the projector, turn it o and unplug the power cord.
Never open any cover on the projector, except as specically explained in this
manual. Dangerous electrical voltages in the projector can injure you severely.
Projector Maintenance
161
Clean the projector's lens periodically, or whenever you notice dust or smudges
on t
he surface.
•
To remove dust or smudges, gently wipe the lens with clean and dry lens-
cleaning paper.
•
If the lens is dusty, blow o dust using a blower, and then wipe the lens.
Warning
•
Bef
ore cleaning the lens, turn o the projector and unplug the power cord.
•
Do not use any ammable gas sprays such as air dusters to blow o dust. e
high heat generated by the projector may cause a re.
Attention
•
Do n
ot wipe the lens right aer you turn o the projector. Doing so could
damage the lens.
•
Do not use any harsh materials to clean the lens and do not subject the lens to
any impacts; otherwise, it could be damaged.
Cleaning the Lens
162
Before cleaning the projector case, turn o
the projector and unplug the power
cord.
•
To remove dust or dirt, use a so, dry, lint-free cloth.
•
To remove stubborn dirt, use a so cloth moistened with water and mild
soap. Do not spray liquid directly on the projector.
Attention
Do n
ot use wax, alcohol, benzene, paint thinner, or other chemicals to clean the
projector case. ese can damage the case. Do not use canned air, or the gases
may leave a ammable residue.
Cleaning the Projector Case
163
Regular lter maintenance is important to maintaining your projector. Clean
t
he air lter when a message appears telling you the temperature inside the
projector has reached a high level. It is recommended that you clean these parts
over a 10,000‑hour period. Clean them more oen than this if you use the
projector in a particularly dusty environment.
Attention
If r
egular maintenance is not performed, your Epson projector will notify you when
the temperature inside the projector has reached a high level. Do not wait until this
warning appears to maintain your projector lter as prolonged exposure to high
temperatures may reduce the life of your projector or lamp.
g
Related Links
•
"Cle
aning the Air Filter and Vents" p.164
•
"Replacing the Air Filter" p.164
Cleaning the Air Filter and Vents
Clean the projector's air lt
er or vents if they get dusty, or if you see a message
telling you to clean them.
a
Turn o the projector and unplug the power cord.
b
G
ently remove the dust using a small vacuum designed for computers or a
ver
y so brush (such as a paintbrush).
You can remove the air lt
er so that you can clean both sides. Do
not rinse the air lter in water, or use any detergent or solvent to
clean it.
Attention
Do n
ot use canned air. e gases may leave a ammable residue or push dust
and debris into the projector's optics or other sensitive areas.
c
If dust is dic
u
lt to remove or the air lter is damaged, replace the air
lter.
Replacing the Air Filter
You need to replace the air lter in the following situations:
•
Aer cleaning the air lter, you see a message telling you to clean or replace it.
•
e air lter is torn or damaged.
Air Filter and Vent Maintenance
164
You can replace the air lt
er while the projector is mounted to the ceiling or
placed on a table.
a
Turn o the projector and unplug the power cord.
b
O
pen the air lt
er cover.
c
Pull the air lt
er out of the projector.
Dispose of used air lt
ers according to local regulations.
•
Filter frame: ABS
•
Filter: Polyurethane foam
Air Filter and Vent Maintenance
165
e projector monitors the number of hours the lamp is used and displays this
inf
ormation in the projector's menu system.
Replace the lamp as soon as possible when the following occurs:
•
e projected image gets darker or quality declines
•
A message is displayed when you turn on the projector telling you to replace
the lamp (the message is displayed 100 hours before the expected end of the
lamp life and appears for 30 seconds)
•
e pr
ojector's power indicator is ashing blue and its lamp indicator is
ashing orange.
Attention
•
If you continue to use the lamp aer the replacement period has passed, the
possibility that the lamp may explode increases. When the lamp replacement
message appears, replace the lamp with a new one as soon as possible, even if it is
still working.
•
Do not repeatedly turn o the power and then immediately turn it back on.
Turning the power on and o frequently may shorten the lamp's operating life.
•
Depending on the characteristics of the lamp and the way it has been used, the
lamp may become darker or stop working before the lamp warning message
appears. You should always have a spare lamp unit ready in case it is needed.
•
We recommend the use of genuine Epson replacement lamps. e use of
non-genuine lamps may aect projection quality and safety. Any damage or
malfunction caused by the use of non-genuine lamps may not be covered by
Epson's warranty.
g
Related Links
•
"Rep
lacing the Lamp" p.167
•
"Resetting the Lamp Timer" p.170
•
"Projector Specications" p.197
•
"Projector Indicator Status" p.176
Replacing the Lamp
You can replace the lamp while the projector is placed on a table or mounted to
the ceiling.
Warning
•
Let t
he lamp fully cool before replacing it to avoid injury.
•
Never disassemble or modify the lamp. If a modied or disassembled lamp is
installed in the projector, it could cause a re, electric shock, or other damage or
injury.
a
Turn o the projector and unplug the power cord.
b
A
llow the projector lamp to cool down for at least one hour.
c
Use the screwdriver included with the replacement lamp to loosen the
s
cr
ew securing the lamp cover.
Warning
W
h
en replacing the lamp, there is a possibility that the lamp may be broken.
If replacing the lamp of a projector which has been installed on the ceiling,
you should always assume that the lamp is cracked, and you should stand to
the side of the lamp cover, not underneath it. Remove the lamp cover gently.
Be careful when removing the lamp cover as shards of glass may fall out and
could cause an injury. If any shards of glass get into your eyes or mouth,
contact a doctor immediately.
Projector Lamp Maintenance
167
d
Slide the lamp cover out and li i
t
o.
e
Loosen the screws securing the lamp to the projector. e scr
ews do not
come all the way out.
f
Grip the raised section of the lamp and remove it.
Projector Lamp Maintenance
168
•
If y
ou notice the lamp is cracked when removing the lamp,
contact Epson for help.
•
e lamp(s) in this product contain mercury (Hg). Check your
local laws and regulations regarding disposal or recycling. Do not
put in the trash.
g
Gently insert the new lamp into the projector. If it does not t easi
ly, make
sure it is facing the right way.
Attention
Do n
ot touch any glass on the lamp assembly to avoid premature lamp failure.
h
Push in the lamp rm
ly and tighten the screws to secure it.
i
Replace the lamp cover and tighten the screw to secure it.
Projector Lamp Maintenance
169
•
Mak
e sure the lamp cover is securely installed or the lamp will
not turn on.
•
Do not replace the lamp cover with too much force and make
sure the lamp cover is not deformed.
Reset the lamp timer to zero to monitor the new lamp's usage.
g
Related Links
•
"Replacement Parts" p.192
Resetting the Lamp Timer
You must reset the lamp timer aer rep
lacing the projector's lamp to clear the
lamp replacement message and to monitor lamp usage correctly.
Do not reset the lamp timer if you have not replaced the lamp to avoid
inaccurate lamp usage information.
a
Turn on the projector.
b
Press the [Menu] button, select the R
es
et menu, and press [Enter].
c
Select Reset Lamp Hours and press [Enter].
You see a prompt asking if you want to reset the lamp hours.
d
Select Y
es and press [Enter].
e
P
ress [Menu] or [Esc] to exit the menus.
Projector Lamp Maintenance
170
g
Related Links
•
"Up
dating Firmware Using a USB Storage Device" p.171
•
"Updating the Firmware over the Network" p.172
Updating Firmware Using a USB Storage Device
You can update the projector's rmware using a USB storage device.
•
Res
ponsibility for updating the rmware lies with the customer. If
a rmware update fails due to problems such as a power failure or
communication problems, a fee will be charged for any necessary
repairs.
•
When updating the rmware using a USB storage device, you must set
Log Save Destination to Internal Memory.
s Extended > Operation > Advanced > Log Save Destination
a
Download the projector r
m
ware le from the Epson Web site.
Visit epson.com/support (U.S.), epson.ca/support (Canada), or
latin.epson.com/support (Latin America) and search for your product.
b
Copy the downloaded rm
ware le to the root folder (highest folder in the
hierarchy) of the USB storage device.
•
e USB s
torage device must be formatted in FAT format.
•
Do not copy any other les to the USB storage device.
•
Do not change the rmware's le name. If the le name is
changed, the rmware update will not start.
•
Check that the rmware le you copied is the correct le for your
projector model. If the rmware le is not correct, the rmware
update will not start.
c
Connect the USB storage device to the projector's USB-A port.
Connect the USB storage device directly to the projector. If the USB
st
orage device is connected using a USB hub, the rmware update
may not be applied correctly.
d
Press the [Menu] button, select the I
nf
o menu, and press [Enter].
e
Select Firmware Update and press [Enter].
During the network rm
ware update, you cannot select Firmware
Update. Even if you can select it, the projector update will not start
even if you select Yes from Update by USB. Wait until the network
rmware update is complete before updating the projector.
f
Select Update by USB and press [Enter].
g
S
elect Yes to start the rmware update.
e
Firmware Update screen is displayed.
h
Select List update and press [Enter].
i
S
elect the le lis
ted and press [Enter].
j
Select Transfer and press [Enter] to start the rmware update.
•
Do n
ot disconnect the power cord from the projector while the
rmware is updating. If the power cord is disconnected, the
projector may not start correctly.
•
Do not disconnect the USB storage device from the projector
while the rmware is updating. If the USB storage device is
disconnected, the update may not be applied correctly.
Updating the Firmware
171
All of the projector's indicators start ashin
g and the rmware update
starts.
k
Once the update is complete, Re
boot is displayed. Select Reboot and press
[Enter].
When the update nishes, check the projector's Info menu to make sure that the
Version information has been updated to the correct rmware version.
•
Wh
en all indicators ash rapidly, the rmware update may have failed.
Disconnect the power cord from the projector, and then reconnect it to
the projector. If the indicators continue to ash even aer reconnecting
the power cord, remove the power plug from the electrical outlet and
contact Epson.
•
If the rmware update fails due to a timeout or other issues, check the
following.
•
Make sure there is enough free space on the USB storage device.
•
Make sure the USB storage device is not write-protected.
Updating the Firmware over the Network
Once the latest rm
ware has been uploaded to the server, you can update the
projector’s rmware over the network.
e procedures for updating the rmware vary depending on the settings in
Firmware Update Set. from the Network menu.
•
Notify: When the projector is turned on, a rmware update conrmation
screen is displayed.
Select OK to start the update.
•
Do not notify: You can update the rmware from the Info menu.
•
Auto update at midnight: When the projector is in standby mode, the
rmware is automatically updated between 12:00 AM and 4:00 AM.
•
O: Disables rmware updates over the network.
•
Yo
u need to congure a DNS server to update the rmware over the
network.
Depending on your network, set DHCP to On in IP Settings from the
Wired LAN menu or the Wireless LAN menu. If DHCP is set to O
or if you want to specify a DNS server address, enter the IP address in
DNS Server 1 or DNS Server 2.
s Network > Network Conguration > Wireless LAN
s Network > Network Conguration > Wired LAN
•
If you are using Epson Projector Management Connected, we
recommend setting Firmware Update Set. to O in the Network
menu.
If Firmware Update Set. is set to Do not notify in the Network menu, follow
t
he steps below to update the rmware.
If Firmware Update Set. is set to Notify and you did not select OK when
turning on the projector, or if it is set to Auto update at midnight but the
update was not performed because the projector was on, you can update the
rmware using the same procedure.
a
Press [Menu], select Inf
o, and then press [Enter].
b
Select Firmware Update and press [Enter].
c
S
elect Update over Network and press [Enter].
•
If t
he latest rmware has not been uploaded to the server, you
cannot select Update over Network.
•
If Firmware Update Set. is set to O in the Network menu, you
cannot select Update over Network.
Updating the Firmware
172
d
Select Yes to start the r mware update.
Do not disconnect the power cord from the projector while the
rm
ware is updating. If the power cord is disconnected, the
projector may not start correctly.
All of the projector's indicators start ashin
g and the rmware update
starts. When the update nishes normally, the projector enters standby
status (only the power indicator is lit blue). If Direct Power On is set to
On in the projector's Extended menu, the projector turns back on again.
When the update nishes, check the projector's Info menu to make sure that the
Version information has been updated to the correct rmware version.
When all indicators ash
rapidly, the rmware update may have failed.
Disconnect the power cord from the projector, and then reconnect it to
the projector. If the indicators continue to ash even aer reconnecting
the power cord, remove the power plug from the electrical outlet and
contact Epson.
g
Related Links
•
"Pr
ojector Network Settings - Network Menu" p.140
•
"Projector Information Display - Info Menu" p.153
Updating the Firmware
173
Solving Problems
Ch
eck the solutions in these sections if you have any problems using the projector.
g
Related Links
•
"Projection Problems" p.175
•
"Projector Indicator Status" p.176
•
"Using the Projector Help Displays" p.179
•
"Solving Image or Sound Problems" p.180
•
"Solving Projector or Remote Control Operation Problems" p.185
•
"Solving Network Problems" p.187
•
"Solutions When HDMI Link does not Function" p.190
If the projector is not working properly, turn it o,
unplug it, and then plug it
back in and turn it on.
If this does not solve the problem, check the following:
•
e indicators on the projector may indicate the problem.
•
e projector's Help system can display information about common
problems.
•
e solutions in this manual can help you solve many problems.
If none of these solutions help, contact Epson for technical support.
Aer repairing the projector, Epson may return the projector to you in
i
ts initial status. Make sure you make a note of the account information
of each online service before you contact your local dealer or the nearest
Epson repair center.
Projection Problems
175
e indicators on the projector indicate the projector status and let you know
w
hen a problem occurs. Check the status and color of the indicators and then
refer to this table for a solution.
If the indicators display a pattern not listed in the table below, turn the
pr
ojector o, unplug it, and contact Epson for help.
A
Power indicator
B
Status indicator
C
Wireless LAN indicator
D
Lamp indicator
E
Temp (temperature) indicator
Projector status
Indicator and status Problem and solutions
Power: Lit blue
St
atus: Lit blue
Lamp: O
Temp: O
Normal operation.
Indicator and status Problem and solutions
Power: Lit blue
St
atus: Flashing blue
Lamp: O
Temp: O
Warming up, shutting down, or cooling down.
When warming up, wait about 30 seconds for an image to
appear.
All buttons are disabled during warm-up, shutting down,
and cooling down.
Power: Lit blue
St
atus: O
Lamp: O
Temp: O
Standby, sleep mode, or monitoring.
When you press the power button, projection starts.
Power: Flashing blue
St
atus: O
Lamp: O
Temp: O
Preparing for monitoring and all features are disabled.
Power: Flashing blue
St
atus: Indicator status
varies
Lamp: Indicator status
varies
Temp: Flashing orange
Projector is too hot.
•
Make sure that the vents and air lter are not clogged
with dust or obstructed by nearby objects.
•
Clean or replace the air lter.
•
Make sure the environmental temperature is not too
hot.
Projector Indicator Status
176
Indicator and status Problem and solutions
Power: O
St
atus: Flashing blue
Lamp: O
Temp: Lit orange
Projector has overheated and turned o. Leave it turned
o to cool down for 5 minutes.
•
Make sure that the vents and air lter are not clogged
with dust or obstructed by nearby objects.
•
Make sure the environmental temperature is not too
hot.
•
Clean or replace the air lter.
•
If operating the projector at high altitude, set the High
Altitude Mode setting to On in the projector's menu.
s Extended > Operation > High Altitude Mode
•
If the problem persists, unplug the projector and
contact Epson for help.
Power: O
St
atus: Flashing blue
Lamp: Lit orange
Temp: O
Lamp has a problem.
•
Check to see if the lamp is burned out, broken, or
installed incorrectly. Reseat or replace the lamp as
necessary.
•
Clean the air lter.
•
If operating the projector at high altitude, set the High
Altitude Mode setting to On in the projector's menu.
s Extended > Operation > High Altitude Mode
•
If the problem persists, unplug the projector and
contact Epson for help.
Lamp cover has a problem.
•
Check that the lamp and the lamp cover are securely
installed. e lamp does not turn on if the lamp and
the lamp cover are not installed correctly.
Indicator and status Problem and solutions
Power: Flashing blue
St
atus: Indicator status
varies
Lamp: Flashing orange
Temp: Indicator status
varies
Replace the lamp soon to avoid damage. Do not continue
using the projector.
Power: O
St
atus: Flashing blue
Lamp: O
Temp: Flashing orange
A fan or sensor has a problem.
Turn the projector o, unplug it, and contact Epson for
help.
Power: O
St
atus: Flashing blue
Lamp: Flashing orange
Temp: O
Internal projector error.
Turn the projector o, unplug it, and contact Epson for
help.
Power: O
St
atus: Flashing blue
Lamp: Flashing orange
Temp: Flashing orange
Auto iris error. Turn the projector o, unplug it, and
contact Epson for help.
Power: O
St
atus: Flashing blue
Lamp: Lit orange
Temp: Lit orange
Power error (Ballast). Turn the projector o, unplug it,
and contact Epson for help.
Wireless LAN status
Wireless LAN indicator
s
t
atus
Problem and solutions
Lit blue Wireless LAN is available.
Flashing blue (quickly) Connecting to a device.
Projector Indicator Status
177
Wireless LAN indicator
st
atus
Problem and solutions
Flashing blue (slowly) An error has occurred. Turn o
the projector and restart
it.
O Wireless LAN is not available. Make sure the wireless
LAN s
ettings are correct.
g
Related Links
•
"Cle
aning the Air Filter and Vents" p.164
•
"Replacing the Air Filter" p.164
•
"Replacing the Lamp" p.167
Projector Indicator Status
178
You can display information to help you solve common problems using the
pr
ojector's Help system.
a
Turn on the projector.
b
Press the [Home] button on the control panel or remote control.
c
Select Help on the Home screen.
e Help menu is displayed.
d
U
se the up and down arrow buttons to highlight the problem you want to
so
lve.
e
Press [Enter] to view the solutions.
f
Perform one of the following actions when you are ni
s
hed.
•
To select another problem to solve, press [Esc].
•
To exit the help system, press [Menu].
Using the Projector Help Displays
179
Check the solutions in these sections if you have any problems with projected
imag
es or sound.
g
Related Links
•
"Solutions When No Image Appears" p.180
•
"Solutions When "No Signal" Message Appears" p.180
•
"Solutions When "Not Supported" Message Appears" p.181
•
"Solutions When Only a Partial Image Appears" p.181
•
"Solutions When the Image is not Rectangular" p.182
•
"Solutions When the Image Contains Noise or Static" p.182
•
"Solutions When the Image is Fuzzy or Blurry" p.183
•
"Solutions When the Image Brightness or Colors are Incorrect" p.183
•
"Solutions to Sound Problems" p.184
•
"Solutions When Image File Names are not Displayed Correctly in PC Free"
p.184
Solutions When No Image Appears
If no image appears, try the following solutions:
•
Mak
e sure the lens cover is open all the way.
•
Press the [A/V Mute] button on the remote control to see if the image was
temporarily turned o.
•
Make sure all necessary cables are securely connected and the power is on for
the projector and connected video sources.
•
If you are projecting from a streaming media player, make sure it is powered
by the power supply USB cable on the projector.
•
Make sure the connected device meets the HDMI CEC standard. See the
documentation supplied with the device for more information.
•
Press the projector's power button to wake it from standby or sleep mode.
Also, check if the connected computer is in sleep mode or displaying a blank
screen saver.
•
If t
he projector does not respond when you press the control panel buttons,
the buttons may be locked for security. Unlock the buttons in the Control
Panel Lock setting or use the remote control to turn on the projector.
s Settings > Lock Setting > Control Panel Lock
•
Adjust the Brightness setting in the projector's Image menu.
•
Select High or Medium as the Power Consumption setting.
(Medium is only available for the PowerLite 994F.)
s ECO > Power Consumption
•
Check the Display setting in the projector's Extended menu to make sure
Messages is set to On.
•
e projector may not be able to project copyrighted videos that you play
back on a computer. For more details, see the manual supplied with the
computer.
•
For images projected with Windows Media Center, reduce the screen size
from full screen mode.
•
For images projected from applications using Windows DirectX, turn o
DirectX functions.
g
Related Links
•
"Input Signal Settings - Signal Menu" p.133
•
"Image Quality Settings - Image Menu" p.131
•
"Projector Setup Settings - ECO Menu" p.151
•
"Projector Setup Settings - Extended Menu" p.137
•
"Unlocking the Projector's Buttons" p.84
Solutions When "No Signal" Message Appears
If the No Signal message appears, try the following solutions:
•
Press the [Source Search] button and wait a few seconds for an image to
appear.
Solving Image or Sound Problems
180
•
Tur
n on the connected computer or video source, and press play to begin
your presentation, if necessary.
•
Check that all cables required for projection are securely connected.
•
If you are projecting from a laptop computer, make sure it is set up to display
on an external monitor.
•
If necessary, turn o the projector and the connected computer or video
source, and then turn them back on.
•
Set the CEC function for the connected device again and restart the device.
•
If you are projecting from an HDMI source, replace the HDMI cable with a
shorter one.
g
Related Links
•
"Displaying From a Laptop" p.181
•
"Displaying From a Mac Laptop" p.181
Displaying From a Laptop
I
f t
he message No Signal is displayed when projecting from a laptop, you need
to set up the laptop to display on an external monitor.
a
Hold down the laptop's F
n
key and press the key labeled with a monitor
icon or CRT/LCD. Wait a few seconds for an image to appear.
b
To display on the laptop's monitor and the projector, try pressing the same
ke
ys again.
c
If the same image is not displayed by the laptop and projector, check
th
e Windows Display utility to make sure the external monitor port is
enabled and extended desktop mode is disabled.
d
If necessary, check your video card settings and set the multiple display
op
tion to Clone or Mirror.
Displaying From a Mac Laptop
If t
he message No Signal is displayed when projecting from a Mac laptop, you
need to set up the laptop for mirrored display. (See your laptop manual for
details.)
a
Open the System Preferences utility and select Displays.
b
S
elect the Disp
lay or Color LCD option, if necessary.
c
Click the Arrange or Arrangement tab.
d
S
elect Mirror Displays.
Solutions When "Not Supported" Message Appears
If the message No
t supported is displayed, try the following solutions:
•
Make sure the correct input signal is selected in the projector's Signal menu.
•
Make sure the computer's display resolution does not exceed the projector's
resolution and frequency limits. If necessary, select a dierent display
resolution for your computer.
g
Related Links
•
"Input Signal Settings - Signal Menu" p.133
•
"Supported Monitor Display Resolutions" p.196
Solutions When Only a Partial Image Appears
If only a partial computer image appears, try the following solutions:
•
Try adjusting the image position using the Position setting in the projector's
Signal menu. (PowerLite 994F)
Solving Image or Sound Problems
181
•
Ch
ange the aspect ratio in Aspect from the Signal menu.
•
Change the Resolution setting in the projector's Signal menu according to
the signal for the connected equipment. (PowerLite 994F)
•
If you zoomed into or out of the image using the [E-Zoom] buttons, press the
[Default] button to return to the original image size.
•
Check your computer display settings to disable dual display and set the
resolution within the projector's limits.
•
Check the resolution assigned to your presentation les to see if they are
created for a dierent resolution.
•
Make sure you selected the correct projection mode. You can select this using
the Projection setting in the projector's Extended menu.
g
Related Links
•
"Input Signal Settings - Signal Menu" p.133
•
"Projector Setup Settings - Extended Menu" p.137
•
"Supported Monitor Display Resolutions" p.196
Solutions When the Image is not Rectangular
If the projected image is not evenly rectangular, try the following solutions:
•
Place the projector directly in front of the center of the screen, facing it
squarely, if possible.
•
Set Auto V-Keystone to On in the projector's Settings menu. e projector
automatically corrects the image every time you move the projector.
s Settings > Keystone > H/V-Keystone > Auto V-Keystone
•
Set H-Keystone Adjuster to On in the projector's Settings menu. en adjust
the horizontal keystone slider until the image is evenly rectangular.
s Settings > Keystone > H/V-Keystone > H-Keystone Adjuster
•
Press the keystone buttons on the projector to adjust the image shape.
•
Adjust the Quick Corner setting to correct the image shape.
s Settings > Keystone > Quick Corner
g
Related Links
•
"A
uto V-Keystone" p.46
•
"Correcting the Image Shape with the Keystone Buttons" p.47
•
"Correcting the Image Shape with Quick Corner" p.48
•
"Correcting the Image Shape with the Horizontal Keystone Slider" p.46
Solutions When the Image Contains Noise or Static
If the projected image contains electronic interference (noise) or static, try the
following solutions:
•
Check the cables connecting your computer or video source to the projector.
ey should be:
•
Separated from the power cord to prevent interference
•
Securely connected at both ends
•
Not connected to an extension cable
•
Check the settings in the projector's Signal menu to make sure they match
the video source.
•
If available for your video source, adjust the Deinterlacing and Noise
Reduction settings in the projector's Image menu.
s Image > Image Enhancement > Noise Reduction
s Image > Image Enhancement > Deinterlacing
•
Select Auto as the Resolution setting in the projector's Signal menu.
(PowerLite 994F)
•
Select a computer video resolution and refresh rate that are compatible with
the projector.
•
If you are projecting from a computer using a VGA computer cable, adjust
the Tracking and Sync. settings in the projector's Signal menu. (PowerLite
994F)
Solving Image or Sound Problems
182
•
If y
ou adjusted the image shape using the projector controls, try decreasing
the Sharpness setting in the projector's Image menu to improve image
quality.
•
If you connected an extension power cable, try projecting without it to see if
it caused interference in the signal.
g
Related Links
•
"Input Signal Settings - Signal Menu" p.133
•
"Image Quality Settings - Image Menu" p.131
•
"Supported Monitor Display Resolutions" p.196
Solutions When the Image is Fuzzy or Blurry
If the projected image is fuzzy or blurry, try the following solutions:
•
Adjust the image focus.
•
Position the projector close enough to the screen.
•
Position the projector so the keystone adjustment angle is not so wide that it
distorts the image.
•
Clean the projector lens.
To avoid condensation on the lens aer br
inging the projector in from
a cold environment, let the projector warm up to room temperature
before using it.
•
Ad
just the Sharpness setting in the projector's Image menu to improve image
quality.
•
If you are projecting from a computer using a VGA computer cable and
any bands or overall blurriness remain, display a uniformly patterned image
on the screen and manually adjust the Tracking and Sync. settings in the
projector's Signal menu. (PowerLite 994F)
•
If y
ou are projecting from a computer, use a lower resolution or select a
resolution that matches the projector's native resolution.
g
Related Links
•
"Auto V-Keystone" p.46
•
"Input Signal Settings - Signal Menu" p.133
•
"Image Quality Settings - Image Menu" p.131
•
"Supported Monitor Display Resolutions" p.196
•
"Focusing the Image Using the Focus Ring" p.51
•
"Cleaning the Lens" p.162
Solutions When the Image Brightness or Colors are
Incorrect
If the projected image is too dark or light, or the colors are incorrect, try the
following solutions:
•
Select a color mode that suits the image and projection environment from
Color Mode in the Image menu.
•
Check your video source settings.
•
Adjust the available settings in the projector's Image menu for the current
input source, such as Brightness, Contrast, Tint, and Color Saturation.
•
Make sure you selected the correct Video Signal or Video Range setting in
the projector's Signal menu, if available for your image source. (Video Signal
is only available for the PowerLite 994F.)
s Signal > Advanced > Video Signal
s Signal > Advanced > Video Range
•
Make sure all the cables are securely connected to the projector and your
video device. If you connected long cables, try connecting shorter cables.
•
If you are using ECO as Power Consumption, try selecting High or
Medium. (Medium is only available on the PowerLite 994F.)
s ECO > Power Consumption
Solving Image or Sound Problems
183
At high altitudes or locations subject to high temperatures, the image
may b
ecome darker and you may not be able to adjust the Power
Consumption setting.
•
Position the projector close enough to the screen.
•
If the image has been progressively darkening, you may need to replace the
projector lamp soon.
g
Related Links
•
"Adjusting Image Quality (Color Mode)" p.56
•
"Input Signal Settings - Signal Menu" p.133
•
"Image Quality Settings - Image Menu" p.131
•
"Projector Setup Settings - ECO Menu" p.151
Solutions to Sound Problems
If there is no sound or the volume is too low or high, try the following solutions:
•
Ad
just the projector's volume settings.
•
Press the [A/V Mute] button on the remote control to resume video and
audio if they were temporarily stopped.
•
Check your computer or video source to make sure the volume is turned up
and the audio output is set for the correct source.
•
Check the audio cable connections between the projector and your video
source.
•
Make sure any connected audio cables are labeled "No Resistance".
•
Select the correct audio input in the A/V Settings setting in the projector's
Extended menu.
•
If you want to use a connected audio source when the projector is o, set the
Standby Mode option to Communication On in the projector's ECO menu
and make sure the A/V Settings options are set correctly in the Extended
menu. (PowerLite 994F)
•
If y
ou do not hear sound from an HDMI source, set the connected device to
PCM output.
•
When you are connecting the projector to a Mac using an HDMI cable, make
sure your Mac supports audio through the HDMI port.
•
If the volume for the computer is set to the minimum while the projector is
set to the maximum, the noise may be mixed. Turn up the computer's volume
and turn down the projector's volume. (When you use Epson iProjection
(Windows/Mac).)
g
Related Links
•
"Projector Connections" p.23
•
"Projector Feature Settings - Settings Menu" p.134
•
"Projector Setup Settings - Extended Menu" p.137
•
"Projector Setup Settings - ECO Menu" p.151
•
"Controlling the Volume with the Volume Buttons" p.58
Solutions When Image File Names are not Displayed
Correctly in PC Free
If any le names are longer than the display area or include unsupported
symbols, the le names are shortened or changed in PC Free. Shorten or change
the le name.
Solving Image or Sound Problems
184
Check the solutions in these sections if you have problems operating the
pr
ojector or remote control.
g
Related Links
•
"Solutions to Projector Power or Shut-O Problems" p.185
•
"Solutions to Problems with the Remote Control" p.185
•
"Solutions to Password Problems" p.186
•
"Solution When "e Battery that Saves Your Clock Settings is Running Low"
Message Appears" p.186
Solutions to Projector Power or Shut-O Problems
If the projector does not turn on when you press the power button or it turns o
unexpectedly, try the following solutions:
•
Make sure the power cord is securely connected to the projector and to a
working electrical outlet.
•
If the power button on the remote control does not turn on the projector,
check its batteries and make sure at least one of the remote receivers are
available in the Remote Receiver setting in the projector's Settings menu.
•
e projector's buttons may be locked for security. Unlock the buttons in
the Control Panel Lock setting or use the remote control to turn on the
projector.
s Settings > Lock Setting > Control Panel Lock
•
If the projector's lamp turns o unexpectedly, it may have entered sleep mode
aer a period of inactivity. Perform any operation to wake the projector. To
turn o sleep mode, select O as the Sleep Mode setting in the projector's
ECO menu.
•
If the projector's lamp turns o unexpectedly, the A/V mute timer may be
enabled. To turn o the A/V mute timer, select O as the A/V Mute Timer
setting in the projector's ECO menu.
•
If t
he projector's lamp turns o unexpectedly, the lens cover timer may be
enabled. To turn o the lens cover timer, select O as the Lens Cover Timer
setting in the projector's ECO menu.
•
If the projector's lamp turns o, the status indicator is ashing, and the temp
(temperature) indicator is lit, the projector has overheated and turned o.
•
e cooling fans may run in standby status depending on the projector
settings. Also, when the projector wakes from standby status, the fans may
cause an unexpected noise. is is not a malfunction.
•
e power cord may be defective. Disconnect the cord and contact Epson for
help.
g
Related Links
•
"Projector Setup Settings - ECO Menu" p.151
•
"Projector Indicator Status" p.176
•
"Projector Feature Settings - Settings Menu" p.134
•
"Unlocking the Projector's Buttons" p.84
Solutions to Problems with the Remote Control
If the projector does not respond to remote control commands, try the following
solutions:
•
Check that the remote control batteries are installed correctly and have
power. If necessary, replace the batteries.
•
Make sure you are operating the remote control within the reception angle
and range of the projector.
•
Make sure the projector is not warming up or shutting down.
•
Check to see if a button on the remote control is stuck down, causing it to
enter sleep mode. Release the button to wake the remote control up.
•
Strong uorescent lighting, direct sunlight, or infrared device signals may be
interfering with the projector's remote receivers. Dim the lights or move the
projector away from the sun or interfering equipment.
Solving Projector or Remote Control Operation Problems
185
•
Mak
e sure at least one of the remote receivers are available in the Remote
Receiver setting in the projector's Settings menu.
•
If the Remote Receiver setting is disabled, hold down the [Menu] button on
the remote control for at least 15 seconds to reset the setting to its default.
•
If you assigned an ID number to the projector to operate multiple projectors
from the remote control, you may need to check or change the ID setting.
•
Press the 0 (zero) button on the remote control while holding down the
[ID] button. By selecting 0 on the remote control, you can operate all of the
projectors regardless of the projector ID settings.
•
If you lose the remote control, you can order another one from Epson.
g
Related Links
•
"Remote Control Operation" p.32
•
"Projector Feature Settings - Settings Menu" p.134
•
"Selecting the Projector You want to Operate" p.78
•
"Installing Batteries in the Remote Control" p.31
Solutions to Password Problems
If you cannot enter or remember a password, try the following solutions:
•
If you have entered an incorrect password too many times and see a message
displaying a request code, write down the code and contact Epson for help.
Provide the request code and proof of ownership for assistance in unlocking
the projector.
•
If you lose the remote control you cannot enter a password. Order a new one
from Epson.
Attention
If y
ou perform Reset network settings. in the projector's Network menu, all of the
passwords that have been set for the Network menu are also reset and you need to
set them again. To prevent the passwords from being reset by unauthorized users, set
Network Protection to On in the Password Protection menu.
Solution When "The Battery that Saves Your Clock
Settings is Running Low" Message Appears
If the message e bat
tery that saves your clock settings is running low. is
displayed, contact Epson for help.
Solving Projector or Remote Control Operation Problems
186
Check the solutions in these sections if you have problems using the projector
on a n
etwork.
g
Related Links
•
"Solutions When Wireless Authentication Fails" p.187
•
"Solutions When You Cannot Access the Projector rough the Web" p.187
•
"Solutions When Network Alert E-Mails are not Received" p.187
•
"Solutions When the Image Contains Static During Network Projection"
p.188
•
"Solutions When You Cannot Connect Using Miracast" p.188
•
"Solutions When the Image or Sound Contains Static During Miracast
Connection" p.188
•
"Solutions When You Cannot Connect Using AirPlay" p.189
•
"Solutions When the Image or Sound Contains Static During AirPlay
Connection" p.189
Solutions When Wireless Authentication Fails
If you are having trouble with the authentication, try the following solutions:
•
If the wireless settings are correct, but authentication fails, you may need to
update the Date & Time settings.
s Extended > Operation > Date & Time
•
Check the Security settings in the projector's Network menu.
s Network > Network Conguration > Wireless LAN
•
If the access point security is WPA3-EAP, change the access point setting to
WPA2/WPA3-EAP.
g
Related Links
•
"Projector Setup Settings - Extended Menu" p.137
•
"Network Menu - Wireless LAN Menu" p.142
Solutions When You Cannot Access the Projector
Through the Web
If you are unable to access the projector through a Web browser, make sure you
are u
sing the correct ID and password.
•
Make sure you use the following user IDs. (You cannot change the user IDs.)
•
To access the Basic Control option, enter EPSONREMOTE.
•
To access other options and save settings, enter EPSONWEB.
•
For the password, enter the password set in the projector's Network menu.
No password is set by default.
•
Make sure you have access to the network the projector is on.
•
If your Web browser is set up to connect via a proxy server, the Epson Web
Control screen cannot be displayed. Make settings for a connection without
using a proxy server.
•
If A/V Output in the projector's A/V Settings is set to Always On and the
projector is in standby mode, make sure the network device is turned on.
Aer turning on the network device, turn on the projector.
s Extended > A/V Settings > A/V Output
e user ID and password are case sensitive.
g
Related Links
•
"Net
work Menu - Basic Menu" p.141
Solutions When Network Alert E-Mails are not
Received
If you do not receive an e-mail alerting you to problems with a projector over
th
e network, try the following solutions:
Solving Network Problems
187
•
Mak
e sure the projector is turned on and connected to the network correctly.
(If an error shuts down the projector, the email may not be delivered.)
•
Make sure you set up the projector e-mail alert settings correctly in the
projector's network Notications menu or in the network soware.
•
When connected to a network by wired LAN, set the Standby Mode setting
to Communication On so that the network soware can monitor the
projector in standby mode. When connected to a network by wireless LAN,
set A/V Output in A/V Settings to Always On.
s ECO > Standby Mode
s Extended > A/V Settings > A/V Output
g
Related Links
•
"Network Menu - Notications Menu" p.146
•
"Projector Setup Settings - ECO Menu" p.151
•
"Projector Setup Settings - Extended Menu" p.137
Solutions When the Image Contains Static During
Network Projection
If the projected image contains static during network projection, try the
following solutions:
•
Check for any obstacles between the access point, the computer, the
mobile device, and the projector, and change their positions to improve
communication.
•
Make sure that the access point, the computer, the mobile device and the
projector are not too far apart. Move them closer together and try to connect
again.
•
Check for interference from other equipment, such as a Bluetooth device or
microwave. Move the interfering device farther away or expand your wireless
bandwidth.
•
Reduce the number of connected devices if the connection speed declines.
Solutions When You Cannot Connect Using Miracast
If you are unable to connect to the projector using Miracast, try the following
so
lutions:
•
Check the projector's settings and restart the projector.
•
Set Miracast to On from Wireless LAN in the Network.
•
Set Miracast to O from Wireless LAN in the Network, and select On
again.
•
Check the mobile device's settings.
•
Make sure the settings on the mobile device are correct.
•
When connecting again immediately aer disconnecting, it may take some
time until the connection is established. Reconnect aer waiting for a
while.
•
Restart the mobile device.
•
Once you have connected using Miracast, the projector connection
information may be recorded on the mobile device. However, you may
not be able to reconnect to the projector from the recorded information.
Select the projector from the list of available devices.
g
Related Links
•
"Projector Network Settings - Network Menu" p.140
•
"Wireless Network Projection from a Mobile Device (Miracast)" p.99
Solutions When the Image or Sound Contains Static
During Miracast Connection
If the projected image or sound contains static when connecting using Miracast,
t
r
y the following solutions:
•
Avoid covering the Wi-Fi antenna of the mobile device.
Solving Network Problems
188
•
If y
ou use a Miracast connection and an internet connection at the
same time, the image may stop or contain noise. Disconnect the internet
connection to expand your wireless bandwidth and improve the connection
speed of the mobile device.
•
Make sure the projection contents meet the Miracast requirements.
•
Depending on the settings of the mobile device, the connection may be lost
when the device enters power saving mode. Check the electrical power saving
settings on the mobile device.
•
Update to the latest version of the wireless driver or rmware on the mobile
device.
g
Related Links
•
"Wireless Network Projection from a Mobile Device (Miracast)" p.99
Solutions When You Cannot Connect Using AirPlay
If you cannot connect using AirPlay, check the following solutions.
•
Check the projector's settings.
•
Check that your Apple device and the projector are using the same
network connection.
•
Set AirPlay to On from the AirPlay and HomeKit settings screen.
•
Restart the projector.
•
Check that the settings on your Apple device are correct.
•
If the date and time are not correctly set on the projector, the AirPlay
connection may be disconnected while projecting.
Set the correct date and time in Date & Time and Daylight Saving Time
from the Extended menu.
•
Check if the network you are using is congured to block specic network
port communications.
g
Related Links
•
"Pr
ojector Network Settings - Network Menu" p.140
•
"Using AirPlay" p.103
Solutions When the Image or Sound Contains Static
During AirPlay Connection
If the video or audio is distorted when using AirPlay, check the following
solutions.
•
Check for obstacles between the access point, Apple device, and projector,
and change their positions to improve the signal strength.
•
Check that the Wi-Fi antenna part of your Apple device is not covered.
•
Check that the content is suitable for streaming or mirroring using AirPlay.
•
Depending on your Apple device settings, the connection may be lost during
power saving. Check the power saving settings on your Apple device.
•
Update your Apple device soware to the latest version.
g
Related Links
•
"Using AirPlay" p.103
Solving Network Problems
189
If you cannot operate the connected devices using the HDMI Link features, try
th
e following solutions:
•
Make sure the cable meets the HDMI CEC standard.
•
Check if the device is available in the Device Connections list. If the device
does not appear in the Device Connections list, it does not meet the HDMI
CEC standards. Connect a dierent device.
s Settings > HDMI Link > Device Connections
•
Check that all cables required for HDMI Link are securely connected.
•
Make sure the connected devices are turned on and in standby status. See the
documentation supplied with the device for more information.
•
If you connect a new device or change the connection, set the CEC function
for the connected device again and restart the device.
g
Related Links
•
"Projector Feature Settings - Settings Menu" p.134
•
"HDMI Link Features" p.63
Solutions When HDMI Link does not Function
190
Appendix
Ch
eck these sections for the technical specications and important notices about your projector.
g
Related Links
•
"Optional Accessories and Replacement Parts" p.192
•
"Screen Size and Projection Distance" p.194
•
"Supported Monitor Display Resolutions" p.196
•
"Projector Specications" p.197
•
"External Dimensions" p.201
•
"Warning Label" p.202
•
"List of Safety Symbols and Instructions" p.203
•
"Glossary" p.205
•
"Notices" p.207
e following optional accessories and replacement parts are available. Please
p
urchase these products as and when needed.
e following list of optional accessories and replacement parts is current as of:
January 2025.
Details of accessories are subject to change without notice and availability may
vary depending on the country of purchase.
g
Related Links
•
"Screens" p.192
•
"Mounts" p.192
•
"External Devices" p.192
•
"Replacement Parts" p.192
Screens
60" portable screen ELPSC27
80" portable screen ELPSC28
100" portable screen ELPSC29
Portable roll-type screens. (aspect ratio 4:3)
70" portable screen ELPSC23
80" portable screen ELPSC24
90" portable screen ELPSC25
Portable roll-type screens. (aspect ratio 16:10)
64" portable screen ELPSC31
Portable magnetic screens. (aspect ratio 4:3)
50" portable screen ELPSC32
A compact screen that can be carried easily. (aspect ratio 4:3)
80" Mobile X-Type Screen ELPSC21
Portable X-type screens. (aspect ratio 16:9)
Multi Aspect Screen ELPSC26
Portable multi-aspect screen.
Mounts
Ceiling mount ELPMB23
Us
e when installing the projector on a ceiling.
Safety Wire Set ELPWR01
Use when connecting the projector to the installation mount to prevent the
projector from falling down.
Ceiling pipe (450 mm) ELPFP13
Ceiling pipe (700 mm) ELPFP14
Use when installing the projector on a high ceiling.
Special expertise is required to suspend the projector from a ceiling.
Co
ntact Epson for help.
External Devices
Document Camera ELPDC30/ELPDC21/ELPDC13/ELPDC07
Us
e when projecting image such as books, OHP documents, or slides.
Android TV
™
device ELPAP12
Use this streaming media player to watch online content.
External Speaker ELPSP02 (PowerLite 994F)
External self‑powered speaker.
Soft carrying case ELPKS70
Use this to carry the projector by hand.
Replacement Parts
Lamp unit ELPLP97
Us
e as a replacement for used lamps.
Optional Accessories and Replacement Parts
192
Air lter ELPAF54
Us
e as a replacement for used air lters.
Optional Accessories and Replacement Parts
193
Check the table here to determine how far to place the projector from the screen
bas
ed on the size of the projected image.
A
Projection distance
B
Distance from the center of the lens to the base of the screen (or to the top of the
screen, if suspended from a ceiling)
C
Center of lens
Screen Size and Projection Distance
194
Screen Size and Projection Distance
195
EX9270/PowerLite 1290/PowerLite FH54+
Product name EX9270/PowerLite 1290/PowerLite FH54+
Dimensions
(W × H × D)
12.2 × 3.5 × 11.1 inches (309 × 90 × 282 mm) (not including
rais
ed section)
LCD panel size 0.62"
Display method 3LCD
Number of pixels Full HD (1,920 (W) × 1,080 (H) dots) × 3
Screen resolution 2,073,600 pixels (1,920 × 1,080)
Focus adjustment Manual
Zoom adjustment 1 to 1.62 (Optical Zoom)
Lamp UHE lamp, 230 W Model No.: ELPLP97
Lamp life High Power Consumption mode: Up to 5,500 hours
EC
O Power Consumption mode: Up to 12,000 hours
Air lter maintenance
c
ycle
10,000 hours
Max. audio output 16 W
Speaker 1
Power supply 100-240V AC±10% 50/60Hz 3.6 - 1.7 A
Power consumption
(100 t
o 120 V ar
ea)
Operating: 349 W
Power consumption
(220 to 240 V ar
ea)
Operating: 332 W
Standby power
con
sumption
0.3 W
Operating altitude Altitude 0 to 10,000 feet (3,048 m)
Operating
tem
perature *
Altitude of 0 to 7,500 feet (2,286 m): 41 to 104°F (5 to 40°C)
(No condensation)
Altitude of 7,500 to 10,000 feet (2,287 to 3,048 m): 41 to 95°F
(5 to 35°C) (Humidity of 20 to 80%, No condensation)
Storage temperature 14 to 140°F (-10 to 60°C) (Humidity of 10 to 90%, No
con
densation)
Mass Approx. 6.8 lb (3.1 kg)
* Lamp brightness automatically dims if the surrounding temperature gets too
high. (A
pproximately 95°F (35°C) at an altitude of 0 to 7,500 feet (2,286 m), and
approximately 86°F (30°C) at an altitude of 7,500 to 10,000 feet (2,287 to 3,048
m); however, this may vary depending on the surrounding environment.)
is product is also designed for IT power distribution system with phase-to-
phase voltage 230V.
e rating label is attached on the bottom of the projector.
is product is certied for wireless communication in Zambia. See the
following URL for the certication number.
https://download2.ebz.epson.net/sec_pubs_visual/zicta/
PowerLite 994F
Product name PowerLite 994F
Dimensions
(W × H × D)
12.2 × 3.5 × 11.1 inches (309 × 90 × 282 mm) (not including
rais
ed section)
LCD panel size 0.62"
Display method 3LCD
Number of pixels Full HD (1,920 (W) × 1,080 (H) dots) × 3
Screen resolution 2,073,600 pixels (1,920 × 1,080)
Focus adjustment Manual
Zoom adjustment 1 to 1.62 (Optical Zoom)
Lamp UHE lamp, 230 W Model No.: ELPLP97
Projector Specications
197
Lamp life High Power Consumption mode: Up to 6,500 hours
Me
dium Power Consumption mode: Up to 10,000 hours
ECO Power Consumption mode: Up to 17,000 hours
Air lter maintenance
c
ycle
10,000 hours
Max. audio output 16 W
Speaker 1
Power supply 100-240V AC±10% 50/60Hz 3.6 - 1.7 A
Power consumption
(100 t
o 120 V ar
ea)
Operating: 349 W
Power consumption
(220 to 240 V ar
ea)
Operating: 332 W
Standby power
con
sumption
Communication On: 2.0 W
Communication O: 0.3 W
Operating altitude Altitude 0 to 10,000 feet (3,048 m)
Operating
tem
perature *
Altitude of 0 to 7,500 feet (2,286 m): 41 to 104°F (5 to 40°C)
(No condensation)
Altitude of 7,500 to 10,000 feet (2,287 to 3,048 m): 41 to 95°F
(5 to 35°C) (Humidity of 20 to 80%, No condensation)
Storage temperature 14 to 140°F (-10 to 60°C) (Humidity of 10 to 90%, No
con
densation)
Mass Approx. 6.8 lb (3.1 kg)
* Lamp brightness automatically dims if the surrounding temperature gets too
high. (A
pproximately 95°F (35°C) at an altitude of 0 to 7,500 feet (2,286 m), and
approximately 86°F (30°C) at an altitude of 7,500 to 10,000 feet (2,287 to 3,048
m); however, this may vary depending on the surrounding environment.)
is product is also designed for IT power distribution system with phase-to-
phase voltage 230V.
e rating label is attached on the bottom of the projector.
is product is certied for wireless communication in Zambia. See the
f
ollowing URL for the certication number.
https://download2.ebz.epson.net/sec_pubs_visual/zicta/
Angle of tilt
If you use the projector tilted at an angle of more than 30˚ it could be damaged
and c
ause an accident.
g
Related Links
•
"Connector Specications" p.198
•
"Wireless Channels Supported Frequency" p.199
Connector Specications
Computer1 port* Mini D-Sub15-pin (female)
Computer2 port* Mini D-Sub15-pin (female)
Monitor Out port* Mini D-Sub15-pin (female)
Video port* RCA pin jack
Audio 1 port* Stereo mini pin jack
Audio 2 port* Stereo mini pin jack
L-Audio-R ports* RCA pin jack × 2 (L-R)
Projector Specications
198
Mic port* Stereo mini pin jack
Audio Out port Stereo mini pin jack
HDMI1 port HDMI (Audio is only supported by PCM)
HDMI2 port HDMI (Audio is only supported by PCM)
USB-A port USB connector (Type A)
USB-B port USB connector (Type B)
LAN port* RJ-45
RS-232C port* Mini D-Sub 9-pin (male)
* Available only for the PowerLite 994F.
•
USB-A an
d USB-B port supports USB 2.0. However, USB ports are not
guaranteed to operate all devices that support USB.
•
USB-B port does not support USB 1.1.
Wireless Channels Supported Frequency
Check the Region Code displayed under Wireless LAN in Network
inf
ormation, and see the table below to check the supported frequencies for
the corresponding region code.
Region Code EU TW ME KR US
2.4GHz
Ch1 - C
h11
(2.400 -
2.473GHz)
Yes Yes Yes Yes Yes
2.4GHz
Ch12, 13
(2.473 -
2.4835GH
z)
Yes No Yes Yes No
Region Code EU TW ME KR US
5GHz
Ch36, 40, 44, 48
(5.15 –
5.25GH
z)
Yes Yes Yes Yes Yes
5GHz
Ch52, 56, 60, 64
(5.25 –
5.35GH
z)
Yes* Yes* Yes* Yes* Yes*
5GHz
Ch100 – C
h144
(5.47 –
5.725GHz)
Yes*
(Ch100-140
)
Yes*
(Ch100-140
)
No Yes*
(Ch100-140
)
Yes*
(Ch100-116
, 132-144)
5GHz
Ch149 – C
h165
(5.725 –
5.85GHz)
No Yes No Yes Yes
6GHz
Ch1 – C
h93
(5.945 –
6.425GHz)
Yes* Yes* No Yes* Yes*
6GHz
Ch97 – C
h113
(6.425 –
6.525GHz)
No No No Yes* Yes*
6GHz
Ch117 – C
h185
(6.525 –
6.875GHz)
No No No Yes* Yes*
Projector Specications
199
Region Code EU TW ME KR US
6GHz
Ch189 – C
h233
(6.875 –
7.125GHz)
No No No Yes*
(Ch189-229
)
Yes*
* When connecting to an access point
Projector Specications
200
See the online No
tices guide for external dimension diagrams.
External Dimensions
201
e warning label is attached to the projector.
A
s with any bright source, do not stare into the beam, RG2 IEC/EN
62471-5:2015.
Warning
•
Wh
en turning on the projector at a distance using the remote control, make sure
no one is looking into the lens.
•
Do not allow small children to operate the projector. Children must be
accompanied by an adult.
•
Do not look into the lens during projection. Also, do not look into the lens using
optical devices, such as a magnifying glass or telescope. is could cause visual
impairment.
•
is
product contains an inaccessible, non-replaceable coin battery. Coin
batteries are an ingestion hazard.
•
Keep new and used coin batteries out of the reach of children. Even used
batteries may cause severe injury or death.
•
Seek immediate medical attention if a battery is ingested and follow any other
consensus medical advice. Call a local poison control center for treatment
information.
•
Remove and immediately recycle or dispose of used batteries according to
local regulations. Do NOT dispose of batteries in household trash.
•
Do not force discharge, recharge, or disassemble batteries, heat them above
the manufacturer's specied temperature rating, or incinerate them. Doing
so may result in injury due to venting, leakage or explosion, resulting in
chemical burns.
•
Do not charge non-rechargeable batteries.
•
Battery type: BR2032
•
Voltage: 3.0 V DC
Warning Label
202
e following table lists the meaning of the safety symbols labeled on the
e
quipment.
No. Symbol mark Approved
st
andards
Description
A
IEC60417
No
. 5007
"ON" (power)
To indicate connection to the mains.
B
IEC60417
No. 5008
"OFF" (power)
To indicate disconnection from the
mains.
C
IEC60417
No
. 5009
Stand-by
To identify the switch or switch
position by means of which part of the
equipment is switched on in order to
bring it into the stand-by condition.
D
ISO7000
N
o
. 0434B,
IEC3864-B3.1
Caution
To identify general caution when using
the product.
E
IEC60417
No
. 5041
Caution, hot surface
To indicate that the marked item can
be hot and should not be touched
without taking care.
F
IEC60417
No
. 6042
ISO3864-B3.6
Caution, risk of electric shock
To identify equipment that has risk of
electric shock.
G
IEC60417
No
. 5957
For indoor use only
To identify electrical equipment
designed primarily for indoor use.
No. Symbol mark Approved
st
andards
Description
H
IEC60417
No
. 5926
Polarity of d.c. power connector
To identify the positive and negative
connections (the polarity) on a piece
of equipment to which a d.c. power
supply may be connected.
I
— e same as No. 8.
J
IEC60417
No
. 5001B
Battery, general
On battery powered equipment. To
identify a device for instance a cover
for the battery compartment, or the
connector terminals.
K
IEC60417
No
. 5002
Positioning of cell
To identify the battery holder itself and
to identify the positioning of the cell(s)
inside the battery holder.
L
— e same as No. 11.
M
IEC60417
No
. 5019
Protective earth
To identify any terminal which is
intended for connection to an external
conductor for protection against
electric shock in case of a fault, or the
terminal of a protective earth electrode.
N
IEC60417
No
. 5017
Earth
To identify an earth (ground) terminal
in cases where neither the symbol No.
13 is explicitly required.
List of Safety Symbols and Instructions
203
No. Symbol mark Approved
st
andards
Description
O
IEC60417
No
. 5032
Alternating current
To indicate on the rating plate that the
equipment is suitable for alternating
current only; to identify relevant
terminals.
P
IEC60417
No. 5031
Direct current
To indicate on the rating plate that the
equipment is suitable for direct current
only; to identify relevant terminals.
Q
IEC60417
No
. 5172
Class II equipment
To identify equipment meeting the
safety requirements specied for Class
II equipment according to IEC 61140.
R
ISO 3864 General prohibition
To iden
tify actions or operations that
are prohibited.
S
ISO 3864 Contact prohibition
To in
dicate injury that could occur
due to touching a specic part of the
equipment.
T
— Never look into the optical lens while
t
h
e projector is on.
U
— To indicate that the marked item don’t
pl
ace anything on projector.
V
ISO3864
IEC60825-1
Caution, laser radiation
To in
dicate the equipment has a laser
radiation part.
No. Symbol mark Approved
st
andards
Description
W
ISO 3864 Disassembly prohibition
To in
dicate a risk of injury, such as
electric shock, if the equipment is
disassembled.
X
IEC60417
No. 5266
Standby, partial standby
To indicate that part of the equipment
is in the ready status.
Y
ISO3864
IEC60417
No
. 5057
Caution, movable parts
To indicate that you must keep away
from movable parts according to
protection standards.
Z
IEC60417
No. 6056
Caution (Moving Fan Blades)
As a safety precaution, stay away from
the moving fan blades.
a
IEC60417
No
. 6043
Caution (Sharp Corners)
To indicate sharp corners that should
not be touched.
b
— To indicate that looking into the lens
whi
le projecting is prohibited.
c
ISO7010
N
o
. W027
ISO 3864
Warning, Optical radiation (such as
UV, visible radiation, IR)
Taking care to avoid injury to eyes and
skin when in the vicinity of optical
radiation.
d
IEC60417
No
. 5109
Not to be used in residential areas.
To identify electrical equipment which
is not suitable for a residential area.
List of Safety Symbols and Instructions
204
is section briey explains the dicult terms that are not explained in the text
o
f this guide. For details, refer to other commercially available publications.
AMX Device
Dis
covery
AMX Device Discovery is a technology developed by AMX to
facilitate AMX control systems for easy operation of the target
equipment.
Epson have implemented this protocol technology, and have
provided a setting to enable the protocol function (ON).
See the AMX Web site for more details.
URL http://www.amx.com/
Aspect Ratio e ratio between an image's length and its height.
S
creens with a horizontal:vertical ratio of 16:9, such as HDTV
screens, are known as wide screens.
SDTV and general computer displays have an aspect ratio of 4:3.
Composite Video A method that combines the video signal into a luminance
com
ponent and a color component for transmission down a
single cable.
Contrast e relative brightness of the light and dark areas of an image
c
an be increased or decreased to make text and graphics stand
out more clearly, or to make them appear soer. Adjusting this
particular property of an image is called contrast adjustment.
DHCP An abbreviation of Dynamic Host Co
nguration Protocol, this
protocol automatically assigns an IP address to equipment
connected to a network.
Full HD A screen size standard with a resolution of 1,280 (horizontal) ×
1,080 (ver
tical) dots.
Gateway Address is is a server (router) for communicating across a network
(s
ubnet) divided according to subnet mask.
HDCP HDCP is an abbreviation for High-bandwidth Digital Content
Pr
otection.
It is used to prevent illegal copying and protect copyrights by
encrypting digital signals sent over DVI and HDMI ports.
Because the HDMI port on this projector supports HDCP, it can
project digital images protected by HDCP technology.
However, the projector may not be able to project images
protected with updated or revised versions of HDCP encryption.
HDMI
™
An abbreviation for High Deni
tion Multimedia Interface.
HDMI
™
is a standard aimed at digital consumer electronics
and computers. is is the standard by which HD images and
multichannel audio signals are digitally transmitted.
By not compressing the digital signal, the image can be
transferred at the highest quality possible. It also provides an
encryption function for the digital signal.
HDTV An abbreviation for H
ig
h-Denition Television that refers to
high-denition systems which satisfy the following conditions:
•
Vertical resolution of 720p or 1080i or greater (p =
Progressive, i = Interlace)
•
Screen aspect ratio of 16:9
Interlace Transmits information needed to create one screen by sending
ev
ery other line, starting from the top of the image and working
down to the bottom.
Images are more likely to icker because one frame is displayed
every other line.
IP Address A number to identify a computer connected to a network.
Progressive Projects information to create one screen at a time, displaying
th
e image for one frame.
Even though the number of scan lines is the same, the amount
of icker in images decreases because the volume of information
has doubled compared with an interlace system.
Glossary
205
Refresh Rate e light-emitting element of a display maintains the same
l
uminosity and color for an extremely short time.
Because of this, the image must be scanned many times per
second to refresh the light-emitting element.
e number of refresh operations per second is called the
Refresh rate and is expressed in hertz (Hz).
SDTV An abbreviation for Standard Deni
tion Television that refers to
standard television systems which do not satisfy the conditions
for HDTV High-Denition Television.
SNMP An abbreviation for Simple Network Management Protocol,
whic
h is the protocol for monitoring and controlling devices
such as routers and computers connected to a TCP/IP network.
sRGB An international standard for color intervals that was formulated
so t
hat colors that are reproduced by video equipment can be
handled easily by computer operating systems (OS) and the
Internet. If the connected source has an sRGB mode, set both
the projector and the connected signal source to sRGB.
SSID SSID is identication data for connecting to another device on
a w
ireless LAN. Wireless communication is possible between
devices with the same SSID.
Subnet Mask is is a numerical value that denes the number of bits used for
t
he network address on a divided network (subnet) from the IP
address.
SVGA A screen size standard with a resolution of 800 (horizontal) × 600
(ver
tical) dots.
SXGA A screen size standard with a resolution of 1,280 (horizontal) ×
1,024 (ver
tical) dots.
Sync. e signals output from computers have a sp ecic frequency.
I
f the projector frequency does not match this frequency, the
resulting images are not of a good quality.
e process of matching the phases of these signals (the relative
position of the crests and the troughs in the signal) is called
Synchronization.
If the signals are not synchronized, ickering, blurriness, and
horizontal interference occur.
Tracking e signals output from computers have a specic frequency.
I
f the projector frequency does not match this frequency, the
resulting images are not of a good quality.
e process of matching the frequency of these signals (the
number of crests in the signal) is called Tracking.
If Tracking is not carried out correctly, wide vertical stripes
appear in the signal.
Trap IP Address is is the IP address for the destination computer used for error
n
otication in SNMP.
VGA A screen size standard with a resolution of 640 (horizontal) × 480
(ver
tical) dots.
XGA A screen size standard with a resolution of 1,024 (horizontal) ×
768 (ver
tical) dots.
WXGA A screen size standard with a resolution of 1,280 (horizontal) ×
800 (ver
tical) dots.
WUXGA A screen size standard with a resolution of 1,920 (horizontal) ×
1,200 (ver
tical) dots.
Glossary
206
Check these sections for important notices about your projector.
g
Related Links
•
"FCC C
ompliance Statement" p.207
•
"Innovation, Science and Economic Development Canada (ISED) Notices"
p.207
•
"Restriction of Use" p.208
•
"Operating System References" p.208
•
"Trademarks" p.208
•
"Copyright Notice" p.209
•
"Copyright Attribution" p.209
FCC Compliance Statement
FCC Compliance Statement For United States Users
is device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) is device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
is equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. ese limits are designed
to provide reasonable protection against harmful interference in a residential
installation. is equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause interference to radio and television reception, which can
be determined by turning the equipment o and on, the user is encouraged to
try to correct the interference by one or more of the following measures.
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Co
nnect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
WARNING
e connection of a non-shielded equipment interface cable to this equipment
will invalidate the FCC Certication or Declaration of this device and may
cause interference levels which exceed the limits established by the FCC for
this equipment. It is the responsibility of the user to obtain and use a shielded
equipment interface cable with this device. If this equipment has more than
one interface connector, do not leave cables connected to unused interfaces.
Changes or modications not expressly approved by the manufacturer could
void the user's authority to operate the equipment.
Innovation, Science and Economic Development
Canada (ISED) Notices
Contains IC: 1052D-NH7
Operating frequency range: 2.402-2.480GHz, 5.18-5.24GHz, 5.26-5.32GHz,
5.50-5.72GHz, 5.745-5.825GH
z, 5.845-5.885GHz, 5.955-7.115GHz
is device contains license-exempt transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic Development Canada's license-exempt
RSS(s). Operation is subject to the following two conditions:
(1) is device may not cause interference,
(2) is device must accept any interference, including interference that cause
undesired operation of the device.
is device is restricted for indoor use only. Especially, ISED regulations state
that operation in 5150-5250MHz & 5850-5895MHz is for indoor use only.
Notices
207
is equipment (without Bluetooth
®
remote controller) complies with ISED
radiation exposure limits set forth for an uncontrolled environment and meets
RSS-102 of the ISED radio frequency (RF) Exposure rules.
CAUTION: Exposure to Radio Frequency Radiation
1. To comply with the Canadian RF exposure compliance requirements, this
device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
2. To comply with RSS-102 RF exposure compliance requirements, this
equipment should be installed and operated, keeping the radiator at least 7.9
inches (20cm) or more away from the person's body.
Wireless caution for Wi-Fi 6E
e following uses of this device are prohibited by ISED, RSS-248 regulations.
•
Devices shall not be used for control of or communications with unmanned
aircra systems.
•
Devices shall not be used on oil platforms.
•
Devices shall not be used on aircra, except for the low-power indoor access
points, indoor subordinate devices, low-power client devices, and very low-
power devices operating in the 5925-6425 MHz band, that may be used on
large aircra as dene d in the Canadian Aviation Regulations, while ying
above 3,048 meters (10,000 feet).
•
Devices shall not be used on automobiles.
•
Devices shall not be used on trains.
•
Devices shall not be used on maritime vessels.
Restriction of Use
When this product is used for applications requiring high reliability/safety
suc
h as transportation devices related to aviation, rail, marine, automotive etc.;
disaster prevention devices; various safety devices etc; or functional/precision
devices etc, you should use this product only aer gi
ving consideration to
including fail-safes and redundancies into your design to maintain safety
and total system reliability. Because this product was not intended for use
in applications requiring extremely high reliability/safety such as aerospace
equipment, main communication equipment, nuclear power control equipment,
or medical equipment related to direct medical care etc, please make your own
judgment on this product’s suitability aer a full evaluation.
Operating System References
•
Micr
oso
®
Windows
®
10 operating system
•
Microso
®
Windows
®
11 operating system
In this guide, the operating systems above are referred to as "Windows 10" and
"Windows 11". Furthermore, the collective term "Windows" is used to refer to
them all.
•
macOS 12.x
•
macOS 13.x
•
macOS 14.x
In this guide, the operating systems above are referred to as "macOS 12.x",
"macOS 13.x", and "macOS 14.x". Furthermore, the collective term "Mac" is used
to refer to them all.
Trademarks
EPSON is a registered trademark of Seiko Epson Corporation.
ELPLP an
d its logo are registered trademarks or trademarks of Seiko Epson
Corporation.
App Store is a service mark of Apple Inc., registered in the U.S. and other
countries.
Notices
208
Apple, Mac, macOS, AirPlay, Apple Home, Apple TV, HomeKit, HomePod, and
Ho
mePod Mini are trademarks of Apple Inc., registered in the U.S. and other
countries.
Microso, Windows, and the Windows logo are trademarks or registered
trademarks of Microso Corporation in the United States and/or other
countries.
Wi-Fi
®
, WPA2
™
, WPA3
™
, and Miracast
®
are trademarks or registered
tradaemarks of Wi-Fi Alliance
®
.
Android TV, Chrome, Chromebook, and Google Play are trademarks of Google
LLC.
e terms HDMI, HDMI High-Denition Multimedia Interface, HDMI Trade
dress and the HDMI Logos are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc.
"QR Code" is a registered trademark of DENSO WAVE INCORPORATED.
PJLin
k trademark is a trademark applied for registration or is already registered
in Japan, the United States of America and other countries and areas.
Crestron
®
, Crestron Connected
®
, Crestron Fusion
®
, Crestron RoomView
®
, and
Crestron XiO Cloud
®
are registered trademarks of Crestron Electronics, Inc.
Covered by one or more claims of the HEVC patents listed at
pat
entlist.accessadvance.com.
Other product names used herein are also for identication purposes only and
may be trademarks of their respective owners. Epson disclaims any and all
rights in those marks.
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in
a ret
rieval system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording, or otherwise, without the prior written
per
mission of Seiko Epson Corporation. No patent liability is assumed with
respect to the use of the information contained herein. Neither is any liability
assumed for damages resulting from the use of the information contained
herein.
Neither Seiko Epson Corporation nor its ali ates shall be liable to the purchaser
of this product or third parties for damages, losses, costs, or expenses incurred
by the purchaser or third parties as a result of: accident, misuse, or abuse of this
product or unauthorized modications, repairs, or alterations to this product,
or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's
operating and maintenance instructions.
Seiko Epson Corporation shall not be liable against any damages or problems
arising from the use of any options or any consumable products other than
those designated as Original Epson Products or Epson Approved Products by
Seiko Epson Corporation.
e contents of this guide may be changed or updated without further notice.
Illustrations in this guide and the actual projector may dier.
Copyright Attribution
is information is subject to change without notice.
© 2025 S
eiko Epson Corporation
2025.6 414569804EN
Notices
209
