User Manual Epson 5040UBe WirelessHD 3LCD Projector

WirelessHD Transmission Range
Place the WirelessHD Transmitter within the distance and angles shown here. Make sure the front of the WirelessHD Transmitter faces the front of the projector. Place the WirelessHD transmitter on a wooden shelf or other location that does not block the signal.

Vertical (on surface)
1 16 feet (5 m)
2 32 feet (10 m)
3 60°
4 30°

Vertical (inverted on ceiling)
1 16 feet (5 m)
2 32 feet (10 m)
3 30°
4 60°

Horizontal

1 16 feet (5 m)
2 32 feet (10 m)
3 70°
4 45°
When positioning the WirelessHD transmitter, note the following:

The wireless transmission range varies depending on the placement and material of the furniture and walls. The values provided here are for your reference only.
The projector cannot communicate through walls.
When checking the signal, place the projector and WirelessHD Transmitter close to each other and make sure there are no other projectors operating nearby.

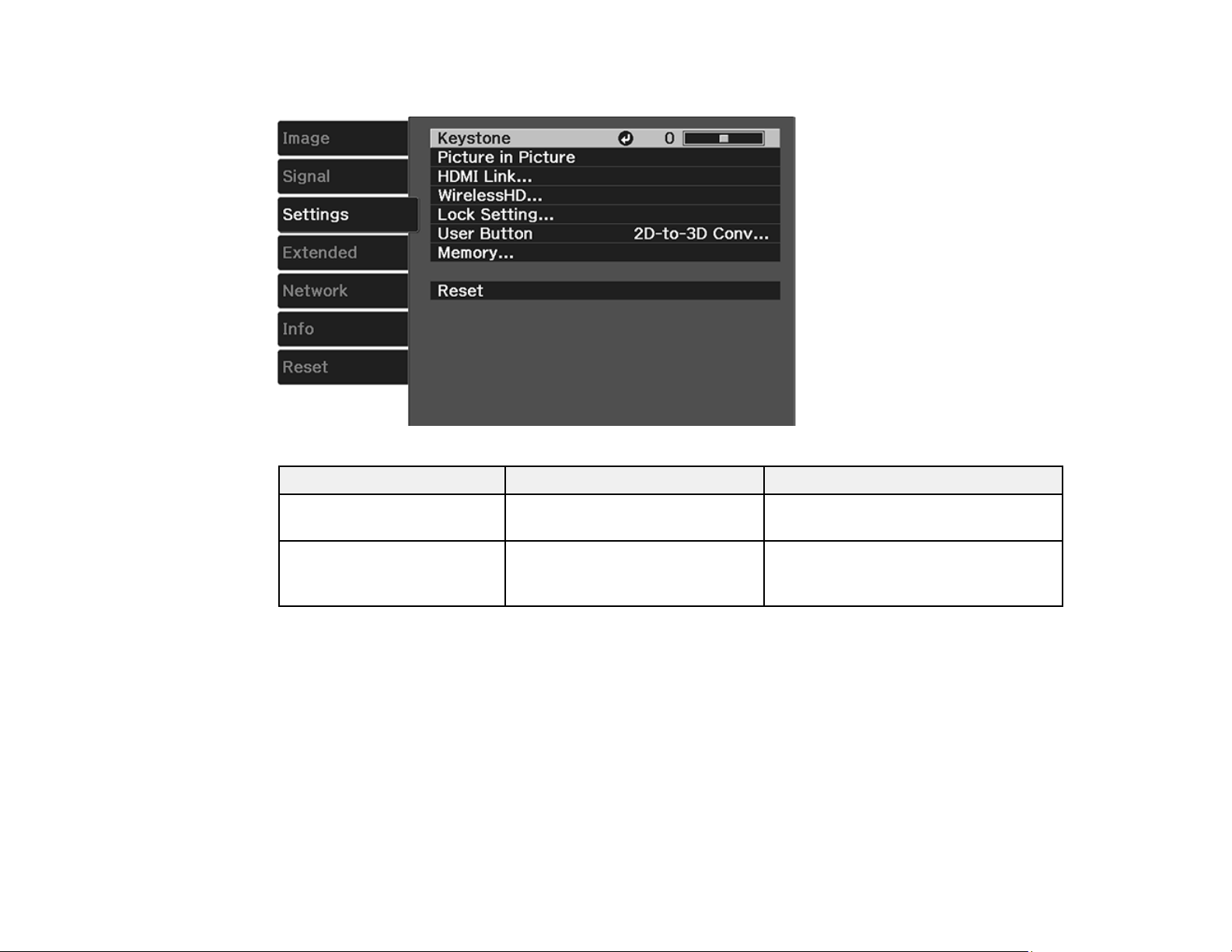

Depending on the signal strength, the image's color information may be automatically discarded to avoid any interruptions and maintain a constant connection. To avoid any deterioration in image quality, adjust the position of the transmitter so that the Video Reception setting is as strong as possible. If no image is being input, the Video Reception setting displays 0%, even if the projector and transmitter are connected.
Reception sensitivity varies depending on the resolution of the input image.

Connecting the WirelessHD Transmitter

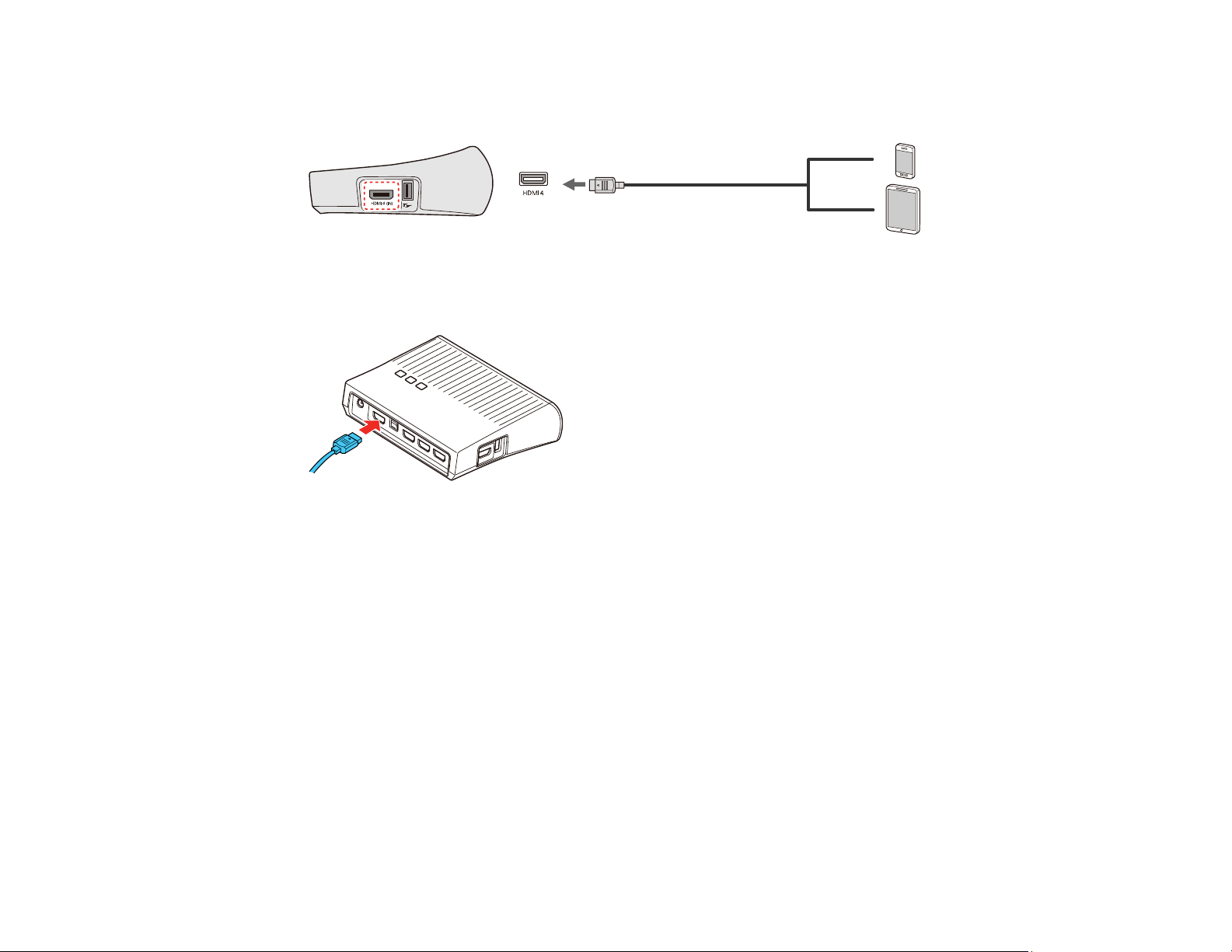

You can connect up to four HDMI input sources and one HDMI output source to your WirelessHD transmitter.

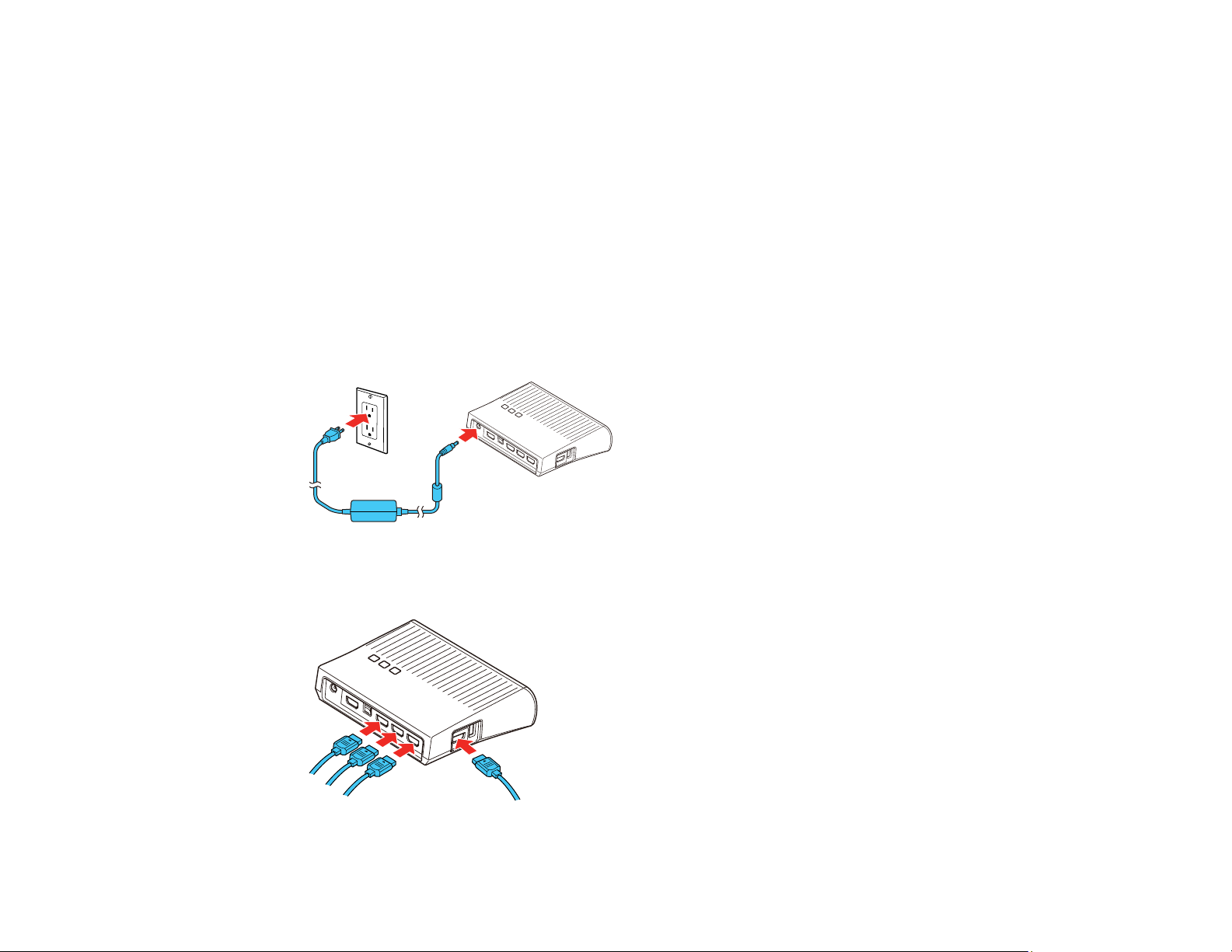

Plug the AC adapter into the AC input port on the WirelessHD transmitter and into an electrical outlet.
Connect HDMI cables to your video devices and to the HDMI input ports on the side and back of the WirelessHD transmitter
Note: You can connect an MHL-compatible smartphone or tablet to the HDMI4 port on the WirelessHD Transmitter.
To use the WirelessHD transmitter as a pass-through device to a television or other display, connect an HDMI cable to the display device and to the HDMI Out port on the back of the transmitter.

Viewing 3D Images
You can view 3D images using your projector. Viewing 3D images requires a 3D-compatible video device, a compatible HDMI cable, and a pair of Epson RF 3D glasses (not included with your projector). You can also convert 2D images to 3D using the 2D-to-3D Conversion setting in your projector's Signal > 3D Setup menu.
You can purchase Epson RF 3D glasses from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at the Epson store.

Note: Make sure the 3D Display setting on the Signal menu is set to Auto or 3D.

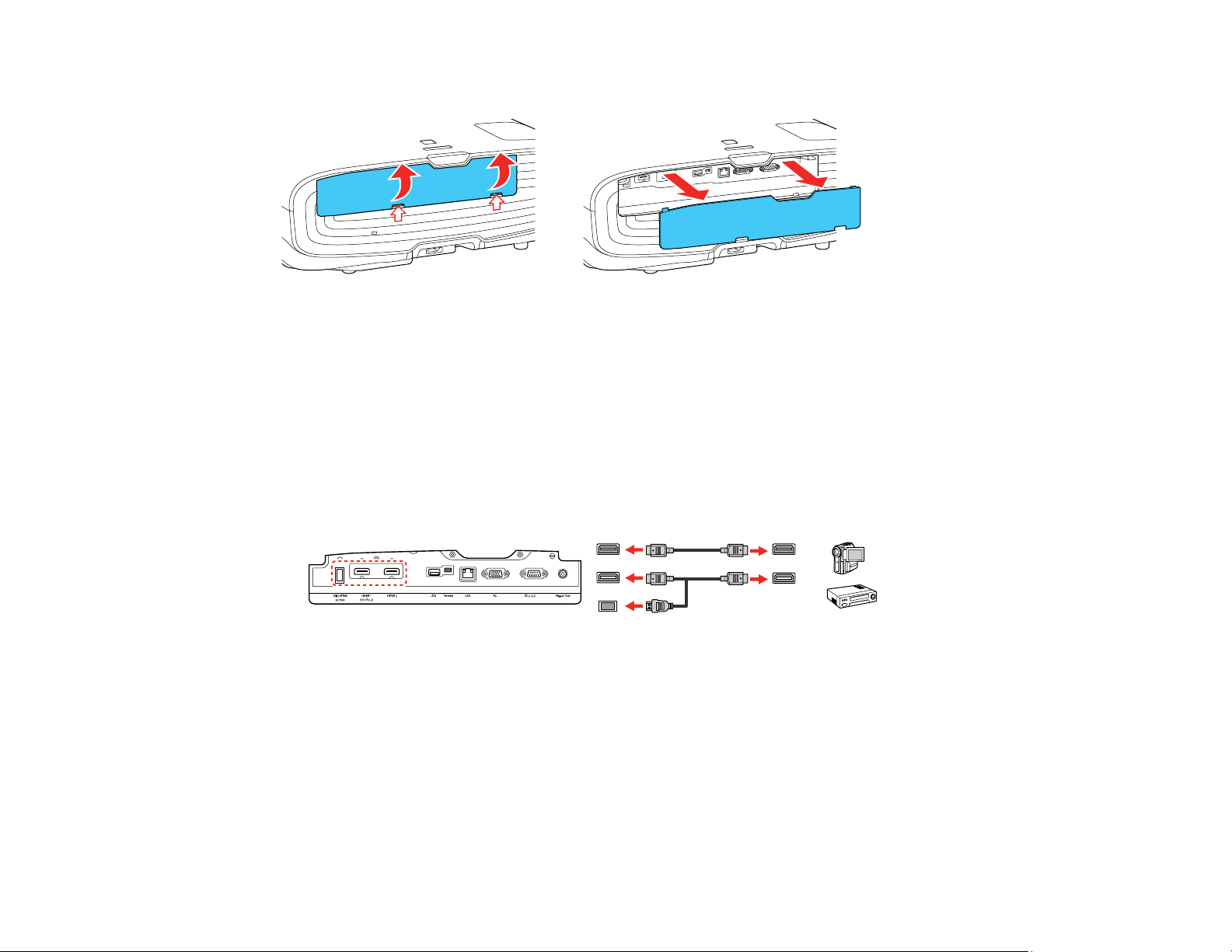

Connect a 3D-compatible video device to the projector using a compatible HDMI cable.
Turn on the video device, then turn on the projector.
Begin playback from the video device.
Note: Make sure you set the video device to play content in 3D mode.

Slide the power switch on the 3D glasses to the On position.
Put on the 3D glasses. If you do not see a 3D image, pair the glasses with the projector.
Note: If you change the video source or you are not within range of your projector, the glasses enter standby mode and the status light flashes green. Slide the power switch on the glasses to the Off position and then back to the On position to resume 3D viewing.
