10KG/6KG
FRONT LOAD
WASHING/DRYER MACHINE
SC-1060AU10FLC
INSTRUCTION
MANUAL
Please read this manual carefully before using, and keep it for future reference.
General Safety 4
Product Overview 8
Operations 10
Getting Started 14
Instructions 18
Cleaning and Maintenance 20
FAQs 22
Specifications 23
CONTENTS
4
Read this manual thoroughly before you start using the Appliance.
The safety precautions instructions reduces the risk of fire, electric shock and injury when
correctly complied to.
Please follow all instructions and take notice of all warnings.
ELECTRICAL SAFETY
• Voltage: Plug the appliance to a 220-240V, 50Hz, properly earthed power
outlet, it must be in good working order.
• Power connection: Do not use an adaptor or an extension cord.
Plug the power plug directly into a separate power point that cannot be
accidentally turned o, and that is easily accessible so you can switch it o
if needed.
• Power cord: Do not kink or damage the power supply cord. Make sure it is
behind the appliance so no one can step on or place anything on the power
supply cord or against it. A damaged power plug may overheat and cause a fire.
• Damaged cord: Do not use a cord that shows cracks or damage. Any damage
to the cord may cause a short circuit, fire and/or electric shock.
Contact our support centre on info@ayonz.com for advice
• Disconnection: Never pull the power cord to unplug appliance. Grip the plug and
pull straight out from the power point.
• Electrical work: If the installation of this appliance requires any electrical work,
make sure it is carried out by an electrician.
Pay close attention to messages that follow this safety alert symbol or the words
DANGER, WARNING or CAUTION. These words will be used to alert you of
potential hazards that and injure you and others. Following these instruction will
tell you how to reduce the chance of injury and the possible dangers if
instructions aren’t followed.
This symbol indicates when there is a serious risk of
injury if you do not pay attention to the warnings.
WARNING
CAUTION
This symbol indicates when to be careful to
avoid a serious risk of injury to oneself or
damage to property.
IMPORTANT INFORMATION
GENERAL SAFETY
5
WARNING
• Make sure that transport packaging is removed from the rear of the appliance.
Do not overload the appliance with too many clothes.
• Exhaust air must not be discharged into a flue which is used for exhausting
fumes from appliances burning gas or other fuels.
• Appliance must not be installed behind a lockable door, a sliding door or a door
with a hinge on the opposite side to that of the appliance, in such a way that
a full opening of the product door is restricted.
To reduce risk of fire, electric shock or injury, always follow these basic precautions
and accident prevention measures when using this appliance, including the below:
NOTE: This appliance should be installed by an authorized technician else
warranty will be void.
INSTALLATION
• The product is heavy, be careful when moving it. To avoid back or other
injury, have 2 people lift or mechanical aid when installing.
• When unboxing, thoroughly inspect the appliance carefully for any
damage. If there is any damage, do not install the appliance. Contact our
support centre on info@ayonz.com for advice.
• While installing the appliance make sure that the power cord is not bent
or flattened.
• Make sure to remove all packaging materials such as foams and tapes
before installing the appliance.
• Make sure if the machine is to be placed on carpet that the ventilation openings
in the base are not obstructed
• Install the appliance on a flat level and stable ground.
GENERAL SAFETY INSTRUCTIONS (Cont.)
6
GENERAL SAFETY INSTRUCTIONS (Cont.)
USAGE CONDITIONS AND RESTRICTIONS
• Supervision over children is to ensure that they do not play with the
appliance. Never allow them to use, play with or crawl inside the appliance.
Cleaning and maintenance must not be done by children.
• This appliance is not to be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they are being supervised or been given instructions on how to use of the
appliance in a safe way and understand the hazards with using this
appliance incorrectly. Children being supervised not to play with the appliance
• Only for indoor domestic use only. It is not to be used for industrial or
commercial use.
• Do not use this product for anything other than its intended purpose, and only
use it as described in this manual. Do not attempt to alter or modify
this appliance.
• In the process of a hot wash, the door window can become hot. Make sure not to
touch it or that no children or pets come into contact with the door window.
• Ensure that emptying all pockets of every item to make sure that there is no
hard, sharp objects such as coins, safety pins, bra wires, nails or screws can cause
damage to the appliance and has a chance to block the pump.
• Damage or malfunction caused from foreign objects is not covered by your
warranty to the appliance.
• Do not operate this appliance outdoors.
• Incorrect use can result in property damage, injury or death. We assume no
liability for misuse of the appliance or noncompliance with these instructions.
• Maximum load is 6.0kg for Drying / 10.0kg for Washing.
• Do not block any ventilation openings. Ensure that vents are not covered
by anything.
• Do not use this product for anything other than its intended purpose, and only
use it as described in this manual. Do not attempt to alter or modify
this appliance.
• This appliance is intended to be used in household and similar applications such
as:
– Sta kitchen areas in shops, oces and other working environments;
– Farm houses;
– By clients in hotels, motels and other residential type environments;
– Ded and breakfast type environments;
– Areas for communal use in blocks of flats or in launderettes.
7
GENERAL SAFETY INSTRUCTIONS (Cont.)
CLEANING AND MAINTENANCE
• Before cleaning or maintenance, always unplug the appliance from the power
socket. Make sure you pull by the plug, not the cord as this can damage the
power cord and cause a hazard.
• Only the filter requires regular cleaning, everything else is non user-serviceable
parts. Do not try to repair, disassemble or modify the appliance.
• Check and clean the lint filter on a regular basis
• Service: Never try to repair, modify or replace any part of the appliance, unless
this manual says you can do so. All other servicing is to be done by a qualified
technician, or contact our support centre on info@ayonz.com for advice.
• Only load items that are suitable for the appliance.
• Do not place any open source flames on the appliance such as candles, etc..
• The door/window will be hot after a long cycle, be sure not to touch the window
and to keep children away from the appliance.
• WARNING: Never stop the appliance before the end of the cycle unless all
items are quickly removed and spread out so that the heat is dissipated.
• The appliance must not be supplied through an external switching device, such
as a timer, or connected to a circuit that is regularly switched on and o by a
utility.
• The only part that can be changed is the filter, other than this nothing else in the
appliance contains user serviceable parts. Do not open, disasseble or try to
repair the appliance yourself. Only have this appliance serviced by a qualified
technician.
• Incorrect use can result in property damage, injury or death. We assume no
liability for misuse of the appliance or noncompliance with these instructions.
8
GENERAL SAFETY INSTRUCTIONS (Cont.)
CAUTION
• Do not use the appliance if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the appliance.
• Do not allow lint to accumulate around the appliance. Clean the Lint Trap and
filter after every use.
• Enough ventilation has to be provided to avoid the backflow of gases into the
room from appliances burning other fuels including open fires.
• Remove all objects from pockets such as lighters and matches.
• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been
contaminated by hair care products be placed in apppliance, they should first
be washed in hot water with extra detergent - this will reduce, but not eliminate,
the hazard.
This symbol alerts you to take care as oil-aected items can
ignite, especially when exposed to heat, such as in a clothes
dryer. The items become warm, causing an oxidation reaction
in the oil. Oxidation causes heat. If the heat cannot escape, the
items can become hot enough to catch fire. Piling,
stacking or storing oil-aected items can prevent heat
from escaping and so it will create a fire hazard.
CAUTION
ITEMS BELOW ARE NOT SUITABLE FOR DRYING. IT CAN CAUSE FIRE IN
THE APPLIANCE OR EXTENSIVE DAMAGE. DO NOT PLACE FOLLOWING
IN THE APPLIANCE
• Items containing rubber or foam like rubber or any other similar
textured materials.
• Items that are spotted or soaked with cooking oil or any other flammable items.
These other items include kerosene, stain removers, dry-cleaning solvents,
alcohol, petrol, turpentine, waxes, hair care products, wax removers.
• Washing the items vigorously beforehand in hot water with extra detergent will
reduce, but not completely eliminate the hazard.
• Undergarments that contain metal reinforcements (such as underwire bras).
Plastic articles such shower caps and waterproof bibs.
• Rubber-backed articles, clothes with foam rubber pads, pillows, galoshes and
rubber coated tennis shoes.
• Fabric softeners or similar products unless recommended by product
manufacturer for use in a clothes dryer.
9
GENERAL SAFETY INSTRUCTIONS (Cont.)
Items that have been soiled with substances such as cooking oil, acetone, alcohol,
petrol, kerosene, spot removers, turpentine, waxes and wax removers should be
washed in hot water with an extra amount of detergent before being dried in the
appliance.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted with foam rubber pads should not be
dried in the appliance.
• Fabric softeners, or similar products, should be used as specified by the fabric
softener instructions.
• The final part of the appliance cycle occurs without heat (cool down cycle) to
ensure that the items are left at a temperature that ensures that the items will
not be damaged.
• Remove all objects from pockets such as lighters and matches.
• Oil-aected items can ignite spontaneously, especially when exposed to heat
sources such as in the appliance. The items become warm, causing an oxidation
reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items
can become hot enough to catch fire. Piling, stacking or storing oil-aected
items can prevent heat from escaping and so create a fire hazard.
• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been
contaminated by hair care products be placed in the appliance, they should first
be washed in hot water with extra detergent - this will reduce, but not eliminate,
the hazard.
WARNING:
Never stop the appliance before the end of the drying cycle unless all items are
quickly removed and spread out so that the heat is dissipated.
IMPORTANT

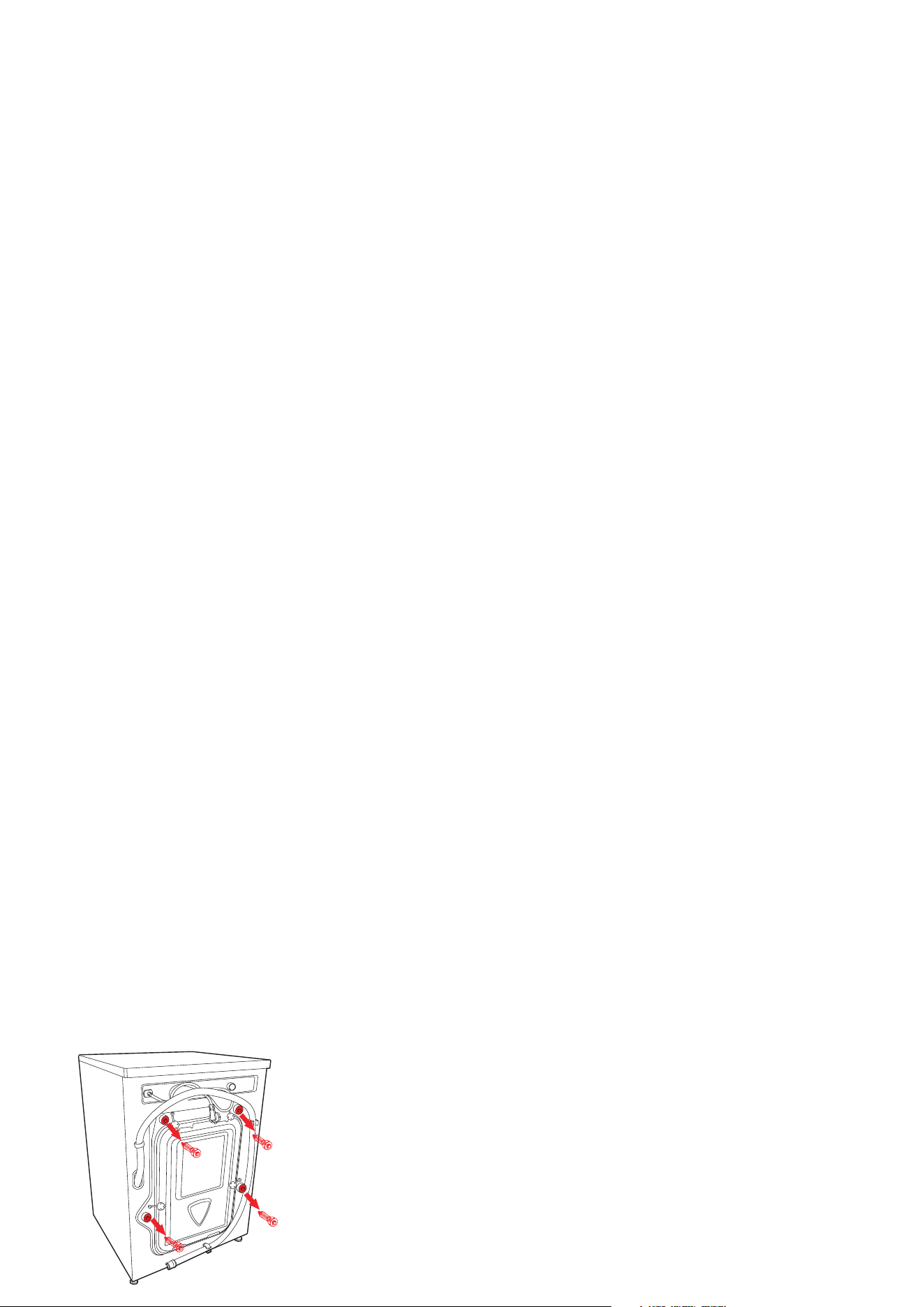

Before using the washing machine, you must remove the 4 transport bolts from
the rear of the machine.
If you do not remove these transport bolts before first time use, you will damage
the unit and also void warranty. You must remove these transport bolts before
first time use.
10

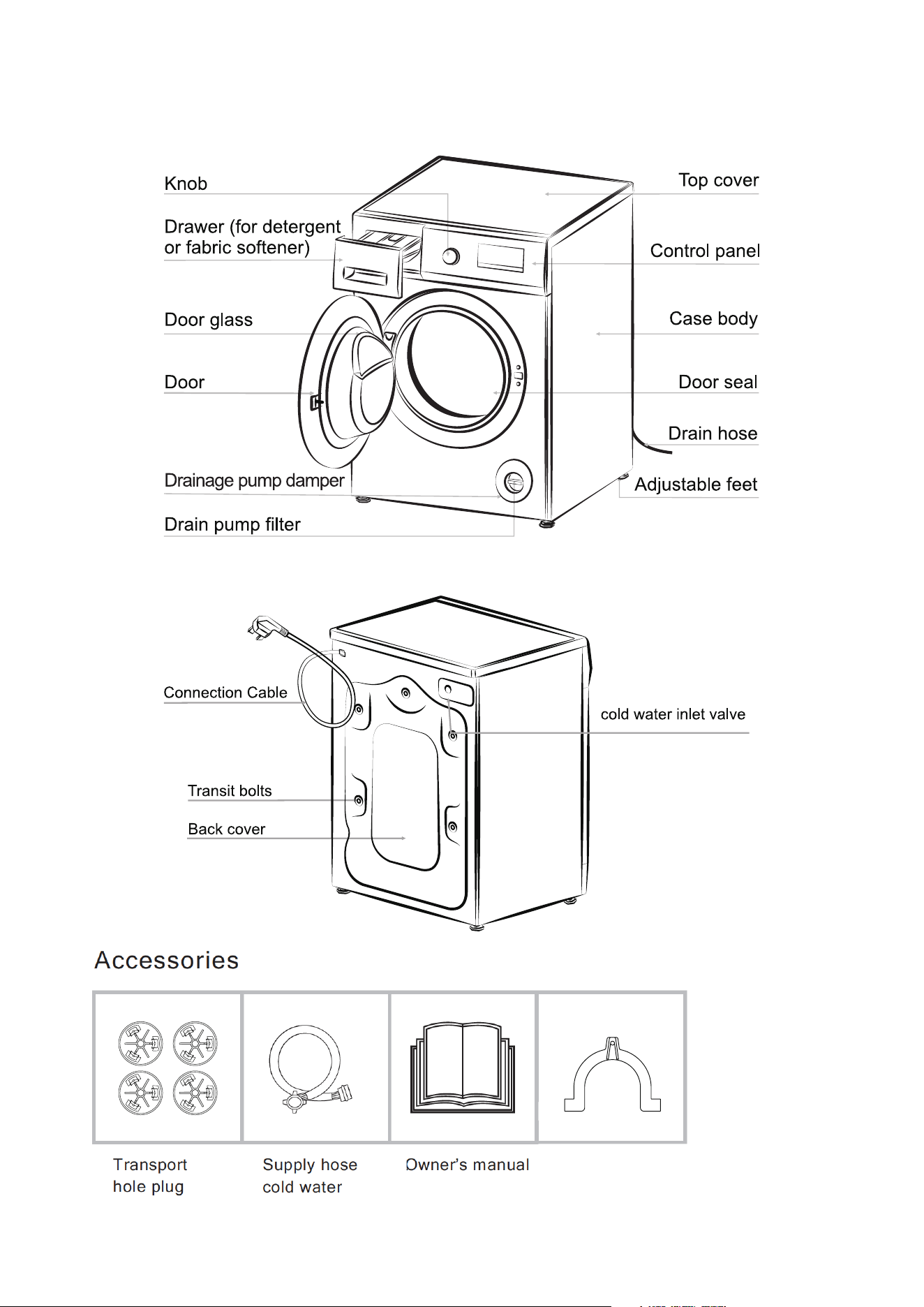

PRODUCT OVERVIEW
“U” piece
11
PRODUCT OVERVIEW (Cont.)

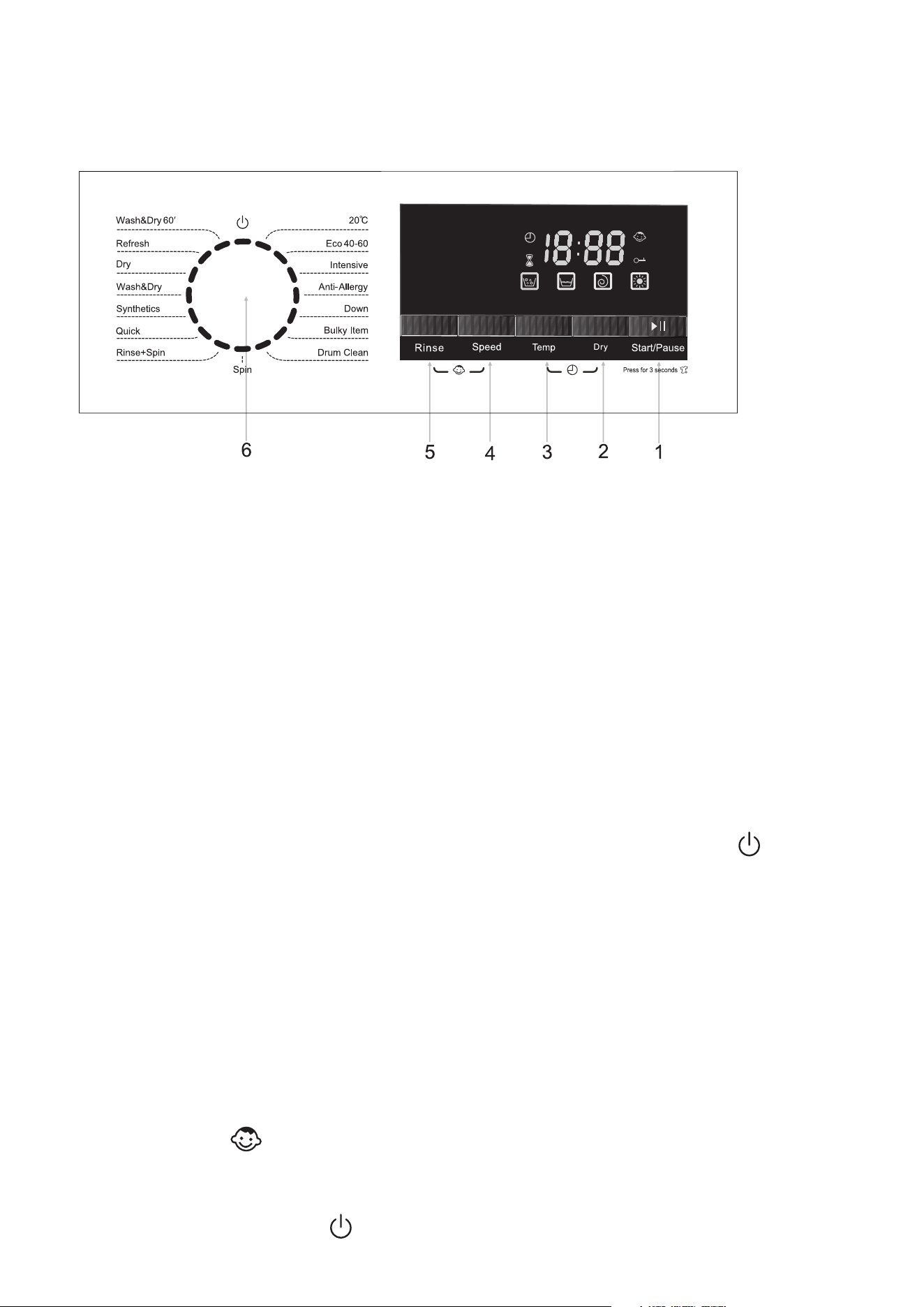

CONTROL PANEL
1. START/PAUSE: Press this button to start or pause the washing cycle. The
door can not be opened when the machine starts. You can press this button
for 3 seconds to pause wash cycle and add clothes, but if the water level or
the temperature of the drum is high, the door will not open.
2. DRY: Press this button repeatedly to set the drying time. If the laundries
want to be dry after being washed, press this button.
3. TEMP: Press this button repeatedly to change the wash temperature.
4. SPEED: Press this button repeatedly to change the spin speed.
5. RINSE: Press this button repeatedly to change the rinse times.
6. KNOB: Turn this knob clockwise or anticlockwise to select the required wash
program. Once the “Start/Pause” button is pressed and the machine is
running, the program can not be changed.
NOTE: For your safety, please not turn the knob to the position “ ” and
get clothes while the machine is running. Because the temperature of water
may be high and it may scald you. The door lock will open automatically at
the end of a wash cycle while the temperature of the drum is cool down.
Note:
Child lock (“Rinse ” + “Speed”)
The function of “Child lock” is to lock the control panel to prevent the misuse by
children .
1.Press the “Rinse” and “Speed” buttons at the same time for 3 seconds.
When the icon “ ” is lighted up on the screen, the function works. This function
can be selected during a washing cycle.
2.When this function works, all keys and knob are not available, except for the
knob turn to the position “ ”.
12

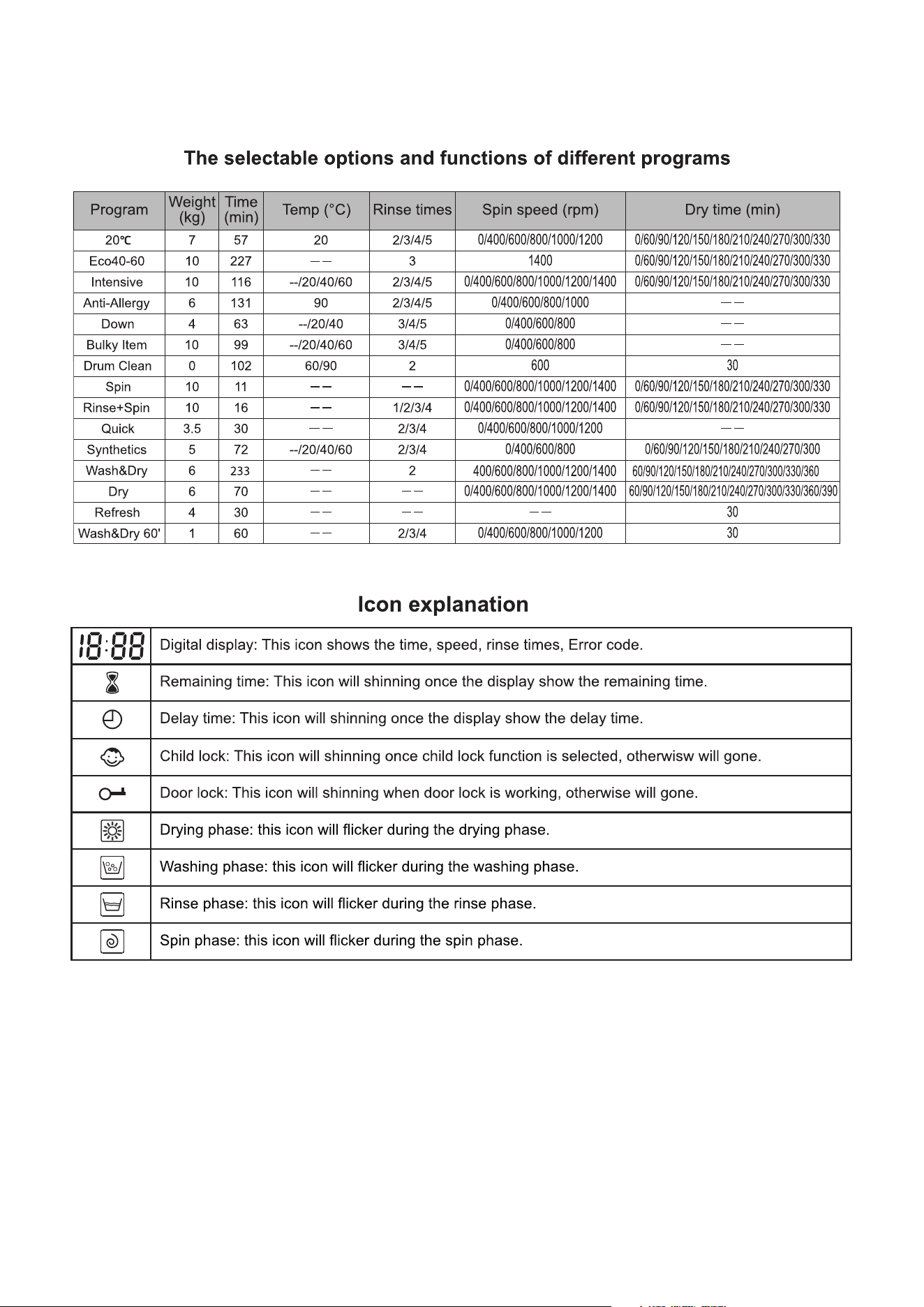

OPERATION
13

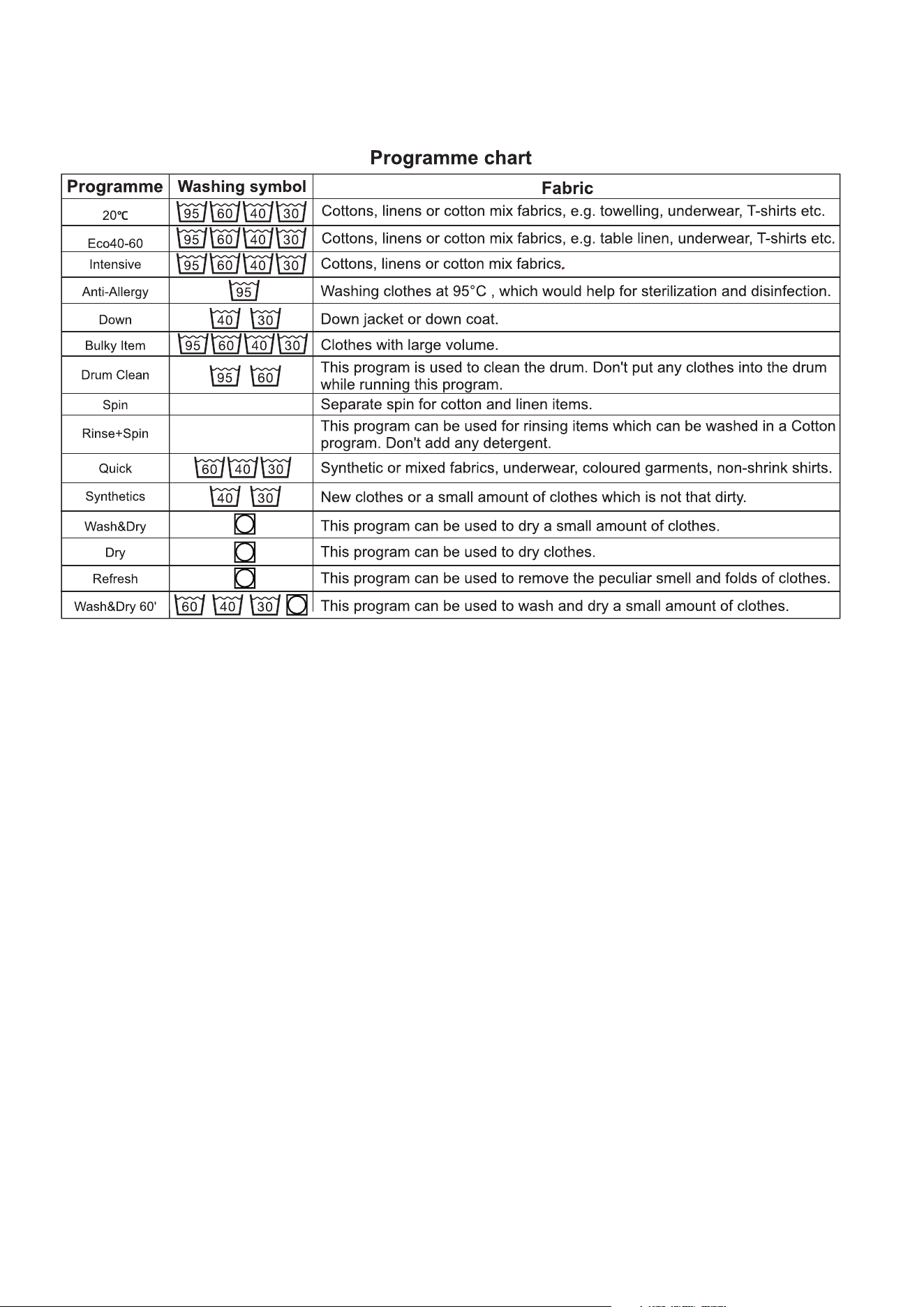

OPERATION (Cont.)
Note:
• When washing cycle is finished, the machine will change into standby mode. And
the power will be off after 10 minutes without any control on the control panel.
• The machine is fitted with balance control device, which ensures the machine
is stable during the spin. To protect the machine, it will cut in if the laundry is not
evenly distributed in the drum. The laundry is redistributed by reverse rotation of the
drum. This may happen several times before the unbalance disappears and normal
spinning can resume. If after 15 minutes, the laundry is still not evenly distributed
in the drum, the machine will not spin. In this case, redistributed the load manually
and reselect the spin programme. The test program Eco40-60 is for cottons, linens
or cotton mix fabrics. Eco40-60 is the one recommended for a normally soiled load
equal to the rated load capacity in the product literature.
Door Lock
• When the machine is started, the door is locked.
• When the temperature inside the drum is above 60˚C, the door is locked.
• When the water is above a certain level, the door is locked.
• When the washing cycle is finished, the door is unlocked.
14
Before installing your appliance, read all safety instructions in this manual,
especially the sections on electrical safety and installation.
GETTING STARTED
UNPACKING
• When unpacking the appliance, be sure to keep all the packaging materials until
you have made sure your new appliance is undamaged and in good working
order. Plastic can be a suffocation hazard for babies and young children,
make sure the materials are out of their reach.
TRANSPORTATION
• CAUTION: VERY HEAVY! Be sure to team lift the appliance with someone or
mechanical aid is required when moving the appliance. Keep the appliance
upright as possible when moving the appliance.
15
GETTING STARTED (Cont.)
LEVELING THE APPLIANCE

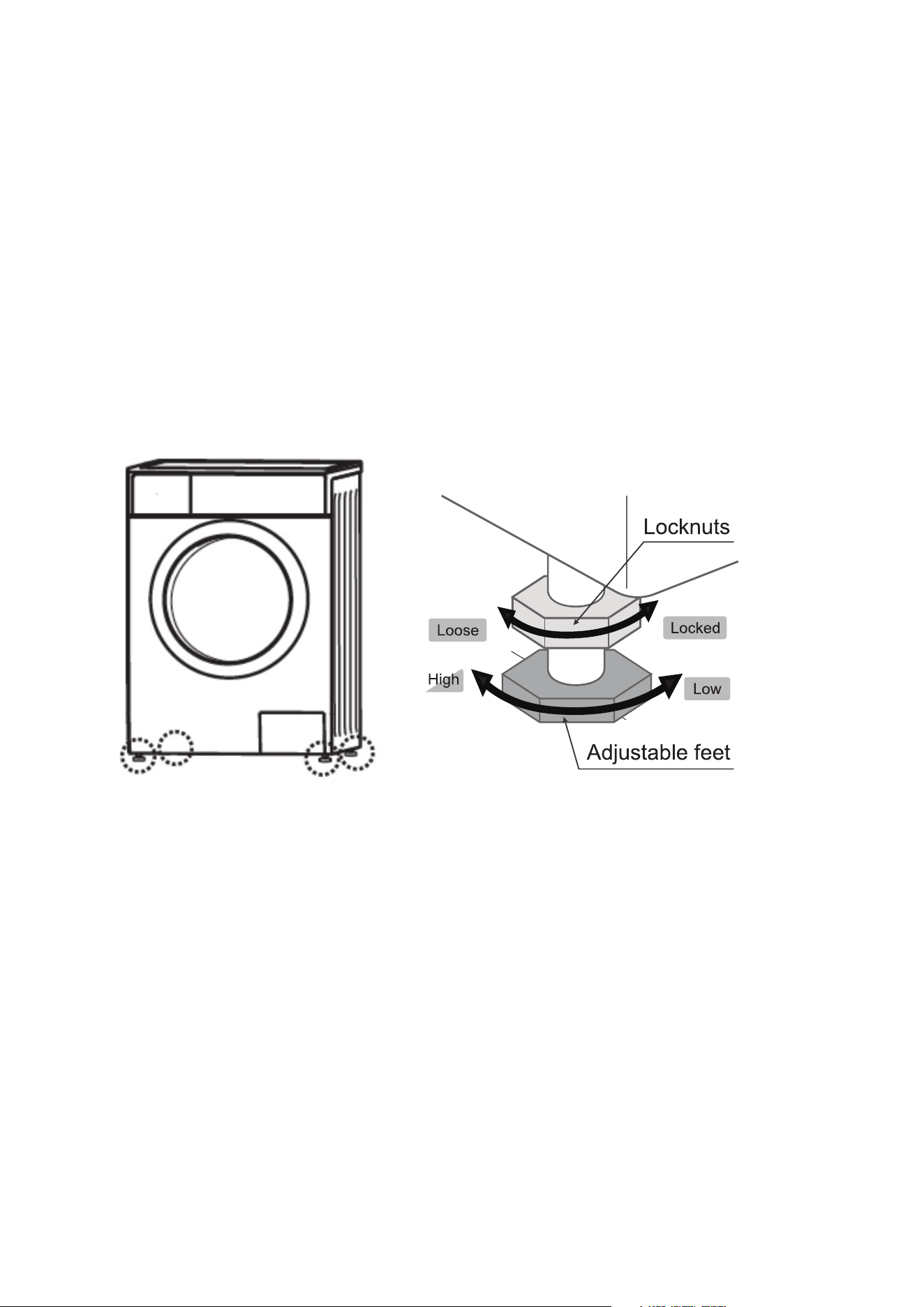

IMPORTANT! Make sure to level the appliance carefully with a spirit level to ensure
the most accurate leveling of the appliance. This is a must if your floor in
unbalanced to level the washing machine.
• Make sure to position the appliance on a level and stable ground. If the
floor is uneven you can adjust the feet by twisting the feet. Make sure to
slightly incline the appliance first then adjust the leveling feet by
twisting it clockwise or counter clockwise depending if you are raising or
lowering the feet.
Note: Make sure to avoid direct sunlight onto the appliance.
• By placing a spirit level on top of the appliance you can check correctly to
aid you in adjusting the feet leveling nuts to adjust the appliance to be
completely level.
16

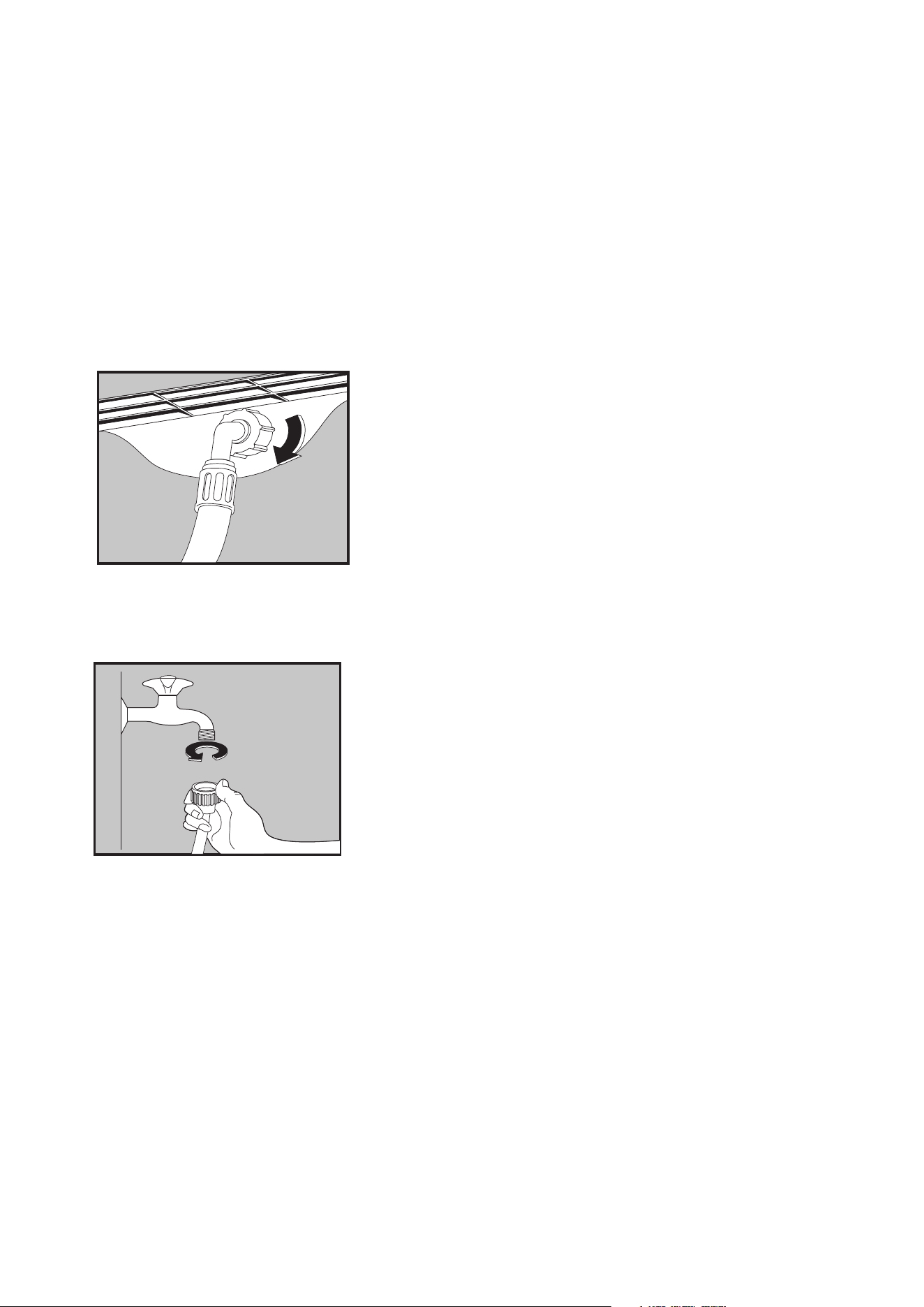

CONNECTING THE WATER INLET HOSE
IMPORTANT! To prevent leakage or water damage please follow the below
instructions. Do not kink, crush, modify or sever the water inlet hose.
• Connect the inlet pipe as indicated, there are two steps of connecting
the inlet pipe.
1. Connect the inlet hose to the machine.
2. Connect the inlet hose to a tap with 3/4” thread.
GETTING STARTED (Cont.)
17
GETTING STARTED (Cont.)

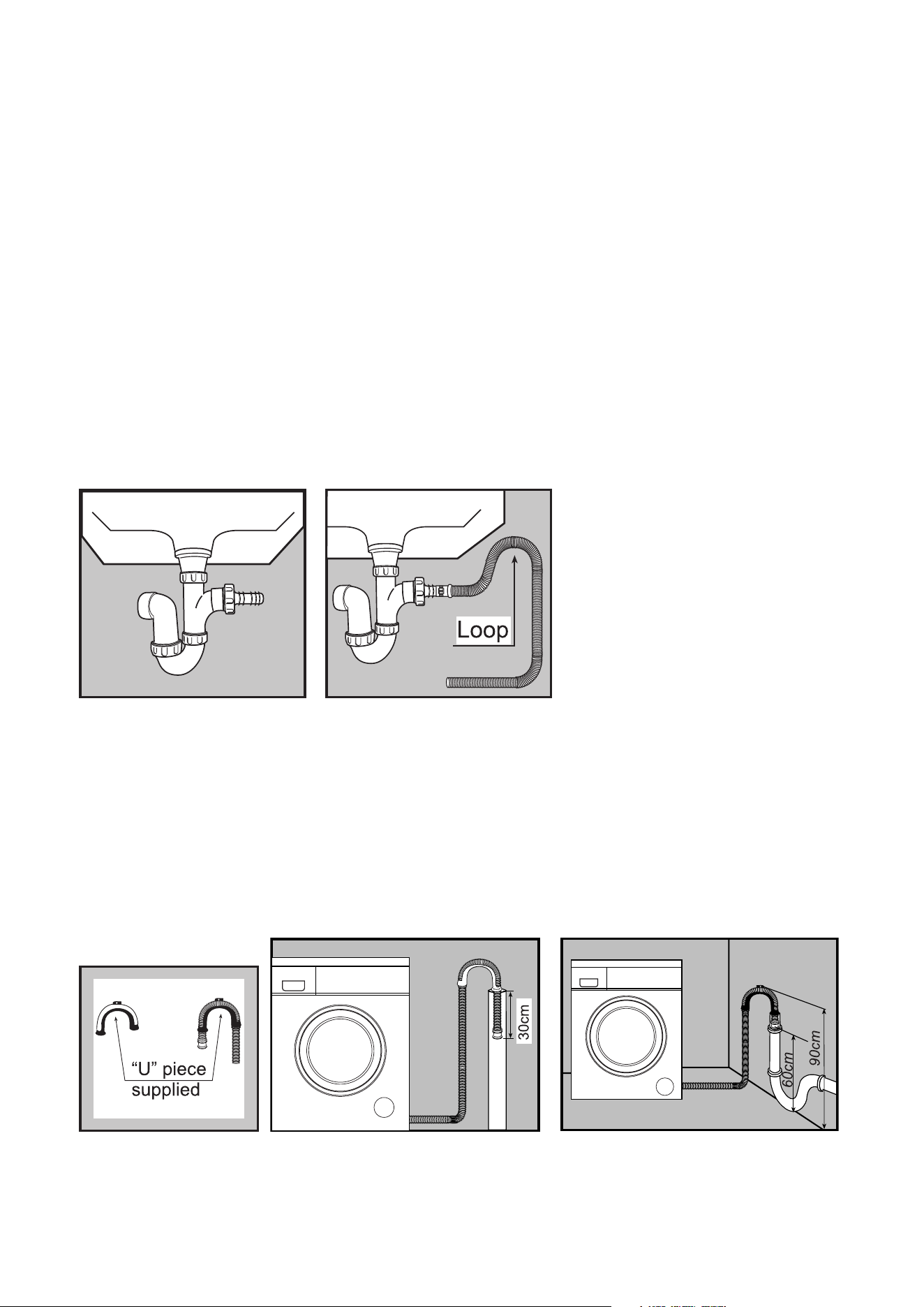

CONNECTING THE DRAIN HOSE
• Do not kink or protract the drain hose. Position the drain hose correctly other
wise damage will result in water leakage.
• Do not bend the drain hose or place it under the washing machine.
• Be sure to only use new hose sets when connecting the Washing Machine.
Do not re-use old hoses.
1. Direct into a sink
If the outlet spigot has not been used before, remove any blanking plug that may
be in place. Push the drain hose onto the spigot and secure with a clip if required,
ensure a loop is formed in the drain hose to prevent waste from the sink entering
the washing machine.
If required,the drain hose can be extended to a length of 4 m.
2. Connected securely to a standpipe
Firstly form a hook in the end of the drain hose using the “U” piece supplied.
Place the drain hose into your standpipe, which should have an internal diame-
ter of approximately 38mm thus ensuring there is an air break between the drain
hose and standpipe. When discharging into a standpipe ensure that the top of the
standpipe is no more than 90cm and no less than 60cm above floor level.
18
BEFORE FIRST USE
• Make sure the washing machine is completely level as to previous instructions
on how to level your washing machine.
• Make sure the water inlet hose is installed correctly.
• Make sure that the washing machine is plugged into the power socket.
• When the water inlet hose is installed, turn on the water supply on the tap.
After the above steps have been completed, In a few simple steps you can select
the type of wash you want and get started.

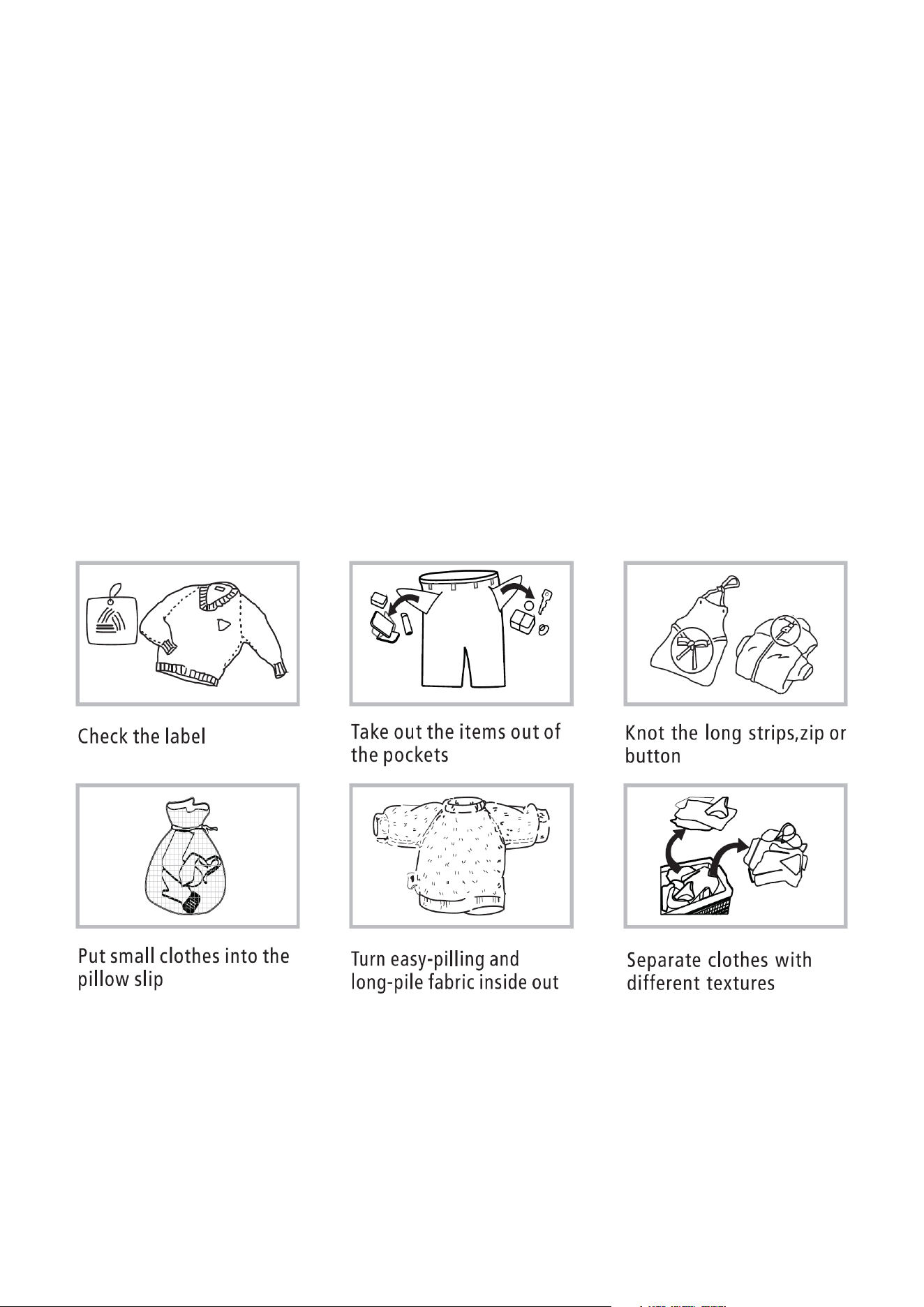

INSTRUCTIONS
• Make sure that the appliance is in a correct working temperature (0-40˚C).
If the appliance is used under 0˚C the inlet valve and draining system may
be damaged.
• Make sure that all labels are checked on items if they can be washed.
• Use non-foaming or less-foaming detergents which are more suitable for
washing machines to wash correctly.
WARNING
• Never use the washing machine to wash a single item at any given time, if you
need to urgently wash an item, we suggest placing a few clothing items in there.
• Make sure that all labels are checked on items if they can be washed.
• Use non-foaming or less-foaming detergents which are more suitable for
washing machines to wash correctly.
• Maximum load is 6.0kg for Drying / 10.0kg for Washing.
19

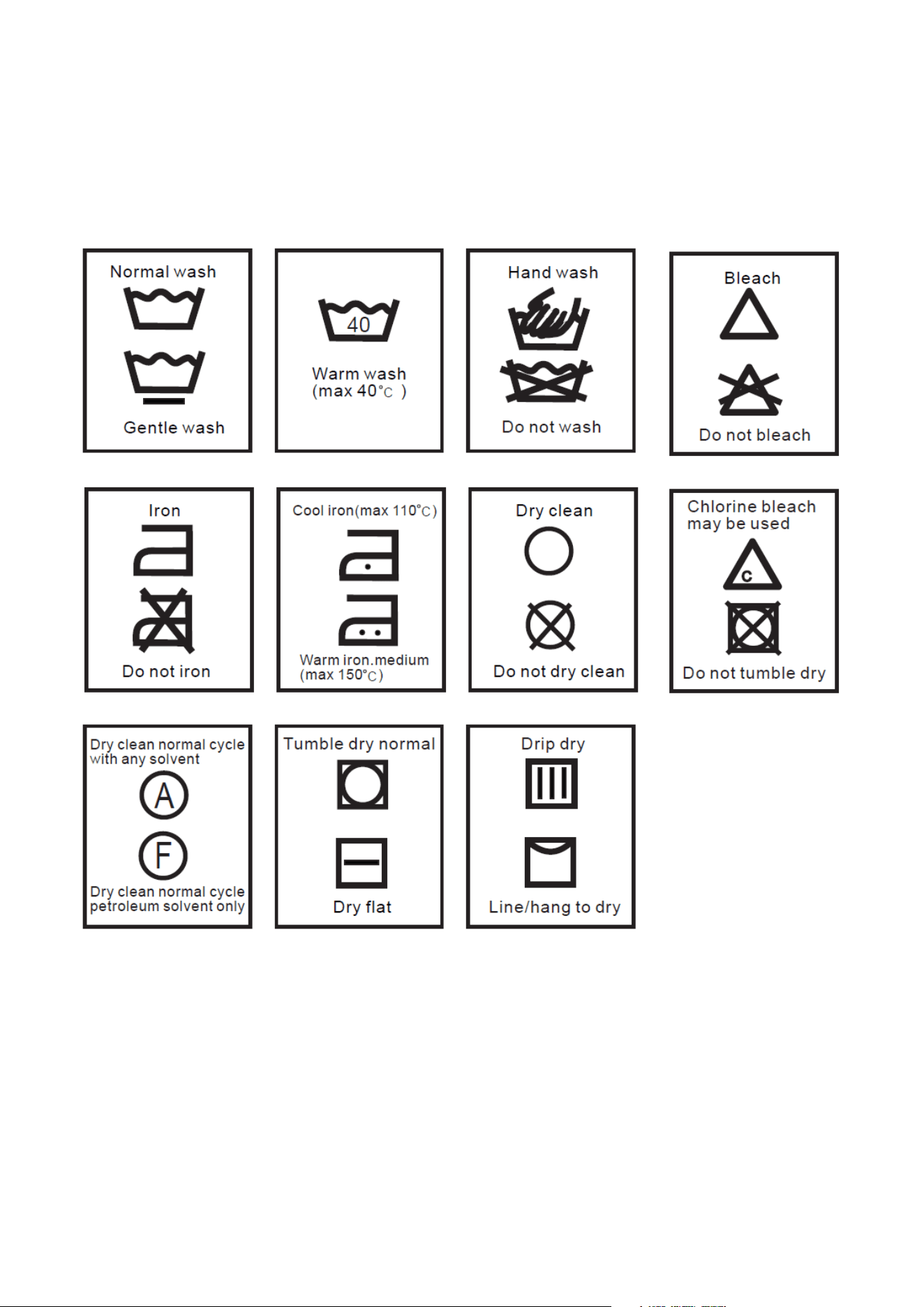

WASH CARE SYMBOLS
When choosing a wash program, check for any labels on your clothes and follow
the instructions. below are some commonly used symbols.
INSTRUCTIONS (Cont.)
20
CLEANING AND MAINTENANCE
WARNING:
• Before starting maintenance, ensure that the appliance is unplugged and
close the tap.
CLEANING THE CABINET
Proper maintenance on the washing machine can extend its working life.
The surface can be cleaned with diluted non-abrasive neutral detergents when
necessary. If there is any water overflow, use a wet cloth to wipe it off immediately.
Make sure no sharp items are used to clean the appliance.
• Use a gentle cloth to wipe off the water and dirt on the surface of the
washing machine after every use. Detergent, properllant and other chemicals
are not allowed to be used to clean the washing machine surface as it can
damage the plastic accessories.

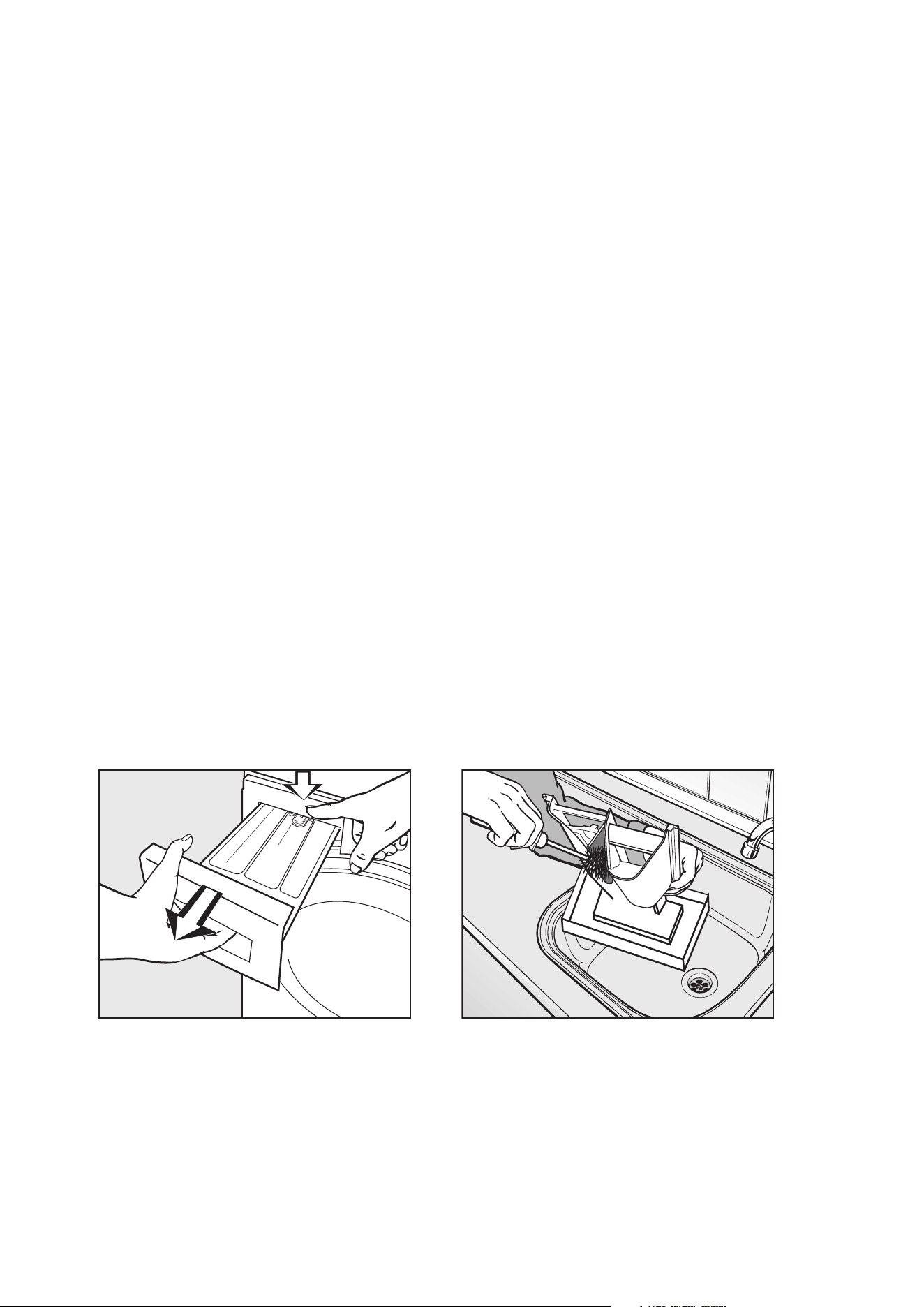

CLEANING THE DRAWER
Remove detergent residues regularly. Clear the drawer following these:

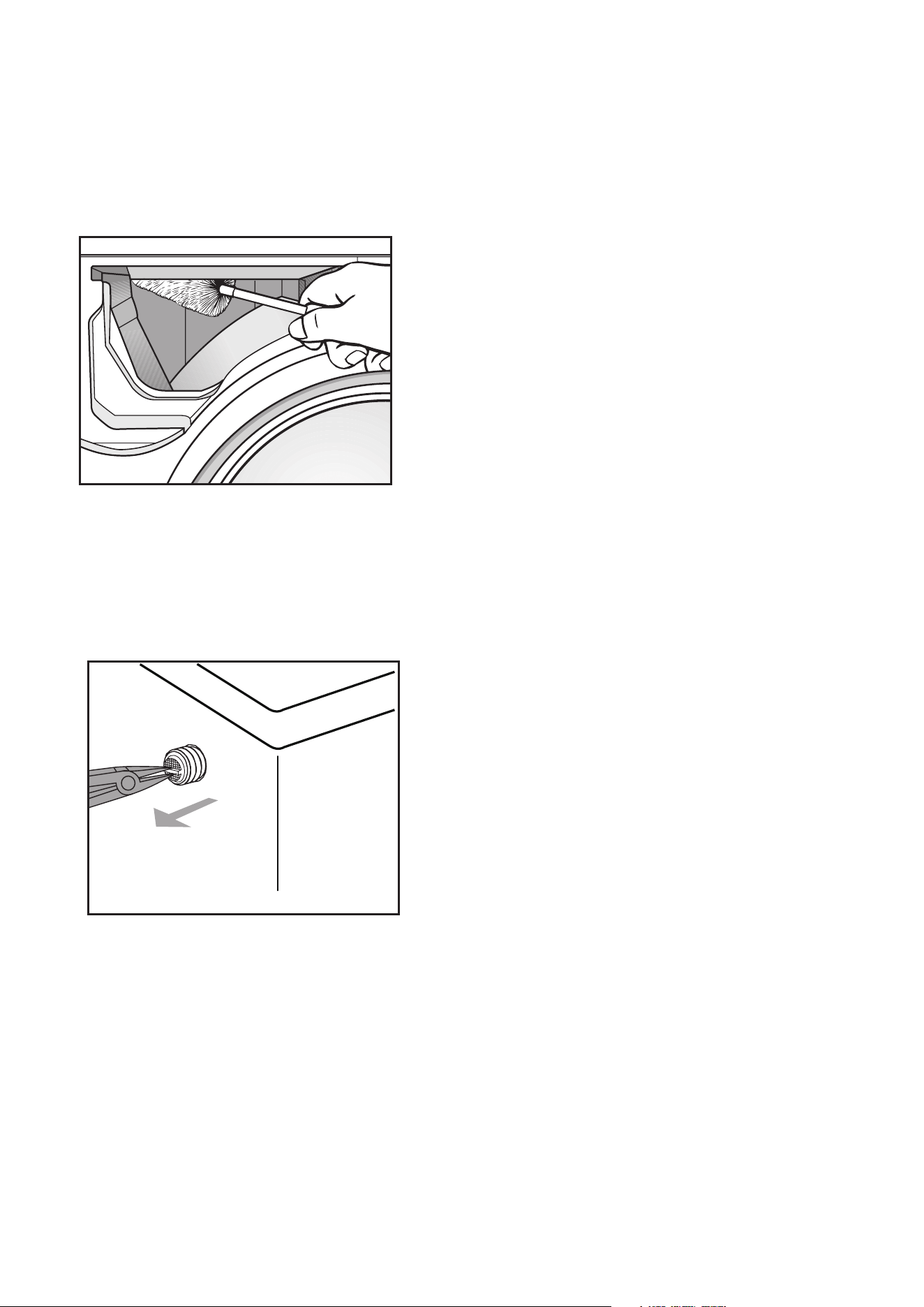

• Pull out the drawer until a resistance is felt. Press down the release catch and at
the same time pull the drawer right out of the machine.
• Remove the siphon from compartment and clean it.
• Clean the dispenser using a brush and warm water.
21
CLEANING AND MAINTENANCE (Cont.)
CAUTION!
CLEANING THE DRAWER HOUSING
Use a bottle brush to remove detergent residues inside the drawer housing.
CLEANING THE WATER INLET FILTER
Use pointed nose pliers to withdraw the plastic filter. Clean, put back and secure.
These filter should be checked every 6 months or so, or more often if there are
frequent interruptions to the water supply.
• Make sure that valve cap is reinstalled properly, cap plates should be inserted
aligning to hole plates otherwise water may leak.
• When the appliance is in use and depending on the programme selected
there can be hot water in the pump. Never remove the pump cover during
a wash cycle, always wait until the appliance has finished the cycle, and is
empty. When replacing the cover, ensure it is securely re-tightened.
22
CLEANING AND MAINTENANCE (Cont.)
CLEANING THE DRAIN PUMP FILTER

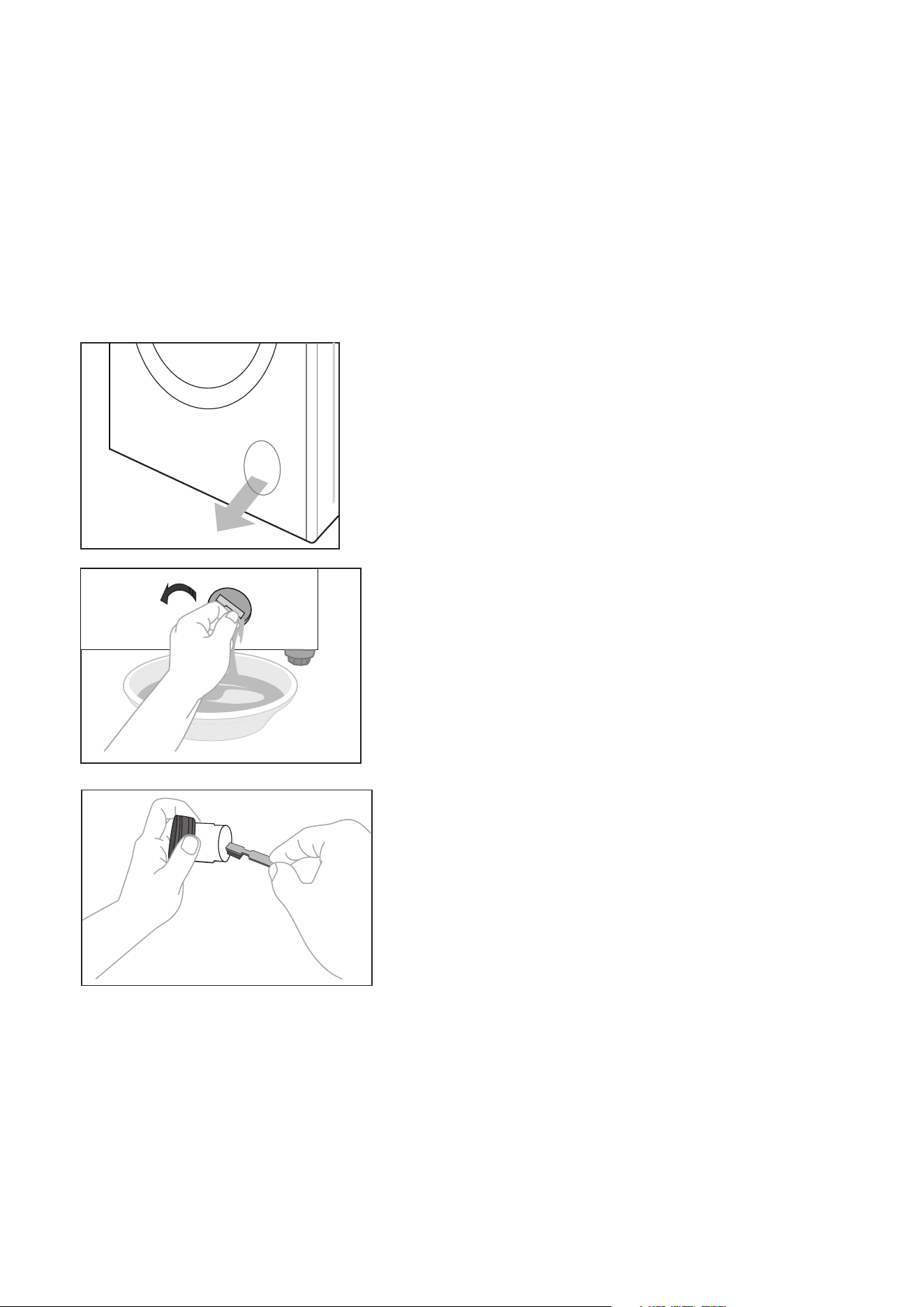

1. Disconnect the machine from the mains electricity supply and open the lower
cover with a screwdriver.
2. Place a container under the pump. Unscrew and remove the filter.
3. Clean the filter carefully.
23

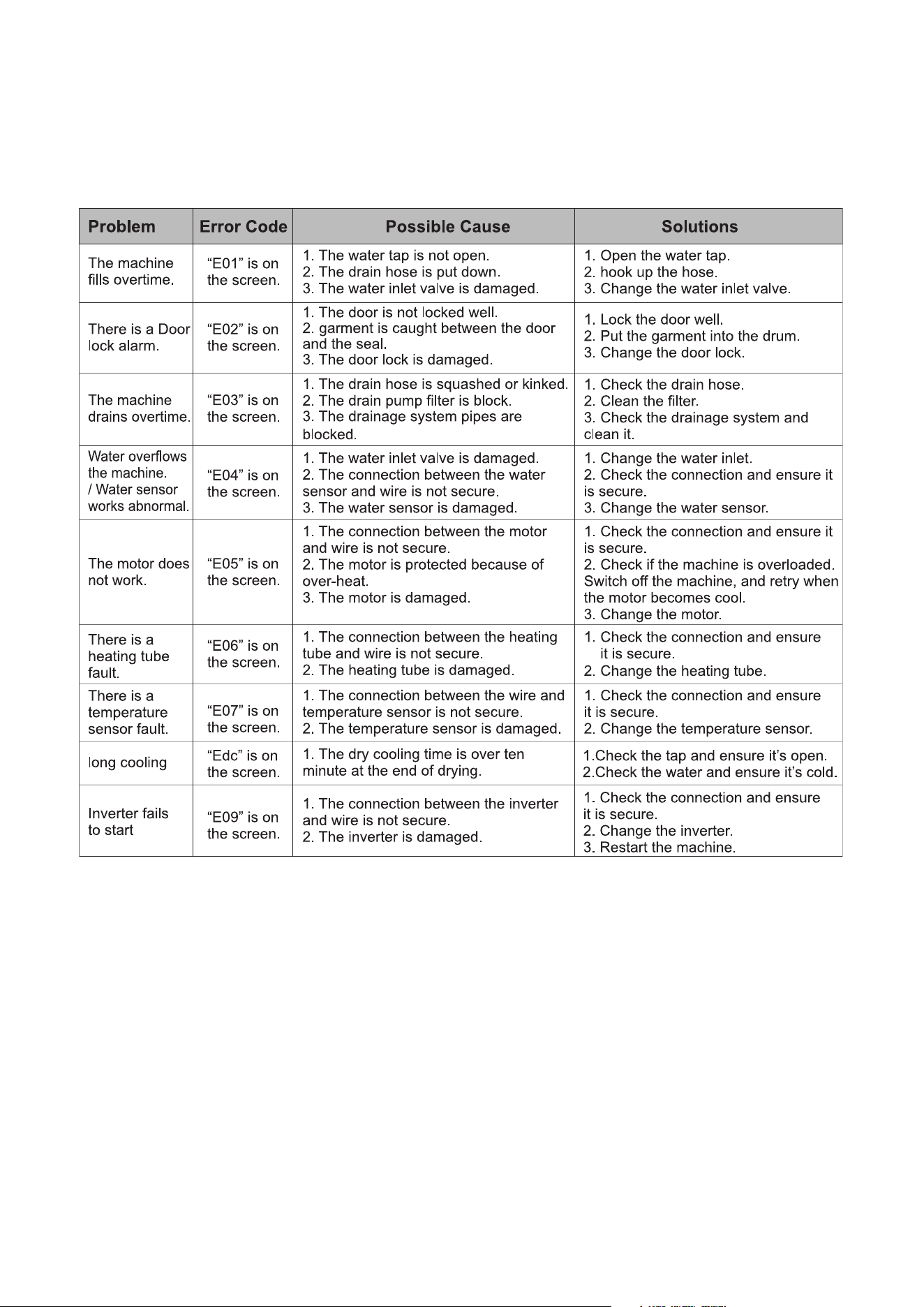

Please be sure to contact our call centre on info@ayonz.com if you cannot identify
the issue with the below information.
FAQs
24
SPECIFICATIONS
Power Supply 220-240V ~ 50Hz
Standard Water Pressure 0.02MPa~0.8MPa
Washing/Dry Capacity 10KG / 6KG
Rated Power 2000W
Dimensions 595 x 665 x 845 mm (W x D x H)
Weight
Net: 69 kg
Gross: 73 kg
25
26
27
28
CUSTOMER HELPLINE:
info@ayonz.com
02 8279 8606
DISTRIBUTED BY:
Ayonz Pty Ltd
